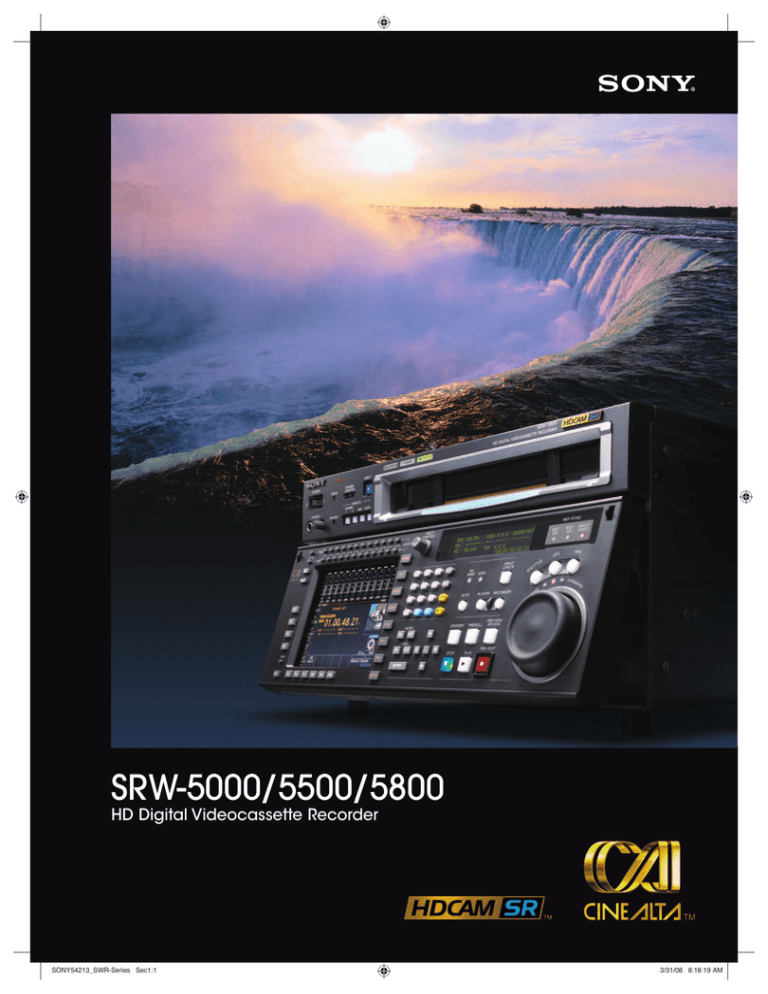

SRW-5000/5500/5800

SRW-5000/5500/5800

HD Digital Videocassette Recorder

2

CineAlta

TM

_ Liberating Movie

Makers

CineAlta

_ a name that proudly symbolizes the bond between cinematography and Digital high-definition imaging. It distinguishes a Sony family of products and systems that offer new levels of creativity in the production, postproduction, and exchange of motion pictures. It also brings together the quality of

24-frame cinematography with the real-time capabilities, efficiency, and flexibility of Digital high-definition technology. And it stimulates the convergence of Motion Picture Film and Digital high-definition production on a global basis.

CineAlta products, delivering cinema-quality pictures at selectable frame rates, are simplifying International Program Exchange by minimizing the need for standards conversion.

They are also opening up entirely new possibilities for international co-production.

Movie making has been liberated by the creative empowerment of the cinematographer. It is facilitated by real-time

HD image evaluation on-set, instant replay of full-color high-resolution digital “takes,” real-time image optimization while shooting, a 50-minute shooting load, and most importantly, by the significant cost-benefits associated with this digital medium.

CineAlta products provide a seamless bridge between 24-frame film originals and a final 24P digital master, giving each frame of film a one-to-one correspondence with progressive

HD frames. The CineAlta environment readily interfaces with the computer graphics world, liberating postproduction. And the final liberation is achieved through the direct color conversion of progressive 24P masters to film, and to a host of other international digital

HDTV and SDTV distribution formats.

HDCAM-SR VTRs – Solid

Today’s Environment

Today, content is distributed in diverse formats and via diverse channels such as D-Cinema, cell phones and international content syndication. In this environment, it is critical that the content owner produces and stores valuable content at the highest possible quality levels, in order to guard against multi-compression artifacts and to prolong content longevity. It is also important to store prime content on optimum media. Video tapes remain the most cost-effective, and extremely reliable, digital storage medium. The Sony HDCAM-SR™ VTR – at the pinnacle of the Sony digital HD VTR lineup – meets all of these vital criteria, and is the best possible choice for today and tomorrow, and a solution that is worth more than the investment itself.

Digital Cinema Innovation

The epoch-making launch of the Sony HDW-F900

CineAlta camcorder introduced a new, innovative way to produce movies using 24-frame-based video.

Today, a number of films are produced digitally using this method. Premium digital cinema cameras including Arriflex D20, Panavision Genesis™ and Sony

F35/F23 cameras all record on the HDCAM-SR portable VTR. 3D live action content such as features and concerts are also recorded onto HDCAM-SR recorders with 3D camera rigs based on Sony camera technology.

The combination of RGB imaging and the operational convenience of real-time recording and playback has empowered cinematographers and directors to create images that could not be achieved with traditional technologies.

SRW-5000

Choice for Today and Tomorrow

TV

Over 5000 units of HDCAM-SR VTRs are in use worldwide. Key factors in this widespread adoption are visually lossless compression (4:2:2) and

12-channel audio recording. Also, despite extremely high bit-rate HDCAM-SR recording, these decks are extremely robust, and as equally bullet-proof as other

Sony 1/2-inch VTRs such as the proven BETACAM

® and Digital BETACAM. In fact, a host of stations now go on-air directly from the HDCAM-SR deck. In nonlinear-based environments, the HDCAM-SR deck plays a vital role, enabling high-speed material transfer at twice normal speed between the deck and servers or nonlinear editing systems via a

Dual-link HD-SDI interface. Yet, transfer via the HD-SDI provides much higher levels of QoS than via normal computer networks, which are vulnerable to unpredictable network traffic problems.

Looking Ahead to the Future

For years, Sony has had a vision of providing a total

1080 50P/60P production tool set ranging from camera and switcher to VTR and display. With the latest remarkable developments in consumer display technology, the general public can now watch 1080

50P/60P progressive imagery in the living room. Due to limitations in aerial transmission bandwidth, it’s likely that 1080-interlaced and 720-progressive transmission standards will co-exist into the foreseeable future. With this in mind, Sony is giving on-going support to 1080 50P/60P-based production as the ideal production solution for premium content such as sports, concerts and documentaries.

For ODS (Other Digital Stuff: alternative content to feature movies) – and in particular the recently discussed large-venue screening issues including digital cinema – HDCAM-SR products offer key capabilities such as extreme image quality and

12-channel audio.

Last but not least, 4K digital projection has been making in-roads into premium theaters. In future, 4K content production will grow rapidly. However, right now, 4K Digital Intermediate is an engineering challenge for post-production facilities that are struggling to secure processing/network bandwidth/ storage space. HDCAM-SR VTRs provide the solution with outstanding capabilities such as 4K uncompressed data recording onto tape, and conversion of 4K image file recording to HD video recording. These capabilities serve to significantly lower the barriers to handling 4K image files.

Simply put, choosing HDCAM-SR VTRs means that the future is protected.

SRW-5500 SRW-5800

3

Features and Benefits

HDCAM-SR Format Recording

1080 Recording and Playback

The SRW-5000/5500/5800 records full HD images with exceptionally high picture quality using 1080 x 1920 active pixels as specified by the ITU Common Image Format (CIF). The entire range of both interlaced and progressive frame rates is available, from 50i/60i and 24/25P through to 50P/60P*, covering high-end

HDTV production applications, and commercial and cinema productions.

The SRW-5000/5500/5800 records top-quality 4:2:2 Y/Cb/Cr component or full-bandwidth 4:4:4 (RGB) 10-bit recordings**, both with very mild compression.

The SRW-5000/5500/5800 also offers up to 12 channels of

24-bit audio at 48 kHz, to meet the needs of the most demanding audio recording tasks in digital-content mastering.

Each channel is independently editable.

The SRW-5000/5500/5800 is the optimal VTR for any movie-making task – from acquisition and editing to telecine transfers and digital mastering.

*

The 50P/60P recording capability is available on the SRW-5800 with the optional

HKSR-5803HQ board.

**

The 4:4:4 recording capability is available on the SRW-5000/5500 with the optional HKSR-5003 board or the SRW-5800 with the optional HKSR-

5803SQ/5803HQ board.

720P Recording and Playback

In standard configuration, the SRW-5000/5500/5800 also records in 4:2:2 720/59.94P or 720/50P formats. These formats can be used for DTV programming and transmission applications. As with the 1080 format, users still have up to 12 channels of independently editable 24-bit audio available when operating in 720P format. In addition, 720P/1080i and 720P/480i or 576i bidirectional format conversion can be accomplished in these

VTRs.

4

Double-data-rate Recording (SRW-5800 only)

The SRW-5800 provides a recording capability at a high data rate of 880 Mb/s with the addition of the optional HKSR-5803HQ board. This was only previously available on the SRW-1

HDCAM-SR Portable VTR. With this high bit rate of 880 Mb/s, high-quality recording is available in three different recording modes: 4:2:2/1080/60P and 50P mode, 4:4:4 High Quality (HQ) mode and Dual Stream mode.

4:2:2/1080/60P and 50P Mode

The 4:2:2/1080/60P and 50P recording mode is highly compatible with computer graphics, games and other progressive-based programs such as demonstration reels for flat-panel displays. Material with a lot of fast-moving scenes like sports is well suited to the 4:2:2/1080/60P and 50P mode. Also, when converting material originated in 1080/60P or 50P format to 720P format, this mode offers exceptional picture performance due to the original high resolution of 1920 x 1080. Another benefit of using the 4:2:2/1080/60P and 50P recording mode is that it enables image creation with extremely high-quality slow-motion effects.

4:4:4 High Quality (HQ) Mode

The 4:4:4 High Quality (HQ) mode of the SRW-5800 enables 880

Mb/s 4:4:4 RGB recording with a milder compression ratio of 2:1.

This is ideal when highest possible image quality is the top priority.

Dual Stream Mode

The Dual Stream mode enhances flexibility and creative versatility. This mode allows the SRW-5800 to record the images of two cameras simultaneously, making it possible for users to shoot two different scenes simultaneously or achieve 3D stereo shooting. The SRW-5800 can also play back materials shot in

Dual Stream mode with the SRW-1.

Supported Recording Signal Formats

System Format

Signal Format Frame Rate

Recording Mode SRW-5000 SRW-5800

SRW-5500

1080 4:2:2 60/59.94/50P Double-data-rate —

(880 Mb/s)

30/29.97/25 Standard

/24/23.98PsF

60/59.94/50i

30/29.97/25 Double-data-rate —

/24/23.98PsF (880 Mb/s)

60/59.94/50i

(Dual Stream)

*

*

*

/24/23.98PsF

60/59.94/50i

** ***

/24/23.98PsF

60/59.94/50i

720 4:2:2 59.94/50P Standard

(440 Mb/s)

*Requires optional HKSR-5803HQ board.

**Requires optional HKSR-5003 board.

***Requires optional HKSR-5803SQ or HKSR-5803HQ board.

High-speed Material Transfer

The SRW-5800 with the optional HKSR-5803HQ Advanced HQ

Processor board allows single stream 4:2:2 material to be transferred to servers and nonlinear editing systems at twice the normal speed using a standard Dual-link HD-SDI interface. This is achieved by playing back tapes at 880 Mb/s (double the recorded 440 Mb/s speed) and transferring the data using two linked HD-SDI cables. This capability can greatly reduce the time required for material ingest.

HDCAM Format* Recording (SRW-5500 only)

In addition to the HDCAM-SR format, the SRW-5500 enables

HDCAM ® recording and playback in all frame rates specified by the HDCAM format, including 1080/23.98, 24, 25, 29.97, 30PsF and 1080/50, 59.94, 60i. It supports the full editing capability of

HDCAM format recordings, including independent editing of the four audio channels.

This HDCAM recording capability offers a cost-effective yet high-quality alternative, operating in the full quality of the industry-standard Common Image Format (CIF).

*

The HDCAM format does not support 720P recording and RGB 4:4:4/

1080 recording.

Internal Format Conversion

The SRW-5000/5500/5800 is equipped with an internal down converter that provides SDTV outputs from 1080 and 720 recordings. By adding optional plug-in boards, users can give the SRW-5000/5500/5800 extended format-conversion capabilities such as 2-3 pull-down, conversion from 1080 to 720 and vice versa, and 4:2:2 to 4:4:4 and vice versa. For further details, please refer to the format conversion chart on page eight.

Long Recording Time on a Single Cassette*

Utilizing the technologically advanced HDCAM-SR format’s high-density recording capability and compression technology, the SRW-5000/5500/5800 is capable of recording up to 155 minutes at 1080/24PsF and up to 124 minutes at 1080/59.94i or 720/59.94P on a single L-sized cassette.

S-sized cassettes can also be used, offering up to 50 minutes of recorded material at 1080/24PsF and up to 40 minutes at

1080/59.94i or 720/59.94P.

*

When the SRW-5500 records in HDCAM format, it provides the same recording times as in HDCAM-SR format.

Legacy Playback

Not only is the SRW-5000/5500/5800 an affordable VTR for use in digital cinematography and high-end HD production, it also provides a smooth migration path for organizations with legacy systems by retaining current acquisition tools and archives in

Easy Maintenance

Drum maintenance is always a concern for VTR users. As with most Sony VTRs, the SRW-5000/5500/5800 drum assembly has been designed with an auto-adjustment function, so that maintenance can be performed in minimal time.

action. The SRW-5000/5500/5800 can play back HDCAM and

Digital BETACAM* tapes, making it an ideal and cost-effective solution for facilities involved in demanding high-end film and

HD work.

*

Please refer to the Supported Formats table.

Supported Formats

User-friendly Controls

The front control panel of the SRW-5000/5500/5800 is extremely user friendly, with a design and functionality inherited from the widely used HDW-F500. In addition, the control panel has a large

6.4-inch* type LCD display that provides comprehensive information, including color thumbnails, for quick location of

Recording Format Playback Format Playback Format

(Standard) (Option)

SRW-5800 HDCAM-SR HDCAM-SR parameters, which is used in combination with eight menu buttons placed along the side of the display.

HDCAM

Digital

(HKSR-5802)

*

Viewable area measured diagonally.

SRW-5500 HDCAM-SR HDCAM-SR

Digital BETACAM

HDCAM HDCAM (HKSR-5002)

SRW-5000 HDCAM-SR HDCAM-SR

HDCAM (HKSR-5002)

SRW-1 HDCAM-SR HDCAM-SR —

5

Operational Features

Frame-accurate Insert/Assemble Editing

The SRW-5000/5500/5800 recorder is capable of insert or assemble editing with frame accuracy. Each channel of video and audio is independently editable, and users can execute precise editing on HDCAM-SR or HDCAM* tapes in machine-to-machine or A/B roll configurations.

*

SRW-5500 only

High-Speed Color Picture Search

The SRW-5000/5500/5800 provides recognizable color pictures in Shuttle mode at speeds of up to 42 times normal playback for HDCAM-SR format*, and at speeds of up to 50 times normal playback for HDCAM and Digital BETACAM formats.

*

When recorded with Double-data-rate mode, the speed is 1/2.

6

Noiseless Picture Playback

The SRW-5000/5500 comes with a Dynamic Tracking™ playback capability that provides high-quality pictures in a range of

-1 to +2 times normal playback speed during the playback of

HDCAM-SR tapes, while the SRW-5800 provides -0.5 to +1 with Non

Tracking.

Noiseless Picture Playback Capability

HDCAM-SR

HDCAM

Digital BETACAM

-1 to +2(DT)

-1 to +2(DT)

-1 to +3(DT)

DT : Dynamic Tracking NT : Non Tracking

-0.5 to +1(NT)

Digital Jog Sound

In Jog mode, all 12 audio digital channels of the HDCAM-SR format or all four channels of the HDCAM format can be reproduced with a responsiveness and sound quality reminiscent of analog audio. This feature is essential to quickly and precisely establish an editing point while monitoring digital audio signals which remain synchronized with the pictures.

Dynamic Motion Control (DMC) Playback*

The SRW-5000/5500 also provides a DMC playback capability, memorizing tape-speed trajectory over the dynamic tracking-speed range (-1 to +2 times normal speed).

*

The SRW-5800 does not support this capability for HDCAM-SR format.

Pre-read Editing*

The SRW-5000/5500 is equipped with advanced playback heads that allow pre-read editing, enabling functions such as titling and voice-over with a single VTR.

*

The SRW-5800 does not support this capability.

Confidence Playback

Separate dedicated playback heads immediately follow the recording heads so that actual audio and video recorded to tape can be monitored while recording. Confidence playback can be used to verify the quality of a recording without interrupting production.

Program Play Function with Audio Pitch

Correction*

The SRW-5000/5500 has a Program Play function** that allows video recordings to be played back at up to ±5% normal speed, with appropriate audio pitch correction. These VTRs also perform audio pitch correction at up to ±5% when playing back tapes recorded at a frequency different to the one set for system playback in the VTR***.

*

The SRW-5800 does not support this capability.

**

The Program Play function requires the optional HKSR-5001 board, and is available when the VTR is set to 4:2:2/1080/59.94i or 4:2:2/720/59.94P mode.

***

Available only when the difference of these frequencies is within 5%

(23.98 frames <—–—> 24 frames, 23.98/24 frames <—–—> 25 frames or 29.97 frames <—–—> 30 frames).

Audio Output Channel Selection

The SRW-5000/5500/5800 is equipped with a unique internal audio-output router, which enables flexible audio-output channel routing without the use of an external audio-routing device. Any channel from the 12* available on HDCAM-SR tape can be assigned to the HD-SDI (Ch 1-12) and SDI (Ch 1-8) embedded audio-output channels. This feature provides the flexibility needed when recording audio to different tape formats.

*

Four channels on HDCAM/Digital BETACAM tape.

Dual-sync Operation

A unique feature of the SRW-5000/5500/5800 allows users to seamlessly integrate the VTR into a 59.94 editing environment.

In doing so, users can directly perform insert editing – from a

23.98PsF master tape to either a 1080/59.94i or a 525/59.94i recording – without having to first dub the master to 59.94 format.

This is achieved by supplying dual reference signals, one to lock the servo of the SRW-5000/5500/5800 to a 23.98-Hz signal and one to lock the playout circuitry to a 59.94-Hz reference signal.

Off-speed Playback Capability

In order to play back material at different speeds for applications such as slow-motion or fast-motion, the SRW-5000/5500/5800 is equipped with a built-in off-speed playback capability.

HDCAM-SR Off-speed Playback Capability

4:2:2 mode

System HD-SDI OUTPUT

setting 1080

Recorded tape 50i 59.94i 60i

720

23.98PsF 24PsF 25PsF 29.97PsF 30PsF 50P 59.94P 60P 50P 59.94P

1080 23.98PsF

24PsF

– –

– –

– – 25PsF

50i

29.97PsF

59.94i

– –

– – 30PsF

60i

50P

59.94P

720

60P

50P –

59.94P

– –

– –

– –

4:4:4 mode

System HD-SDI OUTPUT

setting 1080

Recorded tape

23.98PsF 24PsF 25PsF 29.97PsF 30PsF

50i 59.94i 60i

1080 23.98PsF

24PsF

25PsF

50i

29.97PsF

59.94i

30PsF

60i

:Normal playback

:0.1% off-speed playback

:Video and Audio off-speed playback

:Video off-speed playback

:Video off-speed playback (23.98/24/25/29.97/30 PsF recorded tape only)

RGB 4:4:4 HQ mode and RGB 4:4:4 SQ mode are incompatible.

SRW-5000/5500 does not support RGB 4:4:4 HQ mode.

Playback of Tapes Recorded by SRW-1

The SRW-5000/5500/5800 VTR is capable of playing back tapes recorded by the SRW-1 recorder in the following unique modes:

Dual Stream mode: The SRW-5800 can play back material

shot by the SRW-1 in Dual Stream mode. The SRW-5000/5500

can play back either channel A or channel B of Dual Stream

4:2:2 recording. The stream to be played back is user

selectable via the menu.

1080/4:2:2/60P mode*: The SRW-5000/5500/5800 can play

back a 1080/60P tape in 24P, 25P and 30P mode, producing

the desired slow-motion effect in playback at normal speeds.

It is also possible to play 60P recordings in normal speed by

playing back every other frame, so only 30 frames in total are

played back. The SRW-5800 can also play back in 1080/60P

mode, offering smooth pictures for playing back fast-moving

scenes.

Select FPS mode*: The SRW-5000/5500/5800 can play back

a tape recorded with the Select FPS function at 24P, 25P and

30P mode, both in 4:2:2 and 4:4:4, producing the desired

slow- and fast-motion effect in playback at normal speeds.

*

For material recorded in this mode, audio playback is not available.

Storage of Setup/System Menus in VTR Memory

Banks

The SRW-5000/5500/5800 VTR allows operators to effectively manage its menus using VTR memory banks. Up to eight groups of parameters in the System Menu and Setup Menu can be individually saved in the VTR’s internal memory as a bank memory. They can also be saved onto Memory Stick™ media, enabling these groups of parameters to be copied onto other

SRW-5000/5500/5800 VTRs for quick and consistent setup of multiple VTRs*. The operator can select a suitable name for each bank memory.

*

This capability is not fully supported when exchanging data between the

SRW-5000/5500 and SRW-5800.

Ethernet-based Bank Memory Selection

An Ethernet interface is provided on the SRW-5000/5500/5800

VTR, enabling operators to remotely set up VTRs using a standard web browser on a PC. The VTR automatically generates SRW.html files that indicate the bank settings currently saved on the VTR. By accessing the VTR via an Ethernet interface, operators can see the parameters in each of the listed bank memories, and select a bank they want to use.

7

Internal Format Conversion Capability

REC/PLAYBACK Tape Format

HDCAM-SR

1080/4:4:4

SQ**

HQ****

23.98PsF

24PsF

HD-SDI OUT

1080/4:4:4 23.98PsF

24PsF

25PsF

29.97PsF

30PsF

50i

25PsF

29.97PsF

30PsF

50i

59.94i

1080/4:2:2****

720/4:2:2

1080/4:2:2

59.94i

60i

50P

59.94P

60P

50P

59.94P

23.98PsF

1080/4:2:2

720/4:2:2

1080/4:2:2

60i

50P

59.94P

60P

50P

59.94P

23.98PsF

HDCAM-SR or

HDCAM

24PsF

25PsF

24PsF

25PsF

Digital

BETACAM***

29.97PsF

30PsF

50i

59.94i

29.97PsF

30PsF

50i

625

525

60i

50i

59.94i

1080/4:2:2

720/4:2:2

1080/4:2:2

59.94i

60i

50i

50P

59.94i

720/4:2:2 59.94P

SRW-5800 only.

*Requires optional HKSR-5001 board.

**Requires optional HKSR-5003 board for SRW-5000/5500 or HKSR-5803SQ board for SRW-5800.

***Requires optional HKSR-5002 board for SRW-5000/5500 or HKSR-5802 board for SRW-5800.

****SRW-5800 only. Requires optional HKSR-5803HQ board.

SD-SDI OUT

525/59.94i*

625/50i*

525/59.94i*

625/50i*

525/59.94i*

625/50i*

525/59.94i*

625/50i

525/59.94i

525/59.94i*

625/50i

525/59.94i

625/50i

525/59.94i

625/50i

525/59.94i

HD-SDI (format conv. out)

(requires optional HKSR-5001)

1080/4:2:2/23.98PsF

1080/4:2:2/59.94i

720/4:2:2/59.94P

1080/4:2:2/24PsF

1080/4:2:2/60i

1080/4:2:2/25PsF

720/4:2:2/50P

1080/4:2:2/29.97PsF

720/4:2:2/59.94P

1080/4:2:2/30PsF

1080/4:2:2/50i

720/4:2:2/50P

1080/4:2:2/59.94i

720/4:2:2/59.94P

1080/4:2:2/60i

1080/4:2:2/50i

1080/4:2:2/59.94i

1080/4:2:2/60i

1080/4:2:2/50i

1080/4:2:2/59.94i

1080/4:2:2/23.98PsF

1080/4:2:2/59.94i

720/4:2:2/59.94P

1080/4:2:2/60i

1080/4:4:4/24PsF

720/4:2:2/50P

1080/4:4:4/25PsF

720/4:2:2/59.94P

1080/4:4:4/29.97PsF

1080/4:4:4/30PsF

720/4:2:2/50P

1080/4:4:4/50i

720/4:2:2/59.94P

1080/4:4:4/59.94i

1080/4:4:4/60i

720/4:2:2/50P

1080/4:4:4/50i

1080/4:2:2/50i

720/4:2:2/59.94P

1080/4:4:4/59.94i

1080/4:2:2/59.94i

Selectable Picture Modes

Three modes of operation, SQUEEZE, LETTER BOX and EDGE CROP, are available to provide correct presentation for each application type.

SQUEEZE mode LETTER BOX mode EDGE CROP mode

HD to SD, 16:9 HD picture is down-converted and output as a 4:3 SD picture.

HD to SD, 16:9 HD picture down-converted to SD and output is presented in Letter-box on a 4:3 monitor.

HD to SD, edges of a 16:9 HD picture are cropped in the down-converted 4:3 SD picture.

8

SD to HD, 4:3 SD picture is up-converted, then output as a 16:9 HD picture.

SD to HD, 4:3 SD picture is cropped and presented as a 16:9 picture.

SD to HD, 4:3 SD picture up-converted as a 16:9 HD picture, however the sides are cropped.

Operational Features

Versatile Interfaces

The SRW-5000/5500/5800 features a wide range of interfaces including:

HD-SDI I/O

HD-SDI (format conversion) out

SD-SDI out

SD composite out

AES/EBU digital audio I/O

Analog audio out (one to four channel): for SRW-5000/5500 only

Analog audio monitor out

Analog monitor out(cue)

Analog audio in(cue): for SRW-5500 only

Ethernet port

RS-422 9-pin and 50-pin control interfaces

Video control

SRW-5500 Rear Panel

SRW-5800 Rear Panel

9

10

Building an Innovative Workflow with the

SRW-5800 Network Capability

The SRW-5800 provides a highly advanced network capability with the addition of the optional HKSR-5804 board*, introducing a new network-based workflow to the DI (Digital Intermediate) domain, along with higher levels of efficiency.

This capability comprises a variety of unique and powerful functions, such as DPX file conversion to and from the HDCAM-SR

HD video format, as well as 2K (2048 x 1556)/4K (4096 x 3112) uncompressed data recording. Giga-bit Ethernet is supported on the SRW-5800, allowing fast transfer of even the large files.

The SRW-5800 mounts a shared drive over a GbE network. In this case, no special driver software or application is required, and the major operating systems including Microsoft Windows

® ,

Linux ® and Macintosh ® are supported. Users can simply utilize a normal Internet browser for control.

DPX File Import/Export

The SRW-5800 in this configuration can create DPX files while playing back an HDCAM-SR tape, and can directly transfer these files to PCs, workstations or servers on the network. Conversely,

DPX files from a networked device can be recorded to the

SRW-5800 in HDCAM-SR video format. These capabilities eliminate the need for external video to data conversion interfaces.

Networked System

SRW-5800

Video Recording Mode

Nonlinrar

Editors/Servers

DPX

Files

File Recording Mode

DPX

Files

DPX

Files

Shared Use of SR Deck for On-Demand Ingest

Gigabit

Ethernet

Media Server

DI System

HD-SDI

SRW-5800

Monitoring

4K/2K to HD Resizing

The SRW-5800 recorder allows 4K/2K files transferred from other devices to be resized to 1920 x 1080 and recorded in HDCAM-SR format.

4K/2K Uncompressed DPX Data Recording

The SRW-5800 can also record uncompressed 4K/2K DPX data as image data onto an HDCAM-SR tape. It can record DPX data of flexible image size on the tape, from HD to Maximum up to 4K full-aperture (4096 x 3112) size. These tapes are therefore a suitable interchange medium between DI facilities. While ingesting data files from the tapes users can monitor the 4K/2K images on an HD display thanks to the resizing function.

SRW-5800 Option Confi guration

Option

Confi guration

HKSR-5804*

Recording format on tape

SR Video (4:2:2) SR Video (4:4:4)

Yes No

HKSR-5804* Yes

+ HKSR-5803SQ

HKSR-5804* Yes

+ HKSR-5803HQ

Uncompressed

2K/4K DPX File

No

No

*Planned to be available in autumn 2008.

HDCAM SR Family

SRW-1/SRPC-1

The SRW-1 HD Portable Digital Video Recorder with the SRPC-1

HD Video Processor is the one recoder in the HDCAM-SR lineup created specifically to support digital production. A major characteristic of the SRW-1 is its highly portable size, yet it has stunning recording capabilities: 1080 50P/60P, SR Motion and

RGB 4:4:4 recording. This VTR is designed to be dockable on the

F35 and F23 Digital Cinema Camera, establishing a cable-free and portable full-bandwidth 4:4:4 capturing system.

Features

Full-bandwidth RGB 4:4:4 recording

1080 50P/60P recording

Dockable with the F35/F23* camera

Variable frame rate image recording

— from 1 fps to 60 fps both in 4:2:2 and 4:4:4 mode

720P recording and playback

12 channels of 24-bit audio

Highly compact and portable design

*

When the SRW-1 is docked with the F35/F23 camera, the SRPC-1 is not connected.

SRW-1 with SRPC-1

F35/F23 Digital Cinematography Cameras

The F35/F23 is Sony inspiring Digital

Cinematography Cameras which provide impressive image quality with intuitive operation familiar to film camera users.

Both cameras can be docked directly onto the SRW-1 recorder, establishing a highly compact, lightweight and cable-free camera for a high level of mobility in shooting.

The F35 uses one super 35-mm sized CCD and utilizes the PL lens mount system, while the F23 uses three 2/3-inch type

CCDs with the Bayonet mount.

F23 with SRW-1

Features

Full-bandwidth RGB 4:4:4 HD digital image capturing

Dockable with the SRW-1

Variable frame rate image capturing -- from 1 fps to 60 fps both in 4:2:2 and 4:4:4 mode*

State-of-the-art imagers – Progressive, 1920 x 1080 full HD resolutions

F35: One Super 35-mm sized CCD

F23: Three 2/3-inch type CCDs

Lens mount system

F35: PL mount, a standard for film cameras, providing a broad range of film lenses

F23: Bayonet mount

Compact and lightweight

F35/F23: 11 lb (5 kg) without a viewfinder

14-bit A/D converter

Compatible with Film Camera Accessories

*

Up to 50 fps with the F35.

F35 with SRW-1

11

12

HDCAM-SR Technology

The HDCAM-SR format is based on cutting-edge technology. It is not a rehashed and repackaged technology solution developed in previous decades. The HDCAM-SR format has been designed to maximize the data-transfer rate without sacrificing any operational features. It’s a design you’d expect from a Sony 1/2” tape format, with all the useful playback and editing features common to existing

Sony tape formats. And although the SRW-5000/5500/5800 features and capabilities have seen great improvements, the physical size and the power consumption of the VTR remain modest enough to achieve easy portability. In order to meet the format’s mission-critical requirements, every aspect of magnetic tape-recording engineering and digital-signal processing technology has been carefully reassessed and integrated. Even with these great technological improvements, anticipated system operating costs are reasonable.

Creating Visually Lossless Images:

The MPEG-4 Studio Profile (SP)

Yet another industry first from Sony is an integrated video encoding/decoding chipset that conforms to MPEG-4 SP (Studio

Profile: ISO/IEC 14496-2:2001-1). The Studio Profile was created to specifically address the requirements of high-resolution image-production applications. It is free from GOP (Group Of

Pictures) structures, and is scalable in its pixel count (SDTV, HDTV,

Film-resolution data), bit depth (10- or 12-bit) and color resolution

(component or RGB). In order to achieve maximum compression efficiency, the HDCAM-SR format resorts to intra-frame compression for progressive images. Intra-field compression is used for interlaced images. Special attention has been paid to multi-generation dubbing performance and, in common with industry-standard Digital BETACAM VTRs, the SRW-5000/5500/5800 is capable of consistent dubbing without using a separate interface for a native stream. This is only possible thanks to the high performance of the MPEG-4 SP, which offers reproduction of visually lossless images.

1080 60P

1080 60i

BT 601

MPEG-2

64k

MPEG-4

Low bit rate

2M 30M 300M

Bit Rate

MPEG-4SP

2G

HDCAM-SR Technology

More Data, Same Long Running Time:

The New Footprint

Each picture frame consists of 24 helical tracks (or 12 tracks per segment/field) in which data is shuffled to protect the recording from occasional burst errors. Recordings are further protected by highly robust error-correction and concealment techniques perfected through years of Sony digital-VTR development. Thanks to the finer track pitch and shorter minimum recording wavelength, the data-packing density of the HDCAM-SR format is 3.5 times that of the HDCAM format. Frame-accurate editing is guaranteed by the intelligent allocation of pilot signals for precise head-to-tape tracking.

DIFECTION OF TAPE TRAVEL

DIFECTION OF HEAD MO

VIDEO SECT

OR

AUDIO SECT

OR

TRACKING PILOT

VIDEO SECT

OR

CONTROL

TIME CODE

TION

More Power, More Stability:

The New Tape Formula

A newly developed, ultra-fine-grain magnetic particle used on

HDCAM-SR tapes creates the very thin magnetic layer required to achieve a minimum recording wavelength of 0.29μm. This minimum wavelength allows the tape to hold more data and increases the tape transfer rate, resulting in increased performance. Not only that, but stable and consistent playback results are provided through a new proprietary manufacturing process that minimizes tape deformation. What’s more, because the tape medium is designed with a highly rigid new base film material treated with antioxidants, the HDCAM-SR tape is also ideal for archiving purposes.

Tape Structure

Metal Magnetic Layer

Non-Magnetic Layer

Base Film

Back Coating Layer

13

14

Optional Accessories

For SRW-5000/5500/5800

HKSR-5001

Format-Converter Board

BCT-6SR/33SR/40SR/

BCT-64SRL/94SRL/124SRL

HDCAM-SR Video Cassette Tapes

BCT-HD12CL

Video Head Cleaning Cassette

RMM-110

Rack-Mount Kit

HKDV-900

HD Digital Video Controller

For SRW-5000/5500

RM-280

Editing Controller

HKSR-5002

Digital BETACAM Processor Board

HKSR-5003

RGB Processor Boards

For SRW-5800

For SRW-5500

BCT-6HD/12HD/22HD/40HD/

BCT-34HDL/64HDL/94HDL/124HDL

HDCAM Cassette Tapes (For SRW-5500)

HKSR-5802

Digital BETACAM and HDCAM

Processor Board

HKSR-5803HQ

Advanced HQ Processor Board

HKSR-5803SQ

RGB SQ Processor Board

HKSR-5804 *

File Transfer Processor Board

*Planned to be available in autumn 2008.

SRW-5000/5500/5800 Specifications

General

Power requirements

Power consumption

Operating temperature

Storage temperature

Operating humidity

Weight (approx.)

Dimensions

(W x H x D excluding protrusions)

Tape speed

HDCAM-SR/HDCAM* recording/

Playback time

Digital BETACAM playback time

Fast-forward/rewind time

Search speed Shuttle mode range

100 to 240 V AC (±10%, 50/60 Hz)

380 W (with all option boards installed)

+41 °F to +104 °F (+5 °C to +40 °C)

-4 °F to +140 °F (-20 °C to +60 °C)

25% to 80% (relative humidity)

HDCAM-SR: 94.1 mm/s (24 Hz)

HDCAM: 77.4 mm/s (24 Hz)

Digital BETACAM: 96.7 mm/s

155 min with BCT-124SR cassette (24 Hz) with BCT-124SRL or BCT-124HDL tape**

320 W (with all option boards installed)

66 lb 2 oz (30 kg)

16 7/8 x 8 5/8 x 21 1/2 inches (427 x 218 x 544 mm)

155 min with BCT-124SR cassette (24 Hz) with BCT-124SRL or BCT-124HDL tape

Noiseless picture HDCAM-SR playback

HDCAM

124 minutes with BCT-D124L tape

Approx. 4 min with BCT-124SR cassette

HDCAM-SR: Still to ±50 times normal playback speed (24 Hz)

HDCAM: Still to ±60 times normal playback speed (24 Hz)

Digital BETACAM: Still to ±50 times normal playback speed

HDCAM-SR: -0.5 to 1 times HDCAM-SR: -1 to 2 times normal playback speed normal playback speed

HDCAM: -1 to 2 times normal playback speed

Digital BETACAM: -1 to 3 times normal playback speed

HDCAM-SR: Still to ±2 times normal playback speed

HDCAM: Still to ±3 times normal playback speed

Digital BETACAM: Still to ±3 times normal playback speed

-0.5 to +1 times normal playback speed

(Non Tracking Range)

-1 to +2 times normal playback speed (Dynamic Tracking Range)

-1 to +2 times normal playback speed (Dynamic Tracking Range)

-1 to +3 times normal playback speed (Dynamic Tracking Range)

1.0 sec or less (from standby on)

7.0 sec or less

BNC (1+ 1 for monitoring loop-through), Serial digital (1.485 Gb/s), SMPTE 292M/BTA S-004/ITU-R.BT 709

BNC (1+ 1 for monitoring loop-through), Serial digital (1.485 Gb/s), SMPTE 292M/BTA S-004/ITU-R.BT 709

Servo-lock time

Load/unload time

Input/Output

HD-SDI input A

HD-SDI input B

(optional HKSR-5803SQ/HQ required for SRW-5800)

(optional HKSR-5003 required for SRW-5000/5500)

HD/SD reference video input 1

HD/SD reference video input 2

(optional HKSR-5001 required)

Digital-audio input (CH1/2, CH3/4,

CH5/6, CH7/8, CH9/10, CH11/12)

BNC (1 + 1 for loop-through), Tri Level sync, 0.6 Vp-p, 75 Ω, sync negative or Black Burst, 0.286 Vp-p, 75 Ω, sync negative

BNC (1 + 1 for loop-through), Tri Level sync, 0.6 Vp-p, 75 Ω, sync negative or Black Burst, 0.286 Vp-p, 75 Ω, sync negative

BNC (x6, AES/EBU), unbalanced

Analog audio input (Cue)****

Time-code input

HD-SDI output A

HD-SDI output B

(optional HKSR-5803SQ/HQ required for SRW-5800)

(optional HKSR-5003 required for SRW-5500/5000)

Format-converter output

(optional HKSR-5001 required)

SD-SDI output

Analog composite output

Analog reference output

BNC (x2), with character out

XLR-3-pin, female x1

BNC (2 + 1 with character out), D1 serial digital (270 Mb/s), SMPTE 259M

Composite: BNC (x1 with character out) 1.0 Vp-p, 75 Ω, sync negative)

XLR-3-pin type, (female x1), 0.5 to 18 Vp-p, 10 kΩ, balanced

BNC (2 + 1, with character out), Serial digital (1.485 Gb/s), SMPTE 292M/BTA S004/ITU-R.BT 709

BNC (2 + 1, with character out), Serial digital (1.485 Gb/s), SMPTE 292M/BTA S004/ITU-R.BT 709

Digital-audio output

(CH1/2 CH3/4 CH5/6 CH7/8 CH9/10 CH11/12)

Analog-audio output (CH1/2/3/4)

Analog-audio output (Cue)***

Monitor output (L/R)

Time-code output

Phones

Remote 1 input

Remote 1 input/output

Video control

Parallel remote

Ethernet

SD sync: BNC (x1, Black Burst, 0.286 Vp-p, 75 Ω, sync negative)

1125 Sync: BNC (x2), Tri Level sync, 0.6 Vp-p, 75 Ω, sync negative

BNC (x6), AES/EBU, unbalanced

— XLR-3-pin type, (male x2), +4 dBm, (with a 600 Ω load), low impedance, balanced

XLR-3-pin type, (male x2), +4 dBm, (with a 600 Ω load), low impedance, balanced

XLR-3-pin type, (male x2), +4 dBm, (with a 600 Ω load), low impedance, balanced

XLR-3-pin type, (male x1), 2.2 Vp-p low impedance, balanced

JM-60 stereo phone jack, -∞ to 12 dBu (with an 8 Ω load), unbalanced

D-sub 9-pin, (female), Sony 9-pin remote interface

D-sub 9-pin, (female), Sony 9-pin remote interface

D-sub 9-pin, (female), (for optional HKDV-900)

D-sub 50-pin, (female)

10Base-T modular jack, 10Base-T modular jack

Digital-Video Performance

Sampling frequency

Quantization

Compression

Channel coding

Error correction

Error concealment

Crosstalk

Supplied Accessories

1000Base-T modular jack

(optional HKSR-5804 required)

HDCAM-SR: Y: 74.25 MHz, Cb/Cr: 37.125 MHz, G/B/R: 74.25 MHz

HDCAM: Y: 74.25 MHz, Cb/Cr: 37.125 MHz

10 bits/sample

HDCAM-SR: MPEG-4 Studio Profi le

HDCAM: Coeffi cient Recording System

Operation manual, installation manual

S-NRZ

Analog Composite-Output Performance

Bandwidth

S/N ratio

Y: 0 to 5.75 MHz +0.5 dB/-3.0 dB

56 dB or more

Y/C delay

K Factor (2T Pulse)

Output SCH phase

Digital-Audio Performance

Sampling frequency

Quantization

Wow & fl utter

Headroom

Analog Audio-Output Performance

D/A quantization

Frequency response

Dynamic range

Distortion

Reed-Solomon code

Adaptive three-dimensional

15 ns or less

1% or less

Based upon RS-170A/CCIR R.624-3

48 kHz (synchronized with video)

HDCAM-SR: 24 bits/sample

HDCAM: 20 bits/sample

Below measurable level

20/18/16/15/12 dB selectable

24 bits/sample

20 Hz to 20 kHz, +0.5 dB/-1.0 dB (0 dB at 1 kHz)

More than 100 dB

Less than 0.05% (At 1 kHz, reference level)

Less than -80 dB (At 1 kHz, between any two channels)

*The SRW-5000 and SRW-5800 do not support HDCAM recording. **1/2 when double-data-rate recording/playback (880 Mb/s)

***HDCAM and Digital BETACAM playback only. ****HDCAM recording only.

As to supported formats and required options, please refer to Supported Formats table on page fi ve.

15

Sony Electronics Inc.

1 Sony Drive

Park Ridge, NJ 07656 www.sony.com/professional

16

V-2273-B (MK10030V4)

©2008 Sony Corporation. All rights reserved.

Reproduction in whole or in part without written permission is prohibited.

Features and specifications are subject to change without notice.

All non-metric weights and measurements are approximate.

23.98P, 24P, 25P, 29.97P and 30P are used as generic names in this literature for the industry standard 23.98PsF, 24PsF, 25PsF, 29.97PsF

and 30PsF (Progressive Segmented Frames), respectively.

Sony, HDCAM-SR, HDCAM, BETACAM, Digital BETACAM, CineAlta, Dynamic Tracking

and Memory Stick are trademarks of Sony Corporation.

All other trademarks are property of their respective owners.

Printed in USA (4/08)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
