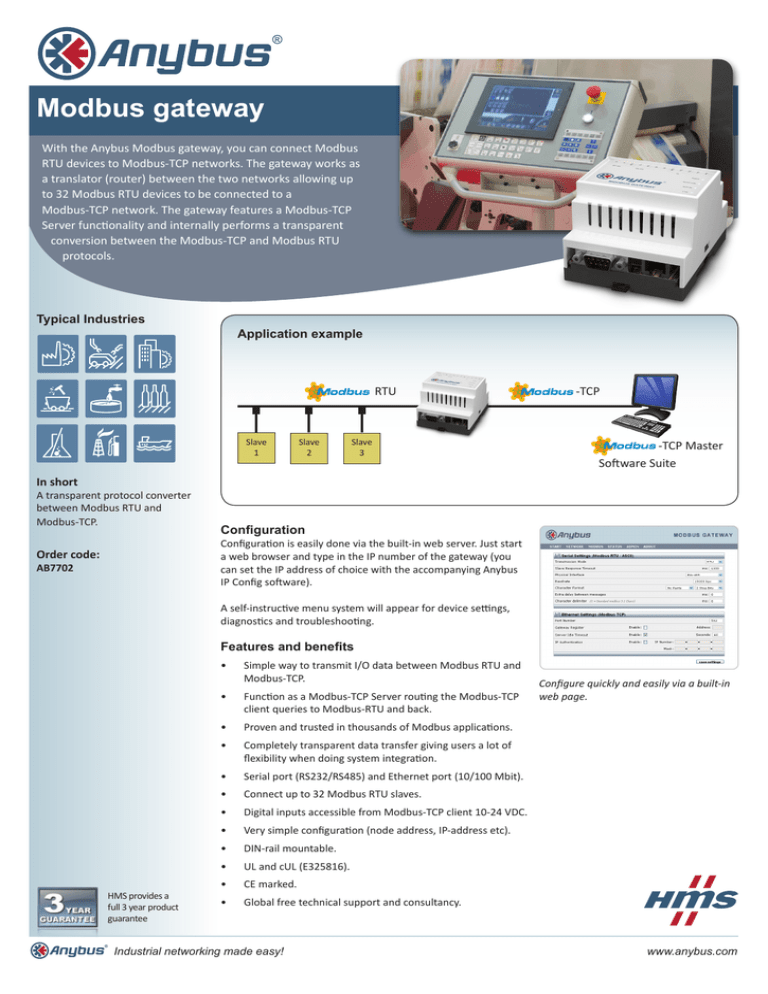

Modbus gateway

Modbus gateway
Modbus gateway
With the Anybus Modbus gateway, you can connect Modbus
RTU devices to Modbus-TCP networks. The gateway works as
a translator (router) between the two networks allowing up
to 32 Modbus RTU devices to be connected to a
Modbus-TCP network. The gateway features a Modbus-TCP
Server functionality and internally performs a transparent
conversion between the Modbus-TCP and Modbus RTU
protocols.
Typical Industries
Application example
RTU
Slave
1
Slave
2
-TCP
Slave
3
-TCP Master
Software Suite
In short
A transparent protocol converter
between Modbus RTU and
Modbus-TCP.
Configuration
Configuration is easily done via the built-in web server. Just start
a web browser and type in the IP number of the gateway (you
can set the IP address of choice with the accompanying Anybus
IP Config software).
Order code:
AB7702
A self-instructive menu system will appear for device settings,
diagnostics and troubleshooting.
Features and benefits
HMS provides a
full 3 year product
guarantee
•
Simple way to transmit I/O data between Modbus RTU and
Modbus-TCP.
•
Function as a Modbus-TCP Server routing the Modbus-TCP
client queries to Modbus-RTU and back.
•
Proven and trusted in thousands of Modbus applications.
•
Completely transparent data transfer giving users a lot of
flexibility when doing system integration.
•
Serial port (RS232/RS485) and Ethernet port (10/100 Mbit).
•
Connect up to 32 Modbus RTU slaves.
•
Digital inputs accessible from Modbus-TCP client 10-24 VDC.
•
Very simple configuration (node address, IP-address etc).
•
DIN-rail mountable.
•
UL and cUL (E325816).
•
CE marked.
•
Global free technical support and consultancy.
Industrial networking made easy!
Configure quickly and easily via a built-in
web page.
www.anybus.com
TECHNICAL SPECIFICATIONS
Technical Details
Standard
Dimensions (L•W•H) 90 mm • 70 mm • 58 mm
Protection class IP20
Enclosure material Plastic
Baud rate 300 - 115200 bit/s
Protocols Modbus RTU, Modbus ASCII, Modbus-TCP/IP
Mounting DIN rail (35•7,5/15)
EN 50022
Certifications
UL File number: E214107
UL 508 Ind. Cont. Eq.
CE 2004/108/EC
EN61000-6-4
EN61000-6-2
Electrical Characteristics
Power
9-24V AC/DC (2W)
Current consumption 2 W
Hardware Characteristics
Reverse voltage protection Yes
Short circuit protection Yes
Environmental Characteristics
Operating temp -40 to 65 oC
IEC 68-2-1, IEC 68-2-2
Interface connectors
Status LEDs
Serial interface
9-pin DSUB RS232
Ethernet,
RJ45 10/100Mbit
HMS Industrial Networks – Worldwide
HMS - Sweden (HQ)
Tel : +46 35 17 29 00 (Halmstad HQ)
E-mail: [email protected]
HMS - Finland
Tel: +358 404 557 381
E-mail: [email protected]
HMS - Italy
Tel : +39 039 59662 27
E-mail: [email protected]
HMS - UK
Tel: +44 1926 405599
E-mail: [email protected]
HMS - China
Tel : +86 010 8532 3183
E-mail: [email protected]
HMS - Germany
Tel: +49 721 989777-000
E-mail: [email protected]
HMS - Japan
Tel: +81 45 478 5340
E-mail: [email protected]
HMS - United States
Tel: +1 312 829 0601
E-mail: [email protected]
HMS - France
Tel: +33 368 368 034 (Mulhouse office)
E-mail: [email protected]
HMS - India
Tel: +91 83800 66578
E-mail: [email protected]
HMS - Switzerland
Tel: +41 61 511342-0
E-mail: [email protected]
Anybus® is a registered trademark of HMS Industrial Networks AB, Sweden, USA, Germany and other countries. Other marks and words belong to their respective companies.
All other product or service names mentioned in this document are trademarks of their respective companies.
Part No: MMA206 Version 3 2/2017 - © HMS Industrial Networks - All rights reserved - HMS reserves the right to make modifications without prior notice.
