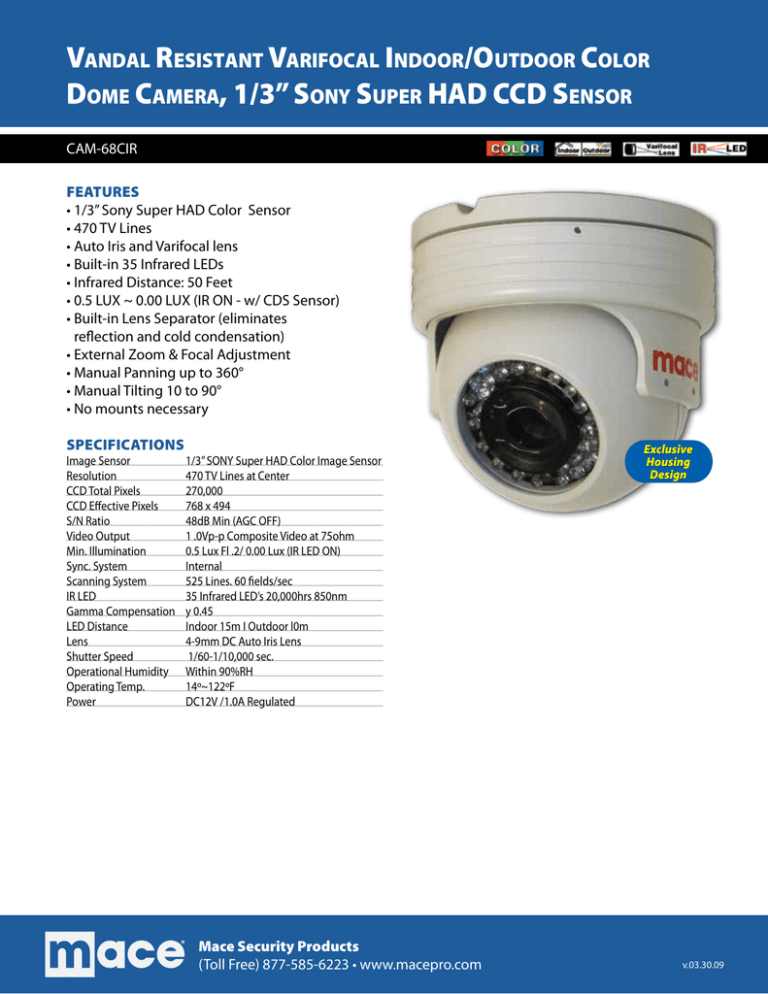

Vandal Resistant Varifocal Indoor/Outdoor Color
Dome Camera, 1/3” Sony Super HAD CCD Sensor
CAM-68CIR
FEATURES
• 1/3” Sony Super HAD Color Sensor
• 470 TV Lines
• Auto Iris and Varifocal lens
• Built-in 35 Infrared LEDs
• Infrared Distance: 50 Feet
• 0.5 LUX ~ 0.00 LUX (IR ON - w/ CDS Sensor)
• Built-in Lens Separator (eliminates
reflection and cold condensation)
• External Zoom & Focal Adjustment
• Manual Panning up to 360°
• Manual Tilting 10 to 90°
• No mounts necessary
SPECIFICATIONS
Image Sensor
Resolution
CCD Total Pixels
CCD Effective Pixels
S/N Ratio
Video Output
Min. Illumination
Sync. System
Scanning System
IR LED Gamma Compensation LED Distance
Lens
Shutter Speed
Operational Humidity
Operating Temp.
Power
Pantone 506C
1/3” SONY Super HAD Color Image Sensor
470 TV Lines at Center
270,000
768 x 494
48dB Min (AGC OFF)
1 .0Vp-p Composite Video at 75ohm
0.5 Lux Fl .2/ 0.00 Lux (IR LED ON)
Internal
525 Lines. 60 fields/sec
35 Infrared LED’s 20,000hrs 850nm
y 0.45
Indoor 15m I Outdoor l0m
4-9mm DC Auto Iris Lens
1/60-1/10,000 sec.
Within 90%RH
14º~122ºF
DC12V /1.0A Regulated
Mace Security Products
(Toll Free) 877-585-6223 • www.macepro.com
Exclusive
Housing
Design
v.03.30.09
