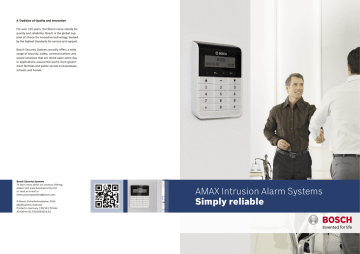

AMAX Intrusion Alarm Systems Simply reliable

AMAX Intrusion Alarm Systems Simply reliable
A Tradition of Quality and Innovation
For over 125 years, the Bosch name stands for
quality and reliability. Bosch is the global supplier of choice for innovative technology, backed
by the highest standards for service and support.
Bosch Security Systems proudly offers a wide
range of security, safety, communications and
sound solutions that are relied upon every day
in applications around the world, from government facilities and public venues to businesses,
schools and homes.
Bosch Security Systems
To learn more about our product offering,
please visit www.boschsecurity.com
or send an e-mail to
[email protected]
© Bosch Sicherheitssysteme, 2014
Modifications reserved
Printed in Germany | 03/14 | Printer
AS-GB-en-01_F01U561018_01
AMAX Intrusion Alarm Systems
Simply reliable
2 | AMAX Intrusion Alarm Systems
AMAX Intrusion Alarm Systems | 3
With Bosch you're in good hands:
AMAX intrusion alarm systems for your
customers' satisfaction
Offer your customers the perfect intrusion alarm system and get the benefit of installation-friendly
technology: the AMAX family by Bosch. The series offers three intrusion alarm control panels:
the AMAX 2100, AMAX 3000 and AMAX 4000. These control panels allow you to meet the individual
requirements of your customers perfectly – from private homes to medium-sized businesses.
AMAX 2100 – Compact system for small
applications with up to 8 zones
Various wired peripheral elements, such as motion
detectors for indoor and outdoor areas or magnetic
contacts for doors and windows, can be connected
to the 8 zone inputs.
A one-stop shop
Technology to reduce your costs
Whether it is an intrusion alarm control panel, wired
Installing and commissioning AMAX intrusion alarm
detectors or wireless peripherals, Bosch provides you
systems is simple and requires little time. Many of the
with a complete range of products for intrusion alarm
functions are already pre-programmed, which means you
systems. Get the benefits of a one-stop shop for system
save a great deal of installation time. Another strength is
technology.
the uniform system design: every version of AMAX not only
looks the same, its operation and programming are also
Multiple tasks, a single solution: AMAX
identical. Once you have installed one version of AMAX,
AMAX intrusion alarm systems are extremely flexible.
you will be able to install any of the others.
Application example: Specialized retail trade business with
sales and storage area security.
AMAX 3000 – versatile hybrid control panel for
medium-sized applications with up to 32 zones
The AMAX 3000 and 4000 hybrid systems can be
Up to 32 zones can be connected. The flexible hybrid
combined with both wired detectors and RADION
system for wired and RADION wireless detectors is the
wireless detectors by Bosch. This allows future system
ideal solution for private applications such as single-
upgrades without high construction costs. It is also
family homes where wiring is either undesirable or not
possible to provide fire detection using a fire detector.
possible.
Your benefits with AMAX Intrusion Alarm Systems:
▶ Intelligent security for small- to medium-sized
applications
▶ System family with 3 different control panels
Application example: Single-family home
▶ Uniform system design with the same operation
AMAX 4000 – All-round hybrid control panel
for applications with up to 64 zones
and programming for all 3 control panels
▶ AMAX 3000 and 4000 can be combined with
both RADION wireless detectors and wired
detectors as a hybrid control panel
The all-round control panel, which features up to 64 zones,
▶ Quick installation thanks to 90% pre-programmed
is ideal for medium-sized applications. This means that
functions
they for example can be used as a shared intrusion alarm
▶ Reliable alarm notification to the operator or
system for a medical building with individual practices.
Each practice receives its own peripheral elements and
monitoring center
▶ Can also be used for fire detectors and IP
keypads for individual control. The AMAX 4000 can
cameras
be combined with both wired and RADION wireless
▶ Certified in accordance with EN 50131-3 Grade 2
detectors as a hybrid control panel.
Integrated system technology: All versions of the AMAX family
feature the same construction
Application example: Medical center with several individual
practices in the building.
4 | AMAX Intrusion Alarm Systems
AMAX Intrusion Alarm Systems | 5
The AMAX family: an overview
AMAX control panels are suitable for small to medium-sized applications. Their flexible technology
allows a large number of applications and combinations. This makes it easy to configure your system
and fulfill the individual requirements of your customers.
Operation and parameterization
Expansion modules
Keypad
A-Link
8-detector-group
expansion module
Alarm transmission
Output module
(wired) IP/GPS
transmission
IP transmission
device
Monitoring
center
(monitoring
center-receiver /
gateway)
Option bus
ff
ff
ff
ff
GPRS transmission device
direct via USB
via telephone network
via IP
via GPS
AMAX 2100
AMAX 3000
AMAX 4000
Cell phone
PSTN transmission device
Audible
signal
notification
appliances
for outdoor
areas
Option bus
Wired peripherals – e.g.
Blue Line series by Bosch
RADION Wireless
peripherals for
AMAX 3000 and
AMAX 4000
RFRC-OPT
receiver
RFRP
repeater
RFPR-12 PIR
motion detector
RFDL-11
PIR + MW
motion detector
RFUN universal
transmitter
RFDW-SM
door/window
contact (surface
mount)
RFDW-RM
door/window
contact (recessed
mount)
RFKF-TB
wireless
handheld
transmitter
RFPR-C12
PIR curtain
motion detector
RFSM
smoke detector
RFBT
bill trap
RFPB-SB
panic button
RFPB-SB
panic button
Motion detector
Magnetic contact
RFGB glass break
detector
Peripherals
RFKF-FB
wireless
handheld
transmitter
ff
ff
ff
Optional I/O connection to IP cameras by Bosch
Alarm notification via SMS to customer's cell phone
Live video transmission to the internet for locationindependent monitoring and minimizing false alarms
Live video monitoring
6 | AMAX Intrusion Alarm Systems
AMAX Intrusion Alarm Systems | 7
Perfect quality takes many qualities
The advanced, reliable technology of the AMAX family gives your customers a definite advantage.
This will pay off for you, because the best basis for good business is satisfied customers.
Make a quality impression: with AMAX intrusion alarm systems by Bosch.
Reliable alarm transmission
Quality to meet the highest requirements
AMAX intrusion alarm systems are suitable for many types
AMAX intrusion alarm systems‘ excellent reliability is proof
of alarm transmission. An integrated dialer allows the
of their high quality. They have been tested by inde-
AMAX control panel to connect to the telephone network
pendent laboratories and are certified in accordance
PSTN. Connection via the internet is also possible – via
with EN 50131-3 Grade 2.
RADION wireless peripherals
The RADION range includes 15 different peripherals, which are connected
to the AMAX intrusion alarm systems via a receiver.
either a wired IP network or wireless GPRS.
Can be used for CCTV and fire detection
Easy to use – easy to install
Your customers can combine the AMAX system with a
The system can be operated simply and quickly. The key-
video surveillance system by integrating Bosch IP
pad provides clear, well-structured menus. Around 90 %
cameras. It is also possible to display the video images
of the applications are pre-programmed at the factory.
on smartphones and tablet PCs. This means that
Other functions can be conveniently programmed
your customers can check alarm notifications quickly,
with a PC via USB or directly on the AMAX keypad.
reliably and at any time using live images. AMAX
The procedure and menu structure are identical for all
intrusion alarm systems can be used also for fire
AMAX intrusion alarm systems. This means that you only
detection using either wired smoke detectors or
require minimal training and can easily operate any new
RADION wireless smoke detectors.
AMAX system.
RADION
Wireless handheld
transmitter
RADION
Wireless door/window
magnetic contact
The repeaters ensure that RADION wireless detector
Bosch offers a convenient and innovative alternative
signals are reliably transmitted to the AMAX intrusion
to the wired Blue Line detectors: RADION wireless
alarm control panel. Up to 8 repeaters can be used in
peripherals. The extensive range covers 15 different
an AMAX intrusion alarm system. Auto-addressing
products – from motion detectors and magnetic contacts
means that the intrusion alarm system‘s teach-in phase
to fire detectors. RADION wireless detectors can be
for RADION components is very short. The intrusion
combined with pre-installed DSRF series wireless
alarm system and all wireless components are then
peripherals by Bosch. The use of repeaters means that
immediately ready for use.
places where it was previously impossible for wireless
detectors to operate.
Easy to use
RADION
Wireless motion
detector
New: RADION detectors – the wireless alternative
they can also operate in remote locations – even in
Easy to install
RADION
Wireless receiver
