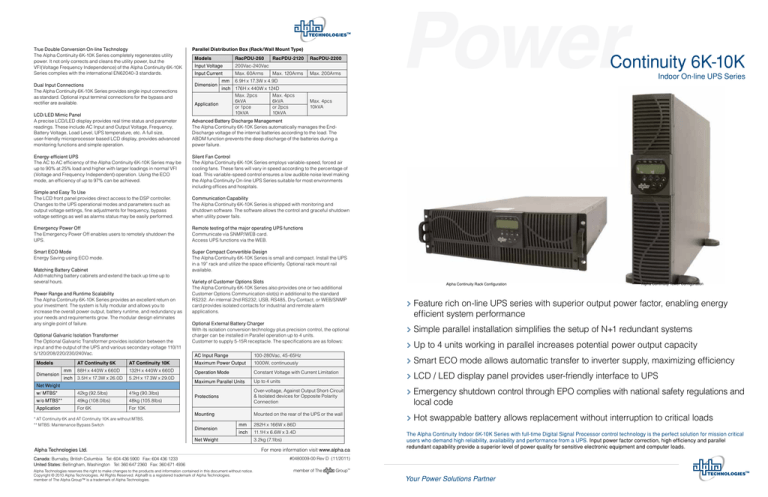

Alpha Continuity 6K - 10K Datasheet
True Double Conversion On-line Technology The Alpha Continuity 6K-10K Series completely regenerates utility power. It not only corrects and cleans the utility power, but the VFI(Voltage Frequency Independence) of the Alpha Continuity 6K-10K Series complies with the international EN62040-3 standards. Dual Input Connections The Alpha Continuity 6K-10K Series provides single input connections as standard. Optional input terminal connections for the bypass and rectifier are available. LCD/LED Mimic Panel A precise LCD/LED display provides real time status and parameter readings. These include AC Input and Output Voltage, Frequency, Battery Voltage, Load Level, UPS temperature, etc. A full size, user-friendly microprocessor based LCD display, provides advanced monitoring functions and simple operation. Energy-efficient UPS The AC to AC efficiency of the Alpha Continuity 6K-10K Series may be up to 90% at 25% load and higher with larger loadings in normal VFI (Voltage and Frequency Independent) operation. Using the ECO mode, an efficiency of up to 97% can be achieved. Parallel Distribution Box (Rack/Wall Mount Type) Models RacPDU-260 Input Voltage 200Vac-240Vac Input Current Max. 60Arms Dimension mm RacPDU-2120 RacPDU-2200 Max. 120Arms Max. 200Arms inch 176H x 440W x 124D Max. 2pcs Max. 4pcs 6kVA 6kVA Application or 1pce or 2pcs 10kVA 10kVA Max. 4pcs 10kVA Advanced Battery Discharge Management The Alpha Continuity 6K-10K Series automatically manages the EndDischarge voltage of the internal batteries according to the load. The ABDM function prevents the deep discharge of the batteries during a power failure. Silent Fan Control The Alpha Continuity 6K-10K Series employs variable-speed, forced air cooling fans. These fans will vary in speed according to the percentage of load. This variable-speed control ensures a low audible noise level making the Alpha Continuity On-line UPS Series suitable for most environments including offices and hospitals. Communication Capability The Alpha Continuity 6K-10K Series is shipped with monitoring and shutdown software. The software allows the control and graceful shutdown when utility power fails. Emergency Power Off The Emergency Power Off enables users to remotely shutdown the UPS. Remote testing of the major operating UPS functions Communicate via SNMP/WEB card. Access UPS functions via the WEB. Smart ECO Mode Energy Saving using ECO mode. Super Compact Convertible Design The Alpha Continuity 6K-10K Series is small and compact. Install the UPS in a 19” rack and utilize the space efficiently. Optional rack mount rail available. Power Range and Runtime Scalability The Alpha Continuity 6K-10K Series provides an excellent return on your investment. The system is fully modular and allows you to increase the overall power output, battery runtime, and redundancy as your needs and requirements grow. The modular design eliminates any single point of failure. Optional Galvanic Isolation Transformer The Optional Galvanic Transformer provides isolation between the input and the output of the UPS and various secondary voltage 110/11 5/120/208/220/230/240Vac. Indoor On-line UPS Series 6.9H x 17.3W x 4.9D Simple and Easy To Use The LCD front panel provides direct access to the DSP controller. Changes to the UPS operational modes and parameters such as output voltage settings, fine adjustments for frequency, bypass voltage settings as well as alarms status may be easily performed. Matching Battery Cabinet Add matching battery cabinets and extend the back up time up to several hours. Continuity 6K-10K Variety of Customer Options Slots The Alpha Continuity 6K-10K Series also provides one or two additional Customer Options Communication slot(s) in additional to the standard RS232. An internal 2nd RS232, USB, RS485, Dry Contact, or WEB/SNMP card provides isolated contacts for industrial and remote alarm applications. Optional External Battery Charger With its isolation conversion technology plus precision control, the optional charger can be installed in Parallel operation up to 4 units. Customer to supply 5-15R receptacle. The specifications are as follows: Alpha Continuity Rack Configuration Alpha Continuity Tower Configuration > Feature rich on-line UPS series with superior output power factor, enabling energy efficient system performance > Simple parallel installation simplifies the setup of N+1 redundant systems > Up to 4 units working in parallel increases potential power output capacity AC Input Range 100-280Vac, 45-65Hz AT Continuity 6K AT Continuity 10K Maximum Power Output 1000W, continuously mm 88H x 440W x 660D 132H x 440W x 660D 3.5H x 17.3W x 26.0D 5.2H x 17.3W x 29.0D Operation Mode Constant Voltage with Current Limitation inch Maximum Parallel Units Up to 4 units w/ MTBS* 42kg (92.5lbs) 41kg (90.3lbs) 49kg (108.0lbs) 48kg (105.8lbs) Over-voltage, Against Output Short-Circuit & Isolated devices for Opposite Polarity Connection > Emergency shutdown control through EPO complies with national safety regulations and w/o MTBS** Protections Application For 6K For 10K Mounting Mounted on the rear of the UPS or the wall > Hot swappable battery allows replacement without interruption to critical loads Models Dimension Net Weight * AT Continuity 6K and AT Continuity 10K are without MTBS. ** MTBS: Maintenance Bypass Switch Dimension mm 282H x 166W x 86D inch 11.1H x 6.6W x 3.4D Net Weight Alpha Technologies Ltd. Canada: Burnaby, British Columbia Tel: 604 436 5900 Fax: 604 436 1233 United States: Bellingham, Washington Tel: 360 647 2360 Fax: 360 671 4936 Alpha Technologies reserves the right to make changes to the products and information contained in this document without notice. Copyright © 2010 Alpha Technologies. All Rights Reserved. Alpha® is a registered trademark of Alpha Technologies. member of The Alpha Group™ is a trademark of Alpha Technologies. > Smart ECO mode allows automatic transfer to inverter supply, maximizing efficiency 3.2kg (7.1lbs) For more information visit www.alpha.ca > LCD / LED display panel provides user-friendly interface to UPS local code The Alpha Continuity Indoor 6K-10K Series with full-time Digital Signal Processor control technology is the perfect solution for mission critical users who demand high reliability, availability and performance from a UPS. Input power factor correction, high efficiency and parallel redundant capability provide a superior level of power quality for sensitive electronic equipment and computer loads. #0480009-00 Rev D (11/2011) member of The Group™ Your Power Solutions Partner Alpha Continuity 6K-10K Series Specifications Models Continuity 6K Continuity 10K 132H x 440W x 543D 5.2H x 17.3W x 21.3D 132H x 440W x 680D 5.2H x 17.3W x 26.8D Mechanical Models Continuity 6K Continuity 10K Input Voltage Window 160~280Vac Frequency 45-65Hz Phase/Wire Single, Line + Ground Power Factor Up to 0.99 at 100% Linear Load Current THD (100% linear load) <7% Dimensions mm inch Input/Output Connection Hardwire External Battery Connection Plug-in & Play Net Weight 24kg (52.9lbs) 26.0kg (57.3lbs) Environment Output Operating Temperature 0-40°C (32-104°F) Temperature Warning The battery design life is based on a temperature of 25°C (77°F), Ambient temperature above this range will affect battery life Voltage Window 200/208/220/240Vac Selectable (208/120Vac optional) Altitude 0~2000M/6600ft up to 40°C (104°F), 3000M/9900ft up to 35°C (95°F) Voltage Adjustment Nominal +1%, +2%, +3%, -1%, -2% or -3% Humidity 90% RH Maximum, Non-Condensing Voltage Regulation ±1% ±2% Noise <50dB (at 1M/3.3ft) Capacity 6000VA/5400W 10000VA/9000W Computer Interface Rated Power Factor 0.9 Lagging 0.9 Lagging Interface Type Standard RS232 Interface Wave Form Sine Wave, THD<3% (no load to full load) Communication Slot 2nd RS232, USB, RS485, Relay Contact or SNMP Card Frequency Stability ±0.2% (Free Running) Agency Compliance Frequency Regulation ±1Hz; ±3Hz Quality Assurance ISO9001 Certified Transfer Time 0ms Safety Standard EN62040-1-1, UL1778 Crest Factor 3:1 EMC Standard EN62040-2, EN61000-3-2, EN61000-3-3, FCC Class A Efficiency (AC to AC, Normal) Up to 90% Marks CE, cUL, UL Efficiency (AC to AC, ECO) Up to 95% Autonomy 7.1 mins DC Start Yes Model BP Continuity 6K BP Continuity 6K Battery Type 7Ah 9Ah Type Sealed Lead Acid Maintenance Free Maximum Quantity 20pcs Capacity 12V/7Ah Output Voltage 240Vdc Quantity 20pcs Weight Without Batteries 18.0kg (39.7lbs) Voltage 240Vdc Weight With Batteries 52kg (115lbs) Recharge Time 4 hours to 90% 4.8 mins Battery 12V/9Ah 5 hours to 90% Battery Pack Dimensions Display mm 132H x 440W x 680D inch 5.2H x 17.3 x 26.8D Status On LED + LCD Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/Disconnect, Overload, Transferring with interruption & UPS Fault. *** reference data Readings on LCD Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage, Battery Voltage & Inner Temperature. Self-Diagnostics Upon Power-on, Front Panel Setting & Software Control, 24-hour routine checking Parallel Redundant On-Line UPS Using our field proven Digital Signal Processor(DSP) with SMD techniques, the Alpha Continuity 6K-10K Series achieves high reliability and greater immunity from utility power problems. The front display panel provides all major systems parameters and operational status of the UPS that include full diagnostics for simple, easy servicing. The Alpha Continuity 6K-10K Series uses a patented inverter control technology that allows it to achieve N+1 scalable redundant power without the use of additional components. The Alpha Continuity Redundant parallel configuration also eliminates any single point of failure. Alarms Line Failure, Battery Low, Transfer to Bypass, System Fault Conditions Audible and Visual Protection Overload (w/simulated thermal tripping I-T Curve) Inverter Supply: 105%~150% for 160 seconds ~ 2 cycles before switching bypass. Bypass Supply: 105%~200% for 500 seconds ~8 cycles before stopping supply load. Short Circuit Switch off Immediately Overheat AC Mode: Switch to Bypass Backup Mode: Switch off the UPS Battery Low Alarm and Switch Off Noise Suppression Complies with EN62040-2 Spike Suppression Complies with EN61000-4-5 Heat Dissipation (At Full Linear Load)*** Simple Parallel Installation To increase the power capacity or configuring a parallel redundant UPS system, up to 3 additional Alpha Continuity 6K-10K Series are simply interconnected using the CAN-bus RJ45 cables on the rear of the Continuity Redundant series UPS. Without Isolated Transformer Module <450W 10K: <600W 10KP: <550W With Isolated Transformer Module <615W 10K: <1100W 10KP: <1050W Leakage Current Your Power Solutions Partner <3mA at Full Load Programmable Frequency Converter The Alpha Continuity 6K-10K Series may be used as a frequency converter. Simple programming through the front LCD panel provides the convenience of 50 or 60Hz. Intelligent Self-Diagnostics The Alpha Continuity 6K-10K Series with DSP Control, systematically checks each component and displays the result using on LCD display. This feature allows service technicians the ability to pinpoint and repair the UPS very quickly. 68.0kg (149.8lbs) High Input Power Factor and Low Current THD The Alpha Continuity 6K-10K Series provides a ‘clean’ rectifier connection to utility source. It meets today’s industry standard for energy saving with low reflected harmonic pollution to utility. The Alpha Continuity 6K-10K Series achieves up to 0.99 Input Power Factor as well as <6% Input Current THD. Cold Start Function The Alpha Continuity 6K-10K Series may be powered up without the presence of utility, providing AC power for immediate power requirements. Full-time Digital Signal Processor Control The Alpha Continuity Redundant Full Time DSP control system ensures a pure sinewave on the input and the output of the UPS. The DSP control also provides the user with simple access to the UPS systems’ operational information via the front display panel.
