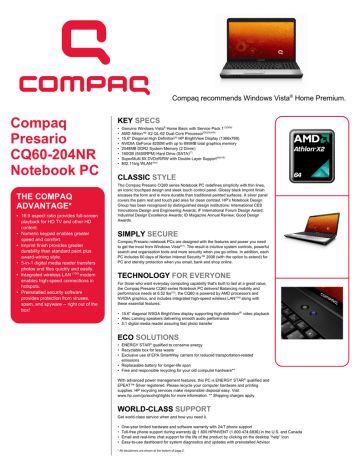

Compaq Presario Data Sheet

Compaq Presario Data Sheet
Compaq recommends Windows Vista® Home Premium.
Notebook PC
• 16:9 aspect ratio provides full-screen
playback for HD TV and other HD
• Numeric keypad enables greater
speed and comfort.
• Imprint finish provides greater
durability than standard paint plus
award-wining style.
• 5-in-1 digital media reader transfers
photos and files quickly and easily.
• Integrated wireless LAN (10d) modem
enables high-speed connections in
• Preinstalled security software
provides protection from viruses,
spam, and spyware -- right out of the
Genuine Windows Vista® Home Basic with Service Pack 1(1)(20a)
AMD Athlon™ X2 QL-62 Dual-Core Processor(2a)(3a)(4b)
15.6" Diagonal High Definition(8) HP BrightView Display (1366x768)
NVIDIA GeForce 8200M with up to 895MB total graphics memory
2048MB DDR2 System Memory (2 Dimm)
160GB (5400RPM) Hard Drive (SATA)(7)
SuperMulti 8X DVD±R/RW with Double Layer Support(6d)(16)
802.11b/g WLAN(10a)
The Compaq Presario CQ60 series Notebook PC redefines simplicity with thin lines,
an iconic touchpad design and sleek touch control panel. Glossy black Imprint finish
encases the form and is more durable than traditional painted surfaces. A silver panel
covers the palm rest and touch pad area for clean contrast. HP’s Notebook Design
Group has been recognized by distinguished design institutions: International CES
Innovations Design and Engineering Awards; iF International Forum Design Award;
Industrial Design Excellence Awards; ID Magazine Annual Review; Good Design
Compaq Presario notebook PCs are designed with the features and power you need
to get the most from Windows Vista®(1). The result is intuitive system controls, powerful
search and organization tools and more security when you go online. In addition, each
PC includes 60 days of Norton Internet Security™ 2008 (with the option to extend) for
PC and identity protection when you email, bank and shop online.
For those who want everyday computing capability that's built to last at a great value,
the Compaq Presario CQ60 series Notebook PC delivers! Balancing mobility and
performance needs at 6.52 lbs(12), the CQ60 is powered by AMD processors and
NVIDIA graphics, and includes integrated high-speed wireless LAN(10d) along with
these essential features:
• 15.6" diagonal WXGA BrightView display supporting high-definition(8) video playback
• Altec Lansing speakers delivering smooth audio performance
• 5:1 digital media reader assuring fast photo transfer
• ENERGY STAR® qualified to conserve energy
• Recyclable box for less waste
• Exclusive use of EPA SmartWay carriers for reduced transportation-related
• Replaceable battery for longer-life span
• Free and responsible recycling for your old computer hardware**
With advanced power management features, this PC is ENERGY STAR® qualified and
EPEAT™ Silver registered. Please recycle your computer hardware and printing
supplies. HP recycling services make responsible disposal easy. Visit for more information. ** Shipping charges apply.
Get world-class service when and how you need it.
One-year limited hardware and software warranty with 24/7 phone support
Toll-free phone support during warranty @ 1.800.HPINVENT (1.800.474.6836) in the U.S. and Canada
Email and real-time chat support for the life of the product by clicking on the desktop “help” icon
Easy-to-use dashboard for system diagnostics and updates with preinstalled Advisor
* All disclaimers are shown at the bottom of page 2.
Compaq Presario CQ60-204NR Notebook PC
Operating System
• Genuine Windows Vista® Home Basic with Service Pack 1(1)(20a)
• AMD Athlon™ X2 QL-62 Dual-Core Processor(2a)(3a)(4b)
Processor Speed
• 2.00 GHz (4)
Bus Speed
• 1MB L2 Cache
Processor Cache
• Up to 3600 MT/s system bus running at AC/DC mode 35 watt
• 2048MB DDR2 System Memory (2 Dimm)
• Max supported =4096MB
Accessible Memory Slots
• 2
Video Graphics
• NVIDIA GeForce 8200M with up to 895MB total graphics memory
Hard Drive
• 160GB (5400RPM) Hard Drive (SATA)(7)
Finish and Features
• HP Imprint finish & integrated microphone
Multimedia Drive
• SuperMulti 8X DVD±R/RW with Double Layer Support(6d) (16)
• 15.6" Diagonal High Definition
HP BrightView Display
Network Card
• Integrated 10/100BASE-T Ethernet LAN (RJ-45 connector) (9)
Wireless Option
• 802.11b/g WLAN(10a)
Digital Media
• 5-in-1 integrated Digital Media Reader for Secure Digital cards,
MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture
• Altec Lansing
• High speed 56k modem(11)
• 101-key compatible full size keyboard with integrated numeric
Pointing Device
• Touch Pad with On/Off button and dedicated vertical scroll
Up/Down pad
External Notebook Ports
3 Universal Serial Bus (USB) 2.0
1 Headphone out
1 microphone-in
1 VGA (15-pin)
1 RJ-11 (modem)
1 RJ -45 (LAN)
• Unpackaged: 14.88" (L) x 9.9" (D) x 13.8" (min H) -1.72" (max H)
• Packaged: 20.5"(W) x 4.2"(D) x13.6"(H)
• Unpackaged: 6.52Ibs(12)
• Packaged: 8.9 lbs
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
HP DVD Play(14)
Muvee Reveal
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
Productivity and Finance
• Microsoft® Works
• Microsoft® Office 2007 Home and Student Edition: 60 Day Trial
Internet Solutions
• Internet Solutions (Up to 3 months service included (13)Bell
Sympatico High Speed Internet
EastLink High Speed Internet Access
Shaw High-Speed Internet Access
Optional Accessories
Sold Separately
• HP 90W AC Adapter- KG298AA#ABA
• HP 12-Cell Multi-Charge Extended Battery - KS526AA
• HP 6-Cell Battery - KS524AA
Service and Support
Warranty and Support
• 1-Year Limited Hardware Warranty Toll Free Support (NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support (1 Year* Free Limited
Software Support with Product Registration) *from date of
Additional Information
Product Number
Ad Embargo Date
• 1/18/2009
UPC Code
• 884420766773
Country of Origin
Tariff Number
• 8471300000
Pallet Information
Dimensions: 47.2" (L) x 39.4" (W) x 46."(H) approx.
Total weight: 541.3 lbs
Layers: 3
Products per layer: 19
Compaq recommends Windows
Vista® Home Premium.
Security and Support
• Symantec® Norton Internet Security 2009 (including 60 days
complimentary live update)(15)
• HP Help & Support Center
• HP Recovery Manager
• HP Home Network Center
• HP Total Care Advisor
Certain Windows Vista product features require advanced or additional hardware. See and for details. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
This system requires a separately purchased 64-bit operating system and 64-bit software products to take advantage of
the 64-bit processing capabilities of AMD technology. Dual-core processing available with AMD technology is designed to
improve performance of this system. Given the wide range of software applications available, performance of a system
including a 64-bit operating system and a dual-core processor will vary. (3a)AMD's numbering is not a measurement of higher
performance. AMD’s numbering is not a measurement of clock speed. (4)GHz refers to internal clock speed of the processor.
Other factors besides clock speed may impact system and application performance. (4b)Dual Core is designed to improve
performance of certain software products.Not all customers or software applications will necessarily benefit from use of this
technology. (6d)Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media. (7)
1 GB = 1 billion bytes. Actual formatted capacity is less. Up to 12GB of system disk is reserved for system recovery software.
High-Definition content is required to view high-definition images. (9)Actual speeds may vary. (10a)The specifications for the
802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to communicate with other
802.11n WLAN devices. (10d) Wireless access point and Internet service required and is not included. (11)Maximum achievable
download speeds are currently unknown, may not reach 56Kbps and will vary with line conditions. Upload speeds are less
and also will vary. (12)Weight will vary by configuration. (13) Internet access may require payment of additional fees or
subscription for use. A valid credit card may be required to initiate service. High-speed internet access options are not
available in all provinces and territories in Canada. Communication charges may apply. (14)HD DVD movies will only play
through QuickPlay software. (15)Internet access required and sold separately. (16)Actual speeds may vary. Don’t copy
copyright-protected materials. Double Layer is a new technology. Double Layer media compatibility will widely vary with
some home DVD players and DVD-ROM drives. (16a)Actual speeds may vary. Don’t copy copyright-protected materials.
Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD players and
DVD-ROM drives. LightScribe creastes a monochrome image. LightScribe media required and sold separately. (17a)Digital
Media Slot supports MS, MSP, MMC, SD, XD formats. To avoid damaging the card or computer do not insert any type of
adapter, or mini format memory card, into the Digital Media Slot. Mini/Reduced flash memory cards require separately
purchased adapter. (19)The Microsoft® Office Student and Teacher Edition 2008 is a trial version; functionality is reduced after
60 days. The full version is sold separately. (20a)Up to 12GB of the hard drive is reserved for the system recovery software.
Actual product may vary from image shown on datasheet.
2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. 12/12_r1 rk Product Number: ZY226UA#ABA
