HP SC08Ge Host Bus Adapter

HP SC08Ge Host Bus Adapter
QuickSpecs

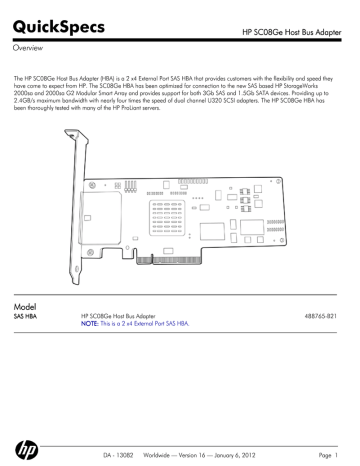

HP SC08Ge Host Bus Adapter
Overview
The HP SC08Ge Host Bus Adapter (HBA) is a 2 x4 External Port SAS HBA that provides customers with the flexibility and speed they
have come to expect from HP. The SC08Ge HBA has been optimized for connection to the new SAS based HP StorageWorks
2000sa and 2000sa G2 Modular Smart Array and provides support for both 3Gb SAS and 1.5Gb SATA devices. Providing up to
2.4GB/s maximum bandwidth with nearly four times the speed of dual channel U320 SCSI adapters. The HP SC08Ge HBA has
been thoroughly tested with many of the HP ProLiant servers.
Model
SAS HBA
HP SC08Ge Host Bus Adapter
NOTE: This is a 2 x4 External Port SAS HBA.
DA - 13082
Worldwide — Version 16 — January 6, 2012
488765-B21
Page 1
QuickSpecs
HP SC08Ge Host Bus Adapter
Overview
Compatibility
Supported Servers
ProLiant DL (rack-optimized):
(rack-optimized)
HP ProLiant DL160 G6
HP ProLiant DL160se G6
HP ProLiant DL165 G6
HP ProLiant DL165 G7
HP ProLiant DL170h G6
HP ProLiant DL180 G6
HP ProLiant DL320 G5p
HP ProLiant DL320 G6
HP ProLiant DL320s
HP ProLiant DL360 G5
HP ProLiant DL360 G6
HP ProLiant DL360 G7
HP ProLiant DL365 G5
HP ProLiant DL370 G6
HP ProLiant DL380 G5
HP ProLiant DL380 G6
HP ProLiant DL380 G7
HP ProLiant DL385 G5
HP ProLiant DL385 G5p
HP ProLiant DL385 G6
HP ProLiant DL580 G5
HP ProLiant DL580 G7
HP ProLiant DL585 G5
HP ProLiant DL785 G5
HP ProLiant DL785 G6
HP ProLiant DL980 G7
ProLiant ML (expansion-optimized):
(expansion-optimized)
HP ProLiant ML310 G5
HP ProLiant ML310 G5p
HP ProLiant ML330 G6
HP ProLiant ML350 G5
HP ProLiant ML350 G6
HP ProLiant ML370 G5
HP ProLiant ML370 G6
NOTE: This is a list of supported servers. Some may be discontinued.
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 2
QuickSpecs
HP SC08Ge Host Bus Adapter
Standard Features
Performance
Designed to be as flexible as HP servers, HP SC08Ge Host Bus Adapter provides support for the HP
StorageWorks 2000sa and 2000sa G2 Modular Smart Array (HP MSA2000sa and MSA2300sa G2
Controllers). The HP adapter delivers exceptional system performance, with eight 3 Gb/s SAS ports
providing up to 24 Gb/s total storage bandwidth.
HP Server Integration
Fully integrated and tested with most ProLiant servers and management software.
Key Features
SAS technology delivers high performance and data bandwidth up to 3 Gbps per physical link
Mix-and-match SAS and SATA hard drives, lets you deploy drive technology as needed to fit your
computing environment
PCIe x8 (2.5 GB/s bandwidth)
PCI Express x8 capable
Ports
Eight (8) SAS physical links distributed across 2 x4 external SFF-8088 connectors
Provides the ability to support the HP MSA2000sa Controller.
Provides the ability to support the HP MSA2300sa G2 Controller.
Performance
HP's High Performance Architecture sets new boundaries for industry performance expectations
3 Gbps SAS (bandwidth per physical link)
24 Gbps total available bandwidth (8 physical links x 3Gbps)
PCIe x8 (2.5 GB/s bandwidth)
Capacity
With the increasing need for performance and capacity expansion, the HP SC08Ge SAS HBA offers:
Eight 3 Gbps SAS physical links supporting up to 2 simultaneous x4 Wide SAS Ports
Up to 288TB of storage
Form Factor
This product ships with the parts necessary to convert between high-profile and low-profile PCIe
slots.
Supported Enclosures
HP StorageWorks 2300sa G2 Modular Smart Array Controller
Supports one HP MSA2300sa G2 Controller - additional tiered enclosures are not
supported
HP StorageWorks 2000sa Modular Smart Array Controller
Supports one HP MSA2000sa Controller - additional tiered enclosures are not supported
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 3
QuickSpecs
HP SC08Ge Host Bus Adapter
Standard Features
Operating Systems
Microsoft Windows 2003 Standard 32 Bit
Microsoft Windows 2003 Enterprise 32 Bit
Microsoft Windows 2003 Standard x64
Microsoft Windows 2003 Enterprise x64
Microsoft Windows Server 2008
Red Hat Enterprise Linux 5
SUSE Linux Enterprise Server 10
VMware ESX 3.5 (32/64)
NOTE: For more Linux OS support & certification information, please visit our the ProLiant &
BladeSystem Server Linux matrix: http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html
LSI Off Line
LSI Off Line option ROM Utility
Warranty
The warranty for this device is 1 year parts only.
Warranty Upgrade Options
Response - Upgrade on-site response from next business day to same day 4 hours
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days
Duration - Select duration of coverage for a period of 1, 3, or 5 years
Warranty upgrade options can come in the form of Care Packs, which are sold at the HP System
level this product attaches too
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 4
QuickSpecs
HP SC08Ge Host Bus Adapter
Service and Support
Service and Support
HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and
ROI
When you buy HP server and storage products and solutions, it's also a good time to think about what
levels of support you may need. Our portfolio of service options reduce deployment and management
worries while helping you get the most out of your server and storage investments. We take a holistic
approach to your environment, bridging servers, blades, storage, software and network infrastructures
with our packaged HP Care Pack Services for servers and storage.
Protect your business beyond warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured
along with technology. Good news that can also create problems stemming from depending on standard
warranties designed to only protect against product defects and some downtime causes. Using a
standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and
provides operational consistency for mission-critical and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and storage warranties cost
effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold
separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides
a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical
Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and
technical services. HP Proactive Select menu offers a broad set of service options that you can mix and
match depending on your specific requirements. Proactive service options include offers for server,
storage, network, SAN device, software, environment and education services.
HP server and storage lifecycle support services offers a full spectrum of customer care-from technology
support to complex migrations to complete managed services. HP Factory Express provides
customization, integration and deployment services for turnkey solutions. HP Education Services offer
flexible, comprehensive training on to help your IT staff get the most out of your server and storage
investments. HP Financial solutions extend innovative financing and cost-effective asset management
programs-from purchase to equipment retirement.
Learn more: www.hp.com/services/servers and www.hp.com/services/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 5
QuickSpecs
HP SC08Ge Host Bus Adapter
Service and Support
Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services
Hardware Options Support
HP Care Packs provide support for all HP-branded hardware options qualified for inclusion in your server
or storage solution. Any additional HP-qualified options installed within the server are covered at the
same service level and for the same period as the server and no additional cost.
Help improve or maintain system uptime
Convenient onsite support
Committed response time
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7
Provides you with rapid remote support and if required an HP authorized representative who will arrive
on site any time and day of the year to begin hardware maintenance service within 4 hours of the service
request being logged.
This service provides a trained HP service specialist to perform an installation that meets HP quality
standards, for:
Help improve or maintain system uptime
Convenient onsite support
Committed response time
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
HP Installation and Startup of HP ProLiant Servers
Provides for the installation of your new HP ProLiant server and operating system to assist you in bringing
your new HP ProLiant server and operating system into operation in a timely and professional manner.
This service provides a trained HP service specialist to perform an installation that meets HP quality
standards, for:
Delivery of the service at a mutually scheduled time convenient to your organization
Availability of an HP service specialist to answer basic questions during the onsite delivery of this
service
Custom installation as detailed in "Delivery specifications" or in a Statement of Work (SOW)
Verification prior to installation that all service prerequisites are met
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982?7572ENN
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 6
QuickSpecs
HP SC08Ge Host Bus Adapter
Service and Support
Optional HP Care Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour
As an alternative to our recommended support level, for customers who need committed call-to-repair
for server hardware.
Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the
system to help return the hardware to operating condition within 6 or 24 hours of the initial service
request to the HP Global Solution Center.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf
3-Year HP Support Plus 24
As an alternative to our recommended support level, for customers who need access to responsive 24x7
hardware and software support plus software updates on HP and selected third party products:
For a higher return on your server and storage technology, our 3-year combined reactive support service
delivers integrated onsite hardware/software support services available 24x7x365, including access to
HP technical resources, 4-hour response onsite hardware support and software updates.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE
HP Proactive Select Service
Customer needs on demand access to consulting, technical proactive services and education courses
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
include
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24
X 7, so you can spend less time solving problems and more time focused on your business. You can have
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 7
QuickSpecs
HP SC08Ge Host Bus Adapter
Service and Support
your systems remotely monitored for hardware failure using secure technology that's been proven at
thousands of companies around the world. In many cases, you can avoid problems before they occur.
Customer Technical
Training
In today's cost-conscious business environment, IT professionals, developers, consultants and users face
an interesting challenge: how to keep up with the latest technologies and expand important skills while
delivering profitable results on current projects. To help address this challenge, HP offers innovative
training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix,
Microsoft® and open source/Linux-related topics-while spending less time away from business-critical
activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support excellence by customers,
partners, industry organizations and publications around the world. Recent honors and award reflect our
services team's dedications, technical expertise, professionalism and uncompromising commitment to
customer satisfaction.
Additional Services
Information
To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products,
please contact your HP sales representative or HP Authorized Channel Partner. Or visit:
www.hp.com/services/proliant or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 8
QuickSpecs
HP SC08Ge Host Bus Adapter
Related Options
NOTE: This is a list of supported options. Some may be discontinued.
HP Disk Storage Systems MSA SAN Storage Arrays
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
HP StorageWorks 2300sa G2 Modular Smart Array Controller
NOTE: Please see the QuickSpecs for additional part numbers and information at:
http://h18000.www1.hp.com/products/quickspecs/13331_div/13331_div.html
HP StorageWorks MSA2000sa Modular Smart Array
HP StorageWorks 2012sa Single Controller Modular Smart Array
HP StorageWorks 2000sa Modular Smart Array Controller
NOTE: Please see the QuickSpecs for additional part numbers and information at:
http://h18000.www1.hp.com/products/quickspecs/13045_div/13045_div.html
DA - 13082
Worldwide — Version 16 — January 6, 2012
AJ948A
AJ949A
AJ808A
AJ752A
AJ754A
Page 9
QuickSpecs
HP SC08Ge Host Bus Adapter
Technical Specifications
Dimensions (excluding
bracket)
Disk Drive and Enclosure
Protocol Support
Architecture
6.6 x 2.5 x 0.6 in (16.8 x 6.4 x 1.6 cm)
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
3 Gbps SAS (Serial Attached SCSI)
1.5 Gbps SATA (Serial Advanced Technology Attachment)
Serial Attached SCSI (SAS)
Serial Advanced Technology Attachment (SATA)
PCI-Express x8
SAS Connectors
2x4 external SFF-8088 (Mini-SAS)
Data Transfer Method
300 MB/s bandwidth (600 MB/s, full duplex) on each port for combined throughput of up to 2 Gb/s
PCIe Bus Speed
PCIe x8 (2.5 GB/s maximum bandwidth)
Simultaneous Connection 2 x 4 Wide SAS Connectors
Transfer Ports
Port Transfer Rate
12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s)
Software upgradeable
Yes
Firmware
Maximum Capacity
288TB
Memory Addressing
64-bit, supporting servers memory greater than 4 GB
Upgradeable Firmware
4-MB flashable ROM
Disk Drive and Enclosure 3 Gb/s SAS and 1.5 Gb/s SATA
Protocol Support
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. Microsoft and Windows are registered trademarks or
trademarks of Microsoft Corporation in the U.S. and/or other countries. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13082
Worldwide — Version 16 — January 6, 2012
Page 10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
