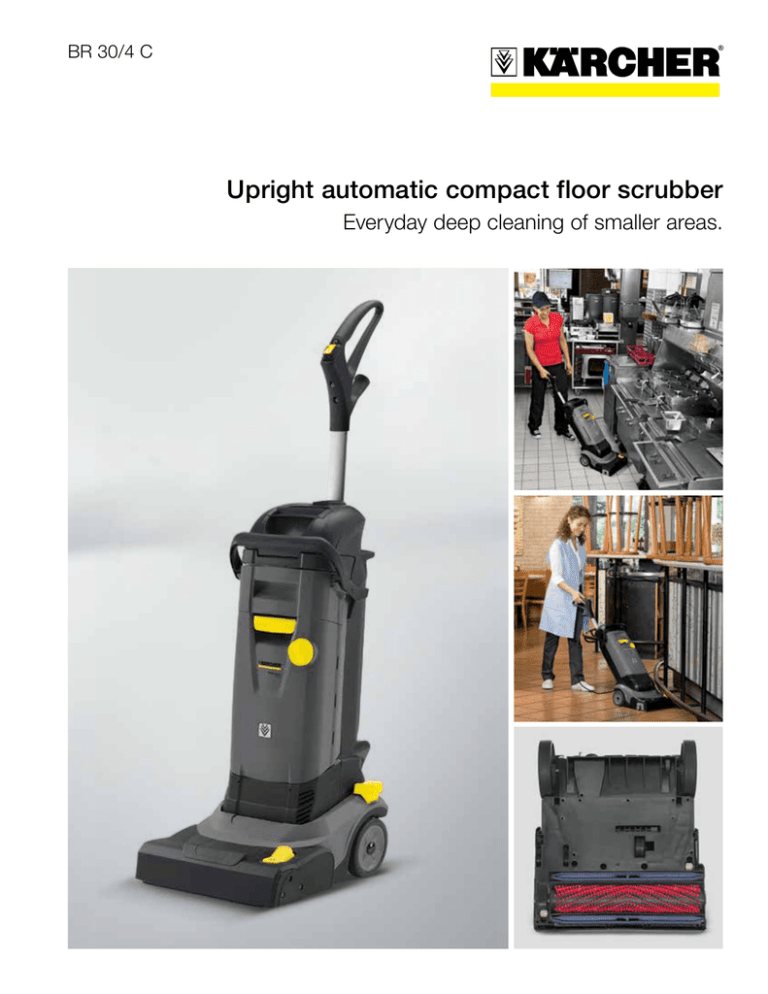

Upright automatic compact floor scrubber - kaercher

Upright automatic compact floor scrubber - kaercher
BR 30/4 C
Upright automatic compact floor scrubber
Everyday deep cleaning of smaller areas.
Professional Compact Floor Scrubbers
BR 30/4 C
For cleaning small areas.
The BR 30/4 C provides a far more efficient and hygienic alternative to manual mopping and scrubbing. Ideal for use on hard
floors and tile, the BR 30/4 C has been engineered to be easy to
transport and even easier to use and is perfect for use in institutions, restaurants, schools, stores and even homes to maintain
the appearance of floors and keep your premises sanitary.
1
1
L
L
L
2
High-speed rotating roller brushes
ith 10 times the contact pressure of manual cleaning systems.
W
Roller brush also cleans structured surfaces and in crevices.
Roller assists forward movement for easy cleaning.
3
4
3
L
4
L
2
L
L
L
Instantly dry
oft squeegees leave floors instantly dry – in forward and reverse.
S
Floor is instantly usable.
Vacuum can be switched off per foot pedal for intensive cleaning.
L
L
Low 4” Profile
Allows scrubbing in areas inaccessible to other machines
Tanks are removable
ractical fresh water tank can be removed separately and filled in a
P
small sink.
Dirty water tank can be removed separately and, for example,
emptied into a sink.
Tanks can be removed separately or together. Includes handle for
easy transport.
Professional Compact Floor Scrubbers
Technical data
BR 30/4 C
L Vacuum-off ability
L Cleans forwards and backwards
Technical data
Working width, brush
12” (300 mm)
Working width, vacuum
12” (300 mm)
Brushes
One, 12” (300 mm) - Cylindrical
Brush diameter
2.4” (60 mm)
Motor rating
1.1 hp (850 W)
Tank (fresh/dirty)
1 gallon (4 l)
Brush contact pressure
1.4 psi (100 g/cm2) / 16.5 lbs
Brush rotation speed
1550 rpm
Max. area performance
2,150 f2 (200 m2/h)
Noise level
71 dBA
Vacuum motor
1.1 hp (850 W)
Recovery Capacity
1 gallon (4 l)
Power cord
32.8’
Solution flow
.25-.3 gallons/min (1-1.2 l/min)
Weight
24 lbs (11 kg)
Dimensions (L x W x H)
15.4” x 13“ x 46.5”
(391 mm x 330 mm x 1181 mm)
Equipment
Roller brush

2-tank system

Mains powered

Manual vacuuming
–
Microfiber roller

Order No.
1.783-221.0
 Included in delivery.  Accessories available.
Optional Accessories
Product name
Order No.
Description
Microfiber roller
4.762-453.0
World innovation: the use of microfiber rollers combines the excellent cleaning properties of the m
­ icrofibers and the advantages of the roller system.
Roller brush, soft
4.762-452.0
Soft, for cleaning sensitive floors and for polishing.
Roller brush, high/low
4.762-484.0
Medium hard, for cleaning highly structured floors and deep crevices.
Roller brush, medium
4.762-428.0
Medium, for all floors.
Squeegee, standard
4.777-320.0
Straight, standard (includes set of 2).
Squeegee, oil-resistant
4.777-324.0
Straight, oil-resistant.
Roller brush, carpet
4.762-499.0
Designed for cleaning carpets.
Squeegee, carpet cleaning
5.033-275.0
Required for using carpet cleaning brush, designed for optimum suction on soft floors.
Your Authorized Kärcher Floor Care Dealer:
Kärcher Commercial
Phone 888-805-9852
Fax 800-248-8409
info@karchercommercial.com
www.karchercommercial.com
7/2014 · P/N 9.800-469.0 © 2014 Kärcher Commercial
