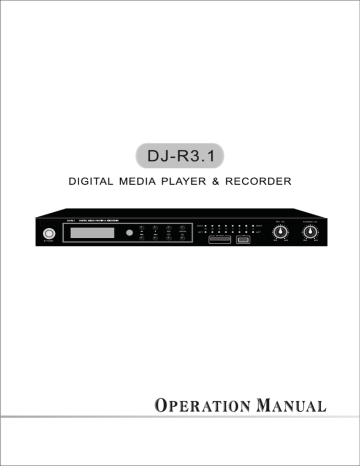

DJ-R3.1
DIGITAL MEDIA PLAYER & RECORDER
OPERATION MANUAL
OPERATION MANUAL
FUNCTION OF FRONT PANEL
ФФ » Г] Г) Г] . | HT
ON 20 at: a 5 0 +1 Er
LEFT @ . Г] e e ® Г] Jia,
SD CARD
. POWER ON/OFF SWITCH
Press the button to turn the main unit on or off.
. LCD DISPLAY SCREEN
To display the working conditions of USB/SD card reader..
3.1» PLAY/PAUSE
Press the button to enter into play/pause mode. Press STOP button, this
function will be cancelled automatically.
4. E STOP
In play mode, the set stops playing. In recording mode, the set stops record
function and keeps the current recording.
5. REC
Recording button. Press the button to record the selection.
When recording, please adjust the music and microphone volume of the
connected amplifier and then adjust the REC volume of this unit to get suitable
volume for recording.
. USB/SD
USB/SD Card Select button to transfer USB to SD or SD to USB drive.
««ВАСК
The previous selection.
. >>! МЕХТ
The next selection.
. <PLAY-MODE
Press the button, the selection is circulated. Press the button once again the
whole folder is circulated. The set is built with original setting function when
playing the whole folder is circulated.
1)
OPERATION MANUAL
FUNCTION OF FRONT PANEL
10. DELETE
Delete button. Press the button to delete the current selection in play. Press first
time to access standby situation and press once again the selection is deleted.
11. USB/SD CARD
USB/SD card reader port.
**WHEN RECORDING DO NOT INSERT THE USB DRIVER & SD CARD SIMULTANEOUSLY
12. LED DISPLAY
To display the volume level in stereo mode.
13. REC VOL
Use this control to adjust the recording volume.
14. PLAYBACK VOL
Use this control to adjust the playback volume of the recording.
KARAOKE RECORDING
| HOW TO OPERATE THE RECORDING |
DO-38-D or (1265446464
1.Press "MUSIC INPUT" button of Amplifier to get the music source from DVD or KOD or AUX.
2.Press "REC" button to record the selection.
3.Press lightly " > PLAY" button, the recording function stops and the current recording
is kept in USB/SD.
4.Press "MUSIC INPUT" button of the connected amplifier to access to the input of RECORDER
the current recording is played.
3A.Press " E STOP" the recording function stops and the current recording is kept in USB/SD.
4A.Press "MUSIC INPUT" button of the connected Amplifier to access to the input of RECORDER.
5A.Press " 1» PLAY" button to access to the play record folder in USB.
6A.Press "l«« BACK" button, the current recording will be played.
"INDICATOR |
1.Play/Pause indicator
In play mode, the indicator flickers. In pause mode, the indicator illuminates steadily.
In record mode, the indicator unilluminated.
2.STOP indicator
In stop mode, the indicator illuminates.
3.REC indicator
In record mode, the indicator flickers.
4. Play mode indicator
The indicator flickers when the selection circulated, the indicator illuminates steadily
when the whole folder is circulated.
5.DELETE indicator
Press the delete button to access STANDBY and the indicator illuminates, press once
again the selection is deleted and the indicator unillminated.
2)
OPERATION MANUAL
FUNCTION OF REAR PANEL
1. RECORD INPUT TERMINAL
2.PLAY OUTPUT TERMINAL
3.AC POWER FUSE HOLDER
4. ACVOLTAGE SELECTOR
5. AC POWER CORD INPUT
CONNECTING GUIDE
Digital Media Player % Recorder
©
о | ©
e AC115V — |— acasov
POWER INPUT
Integrated Amplifier/Mixing Amplifier
®
MUSIC INPUT
О
OO
ОО | pyr
OPERATION MANUAL
CONNECTING GUIDE
e Do not power on the unit until all the connections are completed.
e When the pin plug cords are employed, always connect the "White" plug to the left channel
and "Red" plug to the right channel. This helps to avoid reversed connections.
e Insertthe plugs firmly, poor contact will result no sounds or noise.
Digital Media Player á Recorder
©,
©
О of o
PRE-AMPLIFIER
т © ©
INPUT SELECT
©) OO
© OO U
00
ФФ
POWER AMPLIFIER
© © ©
SPEAKER SYSTEM
® © © ®
OOOO
0000
RIGHT LEFT J E
AC INPUT
Ode
FUSE
DO
OPERATION MANUAL
PRECAUTIONS
Be careful when open, otherwise
electric shock or serious damage
may be made to the product.
Unplug this product from the wall outlet
when not use for a long period of time
o
Unplug this product from the wall
outlet during lightning
Objects do not fall info the enclosure.
Arrange power cords safely.
Do not hold the cord when
pulling out from the wall outlet.
This product must not touch chemicals
such as benzene. Thinner or alcohol.
This may result in discoloration.
Pull out holding plug.
Te
07
Do not use this product in wet place. This product should be installed in
well-ventilated and cool place.
This product should be installed flatly
and should not be shaken.
HOW TO USE THE MICROPHONE PROPERLY
Keep apart
approx. 5~10cm \
Leave the /
proper space SK UN
e Keep the microphone apart approx. 5 to 10cm from your mouth.
e To make the clean voice sound, leave the proper space between
microphone head and your hold position on microphone.
e Donotcover the lower wind screen of the microphone, which may
interrupt the audio sound and may cause howling.
ETIQUETTE OF SOUND
The karaoke performance you enjoy may disturbing others. When
performing karaoke, be sure to consider your neighbors.
The volume of karaoke is at your command. Remember that even
small sound transmits very well in the quiet night, be specially
careful in karaoke performance in the night. Itis recommended to
close the windows to avoid sound leakages to the neighbors, and
have considerations for comfortable living environments of others.
5)
OPERATION MANUAL
SAFETY INSTRUCTIONS
RISK OF ELECTRIC SHOCK,
DO NOT OPEN!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that maybe of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert you to the presence of important
operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
1 Read instructions- All the safety and operating instructions
should be read before the unit is operated.
2 Retain Instructions - The safety and operating instructions
should be retained for future reference.
3 Heed Warnings-All warnings on the units and in the operating
instructions should be adhered to.
4 Follow Instructions - All operations and other instructions
should be followed.
5 Water and Moisture- The unit should not be used near water-
for example, near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement, or near a swimming pool, etc.
6 Carts and Stands - The unit should be used only with a cart or
stand that is recommended by the manufacturer.
6A A unit and card combination should be moved
with care. Quick stops, excessive force, and
uneven surfaces may cause the unit and cart An
combination to overturn.
7 Grounding or Polarization- Precautions should be taken so
that the grounding or polarization is not defeated.
8 Ventilation - The unit should be situated so that its location
or position does not interfere with its proper ventilation.
For example, the unit should not be situated on a bed, sofa, rug,
or similar surface, that may block the ventilation openings;
or placed in a built-in installation, such as a bookcase or
cabinet that may impede the flow of air through the ventil-
ation openings.
9 Heat- The unit should be situated away from heat sources
such as radiators, stoves, or other appliances that produces
heat.
10 Power Sources - The unit should be connected to a power
supply only of the type described in the operating instruc-
tions or as marked on the unit.
11 Power Cord Protection - Power supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular att-
ention to cor ds at plugs, convenience receptacles, and the
point where they exit the unit.
12 Cleaning- The unit should be cleaned only as recommended
by the manufacturer.
13 Nonuse Periods-The power cord of the unit should be unplu-
gged from the outlet when left unused for a long period of
time.
14 Object and liquid Entry- Care should be taken so that objects
do not fall into and liquids are not spilled into the inside of
the unit.
15 Damage Requiring Service - The unit should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the
unit; or
C. The unit has been exposed to rain; or
D. The unit does not appear to operate normally or exhibits
a marked change in performance.
E. The unit has been dropped, or the cabinet damaged.
16 Servicing - The user should not attempt to service the unit
beyond those means described in the operating instructions.
All other servicing should be referred to qualified service
personnel.
17 Power Lines - An outdoor antenna should be located away
from power lines.
IMPORTANT
please record the serial number of this unit in the space
below.
Model:
Serial No.:
The serial number is located on the rear of the unit.
Retain this Owner's Manual in a safe place for future
reference.
DIGITAL MEDIA PLAYER & RECORDER
