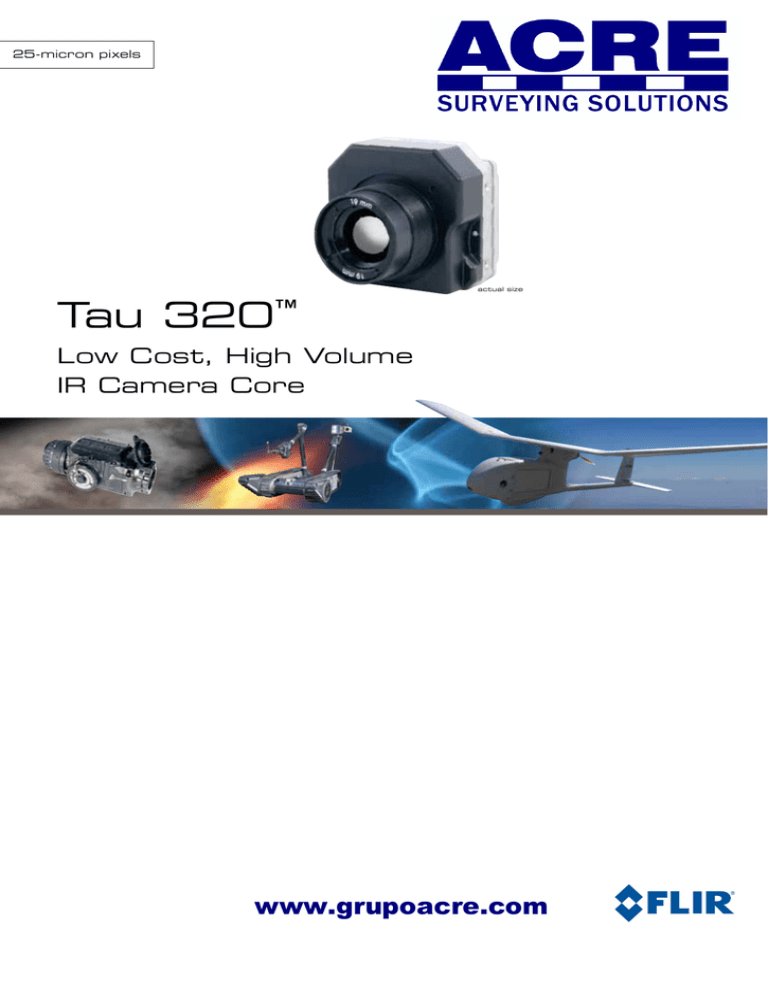

Tau 320™
25-micron pixels
Tau 320™
actual size
Low Cost, High Volume
IR Camera Core
www.grupoacre.com
25-micron pixels
FLIR’s Tau: a low-cost, high volume longwave
thermal camera core A fusion of small size, light weight, miniscule power consumption, and outstanding imaging performance
makes Tau the ideal thermal camera core for many demanding applications.
From handheld thermal imagers to unmanned vehicle payload cameras, from firefighting instruments to
thermal sights, Tau is the best choice for applications that demand a unique combination of light weight,
small size, and low power.
Tau is the first uncooled thermal camera core to combine all of these attributes into one affordable,
high-performance package.
Small size
Karonite/Epoxy-coated lens flange
25 µ VOx FPA for greater image detail
Several expansion boards available,
including a Tau-Photon Replicator Kit that
supports most Photon accessories
1.75 in
44.5 mm
Three mounting surfaces, each with
two M2×0.4 threaded mounting
holes
High sensitivity: <50 mk @ f/1.0
Light weight: <72 grams
1.75 in
44.5 mm
Multiple lens options available
Sealed, coated lens
Low power consumption: <1.0 W
IR image through thick smoke.
1.18 in
30.0 mm
User-definable options: b/w polarity,
color video palettes, 2x & 4x zoom,
dynamic zoom & pan, symbology (256
grayscale and 256 colors), video
output format, and many others
Digital Detail Enhancement: 14-bit
digital image processing for clear
imagery in dynamic scenes
Threaded outer lens barrel and O-ring seal
groove with boresight locating pins
Intruder placing a suspected explosive device
under a fuel truck.
Tau’s small size, light weight, lens options, and digital image processing
allow crystal-clear imaging day and night.
Easy integration, miniscule power consumption,
and specialized imaging capabilities combine to
make Tau the ideal firefighting thermal camera
core. (WFOV lenses only)
Small, light, and easy to integrate, Tau is the perfect thermal camera
core for unmanned vehicles and handheld cameras alike.
25-micron pixels
5 mm
(Tau 160 only)
9 mm
35 mm
13 mm
50 mm
19 mm
25 mm
60 mm
100 mm
Tau 320 Features
Tau cameras provide all of the features
and functions operators and integrators
have come to expect from FLIR, and
then some. Tau 320 features and
improvements include:
•Nine lens options available (4 WFOV; 5 NFOV)
•25-micron pixel size
•Field-upgradable software/firmware
•Reduced time constant
•Support for user-defined symbology
•Lightweight – the four WFOV Tau models weigh less than
3 ounces
•Accessories available that provide electrical and
mechanical interfacing for drop-in compatibility with
Photon
•Low volume
•Low power
•Field-switchable between NTSC and PAL video formats
•CMOS and BT.656 digital video options, as well as the
legacy Photon serial LVDS
•High-speed camera communication up to 921,600 baud
•Improved GUI for camera configuration and backward
compatibility with other Photon cameras
•Optional SDK offers access to Tau’s complete feature set
•Relative temperature measurement (WFOV lenses only)
•On-board image capture and storage
•Camera power and control over USB XP board option
•Improved EMI suppression; Class B with rear cover
installed, Class A without rear cover
•Discrete camera control functions available to OEMs
•Wide field of view lenses sealed to IP-67
•Threaded WFOV lens barrel for external mounting
attachment options
•Supplemental FFC software allows users to calibrate out
lens effects to improve image quality
•Customers can load their own start-up splash screens
(10-camera minimum purchase required)
Alternate Configurations
For OEM customers, Tau is available in
several additional factory configurations:
•For applications with especially tight volume constraints, a
shutterless version of Tau is available (1.5” × 1.5” × 1.18”);
requires customer-supplied FFC.
•Tau is also available as a lens-less core.
•A lower priced, digital-only version of Tau is available for
large volume OEMs.
Accessories
There are several Tau-specific accessories available. Individual components are also available; contact FLIR for details.
Visit www.flir.com/cvs/cores/uncooled/products/tau to browse the Tau FAQ, and download the Tau GUI, connector
pin-out definition, IDD interface, and User Guide.
•Photon Replicator Board
(FLIR p/n: 421-0040-00)
gives users backward
compatibility with the
Photon Accessory Kit
(FLIR p/n: 421-0021-00).
•Photon Replicator Kit
(FLIR p/n: 421-0045-00)
provides full mechanical
and electrical
compatibility with Photon
mounting hardware and
accessories.
Photon
Replicator
Board
Tau with
Photon
Repilcator
Board
Installed
•VPC (video/power/
communication) breakout
module
(FLIR p/n: 421-0039-00).
VPC
Breakout
Module
Tau with
VPC
Module
Installed
•Tripod adapter (FLIR p/n:
261-2071-00).
Tripod
Adapter
Tau Inverted
with Tripod
Adapter
Installed
•Tau XP (expansion) board reference design module.
•Tau Software Developer’s Kit (FLIR p/n: 110-0133-16).
Photon Replicator Kit
Tau with Photon
Replicator Kit Installed
•Camera Link Expansion Board
(FLIR p/n: 421-0046-00) furnishes
14-bit digital data. A separate
MCX connector is provided for
analog video. Input power and
camera communication are
enabled via the mini-USB port.†
•Tau PCB Wearsaver with
Solder Pads – A low-profile
adapter that attaches to
the Tau’s 50-pin Hirose
connector, furnishing
a solder pad interface.
Schematic included.
(FLIR p/n: 421-0047-00)
†
Camera
Link
Tau PCB Wearsaver
with Solder Pads
The Camera Link XP accessory provides access to Tau digital data only.
Portions of the base Camera Link specifications are not met:
• C amera control and power are not supported via the Camera Link
connector (the XP accessory does furnish a mini-USB port for
power and communication)
• External frame sync is not supported.
User Configurability
The Tau offers complete configuration and integration flexibility with the
powerful Tau GUI. An optional SDK provides access to the complete set of
commands available for the Tau camera.
Through our new XP bus interface, users can:
•Directly command the camera through configurable discrete inputs for such
control as zoom, polarity, frame/video capture, etc. (up to eight commands
selectable).
•Select composite video type – NTSC or PAL.
•Select the optimal digital data interface – 8/14-bit serial LVDS, 8/14-bit
parallel CMOS, and BT.656 (now an input into many LCDs).
•Field-upgradeable to the latest versions of camera software and firmware.
Tau GUI
25-micron pixels
Tau 320 Range Chart
Man: 1.8 m x 0.5 m
5 mm, f/1.25
13 mm, f/1.25
Detect = 115 m
Detect = 300 m
Recognize = 27 m
Recognize = 74 m
Identify = 14 m
Identify = 37 m
Detect = 330 m
Detect = 840 m
Recognize = 82 m
Recognize = 215 m
Identify = 42 m
Identify = 108 m
9 mm, f/1.25
19 mm, f/1.25
Detect = 205 m
Detect = 450 m
Recognize = 52 m
Recognize = 112 m
Identify = 26 m
Identify = 56 m
Detect = 590 m
Detect = 1,280 m
Recognize = 150 m
Recognize = 330 m
Identify = 74 m
Identify = 165 m
25 mm, f/1.1
Detect = 590 m
Recognize = 148 m
Identify = 75 m
Detect = 1,650 m
Recognize = 430 m
Identify = 215 m
35 mm, f/1.2
Detect = 800 m
Recognize = 200 m
Identify = 105 m
Detect = 2,250 m
Recognize = 590 m
Identify = 290 m
50 mm, f/1.2
Detect = 1,125 m
Recognize = 290 m
Identify = 145 m
Detect = 3,100 m
Recognize = 810 m
Identify = 415 m
60 mm, f/1.25
Detect = 1,320 m
Recognize = 340 m
Identify = 170 m
Detect = 3,600 m
Recognize = 960 m
Identify = 480 m
100 mm, f/1.6
Detect = 2,075 m
Recognize = 540 m
Identify = 270 m
Detect = 5,300 m
Recognize = 1,500 m
Identify = 760 m
Vehicle: 4 m x 1.5 m
Tau Lens Data
Tau cameras have nine lens choices available, giving integrators flexibility in designing installations. The four wide field of view lenses (5, 9, 13, and 19 mm) are
integrated directly into the Tau’s camera body for improved durability and performance. These lenses are sealed, meet IP-67, and have a hard carbon-like coating
for long life. All Tau lenses are factory-focused to infinity with a collimator.
Tau Lens Data
Size
Resolution
FOV (H x V)
f/#
Weight (w/
lens)
5 mm
9 mm
Tau 320 Wide Field of View
13 mm
19 mm
25 mm
160 × 120 160 × 120 320 × 240 160 × 120 320 × 240 160 × 120 320 × 240
43° × 35° 25° × 20° 48° × 37° 17° × 14° 34° × 26° 12° × 10° 24° × 18° 18° × 14°
1.25
1.25
1.25
1.25
1.1
72 g
72 g
72 g
72 g
135 g
Tau 320 Narrow Field of View
35 mm
50 mm
60 mm
129 g
290 g
200 g
Specifications
Tau 320 Feature
Tau 320 Performance
Overview
Thermal Imager
FPA Formats
Pixel Size
Full Frame Rate
Exportable Frame Rates (non-military applications only)
Input Power
Power Dissipation
Sensitivity
Time to Image, FFC Interval
Image Optimization (BPR, NUC, & AGC’d video); Factory Set, User-selectable
Digital Detail Enhancement (DDE)
Uncooled VOx Microbolometer
324 × 256
25-micron
30 Hz (NTSC); 25 Hz (PAL)
7.5 Hz (NTSC); 8.3 Hz (PAL)
4.0 - 6.0 VDC
<1 W
<50 mk f/1.0 (w/FLIR’s proprietary noise reduction)
<3.5 sec, <0.5 sec
Y
Y
Physical Attributes
Size
Lens-less Configurations Available
Precision Mounting Holes (M2XO.4) on 3 Sides (2 per side)
Sealable Bulkhead Mounting Feature on Lens Barrel (M29X1.0), WFOV only
ROHS, RECH, and WEEE Compliant
1.75” × 1.75” × 1.18” (44.5 × 44.5 × 30.0 mm)
Y
Y
Y
Y
Interfaces and Controls
CMOS (14-bit or 8-bit)
BT.656 (8-bit)
Legacy Photon LVDS (30 Hz, 14-bit or 8-bit)
Slow Video (factory set)
NTSC/PAL, Field-switchable
Invert/Revert (analog and 8-bit digital)
Polarity Control
2× & 4× Digital Zoom
Dynamic Range Switching
Temperature Measurement/Spot Meter (WFOV lenses only)
Temperature Isotherms (WFOV lenses only)
Symbology (256 Gray & 256 Color)
Color Palettes (LUTs)
Gamma Correction
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Connectivity
Pseudo RS-232, High Speed Camera Communication
User-Configurability via SDK & GUI
External Sync
Discrete I/O Controls
Snapshot Frame Capture
Y
Y
Y
Y
Y
Environmental
Operating Temperature Range
Non-Operating Temperature Range
Temperature Shock (5°/min)
Operational Altitude (up to 40,000 feet)
Humidity (non-condensing between 5% and 95%)
Vibration (4.3 gs three axis, 8 hrs each)
Shock (200 g shock pulse w/ 11 msec sawtooth)
EMC Radiation FCC/CE Class B
100 mm
320 × 240
13° × 10° 9.1° × 6.9° 7.6° × 5.7° 4.6° × 3.7°
1.2
1.2
1.25
1.6
-40°C to +80°C
-55°C to +105°C
Y
Y
Y
Y
Y
Y
503 g
SANTA BARBARA
FLIR Systems, Inc.
70 Castilian Drive
Goleta, CA 93117
USA
PH:+1 805.964.9797
FX: +1 805.685.2711
PORTLAND
Corporate Headquarters
FLIR Systems, Inc.
27700 SW Parkway Avenue
Wilsonville, OR 97070
USA
PH:+1 877.773.3547
FX: +1 503.498.3153
EUROPE
FLIR Systems CVS BV
Charles Petitweg 21
4847 NW Teteringen - Breda
The Netherlands
PH:+31 (0) 765 79 41 94
FX: +31 (0) 765 79 41 99
Equipment described herein may require US government authorization for export purposes. Diversion contrary to US law is prohibited. Specifications are subject
to change without notice. Imagery used for illustration purposes only. ©2011 FLIR Systems, Inc. All rights reserved. Imagery used for illustration purposes only.
1007773 01/11
CC_0211_0015_EN
www.grupoacre.com
www.flir.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
