QuickSpecs
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Overview

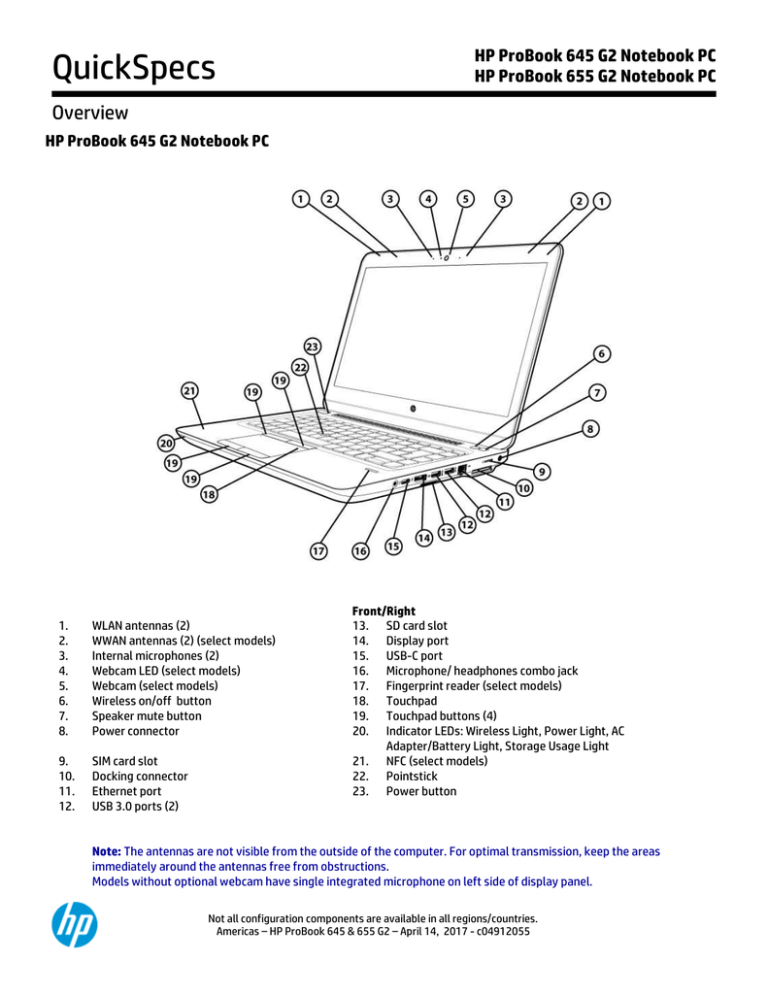

HP ProBook 645 G2 Notebook PC
1.
2.
3.
4.
5.
6.
7.
8.
WLAN antennas (2)
WWAN antennas (2) (select models)
Internal microphones (2)
Webcam LED (select models)
Webcam (select models)
Wireless on/off button
Speaker mute button
Power connector
9.
10.
11.
12.
SIM card slot
Docking connector
Ethernet port
USB 3.0 ports (2)
Front/Right
13. SD card slot
14. Display port
15. USB-C port
16. Microphone/ headphones combo jack
17. Fingerprint reader (select models)
18. Touchpad
19. Touchpad buttons (4)
20. Indicator LEDs: Wireless Light, Power Light, AC
Adapter/Battery Light, Storage Usage Light
21. NFC (select models)
22. Pointstick
23. Power button
Note: The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas
immediately around the antennas free from obstructions.
Models without optional webcam have single integrated microphone on left side of display panel.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Overview
1.
2.
Security lock slot
Optical drive
1.
VGA port
Left
3. Smart card reader
Back
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Overview
HP ProBook 655 G2 Notebook PC
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
WLAN antennas (2)
WWAN antennas (2) (select models)
Internal microphones (2)
Webcam LED (select models)
Webcam (select models)
Wireless on/off button
Speaker mute button
Power
connector
SIM card slot
Docking connector
Ethernet port
USB 3.0 ports (2)
Front/Right
13. SD card slot
14. Display Port
15. USB-C port
16. Microphone/ headphones combo jack
17. Fingerprint reader (select models)
18. Touchpad
19. Touchpad buttons (4)
20. Indicator LEDs: Wireless Light, Power Light, AC
Adapter/Battery Light, Storage Usage Light
21. NFC (select models)
22. Pointstick
23. Power button
Note: The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas
immediately around the antennas free from obstructions.
Models without optional webcam have single integrated microphone on left side of display panel.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Overview
1.
2.
Security lock slot
Optical drive
1.
VGA port
Left
3. Smart card reader
Back
2. Serial port optional (655 only)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Overview
AT A GLANCE















Windows 10 versions, Windows 8.1 versions, Windows 7 versions, Ubuntu Linux , Ubuntu Kylin Linux or FreeDOS 2.0
Thin and light design– PC-ABS (Polycarbonate–Acrylnitrile/Butadiene/Styrene) durable material is nearly 20% thinner;
soft-touch, more durable 4-step paint process; larger buttons (power), revamped keyboard (arrow keys); latch/hook
removal for clean palmrest design; top mounted speakers for optimized audio experience (compared to previous
generation)
The HP Premium keyboard is spill-resistant and offered with optional backlit design.
Large Touchpad with gestures support, on/off button with LED indicator
Enhanced security features including HP Fingerprint Reader and TPM 1.2 Embedded Security Chip
Accelerated Processing Unit and graphics from AMD
LED-backlit display
o HP ProBook 645: 14.0” diagonal HD or FHD or Touch FHD with camera and with WWAN
o HP ProBook 655: 15.6” diagonal HD or FHD or Touch FHD with camera and with WWAN
Optional HD webcam with dual-microphone array for video conferencing
DisplayPort 1.2 now native with integrated graphics
One USB-CTM Charging Port, two USB 3.0 ports for fast data transfer from devices (1 charging)
HD Audio with DTS Sound+TM optimized for high fidelity audio
Wireless and speaker mute button to conveniently manage the connectivity and speaker.
Flexible wireless connectivity options:
- Broadband Wireless (WWAN)
- Wireless LAN (WLAN)
- Personal area network (WPAN Bluetooth®)
- Near Field Communication (NFC)
Choice of hard drives up to 1 TB or solid state drives up to 512 GB
Passed MIL STD testing1
1. MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for
military use. Test results are not a guarantee of future performance under these test conditions. Damage under the MIL STD
test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
PRODUCT NAMES
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
OPERATING SYSTEM
Preinstalled
Windows 10 Pro 641
Windows 10 Home 641
Windows 10 Home Single Language 641
Windows 8.1 Pro 643
Windows 8.1 643
Windows 7 Professional 32 (Available through downgrade rights from Windows 10 Pro 64) 2
Windows 7 Professional 32 (Available through downgrade rights from Windows 10 Pro 64)
(National Academic only) 2
Windows 7 Professional 643
Windows 7 Professional 323
Windows 7 Professional 32 (National Academic only)3
FreeDOS 2.0
Web-only Support
Windows 10 Enterprise 641
Windows 8.1 Enterprise 643
Windows 7 Enterprise 643
Windows 7 Enterprise 323
1.
2.
3.
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time
for updates. See http://http://www.microsoft.com.
This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows
10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will
require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before
uninstalling and installing operating systems to avoid loss of your data
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. See
http://http://www.microsoft.com.
ACCELERATED PROCESSING UNIT
AMD PRO A10-8700B APU with Radeon™ R6 Graphics (1.8 GHz, up to 3.2 GHz, 2 MB cache, 4 cores)1
AMD PRO A8-8600B APU with Radeon™ R6 Graphics (1.6 GHz, up to 3 GHz, 2 MB cache, 4 cores) 1
AMD PRO A6-8500B APU with Radeon™ R5 Graphics (1.6 GHz, up to 3 GHz, 2 MB cache, 2 cores) 1
1. Multicore is designed to improve performance of certain software products. Not all customers or software applications
will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application
workload and your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
FUSION CONTROLLER HUB (FCH)
Chipset is integrated with processor
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
GRAPHICS
Radeon™ R5 Graphics
Radeon™ R6 Graphics
NOTE: Integrated with processors. Please see processor section for details.
DISPLAY
HP ProBook 645
Internal
Non-Touch
14.0" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768)
14.0" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768) with camera
14.0" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768) with WWAN
14.0" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768) with camera and with WWAN
14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080)
14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera
14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with WWAN
14.0" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera & WWAN
Touch
14.0" diagonal LED backlight FHD 60% CG 300 nits (1920x1080) with camera and with WWAN
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1200 external resolution @60 Hz
DisplayPort 1.2
Supports resolutions up to 2560 x 1600, 30-bit color depth @60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth
@ 120 Hz
Number of Displays Supported
Supports 3 independent displays if used with optional HP Ultraslim Docking Station 2
1.
2.
HD content required to view HD images.
Sold separately or as an optional feature
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
HP ProBook 655
Internal
Non-Touch
15.6" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768)
15.6" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768) with camera
15.6" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768) with WWAN
15.6" diagonal LED backlight HD1 Anti-glare 45% CG 220 nits (1366x768) with camera and with WWAN
15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080)
15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera
15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with WWAN
15.6" diagonal LED backlight FHD Anti-glare 60% CG 300 nits (1920x1080) with camera & WWAN
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Touch
15.6" diagonal LED backlight FHD 60% CG 300 nits (1920 x 1080) with camera with WWAN
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1200 external resolution @60 Hz
DisplayPort 1.2
Supports resolutions up to 2560 x 1600, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth
at 120 Hz
Number of Displays Supported
Supports 3 independent displays if used with optional HP Ultraslim Docking Station 2
1.
2.
HD content required to view HD images.
Sold separately or as an optional feature
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
STORAGE AND DRIVES
Primary Storage Bay
Hard Drives1
Supports SATA3, 7mm
2.5" Hard Drives
500 GB 7200 rpm
500 GB 7200 rpm Self-Encrypting Drive (Opal 2)
500 GB 7200 rpm Self Encrypting Drive (Opal 2) (FIPS)
1 TB 5400 rpm
500 GB Hybrid
M.2 (NGFF) Solid State Drive1
128 GB SATA-3 TLC
180 GB SATA-3 MLC
180 GB SATA-3 MLC ( Opal 2 )
240 GB SATA-3 MLC
256 GB PCIe-3x4 DS NVMe
256 GB SATA-3 MLC ( Opal 2 )
256 GB SATA-3 TLC
512 GB SATA-3 TLC
1. For hard drives and solid state drives, GB = 1 billion bytes. Actual formatted capacity is less.
Up to 16 GB (for Windows 7) and up to 30 GB (for Windows 8 and 10) of system disk is reserved for the system recovery
software.
OPTICAL DRIVES
Fixed 9.5 mm SATA
DVD-ROM Drive
DVD+/-RW SuperMulti DL1
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Blu-ray ROM DVD+/-RW SuperMulti DL1
Weight saver2
1. For Blu-ray drives, certain disc, digital connection, compatibility and/or performance issues may arise, and do not
constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to
play, they may require an HDMI digital connection and your display may require HDCP support. HD-DVD disks cannot be
played on this drive. Note that DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided – Version 1.0
media. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than
single layer discs; discs burned with this drive may not be compatible with many existing single-layer DVD drives and
players.
2. Not available on with Touch panel.
MEMORY
Standard
DDR3L PC3-12800 (Transfer rates up to 1600 MT/s)
Two SODIMM slots supporting dual-channel memory
4096 MB Total System Memory (4096 MB x 1)
8192 MB Total System Memory (4096 MB x 2)
8192 MB Total System Memory (8192 MB x 1)
16384 MB Total System Memory (8192 MB x 2)
Maximum
Up to 16384 MB with optional 8192 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory
to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
NETWORKING/COMMUNICATIONS
Broadband Wireless (WWAN) 2,3
HP lt4120 Qualcomm® Snapdragon™ X5 LTE Mobile Broadband Module
HP hs3110 HSPA+ Mobile Broadband Module
Wireless LAN (WLAN)1,2
Options via Minicard
Intel® 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.0 Combo
Intel® 802.11a/b/g/n/ac (1x1) and Bluetooth® 4.0 Combo
Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo
Broadcom 802.11b/g/n (1x1) WiFi and Bluetooth® 4.0 Combo
Realtek 802.11b/g/n (1x1) Wi-Fi
Personal area network (WPAN Bluetooth) 1,2
Bluetooth® 4.0 supported via all combo cards (Except for Intel® 802.11 ac and Intel® 802.11 a/b/g/Non-vPro)
Bluetooth® 4.1 supported via Intel® 802.11 ac and Intel® 802.11 a/b/g/n Non-vPro only
Near Field Communication (NFC) Optional2
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
HP Module with NXP NFC Controller NPC100
Support for Miracast (Windows 8.1 and Windows 10)
1. Wireless access point and Internet service is required and is not included. Availability of public wireless access points
limited.
2. Sold separately or as an optional feature.
3. WWAN module is optional and requires separately purchased service contract. Check with service provider for coverage
and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other
factors. 4G LTE not available on all products, in all regions.
Communications
Realtek RTL8111HSH Gigabit Ethernet1
1. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet,
and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet
server and network infrastructure is required.
AUDIO/MULTIMEDIA
Audio
HD Audio with DTS Sound+TM
(2) Integrated stereo speakers
Integrated digital microphone (Dual-microphone array when equipped with optional webcam)
Function keys for microphone mute, volume up, volume down
Stereo headphone/line out
Stereo microphone in
Webcam
Optional 720p HD webcam 1,2








HD format (widescreen)
Supports videoconferencing (non-HD) and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
Skype-ready
1.
2.
Sold separately or as an optional feature.
HD content required to view HD images.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
HP Advanced Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard. The 101/102-key compatible
keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and
alt keys, and function keys. DuraKeys only available with Backlit option.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Touchpad
On/Off button
Enabled by default
2F Scrolling - On
2F Zoom ( Pinch ) - On
OSD ( enable / disable ) - On
Win 8 2F tap = right click - On
Win 8 Edge Swipes – On
Buttons and Function Keys
F1 - Sleep
F2 - Blank
F3 - Backlit
F4 - Display Switch
F5 - Brightness down
F6 - Brightness up
F7 - Blank
F8 - Volume down
F9 - Volume up
F10 - Mic Mute
F11 - Bank
F12 - Num lock
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
BIOS
HP DriveLock | HP Automatic Drive Lock
HP BIOS Protection1
HP Disk Sanitizer2
HP SpareKey3
Update via Network
Master Record Security
Power On Authentication
Pre-Boot Security
Secure Erase4
Hybrid Boot
Measured Boot
Secure Boot
Absolute Persistence Module5
MultiMedia
CyberLink PowerDVD
CyberLink Power2Go (Optical drives)
CyberLink YouCam BE (Windows 7 only)
Communication
HP Connection Manager (Windows 7 only)
HP GPS and Location6 (Windows 7 only)
HP Mobile Connect7 (Windows 8 only)
HP Wireless Hotspot8 (Windows 8 only)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Intel WiDi Software9
HP Roaming Alert (Windows 8 only)
Intel My WiFi and Wireless Drivers
HP Value Add Software
HP 3D DriveGuard (requires Windows)
HP ePrint Driver10 (HP Exclusive)
HP PageLift (HP Exclusive)11
HP Recovery Manager (Windows 7 only)
HP Support Assistant
HP Recovery Disc Creator (Windows 7 only)
UEFI System Diagnostics W8
3rd Party
Adobe Flash Player
Skype12 (subscription required and sold separately)
Buy Office
Security Hardware
HP Client Security13
HP Credential Manager
HP Password Manager
HP Drive Encryption (FIPS 140-2)14
HP Device Access Manager with Just In Time Authentication
HP File Sanitizer15
HP Spare Key
Integrated Smart Card Reader (FIPS 201)
Security screw for bottom access door
Microsoft Security Essentials (Windows 7)16
Microsoft Defender (Windows 8)
TPM 1.2/2.017
HP Fingerprint reader
Security lock slot
Integrated Smart Card Reader
1. HP Tools partition with an HP BIOS required for automatic recovery.
2. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial
setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled.
3. Requires initial user set up.
4. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.
5. The Absolute Persistence agent is shipped turned off, and will be activated when customers activate a purchased
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with
Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions
apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data
Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In
order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a
PIN or purchase one or more RSA SecurID tokens from Absolute Software.
6. GPS access requires an unobstructed path to multiple satellites. Performance may be affected if/when used inside
of buildings, bridges or heavily congested metropolitan areas. Requires separately purchased GPS navigation
software available from multiple GPS applications.
7. Internet access required.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
8. The wireless hotspot application requires an active internet connection and separately purchased data plan. While
HP wireless hotspot is active, on-device applications will continue to work and will use the same data plan as the
wireless hotspot. Wireless hotspot data usage may incur additional charges. Check with your service provider for
plan details. Requires Windows 8.1 or HP Connection Manager for Windows 7.
9. Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased
projector, tv or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to
the projector, tv or computer monitor via a standard HDMI cable, also sold separately.
10. Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of
eligible printers, supported documents and image types and other HP ePrint details, see
www.hp.com/go/eprintcenter).Requires optional broadband module. Broadband use requires separately purchased
service contract. Check with service provider for coverage and availability in your area. Separately purchased data
plans or usage fees may apply. Print times and connection speeds may vary.
11. HP PageLift requires Windows 7 or higher edition.
12. Skype is not offered in China.
13. Not all features are remotely manageable.
14.Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out
of Drive Encryption and prevents data access. Drive encryption planned to be available in October 2013.
15. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial
setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled.
16. Opt in and internet connection required for updates.
For more information on HP security solutions refer to: http://www.hp.com/go/security.
17. This product ships with TPM 1.2 with option to upgrade to TPM 2.0. Upgrade utility is expected to be available by
the second half of 2016 via HP Customer Support.
POWER
Power Supply
HP 45W Smart AC Adapter (UMA only)
HP 45W Smart AC Adapter (Only available for Japan and England)
HP 65W Smart AC Adapter
HP 65W Smart EM Adapter (only available for Asia, China and India)
Power cord included is 1.8 m (+/- 0.1 m) or 1.0 m (+/- 0.1 m).
Primary Battery
HP 3-cell Long Life Prismatic (48 WHr)
Battery Life1
HP ProBook 645 Notebook PC
UMA Graphics
Discrete Graphics
3-cell (48 Whr) with SSD
Up to 8 hrs 15 mins
N/A
3-cell (48 Whr) with HDD
Up to 7 hrs 15 mins
N/A
UMA Graphics
Discrete Graphics
3-cell (48 Whr) with SSD
Up to 8 hrs
N/A
3-cell (48 Whr) with HDD
Up to 7 hrs 15 mins
N/A
HP ProBook 655 Notebook PC
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
System Standby Time2
UMA Graphics
Discrete Graphics
HP ProBook 640 Notebook PC
Up to 186 hrs
N/A
HP ProBook 650 Notebook PC
Up to 186 hrs
N/A
Battery recharge times
ProBook 645 G2
ProBook 655 G2
Time to 90% Charge3 (minutes)
109
109
Time to 100% Charge4 (minutes)
167
167
1. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded
applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery
will naturally decrease with time and usage. See www.bapco.com for additional details.
2. Standby life will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum
capacity of the battery will naturally decrease with time and usage.
3. Recharges your battery up to 90% within 109 minutes when the system is off. Applies to 3-cell 48Whr battery only. When
the PC is powered on, charge time may increase and will vary based on the workload of the notebook PC.
4. Recharges your battery up to 100% within 167 minutes when the system is off. Applies to 3-cell 48Whr battery only. When
the PC is powered on, charge time may increase and will vary based on the workload of the notebook PC.
WEIGHTS & DIMENSIONS
HP ProBook 645 Notebook PC
Weight
Starting at 4.30 lbs (1.95 kg)1
(3-cell battery, ODD weight saver, UMA, no FPR, 1 SODIMM, WLAN only, SSD, touchpad only, no camera, no WWAN)
Dimensions (w x d x h)
13.39 x 9.33 x 1.06 in (Front and rear)2
34.0 x 23.7 x 2.70 cm (Front and rear)
HP ProBook 655 Notebook PC
Weight
Starting at 5.1 lbs (2.31 kg)1
(3-cell battery, ODD weight saver, UMA, no FPR, 1 SODIMM, WLAN only, SSD, touchpad only, no camera, no WWAN)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Dimensions (w x d x h)
14.88 x 10.11 x 1.07 in (Front and rear)2
37.8 x 25.7 x 2.74 cm (Front and rear)
1. Weight varies by configuration and components.
2. Height varies depending upon where on the notebook the measurement is made.
PORTS/SLOTS
Ports
USB TypeCTM - One
USB 3.0 port – One
USB 3.0 port Charging – One
RJ-45 / Ethernet - One
Docking connector – One
Headphone / Microphone (Combo jack ) – One
AC port ( 4.5mm ) – One
DisplayPort -One
VGA port – One
Serial port optional – One (HP ProBook 655 Notebook PC only) 1
SD Media Reader Slot
Supports SD, SDHC, SDXC
1. Sold separately or as an optional feature.
SERVICE AND SUPPORT
Limited 3-year, 1-year or 90-day limited warranty options available, depending on country. Batteries have a default one year
limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the
platform.Optional1 HP Care Pack Services2 are extended service contracts which go beyond your standard limited warranties.
To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at
http://www.hp.com/gp/cpc.
1. Sold separately or as an optional feature.
2. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on
date of hardware purchase. Restrictions and limitations apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
SYSTEM UNIT
TBD
DISPLAYS*
14.0 FHD AG WLED SVA 60%cg 300nits eDP Slim
Panel
Active Area (W x H)
309.40 x 173.95 (mm)
Dimensions (W x H)
320.9 x 205.6 (mm) max
Diagonal Size
14 (inch)
Thickness
3.0 (mm) max
Weight
270 g max
Interface
eDP 1.2
Surface Treatment
Anti-Glare (AG)
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nits
Pixel Resolution - Format
1920 x 1080 (FHD)
PPI
157
Pixel Resolution - Configuration
RGB
Backlight
LED
Color Gamut Coverage
60%
Color Depth
6 bits
Viewing Angle
SVA 45/45/25/35
14.0 HD AG WLED SVA 45%cg 220nits eDP Flat
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Panel
Active Area (W x H)
309.40 x 173.95 (mm)
Dimensions (W x H)
320.9 x 205.6 (mm) max
Diagonal Size
14 (inch)
Thickness
3.6 (mm) max
Weight
320 g max
Interface
eDP 1.2
Surface Treatment
Anti-Glare (AG)
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
220 nits
Pixel Resolution - Format
1280 x 768 (HD)
PPI
112
Pixel Resolution - Configuration
RGB
Backlight
LED
Color Gamut Coverage
45%
Color Depth
6 bits + Hi FRC
Viewing Angle
SVA 45/45/25/35
14.0 FHD WLED SVA 60%cg 300nits eDP Slim Touch
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Panel
Active Area (W x H)
309.40 x 173.95 (mm)
Dimensions (W x H)
320.9 x 205.6 (mm) max
Diagonal Size
14 (inch)
Thickness
3.0 (mm) max
Weight
270 g max
Interface
eDP 1.2
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nits
Pixel Resolution - Format
1920 x 1080 (FHD)
PPI
157
Pixel Resolution - Configuration
RGB
Backlight
LED
Color Gamut Coverage
60%
Color Depth
6 bits
Viewing Angle
SVA 45/45/25/35
Touch Enabled
Optional
Touch Point Supported
10-point multi-touch
Other Features
AS
Pen Enabled
No
15.6 FHD AG WLED SVA 60%cg 300nits eDP Slim 3.2mm
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Panel
Active Area (W x H)
344.2 x 193.5 (mm)
Dimensions (W x H)
360 x 224.3 (mm) max
Diagonal Size
15.6 (inch)
Thickness
3.2 (mm) max
Weight
360 g max
Interface
eDP 1.2
Surface Treatment
Anti-Glare (AG)
Contrast Ratio
400:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nits
Pixel Resolution - Format
1920 x 1080 (FHD)
PPI
142
Pixel Resolution - Configuration
RGB
Backlight
LED
Color Gamut Coverage
60%
Color Depth
6 bits
Viewing Angle
SVA 45/45/25/35
15.6 HD AG WLED SVA 45%cg 220nits eDP Flat
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Panel
Active Area (W x H)
344.2 x 193.5 (mm)
Dimensions (W x H)
360 x 224.3 (mm) max
Diagonal Size
15.6 (inch)
Thickness
3.8 (mm) max
Weight
420 g max
Interface
eDP 1.2
Surface Treatment
Anti-Glare (AG)
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
220 nits
Pixel Resolution - Format
1280 x 768 (HD)
PPI
101
Pixel Resolution - Configuration
RGB
Backlight
LED
Color Gamut Coverage
45%
Color Depth
6 bits + Hi FRC
Viewing Angle
SVA 45/45/25/35
15.6 FHD WLED SVA 60%cg 300nits eDP Slim 3.2mm Touch
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Panel
Active Area (W x H)
344.2 x 193.5 (mm)
Dimensions (W x H)
360 x 224.3 (mm) max
Diagonal Size
15.6 (inch)
Thickness
3.2 (mm) max
Weight
360 g max
Interface
eDP 1.2
Contrast Ratio
400:1 (typical)
Refresh Rate
60 Hz
Brightness
300 nits
Pixel Resolution - Format
1920 x 1080 (FHD)
PPI
142
Pixel Resolution - Configuration
RGB
Backlight
LED
Color Gamut Coverage
60%
Color Depth
6 bits
Viewing Angle
SVA 45/45/25/35
Touch Enabled
Optional
Touch Point Supported
10-point multi-touch
Other Features
AS
Pen Enabled
No
* All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary
either higher or lower.
SECURITY
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
HP Fingerprint
Mobile Voltage Operation 3.0V-3.6V
Reader (optional)
Operating Temperature 14° – 167°F (-10° – 75°C)
Smart Card Reader
Current Consumption
36 mA peak
Low Latency Wait for
Finger
950 uA
Capture Rate
59000 lines/sec
ESD Resistance
IEC 61000-4-2 4B (±15KV)
Detection Matrix
200*1 (plus another secondary line)
508 dpi
10*1 mm sensor area
Smart card standard
PC/SC 2.0 for Windows smart card standard
Dimensions (L x W x H)
0.41x 0.08 x 0.32 in (10.5 x 2 x 8.2 mm)
Smart Card support
ISO 7816 Class A and AB smart cards
Smart Card Interface
Smart Card Interface with T = 0 and T = 1 support
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436,
SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via
external EEPROM
Operating systems
No driver is required for this device. Native support is provided by the operating
system.
Power
Normal Mode
With card present, before being suspended: 40.9 mA
Without card present, before being suspended: 33.16 mA
After being suspended with smart card present: 380 μA
After being suspended without smart card present: 380 μA
Power Saving
Mode
With card present, before being suspended: 40.6 mA
Without card present: 380 μA
After being suspended with smart card present: 380 μA
Features








Support single slot
Support T0, T1 protocol
Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442,
SLE4436,
SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041
card via external EEPROM
Support ISO7816 Class A, B and C (5V/3V/1.8V) card
Implemented as an USB full speed device with bulk transfer endpoint,
Mass
Storage endpoint
Built-in PLL for USB and Smart Card clocks requirement
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications













Support EEPROM for USB descriptors customization (PID/VID/
iManufacturer/iProduct/Serial Number), Direct Web Page Link, and
accessing memory card module.
EEPROM programmable via USB interface
Support software update for memory card module
Support Direct Web Page Link via configuration in external EEPROM
Support short APDU and extended APDU
Compatible with Microsoft USB-CCID driver
Support remote wake up through inserting card/removing card
Support USB selective suspend
Support Power Saving Mode (Using one pin to select between
Normal/PWR Saving Mode)
Support card power over current protection mechanism
Built in resonator.
Support USB LPM (Link Power Management) features.
Embedded clock source.
NETWORKING/COMMUNICATIONS
Technology/Operating bands
Wireless protocol standards
GPS
GPS bands
Maximum data rates
HP lt4120 Qualcomm® Snapdragon™ X5 LTE Mobile Broadband Module*
LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3),
1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8),
700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower),
800 (Band 20), 700 (Band 28).
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4),
850 (Band 5), 900 (Band 8) MHz
EV-DO: 850 (BC0), 1900 (BC1) MHz (Only work with Verizon network)
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8)
MHz
3GPP Release 10 LTE Specification CAT.4, 20MHz BW
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
1xEVDO Release 0, A and B.
E-GPRS: Class B, Multi-slot class 12, coding schemes CS1 - CS4
and MSC1 - MSC9
Standalone, A-GPS (MS-A, MS-B and XTRA)
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
LTE: 150 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
CDMA 1xRTT: 153.6 kbps (Download), 153.6 kbps (Upload)
EVDO Rel.A: 3.1 Mbps (Download), 1.8 Mbps (Upload)
EVDO Rel.B: 14.7 Mbps (Download), 5.4Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Maximum output power
LTE: 23 dBm
HSPA+: 23.5 dBm
1xRTT/EVDO: 24dBm
E-GPRS 1900/1800: 26 dBm
E-GPRS 900/850: 27 dBm
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
Maximum power consumption LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
1xRTT/EVDO: 1,000 mA (peak); 700 mA (average)
E-GPRS: 2,800 mA (peak); 500 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
6.2 g
Dimensions
42 x 30 x 2.3 mm
(Length x Width x Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not
available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will
vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.
HP hs3110 HSPA+ Intel® Mobile Broadband Module*
HSPA+: 2100 (Band1), 1900 (Band 2), 1700 (Band 4), 850 (Band 5), 900 (Band 8) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 MHz (Band 5), 900 (Band 8) MHz
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9
Standalone, A-GPS
1575.42 MHz ± 1.023 MHz
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
Technology/Operating bands
Wireless protocol standards
GPS
GPS bands
Maximum data rates
Maximum output power
Maximum power consumption
E-GPRS: 296 kbps (Download), 236.8 kbps (Upload)
GPRS: 107 kbps (Download), 85.6 kbps (Upload)
HSPA+: 24 dBm
E-GPRS 1800/1900: 26 dBm
E-GPRS 850/900: 27 dBm
GPRS 1800/1900: 30 dBm
GPRS 850/900: 33 dBm
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
M.2, 3042-S3 Key B
6g
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
Form Factor
Weight
Dimensions
(Length x Width x Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available
in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location,
environment, network conditions, and other factors.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Intel® 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.1 Combo
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n

2.402 – 2.482 GHz
Note:
The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.
802.11a/n





Data Rates
Modulation
Security1





4.9 – 4.95 GHz (Japan)
5.15 – 5.25 GHz
5.25 – 5.35 GHz
5.47 – 5.725 GHz
5.825 – 5.850 GHz
Note: Indonesia no support this band)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz,
and 80MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM




IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications



Network Architecture
Models
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
 WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
Power Consumption







802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11a : +14dBm minimum
802.11n HT20(2.4GHz) : +14dBm minimum
802.11n HT40(2.4GHz) : +12dBm minimum
802.11n HT20(5GHz) : +14dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Transmit:
Receive:
2.0 W (max)
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode:
50 mW (WLAN unassociated)
Connect Standby: 10 mW (WLAN+BT)
Radio disabled: 5 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -88dBm maximum
802.11a, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
802.11ac, 1SS, MCS-0 : -86dBm maximum
802.11ac, 1SS, MCS-9 : -61dBm maximum
802.11ac, 2SS, MCS-0 : -83dBm maximum
802.11ac, 2SS, MCS-9 : -58dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
1.
2.
3.
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2 Compliant
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of + 4 dBm for BR and EDR.
Receiver Sensitivity
Modulation
0.01% BER
0.001% BER
Legacy
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Legacy Up to 33 ft (10 m)
BLE Up to 99 ft (30 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)
Bluetooth V4.1/V4.2 support
feature
V4.1: ESR5/6/7 compliant
V4.2: ESR8 compliant, LE Secure Connection – Basic.
Intel® 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
 2.402 – 2.482 GHz
Note:
The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of transmitting
must fully comply with requirements of 15.247 or otherwise disable
those channels.
802.11a
 4.9 – 4.95 GHz (Japan)
 5.15 – 5.25 GHz
 5.25 – 5.35 GHz
 5.47 – 5.725 GHz
 5.825 – 5.850 GHz
Note:
Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security1






IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications

Sub-channels
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
 WAPI
Multinational support with frequency bands and channels compliant to
local regulations.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power2
 802.11b : +16dBm minimum
 802.11g : +14dBm minimum
 802.11a : +14dBm minimum
 802.11n HT20(2.4GHz) : +13dBm minimum
 802.11n HT40(2.4GHz) : +13dBm minimum
 802.11n HT20(5GHz) : +12dBm minimum
 802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Power Consumption
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode:
60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -86dBm maximum
802.11a, 54Mbps : -72dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Antenna type
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (noncondensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
Certifications
UL, CSA, and CE Mark
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Bluetooth V4.1/V4.2 support
feature
V4.1: ESR5/6/7 compliant
V4.2: ESR8 compliant, LE Secure Connection – Basic.
Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
 2.402 – 2.482 GHz
Note:
The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of transmitting
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
must fully comply with requirements of 15.247 or otherwise disable
those channels.
802.11a
 4.9 – 4.95 GHz (Japan)
 5.15 – 5.25 GHz
 5.25 – 5.35 GHz
 5.47 – 5.725 GHz
 5.825 – 5.850 GHz
Note:
Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Sub-channels

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
 AES-CCMP: 128 bit in hardware
 802.1x authentication
 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
 WPA2 certification
 IEEE 802.11i
 Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
 WAPI
Multinational support with frequency bands and channels compliant to
local regulations.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power2


802.11b : +16dBm minimum
802.11g : +14dBm minimum
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Consumption
 802.11a : +14dBm minimum
 802.11n HT20(2.4GHz) : +13dBm minimum
 802.11n HT40(2.4GHz) : +13dBm minimum
 802.11n HT20(5GHz) : +12dBm minimum
 802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode:
60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -86dBm maximum
802.11a, 54Mbps : -72dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Antenna type
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (noncondensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Broadcom 802.11b/g/n (1x1) WiFi and Bluetooth® 4.0 Combo
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n

Data Rates
Modulation
Security1
2.402 – 2.482 GHz
Note:
The FCC has declared as of September 1, 2014 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 07, (20MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM,

Network Architecture
Models
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
 AES-CCMP: 128 bit in hardware
 802.1x authentication
 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
 WPA2 certification
 IEEE 802.11i
 Cisco Certified Extensions, all versions through CCX4 and CCX Lite
 WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2



802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11n HT20(2.4GHz) : +13dBm minimum
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications



Power Consumption
802.11n HT40(2.4GHz) : +13dBm minimum
802.11n HT20(5GHz) : +12dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded antennas for 2.4GHz are provided to the card to support
WLAN and Bluetooth communications.
(Support Dual antenna or Single antenna, depend on platform
requirement)
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
4.
5.
6.
LED Amber – Radio OFF; LED White – Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Realtek 802.11b/g/n (1x1) Wi-Fi
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n

Data Rates
Modulation
Security1
2.402 – 2.482 GHz
Note:
The FCC has declared as of September 1, 2014 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 07, (20MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM,

Network Architecture
Models
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
 AES-CCMP: 128 bit in hardware
 802.1x authentication
 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
 WPA2 certification
 IEEE 802.11i
 Cisco Certified Extensions, all versions through CCX4 and CCX Lite
 WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2



802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11n HT20(2.4GHz) : +13dBm minimum
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications



Power Consumption
802.11n HT40(2.4GHz) : +13dBm minimum
802.11n HT20(5GHz) : +12dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded antennas for 2.4GHz are provided to the card to support
WLAN and Bluetooth communications.
(Support Dual antenna or Single antenna, depend on platform
requirement)
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
7.
8.
9.
LED Amber – Radio OFF; LED White – Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
STORAGE AND DRIVES
500 GB 7200rpm Self
Encrypting Drive (FIPS140-2) (Opal 2)
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Cache
Rotational Speed
Logical Blocks
Operating Temperature
Features
500 GB 7200rpm
Hard Drive
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Cache
Rotational Speed
Logical Blocks
Operating Temperature
Features
500 GB 7200rpm SelfDrive Weight
Encrypting Drive (Opal 2) Capacity
Height
Width
0.21 lbs (95 g)
500 GB
0.28 in (7 mm)
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Synchronous (maximum) 600 MB/s
Single Track
1.5 ms
Average
12ms
Maximum
18mm-22ms
32GB
7200 rpm
976,773,168
32° to 140° F (0° to 60° C) [top cover temp]
ATA Security; TCG Opal 2.x, FIPS, S.M.A.R.T., NCQ, Ultra DMA ,
0.20 lbs (92 g)-0.21 lbs (95 g)
500 GB
0.28 in (7 mm)
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Synchronous (maximum) 600 MB/s
Single Track
1.5ms-2.0ms
Average
11ms-13ms
Maximum
18ms-22ms
32GB
7200 rpm
976,773,168
32° to 140° F (0° to 60° C) [case temp]
ATA Security
0.21 lbs (95 g)
500GB
0.28 in (7 mm)
2.75 in (69.85 mm)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Cache
Rotational Speed
Logical Blocks
Operating Temperature
Features
1 TB 5400rpm Hard Drive Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Cache
Rotational Speed
Logical Blocks
Operating Temperature
Features
500 GB Hybrid,
8 GB cache
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including
settling)
Cache
Rotational Speed
Logical Blocks
Operating Temperature
Features
ATA-8, SATA 3.0
Synchronous (maximum) 600 MB/s
Single Track
1.5ms
Average
12ms
Maximum
18ms- 22ms
32GB
7200rpm
976,773,168
32° to 140° F (0° to 60° C) [top cover temp]
ATA Security; TCG Opal 2.x, S.M.A.R.T., NCQ, Ultra DMA
0.21 lbs (94 g)- 0.21 lbs (99 g)
1TB
0.28 in (7.2 mm)
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Synchronous (maximum) 600 MB/s
Single Track
2ms
Average
12ms-13ms
Maximum
18ms-23ms
Up to 32GB
5400rpm
1,953,525,168
32° to 140° F (0° to 60° C) [case temp]
S.M.A.R.T., NCQ, Ultra DMA
0.21 lb (95 g)
500 GB
0.276 in (7 mm)
2.76 in (70.1 mm)
ATA-8, SATA 2.6, 6.0 Gb/s, NCQ
Synchronous (maximum) 600 MB/s (Drive Capability)
Single Track
2 ms
Average
12 ms
Maximum
NIL ms
64GB
5400 rpm
976,773,168
32° to 140° F (0° to 60° C) [case temp]
ATA Security
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
128 GB M2 2280 SATA-3
TLC
Solid State Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
Logical Blocks
Operating Temperature
Features
180 GB M2 2280 SATA-3
MLC
Solid State Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
Logical Blocks
Operating Temperature
Features
180 GB M2 2280 SATA-3
Self-Encrypting Drive
(Opal 2) MLC Solid State
Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
Logical Blocks
Operating Temperature
Features
240 GB SATA-3 MLC Solid Drive Weight
State Drive
Capacity
Height
Width
Interface
0.019 lb (8.5 g)-0.022 lb (10 g)
128 GB
0.09 in (2.23 mm)- 0.14 in (3.58 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential Read
Maximum Sequential Write
500 ~ 540 MB/s
130 ~ 450 MB/s
250,069,680
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, DIPM; TRIM; DEVSLP
0.022 lb (<10 g)
180 GB
0.09 in (2.23 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential Read
Maximum Sequential Write
540 MB/s
490 MB/s
351,651,888
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, DIPM; TRIM; DEVSLP
0.022 lb (<10 g)
180GB
0.09 in (2.23 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential
Maximum Sequential Write
Read
540 MB/s
490 MB/s
351,651,888
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, TCG OPAL 2.x, DIPM; TRIM; DEVSLP
0.02 lb (10 g)
240 GB
0.14 in (3.58 mm)
0.87 in (22 mm)
ACS-3, SATA 3.2
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Technical Specifications
Performance
Logical Blocks
Operating Temperature
Features
256 GB 2280 SATA-3 TLC Drive Weight
Solid State Drive
Capacity
Height
Width
Interface
Performance
Logical Blocks
Operating Temperature
Features
256 GB PCIe-3x4 NVMe
Solid State Drive
Drive Weight
Capacity
Height
Width
Interface
Performance
Logical Blocks
Operating Temperature
Features
256 GB M2 2280 SATA-3 Drive Weight
Self-Encrypting Drive Capacity
Height
(Opal 2) MLC Solid
Width
State Drive
Maximum Sequential
Maximum Sequential Write
Read
540 MB/s
490 MB/s
468,862,128
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, DIPM; TRIM; DEVSLP
0.019 lb (8.5 g)- 0.022 lb (10 g)
256GB
0.09 in (2.3 mm)- 0.14 in (3.58 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential
Maximum Sequential Write
Read
515 ~ 540 MB/s
260 ~ 515 MB/s
500,118,192
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, DIPM; TRIM; DEVSLP
0.02 lb (10 g)
256 GB
0.09 in (2.3 mm)
0.87 in (22 mm)
PCIe NVMe Gen3X4
Maximum Sequential
Maximum Sequential Write
Read
2260 ~3100 MB/s
1100 ~ 1400 MB/s
500,118,192
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, TRIM; L1.2
Logical Blocks
Operating Temperature
Features
0.02 lb (10 g)
256 GB
0.14 in (3.58 mm)- 0.09 in (2.23 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential
Maximum Sequential Write
Read
450 ~ 540 MB/s
370 ~ 500 MB/s
500,118,192
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security; TCG Opal 2.0, DIPM; TRIM; DEVSLP
Drive Weight
0.019 lb (8.5 g)- 0.02 lb (10 g)
Interface
Performance
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
512 GB M2 2280 TLC
Solid State Drive
Capacity
Height
Width
Interface
Performance
Logical Blocks
Operating Temperature
Features
512 GB M2 2280 SATA-3 Drive Weight
Self-Encrypting Drive Capacity
Height
(Opal 2) MLC Solid
Width
State Drive
Interface
Performance
Logical Blocks
Operating Temperature
Features
512 GB
0.09 in (2.3 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential
Maximum Sequential Write
Read
500 ~ 540 MB/s
440 ~ 515 MB/s
1,000,215,216
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, DIPM; TRIM; DEVSLP
0.019 lb (8.5 g)- 0.02 lb (10 g)
512 GB
0.09 in (2.3 mm)
0.87 in (22 mm)
ATA-8, SATA 3.0
Maximum Sequential
Maximum Sequential Write
Read
500 ~ 540 MB/s
440 ~ 515 MB/s
1,000,215,216
32° to 158°F (0° to 70°C) [ambient temp]
ATA Security, DIPM; TRIM; DEVSLP; TCG Opal 2.0
ENVIRONMENTAL
HP ProBook 645 G2 Notebook PC
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:



System Configuration
Energy
Consumption
(in accordance with US
IT ECO declaration
US ENERGY STAR®
EPEAT <Gold> registered in the United States. See http://www.epeat.net
for registration status in your country.
The configuration used for the Energy Consumption and Declared Noise Emissions
data for the Notebook model is based on a “Typically Configured Notebook”.
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
ENERGY
method)
STAR®
test
Normal Operation (Sort
idle)
7.08 W
7.64 W
6.65 W
Normal Operation (Long
idle)
4.38 W
5.13 W
4.28 W
Sleep
0.48 W
0.59 W
0.47 W
Off
0.38 W
0.49 W
0.37 W
Note:
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered
within the model family. HP computers marked with the ENERGY STAR® Logo are
compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY
STAR® specifications for computers. If a model family does not offer ENERGY
STAR® compliant configurations, then energy efficiency data listed is for a typically
configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation (Short
idle)
24 BTU/hr
26 BTU/hr
23 BTU/hr
Normal Operation (Long
idle)
15 BTU/hr
18 BTU/hr
15 BTU/hr
Sleep
2 BTU/hr
2 BTU/hr
2 BTU/hr
Off
1 BTU/hr
2 BTU/hr
1 BTU/hr
*NOTE: Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Typically Configured – Idle
3.1
21
Fixed Disk – Random
writes
3.5
28
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years.
Upgradeable features and/or components contained in the product may include:
•
•
•
•
•
•
•
•
3 USB ports
1 PC card slot (type I/II)
1 ExpressCard/54 slot
1 IEEE 1394 Port
2 SODIMM memory slots
Optional expansion base docking station
1 multi-bay II storage port
Interchangeable HDD
Spare parts are available throughout the warranty period and or for up to “5”
years after the end of production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information







Packaging Materials
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) directive - 2011/65/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the
<Gold> level, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked
per ISO11469 and ISO1043.
This product contains 0.0% post-consumer recycled plastic (by wt.)
This product is 95.8% recycle-able when properly disposed of at end of
life.
External:
PAPER/Corrugated
Internal:
366 g
PLASTIC/EPE (Expanded Polyethylene)
42 g
PLASTIC/Polyethylene low density
14.5 g
PLASTIC/Polypropylene
3.2 g
The plastic packaging material contains at least 50% recycled content.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
Material Usage
The corrugated paper packaging materials contains at least 70% recycled
content.
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):





















Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Technical Specifications
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs in
many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett Packard
web site at: http://www.hp.com/go/recyclers. These instructions may be used
by recyclers and other WEEE treatment facilities as well as HP OEM customers
who integrate and re-sell HP equipment.
Hewlett-Packard
Corporate
Environmental
Information
For more information about HP’s commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hpinformation/environment/ecolabels.html
ISO 14001 certificates:
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755
842
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
HP ProBook 655 G2 Notebook PC
TBD
COUNTRY OF ORIGIN
China
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
QuickSpecs
Options and Accessories (sold separately and availability may vary by country)
Type
Description
Part Number
Docking
HP 3001pr USB 3.0 Port Replicator
F3S42AA
HP 3005pr USB 3.0 Port Replicator
H1L08AA#xxx
HP Display and Notebook Stand II
E8G00AA#xxx
Universal Port Replicator
E6D70AA#xxx
HP UltraSlim Docking Station
D9Y32AA#xxx
HP USB Travel Mouse
G1K28AA#xxx
HP Ultrathin Wireless Mouse SE
L9V77AA
HP Ultrathin Wireless Mouse
L9V78AA
HP Stereo USB Headset
T1A67AA
DisplayPort to HDMI Adapter
F3W43AA
DisplayPort to DVI Adapter
F7W96AA
HP 45W Smart AC Adapter (4.5mm)
H6Y88AA#xxx
HP 65W Smart AC Adapter
H6Y89AA#xxx
Storage - External Storage
HP USB External DVDRW Drive
F2B56AA
Security
HP UltraSlim Keyed Cable Lock
H4D73AA
HP USB Smart Card Reader
F6V67AA
HP Docking Station Cable Lock
AU656AA#XXX
HP ProDisplay P232
K7X31AA
HP ProDisplay P222va
K7X30AA
HP ProDisplay P222c
L4J08AA
Input/Output/Audio
Power
Display
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
QuickSpecs
HP ProBook 645 G2 Notebook PC
HP ProBook 655 G2 Notebook PC
Copyright © 2016 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not
be liable for technical or editorial errors or omissions contained herein. Radeon and Athlon are registered trademarks or
trademarks of AMD Corporation in the U.S. and/or other countries. Bluetooth is a trademark owned by its proprietor and used by
Hewlett-Packard Company under license. Microsoft and Windows are either trademarks or registered trademarks of Microsoft
Corporation in the U.S. and other countries. Adobe is a trademark of Adobe Systems Incorporated. ENERGY STAR is a registered
mark owned by the U.S. Environmental Protection Agency. For DTS patents, see http://patents.dts.com. Manufactured under
license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Sound+ is
a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
Not all configuration components are available in all regions/countries.
Americas – HP ProBook 645 & 655 G2 – April 14, 2017 - c04912055
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
