PRO 48 - Specs & Planning Guide

PRO 48 - Specs & Planning Guide

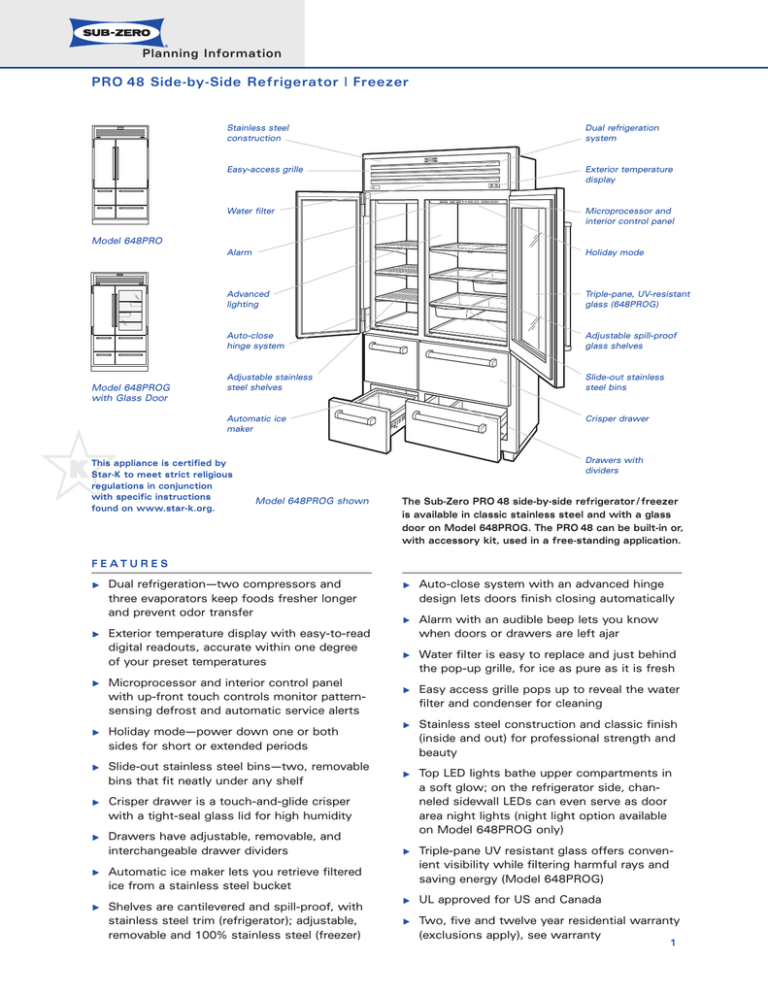

Planning Information
PRO 48 Side-by-Side Refrigerator | Freezer
Stainless steel
construction
Dual refrigeration
system
Easy-access grille
Exterior temperature
display
Water filter
Microprocessor and
interior control panel
Alarm
Holiday mode
Advanced
lighting
Triple-pane, UV-resistant
glass (648PROG)
Auto-close
hinge system
Adjustable spill-proof
glass shelves
Adjustable stainless
steel shelves
Slide-out stainless
steel bins
Automatic ice
maker
Crisper drawer
Model 648PRO
Model 648PROG
with Glass Door
This appliance is certified by
Star-K to meet strict religious
regulations in conjunction
with specific instructions
found on www.star-k.org.
Drawers with
dividers
Model 648PROG shown
The Sub-Zero PRO 48 side-by-side refrigerator / freezer
is available in classic stainless steel and with a glass
door on Model 648PROG. The PRO 48 can be built-in or,
with accessory kit, used in a free-standing application.
F E AT U R E S
Dual refrigeration—two compressors and
three evaporators keep foods fresher longer
and prevent odor transfer
Exterior temperature display with easy-to-read
digital readouts, accurate within one degree
of your preset temperatures
Auto-close system with an advanced hinge
design lets doors finish closing automatically
Alarm with an audible beep lets you know
when doors or drawers are left ajar
Water filter is easy to replace and just behind
the pop-up grille, for ice as pure as it is fresh
Microprocessor and interior control panel
with up-front touch controls monitor patternsensing defrost and automatic service alerts
Easy access grille pops up to reveal the water
filter and condenser for cleaning
Holiday mode—power down one or both
sides for short or extended periods
Stainless steel construction and classic finish
(inside and out) for professional strength and
beauty
Slide-out stainless steel bins—two, removable
bins that fit neatly under any shelf
Crisper drawer is a touch-and-glide crisper
with a tight-seal glass lid for high humidity
Drawers have adjustable, removable, and
interchangeable drawer dividers
Automatic ice maker lets you retrieve filtered
ice from a stainless steel bucket
Shelves are cantilevered and spill-proof, with
stainless steel trim (refrigerator); adjustable,
removable and 100% stainless steel (freezer)
Top LED lights bathe upper compartments in
a soft glow; on the refrigerator side, channeled sidewall LEDs can even serve as door
area night lights (night light option available
on Model 648PROG only)
Triple-pane UV resistant glass offers convenient visibility while filtering harmful rays and
saving energy (Model 648PROG)
UL approved for US and Canada
Two, five and twelve year residential warranty
(exclusions apply), see warranty
1
Planning Information
PRO 48 Side-by-Side Refrigerator | Freezer
P L A N N I N G I N F O R M AT I O N
Refer to the illustrations and specifications for
overall dimensions, finished rough opening
dimensions and installation specifics.
PRO 48 models can be used free-standing or
installed as a standard or flush built-in application. For standard built-in installations, the face
frame of the unit will extend 2" (51) beyond
cabinetry. In flush built-in installations, the front
of the face frame will be flush with surrounding
cabinetry.
The depth of the PRO 48 models from the
back of the unit to the front of the face frame is
25 7/8" (657). In flush built-in applications, your
design may necessitate moving the unit back, or
cabinets forward to achieve a flush fit.
The anti-tip bracket must be installed to
prevent the unit from tipping forward.
Allow the doors to open a minimum of 90˚ or
you'll have problems removing shelves. With the
door opening at 90˚, you may have to move
shelves slightly to clear the door interior. Refer to
the minimum door swing clearance in the specifications chart.
For corner installations, allow for a minimum
3" (76) filler so that the door can open to 90˚.
PRO 48 models come with an automatic ice
maker and an integrated water filtration system.
This system operates on water pressure
between 35 psi (2.4 bar) and 120 psi (8.3 bar).
To rough in the water supply, connect a 1/4" OD
copper line to the house supply, being sure to
use an easily accessible shut-off valve between
the supply and the unit.
Do not use self-piercing valves. A saddle
valve kit (part # 4200880) is available from your
Sub-Zero dealer.
The water line should be routed up through
the floor within 1/2" (13) from the back wall and
no higher than 3" (76) off the floor. If you have
to come through the wall, make sure the water
line is no more than 3" (76) from the floor.
Locate water supply within the shaded area
shown in the Installation Specifications illustration on page 4.
Regardless of the routing, allow a minimum
of 48" (1219) of excess copper tubing to remain
outside the wall or floor for easy connection to
the unit.
A 115 V AC, 60 Hz, 15 amp electrical supply
is required. The supply circuit for this appliance
must be protected by a 15 amp fuse or circuit
breaker. It is recommended that a separate
circuit, serving only this appliance, be provided.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
PRO 48 models are equipped with a 6' (1.8 m)
power supply cord with a 3-prong grounding
plug which must be plugged into a mating
3-prong grounding-type wall receptacle. Locate
electrical within the shaded area shown in the
Installation Specifications illustration on page 4.
For installations at or above 5,000' (1524 m)
in elevation, high altitude glass is available as a
special order for Model 648PROG.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
Refer to the PRO 48 Installation Instructions
packed with the appliance, which provides
step-by-step procedures for making sure the unit
is installed properly.
IMPORTANT NOTE: A reverse osmosis
system can be used with PRO 48 models,
provided there is constant water pressure of 20
psi (1.4 bar) to 120 psi (8.3 bar) supplied to the
unit at all times. In this application, the integrated water filtration system must be set to
bypass mode. This is achieved by removing the
water filter cartridge. Refer to the PRO 48
Installation Instructions packed with the unit for
detailed instructions.
Dimensions in parentheses are in
millimeters unless otherwise specified.
2
Planning Information
PRO 48 Side-by-Side Refrigerator | Freezer
MODEL OPTIONS
S P E C I F I C AT I O N S
Side-by-Side
Refrigerator / Freezer
648PRO
Side-by-Side
Refrigerator / Freezer
with Glass Door
648PROG
Model 648PRO
Side-by-Side Refrigerator / Freezer
Model 648PROG
Side-by-Side Refrigerator / Freezer
with Glass Door
Overall Width
48" (1219)
Overall Height
84" (2134)
23 7/8" (606)
25 7/8" (657)
Depth from behind face frame
Depth to front of face frame
ACCESSORIES
90 degree door stop kit —
right or left hinge (DS90PRO)
Refrigerator Capacity
18.4 cu ft (521 L)
Dozen egg container with lid
(EGGTRAY)
Freezer Capacity
11.4 cu ft (323 L)
Slide-out refrigerator bin
(SLIDEBIN)
Door Swing Clearance
83 1/2" (2121)
Minimum Height (levelers in)
28 3/4" (730)
Electrical Requirements
115 V AC, 60 Hz
15 amp dedicated circuit
Stainless steel side panel (SP648)
Free-standing kit (FSK648) —
includes two stainless steel side
panels and top lid
1/ 4"
Plumbing Requirements
Water Supply
35 psi (2.4 bar) to 120 psi (8.3 bar)
Annual Energy Usage
(based on 8.29 cents per kilowatt hour)
Contact your Sub-Zero dealer for
additional information on accessories.
copper line
Shipping Weight
689 kWh / $ 58
648PRO 860 lbs (390 kg)
648PROG 875 lbs (397 kg)
Specifications are subject to change without notice.
OVERALL DIMENSIONS
84"
23 7/8"
(2134)
(606)
23 7/8"
25 7/8"
(606)
BEHIND
FACE
FRAME
(657)
TO FRONT
OF FACE
FRAME
20 1/2" (521)
28 3/4"
(730)
48"
(1219)
48"
48"
(1219)
(1219)
Model 648PRO
25 7/8"
(657)
30 5/32"
Model 648PROG with
Glass Door
(766)
Dimensions may vary by +_ 1/8" (3).
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
Planning Information
PRO 48 Side-by-Side Refrigerator | Freezer
I N S TA L L AT I O N S P E C I F I C AT I O N S
ROUGH
OPENING DEPTH
MIN 48" (1219)
1/4" COPPER
WATER LINE
24" (610)
STANDARD
26" (660)
SHUT-OFF
VALVE
FLUSH
TOP VIEW
7"
(178)
E
6"
(152)
LOCATE ELECTRICAL
WITHIN SHADED AREA
ROUGH
OPENING WIDTH
47 1/2" (1206) STANDARD
48" (1219) FLUSH
83 1/2" (2121)
MIN HEIGHT
REQUIRED TO
FINISHED
FLOORING
(LEVELERS IN)
75 1/2"
ROUGH
OPENING HEIGHT
TO FINISHED
FLOORING
83 3/4" (2127)
STANDARD
84 1/8" (2137)
FLUSH
(1918)
LOCATE WATER SUPPLY
WITHIN SHADED AREA
6"
(152)
3" (76)
W
5 3/16"
(132)
FRONT VIEW
DIMENSIONS
Finished Rough Opening Width
Standard 47 1/2" (1206)
Flush 48" (1219)
Finished Rough Opening Height
Standard 83 3/4" (2127)
Flush 84 1/8" (2137)
Finished Rough Opening Depth
Standard 24" (610)
Flush 26" (660)
Location of Electrical
Within upper shaded area
Location of Water Supply
Within lower shaded area
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Sub-Zero Design Guide pdf file for additional specifications.
Dimensions may vary by +_ 1/8" (3).
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
