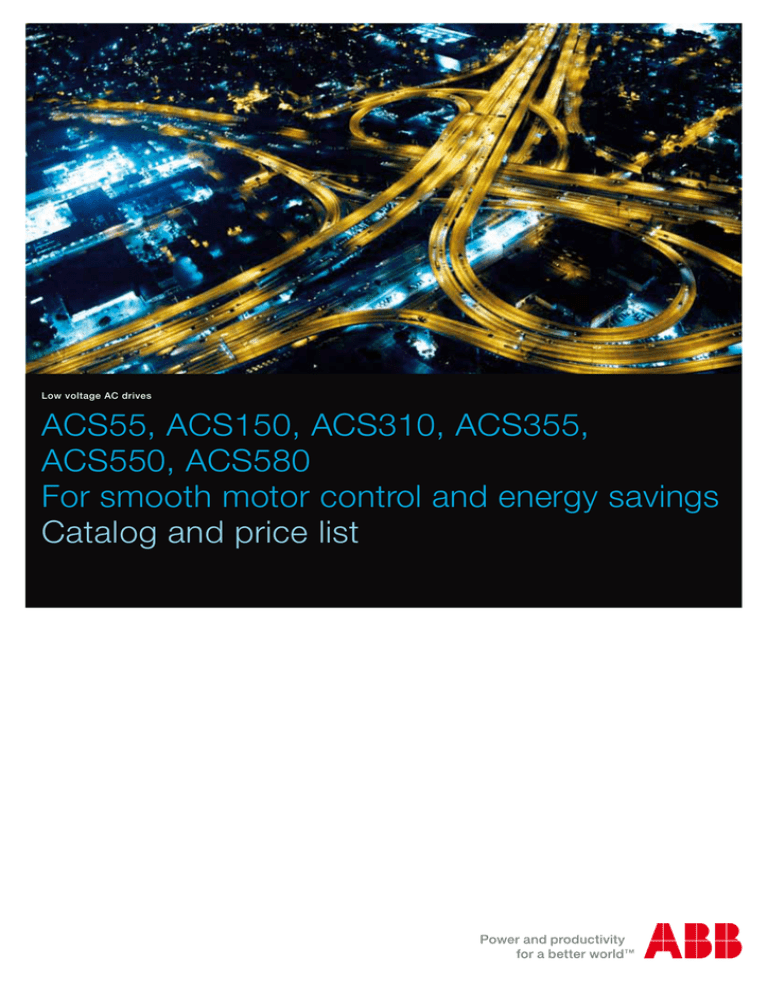

ACS55, ACS150, ACS310, ACS355, ACS550, ACS580 For smooth

ACS55, ACS150, ACS310, ACS355, ACS550, ACS580 For smooth

Low voltage AC drives

ACS55, ACS150, ACS310, ACS355,

ACS550, ACS580

For smooth motor control and energy savings

Catalog and price list

Smooth motor control and energy savings

What is an AC drive?

An AC drive is an electronic device that is used to adjust the rotating speed and torque of a standard, electric AC motor.

The electric motor, in turn, drives a load such as a fan, pump or conveyor.

AC drives are also referred to as frequency converters, variable frequency drives (VFD), variable speed drives (VSD), adjustable frequency drives (AFD), adjustable speed drives

(ASD) or inverters.

ABB - global market and technology leader in AC drives

ABB (www.abb.com) is a leader in power and automation technologies that enable utility and industry customers to improve their performance while lowering environmental impact. ABB is the world’s largest drives manufacturer. The

ABB Group of companies operates in around 100 countries and employs more than 145,000 people.

2 ABB low voltage AC drives | Catalog and price list

Electric motors consume about 65% of all electricity used throughout industry. Yet, less than 10% of those motors are fi tted with a variable speed drive.

Benefi ts of using

AC drives

Substantial energy savings

Rather than having an electric motor running continuously at full speed, an electric drive allows the user to slow down or speed up the motor depending on the demand.

Optimal process control

An electric drive enables the process to achieve the right speed and torque while maintaining its accuracy. This contributes to more consistent quality and throughput of the end product.

Reduced need for maintenance

Being able to vary the speed and torque of an electric motor means there is less wear and tear on the motor and the driven machine.

ABB drives common features

Easy to select

Selecting a drive can be as simple as choosing the power rating, voltage and current through to detailed dimensioning and the addition of various options. A drive can easily be selected using the

ABB drives selection table on page 5.

Easy to purchase

ABB drives are available from ABB and selected ABB partners. Please contact

ABB for more details.

Easy to install

The drives are simple to install, featuring a variety of mounting options from wallmounted to cabinet mounted.

Efficient system upgrade

An AC drive allows the removal of valves, gears and belts. It also ensures network dimensioning based on a lower starting current.

Easy to operate

Once installed and commissioned, the drives are incredibly easy to operate.

The user interface allows instant adjustments to speed or other more advanced parameters.

Catalog and price list | ABB low voltage AC drives 3

Choosing the right drive for your application

Step

1

2

3

4

5

6

7

8

9

Process Action

Identify the application

Identify the type of application and the likely demands of the drive.

Gather the load data: system inertia, required acceleration and deceleration rates, minimum and maximum speeds, overload requirements, etc.

This information can often be determined by the performance of the existing motor.

Gather the motor data: rated torque, kW, volts, insulation class, speed, etc.

Whether an existing motor or a new motor is being used, the motor information is critical to choosing a drive.

Continue to step 2.

Continue to step 3.

Continue to step 4.

Choose a drive

Match the data gathered in Steps 1 to 3 against the table of drive features on page 5. Select a drive that meets the motor requirements and has all the software features needed for the application.

Continue to step 5.

Is the drive offered in the correct kW/amp rating?

The drive you choose must be able to supply the necessary current to the motor to produce the torque required. This includes normal and overload conditions. Select current from the tables on pages 7, 9, 11, 13 or 15 depending on drive type selected.

If yes, continue to step 6.

If no, go to step 4.

Is the drive offered in the correct enclosure and environmental ratings?

The drive you choose must be available in an enclosure style that will withstand the application’s environment.

It also must produce the required current at the application’s altitude and ambient temperature.

If yes, continue to step 7.

If no, go to step 4.

Does this drive have the features needed to meet the application’s demands?

The drive you choose must have a feature set that matches the application. It also must have sufficient hardware (inputs and outputs, feedback, communications, etc.) to perform the application.

If yes, continue to step 8.

If no, go to step 4.

Does this drive have the motor control performance to meet the application’s demands?

The drive you choose must be able to produce the needed torque at the necessary speeds. It must also be able to control speed and torque depending on the application requirements.

If yes, continue to step 9.

If no, go to step 4.

Congratulations!

The ABB AC drive you have chosen has the features and performance needed for a successful application.

4 ABB low voltage AC drives | Catalog and price list

ABB AC drive selection table

Applications where to use

ABB micro drives

ACS55 ACS150

ABB machinery drive

ACS355 ACS310

ABB general purpose drives

ACS550 ACS580

Pumps

Fans

Conveyors

Material handling machines

Excercise equipment

White goods

Gates, doors, barriers

Compressors

Cutting machines, shears, saws

Extruders

Machine tools, mixers, stirrers

Spinning machines

Centrifuges

Processing lines

Specification

Voltage and power ranges

Protection classes

Mounting arrangements

Programming

IP20

IP21

IP54/IP55

IP66/IP67

Optimal for cabinet mounting

Optimal for wall mounting

Parameter programming

Sequence programming

Basic control panel

Humanmachine interface

Assistant control panel

Ambient temperature

Inputs and outputs

Supported fieldbus protocols

EMC compliance

(EN 61800-3)

Digital inputs/outputs

Relay outputs

Analog inputs/outputs

Speed feedback

Modbus RTU

Profibus DP

DeviceNet TM

LonWorks ®

ControlNet

CANopen ®

Ethernet (Modbus/TCP)

Ethernet (EtherNet/IP TM )

Ethernet (EtherCAT ® )

Ethernet (PROFINET IO)

Ethernet (PowerLink)

C3, industrial use

C2, commercial use

(installation by EMC experts)

C1, commercial use

Chokes

Input chokes

Output chokes

Brake chopper

Suggested maximum motor cable length

Switching frequency

Output frequency

Overload capacity

– –

ACS55 ACS150

1-phase, 100 to 120 V:

0.18 to 0.37 kW

1-phase, 200 to 240 V:

0.18 to 2.2 kW

1-phase, 200 to 240 V:

0.37 to 2.2 kW

3-phase, 200 to 240 V:

0.37 to 2.2 kW

3-phase, 380 to 480 V:

0.37 to 4 kW

ACS355 ACS310 ACS550 ACS580

1-phase, 200 to 240 V:

0.37 to 2.2 kW

3-phase, 200 to 240 V:

0.37 to 11 kW

3-phase, 380 to 480 V:

0.37 to 22 kW

1-phase 200 to 240 V:

0.37 to 2.2 kW

3-phase, 200 to 240 V:

0.37 to 11 kW

3-phase, 380 to 480 V:

0.37 to 22 kW

3-phase, 208 to 240 V:

0.75 to 75 kW

3-phase, 380 to 480 V:

0.75 to 355 kW

3-phase, 380 to 480 V:

0.75 to 250 kW

1

1)

(IP66/67 variant)

0 to +40 o C with nominal current and

5 kHz switching frequency, up to +50 o C with derating,

-20 o

C with restrictions.

3/0

1

1/0

-10 to +40 o C, no frost allowed, +50 o

C with

10% derating.

/ (with IP66/67 variant)

-10 to +40 o C, no frost allowed, +50 o

C with

10% derating.

5/0

1

2/1

5/1

1

2/1

(conductive emissions)

30 to 50 m up to 16 kHz

0 to 120/130 Hz

150% for 60 s

(conductive emissions)

(conductive emissions)

-10 to +50 o C (14 to 122 o

F), no frost allowed.

5/1

1

2/1

(conductive emissions)

1)

-15 to +50 o C.

No frost allowed.

From +40 to +50 o

C with derating.

6/0

3 + (3 as option)

2/2

(conductive emissions)

(built-in)

1)

-15 to +50 o C.

No frost allowed.

From +40 to +50 o

C with derating.

6/0

3 + (2 as option)

2/2

(conductive emissions)

(built-in)

30 to 60 m up to 16 kHz

0 to 500 Hz

150% for 60 s, 180% for 2 s

3

30 to 60 m up to 16 kHz

0 to 599 Hz

150% for 60 s, 180% for 2 s

7

30 to 60 m up to 16 kHz

0 to 500 Hz

110% for 60 s, 180% for 2 s

7

2)

100 to 200 m up to 12 kHz

0 to 500 Hz

150% for 60 s, 180% for 2 s

7

3)

100 to 200 m up to 12 kHz

0 to 500 Hz

150% for 60 s, 180% for 2 s

7 Number of preset speeds

PC tools

Drive commissioning tool

Drive offl ine programming tool

Approvals

RoHS compliance

Drive dimensioning tool

CE, UL, cUL, C-Tick, EAC

= standard

= option

– = not available

1) IP66/67 and IP54/55 product variants

2)

up to R2 as standard

3) up to R3 as standard

– – – –

Catalog and price list | ABB low voltage AC drives 5

ABB micro drives

ACS55, 0.18 to 2.2 kW

What is it?

The ACS55 drive is a component that can be integrated easily into existing panels, replacing contactors and motor starters.

Its compact size is ideal for new installations or whenever speed control of AC induction motors is needed. For users new to drives, its interface with DIP switches and trimmers is exceptionally intuitive.

The ACS55 drive meets the requirements of new drive users, installers, machine builders and panel builders.

ACS55 frame sizes: A, B, C, D

Feature

Single phase supply

Slim design

Flexible installation alternatives

High switching frequency

Integrated EMC filter as standard

Easy configuration

DriveConfig kit PC tool

Advantage

Suitable for single phase residential and commercial applications

Fits easily into a variety of cabinet designs

Screw or DIN rail mounting, sideways or side-by-side

Reduced motor noise

High electromagnetic compatibility

Quick setup with DIP switches and trimmers

DriveConfig kit PC tool is used to set drive parameters and to upload the parameter set to a drive in seconds, even without a power connection to the drive. The DIP switches and trimmers on the front panel of the drive are disabled after using the DriveConfig kit. This prevents the end users from altering the drive configuration.

Benefit

Avoids cabling and installation costs associated with three-phase supplies

Cabinet size can be smaller or greater packing density can be achieved

One drive type can be used in various designs, saving installation costs and time

Does not disturb occupants of buildings

Low EMC emissions in all environments

Substantial time savings. Minimal expertise needed.

Time savings with multiple drives. Drive configuration protected from end user alterations.

Inputs and outputs

The figure shows the ACS55 factory-set standard inputs and outputs.

AI

+10 V

Frequency reference 0 to 10 V DC

Voltage supply 10 V DC, 10 mA

+12 V Voltage supply 12 V DC, 30 mA

START Start/stop

REV Forward/reverse

10

11

RO1 Relay output, Fault indication

RO2 (1 disconnected from 2)

6 ABB low voltage AC drives | Catalog and price list

Types and voltages

Rated values *)

ABB ordering code Electrical code/ ABB type code/

P

motor

I

motor

Enclosure IP20 reference code

(kW) (A)

Built-in EMC filter, 1-phase AC supply, 200 to 240 V, +10/-15%, 3-phase output 200 to 240 V order code

0.18

0.37

0.75

1.5

2.2

1.4

2.2

4.3

7.6

9.8

68878331

68878349

68878357

68878365

68878373

No EMC filter, 1-phase AC supply, 200 to 240 V, +10/-15%, 3-phase output 200 to 240 V

ACS55-01E-01A4-2

ACS55-01E-02A2-2

ACS55-01E-04A3-2

ACS55-01E-07A6-2

ACS55-01E-09A8-2

0.18

0.37

0.75

1.5

2.2

1.4

2.2

4.3

7.6

9.8

68878403

68878420

68878438

68878446

68878454

Built-in EMC filter, 1-phase AC supply, 110/120 V, +10/-15%, 3-phase output 200/240 V

0.18

1.4

68878314

0.37

2.2

68878322

No EMC filter, 1-phase AC supply, 110/120 V, +10/-15%, 3-phase output 200/240 V

0.18

0.37

1.4

2.2

68878381

68878390

ACS55-01N-01A4-2

ACS55-01N-02A2-2

ACS55-01N-04A3-2

ACS55-01N-07A6-2

ACS55-01N-09A8-2

ACS55-01E-01A4-1

ACS55-01E-02A2-1

ACS55-01N-01A4-1

ACS55-01N-02A2-1

*) The rated power and current values are valid for both pump and fan applications and heavy load applications. Examples of typical heavy load applications include most extruders and compressors.

Dimensions and weights

Frame size

A

B

C

D

H

Built-in EMC filter

W D

(mm) (mm) (mm)

170 45 128

170 67.5

128

226

70

159

Weight

(kg)

0.65

0.9

1.6

H

No EMC filter

W D

(mm) (mm) (mm)

170 45 128

170 67.5

128

194

70

159

Weight

(kg)

0.65

0.9

1.2

D

W

H

Frame size

C

C

A

A

B

A

A

A

A

A

A

B

D

D

Price

(Eur)

For more technical information, see ACS55 catalog (3AFE68899842 EN) or ABB product guide (3AFE68401771 EN)

Catalog and price list | ABB low voltage AC drives 7

ABB micro drives

ACS150, 0.37 to 4 kW

What is it?

The ACS150 drive is a component that is brought together with other components and includes, as standard, all necessary functions and interfaces for typical applications with AC induction motors. This makes the product selection very easy.

The ACS150 drive meets the requirements of new drive users, installers, machine builders and panel builders.

ACS150 frame sizes: R0, R1, R2

Feature

User-friendly LCD control panel

Flexible mounting alternatives

Integrated EMC filter

Built-in brake chopper as standard

Embedded potentiometer

PID control

FlashDrop tool

Advantage

Clear alphanumeric display

Easy setup and use

Screw or DIN rail mounting, sideways or side-by-side

High electromagnetic compatibility

No need for an external brake chopper

Benefit

Time savings

One drive type can be used in various designs, saving installation costs and time

Low EMC emissions in selected environments

Space savings, reduced installation cost

Easy to adjust output frequency

Simple integration to process control

FlashDrop is a hand held tool that is used to quickly and easily set drive parameters. FlashDrop tool uploads drive parameters directly to unpowered drives. The tool can copy parameters from one drive to another or between a PC and a drive.

Time savings

Cost savings as a result of less cabling

Time savings, especially with multiple drives

Inputs and outputs

The figure shows the ACS150 factory-set standard inputs and outputs. All inputs and outputs are freely programmable.

Screen

Analog input

0 to 10 V

Reference voltage

+10 V DC, max. 10 mA

Aux. voltage output

+24 V DC, max. 200 mA

PROGRAMMABLE

DIGITAL INPUTS

DI5 can also be used as a frequency input

6

FlashDrop

DI1

DI2

DI3

DI4

DI5

SCR

Potentiometer

AI

GND

S1

I

U

AI

+10 V

COM

+24 V

NC

GND

NO

COM

EMC

VAR

Relay output

250 V AC/30 V DC /6 A

EMC filter grounding screw

Varistor grounding screw

PE

L1

L2

L3

3-phase power supply, 200 to

480 V AC

Input choke

EMC filter

PE

U1

V1

W1

Brake chopper

BRK+ BRK-

U2

V2

W2

Output choke

M

3 ~

AC motor

Brake resistor

8 ABB low voltage AC drives | Catalog and price list

Types and voltages

P

motor

Rated values *)

I

motor

(kW) (A)

1-phase AC supply, 200 to 240 V

0.37

0.75

2.4

4.7

1.1

1.5

6.7

7.5

2.2

9.8

3-phase AC supply, 200 to 240 V

0.37

0.55

0.75

1.1

1.5

2.2

2.4

3.5

4.7

6.7

7.5

9.8

3-phase AC supply, 380 to 480 V

0.37

0.55

1.2

1.9

0.75

1.1

1.5

2.2

3

4

2.4

3.3

4.1

5.6

7.3

8.8

ABB ordering code

Enclosure IP20

68581940

68581966

68581974

68581982

68581991

68582008

68582016

68582024

68582032

68582041

68582059

68581737

68581745

68581753

68581761

68581788

68581796

68581800

68581818

Electrical code/ reference code

ABB type code/order code for IP20 units

Frame size

ACS150-01E-02A4-2

ACS150-01E-04A7-2

ACS150-01E-06A7-2

ACS150-01E-07A5-2

ACS150-01E-09A8-2

ACS150-03E-02A4-2

ACS150-03E-03A5-2

ACS150-03E-04A7-2

ACS150-03E-06A7-2

ACS150-03E-07A5-2

ACS150-03E-09A8-2

ACS150-03E-01A2-4

ACS150-03E-01A9-4

ACS150-03E-02A4-4

ACS150-03E-03A3-4

ACS150-03E-04A1-4

ACS150-03E-05A6-4

ACS150-03E-07A3-4

ACS150-03E-08A8-4

R0

R0

R1

R1

R1

R2

R0

R1

R1

R2

R2

R1

R1

R1

R1

R0

R0

R1

R1

*) The rated power and current values are valid for both pump and fan applications and heavy load applications. Examples of typical heavy load applications include most extruders and compressors.

Price

(Eur)

Dimensions and weights

Frame size

R0

R1

R2

IP20/UL open

H W D

(mm)

239

239

(mm)

70

70

(mm)

142

142

239 105 142

Weight

(kg)

1.1

1.3

1.5

NEMA 1

H W D

(mm)

280

280

(mm)

70

70

(mm)

142

142

282 105 142

Weight

(kg)

1.5

1.7

1.9

D

W

H

For more technical information see ACS150 catalog (3AFE68596114 EN) or ABB product guide (3AFE68401771 EN)

Catalog and price list | ABB low voltage AC drives 9

ABB machinery drives

ACS355, 0.37 to 22 kW

What is it?

The ACS355 is designed to be the fastest drive in terms of installation, setting parameters and commissioning. The drive is user-friendly, yet provides a wide range of built-in technology such as the safe torque off functionality and sequence programming which reduce the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.

The ACS355 drive meets the requirements of new drive users, installers, machine builders, system integrators and panel builders.

ACS355 frame sizes: R0, R1, R2, R3, R4 and IP66/IP67 variants

Feature

Same height and depth across power range

Assistant control panel with Help functions

Scalar and vector control

Sequence programming

Integrated EMC filter

Advantage

Effective space usage

Quick setup, easy configuration and commissioning, rapid fault diagnosis

Optimum performance depending on application

Logic programming included as standard with PLClike functions

High electromagnetic compatibility

Built-in brake chopper as standard No need for an external brake chopper

Safe torque off function

(SIL3) as standard

Built-in and certified function that is used for prevention of an unexpected startup and other stopping related functions

High protection class variant

(IP66/67) up to 7.5 kW

Product variant for solar pumps

No need to design special enclosure for applications that require high ingress protection

Drive converts PV energy from solar panels to AC current, it can be operated independent from the grid.

FlashDrop tool FlashDrop is used to quickly and easily set drive parameters. FlashDrop tool uploads drive parameters directly to unpowered drives. The tool can copy parameters from one drive to another or between a PC and a drive.

Benefit

Less engineering and installation time

Substantial time savings locating faults and implementing repairs, thereby reducing maintenance costs

Ensures the end-product is produced cost efficienctly

Reduces components and wiring in control system

Low EMC emissions in selected environments

Space savings, reduced installation cost

Reduces the need for external safety components.

Helps machine builders to fulfill the requirements of

Machinery Directive 2006/42/EC.

Time and cost savings

Long life time and reduced maintenance costs, energy use and pollution. Improved reliability in electricity supply.

Time savings, especially with multiple drives

Control panel (RJ-45)

Modbus RTU (RS-232)

Inputs and outputs

The figure shows the ACS355 factory-set standard inputs and outputs. All inputs and outputs are freely programmable.

Screen

Output frequency/speed reference, 0 to 10 V

1 to 10

Analog input circuit common kohm

Reference voltage

+10 V DC, max 10 mA

Not in use by default

Analog input circuit common

Aux. voltage output

+24 V DC, max. 200 mA

Aux. voltage output common

Digital input common

Stop/Start

Forward/Reverse

Constant speed selection

Constant speed selection

Acceler. and deceler. selection 1)

1) DI5 can also be used as a frequency input.

DCOM

DI1

DI2

DI3

DI4

DI5

SCR

AI1

GND

+10 V

AI2

GND

+24 V

GND

AO mA

V

GND

ROCOM

RONC

RONO

DOSRC

DOOUT

DOGND

X1C:STO

OUT1

OUT2

IN1

IN2

EMC

VAR max 500 ohm

Output frequency 0 to 20 mA

Analog output circuit common

PROGRAMMABLE RELAY

AND DIGITAL OUTPUTS

Relay output

250 V AC/30 V DC /2 Arms

Digital output, PNP transistor type

30 V DC, max. 100 mA

Safety Switch

EMC filter grounding screw

Varistor grounding screw

3-phase power supply

L1

L2

L3

U1 U2

V1

W1

Brake chopper

V2

BRK+ BRK-

W2

AC motor

Optional brake resistor or DC power connection

10 ABB low voltage AC drives | Catalog and price list

Types and voltages

Rated values *)

P

motor

I

motor

(kW) (A)

1-phase AC supply, 200 to 240 V

0.37

0.75

1.1

1.5

2.4

4.7

6.7

7.5

2.2

9.8

3-phase AC supply, 200 to 240 V

0.37

0.55

0.75

1.1

1.5

2.2

3

4

2.4

3.5

4.7

6.7

7.5

9.8

13.3

17.6

5.5

7.5

11

24.4

31

46.2

3-phase AC supply, 380 to 480 V

0.37

1.2

0.55

0.75

1.1

1.9

2.4

3.3

1.5

2.2

3

4

5.5

7.5

4.1

5.6

7.3

8.8

12.5

15.6

11

15

18.5

22

23.1

31

38

44

ABB ordering code

Enclosure IP20

Electrical code/ reference code

ABB type code/order code for IP20 units

3AUA0000058166

3AUA0000058167

3AUA0000058168

3AUA0000058169

3AUA0000058170

3AUA0000058171

3AUA0000058172

3AUA0000058173

3AUA0000058174

3AUA0000058175

3AUA0000058176

3AUA0000058177

3AUA0000058178

3AUA0000058179

3AUA0000058180

3AUA0000058181

ACS355-01E-02A4-2

ACS355-01E-04A7-2

ACS355-01E-06A7-2

ACS355-01E-07A5-2

ACS355-01E-09A8-2

ACS355-03E-02A4-2

ACS355-03E-03A5-2

ACS355-03E-04A7-2

ACS355-03E-06A7-2

ACS355-03E-07A5-2

ACS355-03E-09A8-2

ACS355-03E-13A3-2

ACS355-03E-17A6-2

ACS355-03E-24A4-2

ACS355-03E-31A0-2

ACS355-03E-46A2-2

3AUA0000058182

3AUA0000058183

3AUA0000058184

3AUA0000058185

3AUA0000058186

3AUA0000058187

3AUA0000058188

3AUA0000058189

3AUA0000058190

3AUA0000058191

3AUA0000058192

ACS355-03E-01A2-4

ACS355-03E-01A9-4

ACS355-03E-02A4-4

ACS355-03E-03A3-4

ACS355-03E-04A1-4

ACS355-03E-05A6-4

ACS355-03E-07A3-4

ACS355-03E-08A8-4

ACS355-03E-12A5-4

ACS355-03E-15A6-4

ACS355-03E-23A1-4

3AUA0000058193 ACS355-03E-31A0-4

3AUA0000058194 ACS355-03E-38A0-4

3AUA0000058195 ACS355-03E-44A0-4

Frame size

R0

R0

R0

R1

R1

R2

R2

R2

R3

R4

R4

R0

R1

R1

R2

R2

R3

R4

R4

R4

R0

R0

R1

R1

R1

R1

R1

R1

R3

R3

Price

(Eur)

*) The rated power and current values are valid for both pump and fan applications and heavy load applications. Examples of typical heavy load applications include most extruders and compressors.

P

motor

Rated values *)

I

motor

(kW) (A)

3-phase AC supply, 200 to 240 V

0.37

0.55

0.75

1.1

1.5

2.2

3

2.4

3.5

4.7

6.7

7.5

9.8

13.3

4 17.6

3-phase AC supply, 380 to 480 V

0.37

0.55

0.75

1.1

1.5

2.2

3

4

5.5

7.5

1.2

1.9

2.4

3.3

4.1

5.6

7.3

8.8

12.5

15.6

ABB ordering code

Enclosure IP66/IP67

3AUA0000058148

3AUA0000058149

3AUA0000058150

3AUA0000058151

3AUA0000058152

3AUA0000058153

3AUA0000058154

3AUA0000058155

3AUA0000058156

3AUA0000058157

3AUA0000058158

3AUA0000058159

3AUA0000058160

3AUA0000058161

3AUA0000058162

3AUA0000058163

3AUA0000058164

3AUA0000058165

Electrical code/ reference code

ABB type code/order code for IP66/IP67 units

ACS355-03X-02A4-2 + B063

ACS355-03X-03A5-2 + B063

ACS355-03X-04A7-2 + B063

ACS355-03X-06A7-2 + B063

ACS355-03X-07A5-2 + B063

ACS355-03X-09A8-2 + B063

ACS355-03X-13A3-2 + B063

ACS355-03X-17A6-2 + B063

ACS355-03X-01A2-4 + B063

ACS355-03X-01A9-4 + B063

ACS355-03X-02A4-4 + B063

ACS355-03X-03A3-4 + B063

ACS355-03X-04A1-4 + B063

ACS355-03X-05A6-4 + B063

ACS355-03X-07A3-4 + B063

ACS355-03X-08A8-4 + B063

ACS355-03X-12A5-4 + B063

ACS355-03X-15A6-4 + B063

Frame size

R1

R1

R1

R1

R1

R3

R3

R3

R1

R1

R1

R1

R1

R1

R1

R1

R3

R3

Price

(Eur)

Dimensions and weights

Frame size

R0

R1

R2

R3

R4

H

IP20/UL open

W D Weight

(mm)

239

(mm)

70

(mm)

161

239 70 161

239 105 165

236 169 169

244 260 169

(kg)

1.1

1.3

1.5

2.5

4.4

H

IP66/IP67

W D

(mm)

(mm)

(mm)

305 195 281

-

436 246 277

– – –

Weight

(kg)

7.7

-

13

X within the type code stands for E or U.

D

W

H

For more technical information, see ACS355 catalog (3AUA0000068569 EN) or ABB drives product guide (3AFE68401771 EN)

Catalog and price list | ABB low voltage AC drives 11

ABB general purpose drives

ACS310, 0.37 to 22 kW

What is it?

The ACS310 drive is designed for squared torque applications such as booster pumps and supply and return fans. The drive includes a powerful set of features which benefit pump and fan applications including built-in PID controllers and pump and fan control (PFC) that varies the drive’s performance in response to changes in pressure, flow or other external data.

The ACS310 drive meets the requirements of new drive users, installers, machine builders, system integrators and panel builders.

ACS310 frame sizes: R0, R1, R2, R3, R4

Feature Advantage

Same height and depth across power range

Pump and fan control

(PFC)

Effective space usage

Commissioning assistants Easy set up of parameters for PID controllers, real-time clock, serial communication, drive optimizer and drive startup

One drive controls several pumps or fans.

Auxiliary motors are driven according to the needed pump/fan capacity.

One motor can be disengaged from the mains supply while others continue operating in parallel.

Benefit

Less engineering and installation time

Time savings.

Ensures all required parameters are set.

Saves cost of additional drives and external PLC.

Longer life for pump or fan system while reducing maintenance time and costs.

Maintenance can be carried out safely without stopping the process.

Pump protection functions Pre-programmed features such as pipe cleaning, pipefill, inlet/ outlet pressure supervision and detection of under- or overload

PID controllers Varies the drive’s performance according to the need of the application

Energy efficiency counters Illustrates saved energy, CO

2

emissions and energy cost in local currency using a baseline determined from the energy consumed when the fan or pump is used directly online

Embedded Modbus

EIA-485 fieldbus interface

FlashDrop tool

No need for external fieldbus options.

Integrated and compact design.

FlashDrop is a hand held tool that is used to quickly and easily set drive parameters. FlashDrop tool uploads drive parameters directly to unpowered drives. The tool can copy parameters from one drive to another or between a PC and a drive.

Reduces maintenance costs.

Longer life for pump and fan system.

Enhances production output, stability and accuracy

Shows direct impact on energy bill and helps control operational expenditure (OPEX)

Saves cost of an external fieldbus device. Increases reliability

Time savings, especially with multiple drives

12 ABB low voltage AC drives | Catalog and price list

Inputs and outputs

The figure shows the ACS310 factory-set standard inputs and outputs. All inputs and outputs are freely programmable.

8

Screen

Analog input 1

0 to 10 V

Reference voltage

+10 V DC, max 10 mA

Analog input 2

Aux. voltage output

+24 V DC, max. 200 mA

PROGRAMMABLE

DIGITAL INPUTS

DI5 can also be used as a frequency input

Modbus RTU

(EIA-485)

FlashDrop

11

12

13

14

15

16

6

9

10

1

2

3

4

5

DCOM

DI1

DI2

DI3

DI4

DI5

SCR

AI1

GND

+10 V

S1 mA

V

AI1 AI2

AI2

GND

+24 V

GND

AO

GND

ROCOM

RONC

RONO

DOSRC

DOOUT

DOGND

23

24

25

26

SHIELD

B

J701

A

GND_A

EMC

VAR

Control panel

(RJ-45)

Analog output

0 to 20 mA

PROGRAMMABLE RELAY

AND DIGITAL OUTPUTS

Relay output

250 V AC/30 V DC/6 A

Digital/frequency output,

PNP transistor type

30 V DC, max. 100 mA

6

Output relay module MREL-01

EMC fi lter grounding screw

Varistor grounding screw

3-phase power supply,

200 to 480 V AC

L1

L2

L3

U1

V1

W1

U2

V2

W2

AC motor

Types and voltages

Rated values *)

P

motor

I

motor

(kW) (A)

1-phase AC supply, 200 to 240 V

0.37

2.4

0.75

1.1

1.5

2.2

4.7

6.7

7.5

9.8

3-phase AC supply, 200 to 240 V

0.37

0.55

2.6

3.9

0.75

1.1

1.5

2.2

5.2

7.4

8.3

10.8

3

4

5.5

7.5

11

14.6

19.4

26.8

34.1

50.8

3-phase AC supply, 380 to 480 V

0.37

1.3

0.55

0.75

1.1

2.1

2.6

3.6

1.5

2.2

3

4

5.5

7.5

11

15

18.5

4.5

6.2

8.0

9.7

13.8

17.2

25.4

34.1

41.8

22 48.4

*) The rated power and current values are valid for both pump and fan applications and heavy load applications. Examples of typical heavy load applications include most extruders and compressors.

X within the type code stands for E or U.

ABB ordering code

Enclosure IP20

Electrical code/ reference code

ABB type code/order code for IP20 units

3AUA0000038701

3AUA0000038843

3AUA0000038844

3AUA0000038845

3AUA0000039071

3AUA0000039087

3AUA0000039163

3AUA0000039192

3AUA0000039215

3AUA0000039218

3AUA0000039234

3AUA0000039307

3AUA0000039621

3AUA0000039622

3AUA0000039623

3AUA0000039624

3AUA0000039625

3AUA0000039626

3AUA0000039627

3AUA0000039628

3AUA0000039629

3AUA0000039630

3AUA0000039631

3AUA0000039632

3AUA0000039633

3AUA0000039634

3AUA0000039635

3AUA0000039636

3AUA0000039637

3AUA0000039638

ACS310-01X-02A4-2

ACS310-01X-04A7-2

ACS310-01X-06A7-2

ACS310-01X-07A5-2

ACS310-01X-09A8-2

ACS310-03X-02A6-2

ACS310-03X-03A9-2

ACS310-03X-05A2-2

ACS310-03X-07A4-2

ACS310-03X-08A3-2

ACS310-03X-10A8-2

ACS310-03X-14A6-2

ACS310-03X-19A4-2

ACS310-03X-26A8-2

ACS310-03X-34A1-2

ACS310-03X-50A8-2

ACS310-03X-01A3-4

ACS310-03X-02A1-4

ACS310-03X-02A6-4

ACS310-03X-03A6-4

ACS310-03X-04A5-4

ACS310-03X-06A2-4

ACS310-03X-08A0-4

ACS310-03X-09A7-4

ACS310-03X-13A8-4

ACS310-03X-17A2-4

ACS310-03X-25A4-4

ACS310-03X-034A-4

ACS310-03X-41A8-4

ACS310-03X-48A4-4

Frame size

R0

R0

R1

R1

R1

R1

R1

R1

R3

R3

R3

R4

R4

R4

R1

R2

R2

R2

R3

R4

R4

R0

R0

R1

R1

R0

R1

R1

R2

R2

Dimensions and weights

Frame size

R0

R1

R2

R3

R4

H

IP20/UL open

W D Weight

(mm) (mm) (mm)

239 70 161

239 70 161

239 105 165

236 169 169

244 260 169

(kg)

1.1

1.3

1.5

2.5

4.4

H W

NEMA 1

D

(mm) (mm) (mm)

280 70 169

280 70 169

282 105 169

299 169 177

320 260 177

Weight

(kg)

1.5

1.7

1.9

3.1

5

D

Price

(Eur)

W

H

For more technical information, see ACS310 catalog (3AUA0000051082 EN) or ABB drives product guide (3AFE68401771 EN)

Catalog and price list | ABB low voltage AC drives 13

ABB general purpose drives

ACS550, 0.75 to 355 kW

What is it?

The ACS550 drive is simple to buy, install, configure and use, saving considerable time as most features are built-in as standard. The product offers a high functionality to cater to the needs for speed and torque control of AC induction motors. Several programming tools are available for easy dimensioning, commissioning and maintenance.

The ACS550 drive meets the requirements of new drive users, installers, machine builders, system integrators and panel builders.

ACS550 frame sizes: R1, R2, R3, R4

Feature Advantage

Easy programming with parameter upload/download function

Scalar and vector control

Quick setup and commissioning, simple configuration

Optimum performance depending on application

Enables timed functions, eg day/night Advanced interface (user and machine) with integrated real-time clock, with battery back-up

Integrated EMC filter No need for an external EMC filter

Patented swinging choke as standard

Reduced harmonics by up to 25%

Built-in brake chopper as standard up to 11 kW

Energy efficiency counters

FlashDrop tool

Inputs and outputs

The figure shows the ACS550 factory-set standard inputs and outputs. All inputs and outputs are freely programmable.

Benefit

Substantial time savings

Increased process speed. Increased production capacity ensures end-product is produced cost efficiently.

Energy and labor cost savings, eg pump only runs when needed, no human intervention to start/stop drive

No need for external brake chopper

Cost saving

Losses caused by harmonics in the supply network and grid connected equipment are reduced. Energy consumption is reduced and equipment lifetime extended.

Space savings, and lower installation cost, no need for an external brake chopper

Shows direct impact on energy bill and helps control operational expenditure (OPEX)

Illustrates saved energy, CO

2

emissions and energy cost in local currency using a baseline determined from the energy consumed when the fan or pump is used directly online

FlashDrop is a handheld tool that is used to quickly and easily set drive parameters.

FlashDrop tool uploads drive parameters directly to unpowered drives. The tool can copy parameters from one drive to another or between a PC and a drive.

Time savings, especially with multiple drives.

Signal cable shield (Screen)

Output frequency/speed reference, 0 to 10 V

Analog input circuit common

Reference voltage

+10 V DC, max 10 mA

Not in use by default

1 to 10 kohm

Analog input circuit common

Aux. voltage output

+24 V DC, max 200 mA

Aux. voltage output common

Digital input common

Stop/Start

FlashDrop

Forward/Reverse

Constant speed selection

Constant speed selection

Acceler. and deceler. selection

Not used

Encoder or Relay Extension

Fieldbus adapter

6

6

34

DI4

DI5

DI6

8

SCR

AI1

AGND

+10 V

AO1 mA

V

AI1 AI2

J1

AO2

AGND

AI2

AGND

+24 V

ON

OFF

GND

DCOM

DI1

DI2

DI3

J2

RO1C

RO1A

RO1B

RO2C

RO2A

RO2B

RO3C

RO3A

RO3B

Control panel (RJ-45) max. 500 ohm

Output frequency

0 to 20 mA

Output current

0 to 20 mA

Analog output circuit common

PROGRAMMABLE RELAY

OUTPUTS

250 V AC/30 V DC

Ready

250 V AC/30 V DC

Running

250 V AC/30 V DC

Fault (-1)

SCR

B

A

AGND

SCR

EM1

EM2

EMC filter grounding screw

3-phase power supply

PE

L1

L2

L3

U1 U2

V1

W1

Brake chopper 1)

BRK+ BRK-

V2

W2

M

3 ~

AC motor t˚

Brake resistor

14 ABB low voltage AC drives | Catalog and price list

Types and voltages

Pump and fan applications

P

motor

(kW)

I

motor

(A)

Heavy-duty applications

P

motor

(kW)

I

motor

(A)

ABB ordering code

Enclosure IP21

3-phase AC supply, 208 to 240 V

22

30

37

45

55

75

0.75

1.1

1.5

2.2

4

5.5

7.5

4.6

6.6

7.5

11.8

16.7

24.2

30.8

11

15

46.2

59.4

18.5

74.8

88

114

143

178

221

248

0.75

3.5

3AUA0000003373

0.75

4.6

3AUA0000003374

1.1

1.5

3

4

5.5

24.2

3AUA0000003379

7.5

30.8

3AUA0000003380

11

15

18.5

74.8

3AUA0000003383

22

30

37

45

55

6.6

7.5

3AUA0000003376

11.8

3AUA0000003377

16.7

3AUA0000003378

46.2

59.4

88

114

150

3AUA0000003375

3AUA0000003381

3AUA0000003382

3AUA0000003384

3AUA0000007124

3AUA0000007125

178 3AUA0000007126

192 3AUA0000007127

3-phase AC supply, 380 to 480 V

1.1

1.5

3.3

4.1

0.75

1.1

2.4

3.3

3AUA0000003385

3AUA0000003386

2.2

3

4

5.5

7.5

11

15

18.5

22

30

37

45

55

75

90

110

5.4

6.9

8.8

11.9

15.4

23

31

38

45

59

72

87

125

157

180

205

1.5

2.2

3

4

5.5

11.9

3AUA0000002412

7.5

15.4

3AUA0000002417

11

15

18.5

22

30

37

45

55

4.1

3AUA0000003387

5.4

3AUA0000002415

6.9

3AUA0000002419

8.8

3AUA0000002420

23 3AUA0000002418

31 3AUA0000002431

38 3AUA0000012789

45

59

3AUA0000002546

3AUA0000002547

72

3AUA0000013108

96 68589657

125 64726820

132

160

200

250

280

315

246

290

368

486

526

602

75 156

90 162

110

132

160

200

250

280

192

246

302

414

477

515

64726838

68294479

3AUA0000014490

3AUA0000026919

64727044

64727061

64727079

64727087

355 645 315 590 64727095

Electrical code/ reference code

ABB type code/ order code for IP21 units

ABB type code/ order code for IP54 units

ACS550-01-04A6-2 ACS550-01-04A6-2+B055

ACS550-01-06A6-2 ACS550-01-06A6-2+B055

ACS550-01-07A5-2 ACS550-01-07A5-2+B055

ACS550-01-012A-2 ACS550-01-012A-2+B055

ACS550-01-017A-2 ACS550-01-017A-2+B055

ACS550-01-024A-2 ACS550-01-024A-2+B055

ACS550-01-031A-2 ACS550-01-031A-2+B055

ACS550-01-046A-2 ACS550-01-046A-2+B055

ACS550-01-059A-2 ACS550-01-059A-2+B055

ACS550-01-075A-2 ACS550-01-075A-2+B055

ACS550-01-088A-2 ACS550-01-088A-2+B055

ACS550-01-114A-2 ACS550-01-114A-2+B055

ACS550-01-143A-2 ACS550-01-143A-2+B055

ACS550-01-178A-2 ACS550-01-178A-2+B055

ACS550-01-221A-2 ACS550-01-221A-2+B055

ACS550-01-248A-2 ACS550-01-248A-2+B055

Frame size

Price for IP21 units

(Eur)

Price for IP54 units

(Eur)

ACS550-01-03A3-4 ACS550-01-03A3-4+B055

ACS550-01-04A1-4 ACS550-01-04A1-4+B055

ACS550-01-05A4-4 ACS550-01-05A4-4+B055

ACS550-01-06A9-4 ACS550-01-06A9-4+B055

ACS550-01-08A8-4 ACS550-01-08A8-4+B055

ACS550-01-012A-4 ACS550-01-012A-4+B055

ACS550-01-015A-4 ACS550-01-015A-4+B055

ACS550-01-023A-4 ACS550-01-023A-4+B055

ACS550-01-031A-4 ACS550-01-031A-4+B055

ACS550-01-038A-4 ACS550-01-038A-4+B055

ACS550-01-045A-4 ACS550-01-045A-4+B055

ACS550-01-059A-4 ACS550-01-059A-4+B055

ACS550-01-072A-4 ACS550-01-072A-4+B055

ACS550-01-087A-4 ACS550-01-087A-4+B055

ACS550-01-125A-4 ACS550-01-125A-4+B055

ACS550-01-157A-4 ACS550-01-157A-4+B055

R4

R5

R6

ACS550-01-180A-4 ACS550-01-180A-4+B055 R6

ACS550-01-195A-4 ACS550-01-195A-4+B055 R6

ACS550-01-246A-4 ACS550-01-246A-4+B055

ACS550-01-290A-4 ACS550-01-290A-4+B055

ACS550-02-368A-4

ACS550-02-486A-4

ACS550-02-526A-4

ACS550-02-602A-4

R6

R6

R8

R8

R8

R8

R1

R1

R2

R2

R3

R1

R1

R1

R1

R3

R3

R4

R4

ACS550-02-645A-4 – R8

R4

R4

R6

R6

R6

R6

R1

R1

R1

R1

R1

R2

R2

R3

R3

R4

Higher powers are available on request.

Dimensions and weights

Wall-mounted units

Frame

H1

IP21 / UL type 1

H2 W D size

R1

R2

R3

R4 mm mm mm mm

369 330 125 212

469 430 125 222

583 490 203 231

689 596 203 262

R5 736 602 265 286

R6 888 1) 700 302 400

Weight kg

6.5

9

16

24

34

69

H

IP54 / UL type 12

2)

W D Weight mm mm mm

461 213 234

561 213 245

629 257 254

760 257 284

775 369 309

924 3) 410 423 kg

8

11

17

26

42

86

1) ACS550-01-246A-4 and ACS550-01-290A-4: 979 mm

2) UL Type 12 not available for ACS550-01-290A-4

3)

ACS550-01-290A-4: 1119 mm

Free-standing units

R8 2024 n/a

347

1)

617

1) 230

1) The dimensions apply to bookshelf mounting.

n/a = not applicable

D

H

W

IP21

D

IP54

W

H

For more technical information, see ACS550 catalog (3AFE64792857 EN) or ABB drives product guide (3AFE68401771 EN)

Catalog and price list | ABB low voltage AC drives 15

ABB general purpose drives

ACS580, 0.75 to 250 kW

What is it?

The ACS580 is plug-in ready to control your pumps, fans, conveyors, mixers and many other variable and constant torque applications. Most essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance.

The ACS580 drive meets the requirements of new drive users, installers, electricians, machine builders, system integrators and panel builders.

ACS580 frame sizes: R0, R1, R2, R3, R5, R6, R7, R8, R9

Feature Advantage Benefit

Control panel and Primary settings menu with multi-language support

Effortless commissioning, configuration, monitoring and defect tracking. No need to know parameters with the Primary settings menu.

Installation and commissioning

Connect to public low voltage networks

Highest power density against most of the comparable products in the market. Multiple drives can be installed side-by-side.

Integrated C2 EMC filter (1st environment) and swinging choke (compatible harmonics levels) as standard

Energy efficiency functionality

Standard safety functions

The built-in energy efficiency calculators monitoring used and saved kWh, CO

2 reduction and money saved. The energy optimizer ensures the maximum torque per ampere. The drive fulfills the highest IE2 drive

(EN 50598-2) energy efficiency class and is compatible with high-efficiency IE4 motors.

Integrated, certified safety with SIL3 / PL e safe torque off (STO), fulfilling the machinery directive.

Substantial time savings.

Drive speaks your local language.

No need for manual as the help function is already built-in to the panel.

Cost, space and time savings

Ensure that the product can be used on public installations and therefore no additional filters or engineering is required.

Energy savings through improved energy management

Fulfills Machinery Directive 2006/42/EC, EN / IEC 61800-5-2:2007.

Cost-effective and certified solution for safe machine maintenance.

Control panel (RJ-45)

Inputs and outputs

The figure shows the ACS580 factory-set standard inputs and outputs. All inputs and outputs are freely programmable.

Signal cable shield (Screen)

Output frequency/speed reference, 0 to 10 V

Analog input circuit common

Reference voltage

+10 VDC, max 10 mA

Not in use by default

1...10

kohm

Analog input circuit common

Aux. voltage output

+24 VDC, max 200 mA

Aux. voltage output common

Digital input common

Stop/Start

Forward/Reverse

Constant speed selection

Constant speed selection

Acceler. and deceler. selection

Not used

DriveCustomizer (CCA-01)

Fieldbus adapter

5

34

DI3

DI4

DI5

DI6

GND

DCOM

DI1

DI2

8

SCR

AI1

AGND

+10V

AI1

AI2

AO1

N mA

U I AO2

AGND

AI2

AGND

AO1

I U

+24V

RO1C

RO1A

RO1B

RO2C

RO2A

RO2B

RO3C

RO3A

RO3B max. 500 ohm

Output frequency

0 to 20 mA

Output current

0 to20 mA

Analog output circuit common

PROGRAMMABLE RELAY

OUTPUTS

B+

A-

GND

OUT1

OUT2

SGND

IN1

IN2

EMC

STO (Safe torque off)

EMC filter disconnector

3-phase power supply

PE

L1

L2

L3

U1 U2

V1

W1

Brake chopper

1)

BRK+ BRK-

V2

W2

M

3 ~

AC motor t˚ Brake resistor

16 ABB low voltage AC drives | Catalog and price list

Types and voltages

Pump and fan applications

P

motor

(kW)

I

motor

(A)

Heavy-duty applications

P

motor

(kW)

I

motor

(A)

ABB ordering code

Enclosure IP21

Electrical code/ reference code

ABB type code/ order code for IP21 units

ABB type code/ order code for IP55 units

3-phase AC supply, 380, 400, 415 V

0.75

1.1

1.5

2.2

3

4

5.5

2.5

3.1

3.8

5.3

6.8

8.9

12

0.55

1.8

3AUA0000080486

0.75

2.6

3AUA0000080487

1.1

1.5

2.2

3

4

3.3

3AUA0000080488

4

5.6

7.2

9.4

3AUA0000080489

3AUA0000080490

3AUA0000080491

3AUA0000080492

ACS580-01-02A6-4

ACS580-01-03A3-4

ACS580-01-04A0-4

ACS580-01-02A6-4+B056

ACS580-01-03A3-4+B056

ACS580-01-04A0-4+B056

ACS580-01-05A6-4 ACS580-01-05A6-4+B056

ACS580-01-07A2-4 ACS580-01-07A2-4+B056

ACS580-01-09A4-4 ACS580-01-09A4-4+B056

ACS580-01-12A6-4 ACS580-01-12A6-4+B056

7.5

11

16.2

23.8

5.5

12.6

3AUA0000080493

7.5

17 3AUA0000080494

15

22

30.4

18.5

36.1

42.8

11

15

18.5

24.6

3AUA0000080495

31.6

37.7

3AUA0000080496

3AUA0000080497

30 58 22

ACS580-01-017A-4 ACS580-01-017A-4+B056

ACS580-01-025A-4 ACS580-01-025A-4+B056

ACS580-01-032A-4 ACS580-01-032A-4+B056

ACS580-01-038A-4 ACS580-01-038A-4+B056

ACS580-01-045A-4 ACS580-01-045A-4+B056

44.6

3AUA0000130730 ACS580-01-061A-4

37

45

68.4

82.7

55

75

90

110

132

160

200

250

100

138

161

196

234

278

345

400

30

37

45

55

75

90

61 3AUA0000144812 ACS580-01-072A-4

72

3AUA0000144825 ACS580-01-087A-4

87

105

3AUA0000150595 ACS580-01-105A-4

3AUA0000080504 ACS580-01-145A-4

145 3AUA0000080505 ACS580-01-169A-4

169 3AUA0000080506 ACS580-01-206A-4

110 206 3AUA0000080507 ACS580-01-246A-4

132 246 *

3AUA0000080508 ACS580-01-293A-4

160 293 3AUA0000080509 ACS580-01-363A-4

200 363 ** 3AUA0000080510 ACS580-01-430A-4

Frame size

Price for IP21 units

(Eur)

Price for IP55 units

(Eur)

R2

R2

R3

R3

R3

R5

R5

R5

R0

R0

R0

R0

R1

R1

R1

R6

R6

R7

R7

R8

R8

R9

R9

P

HD

I

HD

ACS580 Heavy-duty use ratings

Typical motor power in heavy-duty use.

Continuous current allowing 150% I

LD

for 1 min/10 min at 40 °C.

* Continuous current allowing 130% I

LD

for 1 min/10 min at 40 °C.

** Continuous current allowing 125% I

LD

for 1 min/10 min at 40 °C.

R0

R1

R2

R3

R5

R6

R7

R8

R9

Dimensions and weights

Wall-mounted units

Frame size

H

IP21/UL type 1

W D Weight mm mm mm

303 125 210

303 125 223

394 125 227

454 203 228

726 203 283

726 252 369

880 284 370

965 300 393

955 380 418

H

IP55/UL type 12

W D kg

4.5

4.6

7.5

mm mm mm

303 125 222

303 125 233

394 125 239

14.9

454 203 237

23 -

45

55

70

98

726

880

965

955

252

284

300

380

380

381

452

477

Weight kg

5.1

5.1

8.0

15.4

-

45.5

55.5

72

100

H

D

W

IP21

D

IP55

W

H

For more technical information, see ACS580 catalog (3AUA0000145061 EN) or ABB drives product guide (3AFE68401771 EN)

Catalog and price list | ABB low voltage AC drives 17

Options

ACS55

ACS150

ACS55 options

Type code

Potentiometer

ACS50-POT

DriveConfig kit

RFDT-02

Electrical code/ ordering code

68226716

68973988

Integrated potentiometer for adjusting the motor speed

PC tool for programming of ACS55 drives in larger quantities without the need for a power connection

Price (Eur)

ACS150 options

Type code

NEMA 1 enclosure kit

MUL1-R1

Electrical code/ ordering code

68566398

EMC filters

RFI-11

RFI-12

RFI-13

68902371

68902401

68902410

RFI-32 68902495

Low leakage current filters

LRFI-31 3AUA0000050644

LRFI-32 3AUA0000050645

PC tools and adapters

MFDT-01 68566380

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame sizes R0 to R2

Compatibility with category C1 and C2, 1-phase, 0.37 kW

Compatibility with category C1 and C2, 1-phase, 0.75 to 1.1 kW

Compatibility with category C1 and C2, 1-phase, 1.5 to 2.2 kW

Compatibility with category C1 and C2, 3-phase, 0.37 to 4.0 kW

Low leakage current filters are ideal for installations where residual current devices (RCD) are required and leakage current needs to be below 30 mA

FlashDrop is a powerful palm sized tool for fast and easy parameter selecting and setting. It gives the possibility to hide selected parameters to protect the machine.

Price (Eur)

18 ABB low voltage AC drives | Catalog and price list

Options

ACS355

ACS355 options

Type code

Electrical code/ ordering code

Potentiometer and control panels

MPOT-01 J402

ACS-CP-C J404

ACS-CP-A J400

ACS/H-CP-EXT

ACS/H-CP-EXT-IP66

OPMP-01

68294673

68829593

3AUA0000013086

NEMA 1 enclosure kits

MUL1-R1

MUL1-R3

68566398

68566410

MUL1-R4 3AUA0000023888

B063

Extension modules

MTAC-01

MREL-01

MPOW-01

68566355

L511

G406

Integrated potentiometer for adjusting the motor speed

Control panel cover, delivered with ACS355 drives as standard

Basic control panel with numeric display and large buttons

Assistant control panel with commissioning and diagnostic assistants. Features a multilingual display and a real-time clock.

Control panel mounting kit, enables mounting of the control panel on the cabinet door

Control panel mounting kit with IP66 enclosure, enables mounting of the control panel on the cabinet door

Control panel holder mounting kit. Includes a panel platform that enables the panel to be removed in the same way as a drivemounted panel.

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame sizes R0 to R2. Total height increases by 43 mm and depth by 8 mm.

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame size R3. Total height increases by 63 mm and depth by 8 mm.

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame size R4. Total height increases by 76 mm and depth by 8 mm.

IP66/NEMA 4X enclosure

Available up to 7.5 kW

Has to be ordered together with ACS355 drive

Price (Eur)

Pulse encoder interface module

Relay output extension module. The optional MREL-01 module offers three additional relay outputs, which can be configured for different functions with parameters.

Auxiliary power module

Catalog and price list | ABB low voltage AC drives 19

Options

ACS355

ACS355 options

Type code

Connection options

Cable gland kit

Input switch kit

Pressure compensation

Electrical code/ ordering code

H376

F278

C169

Fieldbus adapter modules

FCAN-01

FPBA-01

FDNA-01

FMBA-01

FENA-01

FLON-01

FECA-01

Remote monitoring

SREA-01

K457

K454

K451

K458

K466

K452

K469

3AUA0000039179

Braking resistors *

CBR-V 160

CBR-V 210

CBR-V 260

CBR-V 460

CBR-V 660

CBT-V 560

Input chokes

CHK-A1

CHK-B1

CHK-C1

CHK-D1

CHK-01

CHK-02

CHK-03

CHK-04

CHK-05

CHK-06

68691770

68569311

68691796

68455685

68897921

3AUA0000023613

68418500

68418518

68418526

68418534

68711185

68711193

68711215

68711231

68711240

68711266

Cable gland kit for the IP66/67 drive variant

Input switch kit for the IP66/67 drive variant

Pressure compensation valve for IP66/67 variant to prevent water condensation within the enclosure.

CANopen

®

protocol

PROFIBUS DP protocol

DeviceNet TM protocol

EIA-485/Modbus RTU protocol

EtherNet protocol

LonWorks ® protocol

Ethernet/EtherCAT

®

protocol

Ethernet adapter with remote monitoring access can send process data, data logs and event messages independently, without a PLC or a dedicated on-site computer. It has an internal web server for configuration and drive access.

Compatibility with 1-phase, 200 to 240 V, units up to 2.2 kW

Compatibility with 3-phase, 200 to 240 V, units up to 2.2 kW

Compatibility with 3-phase, 380 to 480 V, units up to 2.2 kW

Compatibility with 3-phase, 200 to 240 V, units 3 and 4 kW

Compatibility with 3-phase, 380 to 480 V, units from 3 to 7.5 kW

Compatibility with 3-phase, 380 to 480 V, unit 11 kW

Compatibility with 3-phase, 200 to 240 V, units from 5.5 to 11 kW

Compatibility with 3-phase, 380 to 480 V, units from 15 to 22 kW

Compatibility with 1-phase, 200 to 240 V, unit 0.37 kW

Compatibility with 1-phase, 200 to 240 V, unit 0.75 kW

Compatibility with 1-phase, 200 to 240 V, units from 1.1 to 1.5 kW

Compatibility with 1-phase, 200 to 240 V, unit 2.2 kW

Compatibility with 3-phase, 200 to 240 V, unit 0.37 kW

Compatibility with 3-phase, 380 to 480 V, units from 0.37 to 1.1 kW

Compatibility with 3-phase, 200 to 240 V, unit 0.55 kW

Compatibility with 3-phase, 380 to 480 V, units from 1.5 to 3 kW

Compatibility with 3-phase, 200 to 240 V, units 0.75 to 1 kW

Compatibility with 3-phase, 380 to 480 V, units from 4 to 5.5 kW

Compatibility with 3-phase, 200 to 240 V, units 1.5 to 4 kW

Compatibility with 3-phase, 380 to 480 V, units from 7.5 to 11 kW

Compatibility with 3-phase, 380 to 480 V, unit 15 kW

Compatibility with 3-phase, 200 to 240 V, units 5.5 to 11 kW

Compatibility with 3-phase, 380 to 480 V, units from 18.5 to 22 kW

Price (Eur)

* ACS355 drives have an internal brake chopper as standard. The braking resistors chart shows typically used resistors per drive power rating.

For more information about the selection of brake resistors, see the ACS355 User‘s Manual (3AUA0000068569), section Resistor Braking.

20 ABB low voltage AC drives | Catalog and price list

Options

ACS355

ACS355 options

Type code

Output chokes

ACS-CHK-B3

Electrical code/ ordering code

64324063

ACS-CHK-C3

64324080

NOCH-0016-6x

NOCH-0030-6x

NOCH-0070-6x

61445412

61445439

61445455

EMC filters

RFI-11

RFI-12

RFI-13

RFI-32

68902371

68902401

68902410

68902495

68902509

3AUA0000023611

RFI-33

RFI-34

Low leakage current filters

LRFI-31

LRFI-32

3AUA0000050644

3AUA0000050645

PC tools, configuration tools and adapters

DriveWindow Light

64532871

MFDT-01

68566380

USB serial adapter

68583667

Compatibility with 1-phase, 200 to 240 V, units up to 0.75 kW

Compatibility with 3-phase, 200 to 240 V, units up to 0.75 kW

Compatibility with 3-phase, 380 to 480 V, units up to 1.1 kW

Compatibility with 1-phase, 200 to 240 V, units from 1.1 to 2.2 kW

Compatibility with 3-phase, 200 to 240 V, units from 1.1 to 2.2 kW

Compatibility with 3-phase, 380 to 480 V, units from 1.5 to 2.2 kW

Compatibility with 3-phase, 200 to 240 V, units from 3 to 4 kW

Compatibility with 3-phase, 380 to 480 V, units from 3 to 7.5 kW

Compatibility with 3-phase, 200 to 240 V, units from 5.5 to 7.5 kW

Compatibility with 3-phase, 380 to 480 V, units from 11 to 18.5 kW

Compatibility with 3-phase, 200 to 240 V, unit 11 kW

Compatibility with 3-phase, 380 to 480 V, unit 22 kW

Compatibility with category C1 and C2, 1-phase, 0.37 kW

Compatibility with category C1 and C2, 1-phase, 0.75 to 1.1 kW

Compatibility with category C1 and C2, 1-phase, 1.5 to 2.2 kW

Compatibility with category C1 and C2, 3-phase, 0.37 to 4.0 kW

Compatibility with category C1 and C2, 3-phase, 5.5 to 11 kW

Compatibility with category C1 and C2, 3-phase, 15 to 22 kW

Compatibility with 3-phase, 380 to 480 V, units 0.37 to 2.2 kW

Compatibility with 3-phase, 380 to 480 V, units 3 to 4 kW

DriveWindow Light is a PC program for easy commissioning and drive monitoring. Includes an RS-232 cable as standard for connecting the drive to the PC.

FlashDrop is a powerful hand held tool that is used to quickly and easily set drive parameters. FlashDrop tool uploads drive parameters directly to unpowered drives and stores up to 20 different drive parameter sets.

USB, an RS-232 adapter to be used between the PC and the drive.

Not needed if the computer has an RS-232 port.

Price (Eur)

Catalog and price list | ABB low voltage AC drives 21

Options

ACS310

ACS310 options

Type code

Electrical code/ ordering code

Potentiometer and control panels

ACS-CP-C

ACS-CP-A

J404

J400

ACS/H-CP-EXT

ACS/H-CP-EXT-IP66

OPMP-01

68294673

68829593

3AUA0000013086

NEMA 1 enclosure kits

MUL1-R1

MUL1-R3

68566398

68566410

3AUA0000023888

MUL1-R4

Extension module

MREL-01

L511

Remote monitoring

SREA-01

3AUA0000039179

Control panel cover, delivered with ACS310 drives as standard

Price (Eur)

Basic control panel with numeric display and large buttons

Assistant control panel with commissioning and diagnostic assistants. Features a multilingual display and a real-time clock.

Control panel mounting kit, enables mounting of the control panel on the cabinet door

Control panel mounting kit with IP66 enclosure, enables mounting of the control panel on the cabinet door

Control panel holder mounting kit. Includes a panel platform that enables the panel to be removed in the same way as a drivemounted panel.

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame sizes R0 to R2. Total height increases by 43 mm and depth by 8 mm.

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame size R3. Total height increases by 63 mm and depth by 8 mm.

NEMA 1 enclosure kit for finger protection and for protection against dirt and dust, available for frame size R4. Total height increases by 76 mm and depth by 8 mm.

Relay output extension module. The optional MREL-01 module offers three additional relay outputs, which can be configured for different functions with parameters.

Ethernet adapter with remote monitoring access can send process data, data logs and event messages independently, without a PLC or a dedicated on-site computer. It has an internal web server for configuration and drive access.

22 ABB low voltage AC drives | Catalog and price list

Options

ACS310

ACS310 options

Type code

Input chokes

CHK-01

CHK-02

CHK-03

CHK-04

CHK-05

CHK-06

Output chokes

ACS-CHK-B3

Electrical code/ ordering code

68711185

68711193

68711215

68711231

68711240

68711266

64324063

ACS-CHK-C3 64324080

NOCH-0016-6x

NOCH-0030-6x

NOCH-0070-6x

61445412

61445439

61445455

Low leakage current filters

LRFI-31

LRFI-32

EMC filters

3AUA0000050644

3AUA0000050645

RFI-32

RFI-33

68902495

68902509

RFI-34 3AUA0000023611

PC tools, configuration tools and adapters

DriveWindow Light 64532871

MFDT-01 68566380

USB serial adapter 68583667

Compatibility with 3-phase, 200 to 240 V, unit 0.37 kW

Compatibility with 3-phase, 380 to 480 V, units from 0.37 to 1.1 kW

Compatibility with 3-phase, 200 to 240 V, unit 0.55 kW

Compatibility with 3-phase, 380 to 480 V, units from 1.5 to 3 kW

Compatibility with 3-phase, 200 to 240 V, units 0.75 to 1 kW

Compatibility with 3-phase, 380 to 480 V, units from 4 to 5.5 kW

Compatibility with 3-phase, 200 to 240 V, units 1.5 to 4 kW

Compatibility with 3-phase, 380 to 480 V, units from 7.5 to 11 kW

Compatibility with 3-phase, 380 to 480 V, unit 15 kW

Compatibility with 3-phase, 200 to 240 V, units 5.5 to 11 kW

Compatibility with 3-phase, 380 to 480 V, units from 18.5 to 22 kW

Compatibility with 1-phase, 200 to 240 V, units up to 0.75 kW

Compatibility with 3-phase, 200 to 240 V, units up to 0.75 kW

Compatibility with 3-phase, 380 to 480 V, units up to 1.1 kW

Compatibility with 1-phase, 200 to 240 V, units from 1.1 to 2.2 kW

Compatibility with 3-phase, 200 to 240 V, units from 1.1 to 2.2 kW

Compatibility with 3-phase, 380 to 480 V, units from 1.5 to 2.2 kW

Compatibility with 3-phase, 200 to 240 V, units from 3 to 4 kW

Compatibility with 3-phase, 380 to 480 V, units from 3 to 7.5 kW

Compatibility with 3-phase, 200 to 240 V, units from 5.5 to 7.5 kW

Compatibility with 3-phase, 380 to 480 V, units from 11 to 18.5 kW

Compatibility with 3-phase, 200 to 240 V, unit 11 kW

Compatibility with 3-phase, 380 to 480 V, unit 22 kW

Compatibility with 3-phase, 380 to 480 V, units 0.37 to 2.2 kW

Compatibility with 3-phase, 380 to 480 V, units 3 to 4 kW

Compatibility with category C1 and C2, 3-phase, 0.37 to 4.0 kW

Compatibility with category C1 and C2, 3-phase, 5.5 to 11 kW

Compatibility with category C1 and C2, 3-phase, 15 to 22 kW

DriveWindow Light is a PC program for easy commissioning and drive monitoring. Includes an RS-232 cable as standard for connecting the drive to the PC.

FlashDrop is a powerful hand held tool that is used to quickly and easily set drive parameters. FlashDrop tool uploads drive parameters directly to unpowered drives and stores up to 20 different drive parameter sets.

USB, an RS-232 adapter to be used between the PC and the drive. Not needed if the computer has an RS-232 port.

Price (Eur)

Catalog and price list | ABB low voltage AC drives 23

Options

ACS550

ACS550 options

Type code

Control panels

ACS-CP-C

Electrical code/ ordering code

J404

Price (Eur)

Basic control panel with numeric display and large buttons

ACS-CP-A

ACS/H-CP-EXT

ACS/H-CP-EXT-IP66

OPMP-01

J400

68294673

68829593

3AUA0000013086

Assistant control panel, delivered with ACS550 drives as standard. Features commissioning and diagnostic assistants, a multilingual display and a real-time clock.

Control panel mounting kit, enables mounting of the control panel on the cabinet door

Control panel mounting kit with IP66 enclosure, enables mounting of the control panel on the cabinet door

Control panel holder mounting kit. Includes a panel platform that enables the panel to be removed in the same way as a drivemounted panel.

Fieldbus adapter modules

1)

RDNA-01

RLON-01

RPBA-01

RCAN-01

RCNA-01

RETA-01

RECA-01

RETA-02

REPL-02

Remote monitoring

SREA-01

K451

K452

K454

K457

K462

K466

3AUA0000045102

K467

3AUA0000085536

3AUA0000039179

Relay output extension module 2)

OREL-01 L511

Control options

2)

OTAC-01 3AUA0000002051

DeviceNet

TM

protocol

LonWorks ® protocol

PROFIBUS DP protocol

CANopen ® protocol

ControlNet protocol

EtherNet/Modbus TCP protocol

EtherCAT ® protocol

PROFINET IO protocol

PowerLink protocol

Ethernet adapter with remote monitoring access can send process data, data logs and event messages independently, without a PLC or a dedicated on-site computer. It has an internal web server for configuration and drive access.

Three additional relay outputs for pump and fan control or other supervisory functions

Encoder feedback module

Brake units

Frame sizes R1 and R2 are delivered with integrated brake chopper as standard. Other units can use the compact-sized brake units which include brake chopper and resistor.

ACS-BRK-C 64078372 Resistor’s resistance 32 ohm, continuous output power 2 kW, maximum output power for 20 s is 4.5 kW for 200 to 240 V units

ACS-BRK-D 64102931 and 12 kW for 380 to 480 V units

Resistor’s resistance 10.5 ohm, continuous output power 7 kW, maximum output power for 20 s is 14 kW for 200 to 240 V units and 42 kW for 380 to 480 V units

1) One slot available for a fi eldbus adapter. Modbus EIA-485 built-in as standard.

2)

One slot available for relay or encoder.

24 ABB low voltage AC drives | Catalog and price list

Options

ACS550

ACS550 options

Type code

Brake resistors

CBR-V 160 DT 281 70R

CBR-V 210 DT 281 200R

CBR-V 260 DT 281 40R

CBR-V 460 DT 281 80R

Electrical code/ ordering code

68691770

68569311

68691796

68455685

Output chokes

NOCH0016-62

NOCH0030-62

NOCH0070-62

NOCH0120-62

NOCH0016-65

NOCH0030-65

NOCH0070-65

NOCH0120-65

61445412

61445439

61445455

64782126

61445421

61445447

61445463

64789503

FOCH0260-70

FOCH0320-50

FOCH0610-70

Flange mounting kits

FMK-A-R1

FMK-A-R2

68490308

68612209

68550505

FMK-A-R3

FMK-A-R4

FMK-B-R1

FMK-B-R2

3AUA0000006788

3AUA0000006789

3AUA0000006790

3AUA0000006791

3AUA0000006792

3AUA0000006793

FMK-B-R3

FMK-B-R4

3AUA0000006796

3AUA0000006798

PC tools, configuration tools and adapters

DriveWindow Light 64532871

MFDT-01 68566380

USB serial adapter 68583667

Compatibility with 208 to 240 V, units from 0.55 to 0.75 kW

Compatibility with 380 to 480 V, units from 0.75 to 1.5 kW

Compatibility with 208 to 240 V, units from 1.1 to 3 kW

Compatibility with 208 to 240 V, unit 4 kW

Compatibility with 380 to 480 V, units from 2.2 to 7.5 kW

IP22, compatibility with 380 to 480 V, units from 1.1 to 7.5 kW

IP22, compatibility with 380 to 480 V, units from 11 to 18.5 kW

IP22, compatibility with 380 to 480 V, units from 22 to 45 kW

IP22, compatibility with 380 to 480 V, unit 55 kW

IP54, compatibility with 380 to 480 V, units from 1.1 to 7.5 kW

IP54, compatibility with 380 to 480 V, units from 11 to 18.5 kW

IP54, compatibility with 380 to 480 V, units from 22 to 45 kW

IP54, compatibility with 380 to 480 V, unit 55 kW

IP00, compatibility with 380 to 480 V, units from 75 to 132 kW

IP00, compatibility with 380 to 480 V, units from 160 to 200 kW

IP00, compatibility with 380 to 480 V, units from 250 to 355 kW

Flange mounting kit for the frame size R1, IP21

Flange mounting kit for the frame size R2, IP21

Flange mounting kit for the frame size R3, IP21

Flange mounting kit for the frame size R4, IP21

Flange mounting kit for the frame size R1, IP54

Flange mounting kit for the frame size R2, IP54

Flange mounting kit for the frame size R3, IP54

Flange mounting kit for the frame size R4, IP54

DriveWindow Light is a PC program for easy commissioning and drive monitoring. Includes an RS-232 cable as standard for connecting the drive to the PC.

FlashDrop is a powerful hand held tool that is used to quickly and easily set drive parameters. FlashDrop tool uploads drive parameters directly to unpowered drives and stores up to 20 different drive parameter sets.

USB, an RS-232 adapter to be used between the PC and the drive. Not needed if the computer has an RS-232 port.

Price (Eur)

Catalog and price list | ABB low voltage AC drives 25

Options

ACS580

ACS580 options

Type code

Control panels

ACS-AP-S

Electrical code/ ordering code

J400

ACS-AP-I

CDUM-01

J425

J424

CDPI-01+DPMP-02 3AXD50000010763

DPMP-01 3AUA0000108878

DPMP-02 3AXD50000009374

CDPI-01 3AXD50000004419

Fieldbus adapter modules 1)

FDNA-01

FPBA-01

FCAN-01

FCNA-01

FENA-11

FENA-21

FECA-01

FSCA-01

FEPL-02

K451

K454

K457

K462

K473

K467

K469

K458

K470

+

Assistant control panel, delivered with ACS580 drives as standard if no other panel option is selected. Features commissioning and diagnostic assistants, a multilingual display and a real-time clock.

Assistant control panel replaces standard ACS-AP-S control panel. In addition to the standard features, the control panel offers compatiblity to ACS880 drives.

Blank control panel cover replaces control panel (no control panel)

Price (Eur)

Combined panel bus adapter and panel plattform kit, enables mounting of the control panel on the cabinet door

Control panel mounting platform (flush)

Control panel mounting platform (surface)

Panel bus adapter

DeviceNet

TM

protocol

PROFIBUS DP protocol

CANopen ® protocol

ControlNet protocol

Ethernet (EtherNet/IP TM , Modbus/TCP, PROFINET) protocol

PROFINET IO protocol

EtherCAT ® protocol

Modbus/RTU

Ethernet POWERLINK protocol

26 ABB low voltage AC drives | Catalog and price list

Options

ACS580

ACS580 options

Type code

Remote monitoring

NETA-21

Electrical code/ ordering code

3AUA0000094517

Price (Eur)

Input/output extension module

CMOD-01 3AXD50000004420

CMOD-02 3AXD50000004418

Ethernet adapter with remote monitoring access can send process data, data logs and event messages independently, without a PLC or a dedicated on-site computer. It has an internal web server for configuration and drive access.

External 24 V AC and DC input 2 x RO and 1 x DO

External 24 V AC and DC input and isolated PTC interface

CHDI-01 3AXD50000004431 six 115/230 V AC digital inputs and two relay outputs

Brake units

Frame sizes R0, R1, R2 and R3 are delivered with integrated brake chopper as standard. Other units can use external braking choppers and resistors or integrated braking chopper and resistor unit.

ACS-BRK-D 64102931 Resistor’s resistance 10.5 ohm, continuous output power 7 kW,

NBRA-658 59006428 maximum output power for 20 s is 42 kW for 380 to 480 V units

Braking chopper module, maximum braking power up to 230 kW depending on frame and used brake resistor.

Flange mounting kits

6438177339694

6438177339700

6438177339816

6438177339823

3AXD50000018852

3AXD50000018853

3AXD50000018854

3AXD50000018855

PC tools, configuration tools and adapters

Drive composer entry Download free from

DCPT-01 www.abb.com/drives

3AUA0000108087

Flange mounting kit for the frame size R6, IP21

Flange mounting kit for the frame size R7, IP21

Flange mounting kit for the frame size R8, IP21

Flange mounting kit for the frame size R9, IP21

Drive composer PC tool for startup, configuration, monitoring and process tuning. PC tool is connected to the drive’s control panel via USB interface.

Drive composer pro provides the same standard functionality as

Drive composer pro (single user license)

3AUA0000145150

(10 users license) the free version and some additional features, like graphic control diagrams. The tool has fast monitoring capabilities of multiple signals from several drives in the panel bus. Full backup and restore functions are also included.

3AUA0000145151

CCA-01

(20 users license)

3AXD50000019865 Cold configuration adapter provides serial communication interface to unpowered drives. This adapter ensures safety isolation of both serial communication and control board power supply. The power supply is taken from PC USB port.

Catalog and price list | ABB low voltage AC drives 27

Introducing the most extensive drives portfolio in the world

28 ABB low voltage AC drives | Catalog and price list

ABB low voltage AC drives

The ABB low voltage AC drives product range, from 0.18 to 5600 kW, is the widest available from any manufacturer.

These drives are the global benchmark that signifies reliability, simplicity, flexibility and ingenuity throughout the entire life cycle of the drive.

ABB motion control products

ABB offers an extensive range of complete machine control solutions for diverse industrial applications such as labeling, packaging, bottling, pick and place, laser cutting/trimming, stacking, cut-to-length, flying shear, web feeders and high speed rotary wrappers.

Several ABB drives feature calculators that provide energy consumption data. This information can be used to further analyze and tune a process for even greater energy savings.

The portfolio is supported by a selection of PC tools, fieldbus and communication options.

ABB industrial drives

The ABB industrial drive portfolio is designed for heavy industrial applications such as those found in pulp and paper, metals, mining, cement, power, chemical, oil and gas, water and wastewater and food and beverage. Drives adapted and approved for use in the marine environment are also included within this portfolio.

ABB micro drives

ABB micro drives are suitable for many low power applications such as pumps, fans and conveyors. The focus in our design has been the easy integration into machines, which provides flexible mounting alternatives and straightforward commissioning.

ABB general purpose drives

ABB general purpose drives are ideal in those situations where there is a need for simplicity to install, commission and use. They are designed to control a wide range of standard drives applications, including pump, fan and constant torque use, such as conveyors.

Industry specific drives

Our industry specific ABB drives provide our customers with dedicated drive solutions for AC motor control used in industries such as HVAC and water and wastewater. Working closely with these industries, we have developed targeted functionality to help you improve your overall operating performance while also helping to reduce energy use. Builtin application macros in the drives help you easily setup and tailor processes.

ABB machinery drives

ABB machinery drives can be configured to meet the precise needs of industries and order-based configuration is an integral part of the offering. Covering a wide power and voltage range with standard and optional features, the drives are readily programmable, making their adaptation to different applications easy.

ABB DC drives

ABB’s DC drive portfolio, from 9 to 18000 kW, provides the highest power-to-size ratio on the market. The drives are designed for most industries including metals, cement, mining, pulp and paper, printing, food and beverage, wire manufacturing, test rigs, ski lift and cranes. ABB DC drives are available as complete cabinets, modules for cabinet assembly, and as retrofit kits. With built-in field exciters and integrated PLC’s, they are the best DC drives choice for all new and retrofit applications.

To find more information please visit: www.abb.com/drives

Catalog and price list | ABB low voltage AC drives 29

Life cycle services

Your choice, your future

Your future takes the course of the service you choose for your drives.

Whatever your choice, it should be a well-informed decision. No guesswork. We have the expertise and experience to help you find and implement the right service for your drive equipment.

You can start by asking yourself these two critical questions:

– How do I want to maintain my drives?

– What would my optimal service options be?

Your choice, your business efficiency

ABB Drive Care agreement lets you focus on your core business. A selection of predefined service options matching your needs provides optimal, more reliable performance, extended drive lifetime and improved cost control. So you can reduce the risk of unplanned downtime and find it easier to budget for maintenance.

We can help you more by knowing where you are!

Register your drive at www.abb.com/drivereg for extended warranty options and other benefits.

Service offerings for your business

Your needs in service usually depend on your operation, priorities, and life cycle phase of your equipment. Here are the most typical service needs with some of our service product options that satisfy them:

Is performance most critical to your operation?

Get optimal performance out of your machinery and systems.

Supporting services include:

− Training

− Inspections and Diagnostics

− Hardware and Control Upgrades

− Retrofits

− Workshop Repair

Is uptime your priority?

Keep your drives running with precisely planned and executed maintenance.

Supporting services include:

− Life Cycle Assessment

− Installation and Commissioning

− Spare Parts

− Preventive Maintenance

− Reconditioning

Need to extend your assets’ lifetime?

Maximize your drive’s lifetime with our services.

Supporting services include:

− Life Cycle Assessment

− Hardware and Control Upgrades

− Retrofits

− Replacement, Disposal and Recycling

30 ABB low voltage AC drives | Catalog and price list

Is rapid response a key consideration?

If your drives require immediate action, our global network is at your service.

Supporting services include:

− Technical Support

− Drive Exchange

− On-site repairs

− Remote Support

Catalog and price list | ABB low voltage AC drives 31

Contact us

For more information please contact your local ABB representative or visit: www.abb.com/drives www.abb.com/drivespartners

© Copyright 2015 ABB. All rights reserved.

Specifi cations subject to change without notice.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
