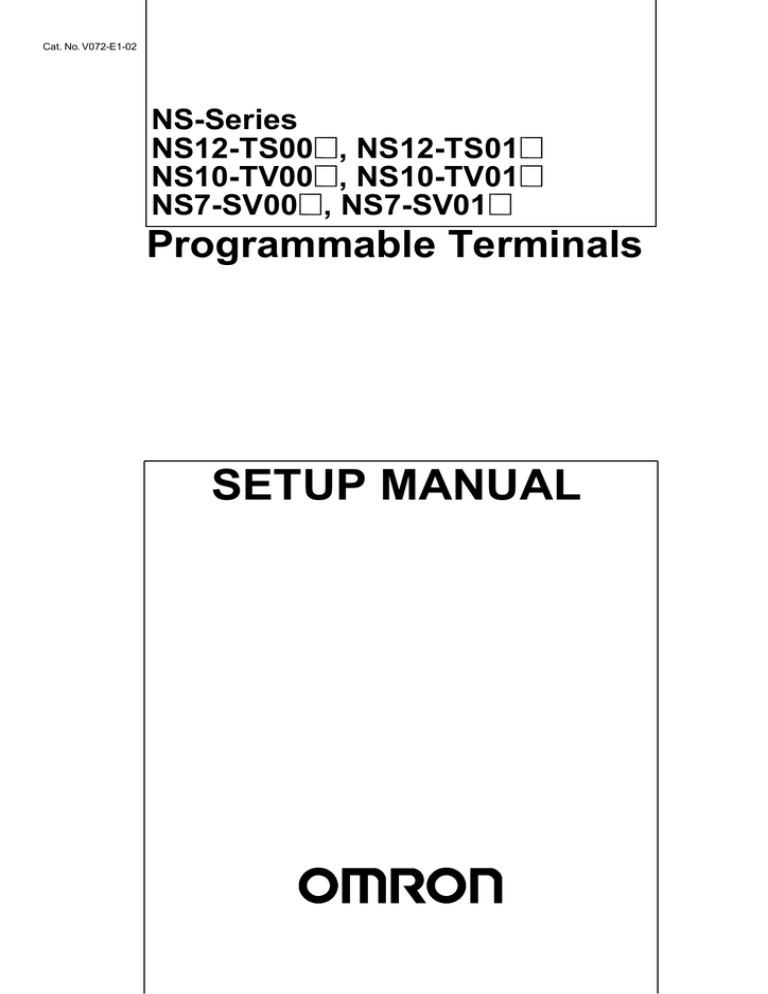

setup manual
Cat. No. V072-E1-02
NS-Series
NS12-TS00@, NS12-TS01@
NS10-TV00@, NS10-TV01@
NS7-SV00@, NS7-SV01@
Programmable Terminals
SETUP MANUAL
No. 6182
OMRON Corporation
Read and Understand this Manual
Please read and understand this manual before using the product. Please consult your OMRON
representative if you have any questions or comments.
Warranty and Limitations of Liability
WARRANTY
OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a
period of one year (or other period if specified) from date of sale by OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE
PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR
INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES,
LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS,
WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY.
In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which
liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS
REGARDING THE PRODUCTS UNLESS OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS
WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO
CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
1
No. 6182
Application Considerations
SUITABILITY FOR USE
OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the
combination of products in the customer's application or use of the products.
At the customer's request, OMRON will provide applicable third party certification documents identifying
ratings and limitations of use that apply to the products. This information by itself is not sufficient for a
complete determination of the suitability of the products in combination with the end product, machine,
system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not
intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses
listed may be suitable for the products:
• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or
uses not described in this manual.
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical
equipment, amusement machines, vehicles, safety equipment, and installations subject to separate
industry or government regulations.
• Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND INSTALLED
FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user's programming of a programmable product, or any
consequence thereof.
2
No. 6182
Disclaimers
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other
reasons.
It is our practice to change model numbers when published ratings or features are changed, or when
significant construction changes are made. However, some specifications of the products may be changed
without any notice. When in doubt, special model numbers may be assigned to fix or establish key
specifications for your application on your request. Please consult with your OMRON representative at any
time to confirm actual specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when
tolerances are shown.
PERFORMANCE DATA
Performance data given in this manual is provided as a guide for the user in determining suitability and does
not constitute a warranty. It may represent the result of OMRON's test conditions, and the users must
correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and
Limitations of Liability.
ERRORS AND OMISSIONS
The information in this manual has been carefully checked and is believed to be accurate; however, no
responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.
3
Notice
OMRON products are manufactured for use according to proper procedures by a
qualified operator and only for the purposes described in this manual.
! DANGER
The following conventions are used to indicate and classify precautions in this manual.
Always heed the information provided with them. Failure to heed precautions can
result in injury to people or damage to property.
Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
! WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
! Caution
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury, or property damage.
OMRON Product References
All OMRON products are capitalized in this manual. The word "Unit" is also capitalized when it
refers to an OMRON product, regardless of whether or not it appears in the proper name of
the product.
The abbreviation "Ch," which appears in some displays and on some OMRON products,
often means "word" and is abbreviated "Wd" in documentation in this sense.
The abbreviation "PLC" means Programmable Controller.
The abbreviation “host” means a controller, such as an IBM PC/AT or compatible computer,
that controls a PT (Programmable Terminal).
Visual Aids
The following headings appear in the left column of the manual to help you locate different
types of information.
Note
Indicates information of particular interest for efficient and convenient operation
of the product.
Reference
Indicates supplementary information on related topics that may be of interest to
the user.
1, 2, 3...
1. Indicates lists of one sort or another, such as procedures, checklists, etc.
CS1G-CPU@ @ -VI
Boxes in model numbers indicate variable characters. For example, "CS1GCPU@ @ -EV1" indicates the following models: CS1G-CPU42-EV1, CS1GCPU43-EV1, CS1G-CPU44-EV1, and CS1G-CPU45-EV1.
 OMRON, 2002
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or
by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of
OMRON.
No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is
constantly striving to improve its high-quality products, the information contained in this manual is subject to change without
notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility
for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in
this publication.
1
Contents
Notice ..............................................................................................................................................1
About this Manual ...............................................................................................................................6
Related Manuals ..................................................................................................................................7
Terminology ........................................................................................................................................8
Introduction .........................................................................................................................................9
Section 1 Overview
1-1 NS-series PT Functions and Operation.............................................................................................. 1-2
1-1-1 PT Functions for FA Manufacturing Sites ........................................................................... 1-2
1-1-2 NS-series PT Operating System........................................................................................... 1-3
1-2 Communications with the Host.......................................................................................................... 1-5
1-2-1 What is an NT Link?............................................................................................................ 1-6
1-2-2 Ethernet ................................................................................................................................ 1-6
1-2-3 Controller Link..................................................................................................................... 1-6
1-3 System Configuration ........................................................................................................................ 1-7
1-3-1 Supported Peripheral Devices .............................................................................................. 1-7
1-4 Procedure for Running NS-series PTs ............................................................................................... 1-9
Section 2 Before Connecting
2-1 Connecting the Host .......................................................................................................................... 2-2
2-1-1 Communications Types and Connection Methods............................................................... 2-2
2-2 Part Names and Functions ................................................................................................................. 2-7
Section 3 Installing the PT and Connecting Peripheral Devices
3-1 Installing the PT................................................................................................................................. 3-3
3-1-1 Installation Environment...................................................................................................... 3-3
3-1-2 Installing Expansion Memory Boards and RS-232C/RS-422A Converters......................... 3-4
3-1-3 Mounting the PT to the Control Panel ................................................................................. 3-4
3-1-4 Connecting the Power Supply.............................................................................................. 3-5
3-1-5 Wiring the Ground Wire ...................................................................................................... 3-6
3-2 Starting the PT ................................................................................................................................... 3-7
3-2-1 Operation at Startup ............................................................................................................. 3-7
3-2-2 Starting the PT for the First Time ........................................................................................ 3-9
3-3 Connecting the NS-Designer ........................................................................................................... 3-11
3-4 Connecting to Bar Code Readers..................................................................................................... 3-12
3-4-1 Connection Methods .......................................................................................................... 3-12
3-4-2 Setting Bar Code Readers .................................................................................................. 3-13
3-4-3 Data Format ....................................................................................................................... 3-14
3-4-4 Bar Code Input................................................................................................................... 3-14
3-5 Using Expansion Memory Boards ................................................................................................... 3-15
3-5-1 Installation Procedure ........................................................................................................ 3-16
2
3-5-2 Using the Board ................................................................................................................. 3-17
3-6 Using Memory Cards....................................................................................................................... 3-18
3-6-1 Installation.......................................................................................................................... 3-19
3-6-2 Replacing System Programs .............................................................................................. 3-20
3-6-3 Transferring Data with Memory Cards .............................................................................. 3-20
3-7 Installing the Video Input Unit ........................................................................................................ 3-27
3-7-1 Video Input Unit Components ........................................................................................... 3-27
3-7-2 Nomenclature and Functions.............................................................................................. 3-28
3-7-3 Installation Method for Video Input Unit........................................................................... 3-29
3-7-4 Connecting to Video Input Connectors.............................................................................. 3-34
3-8 Installing the Controller Link Interface Unit ................................................................................... 3-39
3-8-1 Controller Link Interface Unit Components ...................................................................... 3-39
3-8-2 Nomenclature and Functions.............................................................................................. 3-40
3-8-3 Installation Method for Controller Link Interface Unit...................................................... 3-43
3-8-4 Wiring ................................................................................................................................ 3-50
Section 4 Connecting the Host to Serial Port
4-1 1:1 Host Connection .......................................................................................................................... 4-2
4-1-1 Host Types and Settings....................................................................................................... 4-3
4-2 1:N Host Connection ....................................................................................................................... 4-10
4-3 Recommended Connector Cables .................................................................................................... 4-28
Section 5 Connecting to Host via Ethernet or Controller Link
5-1 Connecting to Host Via Ethernet ....................................................................................................... 5-2
5-1-1 Host Types and Settings....................................................................................................... 5-3
5-2 Connecting to the Host Using Controller Link ................................................................................ 5-15
5-2-1 What Is a Controller Link Network?.................................................................................. 5-15
5-2-2 Host Type and Settings ...................................................................................................... 5-16
5-2-3 Data Links.......................................................................................................................... 5-17
5-2-4 Troubleshooting Using Indicators...................................................................................... 5-21
Section 6 System Menu Operations
6-1 Operating Modes and System Menu.................................................................................................. 6-3
6-1-1 Mode Configuration............................................................................................................. 6-3
6-1-2 System Menu Configuration ................................................................................................ 6-3
6-1-3 Overview of Menu Items ..................................................................................................... 6-4
6-1-4 Using the System Menu ....................................................................................................... 6-6
6-2 Initializing Data ................................................................................................................................. 6-8
6-2-1 Screen Data Area Format ..................................................................................................... 6-8
6-2-2 Alarm/Event History Initialization....................................................................................... 6-9
6-2-3 Data Log Initialization ....................................................................................................... 6-10
6-2-4 Operation Log Initialization............................................................................................... 6-11
6-2-5 Error Log Initialization ...................................................................................................... 6-13
6-2-6 Language Selection ............................................................................................................ 6-14
3
6-3 PT Operating Settings...................................................................................................................... 6-15
6-3-1 Start-up Wait Time............................................................................................................. 6-16
6-3-2 Screen Saver....................................................................................................................... 6-16
6-3-3 Key Press Sound ................................................................................................................ 6-17
6-3-4 Buzzer Sound ..................................................................................................................... 6-17
6-3-5 Backlight ............................................................................................................................ 6-18
6-3-6 Calendar Check .................................................................................................................. 6-18
6-3-7 Contrast (NS7 Only) .......................................................................................................... 6-19
6-4 Project Settings ................................................................................................................................ 6-20
6-4-1 Project Title........................................................................................................................ 6-20
6-4-2 Number of Labels............................................................................................................... 6-21
6-4-3 Initial Screen ...................................................................................................................... 6-21
6-4-4 Initial Label........................................................................................................................ 6-21
6-4-5 Alarm/Event History Recording Method ........................................................................... 6-21
6-4-6 Data Log Recording Method.............................................................................................. 6-21
6-4-7 Operation Log Recording Method ..................................................................................... 6-22
6-4-8 Error Log Recording Method............................................................................................. 6-22
6-4-9 System Memory ................................................................................................................. 6-22
6-5 Setting Passwords ............................................................................................................................ 6-23
6-6 Communications Settings ................................................................................................................ 6-24
6-6-1 Communications Conditions.............................................................................................. 6-24
6-6-2 Setting 1:1 NT Link ........................................................................................................... 6-25
6-6-3 Setting High-speed 1:N NT Links (Standard, High-speed)................................................ 6-26
6-6-4 Setting Ethernet.................................................................................................................. 6-27
6-6-5 Setting the Controller Link Network.................................................................................. 6-28
6-6-6 Setting Bar Code Readers .................................................................................................. 6-28
6-7 Screen Data Check........................................................................................................................... 6-30
6-8 Special Screens ................................................................................................................................ 6-31
6-8-1 Alarm History .................................................................................................................... 6-32
6-8-2 Operation Log .................................................................................................................... 6-33
6-8-3 Error Log............................................................................................................................ 6-34
6-8-4 Device Monitor .................................................................................................................. 6-35
6-8-5 Communication Test .......................................................................................................... 6-37
6-8-6 Video Configuration .......................................................................................................... 6-38
6-8-7 Version Display.................................................................................................................. 6-40
6-9 Hardware Check .............................................................................................................................. 6-41
6-9-1 LCD Check ........................................................................................................................ 6-41
6-9-2 Touch Switch Check .......................................................................................................... 6-42
6-10 Starting Operations ........................................................................................................................ 6-43
4
Section 7 Maintenance and Troubleshooting
7-1 Maintenance....................................................................................................................................... 7-2
7-1-1 Replacing the Battery........................................................................................................... 7-2
7-2 Inspection and Cleaning..................................................................................................................... 7-5
7-3 Troubleshooting and Maintenance..................................................................................................... 7-7
7-4 Requesting a Replacement PT ......................................................................................................... 7-13
Appendices
Appendix 1
Appendix 2
Appendix 3
Appendix 4
Appendix 5
Appendix 6
Appendix 7
Appendix 8
Appendix 9
Quick Reference ...............................................................................................................A-2
Specifications ...................................................................................................................A-3
Dimensions.....................................................................................................................A-10
Using NS-AL002 RS-232C/RS-422A Converters .........................................................A-13
Preparing Connecting Cables .........................................................................................A-17
Preparing Cables for Computer Connection...................................................................A-21
Preparing Connecting Cables for Bar Code Readers......................................................A-23
Standard Models.............................................................................................................A-25
List of Optional Products ...............................................................................................A-34
5
About this Manual
Section 1 Overview
This section provides an overview of the NS-series PTs, including functions, features, connection types, and
communications methods.
Section 2 Before Connecting
This section provides information on methods for connecting NS-series PTs that must be understood before
connecting the host and peripheral devices.
Section 3 Installing the PT and Connecting Peripheral Devices
This section describes the methods used to install the PT and connect peripheral devices.
Section 4 Connecting Host to Serial Port
This section describes the methods for connecting the host to the serial port of the PT.
Section 5 Connecting to Host via Ethernet or Controller Link
This section describes the methods for connecting the PT to the host using the PT’s Ethernet interface or Controller
Link.
Section 6 System Menu Operations
This section describes the methods for operating the System Menu. It also provides details on functions that are
useful for NS-series PT applications and for system maintenance.
Section 7 Maintenance and Troubleshooting
This section describes the maintenance and inspection methods for preventing errors occurring, and troubleshooting
measures when errors occur in the PT.
Appendices
Describe hardware specifications and methods for preparing connections cables, and provide lists of standard
products.
WARNING Failure to read and understand the information provided in this manual may result in
personal injury or death, damage to the product, or product failure. Please read each
section in its entirety and be sure you understand the information provided in the section
and related sections before attempting any of the procedures or operations given.
6
Related Manuals
The following manuals are used for NS-series PTs. (The boxes at the end of the catalog
numbers indicate the revision code.)
This
manual
NS Series Setup Manual ............................................................V072-E1-@
Describes how to connect the PT to the host and peripheral devices, methods to setup
communications and operation, and procedures for maintenance.
Refer to the NS Series Programming Manual (V073-E1-@) for information on PT
functions and specific operating procedures.
NS Series Programming Manual ................................................V073-E1-@
Describes the screen configurations, object functions, and host communications for
the PT.
NS-Designer Operation Manual..................................................V074-E1-@
Describes operating procedures for the NS-Designer, which is used to create the
screens displayed on the PT and transfer them to the PT. It includes screen creation
and transfer procedures.
7
Terminology
The following terminology is used in this manual.
8
PT
In this manual, indicates an NS-series Programmable Terminal.
NS Series
Indicates products in the OMRON NS@ @ Series of Programmable Terminals.
PLC
Indicates a Programmable Controller in the OMRON SYSMAC CS/CJ, C, or
CVM1/CV Series of Programmable Controllers.
CS/CJ Series
Indicates Programmable Controllers in the OMRON SYSMAC CS/CJ Series of
Programmable Controllers: CS1G, CS1H, CS1G-H, CS1H-H, CJ1G.
C Series
Indicates products in the OMRON SYSMAC C Series of Programmable
Controllers: C200HS, C200HX(-Z), C200HG(-Z), C200HE(-Z), CQM1, CQM1H,
CPM1A, CPM2A, CPM2C.
CVM1/CV Series
Indicates products in the OMRON SYSMAC CVM1/ CV Series of Programmable
Controllers: CV500, CV1000, CV2000, CVM1
Serial Communications Unit
Indicates a Serial Communications Unit for an OMRON CS/CJ-series PLC.
Serial Communications
Board
Indicates a Serial Communications Board for an OMRON CS-series or CQM1H
PLC.
Communications Board
Indicates a Communications Board for an OMRON C200HX/HG/HE(-Z) PLC.
CPU Unit
Indicates a CPU Unit in the OMRON SYSMAC CS/CJ, C, or CVM1/CV Series of
Programmable Controllers.
NS-Designer
Indicates the OMRON NS-Designer (NS-NSDC1-V@ ).
Host
Indicates the PLC, IBM PC/AT or compatible computer, or personal computer
functioning as the control device and interfaced with the NS-series PT.
Programming Manual
Indicates the NS Series Programming Manual (V073-E1-@).
Introduction
• Intended Audience
This manual is intended for the following personnel, who must also have knowledge of
electrical systems (an electrical engineer or the equivalent).
• Personnel in charge of introducing FA systems into production facilities.
• Personnel in charge of designing FA systems.
• Personnel in charge of installing and connecting FA systems.
• Personnel in charge of managing FA systems and facilities.
• General Precautions
• The user must operate the product according to the performance specifications
described in the operation manuals.
• Do not use the PT touch switch input functions for applications where danger to human
life or serious property damage is possible, or for emergency switch applications.
• Before using the product under conditions which are not described in the manual or
applying the product to nuclear control systems, railroad systems, aviation systems,
vehicles, combustion systems, medical equipment, amusement machines, safety
equipment, and other systems, machines and equipment that may have a serious
influence on lives and property if used improperly, consult your OMRON
representative.
• Make sure that the ratings and performance characteristics of the product are sufficient
for the systems, machines, and equipment, and be sure to provide the systems,
machines, and equipment with double safety mechanisms.
• This manual provides information for connecting and setting up an NS-series PT. Be
sure to read this manual before attempting to use the PT and keep this manual close at
hand for reference during installation and operation.
• Safety Precautions
Do not attempt to take the Unit apart and do not
touch any internal parts while the power is being
supplied. Doing either of these may result in
electrical shock.
9
Section 1
Overview
This section provides an overview of the NS-series PTs, including functions, features, connection types, and communications methods.
1-1NS-series PT Functions and Operation................................................................................ 1-2
1-1-1 PT Functions for FA Manufacturing Sites................................................................ 1-2
1-1-2 NS-series PT Operating System ............................................................................... 1-3
1-2Communications with the Host............................................................................................ 1-5
1-2-1 What is an NT Link? ................................................................................................ 1-6
1-2-2 Ethernet .................................................................................................................... 1-6
1-2-3 Controller Link ......................................................................................................... 1-6
1-3System Configuration .......................................................................................................... 1-7
1-3-1 Supported Peripheral Devices .................................................................................. 1-7
1-4Procedure for Running NS-series PTs ................................................................................. 1-9
1-1 NS-series PT Functions and Operation
1-1 NS-series PT Functions and Operation
The NS Series offers advanced operator interfaces called Programmable Terminals that can
be used to display required information and provide operating capabilities for FA manufacturing sites. This section describes the role and functions of the NS-series PTs for first-time
users of Programmable Terminals.
1-1-1
PT Functions for FA Manufacturing Sites
@ Line Operating Status Monitor Display
NS-series PTs can be used to display information such as the operating status of the system
and the devices. Graphs and other indicators can be used to better represent the information
and make it easy to understand.
@ Directions for FA Site Operators
The PTs can be used to inform the operators of system and device errors and assist them in
taking appropriate measures.
1-2
1-1 NS-series PT Functions and Operation
@ Control Panel Switches
The NS-series PTs allow the user to create various on-screen switches. By using touch
switch inputs, operating results can be sent to the host.
1-1-2
NS-series PT Operating System
@ Transferring Screen Data
The screen data displayed on NS-series PTs is created using the NS-Designer on a computer and transferred to the PT through RS-232C or Ethernet communications.
Create screen data.
RS-232C, Ethernet Computer
(NS-Designer)
Screen data
Connect the computer to the PT only
when transferring screen data to or from
the NS-Designer.
Note: Some models do not support Ethernet.
Screen data can also be transferred at high speed using a Memory Card.
Memory
Card
Computer
(NS-Designer)
1-3
1-1 NS-series PT Functions and Operation
@ Displaying Screens
The information displayed on the screens is created using the NS-Designer on a computer
and transferred to the PT. The required screens can be displayed by using commands from
the host or touch switch operations.
Host
The required screens can
be displayed by using
commands from the host
or touch switch operations.
@ Reading Data from the Host
A communications method such as NT Link Ethernet or Controller Link is used to connect
the host, and the required data is automatically read from the host.
NT Link or Ethernet,
Controller Link
Host
Note: Some models do not support Ethernet or Controller Link.
@ Sending Data to the Host
Data input using touch switches (button ON/OFF status, numerals, and character strings) is
sent to the host.
Host
Touch panel
ON/OFF status,
numeric data, etc.
1-4
1-2 Communications with the Host
1-2 Communications with the Host
NS-series PTs allow the user to allocate words and bits in any PLC area for use in accessing
the required display contents and storing input data.
Operations that can be performed include reading and writing allocated word contents and
bit status directly, changing the display status of functional objects on the PT screen, and
controlling and notifying PT status.
The NS-series PTs also enable communications with more than one PLC. A host name is
registered for each PLC connected, allowing access to any PLC areas by specifying the host
name and address.
NS-series PT
PLC
DM Area
I/O Area
Auxiliary Area
Timers/counters
When using NS-series PTs, the host can be connected using any of the following methods.
• 1:1 NT Link
• 1:N NT Link (normal or high-speed)
• Ethernet
• Controller Link
1-5
1-2 Communications with the Host
1-2-1
What is an NT Link?
An NT Link is a method for high-speed communications with OMRON PLCs using a special
protocol. The following PLCs can be connected using NT Link communications.
CPM1A, CPM2A, CPM2C, CQM1, CQM1H, C200HS, C200HX/HG/HE (-Z),
CS1G/CS1H-E (V1), CS1G/CS1H-H, CJ1G, CJ1G/CJ1H-H, and CVM1/CV-series (V1 and
higher) PLCs
In addition to 1:1 NT Links, where a single PT is connected to a single PLC, NS-series PTs
also support 1:N NT Links, allowing up to eight PTs to be connected to a single PLC port.
The following PLCs can be connected using 1:N NT Link communications.
CQM1H, C200HX/HG/HE(-Z), CS1G/CS1H-E(V1), CS1G/CS1H-H, and CJ-series PLCs
The NS-series PTs also support high-speed 1:N NT Links for even faster communications.
The following PLCs can be connected using high-speed 1:N NT Link communications.
CS1G/CS1H-E (V1 and higher), CS1G/CS1H-H, and CJ-series PLCs
In the rest of this manual, "NT Link" refers to NT Link communications in general, "1:1 NT
Link" refers to an NT Link in a 1:1 configuration only, and "1:N NT Link" refers to NT Links in
a 1:N configuration only. Where necessary, normal 1:N NT Link and high-speed 1:N NT Link
are used. When "1:N NT Link" is used alone, it refers to both normal and high-speed communications.
1-2-2
Ethernet
The NS-series PTs can communicate with hosts that are connected to the Ethernet and
support FINS message communications, one of OMRON’s standard communications services. Ethernet Units for PLCs that are supported by the NS-series PTs can be used to read
and write data, word, and bit information quickly and simply without requiring protocol recognition. The following PLCs can be connected to the Ethernet.
CS1G/CS1H (V1), CS1G/CS1H-H, CVM1/CV, and CJ-series PLCs
1-2-3
Controller Link
The Controller Link is an FA network that can send and receive large data packets flexibly
and easily among OMRON PLCs and IBM PC/AT or compatible computers. The Controller
Link supports data links that enable data sharing and a message service that enables sending and receiving data when required.
The following PLCs can be connected using Controller Link: CS1G/CS1H-E(V1),
CS1G/CS1G-H, C200HX/HG/HE(-Z), CV500/CV1000/CV2000(V1), CVM1(V2), CQM1H,
CJ1G, and CJ1G/CJ1H-H.
1-6
1-3 System Configuration
1-3 System Configuration
The following information describes the system configuration using NS-series PTs. Refer to
Appendix 8 Standard Models for details on available models.
1-3-1
Supported Peripheral Devices
Host
Bar Code Reader
Read bar codes
as text string data.
Twisted-pair cable
Video Input Unit
RS-232C cable
(15 m max.)
RS-422A cable
(500 m max.)
RS-232C/422A
Converter
Ethernet cable
(See note 1.)
Memory Card
Save screen data or
the system program or
automatically read data
at startup.
Controller Link
Interface Unit
enables Controller Link communications with
a host.
(See note 2.)
Video camera or
Vision Sensor
NTSC/PAL
cable
Personal computer
Computer running Windows 95,
98, NT, Me, or 2000
NS-Designer
RS-232C cable
Ethernet cable (See note 1.)
Expansion Memory Board
Expand the area for screen
data.
Note 1: Only the following models support Ethernet: NS12-TS01(B), NS10-TV01(B), and NS7SV01(B)
Note 2: Only the following models support the Controller Link Interface Unit and Video Input Unit:
NS12-TS0@, NS10-TV0@.
• PT (Refer to Appendix 8 Standard Models.)
• Recommended Bar Code Reader (Refer to page 3-12.)
OMRON V520-RH21-6
• Expansion Memory Board (Refer to page 3-15.)
OMRON NS-MF081 (8-MB flash memory)
OMRON NS-MF161 (16-MB flash memory)
• RS-232C/422A Converter
OMRON NS-AL002 (non-insulated) (Refer to page A-13.)
OMRON NT-AL001 (insulated)
1-7
1-3 System Configuration
• Recommended Memory Cards (Refer to page 3-18.)
OMRON HMC-EF172 (15-MB flash memory)
OMRON HMC-EF372 (30-MB flash memory)
OMRON HMC-EF672 (64-MB flash memory)
• NS-Designer (Refer to NS-Designer Operation Manual (V074-E1-@)
NS-NSDC1-V@ (CD-ROM version)
Reference The following optional products are available. (Refer to page A-34.)
Anti-reflection Sheets
(5 sheets)
NS12-KBA04
NS7-KBA04
(For NS12 and NS10)
(For NS7)
Protective Covers
(5 covers)
NS12-KBA05
NS7-KBA05
(For NS12 and NS10)
(For NS7)
Replacement Battery
C500-BAT08
CPM2A-BAT01
(For NS12 and NS10)
(For NS7)
• Video Input Unit (Refer to page 3-27.)
NS-CA001
• Controller Link Interface Unit (Refer to page 3-39.)
NS-CLK21
1-8
1-4 Procedure for Running NS-series PTs
1-4 Procedure for Running NS-series PTs
Use the following procedure to start up the NS-series system.
Host
Host settings
PT
NS-Designer
Panel installation
Installation on the
computer
Refer to page 3-4.
Refer to following pages.
1:1 NT Link: 4-2 and A-7
1:N NT Link: 4-10 and A-7
High-speed 1:N NT Link:
4-20 and A-7
Ethernet:
Section 5
Controller Link: Section 5
Refer to NS-Designer
Operation Manual.
Peripheral connections
Power connections
Refer to page 3-5.
Power ON
See note 1.
System program
installation
See note 2.
Refer to page 3-20.
Data initialization
Refer to NS-Designer
Operation Manual.
See
note 3.
Screen transfer
Refer to page 3-20.
System menu settings
Screen creation
Refer to NS-series PT
Programming Manual
and NS-Designer
Operation Manual.
See note 4.
Refer to page 6-3.
PT connections
Host connections
RS-232C: Section 4
Ethernet: Section 5
Controller Link: Section 5
Programming
Settings/com check
Operation
System maintenance
See note 5.
Note 1. RUN mode is entered automatically if screen data already exists.
An error message is displayed if screen data does not exist. Transfer screen data from either
the NS-Designer or a Memory Card.
2. The system program is installed in special situations only, such as when the system program
is being changed or recovered.
3. The system menu can be operated as required to initialize data saved in the PT.
4. The system menu can be displayed by pressing two of the four corners of the touch panel.
5. When errors occur during operation, check I/O and setting statuses as required.
1-9
1-4 Procedure for Running NS-series PTs
The following table lists the device and software manuals used for reference.
Device/Software
NS-series PTs
Manual name
Programming Manual
Macro Reference
Tutorial
NS-Designer
NS-series Ladder
Monitor
PLC
NS-Designer Operation Manual
NS-series Ladder Monitor Operation Manual
SYSMAC C200HS Installation Guide
SYSMAC C200HS Operation Manual
SYSMAC C200HX/HG/HE(-Z) Installation Guide
SYSMAC C200HX/HG/HE Operation Manual
SYSMAC C200HX/HG/HE(-ZE) Operation Manual
SYSMAC CQM1 Operation Manual
SYSMAC CQM1H Operation Manual
SYSMAC CV Series CV500/CV1000/CV2000/CVM1
Programming Manual: Ladder Diagrams
SYSMAC CPM1A Operation Manual
SYSMAC CPM2A Operation Manual
SYSMAC CPM1/CPM1A/CPM2A/CPM2C/SRM1(-V2)
Programming Manual
SYSMAC CPM2C Operation Manual
SYSMAC CJ Series Operation Manual
SYSMAC CS/CJ Series Serial Communications Unit
and Board Operation Manual
SYSMAC CS Series Operation Manual
SYSMAC CS/CJ Series Programming Manual
SYSMAC CS/CJ Series Instruction Reference Manual
SYSMAC CS/CJ Series Programming Console Operation Manual
SYSMAC CS/CJ Series Communications Command
Reference Manual
Programming
SYSMAC Support Software Operation Manual: C-series
Devices/Software
PLCs
SYSMAC Support Software Operation Manual: CVM1
PLCs
SYSMAC CPT Operation Manual
CX-Programmer User Manual
Ethernet Unit
SYSMAC CS/CJ Series Ethernet Unit Operation Manual
SYSMAC CVM1/CV Series Ethernet Unit System Manual
FINS Command Reference Manual
Controller Link Sup- Controller Link Support Board Operation Manual
port Board
Controller Link Support Board for PCI Bus Operation
Manual
Controller Link Unit Controller Link Unit Operation Manual
1-10
Catalog No.
V073
Provided with NSDesigner
Provided with NSDesigner
V074
Provided with NSseries Ladder Monitor
W236
W235
W302
W303
W322
W226
W363
W202
W317
W352
W353
W356
W393
W336
W339
W394
W340
W341
W342
W248
W249
W333
W361
W343
W242
W227
W307
W383
W309
Section 2
Before Connecting
This section provides information on methods for connecting NS-series PTs that must be understood before connecting the host and peripheral devices.
2-1Connecting the Host ............................................................................................................ 2-2
2-1-1 Communications Types and Connection Methods ................................................... 2-2
2-2Part Names and Functions ................................................................................................... 2-7
2-1 Connecting the Host
2-1 Connecting the Host
This section provides details on the networks for hosts that can be used with NS-series PTs.
2-1-1
Communications Types and Connection Methods
•
Communications Ports and Methods
The PT has two serial ports. The NS12-TS01(B), NS10-TV01(B), and NS7-SV01(B) each
have one Ethernet interface. A Controller Link Interface Unit can also be mounted to enable
Controller Link communications. These communications ports and interfaces can be used for
the communications methods shown in the following table.
Communications ports
Supported communications methods
1:1 NT Link
1:N NT Links (See note.)
For connecting the NS-Designer and for Bar Code Reader input.
1:1 NT Link
Serial port B
1:N NT Links (See note.)
For connecting the NS-Designer and for Bar Code Reader input.
FINS communications
Ethernet interface
For connecting the NS-Designer.
Controller Link Interface
FINS communications
Unit
Data links
Note: NT Links can be set for either normal or high-speed communications.
Serial port A
The following table shows the possible combinations of communications methods when serial
ports A and B are connected to the host at the same time.
Using serial ports A and B at the same time
1:1 NT Link + 1:1 NT Link
1:1 NT Link + 1:N NT Links
1:N NT Links + 1:N NT Links
Supported/not supported.
Supported.
Supported.
Not supported.
• Converting Communications Type Using RS-232C/RS-422A Converter
OMRON’s NS-AL002 RS-232C/RS-422A Converter can be used to convert the communications type between RS-232C and RS-422A.
• Communications Type and Connection Method Combinations
The following table shows the possible connection methods for each communications type.
2-2
2-1 Connecting the Host
1:1 Connection
PT
Host
commu- communications nications
type
type
Supported connection methods
PT
Supported communications
Refermethods
ence
1:1 NT 1:N NT
Data page
FINS
Link Links
Links
Host
RS-232C
Yes
Yes
No
No
P.4-2
P.4-10
Yes
Yes
No
No
P.4-2
P.4-10
No
No
Yes
No
P.5-2
No
No
Yes
Yes P. 5-15
RS-232C cable
RS-232C
PT
Host
NS-AL002
Converter
RS-422A
RS-422A cable
PT
Host
Ethernet Ethernet
Ethernet
10Base-T twisted-pair cross cable
PT
Controller
Controller
Link (See
Link
note.)
Controller Link
Interface Unit
Host
Specified shielded twisted-pair
cable
Yes: Connection is possible.
No: Connection is not possible.
Note: Only when a Controller Link Interface Unit (NS-CLK21) is mounted.
2-3
2-1 Connecting the Host
1:N Connection (Connecting Multiple PTs to a Single Host)
PT
Host
commu- communications nications
type
type
Supported connection methods
PTs
Supported communications
Refermethods
ence
1:1 NT 1:N NT
Data page
FINS
Link Links
Links
Host
NS-AL002
Adapter
RS-422A cable
RS-232C RS-422A
No
Yes
No
No
P.4-10
No
No
Yes
No
P.5-2
No
No
Yes
Yes P. 5-15
PTs
Ethernet
10Base-T
twisted-pair straight cable
HUB
Host
Ethernet Ethernet
PTs
Controller
Controller
Link (See
Link
note.)
Controller Link
Interface Unit
Host
Specified shielded
twisted-pair cable
Yes: Connection is possible.
No: Connection is not possible.
Note: Only when a Controller Link Interface Unit (NS-CLK21) is mounted.
2-4
2-1 Connecting the Host
N:1 Connection (Connecting Multiple Hosts to a Single PT)
Host
PT
comcommumunicanications
tions
type
type
Supported connection methods
Supported communications
methods
Reference
1:1 NT 1:N NT
Data page
FINS
Link Links
Links
P.4-2
P.4-10
PT
Host
Serial port A
RS-232C RS-232C
Yes
RS-232C cable
Yes
No
No
Host
Serial port B
RS-232C cable
PT
P.5-2
Host
HUB
Ethernet
Ethernet
10Base-T twisted-pair straight
cable
Ethernet
No
No
Yes
No
No
No
Yes
Yes P. 5-15
Yes
Yes
No
---
P.4-2
P.4-10
Yes
Yes
Yes
---
P.4-2
P.4-10
P.5-2
Host
PT
Host
Controller Link
Interface Unit
Specified shielded
twisted-pair cable
Controller
ControlLink (See
ler Link
note.)
Host
PT
Host
Serial port A
RSRS-232C 232C,
RS-422A
NS-AL002
RS-232C/
RS-422A
Converter
RS-232C cable
Host
Serial port B
RS-422A cable
An RS-422A line can be connected to
serial port A at the same time that an RS232C line is connected to serial port B.
PT
Host
Ethernet
10Base-T twisted-pair cross cable
Ethernet, Ethernet,
RS-232C RS-232C
Host
RS-232C cable
2-5
2-1 Connecting the Host
Host
PT
comcommumunicanications
tions
type
type
Supported connection methods
Supported communications
methods
Reference
1:1 NT 1:N NT
Data page
FINS
Link Links
Links
PT
RSRS-232C,
232C,
Controller
ControlLink
ler Link
Host
Serial port A
Controller Link
Interface Unit
RS-232C cable
Yes
Yes
Yes
No
No
Yes
Host
P.4-2
Yes P.4-10
P.5-15
Controller Link
Specified shielded twisted-pair cable
PT
Host
Ethernet
10BASE-T twisted-pair cross cable
Ethernet, Ethernet,
Controller ControlLink
ler Link
Controller Link
Interface Unit
Host
Yes P.5-2
P.5-15
Controller Link
Specified shielded twisted-pair cable
Yes: Connection is possible.
No: Connection is not possible.
Note: Only when a Controller Link Interface Unit (NS-CLK21) is mounted.
• The NS-AL002 is connected directly to the serial port of the PT and power is supplied
from pin 6 of the port.
• When there are multiple serial ports and Ethernet Units for a single host, each port can
be used to communicate with separate PTs. This type of communications method,
however, will reduce the communications performance at the host.
2-6
2-2 Part Names and Functions
2-2 Part Names and Functions
The part names and functions of the PT are described here.
NS12/NS10 Front Panel
RUN indicator
Lights or flashes to indicate
the status of the PT.
Display
NS12: 12.1-inch TFT high-luminance LCD
NS10: 10.4-inch TFT high-luminance LCD
The entire display is a touch panel that serves
as an input device.
RUN Indicator Status
Indicator
Lit
Green
PT is operating normally.
Flashing
Memory Card transfer ended
normally.
A backlight error occurred
immediately after power was
turned ON.
• Power is not being supplied to the PT.
• The fuse is broken.
• The system program is damaged and the system cannot be booted.
Not lit
Orange
• The file system check that is performed immediately after the power
is turned ON is in progress.
• The battery power is low, or the battery is not connected and the PT is
operating normally.
Memory Card transfer in progress.
Red
Not used.
Memory Card
transfer ended
abnormally.
2-7
2-2 Part Names and Functions
NS12/NS10 Rear Panel Switches
Reset Switch
Used to initialize the PT.
The status of screen data, other registered data,
and memory switches, however, will not change.
Expansion Memory Board Cover
Used to expand the screen data.
Open the cover and install the
Expansion Memory Board in the
slot.
DIP Switch
Used to set the settings for
transmitting data using the
Memory Card.
Battery Cover
The battery is installed
underneath the cover.
Main circuit DC Input Terminal
Used to connect the power
supply.
FG Terminal
Used to prevent malfunctions
due to noise interference.
Expansion Interface Connector
Used to mount the Video Input
Unit or the Controller Link
Interface Unit.
Memory Card Connector
Used to connect the memory
card for storing and transmitting
screen data, log data, and
system programs.
Serial Port A Connector (See note.)
Used to connect the host, NS-Designer, and
Bar Code Reader. Uses an RS-232C 9-pin
connector.
Serial Port B Connector (See note.)
Used to connect the host, NS-Designer, and Bar
Code Reader. Uses an RS-232C 9-pin
connector.
Ethernet Connector
Used to connect the Ethernet cable. Uses
a 10Base-T 8-pin modular plug.
Note: The 5-V output of serial ports A and B cannot be used at the same time.
Note
2-8
Confirm system safety before turning the power ON/OFF or restarting. Otherwise the system
may operate unpredictably.
2-2 Part Names and Functions
NS7 Front Panel
Display
7.7-inch color STN LCD
The entire display is a touch
panel that serves as an input
device.
RUN indicator
Lights or flashes to indicate the
status of the PT.
RUN Indicator Status
Indicator
Lit
Green
PT is operating normally.
Flashing
Memory Card transfer ended
Memory Card
normally.
transfer ended
A backlight error occurred
abnormally.
immediately after power was
turned ON.
• Power is not being supplied to the PT.
• The fuse is broken.
• The system program is damaged and the system cannot be booted.
Not lit
Orange
• The file system check that is
performed immediately after the
power is turned ON is in progress.
• The battery power is low, or the
battery is not connected and the
PT is operating normally.
Memory Card transfer in progress.
Red
Not used.
2-9
2-2 Part Names and Functions
NS7 Rear Panel
DIP Switch
Used to set the settings for
transferring data using the memory
card.
FG Terminal
Used to prevent
malfunctions due to noise
interference.
Main Circuit DC Input
Terminal
Used to connect the
power supply.
Ethernet Connector
Used to connect the Ethernet cable.
Uses a 10Base-T 8-pin modular
plug.
Reset Switch
Used to initialize the PT. The
statuses of screen data, other
registered data, and memory
switches will not change.
Memory Card Connector
Used to connect the memory
card for storing and transferring screen data, log data,
and system programs.
Expansion Interface Connector
Used to mount the Expansion
Interface Unit.
Battery Cover
The battery is installed underneath
the cover.
Serial Port A Connector (See note.)
Used to connect the host, NS-Designer, and
Bar Code Reader. Uses an RS-232C 9-pin
connector.
Serial Port B Connector (See note.)
Used to connect the host, NS-Designer, and Bar
Code Reader. Uses an RS-232C 9-pin connector.
Note: The 5-V output of serial ports A and B cannot be used at the same time.
Note
2-10
Confirm system safety before turning the power ON/OFF or restarting. Otherwise the system
may operate unpredictably.
2-2 Part Names and Functions
Touch Panel
The touch switches on the front panel of the PT are used to perform input operations. Press
the touch switches to perform operations such as switching screens and sending bit status to
the host.
Minimum Switch Size
NS12: 16 dots (4.92 mm) × 16 dots (4.92 mm)
NS10: 16 dots (5.3 mm) × 16 dots (5.3 mm)
NS7:
20 dots (4.92 mm) × 20 dots (4.92 mm)
Functional objects can be created combining
minimum size switches.
Function
performed.
When a functional object is pressed, its function is performed.
To ensure correct input operations, create touch switches so that they consist of at least two
switches horizontally and vertically.
Note
•
•
•
•
Press the touch switches with a pressure of 30 N max.
Do not press the touch switches when the backlight is not lit or when there is no display.
Check system safety before pressing the touch switches.
Inputs may not be recognized if the touch switches are pressed in rapid succession. Check
that one input operation has finished before performing the next one.
Reference
• Pressing Three Switches Simultaneously
When the positions of multiple touch switches are set as shown in the example and
three switches are pressed simultaneously, the touch switches will malfunction due to
structural characteristics.
Position the touch switches carefully. In the example shown below, switches have
been created in positions A and B, and at points C and D, where the vertical and horizontal lines through A and B intersect.
A
C
• If touch switches A, B, and C are turned ON
simultaneously, switch D may also turn ON
due to the structure of the touch panel.
• In the same way, if touch switches A, B,
and D are turned ON simultaneously, switch
C may also turn ON.
D
B
Minimum touch switch frame
2-11
2-2 Part Names and Functions
Connector Pin Arrangement of Serial Ports A and B
Pin number
1
2
3
4
5
6
7
8
9
Note
Signal name
NC
SD
RD
RS
CS
+5V
NC
NC
SG
Name
Not connected.
Send data
Receive data
Request to send
Clear to send
5-V output (250 mA max.)
Not connected.
Not connected.
Signal ground
Make sure that the total current capacity of devices being supplied power is 250 mA max.
before using the 5-V power supply from pin 6. The capacity of the PT's 5-V output is 250 mA
max. at 5 V ±5%.
The 5-V output of serial ports A and B cannot be used at the same time.
Ethernet Connector Pin Arrangement
Pin number
1
2
3
4
5
6
7
8
Signal name
TD+
TD−
RD+
NC
NC
RD−
NC
NC
Name
Twisted-pair output (differential output)
Twisted-pair output (differential output)
Twisted-pair input (differential input)
Not connected.
Not connected.
Twisted-pair input (differential input)
Not connected.
Not connected.
When using a cable with a hood (or boot), make sure that the length for connection is at least
15 mm, as shown in the following diagram.
15 mm min.
2-12
Section 3
Installing the PT and Connecting
Peripheral Devices
This section describes the methods used to install the PT and connect peripheral devices.
For details on methods for connecting the host, refer to Section 4 Connecting the Host to the Serial Port or Section 5 Connecting to Host via Ethernet or Controller Link.
3-1 Installing the PT................................................................................................................... 3-3
3-1-1 Installation Environment........................................................................................... 3-3
3-1-2 Installing Expansion Memory Boards and RS-232C/RS-422A Converters.............. 3-4
3-1-3 Mounting the PT to the Control Panel ...................................................................... 3-4
3-1-4 Connecting the Power Supply................................................................................... 3-5
3-1-5 Wiring the Ground Wire........................................................................................... 3-6
3-2 Starting the PT ..................................................................................................................... 3-7
3-2-1 Operation at Startup.................................................................................................. 3-7
3-2-2 Starting the PT for the First Time............................................................................. 3-9
3-3 Connecting the NS-Designer.............................................................................................. 3-11
3-4 Connecting to Bar Code Readers ....................................................................................... 3-12
3-4-1 Connection Methods............................................................................................... 3-12
3-4-2 Setting Bar Code Readers....................................................................................... 3-13
3-4-3 Data Format ............................................................................................................ 3-14
3-4-4 Bar Code Input ....................................................................................................... 3-14
3-5 Using Expansion Memory Boards ..................................................................................... 3-15
3-5-1 Installation Procedure ............................................................................................. 3-16
3-5-2 Using the Board ...................................................................................................... 3-17
3-6 Using Memory Cards ......................................................................................................... 3-18
3-6-1 Installation .............................................................................................................. 3-19
3-6-2 Replacing System Programs ................................................................................... 3-20
3-6-3 Transferring Data with Memory Cards ................................................................... 3-20
3-7 Installing the Video Input Unit .......................................................................................... 3-27
3-7-1 Video Input Unit Components................................................................................ 3-27
3-7-2 Nomenclature and Functions .................................................................................. 3-28
3-1 Installing the PT
3-7-3 Installation Method for Video Input Unit ............................................................... 3-29
3-7-4 Connecting to Video Input Connectors................................................................... 3-34
3-8 Installing the Controller Link Interface Unit...................................................................... 3-39
3-8-1 Controller Link Interface Unit Components ........................................................... 3-39
3-8-2 Nomenclature and Functions .................................................................................. 3-40
3-8-3 Installation Method for Controller Link Interface Unit .......................................... 3-43
3-8-4 Wiring..................................................................................................................... 3-50
3-2
3-1 Installing the PT
Note
When unpacking the PT and peripheral devices, check for any external damage. Shake the
product gently and check for any abnormal sounds.
3-1 Installing the PT
The methods used to mount the PT to the control panel and connect the power supply are
described here.
3-1-1
Installation Environment
Always mount the PT to the control panel and perform other installation procedures according
to the following precautions.
Note
Do not install the PT in any of the following locations:
· Locations subject to extreme temperature changes.
· Locations subject to temperatures or humidity outside the ranges in the specifications.
· Locations subject to high humidity that may result in condensation.
· Locations that would subject the PT to chemicals.
· Locations that would subject the PT to oil.
· Locations subject to corrosive or flammable gases.
· Locations that would subject the PT to direct shock or vibration.
· Locations that would directly expose the PT to wind or rain.
· Locations subject to strong ultraviolet light.
Provide proper shielding measures when installing in the following locations:
· Locations subject to static electricity or other sources of noise.
· Locations subject to strong electromagnetic fields.
· Locations near to power supply lines.
· Locations subject to possible exposure to radiation.
3-3
3-1 Installing the PT
3-1-2
Installing Expansion Memory Boards and RS-232C/RS-422A
Converters
When using Expansion Memory Boards or Adapters, mount the PT to the control panel before installing these Units.
For details on installing and removing Expansion Memory Boards, refer to 3-5 Using Expansion Memory Boards. For details on installing and removing RS-232C/RS-422A Converters,
refer to Appendix 4 Using NS-AL002 RS-232C/RS-422A Converters.
3-1-3
Mounting the PT to the Control Panel
The PT is flush-mounted to the control panel.
The PT is mounted using the panel mounting brackets provided with the PT, and tools, such
as a Phillips screwdriver.
Use the following procedure to mount the PT to the control panel.
1. Make a hole in the panel for flush mounting according to the following dimensions and insert the PT from the front of the panel.
Height
縦
横
Width
Recommended panel thickness:
1.6 to 4.8 mm
Model
NS12
NS10
NS7
3-4
Dimensions
Width 302
+1
0
´ Height 228
+1
0
mm
Width 302
+1
0
´ Height 228
+1
0
mm
Width 220.5
+0.5
0
´ Height 165.5
+0.5
0
mm
3-1 Installing the PT
2. Secure the panel mounting brackets from the back of the panel, as shown in the following
diagram.
Insert the catch on each bracket into the square hole on the PT, and secure the PT to the
panel by tightening the screws with a Phillips screwdriver while gently pulling in the PT.
Note
3-1-4
· Do not allow metal particles to enter the PT while work is being performed on the panel.
· The allowable thickness of the panel for mounting is between 1.6 and 4.8 mm.
Secure the mounting bracket with a uniform tightening torque of between 0.5 and 0.6 N×m
to keep the PT waterproof and dustproof.
The front sheet may become distorted if the tightening torque is more than the specified
limit or not uniform. Always use a panel that is clean, undistorted, and strong enough to
adequately withstand mounting the PT.
Connecting the Power Supply
Connect a 24-VDC power supply to the power input terminals.
Note
24-VDC
·
·
·
·
Do not connect an AC power supply to the power terminals.
Use a DC power supply with low voltage fluctuation.
Do not perform a dielectric strength test.
To conform to the Low Voltage Directive in the EC Directives, use a power supply with reinforced insulation.
Functional ground
Breaker
24-VDC
power supply
·
Power Supply
The following table shows the specifications for the power supply that can be connected. Determine power supply specifications that meet the power supply capacity requirements.
Item
Power supply voltage
Allowable voltage range
Power supply capacity
Value
24 VDC
20.4 to 27.6 VDC (24 VDC ±15%)
20 W min
3-5
3-1 Installing the PT
·
Parts Used to Connect the Power Supply
Note
Connect power to the power terminal block using twisted-pair power lines with a crosssectional area of at least 2 mm and always using M3.5 crimp terminals.
The correct tightening torque for the terminal block is 0.8 N×m. Tighten terminal block screws
properly.
2
Forked type
Round type
7 mm max.
7 mm max.
・Recommended Products
Manufacturer
J.S.T. Mfg. Co., Ltd.
Fuji Terminal Industry Co., Ltd.
Nichifu Terminal Industries Co., Ltd.
3-1-5
Model number of
forked terminals
2-YS3A
2-YAS3.5
2Y-3.5
Model number of
round terminals
2-3.5
V2-S3.5
2-3.5
Applicable power
lines (twisted-pair)
2.0 to 2.63 mm2
Wiring the Ground Wire
The PT is provided with a functional ground (FG:
) terminal.
Wire the FG terminal according to the following conditions.
1. Ground according to Figure (a) if the distance between the PT and the host is short, and
there is no difference in potential expected between the ground wires.
2. Ground according to Figure (b) when there is difference in potential between the PT and
host. Do not ground the functional ground of the PT if it is far from the host and one-point
grounding is difficult.
3. Do not ground the functional ground (FG: ) of the PT if it is mounted to the same panel
as devices that generate noise, such as motors and inverters.
PT
Host
Ground to
100 W max.
Figure (a)
Note
3-6
PT
Host
One-point
grounding
Figure (b)
Ground correctly to prevent malfunctions caused by noise.
3-2 Starting the PT
3-2 Starting the PT
Check that the hardware is connected properly, turn ON the power to the PT, and then start
the PT.
Use the following procedure to start the PT.
3-2-1
Operation at Startup
When the power is ON or the PT is reset, the PT will operate as follows:
Indicator lights orange.
Immediately after the power is turned ON, the indicator will light orange.
The file system will be checked and the system recovered if the power was turned OFF while
a file was being written in previous operation, or if the battery capacity was low and drive
safety information from the system program area screen data area could not be saved.
¯
Indicator lights green.
When the system starts properly, the indicator will light green.
If the indicator does not light green, the system programs may be damaged. Contact your
nearest OMRON representative.
¯
Startup message is displayed.
A message about the startup status will be displayed.
If an error occurs, the PT will stop startup procedures and display a message. (Refer to Section 5 Troubleshooting in the Programming Manual.)
If an error occurs that allows startup to continue, a warning will be displayed. When a warning is displayed, the PT will enter standby state and wait for touch input. Check the message
and then touch the screen. The PT will continue with startup procedures.
3-7
3-2 Starting the PT
¯
PT starts operating
The PT goes into RUN mode and starts operating according to the screen data in the PT.
When the PT is connected using communications conditions other than the set conditions, a
message “Connecting…” will be displayed at the bottom right of the screen, and the PT will
be in standby status until normal connection is established.
To change the communications settings, display the System Menu and change the settings.
Note
3-8
Confirm the safety of the system before turning the power ON and OFF or pressing the reset
switch.
3-2 Starting the PT
3-2-2
Starting the PT for the First Time
Always perform the following operations when turning ON the PT for the first time after purchase.
1. Language selection.
2. Format the screen data area.
3. Set the date and time.
Operate according to the following conditions.
a) When the power is turned ON to the PT, the following error message will be displayed. Press the
OK Button.
b) The System Menu will be displayed. Press the Initialize Tab. The dialog boxes and System Menu
are set for English-language displays at the factory. The language can be changed to Japanese at
this point if desired. To change to Japanese, select it and then press the Write Button. The following message will be displayed. Press the Yes Button. Do not turn OFF the power supply until the
language change process has been completed.
c) Press the Screen Data Area Button.
d) The following message will be displayed. Press the Yes Button to format the screen data. Do not
turn OFF the power while formatting is in progress. If an Expansion Memory Board is installed in
the PT, do not remove the Expansion Memory Board while formatting is in progress.
The time required for formatting depends on whether expansion memory is used and the size of
the expansion memory. The NS7 finishes formatting instantly.
e) When formatting has been completed, a message saying that formatting has been completed will
be displayed. Press the OK Button.
3-9
3-2 Starting the PT
f) Next, select the PT Tab. Set the time and date.
g) Press the date display area under the heading Date and Time. A dialog box will be displayed. Input
the date in yyyy/mm/dd format.
Example: Input March 15, 2002 as 2002.3.15.
h) Press the time display area under the heading Date and Time. A dialog box will be displayed. Input
the time using a 24-hour clock in hours/minutes/seconds format.
Example: Input 06:01:01 p.m. as 18.1.1.
The Write Button will be displayed, but the time and date settings will be enabled immediately after
they have been input in the dialog box.
This completes the procedure required to start the PT for the first time. Now transfer the project
data. Refer to 3-6 Using Memory Cards and Section 10 Transferring Data to and from PTs in the
NS-Designer Operation Manual.
3-10
3-3 Connecting the NS-Designer
3-3 Connecting the NS-Designer
Use an RS-232C or Ethernet cable to connect the PT and computer so that screen data that
has been created with the NS-Designer can be transferred to the PT.
Connect the RS-232C cable from the computer to serial port A or B. The cable can be connected to either serial port A or B.
Units that support Ethernet communications can also be connected to the computer via the
Ethernet and screen data transferred.
·
Communications Conditions
The communications conditions must be set from the PT and FinsGateway. (When using
Ethernet, the settings must be set from the NS-Designer and the project data transferred to
the PT.) For details, refer to Section 10 Transferring Data to and from PTs in the NS-Designer
Operation Manual.
·
Recommended Connecting Cables
Use the following cables when connecting via RS-232C.
XW2Z-S002 (OMRON, cable length: 2 m)
(D-Sub male 9-pin and D-Sub female 9-pin, for IBM PC/AT or compatible computers
and NX computers in the PC-9800 Series)
For details on preparing connecting cables, refer to Appendix 4 Preparing Connecting Cables.
Reference When connecting two computers in series to a single PT, data cannot be transferred using the serial cables.
Example: When a PT is connected in series to the computer’s COM1 and COM2 ports.
PT
Serial port A
Computer
Serial port B
Computer
3-11
3-4 Connecting to Bar Code Readers
3-4 Connecting to Bar Code Readers
Connecting a Bar Code Reader to the PT allows bar code data to be read as character
strings in the character string input areas.
For details on methods for inputting character strings from a Bar Code Reader, refer to 3-6
Inputting Numeral and Character Strings in the Programming Manual.
3-4-1
Connection Methods
Connect the Bar Code Reader to either serial port A or B of the PT as shown in the following
diagram.
PT
Bar Code Reader
9-pin connector
Serial port A or B
(RS-232C, 9-pin)
Connecting cable
Bar Code Reader cable
Recommended Bar Code Reader:
V520-RH21-6, manufactured by OMRON.
Note
Always turn OFF the power to the Bar Code Reader and the PT before connecting or disconnecting cables.
Prepare the connecting cables, referring to Appendix 7 Preparing Connecting Cables for Bar
Code Readers.
Reference
3-12
Bar Code Readers cannot be connected to both serial ports A and B at the same time.
3-4 Connecting to Bar Code Readers
3-4-2
Setting Bar Code Readers
The Bar Code Reader’s communications conditions and other settings can be set from either
the NS-Designer or the PT.
@ Setting from the NS-Designer
Use the NS-Designer to set PT settings, such as the conditions for communications with the
Bar Code Reader, according to the following table. Set the communications conditions supported by the Bar Code Reader to suit the application environment.
Item
Data bits
Stop bits
Parity
Communications
Speed
Input method
Settings
7 or 8 bits
1 or 2 bits
None, odd, or even
4,800, 9,600, or 19,200 bps
7 bits
2 bits
Even
9,600 bps
Default
Manual or Auto
Auto
@ Setting from the PT
Set the communications conditions from the System Menu.
For details on specific methods for operating the System Menu, refer to 6-6-6 Bar Code
Reader Settings.
@ Bar Code Reader Settings
Set the settings for the Bar Code Reader according to the following table. Make sure, however, that the communications conditions settings for the communications speed, parity, stop
bits, and data bits, match those set for the PT. For details on setting methods, refer to the operation manual of the Bar Code Reader being used.
Item
Communications Speed
Parity
Stop bits
Data bits
Preamble
Postamble
RS/CS control
Communications protocol
Bar code label digit transfer
ID character transfer
Bar code types
Trigger switch setting
Settings
4,800, 9,600, or 19,200 bps
Even, odd, or none.
1 or 2 bits
7 or 8 bits
STX
ETX
Invalid
No protocol mode
Transfer prohibited.
Transfer prohibited.
Multi-read (reads everything)
Automatic read mode
3-13
3-4 Connecting to Bar Code Readers
3-4-3
Data Format
Use the following data format for communications using the PT’s bar code input function.
STX
Data
Data
Data
(02H)
ETX
(03H)
The supported data characters are 20H to 7FH hexadecimal and the maximum data length is
40 bytes.
All data that does not follow the specified data format will be discarded as invalid.
3-4-4
Bar Code Input
Use the following procedure to input bar codes using the PT.
1.
2.
3.
4.
Touch a Numeral Display & Input or String Display & Input object.
The Numeral Display & Input or String Display & Input object will become highlighted.
Read the bar code data from the Bar Code Reader.
Touch the command button set to either RET (Return) or ENT (Enter) to confirm the input.
For details on the methods for setting Numeral Display & Input, String Display & Input, and
Command Button objects, refer to 2-9 Buttons and 2-11 Display & Input in the Programming
Manual.
Reference
3-14
To input bar codes for Numeral Display & Input and String Display & Input objects, select Other Input Method (command buttons, etc.) for the input method. When Other Input Method (command button, etc.) is selected, the input pad cannot be opened.
3-5 Using Expansion Memory Boards
3-5 Using Expansion Memory Boards
This section provides details on Expansion Memory Boards that are used with NS-series
PTs.
When using the NS10 or NS12, the volume of screen data can be increased by installing an
Expansion Memory Board in the PT. (Expansion Memory Boards cannot be used with the
NS7.)
Note
· Always turn OFF the power to the PT before installing or removing the Expansion Memory
Board. Install the Expansion Memory Board securely according to the installation method.
· Do not touch the patterned surface or the mounted section of the Board with your bare
hands.
· Always discharge any static electricity from your body before handling the Board.
The NS12 and NS10 are provided with a 4-Mbyte memory for screen data. Use an Expansion
Memory Board if the total volume of screen data exceeds 4 Mbytes.
The NS7 is provided with an 6-Mbyte memory for screen data. The Expansion Memory Board
cannot be used with the NS7, so make sure that the total volume of screen data does not exceed 6 Mbytes.
The data size can be checked from the NS-Designer by selecting Resource Report from the
Tools Menu.
Reference There are two types of Expansion Memory Board, each of which has a different capacity,
as follows:
Model
NS-MF081
NS-MF161
Memory capacity
8 Mbytes
16 Mbytes
3-15
3-5 Using Expansion Memory Boards
3-5-1
Installation Procedure
Use the following procedure to install the Expansion Memory Board.
1. Turn OFF the power to the PT.
2. Remove the cover of the Expansion Memory Connector at the top of the PT rear panel by
sliding it upwards.
3. Make sure that the recessed terminal section of the Expansion Memory Board is aligned
with the protruding section of the slot for the Expansion Memory Board, and then insert
the Board at an angle.
Insert the end of the Board until it reaches the base of the slot and the terminal plating
cannot be seen.
4. Make sure that the position of the Board is not skewed when pushing it in.
Press down on the Expansion Memory Board until it is lying in the correct position and it
clicks into place.
To remove the Expansion Memory Board, simultaneously press out the levers on both
ends of the slot, check that the Board is at an angle, and then pull it out.
5. Replace the cover by reversing the procedure to that used for removing it.
Note
3-16
Do not hold the cover when carrying the PT, as the cover may slip off.
3-5 Using Expansion Memory Boards
3-5-2
Using the Board
After installing the Expansion Memory Board in the PT, initialize (format) the Expansion
Memory Board. The PT settings do not require changing. When transferring more than
4 Mbytes of data to the PT, the data is also transferred automatically to the Expansion Memory Board.
The expansion memory is formatted from the System Menu.
Format the expansion memory by selecting the Initialize Tab, and pressing the Screen Data
Area Button. (Refer to 6-2 Initializing Data for further details.)
The following table shows the estimated time that is required to format an Expansion Memory
Board.
Model
Memory capacity
Time (See note.)
NS-MF081
8 Mbytes
Approx. 3 min.
NS-MF161
16 Mbytes
Approx. 5 min.
Note: Includes the time that is required (approx. 1 min.) to format the internal ROM.
3-17
3-6 Using Memory Cards
3-6 Using Memory Cards
1. Memory Cards can be used with the PT. History files can be stored in Memory Cards as
CSV files. There are four different types of history file, as follows:
Alarm/event history:
Data log:
Operation log:
Error log:
Stores alarm/event history data that has been registered by NS-Designer.
Stores trend data.
Stores screen operation log data.
Stores error history data for when macros are executed.
The history data is normally saved in internal memory that is backed up in the PT, but
can also be saved in CSV file format. When history data is saved as a CSV file, it is
stored in the Memory Card.
The CSV files are saved into the log folder created in the Memory Card.
2. The following data can be transferred to the Memory Card.
· System programs (the programs required to operate the PT, such as for communications and fonts)
· Screen data (data used in the PT display)
There are three methods for transferring data, as follows:
· Automatic download (Transfers data from the Memory Card to the PT.)
· Automatic upload (Transfers data from the PT to the Memory Card.)
· Manual transfer (Direction for data transfer is selected manually.)
Reference There are four types of recommended Memory Cards, each of which has a different capacity.
Model
HMC-EF172
HMC-EF372
HMC-EF672
Memory capacity
15 Mbytes
30 Mbytes
64 Mbytes
Memory type
Flash memory
The Memory Card can be overwritten approximately 100,000 times.
When using the PC card socket in devices such as laptop computers, use the HMCAP001 Memory Card Adapter.
For details on transferring data with the computer (NS-Designer), refer to Section 10 Transferring Data to and from PTs in the NS-Designer Operation Manual.
3. The data created in Data Block Tables can be saved as CSV files in DBLK folder on a
Memory Card.
3-18
3-6 Using Memory Cards
3-6-1
Installation
The Memory Card is installed in the memory card interface on the side of the PT.
Front surface
Eject
button
Eject button
Enlarged view after installation
Push the Memory Card firmly into the back of the slot. (The eject button will be pushed out
when the Memory Card is installed properly.)
· Removing
the Memory Card
Press the eject button.
To stop the Memory Card from springing out and falling, place your middle finger on the eject
button, and hold the Memory Card with your index finger.
3-19
3-6 Using Memory Cards
3-6-2
Replacing System Programs
When the system programs are loaded with the NS-Designer, they are stored under the NSDesigner’s install folder (default location is C:\Program Files\Omron\NS-Designer-V2) in folders that are created for each type and version, as follows:
\SystemProgram\NS12\V3_0x\bank1: Ver. 3.0x for NS12
\NS10\V3_0x\bank1: Ver. 3.0x for NS10
\NS7\V3_0x\bank1: Ver. 3.0x for NS7
To replace a system program, use Windows Explorer or another method to copy each of the
folders for the required system program under \bank1 to the route directory of the Memory
Card.
For details on methods for transferring data from the Memory Card to the PT, refer to 3-6-3
Transferring Data with Memory Cards.
3-6-3
Transferring Data with Memory Cards
Using a Memory Card with the PT allows system programs (programs that are required to
operate the PT, such as those for communications and fonts) and screen data to be transferred to and from the PT.
Use the DIP switch on the rear panel of the PT to set the operating mode for data transfer to
automatic download (transfers data from the Memory Card to the PT), automatic upload
(transfers data from the PT to the Memory Card), or manual transfer (user selects whether to
download or upload).
Data can be transferred with the Memory Card when the PT is started up.
Note
· Before transferring data, check that the system programs and screen data types match
those in the PT.
· Always reset the PT or turn ON the power again after changing the DIP switch setting.
· Do not perform the following operations while accessing the Memory Card. The data may
be damaged and the Memory Card may need to be formatted.
· Turn OFF the power to the PT.
· Press the PT reset switch.
· Remove the Memory Card.
· Always use the following procedure to remove the Memory Card.
If the PT system is damaged due to the power being turned OFF while a file is being written,
or other reason, using normal downloading to replace the system programs may not be possible. For details on troubleshooting, refer to page 3-25.
3-20
3-6 Using Memory Cards
@ DIP Switch
The Memory Card can be divided into up to four areas, which are called banks.
The DIP switch on the rear panel of the PT has eight pins. The ON/OFF combination of these
pins specifies which transfer method is used.
Pin No.
1
2
3
4
5
6
7
8
Function
Specifies bank 1 when transferring. (ON: Specifies bank 1.)
Specifies bank 2 when transferring. (ON: Specifies bank 2.)
Specifies bank 3 when transferring. (ON: Specifies bank 3.)
Specifies bank 4 when transferring. (ON: Specifies bank 4.)
Specifies upload or download. (ON: Upload, OFF: Download)
Specifies manual or automatic transfer. (ON: Manual, OFF: Automatic)
Reserved (Not used.)
Reserved (Not used.)
Banks are automatically created under the following conditions.
· When data is transferred to the Memory Card using the NS-Designer transfer program.
· When data is transferred (uploaded) from the PT.
Reference
· When transferring data, only one bank can be specified. Set only one of pins 1 to 4 to
ON.
· The PT will operate normally when the DIP switch is set to a combination other than
one specifying automatic upload, download, or manual transfer.
· When data has already been stored in the banks of the Memory Card and uploading
is executed, the previous data in the specified bank will be deleted. Always check the
data stored in the banks before uploading.
· If the \BANK@\DATA and \BANK@\SYSTEM are created manually in the Memory
Card, and used for purposes other than transferring data, when uploading is performed, the data in the folders will be deleted, and the data in the PT will be copied to
the folders. Therefore, do not use \BANK@\DATA or \BANK@\SYSTEM when creating
folders in the Memory Card.
· Set all pins to OFF when using the PT for normal operations.
3-21
3-6 Using Memory Cards
@ Automatic Download
An automatic download transfers system programs and screen data from the Memory Card to
the PT.
Set the DIP switch for automatic download, as shown below.
The Memory Card cannot be used to transfer data when the DIP switch pins are set to combinations other than those specified here.
DIP switch pin and status
1
2
3
4
5
6
7
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Operation
8
OFF
Automatically downloads bank 1 system
programs and screen data.
Automatically downloads bank 2 system
programs and screen data.
Automatically downloads bank 3 system
programs and screen data.
Automatically downloads bank 4 system
programs and screen data.
Use the following procedure to automatically download data.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Turn OFF the power to the PT.
Set the DIP switch.
Insert the Memory Card with the specified banks stored in it into the PT.
Turn ON the power to the PT.
The system programs and screen data will be written to the PT.
The status of the PT indicators during data transfer is as shown below.
Do not remove the Memory Card during data transfer.
Transferring data:
Indicator flashes orange.
Transferring completed:
Indicator flashes green.
Error occurred:
Indicator flashes red.
Refer to page 3-25 if an error occurs.
Turn OFF the power.
Remove the Memory Card.
Turn OFF all the DIP switch pins.
Turn ON the power.
For an automatic download, 1 Mbyte of screen data is transferred in approximately 25 s.
A warning message will not be displayed when automatic download is executed even if the
PT model, version, and language for the system programs and screen data that are stored in
the PT are different from those that are stored in the Memory Card.
Always check carefully that the PT model and Memory Card details match before transferring
data automatically.
3-22
3-6 Using Memory Cards
@ Automatic Upload
An automatic upload transfers system programs and screen data from the PT to the Memory
Card.
Set the DIP switch for automatic upload, as shown below.
The Memory Card cannot be used to transfer data when the DIP switch pins are set to combinations other than those specified here.
DIP switch pin and status
1
2
3
4
ON
OFF
OFF
ON
OFF
7
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
Operation
8
ON
ON
OFF
6
ON
OFF
OFF
5
OFF
Automatically uploads system programs and screen data to bank 1.
Automatically uploads system programs and screen data to bank 2.
Automatically uploads system programs and screen data to bank 3.
Automatically uploads system programs and screen data to bank 4.
Use the following procedure to automatically upload data.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Turn OFF the power to the PT.
Set the DIP switch.
Insert the Memory Card into the PT.
Turn ON the power to the PT.
The system programs and screen data will be written to the Memory Card.
The status of the PT indicator during data transfer is as shown below.
Do not remove the Memory Card during data transfer.
Transferring data:
Indicator flashes orange.
Transferring completed:
Indicator flashes green.
Error occurred:
Indicator flashes red.
Refer to page 3-25 if an error occurs.
Turn OFF the power.
Remove the Memory Card.
Turn OFF all the DIP switch pins.
Turn ON the power.
For an automatic upload, 1 Mbyte of screen data is transferred in about 25 s.
A warning message will not be displayed when automatic upload is executed even if the PT
model, version, and language for the system programs and screen data that are stored in the
PT are different from those that are stored in the Memory Card
Always check carefully that the PT model and Memory Card details match before transferring
data automatically.
3-23
3-6 Using Memory Cards
@ Manual Transfer
Use screen operations to select the direction (download, upload), contents (project, project
and system, or system), and banks.
Set pin 6 of the DIP switch to ON for manual transfer.
DIP switch pin and status
1
2
3
4
5
6
7
ON
OFF
OFF
OFF
OFF
OFF
OFF
Operation
8
OFF
Manually downloads or uploads
system programs and screen data.
Use the following procedure to manually transfer data.
1.
2.
3.
4.
5.
Turn OFF the power to the PT.
Turn ON pin 6 of the DIP switch.
Insert the Memory Card into the PT.
Turn ON the power.
The following screen will be displayed on the PT.
6. Specify the direction, contents (project, project and system, or system), and bank.
7. The IPP file name and system version that are stored in both the specified bank of the
Memory Card and the PT will be displayed in the Project File and System Version fields.
After confirming the details, press the Go Button.
8. A message confirming the transfer will be displayed. Press the OK Button to execute the
specified data transfer operation. When downloading, the screen data previously stored in
the PT will be deleted.
9. A warning message will be displayed if the PT model, system program/screen data versions, and language for the data stored in the PT are different from that for the data
stored in the Memory Card. Press the Yes Button to continue transferring the data.
10. The uploading/downloading screen will be displayed while data is being transferred. A
screen indicating that the transfer has completed will be displayed when the transfer has
finished. (If an error occurs, a transfer error screen will be displayed. Refer to page 3-25 if
an error occurs.)
11. The indicator will flash green when transferring has finished.
12. Turn OFF pin 6 of the DIP switch and reset the PT.
A warning message is not displayed at the PT when the PT model, version, and language are
different if the system programs used are version 1.0@.
Therefore, if the wrong data is downloaded, execute the transfer operation again using automatic download.
The system settings cannot be changed for the upload operation.
3-24
3-6 Using Memory Cards
@ Errors
· During Automatic Transfer
The indicator on the front panel will flash red if an error occurs during data transfer.
Check the following items if an error occurs.
· Is the Memory Card inserted into the PT?
· Do the banks set with the DIP switch exist in the Memory Card?
(During Download)
· Is the size of the transfer data greater than the free space in the PT or Memory Card?
Check these items before transferring data again.
Reference
An error message will not be displayed if an error occurs.
· During Manual Transfer
If an error occurs during data transfer, a transfer error screen will be displayed.
Check the following items for each message displayed.
Error Messages Requiring Checking
Error message
Memory Card Error
Could not recognize a Memory Card.
Check the Memory Card and reset the NS
Hardware.
Project Transmission Error
Transmission Failed.
Check the Memory Card and reset the NS
Hardware.
System Transmission Error
Transmission Failed.
Check the Memory Card and reset the NS
Hardware.
Cannot find source data.
Are you sure to continue Downloading/Uploading?
Check item
· Is the Memory Card inserted into the PT?
· Is the Memory Card damaged?
· Was the Memory Card removed during data
transfer?
· Is the free space on the Memory Card insufficient?
· Is the Memory Card damaged?
· Does the screen data volume exceed the memory
capacity of the PT?
· Does the transfer source directory or file exist?
(Note: If the Yes Button is pressed and data is
transferred, the previous data at the transfer destination will be deleted.)
After checking the message, reset the PT, and transfer the data again.
· If the system programs cannot be replaced by using automatic download or the PT
system is damaged due to a reason such as the power being turned OFF while a file is
being written, using normal downloading to replace the system program may not be
possible.
3-25
3-6 Using Memory Cards
The following message will be displayed when the PT is started up.
**ERROR: Fail in Loading System file. Since this file itself is needed to
download the System Programs, System downloading in usual way will
not be possible.
Please follow the instruction below to reinstall all your System Programs safely.
Insert the Memory Card with System Programs inside.
Touch the Screen if it is ready**
Use the following procedure to operate the PT if this message is displayed or the System
Program is damaged and the PT does not start.
1. Copy Update_to_Ver.3.X. to a Memory Card. This program can be installed with NSDesigner Ver. 3.0 by specifying it in the set up wizard.
2. Place the Memory Card into the PT and turn ON the power. The recovery program will
start automatically.
Refer to the How to update or recover the system program (PDF) for details on recovery
operations. This can be started from Windows Start – Programs – Omron – NSDesigner Ver. 3.0.
3. The system will start automatically downloading data from bank 1 of the Memory Card to
the PT.
The indicator will flash green when the download has finished.
3-26
3-7 Installing the Video Input Unit
3-7 Installing the Video Input Unit
A Video Input Unit (NS-CA001) can be mounted to an NS-series PT. Mounting a Video Input
Unit allows images from a video camera or vision sensor to be displayed on the PT screen.
This section explains how to connect a Video Input Unit to the PT with a cable. The Video Input Unit can be mounted to NS12 and NS10 PTs only. It cannot be mounted to an NS7 PT.
3-7-1
Video Input Unit Components
The following table shows the Video Input Unit's product configuration.
Model
NS-CA001
Video Input Unit
Name
Video Board (1)
Cover (1)
Cable (1)
Screw (M3) (9)
Instruction sheet
Note
Components
Contents
Allows video input.
Protects Video Board.
Connects the PT's functional ground
terminal and the cover to prevent
noise.
These screws are used for the following:
-Securing the Video Board to the
back of the PT.
-Securing the cover to the back of
the PT.
-Attaching the cable to the cover.
Instruction sheet for NS-CA001.
To comply with EC Directives (Low Voltage Directive) when mounting the Video Input Unit on
the PT, attach the PT to a control panel that has been cut to fit the size. (Refer to 3-1-3
Mounting the PT to the Control Panel for panel cutout dimensions.)
3-27
3-7 Installing the Video Input Unit
3-7-2
Nomenclature and Functions
Familiarize yourself with the nomenclature and functions of the Video Board before using the
Video Input Unit.
Video Board: Front View
Positions of screws for attaching Video Board to PT
Contrast Adjuster
Used to adjust the contrast for video
input. All 4 channels are adjusted
together. They cannot be adjusted
individually.
Four Video Input Connectors
BNC connectors for inputting NTSC/PAL
Console Port Connector
Connects to the console connector signals.
of OMRON Vision Sensors and
allows Vision Sensor settings to be
performed from the PT.
Video Board: Rear View
Expansion Interface Connector
Connects to the PT's expansion interface connector
when mounting the Video Board.
3-28
3-7 Installing the Video Input Unit
3-7-3
Installation Method for Video Input Unit
This section describes the method for mounting the Video Input Unit to the PT. The Video Input Unit can be mounted to NS12 and NS10 PTs only. It cannot be mounted to an NS7 PT.
Note
· Do not touch the surface of the substrate or mounted devices with your bare hands. Also, discharge static electricity from your body in advance.
· After mounting the Video Input Unit to the PT, all fittings must be tightened with the provided
screws. Tighten the screws to a torque of 0.6 N·m.
· Always turn OFF the power to PT before mounting or removing the Unit. Follow the procedures
and install the Unit correctly.
· When the Video Input Unit is installed, the depth of the PT will increase by 24 mm.
To install the Video Input Unit, secure sufficient space inside the control panel beforehand.
● Installing the Video Input Unit
1. Mount the Video Board onto the back of the PT so that its expansion interface connector
is inserted into the expansion interface connector on the back of the PT and the respective screw holes are aligned. Hold the Video Board by the corners keeping it parallel to
back of the PT.
Screw holes for
attaching expansion boards
Position of screws for
attaching Board to PT
Align the positions of the holes.
Push firmly on the connector end of the board to ensure that it is inserted sufficiently.
Press here to insert the
Video Board.
3-29
3-7 Installing the Video Input Unit
2. Secure the four corners of the Video Board with screws.
Secure these four places with screws.
3. Insert screws in the screw holes for attaching the cover and tighten them slightly.
Insert the screws first.
Align the cover’s screw holes with the screws and mount the cover.
Mount the cover.
3-30
3-7 Installing the Video Input Unit
Slide the cover downward and tighten the screws.
Slide the cover
Mount the cover.
Tighten the screws.
● Connecting the Cable
Connect the functional ground terminal of the PT and the cover with the cable to prevent
malfunction due to noise.
Connect the functional ground terminal and the cover with
the cable.
3-31
3-7 Installing the Video Input Unit
● Removing the Video Input Unit
1. Remove the cover from the PT as follows:
Loosen the screws.
Lift up on the cover and remove it.
Lift up on the cover and
remove it.
2. Remove the screws from the four corners.
Remove the screws.
3-32
3-7 Installing the Video Input Unit
3. Remove the Video Board from the expansion interface connector of PT.
Follow the procedure shown below.
Remove the upper side of
the Video Board first,
holding the four corners.
Then, pull out the entire Video
Board.
3-33
3-7 Installing the Video Input Unit
3-7-4
Connecting to Video Input Connectors
Use the following method to connect cameras to the Video Input Unit mounted to the PT.
Note
The tensile load of the cable is 30 N maximum. Do not exceed maximum load.
● Connecting to Video Input Connectors
1.
Insert the BNC socket on the camera’s video output cable into a video input connector.
Protuberance
BNC socket
Video input connectors
Insert the BNC socket so that
the groove is aligned with the
protuberance.
2. After inserting the BNC socket, twist it clockwise until it locks into place
Twist clockwise.
3-34
3-7 Installing the Video Input Unit
● Removing the Video Input Connector
1. Unlock the BNC socket on the camera’s video output cable by twisting it counterclockwise while pushing it.
Push
Twist counterclockwise
2. After unlocking the BNC socket, pull it out.
Pull out
3-35
3-7 Installing the Video Input Unit
If the camera’s video output cable uses an RCA plug, connect it to the video input
connector using a BNC-RCA connector in the way shown below.
Video input connector
(BNC type)
BNC-RCA connector (See note.)
RCA plug
Note
3-36
A BNC-RCA connector is provided with the Monitor Cable (F150-VM) for OMRON Vision Sensors. It is not provided with the Video Input Unit (NS-CA001).
3-7 Installing the Video Input Unit
●Connecting to the Console Port Connector
Use the following method to connect the Video Board’s console port connector to the console
connector of an OMRON Vision Sensor (F150-C10V3, F160-C10, F180-C10, F400-C10V2,
F250-C10, V530-R150V2).
1. Insert the socket of the Relay Cable (F150-VKP; see note) into the Video Board’s console
port connector.
Video Board's console
port connector
Align with groove and
insert.
Relay cable
The socket locks into place
when it is inserted.
Note
The Relay Cable (F150-VKP) is the cable used to connect the Video Board’s console connector to the console connector of an OMRON Vision Sensor.
● Removing the Console Port Connector
Use the following method to remove the Relay Cable from the Video Board’s console port
connector.
1. Remove the Relay Cable by pulling on the connector as shown below.
Console port connector
Pull here to unlock the
cable and remove it.
Relay cable
3-37
3-7 Installing the Video Input Unit
● Setting the Contrast
If the picture displayed on the PT screen is too bright or dark, contrast adjustment is required.
Contrast adjustment is usually performed using one of the following procedures.
· Select Video Configuration from the Special Screen Tab Page in the System Menu. (Refer
to Video Configuration under 2-18 Special Functions in the NS-series Programmable Terminals Programming Manual.)
· Select the Contrast Adjustment function for Command Buttons. (Refer to Command Buttons
under 2-9 Buttons in the NS-series Programmable Terminals Programming Manual).
If the contrast is not improved using the above methods, change the contrast with the Video
Board’s contrast adjustor using the following method.
Turn the contrast adjustor gradually using a small screwdriver while checking the picture displayed on the PT screen.
Contrast Adjustor
Grooves between black
dots indicate the settings.
High
Low
If turning the contrast adjustor too much, the image may be distorted. Turn the contrast adjustor in the opposite direction to remove the noise.
3-38
3-8 Installing the Controller Link Interface Unit
3-8
Installing the Controller Link Interface Unit
This section describes the method for installing and wiring the Controller Link Interface Unit.
It can be mounted to NS12 and NS10 PTs only. It cannot be mounted to an NS7 PT.
3-8-1
Controller Link Interface Unit Components
The following table shows the Controller Link Interface Unit’s product configuration.
Model
NS-CLK21
Controller Link
terface Unit
In-
Name
NS-CLK001 Connector Conversion
Board (1)
NS-CLK01 Controller Link Support Board (1)
Connector (1)
Cover (1)
Cable (1)
Screw (M3) (10)
Instruction sheet
Components
Contents
Used for mounting the Controller Link
Support Board to the PT.
Connects the PT to the Controller Link
Network.
Connects the communications cable
and Controller Link Support Board.
Protects the connector and the Controller Link Support Board.
Connects the cover and the PT’s
functional ground terminal to prevent
noise.
These screws are used for:
• Securing the Connector Conversion
Board to the back of the PT.
• Securing the cover to the back of
the PT.
• Attaching the cable to the cover.
Instruction sheet for NS-CLK21
Reference NS-CLK21 Units with lot number 12Y2 or later (manufactured on November 12, 2002 or later)
comply with EC Directives.
Note
To comply with EC Directives (Low Voltage Directive) when mounting the Controller Link Interface Unit on the PT, attach the PT to a control panel that has been cut to fit to size. (Refer
to 3-1-3 Mounting the PT to the Control Panel for cutout dimensions.)
3-39
3-8 Installing the Controller Link Interface Unit
3-8-2
Nomenclature and Functions
Familiarize yourself with the nomenclature and functions of the Controller Link Support Board
before operation.
Interrupt shorting Pin
Set at the factory. Do not
change the factory setting.
Memory Allocation Switch
Set at the factory. Do not change
the factory setting.
Card Edge Connector
Connects to the connector of
the Connector Conversion
Board.
Communications Connector
Connects to Controller Link Network
communications cable using the cable
connector provided.
Plate
Attaches to the cover.
Terminating Resistance Switch
This is a slide switch. Turn ON the
terminating resistance if the Board is
at the end node in a Controller Link
Network. The switch must be set to
OFF at other nodes.
Indicators
Display the status of the Board and
Network.
Reference To identify nonconforming Controller Link Boards, check the Model printed on the Plate.
This will tell you whether it conforms with EC Directives.
Model 3G8F5-CLK21: Does not conform with EC Directives
Model NS-CLK01: Conforms with EC Directives
3-40
3-8 Installing the Controller Link Interface Unit
● Indicators
Indicator
RUN
Name
Operating
Color
status
Green Lit
ERC
Communications
error
Red
Not lit
Lit
ERH
EEPROM error
Red
Not lit
Lit
INS
SD
RD
LNK
Not lit
Network partici- Yellow Lit
pation
Not lit
Yellow Lit
Send
Not lit
Yellow Lit
Receive
Not lit
Yellow Lit
Data link
Flashing
Not lit
Meaning
Normal operation.
A Board operating error (watchdog timer error) occurred.
One of the following errors occurred.
• Communications error
• Same node address used twice (i.e., address duplication error)
• Hardware error
Normal operation
One of the following errors occurred.
• EEPROM error
• EEPROM data link table error
• EEPROM routing table error
• EEPROM network parameter error
No EEPROM error.
The Board is participating in the network.
The Board is not participating in the network.
Sending data.
Not sending data.
Receiving data.
Not receiving data.
Participating in data link.
Error in data link table setting.
Not participating in data link or data link inactive.
3-41
3-8 Installing the Controller Link Interface Unit
●Switch Settings
The following settings are made at the factory. Do not change these settings.
Item
Memory address
Switch
Memory allocation switch
Interrupt level
Interrupt shorting pin
Setting
SW1: ON
SW2: ON
SW3: OFF
SW4: ON
Set to IRQ10.
●Setting Terminating Resistance
Turn the built-in terminating resistance ON or OFF using the terminating resistance switch
(slide switch). Terminating resistance is required at the both ends of a wired network to absorb unnecessary signals and reduce the noise. The Controller Link Support Board has builtin terminating resistance, which can be connected simply by setting the slide switch to ON.
Set the switch to ON to connect the terminating resistance at both end nodes in wired networks and set the switch to OFF at all other nodes.
Setting
OFF (factory setting)
ON
Note
This switch can be set after the Controller Link Interface Unit is installed on the PT.
Turn OFF the power of the PT before changing the setting.
Reference
3-42
Terminating resistance
Not connected
Connected
This switch is set to OFF by default (terminating resistance disconnected).
3-8 Installing the Controller Link Interface Unit
3-8-3
Installation Method for Controller Link Interface Unit
This section explains the method for mounting a Controller Link Interface Unit to the PT.
The Controller Link Interface Unit can be mounted to NS12 and NS10 PTs only. It cannot be
mounted to an NS7 PT.
Note
· Do not touch the surface of the substrate or mounted devices with your bare hands. Also,
discharge static electricity from your body in advance.
· After mounting the Controller Link Interface Unit to the PT, all fittings must be tightened
with the provided screws. Tighten the screws to a torque of 0.6 N×m.
· Always turn OFF the power to PT before mounting or removing the Unit. Follow the procedures and install the Unit correctly.
· When the Controller Link Interface Unit is installed, the depth of the PT will increase by
35 mm.
· To install the Controller Link Interface Unit, secure sufficient space inside the control panel
beforehand.
3-43
3-8 Installing the Controller Link Interface Unit
● Connecting and Disconnecting
1. Mount the Connector Conversion Board onto the back of the PT so that its expansion interface connector is inserted into the expansion interface connector on the back of the PT
and the respective screw holes are aligned. Hold the Board by the corners keeping it parallel to back of the PT.
PT’s expansion interface connector
Connector Conversion
Board
Connector Conversion Board’s
expansion interface connector
Align the positions of the holes
Hold the four corners and insert straight
to the expansion interface connector on
the PT
2. Secure the four corners of the Connector Conversion Board with screws.
Secure these four places with screws.
3-44
3-8 Installing the Controller Link Interface Unit
3. Insert the Controller Link Support Board’s card edge connector into the Connector Conversion Board’s connector.
Connector
Card edge connector
Connector Conversion Board
Controller Link Support Board
Reference Follow the steps given below if it is hard to insert the card edge connector to the connector on
the connector conversion board.
3-45
3-8 Installing the Controller Link Interface Unit
4. Mount the cover to the PT.
Cover
Controller Link
Support Board
(Underside view)
Secure the five places shown below with screws.
Secure these five places
with screws.
Cover
Controller Link
Support Board
3-46
3-8 Installing the Controller Link Interface Unit
· Connecting the Cable
Connect the functional ground terminal of the PT and the cover with the cable to prevent
malfunction due to noise.
Connect the functional ground
terminal and the cover with the cable.
· Removing Controller Link Interface Unit
1. Remove the cover.
Cover
Remove these screws and
remove the cover.
Controller Link
Support Board
3-47
3-8 Installing the Controller Link Interface Unit
2. Disconnect the Controller Link Support Board from the connector conversion board. Hold
both ends of the Controller Link Support Board and pull out straight.
Hold both ends of the
Controller Link Support
Board and pull out straight.
3. Remove the screws from the Connector Conversion Board.
Remove the four screws.
3-48
3-8 Installing the Controller Link Interface Unit
4. Disconnect the Connector Conversion Board from the PT. To do this, follow the steps
given below.
Hold the four corners of the
Board and detach upper side
first.
Then, pull out the Board
completely.
3-49
3-8 Installing the Controller Link Interface Unit
3-8-4
Wiring
This section describes the method for wiring the network communications cable to the Controller Link Support Board.
●Wiring the Communications Cable
Wire the communications cable to connect identical signals.
Note
· Use the cable specified for the communications cable.
· Keep communications cables separated from power lines or high-tension lines to prevent
influences from electronic noise.
· Ground the shield of the communications cable at one end of the network. Do not ground
the shield at both ends.
· Do not connect the shield cable of the communications cable to a ground that is also being
used for power-system devices, such as inverters.
· Do not run wiring outdoors. If outdoor wiring is necessary, take protective measures
against lightening, such as underground wiring or wiring inside pipes.
· Always turn OFF the power to PT before connecting the communications cable or installing/removing the connector.
· Use the connector attached to the Controller Link Support Board.
Connecting the Communications Cable
Connect the communications cable to the Controller Link Support Board after first connecting
it to the cable connector provided.
Use one of the twisted-pair cables listed below as the communications cable.
Model
Manufacturer
Li2Y-FCY2x0.56qmm KROMBERG & SHUBERT, Department KOMTEC
1x2xAWG-20PE+Tr. DRAKA CABLES INDUSTRIAL
CUSN+PVC
#9207
BELDEN
ESVC0.5x2C
Bando Densen Co.
Note
Remarks
German company
Spanish company
American company
Japanese company
· Use the cables listed above.
· Normal communications may not be possible if a communications cable other than those
listed above is used.
Reference
· Terminals for the same signal on the Controller Link Support Board’s connector are connected
internally.
· The thickness of the ground wire connected to the Controller Link Support Board’s connector
must be less than 2.5 mm2.
· Connect to the network using the special connector provided with the Controller Link Interface
Unit.
3-50
3-8 Installing the Controller Link Interface Unit
Note
· The minimum length of the communications cable between nodes is 1 m. Prepare the
communications cables at a length of 1 m or longer.
· Use the multidrop method for connecting nodes. Normal communications will not be possible with T branches.
Ground all of the shield lines (including the shield line for the node at only one end of the
network) in the way shown below.
Board at the end of
the network
Board in the middle
of the network
Terminating
resistance: ON
Board at the end of
the network
Terminating resistance: OFF
Terminating
resistance: ON
Ground
Reference
· Terminals of the same type are connected internally. They can thus be connected to either
the right or left half of the end Boards.
End Board
● Connecting Cables to Communications Connectors
When connecting a communications cable to a Controller Link Support Board, connect the
cable to the attached connector first and then attach to the connector to the Board.
Connect the communications cable to the connector using the following procedure.
1. Taking care not to damage the mesh of the shield, strip about 50 mm off the end of the
cable. Do not strip the cable too far because it may cause a short-circuit.
Approx. 50 mm
3-51
3-8 Installing the Controller Link Interface Unit
2. At the end connected to the node, twist the mesh of the shield into a single wire. Leave
sufficient length at the tip of the twisted shield to be connected to a crimp terminal and
cover the remaining section with heat-shrink tubing. Cut all the shield mesh off at the end
not connected to the node.
Wire created by
twisting the shield
mesh.
Cover with heat-shrink tubing
Leave enough exposed wire to
attach to a crimp terminal.
3. Strip the ends of the signal wires far enough to attach to the crimp terminals. Twist the
wire strands together.
4. Cover the end of the cable at the point it was stripped to in step 1 with vinyl tape or heatshrink tubing.
Cover with vinyl tape
or heat- shrink tubing.
5. Attach crimp terminals to the shield wire and signal wires. Cover the connections with vinyl tape or heat-shrink tubing.
Reference · We recommend the Phoenix AI-series crimp terminals shown in the following diagram.
Phoenix’s ZA3 crimping tool can be used to attach these terminals.
Crimp terminal
Wire
Insert the wire and crimp the terminal to the wire.
3-52
3-8 Installing the Controller Link Interface Unit
6. Carefully insert the signal and shield lines into the respective holes of the connector
(identified with the markings). Ensure that the connector is oriented correctly. The following example is for connection to a Board in the middle of the network.
Cable connector
Shield lines
Note
· Loosen the screws in the connector enough to allow the terminal to pass before inserting
the signal line. If the screw is not loosened, the signal line will go completely into the connector and you will not be able to secure the line.
· Attach crimp terminals to the wires. Never connect bare power supply wires directly to the
connector.
Reference · Marks are provided on the connector for the signal lines. Connect the signal lines according
to the marks.
Marking
n
o
S
Signal name
Line color
BD H (communications data
Black
high)
BD L (communication data low)
White
SHLD (shield)
-
· Marks indicate signals as listed above.
· The lines can be connected to either the right or left half of the connector at the node on either end of the network.
· If grounding by node, the connection method for the shield is different.
Refer to Wiring Communications Cable and Connecting the Shield Line to the Connector
under 3-8-4 Wiring, for details on connecting the shield to the connector.
7. Firmly secure each signal line with the signal line screws in the connector. An ordinary
flat-blade screwdriver with a tip that tapers at the end is not suitable because it cannot be
inserted far enough. Use a small flat-blade screwdriver with a uniform width. The applicable tightening torque is 0.2 N×m.
3-53
3-8 Installing the Controller Link Interface Unit
Small flat-blade
screwdriver with a
uniform width
Reference The following screwdriver is available from OMRON.
Model XW4Z-00C
Side
Front
0.6 mm
3.5 mm
● Connecting the Connector to the Board
Connect the connector on the communications cable to the connector on the Board using the
following procedure.
1. Insert the connector on the communications cable into the connector on the Board as
shown below.
Controller Link
Support Board
Cable connector
2. Secure the connector to the Board by tightening the screws on the connector. The applicable tightening torque is 0.2 N×m.
3-54
3-8 Installing the Controller Link Interface Unit
Note
· If the connector becomes disconnected, not only will the Board be unable to perform communications with other nodes in the network, the network will be split into two at the point
of disconnection. Take the utmost care to ensure that the connector does not become disconnected during communications.
Controller Link Support Board
Communications disabled
Connector
Network split
(communications disabled)
· Do not pull on the communications cable.
· When bending the communications cable, allow 60 mm or more for the bending radius (R).
· Do not place heavy objects on the communications cable.
· Supply power only after checking the wiring thoroughly.
· Always tighten the screws of connector after connecting the communications cable.
3-55
Section 4
Connecting the Host to Serial Port
This section describes the methods for connecting the host to the serial port of the PT.
4-11:1 Host Connection ............................................................................................................ 4-2
4-1-1 Host Types and Settings ........................................................................................... 4-3
4-21:N Host Connection ......................................................................................................... 4-10
4-3Recommended Connector Cables...................................................................................... 4-28
4-1 1:1 Host Connection
4-1 1:1 Host Connection
This section describes the methods for connecting the host to serial port A or B of the PT
using RS-232C or RS-422A communications. The connection methods are as follows:
• Direct Connection using RS-232C (Refer to page 3 of this section.)
This is the easiest connection method. OMRON cables with connectors can be used, depending on the host being connected.
PT
Host
RS-232C cable
(15 m max.)
• A 1:1 Connection using RS-422A and an NS-AL002 RS-232C/RS-422A Converter (Refer
to page 3 of this section.)
This connection method allows an extended communications distance of up to 500 m.
PT
Host
NS-AL002
Adapter
RS-422A cable
(500 m max.)
The NS-series PTs have two serial ports that can be used simultaneously. Therefore, two
hosts can be connected at the same time. Any combination of devices can be connected to
the PT.
PT
Host 1
Serial port A
(See note.)
Serial port B
(See note.)
RS-232C cable or
RS-232C/RS-422A Converter
+ RS-422A cable
Host 2
Note: Each port allows 1:N connection. Both serial ports A and B cannot be connected at the same
time, however, in a 1:N connection. Further, the NS-AL002 Converter can be connected to one
serial port only.
Note
4-2
• Always tighten the connector screws after connecting communications cables.
• The connector’s pull load is 30 N.
Do not subject the connectors to a greater load than that specified.
4-1 1:1 Host Connection
4-1-1
Host Types and Settings
The types of hosts that can be connected to NS-series PTs and the host settings are as follows:
1:1 NT Link Connection
• Supported RS-232C Host Units
Units that have a built-in 1:1 NT Link function vary according to the type and series of OMRON PLC used. CQM1H PLCs can be connected in a 1:1 NT Link by adding a Serial Communications Board. C200HX/HG/HE(-Z) PLCs also have CPU Units that can be connected in
a 1:1 NT Link by adding a Communications Board.
When connecting the PT to the host, check the series and type of the PLC and the model of
the Board mounted to the PLC.
The following Units can be connected to the PT as hosts using RS-232C or RS-422A communications in a 1:1 NT Link.
4-3
4-1 1:1 Host Connection
PLC series
CPU Units with built-in
1:1 NT Link function
C200HS-CPU21
C200HS-CPU23
C200HS-CPU31
C200HS-CPU33
C200HE-CPU42(-Z)
C200HG-CPU43(-Z)
C200HG-CPU63(-Z)
C200HX-CPU44(-Z)
C200HX-CPU64(-Z)
C200HX-CPU65-Z
C200HX-CPU85-Z
CPU Units that can be connected
using Communications Boards
C200HE-CPU32(-Z) (See note 1.)
C200HE-CPU42(-Z) (See note 1.)
C200HG-CPU33(-Z) (See note 1.)
C200HG-CPU43(-Z) (See note 1.)
C200HG-CPU53(-Z) (See note 1.)
C200HG-CPU63(-Z) (See note 1.)
C200HX-CPU34(-Z) (See note 1.)
C200HX-CPU44(-Z) (See note 1.)
C200HX-CPU54(-Z) (See note 1.)
C200HX-CPU64(-Z) (See note 1.)
C200HX-CPU65-Z (See note 1.)
C200HX-CPU85-Z (See note 1.)
CQM1-CPU41-V1
CQM1-CPU42-V1
C Series
CQM1-CPU43-V1
CQM1-CPU44-V1
CQM1-CPU45-EV1
CPM1A-10CD@-@ (-V1)
CPM1A-20CD@-@ (-V1)
CPM1A-30CD@-@ (-V1)
CPM1A-40CD@-@ (-V1)
CPM2A-30CD@@@-@
CPM2A-40CD@@-@
CPM2A-60CD@@-@
CPM2C-10@@@@@@-@
(See note 4.)
CPM2C-20@@@@@@-@
(See note 4.)
CQM1H-CPU21
CQM1H-CPU51 (See note 2.)
CQM1H-CPU51
CQM1H-CPU61 (See note 2.)
CQM1H-CPU61
CV500-CPU01-V1
CV Series
CV1000-CPU01-V1
(See note 3.)
CV2000-CPU01-V1
CVM1-CPU01-V2
CVM1 Series
CVM1-CPU11-V2
(See note 3.)
CVM1-CPU21-V2
Note 1. A C200HW-COM02/COM04/COM05/COM06(-V1) Communications Board is required.
2. A CQM1H-SCB41 Serial Communications Board is required.
3. CVM1/CV-series CPU Units without a -V@ suffix cannot be connected.
4. Connect using CS1W-CN118 Converter Cable and XW2Z-200T-2 Cable with Connectors.
Reference CS-series CPU Units cannot be connected in a 1:1 NT Link. Use a 1:1 connection
through a 1:N NT Link (normal or high speed). For details, refer to 1:N NT Links or
High-speed 1:N NT Links in Section 4-2 1:1 Host Connection.
4-4
4-1 1:1 Host Connection
• Supported RS-422A Host Units
Units for RS-422A communications with a built-in 1:1 NT Link function vary according to the
type and series of OMRON PLC used.
• C200HX/HG/HE(-Z) PLCs can be connected in a 1:1 NT Link for RS-422A by adding a
Communications Board.
• CQM1H PLCs can be connected in a 1:1 NT Link for RS-422A by adding a Serial Communications Board.
Check the series and type of the PLC and the model of the Board that is mounted to the PLC
when connecting the PT to the host.
The following table lists the Units that can be connected to NS-series PTs as hosts and support a 1:1 NT Link using RS-422A.
PLC series
CPU Units that support 1:1 NT Link using RS-422A
C200HE-CPU32(-Z) (See note 1.)
C200HE-CPU42(-Z) (See note 1.)
C200HG-CPU33(-Z) (See note 1.)
C200HG-CPU43(-Z) (See note 1.)
C200HG-CPU53(-Z) (See note 1.)
C200HG-CPU63(-Z) (See note 1.)
C Series
C200HX-CPU34(-Z) (See note 1.)
C200HX-CPU44(-Z) (See note 1.)
C200HX-CPU54(-Z) (See note 1.)
C200HX-CPU64(-Z) (See note 1.)
C200HX-CPU65-Z (See note 1.)
C200HX-CPU85-Z (See note 1.)
CQM1H-CPU51/61 (See note 2.)
CV500-CPU01-V1
CV Series (See note 3.)
CV1000-CPU01-V1
CV2000-CPU01-V1
CVM1-CPU01-V2
CVM1 Series (See note 3.)
CVM1-CPU11-V2
CVM1-CPU21-V2
Note 1. A C200HW-COM03-V1 or C200HW-COM06-V1 Communications Board is required.
2. A CQM1H-SCB41 Serial Communications Board is required.
3. CVM1/CV-series CPU Units without a -V@ suffix cannot be connected.
Reference
The 1:1 NT Link is not supported for RS-485 (two-wire) communications. Always use RS-422A
(four-wire).
4-5
4-1 1:1 Host Connection
• Host Settings
The methods for setting each Unit are as follows:
Connecting C Series, C200HS, C200HX/HG/HE(-Z), CQM1, CPM2A, CPM2C, or
CQM1H PLCs
PLC Setup Area
Write the settings directly from the Programming Device (CX-Programmer, etc.) to the PLC
Setup Area (in DM Area) according to the host type and port used.
Using RS-232C
Host type
Address
Built-in RS-232C port of C200HS, C200HX/HG/HE(-Z), DM 6645
CPM1A, CPM2A, CPM2C, CQM1, or CQM1H
Port A of C200HX/HG/HE(-Z) (See note 1.)
DM 6555
Port 1 of CQM1H (See note 2.)
Port B of C200HX/HG/HE(-Z) (See note 1.)
DM 6550
Note 1. RS-232C port of Communications Board.
2. RS-232C port of Serial Communications Board.
Write value
4000
Settings
Uses 1:1 NT
Link
Write value
4000
Settings
Uses 1:1 NT
Link
Using RS-422A
Host type
Address
Port A of C200HX/HG/HE(-Z)
DM 6555
(See note 1.)
Port 2 of CQM1H (See note 2.)
DM 6550
Note 1. RS-422A port of Communications Board.
2. RS-422A port of Serial Communications Board.
4000
Refer to the manuals of the PLC being used for details on using the PLC Setup Area.
Connecting to CPM2C PLCs
The CPM2C has a single connector that is the same shape as a CS-series peripheral port.
Internally, the connector has signal lines that are for use with the CPU’s built-in RS-232C port
and the peripheral port. Therefore, when using the CPM2C, use the settings for the CPU’s
built-in RS-232C port or for the peripheral port according to the converter cable and port
used, as follows: Refer to the CPM2C Operation Manual (W356) for details.
Port for connecting PT
CS1W-CN118 port (D-Sub 9-pin)
PLC Setup
Set for built-in RS-232C.
RS-232C port
(D-Sub 9-pin female)
Setting the Front Panel DIP Switch
Using RS-232C
When using C200HX/HG/HE(-Z), CQM1, or CQM1H PLCs, set the DIP switch on the front
panel to enable the PLC Setup Area (Data Memory) settings, as follows:
4-6
4-1 1:1 Host Connection
C200HX/HG/HE(-Z)
CQM1
CQM1H
RS-232C Communications Conditions Setting
Set pin 5 of the DIP switch to OFF to enable the
PLC Setup Area settings.
Setting the CPM2A Front Panel DIP Switch
When using a CPM2A, set the DIP switch on the front panel to enable the PLC Setup Area
(Data Memory) settings, as follows:
Set the communications
conditions setting switch to
OFF (lower position).
Setting the CPM2C Front Panel DIP Switches
When using a CPM2C, set the switches on the front panel to enable the PLC Setup Area
(Data Memory) settings, as follows:
Set the switches according to whether the peripheral port or
the built-in RS-232C port is used, as follows:
• Connecting the PT to the peripheral port
• Connecting the PT to the built-in RS-232C port
(The peripheral port is used to connect devices that require non-standard communications settings.)
SW1: OFF
SW2: ON
• Connecting the PT to the built-in RS-232C port
(The peripheral port is used to connect the Programming
Console.)
SW1: OFF
SW2: OFF
4-7
4-1 1:1 Host Connection
Connecting to Simplified Communications Units
When using a CPM2C1-CIF21 Simplified Communications Unit, connect it to the RS-232C
port.
RS-232C
Setting the Communications Board Switches
Using RS-422A
Set the switches of the C200HX/HG/HE(-Z) Communications Board as follows:
Switch 1:
4 (Four-wire method = RS-422A)
Switch 2: ON (terminator ON = terminating resistance used)
Set the switches of the CQM1H Serial Communications Board as follows:
Two-wire/four-wire switch (WIRE):
4 (Four-wire method = RS-422A)
Terminating resistance switch (TERM): ON (terminator ON = terminating resistance used)
Serial Communications Board (Inner Board slot 1)
Terminating resistance switch
Set to ON (right position)
Two-wire/four-wire switch
Set to 4 (right position)
4-8
4-1 1:1 Host Connection
• Connecting to CVM1/CV Series (-V@) PLCs
PLC Setup
Using RS-232C/RS-422A
When using CVM1/CV-series PLCs, always set the Execute Process (Execute Control 2) in
the PLC Setup to synchronous execution.
Setting the Front Panel DIP Switch
Set the DIP switch on the front panel, as shown in the following diagram.
Switch setting
Switches between RS-232C and RS-422A
Communications path
switch
(RS-232C-to-RS-422A)
Communications setting (DIP switch pin 3)
Set pin 3 to ON (NT Link communications used).
Terminating resistance setting (DIP switch pin 6, for
RS-422A only)
Set pin 6 to ON (terminating resistance used).
4-9
4-2 1:N Host Connection
4-2 1:N Host Connection
@ 1:N NT Links
This section describes the methods used to connect multiple PTs to a single host in a 1:N
connection and provides information on the relationship between the connection methods and
the communications methods.
• The Host and PTs are connected in a 1:N configuration using RS-422A with an RS232C/RS-422A Converter. (Refer to page 4-9.)
This connection method can be used for 1:N NT Link connections (normal, high-speed).
PT
Host
NS-AL002
Converter
RS-422A cable
Both serial ports A and B cannot be used, however, to connect to PLCs in a 1:N configuration
at the same time.
• Supported Host Units
OMRON PLCs that can be connected in 1:N NT Links are limited to CS/CJ-series CS1G/H,
CS1G/H-H, CJ1G/H-H, and CJ1G, C-series C200HX/HG/HE (-Z), and CQM1H (when using
CQM1H-SCB41 only). The CS-series can also be connected in 1:N NT Links by using a
CS1W-SCU21 Serial Communications Unit. The CJ-series can also be connected in 1:N NT
Links by using a CJ1W-SCU41 Serial Communications Unit.
Check the series and type of the PLC and the model of the Board or Unit that is mounted to
the PLC when connecting the PTs to the host.
4-10
4-2 1:N Host Connection
Host Units that Can be Connected between RS-232C Ports
CPU Units that can be connected with
Communications Boards or Units
CS1G-CPU42/43/44/45-E(V1) (See note 1.)
CS1H-CPU63/64/65/66/67-E(V1) (See note 1.)
CS Series
CS1G-CPU42H/43H/44H/45H (See note 1.)
CS1H-CPU63H/64H/65H/66H/67H (See note 1.)
CJ1G-CPU44 (See note 2.)
CJ1G-CPU44
CJ1G-CPU45 (See note 2.)
CJ Series
CJ1G-CPU45
CJ1G-CPU42H/43H/44H/45H (See note 2.)
CJ1H-CPU65H/66H (See note 2.)
C200HE-CPU32(-Z) (See note 3.)
C200HE-CPU42(-Z)
C200HE-CPU42(-Z) (See note 3.)
C200HG-CPU33(-Z) (See note 3.)
C200HG-CPU43(-Z)
C200HG-CPU43(-Z) (See note 3.)
C200HG-CPU63(-Z)
C200HG-CPU53(-Z) (See note 3.)
C200HG-CPU63(-Z) (See note 3.)
C200HX-CPU34(-Z) (See note 3.)
C Series
C200HX-CPU44(-Z)
C200HX-CPU44(-Z) (See note 3.)
C200HX-CPU64(-Z)
C200HX-CPU54(-Z) (See note 3.)
C200HX-CPU65-Z
C200HX-CPU64(-Z) (See note 3.)
C200HX-CPU85-Z
C200HX-CPU65-Z (See note 3.)
C200HX-CPU85-Z (See note 3.)
CQM1H-CPU51 (See note 4.)
CQM1H-CPU61 (See note 4.)
Note 1. A CS1W-SCB21/41 Serial Communications Board or CS1W-SCU21 Serial Communications
Unit is required.
2. A CJ1W-SCU41 Serial Communications Unit is required.
3. A C200HW-COM02/COM04/COM05/COM06(-V1) Communications Board is required.
4. A CQM1H-SCB41 Serial Communications Board is required.
PLC series
CPU Units with built-in
1:N NT Link function
CS1G-CPU42/43/44/45-E(V1)
CS1H-CPU63/64/65/66/67-E(V1)
CS1G-CPU42H/43H/44H/45H
CS1H-CPU63H/64H/65H/66H/67H
Reference RS-485 (two-wire) communications are not supported by the NS Series. Always use RS422A (four-wire).
4-11
4-2 1:N Host Connection
Host Units that Can be Connected to PT’s RS-232C and RS-422A Ports
CPU Units that can be connected with
Communications Boards or Units
CS1G-CPU42/43/44/45-E(V1) (See note 1.)
CS1G-CPU42H/43H/44H/45H (See note 1.)
CS Series
CS1H-CPU63/64/65/66/67(-V1) (See note 1.)
CS1H-CPU63H/64H/65H/66H/67H (See note 1.)
CJ1G-CPU44 (See note 2.)
CJ1G-CPU45 (See note 2.)
CJ Series
CJ1G-CPU42H/43H/44H/45H (See note 2.)
CJ1H-CPU65H/66H (See note 2.)
C200HE-CPU32(-Z) (See note 3.)
C200HE-CPU42(-Z) (See note 3.)
C200HG-CPU33(-Z) (See note 3.)
C200HG-CPU43(-Z) (See note 3.)
C200HG-CPU53(-Z) (See note 3.)
C200HG-CPU63(-Z) (See note 3.)
C Series
C200HX-CPU34(-Z) (See note 3.)
C200HX-CPU44(-Z) (See note 3.)
C200HX-CPU54(-Z) (See note 3.)
C200HX-CPU64(-Z) (See note 3.)
C200HX-CPU65-Z (See note 3.)
C200HX-CPU85-Z (See note 3.)
CQM1H-CPU51/61 (See note 4.)
Note 1. A CS1W-SCB41 Serial Communications Board is required.
2. A CJ1W-SCU41 Serial Communications Unit is required.
3. A C200HW-COM03-V1 or C200HW-COM06-V1 Communications Board is required.
4. A CQM1H-SCB41 Serial Communications Board is required.
PLC series
CPU Units with built-in 1:N NT
Link function
Reference CS-series PLCs with -V1 suffix support high-speed 1:N NT Links as well as normal 1:N NT Links.
CS-series PLCs without the -V1 suffix can also be connected to high-speed 1:N NT Links if the latest Serial Communications Board/Unit is used. Refer to High-speed 1:N NT Link for details. (page
4-20)
Host Settings
The methods for setting each Unit are as follows:
Connecting C-series C200HX/HG/HE(-Z), and CQM1H PLCs
PLC
Setup Area
Write the settings directly from the Programming Device or Support Software (CXProgrammer, etc.) to the PLC Setup Area (Data Memory) according to the host type and port
used.
4-12
4-2 1:N Host Connection
•
Using RS-232C
Host type
Address
Write value
Built-in RS-232C port of C200HX/HG/HE(-Z) DM 6645
Port A of C200HX/HG/HE(-Z) (See note 1.)
DM 6555 5@00
Port 1 of CQM1H (See note 2.)
Port B of C200HX/HG/HE(-Z) (See note 1.) DM 6550
Note 1. RS-232C port of Communications Board.
2. RS-232C port of Serial Communications Board.
3. The PT unit numbers for the C200HE (-Z) are 1 to 3.
•
Settings
Uses 1:N NT Link
@: Largest unit number (1
to 7) of connected
PTs. (See note 3.)
Using RS-422A
Host type
Port A of C200HX/HG/HE(-Z)
(See note 1.)
Address
DM 6555
Write value
5@00
Port 2 of CQM1H (See note 2.)
DM 6550
5@00
Settings
Uses 1:N NT Link
@: Largest unit number (1
to 7) of the connected
PTs. (See note 3.)
Note 1. RS-422A port of Communications Board.
2. RS-422A port of Serial Communications Board.
3. The PT unit numbers for the C200HE (-Z) are 1 to 3.
Refer to the manuals of the PLC being used for details on using the PLC Setup Area.
Reference
• There is no Communications Board for use with C200HX/HG/HE (-Z) where port B is
an RS-422A port.
• There is no Communications Board for use with CQM1H where Port 1 is an RS-422A
port.
Setting the Front Panel DIP Switch
• Using RS-232C
When using C200HX/HG/HE(-Z), set the DIP switch on the front panel to enable the PLC
Setup Area (Data Memory) settings, as follows:
Sets the RS-232C port communications conditions. Set DIP switch pin 5 to OFF to enable
the PLC Setup settings.
4-13
4-2 1:N Host Connection
Setting the Communications Board Switches
• Using RS-422A
Set the switches of the C200HX/HG/HE(-Z) Communications Board, as follows:
Switch 1:
Switch 2:
4 (Four-wire method = RS-422A)
ON (terminator ON = terminating resistance used)
Set the switches of the CQM1H Serial Communications Board as follows:
Two-wire/four-wire switch (WIRE):
4 (Four-wire method = RS-422A)
Terminating resistance switch (TERM): ON (terminator ON = terminating resistance used)
Serial Communications Board (Inner Board slot 1)
Terminating resistance switch
Set to ON (right position).
Two-wire/four-wire switch
For RS-422A: Set to 4 to use four-wire (right position).
Connecting to CS-series CPU Units
CS-series CPU Units:
CS1G/H-CPU@@-E(V1) and CS1G/H-CPU@@H
PLC Setup Area
• Using RS-232C
When connecting the PT to a CS-series CPU Unit, set the communications conditions in the
PLC Setup according to the communications port used, as follows:
Using Built-in RS-232C Port of CS1G/H or CS1G/H-H
Address
160
161
166
Write value
1:N NT Link Mode
Baud rate (normal)
@: Largest unit number (1 to 7) of the connected
PTs. (See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
4-14
8200
0000 to 0009 (See note 1.)
000@
Settings
4-2 1:N Host Connection
Using Peripheral Port of CS1G/H or CS1G/H-H
Address
144
145
150
Write value
8200
0000 to 0009 (See note 1.)
000@
Settings
1:N NT Link Mode
Baud rate (normal)
@: Largest unit number (1 to 7) of the connected
PTs. (See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
For example, to connect PTs with unit numbers 0, and 2 to 5 to the built-in RS-232C port in
1:N NT Links, set address 160 to 8200 Hex, and address 166 to 0005 Hex.
Set whether the PLC Setup is set directly from the Programming Device (Programming Console) or created using the Support Software (CX-Programmer) and transferred to the CPU
Unit.
Refer to the SYSMAC CS/CJ Series Operation Manual (W341) for information on PLC Setup.
Setting the Front Panel Switches
• Using RS-232C
Set DIP switch pin 4 or 5 of the CPU Unit according to the port to which the PT is connected,
as follows:
Peripheral port
Mainly connected to a
Programming Device.
(Can be connected to
an RS-232C device.)
DIP switch (inside battery compartment)
Turn ON pin 4 when connecting the PT to
the peripheral port (to use the communications settings in the PLC Setup).
Turn ON pin 5 when connecting the PT to
the RS-232C port (to use the communications settings in the PLC Setup).
RS-232C port
Mainly connected to
an RS-232C device.
(Can be connected to
a computer running
the CX-Programmer.
CJ-series CPU Units:
CJ1G-CPU@@
PLC
Setup Area
• Using RS-232C
When connecting the PT to a CJ-series CPU Unit, set the communications conditions in the
PLC Setup according to the communications port used, as follows:
4-15
4-2 1:N Host Connection
Using the CJ1G Built-in RS-232C Port
Address
160
161
166
Write value
Settings
8200
1:N NT Link Mode
0000 to 0009 (See note 1.) Baud rate (normal)
000@
@: Largest unit number (1 to 7) of the connected PTs.
(See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
Using the CJ1G Peripheral Port
Address
144
145
150
Write value
Settings
8200
1:N NT Link Mode
0000 to 0009 (See note 1.) Baud rate (normal)
000@
@: Largest unit number (1 to 7) of the connected PTs.
(See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
For example, to connect PTs with unit numbers 0, and 2 to 5 to the built-in RS-232C port in
1:N NT Links, set address 160 to 8200 Hex, and address 166 to 0005 Hex.
Set whether the PLC Setup is set directly from the Programming Device (Programming Console) or created by the Support Software (CX-Programmer) and transferred to the CPU Unit.
Refer to the SYSMAC CJ Series Operation Manual (W393) for information on the PLC Setup.
Setting the Front Panel Switches
• Using RS-232C
Set DIP switch pin 4 or 5 of the CPU Unit according to the port to which the PT is connected,
as follows:
DIP switch (inside battery compartment)
Turn ON pin 4 when connecting the PT to the
peripheral port (to use the communications
settings in the PLC Setup).
Turn ON pin 5 when connecting the PT to the
RS-232C port (to use the communications
settings in the PLC Setup).
Peripheral port
Connected to a Programming Console or other device.
RS-232C port
Connected to a Programming Console or other device.
4-16
4-2 1:N Host Connection
Connecting to CS-series Serial Communications Boards
Serial Communications Boards with RS-232C and RS-422A Ports for Use with CS-series
CPU Units:
CS1W-SCB21 (Both ports 1 and 2 are RS-232C ports.)
CS1W-SCB41 (Port 1 is an RS-232C port and Port 2 is an RS-422A port.)
Setting DM Area Allocations in CPU Unit
Write the settings directly from the Programming Device or Support Software (Programming
Console or CX-Programmer) to the DM Area (Parameter Area) in the CPU Unit. After writing
the settings, enable the settings by turning ON the power again, restarting the Unit, restarting
the communications port, or executing the CHANGE SERIAL PORT SETUP (STUP) instruction.
The following table shows the allocated DM Area words and settings.
The allocations and settings are the same for RS-232C and RS-422A (CS1W-SCB41 Port 2).
Allocated DM Area words
Port 1
DM32000
DM32001
Port 2
DM32010
DM32011
Write value
8200
0000 to 0009
(See note 1.)
000@
Settings
1:N NT Link Mode
Baud rate (normal)
@: Largest unit number (1 to 7) of the
connected PTs. (See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
DM32006
DM32016
For example, to connect PTs with unit numbers 3 to 6 to Port 1 in 1:N NT Links, set DM32000
to 8200 Hex, DM32001 to 0000 Hex, and DM32006 to 0006 Hex.
Setting the Front Panel Switches
•
Using RS-422A
Port 1
RS-232C
Port 2
RS-422A
Terminating resistance switch (TERM)
Set to ON:
Terminating resistance used
(right position)
Two-wire/four-wire switch (WIRE)
For RS-422A:
Set to 4 for four-wire (right position).
4-17
4-2 1:N Host Connection
Connecting to CS-series Serial Communications Units
CS-series Rack-mounted Type:
CS1W-SCU21 (Both ports 1 and 2 are RS-232C ports.)
CPU Unit DM Area Settings
• Using RS-232C
Write the settings directly from the Programming Device or Support Software (Programming
Console or CX-Programmer) to the DM Area (Parameter Area) in the CPU Unit. After writing
the settings, enable the settings by turning ON the power again, restarting the Unit, restarting
the communications port, or executing the CHANGE SERIAL PORT SETUP (STUP) instruction.
The following table shows the allocated DM Area words and settings.
m = 30000 + 100 × unit number
Allocated DM Area words
Port 1
DM m
DM m + 1
DM m + 6
Port 2
DM m + 10
DM m + 11
DM m + 16
Write value
Settings
8200
0000 to 0009 (See note 1.)
000@
1:N NT Link Mode
Baud rate (normal)
@: Largest unit number (1 to 7) of the
connected PTs. (See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
Setting the Front Panel Switches
• Using RS-232C
Set the unit number of the Serial Communications Unit with the rotary switches on the front of
the Unit. Use a flat-blade screwdriver to set the numerals and symbols in the switches setting
display window, as follows:
Unit number setting
Set a value between 0 and F that is not the same
as that of other Units in the system.
CJ-series Units:
CJ1W-SCU41 (Port 1 is an RS-422A port and Port 2 is an RS-232C port.)
CPU Unit DM Area Settings
Write the settings directly from the Programming Device or Support Software (Programming
Console or CX-Programmer) to the DM Area (Parameter Area) in the CPU Unit. After writing
the settings, enable the settings by turning ON the power again, restarting the Unit, restarting
the communications port, or executing the CHANGE SERIAL PORT SETUP (STUP) instruction.
The following table shows the allocated DM Area words and settings.
The allocations and settings are the same for RS-232C and RS-422A.
4-18
4-2 1:N Host Connection
m = 30000 + 100 × unit number
Allocated DM Area words
Port 1
DM m
DM m + 1
DM m + 6
Write value
Port 2
DM m + 10
DM m + 11
DM m + 16
Settings
8200
1:N NT Link Mode
0000 to 0009 (See note 1.) Baud rate (normal)
000@
@: Largest unit number (1 to 7) of the
connected PTs. (See note 2.)
Note 1. Set the baud rate to a numeric value between 0000 to 0009 Hex. (The setting is the same for
any value between 0000 and 0009 Hex.)
2. When using a 1:N connection, set the value for @ to 1 or higher.
Setting the Front Panel Switches
Display indicators
Terminating resistance switch (TERM)
Unit number setting switch
Set a value between 0 and F that is not the same as
these used by other Units in the system.
Two-wire/four-wire switch (WIRE)
For RS-422A: Set to 4 for four-wire operation (right position).
Port 1
RS-422A/485
Port 2
RS-232C
4-19
4-2 1:N Host Connection
@ High-speed 1:N NT Link
• Supported Host Units
OMRON PLCs that can be connected to high-speed 1:N NT Links using RS-232C are CSseries CS1G/H and CS1G/H-H with -V1 suffix and CJ-series CJ1G. The CS-series PLCs can
also be connected in high-speed 1:N NT Links by using a CS1W-SCU21 Serial Communications Unit. (CS-series PLCs without a -V1 suffix can also be connected in high-speed 1:N NT
Links if a Serial Communications Unit is used.) The CJ-series PLCs can also be connected in
high-speed 1:N NT Links by using a CJ1W-SCU41 Serial Communications Unit.
OMRON PLCs that can be connected in high-speed 1:N NT Links using RS-422A are CSseries CS1G/H and CS1G/H-H and CJ-series CJ1G. The CS-series PLCs can also be connected in high-speed 1:N NT Links by using a CS1W-SCB41 Serial Communications Board.
(CS-series PLCs without -V1 suffix can also be connected in high-speed 1:N NT Links if a
Serial Communications Board is used.) The CJ-series PLCs can also be connected in highspeed 1:N NT Links by using a CJ1W-SCU41 Serial Communications Unit.
Check the series and type of the PLC and the model of the Board or Unit that are mounted to
the PLC when connecting the PT to the host.
Host Units that Can be Connected to both PTs and RS-232C Ports
CPU Units with built-in
CPU Units that can be connected with
1:N NT Link function
Communications Boards/Units
CS1G-CPU42/43/44/45-EV1 (See note 1.) CS1G-CPU42/43/44/45-EV1 (See note 2.)
CS1H-CPU63/64/65/66/67-EV1
CS1H-CPU63/64/65/66/67-EV1
(See note 1.)
(See note 2.)
CS Series
CS1G-CPU42H/43H/44H/45H (See note 1.) CS1G-CPU42H/43H/44H/45H (See note 2.)
CS1H-CPU63H/64H/65H/66H/67H
CS1H-CPU63H/64H/65H/66H/67H
(See note 1.)
(See note 2.)
CJ1G-CPU44
CJ1G-CPU44
(See note 3.)
CJ Series
CJ1G-CPU45
CJ1G-CPU45
(See note 3.)
Note 1. CS-series CPU Units without the -V suffix cannot be connected.
2. A CS1W-SCB21/41 Serial Communications Board or CS1W-SCU21 Serial Communications
Unit is required.
3. A CJ1W-SCU41 Serial Communications Unit is required.
PLC series
Host Units that Can be Connected to NS-series RS-232C and RS-422A Ports
CPU Units that can be connected with
Communications Boards/Units
CS1G-CPU42/43/44/45-EV1 (See note 1.)
CS1H-CPU63/64/65/66/67-EV1
(See note 1.)
CS Series
CS1G-CPU42H/43H/44H/45H (See note 1.)
CS1H-CPU63H/64H/65H/66H/67H
(See note 1.)
CJ1G-CPU44
(See note 2.)
CJ Series
CJ1G-CPU45
(See note 2.)
Note 1. A CS1W-SCB41 Serial Communications Board is required.
2. A CJ1W-SCU41 Serial Communications Unit is required.
PLC series
4-20
CPU Units with built-in high-speed
1:N NT Link function
4-2 1:N Host Connection
• Host Settings
The methods for setting each Unit are as follows:
Connecting to CS-series CPU Units
CS-series CPU Units:
CS1G/H-CPU@@-EV1
PLC Setup Area
• Using RS-232C
When connecting the PT to a CS-series CPU Unit, set the communications conditions in the
PLC Setup according to the communications port used, as follows:
Using Built-in RS-232C Port of CS1G/H or CS1G/H-H
Address
Write value
Settings
160
8200
1:N NT Link Mode
161
000A
Baud rate (high-speed)
166
000@
@: Largest unit number (1 to 7) of connected PTs. (See note.)
Note: To connect a single Unit in a 1:N connection, set the value for @ to 1 or higher.
Using Peripheral Port of CS1G/H or CS1G/H-H
Address
Write value
Settings
144
8200
1:N NT Link Mode
145
000A
Baud rate (high-speed)
150
000@
@: Largest unit number (1 to 7) of connected PTs. (See note.)
Note: To connect a single Unit in a 1:N connection, set the value for @ to 1 or higher.
For example, to connect PTs with unit numbers 0, and 2 to 5 to the built-in RS-232C port in
high-speed 1:N NT Links, set address 160 to 8200 Hex, address 161 to 000A Hex, and address 166 to 0005 Hex.
Set whether the PLC Setup is set directly from the Programming Device (Programming Console) or created by the Support Software (CX-Programmer) and transferred to the CPU Unit.
Refer to the SYSMAC CS/CJ Series Operation Manual (W339) for information on the PLC
Setup.
Reference To set high-speed 1:N NT Link communications from the CX-Programmer, set the baud
rate to 115,200 bps.
4-21
4-2 1:N Host Connection
Setting the Front Panel Switches
Using RS-232C
Set DIP switch pin 4 or 5 of the CPU Unit according to the port to which the PT is connected,
as follows:
Peripheral port
Mainly connected to a
Programming Device.
(Can be connected to
an RS-232C device.)
DIP switch (inside battery compartment)
Turn ON pin 4 when connecting the
PT to the peripheral port (to use
the communications settings in
the PLC Setup).
Turn OFF pin 5 when connecting the
PT to the RS-232C port (to use
the communications settings in
the PLC Setup).
RS-232C port
Mainly connected to
an RS-232C device.
(Can be connected to
a computer running
the CX-Programmer.)
Connecting to CJ-series CPU Units
CJ-series CPU Units:
CJ1G-CPU@@
PLC Setup Area
• Using RS-232C
When connecting the PT to a CJ-series CPU Unit, set the communications conditions in the
PLC Setup according to the communications port used, as follows:
Using the CJ1G Built-in RS-232C Port
Address
Write value
Settings
160
8200
1:N NT Link Mode
161
000A
Baud rate (high-speed)
166
000@
@: Largest unit number (1 to 7) of connected PTs. (See note.)
Note: When connecting a single Unit in a 1:N connection, set the value of @ to 1 or higher.
4-22
4-2 1:N Host Connection
Using the CJ1G Peripheral Port
Address
Write value
Settings
144
8200
1:N NT Link Mode
145
000A
Baud rate (high-speed)
150
000@
@: Largest unit number (1 to 7) of connected PTs. (See note.)
Note: When connecting a single Unit in a 1:N connection, set the value of @ to 1 or higher.
For example, to connect PTs with unit numbers 0, and 2 to 5 to the built-in RS-232C port in
1:N NT Links, set address 160 to 0200 Hex and address 166 to 0005 Hex.
Set whether the PLC Setup is to be set directly from the Programming Device (Programming
Console) or created by the Support Software (CX-Programmer) and transferred to the CPU
Unit.
Refer to the SYSMAC CJ Series Operation Guide (W393) for information on the PLC Setup.
Setting the Front Panel Switches
• Using RS-232C
Set DIP switch pin 4 or 5 of the CPU Unit according to the port to which the PT is connected,
as follows:
DIP switch (inside battery compartment)
Turn ON pin 4 when connecting the PT to the
peripheral port (to use the communications
settings in the PLC Setup).
Turn OFF pin 5 when connecting the PT to the
RS-232C port (to use the communications
settings in the PLC Setup).
Peripheral port
Connected to a Programming Console or other device.
RS-232C port
Connected to a Programming Console or other device.
4-23
4-2 1:N Host Connection
Connecting to CS-series Serial Communications Boards
Serial Communications Boards with RS-232C Port for Use with CS-series CPU Units:
CS1W-SCB21 (Both ports 1 and 2 are RS-232C ports.)
CS1W-SCB41 (Port 1 is an RS-232C port and Port 2 is an RS-422A port.)
Reference High-speed 1:N NT Links can be used with Serial Communications Boards and Serial
Communications Units from lot numbers 991220 (December 20, 1999) or later. Boards
and Units with earlier lot numbers cannot be used, so confirm that the lot number is
supported.
CPU Unit DM Area Settings
Write the settings directly from the Programming Device (Programming Console) or Support
Software (CX-Programmer) to the DM Area (Parameter Area) in the CPU Unit. After writing
the settings, enable the settings by turning ON the power again, restarting the Unit, restarting
the communications port, or executing the CHANGE SERIAL PORT SETUP (STUP) instruction.
The following table shows the allocated DM Area words and settings. The settings are the
same for RS-232C and RS-422A (CS1W-SCB41 Port 2).
Allocated DM Area words
Port 1
DM32000
DM32001
DM32006
Port 2
DM32010
DM32011
DM32016
Write
value
Settings
8200
000A
000@
1:N NT Link Mode
Baud rate (high-speed)
@: Largest unit number (1 to 7) of the connected PTs. (See
note.)
Note: When connecting a single Unit in a 1:N connection, set the value of @ to 1 or higher.
For example, to connect PTs with unit numbers 3 to 6 to Port 1 in 1:N NT Links, set DM32000
to 8200 Hex, DM32001 to 000A Hex, and DM32006 to 0006 Hex.
Serial Communications Boards with RS-422A Port for Use with CS-series CPU Units:
CS1W-SCB41 (Port 2 is an RS-422A port.)
4-24
4-2 1:N Host Connection
Setting the Front Panel Switches
• Using RS-422A
Port 1
RS-232C
Terminating resistance switch (TERM)
Set to ON:
Terminating resistance used
(right position)
Two-wire/four-wire switch (WIRE)
For RS-422A:
Set to 4 for four-wire (right position).
Port 2
RS-422A
Connecting to CS-series Serial Communications Units
CS-series Rack-mounted Type:
CS1W-SCU21
Reference High-speed 1:N NT Links can be used with Serial Communications Boards and Serial
Communications Units from lot numbers 991220 (December 20, 1999) or later. Boards
and Units with earlier lot numbers cannot be used, so confirm that the lot number is
supported.
CPU Unit DM Area Settings
Write the settings directly from the Programming Device (Programming Console) or Support
Software (CX-Programmer) to the DM Area (Parameter Area) in the CPU Unit. After writing
the settings, enable the settings by turning ON the power again, restarting the Unit, restarting
the communications port, or executing the CHANGE SERIAL PORT SETUP (STUP) instruction.
The following table shows the allocated DM Area words and settings.
Using RS-232C
m = 30000 + 100 × unit number
Allocated DM Area words
Port 1
DM m
DM m + 1
DM m + 6
Port 2
DM m + 10
DM m + 11
DM m + 16
Write value
Settings
8200
000A
000@
1:N NT Link Mode
Baud rate (high-speed)
@: Largest unit number (1 to 7) of the connected
PTs. (See note.)
Note: When connecting a single Unit in a 1:N connection, set the value of @ to 1 or higher.
4-25
4-2 1:N Host Connection
Setting the Front Panel Switches
Set the unit number of the Serial Communications Unit with the rotary switches on the front of
the Unit. Use a flat-blade screwdriver to set the numerals and symbols of the switch's setting
display window, as follows:
Unit number setting
Set a value between 0 and F that is different from
that of any other Units in the system.
Connecting to CJ-series Serial Communications Units
CJ-series Units:
CJ1W-SCU41 (Port 1 is an RS-422A port and Port 2 is an RS-232C port.)
CPU Unit DM Area Settings
Write the settings directly from the Programming Device (Programming Console or CXProgrammer) to the DM Area (Parameter Area) in the CPU Unit. After writing the settings,
enable the settings by turning ON the power again, restarting the Unit, restarting the communications port, or executing the CHANGE SERIAL PORT SETUP (STUP) instruction.
The following table shows the allocated DM Area words and settings.
The allocations and settings are the same for RS-232C and RS-422A.
m = 30000 + 100 × unit number
Allocated DM Area words
Port 1
DM m
DM m + 1
DM m + 6
Port 2
DM m + 10
DM m + 11
DM m + 16
Write value
1:N NT Link Mode
Baud rate (high-speed)
@:Largest unit number (1 to 7) of the connected PTs. (See
note.)
Note: When connecting a single Unit in a 1:N connection, set the value of @ to 1 or higher.
4-26
8200
000A
000@
Settings
4-2 1:N Host Connection
Setting the Front Panel Switches
Display indicators
Terminating resistance switch (TERM)
Unit number setting switch
Set a value between 0 and F that is not the same as
these used by other Units in the system.
Two-wire/four-wire switch (WIRE)
For RS-422A: Set to 4 for four-wire operation (right position).
Port 1
RS-422A/485
Port 2
RS-232C
4-27
4-3 Recommended Connector Cables
4-3 Recommended Connector Cables
Always use recommended connectors, connector hoods, and cables, where possible, when
making connector cables. Depending on the Unit, a connector and connector hood may be
included with the Unit.
Check the required components before preparing them.
Name
Model
XM2A-0901
9-pin type
made by OMRON.
XM2A-2501
25-pin type
made by OMRON.
XM2S-0911
9-pin type
made by OMRON.
(mm screws)
Connector
Connector
Hood
XM2S-0911-E
XM2S-0913
XM2S-2511
AWG28 × 5P
IFVV-SB
CO-MA-VV-SB
5P × 28AWG
Cable
Note
Units with the connectors and
connector hoods included.
CS/CJ Series
C-series CQM1 and C200HS
C200HX/HG/HE(-Z)
CVM1/CV-series CPU Units
CV500-LK201
CV500-LK201
C200H-LK201-V1
C-series CQM1 and C200HS
C200HX/HG/HE(-Z)
CVM1/CV-series CPU Units
CV500-LK201
Details
9-pin type
CS/CJ Series
made by OMRON.
9-pin type
made by OMRON.
(inch screws)
25-pin type
CV500-LK201
made by OMRON.
C200H-LK201-V1
Multiconductor shielded cable
made by Fujikura Densen, Ltd.
Multiconductor shielded cable
made by Hitachi Densen, Ltd.
The connector’s tensile load is 30 N max. Do not subject the connectors to a load greater
than that specified.
• OMRON Cables with Connectors
The following OMRON Cables with Connectors can be used.
Model
XW2Z-200T
XW2Z-500T
XW2Z-200T-2
XW2Z-200T-5
Cable length
2m
5m
2m
5m
Connector specifications
9-pin-to-9-pin
9-pin-to-CPM2C peripheral port
• OMRON Cables for CS1-series PLC Peripheral Port
Model
CS1W-CN118
Cable length
0.1 m
Connector specifications
9-pin (female)-to-CS1-series peripheral port
• OMRON RS-232C/RS-422A Converter
Model
NS-AL002
Connection method
Connects directly to
RS-232C port.
Terminal block specifications
8-pole terminal block (1:N NT Link)
The connectors for the connecting cables are not included with the PT and must be purchased separately.
4-28
Section 5
Connecting to Host via Ethernet or
Controller Link
This section describes the methods for connecting the PT to the host using the PT’s Ethernet interface and the Controller Link Interface Unit.
5-1 Connecting to Host Via Ethernet ......................................................................................... 5-2
5-1-1 Host Types and Settings ........................................................................................... 5-3
5-2 Connecting to the Host Using Controller Link................................................................... 5-15
5-2-1 What Is a Controller Link Network? ...................................................................... 5-15
5-2-2 Host Type and Settings........................................................................................... 5-16
5-2-3 Data Links .............................................................................................................. 5-17
5-2-4 Troubleshooting Using Indicators .......................................................................... 5-21
5-1 Connecting to Host Via Ethernet
5-1 Connecting to Host Via Ethernet
To connect to the network using Ethernet, the network number, node number, and IP address
must be set. Use the NS-Designer to set the settings. For details, refer to Section 7 System
Settings of the NS-Designer Operation Manual and Section 9 Ethernet Connection of the Tutorial included in the NS-Designer CD-ROM.
The following connection methods are possible when connecting via the Ethernet only.
· Connecting PT Directly to the Host
Connect the PT to the host using twisted-pair cross cable.
PT
Host
Twisted-pair cross cable
10Base-T
· Connecting PT to Host with a Hub
Multiple PTs and hosts can be connected using twisted-pair straight cable and a hub.
Hub
Twisted-pair
straight cable
10Base-T
PT 1
PT 2
Host 1
Host 2
· Connecting PT and Host Using Transceivers
PTs can be connected in a 10Base-5 network configuration by using a hub and transceiver
that support 10Base-5.
Transceiver
Transceiver
Coaxial cable
Transceiver
cable
Terminator
10Base-5
Terminator
Hub
Twisted-pair
straight cable
Host 2
10Base-T
PT 1
PT 2
· Devices Required for Network Configuration
The following additional devices are required to configure the network using the Ethernet and
must be purchased separately.
Always use products that conform to IEEE802.3 standards for all network configuration devices.
5-2
5-1 Connecting to Host Via Ethernet
Network configuration
device
Ethernet Unit
Hub
Twisted-pair cable
Coaxial cable
Transceiver
Transceiver cable
24-VDC power supply
Coaxial cable terminator
(terminating resistance)
5-1-1
Details
A Communications Unit for connecting the PLC to the Ethernet network.
A network device that serves as a central wiring point for multiple
terminals.
Cable consisting of four pairs of thin, copper wires twisted into a
cross cable or a straight cable. Twisted-pair cables are used for
10Base-T networks.
Cable consisting of a central conductor surrounded (in concentric
circles) by insulation and an external conductor of braided wire. This
cable is used for 10Base-5 networks.
A device that serves as an interface between the coaxial cable and
nodes.
Cable used to connect the transceiver to the nodes.
A 24-VDC external power supply for supplying power to the transceiver through the transceiver cable.
Connected to both ends of the coaxial cable.
Host Types and Settings
Units that are used for Ethernet communications vary according to the type and series of
OMRON PLC used.
When connecting an Ethernet Unit, check the series and type of the PLC that it will be connected to and the model of the Unit that is mounted to the PLC.
The following table shows the host units that can be connected to NS-series PTs via the
Ethernet.
PLC series
CS Series
CV Series
CVM1 Series
CJ Series
CPU Units that can be connected to Ethernet Units
CS1G-CPU42/43/44/45(-V1)
CS1H-CPU63/64/65/66/67(-V1)
CS1G-CPU42H/43H/44H/45H
CS1H-CPU63H/64H/65H/66H/67H
CV500-CPU01-V1
CV1000-CPU01-V1
CV2000-CPU01-V1
CVM1-CPU01-V2
CVM1-CPU11-V2
CVM1-CPU21-V2
CJ1G-CPU44
CJ1G-CPU45
Ethernet Unit
CS1W-ETN01
CS1W-ETN11
CV500-ETN01
CV500-ETN01
CJ1W-ETN11
The types of hosts that can be connected to NS-series PTs with the Ethernet and the host
settings are as follows:
5-3
5-1 Connecting to Host Via Ethernet
·
Host Settings
The following settings must be set at the host.
Item
Network number
Conversion table
Host Settings
1 to 127
Node number: 1 to 126
IP address: 0.0.0.0 to 255.255.255.255
1 to 65535, default is 9600.
0.0.0.0 to 255.255.255.255
0.0.0.0 to 255.255.255.255
0.0.0.0 to 255.255.255.255
“”(blank), 0.0.0.0 to 255.255.255.255
1 to 126
Define communications paths for FINS messages. Routing tables are
set from the CX-Programmer.
UDP port number
IP address
Subnet mask
Default gateway
IP proxy address
Node number
Routing tables
IP Address Configuration
The IP address is comprised of 32 bits of binary data, consisting of the net ID and host ID.
The net ID is the address that identifies the network, and the host ID is the ID that identifies
the host (node).
The IP address is divided into class A, B, and C. Select the address system from among the
classes according to the network configuration.
Class A
Host ID (24 bits)
Net ID (7 bits)
Class B
Net ID (14 bits)
Class C
Net ID (21 bits)
Host ID (16 bits)
Host ID (8 bits)
The number of networks and hosts that can be identified depends on the class used.
Class
Class A
Class B
Class C
Number of networks
Small
Medium
Large
Number of hosts
24
2 - 2 max. (16,777,214 max.)
16
2 - 2 max. (65,534 max.)
8
2 - 2 max. (254 max.)
The IP address is a 32-bit value divided into four 8-bit fields. Each octet is expressed as a
decimal and is separated by a period.
Example: 10000010 00111010 00010001 00100000 ® 130.58.17.32
Reference
· Set the same net ID for all nodes in the same network.
· The net ID of the IP address is the value that identifies the Ethernet network (IP network segment). The net ID is not the same as the network address used for FINS
communications.
· The IP network segment is the logical network unit that is configured by the nodes
that have the same net ID.
5-4
5-1 Connecting to Host Via Ethernet
IP Address Allocation
The IP addresses are allocated so that they are unique for each node in the network (or between two or more networks). If two or more nodes are allocated the same IP address, the
remote nodes with the same IP address will also malfunction.
IP (Internet Protocol) is a communications protocol that conforms to international standards.
Therefore, to connect to the Internet, always obtain IP addresses that have been allocated by
a public organization (i.e., the NIC in the country of use, such as the JPNIC in Japan). Using
IP addresses that are not recognized by the NIC (JPNIC) to connect to the Internet could
have unforeseen social consequences, such as causing the networks of another organizations to malfunction unexpectedly.
Local IP Address
The local IP address indicates the IP address of the Ethernet Unit that is used to set the settings.
The following IP address settings are not possible.
Net ID with all bits set to 0 or 1.
Host ID with all bits set to 0 or 1.
Subnet ID with all bits set to 1.
IP addresses that begin with 127 (7F Hex) (e.g., 127.35.21.16).
Subnet Mask
When more than one node is connected to the network, network operation and management
can be difficult. Therefore, for convenience, configure the system by dividing a single network
into multiple sub-networks. The system operates internally as multiple networks, but externally appears as a single network.
To operate a system in this way, divide the host ID field of the IP address into a subnet ID
field and a host ID field.
The subnet ID field is identified by the information in the subnet mask. The subnet mask is a
bit mask in which the net ID and subnet ID fields are 1 and the host ID field is 0.
Example: 11111111 11111111 11111111 00000000 ® FFFFFF00
The subnet mask must have a value that is common to all nodes on the same sub-network.
Setting the subnet mask is not required if sub-networks are not used. The system recognizes
subnet masks without a subnet ID field (i.e., subnet masks with net ID and host ID fields
only).
5-5
5-1 Connecting to Host Via Ethernet
Address Conversion (when Using FINS Communications Service Only)
When using the FINS communications service, nodes must be specified following the FINS
addressing system. Data that is transmitted on the Ethernet network using FINS communications, however, must follow the IP address format. Address conversion changes the FINS address to an IP address.
Ethernet Unit
Ethernet Unit
IP address:
153.211.32.114
Node number: 23
CS1series
Data
User program
Network address: 5
Node number: 23
Data
Number
converted
153.211.32.114
To 153.211.32.114
There are three methods for converting addresses, as follows:
· Automatic generation method (default address conversion)
· IP address table method
· IP table + automatic generation method
All of these address conversion methods are performed from the system settings using the
Support Software (CX-Programmer, SYSMAC-CPT, SYSMAC Support Software, or CV Port
Software Ver.2 or later). The details for each method are explained below. Refer to the SYSMAC CS/CJ Series Ethernet Unit Operation Manual (W343) and the SYSMAC CVM1/CV Series Ethernet Unit Operation Manual (W242) for details on setting methods.
Automatic Generation Method
The automatic generation method uses the FINS node number without modification as the
host ID of the IP address. The net ID of the local IP address is used as the net ID.
Automatic generation uses the following type of remote IP address configured from the local
IP address, subnet mask, and remote node number (FINS node number).
Remote IP address = (Local IP Address AND subnet mask)
OR remote node number
· Automatic Generation Characteristics
Automatic generation has the advantage of easily understandable handling of FINS addresses and IP addresses. This method, however, does have the following limitations.
1. This method is applicable for addresses with the same net ID only.
2. The remote host ID is restricted to the range of FINS node numbers (1 to 126).
3. The Ethernet Unit’s host ID and node number must be set to the same value.
Automatic generation is set as the default address conversion method, so it does not
need to be set from the CX-Programmer.
5-6
5-1 Connecting to Host Via Ethernet
IP Address Table Method
Whereas the automatic generation method obtains the IP address from the FINS node number, the IP address table method converts the FINS node number to the IP address based on
a preset conversion table (IP address table).
The IP address table is configured from the system settings using Support Software (CXProgrammer, SYSMAC-CPT, SYSMAC Support Software, or CV Support Software Ver.2 or
later). Refer to the SYSMAC CS/CJ Series Ethernet Unit Operation Manual (W343) and
SYSMAC CVM1/CV Series Ethernet Unit Operation Manual (W242) for details on setting
methods.
Nodes that have different net IDs for different segments can also be registered.
IP address table
FINS node number
20
FINS node
number
18
20
23
IP address
153.214.0.62
153.214.0.129
153.218.51.8
IP address
153.214.0.129
· IP Address Table Method Characteristics
The IP address table method simply prepares a conversion table, offering the advantage of
allowing the correspondence between FINS node numbers and IP addresses to be created
freely.
This method is, however, subject to restrictions. The IP address table allows registration of up
to 32 corresponding addresses only, so no more than 32 nodes, including the local node, can
be registered. If there is no correspondence, the remote FINS node number is not recognized.
IP Table + Automatic Generation Method
This method combines automatic generation and the IP address table method.
First refer to the IP address table, and if the required FINS address is included in the table,
read the corresponding IP address. If the required FINS address is not included, calculate the
IP address using the automatic generation method.
FINS node address
IP address table
When included in
IP address table
When not
included in IP
address table
FINS node
number
18
20
23
Net ID:
IP address
153.214.0.62
153.214.0.129
153.218.51.8
IP address
XX.XX.00.00
+
FINS node number:
IP address
XX
Setting Routing Tables
Routing tables define the communications path between the local node and the network
containing the destination node. Routing tables are required to perform network communications. Routing tables consist of local network tables and remote network tables.
Local Network Tables
A local network tables contains the unit number and network address for every Communica-
5-7
5-1 Connecting to Host Via Ethernet
tions Unit mounted at a node. If there is more than one Communications Unit at a node, each
Unit will contain a local network table.
Unit number 04
Unit number 02 Local network table
Local network
address
Unit number
Network 2
Network 3
Remote Network Table
The remote network table provides the node and network address corresponding to the initial
relay point (first point the data must pass) en route to a target network (end network) not directly connected to the local PLC. The table specifies the route from the relay point to the end
network.
Node 1
Node 2
PT at local
node
Node 3
Relay PLC
(a)
Network 1
Remote Network Table for Local PT
Destination
network
address
Relay
network
addreww
Gateway
node
address
Node 2
Relay PLC
(b)
Network 2
Remote Network Table for PLC (a)
Destination Relay
network
network
address
addreww
Gateway
node
address
Node 2 Desti-
nation
Node 2
Network 3
Local Network Table for PLC (b)
Local
network
address
Unit
number
Meaning: To go to network 3, Meaning: To go to network 3,
first go to node 3 of network 1. first go to node 2 of network 2.
Routing tables are created using the CX-Programmer and then transferred to the host. Refer
to the CX-Programmer User Manual for actual procedures.
The methods for setting each Unit are described next.
· CS-series PLCs
Note
· Always turn OFF the power to the PLC before setting the rotary switches.
· Create I/O tables for the CPU Unit when setting the unit number for the first time or changing settings.
CS1G/CS1H and CS1G/CS1H-H Ethernet Units:
CS1W-ETN01
CS1W-ETN11
Setting the Front Panel Switches
Setting Unit Numbers
Always set the unit numbers so that the unit numbers of other CPU Bus Units mounted to the
5-8
5-1 Connecting to Host Via Ethernet
CPU Unit are all unique.
Use a small screwdriver to set the rotary switches, being careful not to damage them.
The factory setting is 0.
Setting range
0 to F
Setting Node Numbers
Setting range
01 to 7E (1 to 126 decimal)
Set the upper digit using the left rotary switch and the lower digit using the right rotary switch.
The factory setting is 01.
When converting addresses using the automatic generation method, set the node number to
the same value as that set for SW7 and SW8 of the local IP address setting switches, which
are described on the following pages. If the same values cannot be set, the IP address table
method or IP table + automatic generation method must be used to convert the addresses.
Setting the Rear Panel Switches
Setting Local IP Addresses
Set the local IP address for the Ethernet Unit using the eight hexadecimal rotary switches (local IP address setting switches), expressing each 4-bit value as a single hexadecimal digit.
Set the IP address as a hexadecimal using the eight switches combining SW1 and SW2,
SW3 and SW4, SW5 and SW6, and SW7 and SW8, as shown in the following diagram.
Setting range for each switch
0 to F
Local IP address
Example: Setting130.58.17.32 (Decimal)
This address will be 82.3A.11.20 in hexadecimal, so the switch would be set as shown in the
following table.
Switch Setting
Local IP address in
hexadecimal
Local IP address in
decimal
SW1
8
SW2
2
SW3
3
SW4
A
SW5
1
SW6
1
SW7
2
SW8
0
82
3A
11
20
130
58
17
32
5-9
5-1 Connecting to Host Via Ethernet
Reference · When using automatic generation (default method) for converting addresses, set the
same value for the node number as that set for SW7 and SW8, and set the other host
ID fields to 0. The ERC indicator will flash if the value of the IP address host ID does
not correspond to the node number value.
· Set the subnet mask in the CPU Bus Unit Setup Area using the CX-Programmer.
Ethernet Connectors:
CS1W-ETN01
This is the connector used to connect the transceiver cable to the Ethernet.
· Electrical characteristics:
Conforms to IEEE802.3 standards.
· Lock structure:
Conforms to IEEE802.3 standards for Slide latches.
Connector Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Hood
Signal name
Signal ground
Collision detection signal +
Send data +
Signal ground
Receive data +
Voltage common
Power ground (common
with signal ground)
Not used.
Signal ground
Collision detection signal Send data Signal ground
Receive data Transceiver power
Signal ground
Not used.
Frame ground
Abbreviation
Signal direction
GND
COL+
TX+
GND
RX+
VC
-
Input
Output
Input
-
GND
COLTXGND
RXVP
GND
FG
Input
Output
Input
-
CS1W-ETN11
This is the connector used to connect the twisted-pair cable to the Ethernet.
· Electrical characteristics: Conforms to IEEE802.3 standards.
· Connector structure: RJ45 8-pin modular connector (conforms to ISO8877).
1
8
5-10
Connector Pin
1
2
3
4
5
6
7
8
Signal name
Send data +
Send data Receive data +
Not used.
Not used.
Receive data Not used.
Not used.
Abbreviation
Signal direction
TD+
TDRD+
RD-
Output
Output
Input
Input
-
5-1 Connecting to Host Via Ethernet
· CJ-series PLCs
Note
· Always turn OFF the power to the PLC before setting the rotary switches.
· Create I/O tables for the CPU Unit when setting the unit number for the first time or changing settings.
CJ-series Ethernet Units:
CJ1W-ETN11
Setting the Front Panel Switches
Setting Unit Numbers
Always set the unit numbers so that the unit numbers of other CPU Bus Units mounted to the
same CPU Unit are all unique.
Use a small screwdriver to set the rotary switches, being careful not to damage them.
The factory setting is 0.
Setting range
0 to F
Setting Node Numbers
Set the node numbers as hexadecimal values with the node number setting switch. Always
set the node numbers so that other Ethernet Units connected to the same Ethernet network
all have unique addresses. As long as the addresses are unique, they can be set between 01
and 7E (1 to 126 decimal).
Setting range
01 to 7E (1 to 126 decimal)
Set the upper digit using the top rotary switch and the lower digit using the bottom rotary
switch.
The factory setting is 01.
When using automatic generation to convert addresses, set the node number to the same
value as that of the rightmost byte of the local IP address. If the same values cannot be set,
the IP address table method or combination method must be used to convert the addresses.
5-11
5-1 Connecting to Host Via Ethernet
Setting Local IP Addresses
For CJ-series Ethernet Units, set the local IP address from the CX-Programmer or other
Support Software for the CPU Unit. Refer to the SYSMAC CS/CJ Series Ethernet Unit Operation Manual (W343) for details on setting methods.
CJ1W-ETN11
This is the connector used to connect the twisted-pair cable to the Ethernet.
· Electrical Characteristics: Conforms to IEEE802.3 standards.
· Connector Layout: RJ45 8-pin modular connector (conforms to ISO8877).
1
8
Connec
tor Pin
1
2
3
4
5
6
7
8
Signal name
Send data
Send data Receive data +
Not used.
Not used.
Receive data Not used.
Not used.
Abbreviation
TD+
TDRD+
RD-
Signal direction
Output
Output
Input
Input
-
· CV/CVM1-series (-V@) PLCs
Unit for CV500-CPU01-V1, CV1000-CPU01-V1, CV2000-CPU01-V1, CVM1-CPU01-V2,
CVM1-CPU11-V2, and CVM1-CPU21-V2 CPU Units:
CV500-ETN01
Setting Rotary Switches
Set the unit number and node number with the two rotary switches on the front of the Unit.
Switch Layout
The layout of the two switches is shown in the following diagram.
· Set the unit number using SW1 and SW2. Set the unit number so that it is different from
other CPU Bus Units in the system.
· Set the node number using SW3 and SW4.
5-12
5-1 Connecting to Host Via Ethernet
Setting Range
Each switch can be set within the following range.
Settings
Unit number (SW1, SW2)
Node number (SW3, SW4)
Setting range
00 to 15 (decimal)
01 to 7E hexadecimal (1 to 126 decimal)
Setting Unit Numbers
The unit number is used to identify each Unit when multiple CPU Bus Units are mounted to
the CPU Unit.
Use the left switch (SW1) to set the ten’s digit, and the right switch (SW2) to set the one’s
digit. Set between 00 and 15 decimal.
Setting Example
This example is for unit number 12.
Reference
· The unit number cannot be set to a value more than 15. If the unit number is set to a
value higher than 15, the ERH indicator in the display will light.
· When more than one CPU Bus Unit is mounted to a single PLC, set each Unit with a
unique unit number.
Setting Node Numbers
The node number is used to identify PLCs when more than one PLC is connected to the
Ethernet. This setting is the node number used for FINS communications.
Use the left switch (SW3) to set the left digit as a hexadecimal, and the right switch (SW4) to
set the right digit. The setting range is 01 to 7E hexadecimal (1 to 126 decimal).
Setting Example:
This example is for node number 29 (decimal).
29 = 1 ´ 16 + 13 = 1D(hexadecimal)
5-13
5-1 Connecting to Host Via Ethernet
Reference
· The node number cannot be set to a value higher than 7E (126 decimal). If the node
number is set to a higher value, an error will occur and the ERH indicator in the display will light.
· Set the node numbers so that all the nodes in the same network are unique.
Setting IP Addresses for Ethernet Units
The IP address must also be set for Ethernet Units. Ethernet communications are not possible if the IP address of the Ethernet Unit is not set.
Set the IP address for the Ethernet Unit from the CPU Bus Unit Setup Area using Programming Devices (SYSMAC-CPT, SYSMAC Support Software, CV Support Software Ver. 2 or
later, FIT20-MF501-V2, FIT10-MF501-V2, FIT20-MC601, or FIT20-MC701). Refer to the
SYSMAC CVM1/CV Series Ethernet Unit Operation Manual (W242) for details on setting
methods.
Ethernet Unit System
Set the system settings for the Ethernet Unit to operate on the Ethernet network as a node.
Set the system settings using a Programming Device (SYSMAC-CPT, SYSMAC Support
Software, CV Support Software Ver.2 or later, FIT20-MF501-V2、FIT10-MF501-V2, FIT20MC601, or FIT20-MC701).
Reference
· For details on operating the Support Software, refer to the CPU Bus Unit Setup Area
in the SYSMAC Support Software Operation Manual: Networks (W201) and SYSMAC
Support Software Operation Manual: CV Series (W249).
· Turn ON the power to the CPU Unit again after setting the system settings. The system settings are not enabled after setting them until the power has been turned ON
again.
5-14
5-2 Connecting to the Host Using Controller Link
5-2 Connecting to the Host Using Controller Link
This section explains the method for connecting to the host using a Controller Link Interface
Unit.
5-2-1
What Is a Controller Link Network?
A Controller Link Network is an FA Network that can send and receive large data packets
flexibly and easily among the OMRON C200HX/HG/HE PLC Programmable Terminal (PTs),
SYSMAC CS-series PLCs, CJ-series PLCs, CQM1H-series PLCs, C200HX/HG/HE PLCs,
CVM1/CV-series PLCs, IBM PC/AT or compatible computers, and NS-series PTs. The Controller Link supports data links that enable data sharing and a message service that enables
sending data and receiving data when required. Data link areas can be freely set to create a
flexible data link system and effectively use data areas.
The network is connected using shielded twisted-pair cable or optical fiber cable. In addition,
the Controller Link Network can transfer large quantities of data at high speed, so that it is
possible to construct a wide-area network easily that supports from low-level systems to high.
For details on data links and message service, refer to the Controller Link Support Board Operation Manual (W307), Controller Link Support Board for PCI Bus Operation Manual (W383),
and the Controller Link Unit Operation Manual (W309).
Note: An optical fiber cable is not available for NS-series PTs.
CJ1WCLK21
Controller
PLC,
SYSMAC
CJ Series
CS1WCQ1H-CLK21
CLK21
Controller Link
Controller
Unit
PLC,
PLC,
Link Unit
SYSMAC
SYSMAC
CS
Series
CQM1H
C200HWCLK21
Controller
Link Unit
PLC,
SYSMAC
C200HX/HG
/HE
CVM1CLK21
Controller NS Series
PLC,
SYSMAC Link Unit NS12-TS@
CVM1/CV
NT10-TV@
Series
NS-CLK21
Controller
Link Interface Unit
IBM PC/AT or
compatible
FC98 personal computer
3G8F5-CLK21
Controller Link
Support Board
Personal
computer
3G8F6-CLK21 3G8F7-CLK21
Controller Link Controller Link
Support Board Support Board
To connect the PT to the Controller Link, it is necessary to install a Controller Link Expansion
Board on the PT. Refer to 3-8 Installing the Controller Link Expansion Board for the procedure
for installing and wire the Controller Link Expansion Board.
When communicating by Controller Link, the network number, node number, routing tables,
and data link tables must be set. For details, refer to Section 7 System Settings in the NS Series Operation Manual.
5-15
5-2 Connecting to the Host Using Controller Link
Required Devices
To construct a Controller Link Network, the devices described in the following table are required.
Device
Controller Link Unit
Model
CVM1-CLK21
C200HW-CLK21
CS1W-CLK21
CQM1H-CLK21
CJ1W-CLK21
3G8F5-CLK21
3G8F6-CLK21
3G8F7-CLK21
Remarks
Required to connect PLC
with Controller Link Network.
Twisted-pair Cable
ESVC0.5×2C
Controller Link Wired
Relay Terminal Block
CJ1W-TB101
Required to connect the
PT, PLC, and IBM PC/AT
or compatible computers.
Use shielded twisted-pair
cable.
Used as a relay terminal
block for wires and can be
used as required to facilitate replacement and
maintenance of Controller
Link Units and Boards after
the communications system has been started.
Controller Link Support
Board (ISA Bus/PC98)
Controller Link Support
Board (PCI Bus)
5-2-2
Required to connect IBM
PC/AT or compatible computers with Controller Link
Network.
Host Type and Settings
The CPU Units that support the Controller Link are listed in the following table.
PLC
CS1 PLCs
CJ1 PLCs
C200HX
C200HG, C200HE
PLCs(*1)
CPU Unit
All models
All models
C200HX-CPU64/54/44/34-(Z)E
/65-Z/85-ZE
C200HG-CPU63/53/43/33-(Z)E
C200HE-CPU42/32-(Z)E
CQM1H-CPU61/51
All models
CQM1 PLCs
CV500, CV1000,
CV2000
PLCs(*2)
CVM1 PLCs(*2) All models
Controller Link
Unit
CS1W-CLK21
CJ1W-CLK21
C200HW-CLK21
CQM1H-CLK21
CVM1-CLK21
CVM1-CLK21
*1: One of the following is necessary to connect a Controller Link Unit.
C200HW-COM01/04 Board
C200HW-CE001/002/012 Bus-connecting Unit
*2: Routing tables are required if any of the CVM1/CV-series CPU Units in the network have been
manufactured on or before April 1996. The manufacturing data can be determined from the lot
number on the side of the CPU Unit.
Lot No.:
@ @ 4 6 ……...Manufactured in April 1996
Indicates the last digit of the
manufacturing year. In this example,
the year is 1996
Indicates the month of manufacture.
October, November, and December
are indicated by x, y, and z
respectively. In this example, the
For the method of setting the Controller Link for each PLC, refer to Controller Link Unit Operation Manual (W309).
5-16
5-2 Connecting to the Host Using Controller Link
5-2-3
Data Links
This section outlines data links and the method of setting data link tables when using data
links. For details, refer to the Controller Link Support Board Operation Manual (W307), Controller Link Unit Operation Manual (W309), and the Controller Link Support Board for PCI Bus
Operation Manual (W383).
What Are Data Links?
Data links automatically exchange preset data between nodes (i.e., between PLCs, between
a PLC and an IBM PC/AT or compatible computer, or between a PLC and an NS-series PT).
Data links can be freely created for CS-series PLCs, C200HX/HG/HE PLCs, CVM1, CVseries PLCs, CJ-series PLCs, CQM1H-series PLCs, and NS-series PTs.
Two data link areas, area 1 and area 2, can be set for each node. Data links can be set in either of the following ways.
· Data link areas can be set by inputting data link tables through the Controller Link Support
Software. Data link tables are created to define the data links. These tables enable free allocation of data link areas.
· Data links can be set automatically from a Programming Device. With automatically set data
links, all link areas are the same size.
Automatic setting and manual setting cannot be used together in the same network.
The following rules apply to these methods of setting data links.
1. Data links are enables concurrently for area 1 and area 2.
2. Separate settings (data link start words and send area size) are made in area 1 and area
2. The sequences of send and receive words are the same in area 1 and area 2.
3. Not all nodes must participate in the data links.
Example 1: The order of send
and receive nodes is free.
Example 2: Some nodes can
send data without receiving data.
Area 1
Area 1
Sending only
Area 2
Area 2
Example 3: Some nodes can
receive data without sending
data.
Area 1
Receiving only
Example 4: A node can receive a
specified number of words from
the beginning of an area.
Area 1
Several words
from the
beginning
Area 2
Area 2
Receiving only
5-17
5-2 Connecting to the Host Using Controller Link
Setting Data Link Tables
To perform data links, data link tables are required. Set data link tables by following the steps
below.
1. Set data link tables using the CX-Server (Network Setting Tool).
Data link tables are created to define data links. These tables must be set for each node
participating in data links. Refer to the manual for CX-Server (W362) for the method of
setting.
The following table shows the items and setting range for data link tables in the Controller
Link Support Board mounted on the PT.
Setting item
PT Model
Node
First data link status
word
Area1
Data link
start word
(See note.)
Number of
words
Offset
Area2
Data link
start word
(See note.)
Number of
words
Offset
Note
Setting range
Set as a "NSB."
1 to 32
Set the address of the refresh nodes.
If a number is set, it will be invalid because the first word to store data link status is
fixed.
Set ”-“.
$B0 to $B32767
$W0 to $W24575
Use CIO for $B and D for $W in the CX-Server.
The same area cannot be set for both area 1 and area 2. Set different areas.
· Remote nodes: 0 to the number of source words
Set the number of words to be received
· Local nodes:
0 to 1000
Set the number of words to be transmitted
The total number of words in area 1 and area 2 in each node must not exceed 1,000.
The number of words in both area 1 and area 2 in each node must not be set to 0.
· Remote nodes: 0 to one less than number of source words
Set offset for data to be received
· Local nodes:
Cannot be set.
This setting is not required if an offset is not used.
$B0 to $B32767
$W0 to $W24575
Use CIO for $B and D for $W in the CX-Server.
The same area cannot be set for both area 1 and area 2. Set different areas.
· Remote nodes: 0 to the number of source words
Set the number of words to be received
· Local nodes:
0 to 1000
Set the number of words to be transmitted
The total number of words in area 1 and area 2 in each node must not exceed 1,000.
The number of words in both area 1 and area 2 in each node must not be set to 0.
· Remote nodes: 0 to one less than number of source words
Set offset for data to be received
· Local nodes:
Cannot be set.
This setting is not required if an offset is not used.
The following examples show how to change CIO and D addresses to $B and $W addresses.
1. Changing to $B addresses:
$B address = Word in CIO address (0 to 2047) ´ 16 + Bit in CIO address (00 to 15)
Example: If the CIO address is 00100.04, $B address = 100 ´ 16 + 4 = $B1604.
Word Bit
2. Changing to $W addresses:
$W address = D address (0 to 24575)
Example: If the D address is D00100, $W address = $W100.
· The total number of words set in area 1 and area 2 must not exceed 32,000.
· Always delete the data link tables if the node does not participate in data links.
Save the data link tables after setting the above items.
5-18
5-2 Connecting to the Host Using Controller Link
2. Set data link tables for the PT side on the NS-Designer
The two setting methods below can be used. Use the appropriate method for the application.
1) Specifying data link tables with NS-Designer:
If the data link tables are set from the NS-Designer, then they cannot be changed via
a network. Even if they are temporarily changed from the CX-Server or Controller Link
Support Software, they will return to the tables set from the NS-Designer the next time
the PT is started. To change the data link tables when they have been set from the
NS-Designer, it is necessary to retransfer the project or setting file to the PT.
Select Setting - System Setting on the NS-Designer, click the Controller Link Tab,
and specify the data link tables created in step 1. Refer to Section 7 System Settings
in the NS-Designer Operation Manual, for specifying the data link table file.
2) Setting data link tables across a network:
To do so, transfer the data link tables in the Controller Link Interface Unit from the CXServer or Controller Link Support Software, and do not specify data link tables from
the NS-Designer. If data link tables are set via a network, then they can later be
changed via a network as required. For details on the transfer method, refer to the
CX-Net Operation Manual (W361) and the Controller Link Support Software Operation
Manual (W369).
3. Transfer the project created on NS-Designer to the PT.
Starting and Stopping Data Links
The PT starts and stops data links according to the status of the data links when participating
in the network. If the data links are started when entering the network, the PT will start its
data links. If network has stopped data links, the PT will not start data links. The PT cannot
control starting/stopping data links independently. Control starting/stopping data links on the
Controller Link network using the startup node or CX-Server.
Note
· The data link mode (manual setting or automatic setting) and data link method are determined according to the data link setting in the startup node. In the startup node, set the
data link tables if manual settings are being used and data link automatic setting parameters if automatic settings are being used. If the settings are incorrect, the data links will not
start.
Caution
· Check the following items before starting data links.
1. Manually Set Data Links
Check the data link tables in each node participating in
the data link to see that they are correct. Be sure that
data link tables are deleted from nodes that are not participating in the data links.
2. Automatically Set data Links
Be sure that the correct DM parameters have been set
in the data link startup node.
If incorrect data link tables or parameters are set, injury may
result due to unexpected operation of the system.
· Even if the correct data link tables or parameters have been
set, do not start or stop data links before verifying that there
will be no adverse influence on the system.
5-19
5-2 Connecting to the Host Using Controller Link
Setting Routing Tables
Routine tables that define the communications path from the local node to the network connected to the destination. Routine tables must be set for the following items.
· Local node
· All relay nodes that are included for the communication path from local node to the destination.
Make settings for routing tables on the NS-Designer. Refer to Section 7 System Settings in
the NS-Designer Operation Manual for details on setting routing tables. For details on setting
routing tables for the PLC, refer to the Controller Link Unit Operation Manual (W309).
5-20
5-2 Connecting to the Host Using Controller Link
Troubleshooting Using Indicators
The errors indicated by indicators on the Controller Interface Unit and remedies are explained
in this section.
RUN: Operating
ERC: Communications error
ERH: EEPROM Error
INS: Network participation
LNK: Data link
LNK
RD
SD
INS
ERH
ERC
Indicators
RUN
5-2-4
Troubleshooting with RUN, ERC, ERH, and INS Indicators
The RUN, ERC, ERH, and INS indicators can be used to check whether the Controller Link
Interface Unit and network participation are operating normally.
Note
·
·
·
·
Always turn OFF the power to the PT before performing any of the following operations.
Connecting/Disconnecting a Board or a connector.
Securing a Board or a connector.
Setting hardware switches.
Indicators
RUN ERC ERH
INS
Lit
Not lit Not lit Lit
Not lit Lit
-
-
Probable cause
The Unit operating normally.
Network participation normal.
Controller Link Interface Unit is
faulty.
Not lit Not lit Not lit Not lit Power is not being supplied to PT
normally.
The Controller Link Interface Unit
has become loose.
Controller Link Interface Unit is
mounted in the wrong slot.
Controller Link Interface Unit is
faulty.
Lit
Lit
-
Not lit The same node address is being
used in the same network.
Remedy
¾¾¾¾
If ERC indicator lights even after mounting
on another PT, replace the Controller Link
Interface Unit
Check the power supply voltage and supply
at the recommended voltage.
Secure the Controller Link Interface Unit
firmly.
Refer to 3-8 Installing Controller Link Interface Unit, and mount the Board correctly.
If indicators do not light when the Board is
mounted on another PT, replace the Controller Link Interface Unit
Reset so that each node address is used
only once within the same network.
5-21
5-2 Connecting to the Host Using Controller Link
Indicators
RUN ERC ERH
INS
Lit
Lit
-
Probable cause
Routing table setting error.
EEPROM error.
Lit
-
-
Not lit Terminating resistance is not set
correctly.
Cables are not connected correctly.
The node address is larger than the
maximum node address set for the
network parameters.
No other nodes exist.
Remedy
Remake and set the routing tables correctly, referring to Section 7 System Settings in the NS-Designer Operation Manual.
When the routing tables are not being used,
delete the routing tables.
Send a FINS command to the Controller
Link Interface Unit to read status, correct
the data where the error has occurred, and
reset the Board. If the error occurs again,
replace the Controller Link Interface Unit.
Turn ON the terminating resistance at the
nodes at both ends of the network and turn
it OFF at all other nodes.
Check the cable connections and reconnect
correctly.
Either reset the maximum node address
using Controller Link Support Software or
reset the node address to below the maximum.
Ensure that 2 or more nodes exist within the
Network.
Set the polling node using the CX-Server.
No nodes have been set as polling
node.
The set baud rate is different from Reset the baud rate for the Controller Link
other nodes.
in the System Settings of the NS-Designer.
Refer to Section 7 System Settings in the
NS-Designer Operation Manual.
5-22
5-2 Connecting to the Host Using Controller Link
Troubleshooting with LNK Indicator
- Data Links Cannot Be Started
The following table describes the LNK indicator and remedies when a data link cannot be
started.
Starting a data link depends on the Controller Link Interface Unit operating normally and participating in the network. Refer to Troubleshooting with RUN, ERC, ERH, and INS Indicators
earlier in this section and check operation before using the following table.
Indicator
LNK
Lit
Flashing
Not lit
Probable cause
Data link operating normally.
There is an error in the data link tables.
Remedy
¾¾¾¾
If ERH or ERR indicator is lit, reset the data link
tables.
When manual setting is used, either data link
Create the data link tables for the startup node
tables have not been created for the startup
using the CX-Server.
node or there is an error in the data link tables.
Manually set data links are already operating on
Set data link tables for the local node.
the same Network.
Stop the data links, review and set the parameters in the startup node's DM area, and
Automatically set data links are already operat- then restart.
The PT cannot be the startup node for autoing on the same Network.
matic settings. Settings must be performed at
Controller Link Unit on the PLC.
- Node Cannot Participate in Data Links
The following table describes the LNK indicator and remedies when a Node cannot participate in the data links.
Data link participation in the network depends on the Controller Link Interface Unit operating
normally and participating in the network. Refer to Troubleshooting with RUN, ERC, ERH, and
INS Indicators earlier in this section and check operation before using the following table.
Indicator
LNK
Lit
Flashing
Not lit
Probable cause
Data Link operating normally.
When manual setting is used, there is an error
in the data link table.
When manual setting is used, there are no Data
Link Tables set for the local node.
When automatic setting is used, the setup node
is not set to participate in the data links.
Remedy
¾¾¾¾
Reset data link tables using the CX-Server.
Set the data link tables for the local node.
Stop the data links, remake and set the parameters in the Startup node’s DM Area, and
then restart the data links.
Setting must be performed at PLC on the Controller Unit side, because the Controller Link
Interface Unit cannot be the startup node for
automatic settings. For details, refer to the
Controller Link Units Operation Manual.
5-23
Section 6
System Menu Operations
This section describes the methods for operating the System Menu.
This section also provides details on functions that are useful for NS-series PT applications and
for system maintenance.
6-1Operating Modes and System Menu.................................................................................... 6-3
6-1-1 Mode Configuration ................................................................................................. 6-3
6-1-2 System Menu Configuration..................................................................................... 6-3
6-1-3 Overview of Menu Items.......................................................................................... 6-4
6-1-4 Using the System Menu............................................................................................ 6-6
6-2Initializing Data ................................................................................................................... 6-8
6-2-1 Screen Data Area Format ......................................................................................... 6-8
6-2-2 Alarm/Event History Initialization ........................................................................... 6-9
6-2-3 Data Log Initialization............................................................................................ 6-10
6-2-4 Operation Log Initialization ................................................................................... 6-11
6-2-5 Error Log Initialization........................................................................................... 6-13
6-2-6 Language Selection ................................................................................................ 6-14
6-3PT Operating Settings........................................................................................................ 6-15
6-3-1 Start-up Wait Time ................................................................................................. 6-16
6-3-2 Screen Saver ........................................................................................................... 6-16
6-3-3 Key Press Sound..................................................................................................... 6-17
6-3-4 Buzzer Sound ......................................................................................................... 6-17
6-3-5 Backlight ................................................................................................................ 6-18
6-3-6 Calendar Check ...................................................................................................... 6-18
6-3-7 Contrast (NS7 Only)............................................................................................... 6-19
6-4Project Settings .................................................................................................................. 6-20
6-4-1 Project Title ............................................................................................................ 6-20
6-4-2 Number of Labels................................................................................................... 6-21
6-4-3 Initial Screen........................................................................................................... 6-21
6-4-4 Initial Label ............................................................................................................ 6-21
6-4-5 Alarm/Event History Recording Method ............................................................... 6-21
6-4-6 Data Log Recording Method .................................................................................. 6-21
6-4-7 Operation Log Recording Method.......................................................................... 6-22
6-1 Operating Modes and System Menu
6-4-8 Error Log Recording Method ................................................................................. 6-22
6-4-9 System Memory ..................................................................................................... 6-22
6-5Setting Passwords .............................................................................................................. 6-23
6-6Communications Settings .................................................................................................. 6-24
6-6-1 Communications Conditions .................................................................................. 6-24
6-6-2 Setting 1:1 NT Link................................................................................................ 6-25
6-6-3 Setting High-speed 1:N NT Links (Standard, High-speed).................................... 6-26
6-6-4 Setting Ethernet ...................................................................................................... 6-27
6-6-5 Setting the Controller Link Network ...................................................................... 6-28
6-6-6 Setting Bar Code Readers....................................................................................... 6-28
6-7Screen Data Check............................................................................................................. 6-30
6-8Special Screens .................................................................................................................. 6-31
6-8-1 Alarm History......................................................................................................... 6-32
6-8-2 Operation Log......................................................................................................... 6-33
6-8-3 Error Log ................................................................................................................ 6-34
6-8-4 Device Monitor....................................................................................................... 6-35
6-8-5 Communication Test .............................................................................................. 6-37
6-7-6 Video Configuration............................................................................................... 6-38
6-7-7 Version Display ...................................................................................................... 6-40
6-9Hardware Check ................................................................................................................ 6-41
6-9-1 LCD Check............................................................................................................. 6-41
6-9-2 Touch Switch Check............................................................................................... 6-42
6-10 Starting Operations .......................................................................................................... 6-43
6-2
6-1 Operating Modes and System Menu
6-1 Operating Modes and System Menu
The System Menu can be used to set various PT settings by operating the touch switches on
the screen. The following diagram shows the menu configuration in the System Menu. Refer
to 6-1-4 Using the System Menu for details on System Menu operations.
6-1-1
Mode Configuration
The NS-series PTs have the following operating modes.
Mode
System Menu :
Displays the System Menu, and sets each of the settings for the PT.
RUN mode:
Displays screens, allows data input, and communicates with each device.
TRANSFER mode: Data transfer with
NS-Designer:
Memory Card transfer :
ERROR mode:
6-1-2
Uploads and downloads screen data and
system programs between the NS-Designer
(computer) and PT.
Uploads and downloads screen data and
system programs via the Memory Card.
Fatal error:
Stops processing (operating) and displays error message.
Non-fatal error:
Continues processing (operating) without displaying error message.
System Menu Configuration
The System Menu items and functions are as follows:
System Menu
Initialize:
Initializes operation log, alarm/event histories, data log,
error log, and formats screen data and sets the system
language.
PT:
Sets the system startup waiting time, screen saver, key
press sound, buzzer, backlight, contrast (NS7 only), and
calendar check.
Project:
Displays the project title, number of labels, history recording method, and addresses allocated to the system
memory. Displays and sets the screen numbers displayed
at startup time.
Password:
Sets and changes passwords for permitting functional
object input.
Comm:
Sets the communications conditions for serial ports A and
B and for Ethernet and for Controller Link.
Data Check:
Checks the stored screen contents without communications.
Special Screen:
Displays the operation log, alarm history, error log, device
monitor, communication test, and version display, and
performs video configuration.
This function also starts external applications.
Hardware Check:
Performs a hardware check, such as checking that the
touch panel is operating properly.
6-3
6-1 Operating Modes and System Menu
6-1-3
Overview of Menu Items
The following tables show the eight menu items and provide an overview of their contents.
1. Initialize Data Tab
Item
Screen Data Area
Alarm/Event History
Data Log
Operation Log
Error Log
System language
Function
Formats project data, such as screen data.
Initializes alarm/event history data that has been generated during
operation.
Initializes the data log data that registers changes to the contents
of an address.
Initializes operation log data, such as that for functional object
operations and screen switching.
Initializes error log data that is generated by macro errors.
The language to display system menus, input keypads, error messages, etc., can be set to Japanese or English.
Page
P. 6-8
P. 6-9
P. 6-10
P. 6-11
P. 6-13
P. 6-14
2. PT Operation Settings Tab
Item
Start-up Waiting Time
Screen Saver
Screen Saver Start-up
Time
Key Press Sound
Buzzer Sound
Backlight
Calendar Check
Contrast (NS7 only)
Function
Sets the system startup waiting time. Communications are not
performed during this specified time when the power is turned ON
or the PT is reset. The default is 0 s.
Sets the screen saver to ON or OFF. The default setting is OFF.
Sets the amount of time after which the screen saver is started.
The default setting is 15 min.
Sets whether a sound will be heard when a touch switch is
pressed. The default setting is ON.
Sets whether a buzzer will be heard when a command from the
host is received or an error occurs. The default setting is ERR ON.
Sets the backlight brightness to one of three levels. The brightness cannot be adjusted much.
The default setting is High
Displays and sets the date and time for the internal clock.
Adjusts the screen contrast.
Page
P. 6-16
P. 6-16
P. 6-16
P. 6-17
P. 6-17
P. 6-18
P. 6-18
P. 6-19
3. Project Tab
Item
Project Title
Number of Labels
Initial Screen
Initial Label
Alarm/Event Recording
Method
Data Log Recording
Method
Operation Log Recording
Method
Error Log Recording
Method
System Memory ($SB)
System Memory ($SW)
6-4
Function
Displays the project title.
Displays the number of corresponding labels.
Sets and displays the screen numbers first displayed after the
power is turned ON.
Sets and displays the label number shown on the screen after the
power is turned ON.
Displays the method for recording the alarm/event histories.
Page
P. 6-20
P. 6-20
P. 6-20
P. 6-20
P. 6-20
Displays the method for recording the data log.
P. 6-20
Displays the method for recording the operation log.
P. 6-21
Displays the method for recording the error log.
P. 6-21
Displays the allocated addresses of the system bit memory ($SB). P. 6-21
Displays the allocated address of the system word memory ($SW). P. 6-21
6-1 Operating Modes and System Menu
4. Password Tab
Item
Level 1
Level 2
Level 3
Level 4
Level 5
Function
Changes the level 1 password.
Changes the level 2 password.
Changes the level 3 password.
Changes the level 4 password.
Changes the level 5 password.
Page
P. 6-23
P. 6-23
P. 6-23
P. 6-23
P. 6-23
Function
Selects whether automatic recovery is used when a communications error occurs.
Sets and displays the timeout monitor time.
Sets and displays the number of communications retries.
Sets and displays whether serial port A is used, the communications method, and other details.
Sets and displays whether serial port B is used, the communications method, and other details.
Sets and displays whether Ethernet is used and communications
details.
Sets and displays whether Controller Link is used and communications details.
Page
P. 6-24
5. Comm Tab
Item
Comms. Auto-return
Timeout internal
Retry Counts
Serial Port A
Serial Port B
Ethernet
Controller Link
P. 6-24
P. 6-24
P. 6-25
P. 6-25
P. 6-27
P. 6-28
6. Data Check Tab
Item
Screen Number
Show Address
Function
Sets the screen number that is displayed as a sample.
Displays the communications addresses set for the sample display.
Page
P. 6-30
P. 6-30
Function
Displays the alarm history screen.
Displays the screen for recording the operation log.
Displays the screen for recording the error log.
Displays the device monitor screen and communications test
screen. This function also starts external applications and performs Video Configuration.
Displays the version display screen.
Page
P. 6-32
P. 6-33
P. 6-34
P. 6-35
7. Special Screen Tab
Item
Alarm History
Operation Log
Error Log
Special Functions
System Version
P. 6-40
8. Hardware Check Tab
Item
LCD Check
Touch Switch Check
Function
Checks the LCD.
Checks the touch switches.
Page
P. 6-41
P. 6-42
6-5
6-1 Operating Modes and System Menu
6-1-4
Using the System Menu
Information on using the menus, such as displaying the System Menu, and selecting menu
items, is provided here.
Reference The system settings set in the project data are given priority over those set in the System Menu.
@ Displaying the System Menu
The System Menu can be displayed in four ways, as follows:
1.
2.
3.
4.
Press two of the four corners of the touch panel.
Press the command button in the System Menu display.
Press a command button set to switch the screen to the system menu.
Specify screen number 4002 and switch the screen.
1. Pressing the Corners of the Touch Panel
The System Menu can be displayed by pressing two of the four corners of the PT touch panel
simultaneously, as shown in the following diagram.
When pressing the corners of the touch panel, however, first press a corner that does not
have a functional object displayed. If the position of a functional object is pressed, its function
will be performed. If the command button for switching screens is kept pressed after the
screen has been switched, it will be detected as if the button has been released.
The second corner pressed can be any of the other three corners. The System Menu will be
displayed even if functional objects are displayed.
2. Pressing the Command Button in the System Menu
While creating screens, if a command button for displaying the System Menu is created in the
screen, the System Menu can be displayed by pressing this command button.
3. Pressing Command Buttons to Switch Screens
The Screen Switch command button functions include a Indirect Specification of Screen No.
function. Store the BCD value 4002 in the communications address for indirect specification
and press the command button.
6-6
6-1 Operating Modes and System Menu
Refer to 2-9 Buttons in the Programming Manual for information on command buttons.
4. Storing 4002 in $SW0 (in System Memory)
A value of 4002 can be stored in $SW0 (in System Memory). Refer to 2-4 System Memory in
the NS Series Programming Manual for information on the system memory.
@ Selecting Menu Items
Items in the System Menu can be displayed by simply pressing the tab of the menu item to be
displayed.
Example: Press the Hardware Check Tab in the System Menu to display the Hardware
Check Screen.
Select the tab.
@ Switching to RUN Status from the System Menu
Press the Exit Button to return to RUN mode.
6-7
6-2 Initializing Data
6-2 Initializing Data
The PT can be initializes for the following data and the system language can be specified. Initialize the PT whenever necessary.
• Screen data area format
• Alarm/event history initialization
• Data log initialization
• Operation log initialization
• Error log initialization
6-2-1
Screen Data Area Format
This function formats the PT screen data. Screen data must be formatted if it is corrupted and
cannot start up properly. The data recorded for the operation log, alarm history, data log, and
error log is not initialized when screen data is formatted.
Note
Before formatting screen data, check that the screen data has been backed up from the NSDesigner.
Format the screen data by using operations from the Initialize Data Tab Page in the System
Menu, as follows:
6-8
6-2 Initializing Data
1.
Press the Screen Data Area Button.
A confirmation message will be displayed. Press the Yes Button to format the data. Press the
No Button to cancel the initialize function.
The NS7 finishes formatting instantly.
2.
When the PT has completed formatting screen data, a dialog box will be displayed indicating
that the screen data has finished being formatted.
3.
An error message will be displayed if the System Menu is closed while screen data is being
formatted. Always transfer the screen data from the NS-Designer or Memory Card after formatting.
Reference
6-2-2
• The PT must be restarted after screen data has been transferred.
Alarm/Event History Initialization
This function initializes the alarm/event histories saved in the PT.
Use this function when screen data has been changed, or for initializing history data.
While the PT is running, the alarm/event histories continually check the status of bits registered as alarms/events and record the date, time, and number of times the bits turned
ON/OFF.
Up to 1,024 alarms/events can be recorded.
Reference
• The alarm/event histories can also be initialized by turning ON $SB32 in system
memory from the host.
• The alarm/event histories will be deleted when project data or system programs are
downloaded.
Initialize alarm/event histories by using operations from the Initialize Tab Page in the System
Menu, as follows:
6-9
6-2 Initializing Data
6-2-3
1.
Press the Alarm/Event History Button.
A confirmation message will be displayed. Press the Yes Button to initialize the data. Press the
No Button to cancel the initialize function.
2.
When the PT has completed initializing the alarm/event histories, a dialog box will be displayed
indicating that the alarm/event histories have finished being initialized.
Data Log Initialization
This function initializes the data log saved in the PT.
Use this function when screen data has been changed, or for initializing history data. The
data log is used to record changes over time to the contents of an address that is registered
in the log.
Up to 1,000 events can be recorded for each address.
Reference
• The data log can also be initialized by turning ON $SB35 in system memory from the
host. Refer to 2-4 System Memory in the PT Programming Manual for details.
• The data log will be deleted when project data or system programs are downloaded.
Initialize the data log by using operations from the Initialize Tab Page in the System Menu, as
follows:
6-10
6-2 Initializing Data
1. Press the Data Log Button.
A confirmation message will be displayed. Press the Yes Button to initialize the data. Press the
No Button to cancel the initialize function.
2. When the PT has completed initializing the data log, a dialog box will be displayed indicating that
the data log has finished being initialized.
6-2-4
Operation Log Initialization
This function initializes the operation log saved in the PT.
Up to 1,024 operations can be recorded in order of occurrence.
Use this function when screen data has been changed, or for initializing log data.
The operation log is used to record number of times the following operations are performed
and the order in which they occur.
• Functional object operation history
• Screen display history
• Macro execution history
Refer to 2-4 System Memory in the PT Programming Manual for details.
Reference
• The functional objects that can be recorded are ON/OFF buttons, word buttons, Numeral Display & Input, String Display & Input, and thumbwheel switches.
• The operation log data can also be initialized by setting the system bit memory address $SB37 to ON from the host. Refer to 2-4 System Memory in the PT Programming Manual for details.
• The operation log will be deleted when project data or system programs are downloaded.
6-11
6-2 Initializing Data
Initialize the operation log by using operations from the Initialize Tab Page in the System
Menu, as follows:
6-12
1.
Press the Operation Log Button.
A confirmation message will be displayed. Press the Yes Button to initialize the data. Press the
No Button to cancel the initialize function.
2.
When the PT has completed initializing the operation log, a dialog box will be displayed indicating that the operation log has finished being initialized.
6-2 Initializing Data
6-2-5
Error Log Initialization
This function initializes the macro error history saved in the PT.
Up to 100 errors can be recorded in the error log. The number of errors that can be recorded,
however, also depends on the free space in the memory.
The error log records the errors that occur when the macro function is executed. Initialize the
error history by using operations from the Initialize Tab Page in the System Menu, as follows:
1. Press the Error Log Button.
A confirmation message will be displayed. Press the Yes Button to initialize the data. Press the
No Button to cancel the initialize function.
2. When the PT has completed initializing the error log, a dialog box will be displayed indicating
that the error log has finished being initialized.
Reference The error log is deleted when project data or system programs are downloaded.
6-13
6-2 Initializing Data
6-2-6
Language Selection
The system language can be set to either Japanese or English. The system language will be
used on the system menu, input keypads, message dialog boxes, etc, on the PT.
The system language is set from the Initialize Tab Page in the System Menu Window using
the following procedure.
1. Select either Japanese or English in the Select Language Area.
2. After specifying the language, click the Write Button. The system language will be
switched after the new setting has been saved.
Reference
If ASCII codes are set as the character display format for String Display & INPUT, list
display, or data block tables (character fields), the following character codes will be
used depending on the system language that is set.
System Language
Character display
Japanese
English
Shift-JIS code
Latin 1code
Example (character
code B5)
µ
The above codes will also be used when indirect specifications are made for label
strings for label objects.
6-14
6-3 PT Operating Settings
6-3 PT Operating Settings
The PT Tab Page is used to set the following functions.
• Start-up wait time
• Screen saver
• Key press sound
• Buzzer sound
• Backlight
• Contrast (NS7 only)
• Calendar check
PT Tab Page for the NS12
PT Tab Page for the NS10 and NS7
(NS10 has no contrast adjustment.)
6-15
6-3 PT Operating Settings
6-3-1
Start-up Wait Time
The start-up wait time refers to the waiting time before the PT starts communicating with the
host after the PT power is turned ON or the PT is reset Set the system startup waiting time
when the host requires time before it starts running.
The setting range is between 0 and 10 s and the default is 0 s.
Set the system startup waiting time by using operations from the PT Tab Page in the System
Menu, as follows:
1. Set the waiting time in the Start-up Wait Time field in second units.
Input the value in the dialog box that is displayed by pressing the setting input column.
2. After setting, press the Write Button to save the setting.
Reference • Nothing is displayed during the system startup waiting time.
• The system startup waiting time is calculated from when initialization finishes.
Therefore, if the startup waiting time is set to 0 s, the PT will not start actual communications with the host immediately after the power is turned ON.
6-3-2
Screen Saver
To extend the life of the backlight, the screen saver function turns OFF the screen display
when operations are not performed for a fixed period of time.
The default setting is for no screen saver.
The time before the screen saver function is activated can be set in one-minute units between
1 and 255 minutes. The default setting is 15 min.
Set the screen saver movement by using operations from the PT Tab Page in the System
Menu, as follows:
6-16
6-3 PT Operating Settings
1. Select either OFF or Display Erased for the screen saver.
2. If Display Erased is selected, set the screen saver startup time.
Input the value in the dialog box that is displayed by pressing the setting input column.
3. After setting, press the Write Button to save the setting.
Reference Pressing any part of the touch panel will cancel the screen saver and display the previously displayed screen. When canceling the screen saver, If the part of the touch panel
corresponds to the input for a functional object, the screen saver will be cancelled only.
The input for the functional object will not be processed.
6-3-3
Key Press Sound
This function sets whether an input sound is heard when the touch switches that allow input
functions for the PT are pressed.
ON:
Input sound is heard when the touch switches that allow input functions for the
PT are pressed.
OFF: Input sound is not heard when the touch switches that allow input functions for
the PT are pressed.
The default setting is ON.
1. Select either ON or OFF for the touch switch input sound.
2. After setting, press the Write Button to save the setting.
6-3-4
Buzzer Sound
The buzzer is used at times such as when a command from the host is received or an error
occurs. This function is set to ON or OFF in the System Menu.
ON:
Buzzer turns ON when a command is received from the host or an error
occurs.
OFF:
Buzzer is OFF.
ERR ON: Buzzer turns ON when an error occurs only.
The default setting is ERR ON.
6-17
6-3 PT Operating Settings
Reference • Other commands and settings associated with the buzzer exist, but the settings here
have the highest priority.
• When the buzzer is set to ON or ERR ON, the buzzer will be heard when messages
are displayed with a cross (X) or exclamation mark (!) icon.
• Refer to 2-17 Special Functions in the Programming Manual for details on the buzzer
function.
Set the buzzer to ON/OFF by using operations from the PT Tab Page in the System Menu, as
follows:
1. Select either ON, OFF, or ERR ON for the buzzer setting.
2. After setting, press the Write Button to save the setting.
6-3-5
Backlight
This function sets the backlight brightness to one of three levels.
The default setting is high.
Set the brightness of the backlight by using operations from the PT Tab Page in the System
Menu, as follows:
1. Select one of the three backlight brightness levels to set to high, middle, or low.
2. After setting, press the Write Button to save the setting.
6-3-6
Calendar Check
This function displays the time and date of the PT’s internal system clock.
The factory settings for the date and time are not correct.
Set and display the date and time by using operations from the PT Tab Page in the System
Menu, as follows:
1. The currently set date and time will be displayed in the Date and Time Setting field.
2. To change the date/time, set the date/time in the dialog box that is displayed by pressing the
date and time field.
6-18
6-3 PT Operating Settings
• Use the following input format to set the date:
yyyy.mm.dd (yyyy: year, mm: month, dd: day)
Set the year using four digits.
Example: Set March 15, 2002 as 2002.3.15. (Adding 0 prefix to single-digit settings is not required.)
• Use the following input format to set the time.
hh.mm.ss (hh: hour, mm: minute, ss: second)
Set the year using the 24-hour clock.
Example: Set 06:01:01 p.m. as 18.1.1. (Adding 0 prefix to single-digit settings is not required.)
3. Press the Enter Button to enable the settings.
6-3-7
Contrast (NS7 Only)
This function adjusts the screen contrast. Contrast can be adjusted in 100 degrees.
Adjust the contrast by using operations from the PT Tab Page in the System Menu, as follows:
1. Change the contrast setting using the left and right arrow buttons (<<, <, >, >>) for contrast adjustment. The contrast will change as soon as the buttons are pressed.
<< Button: Decreases the contrast by ten degrees.
< Button: Decreases the contrast by one degree.
> Button: Increases the contrast by one degree.
>> Button: Increases the contrast by ten degrees.
Check the contrast from the sample display of eight shades above the arrow buttons.
6-19
6-4 Project Settings
6-4 Project Settings
The Project Tab Page is used to display and set the following functions.
• Project title
• Number of labels
• Initial screen
• Initial label
• Alarm/event history recording method:
Method for recording log of generated and deleted alarms/events.
• Data log recording method:
Method for recording log of changes to addresses.
• Operation log recording method:
Method for recording log of functional object operations, screen switching, and macro executions.
• Error log recording method:
Method for recording log of macro execution errors.
• System memory:
The addresses allocated in system memory will be displayed.
6-4-1
Project Title
This function displays title of projects that are registered in the PT.
The title is read-only and cannot be edited.
6-20
6-4 Project Settings
6-4-2
Number of Labels
Multiple label data can be created in each project. This function displays the number of labels
set for the project that is registered in the PT.
The number of labels is read-only and cannot be edited.
Reference • Refer to 3-9 Project Properties in the NS-Designer Operation Manual for information
on setting multiple labels for a project.
• Refer to Labels in 2-8 Common Functional Object Functions in the Programming
Manual for information on how to set multiple labels for a functional object.
6-4-3
Initial Screen
This function displays and sets the screen number of the screen that is first displayed when
the PT is started.
Display and set the initial screen number by using operations from the Project Tab Page in
the System Menu, as follows:
1. The number of the screen that is displayed when the PT is started is displayed in the initial
screen field.
2. To change the initial screen number, input the value using the tenkey, which is displayed by
pressing the display area.
3. After setting, press the Write Button to save the setting.
Reference The initial screen number can also be set from the NS-Designer.
6-4-4
Initial Label
This function displays and sets the label number that is shown on the screen when the PT is
started.
Reference This initial label number can also be set from the NS-Designer.
6-4-5
Alarm/Event History Recording Method
This function displays the method for recording the alarm/event histories. The alarm/event
history recording method is read-only and cannot be edited.
This alarm/event history recording method is set from the NS-Designer.
If a ring buffer is used, when the specified number of records is exceeded, the oldest data is
deleted and the new data is recorded.
If the ring buffer is not used, the PT stops collecting history data when the specified number
of records has been reached. Initialize the alarm/event histories to reopen the history records.
Reference Refer to 6-2-2 Alarm/Event History Initialization for details on initializing the alarm/event
histories.
6-4-6
Data Log Recording Method
This function displays the data log recording method.
The data log recording method is read only and cannot be edited.
The use of a ring buffer for the data log recording method is fixed.
6-21
6-4 Project Settings
When the specified number of log entries is exceeded, the oldest data is deleted and the new
data is recorded.
Use the NS-Designer to set the number of log entries.
Reference Refer to 6-2-3 Data Log Initialization in this manual and Data Log Function in 2-18 Special Functions in the Programming Manual for details on the data log.
6-4-7
Operation Log Recording Method
This function displays the method for recording the operation log. The operation log recording
method is read only and cannot be edited. This operation log recording method is set from the
NS-Designer.
If Save in Ring Buffer Format is set, when the specified number of items is exceeded, the
oldest data is deleted and the new data is recorded.
If the log is not saved in ring buffer format, the PT stops collecting log data when the specified
number of items has been reached. Initialize the operation log to reopen the record.
Reference Refer to 6-2-4 Operation Log Initialization in this manual and Operation Log Function in
2-18 Special Functions in the Programming Manual for details on the operation log.
6-4-8
Error Log Recording Method
This function displays the error log recording method. The error log recording method is read
only and cannot be edited. The use of a ring buffer for the error log recording method is fixed.
When the maximum number of items is exceeded, the oldest data is deleted and the new
data is recorded.
Reference Refer to 6-2-5 Error Log Initialization in this manual and Error Log Function in 2-18 Special Functions in the Programming Manual for details on the error log.
6-4-9
System Memory
The system memory is used to control the PT and exchange information between the host
and the PT, such as notifying the host of PT status. The system memory can be allocated to
host addresses or to PT memory.
Allocating the system memory as host addresses allows operations such as controlling the
PT from the host. The allocated location in the host is displayed in the System Memory and
cannot be edited.
The location where the system bit memory and system word memory is allocated (allocated
host and address) is displayed in the System Bit Memory ($SB) and System Word Memory
($SW).
Reference Refer to 2-4 System Memory in the PT Programming Manual for details on the system
memory.
6-22
6-5 Setting Passwords
6-5 Setting Passwords
NS-series PTs can be set to request a password for operating functional objects. The passwords are set from the NS-Designer and up to five passwords can be set for a single project.
The passwords cannot be changed from the System Menu.
Change passwords using the following procedure from the System Menu.
1. Select the Password Tab.
2. Select the password to be changed using the Level 1 to Level 5 Buttons.
3. Input the old password and new password in the corresponding fields, and then input the new
password again in the confirmation field. Input the password using the virtual keyboard (text input dialog box) that is displayed by pressing the input column.
4. After changing the password, press the Write Button to save the setting. Save separately for
each password level that is changed.
Note
When changing passwords, do not reset the PT or turn OFF the power until the write operation has been completed (i.e., the Write Button has returned to the status before being
pressed). If the password is not saved properly, the screen may malfunction.
If the password is forgotten, it cannot be checked from the PT. Check the password using
the NS-Designer.
6-23
6-6 Communications Settings
6-6 Communications Settings
The methods for setting the communications conditions with the host are described here.
6-6-1
Communications Conditions
Set the communications conditions by using operations from the Comm Tab Page in the
System Menu, as follows:
After inputting the communications conditions, press the Write Button to save the settings.
Changed settings are enabled after the PT is restarted.
@ Communications Conditions Setting Items
The setting items for the communications conditions between the PT and host are as follows:
• Communications Auto-return
Select whether or not to use communications auto-return using the ON and OFF Buttons.
ON:
The PT will automatically return to RUN mode when a communications error occurs, without displaying an error message dialog box.
OFF:
The PT will stop running when a communications error occurs and an error message dialog box will be displayed. Press the OK Button in the error message
dialog box to return to RUN mode. The default setting is OFF.
• Time-out Interval
Set the time before a timeout error occurs when a response is not received from the host. The
timeout interval can be set to between 1 and 10 (unit: s). Input the value by using the tenkey
or the Up ( ) and Down ( ) buttons that are displayed by pressing the display area.
The default setting is 3 s.
• Retry Counts
Set the number of retries for communications before an error screen will be displayed, when a
communications error occurs while communicating with the host. If communications are un-
6-24
6-6 Communications Settings
successful after the number of communications retries specified here have been executed,
processing set for the communications auto return will be executed. The number of retries
can be set to between 0 and 255 times. Input the value by using the tenkey or the Up ( )
and Down ( ) buttons that are displayed by pressing the display area.
The default setting is 5 retries.
• Port Communications Method and Communications Type
Set the communications method for serial ports A and B, for Ethernet and for Controller Link. The
right half of the screen will change according to the settings.
Reference To change the communications method for another port, the Write Button must be
pressed before continuing. The settings will not be saved if the communications method
is switched without pressing the Write Button.
@ Supported Communications Method Combinations
Serial ports A and B cannot be used at the same time as a Bar Code Reader.
Serial ports A and B, Ethernet and Controller Link can be used in any combination with other
communications methods.
Serial ports A and B, Ethernet and Controller Link, however, cannot be all used simultaneously (except when using a Bar Code Reader).
Reference Serial ports A and B, Ethernet and Controller Link can be set to be used simultaneously,
but proper operations cannot be guaranteed (except when using a Bar Code Reader).
Therefore, do not set all the ports to be used simultaneously.
6-6-2
Setting 1:1 NT Link
Select the Comm Tab from the System Menu, and press the NT Link 1:1 Button as the
communications method for serial port A or B.
After setting, press the Write Button to save the setting.
6-25
6-6 Communications Settings
When 1:1 NT Link is selected, there are no details settings.
6-6-3
Setting High-speed 1:N NT Links (Standard, High-speed)
Select the Comm Tab from the System Menu, and press the NT Link 1:N Button as the
communications method for serial port A or B.
The setting items for high-speed 1:N NT Links will be displayed on the right side of the
screen. Set the unit number and communications speed.
After setting, press the Write Button.
• Communications Conditions for 1:N NT Links
Setting item
Unit number
Communications Speed
6-26
Function
Sets the unit number.
Sets the baud Communications speed.
Settings
0 to 7
Standard, high-speed
6-6 Communications Settings
Reference
The unit number is the number used by the host to identify each PT when more than
one PT is connected to a single host.
The unit numbers that can be set depend on the type of host used, as follows:
• C200HE(-Z):
Unit numbers 0 to 3 (up to four PTs for each port of the host)
• C200HG(-Z), C200HX(-Z), CS1G/H, CS1G/H-H, CQM1H, CJ1G, and CJ1G/H-H:
Unit numbers 0 to 7 (up to eight PTs for each port of the host)
Refer to 4-2 1:N Connection to the Host for the host settings.
6-6-4
Setting Ethernet
To use Ethernet, select the Comm Tab from the System Menu and press the Enable Button.
The setting items for Ethernet will be displayed on the right side of the screen. Display and
set the network address, node address, IP address, subnet mask, and default gateway. Display the MAC address and IP address table display.
After setting, press the Write Button.
• Setting Ethernet Communications Conditions
Setting item
Network Add.
Node Add.
IP address
Sub-net
Default gateway
MAC address
Function
Sets the network address used for
Ethernet communications.
Sets the local node address.
Sets the local IP address.
Sets the subnet mask of the local node.
Sets the IP router.
Displays the MAC address (devicespecific information to identify each device connected to the network.)
IP address table display
Displays the node number and IP address of other nodes connected to
Ethernet.
Note: Do not set the following values for the IP address.
Host ID with all bits set to 0 or 1 (e.g., 192.168.21.0).
Net ID with all bits set to 0 or 1 (e.g., 255.255.21.16).
Subnet ID with all bits set to 1 (e.g., 192.168.255.16).
IP addresses that begin with 127 (e.g., 127.35.21.16).
Settings
1 to 127
0 to 126
0.0.0.0 to 255.255.255.255
(See note.)
0.0.0.0 to 255.255.255.255
0.0.0.0 to 255.255.255.255
Read-only.
Read-only.
6-27
6-6 Communications Settings
6-6-5
Setting the Controller Link Network
If using a Controller Link Network is enabled for the project, settings for the network will be
displayed on the right side of window. Set the node address and baud rate (Comm. Speed).
Click the Write Button after setting these items. The Controller Link is supported by the NS12 and NS10 PTs
only, and is not supported by the NS7 PTs.
・Setting Communications Conditions for the Controller Link Network
Item
Network Add.
Function
Setting
Displays the network address used Display only
for Controller Link.
Node Address
Sets the local node address.
1 to 32
Comm. Speed
Sets the baud rate.
500K, 1M, or 2M
Read Status
Displays whether Controller Link status is read (display only).
Read Allocation Add. Displays address where status is read (display only).
Note: Using the Controller Link network and the network number cannot be changed at the PT. If you
change the setting, select System Setting on NS-Designer, change the setting, and then
transfer the project to the PT.
6-6-6
Setting Bar Code Readers
The PT has a Bar Code Reader input function allowing input of barcode data as character
strings in the String Display & Input object.
The methods for setting the communications conditions with the Bar Code Reader are described here.
Reference • Refer to 3-4 Connecting to Bar Code Readers for information on methods for connecting Bar Code Readers.
• The Bar Code Reader can be connected to either serial port A or serial port B only.
Set the communications conditions and confirmation method for the Bar Code Reader using
the following procedure from the System Menu.
6-28
6-6 Communications Settings
Set the Bar Code Reader’s communications method for serial port A or serial port B.
The setting items for the Bar Code Reader will be displayed on the right side of the screen. Set
the Communications speed, data bits, stop bits, parity, and input method.
After setting, press the Write Button to save the settings.
• Setting Communications Conditions for Bar Code Reader Mode
Setting item
Communication speed
Data bits
Stop bits
Parity
Input method
Function
Sets the Communications speed for
communications with the Bar Code
Reader.
Sets the data bit length.
Sets the data stop bit length.
Sets the data parity bits.
Sets the confirmation method used after
inputting data in the input column.
Settings
4800, 9600, or 19200 (bps)
7 or 8 bits
1 or 2 bits
None, odd, or even
Auto or manual confirmation
6-29
6-7 Screen Data Check
6-7 Screen Data Check
Registered screens (numbers 0 to 3,999) can be displayed and checked using operations
from the System Menu.
Reference · The screen displayed when checking screen data is a sample and cannot be used to
communicate with the host. The flicker function is also disabled.
· Only the user screens (0 to 3,999) can be displayed. System screens cannot be displayed.
Display check screens by using the following procedure from the System Menu.
1. Select the Data Check Tab.
2. Set the screen number and press the Display Button to display the screen as a sample.
3. Press the ON Button next to the Show Address heading and display the sample screen to display the set address instead of the functional object label.
4. Press any part of the sample screen that is displayed to return to the Screen Data Check
Screen.
Reference Addresses are not displayed for data block tables.
6-30
6-8 Special Screens
6-8 Special Screens
These screens are used to display the data histories, device monitor, communications test,
and version information.
Item
Alarm history
Operation log
Error log
Special function
Function
Displays the alarm history.
Displays the operation log.
Displays the error log.
Performs the following special functions.
Switches PLC operating modes, displays and changes specified PLC addresses, and displays and deletes PLC error data.
Refer to 6-8-4 Device Monitor for information on how to display the Device
Device monitor
Monitor Screen.
Refer to Device Monitor in 2-18 Special Functions in the Programming
Manual for details on the device monitor.
Communications test Checks the PT communications functions.
Video Configuration Performs video configuration.
External applications Starts external applications.
System Version
Displays information on the PT version.
Details on how to use the functions are explained here.
6-31
6-8 Special Screens
6-8-1
Alarm History
This function displays the alarm history. The alarm history can be displayed in order of occurrence or frequency.
Display alarm history data by using operations from the Special Screen Tab Page in the
System Menu, as follows:
1. Press the Alarm History (Sort by Occurrence) Button or Alarm History (Sort by Frequency)
Button to display the history contents.
2. Press the Back Button to return to the Special Screen.
Reference Refer to Alarm/Event History in 2-18 Special Functions in the Programming Manual for
details on the alarm history function.
6-32
6-8 Special Screens
6-8-2
Operation Log
This function displays the operation log. The operation log can be displayed in order of occurrence or frequency.
Display operation log data by using operations from the Special Screen Tab Page in the System Menu, as follows:
1. Press the Operation Log (Sort by Occurrence) Button or Operation Log (Sort by Frequency)
Button to display the operation log contents.
2. Press the Back Button to return to the Special Screen.
Reference
Refer to 6-2-4 Operation Log Initialization in this manual and Operation Log in 2-18
Special Functions in the Programming Manual for details on the operation log.
6-33
6-8 Special Screens
6-8-3
Error Log
This function displays the macro error history. Macro errors can be displayed in order of occurrence or frequency.
Display error log data by using operations from the Special Screen Tab Page in the System
Menu, as follows:
1. Press the Error Log (Sort by Occurrence) Button or Error Log (Sort by Frequency) Button to
display the error log contents.
2. Press the Back Button to return to the Special Screen.
Reference
6-34
Refer to 6-2-5 Error Log Initialization in this manual and Error Log in 2-18 Special
Functions in the Programming Manual for details on the error log.
6-8 Special Screens
6-8-4
Device Monitor
The device monitor is an expansion function of the PT. This function is supported by CPM1A,
CPM2A, CPM2C, CQM1, CQM1H, C200HS, C200HX/HG/HE(-Z), CS1G/CS1H-H, and CJ1G
PLCs.
The device monitor has the following functions.
· Switches the PLC operating modes.
· Displays, changes, and performs force-sets/resets of current values in specified addresses
(registered monitor).
· Displays a list of the current values (continuous monitor) in consecutive addresses (DM,
EM, and WR Area words).
· Displays PLC error information (error logs) and deletes the errors (error information).
Details on methods of opening the Device Monitor Screen are explained here. Refer to Device Monitor in 2-18 Special Functions in the Programming Manual for details on the function
and operation methods.
Note
Always check carefully that the system is safe before performing the following operations using the device monitor.
· Changing the monitor data and timer/counter current values.
· Switching operating modes.
· Performing force-sets/resets
· Changing timer/counter set values.
6-35
6-8 Special Screens
The Device Monitor Screen is displayed by using operations from the Special Screen Tab
Page from the System Menu, as follows:
1. Select Device Monitor from the Special Functions List box, and press the START Button.
2. The Device Monitor Screen will be displayed.
3. Press the Quit Button to return to the Special Screen.
6-36
6-8 Special Screens
6-8-5
Communication Test
This function checks whether communications are enabled, by performing simple communications.
Display the Communication Test Screen by using operations from the Special Screen Tab
Page in the System Menu, as follows:
1. Select Communication Test from the Special Functions List Box, and press the START Button.
2. Press the Communication Test Button to switch to the Communications Test Screen.
3. Set each of the setting items, as follows:
6-37
6-8 Special Screens
· Setting and Display Items in Communication Test Screen
Item
Send to
Send message
Number of
sends
Receive Timeout
Details
Sets the address of the transmission destination in the format (network address).(node address).(unit number).
Sets the following addresses when performing a communications test for a node
connected to serial port A or B.
Serial port A: 111.1.0
Serial port B: 112.1.0
Sets the FINS command being to be sent.
Displays the number of times messages are transmitted. The number of times is
fixed to 1.
Sets the time before the message timeout occurs. Displays an error message
when the timeout time is exceeded after transmission.
The setting time is applicable for Ethernet only. For serial communications, the
timeout monitor time set from the Comm Tab is used.
4. Press the Start Button to start transmission.
The sending indicator will remain lit until the transmission is completed.
After transmission, the Receiving indicator will remain lit until reception is completed.
5. If communications are normal, a response will be received from the transmission destination and
the following items will be displayed. Refer to the FINS Command Reference Manual (W227) for
details on FINS commands and information displayed in comments.
· Display Items in Communication Test Screen
Item
SID (See note 1.)
Details
The SID used for transmission is displayed as a hexadecimal.
The SID is incremented between 0 and 0xFF and returns to 0 after 0xFF is
exceeded.
Received header
Displays the FINS header that is received. (See note 2.)
Received message Displays the received message.
ms
Displays the time lapsed in ms from sending the FINS command until receiving the FINS response.
Comment
Displays the status, such as “normal completion,” according to the completion code after reception.
Note 1. SID is the source process ID.
2. The FINS header is the header that precedes the FINS command.
Refer to the FINS Command Reference Manual (W227) for details on FINS commands.
6. Press the Back Button to return to the Special Screen.
6-8-6
Video Configuration
A Video Input Unit can be mounted to the NS12 and NS10 to display images on the PT by
connecting video devices. The user can adjust the image and output signals to a Vision Sensor from this window.
This section describes only the procedure for opening the window. For details, refer to 2-1810 Video Configuration in the NS Series Programming Manual.
The Video Configuration Window can be access by selecting the System Menu and clicking
the Special Screen Tab as shown below.
6-38
6-8 Special Screens
1. Select Video Configuration from the list under Special Function, and click the Start
button.
The Video Configuration Window will be displayed.
2. Press the Back Button to return to the Special Window.
Reference
Press the Write Button to save the adjustments to the displayed image.
When starting the PT next time, the saved settings for the adjustments will be automatically reflected on the display.
6-39
6-8 Special Screens
6-8-7
Version Display
This function displays information on the PT version.
Display the Version Display Screen by using operations from the Special Screen Tab Page
in the System Menu, as follows:
1. Press the System Version Button to switch to the Version Display Screen.
2. The product model and version will be displayed.
3. Press the Back Button to return to the Special Screen.
6-40
6-9 Hardware Check
6-9 Hardware Check
The hardware check is used to check the following functions.
Item
LCD check
Touch switch check
6-9-1
Function
Checks the LCD.
Checks touch panel input.
LCD Check
This function checks whether the LCD (screen display) is operating normally.
Check the LCD by using operations from the Hardware Check Tab Page in the System Menu,
as follows:
1. Press the LCD Check Button to switch to the LCD Check Screen.
2. Press the Back Button to return to the Hardware Check Screen.
6-41
6-9 Hardware Check
6-9-2
Touch Switch Check
This function checks whether the touch switches are operating normally.
Check the touch panel by using operations from the Hardware Check Tab Page in the System
Menu, as follows:
1. Press the Touch Switch Check Button to switch to the Touch Switch Check Screen.
2. Press the screen. If the part of the screen touched is shown in inverse display, the touch switch
is operating normally.
The position touched
is shown in inverse
display.
3. Press the button in the top right corner to return to the Hardware Check Screen.
Reference Two points cannot be touched at the same time on the Touch Panel Check Screen.
6-42
6-10 Starting Operations
6-10 Starting Operations
The host and PT connected to it start operating after the project data has finished being
transferred and the System Menu settings (communications conditions with the host, etc.)
have been completed.
Note
Start actual operation only after sufficiently checking the operation of the screen data and
host programming.
@ Switching to RUN Mode and Starting Up
Pressing the Exit Button at the top right of the screen in the System Menu will display the
screen that was displayed before moving to the System Menu, change the status to RUN
mode, and start running the PT. The pop-up screens that were open before switching to the
System Menu, however, will not be displayed.
Reference The error message indicating a project read error will be displayed if the System Menu
is closed while screen data is being initialized. Always transfer the screen data from the
NS-Designer or Memory Card after initializing screen data.
@ Checking Communications with the Host
Execute the host program and check that the following operations are normal.
· Check that the PT screens will switch according to the host program.
If the screen displays cannot be switched normally, check whether the PT and host are
connected properly, and whether the hardware settings are correct. For details, refer to
Section 4 Connecting the Host to the Serial Port or Section 5 Connecting to Host via
Ethernet or Controller Link.
· Use the Support Software (CX-Programmer, etc.) to display the details on words and bits to
check that the results of PT button operations and numerical/character string input operations have been properly transmitted to the host.
· If the operation results are not transmitted to the host properly, check the object settings.
Refer to the object descriptions in the PT Programming Manual for details on object settings.
6-43
6-10 Starting Operations
@ Communications Not Established with Host
Use the following procedure to check communications if the PT and host are not communicating normally.
Check cables
Check PT settings
Check the communications settings under the System Menu.
Refer to 6-6 Communications Settings.
Check host settings
Check the host settings using the CX-Programmer or other Programming
Device. Refer to Section 4 Connecting to Host with Serial Port and Section 5
Connecting to Host via Ethernet or Controller Link.
Check connections host to PT
Check the connections between the PT and the host. Refer to Section 4
Connecting to the Host with Serial Port and Section 5 Connecting to Host via
Ethernet or Controller Link.
Check functional object
addresses
Note
6-44
Check the cable models and cable pins.
Refer to Appendix 5 Preparing Connecting Cables.
Check the addresses and host names set for functional objects. Be
sure that all address settings are within range.
The whole system may stop, depending on the method used to turn the power ON and OFF.
Always follow the specified procedure when turning the power ON or OFF.
Section 7
Maintenance and Troubleshooting
This section describes the maintenance and inspection methods for preventing errors occurring,
and troubleshooting measures when errors occur in the PT.
7-1Maintenance......................................................................................................................... 7-2
7-1-1 Replacing the Battery ............................................................................................... 7-2
7-2Inspection and Cleaning ...................................................................................................... 7-5
7-3Troubleshooting and Maintenance ...................................................................................... 7-7
7-4Requesting a Replacement PT ........................................................................................... 7-13
7-1 Maintenance
7-1 Maintenance
Perform maintenance operations to maintain the PT in optimum condition.
Do not attempt to take the Unit apart and do not
touch any internal parts while the power is being
supplied. Doing either of these may result in electrical shock.
@ Backing up Project Data
Always back up project data and store it in a safe place when the PT malfunctions and needs
to be sent out for repair, or when replacing the Unit.
@ Spare Units
Prepare a spare PT to allow quick recovery of the system at such times as when the PT
malfunctions, or the service life of the backlight has expired causing poor screen visibility.
@ Backlight
The backlight must be replaced when the brightness of the display backlight dims and the
display becomes difficult to see. The backlight cannot be replaced by the user.
Contact your nearest OMRON representative.
• Backlight Replacement Guidelines
Replace the backlight according to the following guidelines under normal conditions.
After 50,000 hours of use at room temperature and humidity.
The service life of the backlight will be especially shortened if used in a low-temperature environment. Replace the backlight when the brightness dims and the display becomes difficult to
see.
7-1-1
Replacing the Battery
Use a lithium battery to back up data other than screen data, such as calendar, clock, and log
data.
The battery service life is approximately five years at 25°C. The service life will be shortened
if the battery is used at higher temperatures. Replace the battery periodically, according to the
operating environment.
Keep a spare battery available, so that the battery can be replaced immediately when required.
• Battery Models
C500-BAT08
(For both NS12 and NS10)
CPM2A-BAT01 (For NS7)
7-2
7-1 Maintenance
• Replacement Guidelines
The guidelines for replacing the battery are as follows:
• Replace when five years have lapsed since a new battery was installed in the Unit.
• Replace within five days after the RUN indicator lights orange.
Note
Never use batteries that have been subjected to a severe shock, such as being dropped on
the ground. Batteries subjected to shock may leak.
• Replacement Method
Perform the following procedure within five minutes to replace the battery.
The shape of the battery cover and the direction for installing the connector depend on the
PT model.
1. After power to the PT has been turned ON and at least five minutes have lapsed, turn
OFF the power.
2. Open the battery cover on the rear panel of the PT.
3. Remove the battery that is secured under the battery cover, grasp the cable, and pull the
connector out straight to remove it.
7-3
7-1 Maintenance
4. Connect the new battery connector, and insert the battery into the battery holder.
5. Close the battery cover, being careful not to squash the battery cable.
7-4
7-2 Inspection and Cleaning
7-2 Inspection and Cleaning
Clean and inspect the PT periodically to maintain it in optimum condition for use.
@ Cleaning Methods
The screen visibility will be impaired if the display becomes dirty. Clean the display periodically using the following methods:
• For daily cleaning, wipe with a soft, dry cloth. Attempting to remove heavy dirt with the
cloth may scratch the front panel sheet. Use a damp cloth and wipe the surface again to
remove dirt.
• If dirt cannot be removed using a dry cloth, dampen the cloth sufficiently with a neutral
cleaning agent solution (approximately 2%), squeeze the cloth out, and then wipe the surface.
• Materials such as rubber, vinyl, or tape that are attached to the Unit will leave stains if left
for a long time. If such material is attached to the Unit, remove when cleaning.
Note
Never use benzene, thinner, or other volatile solvents, or chemical cloths to clean the PT.
@ Inspection Methods
Inspect the PT once every six to twelve months. Shorten the interval between inspections
when using the PT in extreme conditions, such as under high temperatures, high humidity, or
environments subject to large quantities of dust.
7-5
7-2 Inspection and Cleaning
• Inspection Items
Inspect the PT for the following items to check whether the PT is operating within the specified criteria. If the PT is outside the criteria, use measures such as improving the operating
environment to conform to the standards, or tightening screws.
Inspection
items
Power
supply
Ambient
environment
Mounting
conditions
Parts with
limited
service life
Note
7-6
Inspection details
Power terminal voltage fluctuation
Ambient temperature (temperature in control panel)
Ambient humidity (temperature in control panel)
Presence of dust
Presence of oil
Criteria
Inspection means
Allowable voltage range
Tester
(24 VDC ±15%)
0 to 50°C (Refer to Appendix 2.) Thermometer
35% to 85% (Refer to Appendix
2.)
No dust accumulated.
No oil between front panel sheet
and molding.
Looseness of fixed mounting Specified torque.
bracket
Connection status of ConFully inserted, locked, and with
necting Cable Connectors
No looseness.
Looseness of external wiring No looseness.
screws
Status of external connecting No breaks or other damage
cables
Backlight brightness
Sufficient brightness.
Backlight life (at room temperature of 25°C) is 50,000 hours, as
a guideline.
Battery
5 years (at room temperature of
25°C).
Temperature meter
Visual inspection
Visual inspection
Phillips screwdriver
Phillips screwdriver
Phillips screwdriver
Visual inspection,
tester
Visual inspection
Replace every 5
years
• Do not disassemble, repair, or modify the PT.
• Follow all local government regulations, where applicable, when disposing of the Unit and
used batteries.
7-3 Troubleshooting and Maintenance
7-3 Troubleshooting and Maintenance
When an error occurs while operating the PT, search for the symptom in the following table
and take measures according to those provided.
Errors during Data Transfer
Symptoms at
PT
Serial transfer
not possible
between NSDesigner and
PT.
Causes
The NS-Designer is
not connected to
the PT.
FinsGateway setting is incorrect.
Measures
Check the wiring conditions of the connecting cable.
(Refer to 3-3 Connecting the NS-Designer.)
Change the setting according to the following procedure.
1. Select Start/Program/FinsGateway/Service Manager
from the Windows menu.
2. The PLC icon will be displayed in the bottom right of the
screen. Right-click the icon and select Setting.
3. Click Services in the Basic Tab Page. Select Serial Unit
under Service Settings, and then click the Start Button.
4. Click Network in the Basic Tab Page. Double-click SerialUnit/COM1 under Network and Unit Settings.
5. Click the Network Tab Page in the SerialUnit Provider
dialog box. Check that the network number is set to 1 or
higher and is not the same as any other network number, that the Exclusive field is checked, and that the
Protocol is set to ToolBusCV. Then click the OK Button.
6. Right-click the PLC icon in the bottom right of the
screen and select Terminate Service Manager.
7-7
7-3 Troubleshooting and Maintenance
Errors during PT Startup
Symptoms at
PT
Indicators do
not light.
The indicator
is lit orange
and the screen
is blank.
The indicator
is lit green and
the screen is
blank.
The indicator
is flashing
green and the
buzzer repeatedly turns
ON and OFF.
The screen is
blank and the
indicator is
flashing green.
The screen is
blank and the
indicator is
flashing red.
7-8
Causes
Power is not being
supplied to the PT.
The fuse is broken.
The system program is corrupted
(fatal error).
The system program is corrupted
(fatal error).
The system program is corrupted
(non-fatal error).
The backlight has
malfunctioned.
Measures
Check the connection points and supply power to the PT
correctly.
(Refer to 3-1 Installing the PT.)
Contact your nearest OMRON representative.
Contact your nearest OMRON representative.
Contact your nearest OMRON representative.
Reinstall the system program. (Refer to 3-6 Using Memory
Cards.)
Contact your nearest OMRON representative if the same
problem occurs after reinstalling the system program.
The backlight must be replaced, so contact your nearest
OMRON representative.
Automatic upload/download has
ended normally.
This is not an error. Turn OFF all the DIP switch pins and
turn ON the power to the PT again.
Automatic upload/download has
ended abnormally.
The system program may be corrupted. Reinstall the system program.
(Refer to 3-6 Using Memory Cards.)
Contact your nearest OMRON representative if the same
problem occurs after reinstalling the system program.
7-3 Troubleshooting and Maintenance
Errors while Connecting to the Host
Symptoms at
PT
PT cannot
communicate
with the host.
(An error message is displayed.)
Causes
Measures
The settings for
Ethernet connection, such as node
number, network
number, and IP
address, are not set
correctly.
The protocol settings for the host
and the settings at
the PT do not
match.
The PT is not connected to the host
properly.
For 1:N NT Link
connections, two or
more Units have the
same unit number.
Set the settings correctly, referring to Section 5 Connecting
to Host via Ethernet or Controller Link.
Set the communications settings using the NS-Designer.
Check that the type, length, and wiring of the connecting
cables meet the specifications.
(Refer to Section 4 Connecting Host to Serial Port.)
Reset so that each Unit has a unique unit number.
(Refer to 6-6 Communications Settings.)
7-9
7-3 Troubleshooting and Maintenance
Errors during PT Operation
Symptoms at
PT
RUN indicator
does not light.
The screen is
blank.
Causes
Measures
Power is not being
supplied to the PT.
The fuse is broken.
The PT is in system
startup waiting
status.
The screen saver
function is operating.
Check the connection points and supply power to the PT
correctly. (Refer to 3-1 Installing the PT.)
Contact your nearest OMRON representative.
This is not an error. Information will be displayed when the
waiting time has lapsed.
The backlight is
OFF.
The display
update is slow.
The touch
panel does not
respond.
The display is
dark.
Cannot enter
the device
monitor function.
The backlight has
malfunctioned.
Screen switching,
opening and closing
pop-up screens,
and switching
frames are being
performed frequently.
The message
communications
interval is too long.
PT has malfunctioned due to external noise.
The touch panel is
damaged.
The brightness setting is too low.
The backlight is
faulty or its service
life has expired.
The communications settings are
incorrect.
The PLC does not
support the device
monitor function.
7-10
This is not an error. Touch the screen, or operate the system memory for switching the screen from the host to
switch the screen as follows:
• Set the screen number in $SW0.
• Set the pop-up screen number in $SW1, 4 and 7.
(Refer to 2-4 System Memory in the PT Programming
Manual for details on the system memory.)
Turn ON the backlight by setting system memory bits $SB6
to 8 for adjusting backlight brightness to ON. (Refer to 2-4
System Memory in the PT Programming Manual for details
on the system memory.)
The backlight must be replaced, so contact your nearest
OMRON representative.
If screens are opened and closed frequently, the display
update may take some time and communications may be
delayed.
Adjust the interval between screen switches so that the
system is not overloaded.
On the NS-Designer, select Settings - System Setting,
click the Comm-All Tab, press the Comm. Details Button,
and set a shorted communications interval. (Refer to Section 7 System Settings of the NS-Designer Operation Manual.)
Reset the PT, and wire it according to noise prevention
measures.
Test the touch panel using the hardware check in the System Menu. If an error has occurred, contact your nearest
OMRON representative.
Increase the backlight brightness in the PT Tab Page of the
System Menu.
The backlight must be replaced. Contact your nearest OMRON representative.
When using the device monitor, set the communications
mode as follows:
• C-series PLCs:
1:1 NT Link or 1:N NT Links
• CS1-series PLCs:
1:N NT Links (normal, high speed)
The device monitor function is not supported for Ethernet
or Controller Link.
The PLCs that support the device monitor function are restricted. Check the PLC model being used.
(Refer to 6-8-4 Device Monitor.)
7-3 Troubleshooting and Maintenance
Errors during Object Operation
Symptoms at
PT
The numerical
and character
string update
is slow.
Causes
Communications
are unstable due to
external noise.
There are too many
Numeral Display &
Input objects and
String Display &
Input objects in the
display.
For RS-422A communications, the
branch is incorrect
or the terminating
resistance is not
set properly.
The host is processing a large volume of data and
the cycle time is
long.
The message
communications
interval is too long.
Some objects
in the screen
configuration
are not displayed.
Some objects
in the screen
configuration
are not displayed.
A communications
error has occurred.
The Log Flag
display does
not match the
actual log
timing.
The communications address set
for the event of log
timing is turning ON
and OFF at high
speed.
The numerical
value input upper
and lower limit
check function is
running.
The control flags
set in the objects
include Input Prohibit Flags.
Cannot input
numerical values.
Cannot input
for some functional objects.
The control flags
set in the object
include Hide Display Flags.
A password has
been set.
Measures
Perform noise countermeasures such as separating communications cables from power lines.
Reduce the number of Numeral Display & Input and String
Display & Input objects in the screen where update is slow.
Wire correctly, referring to Appendix 4 Using NS-AL002 RS232C/RS-422A Converters.
Shorten the host cycle time.
On the NS-Designer, select Settings - System Setting,
click the Comm-All Tab, press the Comm. Details Button,
and set a shorted communications interval. (Refer to Section 7 System Settings of the NS-Designer Operation Manual.)
Check the communications settings again.
Display the control flags for the objects set to be not displayed, as follows:
Display the Expansion Tab from the functional object property setting using the NS-Designer. Select Display from
Display/Hide in the Control Flags Tab Page.
Turn ON the indirect address of the control flag set for the
object.
Set the ON/OFF cycle of the communications address for
events to a longer time.
Display the Expansion Tab from the functional object property setting using the NS-Designer. Check the set values in
the Input Upper and Lower Limits Tab Page and correct if
necessary.
Display the Expansion Tab from the functional object property settings using the NS-Designer. Select Enable for Input
in the Control Flag Tab Page.
Turn ON the indirect address of the control flag set for the
object.
Input the password in the password input dialog box that is
displayed.
7-11
7-3 Troubleshooting and Maintenance
Symptoms at
PT
The function of
the functional
object is not
executed
when pressed.
Cannot input
to any functional object.
Cannot move
to System
Menu.
The list selection and
bitmap object
are blank.
7-12
Causes
Measures
Input is disabled by
the control flag.
Input is not possible when the functional object is set to be
disabled. Correct the screen data using the NS-Designer.
If the communications address set by the indirect specification is set to OFF, set the address to ON.
PT is set to input
prohibit mode.
Set system memory bit $SB19 to OFF.
Touch the screen and input the password to cancel disabling inputs.
Set system memory bit $SB3 to OFF.
Moving to System
Menu is prohibited.
There is no reference file.
The number of
rows specified in
the first row of the
list selection is
above the maximum.
Use the NS-Designer to check whether the folder storing
project data contains a reference file, and resend the
screen data to the PT.
Set the number of rows to less than the maximum.
7-4 Requesting a Replacement PT
7-4 Requesting a Replacement PT
Always observe the following precautions when faults are detected during inspection and the
PT is to be replaced.
• Create a backup of the PT project data.
Project data may be deleted when the PT is repaired by OMRON.
• Always turn OFF the power before replacing the PT.
• After replacing the PT, check to confirm that the new PT has no faults.
• When returning a faulty PT for repair, include a document with the Unit that provides as
many details on the fault as possible, and send to your OMRON representative.
7-13
Appendices
Appendix 1 Quick Reference ................................................................................................ A-2
Appendix 2 Specifications..................................................................................................... A-3
Appendix 3 Dimensions ...................................................................................................... A-10
Appendix 4 Using NS-AL002 RS-232C/RS-422A Converters........................................... A-13
Appendix 5 Preparing Connecting Cables........................................................................... A-17
Appendix 6 Preparing Cables for Computer Connection .................................................... A-21
Appendix 7 Preparing Connecting Cables for Bar Code Readers ....................................... A-23
Appendix 8 Standard Models .............................................................................................. A-25
Appendix 9 List of Optional Products ................................................................................. A-34
Appendix 1 Quick Reference
Appendix 1
Quick Reference
The following table provides a quick reference to NS-Designer functions and the manual
sections that describe them.
In the Manual section column "Programming" indicates the NS Series Programming Manual (V073-E1-@) and "Reference" indicates the NS Series Macro Reference provided with
the NS-Designer CD.
Fixed objects
Item
Displaying straight lines
or continuous straight
lines
Displaying rectangles
Application method
Fixed Object - Straight Line
or
Fixed Object - Polyline
Fixed Object - Rectangle
Displaying triangles,
polygons, trapezoids, or
diamonds
Displaying circles or
ovals
Fixed Object - Polygon
Displaying arcs
Fixed Object - Arc
Displaying sector
Fixed Object - Sector
Filling graphics
Tiling Tab on the Fixed Object Property Dialog Box
(Setting - Object Properties)
Use a bitmap object (Functional Objects - Bitmap)
Either BMP or JPEG files can be displayed.
1. Select the objects to be used and register them in
the library using Tools - Register Library.
2. Display the library object using Tools - Use Library.
1. Create the image in a BMP or JPEG file.
2. Use a bitmap object to display the image (Functional Objects - Bitmap).
1. Select the objects to be used and register them in
the library using Tools - Register Library.
2. Display the library object using Tools - Use Library.
1. Create a bitmap object (Functional Objects Bitmap).
2. Use an indirect specification for the display file,
enabling the displayed graphic to be changed according to changes in the PLC or PT.
1. Create a word button object (Functional Objects Word Button).
2. Specify Select Shape for the button shape on the
General Tab Page.
3. On the Color/Shape Tab Page, specify the Normal
shape, Pressed, and Same as value.
Displaying bitmaps
Using the same graphics
in many applications
Displaying special symbols and characters
Displaying the same
graphics in many locations or on many screens
Changing the shape of a
graphic based on conditions
A-2
Fixed Object - Circle/Oval
Manual section
Operation: 5-2
Programming:
2-6
Operation: 5-2
Programming:
2-6
Operation: 5-2
Programming:
2-6
Operation: 5-2
Programming:
2-6
Operation: 5-2
Programming:
2-6
Operation: 5-2
Programming:
2-6
Programming:
2-6
Programming:
2-12
Operation: 5-13
Programming:
2-12
Operation: 5-13
Programming:
2-12
Programming:
2-9
Appendix 2 Specifications
Appendix 2
A-2-1
Specifications
General Specifications
Specifications
Item
Rated power
supply voltage
Allowable voltage range
Allowable input power
interruption time
Power consumption
Ambient operating temperature
Storage
temperature
Ambient operating humidity]
Operating
environment
Noise immunity
Vibration
resistance
(during operation)
Shock resistance (during operation)
Dimensions
Panel cutout dimensions
Weight
Enclosure rating
Battery life
International
standards
NS12-TS0@
NS10-TV0@
NS7-SV0@
24 VDC
20.4 to 27.6 VDC (24 VDC ±15 %)
No restriction.
20 W max
0 to 50°C
0 to 50°C
(See notes 1 and 2.)
(See notes 1 and 2.)
-20 to 60°C
-20 to 60°C
(See note 2.)
(See note 2.)
35% to 85% (0 to 40°C) with no condensation
35% to 60% (40 to 50°C) with no condensation
0 to 50°C
(See notes 1 and 2.)
-20 to 60°C
(See note 2.)
No corrosive gases.
Conforms to IEC61000-4-4, 2 KV (power lines)
2
10 to 57 Hz with 0.075 mm amplitude and 57 to 150 Hz with 9.8 m/s acceleration for 30
min in each of X, Y, and Z directions
2
147 m/s 3 times in each of X, Y, and Z directions.
232 ´ 177 ´ 48.5 mm
(W ´ H ´ D)
Width 302 +10 ´ Height
Width 302 +10 ´ Height
Width 220.5 +0.50 ´ Height
228 +10 mm
228 +10 mm
165.5 +0.50 mm
Panel thickness:
Panel thickness:
Panel thickness:
1.6 to 4.8 mm
1.6 to 4.8 mm
1.6 to 4.8 mm
2.5 kg max.
2.0 kg max.
Front panel:
Equivalent to IP65F (NEMA4) (See note 3.)
5 years (at 25°C)
The SRAM and RTC will be backed up for 5 days after the battery runs low (indicator lights
orange).
The SRAM and RTC will be backed up by a super capacitor for 5 minutes after removing
the old battery (i.e., after turning ON power after 5 minutes).
UL1604 Class 1, Division 2, and EC Directives.
C-Tick
315 ´ 241 ´ 48.5 mm (W ´ H ´ D)
A-3
Appendix 2 Specifications
Note 1. The operating temperature is subject to the following restrictions according to the mounting angle.
Mounting angle of 0 to 30° to the horizontal: Operating temperature range of 0 to 45°C (0
to 40°C for the Video Input Unit or Controller Link Interface Unit)
Mounting angle of 30° to 90° to the horizontal:
Operating temperature range of 0 to 50°C
90°
Display surface
30°
Horizontal 0°
2. Operate the PT within the temperature and humidity ranges shown in the following diagram.
Storage
Humidity (RH)
Wet-bulb temperature (°C)
Operating
Temperature (°C)
3. May not be applicable in locations with long-term exposure to oil.
A-4
Appendix 2 Specifications
A-2-2
Characteristics
@ Display Specifications
Specifications
Item
Display device
Number of dots
Display
panel
Display color
Display area
View angle
Life expectancy
Brightness
Backlight
(See note 4.) adjustment
Backlight error
detection
Front panel
indicators
RUN
NS12-TS0@
NS10-TV0@
NS7-SV0@
High-definition TFT color High-definition TFT color
STN color LCD
LCD
LCD
800 dot horizontal ´ 600 dot 640 dot horizontal ´ 480 dot 640 dot horizontal ´ 480 dot
vertical
vertical
vertical
256 colors
Width 246.0 mm ´ height
184.5 mm (12.1 inches)
Left/right ±60°
Top 45°, bottom 55°
Width 211.2 mm ´ height
158.4 mm (10.4 inches)
Left/right ±60°
Top 35°, bottom 65°
Width 160.42 mm ´ height
121.06 mm (7.7 inches)
Left/right ±50°
Top 40°, bottom 30°
50,000 hours min. (See note 1.)
40,000 hours min. (See note
1.)
There are 3 levels of adjustment by operating the touch panel. (See note 2.)
Error is detected automatically, and the RUN indicator flashes green as notification.
(See note 3.)
Lit green: PT is operating normally.
Flashing green: The Memory Card transfer has ended normally or a backlight
error was detected immediately after power was turned ON.
Lit orange:
Immediately after power turns ON, indicates file system check in
progress, battery low, or disconnected and operating normally.
Flashing orange: Memory Card transfer in progress.
Flashing red:
Memory Card transfer has ended abnormally.
Note 1. This is the estimated time before brightness is reduced by half at room temperature and
humidity. It is not a guaranteed value.
The life expectancy will be drastically shortened if PT is used at low temperatures. For
example, using the PT at temperatures of 0°C will reduce the life expectancy to approximately 10,000 hours (reference value).
2. The brightness cannot be adjusted much.
3. This function does not detect service life expectancy.
It detects when the backlight is not lit due to a disconnection or other errors. Backlight error detection indicates that all backlights (2) are OFF.
4. Contact your nearest OMRON representative to replace the backlight.
A-5
Appendix 2 Specifications
@ Operating Specifications
Specifications
Item
NS12-TS0@
Touch panel
(Matrix type)
NS10-TV0@
Method: Resistive membrane
Number of switches: 1900 Number of switches: 1200
(50 horizontal ´ 38 verti- (40 horizontal ´ 30 vertical)
cal)
16 ´ 16 dots for each
16 ´ 16 dots for each
switch.
switch.
Input: Pressure-sensitive
Service life: 1,000,000 touch operations.
NS7-SV0@
Number of switches: 768
(32 horizontal ´ 24 vertical)
20 ´ 20 dots for each
switch.
@ External Interface Specifications
Item
Specifications
NS12-TS0@
NS10-TV0@
NS7-SV0@
1 slot for expanding screen data capacity.
8-Mbytes/16-Mbytes expansion
1 ATA-Compact Flash interface slot.
Used to transfer and store screen data and to store history data.
For Expansion Interface Units
Expansion interface
Used to install a Controller Link Interface Unit or Video Input Unit.
Note: This interface is for NS-series PTs only. Units not specified in this manual cannot be installed.
Expansion memory
interface (See note.)
Memory card
interface
@ Programming Device (Software for Creating Screen Data)
Item
Name
Model
A-2-3
Specifications
NS-Designer
NS-NSDC1-V@
Communications Specifications
· Serial Communications
Item
Specifications
Conforms to EIA RS-232C.
D-Sub female 9-pin connector
Port A
5-V output (250 mA max.) through pin 6
(See note.)
Conforms to EIA RS-232C.
D-Sub female 9-pin connector
Port B
5-V output (250 mA max.) through pin 6.
(See note.)
Note: The 5-V output of serial ports A and B cannot be used at the same time.
A-6
Appendix 2 Specifications
· 1:1 NT Link
Item
Communications
standards
Specifications
Conforms to EIA RS-232C.
D-Sub female 9-pin connector
(Serial ports A and B)
Connectors
Number of Units
connected
Transmission distance
1:1
Up to 15 m. (See note 1.)
· 1:N NT Links
Item
Communications standards
Specifications
Conforms to EIA RS-232C.
D-Sub female 9-pin connector
(Serial ports A and B)
Connectors
Number of Units
connected
Transmission distance
1:1 to 8
Up to 15 m. (See note 2.)
Note 1. When using an NS-AL002 Adapter, the transmission distance is as follows:
RS-422A cable: Up to 500 m total extended length.
2. The NS-AL002 is required when connecting two or more PTs to the host.
RS-422A cable: Up to 500 m total extended length.
· Bar Code Reader
Item
Communications
standards
Communications
settings
Ports that can be
connected
Number of Units
connected
Transmission distance
Communications
protocol
Data format
Power supply
Specifications
Conforms to EIA RS-232C.
Start-stop synchronization
Baud rate: 4,800, 9,600, or 19,200 bps
Data length: 7 or 8 bits
Stop bits: 1 or 2 bits
Parity: None, odd, or even
Flow control: RS/CS control
Either port A or port B only.
1:1
Using PT serial port and D-Sub 6-pin Using external power supply
2m
15 m
No protocol mode
[STX]
Data (0 to 40 bytes)
[ETX]
Using PT serial port and D-Sub 6-pin Using external power supply
Depends on Bar Code Reader
5 V ±5% 250 mA max.
specifications.
A-7
Appendix 2 Specifications
@ Ethernet Specifications (NS12-TS01(B), NS10-TV01(B), NS7-SV01(B))
Item
Conformance standards
Transmission medium
Transmission distance
Connector
Specifications
Conforms to IEEE 802.3 / Ethernet (10Base-T).
2 pair Cat 3 UTP 22 to 26AWG
100 m (node-to-hub and hub-to-hub)
8-pin modular connector
· Ethernet
Item
Network address
Node address
UDP port number
IP address
Subnet mask
Default gateway
IP proxy address
Specifications
1 to 127
1 to 126
1024 to 65535 (See note 1.)
0.0.0.0 to 255.255.255.255 (See note 2.)
0.0.0.0 to 255.255.255.255
0.0.0.0 to 255.255.255.255
“”(blank), 0.0.0.0 to 255.255.255.255
Node address: 1 to 253
Conversion table
IP address: 0.0.0.0 to 255.255.255.255
Note 1. The default UDP port number is 9600.
2. Do not set the following values for the IP address.
· Host ID with all bits set to 0 or 1.
(Example: 192.168.21.0)
· Net ID with all bits set to 0 or 1.
(Example: 255.255.21.16)
· Subnet ID with all bits set to 1.
(Example: 192.168.255.16)
· IP addresses that begin with 127. (Example: 127.35.21.16)
A-8
Appendix 2 Specifications
@ Controller Link Specifications (with NS-CLK21 Controller Link Interface
Unit Mounted)
Item
Communications
method
Code
Modulation
Synchronization
Transmission path
type
Baud rate and
maximum transmission distance
Media
Specification
N:N token bus
Manchester code
Baseband code
Flag synchronization (conforming to HDLC frames)
Multidrop (bus)
The maximum transmission distances depends on the baud rate
setting as follows:
2 Mbits/s: 500 m
1 Mbits/s: 800 m
500 Kbits/s:1 km
Specified shielded twisted-pair cable
2 signal lines and 1 shield
PLCs
: Connected via terminal block
Personal computers: Connected via special connector (provided)
32 modes
Connections to
nodes
Max. number of
nodes
Communications
Data links and message service
functions
Number of data link · Transmission area per node:
words
1,000 words max. (2,000 bytes)
· Send/receive data link areas per SYSMAC CS-series PLC:
12,000 words max. (24,000 bytes)
· Send/receive data link areas per SYSMAC C200HX/HG/HE,
CVM1, or CV-series PLC:
8,000 words max. (16,000 bytes)
· Send/receive data link areas per personal computer:
32,000 words max. (64,000 bytes)
· Total send data link words on entire network:
32,000 words max. (64,000 bytes)
Data link areas
Bit (CIO, and LR Area) , data memory (DM Area) , expansion data
memory (EM Area)
Message length
2,012 bytes max.
RAS functions
· Polling unit backup function
· Self-diagnosis (hardware check at startup)
· Internode tests and broadcast test (via FINS commands)
· Watchdog timer
· Error log
Error correction
Manchester code check
CRC check (CCITT X16+X12+X5+1)
A-9
Appendix 3 Dimensions
Appendix 3
Dimensions
@ NS12/NS10 (Includes Mounting Dimensions)
Mounting panel
Mounting bracket
39 min.
42 max.
(Unit: mm)
With Controller Link Interface Unit Mounted
A-10
With Video Input Unit Mounted
Mounting panel
Mounting panel
Mounting Bracket
Mounting Bracket
Appendix 3 Dimensions
115.5
@ NS12/NS10 Cable Connection Dimensions
PORT B
PORT A
42
ETHERNET
45
20
60
103
@ NS7 (Includes Mounting Dimensions)
Mounting panel
Mounting bracket
39 min.
42 max.
(Unit: mm)
A-11
Appendix 3 Dimensions
@ NS7 Cable Connection Dimensions
A-12
Appendix 4 Using NS-AL002 RS-232C/RS-422A Converters
Appendix 4
Using NS-AL002 RS-232C/RS-422A
Converters
The NS-AL002 RS-232C/RS-422A Converter is connected directly to RS-232C port A or
B of the PT, and converts RS-232C communications to RS-422A/RS-485. Power is supplied from the PT through pin 6 of the RS-232C connector, so an externally connected
power supply is not required. A summary of the NS-AL002 external dimensions, mounting
and removal methods, and specifications are provided here. Refer to this information when
designing the control panel. Refer to the operation manual included with the NS-AL002 for
details.
A-4-1
Dimensions
Mounting screws (2)
A-13
Appendix 4 Using NS-AL002 RS-232C/RS-422A Converters
A-4-2
Mounting and Removing
Connect the NS-AL002 directly to port A or port B of the PT. Two NS-AL002 Adapters
cannot be connected to ports A and B simultaneously.
Mount the Adapter by tightening and securing the mounting screws on both of the D-Sub
connectors. The correct tightening torque is 0.3 N · m. The correct tightening torque for
the terminal block is 0.5 N · m.
To remove the Adapter, loosen the screws and pull out the Adapter.
Note
A-4-3
· Always turn OFF the power to the PT before removing the Adapter.
· Do not touch the surface or the mounted parts of the Board with bare hands.
Always discharge any static electricity from your body before handling the Board.
Specifications
The following table shows the general specifications and communications specifications of
the Adapter.
@ General Specifications
Item
Dimensions
Weight
Ambient operating temperature
Storage temperature
Ambient operating humidity
Rated power supply
Power consumption
Operating environment
Vibration resistance
Shock resistance
Specifications
45 ´ 49 ´ 28.5 mm (W ´ H ´ D)
50 g max.
0 to 50°C
-20 to 60°C
35% to 85% (without condensation)
5 V ±10% (through pin 6 of the RS-232C connector)
150 mW max.
No corrosive gases.
Conforms to PT specifications.
Conforms to PT specifications.
Reference RS-485 (two-wire) communications are not supported by the NS Series. Always use
RS-422A (four-wire)
The NS-AL002 cannot be used with NT-series PTs or PLCs.
@ Communications Specifications
· RS-422A Interface
Item
Specifications
Baud rate
115.2 kbps max.
Transmission distance 500 m total length
Terminal block format
8-terminal terminal block, M3.0
Insulation
No insulation (See note.)
Note: The RS-422A and RS-232C are not insulated.
A-14
Appendix 4 Using NS-AL002 RS-232C/RS-422A Converters
A-4-4
DIP Switch Settings
The Adapter has four DIP switch pins for setting the RS-422A communications conditions.
Set the DIP switch pins before connecting the cables to the Adapter.
DIP switch
ON
OFF
The factory setting for the DIP switch is all pins set to OFF.
Pin
Pin 1
Pins 2 and 3
Pin 4
Function
Transmission mode
Two-wire/four-wire method selection
Terminating resistance
ON
RS/CS control
Two-wire method
Yes
OFF
Normal transmission
Four-wire method
None
For 1:1 NT Link, set the RS-422A transmission mode to normal transmission (pin 1 OFF).
For 1:N NT Links (normal, high speed), set the RS-422A transmission mode to RS/CS
control (pin 1 ON).
A-4-5
Pin Arrangement
The Adapter has a connector for RS-232C interface connection and a terminal block for
RS-422A/485 interface connection.
The pin arrangements for the RS-232C connector and RS-422A/485 terminal block are as
follows:
@ RS-232C Connector
Terminal block
pin number
1
2
3
4
5
6
7 or 8
9
Signal direction
Signal name
NC
RD
SD
CS
RS
5V
(30 mA max.)
NC
SG
Connector hood FG
Adapter Û PT
¬
®
¬ (RS signal short-circuited internally)
®
¬
(Pins 7 and 8 are short-circuited.)
Connects to functional ground terminal of
PT.
A-15
Appendix 4 Using NS-AL002 RS-232C/RS-422A Converters
@ RS-422A Terminal Block
Terminal block
pin number
1
2
3
4
5
6
7
8
Signal direction
Signal name
FG
RDB (+)
SDB (+)
RSB (+)
NC
RDA (-)
SDA (-)
RSA (-)
Adapter Û Host
Connects to functional ground terminal of PT.
¬
®
®
--¬
®
®
@ Crimp Terminals
Use M3 crimp terminals.
Forked type
6.2 mm max.
Round type
6.2 mm max.
Applicable Crimp Terminal Examples
Forked type
Round type
Manufacturer
J.S.T. Mfg.
Co., Ltd.
Molex
Manufacturer
J.S.T. Mfg.
Co., Ltd.
Molex
Recommended
Model
cable size
V1.25-N3A
AWG22 to 16
2
(0.25 to 1.65 mm )
VSY1.25-3.5L AWG22 to 16
2
(0.3 to 1.65 mm )
Recommended Cable
ManufacModel
turer
Tachii Elec- TKV VBS4P-03
tric Wire Co.,
Ltd.
A-4-6
Recommended
cable size
V1.25-MS3 AWG22 to 16
2
(0.25 to 1.65 mm )
RAV1.25-3 AWG22 to 16
2
(0.3 to 1.65 mm )
Model
Preparing Shield of RS-422A/485 Cables
For RS-422A/485 long-distance transmission, if both ends of the shield are grounded, a
large current may flow to the shield due to the difference in ground potential. Therefore,
ground the shields on one end of the cable only.
NS-AL002
Signal line
Host
PT
RS-422/485 shield
NS-AL002
PT
NS-AL002
PT
A-16
Connect to FG on
terminal block.
Appendix 5 Preparing Connecting Cables
Appendix 5
Preparing Connecting Cables
Use the following procedure to prepare connecting cables.
Refer to this cable preparation method to prepare cables for the RS-232C/RS-422A Converter.
A-5-1
Cable Preparation
1. Cut the cables to the required length.
2. Remove the vinyl cable covering using a razor blade or other tool.
Use care not to damage the shield (braided mesh).
3. Cut the shield using scissors.
4. Strip back to the core of each wire using a stripper.
5. Bend back the shields.
6. Wrap the section of the shields that is bent back with aluminum foil tape.
(Unit: mm)
Aluminum foil tape
A-17
Appendix 5 Preparing Connecting Cables
A-5-2
Soldering
1. Pass a heat-shrinking tube over each wire.
2. Pre-solder each wire and connector terminal.
3. Solder each of the wires to the connector terminals.
Soldering iron
Heat-shrinking tube
Internal diameter: 1.5
Length = 10
4. Replace the heat-shrinking tube up to the soldered section, and shrink the tube onto
the wire by applying heat using a soldering gun.
Heat-shrinking tube
A-5-3
Hood Assembly
Assemble the hood as shown in the following diagram.
End with Connector
A-18
Aluminum foil tape
End without Connector
Appendix 5 Preparing Connecting Cables
A-5-4
Preparing Connecting Cables for Host Connection
Refer to the following information when preparing the connecting cables for connecting the
PT to the host.
@ Wiring Layout between PT and Host (RS-232C)
PT
Signal Pin No.
Connector
food
Shield
Host
Pin No. Signal
Connector
food
RS232C
connector
RS232C
connector
9-pin connector
9-pin connector
(Serial port A, B)
@ Wiring Layout between NS-AL002 and Host (RS-422A)
Host
NS-AL002
RS-422A cable
NS-AL002
RS-422A
terminal
block
Host
Signal
Signal
RDA (-)
RDA (-)
TRM
RDB (+)
RDB (+)
SDA (-)
SDA (-)
SDB (+)
SDB (+)
FG
RSA (-)
RSB (+)
Shield
FG
To next NS-AL002
A-19
Appendix 5 Preparing Connecting Cables
@ Wiring Layout between NS-AL002 and NS-AL002 (RS-422A)
Host side
NS-AL002
RS-422A
NS-AL002
NS-AL002
Signal
Signal
RS422A
terminal
block
RS422A
terminal
block
Shield
FG
A-20
FG
Appendix 6 Preparing Cables for Computer Connection
Appendix 6
Preparing Cables for Computer Connection
Refer to the following information when preparing the NS-Designer connecting cables.
A-6-1
Connecting Cable Assembly
Wire the RS-232C connector to the DOS or 98-NX computer according to the type, as
follows:
· 25-pin Connector
PT serial port
Computer
Shield
Connector hood
Connector hood
Use the following products to assemble the connecting cable.
Name
Connector
Model
XM2D-2501
XM2A-0901
Connector
hood
XM2S-2511
XM2S-0911
Cable
AWG28 ´ 5P IFVV-SB
CO-MA-VV-SB 5P ´ 28AWG
Details
25-pin type
Manufactured by OMRON (computer side)
9-pin type
Manufactured by OMRON (PT side)
25-pin type
Manufactured by OMRON (computer side)
9-pin type, mm screws
Manufactured by OMRON (PT side)
Multiconductor shielded cable
Manufactured by Fujikura Densen.
Multiconductor shielded cable
Manufactured by Hitachi Densen.
A-21
Appendix 6 Preparing Cables for Computer Connection
· 9-pin Connector
Computer
PT serial port
Shield
Connector hood
Connector hood
Use the following products to assemble the connecting cable.
Name
Connector
Model
9-pin type
Manufactured by OMRON (computer side)
XM2A-0901
9-pin type
Manufactured by OMRON (PT side)
Connector
XM2S-0911
9-pin type, mm screws
hood
Manufactured by OMRON.
(See note.) XM2S-0913
9-pin type, inch screws
Manufactured by OMRON.
Cable
AWG28 ´ 5P IFVV-SB
Multiconductor shielded cable
Manufactured by Fujikura Densen.
CO-MA-VV-SB 5P ´ 28AWG
Multiconductor shielded cable
Manufactured by Hitachi Densen.
Note: Use a connector hood for the computer that conforms to the standards for the screws of the
computer connector.
A-22
XM2D-0901
Details
Appendix 7 Preparing Connecting Cables for Bar Code Readers
Appendix 7
Preparing Connecting Cables for Bar
Code Readers
Refer to the following information when preparing the connecting cables for connecting the
V520-RH21-6 Bar Code Reader.
· Connector Pin Arrangement
2
5
4
8
3
7
1
6
Connector pin
arrangement at
computer
Pin
number
1
2
3
4
5
6
7
8
Signal name
Send data
Receive data
Request to send
Clear to send
Not connected.
Data terminal ready
0V
Power supply (Vcc)
Abbreviation
Signal direction
V520-RH21-6
PT
SD (TXD)
RD (RXD)
RS (RTS)
CS (CTS)
ER (DTR)
SG
+5 V
· Wiring Method
PT
Signal
V520-RH21-6
Pin No.
Signal
Pin No.
RS-232C
interface
When connecting to the 5-V output of the PT’s serial port, use a cable length of less than
2 m. If the cable is 2 m or longer, connect pins 7 and 8 of the Bar Code Reader to an external power supply.
A-23
Appendix 7 Preparing Connecting Cables for Bar Code Readers
· Connector Types
Use the following products to assemble the connecting cable.
Name
Connector
Model
XM2A-0901
TCS2280-01-2011
Connector hood
XM2S-0911
Cable
AWG28 ´ 5P IFVV-SB
CO-MA-VV-SB 5P ´ 28AWG
A-24
Details
9-pin type
Manufactured by OMRON (PT side)
8-pin DIN type Hoshiden, Co., Ltd.
Panel-mounting type
9-pin type
Manufactured by OMRON.
Multiconductor shielded cable
Manufactured by Fujikura Densen.
Multiconductor shielded cable
Manufactured by Hitachi Densen.
Appendix 8 Standard Models
Appendix 8
Standard Models
Programmable Terminals (PTs)
LCD
Model
Pre-install system
Ethernet
Color
Number
of dots
800 ´ 600
10Base-T
12.1 inch
Color
800 ´ 600
10Base-T
TFT
12.1 inch
Color
800 ´ 600
Not supported.
NS12-TS00B
TFT
12.1 inch
Color
800 ´ 600
Not supported.
NS10-TV01
TFT
10.4 inch
Color
640 ´ 480
10Base-T
NS10-TV01B
TFT
10.4 inch
Color
640 ´ 480
10Base-T
NS10-TV00
TFT
10.4 inch
Color
640 ´ 480
Not supported.
NS10-TV00B
TFT
10.4 inch
Color
640 ´ 480
Not supported.
NS7-SV01
STN
7.7 inch
Color
640 ´ 480
10Base-T
NS7-SV01B
STN
7.7 inch
Color
640 ´ 480
10Base-T
NS7-SV00
STN
7.7 inch
Color
640 ´ 480
Not supported.
NS7-SV00B
STN
7.7 inch
Color
640 ´ 480
Not supported.
Type
Size
Color
NS12-TS01
TFT
12.1 inch
NS12-TS01B
TFT
NS12-TS00
Language
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
English/
Japanese
Applicable
PLC
OMRON
Case
Color
Ivory
OMRON
Black
OMRON
Ivory
OMRON
Black
OMRON
Ivory
OMRON
Black
OMRON
Ivory
OMRON
Black
OMRON
Ivory
OMRON
Black
OMRON
Ivory
OMRON
Black
Serial Communications Units
Model
CS1W-SCU21
Specifications
· RS-232C (2 ports)
· Base-mounting type
Applicable PLC
CS-series CS1G/H and CS1G/H-H
A-25
Appendix 8 Standard Models
CPU Units (1:1 NT Link Connection)
Model
Specifications
Connects to RS-232C cable using RS-232C Adapter
CPM1A-10CD@-@ (-V1)
CPM1-CIF01.
CPM1A-20CD@-@ (-V1)
CPM1A-30CD@-@ (-V1)
CPM1A-40CD@-@ (-V1)
With RS-232C connector (9-pin type)
CPM2A-30CD@@-@
CPM2A-40CD@@-@
CPM2A-60CD@@-@
Connects to RS-232C connector branched using CPM2CCPM2C-10@@@@@@-@
CN111 with converting cable.
CPM2C-20@@@@@@-@
CQM1-CPU41-V1
With RS-232C connector (9-pin type)
CQM1-CPU42-V1
CQM1-CPU43-V1
CQM1-CPU44-V1
CQM1-CPU45-EV1
CQM1H-CPU21
With RS-232C connector (9-pin type)
CQM1H-CPU51
CQM1H-CPU61
C200HS-CPU21
With RS-232C connector (switching/9-pin type)
C200HS-CPU23
C200HS-CPU31
C200HS-CPU33
C200HE-CPU32(-Z) (See note.)
With RS-232C connector (switching/9-pin type)
C200HE-CPU42(-Z)
C200HG-CPU33(-Z) (See note.)
With RS-232C connector (switching/9-pin type)
C200HG-CPU43(-Z)
C200HG-CPU53(-Z) (See note.)
C200HG-CPU63(-Z)
C200HX-CPU34(-Z) (See note.)
With RS-232C connector (switching/9-pin type)
C200HX-CPU44(-Z)
C200HX-CPU54(-Z) (See note.)
C200HX-CPU64(-Z)
C200HX-CPU65-Z
C200HX-CPU85-Z
CV500-CPU01-V1
With RS-232C connector (switching/9-pin type)
CV1000-CPU01-V1
CV2000-CPU01-V1
CVM1-CPU01-V2
CVM1-CPU11-V2
CVM1-CPU21-V2
Note: A C200HW-COM02/COM04/COM05/COM06(-V1) Communications Board is required.
A-26
Appendix 8 Standard Models
CPU Units (1:N NT Link Connection)
Model
Specifications
CQM1H-CPU51 (See note 1.)
With RS-232C connector (9-pin type)
CQM1H-CPU61 (See note 1.)
C200HE-CPU32(-Z) (See note 2.)
With RS-232C connector (switching/9-pin type)
C200HE-CPU42(-Z)
C200HG-CPU33(-Z) (See note 2.)
With RS-232C connector (switching/9-pin type)
C200HG-CPU43(-Z)
C200HG-CPU53(-Z) (See note 2.)
C200HG-CPU63(-Z)
C200HX-CPU34(-Z) (See note 2.)
With RS-232C connector (switching/9-pin type)
C200HX-CPU44(-Z)
C200HX-CPU54(-Z) (See note 2.)
C200HX-CPU64(-Z)
C200HX-CPU65-Z
C200HX-CPU85-Z
CS1G-CPU42(-V1)
With RS-232C connector (9-pin type)
CS1G-CPU43(-V1)
CS1G-CPU44(-V1)
CS1G-CPU45(-V1)
CS1H-CPU63(-V1)
With RS-232C connector (9-pin type)
CS1H-CPU64(-V1)
CS1H-CPU65(-V1)
CS1H-CPU66(-V1)
CS1H-CPU67(-V1)
CS1G-CPU42H
With RS-232C connector (9-pin type)
CS1G-CPU43H
CS1G-CPU44H
CS1G-CPU45H
CS1H-CPU63H
With RS-232C connector (9-pin type)
CS1H-CPU64H
CS1H-CPU65H
CS1H-CPU66H
CS1H-CPU67H
CJ1G-CPU44
With RS-232C connector (9-pin type)
CJ1G-CPU45
Note 1. A CQM1H-SCB41 Serial Communications Board is required.
2. A C200HW-COM02/COM04/COM05/COM06-V1 Communications Board is required.
A-27
Appendix 8 Standard Models
CPU Units (High-speed 1:N NT Link Connection)
Model
Specifications
CS1G-CPU42-V1 (See note.)
With RS-232C connector (9-pin type)
CS1G-CPU43-V1 (See note.)
CS1G-CPU44-V1 (See note.)
CS1G-CPU45-V1 (See note.)
CS1H-CPU63-V1 (See note.)
With RS-232C connector (9-pin type)
CS1H-CPU64-V1 (See note.)
CS1H-CPU65-V1 (See note.)
CS1H-CPU66-V1 (See note.)
CS1H-CPU67-V1 (See note.)
CS1G-CPU42H
With RS-232C connector (9-pin type)
CS1G-CPU43H
CS1G-CPU44H
CS1G-CPU45H
CS1H-CPU63H
With RS-232C connector (9-pin type)
CS1H-CPU64H
CS1H-CPU65H
CS1H-CPU66H
CS1H-CPU67H
CJ1G-CPU44
With RS-232C connector (9-pin type)
CJ1G-CPU45
Note: CS1-series CPU Units without the -V suffix cannot be connected.
A-28
Appendix 8 Standard Models
CPU Units (Ethernet Connection)
Model
CV500-CPU01-V1
CV1000-CPU01-V1
CV2000-CPU01-V1
CVM1-CPU01-V2
CVM1-CPU11-V2
CVM1-CPU21-V2
CS1G-CPU42(-V1)
CS1G-CPU43(-V1)
CS1G-CPU44(-V1)
CS1G-CPU45(-V1)
CS1H-CPU63(-V1)
CS1H-CPU64(-V1)
CS1H-CPU65(-V1)
CS1H-CPU66(-V1)
CS1H-CPU67(-V1)
CS1G-CPU42H
CS1G-CPU43H
CS1G-CPU44H
CS1G-CPU45H
CS1H-CPU63H
CS1H-CPU64H
CS1H-CPU65H
CS1H-CPU66H
CS1H-CPU67H
CJ1G-CPU44
CJ1G-CPU45
Specifications
Mount a CV500-ETN01 Ethernet Unit.
10Base-5
A 10Base-T cable can also be used by connecting a
10Base-T Adapter to the Ethernet Unit.
Mount a CS1W-ETN01 Ethernet Unit.
10Base-5
A 10Base-T cable can also be used by connecting a
10Base-T Adapter to the Ethernet Unit.
Mount a CS1W-ETN11 Ethernet Unit.
10Base-T
Mount a CS1W-ETN01 Ethernet Unit.
10Base-5
A 10Base-T cable can also be used by connecting a
10Base-T Adapter to the Ethernet Unit.
Mount a CS1W-ETN11 Ethernet Unit.
10Base-T
Mount a CS1W-ETN11 Ethernet Unit.
10Base-T
A-29
Appendix 8 Standard Models
CPU Units Supporting Controller Link Connection
Model
CV500-CPU01-V1
CV1000-CPU01-V1
CV2000-CPU01-V1
CVM1-CPU01-V2
CVM1-CPU11-V2
CVM1-CPU21-V2
CS1G-CPU42H
CS1G-CPU43H
CS1G-CPU44H
CS1G-CPU45H
CS1H-CPU63H
CS1H-CPU64H
CS1H-CPU65H
CS1H-CPU66H
CS1H-CPU67H
C200HE-CPU32 (-Z)
C200HE-CPU42 (-Z)
C200HG-CPU33 (-Z)
C200HG-CPU43 (-Z)
C200HG-CPU53 (-Z)
C200HG-CPU63 (-Z)
C200HX-CPU34 (-Z)
C200HX-CPU44 (-Z)
C200HX-CPU54 (-Z)
C200HX-CPU64 (-Z)
C200HX-CPU65-Z
C200HX-CPU85-Z
CQM1H-CPU61
CQM1H-CPU51
CQM1H-CPU21
CQM1H-CPU11
CJ1H-CPU66H
CJ1H-CPU65H
CJ1G-CPU45H
CJ1G-CPU44H
CJ1G-CPU43H
CJ1G-CPU42H
CJ1G-CPU45
CJ1G-CPU44
Specifications
With CVM1-CLK21 Controller Link Unit mounted
With CS1W-CLK21/11Controller Link Unit mounted
With C200HW-CLK21 Controller Link Unit mounted
With CQM1H-CLK21 Controller Link Unit mounted
With CJ1W-CLK21 Controller Link Unit mounted
RS-232C/RS-422A Converters
Model
NT-AL001
NS-AL002
A-30
Specifications
RS-232C: 9-pin connector
RS-422A: 8-pin terminal block
RS-232C: 9-pin connector
RS-422A: 8-pin terminal block
Appendix 8 Standard Models
Support Tools
Name
NS-Designer
(See note.)
Model
NS-NSDC1-V@
Optional products
NS12-KBA04
NS7-KBA04
NS12-KBA05
NS7-KBA05
NS-MF081
NS-MF161
C500-BAT08
CPM2A-BAT01
HMC-EF172
HMC-EF372
HMC-EF672
Details
DOS Computer
For Windows 95, 98, ME, NT, 2000, or XP
(Windows 98, Windows NT Ver. 4.0 Service Pack 3 or
later.)
CD-ROM
(Anti-reflection Sheets for NS12/NS10)
Anti-reflection Sheets for NS7
Protective Cover for NS12 and NS10
Protective Cover for NS7
Expansion Memory Board (8 Mbytes)
Expansion Memory Board (16 Mbytes)
Replacement Battery for NS12/NS10
Replacement Battery for NS7
Memory Card (15 Mbytes)
Memory Card (30 Mbytes)
Memory Card (64 Mbytes)
HMC-AP001
Memory Card Adapter (for connecting Personal Computer
PC Card Reader/Writer)
Note: The NS-Designer includes a transfer program and standard PT system program.
Reference · NEC PC98-series computers are not supported.
· Use the NEC PC98NX Series, however, in the same way as IBM PC/AT compatible computers.
Connecting Cables and Connectors
Cable with Connector (PT-to-PLC)
XW2Z-200T
Cable
length
2m
XW2Z-500T
5m
XW2Z-200T-2
2m
XW2Z-500T-2
5m
Model
Applicable Units
Units with 9-pin connector and built-in 1:1
NT Link function.
CPM2C peripheral
port
Communications
method
NT Link
(RS-232C only)
NT Link
(RS-232C only)
Specifications
9-pin-to-9-pin
9-pin-to-CPM2C
peripheral port
Cable with Connector (PT-to-Personal Computer)
Model
XW2Z-S002
Cable
length
2m
Applicable computer
DOS and 98NX computers
Specifications
Female 9-pin-to-male 9-pin
A-31
Appendix 8 Standard Models
Ethernet Cable (PT-to-Personal Computer)
Particular models are not specified, but use a cable that meets the following specifications.
Item
Conformance standards
Transmission medium
Transmission distance
Connector
Specifications
Conforms to IEEE 802.3 / Ethernet (10Base-T).
2 pair Cat 3 UTP 22-26AWG
100 m (node-to-hub and hub-to-hub)
8-pin modular connector
RS-232C Connecting Cable
Model
AWG28 ´ 5P IFVV-SB
Specifications
Multiconductor shielded cable
Manufactured by Fujikura Densen.
Multiconductor shielded cable
Manufactured by Hitachi Densen.
CO-MA-VV-SB 5P ´ 28AWG
Controller Link Communications Cable
Use one of the twisted-pair cables listed below as the communications cable.
Model
Li2Y-FCY2x0.56qmm
1x2xAWG-20PE+Tr.
CUSN+PVC
#9207
ESVC0.5x2C
Manufacturer
Remarks
KROMBERG & SHUBERT, Department German company
KOMTEC
DRAKA CABLES INDUSTRIAL
Spanish company
BELDEN
Bando Densen Co.
American company
Japanese company
Applicable Connectors for RS-232C
Name
Connector
Model
XM2A-2501
XM2D-2501
XM2A-0901
XM2D-0901
DB-25P
Connector hood
XM2S-2511
XM2S-2513
XM2S-0911
XM2S-0911-E
XM2S-0913
DB-C2-J9
A-32
Specifications
25-pin type (male)
Manufactured by OMRON.
25-pin type (female)
Manufactured by OMRON.
(for DOS computers)
9-pin type (male)
Manufactured by OMRON.
9-pin type (female)
Manufactured by OMRON.
(for DOS computers)
25-pin type (male)
Manufactured by JAE.
25-pin type, mm screws
Manufactured by OMRON.
25-pin type, inch screws
Manufactured by OMRON.
9-pin type, mm screws
Manufactured by OMRON.
9-pin type, mm screws
Manufactured by OMRON.
9-pin type, inch screws
Manufactured by OMRON.
25-pin type
Manufactured by JAE.
Appendix 8 Standard Models
Cables for CS1-series PLC Peripheral Port
Model
CS1W-CN118
Specifications
Manufactured by OMRON
(CS1-series peripheral port-to-D-Sub female 9-pin connector)
A-33
Appendix 9 List of Optional Products
Appendix 9
A-9-1
List of Optional Products
Anti-reflection Sheets: NS12-KBA04, NS7-KBA04
Attached to the display to prevent random reflection and dirt. The sheets are all colorless
and transparent. One set contains five sheets.
N
RU
Model
NS12-KBA04
NS7-KBA04
A-9-2
Specifications
Anti-reflection Sheets for NS12/NS10
Anti-reflection Sheets for NS7
Protective Cover: NS12-KBA05, NS7-KBA05
This cover is transparent and protects the display surface from oil, dust, and finger marks.
PO
N
RU
W
ER
N
RU
A-34
Material
Fitting method
Polyester film
Double-sided tape
Model
NS12-KBA05
NS7-KBA05
Specifications
Protective Cover for NS12 and NS10
Protective Cover for NS7
Appendix 9 List of Optional Products
A-9-3
Replacement Battery: C500-BAT08, CPM2A-BAT01
This is a lithium battery for backing up the contents of the memory.
C500-BAT08
Model
C500-BAT08
CPM2A-BAT01
A-9-4
CPM2A-BAT01
Specifications
Replacement Battery for NS12/NS10
Replacement Battery for NS7
Expansion Memory Board: NS-MF081/161
This Board is used for expanding the area in the PT that contains the screen data.
The memory can be expanded up to 8 Mbytes (MF081) or 16 Mbytes (MF161).
A-9-5
Recommended Memory Cards:
HMC-EF172, HMC-EF372, and HMC-EF672
A-35
Appendix 9 List of Optional Products
A-9-6
Recommended Memory Card Adapter: HMC-AP001
The Memory Card is an external memory that can save and read screen data, log data,
and system programs between the PT and computer. By using the HMC-AP001, this data
can be exchanged with computers that are connected to PC Cards.
The memory capacity depends on the model of the Memory Card used.
Model
HMC-EF172
HMC-EF372
HMC-EF672
Capacity
15 Mbytes
30 Mbytes
64 Mbytes
HMC-EF372
A-9-7
NS-CLK21 Controller Link Interface Unit
This Expansion Unit enables Controller Link communications with PLCs and FA computers. It can be mounted to the NS12-TS0@ or NS10-TV0@.
A-9-8
NS-CA001 Video Input Unit
This Expansion Unit enables displaying video images from video cameras or Vision Sensors on the PT.
It can be mounted to the NS12-TS0@ or NS10-TV0@.
A-36
Appendix 9 List of Optional Products
A-9-9
System Memory List
System memory is used for exchanging information between the host and the PT, such as
controlling the PT and notifying the host of PT status.
The system memory is divided into bit and word sections.
System Bit Memory ($SB)
System bit memory ($SB) is used for exchanging information between the host and the PT
in bit units, such as controlling the PT and notifying the host of PT status.
The system bit memory contains 48 bits with predefined functions.
The system bit memory is listed in the following table.
Address
$SB0
$SB1
$SB2
$SB3
$SB4
$SB5
$SB6
$SB7
$SB8
$SB9
$SB10
$SB11
$SB12
$SB13
$SB14
$SB15
$SB16
$SB17
$SB18
$SB19
$SB20
$SB21
$SB22
$SB23
$SB24
$SB25
to $SB31
$SB32
$SB33
$SB34
$SB35
$SB36
$SB37
$SB38
$SB39
$SB40
$SB41
$SB42
$SB43
$SB44
$SB45
Classification
Notification
Notification
Notification
Control
Notification
Control
Control
Control
Control
Notification
Control
Control
Control
Control
Control
Control
Control
Control
Control
Control
Control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Control
Control
Control
Notification/control
Notification/control
Control
Function
RUN signal (Pulse)
RUN signal (Always ON)
Screen switch strobe
Prohibit Shifting to System Menu
Reserved
Data Input Detector
Brightness adjust, high
Brightness adjust, medium
Brightness adjust, low
Reserved
Control Backlight Flashing
Backlight status
Continuous buzzer
Short intermittent buzzer
Long intermittent buzzer
Reserved
Processing Priority Registration for Port A (NT Link 1:N)
Processing Priority Registration Port B (NT Link 1:N)
Display keypad with temporary input
Prohibit input
Contrast adjustment (+10) (For NS7 only)
Contrast adjustment (+1) (For NS7 only)
Contrast adjustment (-1) (For NS7 only)
Contrast adjustment (-10) (For NS7 only)
Video Capture
Reserved
Initialize Alarm/Event History
Save Alarm/Event History
Reserved
Initialize Data Log
Save Data Log
Initialize Operation Log
Save Operation Log
Log Functional Object Operation
Log Switch Screen Operation
Log Macro Operation
Initialize Error Log
Save Error Log
Reserved
Macro error dialog control
A-37
Appendix 9 List of Optional Products
Address
Classification
Function
$SB46
Notification
Notification of Macro Error
$SB47
Notification
Logging Process or Video Capture Error Flag
The notification words are not write prohibited. In addition, the system will not restore values, except when the status has changed.
System memory is allocated to PLC areas as shown below.
Allocated Addresses for System Memory under NS-Designer Settings/Initialize
$SB + m
15
0
Word m: $SB0 to $SB15
31
16
Word m+1: $SB16 to $SB31
47
32
Word m+2: $SB32 to $SB47
System Word Memory ($SW)
System word memory ($SW) is used for exchanging information between the host and the
PT in word units, such as controlling the PT and notifying the host of PT status.
The system word memory contains 37 items with predefined functions.
The system word memory is listed in the following table.
Address
$SW0
$SW1
$SW2
$SW3
$SW4
$SW5
$SW6
$SW7
$SW8
$SW9
$SW10
$SW11
$SW12
$SW13
$SW14
$SW15
$SW16
$SW17
$SW18
$SW19
$SW20
$SW21
$SW22
$SW23
$SW24
$SW25
$SW26
$SW27
$SW28
$SW29
$SW30
A-38
Classification
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Notification/control
Control
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Notification
Control
Control
Control
Control
Function
Current screen number
Display pop-up screen 1 number
Pop-up screen 1 display position (X coordinate)
Pop-up screen 1 display position (Y coordinate)
Display pop-up screen 2 number
Pop-up screen 2 display position (X coordinate)
Pop-up screen 2 display position (Y coordinate)
Display pop-up screen 3 number
Pop-up screen 3 display position (X coordinate)
Pop-up screen 3 display position (Y coordinate)
Display label number
Reserved
Reserved
Password number for input prohibit clear
Current time (min, s)
Current date and time (day, hour)
Current date (year, month)
Current day (day of the week)
No. of generated alarms and events
ID number for generated alarms and events
ID number for cleared alarms and events
Alarm/event ID when alarm/event object macro executed
Reserved
Macro execution error number
Macro error screen number
Macro error object ID number
Error macro execution timing
Offset value for index I0
Offset value for index I1
Offset value for index I2
Offset value for index I3
Appendix 9 List of Optional Products
Address
Classification
Function
$SW31
Control
Offset value for index I4
$SW32
Control
Offset value for index I5
$SW33
Control
Offset value for index I6
$SW34
Control
Offset value for index I7
$SW35
Control
Offset value for index I8
$SW36
Control
Offset value for index I9
The notification words are not write prohibited. In addition, the system will not restore values,
except when the status has changed.
System word memory is allocated to PLC areas as shown below.
Allocated Addresses for System Memory under NS-Designer Settings/Initialize
$SW = n
Word n: $SW0
Word n+1: $SW1
Word n+36: SW36
A-39
Revision History
A manual revision code appears as a suffix to the catalog number on the cover of the manual.
Man.No. V072-E1-02
Revision code
The following table outlines the changes made to the manual during each revision. Page
numbers refer to the previous version.
Revision code
01
02
Date
May 2002
January 2003
Revised content
Original production
Added information on transferring data through networks.
Added information on Switch Box function.
Contents revised to reflect the upgrade from version 2.0 to version
3.0.
OMRON CORPORATION
FA Systems Division H.Q.
66 Matsumoto
Mishima-city, Shizuoka 411-8511
Japan
Tel: (81)55-977-9181/Fax: (81)55-977-9045
Regional Headquarters
OMRON EUROPE B.V.
Wegalaan 67-69, NL-2132 JD Hoofddorp
The Netherlands
Tel: (31)2356-81-300/Fax: (31)2356-81-388
OMRON ELECTRONICS LLC
1 East Commerce Drive, Schaumburg, IL 60173
U.S.A.
Tel: (1)847-843-7900/Fax: (1)847-843-8568
OMRON ASIA PACIFIC PTE. LTD.
83 Clemenceau Avenue,
#11-01, UE Square,
Singapore 239920
Tel: (65)6835-3011/Fax: (65)6835-2711
Authorized Distributor:
Cat. No. V072-E1-02
Note: Specifications subject to change without notice.
Printed in Japan
Cat. No. V072-E1-02
NS-Series Programmable Terminals
SETUP MANUAL
