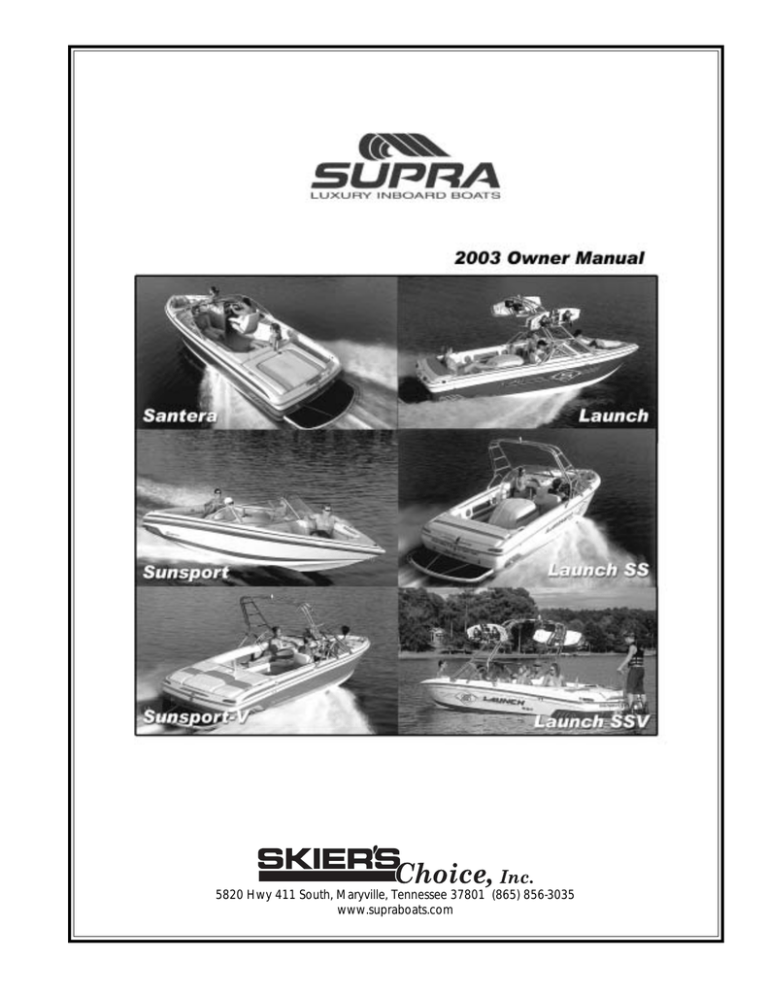

Supra Manual 2003

Supra Manual 2003

© 2003 Skier’s Choice, Inc.

5820 Hwy 411 South, Maryville, Tennessee 37801 (865) 856-3035 www.supraboats.com

1

Revised9-27-02 EHJ

Table of Contents

Section I

Section II

Section III

Section IV

Section V

Section VI

Section VII

Sectioin VIII

Sectiion IX

Section X

Section XI

Section XII

Section XIII

Section XIV

Section XV

Introduction

Boating Safety

Boating Rules

Boat Specificatioins

Operating Information

Starting & Operation

Instrument Panel

Equipment & Options

Service & Maintenance

Cleaning, Care & Storage

Winterization & Dry Storage

Technical Information

Trailer Your Boat

Supra Warranty

Index

47

53

55

57

59

63

67

17

19

23

33

3

5

9

13

Boat Information

Hull Identification Number:______________________________________

Date of Purchase:_____________________________________________

Dealer’s Phone Number:________________________________________

Registration Number:__________________________________________

Engine Serial Number:_________________________________________

Trailer Serial Number:__________________________________________

Revised 9-27-02 EHJ

2

© 2003 Skier’s Choice, Inc.

Section I

Introduction

Introduction

Supra inboard ski boats are manufactured by Skier’s Choice, Inc. in Maryville, Tennessee and distributed throughout the United States and the world.

This manual provides an overview for operating your Supra boat. It should be considered a permanent part of your Supra boat, and contains important information on Safety, Boating Rules,

Proper Operation and Maintenance of your boat. Should the boat be sold, this manual will provide the same important information to the next owner.

Be sure to read and understand all aspects of Boating Safety and Operation before using your boat. If you have any questions, your dealer can provide the information you need to have a safe and pleasurable boating experience.

All information, illustrations and specifications in this manual are based on the latest product information available at the time of printing.

Supra may discontinue models and equipment or change specifications and designs without any notice and without incurring obligation.

This manual contains information about several Supra models. Some information may not apply to your boat since standard and optional equipment may vary from model to model.

As you read through this manual, you will find CAUTION, WARNING and DANGER symbols which require special attention. Please read them carefully! They may tell you how to avoid problems and/or endangering yourself, your passengers, and other boaters. PLEASE REVIEW

ALL SAFETY INFORMATION.

A maintenance schedule and accessory information are included to assure trouble-free operation of your boat. Should service problems arise, remember that your Supra dealer knows your boat best and is interested in your total satisfaction.

Thank you for purchasing a Supra boat. We hope your ownership results in an enjoyable and rewarding boating experience. Be safe and enjoy the fun!

© 2003 Skier’s Choice, Inc.

Trademarks

Santera, Launch, Launch SS, Launch SSV, Sunsport, and Sunsport V

are registered trademarks of Skier’s Choice, Inc.

All other product names are copyright and registered trademarks/trade names of their respective owners.

©

2003 Skier’s Choice, Inc.

3

Revised9-27-02 EHJ

4

© 2002 Skier’s Choice, Inc.

Important Safety Information!

Your safety, as well as the safety of others with and around you, is a direct result of how you operate and maintain your boat. Read and comprehend this manual. Make sure that you understand all the controls and operating instructions before attempting to operate the boat. Improper operation is extremely dangerous.

The basic safety rules are outlined in this section of the manual. Additional precautions throughout the manual are noted by the following symbols.

Section II

Boating Safety

Boating Safety

Boating Safety starts with a thorough understanding of your equipment and its proper operation. In addition to careful review of this manual, you should be aware as well that there are many sources of information available. Skier’s Choice urges you to pursue additional training, such as safety and seamanship courses offered by the U.S. Coast Guard

Auxiliary and the U.S. Power Squadron.

The following is a listing of just some of the agencies and organizations that offer safety training or information:

This symbol indicates a potentially hazardous circumstance, which, if not avoided, may result in minor or moderate injury.

It may also be used to alert against unsafe practices.

This symbol indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

This symbol indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

This is limited to the most extreme situations.

The precautions listed in this manual and on the boat are not all-inclusive. If a procedure, method, tool or part is not specifically recommended by Skier’s Choice, you must satisfy yourself that it is safe for you and others, and that the boat will not be damaged or made unsafe as a result of your decision.

REMEMBER: ALWAYS USE COMMON SENSE WHEN

OPERATING, SERVICING OR REPAIRING THE BOAT!

In addition to everyday safety, failure to observe safety recommendations may result in severe personal injury or death to you or to others. Use caution and common sense when operating your boat. Don’t take unnecessary chances!

Be certain that all boat passengers are aware of this information and conform to boat safety principles.

- American Red Cross, National HQ

17th & D Streets NW

Washington, DC 20006

(202) 639-3686 www.redcross.org

- USA Waterski

799 Overlook Drive

Winter Haven, FL 33884

(941) 324-4341 www.usawaterski.org

- Boat Owners Association of the United States (BOAT/US)

880 South Pickett Street

Alexandria, VA 22304

(703) 823-9550 www.boatus.com

- National Safe Boating Council

2550 M Street NW, Suite 425

Washington, DC 20037

(202) 296-4588 www.safeboatingcouncil.org

- U.S. Coast Guard Auxiliary Commandant (G-NAB)

2100 Second Street SW

Washington, DC 20593-0001

(800) 336-2628 www.cgaux.org

- U.S. Power Squadron www.usps.org

- On-Line Basic Boating Safety Course available at:www.boatsafe.com

Federal law requires certain safety equipment to be on-board at all times. In addition, responsible boaters carry other equipment in case of emergency. Check with the local boating authorities for any additional requirements over and above the federal stipulations.

5

© 2002 Skier’s Choice, Inc.

Safety Equipment

Your Supra has been equipped at the factory with most of the federally required safety equipment for inland waters (Class

1, 16’-to-26’). This equipment includes:

- UL-approved Marine Fire Extinguisher, Type A-BC (2 lbs.), good for solids, liquids, and electrical fire

- ABYC-approved Marine Mufflers with water injection

- USCG-approved Marine Flame Arrestor

- USCG-approved Engine Box Ventilation with spark-less power blower

- ABYC-approved Electric Horn sound warning device

- USCG-approved inland lighting

Federal law also requires at least a Type I, II or III Personal

Flotation Device (PFD) for each person on board or being towed on water skis or other recreational equipment. In addition, one throwable Type IV PFD must also be on board.

As the owner, obtaining the appropriate PFDs is your

responsibility. Your Supra dealer can—and will be happy to assist you.

NOTE: Requirements for coastal waters and inland waters differ. Check with the local authorities for more information.

A responsible owner will avoid potential problems on an outing by having additional equipment on board. Normally, this equipment is dependent on the body of water and the length of the trip.

We suggest the following—as a minimum. Your Supra dealer can also assist you with additional recommendations.

- An anchor with at least 75-feet of line

- A manual bailing device for removing water

- A combination oar/boat hook

- A day-and-night visual distress signal

- A first aid kit and manual

- An airway breathing tube

- A waterproof flashlight

- A set of local navigation charts

- Mooring lines and fenders

- Extra engine oil

- A tool kit

- A portable AM/FM radio or weather radio

Boating-related accidents are generally caused by the operator’s failure to follow basic safety rules or written precautions. Most accidents can be avoided if the operator is completely familiar with the boat, its operation, and can recognize potentially hazardous situations before an accident occurs.

General Safety Precautions

Failure to adhere to these precautions may result in severe injury or death to you and/or others.

- Improper operation is extremely dangerous. Operators must read and understand all operating manuals supplied with the boat before operation.

- On-board equipment must always conform to the governing federal, state, and local regulations.

- Children in the bow of the boat should be accompanied by an adult at all times.

- Never stand or allow passengers to stand while the boat is moving. You or others may be thrown from the boat.

- Never operate the boat while under the influence of alcohol or other drugs.

- Gasoline vapors can explode. Before starting engine, open engine box, check engine compartment for gasoline vapors, and operate blower for at least 4 minutes. Run blower below cruising speed.

- Leaking fuel is a fire and explosion hazard. Inspect system regularly. Examine fuel tanks for leaks or corrosion at least annually.

- Never override or modify the engine safety shut-off switch or engine neutral starting safety switch in any way.

- Never remove or modify components of the fuel system in any way except for maintenance by qualified personnel.

Tampering with fuel components may cause a hazardous condition.

- Never allow any type of spark or open flame on board. It may result in fire or explosion.

- It is the owner’s responsibility to check tightness of the

Rad-A-Cage Tower bolts BEFORE each use.

- The Rad-A-Cage Tower is designed to pull a single (1) individual. DO NOT climb or sit on the Rad-A-Cage Tower.

Rope may loop on inverted tricks. DO NOT sit behind the pulling point of the Rad-A-Cage Tower.

- To avoid serious personal injury, DO NOT be on or about the swim platform while engine is running and keep away from rear of boat while engine is running.

- To avoid serious personal injury, DO NOT operate engine while anyone is on or about the swim platform or in the water near the boat.

6

© 2002 Skier’s Choice, Inc.

General Safety Precautions

(continued)

- The tow bar is not designed for vertical extensions. Any modifications to the tow bar or its mountings may result in damage to the boat and injury to the user.

- Rear storage area is located above the gas tank and is not designed for ballast. Weight limit is 150 lbs. equally distributed.

- The Rad-A-Cage Tower may strike low objects. Check clearance height around docks, shore, overhanging objects, bridges and power lines.

- DO NOT pull past 45 degrees of the centerline of the boat. Failure to follow this rule could result in the boat capsizing.

Skiing Safety

Skiers are obligated to be as aware of the fundamental safety rules as well as the boat operator. If you are new to water skiing, seek certified training before starting. You will find it especially helpful to join a local ski club, USA Waterski, or similar organization when possible.

Always remember that the majority of water skiing injuries are the result of impacts with other objects, so always look where you are going and be aware of what is going on around you.

- It is the driver’s responsibility to ensure all passengers are seated when boat is underway.

Failure to adhere to these warnings may result in severe injury or death to you and/or others.

- This boat is a high-performance boat and capable of quick and tight turns and changes in direction. It is the driver’s responsibility to operate the boat in a manner to ensure the safety of all passengers.

Boaters must continuously be aware of weather conditions.

- Sudden storms, wind, lightning, etc., can unexpectedly put boaters in grave danger. Always check the local weather report before going boating.

Failure to adhere to these warnings may result in severe injury or death to you and/or others.

- Every skier must always wear a USCG-approved personal flotation device.

- Maintain a distance of at least 100 feet from all other objects, including other boats, piers, rafts, mooring and navigational buoys, pilings, abutments, or any other items.

- Always have an experienced driver and observer in the boat when skiing.

- Never ski in shallow water, close to shore, or in water where you do not know the depth or what is beneath the surface.

- Never put your arm, head, or any other part of your body through the handle-bridle of the ski line nor wrap the line around any part of the body at any time.

- Never ski at night, or directly in front of other boats.

- Never jump from a boat that is moving at any speed, nor enter or exit the water when the engine is running (ON).

- Make sure that everyone knows and uses approved skiing hand signals and common skiing courtesy.

It is the driver’s responsibility to determine if weather or other factors have created an unsafe boating environment.

- The driver is solely responsible for the consequences of their actions.

Ski Pylon Extensions

The use of a ski pylon extension or extensions in excess of

7-feet vertical is not recommended by Supra on our products. If you elect to use merchandise such as these, be aware that they could create excessive stress on your boat and subjectively cause damages not covered by the warranty.

© 2002 Skier’s Choice, Inc.

7

Warning Plates and Labels

Read and note ALL warning plates and labels from bow to stern that appear on the boat, including these!

8

© 2002 Skier’s Choice, Inc.

Basic Boating Rules

You should be aware of these rules and follow them whenever you encounter another vessel on the water.

The rules presented in this manual are condensed and have been provided as a convenience only. Consult your local

U.S. Coast Guard Auxiliary (USCGA) or Department of Motor

Vehicles (DMV) for a complete set of rules governing the waters in which you will be using your boat. If you plan to travel—even for a short trip—you would be well served to contact the regional USCGA or DMV in the area where you will be boating.

Review and understand all local and state laws.

Any time two vessels on the water meet one another, one vessel has the right-of-way. It is called the stand-on vessel.

The vessel which does NOT have the right-of-way is called the give-way or burdened vessel.

These rules determine which vessel has the right-of-way, and accordingly, what each vessel should do.

The vessel with the right-of-way has the duty to continue its course and speed, except to avoid an immediate collision.

When you maintain your direction and speed, the other vessel will be able to determine how best to avoid you.

The vessel which does not have the right-of-way has the duty to take positive and timely action to stay out of the way of the

stand-on vessel. Normally, the give-way vessel should not cross in front of the stand-on vessel. Slow down or change directions briefly and pass behind the other vessel. You should always move in such a way that the stand-on operator can see what you are doing.

Section III

Boating Rules

Encountering Other Vessels

There are three main situations in which you may encounter other vessels and you must observe the Steering Rules in order to avoid a collision. These are:

- Meeting (you are approaching another vessel head-on)

- Crossing (you are traveling across the other vessel’s path)

- Overtaking (you are passing or being passed by another vessel)

Using the following illustration in which you are the boat in the center, you should give right-of-way to all vessels shown in the white area. In this instance, you are the give-way vessel.

All vessels in the shaded area must yield to you as you are the stand-on vessel. Both you and the meeting vessel must alter course to avoid each other.

If you are meeting another power vessel head-on, and you are close enough to run the risk of collision, neither of you has the right-of-way. Both of you should alter course to avoid an accident. You should keep the other vessel on your port

(left) side. This rule doesn’t apply if both of you can clear each other by continuing your set course and speed.

This rule is called Rule 2 in the International Rules and says,

“In obeying and construing these rules due regard shall be had to all dangers of navigation and collision, and to any special circumstances, which may render a departure from the above rules necessary in order to avoid immediate danger.”

9

© 2002 Skier’s Choice, Inc.

When two power-driven vessels are crossing each other’s path close enough to run the risk of collision, the vessel that views the crossing vessel to the starboard (right) side must give-way.

If the other vessel is to the port (left) side, maintain your course and direction, provided the other vessel gives you the right-of-way as it should.

All vessels which are fishing with nets, lines or trawls are considered under International Rules to be fishing vessels.

Boats with trolling lines are not considered fishing vessels.

Fishing vessels have the right-of-way, regardless of position. These vessels, however, cannot impede the passage of other vessels in narrow channels.

If you are passing another vessel, you are the give-way vessel. This means that the other vessel is expected to maintain its course and speed. You must stay out of its way as you clear it, altering course and speed as necessary.

Conversely, if you are being passed by another vessel, you should maintain your speed and direction so that the other vessel can steer itself around you.

There are three other rules to always remember when driving your boat around other vessels.

When navigating in narrow channels, you should keep to the right when it is safe and practical to do so. If the operator of a power-driven vessel is preparing to go around a bend that may obstruct the view of other water vessels, the operator should sound a prolonged blast on the whistle or horn—four to six seconds.

If another vessel is around the bend, it too should sound the whistle or horn. Even if no reply is heard, however, the vessel should still proceed around the bend with caution.

If you navigate these type of waters, you should carry a portable air horn, which are available from local marine supply stores.

Sailing vessels should normally be given the right-of-way.

The exceptions to this are:

- When the sailing vessel is overtaking the power-driven vessel, the power-driven vessel has the right-of-way.

- Sailing vessels should keep clear of any fishing vessel.

- In a narrow channel, a sailing vessel should not hamper the safe passage of a power-driven vessel which can navigate only in such a channel.

The waters of the United States are marked for safe navigation by the lateral system of buoyage. The markers and buoys you will encounter have an arrangement of shapes, colors, numbers and lights to show which side of the buoy a boater should pass when navigating in a particular direction.

The markings on these buoys are oriented from the perspective of being entered from seaward while the boater is going towards the port. This means that red buoys are passed on the starboard (right) side when proceeding from open water into port, and black buoys are to port (left) side.

When navigating out of port, your position to the buoys should be reversed: red buoys to port and black buoys to starboard.

Many boating bodies of water are entirely within the boundaries of a single state. The Uniform State Waterway

Marking Systems has been devised for these waters. This system uses buoys and signs with distinctive shapes and colors to show regulatory or advisory information.

These markers are white with black letters and orange borders. The information signifies speed zones, restricted areas, danger areas and general information.

Remember: Markings may vary by geographic location.

Always consult local boating authorities before driving your boat in unfamiliar waters.

(See examples of buoys and markers next page.)

10

© 2002 Skier’s Choice, Inc.

© 2002 Skier’s Choice, Inc.

11

Revised 9-27-02 EHJ

12

© 2003 Skier’s Choice, Inc.

Santera

Section IV

Boat Specifications

© 2003 Skier’s Choice, Inc.

Boat Specifications:

Overall Length w/o Platform

Overall Length w/Platform

Overall Length w/Trailer

Width (Beam)

Draft

Weight - Boat Only

Weight - Boat & Trailer

Capacity - Passenger

Capacity - Weight

Capacity - Fuel

Engine

21’ 8”

23’ 10”

25’ 8”

95”

24”

3,250 lbs.

4,350 lbs.

11

1,500 lbs.

40 gals.

320 HP, V-8

13

Revised9-27-02 EHJ

Sunsport Sunsport V

Boat Specifications:

Overall Length w/o Platform

Overall Length w/Platform

Overall Length w/Trailer

Width (Beam)

Draft

Weight - Boat Only

Weight - Boat & Trailer

Capacity - Passenger

Capacity - Weight

Capacity - Fuel

Engine

21’ 8”

23’ 10”

25’ 8”

95”

22”

3,050 lbs.

4,150 lbs.

11

1,500 lbs.

34 gals.

320 HP, V-8

14

Boat Specifications:

Overall Length w/o Platform

Overall Length w/Platform

Overall Length w/Trailer

Width (Beam)

Draft

Weight - Boat Only

Weight - Boat & Trailer

Capacity - Passenger

Capacity - Weight

Capacity - Fuel

Engine

21’ 8”

23’ 10”

25’ 8”

95”

24”

3,250 lbs.

4,350 lbs.

11

1,500 lbs.

40 gals.

320 HP, V-8

© 2002 Skier’s Choice, Inc.

Launch

Launch SS

Boat Specifications:

Overall Length w/o Platform

Overall Length w/Platform

Overall Length w/Trailer

Width (Beam)

Draft

Weight - Boat Only

Weight - Boat & Trailer

Capacity - Passenger

Capacity - Weight

Capacity - Fuel

Engine

20’ 11”

22’ 7”

24’ 9”

98”

24”

3,450 lbs.

4,705 lbs.

13

1,775 lbs.

37 gals.

320 HP, V-8

© 2002 Skier’s Choice, Inc.

15

Boat Specifications:

Overall Length w/o Platform

Overall Length w/Platform

Overall Length w/Trailer

Width (Beam)

Draft

Weight - Boat Only

Weight - Boat & Trailer

Capacity - Passenger

Capacity - Weight

Capacity - Fuel

Engine

21’ 8”

23’ 10”

25’ 8”

95”

22”

3,050 lbs.

4,150 lbs.

11

1,500 lbs.

34 gals.

320 HP, V-8

Launch SSV

Boat Specifications:

Overall Length w/o Platform

Overall Length w/Platform

Overall Length w/Trailer

Width (Beam)

Draft

Weight - Boat Only

Weight - Boat & Trailer

Capacity - Passenger

Capacity - Weight

Capacity - Fuel

Engine

21’ 8”

23’ 10”

25’ 8”

95”

24”

3,250 lbs.

4,350 lbs.

11

1,500 lbs.

40 gals.

320 HP, V-8

16

© 2002 Skier’s Choice, Inc.

Section V

Operating Infomation

Break In Period

Taking care to properly break in your new engine will pay off in the long run. In our years of field testing, we have proven that an Indmar engine, when properly broken in according to our simple procedures, will last longer, run better and have fewer repairs over its lifetime.

Your new engine does not require an elaborate break-in procedure. Just follow these simple instructions and you are off to a great start.

The three (3) most important aspects of new engine break-in are:

1. Avoid running engine at high speeds.

2. Do not carry a heavy load (passengers, gear, etc.).

3. Vary your boat speed during break-in, don’t run at the same

RPM for a long period of time.

BREAK-IN STEPS

- For the first hour, do not exceed 2,000 RPM.

- For the second hour, do not exceed 3,000 RPM.

- For the next five hours, do not exceed 4,000 RPM

BREAK-IN TIPS

- Avoid fast accelerations and don’t carry (or pull) a heavy load during this period.

- Always let engine warm up gradually before acceleration.

- Check oil frequently. During the first 50 to 100 hours, an engine can use more oil than usual. Maintain oil at a proper level at all times (do not overfill).

- Monitor transmission fluid levels.

- Report abnormal noises or vibrations to your dealer.

- Keep an eye out for loose mountings, fittings, nuts, bolts, and clamps.

During the BREAK-IN process, engine temperature should be carefully monitored and speed should be reduced if overheating is evident. ALSO, PLEASE REFER TO ENGINE

OWNER’S MANUAL FOR BREAK-IN INFORMATION.

NOTICE: PLEASE REFER TO ENGINE OWNER’S MANUAL for maximum RPM and engine break-in procedure.

After the first 20 hours of operation, take your boat to the dealer for its first oil and filter change, as well as an engine checkup. Remember to keep a sharp eye on all gauges and warning lights during these first hours of operation. Report anything unusual to your dealer.

After the break-in procedure is over, your boat may be operated continuously at any speed.

Do not exceed maximum RPM recommended for your engine. Exceeding the maximum RPM may result in damage to the engine.

Before starting your engine you must open the engine box and check engine compartment and bilge for gasoline and oil vapors.

Starting & Operation

A standard pre-starting procedure should be always be followed before the first start-up of the day.

1. Check the engine oil level.

2. Check for gasoline fumes in bilge or engine compartment.

3. Operate engine blower for 4 minutes to remove any fumes.

4. Check manual operation of bilge pump. Make sure bilge areas are empty.

Other items might also be inspected, depending on the boat and its use. It is advisable to formulate a check list particular to the equipment and operation of your boat.

REFER TO THE BOATMAN’S CHECKLIST OF THIS

MANUAL.

Consult the local Coast Guard Auxiliary or Power Squadron for full details on boating safety.

NOTE: Add-on electrical accessories should never be connected to the ignition terminal or ignition circuit.

IMPORTANT: DO NOT continue to operate the starter for more than 30 seconds at a time without pausing to allow the starter motor to cool down for at least 2 minutes. This will also allow the battery to recover between starting attempts. PLEASE REFER TO ENGINE OWNER’S

MANUAL FOR ADDITIONAL DETAILS.

BEFORE STARTING ENGINE, BE SURE THAT THE SHIFT

SELECTOR IS IN NEUTRAL.

The correct starting procedure depends upon the type of engine. Please refer to the engine manual before starting.

17

© 2002 Skier’s Choice, Inc.

Canvas Cover

Your mooring cover is not designed for trailering.

Trailering with your cover installed may cause premature cover failure and boat damage. This damage is not warrantable.

Coast Guard Regulations

The United States Coast Guard boating regulations prescribe minimum standards of safety to be met and maintained by all watercraft. It is necessary that your boat remain in compliance with these regulations.

The staff at Skier’s Choice, Inc. recommend that all boat operators complete a Coast Guard approved boating safety course.

Your Supra boat cover is made from the finest canvas and webbing to insure that your boat will be protected in the off season. The cover has been designed to fit securely around each boat. If you new cover does not seem to be snug, a shrinkage allowance has been sized in.

Use the following procedure when covering the boat:

1. Be sure that the cover fits snugly at the bow then unfold from front to back.

2. Be sure to install cover pole(s) and adjust to proper height, using set screw on pole(s). This will keep water from gathering in the center, which can damage the cover.

3. Secure all fastening straps around the trailer frame.

4. Pull the draw cord equally from both sides and tie off to the lifting eyes on the stern in accordance with the illustration.

Folding Cover

When folding the cover for storage, be sure the cover is dry.

Take care not to scratch the canvas finish against rough surfaces. Store in a dry location.

Cover Repair

If the cover becomes damaged, immediately patch and reseal the area. Use a tent seam sealer to reseal any new stitches.

Spray fabric guard on scraped or worn surfaces. Canvas tears should be repaired professionally and stitches sealed to prevent leakage.

Maximum Capacities

In compliance with United States Coast Guard Regulations,

Supra Boats meet or exceed all safety standards designed for recreational boats. To ensure safe handling and performance, each Supra boat displays a maximum capacity sticker (see sample), stating the maximum passenger weight load allowable.

NOTICE: Refer to the Maximum Capacity Sticker on your boat for allowable loading.

18

© 2002 Skier’s Choice, Inc.

Section VI

Starting & Operation

A standard pre-starting procedure should be always be followed before the first start-up of the day.

1. Check the engine oil level.

2. Check for gasoline fumes in bilge or engine compartment.

3. Operate engine blower for 4 minutes to remove any fumes.

4. Check manual operation of bilge pump. Make sure bilge areas are empty.

Other items might also be inspected, depending on the boat and its use. It is advisable to formulate a check list particular to the equipment and operation of your boat.

REFER TO THE BOATMAN’S CHECKLIST OF THIS MANUAL.

Consult the local Coast Guard Auxiliary or Power Squadron for full details on boating safety.

NOTE: Add-on electrical accessories should never be connected to the ignition terminal or ignition circuit.

IMPORTANT: DO NOT continue to operate the starter for more than 30 seconds at a time without pausing to allow the starter motor to cool down for at least 2 minutes. This will also allow the battery to recover between starting attempts. PLEASE REFER TO ENGINE OWNER’S MANUAL FOR ADDITIONAL DETAILS.

BEFORE STARTING ENGINE, BE SURE THAT THE SHIFT SELECTOR IS IN NEUTRAL.

The correct starting procedure depends upon the type of engine. Please refer to the engine manual before starting.

To Start Electronic Fuel Injection

(EFI) Engine

1. Place shift selector in Neutral with the throttle in the upright

(zero) position. (If throttle is not in the idle position, the throttle position sensor will not allow the engine computer to proceed with a normal starting procedure).

2. Turn Ignition Key to Start Position to operate the starter.

3. Release the Key when engine starts (key will return to run position).

4. Allow the engine to establish a good idle (30 to 60 seconds) before getting underway.

5. Shift slowly into forward or reverse, allowing the transmission time to engage before powering up.

NOTE: It is normal for the idle to speed up in cold start conditions.

2.

With the transmission disengaged push the lever forward to full throttle position. (This will cause the computer to shut off the fuel injectors which will allow the engine to clear of excess fuel during starting).

3.

Turn the Ignition Key to Start Position and operate the starter for no more than 15 seconds at a time until the engine starts.

4.

When the engine starts, back off the throttle and allow the engine to establish a good idle (30 to 60 seconds).

5.

Return the throttle to idle position and the transmission lockout will automatically reengage the transmission in neutral position.

6.

When ready to get underway, shift slowly into forward or reverse, allowing the transmission time to engage the gearing before powering up.

To Start Carburetor Engine

DO NOT continue to operate the starter for more than 30 seconds at a time without pausing to allow the starter motor to cool down for at least 2 minutes. This will also allow the battery to recover between starting attempts.

PLEASE REFER TO ENGINE OWNER’S MANUAL FOR

ADDITIONAL DETAILS.

NOTE: Should the EFI engine become “flooded” use the following procedure to start:

1.

Place shift selector in Neutral and disengage the transmission by pushing the transmission lockout button located at the bottom of the lever.

1. Place shift selector in Neutral with the throttle in the upright

(zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2. Turn the ignition key to the start position to operate the starter.

3. When the engine starts, release the key and it will return to the run position.

4. With the transmission disengaged, push the throttle lever forward to increase the engine idle to 1200 to 1500 RPM.

5. When the engine idle smooths out, return the throttle to idle position and the transmission lockout will automatically reengage the transmission in neutral position.

6. When ready to get underway, shift slowly into forward or reverse, allowing the transmission time to engage the gearing before powering up.

© 2002 Skier’s Choice, Inc.

19

Revised9-27-02 EHJ

If Carburetor Engine Does Not Start

1B. Place shift selector in Neutral with the throttle in the upright (zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2B. With the transmission disengaged, push the throttle lever forward about one/fourth (to slow run position).

3B. Turn ignition key to start position to operate starter.

4B. When the engine starts operate the throttle lever to establish an engine idle of 1200 to 1500 RPM.

5B. When the engine idle smooths out, return the throttle to idle position and the transmission lockout will automatically reengage the transmission in neutral position.

6B. When ready to get underway, shift slowly into forward or reverse, allowing the transmission time to engage the gearing before powering up.

Throttle Lever

If Carburetor Engine Still

Does Not Start

1C. Place shift selector in Neutral with the throttle in the upright (zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2C. With the transmission disengaged, move the throttle lever back and forth from one/fourth to one/third throttle.

3C. While moving the throttle lever turn the ignition key to

Start Position to operate the starter.

NOTE: Do not operate the starter for more than 15 seconds at a time. Allow the starter to rest for a full minute

before attempting this starting procedure again.

4C. When the engine starts, operate the throttle lever to establish an engine idle of 1200 to 1500 RPM.

The throttle lever controls both the throttle and the transmission. The idle position (normally vertical) is the zero throttle position and the neutral position for the transmission.

A safety ring (umbrella) keeps the lever from being accidentally moved to engage the transmission.

To place the transmission into gear, with your hand placed over the lever ball, pull up on the safety ring (umbrella) and slowly push the lever into forward gear or slowly pull the lever back into reverse gear.

Never shift the lever directly from the neutral (vertical) position into a speed position.

- To prevent damage to the transmission always allow the transmission time to engage before accelerating the engine.

- Once the transmissions engaged, you may accelerate as quickly as you like.

If Carburetor Engine Floods

1D. Place shift selector in Neutral with the throttle in the upright (zero) position and push the transmission lockout button at the bottom of the lever to disengage the transmission.

2D. Push the throttle lever to the full throttle (wide open) position.

3D. Turn Ignition Key to operate starter.

NOTE: Do not operate the starter for more than 15 seconds at a time. Allow the starter to rest for a full minute before attempting this starting procedure again.

4D. When the engine starts, back off the throttle, but allow the engine to idle at 1500 RPM until it smooths out.

Transmission

Lockout

The Transmission Lockout button allows the transmission to be disengaged while giving the throttle full operating range.

With the lever in the idle position (normally vertical) push the button located at the bottom of the lever to disengage the transmission. The throttle may then be operated in any open position (forward of neutral or back of neutral upright position).

Return the throttle to idle position, and the transmission lockout will automatically reengage the transmission in neutral position.

20

© 2002 Skier’s Choice, Inc.

Bilge Area Drain Plug

Rear Drain Plug

The bilge area drain plug is located at the front of the motor well, directly under the engine.

It is extremely important that the drain plug is always checked before starting the engine. The drain plug should be secured in place using a wrench.

The rear drain plug is located at the back of the boat, near the bottom of the transom (See photo). It is extremely important that the drain plug is always checked before starting the engine. The drain plug should be secured in place using a wrench.

DO NOT start engine until center drain plug is checked and secured in place. DO NOT try to install center drain plug while engine is running!

Some Supra models DO NOT have mechanical devices to hold the motor box cover in the open position. Please use caution to prevent accidental closing.

DO NOT start the engine until the drain plug is checked and secured in place.

DO NOT try to install the drain plug while the engine is running.

EFI Phased Warm-Up

Always let engine warm up to normal operating temperature before accelerating. EFI engines are programmed with a phased warm up to ensure that the engine is warm before full RPM is possible; refer to Table 1-1.

© 2002 Skier’s Choice, Inc.

21

Fuel Precautions Fueling

Use a gasoline with a minimum octane rating of 89.

DO NOT use gasoline containing methyl alcohol

(methanol) or ethyl alcohol (ethanol). Methanol and

Ethanol can damage your boat’s fuel system.

Gasoline Stabilizer should be added to the fuel tank when the boat is used infrequently or whenever your boat will not be used for two weeks or more. During storage always add

Gasoline Stabilizer to reduce gumming or tank sludge.

Sparks while fueling could cause an explosion!

Before Fueling:

1. Turn off engine.

2. Turn off ignition.

3. Extinguish cigarettes or any open flame.

While Fueling:

1. Keep hose nozzle in contact with fill pipe to provide a ground against static sparks.

2. Fill tank at a slow rate to avoid any spillage.

Filling the Tank

Fuel Cap & Key

Be especially careful when filling the fuel tank. DO NOT over fill the tank. Fuel may empty through the fuel vent and damage to finishes could result.

If fuel is spilled on stripes or decals, apply a common bath cleaner (nonabrasive) and wipe with a damp cloth. Rinse the spill area with clean water.

The fuel cap is located on the rear deck near the stern. A special fuel key is provided to open the cap.

NOTE: The cap is sealed by a rubber O-ring. Please do not over tighten.

22

© 2002 Skier’s Choice, Inc.

Section VII

Instrument Panel & Controls

Speed Calibration

Speed may be checked using a stopwatch and a standard slalom course. Adjust the speedometer needle by turning the adjuster buttons.

Location of the adjuster buttons vary on location. On some models they can be found on the dash, while on other models they can be found to the left of the hour meter gauge on the inside of the panel as shown below.

© 2002 Skier’s Choice, Inc.

23

(Times are from start gate to end gate)

Speedometer Engine Hours

The speedometer indicates the water speed of the boat in miles per hour. It is recommended that the speedometer be checked for accuracy periodically.

Engine Hours are shown on the gauge located to the right of the dash panel.

The engine hour gauge acts as an odometer for the engine.

Engine hours should always be noted and documented so that required maintenance and lubricant changes may be performed at the proper intervals.

Tachometer

Temperature Gauge

The tachometer registers the operating speed of the motor’s shaft output and may be used as an alternative to speedometer if weight and water conditions permit.

DO NOT exceed the recommended RPM during break-in and normal operation of your motor. Exceeding the manufacturer’s suggested RPM may cause damage to the engine.

The temperature gauge indicates the engine coolant temperature while the coolant is circulating inside the engine.

Engine operating temperatures will vary depending on the weather conditions and engine load. Normal operating temp range is between 160 degrees and 180 degrees.

NOTICE: Refer to your Engine Owners Manual for additional details.

24

Damage from overheating an engine IS NOT warrantable.

© 2002 Skier’s Choice, Inc.

Fuel Gauge Voltmeter

This gauge indicates the approximate quantity of fuel remaining in the tank when the ignition is in the “ON” position.

NOTICE: DO NOT run the tank to empty. To prevent condensation from forming in the tank, it is recommended that the tank be filled when the gauge indicates 1/4 tank of fuel remaining.

The following conditions may be considered normal operation of the fuel gauge and fuel system:

- Gas station pumps may shut off before the fuel gauge indicates FULL.

- The amount of fuel required for fill-up may not exactly correspond to the gauge.

- The gauge needle may not move away from FULL until some time after fill-up.

- The gauge needle may move during turns, stops and acceleration.

NOTICE: Become familiar with engine hourly fuel consumption at various speeds and know when to check the fuel gauge.

Speedometer Paddle Wheel

The voltmeter indicates whether the battery is charging or discharging. The needle should be located in the normal range while the engine is running.

If the voltmeter does not register in the normal range, there may be a problem within the electrical system. It is normal for the voltmeter needle to fall when starting the engine. Normal range is 12 to 14 volts.

Oil Pressure Gauge

The oil pressure gauge indicates the oil pressure in the engine while the engine is running.

If the oil pressure remains below the normal range of 20 to 40 psi, stop the engine immediately. If engine is allowed to run while oil pressure is too low, permanent engine damage may occur.

The Speedometer pickup is a paddle wheel located on the bottom of the boat. Poor water conditions may cause the wheel to become clogged or give incorrect information.

Running the engine with low oil pressure may cause severe engine damage.

© 2002 Skier’s Choice, Inc.

25

Depth Sounder

General Description

1. The depth finder will read to 199 ft., or the corresponding number of meters or fathoms. If the reading is less than

19.9 ft., meters or fathoms, 1/10th increments will be displayed. If the reading is more than 19.9 ft., all readings will be in whole numbers.

2. The depth finder has an audible and LCD displayed depth alarm with adjustable shallow and deep limits and a depth below keel offset feature. The settings once made are stored in memory and will remain even if the battery is disconnected.

Operation:

1. Power On. The depth sounder will activate automatically when the power to it is initially turned on. You do not have to press the combination “ON/OFF MODE” keypad. The

LCD will illuminate showing the depth and will also show the type of units selected, feet (FT), meters (M), or fathoms

(F). To turn the depth sounder off, press and hold the

“ON/OFF MODE” keypad for 4 seconds. Pressing the

“ON/OFF MODE” keypad again will reactivate the unit.

NOTE: The instrument is designed to have the internal

LED lighting remain on as long as power is supplied even if the unit is turned “OFF” at the keypad.

2. Depth Alarm. Shallow mode: Pressing the “ON/OFF

MODE” keypad again displays the “SH” shallow depth alarm setting. This is the shallowest water that will activate the alarm. Press and hold the up or down arrow keypads to adjust the reading to the desired depth.

Deep mode: Pressing the “ON/OFF MODE” keypad again displays the “DP” deep depth alarm setting. This is the deepest water that will activate the alarm. Press and hold the up or down arrow keypads to adjust the reading to the desired depth. When the shallow depth setting is read by the depth sounder, the “SH” will flash on the LCD and the audible alarm will sound rapidly. When the deep depth setting is read by the depth sounder, the “DP” will flash on the LCD and the audible alarm will sound at 2 beeps per second.

NOTE: To fully deactivate an alarm, reset it to zero. Pressing the “ON/OFF MODE” keypad temporarily deactivates the alarm. To reactivate the alarm press the “ON/OFF MODE” keypad until the depth reading appears.

3. Keel Offset. Pressing the “ON/OFF MODE” keypad again displays the “KL” keel offset setting. This can be set so that the depth sounder either shows the depth below the keel or the depth below the transducer. Press the up or down arrow keypads to adjust the reading to the desired depth no more than 19.9 ft. For example if the bottom of the keel is 2 ft below the transducer and you want the depth sounder to read the depth below the keel, the display should be adjusted to read 2.0 ft

NOTE: Once a keel offset is programmed, the shallow and deep alarms will be activated by the depth below the keel.

4. Units. Pressing the “ON/OFF MODE” keypad again displays “Un” on the LCD indicating the units mode. Press either the up or down arrow keypads to set the units desired to feet (FT), meters (M), or fathoms (F). These units, once set, will remain the same for all modes. Pressing the “ON/OFF MODE” keypad again returns the depth sounder to normal operation.

Stereo

Remote Control Pad

Please refer to your stereo owner’s manual for proper operation instruction.

NOTE: Stereo unit is connected to the ACC switch on the dash. The ACC switch must be in the “ON” position before the stereo can be turned on.

The stereo cannot be turned off by the remote. The “SRC” button on the stereo unit must be held down for 3 seconds to completely turn the stereo off. Continue to hold the SRC button until display goes blank or turn off the

ACC switch on the dash..

If the face displays “ALL OFF”, your stereo is in standby mode and drawing battery power which will drain the battery and may lead to a dead battery.

26

© 2002 Skier’s Choice, Inc.

Navigation Lights Switch Accessory Switch

The navigation light switch supplies power to the Bow Light, the Stern Light and the Pole Light.

Operation

When underway during night time operation, set the switch in the NAV position to activate all of the running lights.

When docked or at anchor, set the switch i the ANC position to activate only the pole light.

NOTICE: If lights fail to operate, press the circuit breaker under the dash.

The accessory switch supplies power to an extra circuit for accessories that may be added (such as heaters, hot water showers, etc.).

NOTICE: If accessories fail to operate, press the circuit breaker.

Blower Switch

© 2002 Skier’s Choice, Inc.

27

The blower switch activates the blower motor. The primary function of the blower fan is to remove any fumes from the bilge area. The blower also draws fresh air into the engine compartment.

Never depend solely on the blower to eliminate dangerous fumes. Before starting the engine, always open the motor box to check if fumes are present. Switch on the blower fan a minimum of four minutes before starting the engine.

NOTICE: If the blower fails to operate, reset the circuit breaker. If the blower still does not operate, notify your

Supra dealer.

Failure to operate the blower in accordance with the Coast

Guard Recommendation could result in an explosion.

Ignition Switch Horn Switch

Located on the port side of the dashboard, the ignition switch has three positions. In the vertical position the ignition is OFF.

With the key in, turn the ignition switch one notch to the right to check all electrical equipment, including blower, pump, and lights. Turn the ignition all the way to the right to operate the starter.

NOTE: All electrical equipment should be turned off when the boat is in storage.

Tilt Steering

The Horn Switch is located on the port dash panel near the ignition. Sound the horn by depressing the button.

Horn/Whistle Signals

One Long Blast:

Warning Signal (Coming out of slip)

One Short Blast:

Pass on my Port Side

Two Short Blasts:

Pass on my Starboard Side

Three Short Blasts:

Engines in Reverse

Four or More Blasts:

Danger Signal

1. OVERTAKING / PASSING: Boat being passed has the

right-of-way. KEEP CLEAR.

2. MEETING HEAD-ON: Keep to the right.

3. CROSSING: Boat on the right has the right-of-way. slow

down and permit him to pass.

DC Outlet

Tilt steering may be adjusted up or down in five different locking positions. To adjust, depress the tilt lever located beneath the bezel and move the steering wheel to the desired position.

Release the lever to lock the wheel into place.

For your convenience, a DC outlet has been included in the dash area, location varies by model.

28

© 2002 Skier’s Choice, Inc.

Circuit Breaker Panel

— or —

Courtesy Lights Switch

The circuit breaker panel contains breakers for all electrical equipment. The panel is located below the dashboard on the side wall nearest the driver’s left knee.

If a switch fails to operate, locate the corresponding circuit breaker and press the reset button. If the equipment still does not operate, notify your Supra dealer.

The Courtesy Lights switch supplies power to the interior lights located to the rear of the helm.

NOTICE: If lights fail to operate, press the circuit breaker.

Bilge Pump Switch V-Drive Warning Light

The bilge pump switch operates in two positions. The manual position is used to verify that the pump is operational.

The automatic pump function is engaged at all other times so that any excess water in the bilge may automatically be pumped out.

NOTICE: If the Bilge Pump fails to operate in the manual position, press the circuit breaker reset button labeled

BILGE. If the bilge pump still does not operate, notify your Supra dealer.

The V-Drive transmission in your Supra is equipped with a

“low pressure” warning light. This light is located by the dash. Do not operate your Supra if the warning light remains on, whenever the engine speed is above, 1,200 RPM (+/-

400 RPM). This warning light should be on whenever the engine speed is below 1,200 RPM (+/- 400 RPM). If this light remains on during operation above idle, shut your engine off immediately and check your v-drive oil level and see your dealer.

© 2002 Skier’s Choice, Inc.

29

Optional Bertha Ballast System

Care should be taken that the ballast bags are situated properly with the fill hose on top and drain hose on bottom and that all fittings are installed securely. The bags should not be twisted and the bags should be free to expand and drain completely. Care should be taken to prevent sharp objects from coming in contact with the bags. Cuts and punctures to the bags are not warrantable.

The optional Bertha Ballast System is an electronically controlled ballast system that can be operated from the driver’s seat. The Bertha system is available in a 1, 2 or 3 position system. The switch panel to the 2 and 3 position systems is located directlybelow the shifter mechanism, and the 1 osition system is operated from a switch on the dash.

Each switch allows independent filling and draining of each ballast container by simply hitting the fill or drain switch. If the system fails to fill or drain, you may check the resettable breaker on the switch panel, or the separate ballast fuse block located under the dash area. The ballast bags or tanks can be found in the front ski locker, under the rear seat, or in the rear v-drive storage areas depending on the the model and ballast system.

Each Bertha Ballast system also includes a manual shut off valve in case of emergencies. If closed, the valve will prevent any water from entering the system and is only used in emergency situations. Under normal use the valve should remain open to allow full flow of water into system.

Priming the System

To allow water into the system, the Bertha Ballast system utilizes a scooped intake stainer to force water into the system. This allows the ballast system to be filled while running or sitting still. If air becomes trapped in the system, it may be necessary to run the boat at planing speeds to force water into the system and allows the fill pump to prime fully. Once the pump has primed it is no longer necessary to run the boat for filling. This situation may occur if the boat is trailered.

30

© 2002 Skier’s Choice, Inc.

The Bertha Ballast system utilizes a manifold and a solenoid valve to independently fill each bag or tank. The solenoid valves have a small toggle switch that can manually override the opening of the valve. The manual toggle switch needs to be in the “down” position to allow the system to be controlled by the switches in the dash area. If the manual toggle switch is turned to the “up” position, the valve will be open all the time and cannot be controlled by switches in the dash area. If the ballast system fills continuously while running the boat, check to make sure the manual override toggle switch is in the “down” position. If it continues to fill and the manual toggle switch is in the “down” position, check for debris that may have clogged the solenoid valve forcing the valve to stay open.

If the valves continue to fill, closing the manual emergency shut-off valve will prevent any water from entering the system.

To fill the ballast system, press the fill switch. To empty, press the empty switch. With the ballast full, the boat may porpoise at speeds above 25 mph.

Empty ballast before trailering the boat. DO NOT trailer boat with ballast full!

© 2002 Skier’s Choice, Inc.

31

32

© 2002 Skier’s Choice, Inc.

Section VIII

Ignition Keys

Fuel Cap Key

Two ignition keys are provided with the boat. Key entry into the ignition may be difficult due to the boot protector. Please, do not unduly force the key into the ignition. Key tumblers are located vertically, thus the key should be vertical when placed into the switch.

NOTE: Always attach the ignition key and gas key to a floating key chain to prevent loss in the water.

To prevent tampering with fuel system, your Supra is provided with a gas cap, which may be opened only with a special key.

NOTICE: The gas cap is sealed by a rubber O-ring.

DO NOT over tighten!

Always attach the ignition key and gas key to a floating key chain to prevent loss overboard.

Mirror

The rear view mirror is installed as a standard item. The mirror is adjustable and is not permanently placed so that it may be set for each driver.

- Mirror should always be checked before driving.

- Mirror angle will change with each new driver.

© 2002 Skier’s Choice, Inc.

33

Revised9-27-02 EHJ

Driver’s Seat & Seat Adjustment

Inboard Motor Box

The motor box encloses the inboard engine and quiets engine noise. To open, stand on either side of the engine toward the stern seat. Grasp the handle and pull up at approximately a

45 degree angle. If the engine requires maintenance, open the box until it rests open.

The motor box base is fitted with quick release rubber holddowns and stainless steel brackets for easy removal.

Never open the Motor Box while the boat is moving!

The Rise-R Seat is a unique driver seat enhancement. The front edge of the driver’s seat cushion lifts up to give the driver a taller sightline. To switch the seat to the raised position, use two hands to lift and push the front edge of the seat cushion up and back until it is sitting on therear half of the driver’s seat cushion. To switch to the lower position, use two hands to push the Rise-R seat cushion forward and down.

Some Supra models DO NOT have mechanical devices to hold the motor box cover in the open position. Please use caution to prevent accidental closing.-

V-Drive Engine Compartment

Be careful of the articulating hinge. Do not place fingers or other objects in the hinge mechanism during use.

The driver’s seat may be adjusted forward or backward by moving the lever below the front of the seat (Lever-A in the photo). Use body pressure to move the seat to the desired position. Release the lever then check to feel the seat lock into place.

After adjusting the seat, be sure that it has locked into place by pushing forward and backward until it has securely latched.

DO NOT attempt to adjust the driver’s seat while the boat is moving.

To access the engine compartment, turn latch and pull to raise the center sun deck lid. When the ski lockers and engine compartment lids are closed, the upholstered lids double as a cushioned sun deck.

34

© 2002 Skier’s Choice, Inc.

Fire Extinguisher V-Drive Ski Pylon

The ski pylon is to be used to pull skiers. DO NOT use ski

pylon to hoist boat! Only use the lifting rings for this purpose.

A standard United States Coast Guard approved fire extinguisher is provided with your Supra boat. The fire extinguisher is located under the observer’s seat cushion.

NOTICE: Refer to the instructions on the fire extinguisher for proper use.

Flame Precautions

DO NOT mount any Pylon Extension on the rear pylon

(located at the rear sundeck).

Inboard Ski Pylon

Sparks while fueling can cause explosion! Extreme caution should be taken when an open flame is present on board. Fumes from the engine and fumes from the battery are highly flammable. No flame or spark should come near these areas.

The ski pylon is located in the center portion of the boat directly in front of the motor box. The ski pylon is to be used to pull skiers. DO NOT use ski pylon to hoist boat! Only use the lifting rings for this purpose.

NOTICE: The use of pylon extensions may cause the pylon to loosen. Please see your dealer for proper tightening procedures.

The use of pylon extensions can severely effect the overall handling of the boat. Follow pylon extension manufacturers directions for mounting.

© 2002 Skier’s Choice, Inc.

35

DO NOT mount any Pylon Extension on the rear pylon

(located at the rear sundeck of v-drive models).

Rad-A-Cage

If your Supra model has been equipped with an optional RAD-

A-CAGE towing tower, please review this section for details on it’s usage, maintenance and storage.

The cage is designed as a stable tower to enhance wakeboarding. It is NOT intended to be used to tow skiers, barefoot skiers, or multiple wakeboarders. Such use will void any warranties written or implied.

To Lower Cage For Storage

Tools Required: 5/16” Allen Wrench

1. Loosen (but do not remove) the front 5/16-18 x 1-1/4” allen head bolts that connect the front legs to the foot.

2. Remove the hand knobs of the rear feet.

3. While standing in the bow area, pull the cage forward, gently placing it against the bow of the boat.

Before use, be sure that all mounting bolts are properly tightened in place.

Place padding between the cage and the boat to protect the gel coat finish from scratches.

Be aware of and avoid low overhead objects such as bridges, power lines, overhanging trees, etc.

To Raise The Cage

Lift and rock the tower back into place until the rear legs align with the rear feet. (Some manipulation of the cage may be required to get the legs to line up with the feet). Install both bolts and tighten all bolts.

DO NOT stick fingers or other objects into logo cutouts!

The threads in the aluminum foot could be damaged if the bolts are not aligned and threaded correctly!

Rad-A-Cages are designed to pull one wakeboarder, kneeboarder or trick-skier.

36

© 2002 Skier’s Choice, Inc.

Pole Light Receptacle Courtesy Lights

The pole light receptacle is located on the starboard of the stern, along side of the sun deck. To install pole light, slide open the weather cover and insert the pole light in the aligned position.

Pole Light

On some models, the removable pole light is stored on the side wall of the rear storage area. Gently pull the pole light from the mounting and place into the pole light receptacle.

The pole light must always be in place and illuminated when visibility is limited. The pole light must be displayed while underway from sunset to sunrise.

Courtesy lights are installed at several locations in the interior of the boat. The courtesy light switch is located on the instrument panel and is marked “CTSY”.

Bow Light

The bow light is located on the bow of the deck at the front of the boat. To alert other boaters to your position and direction.

The light is green on the starboard side and red on the port side.

Stern Light

Tower Pole Light

Boats equipped with factory installed towers, the 360° White Pole Light is mounted on the tower.

To raise the light, turn knob on front of light to the left and then carefully raise the light to a vertical postion. Re-tighten the knob. Always lower the light after use and before trailering to avoid hitting low overhangs.

The stern light is located at the center of the transom below the rub rail. This white light alerts other boaters when they are approaching your boat from behind.

© 2002 Skier’s Choice, Inc.

37

Lifting Rings

Ski Platform

The forward bow eye is located just aft of the bow light. Two lifting rings are located on the transom.

The transom mounted ski platform allows easy access to and from the water for skiers and swimmers.

It is recommended that entries to and exits from the water be made from the platform to avoid accidents. (The fiberglass deck can become slippery when wet)

Shut off the engine when people are on the platform or in the water near the platform.

Exhaust fumes contain carbon monoxide. Direct or prolonged exposure to carbon monoxide will cause brain damage or death.

Bow Eye

The bow eye is located at the front of the hull below the rub rail. It is the point of the attachment to lead the boat onto the trailer and to secure the boat to the trailer or to tie-off when docking.

38

Sling

NOTICE: Do not use the bow eye ONLY to hoist the boat.

You must use a sling with the bow eye when hoisting the boat.

(See Hoisting Instructions)

© 2002 Skier’s Choice, Inc.

Detachable Bracket

The ski platform is attached to the boat with detachable brackets. The platform may be removed from the boat pulling the retaining pins from the brackets and lifting up and out.

Ski Locker

Bilge Inspection Plate

Ski storage, depending on the model of Supra you own, is located either between the observer’s seat and driver’s console on most v-drives or can be found under the sun deck of inboard models. On storage found between the driver and oberserver’s console, simply unsnap the strap and lift to open.

Models with ski storage at the rear of the boat can be accessed by grasping the strap and pulling up and forward.

© 2002 Skier’s Choice, Inc.

39

The fuel tank inspection plate/bilge inspection plate is located on the floor. Open the inspection plate by unscrewing it to check the condition of the fuel tank and wire harness or for water in the bilge.

NOTICE: Keep this area clean and free of dirt and debris.

Sundeck Wake Plate

When the ski locker is closed, the upholstered lid doubles as a cushioned sun deck.

Propeller

The wake plate is located on the stern at the bottom of the transom. Proper adjustment of the wake plate will allow better control of the trim.

Adjustment is made by turning the turnbuckles to the desired osition, moving the plate up or down. Your dealer can help you with this.

Under normal conditions, the abest overall plate position is between 1/8” above or below horizontal.

NOTICE: DO NOT raise the wake plate above or below

1/4” the horizontal plane.

(See also Optional Hydraulic Wake Plate)

The research and design team at Skier’s Choice has carefully explored and tested many different propellers and pitch angles for use on our boats. All tests indicate that the current propeller installed on your model is the best for the variety of boating performance required, whether skiing competitively or for pleasure.

It is strongly recommended that your Supra dealer be notified before changing the propeller. In general, changing to a lower pitched propeller may increase acceleration, but will decrease top speed. Changing to a higher pitched propeller may achieve higher top speed with a light load, while acceleration and power may decrease.

Double-Up Seating

40

Some Supra models offer Double-Up Seating. This unique seating can be stored flat for easy access to the bow or flipped up for extra rear and forward facing seating. To use this seating, lift and pull the seat back into the locked position. Be sure that the metal arms are locked straight before applying pressure. To lay seat back down, simply push down on the middle section of the metal support arm.

© 2002 Skier’s Choice, Inc.

Hydraulic Wake Plate Optional Perfect Pass

The hydraulic wake plate allows the driver to control the running attitude of the boat. It can be controlled by the switch on the dashboard.

Trim Switch & Gauge

Perfect Pass is a marine approved cruise control system. It is an accurate and simple way to ensure consistent speed. It is controlled by the driver via a gauge onthe dash.

Be sure to read and understand the Perfect Pass Owner’s

Manual before using this feature. If you did not receive a

Perfect Pass Owner’s Manual, please contact your selling dealer.

Glove Box

This switch controls the optional hydraulic wake plate. The gauge indicates the position of the plate. The gauge will only read from 0 degree to 50 degrees due to limited hydraulic motion.

To open the glove box, press the black round cylinder down while lifting the black finger tab. Once. open, the lid is supported by a spring. To close the lid, push the middle of the spring toward the rear of the glove box with one hand as you guide the lid closed with the other.

© 2002 Skier’s Choice, Inc.

41

Battery Box Walk-Thru Windshield

The battery is mounted inside the observer’s seat storage compartment. Location may vary slightly depending on the model.

NOTICE: It is recommended that the battery cables be disconnected from the battery when the boat is placed in storage.

Optional Boat Heater

The movable center windshield panel allows access to and from the bow deck. To open, turn safety latches to vertical and push. Lay the center windshield panel gently against the fixed side panel.

Optional Bimini Top

The boat heater is a forced air heater that uses hot engine water as a heat source. To use the heater, simply turn the heater switch to the selected fan speed. In order for the heater to work, the engine must be at operating temperature. One of the features of the heater are the snorkel vents, which can be pulled out direct heat to specific areas.

The bimini top is designed as a sunshade. Please see the mooring cover section forinstructions oncleaning and caring for your bimini top. When opening and latching the strtaps to the eye hooks, twist the strap one to two times to prevent them from vibrating in the wine.

DO NOT operate the boat above 45 MPH with the bimini top open. Do not trailer the boat with the bimini top open.

42

© 2002 Skier’s Choice, Inc.

Optional Shower Optional Cocktail Table

The hot water shower is a convenient way to warm wetsuits or wash down your boat. It uses water from the lake and water that has been warmed by the engine as its water source. The shower nozzle is located in the rear storage trunk. The master

ON/OFF switch for the shower is located next to the shower nozzle. The pump is controlled by a pressure switch and will shut off when the pump reaches proper pressure. The master switch for the shower should be turned off after each use.

Cooler

Some Supra models offer an optional cocktail table. To use the cocktail table, place the aluminum tube into the receptacle mounted in the floor. Place the cocktail table on top of the aluminum tube.

Some Supra models offer built-in coolers. They are foam insulated and have drain holes that drain water into the bilge.

Be sure to thoroughly clean the cooler and allow it to dry after each use to prevent mold and mldew.

© 2002 Skier’s Choice, Inc.

43

Optional Tower Speakers Air Inflator

The optional tower speakers are an additional set of speakers designed to allow the rider to be able to hear the music. The tower speakers require the addition of an amplifier to power the speakers.

Some lakes have noise restriction ordinances. The use of tower speakers may not be allowed in your area. Please check all applicable laws in your area regarding noise level restrictions.

Optional Wakeboard Racks

The Santera model comes standard with an air inflator. It is a high volume, low pressure pump designed specifically for tubes, air mattresses, etc. To use the pump, pull the unit out of its storage compartment located to the rear of the walk through area and plug the cord into the 12 volt receptacle.

Connect the hose of the inflator to air input on inflatable object and turn on.

DO NOT leave air inflator running unattended.

Wakeboard racks are a convenient way to transport and store wakeboards while using your boat.

Check tightness of all mounting hardware before each use.

DO NOT trailer the boat with wakebords mounted in the racks.

44

© 2002 Skier’s Choice, Inc.

Optional Kill Switch

The optional kill switch is located by the throttle. The lanyard must be in place for the engine to start and the lanyard must be attached to the driver. The engine will shut off if the lanyard clip is detached from the kill switch.

Optional Stereo Amp

The stereo amplifier is an optional piece of stereo equipment that is designed to increase the wattage of the signal going to the speakers while minimizing distortion of this signal. Please see stereo amplifier owner’s manual for more information.

Optional Water Strainer

The optional water strainer is mounted in the bilge and designed to keep debris out of the engine. The clear bowl should be checked before each use. To remove debris, unscrew the clear bowl and empty out the debris. When reassembling, be sure the rubber gasket and the screen are seated properly.

Using a stereo amplifier without boat engine running may drain the battery to the point where the boat will not restart. This condition may happen very quickly, depending o the size of the batter.

Optional Walk-Through Curtain

Some Supra models offer an optional Walk-through curtain that snaps into the front walk-through to help prevent cool air from flowing into the cockpit area.

Optional Tonneau Cover

The optional tonneau cover is designed to snap over the bow of the boat. Its purpose is to minimize air flow into the cockpit area when the boat is in use and as a storage cover when used in combination with the optional cockpit cover.

Optional Subwoofer

The optional subwoofer is designed to increase the sound level of the bass notes. The 5-channel amplifier powers the subwoofer. The bass level can be adjusted on the amplifier.

Please see stereo amplifier owner’s manual for more information.

Optional CD Changer

The optional 10 disk CD changer is mounted to the floor of the boat and is controlled using the stereo controls. It can also be controlled by the stereo remote. Please see CD changer owner’s manual for more information.

Optional Satellite Radio

DO NOT trailer the boat with the tonneau cover installed.

The tonneau cover is not designed as a trailer cover and may come unsnapped or rip. This type of damage IS NOT covered by your boat warranty!

Optional Cockpit Cover

The optional cockpit cover is a snap down storage cover designed to help protect the interior of your boat. To install the cover, start at the windshield and work towards the transom. Be sure to install the cover poles to prevent water pocketing.

DO NOT trailer the boat with the cockpit cover installed.

The cockpit cover is not designed as a trailer cover and may come unsnapped or rip. This type of damage IS NOT covered by your boat warranty!

Satellite Antenna

The optional satellite radio option is designed to give the user music access anywhere they go in North America. The system is a 100 channel system which is broken down into different music types such as: oldies, hard rock, easy listening, alternative, 80’s, jazz, big bands, etc. This system does have a minimal subscription fee that must be paid annually to continue service. Please see satellite radio owner’s manual for more information.

NOTE: Location of satellite antenna may vary.

© 2002 Skier’s Choice, Inc.

45

Fuel Precautions Filling the Tank

Sparks while fueling could cause an explosion!

Before Fueling:

1. Turn off engine.

2. Turn off all electrical systems.

3. Extinguish cigarettes or any open flame.

While Fueling:

1. Keep fuel hose nozzle in contact with fill pipe to provide grounding.

2. Fill tank at a slow rate to avoid spills.

Fuel Tank

NOTICE: Pay careful attention when filling the fuel tank.

DO NOT overfill the tank! Fuel may empty through the fuel vent and damage the outside finish.

If fuel is spilled on stripes or decals, apply a common bath cleaner and wipe with a damp cloth. Rinse spill area with clean water.

V-Drive Fuel Tank

The fuel cap is located in the middle of the rear of the boat. A specially designed fuel key is provided to open the cap.

NOTE: The cap is sealed by a rubber o-ring. Please do not overtighten.

The fuel cap is located on the starboard side of the boat near the stern. A specially designed fuel key is provided to open the cap.

NOTE: The cap is sealed by a rubber o-ring. Please do not overtighten.

Fuel Vent

The fuel vent is a part of the gas filler neck. This vent is connected to the fuel tank via the vent hose, which releases gasoline fumes from the fuel tank.

Gasoline vapors are highly explosive.

46

© 2002 Skier’s Choice, Inc.

Section IX

Service & Maintenance

Inboard Model

V-Drive Model

The illustration above denotes the areas which may need to be accessed or may require cleaning or maintenance. It is important to have basic understanding of the parts and their location on the boat. However, it is recommend that any service beyond routine maintenance be performed by an authorized Supra dealer.

Service & Maintenance

For your convenience, a maintenance schedule has been included in this manual. The items listed outline when to perform safety checks, lubrication and general service to your boat. Engine hours or elapsed time determine when service is necessary.

It is recommended that any replacement parts used during maintenance or for repair be supplied by an authorized Supra dealer.

NOTICE: You are responsible for keeping records of all maintenance on your boat. To maintain your new boat warranty, you may be required to prove that required maintenance was performed.

© 2002 Skier’s Choice, Inc.

47

Revised9-27-02 EHJ

Maintenance Chart

Cooling Systems

FRESH WATER COOLING SYSTEM

The standard cooling system for Supra boats is an open circulation cooling system with intake water. This is preferred for lakes and reservoirs with low salt content. If the engine is occasionally operated in salt water, the cooling system should be flushed with fresh water periodically and always before storage. If your boat is regularly operated in salt water, it should be equipped with the optional salt water package.

SALT WATER COOLING SYSTEM

The optional cooling system for use on salt water is a closed system with a solution of 50% antifreeze and 50% fresh water.

The coolant is left in the closed system and replaced once a year.

Body Lubrication

Normal use of your Supra causes metal to metal movement at some parts in the boat. Driver seat track should be lubricated with a water resistant chassis lubricant such as silicon grease.

Lubricate rudder grease fitting located below the engine, once annually.

48

© 2002 Skier’s Choice, Inc.

Engine Oil and Filter

V-Drive Remote Oil Filter

The oil filter is located below the engine. The engine manufacturer recommends that you change the oil and oil filter after the first 10-

20 hours use of your new boat. Thereafter, to maximize engine life, change oil and filter after every 50 hours of use (See Engine

Manual).

Crankcase oil should be selected to deliver the highest performance for your operating conditions and climate. In general, engine oils with lower viscosity ratings are used when temperatures remain low or when better fuel economy is desired. Oils with higher viscosity ratings are used when temperatures remain higher and when higher performance is expected from the engine.

The Engine Manufacturer recommends Pennzoil 15W-40 Marine

Motor Oil. If this is unavailable, a high grade with an A.P.I.

classification of SH, SJ, SG/CD is acceptable.

REFER TO ENGINE MANUAL for more information.

Fuel Filter - Water Separator

V-Drive remote oil filter is mounted on the ski pylon bracket.

Depending on the model of your engine, you will have either a water separator filter, or a fuel filter. If your engine has a water separator filter, it will be located on the front of the engine. If your engine has a fuel filter, it will be located on the stringer under the engine.

Oil Level Check

Engine oil level should be checked at regular intervals (such as every 5 engine hours). To obtain a true reading, when the engine is at operating temperature and turned off, check the oil level showing on the dipstick.

If the oil level is between the “FULL” and the “ADD” marks on the dipstick, simply replace the dipstick. When the oil level is at or below the “ADD” mark, add oil to return the level to the “FULL” mark.

© 2002 Skier’s Choice, Inc.

49

Transmission Level Check V-Drive Fluid Check

Use only automatic transmission fluid type “A” in transmissions with 1:1 drive train. Refer to Engine Owners Manual.

The fluid level can be checked by using the oil level gauge, which is located on top of the V-Drive transmission. This unit is located under the center cushion of the rear seat. Pull out the cushion to access the transmission.

Pull the oil level gauge to check the fluid level. If the level is low, add fluid to the correct mark on the dipstick. Use SAE 30 motor oil.

NOTE: Only a trained and qualified technician should perform the oil change on your V-drive unit.

Change Frequency

Change transmission fluid every year, using only Dextron-III

Mercon automatic transmission fluid.

Maintaining Fluid Level

Transmission fluid level should be checked regularly and fluid added if necessary. Maintain fluid levels as follows:

- Boat must be at rest.

- Engine should be at operating temperature, but turned off while checking level.

- Remove transmisson fluid dipstick

- Wipe fluid clean from dipstick and replace.

- Remove dipstick and note level indicated by the upper and lower marks.

- If required, add fluid to bring the level to the upper mark.

Change Frequency

The oil should be changed in the V-drive transmission after the first 100 hours of operation, then each year at the end of your boating season.

Maintaining Fluid Level

Transmission fluid level should be checked regularly and fluid added if necessary. Maintain fluid levels as follows:

- Boat must be at rest.

- Engine should be at operating temperature, but turned off while checking level.

- Remove transmisson fluid dipstick

- Wipe fluid clean from dipstick and replace.

- Remove dipstick and note level indicated by the upper and lower marks.

- If required, add fluid to bring the level to the upper mark.

50

© 2002 Skier’s Choice, Inc.

Shaft Log Packing Nut

Battery Cable

Installation & Precautions

The Shaft Log Packing Nut should be checked periodically and adjusted if needed.

Adjust as follows:

- Loosen the jam nut a few turns.

- Tighten the shaft log packing nut by hand.

DO NOT over tighten.

- Tighten the jam nut against the packing nut.

- Check for leaks.

NOTICE: It is normal for the Packing Log to drip water at a slow rate of one drop every 15 to 30 seconds.

Your Supra electrical system is a negative ground type. The negative battery cable is grounded to the engine block. The positive battery cable is connected to the starter solenoid.

Connect the positive (+) battery cable to the positive (+) post on the battery. Connect the negative (-) battery cable to the

(-) post on the battery.

Failure to connect battery cables as outlined will damage the system and void the warranty.

Sulfuric acid in the battery can cause serious burns. If spilled on skin or in eyes, flush with clean water immediately, then seek medical attention.

Hydrogen and oxygen gases are produced during normal battery operation and charging. Sparks or flames near the battery vent openings can cause the mixture to ignite and explode.

© 2002 Skier’s Choice, Inc.

51

52

© 2002 Skier’s Choice, Inc.

Section X

Cleaning, Care & Storage

Fiberglass Care

Washing and waxing the boat hull and deck regularly will extend the life and beauty of your Supra. It is a good routine to rinse your boat with fresh water after each day’s use.

It is recommended that the hull land deck be cleaned and waxed after every 25 hours of use. This will decrease water friction and lesson the potential for staining or spotting on the gelcoat surface.

When the original gelcoat shine cannot be restored by waxing, the shine may be restored by hand buffing with a commercial polishing compound. Be sure to apply a new coat of wax containing Carnauba over the area that has been polished.

IMPORTANT: Porcelain cleaning powders are too abrasive for use on gelcoat and may cause permanent discoloration if used. Household detergents containing ammonia or chlorine should not be used on gelcoat.

Never use acetone or ketone solvents to clean your boat finish.

Rub Rail Care

Use a sponge or other soft material to wash and wax the rub rail. To wax, use a commercial automotive bumper wax.

NOTICE: When tying up to a dock or another boat, always use cushioned fenders (dock bumpers) to protect your boat from hard surfaces.

Washing Your Boat

Windshield Care

The easiest way to preserve the beauty of your boat is to keep it clean by frequent washing. Wash the boat with luke warm or cold water. Wipe the boat down immediately after washing to avoid water spots. Avoid using hot water or washing your boat in direct sunlight. Avoid using strong soaps or chemical detergents. To avoid spotting, all cleaning agents should be thoroughly rinsed from the surface promptly and not allowed to dry on the finish.

All Supra windshields are constructed of tempered safety glass to ensure passenger safety. The glass surfaces should be cleaned regularly to ensure that visibility is not obstructed.

Use a commercial glass cleaner to remove any spotting or stubborn stains that develop on the windshield. Never use abrasive cleaners on glass surfaces.

© 2002 Skier’s Choice, Inc.

53

Upholstery Care Foreign Deposits

All upholstery items on your Supra are made of tough marine grade vinyl that is easily cleaned.

It is important to provide for the drying of all upholstery and carpet after each use of the boat. Open all storage compartments and slide all removable cushions out about an inch to allow air to circulate behind.

Tree sap, bird droppings, air borne chemicals, petroleum products and other foreign matter may damage the gelcoat surface if not removed promptly (See Washing Instructions).

Boat Hull Protection

If your Supra is to remain in the water for an extended period, the hull below the water line should be painted with a marine bottom paint. Boats left in the water for extended periods of time without bottom paint may experience blilstering or discolorization. This type of damage is not covered by your boat’s warranty.

Teakwood Care

If teak wood has been installed on your Supra, a small amount of maintenance will be required to retain the natural beauty.

Teak wood should not be varnished. Instead, teak oil or mineral oil should be applied. Oil should be applied 3 to 4 times per year. If teak has been allowed to become gray and dry, sand with fine grit paper and reapply teak oil.

Strong detergents and cleaners may shorten the life of the vinyl. PLEASE SEE VINYL MANUFACTURER’S

RECOMMENDED CARE GUIDE INCLUDED IN YOUR

OWNER’S MANUAL PACKAGE.

FAILURE TO FOLLOW CARE GUIDE MAY VOID VINYL

WARRANTY.

Drying Upholstery

Damage caused by improper care, cleaning agents, conditioner oils, waxes, gasoline, etc., IS NOT covered under your boat’s warranty. Use only the recommended vinyl cleaner as listed on the Vinyl Care Instruction Sheet.

Please refer to www.marinespecialtiesgroup.com for more information regarding vinyl care.

It is important to provide for the drying of all upholstery and carpet after each use of the boat. Open all storage compartments and slide all removable cushions out about an inch to allow air to circulate behind.

54

© 2002 Skier’s Choice, Inc.

© 2002 Skier’s Choice, Inc.

55

Section XI

Winterization & Dry Storage

When the boating and ski season comes to a close, it is important to have your boat professionally winterized.

If your boat is exposed to temperatures below 32 degrees F

(0 degrees C) it is possible for water in the engine, ballast system, heater core, etc., to freeze. As this water freezes, it expands and can crack pumps, valves, heat exchangers, engine blocks, etc. This type of damage usually requires the replacement of the cracked item and can be very expensive to repair.

It is extremely important to follow the proper winterizing procedure. The engine must be correctly winterized for safe storage in your climate. This should be done by a professional. Your Moomba dealer will know exactly what must be done to ensure the longest possible life for your boat.

In addition to having your boat professionally winterized, the following tasks should be done to protect your boat during storage:

1. Remove the center drain plug from the boat.

2. Thoroughly clean the boat inside and out. Inspect the hull for any residue or algae growth and remove if required.

3. Clean the bilge area thoroughly and operate the bilge pump to remove any water from the bilge hose.

4. Remove all seat cushions and open all storage areas to air circulation in the boat interior. When thoroughly dry, replace cushions and close storage areas.

5. Top off fuel tank to prevent any condensation from accumulating in the fuel system. Use a commercially available fuel stabilizer to remove water and prevent gumming.

6. If the boat is stored on its trailer, insure that the boat is properly positioned. If possible lift the tongue so that the bow is slightly raised to promote drainage from the center drain hole.

7. Install the canvas cover and secure the straps in accordance with cover instructions.

NOTE: During the winter months, water is a boat’s worst enemy. Always store the boat when the interior is completely dry. Periodically check on the condition of the stored boat.

Damage due to improper winterization IS NOT covered under your boat’s warranty.

Hoisting

Correct Hoisting

If the boat ever needs to be hoisted, special attention should be given to the following recommendations:

- Hoist the boat using a horizontal lifting bar only.

- Never attempt to lift the boat by means of a cable sling from bow to stern lifting eyes.

- Hoist operator should slowly and smoothly lift the boat without jerking to avoid damage to the lifting eyes.

DO NOT use the bow eye to hoist boat. Use only a proper sized sling in the designated lifting rings to hoist the boat.

Incorrect Hoisting

DO NOT use the ski pylon to hoist the boat.

Incorrect hoisting may invalidate the warranty on the boat.

56

© 2002 Skier’s Choice, Inc.

Section XII

Technical Information

Identification Number

The hull identification number is located on the upper right hand side of the transom below the rub rail.

Hydrogen and oxygen gases are produced during normal battery operation or charging. Sparks or flames can cause this mixture to ignite and explode if it comes near the vent openings. Sulfuric acid in the battery can cause serious burns if spilled on skin or in eyes. Flush with clear water immediately!

© 2002 Skier’s Choice, Inc.

57

Revised 9-27-02 EHJ

58

© 2003 Skier’s Choice, Inc.

Section XIII

Trailering Your Boat

Trailer & Towing

The trailer supplied with your Supra was designed especially for the boat with your convenience in mind. Please be sure that you have an appropriate tow vehicle before attempting to trailer your boat. Your vehicle must be capable of towing

5,000 lbs. and must be fitted with no less than a Class III

(5,000 lb. max.) trailer hitch.

Read the trailer towing section of your vehicle owner’s manual before towing your trailer.

All Supra trailers require a 2” ball and a five (5) pin marine grade trailer wiring connector. The standard height from the ground to the top of the hitch ball should be about 20 inches. With the trailer attached to the tow vehicle, the trailer should stand approximately level.

Connecting the Trailer

When connecting the trailer to your tow vehicle use the following procedure:

1. Raise the tongue with the trailer jack, position the trailer tongue directly over the 2" ball, and lower the jack until the tongue goes all the way down over the ball.

2. Press down on the latch until it locks on the ball with a

“click.” NOTICE: If your hitch ball has an excessive flat spot on top, the latch may not engage properly. If the latch does not catch, check with your dealer or hitch installer before trailering.

3. Insert the locking pin into the tongue. (Lock pin hole is on the side of the tongue)

4. When all weight is off the trailer jack, pull the jack lock pin and rotate the jack to the horizontal position and lock the pin.

5. Attach the safety chains to the tow vehicle hitch. Cross the chains and wrap them around each other once or possibly twice allowing just enough slack to permit tight turns of the vehicle and trailer.

6. Connect the trailer light plug to the tow vehicle connection to activate the lights.

7. Connect the brake safety cable.

Trailer Plug Wire Schematic

White:Ground

Green: Right Turn / Brake

Yellow: Left Turn / Brake

Brown: Running Lights

Blue: Reverse Lights

NOTE: Supra trailers feature disk brakes. The 5th wire

(blue) on the wire connector needs to be connected to your vehicles reverse lights to be operative. This wire

(blue) provides power to a solenoid which deactivates the brakes while in reverse. You may still tow your trailer without the blue wire connected, however, you may experience difficulty backing the trailer.

BEFORE USE, READ ALL INFORMATION SUPPLIED WITH

THE TRAILER BY THE MANUFACTURER.

© 2003 Skier’s Choice, Inc.

59

Revised9-27-02 EHJ

Prolong Trailer Life

The following guidelines will prolong the life of the boat and trailer:

1. Always secure the boat to the trailer with tie-downs. Do not place straps around fenders or lights.

2. Always verify that the winch hook is securely in the bow eye, the strap is tight and the winch handle locked in place before trailering.

3. Check the recommended pressure displayed on the side of the tires and assure that it is maintained. Under-inflated tires could cause trailer sway and excessive tire wear.

4. Before use, please read all information supplied with the trailer by the manufacturer (Bearing Buddy, Boat Buddy and hydraulic brake actuator). Check wheel bearing grease.

5. Before operating Boat Buddy, check trigger setting and latch pin location. After loading, check latch pin and confirm that it is properly seated in the eye hook before pulling trailer out of water. Wash Boat Buddy moving parts with high pressure water.

6. Check wheel bearing lube.

7. See Trailer Owner Manual for Maintenance Schedule.

Connecting the Trailer (continued)

4. When all weight is off the trailer jack, pull the jack lock pin and rotate the jack to the horizontal position and re-lock the pin.

5. Attach the safety cables to the tow vehicle hitch. Cross the cables and wrap them around each other once or possibly twice allowing just enough slack to permit tight turns of the vehicle and trailer.

6. Plug the trailer lights connector to the vehicle harness.

7. Clip the brake lockout cable to the vehicle hitch.

Trailer Alignment

Inadvertent release of latch pin could result in injury!

Connecting the Trailer

Correct Alignment

When pulling the boat onto the trailer, be sure that it is centered on the trailer.

When connecting the trailer to your tow vehicle use the following procedure:

1. Raise the tongue with the trailer jack, position the trailer tongue directly over the 2" ball, and lower the jack until the tongue goes all the way down over the ball.

2. Press down on the latch until it locks on the ball with a

“click.”

NOTICE: If your hitch ball has an excessive flat spot on top, the latch may not engage properly. If the latch does not catch, check with your dealer or hitch installer before trailering.

3. Insert the locking pin into the tongue. Lock pin hole is on the side of the tongue.

Incorrect Alignment

The distance between the boat and the wheel runner board should be equal on both sides.

60

© 2002 Skier’s Choice, Inc.

Unloading Procedure

To unload the boat use the following procedure as a guide:

1. Make sure that all drain plugs are securely in place.

2. Unplug light cord before backing into the water.

3. With Bow Eye Hook fastened, retract Boat Buddy latch pin by pulling trigger into “safety” position. (If latch pin is bound, tighten winch to relieve pressure, then pull trigger into

“safety” position).

4. With Bow Eye Hook fastened, back the trailer until the water level is approximately 1 inch below the top of the trailer fenders. NOTICE: Ramp slopes vary, so actual level of

water on trailer may be different. (NOTE: Caution on this page!).

5. Follow the cold start procedure recommended in this manual.

6. After starting the engine remove Bow Eye Hook.

7. With engine idling, center steering wheel, engage transmission and slowly pull throttle into reverse. Ease back on the throttle lever until the boat starts to move.

Loading Procedure

To load the boat on the trailer, position the trailer in the water with approximately 1 inch of the top of the fender showing.

1. Set the Boat Buddy for loading by pulling trigger or latch mechanism into “set” position.

2. Idle/coast the boat onto the trailer using as little power as possible, while keeping it centered between the guide poles.

3. Power slowly forward until the bow eye solidly contacts the Boat Buddy and the latch is triggered.

4. Winch hook must be attached to bow eye and tightened before trailering.

DO NOT Power onto the trailer during rough conditions!

Once correctly positioned on the trailer, switch off ignition.

DO NOT OVER POWER onto trailer or damage may occur to the boat and/or the trailer!

NOTE: DO NOT attempt to use excessive power to free that boat from dry carpet runners. Power off of the trailer only when the boat has floated free.

If the trailer is not submerged to the correct depth, the bow of the boat could drop when powering off incorrectly, possibly damaging the boat.

The trailer must be positioned for the correct water depth for loading or you may damage the boat. Varying ramp angles require different procedures. In general, the steeper the ramp, the more shallow the trailer should be positioned in the water. Your local dealer can help you understand this, should you require additional assistance.

NOTE: Because your Supra is a direct drive inboard, when backing up, the stern will have a tendency to drift left or right depending on propeller rotation.

© 2002 Skier’s Choice, Inc.

61

62

© 2002 Skier’s Choice, Inc.

Supra Limited Warranty

Section XIV

Supra Warranty

Taking care of our product after it becomes yours has always been “standard policy” at Skier’s Choice, Inc., the proud manufacturer of the Supra line of boats. And to further prove our point, we offer the following limited warranty.

TERMS OF WARRANTY

During the applicable Warranty Period (as defined below),

Skier’s Choice, Inc. (“Skier’s Choice” or the “Company”) warrants to the original retail purchaser (the “First Owner”) that the components and parts manufactured by Skier’s

Choice (the “Covered Components”) of each new Skier’s

Choice boat are free from any defects in material and workmanship, under normal use and when operated and maintained according to boat’s instructions (“Normal Use and

Operation”).

- This Limited Warranty applies to all Covered Components other than the deck, hull, floor and stringers for a period of one year (the “One-Year Warranty Period”) from the original date of purchase by the First Owner (the “Original Purchase

Date”).

- This Limited Warranty applies to the deck, hull, floor

(excluding carpet) and stringers for the lifetime of the boat

(the “Lifetime Warranty Period”).

This Limited Warranty may be transferred (for a minimal fee) to subsequent owner(s) only through a Supra Dealer during a period of two (2) years from the Original Purchase Date.

Subject to the terms of this Limited Warranty, Skier’s Choice will repair or replace, at its sole option, any Covered

Component which is returned during the applicable Warranty

Period to the Skier’s Choice factory or to any other Supra authorized repair facility (an “Authorized Supra Facility”), provided that:

- Only the Covered Components that are declared defective upon examination by Skier’s Choice will be repaired or replaced under this Limited Warranty;

- Transportation of the boat, parts or components to and from the Skier’s Choice factory or the Authorized Supra Facility must be pre-paid by the owner;

- Notice of any claim under this Limited Warranty must be provided to Skier’s Choice by the Authorized Supra Facility no later than sixty (60) days after the owner becomes aware of the defect.

Notification of a claim or defect must be properly made directly to an Authorized Supra Facility, who subsequently must submit the claim information to Skier’s Choice at 5820 US 411 South,

Maryville, Tennessee 37801. Information needed for processing a claim includes (1) Name and address of the owner; (2) Serial number of the boat; (3) Original retail purchase date; (4) Detailed explanation of the defect; and (5) Estimated repair cost.

Note: Warranty repair or replacement cannot be made until this information is approved by Skier’s Choice.

In case of defect of a Covered Component, Skier’s Choice will use its reasonable best efforts to repair or replace the

Covered Component within ninety (90) days of receipt thereof at its factory or an Authorized Supra Facility. Any warranty on replaced or repaired components pursuant to this

Limited Warranty shall remain in effect only for the remainder of the original Warranty Period. The repair or replacement of

Covered Components will be made by Skier’s Choice without charge to the owner for parts or labor. The replacement or repair of the defective part or component as stated in this

Limited Warranty shall be the sole remedy of the owner and the sole liability of the Company under this Warranty and any implied warranties.

There are no express or implied warranties on the parts and components manufactured or sold by Skier’s Choice except as set forth in this Limited Warranty.

EXCLUSIONS

Claims or assertions relating to the following are specifically excluded from coverage under this Limited Warranty and

Skier’s Choice disclaims any liability or obligation with respect to the following:

1. Defects in or damage caused by or relating to the engine or any part thereof. (Note: The engine may be covered by warranty of the engine manufacturer. Please see engine manufacturer warranty for details.)

2. Defects in or damage caused by or relating to the trailer or any part thereof. (Note: The trailer may be covered by warranty of the trailer manufacturer. Please see trailer manufacturer warranty for details.)

3. Covered Components of a boat that has been sold or transferred by the First Owner, unless this Warranty is properly transferred through a Supra Dealer to the subsequent purchaser(s) within two years of the Original

Purchase Date.

4. Damage caused by, related to, or resulting from failure of components or parts which are not manufactured by Skier’s

Choice, including but not limited to bilge pump failure.

5. The Limited Lifetime Warranty on the deck, hull, floor

(excluding carpet) and stringers does not include hardware or other components fastened or adhered to the hull, deck, floor or stringers.

6. Normal maintenance and upkeep relating to the boat or any part thereof, including but not limited to, alignment, adjustments, connectors, tune-ups and wear items, such

63

© 2002 Skier’s Choice, Inc.

as, shaft packing, belts, hoses, filters, seals, gaskets, strut bushing, etc.

7.

Damage to or malfunction of a boat, or any component thereof, resulting from owner use, lack of maintenance, improper maintenance, impact, misuse, negligence, collision, delay in repair, improper hoisting or cradling of the boat.

8.

Any and all consequential damages including, but not limited to, costs incurred for haul-out, launching, towing and storage charges, telephone or rental charges of any type, inconveniences, loss of use, or loss of time or income.

9.

Equipment installed by anyone other than authorized factory personnel at the Company’s production facility.

Equipment replaced at an Authorized Supra Facility pursuant to this warranty agreement remains under warranty until the expiration of the Limited Warranty period.

10. Any boat which is: (a) used for rental or other commercial, military or industrial purposes; (b) used in boat racing, demonstrations, ski school, or similar events; (c) altered, modified, repaired or replaced so as to increase the cubic inch capacity or horsepower output of the engine and boat as originally manufactured; (d) not properly stored or maintained.

11. Speeds, fuel consumption and other performance characteristics because they are estimated and may vary.

12. Damage to or defects in paints, varnishes, gelcoat surfaces and colors, finish distortions, chrome plated or anodized finishes, floor covers and any other surface coatings.

13. Gelcoat discoloration, cracks, blisters or bubbles, including, but not limited, to those which may result from a boat being left in the water for long periods of time.

14. Upholstery cracks, mildew, stains or tears resulting from owner use, lack of maintenance, improper maintenance, impact, misuse, negligence, delay in repair, use of improper cleaners or conditioners.

15. Skier’s Choice reserves the right to improve its products through changes in design or material without being obligated to incorporate such changes in products of prior manufacture.

OTHER LIMITATIONS

1.

THIS LIMITED WARRANTY LIMITS THE DURATION OF

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR

IMPLIED WARRANTY OF FITNESS FOR A

PARTICULAR PURPOSE TO THE PERIODS

SPECIFIED HEREIN. Some states do not allow limitations on how long an Implied Warranty lasts, so this limitation may not apply to you.

THE REMEDIES OF REPAIR OR REPLACEMENT AT

THE OPTION OF SKIER’S CHOICE,

AS SET FORTH HEREIN, ARE THE ONLY REMEDIES

AVAILABLE UNDER THIS WARRANTY. SKIER’S

CHOICE DISCLAIMS ANY OBLIGATION OR LIABILITY

FOR COSTS OR CHARGES DERIVED FROM

INCONVENIENCE OF LOSS OF USE, COMMERCIAL

OR MONETARY LOSS DUE TO LOSS OF TIME,

INCONVENIENCE, OR ANY OTHER

CONSEQUENTIAL, SPECIAL OR INCIDENTAL

DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

3.

THIS WARRANTY IS IN PLACE OF ANY OTHER

EXPRESS WARRANTIES.

4.

THIS WARRANTY APPLIES TO THE FIRST OWNER

AND IS TRANSFERABLE TO SUBSEQUENT

OWNER(S) ONLY THROUGH AN AUTHORIZED SUPRA

DEALER DURING A PERIOD OF TWO YEARS FROM

THE ORIGINAL PURCHASE DATE. SKIER’S CHOICE

RESERVES THE RIGHT TO NOT TRANSFER THE

WARRANTY ON ANY BOAT THAT HAS BEEN

DAMAGED OR MISUSED.

5.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

6.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY

CONTRACTUAL LIABILITIES, INCLUDING PRODUCT

LIABILITIES.

7.

THE DEALER IS NOT THE AGENT OF SKIER’S CHOICE

AND SKIER’S CHOICE DOES NOT AUTHORIZE THE

DEALER, OR ANY OTHER PERSON, TO ASSUME ON

BEHALF OF SKIER’S CHOICE ANY LIABILITY OR

EXPENSE INCURRED IN THE COURSE OF

REPAIRING ITS PRODUCTS OTHER THAN THOSE

EXPRESSLY AUTHORIZED IN THIS LIMITED

WARRANTY. THE DEALER MAY NOT EXTEND OR IN

ANY WAY CHANGE OR AMEND THIS LIMITED

WARRANTY.

Owner’s Responsibility

64

1.

Before operating your Supra, it is necessary to read and fully understand this Owner’s Manual and all other information delivered with the boat.

2.

It is the owner’s responsibility to take the boat to an authorized Supra dealer to obtain warranty service.

3.

It is the owner’s responsibility to properly operate and maintain the boat in accordance with this manual and all other information delivered with boat.

4.

The owner should keep maintenance records should it be necessary to show that required maintenance has been performed on the boat.

© 2002 Skier’s Choice, Inc.

Dealer’s Responsibility

Customer Assistance

1.

The Dealer should provide the buyer with an adequate orientation in the general operation of the boat and review all systems and accessories included with the boat.

2.

The Dealer should deliver a complete owner’s manual packet with the boat consisting of Owner’s Manual,

Registration Engine Manual, Stereo Manual, Supra

Warranty and all warranties for separately warranted items aboard the boat.

3.

The Dealer should review all warranty information with the buyer and assist in filling out warranty cards if necessary.

4.

The Dealer should insure that any information or obligation from either Skier’s Choice, Inc. or from the dealership is clearly understood by the buyer.

5.

The Dealer should instruct the buyer in obtaining local service and out-of-area service for a Supra boat.

The staff at Skier’s Choice, Inc. is concerned with your complete satisfaction. This includes the prompt resolution of any problems that may arise during the warranty period.

Normally, problems encountered may be efficiently and effectively resolved by your Supra Dealer. However, if a problem cannot be handled by the Dealer or if a solution is not satisfactory to you as an Owner, please follow these steps to get the matter resolved:

STEP ONE

Discuss the problem with a member of your Supra Dealer’s management staff. It is most likely that the problem will be resolved at this level.

STEP TWO

If the Dealer management does not resolve the problem to your satisfaction, please have the problem and all action taken, documented by the Dealer, then contact the factory Customer

Service Representative at Skier’s Choice, Inc.:

Skier’s Choice, Inc.

5820 Highway 411 South

Maryville, TN 37801

Tel: (865) 856-3035

Fax: (865) 856-3241

Describe the original problem in detail to the Customer Service

Representative. Be prepared to furnish appropriate documentation and the reasons why service by the Dealer was unsatisfactory. If further action is required to resolve the problem, the Customer Service Representative will dictate the appropriate action.

STEP THREE

Finally, if after following these steps and providing documentation and after obtaining necessary authorization from the Customer Service Representative to take additional action, the problem is still not resolved to your satisfaction, the President of Skier’s Choice, Inc. will personally review the problem and make a determination concerning final resolution.

© 2002 Skier’s Choice, Inc.

65

66

© 2002 Skier’s Choice, Inc.

A

Accessory Power Switch

Air Inflator—Santera

B

Battery & Cable Installation

Battery Box

Battery Specifications

Bertha Ballast System (Optional)

Bilge Area Drain Plug

Bilge Inspection Plate

Bilge Pump Switch

Bimini Top (Optional)

Blower Switch

Boating Rules

Boating Safety

Boat Specifications

Body Lubrication

Bow Eye

Bow Light

Break-In Period

C

Canvas Cover

CD Changer (Optional)

Circuit Breaker Panels

Coast Guard Regulations

Cockpit Cover (Optional)

Cocktail Table (Optional)

Cooler

Cooling Systems

Courtesy Lights

Customer Assistance

D

Daily Check List

DC Outlet

Dealer’s Responsibilities

Depth Finder

Double-Up Seating

Driver’s Seat

E

EFI Phased Warm-Up

Engine Data

Engine Hours and Gauge

F

Fiberglass Care

Filling Fuel Tank

Fire Extinguisher

Foreign Material Deposits

Fuel

Fuel Cap Key

Fuel Filter

Fuel Gauge

Fuel Information

Fuel Precautions

Fuel Tank

Fuel Vent

© 2002 Skier’s Choice, Inc.

27

44

51

42

57

30-31

21

39

29

13

48

38

37

19

42

27

9

5

18

45

29

18

45

43

43

48

29, 37

65

53

22

35

54

22, 41

22, 33

49

26

3

22, 46

22, 46

46

4

28

65

26

40

34

21

57

26

Section XV

Index

G

Glove Box

H

Hoisting

Horn

Hull Identification Number

Hull Protection

41

I

Ignition

Ignition Key

Introduction

Instrument Panel & Controls

K

Kill Switch (Optional)

L

Lifting Rings

M

Maintenance Chart

Maximum Capacities

Mirror

Motor Box (Inboard)

N

Navigation Lights

Neutral Lock Out

45

38

27

20

O

Oil Dipstick

Oil & Filter

Oil Level Check

Oil Pressure and Gauge

Operating Information

P

Pefect Pass Cruise Control (Optional)

Pole Light

Pole Light Receptacle

Propeller

Propeller Precaution

R

Rad-A-Cage

Rear Drain Plug

Rub Rail

36

21

53

(Continued Next Page)

41

37

37

40

40

49

49

49

25

17

48

18

33

34

28

33

3

23

56

28

57

54

67

Index (continued)

S

Safety Equipment

Satellite Radio (Optional)

Seat Adjustment

Service & Maintenance

Shaft Log Packing Nut

Shower (Optional)

Ski Locker

Ski Platform

Ski Platform Detachable Brackets

Ski Pylon (Inboard & V-Drive)

Slalom Course Speeds

Speedometer

Speed Calibration

Speedometer Paddle Wheel

Starting & Operation

Stereo

Stereo Amp (Optional)

Stern Light

Subwoofer (Optional)

Sundeck

T

Tachometer

Teak Wood Care

Temperature Gauge

Throttle Lever

Tonneau Cover (Optional)

Tower Pole Light

Tower Speakers (Optional)

Tilt Steering

Trailer

Boat Connecting

Loading Procedure

Trailer Alignment

Unloading Procedure

Transmission

Fluid Check

Fluid Specifications

Lockout

Trim Switch and Gauge

U

Upholstery Care

V

V-Drive

Battery Box

Engine Compartment

Fluid Check

Fuel Tank

Warning Light

Voltmeter

59

59-60

61

60

61

47

50

47

20

41

45

37

44

28

24

54

24

20

23

25

17, 19

26

39

35

23

24

45

37

45

40

51

43

39

38

6

45

34

47

W

Wakeboard Racks (Optional)

Wake Plate

Wake Plate (Hydraulic)

Walk-Thru Curtain (Optional)

Walk-Thru Windshield

Warning Labels

Warranty

Washing Your Boat

Water Strainer (Optional)

Windshield Care

Winterization

54

42

34

50

46

31

25

68

© 2002 Skier’s Choice, Inc.

42

8

63

53

44

40

41

45

45

53

55

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
