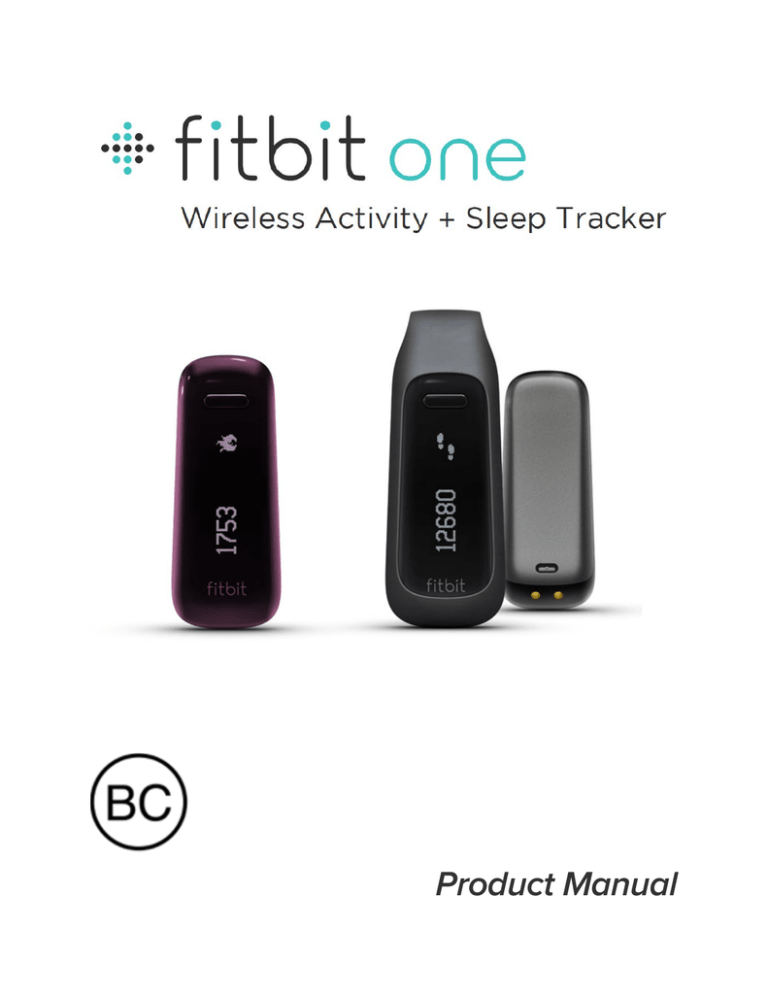

Product Manual
Product Manual
Table of Contents
W hat’s Included .................................................................................................. 1 Setting up your O ne ........................................................................................... 2 Setting up your One with a computer........................................................................................... 2 Mac and PC requirements .............................................................................................................. 2 Downloading Fitbit Connect ......................................................................................................... 2 Installing Fitbit Connect and pairing your tracker ............................................................... 2 Syncing your tracker ........................................................................................................................3 Setting up your One with a mobile device ..................................................................................3 W earing your One ............................................................................................... 4 Charging your O ne .............................................................................................. 5 Tracking your Fitness w ith O ne ........................................................................ 6 Using the display .................................................................................................................................. 6 Changing the display for left-handed use................................................................................... 6 Tracking sleep ........................................................................................................................................ 6 Tracking exercise ................................................................................................................................... 7 Using silent alarms ................................................................................................................................ 7 Setting up silent alarms from a computer ................................................................................8 Setting up silent alarms on an iOS device ................................................................................8 Setting up silent alarms on an Android device .......................................................................8 Dismissing silent alarms.................................................................................................................. 9 Using the Fitbit.com Dashboard ..................................................................... 10 Browser requirements ....................................................................................................................... 10 Adding and removing tiles............................................................................................................... 10 Managing your One from fitbit.com .............................................................................................. 11 Updating your O ne ........................................................................................... 12 Updating One on a computer ......................................................................................................... 12 Updating One on an iOS device .................................................................................................... 12 Updating One on an Android device ........................................................................................... 12 Restarting your One ......................................................................................... 14 Return Policy and W arranty ............................................................................ 15 Regulatory and Safety Notices ....................................................................... 16 USA: Federal Communications Commission (FCC) statement ......................................... 16 Canada: Industry Canada (IC) statement ................................................................................... 17 European Union (EU) ......................................................................................................................... 17 Taiwan ...................................................................................................................................................... 17 Other ......................................................................................................................................................... 18 Safety statement.................................................................................................................................. 18 Important safety instructions.......................................................................................................... 19 Built-in battery precautions ............................................................................................................. 19 Disposal and recycling information .............................................................................................. 19 What’s Included
Your Fitbit One Wireless Activity + Sleep Tracker package includes:
1.
2.
3.
4.
5.
Fitbit One Wireless Activity + Sleep Tracker
Clip
Wireless sync dongle
Sleep wristband
Charging cable
1.
2.
3.
4.
5.
1
Setting up your One
You can set up your Fitbit One using a computer or one of our mobile apps for iOS,
Android, and Windows Phone.
Setting up your One with a computer
To set up your One using your computer, you’ll first install Fitbit Connect. Fitbit
Connect is the software application that connects (“pairs”) your One to your
Fitbit.com dashboard, where you can view your data, log food, and much more.
Mac and PC requirements
Software
Mac OS 10.5 and up
Internet connection
Hardware
USB port
Software
Windows XP/Vista/7/8
Internet connection
Hardware
USB port
Downloading Fitbit Connect
1. Go to http://www.fitbit.com/setup.
2. Verify that your computer type (Mac or PC) is highlighted, then click the
Download Here button below the image of the One. You’ll be asked if you
want to open or save the file; save the file.
Installing Fitbit Connect and pairing your tracker
1.
Plug your wireless sync dongle into your computer’s USB port and have your
charged tracker nearby.
2. Go to the folder containing the file you just downloaded and look for the
installation program:
- For Mac: Install Fitbit Connect.pkg
- For Windows: FitbitConnect_Win.exe
3. Double-click the file name to install Fitbit Connect.
4. Follow the brief onscreen instructions to finish setting up. You’re ready to get
moving.
2
Syncing your tracker
Now that Fitbit Connect is installed, your One will automatically and wirelessly sync
with your computer every 20 minutes or so if the following requirements are met:
•
•
•
Your One is within 15-20 feet of your computer and has new data to upload
(meaning if you haven’t moved, an automatic sync won’t occur).
Your computer is powered on, awake, and connected to the Internet.
The wireless sync dongle is inserted into a USB port and is recognized by the
computer.
When One syncs, whether to Fitbit Connect or a mobile app, your data is uploaded
to your Fitbit.com dashboard. Your One holds detailed minute-by-minute information
for the most recent 7 days and daily activity summaries for 30 days. For the most
accurate dashboard possible, sync your One regularly.
To manually sync your One rather than wait for an automatic sync, click the Fitbit
Connect icon located near the date and time on your computer and click Sync Now.
Setting up your One with a mobile device
You can set up and wirelessly sync your One using over 120 mobile devices that
support Bluetooth 4.0 technology. To see if your mobile device is compatible for
syncing with your One, visit www.fitbit.com/devices. If your device is listed, you can
then download our free iOS, Android, or Windows Phone apps. Once downloaded,
open the app and follow the setup instructions provided.
NOTE: If your mobile device is not compatible to sync via Bluetooth 4.0, you can still
use the Fitbit app to view your data and track your progress, you’ll just need
to set up and sync using a Mac or PC.
3
Wearing your One
The Fitbit One is most accurate when worn on or very close to your torso. A clip
designed to keep the tracker secured to your clothing is included in your package.
A sleep wristband for your Fitbit One is also included in your package. The wristband
should be worn while you sleep. It should not be worn for tracking during the day.
To prevent losing your tracker, wear it:
1. In your pocket.
2. Clipped on your pocket.
3. Clipped on your bra.
The One is not designed to be worn in direct contact with the skin. Always use the
silicone holder when clipping it to a bra or waistband, with the display facing
outward. Do not wear the One inside your bra.
Some users may experience skin irritation even when wearing the One as instructed
on the bra or waistband. If this occurs we recommend clipping it on your pocket,
belt, or other external piece of clothing.
The Fitbit One is sweat-proof and rainproof. It is not waterproof and should not be
taken swimming.
4
Charging your One
The Fitbit One tracker is powered by a rechargeable built-in battery. To charge your
One, align the gold contacts on your tracker with the gold contacts on the inside of
the charging cable, then plug the cable into your computer’s USB port or any other
USB charging device. A battery indicator appears, which you can view at any time
while the One is charging by pressing the button. Charging typically takes about an
hour, and a full charge lasts about two weeks.
Note: Every night at midnight, your tracker will reset itself. This means your goal
progress and daily data will begin at zero again. This does not delete the data
stored on your tracker. That data will be uploaded to your dashboard the next
time you sync your tracker. The time this reset occurs is based on the time
zone set on your Fitbit.com profile.
5
Tracking your Fitness with One
Press the button on your One to see the time of day and cycle through your current:
•
•
•
•
•
Steps taken
Floors climbed
Recent activity levels (represented by
an expanding flower)
Distance traveled
Calories burned
Note that your One resets at midnight according to the time zone you’ve selected for
your account. The reset ensures that One can track your daily totals correctly, and
does not delete the previous day’s data. All your data will appear on your dashboard
when you sync your tracker.
Using the display
When you first set up your One and press the button to scroll through your stats, you
see the stat category (e.g. STEPS) followed by the stat and its icon. After you’ve
cycled through each screen 5 times and can recognize the stat icon, the stat
category no longer appears so that you can scroll more quickly.
Any time your tracker is reset, it will enter “beginner mode” and show the stat
category again for the first 5 cycles. This will happen if you shut down and then
restart your tracker, upgrade your tracker, or charge your tracker after the battery
drained completely.
Changing the display for left-handed use
By default your tracker is oriented for right-handed individuals. If you’re left handed,
you can reorient the display to make it easier to read. To do so, log into your
Fitbit.com dashboard and click the gear icon in the upper right. Click Settings >
Devices and then find and adjust the Left-handed button.
Tracking sleep
You can use your One to track how long and how well you sleep. The One will track
your movement throughout the night to provide you with information about the
quality of your sleep.
6
1.
Place your tracker into the slot in your wristband and wrap it around your
non-dominant wrist.
2. Once you are in bed and ready to fall asleep, press and hold the tracker’s
button for 2+ seconds. You will see a blinking stopwatch and clock. The other
icons will also blink, indicating that your tracker is in sleep mode.
3. When you wake up, press and hold the button for 2+ seconds to stop the
sleep recording. The icons will stop blinking to indicate you’ve exited sleep
mode. Once you exit sleep mode, your tracker will resume, displaying your
daily totals.
4. Once the data syncs, graphs on your Dashboard will reveal how long you slept
and the number of times you woke up. Last night’s sleep will appear on
today’s page.
Note: If you forgot to press the button on your tracker, but were wearing it while
you slept, you can enter your sleep times manually in your online sleep log.
Tracking exercise
Though your One automatically tracks several stats throughout the day, you can also
track stats for a specific exercise or workout as well. Similar to the trip mode on a
car’s odometer, activity mode brings closer scrutiny to a specific time period.
For example, if you put your One in activity mode and go for a run, you can view
stats measured for that run, such as calories burned or steps taken. When you end
activity mode at the end of the run and sync your data, your can log in to your
Fitbit.com dashboard and see a summary of the activity's stats such as pace,
duration, and more.
To start a recording, hold your tracker’s button down for 2-3 seconds until a flashing
stopwatch and running numbers appear as they do in sleep mode.
During the activity the display icons will blink. When you press the tracker’s button to
cycle between screens, the stats represent the activity that has occurred since the
recording started.
To exit activity mode, hold your tracker’s button down for 2-3 seconds until the icons
and numbers on the display stop flashing.
Using silent alarms
You can set up to eight gently vibrating silent alarms on your One. Silent alarms can
be configured to recur every day, or on particular days of the week.
Note: Setting multiple alarms may drain the battery life of your One. Each alarm
increases battery use by a small percentage.
7
Setting up silent alarms from a computer
You can set silent alarms from your computer by using the Fitbit.com dashboard.
Your wireless sync dongle must be plugged into your computer to sync the alarm to
your tracker.
1.
2.
3.
4.
5.
6.
7.
8.
Make sure the wireless sync dongle is plugged into your computer and log in
to your Fitbit.com dashboard.
Click the gear icon in the top right corner of the screen.
Click Settings > Silent Alarms.
Click the Add Alarm button.
Enter the Time you want the alarm to go off.
Choose how often you want the alarm to occur:
a. Once – Your alarm will alert you at the specified time.
b. Repeats – You can choose which days you want this alarm to repeat
(for example, at 7:00 AM every weekday).
Click Save.
Sync your tracker:
a. Click the Fitbit Connect icon located near the date and time on your
computer.
b. Click Sync Now.
Setting up silent alarms on an iOS device
You can set silent alarms for your tracker using the Fitbit app for iOS.
1.
2.
3.
4.
5.
6.
7.
8.
Open the Fitbit app.
Tap Account.
Tap Silent Alarms.
If this is the first time you’re setting an alarm, tap Set a New Alarm at the
introduction screen.
Set the time by adjusting the click-wheel.
If applicable, tap the days of the week you want this alarm to repeat.
(for example, at 7:00 AM, every weekday).
Tap Save.
Sync your tracker:
a. In the Fitbit app, tap Account.
b. Choose One and then tap Sync Now.
Your iOS device will now sync the alarm to your tracker.
Setting up silent alarms on an Android device
You can set silent alarms on your tracker using the Fitbit app for Android. Make sure
Bluetooth is enabled in your Android’s device settings and in the Fitbit app.
1.
2.
3.
4.
5.
6.
7.
Open the Fitbit app.
Tap the menu button.
Tap Devices.
Choose your tracker.
Tap Silent Alarm.
Tap Add a new alarm or the bell icon in the top right corner.
Set the time you’d like your alarm to go off, then tap Done.
8
8. If you’d like, you can tap the Repeats checkbox and choose the days of the
week on which you want this alarm to repeat.
9. Tap Done.
10. Tap the Sync alarms with your tracker button.
Your Android device will now sync the alarm to your One.
Dismissing silent alarms
Your One will vibrate when your silent alarm goes off. This notification will repeat
several times or until dismiss it by pressing the button.
If you miss your alarm, your One will alert you again after a few minutes.
9
Using the Fitbit.com Dashboard
Fitbit provides a free online tool — the Fitbit.com dashboard — to help you track,
manage, and evaluate your fitness progress. Use the dashboard to see your daily
totals, analyze details about specific activities, view historical graphs, and log food.
Browser requirements
Brow ser
M ac Version
W indow s
Version
Apple Safari
5.0.5 and higher
Not Supported
Google Chrome
12 and higher
12 and higher
Microsoft Internet Explorer
Not Supported
8 and higher
Mozilla Firefox
3.6.18 and higher
3.6.18 and higher
Adding and removing tiles
Information on the dashboard appears in tiles. Add or remove tiles to customize the
dashboard. If you remove a tile, you can add it back at any time.
To add a tile:
1. Click the grid icon on the upper left side of the dashboard.
2. Check the tile(s) you want to add, then click Done.
To delete a tile:
1. Hover over a tile until you see the gear icon at the lower left.
2. Click the gear icon, then click Remove Tile.
3. When prompted, confirm that you want to remove the tile.
10
Managing your One from fitbit.com
To manage various settings for your account, click the gear icon in the top right
corner of your Fitbit.com dashboard and select Settings. From here you can edit
your personal information, your notification preferences, your privacy settings, and
much more.
The Devices page allows you to monitor or edit:
•
•
•
•
•
•
•
The date and time of your last sync.
Your tracker’s battery level.
The firmware version running on your tracker.
Your time zone.
Your sleep tracking sensitivity option.
Your handedness preference: left-handed or right-handed.
Your tracker’s greeting.
11
Updating your One
Free feature enhancements, product improvements, and bug fixes are occasionally
made available through firmware updates. You can update your tracker using Fitbit
Connect on your computer or by using one of the Fitbit mobile apps. We
recommend keeping your One up to date.
Updating One on a computer
To update your One on a Mac or PC:
1.
2.
3.
4.
5.
Make sure your wireless sync dongle is plugged into your computer and your
One is charged.
Click the Fitbit Connect icon near the time on your computer.
Select Open Main Menu, and then select Check for device update.
Log in to your account using your Fitbit.com credentials.
Press the button on your One to wake it up. Fitbit Connect will now look for
your tracker. If an update is found for your One, Fitbit Connect displays a
progress bar representing the update’s progress. Keep your tracker close to
your computer while it updates.
You’ll see a notification when the update is complete and your tracker will restart.
Updating One on an iOS device
To update your One using the Fitbit app for iOS:
1. Make sure your One is charged and open the Fitbit app.
2. Tap your tracker name at the top of the app dashboard. You'll be taken to
your tracker's device settings page.
3. Tap Sync Now.
4. Tap the Update Available button at the top of the page. The option only
appears if a update is available.
5. Make sure your tracker remains near your iOS device while it updates. You can
make your tracker easier to find by pressing its button to wake it up.
You’ll see a notification when the update is complete and your tracker will restart.
Updating One on an Android device
To update your One using the Fitbit app for Android:
1.
2.
3.
4.
Make sure your One is charged and open the Fitbit app.
Tap the Menu button.
Tap Device.
Choose One from the menu, then keep your One close to your mobile device
while the app searches for your tracker. You may need to press the button on
your One to wake it up.
5. Tap the Update Available button at the top of this screen. If this option doesn’t
appear, no update is available.
12
You’ll see a notification when the update is complete and your tracker will restart.
13
Restarting your One
Restarting your One turns it off and then back on, which may fix any of the following
problems if they happen to occur:
•
•
•
•
Your
Your
Your
Your
One
One
One
One
is not syncing.
isn’t tracking your steps.
has a battery charge but is not responding.
isn’t responding to button presses.
To restart your One:
1. Plug your charging cable into your computer.
2. Plug your One tracker into the charging cable, making sure that the gold
contacts on your tracker align with the gold contacts in the inside of the
charger.
3. Hold down your tracker's button for 10-12 seconds.
4. Remove your tracker from the charging cable and press its button until the
screen turns on.
If restarting your One doesn’t resolve your issue, go to https://help.fitbit.com/
and click the One image. From here you can browse or search for troubleshooting
information or contact Customer Support if you don’t find what you’re looking
for.
14
Return Policy and Warranty
Warranty information and the Fitbit.com Store Return Policy can be found online at
http://www.fitbit.com/returns.
15
Regulatory and Safety Notices
Model Name: FB103
USA: Federal Communications Commission (FCC)
statement
This device complies with FCC part 15 FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
FCC Warning
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device meets the FCC and IC requirements for RF exposure in public or
uncontrolled environments.
16
Canada: Industry Canada (IC) statement
IC Notice to Users English/French in accordance with RSS GEN Issue 3:
This device complies with Industry Canada license exempt RSS standard(s).
Operation is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence
(s). Son utilisation est soumise à Les deux conditions suivantes:
1. cet appareil ne peut pas provoquer d’interférences et
2. cet appareil doit accepter Toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement du dispositive
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC ID
XRAFB103
IC ID
8542A-FB103
European Union (EU)
Declaration of Conformity with Regard to the EU Directive 1999/5/EC
Fitbit Inc. is authorized to apply the CE Mark on One, Model FB103, thereby declaring
conformity to the essential requirements and other relevant provisions of Directive
1999/5/EC.
Compliant with the standard R&TTE 99/CE/05
Conforme à la norme R&TTE 99/CE/05
Taiwan
17
Other
51-37309
‫אישור התאמה‬
.‫אין לבצע כל שינוי טכני בחלק המודולארי של המוצר‬
-. 사용 주파수 (Used frequency): 2402 MHz-2480 MHz -. 채널수 (The number of channels): 40 -. 공중선전계강도 (Antenna power): 0.6 dBi -. 변조방식 (Type of the modulation): Digital -. 안테나타입 (Antenna type): Vertical -. 출력 (Output power): 1.45 mW/MHz E.I.R.P. -. 안테나 종류 (Type of Antenna): PCB KCC approval information 1) Equipment name (model name) : 무선데이터통신시스템용 특정소출력무선기기 FB103 2) Certificate number : MSIP-CRM-XRA-FB103 3) Applicant : Fitbit, Inc. 4) Manufacture: Fitbit, Inc. 5) Manufacture / Country of origin: P.R.C. Safety statement
This equipment has been tested to comply with safety certification in accordance
with the specifications of EN Standard: EN60950-1:2006 + A12: 2011.
18
Important safety instructions
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Read these instructions.
Keep these instructions.
Heed all warnings
Follow all instructions
Do not attempt to open the tracker. Substances contained in this product
and/or its battery may damage the environment and/or human health if
handled and disposed of improperly.
Do not tamper with your One.
Do not use abrasive cleaners to clean your One.
Do not place your One in a Dishwasher, Washing Machine or Dryer.
Do not expose your One to extremely high or low temperatures.
Do not use your One in a sauna or steam room.
Do not leave your One in direct sunlight for an extended period of time.
Do not leave your One near open flames.
Do not dispose of your One in a fire. The battery could explode.
Do not attempt to disassemble your One, it does not contain serviceable
components.
Never allow children to play with the One; the small components may be a
choking hazard!
Built-in battery precautions
•
•
•
•
•
•
Do not attempt to replace your One’s battery. It is built-in and not changeable.
Charge the battery in accordance with the instructions supplied with this
guide.
Use only the charger that shipped with your product to charge the battery.
Charge your One using a certified computer, powered hub or power supply.
Do not attempt to force open the built-in battery
Your product uses a California Energy Commission charger.
Disposal and recycling information
The symbol on the product or its packaging signifies that this product has to be
disposed separately from ordinary household wastes at its end of life. Please kindly
be aware that this is your responsibility to dispose electronic equipment at recycling
centers so as to help conserve natural resources. Each country in the European Union
should have its collection centers for electrical and electronic equipment recycling.
For information about your recycling drop off point, please contact your local related
electrical and electronic equipment waste management authority or the retailer
where you bought the product.
Le symbole sur le produit ou sur son emballage signifie que ce produit à la fin de sa
vie doit être recyclé séparément des déchets ménagers ordinaires. Notez que ceci
est votre responsabilité d'éliminer les équipements électroniques à des centres de
19
recyclage afin d'aider à préserver les ressources naturelles. Chaque pays de l'Union
européenne a ses centres de collecte et de recyclage pour le recyclage des
équipements électriques et électroniques. Pour plus d'informations ou trouver un
centre de recyclage, contactez votre commune ou le magasin où vous avez acheté le
produit.
•
•
•
Do not dispose of the One with household waste.
Batteries are not to be disposed of in municipal waste stream and require
separate collection.
Disposal of the packaging and your One should be done in accordance with
local regulations.
Please recycle!
20
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
