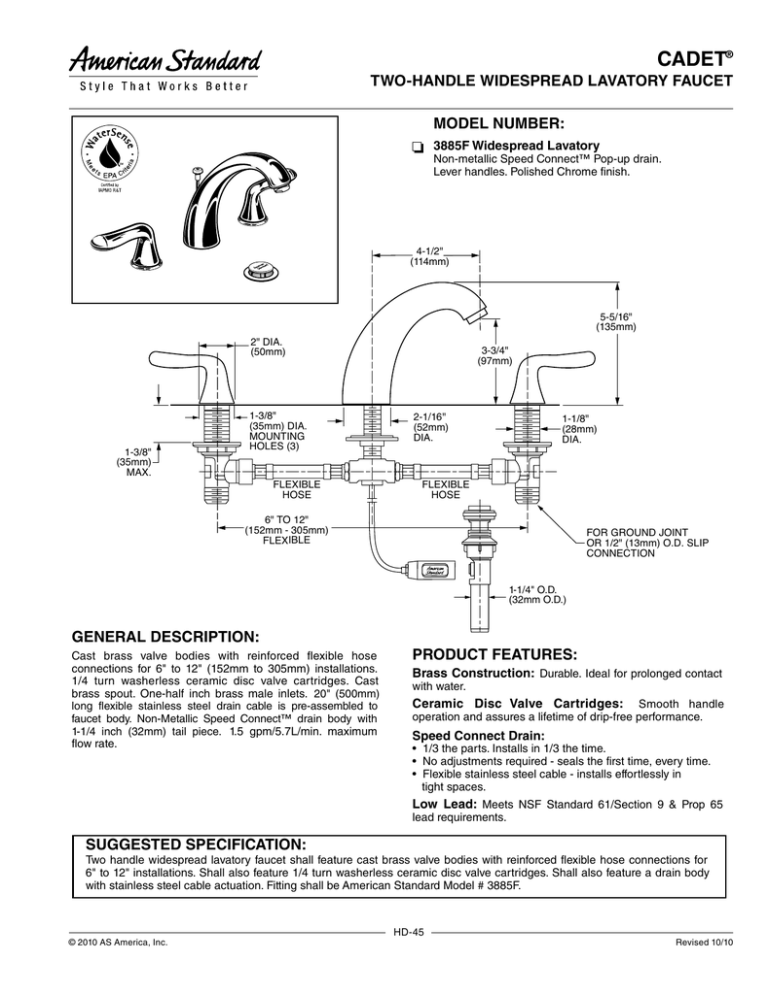

CADET®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
3885F Widespread Lavatory
Non-metallic Speed Connect™ Pop-up drain.
Lever handles. Polished Chrome finish.
4-1/2"
(114mm)
5-5/16"
(135mm)
2" DIA.
(50mm)
1-3/8"
(35mm)
MAX.
1-3/8"
(35mm) DIA.
MOUNTING
HOLES (3)
FLEXIBLE
HOSE
3-3/4"
(97mm)
1-1/8"
(28mm)
DIA.
2-1/16"
(52mm)
DIA.
FLEXIBLE
HOSE
6" TO 12"
(152mm - 305mm)
FLEXIBLE
FOR GROUND JOINT
OR 1/2" (13mm) O.D. SLIP
CONNECTION
1-1/4" O.D.
(32mm O.D.)
GENERAL DESCRIPTION:
Cast brass valve bodies with reinforced flexible hose
connections for 6" to 12" (152mm to 305mm) installations.
1/4 turn washerless ceramic disc valve cartridges. Cast
brass spout. One-half inch brass male inlets. 20" (500mm)
long flexible stainless steel drain cable is pre-assembled to
faucet body. Non-Metallic Speed Connect™ drain body with
1-1/4 inch (32mm) tail piece. 1.5 gpm/5.7L/min. maximum
flow rate.
PRODUCT FEATURES:
Brass Construction: Durable. Ideal for prolonged contact
with water.
Ceramic Disc Valve Cartridges:
Smooth handle
operation and assures a lifetime of drip-free performance.
Speed Connect Drain:
• 1/3 the parts. Installs in 1/3 the time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65
lead requirements.
SUGGESTED SPECIFICATION:
Two handle widespread lavatory faucet shall feature cast brass valve bodies with reinforced flexible hose connections for
6" to 12" installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a drain body
with stainless steel cable actuation. Fitting shall be American Standard Model # 3885F.
© 2010 AS America, Inc.
HD-45
Revised 10/10
CADET®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product
Number
Description
3885F
Lavatory faucet. Lever Handles. Non-Metallic Speed Connect™ Pop-up drain. Polished Chrome finish.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2010 AS America, Inc.
HD-46
Revised 10/10
