TURBO IMMAGINARIO DH1OBGGL CHIMNEY HOOD

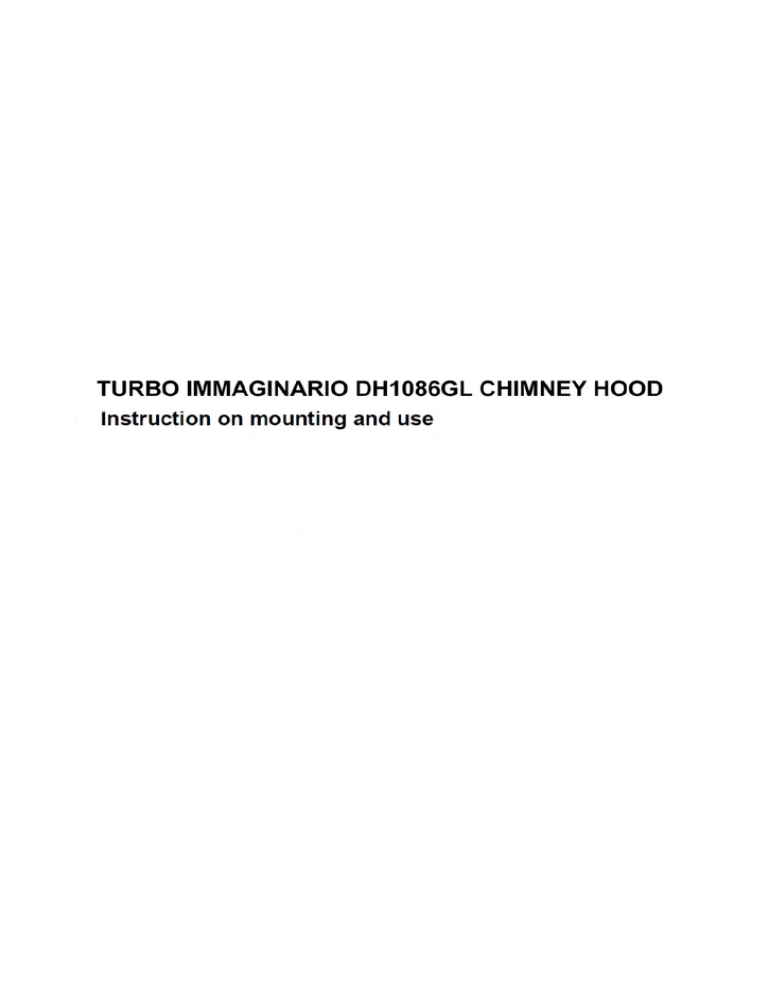

TURBO IMMAGINARIO DH1086GL CHIMNEY HOOD Instruction on mounting and use FIG. 2 CSSS A a ma LA A AAA AAA A ce НСС A PATA FIG. 3D FIG. 3E FIG. 5 FIG. 6 : A | i se re I 7 HOLES FOR THE HOOD-FIXING | 7 | TUBES FIXING BRACKET HOOQD FIXING HOLES DIAMETER 8mm MIN" ** see enclosed sketch Consult the designs in the front pages referenced in the text by alphabet letters. Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. AN Caution WARNING! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch. Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. Children should be monitored to ensure that they do not play with the appliance. Never use the hood without effectively mounted grating.! The hood must NEVER be used as a support surface unless specifically indicated. The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames. As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it 1s in any event necessary to proceed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks. We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non- observance of the instructions included in this manual. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol mm on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Use The hood is designed to be used either for exhausting or filter version. Ducting version The hood is equipped with a top air outlet for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided). Filtering version In the case where It is not possible to discharge the cooking fumes and steam outside, the hood can be used in the filtering version, mounting 1 or 2 active carbon filters (*). The fumes and steam are recycled into the kitchen. The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied). The connecting instructions are supplied with the peripheral suction unit. Installation The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 53cm from electric cookers and 09cm from gas or mixed cookers. If the Instructions for installation for the gas hob specify a greater distance, this must be adhered to. A Electrical connection The mains power supply must correspond to the rating Indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a bi-polar switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over- current category lll, in accordance with installation Instructions. Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled. Mounting Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Fig. 8 1) Set the distance between the cooker hob and the hood (Fig.7) and mark the holes for the mounting according to the sketch attached. 2) To facilitate mounting, take off the edge extraction panels and the grease filters (Fig. 9C/1). For some models it is necessary to first take off the glass front covers (fixed with 4 metric screws) and then the support frame in iron to be able to access the inside of the hood (Fig. 5A/1), for other models it is necessary to take off all of the duct cover unsrewing the mounting screws (Fig. 5B/1). 3) Drill the holes into the wall at the right distances shown here after, and fix the cookerhood (Fig. 8/N). 4) For a correct installation the hood is provided (in the rear side of its body) with one or two holes 8 mm diam. into which one or two wall fixing screws must be inserted (Fig. 8/0). 5) For the exhaust version, please connect the flange to an outlet ducting (not supplied) according to the cross section of the flange (Fig. 8/F). If the hood is in recirculating version, for the models as in Figure 4/C the flange must be fixed to the connection piece, which is provided (Fig. 8/G). For some models a plaque or a metal cover is to be used (Fig. 4) that is to be fixed with 4 screws (Fig. 4/B) from the inside. 6) Install again all the parts that were taken off at point 2 and for the model Fig. 5A install the glass cover panel with the 4 screws provided (Fig. 5A/2). Insure that all parts are properly fixed and that it is impossible to touch moving parts. Installation of the duct cover (valid for exhaust or filter version) 1) Fix the bracket (Fig. 8/C) with 2 plugs and screws in the required height for the duct cover. (Fig. 8/A) 2) Screw the short duct cover (Fig. 8/D) with 2 screws on the bracket (Fig. 8/B). 3) Putthe long duct cover over the short one (Fig. 8/E) by pulling a apart the laterals of theduct cover. 4) Fix from the inside the long duct cover with the 2 screws on the hood (Fig. 8/Q), after having inserted the bolts in the tube. Description of the hood Operation Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction Is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking. The cooker hood is supplied with different controls (Fig. 3A-B- C-D-E) according to the model: 1-Speed indicator 2-Light Switch The models with the controls Fig. 3 A-B-C-D-E are equiped with a Timer that automatically turns off the hood and displays the state of the filters. The hood is equipped with touch-screen controls (Fig.3A): 1 — Display 2 - ON-OFF/Speed Switches 3- Timer 4 - Filters Saturation 5 - Light Switch 6 - Remote Control Sensor When the hood is first switched on it runs through a phase of reset and self-cheking: the display indicates (Fig. 3A/1) 00.00 for the current time, motor and lamps will be switched off. Each variation of the values or pressing of any sensor will be confirmed by an acustic pip. Setting the Clock: with the motor in OFF by pushing the sensor 3 for more than 2 seconds the first 2 digit's - current hours - in the display starts flashing; change the values with the speed switches (Fig.3A/2). Pushing again the sensor 3 it confirme the setting. Repeat the same procedure for setting the minutes. If the sensores 3 are pushed for more than 3 seconds any values will change faster. Light: by pressing the sensor 5 the light turns on by a soft start, pressing again it will turn off. Speed Control: the cooker hood have four speed settings; pushing the sensor (Fig.3A/2) the motor will run in speed 1, pressing again it set to speed 2. With the sensor (Fig.3A/2) the motor will slow down and at least it will stop. By pressing the sensor for more as 1 seconds the motor set direct in speed 4; by pressing the sensor for more as 1seconds the motor set will stop. Timer: by pressing the sensor 3 in any speed level the Timer will be activeted for 5 minutes and after this time the motor and light will turn off. The Display starts flashing the letter T' and the minutes of remaining time. The duration can be changed by pressing the speed switches (Fig.3A/2) from 99 minutes til 1 minute. To stop the timer function it need to press the sensor 3 again. Exhaust or Filtering Mode: with the motor OFF and pressing the sensor 5 for more than 2 seconds the Display lights for 3 seconds ‘ALU’ that means the unit is setted in exhaust mode. Pressing again the sensor $ for more than 5 seconds the Display lights ‘CAR’ that means the unit is setted in filtering mode. Filter Control (fig.3/4): with the unit setted in exhaust or filtering mode after 20 working hours the Display indicate the letter ‘A’ and the aluminium filter should be cleaned. If the unit is setted in filtering mode after 120 working hours the Display indicate the letter C’ and the charcoal filter should be replaced. The saturation of the filters can be checked by pressing the sensor 4, the Display indicate the letter A and a number according the saturation status of the filters (where 10 is the highest value of cleaning and 1 the lowest). Pressing again the sensor it indicate the letter C and a number according the saturation status of the filters (where 10 is the highest value of cleaning and 1 the lowest). To reset the saturation status of the press the sensor for 2 seconds during the saturation check. If the saturation status, after reaching the setted working hours, will not manually resetted the unit reset automatically after 50 minutes. Remote Control: If the cooker hood is supplied with the remote control please read the enclosed instructions. For hoods equipped with controls like in Fig. 3C 1. speed indicator 2. light switch 3. Timer Each button, while switched on, illuminates an LED in a different color. Green light — first speed Yellow light — second speed Red light — third speed T — Timer (LED blinks) — Exist two (2) executions of that control. In the first one pushing this button while the hood is switched on, activates a timer of the selected speed that automatically switches the hood off after 5 minutes. In the second one pressing it the motor is brought to the maximum speed for 5 minutes, after which, the speed returns to the last speed in use and pushing any speed button for more than 2 seconds, the speed Is timed for 5 minutes, after which the hood turns itself off. For the visualization of the grease filter state, pushing the T- Timer button (Fig. 3C) while the hood 15 switched off: Green light (working time less than 6 hours) Yellow light (working time between 6 and 12 hours) Red light (working time more than 12 hours) To reset the Timer, while the hood is switched off, keep pressed the T button for 5 seconds. For hoods equipped with controls like in Fig. 3/D +/- - speed indicator 1 — On/Off switch 2 — light switch 3 — Display Button 1 turns on and off the hood and if pressed and held while the hood is off, for more than 2 seconds the motor goes to the last speed used; if on the other hand it is pressed, for more than 2 seconds while the hood is on, the delayed switch off is activated; after 5 minutes the hood turns itself off. While on, the speed number in use flashes in the display. With the buttons +/- (plus/minus) the speed may be changed. Pushing the — (minus) button while the hood is switched off indicates the grease filter saturation level. Pushing the + (plus) button for more than 2 seconds while the hood is switched on sends the hood to the maximum speed for 5 minutes and then returns to the previous speed. While working the maximum speed flashes in the display. The saturation of the grease filter will be indicated by the operation LED. By switch off cooker hood and pushing the bottom T (Fig.3C/3) the operation LED will indicate different colours with following meanings: Green Light: less than 6 working hours Yellow Light: between 6 and 12 working hours Red Light: more than 12 working hours (the grease filter should be cleaned or eventual changed) For hoods equipped with controls as in Fig.3/E Each button, while in use, is backlit with a blue LED. 1. speed control 2. light switch 3. Booster The Booster button works with the timing function, pressing it brings the motor to the maximum speed for 5 minutes, after which, the speed returns to that previously in use. Pushing any of the speed control buttons for more than 2 seconds, the timer will be activated and the hood will turn itself off after 5 minutes. To see the state of the grease filter pushing the Booster button (Fig.3E/3) while the hood is off: -if the ON/OFF button illuminates — six working hours -if the Il button illuminates — 6 to 18 working hours -if the lll button illuminates — more than 18 working hours (when the hood is turned off the LED is illuminated for 5 seconds to indicate maximum saturation) To reset the Timer, while the hood is turned off, keep pressed the Booster for 5 seconds. Maintenance ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. Cleaning The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL! WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend oserving these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations. Panel Clean the perimeter aspiration panel with the same frequency as the ant-fats filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances. Fig. 6 Maintenance of the panel Disassembly: a. pull the panel (FRONT SIDE) downwards energetically b. unhook it from the back hinges. Cleaning: the suction panel must be cleaned as frequently as the grease filter, use a dampened cloth with neutral liquid detergents. Avoid using products containing abrasives. DO NOT USE ALCOHOL! Assembly: The panel must be hooked in the back and fixed in the front (with magnets). Attention! always check that the panel is tightly fixed to its place. Grease filter Fig. 1 This must be cleaned once a month (or when the filter saturation indication system — if envisaged on the model in possession — indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle. Charcoal filter (filter version only) Fig. 2 It absorbs unpleasant odours caused by cooking. The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The carbon filter may NOT be washed or regenerated. Circular carbon filter Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise. For the disassembly, turn counter-clockwise. Replacing lamps Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. When the tubolar neon lamps need to be replaced this must only be done by a competent electrician because especiale tool is required. To changes low energy neon lamps and incandescent bulbs please work from outside of the hood means to pull off the lamp diffuser. If it has a halogen lamp look out not to touch it with your hands when you replace It. Use a dry and not greasy protection (for example a cloth) in order to avoid a direct contact with skin which could make the lamp break. Never use lamps with a wattage higher than the one shown on the label inside the hood. If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
