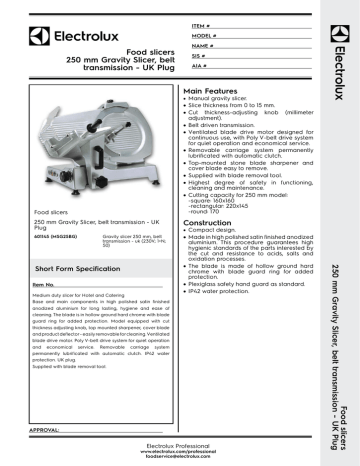

250 mm Gravity Slicer, belt transmission - UK Plug

250 mm Gravity Slicer, belt transmission - UK Plug
ITEM #
MODEL #
Food slicers
250 mm Gravity Slicer, belt
transmission - UK Plug
NAME #
SIS #
AIA #
Main Features
• Manual gravity slicer.
• Slice thickness from 0 to 15 mm.
• Cut thickness-adjusting knob (millimeter
adjustment).
• Belt driven transmission.
• Ventilated blade drive motor designed for
continuous use, with Poly V-belt drive system
for quiet operation and economical service.
• Removable carriage system permanently
lubrificated with automatic clutch.
• Top-mounted stone blade sharpener and
cover blade easy to remove.
• Supplied with blade removal tool.
• Highest degree of safety in functioning,
cleaning and maintenance.
• Cutting capacity for 250 mm model:
-square: 160x160
-rectangular: 220x145
-round: 170
Food slicers
250 mm Gravity Slicer, belt transmission - UK
Plug
Construction
601145 (MSG25BG)
• Made in high polished satin finished anodized
aluminium. This procedure guarantees high
hygienic standards of the parts interested by
the cut and resistance to acids, salts and
oxidation processes.
• The blade is made of hollow ground hard
chrome with blade guard ring for added
protection.
• Plexiglass safety hand guard as standard.
• IP42 water protection.
Gravity slicer 250 mm, belt
transmission - uk (230V; 1+N;
50)
Item No.
Medium duty slicer for Hotel and Catering
Base and main components in high polished satin finished
anodized aluminium for long lasting, hygiene and ease of
cleaning. The blade is in hollow ground hard chrome with blade
guard ring for added protection. Model equipped with cut
thickness adjusting knob, top mounted sharpener, cover blade
and product deflector - easily removable for cleaning. Ventilated
blade drive motor. Poly V-belt drive system for quiet operation
and economical service. Removable carriage system
permanently lubrificated with automatic clutch. IP42 water
protection. UK plug.
Supplied with blade removal tool.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
[email protected]
Food slicers
250 mm Gravity Slicer, belt transmission - UK Plug
Short Form Specification
• Compact design.
Food slicers
250 mm Gravity Slicer, belt
transmission - UK Plug
Front
Electric
Supply voltage:
601145 (MSG25BG)
230 V/1N ph/50 Hz
Key Information
External dimensions, Height
370 mm
External dimensions, Width
510 mm
External dimensions, Depth
420 mm
Net weight (kg):
22
The MECHANICAL SAFETY system includes:
- Blade guard
- Cover
- Meat pusher
- Hand cover on meat hopper
- Meat hopper + finger protection
Side
EI
=
Electrical connection
Food slicers
250 mm Gravity Slicer, belt transmission - UK Plug
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2016.04.05
