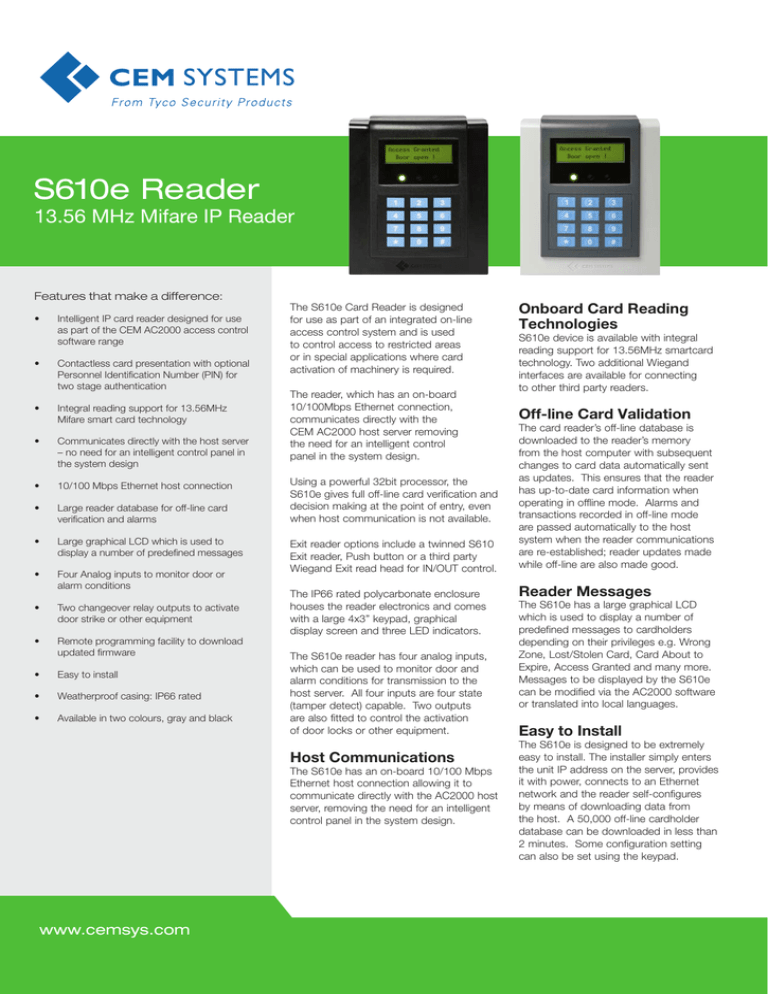

S610e MiFare Reader
S610e Reader
13.56 MHz Mifare IP Reader
Features that make a difference:
•
Intelligent IP card reader designed for use
as part of the CEM AC2000 access control
software range
•
Contactless card presentation with optional
Personnel Identification Number (PIN) for
two stage authentication
•
Integral reading support for 13.56MHz
Mifare smart card technology
•
Communicates directly with the host server
– no need for an intelligent control panel in
the system design
•
10/100 Mbps Ethernet host connection
•
Large reader database for off-line card
verification and alarms
•
Large graphical LCD which is used to
display a number of predefined messages
•
Four Analog inputs to monitor door or
alarm conditions
•
Two changeover relay outputs to activate
door strike or other equipment
•
Remote programming facility to download
updated firmware
•
Easy to install
•
Weatherproof casing: IP66 rated
•
Available in two colours, gray and black
The S610e Card Reader is designed
for use as part of an integrated on-line
access control system and is used
to control access to restricted areas
or in special applications where card
activation of machinery is required.
The reader, which has an on-board
10/100Mbps Ethernet connection,
communicates directly with the
CEM AC2000 host server removing
the need for an intelligent control
panel in the system design.
Using a powerful 32bit processor, the
S610e gives full off-line card verification and
decision making at the point of entry, even
when host communication is not available.
Exit reader options include a twinned S610
Exit reader, Push button or a third party
Wiegand Exit read head for IN/OUT control.
The IP66 rated polycarbonate enclosure
houses the reader electronics and comes
with a large 4x3” keypad, graphical
display screen and three LED indicators.
The S610e reader has four analog inputs,
which can be used to monitor door and
alarm conditions for transmission to the
host server. All four inputs are four state
(tamper detect) capable. Two outputs
are also fitted to control the activation
of door locks or other equipment.
Host Communications
The S610e has an on-board 10/100 Mbps
Ethernet host connection allowing it to
communicate directly with the AC2000 host
server, removing the need for an intelligent
control panel in the system design.
www.cemsys.com
Onboard Card Reading
Technologies
S610e device is available with integral
reading support for 13.56MHz smartcard
technology. Two additional Wiegand
interfaces are available for connecting
to other third party readers.
Off-line Card Validation
The card reader’s off-line database is
downloaded to the reader’s memory
from the host computer with subsequent
changes to card data automatically sent
as updates. This ensures that the reader
has up-to-date card information when
operating in offline mode. Alarms and
transactions recorded in off-line mode
are passed automatically to the host
system when the reader communications
are re-established; reader updates made
while off-line are also made good.
Reader Messages
The S610e has a large graphical LCD
which is used to display a number of
predefined messages to cardholders
depending on their privileges e.g. Wrong
Zone, Lost/Stolen Card, Card About to
Expire, Access Granted and many more.
Messages to be displayed by the S610e
can be modified via the AC2000 software
or translated into local languages.
Easy to Install
The S610e is designed to be extremely
easy to install. The installer simply enters
the unit IP address on the server, provides
it with power, connects to an Ethernet
network and the reader self-configures
by means of downloading data from
the host. A 50,000 off-line cardholder
database can be downloaded in less than
2 minutes. Some configuration setting
can also be set using the keypad.
Remote Programming
The S610e reader can be remotely programmed from the
host computer, eliminating the need to physically replace
firmware, giving increased system flexibility and efficiency.
Some configuration setting can be set using the keypad
and operational parameters, e.g. door open time, can also
be downloaded to the reader. Standard Operating Modes
include, but are not limited to, Door Access, Passenger,
Turnstile, Verification, Control Post, and Equipment Enable.
Specifications
Physical
Size . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . .
Housing . . . . . . . . . . . . . . . . .
Color options . . . . . . . . . . . . .
Power
Voltage . . . . . . . . . . . . . . . . .
Current Consumption . . . . .
Environmental
IP Rating . . . . . . . . . . . . . . . .
Temperature . . . . . . . . . . . . . .
LED Indicators . . . . . . . . . . . .
LCD Indicators . . . . . . . . . . . .
Keypad . . . . . . . . . . . . . . . . . .
142 x 115 x 44mm (5.6 x 4.5 x 1.7”)
370g (13oz) with connectors
Flame retardant polycarbonate containing
fully encapsulated electronics
Dark and Light Gray or Black
Dynamic Database Sizes
in Offline Operation . . . . . . . . . 8 Byte Mode (card number/Time Zone/
PIN/Card Status)
Card holders
Transactions
210,000
10,000
150,000
50,000
80,000
100,000
9 – 14Vdc
MiFare - 220mA (passive, 290mA (peak)
IP66
-20°C to 60°C (-4°F to 140°F)
Three high intensity LED indicators red,
amber and green
32 x 122 dots Monochrome Graphics supertwist LCD with backlight
12 character, standard layout,
tactile response keypad
Functionality
Inputs . . . . . . . . . . . . . . . . . . . Four analog inputs – voltage supplied,
4 state (tamper detect)
Outputs . . . . . . . . . . . . . . . . . Two relays fitted – Changeover volt
free contacts
Rating . . . . . . . . . . . . . . . . . . . 30Vdc @ 5A
Duration . . . . . . . . . . . . . . . . . Programmable suppression device
(diode, MOV) required at load
Memory . . . . . . . . . . . . . . . . . 2 MB battery backed memory
Compact Flash . . . . . . . . . . . . 32 MB Typical (Optional)
Database Battery Backup . . . . 3.0V rechargeable Lithium-Ion
3 Byte mode (Card
Card holders
430,000
310,000
160,000
number only)
Transactions
10,000
50,000
100,000
Communication Interface
To Exit Reader . . . . . . . . . . . .
Connection . . . . . . . . . . . . . . .
To System Host . . . . . . . . . . .
Connection . . . . . . . . . . . . . . .
RS485 multi-drop cable runs using copper wire with maximum length of 1.2km without repeater
2 Wiegand interfaces with maximum length
of 150m
2 part JST Connector
10/100 Base-T TCP/IP using CAT5 Unshielded twisted pair cable
RJ45
Minimum Requirements
• AC2000 access control system
• AC2000 Lite access control system
• AC2000 Airport access control system
• RTC Ethernet reader controller licence
Ordering Information
Product Codes
Description
Gray version
RDR/610/105
S610e 125khz HID Prox
Black version
RDR/610/115
S610e 125khz HID Prox
Related Products
AC2000
AC2000 Lite
AC2000 Airport
www.cemsys.com
© 2015 Tyco Security Products. All Rights Reserved. CEM/B/169
Tyco and the product names listed above are marks and/or registered marks. Unauthorized use is strictly prohibited.
Product offerings and specifications are subject to change without notice. Actual products may vary from photos. Not all products include all features. Availability varies by region; contact your sales representative.
