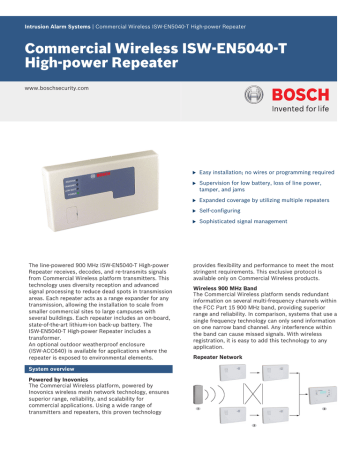

Commercial Wireless ISW‑EN5040‑T
High‑power Repeater
www.boschsecurity.com
The line-powered 900 MHz ISW‑EN5040‑T High‑power
Repeater receives, decodes, and re-transmits signals
from Commercial Wireless platform transmitters. This
technology uses diversity reception and advanced
signal processing to reduce dead spots in transmission
areas. Each repeater acts as a range expander for any
transmission, allowing the installation to scale from
smaller commercial sites to large campuses with
several buildings. Each repeater includes an on-board,
state-of-the-art lithium-ion back-up battery. The
ISW‑EN5040‑T High‑power Repeater includes a
transformer.
An optional outdoor weatherproof enclosure
(ISW‑ACC640) is available for applications where the
repeater is exposed to environmental elements.
u
Easy installation; no wires or programming required
u
Supervision for low battery, loss of line power,
tamper, and jams
u
Expanded coverage by utilizing multiple repeaters
u
Self-configuring
u
Sophisticated signal management
provides flexibility and performance to meet the most
stringent requirements. This exclusive protocol is
available only on Commercial Wireless products.
Wireless 900 MHz Band
The Commercial Wireless platform sends redundant
information on several multi-frequency channels within
the FCC Part 15 900 MHz band, providing superior
range and reliability. In comparison, systems that use a
single frequency technology can only send information
on one narrow band channel. Any interference within
the band can cause missed signals. With wireless
registration, it is easy to add this technology to any
application.
Repeater Network
System overview
Powered by Inovonics
The Commercial Wireless platform, powered by
Inovonics wireless mesh network technology, ensures
superior range, reliability, and scalability for
commercial applications. Using a wide range of
transmitters and repeaters, this proven technology
11
13
12
2 | Commercial Wireless ISW‑EN5040‑T High‑power Repeater
Use multiple repeaters to create a mesh network.
Receivers
1
.
The transmitter sends a signal.
ISW-EN4200
Serial Receiver
ISW-EN4204R
LED Receiver
2
.
Repeaters receive the signal and re-broadcast it, allowing the user
to extend the range of the RF system to cover large areas such as
installations in campuses, sites with detached buildings, or
multiple story complexes.
ISW‑EN4216R
LCD Receiver
Transmitters
ISW‑EN1210
Universal Transmitter (Single‑input)
ISW‑EN1210EOL
Universal Transmitter with EOL Resistor
Functions
ISW-EN1210SK
Survey Transmitter
Installation
The installation is as easy as mounting the repeater
and plugging it in. No wires or programming are
required, although registration is recommended for a
fully supervised system.
ISW‑EN1210W
Door-Window Transmitter with Reed Switch
ISW‑EN1215EOL
Universal Transmitter with Wall Tamper and
EOL Resistor
ISW‑EN1215WEOL
Door‑Window Transmitter with Wall Tamper,
Reed Switch, and EOL Resistor
ISW‑EN1223D
Water-resistant Pendant Transmitter
(Double‑button)
ISW‑EN1223S
Water-resistant Pendant Transmitter
(Single‑button)
ISW‑EN1223SK
Survey Pendant Transmitter
ISW‑EN1233D
Necklace Pendant Transmitter (Double‑button)
ISW‑EN1233S
Necklace Pendant Transmitter (Single‑button)
ISW‑EN1235D
Beltclip Pendant Transmitter (Double‑button)
Signal Management
The repeater incorporates sophisticated signal
management, preventing ping-pong messages and
maximizing reliability.
ISW‑EN1235S
Beltclip Pendant Transmitter (Single‑button)
ISW‑EN1235DF
Fixed-location Transmitter (Double‑button)
ISW‑EN1235SF
Fixed-location Transmitter (Double‑button)
Certifications and approvals
ISW‑EN1242
Smoke Detector-Transmitter
ISW‑EN1247
Glass-break Sensor Transmitter
ISW-EN1249
Billtrap Transmitter
ISW‑EN1260
PIR Motion Sensor‑Transmitter (Commercial
and High‑end Domestic Applications)
ISW‑EN1261HT
PIR Motion Sensor‑Transmitter (High‑traffic
Areas)
ISW‑EN1262
PIR Motion Sensor‑Transmitter (Residential and
Low‑traffic Commercial Applications)
ISW‑EN1265
PIR Motion Sensor‑Transmitter (Ceiling‑mount
Applications)
3
.
The receiver hears the signal from the repeaters and processes
accordingly.
Supervision and Expansion
The repeater supervises for low battery, loss of line
power, case tamper, and jam detection. An on-board
lithium-ion battery:
• Provides backup without additional expense
• Offers up to 24 hours of continuous operation when
line power is unavailable
• Reports power loss when programmed or supervised
to a slave receiver
Installers can employ multiple repeaters in a microcellular network, providing coverage for applications
including large campuses with multiple-story buildings.
Inovonics Wireless Corporation also holds the following approvals:
FCC
Conforms to FCC Part 15 regulations
Region
Certification
USA
UL
Brazil
ANATEL
AMCX: Central Station Alarm Units (ANSI/UL 1610,ANSI/UL 1635), ANET:
Holdup Alarm Units (UL 636), APAW:
Police Station-connected Alarm Units
(ANSI/UL 365, ANSI/UL 464), APOU:
Proprietary Alarm Units (ANSI/UL
1076), NBSX: Household Burglar Alarm
System Units (ANSI/UL 1023), NBSX7:
Household Burglar Alarm System Units
Certified for Canada (ULC/ORD-C1023)
0950-10-5164
Installation/configuration notes
Compatibility Information
The ISW‑EN5040‑T High‑power Repeater is compatible
with the following products:
Parts included
Quant.
Component
1
ISW‑EN5040‑T Repeater
1
Transformer
1
Backup battery assembly (ISW-BAT850)
3 | Commercial Wireless ISW‑EN5040‑T High‑power Repeater
1
Hardware pack
1
Literature – Installation and Operation Manual
Commercial Wireless ISW‑ACC640 Outdoor Plastic Enclosure
Outdoor housing for the ISW‑EN5040‑T Repeater
Technical specifications
Order number ISW-ACC640
Electrical
Commercial Wireless ISW‑BAT850 Lithium Ion Battery
Assembly
Power Requirements:
14 VAC, 250 mA
Order number ISW-BAT850
Backup Battery
• Capacity:
3.7 VDC nominal, 2.45 Ah
• Life:
24 hours typical
• Type:
Rechargeable lithium-ion battery
Environmental
Relative Humidity:
Up to 90%, non‑condensing
Temperature (operating ):
0°C to +60°C (+32°F to +140°F)
Mechanical
Material:
ABS
Closure:
Latching with optional screws for high
security installations
Dimensions:
165 mm x 89 mm x 25 mm
(6.5 in. x 3.5 in. x 1 in.)
Weight:
204 g (7.14 oz)
Reception/Transmission Characteristics
Frequency:
Back‑up battery for the ISW‑EN5040‑T Repeater
902 MHz to 928 MHz
Trademarks
Trademark names are used throughout this document.
In most cases, these designations are claimed as
trademarks or registered trademarks in one or more
countries by their respective owners. Rather than
placing a trademark symbol in every occurrence of a
trademark name, Bosch Security Systems, Inc. uses
the names only in an editorial fashion and to the
benefit of the trademark owner with no intention of
infringing the trademark.
Inovonics is a trademark of Inovonics Wireless Corporation.
Ordering information
Commercial Wireless ISW‑EN5040‑T High‑power Repeater
Line-powered 900 MHz ISW‑EN5040‑T High‑power
Repeater
Order number ISW-EN5040-T
Accessories
Commercial Wireless ISW‑ACC610 14 VAC, 20 VA Transformer
Replacement transformer for the ISW‑EN5040‑T
Order number ISW-ACC610
4 | Commercial Wireless ISW‑EN5040‑T High‑power Repeater
