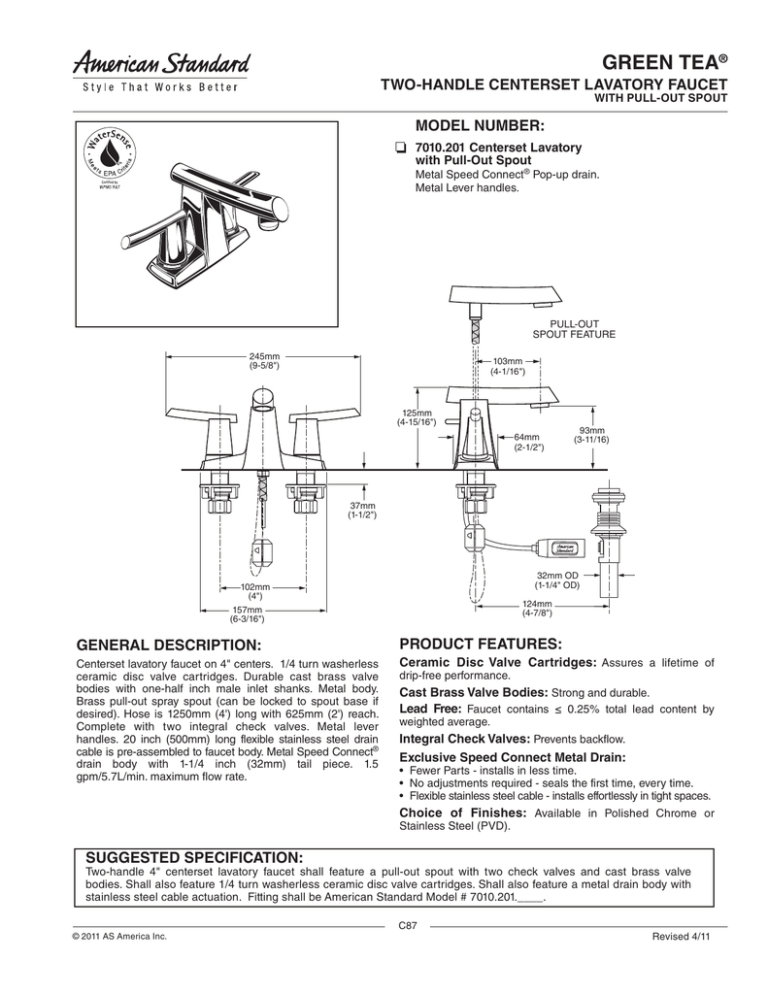

GREEN TEA®
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH PULL-OUT SPOUT
MODEL NUMBER:
7010.201 Centerset Lavatory
with Pull-Out Spout
Metal Speed Connect® Pop-up drain.
Metal Lever handles.
PULL-OUT
SPOUT FEATURE
245mm
(9-5/8")
103mm
(4-1/16 ")
125mm
(4-15/16")
64mm
(2-1/2")
93mm
(3-11/16)
37mm
(1-1/2")
32mm OD
(1-1/4" OD)
102mm
(4")
124mm
(4-7/8")
157mm
(6-3/16")
GENERAL DESCRIPTION:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. Durable cast brass valve
bodies with one-half inch male inlet shanks. Metal body.
Brass pull-out spray spout (can be locked to spout base if
desired). Hose is 1250mm (4') long with 625mm (2') reach.
Complete with two integral check valves. Metal lever
handles. 20 inch (500mm) long flexible stainless steel drain
cable is pre-assembled to faucet body. Metal Speed Connect®
drain body with 1-1/4 inch (32mm) tail piece. 1.5
gpm/5.7L/min. maximum flow rate.
PRODUCT FEATURES:
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Cast Brass Valve Bodies: Strong and durable.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Integral Check Valves: Prevents backflow.
Exclusive Speed Connect Metal Drain:
• Fewer Parts - installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Choice of Finishes: Available in Polished Chrome or
Stainless Steel (PVD).
SUGGESTED SPECIFICATION:
Two-handle 4" centerset lavatory faucet shall feature a pull-out spout with two check valves and cast brass valve
bodies. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with
stainless steel cable actuation. Fitting shall be American Standard Model # 7010.201.____.
C87
© 2011 AS America Inc.
Revised 4/11
GREEN TEA®
TWO-HANDLE CENTERSET LAVATORY FAUCET
WITH PULL-OUT SPOUT
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
7010.201
Lavatory faucet with Metal Speed Connect ® Pop-up drain. Metal Lever handles.
Polished
Chrome
PVD
Stainless
Steel
002
075
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
C88
© 2011 AS America Inc.
Revised 4/11
