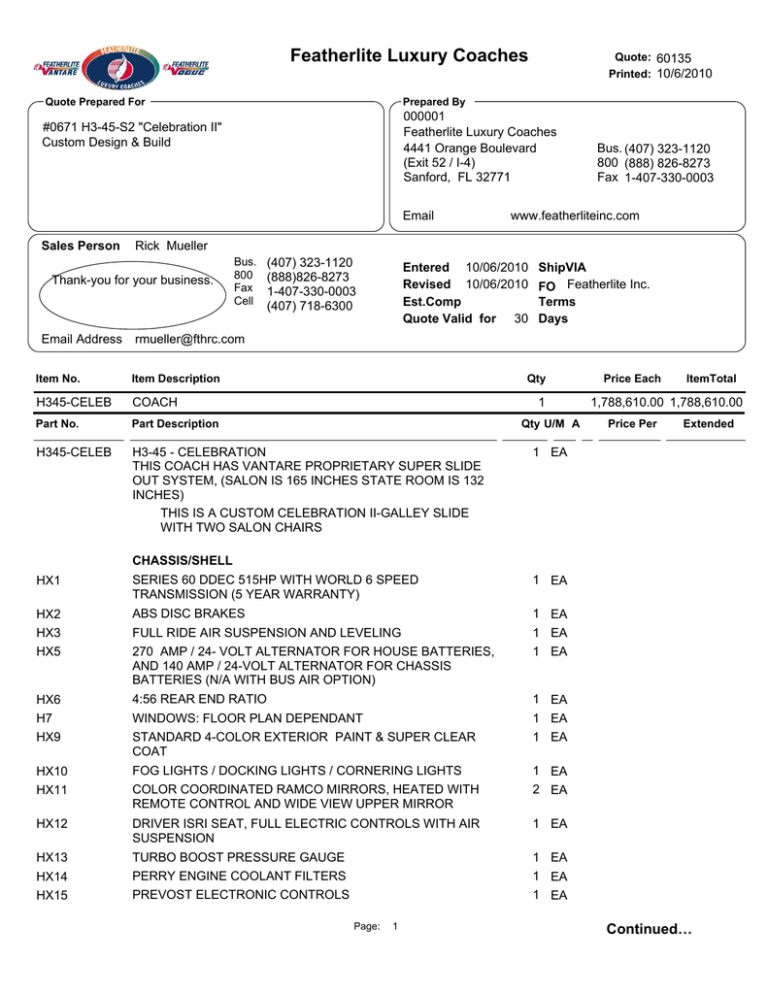

Featherlite Luxury Coaches - Prevost

Featherlite Luxury Coaches - Prevost

Quote Prepared For

#0671 H3-45-S2 "Celebration II"

Custom Design & Build

Featherlite Luxury Coaches

Quote:

Printed:

60135

10/6/2010

Prepared By

000001

Featherlite Luxury Coaches

4441 Orange Boulevard

(Exit 52 / I-4)

Sanford, FL 32771

Email

Bus.

800

Fax

(407) 323-1120

(888) 826-8273

1-407-330-0003 www.featherliteinc.com

Sales Person

Rick Mueller

Thank-you for your business.

Bus.

800

Fax

Cell

(407) 323-1120

(888)826-8273

1-407-330-0003

(407) 718-6300

Email Address [email protected]

Entered

Revised

10/06/2010

10/06/2010

Est.Comp

Quote Valid for

30

ShipVIA

FO

Featherlite Inc.

Terms

Days

Item No.

Item Description

H345-CELEB COACH

Part No.

Part Description

H345-CELEB H3-45 - CELEBRATION

THIS COACH HAS VANTARE PROPRIETARY SUPER SLIDE

OUT SYSTEM, (SALON IS 165 INCHES STATE ROOM IS 132

INCHES)

THIS IS A CUSTOM CELEBRATION II-GALLEY SLIDE

WITH TWO SALON CHAIRS

HX1

HX2

HX3

HX5

HX6

H7

HX9

HX10

HX11

HX12

HX13

HX14

HX15

CHASSIS/SHELL

SERIES 60 DDEC 515HP WITH WORLD 6 SPEED

TRANSMISSION (5 YEAR WARRANTY)

ABS DISC BRAKES

FULL RIDE AIR SUSPENSION AND LEVELING

270 AMP / 24- VOLT ALTERNATOR FOR HOUSE BATTERIES,

AND 140 AMP / 24-VOLT ALTERNATOR FOR CHASSIS

BATTERIES (N/A WITH BUS AIR OPTION)

4:56 REAR END RATIO

WINDOWS: FLOOR PLAN DEPENDANT

STANDARD 4-COLOR EXTERIOR PAINT & SUPER CLEAR

COAT

FOG LIGHTS / DOCKING LIGHTS / CORNERING LIGHTS

COLOR COORDINATED RAMCO MIRRORS, HEATED WITH

REMOTE CONTROL AND WIDE VIEW UPPER MIRROR

DRIVER ISRI SEAT, FULL ELECTRIC CONTROLS WITH AIR

SUSPENSION

TURBO BOOST PRESSURE GAUGE

PERRY ENGINE COOLANT FILTERS

PREVOST ELECTRONIC CONTROLS

Page: 1

Qty Price Each ItemTotal

1

Qty U/M A

1,788,610.00

1,788,610.00

Price Per Extended

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

2 EA

1 EA

1 EA

1 EA

1 EA

Continued…

Featherlite Luxury Coaches

HX16

HX17

HX18

HX19

HX20

H21

HX21

H22

H23

HX25

HX26

HX27

HX28

H28

HX90121

HX90128

HX90131

HX90142

HX90150A

HX90161

HX29

H31

HX32

HX33

H34

H35

HX36

CRUISE CONTROL

INTERMITTENT WINDSHIELD WIPERS

RACOR FUEL FILTER / SEPARATOR WITH SENSOR

RETARDER TRANSMISSION BRAKE

POLISHED ALUMINUM WHEELS (8), INCLUDING INNER

DRIVE WHEEL

AUTOMATIC BRAKE SLACK ADJUSTERS

SPARE PARTS KIT

ENGINE BELT TIGHTENER - AIR

CENTRAL ELECTRICAL LOCK SYSTEM, ENTRANCE DOOR

AND BAY LOCKS

COLD WEATHER ENGINE BLOCK HEATERS (TWO) : 110

VOLT AND AQUA HOT SYSTEM

ADDITIONAL INSULATION ADDED TO CEILING & WALLS

ADDITIONAL INSULATION BETWEEN ENGINE AND DECK

EXTRUDED ALUMINUM SUB FRAME IN CEILING

INDEPENDENT FRONT SUSPENSION, WITH VARIABLE

ASSIST STEERING

EXTERIORS FEATURES

LIGHTS UNDER SALON AND STATEROOM SLIDE OUT

ROOMS (LIGHTS UP AREA UNDER SLIDES)

NOSE GUARD, CLEAR VINYL (THIN CLEAR 3M FILM)

SATELLITE MOUNTED AT REAR OF COACH

STAINLESS STEEL EXHAUST EXTENSION

STAINLESS STEEL PREVOST LETTERS, FRONT AREA

UNDER WINDSHIELD

WINDOW TINT- HEAT REFLECTIVE LIMO TINT ON ALL

WINDOWS EXCEPT DRIVER SIDE AND ENTRANCE DOOR

WINDOWS (WHICH GET LIGHTER TINT)

COLOR BACK-UP CAMERA WITH DASH CONTROL PAD,

ADJUSTABLE 180 DEGREE VIEW

FOUR AIR HORNS, ROOF MOUNTED AND ELECTRIC HORN

FOR CITY USE

UPGRADED ROOF AWNINGS, HORNS MOUNTED IN

NOSE BAY

ANTENNA PACKAGE: TV, CB, AM/FM, AND CELL PHONE

POLISHED ALUMINUM WHEELS WITH CHROME HUB CAPS

AND CHROME LUG NUT COVERS

POLISHED STAINLESS STEEL RUB RAILS

STAINLESS STEEL TRIM ON SIDE MARKER LIGHTS

CURB LIGHTS - MOUNTED IN RUB RAIL

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 ST

1 EA

1 EA

1 EA

1 ST

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

3 EA

Quote:

Printed:

60135

10/6/2010

Page: 2

Continued…

H39

HX40

H40

H43

HX47

HX48

HX50

HX51

HX52

HX53

HX54

HX55

HX56

HX57

HX58

HX59

HX61

HX90113

HX41

HX42

HX44

HX45

HX46

Featherlite Luxury Coaches

Quote:

Printed:

60135

10/6/2010

FULL SET AWNINGS - TWO ELECTRIC AWNINGS ON PATIO

SIDE WITH REMOTE CONTROL AND WIND SENSOR, PLUS

MANUAL SLIDE OUT ROOM AWNINGS

UPGRADED WITH ROOF MOUNTED AWNINGS AND

END CAPS ON FRONT AND REAR OF COACH.

UPGRADED WITH SLIDE OUT ELECTRIC WINDOW

AWNINGS.

TRAILER HITCH (20,000 LB) WITH ELECTRIC TOW

HARNESS, EUROPEAN AND AMERICAN - COACH IS PRE

WIRED FOR TRAILER CAMERA - 110 VOLT 20 AMP

(TRAILER) OUTLET IN ENGINE COMPARTMENT

MICHELIN TIRES

KEYLESS ENTRY WITH TWO REMOTES

UNDERBAY FEATURES

LADDER, TELESCOPING (INCLUDES WALL MOUNT)

FULL BAY FINISH AND CLOSE OUT PANELS IN STORAGE

BAYS

ELECTRIC BAY DOOR LOCKS

ELECTRIC HEATER (110-VOLT) IN BAY TWO

FIRE EXTINGUISHERS (2) - BAY & ENTRANCE DOOR

LAND- LINE HOOK-UPS (TELEPHONE & CABLE TV) CAT 5

PHONE LINE.

AUXILIARY AIR COMPRESSOR (110 VOLT) WITH MOISTURE

SEPARATOR

3 DRAWER TOOL BOX, HYDRAULIC JACK AND EMERGENCY

SAFETY MARKERS

BAY LIGHTS

FOUR ZIP-DEE LAWN CHAIRS WITH VANTARE LOGO

ZIP DEE LAWN CHAIR STORAGE

PLUMBING AND ELECTRICAL PANELS COVERED WITH

LAMINATE IN BAYS

110 VOLT ELECTRIC HEATERS (2) & AQUA HOT HEATING IN

PLUMBING BAY

110 VOLT AC OUTLETS IN BAYS

PAPER TOWEL HOLDER & SOAP DISPENSER (PLUMBING

BAY)

SANITARY HOSE AND STORAGE TUBE

TWO SERVICE AIR CONNECTIONS (DRIVER AND CURB

SIDE) WITH 25' SERVICE HOSE AND CHUCK

FRESH WATER HOSE BIBS DRIVER AND CURB SIDES

ELECTRIC CONTROL PANEL WITH SWITCHES IN PLUMBING

BAY: GENERATOR CONTROLS, DUMP VALVES, EXTERIOR

LIGHTS, WATER PUMP AND FRESH WATER FILL

ELECTRICAL SYSTEMS

Page: 3

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Continued…

HX81

HX90057

HX90100

HXOUT

HX62

HX63

HX64

HX65

HX66

HX67

HX69

HX70

HX71

HX72

HX73

HX74

HX75

HX76

HX77

HX78

HX79

HX80

H81

Featherlite Luxury Coaches

Quote:

Printed:

60135

10/6/2010

CONTROL SWITCHES FOR REMOTE CONTROLLED

110-VOLT AC BREAKERS IN BAY, WITH SEQUENTIAL RESET

UPON LOSS OF POWER (NO SURGING)

VANTARE PROPRIETARY CONTROL SYSTEM (VCS) -

REMOTE CONTROL SYSTEM FOR AUDIO VIDEO

COMPONENTS, LIGHT AND SHADE MASTER SWITCHES,

WITH TWO TOUCH SCREEN REMOTES

BUDDY PLUG ( ON GENERATOR) - 50 AMP, FOUR PRONG

20 AMP (TRAILER) OUTLET IN ENGINE COMPARTMENT

20 KW DIESEL GENERATOR - TURBO CHARGED (REAR

EXHAUST)

GENERATOR HUSH BOX (MARINE INSULATION, MIRROR

STAINLESS STEEL DOORS)

GENERATOR AUTO START

TWO TRACE 4000 SINE WAVE INVERTERS WITH

EMERGENCY BY-PASS SWITCHES (FOR CONTINUITY OF

POWER)

INVERTER OUTPUT EMERGENCY DISCONNECT

EIGHT DEEP CYCLE AGM BATTERIES ( UNIQUE BUSS BAR

SYSTEM FOR CONNECTIONS WITH 24 VDC TO 12 VDC

EQUALIZER)

ELECTRIC EXTEND/RETRACT SHORE POWER CORD

MOTOR WITH REMOTE CONTROL (50 AMP CAPACITY WITH

30 AMP ADAPTER)

MAIN 110 VOLT AC BREAKER PANEL & 12 VOLT DC RELAY

PANEL CENTRALLY LOCATED IN BAY ONE LEFT

REVERSE POLARITY & OVERCURRENT PROTECTION FOR

SHORE POWER

THERMOSTATICALLY CONTROLLED VENT FAN WITH RAIN

SENSOR (ONE FOR SHOWER AND ONE FOR PRIVATE

TOILET ROOM)

PHONE SYSTEM - BUILDING STYLE PHONE SYSTEM

MATRIX FOR EASE OF UPGRADING. SHORE CONNECTION,

CAT 5 WIRE

BI-COLOR / LOW VOLT LIGHT SWITCHES

LIGHT MASTER AND SHADE MASTER SWITCHES

110 VOLT AC OUTLETS THROUGHOUT LIVING QUARTERS

AND BAYS

110 VOLT AC & 12 VOLT DC HOUSE LIGHTING

VANITY LIGHTING

MARINE GRADE COPPER STRANDED 110 VOLT WIRE

ALL WIRING CODED, HARNESSED AND DIAGRAMED

VANTARE LOAD MANAGEMENT SYSTEM -

AUTOMATICALLY REDUCES LOADS UPON LOSS OF SHORE

POWER AND/OR GENERATOR TO MAINTAIN CONTINUITY

OF POWER, WITH MANUAL DEFEAT SWITCH AT MDP

NES SYSTEM

Page: 4

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Continued…

HX83

HX82

HX90157

HX84

H85

H86

H87

HX88

HX89

HX90

HX91

HX92

HX93

HX94

HX95

HX96

H97

HX98

H101

HX101

HX102

HX103

HX104

HX105

Featherlite Luxury Coaches

CHASSIS BATTERY EQUALIZER AND FULLY AUTOMATIC

BATTERY CHARGER

PLUMBING SYSTEM

GRAY, BLACK AND FRESH WATER TANK LEVEL LED

INDICATORS AT MAIN DISTRIBUTION PANEL (MDP), AND AT

PLUMBING BAY

TANK GAUGES IN PLUMBING BAY. BLACK, GRAY AND

FRESH WATER TANK LEVEL INDICATION AT DUMP

STATION

INDIVIDUALLY VALVED DEDICATED FRESH WATER LINES

WITH NO BRANCH CONNECTIONS

POLYETHELYENE FRESH WATER TANK (170 GAL)

POLYETHELYENE BLACK WATER TANK (81 GAL)

POLYETHELYENE GRAY WATER TANK (81 GAL)

PRE-FILTERED FRESH WATER

ADDITIONAL FILTER FOR ICE MAKER AND INSTA HOT

FILTERED FRESH WATER INLET (CURB SIDE) WITH AUTO

FILL SHUTOFF

FILTERED FRESH WATER FILL (DRIVER SIDE) WITH 25'

HOSE AND ELECTRIC REEL WITH REMOTE; AUTO FILL

SHUTOFF (MDP (GALLEY) AND PLUMBING BAY SWITCHES)

GRAVITY FRESH WATER FILL DRIVER SIDE

HOT AND COLD WATER IN PLUMBING BAY, WITH SHOWER

WAND

MANUAL LOW-POINT DRAIN FOR FRESH WATER PIPING

FRESH WATER TANK DRAIN

BLACK & GRAY TANK FLUSH SYSTEM

BLACK AND GRAY TANK ELECTRIC DUMP VALVES

HIGH CAPACITY VARIABLE SPEED 110-VOLT, FRESH

WATER PUMP WITH ELECTRONIC CONTROLS

COOLING AND HEATING

FOUR REVERSE HEAT PUMP 16000 BTU CRUISAIR UNITS

WITH SMX CONTROLLERS

SPECIAL LOCATIONS FOR ROOF CONDENSERS AND

FANS

AQUA HOT SYSTEM FOR HYDRONIC HEAT, DOMESTIC HOT

WATER, AND ENGINE PREHEATING

AQUA HOT HEATERS IN LIVING QUARTERS AND BAYS

ELECTRIC HEATERS IN TOE-KICKS IN LIVING QUARTERS

ELECTRIC HEAT IN PLUMBING BAY

DRIVER'S AIR CONDITIONING & HEAT (AT DASH AREA

ONLY)

HELM AND ENTRY

Page: 5

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Quote:

Printed:

60135

10/6/2010

Continued…

HRADIO

HX90071

HX90099

HX90250

HX90251

HX106

HX107

HX108

HX109

H110

HX111

HX112

HX113

HX114

HX115

H117

HX127

HX128

HX129

HX130

H131

HX132

HX118

HX119

H120

HX121

HX122

HX123

HX124

HX125

HX126

Featherlite Luxury Coaches

Quote:

Printed:

60135

10/6/2010

PIONEER DASH SYSTEM: GPS NAVIGATION; LCD MONITOR;

AM/FM/XM SATELLITE RADIO; 8 DISC CD PLAYER; DVD

PLAYER; VIDEO INPUT FROM SALON

CB (COBRA 29 UNIT)

TRAILER BRAKE CONTROLLER (ELECTRIC)

HEATED DRIVER AND PASSENGER SEATS ( LOW AND HIGH

SETTINGS)

VIBRATION UNIT IN DRIVER AND PASSENGER SEATS

ELECTRIC PRIVACY SHADES (FRONT WINDSHIELDS,

ENTRANCE DOOR AND DRIVER SIDE WINDOWS)

CUSTOM LEATHER COVERED DRIVER ISRI SEAT (FULL

ELECTRIC CONTROLS WITH AIR SUSPENSION)

28 INCH WIDE LEATHER CO-PILOT SEAT WITH SIX

FUNCTION ELECTRIC CONTROLS

MATCHING CUSTOM LEATHER STEERING WHEEL COVER

DRIVER CONSOLE

110 VOLT AC OUTLET AND 12 VOLT DC OUTLET

DESIGNER GRAB/HAND RAILS AT ENTRANCE

RECESSED STEP WELL LIGHTING

SECURITY SYSTEM

OUTSIDE TEMPERATURE READ OUT

CLOSED CIRCUIT REARVIEW CAMERA SYSTEM WITH 10.4"

LCD COLOR MONITOR (CAMERA IS CONTROLLED FROM

DASH, 180 DEGREE OF MOVEMENT)

RADAR/LASER DETECTOR (FRONT LOOKING)

PREVOST MESSAGE CENTER DISPLAY WITH DDEC V

INTERFACE

VANTARE AUTO-LEVELING WITH PREVOST LEVEL-LO

LEVELING SYSTEM

ENGINE BATTERY DISCONNECT SWITCH AT DASH AND

REAR BATTERY COMPARTMENT

GENERATOR START/STOP CONTROLS

ANTENNA & SHORE CORD WARNING LIGHT

SHADE MASTER CONTROL SWITCH

BAY DOOR LOCK/UNLOCK AT STEPS AND DASH

MAP STORAGE & DRINK HOLDER NEXT TO PASSENGER

SEAT

CUSTOM BURL WOOD DASH

PADDED,COLOR COORDINATED DASH WITH BURLWOOD

TRIM

COLOR COORDINATED,CUSTOM DESIGNED ENTRY DOOR

GRANITE/MARBLE FLOOR ENTRY STEPS WITH BRASS OR

ALUMINUM NON SKID INLAY TREAD

GRANITE/MARBLE LANDING AND DRIVERS FOOT AREA

SHOE STORAGE (OPEN) AT FRONT STEP OF ENTRANCE

Page: 6

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Continued…

HX134

HX135

HTV

H137

HX138

HX140

H141

HX142

HX143

HX144

HX146

HX147

HX148

HX149

H150

HX151

HDVD

HX90217

H152

HX153

HX154

HX155

Featherlite Luxury Coaches

CARPETED AIR SLIDE OVER STEPWELL

MAP LIGHTS FOR DRIVER AND PASSENGER

SALON

42 INCH PLASMA TV FIXED IN OVERHEAD (HELM); ROOF

ANTENNA / CABLE SELECTOR SWITCH

UPGRADE TO 42" LCD FIXED.

LAPTOP COMPUTER VGA CABLE (DISPLAYS COMPUTER

ON PLASMA TV)

BOSE LIFESTYLE SYSTEM WITH SURROUND SOUND IN

SALON (5 SPEAKERS AND POWERED SUB WOOFER,

DVD/CD PLAYER AND AM/FM RADIO)

TWO MOTORIZED SLEEPER SOFAS OR ONE MOTORIZED

SOFA AND TWO RECLINER CHAIRS WITH OCCASSIONAL

TABLE

ONE END TABLE WITH FLUSH MOUNTED DRAWERS

CARPET WITH DESIGNER INLAY

NO INLAY DESIGN

SNAP-IN CLEAR CARPET PROTECTOR

NO PROTECTOR NEEDED - DELETE

COORDINATING VALANCES AT CEILING LINE

CORIAN WINDOW SILLS AND TABLE TOPS

AVONITE

MOTORIZED SHADES (DAY OR NIGHT TINT)

VISTA LIGHTS ON WINDOW SIDES (ACCENT LIGHTS)

DESIGNER WALL COVERING & WINDOW TREATMENT

RECESSED MIRROR CEILING WITH FIBER OPTIC ACCENT

LIGHTING

HALOGEN OVERHEAD FLUSH MOUNTED LIGHTS WITH

3-STEP DIMMER

DVD PLAYER

GALLEY/DINETTE

"L" SHAPED DINNETE , WITH ELECTRIC EXTENDING TABLE

BASE AND ELECTRIC EXTENDING AFT CUSHION (SEAT)

BOOTH FACING DINETTE IPO L SHAPE DINETTE

CABINETS COVERED WITH ACRYLIC LAMINATE FINISH

LIGNAPAL LAMINATE

AUTOMATIC INTERIOR CABINET LIGHTS AND WORK

LIGHTS UNDER UPPER CABINETS

FLUSH EUROPEAN STYLE CABINETS WITH PUSH BUTTON

LATCHES

CUSTOM UNLESS IN SLIDE-OUT AREAS

CORIAN COUNTER TOPS WITH CUSTOM EDGE

TREATMENT

AVONITE

Page: 7

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Quote:

Printed:

60135

10/6/2010

Continued…

HX156

HX157

HX158

HX159

H160

HX161

HX162

HX164

HX165

HX166

HX167

H168

HX169

HX170

HX171

HX173

HX177

HX181

HX197

HX90305

HX178

H179

H180

HX180

H182

HX183

Featherlite Luxury Coaches

DOUBLE BOWL CORIAN MOLDED SINK WITH SPLIT CORIAN

COVER

CUSTOM

SHADES (TO MATCH SALON) MOTORIZED

VISTA LIGHTS ON WINDOW SIDES (ACCENT LIGHTS)

MIRROR BACKSPLASH ON GALLEY WALL

TILE

MIRRORED/RECESSED CEILING WITH FIBER OPTIC

ACCENT LIGHTING

GLASS DISPLAY CABINET WITH FEATHERLITE GLASS SET

(6 TUMBLERS AND 6 WINE GOBLETS) - FLOOR PLAN

DEPENDENT

WINE BOTTLE DISPLAY CABINET - FLOOR PLAN

DEPENDENT

GRANITE/MARBLE FLOOR IN GALLEY

BUILT-IN TRASH SLIDE OUT WITH TRASH DROP IN CORIAN

TOP (FLOOR PLAN DEPENDENT)

ROPE LIGHTING AROUND TOP AND BOTTOM OF CABINETS

AND UNDER COUNTERTOP EDGE

36" REFRIGERATOR/FREEZER WITH ICE MAKER AND COLD

WATER; PANEL INSERTS TO MATCH CABINETRY

MICROWAVE/CONVECTION OVEN

TWO BURNER ELECTRIC COOKTOP (110 VOLT) WITH

CORIAN COVER

COFFEE MAKER (PLUG-IN/PORTABLE) AND HAND HELD

VACUUM (STORED UNDER KITCHEN SINK)

SINGLE HANDLE FAUCET WITH BUILT IN SPRAYER

INSTA HOT DISPENSER (HOT AND COLD)

HALOGEN RECESSED OVERHEAD LIGHTS WITH 3 STEP

DIMMER

BATH/PASSAGEWAY

SINGLE LEVER FAUCET WITH POP-UP DRAIN STOP

WALL COVERING: LAMINATE,MIRROR-PLEX OR

WALLPAPER

ROPE LIGHT UNDER MAIN VANITY MEDICINE CABINET ON

SEPARATE SWITCH (USED AS NIGHT LIGHT)

AIR OPERATED PRIVACY DOORS, STATEROOM AND BATH

VANITY CABINET WITH FLUSH DOORS AND DRAWERS

GRANITE OR MARBLE FLOOR IN BATH/PASSAGEWAY

CORIAN VANITY CABINET TOP, WITH MOLDED CORIAN

SINK

AVONITE TOP/SOLID SURFACE SINK

MIRRORED RECESSED CEILING WITH FIBER OPTIC

ACCENT LIGHTING

VANITY LIGHT

Page: 8

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Quote:

Printed:

60135

10/6/2010

Continued…

Featherlite Luxury Coaches

HX201

HX202

HX203

H204

HX205

HX207

HX208

HX209

HX210

HX211

HX184

HX185

HX186

HX187

HX188

HX189

HX190

HX193

HX194

HX195

HX196

HX198

HX191A

HX2ETV

HX90056

HX90208

HX90239

HXRRBTH

HX200

H213

WATER-PROOF SHOWER LIGHT

AUTOMATIC CLOSET LIGHTS

CARPET-LINED CLOSETS WITH CEDAR CEILING

RECESSED HALOGEN OVERHEAD LIGHTS WITH 3 STEP

DIMMER

CORIAN SHOWER WALLS, PAN AND CADDY

MARBLE

ENCLOSED SHOWER

ADJUSTABLE SHOWER HEAD WITH CONSTANT

TEMPERATURE CONTROL VALVE (MANUAL)

REAL GLASS MIRROR ON POCKET DOORS

BUILT IN MEDICINE CABINET WITH REAL MIRROR DOORS

AND 110-VOLT OUTLET INSIDE

TOWEL BARS, TOWEL RINGS

TOILET PAPER HOLDER

THERMOSTATICALLY CONTROLLED VENT/EXHAUST FAN

WITH RAIN SENSOR IN SHOWER AND OVER TOILET

STANDARD CERAMIC TOILET (SUPER FLUSH)

ENCLOSED TOILET ROOM WITH VANITY (HALF BATH)

STATEROOM

42" PLASMA TV, FIXED

42" LCD IPO 42" PLASMA

ALARM CLOCK (SIX BUTTON)

CUSTOM HEADBOARD

REAR BATH

FLUSH WOOD DRAWERS WITH PUSH LOCK LATCHES

KING BED WITH DRAWER STORAGE BELOW (TAPERED

MATTRESS)

The Stones will swap mattresses from their trade coach to

0904 - INSTALL STANDARD KING MATTRESS

CLOSET DOORS COVERED WITH REAL MIRROR OR

ACRYLIC LAMINATE

CARPET LINED CLOSETS WITH CEDAR CEILINGS

AUTOMATIC CLOSET LIGHTS

MIRRORED RECESSED CEILING WITH FIBER OPTIC

ACCENT LIGHTING

COORDINATING VALANCE AT CEILING LINE

ROPE LIGHT UNDER COUNTERTOP EDGES AND ON

TOEKICKS

MOTORIZED SHADES (DAY OR NIGHT TINT)

VISTA LIGHTS ON WINDOW SIDES (ACCENT LIGHTS)

DESIGNER WALL COVERING & WINDOW TREATMENT

CORIAN WINDOW SILLS

AVONITE

Page: 9

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

Quote:

Printed:

60135

10/6/2010

Continued…

Featherlite Luxury Coaches

HX212

HX214

HX215

HX216

HX217

HX218

HX219

HX220

HX221

CARPET FLOOR (NO INLAY DESIGN)

TWO ACRYLIC LAMINATE NIGHT STANDS WITH DRAWERS

AND CORIAN TOPS

LIGNAPAL CABINETS AND AVONITE TOPS

CUSTOM BEDSPREAD WITH COORDINATED PILLOWS &

SHAMS

TWO OVERHEAD ADJUSTABLE READING LIGHTS ABOVE

BED

ACRYLIC LAMINATE CABINET ABOVE BED

LIGNAPAL

KEY LOCK SAFE

SMOKE AND CO DETECTOR

GENERATOR START/STOP CONTROL SWITCH

SWITCH PANELS ON BOTH SIDES OF BED FOR: AQUA-HOT,

LIGHT MASTER, SHADE MASTER, STRIP/ROPE LIGHTS,

ACCENT LIGHTS AND EXTERIOR LIGHTS

TWO SATELLITE RECEIVERS

HX226

HX90191

HX90229

INTERIOR DESIGN AND DECOR

ACCESSORIES PACKAGE. THIS OPTION IS DECOR ITEMS

FROM INTERIOR DESIGN DEPARTMENT- INCLUDES

TOWELS, PILLOWS, FLORALS, AND BASIC ACCESSORIES

ONLY.

BRASS OR ALUMINUM GROUT INLAY FOR FLOOR TILES

SPECIAL CUSTOM GROUT LINE REQUIREMENTS SEE

INTERIOR DESIGN SPEC FOR DETAILS (ALMOST ZERO

GROUT LINE)

HX90232

HX90258

FLOOR TILE LAID ON 45-DEGREE ANGLE

ACRYLIC LAMINATE (ALL INTERIOR CABINETS)

LIGNAPAL

HX90292 FIBER OPTIC LIGHTING, CEILINGS. THIS IS A SINGLE ROW

OF TWISTED FIBER OPTIC LIGHTS AROUND THE RADIUS

OF THE INNER DROP DOWN.

HXID90242A DINETTE LEATHER SEAT CUSHIONS AND FABRIC BACK

CUSHIONS

HXID90243A SOFA WITH LEATHER SEAT CUSHIONS AND FABRIC BACK

CUSHION

****OPTIONS AND UPGRADES****

X90002

***APPLIANCE OPTIONS AND UPGRADES***

DISHWASHER: STANDARD OR COMPACT HOME STYLE

UNIT.

Customer selects Paykel-Fischer dish washer

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA

1 EA A

Quote:

Printed:

60135

10/6/2010

Page: 10

Continued…

Featherlite Luxury Coaches

Quote:

Printed:

60135

10/6/2010

X90018A

X90073

X90123

X90149

X90163

X90205

X90206

X90210

X90219

X90224

X90225

X90227

X90233

X90237

X90238

XID56721

XID90209B

XID90211B

VACUUM SYSTEM: CENTRAL VACUUM SYSTEM WITH

CENTER OF COACH HOSE CONNECTION. TWO LENGTHS

OF HOSE. CANISTER MOUNTED IN BAY

TWO CONNECTIONS INSIDE COACH.

***AUDIO/VISUAL UPGRADES AND OPTIONS***

NAVIGATION SYSTEM, GPS - EXTRA SCREEN. THIS IS FOR

THE PASSENGER AND IS USUALLY MOUNTED ABOVE

ENTRANCE DOOR. SCREEN STOWS FLUSH IN WINDOW

TREATMENT

***EXTERIOR OPTIONS AND UPGRADES***

LOGOS, GOLD PLATED VANTARE/PREVOST LOGO ON SIDE

AND FRONT OF COACH

STAINLESS STEEL MUDFLAP TRIM, STAINLESS STEEL

COVER AND STIFFENER BETWEEN DRIVE AND TAG AXEL.

ACRYLIC LAMINATE, BAY PANELS

***INTERIOR OPTIONS AND UPGRADES***

CEILING FAN IN STATEROOM

CHAIR, REPLACE SOFA W/2 CHAIRS AND OCCASSIONAL

TABLE (PASSENGER SIDE)

CORIAN, POLISHED, HIGH GLOSS

AVONITE

DINETTE, FACING BOOTH WITH CORIAN TABLE TOP. (NO

CHARGE ITEM)

AVONITE TOP

FLOOR, HEATED - HALL/CENTER BATHROOM. INCLUDES

PRIVATE LAV IN HALLWAY. THIS OPTION FOR

TILE/GRANITE/MARBLE FLOOR ONLY

FLOOR, HEATED - GALLEY. THIS OPTION FOR

TILE/GRANITE/MARBLE FLOOR ONLY

FLOOR, HEATED - SALON. THIS OPTION FOR

TILE/GRANITE/MARBLE FLOOR ONLY. CANNOT EXTEND TO

HELM LANDING OR ENTRANCE STEP AREAS.

FLOORING, SECOND COLOR DESIGN, KEYS OR INSERTS.

(QUOTED UPON REQUEST)

GRANITE OR MARBLE SHOWER WALLS & FLOOR

GRANITE OR MARBLE SALON FLOOR. QUOTED UPON

REQUEST. (SLIDE OUT COACHES REQUIRE COMPOSITE

LIGHT WEIGHT TILE IN ENTIRE COACH.)

CUSTOM SEAT INSERTS, DRIVER AND PASSENGER SEATS.

QUOTED UPON REQUEST

CUSTOM SHOWER WALL, TILE INSERTS.- (QUOTED UPON

REQUEST

CUSTOM FAUCET, PRIVATE TOILET ROOM- (QUOTED UPON

REQUEST)

*

*

1 EA A

1 EA A

1 EA A

1 EA A

1 ST A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

Page: 11

Continued…

XID90211S

XID90211A

XID90211

XID90211D

XID90212G

XID90212A

XID90213

XID90214

XID90215

XID90216A

XID90216

XID90223B

X90291

XID90290

XID90304

XID90304A

CUSTOM03

CUSTOM04

CUSTOM05

CUSTOM07

CUSTOM09

Featherlite Luxury Coaches

Quote:

Printed:

60135

10/6/2010

CUSTOM SINK, MAIN REAR VANITY- (QUOTED UPON

REQUEST)

CUSTOM FAUCET, MAIN VANITY SINK- (QUOTED UPON

REQUEST)

CUSTOM FAUCET, GALLEY- (QUOTED UPON REQUEST)

CUSTOM FAUCET, SHOWER, UPGRADED SHOWER

SYSTEM

CUSTOM BACKSPLASH, GALLEY- (QUOTED UPON

REQUEST)

CUSTOM BACKSPLASH, MAIN REAR VANITY-

(CELEBRATION,TIMACUAN AND DESTIN FLOOR PLAN)

(QUOTED UPON REQUEST)

CUSTOM SINK, GALLEY- (QUOTED UPON REQUEST)

CUSTOM TOILET PAPER HOLDER - (QUOTED UPON

REQUEST)

CUSTOM TOWEL BAR - (QUOTED UPON REQUEST)

CUSTOM ROBE HOOK

CUSTOM TOWEL RING - (QUOTED UPON REQUEST)

CUSTOM ETCHED GLASS, GALLEY SPLASH GUARD-

(QUOTED UPON REQUEST)

***LIGHTING OPTIONS AND UPGRADES***

FIBER OPTIC LIGHTING, GALLEY SPLASH GUARD. THIS

OPTION LIGHTS UP AN ETCHED GLASS PARTITION

MOUNTED ON THE GALLEY COUNTER TOP.

CUSTOM LIGHT, OVER DINETTE, QUOTED UPON REQUEST no charge item

CUSTOM VANITY LIGHT, MAIN VAINITY IN

HALLWAY/CENTER BATH / REAR BATH VANITY (QUOTED

UPON REQUEST)

CUSTOM VANITY LIGHT, PRIVATE TOILET ROOM- (QUOTED

UPON REQUEST)

TAKE 2" OUT OF PRIV.BATH AREA TO WIDEN HALLWAY

INSTALL STD.CABINET OVER BOOTH DINETTE

SPECIAL BAY ENTERTAINMENT CABINETS, BAY FOUR TO

HAVE CABINET SIMILAR TO 32 INCH CONFIG BUT NO LCD

TV, IN SPACE OF TV INSTALL CD STORAGE WITH PLEXI

DOORS

BAY TWO TO HAVE THIN WALL WITH 42 INCH LCD ON

SWING OUT ARM. BELOW TV WILL BE DRAWERS ETC.

WALL WILL SWING OPEN WITH TV IN IT TO ALLOW

ACCESS TO BAY. SEE ENGINEERING DRAWINGS.

NEW ELECTRICAL SYSTEM COACH WITH PLC BASED

SYSTEM, NEXT GENERATION INVERTERS AND

PROGRAMMING

No Charge item per Chad Miller per visit on 6-7-07

CUSTOM KNOBS no charge item

*

*

*

Page: 12

*

*

*

*

*

*

*

*

*

*

*

*

1 EA A

2 EA A

2 EA A

1 EA A

3 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

Continued…

Featherlite Luxury Coaches

CUSTOM10

CUSTOM11

CUSTOM12

CUSTOM15

CUSTOM16

CUSTOM17

CUSTOM18

CUSTOM19

CUSTOM20

CUSTOM21

INSTALL SATELLITE DOME IN FRONT BEHIND SPOILER

FORWARD CLOSET STATEROOM PSG.SIDE TO BE PANTRY

WITH WIRE HAFELE BASKETS

DELETE WASHER/DRYER.CABINET TO BE FULL HANGING

WITH TWO DRAWERS

REMOVE AIR MATTRESS FROM OLD COACH

BED SIZE IS 80X80, ENGINEERING HAS HEIGHT, BED

MUST FIT UNDER HEADBOARD AND/OR SILL.

FABRIC UPGRADE

CABINET BEHIND DRIVER SEAT CUSTOM

CABINET BEHIND DRIVER SEAT CUSTOM - RADIUS

CORNERS AVONITE TOP SAME AS SALON, 2 TIERS

WITH MAGAZINE RACK. ART ALMQUIST HAS A

RENDERING

NEW REAR TOP CAP AND NEW FRONT CONES WITH

SPOILER SAT DOME ON FRONT AREA

INSTALL ROOF MOUNT AIR HORNS, DAVE HUSIC TO

SIGN OFF ON FRONT AREA LAYOUT

CUSTOMER TO MOUNT ROOF PLATFORM ON TOP OF

COACH AFTER DELIVERY.

ENTERTAINMENT AM/FM ANTENNA MOUNT TOWARDS

FRONT, MOVE AC CONDENSER COILS AND FANS

TOWARD DRIVER SIDE AS MUCH AS POSSIBLE,

STAGER THEM FRONT TO REAR, NOT SIDE BY SIDE.

PLATFORM WORK LADDER ETC TO BE DONE BY

CUSTOMER AFTER DELIVERY.

NO SIDE VIEW CAMERAS

NO MITO SYSTEM, NO SIDE VIEW CAMERAS.

SWITCHES WILL BE THE STANDARD CONFIGURATION

AT DASH. WILL TOGGLE BETWEEN COACH REAR

CAMERA AND PIONEER SCREEN.

NON HDTV COACH

*

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

1 EA A

Quote:

Printed:

60135

10/6/2010

Page: 13

Continued…

Featherlite Luxury Coaches

Items Sub Total

Quote:

Printed:

60135

10/6/2010

1,788,610.00

Accepted this _____Day of ____________, ____________

Signature _____________________________ Date ____________

Above prices subject to change without notice.

Quoted with Software Version: 1.0.34

Price Book Date: 12/19/2006

Quote Total

1,788,610.00

Interior Decor specifications are to be selected from Featherlite's interior design department's extensive display, which includes premium leathers, fabrics, carpets, floorings and wall coverings.

This quote is intended to provide detailed information on coach specifications and pricing. Submission of this Quote by

Featherlite and acknowledgement by the prospective customer does not create an agreement legally binding on either party unless and until this Quote is attached to a Sales Agreement signed by both parties.

Statement of Natural Products - Marble, granite, and wood are products of nature. It is not possible to guarantee that all colors and markings will be present in each small sample. Therefore, the samples provided serve only to indicate in a general way the colors, markings, and textures usually found in that variety of marble, granite, or wood.

Page: 14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
