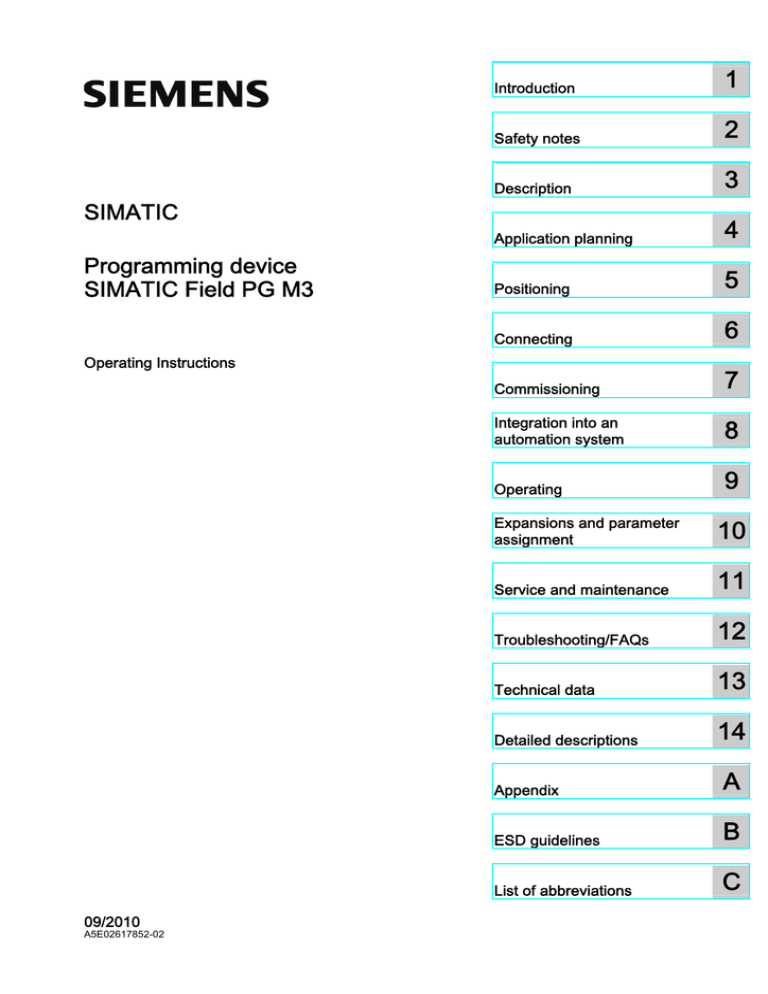

SIMATIC Field PG M3

SIMATIC Field PG M3
SIMATIC Field PG M3
1
___________________
Introduction
2
___________________
Safety notes
SIMATIC
Programming device
SIMATIC Field PG M3
3
___________________
Description
4
___________________
Application planning
5
___________________
Positioning
6
___________________
Connecting
Operating Instructions
7
___________________
Commissioning
Integration into an
8
___________________
automation system
9
___________________
Operating
Expansions and parameter
10
___________________
assignment
11
___________________
Service and maintenance
12
___________________
Troubleshooting/FAQs
13
___________________
Technical data
14
___________________
Detailed descriptions
A
___________________
Appendix
B
___________________
ESD guidelines
C
___________________
List of abbreviations
09/2010
A5E02617852-02
Legal information
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken.
CAUTION
without a safety alert symbol, indicates that property damage can result if proper precautions are not taken.
NOTICE
indicates that an unintended result or situation can occur if the corresponding information is not taken into
account.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation for the specific task, in particular its warning notices and
safety instructions. Qualified personnel are those who, based on their training and experience, are capable of
identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be adhered to. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of the Siemens AG. The remaining trademarks in this
publication may be trademarks whose use by third parties for their own purposes could violate the rights of the
owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
A5E02617852-02
Ⓟ 08/2010
Copyright © Siemens AG 2010.
Technical data subject to change
Table of contents
1
2
3
4
5
Introduction................................................................................................................................................ 7
1.1
Preface...........................................................................................................................................7
1.2
Guideline to the operating instructions ..........................................................................................8
Safety notes............................................................................................................................................... 9
2.1
General safety instructions ............................................................................................................9
2.2
Additional safety information when using wireless LAN ..............................................................11
Description............................................................................................................................................... 13
3.1
Overview ......................................................................................................................................13
3.2
Application areas .........................................................................................................................13
3.3
Highlights .....................................................................................................................................14
3.4
Features .......................................................................................................................................15
3.5
3.5.1
3.5.2
3.5.2.1
3.5.2.2
3.5.2.3
3.5.3
3.5.4
Design ..........................................................................................................................................16
Exterior design .............................................................................................................................16
Operator controls .........................................................................................................................19
On/off button ................................................................................................................................19
Touchpad .....................................................................................................................................21
Keyboard......................................................................................................................................21
Connecting elements ...................................................................................................................24
Status displays .............................................................................................................................24
Application planning................................................................................................................................. 27
4.1
Transport......................................................................................................................................27
4.2
Unpacking and checking the delivery unit ...................................................................................28
4.3
Device identification data .............................................................................................................29
Positioning ............................................................................................................................................... 31
5.1
6
Positioning the device ..................................................................................................................31
Connecting .............................................................................................................................................. 33
6.1
Connecting peripherals ................................................................................................................33
6.2
Connecting the device to power...................................................................................................34
6.3
Connect the modem to the telephone outlet................................................................................36
6.4
Connect the PG to the S5 automation device..............................................................................36
6.5
Connect the PG to the S7 automation system or the PROFIBUS network .................................38
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
3
Table of contents
7
Commissioning ........................................................................................................................................ 39
7.1
Requirements for commissioning................................................................................................ 39
7.2
Initial commissioning - initial startup ........................................................................................... 39
7.3
7.3.1
7.3.2
7.3.3
7.3.4
7.3.5
7.3.6
7.3.7
7.3.8
7.3.9
7.3.10
7.3.10.1
7.3.10.2
Notes on operation...................................................................................................................... 41
Rechargeable battery.................................................................................................................. 41
Bluetooth dongle ......................................................................................................................... 42
Hard disk ..................................................................................................................................... 43
Optical drive ................................................................................................................................ 43
SIMATIC S5 memory module ..................................................................................................... 44
SIMATIC Memory Card............................................................................................................... 45
Integrated Multi Media Card Reader........................................................................................... 46
SIMATIC Micro Memory Card ..................................................................................................... 46
PC Cards..................................................................................................................................... 47
Wireless LAN .............................................................................................................................. 48
General information regarding WLAN......................................................................................... 48
Safety information for WLAN operation ...................................................................................... 49
8
Integration into an automation system ..................................................................................................... 51
9
Operating................................................................................................................................................. 53
9.1
10
Expansions and parameter assignment................................................................................................... 55
10.1
11
12
13
Installing / removing memory modules ....................................................................................... 55
Service and maintenance ........................................................................................................................ 59
11.1
11.1.1
11.1.2
11.1.3
11.1.4
Removing and installing hardware components ......................................................................... 59
Replacing a hard disk bay........................................................................................................... 59
Hard disk kit ................................................................................................................................ 61
Replace the battery ..................................................................................................................... 61
Replacing the backup battery ..................................................................................................... 62
11.2
11.2.1
11.2.2
11.2.3
11.2.4
11.2.5
11.2.6
Reinstalling the software ............................................................................................................. 63
General installation procedure .................................................................................................... 63
Restore the system ..................................................................................................................... 63
Setting up the operating system via the Recovery CD/DVD....................................................... 64
Recovery of Windows 7 .............................................................................................................. 66
Installing drivers and software .................................................................................................... 69
Installing the burner or DVD software (optional) ......................................................................... 69
Troubleshooting/FAQs............................................................................................................................. 71
12.1
General problems........................................................................................................................ 71
12.2
Problems with Wireless LAN....................................................................................................... 72
Technical data ......................................................................................................................................... 75
13.1
4
SIMATIC Software ...................................................................................................................... 53
General specifications................................................................................................................. 75
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Table of contents
14
A
Detailed descriptions ............................................................................................................................... 79
14.1
14.1.1
Interfaces .....................................................................................................................................79
External interfaces .......................................................................................................................79
14.2
Connecting cables .......................................................................................................................84
14.3
System resources ........................................................................................................................85
14.4
14.4.1
14.4.2
14.4.3
14.4.4
14.4.5
14.4.6
14.4.7
BIOS Setup ..................................................................................................................................85
Overview ......................................................................................................................................85
Main menu ...................................................................................................................................87
Advanced Menu ...........................................................................................................................88
Security Menu ..............................................................................................................................94
Boot menu....................................................................................................................................95
Version menu ...............................................................................................................................97
Exit menu .....................................................................................................................................98
Appendix.................................................................................................................................................. 99
A.1
Guidelines and declarations.........................................................................................................99
A.2
Certificates and approvals .........................................................................................................100
A.3
Service and support ...................................................................................................................102
A.4
Accessories................................................................................................................................103
B
ESD guidelines ...................................................................................................................................... 105
C
List of abbreviations............................................................................................................................... 107
C.1
Abbreviations .............................................................................................................................107
Glossary ................................................................................................................................................ 113
Index...................................................................................................................................................... 125
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
5
Table of contents
6
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
1
Introduction
1.1
Preface
Purpose of this documentation
This manual contains all the information you need to commission and use the SIMATIC
Field PG M3.
It is intended both for programming and testing/debugging personnel who commission the
device and connect it with other units (automation systems, further programming devices),
as well as for service and maintenance personnel who install expansions or carry out
fault/error analyses.
Validity of this documentation
This documentation is valid for all available versions of the SIMATIC Field PG M3 and
describes the delivery state as of September 2010.
Position in the information scheme
These operating instructions are part of the supplied "Software for Field PG" DVD.
For supplementary instructions on how to handle the software, please refer to the
corresponding manuals.
Conventions
The term "PG" or "device" is also used to refer to the SIMATIC Field PG M3 product in this
documentation.
History
Currently released versions of this operating manual:
Issue
Comment
04/2010
First edition
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
7
Introduction
1.2 Guideline to the operating instructions
1.2
Guideline to the operating instructions
Contents format
Contents
Table of Contents
Organization of the documentation, including the index of pages and chapters
Introduction
Purpose, layout and description of the important topics
Safety-related notices
Refers to all the valid safety-technological aspects which are derived from statutory
regulations and should be adhered to when installing, commissioning and operating the
product/system
Description
Fields of application, the features and the structure of the product/system
Application Planning
Preparatory considerations relating to storage, transport, environmental and EMC
conditions.
Connecting
Options of connecting the product and connection instructions
Commissioning
Commissioning the product/system.
Integration
Options of integrating the product into existing or planned system environments/networks
Operation
Operating the SIMATIC software
Expansions / Configuration
Procedure for installing expansion devices (memory).
Maintenance and service
Replacement of hardware components, restoring and setup of the operating system,
installation of drivers and software
Troubleshooting/FAQs
Problems, cause, remedy
Specifications
General specifications in compliance with relevant standards and current/voltage values
Detailed descriptions
Structure, function and features of the vital components, allocation of system resources and
use of the BIOS Setup
Appendix
Guidelines and certifications, service and support
ESD guidelines
General ESD guidelines.
8
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
2
Safety notes
2.1
General safety instructions
CAUTION
Please observe the safety instructions on the back of the cover sheet of this
documentation. You should not expand your device unless you have read the relevant
safety instructions.
This device is compliant with the relevant safety measures to IEC, EN, VDE, UL, and CSA. If
you have questions about the validity of the installation in the planned environment, please
contact your service representative.
Repairs
Only qualified personnel are permitted to repair the device.
WARNING
Unauthorized opening and improper repairs can cause considerable damage to property or
danger for the user.
System expansions
Only install system expansion devices designed for this device. The installation of other
expansions can damage the system and violate the radio-interference suppression
regulations. Contact your technical support team or where you purchased your PC to find out
which system expansion devices may safely be installed.
CAUTION
If you install or exchange system expansions and damage your device, the warranty
becomes void.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
9
Safety notes
2.1 General safety instructions
Battery
This device is equipped with a Lithium battery. Batteries may only be replaced by qualified
personnel.
CAUTION
There is the risk of an explosion if the battery is not replaced as directed. Replace only with
the same type or with an equivalent type recommended by the manufacturer. Dispose of
used batteries in accordance with local regulations.
WARNING
Risk of explosion and release of harmful substances!
Do not throw lithium batteries into an open fire, do not solder, or open the cell body, do not
short-circuit, or reverse polarity, do not heat up above 100 °C, follow the disposal
instructions, and protect against direct exposure to sunlight, humidity, and condensation.
ESD guidelines
Modules containing electrostatic sensitive devices (ESDs) can be identified by the following
label:
Strictly follow the guidelines mentioned below when handling modules which are sensitive to
ESD:
● Always discharge any static electricity from your body before handling modules that are
sensitive to electrostatic discharge (for example, by touching a grounded object).
● All devices and tools must be free of static charge.
● Always pull the mains connector and disconnect the battery before you install or remove
modules which are sensitive to ESD.
● Handle modules fitted with ESDs by their edges only.
● Do not touch any wiring posts or conductors on modules containing ESDs.
10
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Safety notes
2.2 Additional safety information when using wireless LAN
2.2
Additional safety information when using wireless LAN
As your device has an integrated WLAN card, you must observe the following safety
information:
● The transmitted radio waves can cause an unpleasant droning in hearing aids.
● Switch off the device if traveling by aircraft or car.
● Switch off the radio components on the device if you are in a hospital or in the proximity
of a medical electronic system. The transmitted radio waves can have a negative effect
on the function of medical equipment.
● Keep the device at least 20 cm away from pacemakers, otherwise the radio waves may
interfere with the pacemaker.
● When the radio components are switched on, do not bring the device in the vicinity of
flammable gases, or into a potentially-explosive atmosphere (paint shop, for example), as
the transmitted radio waves could trigger an explosion or a fire.
● The range of the radio connection depends on the environmental and surrounding
conditions.
● With data traffic via a wireless connection, it is also possible for unauthorized third parties
to receive data.
Siemens is not responsible for radio or television interference that has been caused by
unauthorized changes to this device. Furthermore, Siemens shall not be held responsible for
the use or replacement of connection lines and devices that have not been recommended by
Siemens. The user alone is responsible for remedying faults that have been caused by such
an unauthorized change, or for the use or the replacement of the device.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
11
Safety notes
2.2 Additional safety information when using wireless LAN
12
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
3
Description
3.1
Overview
The SIMATIC Field PG M3 is a complete, ready-to-operate, and pre-configured
programming tool for the components of SIMATIC industrial automation.
Figure 3-1
3.2
SIMATIC Field PG M3
Application areas
The compact SIMATIC Field PG M3 is designed for mobile use, such as:
● configuring, programming as well as simulating automation solutions in the office
● commissioning, maintenance and servicing automation solutions on site at the plant
● teleservicing via integrated modem
● use of modern office applications in the office or when traveling
Its robust design makes the Field PG M3 especially well-suited for harsh industrial
environments. This is evidenced by the housing made of impact-resistant and torsionallyrigid magnesium alloy and the generously sized bumpers on the corners of the housing,
among other design features.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
13
Description
3.3 Highlights
3.3
Highlights
Greatest possible mobility guaranteed
● Notebook structure (dimensions, weight) optimal for use in cramped spaces at the plant
as well as when traveling
● High-performance lithium-ion battery with 71 Wh (rated capacity) ensures long operation
without a connection to the power system.
● Housing made of magnesium alloy housing with soft plastic corners – providing good
protection for the electronics inside
● High-performance graphics controller for support of dual displays (16:9 format)
● Large 15.6" display with full HD or HD-ready 16:9 format ensures ergonomic work
Industrial functionality
● Integrated PROFIBUS DP/MPI interface
● COM/TTY interface
The TTY interface used is dependent on the selected hardware.
● Programming interfaces for SIMATIC Memory Card, Micro Memory Card, and
S5 EPROM modules
● Integrated card reader for SIMATIC Memory Card (SMC), SD, SDHC, MS, and XD Card
● Link to company networks and WAN without additional hardware costs due to two
integrated independent and fully-fledged Gigabit Ethernet interfaces
● Wireless LAN corresponding to IEEE 802.11 a/b/g/n
● Fast, easy to replace SATA hard disk
● 4 USB 2.0 interfaces (high current-capable); 1 USB 2.0 interface is specially prepared for
use with USB Bluetooth dongle
● HDA interface (high definition audio) for sound and modem
● Integrated modem (V.92)
System availability
● Optional data backup software Image & Partition Creator V3.1
14
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Description
3.4 Features
3.4
Features
General features
Type of construction
Mobile device
Processor


Intel® Pentium Dual Core® processor
(1.86 GHz, 2 MB cache)
Intel® CORE i5-520M processor
(2.40 GHz, 3 MB cache
RAM
Expandable to 8 GB DDR3 SODIMM
Graphics


Graphics controller: Intel® HD Graphics
Graphics memory

DDR3 RAM, 8 to 256 MB, partly using dynamic
sharing of system memory
Resolutions/frequencies/colors:
According to the setting options of the graphics driver
Power supply
100 to 240 V, wide range
Drives and storage media
Hard disk
2.5" SATA
 Hard disk capacity, see ordering information
Optical drive
DVD+-R/+-RW
Interfaces
COM
TTY/V.24 (optional)
Serial interface TTY, 20 mA, depending on configuration,
cannot be retrofitted
 "Premium/S5" configuration variant used as standard;
 Active to 100 m, 25-pin socket, no galvanic isolation
or serial interface V.24
DVI-I
Interface for external monitor (VGA monitors can be
operated with a DVI/VGA adapter)
USB 2.0
5 interfaces for high-speed universal serial bus,
max. 4 high current (500 mA) or 1 A – per interface block
PROFIBUS/MPI interface


9-pin sub-D socket
Transmission rate

9.6 kBaud to 12 MBaud, software configured
Memory address area
0CC00h to 0CC7FFh or 0DC000h to 0DC7FFh
Ethernet
2 x Gigabit Ethernet (RJ45)
Modem
RJ11 V.92 Motorola SM56
Keyboard
Standard notebook
Status displays on the device (LEDs)
Caps Lock
Num Lock
WLAN active
Battery status
Device status
Access to HD/DVD
S5 module/memory card
MPI/DP
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
15
Description
3.5 Design
Software
Operating systems (32-bit OS in each
case):
3.5
Design
3.5.1
Exterior design
Installed:
 Windows 7 Ultimate, 5 languages
German, English, French, Spanish, Italian
 Windows XP Professional MUI
 MUI: Multi Language User Interface; 5 languages
English, German, French, Spanish, Italian
View with closed display
①
②
③
16
System and keyboard LEDs
Display latch
Device handle
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Description
3.5 Design
Front view with display open
①
②
③
④
⑤
⑥
⑦
Display latch
Display
Stereo speakers
On/off button (power)
Keyboard
Touchpad
Mouse buttons
View from rear
①
②
③
④
⑤
⑥
⑦
USB 2.0 for Bluetooth dongle
2 Ethernet
MPI/DP
2 USB 2.0
DVI-I
COM1/TTY (TTY functionality, dependent on variant used)
Ventilation air outlet
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
17
Description
3.5 Design
View of left side
①
②
③
④
⑤
⑥
⑦
⑧
Opening for Kensington lock
Ventilation air inlet
DC IN 19 V
Headphones
Microphone
Media Card Reader (interface for SMC, SDHC, MMC (Multi Media Card - not SIMATIC MMC),
XD and MS Pro)
Express card and PC card slot
Modem port (RJ11) with cover
View of right side
①
②
③
④
⑤
18
Optical drive
SIMATIC Micro Memory Card interface
Exchangeable hard disk unit
Memory card interface
2 USB 2.0 (with cover)
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Description
3.5 Design
View from below
①
②
③
Memory expansion
Rating plate
Rechargeable battery
3.5.2
Operator controls
3.5.2.1
On/off button
On/off button
①
The on/off button (power) has the following functions:
 Switch PG on/off (hold the button down for approximately 1 second; the response depends
on the Windows power options settings)
 Switch PG off in the event of a fault (hold down for more than 7 seconds)
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
19
Description
3.5 Design
Configuring the on/off button
You can switch the PG from normal mode to the following states using the on/off button
(Power button), by closing the display cover, or from the Windows Start menu:
● Standby mode (Save to RAM),
● Hibernate (save to disk), default setting
● Off (Windows is brought down).
When the device is brought down from Windows, the device automatically switches off. If the
device is not in Windows, it can be switched off using the on/off button.
Note
You can use Settings > Control Panel > Power Options in Windows XP to assign a response
to the on/off button and the lid. You can also assign these settings to the hot keys FN + F5
and Fn + F6.
To completely disconnect from the power supply network you must pull out the power cord
and dismantle the battery.
CAUTION
In accordance with the settings in the Windows Power Options, the Field PG supports
different operating states. The Power Options have been preset by the factory in such a
way that in the factory state the device always adopts defined operating states (On,
Standby, Hibernation, Off).
By changing these settings, and by adding extra hardware (such as USB components) or
software to the device, you can modify the operating states so that the device cannot switch
to Hibernation or Standby mode. Even though the screen display is dark, relevant
consumers remain switched on in the device.
Please remember to always bring down the Field PG or set it to Hibernation prior to
transporting in the backpack. When the device is in these states, all the status LEDs on the
device go off when you disconnect the power supply. This way you can ensure the device
is not switched on and the battery is not unintentionally discharged during transportation.
Press the on/off button briefly to reactivate the PG from Standby mode or Hibernation. In
Standby mode the device LED flashes, and in Hibernation all the displays are switched off.
20
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Description
3.5 Design
3.5.2.2
Touchpad
Touchpad and mouse buttons
①
②
The touchpad can be used in many programs (with mouse operation) as an input device for
controlling the cursor and selecting menus. You can position the touch-sensitive cursor
anywhere on the screen.
Pressing the left mouse button selects an object. The response to the right button depends on
the user program.
Note
The touchpad function (mouse pointer and mouse buttons) can be enabled and disabled with
the hotkey Fn + F4.
You can configure the advanced touchpad functions under "Mouse" in the Windows Control
Panel. The technical principle used means that it is possible to make unintentional mouse
clicks with the touchpad when it is used in a "noisy" environment. In such environments, it is
a good idea to disable the tap function in the touchpad driver, and to use the mouse buttons.
3.5.2.3
Keyboard
Keyboard arrangement
The keyboard is divided into the following function groups:
● Alphanumeric keyboard field with hotkeys
● Function keys
● Control keys
Repeat function
All the keys of the keyboard are equipped with a repeat function, i.e. the character is
repeated for as long as the key is pressed.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
21
Description
3.5 Design
Keyboard labeling
The keyboard comes with international and German labeling.
,QWHUQDWLRQDO
*HUPDQ
8
6KLIW
"
8QVKLIW
¡?
7RJHWKHUZLWK
$/7*5NH\
7RJHWKHUZLWKWKH)QNH\
ZLWK1XP/RFN
ZLWKRXW1XP/RFN&XUVHUOHIW
Alphanumeric keyboard field
The largest block of keys is the alphanumeric keyboard with all the keys for letters, numerals
and special characters. The arrangement of the characters essentially corresponds to that of
a normal typewriter. However, there are a few keys that undertake specific special functions
for the PG.
Key
Function
Caps Lock
The caps lock key activates uppercase mode. All the characters are then
output as capital letters. With a multiple labeled key, the upper left
character is displayed. You can switch off the caps lock by pressing the
shift key.
Num Lock key
This toggles the emulated numerical keypad between alphanumeric keys
and number keys. The LED display lights up.
Scroll Lock
Use this key to decide whether the cursor keys should move the cursor or
the screen section (this functionality is not supported by every program).
Start key (under Windows)
The start key calls up the Windows Start menu.
Menu key (under Windows)
The menu key calls up the menu for the selected object.
22
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Description
3.5 Design
Number pad with Fn key
The characters and numbers labeled on the front of the number pad keys can be used by
simultaneously pressing Fn and one of these keys. Num lock must be active for this.
& /
* (
7{
8 [
7
Fn
( )
8
U
+
0 }
9
x
I
4
) =
9 ]
O
5
P
6
J
K
L
:Ö
;
1
2
3
+
M
>:
?_
/-
.
,
0
-
Function keys
Twelve programmable function keys are arranged in the topmost row of keys. The
arrangement of these keys depends on the software loaded.
Hotkeys (combination keys)
Using the Fn key and a 2nd key (e.g. a function key) you activate further key codes for
specific applications.
Key
Function
Fn + Home
Cursor at start
Fn + End
Cursor at end
Fn + ESC
Disable PG
Fn + F1
Switch speaker on/off
Fn + F2
Control menu for the display/monitor display
Fn + F3
Switch WLAN on/off
Fn + F4
Switch touchpad function (mouse pointer and mouse button) on/off
Fn + F5
Standby mode (depending on the configuration of the Power Button in
the Windows Power Options)
Fn + F6
Hibernation mode (depending on the configuration of the Power Button in
the Windows Power Options)
Fn + F7
Reduce volume
Fn + F8
Increase volume
Fn + F9
Reduce brightness of screen
Fn + F10
Increase brightness of screen
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
23
Description
3.5 Design
3.5.3
Connecting elements
Layout of the interfaces on the rear of the device
①
②
③
④
⑤
⑥
3.5.4
USB 2.0 for Bluetooth dongle (optional)
2 RJ45 Ethernet ports for 10/100/1000 Mbps
MPI/DP interface (RS 485, electrically isolated), 9-pin sub-D socket
2 USB 2.0 ports
DVI/VGA port for CRT or LCD monitor with DVI interface, VGA via DVI/VGA adapter
COM1(TTY) (variant-dependent) for connecting S5 automation devices, or
standard V.24 via the "Serial Port Adaptors D9/D25" adapter supplied for connecting devices
with a serial port, such as a modem or mouse.
Status displays
Status displays
24
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Description
3.5 Design
System LEDs
The system LEDs indicate the operating state of the battery, the device, the drives, and the
MPI/DP and memory card interface. The LEDs can also be seen when the display is closed.
Symbol
LED
Description
GREEN
ORANGE
RED
OFF
Battery is charged
Battery is being charged
Battery capacity too low (only with battery operation)
No battery
GREEN
ORANGE
GREEN flashing
ORANGE flashing
OFF
Line operation
Battery operation
Line operation, device is in Standby
Battery operation, device is in Standby
Device is switched off
GREEN
Access to the external memory (hard disk, optical drive)
GREEN
MPI interface active
GREEN
Module programming, memory card or micro memory card,
card reader active
Keyboard LEDs
The keyboard LEDs indicate the current state of the Num Lock and Shift Lock keys. After
switching on the device, the operating displays of the keys light up briefly. The keyboard is
ready.
Symbol
LED
Description
GREEN
OFF
Num Lock switched on
Num Lock switched off
GREEN
OFF
Caps Lock switched on
Caps Lock switched off
WLAN LED
The WLAN LED is located on the right next to the keyboard LEDs and indicates whether
WLAN is active.
Symbol
LED
Description
ORANGE
OFF
WLAN switched on
WLAN switched off
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
25
Description
3.5 Design
26
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Application planning
4.1
4
Transport
Before you set off
Observe the following information when you are traveling with the PG:
● Save important data from the hard drive.
● For safety reasons, switch off the radio components (Wireless LAN) if you can´t be sure
that the transmitted radio waves will not interfere with any electric or electronic equipment
in your vicinity.
● If you want to use your PG during a flight, first of all ask the airline company if you are
permitted to do so.
● When traveling abroad, ensure the power adapter can be used with the local mains
voltage. If this is not the case, you must acquire the appropriate adapter for your PG. Do
not use any other voltage transformers!
NOTICE
If you are traveling to a different country, check to see if the local voltage and the power
cord specifications are compatible. If this is not the case, purchase a power cable that
complies with the local conditions. Do not use connection adapters for electrical
appliances in order to connect the PG to them.
If you are using the modem, there could be incompatibilities with the local
telecommunications system.
CAUTION
The integrated WLAN is approved for use in certain countries, depending on which
configuration you ordered. This information is shown in your order documentation.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
27
Application planning
4.2 Unpacking and checking the delivery unit
Transport
Despite the fact that the device is of a rugged design, its internal components are sensitive
to severe vibrations or shock. With just a few simple transport precautions you can help to
create a trouble-free operation.
● Make sure that the PG is no longer accessing the drives, and remove all data media
(such as CDs) from the drives.
● Switch off the PG (see Section On/off button (Page 19)).
● Disconnect the peripheral devices from the PG.
● Close the display and the interface covers on the back of the device.
● Use the integrated handle for brief transportation.
● For longer transport, put the PG with all its accessories into the provided backpack.
You should always use the original packaging for shipping and transporting the device.
CAUTION
Risk of damage to the device!
If you are transporting the PG in extreme weather conditions with large fluctuations in
temperature, care must be take to ensure that no moisture form on or in the device
(condensation).
If you notice any condensation, wait around 12 hours before you switch on the device.
4.2
Unpacking and checking the delivery unit
Unpacking the device
Note the following points when you unpack the unit
● It is advisable not to dispose of the original packing material. Keep it in case you have to
transport the unit again.
● Please keep the documentation in a safe place. It is required for initial commissioning and
is part of the device.
● Check the delivery unit for any visible transport damage.
● Check the delivery and your specially ordered accessories against the packaging list to
ensure nothing is missing. Please inform your local dealer of any disagreements or
transport damages.
28
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Application planning
4.3 Device identification data
4.3
Device identification data
Noting the device identification data
The device can be identified uniquely with the help of these numbers in case of repairs or
theft.
Serial number
S VP ...
Order No.
6ES ...
Microsoft Windows Product Key
Ethernet address 1
Ethernet address 2
Enter the following data in the table:
● Serial number
The serial number (S VP) is located on the rating plate on the bottom of the device.
Rating plate
● Order number of the device
● Ethernet address
The Ethernet addresses of the device can be found in the BIOS Setup (F2 key) under
Main > Hardware Options > Onboard Ethernet Address.
● Microsoft Windows "Product Key" from the "Certificate of Authenticity" (COA)
The COA label is stuck to the bottom on the device. The Product Key is always required
to reinstall the operating system.
COA label
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
29
Application planning
4.3 Device identification data
30
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
5
Positioning
5.1
Positioning the device
WARNING
The outer housing is made of Magnesium. If it comes into contact with open flame, there is
a risk of fire / spreading fire.
CAUTION
Always set the PG down on its underside, otherwise there is a risk that it will fall over and
damage sensitive components.
● Position the programming device to ensure comfortable operation and safety.
● Position the programming device with its bottom on a flat surface and at a comfortable
height and distance.
● Ensure that a power outlet is easily accessible near your workplace.
● Ensure that there is enough space for connecting peripherals.
● Do not obstruct any ventilation slots when you position the device.
● Open the display by sliding the latch in the direction of the arrow.
● Flip the display open and adjust it to a convenient viewing angle. The display can be
adjusted to any inclination angle between 0 and 150o.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
31
Positioning
5.1 Positioning the device
32
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
6
Connecting
6.1
Connecting peripherals
To be noted before you connect the device
CAUTION
Peripheral devices that are incapable of hot-plugging may only be connected after the
device has been disconnected from the power supply.
CAUTION
Strictly adhere to the specifications for peripheral equipment.
WARNING
When you connect long signal cables (particularly with connections between buildings),
make sure the signal cables are always integrated into the local equipotential bonding
system (connecting the cable shielding to the protective conductor).
Connecting the external screen
NOTICE
Ensure the screen used is suitable for the set resolution and vertical refresh rate.
Otherwise, this could lead to damage.
Connect USB devices
Connect devices like disk drives, mouse, keyboard and printer to the USB 2.0 ports. One of
the three ports at the rear is intended specifically for the USB Bluetooth dongle.
Connect the microphone
You can connect an external microphone to the 3.5 mm jack for the microphone (pink).
To record using the microphone, in the Windows Start menu, select Programs > Accessories
> Entertainment > Sound Recorder.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
33
Connecting
6.2 Connecting the device to power
Connect headphones
You can connect headphones or external speakers that are equipped with a 3.5 mm stereo
jack plug to the headphones jack (green).
You can control the volume using the speaker button on the taskbar, or using hotkey
Fn + F7/F8.
See also
General specifications (Page 75)
6.2
Connecting the device to power
To be noted before you connect the device
Note
The external power unit supplies power to the Field PG in line operation with 120 V and 230
V power supply networks. The setting of the voltage range takes place automatically.
The battery is charged in line operation, that´s why you need to install the supplied battery
before you connect the device to the power supply.
WARNING
Do not connect or disconnect power and data cables during thunderstorms.
WARNING
The device is designed only to be used in grounded power supply systems (TN systems to
VDE 0100, part 300, or IEC 60364-3).
It must not be used in ungrounded, or impedance-grounded power systems (IT systems).
WARNING
The Field PG may only be operated using the supplied power supply and / or using the
supplied battery.
The external power supply may not be covered (risk of overheating).
CAUTION
The mains connector must be disconnected to fully isolate the device from mains.
34
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Connecting
6.2 Connecting the device to power
Localized information
Outside of the USA and Canada, operation on a 230 V power supply:
This device is equipped with a safety-tested power cord. If you choose not to use this cable,
you must use a flexible cable of the following type: At least 18 AWG (0.82 mm2) conductor
cross-section, and 15 A/250 V connector. The cable set must conform to the safety
regulations of the country in which the devices are installed, and bear the prescribed
markings in each case.
For the USA and Canada:
For the United States and Canada, a CSA or UL-listed power cord must be used.
The connector must be compliant with NEMA 1-15P.
120 V/240 V supply voltage
A flexible cable with UL approval and CSA marking must be used. In addition, the cable must
exhibit the following properties:
● SPT-2 or SVT design with two conductors
● At least 18 AWG conductor cross-section
● Max. length of 4.5 m
● Connector 15 A, min. 125 V
Connecting
Steps for connecting the device to mains
1
Turn the PG over so that it is
lying on the table with its display
unit closed.
2
Release ① the battery cover
② on the bottom of the device
and open it.
3
Insert the battery.
4
Close the cover and turn the
device over again.
5
Insert the supplied power supply
cable into the external power
supply.
6
Insert the low-voltage connector
7
into the connection ① on the
device.
Plug the external power supply
into a socket with a grounded
protective conductor.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
35
Connecting
6.3 Connect the modem to the telephone outlet
6.3
Connect the modem to the telephone outlet
1
Connect the supplied modem cable to the
telephone adapter for the local country.
2
Open the port cap.
3
Connect the modem cable to the modem
4
connection of the ① PG.
Connect the modem cable to your telephone
outlet.
NOTICE
If you are connecting your modem to a TAE N connection, this telephone or data channel is
occupied. It can not be used simultaneously for other communication devices. After the
data transfer, remove the modem plug from the TAE N socket; no other communication
devices can be used if the cable is still connected.
Strong electrical noise fields can cause transmission errors or a connection abort. In these
cases, you should reduce the interference by moving further away from the source.
6.4
Connect the PG to the S5 automation device
To be noted before you connect the device
NOTICE
Not all equipment variants of the Field PG M3 have a non-isolated interface (COM1/V.24
modem/AG) for connecting the S5 hardware.
The SIMATIC STEP 5 programming software, and the connecting cable (order no.
6ES5734-2BD20) for connecting to the S5 programmable controller are not always supplied
as standard.
36
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Connecting
6.4 Connect the PG to the S5 automation device
How to connect to an S5 automation device
1
Switch off your device.
2
Plug the cable into the COM1/V.24
modem/AG port.
3
Screw the connector into place.
4
Insert the cable into the respective port on
the CPU in the automation device.
CAUTION
You could damage the port if you use the wrong cable.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
37
Connecting
6.5 Connect the PG to the S7 automation system or the PROFIBUS network
6.5
Connect the PG to the S7 automation system or the PROFIBUS
network
You can connect the PG to a SIMATIC S7 automation system or a PROFIBUS network via
the electrically isolated*) MPI/DP interface. The MPI cable (5 m) for connecting to SIMATIC
S7 CPUs (order number: 6ES7901-0BF00-0AA0) is supplied as standard. Transmission
rates of no more than 187.5 Kbps are possible with this cable. To achieve baud rates higher
than 1.5 Mbps, you will need a 12 Mbps PROFIBUS connecting cable (order number
6ES7901-4BD00-0XA0).
How to connect to an S7 automation system
1
Switch off your device.
2
Insert the plug-in cable into the MPI/DP
interface.
3
Screw the connector into place.
4
Insert the cable into the respective port on
the CPU.
In the disturbed environment: Bus connector
6ES7972-0BB10-0XA0
or
6ES7972-0BB20-0XA0
6ES7901-0BF00-0AA0
(5m long)
*) Electrically isolated within the safety extra-low voltage circuit (SELV)
CAUTION
You could damage the port if you use the wrong cable.
NOTICE
Malfunction
The simultaneous use of MPI/DP Online and a SIMATIC memory card port can cause
malfunctions. Simultaneous use is not supported.
Terminate the use of the memory card port before using MPI/DP.
38
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Commissioning
7.1
7
Requirements for commissioning
The operating system and system software of your device are preinstalled on the hard disk.
CAUTION
Risk of damage to the device!
Allow the device to warm up slowly to room temperature before you start it up. If you notice
any condensation, wait around 12 hours before you switch on the device.
7.2
Initial commissioning - initial startup
NOTICE
The programming device may not be switched off at any time during the installation
process.
Do not change the default BIOS settings, otherwise the operating system setup may
become corrupted.
Procedure
The operating system is set up automatically on the programming device when it is first
started. The following tasks need to be performed:
1. Press the on/off button and hold it down for at least 1 second.
The PG conducts a self-test. During the self-test, the messages are displayed:
–
Press F2 to go to Setup Utility
–
Press F12 to go to Boot Manager
2. Wait until this message is cleared, then follow the instructions on the screen.
3. Type in the Product Key as required.
You find this key on the "Certificate of Authentication", in the "Product Key" line.
4. Automatic restart
After you have entered all necessary information, and after the operating system
setup is completed, the PG is automatically restarted and displays the user interface of the
relevant operating system.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
39
Commissioning
7.2 Initial commissioning - initial startup
From now on, after you switch on the PC, the user interface of the operating system is
automatically opened when the startup routine is completed.
Startup with Microsoft Windows
The menus, dialogs, and keyboard layout are set up in English under Windows. Use the
Control Panel to change to another language and keyboard layout.
● Path under Windows XP:
Start > Control Panel > Date, Time, Language, and Regional Options > Add other
languages.
● Path for Windows 7:
Start > Control Panel > Clock, Language, and Region > Region and Language
Authorization/License key
A product specific authorization or a License Key (user authorization) is required to use the
STEP 5-, STEP 7- and WinCC flexible programming software. This protected software may
only be used with the relevant authorization. The authorization and the license keys for the
SIMATIC software are found on the supplied USB Memory Stick.
In order to use the license keys, open the protective cap of the stick and connect this license
stick to a free USB port of your computer.
After a short time a drive named "License_Key" will appear in Windows Explorer.
During a new installation, you will be notified by the Setup program if a matching license key
has not been installed on your computer. You can then choose to have the Setup program
install the license or to install the license later with the Automation License Manager you are
going to install.
If you want to transfer the license key later, follow these steps:
1. Close the Automation License Manager. Locate the drive named "License_Key" in the left
pane.
2. Click the drive named "License_Key".
This displays an overview of the license keys found on the license stick.
3. Use a drag-and-drop operation to move the desired license key to one of your drives.
4. After the transfer, the license key is located on the corresponding drive and you can now
use the activated software.
Prior to removing the license stick, make sure to give notice according to Windows
specifications ("Safely remove hardware").
If required, you can use the license stick to transfer license keys from one computer to
another or to store license keys temporarily.
NOTICE
Software installed on the PG for which there is no authorization or a license key in the
delivery package, cannot be used or will only run in Trial mode.
40
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Commissioning
7.3 Notes on operation
7.3
Notes on operation
7.3.1
Rechargeable battery
Battery operation
The battery (lithium ion) enables mobile use of the device, independently of an external
power supply. It also protects against data loss in the even of a power failure.
NOTICE
You should install the battery before you connect the device to the power supply. Use only
the battery supplied with the device.
As soon as the external power supply is connected, the battery will start charging. In doing
so, the following conditions are important:
● When the device is switched off the charging process takes around 3 hours.
● When the device is switched on, the charging process takes between 3 and 6 hours
(depending on the system load).
● The charging process is terminated as soon as the battery is fully charged.
● A charged battery will discharge itself during storage (depending on the temperature, and
whether or not it is installed) in roughly 2 - 4 months. It will then have to be recharged.
● The battery charging is terminated when the battery is fully charged or if, for example, the
upper temperature limit for charging is exceeded. You can check the battery charge level
in Windows.
If, with a connected power supply, the battery LED lights up green, the battery is full and will
not be charged any further.
NOTICE
If the device is going to be out of use for a long period (> 1 week), switch the Field PG off
after use, and remove the battery.
During commissioning, the battery can become partially or fully discharged (e.g. from selfdischarge). Prior to completion of the discharge, when merely a residual charge is existent,
the LED battery in the battery operation lights up red as a warning. End your work and save
your data. There are now only a few minutes battery running time left.
Please note that for a complete disconnection from the mains the mains connector must be
removed.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
41
Commissioning
7.3 Notes on operation
Information
The capacity of the lithium ion battery used in the PG reduces with each charge/discharge;
this is inherent in the technology. A gradual reduction in capacity also takes place if stored at
too high or too low temperatures. The operating times of one battery charge in a networkindependent operation can therefore gradually reduce over time.
The battery has a typical life span of c. 300 charges and is therefore designed in such a way
that with standard handling within six months after purchase of your PG it can still be
charged and discharged. A loss of capacity over time is technology-dependent and, as with
all manufacturers of comparable devices, it is excluded from the warranty. In the case of a
significant drop of efficiency we recommend that you replace the battery. Buy only original
Siemens batteries.
You should note the following with regard to the life span of the battery:
● If possible, the battery should always be completely discharged/charged.
● Frequency of use: The more often the battery is used, the faster it reaches the end of its
effective life span. A lithium ion battery has a typical life of around 300 charge cycles.
● If the computer is almost always connected to the mains power supply, the battery should
be removed from the computer (but fully charged) and stored elsewhere.
WARNING
Do not dismantle or damage. Batteries can cause combustion.
Do not light or heat up. Batteries can cause combustion, can explode or release toxic
substances.
Do not short circuit. This can cause combustion. Keep away from children.
WARNING
Always replace the battery with another battery of the same type. The battery is
available as a spare part. You will find the ordering data in the catalog.
7.3.2
Bluetooth dongle
The Bluetooth dongle is used for communication with Bluetooth devices, such as a headset,
mouse, or printer.
A USB -2.0 port ① is available on the rear of the programming device for operating the
Bluetooth dongle. The Bluetooth dongle is enclosed with the device.
42
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Commissioning
7.3 Notes on operation
7.3.3
Hard disk
Hard disk drives with differing capacities can be used.
Note
Please use only hard disk drives recommended by Siemens. The order data for removable
hard disks can be found in the catalog.
When the hard disk drive is in use, the corresponding system LED lights up. See Section
Status displays (Page 24).
CAUTION
Drives are sensitive to inadmissible vibrations. Shocks during operation can lead to the loss
of data or damage to the drive or data carrier.
7.3.4
Optical drive
This drive allows you, for example, to read the operating instructions on the supplied
"Software for Field PG" DVD.
Burner/DVD player software
● If you are using Windows XP, the following applies:
To fully utilize the functionality of our DVD±R/±RW drive, you will have to install additional
software (DVD burner or player software). This software is included on the CD supplied
with the device. Insert the CD in the drive, run setup and follow the instructions on the
screen.
● You can use the Windows Server 7 operating system to burn data carriers. A separate
burner software is not supplied for this reason.
Information on burning CD-RWs or DVD±RWs
CAUTION
Danger of data loss!
Burning is permissible only in an undisturbed environment, i.e. shock and vibration stress
must be avoided. Because of heavy fluctuation in the quality of CD-Rs, data may be
corrupted in a burning session, even if no error message is initially displayed. The written
data can only be verified by comparing these with the source. To be on the safe side, data
should be verified after every burning session.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
43
Commissioning
7.3 Notes on operation
Emergency removal
When the device is switched off, you can use a pin (e.g. bent paperclip) to forcibly remove
the disk.
NOTICE
To avoid too much force being used on the pulled out drawer, when inserting removing a
disk always hold one hand against it by touching/holding the drawer on the front facing.
After closing the drawer, the data medium is initially tested and then the access display on
the drive starts to flash:
 Continuous flashing means that the medium is bad but still readable
 Continuous flashing followed by steady illumination means the inserted data medium is
no longer readable and is defective.
7.3.5
SIMATIC S5 memory module
Modifying SIMATIC S5 memory modules
The memory card interface depends on the equipment variant and is therefore not installed
in all Field PG M3s.
Via the memory card interface you can read and program SIMATIC S5 memory module
(EPROMs or EEPROMs). To do this, use the S5 adapter for S5 memory modules; this is
supplied as standard with devices with full STEP 5 licenses. The S5 adapter consists of a
memory card connector with an interface for connecting the S5 memory modules. Refer to
the STEP 5 manual for information regarding the operation of the programming software.
How to use S5 memory modules
44
1
Switch on the PG.
2
In your STEP 5 software, launch the function
Administration > edit EPROM.
3
Plug the S5 adapter with its type plate facing
upwards into the memory card interface
(equipment variant-dependent) and then the
S5 memory module.
4
Read, program, or delete (EEPROMs only)
the S5 memory module using the EPROM
functions of the STEP 5 software.
5
Remove the S5 memory module.
6
Exit the EPROM functions of your STEP 5
software.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Commissioning
7.3 Notes on operation
How to use S5 memory modules
CAUTION
Plugging in or removing the module while the module is being changed could damage the
module.
The S5 memory module must not be removed while the operating displays of the module
programming are lit.
Note also the ESD guidelines (Page 105).
7.3.6
SIMATIC Memory Card
Editing SIMATIC Memory Cards
You can read, program, or erase SIMATIC Memory Cards via the memory card interface.
There are SIMATIC Memory Cards available for SIMATIC S5 and SIMATIC S7 software.
Steps for using SIMATIC Memory Cards
1
Switch on the PG.
2
Start your SIMATIC programming function.
3
Use the programming function of your
SIMATIC programming software to read,
program, or erase the SIMATIC Memory
Card.
4
End the programming function of your
SIMATIC programming software.
5
Remove the SIMATIC Memory Card from
the interface ①.
CAUTION
Inserting or removing the module while the module is being edited could damage the
module.
Do not remove the SIMATIC Memory Card if the module programming status display is lit.
Note the ESD guidelines (Page 105).
NOTICE
Malfunction
The simultaneous use of MPI/DP Online and a SIMATIC memory card port can cause
malfunctions. Simultaneous use is not supported.
Terminate the use of the memory card port before using MPI/DP.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
45
Commissioning
7.3 Notes on operation
7.3.7
Integrated Multi Media Card Reader
Editing the Multi Media Card
You can read, program, or erase a SIMATIC Memory Card (SMC), SD/SDHC, MMC (Multi
Media Card – not SIMATIC MMC), xD, and MS Pro via the Multi Media Card interface.
The Multi Media Card interface is located on the left side of the device.
The contact areas of the card face upwards. To remove the card press it lightly towards the
device. The card is ejected by a push-push function.
CAUTION
Inserting or removing the module while the module is being edited could damage the
module.
Do not remove the media card if the module programming status display is lit.
Note the ESD guidelines (Page 105).
7.3.8
SIMATIC Micro Memory Card
Modifying SIMATIC Micro Memory Cards
You can use the Micro Memory Card interface to read, program delete Micro Memory Cards
(MMC). You can use the Micro Memory Card with STEP 7, version V5.1 or later.
How to use micro memory cards
46
1
Switch on the PG.
2
Start your SIMATIC programming function.
3
Use the programming function of your
SIMATIC programming software to read,
program or delete the micro memory card.
4
End the programming function of your
SIMATIC programming software.
5
Remove the Micro Memory Card ① from
the interface.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Commissioning
7.3 Notes on operation
CAUTION
Plugging in or removing the module while the module is being changed could damage the
module.
Do not remove the Micro Memory Card if the status light is lit.
Note the ESD guidelines (Page 105).
NOTICE
Malfunction
The simultaneous use of MPI/DP Online and a SIMATIC memory card port can cause
malfunctions. Simultaneous use is not supported.
Terminate the use of the memory card port before using MPI/DP.
7.3.9
PC Cards
Working with PC Cards
You can use Cardbus Cards (32 bit) and PCMCIA Cards (16 bit) in the PC card interface.
The PG is equipped with a PC card interface and an Express card interface. Credit cardstyle communication cards for MODEM, FAX MODEM, ISDN, Token Ring, ETHERNET,
memory upgrades, and SCSI interfaces, USB, or eSATA can be inserted.
The PC Card ejectors have a spring-coil mechanism. Before you insert the card, ensure that
the ejector is engaged. To remove the PC card, press the ejector once to unlock it, and a
second time to eject the PC card.
CAUTION
The label of the PC Card must face upward during insertion.
Only take out the card when data is no longer being transferred (risk of loss of data and
system crash).
The Express card is inserted in the top slot, and the PC card in the bottom slot. Type III PC
cards are not supported. If you try to insert the PC card the wrong way round, the PG and
PC card can be damaged.
Note the ESD guidelines (Page 105).
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
47
Commissioning
7.3 Notes on operation
WARNING
The Express Card interface does not meet the requirements of the limited power source. To
retain the safety approval of the device, please use only UL listed Express Cards or cards
that meet the relevant requirements of IEC / EN 60950-1. You can obtain further
information from the card vendor.
7.3.10
Wireless LAN
7.3.10.1
General information regarding WLAN
The Field PG is equipped with a network card for Wireless LAN (WLAN), i.e. you are not
assigned to a cable network. With WLAN, the same as with cable network, you have access
to files, the printer and to the Internet.
Depending on the surrounding conditions, you can create connections through walls or at
distances in the open air of up to 100 m. The built-in network card works in accordance with
the latest standards:
● IEEE 802.11 a: The maximum data rate that is theoretically possible with optimum
ambient conditions, and low power utilization is 11 Mbps.
● IEEE 802.11 b: The maximum data rate that is theoretically possible with optimum
ambient conditions, and low power utilization is 11 Mbps.
● IEEE 802.11 g: The maximum data rate that is theoretically possible with optimum
ambient conditions, and low power utilization is 54 Mbps.
● IEEE 802.11 n: The maximum data rate that is theoretically possible with optimum
ambient conditions and low power utilization is 300 Mbps.
The IEEE standard offers two modes of operation, the adhoc mode (Peer to Peer) and the
infrastructure mode.
Adhoc mode
The adhoc network refers to a wireless network that is established directly between several
computers, whereby all computers must have a WLAN facility. No additional devices are
necessary.
Infrastructure mode
The infrastructure network uses access points to connects computers to wired networks with
the aid of Wireless LAN. These can be a local network (e.g., company networks) or a global
network (e.g., Internet).
More detailed information on configuring and operating the Wireless LAN can be found in the
online help of the WLAN network adapter.
48
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Commissioning
7.3 Notes on operation
7.3.10.2
Safety information for WLAN operation
The radio waves necessary for Wireless LAN can cause interference in hearing aids and in
the onboard electronics of vehicles. To prevent interference, switch off the Field PG in
aircraft, or when driving a vehicle.
The radio waves caused by wireless LAN can interfere with life-support systems, so you
should switch off the WLAN device when in the vicinity of such systems (use hotkey Fn + F3
to disable the Field PG's WLAN).
CAUTION
To prevent adverse effects on pacemakers, a minimum distance of 20 cm from pacemakers
should be maintained while the WLAN is in use.
NOTICE
Please note that the device is not suitable for operation in potentially explosive
atmospheres.
The range and the attainable data transmission rate depends on the environment. A
Wireless LAN connection is not bug-proof.
To protect the transmitted data, Wireless LAN has different encoding methods. We
recommend that you activate an encoding in accordance with your Wireless LAN
environment.
If possible, do not bring the WLAN connection in the vicinity of the following devices:
● Microwaves
● Wireless video-audio transmission systems
● Wireless telephones (DECT)
These can lead to interference or the complete breakdown of the WLAN connection.
CAUTION
The integrated WLAN is approved for use in certain countries, depending on which
configuration you ordered. This information is shown in your order documentation.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
49
Commissioning
7.3 Notes on operation
50
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Integration into an automation system
8
The following options are available for the integration of the device in existing or planned
system environments/networks:
Ethernet
The integrated Ethernet interfaces (10/100/1000 Mbps) can be used for communication and
data exchange with programmable controllers, such as SIMATIC S7.
PROFIBUS / MPI
The optional potential-free Profibus interface (12 Mbps) can be used to interconnect
distributed field devices or for linking to SIMATIC S7.
The "PROFIBUS" software package is needed to link to S7 automation systems.
COM1/TTY
You can connect the Field PG to a SIMATIC S5 programmable controller via the optional
TTY interface.
You will need the "SIMATIC STEP 5 V7.23" software to link to S5 programmable controllers.
WLAN
You can link the Field PG to an Industrial Wireless LAN network using the integrated WLAN
interface.
Information on Industrial Wireless LAN can be found in SIMATIC NET
(http://www2.automation.siemens.com/net)
Further information
Additional information is available in the catalog and the online ordering system Industry
Automation and Drive Technologies - Homepage
(http://www.siemens.com/automation/service&support).
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
51
Integration into an automation system
52
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
9
Operating
9.1
SIMATIC Software
Starting STEP 5 (not included in all delivery variants)
Please note that an authorization is required to work with STEP 5. For more information,
refer to Initial commissioning - initial startup (Page 39).
In Windows, click on the Start button and select the desired program with Simatic > STEP 5.
NOTICE
When using the P tools supplied with STEP 5 (for editing PCP/M files), remember that
these are no longer supported fully by Windows XP Professional.
Note
Running SIMATIC STEP 5 on devices that have Dual-Core processors
A "blue screen" can occur on rare occasions when SIMATIC STEP 5 is run on devices that
have Dual-Core processors. The Field PG M3 has an additional boot menu entry that sets
Single-Core operation. If you run SIMATIC STEP 5, please select the boot menu entry
"Microsoft Windows XP Professional for STEP 5 Operation".
SIMATIC STEP 5
Please note that the enclosed software SIMATIC STEP 5 is released solely for Windows XP.
If an unsuitable operating system is used, we recommend that you can create a further boot
option with Windows XP. If you have any questions about creating further boot options or
require product support, please contact the Customer Support SIMATIC Hotline:
Technical Support (http://support.automation.siemens.com).
STEP 5 authorization
To transfer the STEP 5 authorization, start the program install.exe from the License Key in
the folder USB_Stick:>\UCL. Follow the instructions on the screen to transfer the
authorization.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
53
Operating
9.1 SIMATIC Software
Starting STEP 7
Please note that a license key is required to work with STEP 7. For more information, refer to
Initial commissioning - initial startup (Page 39).
● In the Windows desktop, click the SIMATIC Manager icon, or
● Click the Start button, and select the desired program with Simatic > STEP 7.
Note
The Archive/Retrieve function in STEP 7 is used to transfer a STEP 7 project from one
PG to another. To transmit, in the SIMATIC Manager select File > Archive or File >
Retrieve. A detailed description of the procedure is given in section "Steps for File
Archiving/Retrieval" of the online help for STEP 7.
Starting WinCC flexible
Please note that a license key is required to use WinCC flexible.
● In the Windows desktop, click on the SIMATIC Manager icon, or
● Click the Start button, and select the desired program with Simatic > WinCC flexible.
Starting the TIA Portal
How to start the TIA Portal:
● Click the TIA Portal icon on the Windows Desktop:
● Click the Start button and select the following path:
All Programs > Siemens Automation > Totally Integrated Automation Portal V10
54
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Expansions and parameter assignment
10.1
10
Installing/removing memory modules
Memory expansion options
The motherboard is equipped with 2 slots for DDR3 memory modules. This allows you to
upgrade the memory capacity of your PG to a maximum of 8 GB. The maximum memory
module size is 4 GB.
Preparation
1. Make sure the device is not in Standby mode (unsaved data could be lost) and that the
device cannot get damaged.
2. Disconnect the device from the power supply system and remove the battery. See:
Replace the battery (Page 61).
3. Remove all connecting cables from the device.
4. Close the display unit.
5. Place the PG with the display unit face down on an level surface.
CAUTION
The electronic components on the PCBS are highly sensitive to electrostatic discharge.
It is therefore vital to take precautionary measures when handling these components.
Refer to the ESD guidelines (Page 105) for a description of these measures.
NOTICE
Please use only Siemens memory modules as these have been qualified and cleared
for use in this device. You will find the order data in the catalog.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
55
Expansions and parameter assignment
10.1 Installing/removing memory modules
Removing a memory module
How to remove a memory module
1
Remove the battery.
2
Remove the screw that secures the cover.
3
Remove the cover.
4
Carefully push the two clamps to the side.
The memory module folds up.
5
Pull the memory module out of the slot.
56
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Expansions and parameter assignment
10.1 Installing/removing memory modules
Installing the memory module
How to install a memory module
1
Insert the memory module into the slot with
the connection contacts in front. Pay
attention to the notch (locking element) on
the side of the connector.
2
Carefully push the module downwards until
the lock engages.
3
Put the cover back over the slot and fasten
this with the screw.
4
Insert the battery again and connect the
device to the power supply system.
CAUTION
After insertion the module must be securely fixed in the slot; otherwise the module could fall
out or be damaged.
Display of the current memory configuration
The memory expansion is automatically detected. The working memory configuration is
shown in the Main menu (Page 87) of the BIOS Setup.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
57
Expansions and parameter assignment
10.1 Installing/removing memory modules
58
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Service and maintenance
11.1
Removing and installing hardware components
11.1.1
Replacing a hard disk bay
11
To be noted prior to replacing
1. Make sure the device is not in Standby or Hibernate mode. Unsaved data might be lost
and the device can get damaged.
2. Disconnect the device from the power supply system and remove the battery. See:
Replace the battery (Page 61).
3. Remove all connecting cables from the device.
CAUTION
Note the ESD guidelines (Page 105).
WARNING
Replace the hard disk only with one of the same type. The hard disk is available as a
spare part. You will find the order data in the catalog.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
59
Service and maintenance
11.1 Removing and installing hardware components
Removing the hard disk assembly
How to remove the hard disk assembly
1
Open the display.
2
Remove both screws (Torx T8) on the
cover of the hard disk assembly.
3
Open the cover and remove the hard
disk assembly.
Inserting the hard disk assembly
How to insert the hard disk assembly
60
1
Push the new hard disk assembly into
the slot until it reaches the endstop.
3
Close the cover, and secure it with the
two screws.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Service and maintenance
11.1 Removing and installing hardware components
11.1.2
Hard disk kit
You can order the hard disk kit with order number 6ES7791-2BA01-0AA0. This consists of a
hard disk module (see the order documents for details of the hard disk capacity), a Torx
screwdriver, and a transport and storage bag.
With the SATA to USB adapters (order no. 6ES7790-1AA00-0AA0), you can easily create an
image of your system for backup purposes, or as the basis for system-specific installations.
11.1.3
Replace the battery
To be noted prior to replacing
WARNING
Replace the battery only with a battery of the same type. The battery is available as a spare
part. You will find the order data in the catalog.
Disposal
Lithium ion batteries can be recycled. Their components can be used as raw materials for
new batteries or other products. The prerequisite for an effective recycling is to sort the used
batteries according to type.
NOTICE
Observe the local conditions for the disposal of recyclable materials.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
61
Service and maintenance
11.1 Removing and installing hardware components
Replace the battery
How to replace the battery
1
Turn the PG over so that it is lying on
the table with its display unit closed.
2
Release the battery cover on the
bottom of the device and open it.
3
Replace the battery ①.
4
Close the cover and turn the device
over again.
11.1.4
Replacing the backup battery
The Field PG has a backup battery. This supplies the hardware clock with power even when
the device has been switched off.
Batteries are subject to wear and tear and should be replaced after five years to make sure
that your PG works correctly.
NOTICE
The backup battery should only be replaced by the repair center. If you have any queries,
please contact your service office or your sales partner.
CAUTION
Risk of damage!
The lithium battery must only be replaced with an identical battery, or with a type
recommended by the manufacturer (order no: A5E00047601).
WARNING
Danger of explosion and the release of harmful substances!
Do not throw lithium batteries into an open fire, do not solder, or open the cell body, do not
short-circuit, or reverse polarity, do not heat up above 100 °C, follow the disposal
instructions, and protect against direct exposure to sunlight, humidity, and condensation.
CAUTION
Batteries must be disposed of in accordance with local regulations.
62
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Service and maintenance
11.2 Reinstalling the software
11.2
Reinstalling the software
11.2.1
General installation procedure
If errors occur in your software installation, use the recovery CD, and the "Software for Field
PG" DVD to reinstall the software.
Recovery CD:
Contains the tools for setting up hard disk drives and the operating system.
"Software for Field PG" DVD:
Contains the documentation, the SIMATIC software and the hardware drivers.
11.2.2
Restore the system
Retrieving an authorization or license key from the hard disk
● Check to see if, using the Automation License Manager, you can retrieve your
authorization or the license key from the hard disk and back it up onto a license key
memory stick or another data medium.
● If it is not possible to backup your authorization, please contact the Customer Support
Hotline. There you can obtain information necessary for your software authorization.
Restoring the factory condition
The optional accessory "Image & Partition Creator V3.0" enables you to back up and restore
the factory condition. The program enables you to create a backup image of a disk drive and
retrieve a disk drive from a backup image.
The backup image of your device in its as-delivered condition is contained in the D:\Restore
directory.
CAUTION
Please observe the safety instructions in the documentation. Incorrect handling of the
program could result in the loss of the operating system, the programs and the saved data.
NOTICE
Any data on the partition on which you are recording the image will be lost with this
procedure. Make sure to back up your SIMATIC license keys to a license key memory stick
beforehand using the Automation License Manager (ALM).
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
63
Service and maintenance
11.2 Reinstalling the software
Note
We recommend, after the installation of your user software, that you make backups
cyclically.
11.2.3
Setting up the operating system via the Recovery CD/DVD
Use the supplied Recovery CD/DVD to install Windows to suit your particular requirements.
You will also need the supplied "Software for Field PG" DVD.
Booting with the Recovery CD/DVD
1. Insert the Recovery CD/DVD in your drive and reboot the device. When the following
BIOS message appears:
Press <F2> to enter SETUP or <F12> to display the boot menu.
press ESC. The "Boot Menu" is displayed when initialization is completed.
2. To boot from the Recovery CD or DVD, when BIOS outputs the message:
Press <F2> to enter SETUP or <F12> to display the boot menu.
press F12.
The boot menu displayed after initialization indicates all boot devices.
3. Select "CD/DVD-ROM Drive".
Please follow the on-screen instructions until the "Siemens SIMATIC Recovery" window
appears.
When using the recovery function with Windows 7, confirm that you want to boot from CD
or DVD at startup. Otherwise the system boots from hard disk if you have a bootable hard
disk installed.
The following sections describe older Windows operating systems. The recovery of Windows
7 is described in the section Recovery of Windows 7.
Partition setup
After you have installed a new hard disk, or if partitions are faulty, or when you want to
change the partitioning on your hard disk, you will need to set up partitions on the hard disk.
CAUTION
When you delete or create partitions or logical DOS partitions, you lose all data on the hard
disk. All partitions on the hard disk will be deleted.
64
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Service and maintenance
11.2 Reinstalling the software
With Windows XP operating systems, the factory state features two partitions with an NTFS
file system on the hard disk. To restore the partitions to factory state, follow the on-screen
instructions:
● To install the selected partition, select "ENTER"
● To create a new partition in an unpartitioned area, press C.
● To delete the selected partition, press D.
Note
The on-screen instructions are in English.
Installation of the operating system.
Follow the on-screen instructions when the "Windows XP Professional Setup" window
appears.
Note
Note that there must still be free space on the drive after the selected recovery data has
been transferred:
50000 MB for Windows XP
Note
If you want to use Windows XP as a professional you should have the following manual (not
included in the product package) available:
Microsoft Windows XP Professional, the technical reference" (MSPress Nr 934).
This manual contains information specifically for administrators involved in installing,
managing and integrating Windows in networks or multi-user environments.
Setting up the language selection for Windows XP Professional
The Multilanguage User Interface (MUI) allows you to set up the Windows XP Professional
menus and dialogs for additional languages.
To install the MUI, start the program MUISETUP.EXE in the folder
CD_DRIVE:\MUI
of the "MUI-english" Recovery CD/DVD or in root folder of the "MUI Windows XP" Recovery
CD/DVD. Follow the instructions on the screen to install the required languages.
Default language of your Windows XP MUI installation is English and a US keyboard layout.
You can change the language in the Control Panel. Select:
Start > Control Panel > Regional and Language Options Languages, tab Language used in menus
and dialogs field.
For the Regional and Language Options set the default as non-Unicode programs under Advanced in
addition to the language for menus and dialogs.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
65
Service and maintenance
11.2 Reinstalling the software
11.2.4
Recovery of Windows 7
There is a full graphical user interface available for recovery of Windows 7. It may take
several minutes before the first input window appears. In this window, you can set the time
and currency formats and select the keyboard language.
English is the basic language and other languages can be installed later with the MUI. The
MUI is on the recovery DVD.
Now follow the on-screen instructions. It may take several minutes before the next prompt for
the product key is displayed.
Note
Due to the previous activation, you do not need to enter the product key (COA number). This
is entered automatically during the installation.
Setting up and formatting partitions
After you have installed a new hard disk, or if partitions are faulty, or when you want to
change the partitioning on your hard disk, you will need to set up partitions on the hard disk.
In the next dialog box, you can set up the hard disk according to your requirements and add
controllers that are not yet known to the system.
66
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Service and maintenance
11.2 Reinstalling the software
Options
Meaning
Drive options (advanced)
Further functions are displayed with which you can set up the hard
disk.
Load Driver
To add new drivers, for example the driver for RAID.
Options
Meaning
Refresh
Updating
Delete
Deleting a partition
Format
Formatting a partition
New
Creating new partitions
Load Driver
To add new drivers, for example the driver for RAID
Extend
Changing the partition size
Any error messages that occur are displayed behind this icon, for
example if the hard disk was not formatted in the required "NTFS"
format.
The first partition should be at least 50 Gbytes. The operating system must be installed on
this partition. You can use the rest of the hard disk as a data partition. Both partitions must
be installed as the NTFS file system.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
67
Service and maintenance
11.2 Reinstalling the software
When shipped, the partitions are set up as follows:
Partition
Operating system
Name
Size
File system
First
Windows 7
System
50 GB
NTFS not compressed
Second
Windows 7
DATA
Remainder
NTFS not compressed
Following a required reboot, Windows 7 is installed on the hard disk. This process takes at
least 20 minutes.
Now follow the instructions on the screen.
Note
If you want to use Microsoft Windows as a professional user, you should have the following
manual available (not supplied):
Windows 7 Technical Reference (MS Press No. 5927)
This manual contains information specifically for administrators involved in installing,
managing and integrating Windows in networks or multi-user environments.
Setting up the language selection in Windows 7
With the Multilanguage User Interface (MUI), you can set up the Windows menus and
dialogs for additional languages. When shipped, Windows 7 is installed with English menus
and dialogs. You can change this in the Control Panel with the "Regional and Language
options" or "Time and Date" dialogs.
Here, you can change all system formats:
Start > Control Panel > Clock, Language, and Region > Change display language >
Regional and Language options
Here, you can only change the date and time formats:
Start > Control Panel > Clock, Language, and Region > Change display language > Time
and Date
If you want to install additional languages, you can install these later in the Control Panel, as
follows. You will find the necessary files on the recovery DVD in the "Languagepacks" folder.
Start > Control Panel > Clock, Language, and Region > Change display language >
Regional and Language options > Keyboards and Languages
68
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Service and maintenance
11.2 Reinstalling the software
11.2.5
Installing drivers and software
NOTICE
In the case of multilingual operating systems (MUI versions) you have to set menu, dialog
boxes and default language to English (US) in the regional settings before installing the
new drivers and operating system updates.
Installing the drivers
1. Insert the "Software for Field PG" DVD. You must have Acrobat Reader installed.
2. Navigate to the driver list (language-, OS- and device-specific).
3. Install the relevant driver according to the specifications in the driver list.
Installing the SIMATIC software
1. Insert the "Software for Field PG" DVD.
2. Launch the "Simatic Setup".
NOTICE
The license key disk with the authorizations or license keys necessary for operating the
SIMATIC software is only available with the delivery variants that include the respective
SIMATIC software.
The installation of the authorizations or activation of the license key is described in
Section Initial commissioning - initial startup (Page 39).
Installation of SIMATIC WinCC flexible software
1. Insert the WinCC flexible DVD.
2. If the Setup installation program does not start automatically, you must start the "Setup"
program in the "\CD_1" folder.
11.2.6
Installing the burner or DVD software (optional)
You will find notes on installing the burner/DVD software on the supplied CD-ROM and in
Section Optical drive (Page 43).
You can use the Windows Server 7 operating system to burn data carriers. A separate
burner software is not supplied for this reason.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
69
Service and maintenance
11.2 Reinstalling the software
70
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
12
Troubleshooting/FAQs
12.1
General problems
This chapter provides you with tips on how to locate and troubleshoot common problems.
Problem
Possible cause
To correct or avoid error
The device is not
operational.
There is no power supply to
the device.
Check the power supply, the power cord or the power plug.
You can move the mouse
pointer with the touchpad
under Windows
PG is switched off
Press the power button
The battery is empty or not
installed
Charge or install battery.
Touchpad is switched off
Switch on the touchpad via the Hot Key Fn + F4
Wrong time and/or date on
the PG.
1. Press <F2> during the boot sequence to open BIOS
Setup.
2. Set the time and date in the setup menu.
Although the BIOS setting is The backup battery is dead.
OK, the time and data are
still wrong.
In this case, please contact your technical support team.
USB device not responding. The operating system does
not support the USB ports.
Enable USB Legacy Support for the mouse and keyboard.
For all other devices you will need USB drivers for the specific
operating system.
DVD/CD: The front loader
does not open.
The device is switched off,
or the open/close button is
disabled by a software
application.
Emergency removal of the data medium:
1. Switch off the device.
2. Insert a pin, for example, or an opened paper clip into the
emergency extraction opening of the drive. Apply slight
pressure to the contact until the front loader opens.
3. Pull the loader further out.
The message "Invalid
configuration information...
Press the F1 key for
continue, F2 to run Setup
utility" appears on the
display.
Defective configuration data
Press the "F2" key, and in the SETUP program check the
configuration data, enter any default values, and check error
messages in the first SETUP screen
The following message
appears on the display: "No
boot device available"
NTLDR not found, check
the boot data medium...
Incorrect hard disk type
entered in SETUP
Use the "Autodetect Fixed Disk" function
The following message
A key has been blocked
appears on the display:
during system self-test of
"Keyboard stuck key failure" the keyboard
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Check the keyboard and, if necessary, restart the system
71
Troubleshooting/FAQs
12.2 Problems with Wireless LAN
Problem
Possible cause
To correct or avoid error
A beep sounds when a key
is pressed but no character
is displayed
Keyboard buffer is full
<CTRL> <PAUSE>
< \ > key not available
incorrect keyboard driver is
being used
with German keyboard drivers: <ALTGr> < ß>
12.2
with international keyboard drivers: < \>
Problems with Wireless LAN
The following lists the possible causes for problems with Wireless LAN:
Cannot connect with WLAN

Check that you have enabled the WLAN.
You can toggle the WLAN on and off with the hotkey Fn + F3.

Check that the other WLAN partner is active.

Check the settings of the WLAN connection.
Follow the instructions on configuring and operating the WLAN in the online help for the WLAN
network adapter.
Data transmission speed is too low

Please note that the data rate stipulated and visible under Windows is only a theoretical value /
corresponds to the gross value. Determined by the transmission procedure, the actual applicable
data rate for the data transmission is usually around 50% of the gross value.

The maximum data transmission speed is dependent on many factors.
First check that all the network components conform to the IEEE 802.11 a/b/g/n standard and that
this method of transmission is set.

72
The spatial arrangement of the network components can also negatively influence the
transmission.
– The distances between the components should be as short as possible.
– Masonry or reinforced concrete walls have a negative effect on the transmission performance
and can, under some circumstances, prevent a connection from being established. For the
best performance, a line-of-sight connection of the network components is preferred.
– A high load on the network, perhaps from too many simultaneous access attempts from
different nodes, can lead to lower data rates or communication problems.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Troubleshooting/FAQs
12.2 Problems with Wireless LAN
Operation in the environment with EMC interference
On rare occasions higher interference potential in the vicinity of the Field PG M3 may result
in malfunctions of the integrated touchpad.
The malfunction manifests itself in the triggering of unintentional key clicks or delays in the
movement of the cursor. In such cases we recommend eliminating the cause of the
interference or establishing a greater distance to the source of the interference.
If working in an interference-prone environment cannot be avoided, deactivate the tap
function (mouse button emulation) by using the touchpad driver. Afterwards use the
touchpad keys below the touchpad for operation.
NOTICE
Modem disconnection
Faults in the phone line caused by a lightning strike (surge) can cause the modem to be
disconnected.
Re-establish the connection after the cause has been eliminated.
Procedure – deactivating the tap function of the touchpad
1. Click "Start" and open the "Control Panel".
2. In the "Category view" first select "Printers and other hardware" and then the "Mouse"
menu. In the "classical view" you can select the "Mouse" menu directly.
3. Select the "Device settings" tab and click the "Settings" tab.
4. Select the "Tap" button and deactivate the "Activate tapping" check box.
5. Click "Apply".
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
73
Troubleshooting/FAQs
12.2 Problems with Wireless LAN
74
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
13
Technical data
13.1
General specifications
General technical data
Order nos.
See order documents or rating plate
Dimensions
385 x 53 x 275 (W x H x D in mm)
Weight


Supply voltage (UN)
100 V to 240 V AC (±10%), sinusoidal
Line voltage frequency
50 - 60 Hz (47 to 63 Hz)
Max. power consumption (AC)
Output voltage of the power supply unit
(DC)
Output current of the power supply unit
(DC)
Output power of the power supply unit
(DC)
Standby power (in battery mode)
Lithium ion battery (9 cells) with charge
level indicator)
100 W
19 V
Max. 4.7 A
Max. 90 W
Typ. 1.5 W
Approx. 6600 mAh, 10.8 V with thermal switch and
multifuse, recyclable, chargeable up to 40oC, high
number of cycles with rough use, low self-discharge
Noise emissions
< 45 dB(A) to DIN 45635
Degree of protection (entire device)
IP 30 (with closed covers)
according to IEC 60529
Without battery Approx. 3 kg
With battery: Approx. 3.4 kg
Security
Protection class
Safety class II according to IEC 61140
Safety specifications






According to VDE 0805 in conformance with IEC
60950-1:2006
IEC 60950-1:2005
EN 60950-1:2006 with change
EN 60950-1:2006/A11:2009
DIN EN 60950-1 (VDE0805-1):2006-11 with change
DIN EN 60950-1/A11
(VDE0805-1/A11):2009-11
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1-07 Second Edition
Electromagnetic compatibility (EMC)
Emitted interference
EN 61000-6-3:2007, EN 61000-3-2 Class D and
EN 61000-3-3
Noise immunity:
Mains borne disturbance variables on
supply lines
± 2 kV; (according to IEC 61000-4-4; Burst)
± 1 kV; (according to IEC 61000-4-5; Surge sym./
line to line)
± 2 kV; (according to IEC 61000-4-5; Surge sym./
line to earth)
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
75
Technical data
13.1 General specifications
General technical data
Noise immunity on signal lines

± 1 kV;

(acc. to IEC 61000-4-4; burst; length <30 m)
± 2 kV;

(acc. to IEC 61000-4-4; burst; length >30 m)
± 2 kV;
(acc. to IEC 61000-4-5; surge pulse/cable to ground;
length > 30 m)
Immunity to discharges of static electricity ± 4 kV contact discharge (according to IEC 61000–4-2;
ESD)
± 8 kV air discharge (according to IEC 61000-4-2; ESD)
Immunity to RF interference
10 V (max. 3 V in modem mode), with 80% amplitude
modulation at 1 kHz,
10 kHz - 80 MHz (to IEC 61000-4-6)
10 V/m (in modem mode max. 3 V/m), with 80%
amplitude modulation at 1 kHz,
80 MHz to 1000 MHz and 1.4 GHz to 2 GHz
(to IEC 61000-4-3)
1 V/m, with 80% amplitude modulation at 1 kHz,
2.0 GHz – 2.7 GHz 1 V/m (to IEC 61000-4-3)
Magnetic field
100 A/m, 50 Hz and 60 Hz (acc. to IEC 61000-4-8)
Climatic conditions
Temperature
tested to IEC 60068-2-1, IEC 60068-2-2
During operation *
+ 5 °C to + 40 °C max. 10 °C/h (no condensation)
Storage/transport
–20 °C to + 60 °C at max. 20 °C/h (no condensation)
Relative humidity
tested to IEC 60068-2-78, IEC 60068-2-30,
IEC 60068-2-14
During operation
5% to 80% at 25 °C/h (no condensation)
Storage/transport
5% to 95% at 25 °C/h (no condensation)
Mech. Ambient conditions
Vibration
Tested in accordance with DIN IEC 60068-2-6
Operation *
10 to 58 Hz; amplitude 0.0375 mm
58 to 500 Hz; acceleration 4.9 m/s2
Transport
5 to 9 Hz; amplitude 3.5 mm,
9 to 500 Hz: Acceleration 9.8 m/s2
Shock
Tested in accordance with IEC 60068-2-27
Operation *
Half-sine, 50 m/s2, 30 ms, 100 shocks
Storage/transport
Half-sine, 250 m/s2, 6 ms, 1000 shocks
Special Features
Quality assurance
According to ISO 9001
Motherboard
Processor


RAM
76
Intel® Pentium Dual Core® processor
(1.86 GHz, 2MB cache)
Intel® CORE i5-520M processor
(2.40 GHz, 3MB cache)
Expandable to 8 GB DDR3 SODIMM
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Technical data
13.1 General specifications
General technical data
Disk drives
Hard disk
2.5" SATA hard disk, capacity see BIOS
Optical drive
DVD+-R/+-RW
Graphics
Graphic controller
Intel® HD Graphics
Graphic controller memory
Graphics memory 8 to 256 MB DDR3 RAM,
partly using dynamic sharing of system memory
Resolutions/frequencies/colors
According to the setting options of the graphics driver
LCD display
Display type
TFT (Thin Film Transistor), 16: 9, anti-reflection
Display size
344 x 194, corresponding to 15.6"
Screen resolution


Possible colors
maximum 256 k
Vertical frequency
60 Hz
Contrast
> 200 : 1
Brightness
> 150 cd/m2
Permissible defective areas
light and dark pixel: Max. 10
1366 x 768 (HD ready)
1920 x 1080 (full HD)
Audio
Audio controller
IDT 92HD81, UAA compatible
Internal loudspeaker
Maximum output power 2 x 1 W
WLAN
IEEE 802.11. a/b/g/n
Keyboard
Variant
Standard notebook
Key distance
19 mm
Key drop
3 mm
Labeling


Pointing device integrated
Touchpad with 2 mouse buttons
International / German
AZERTY layout (optional)
Interfaces
COM
TTY/V.24 (optional)
Serial interface TTY (20 mA), depending on
configuration, cannot be retrofitted
 "Premium/S5" configuration variant used as standard;
 Active to 100 m, (25-pin socket), no galvanic isolation
or serial interface V.24
DVI-I
Interface for external monitor (VGA monitors can be
operated with a DVI/VGA adapter)
Expansion slots


SIMATIC Memory Card
Programming interface for SIMATIC memory card and S5
memory module
SIMATIC Micro Memory Card
Interface for SIMATIC Micro Memory Card
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
1 x PC Card (Type I, Type II)
1 x Express Card (34 and 54 mm)
77
Technical data
13.1 General specifications
General technical data
Media Card Reader
Interface for
SMC (SIMATIC Memory Card)
SD/SDHC
MMC
xD-Picture Card
MS Pro
USB 2.0
5 interfaces for high-speed universal serial bus,
max. 4 high current (500 mA) or 1 A per interface block
PROFIBUS/MPI interface
9-pin sub-D socket
Transmission speed
9.6 kBaud to 12 MBaud, software configured
Mode of operation
Isolated:
- Data channels A, B
- Control lines RTS AS, RTS_PG
- 5 V supply voltage (max. 90 mA)
Grounded:
- Shielding of the DP12 connection line
Physical port
RS485, electrically isolated
Memory address area
0CC00h to 0CC7FFh or 0DC000h to 0DC7FFh
Interrupts
IRQ 5, 10, 11 or 15 software configured
Ethernet
2 x Gigabit Ethernet (RJ45)
Modem
RJ-11 V.92 Motorola SM56
DC-In
DC power supply input, jack plug
Headphones and microphone
Connection for each 3.5 mm jack plug
Status displays on the device
Caps Lock
Num Lock
WLAN active
Battery status
Device status
Access to HD/DVD
S5 module/memory card
MPI/DP
* Burning
with the optical drive is only permitted in an undisturbed environment and up to a
maximum ambient temperature of 35 °C.
78
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
14
Detailed descriptions
14.1
Interfaces
14.1.1
External interfaces
DC-In
The AC/DC power supply is connected to this jack. This has the following charge:
9'&
9*URXQG
USB
The Universal Serial Bus port (2.0) has the following pinout:
USB 2.0 interface
Pin no.
Short designation
Meaning
Input/output
1
VCC
+ 5 V (fused)
Output
2
– Data
Data line
Input/output
3
+ Data
Data line
Input/output
4
GND
Ground
–
The connectors are of type A.
The ports are rated as high-current USB 2.0 (500 mA). However they cannot all be operated
simultaneously with high current.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
79
Detailed descriptions
14.1 Interfaces
Serial port COM1 (V.24/TTY, optional)
Serial port COM 1 (socket)
Pinno.
Short designation
Meaning
Input/output
1
-
Shielding
-
2
TxD (D1)
Serial transmit data
Output
3
RxD (D2)
Serial receive data
Input
4
RTS (S2)
Request to send
Output
5
CTS (M2)
Clear to send
Input
6
DSR (M1)
Ready for operation
Input
7
GND (E2)
Functional ground (reference
potential)
-
8
DCD (M5)
Data carrier detect
Input
9
+TTY RxD
Current loop receive
Input
10-17
-
Not used
-
18
+TTY TxD
Current loop send
Output
19
+20 mA
Potentially isolated power source
-
20
DTR (S1)
Data terminal ready
Output
21
-TTY TxD
Current loop send
Output
22
RI (M3)
Incoming call
Input
23-25
-
Not used
-
Gender changer for COM1
With the gender changer (25-pin / 9-pin) the COM1/V.24/AG port can be converted to the
usual 9-pin male connector. For this, you only have to plug the adapter onto the COM1
socket and secure it with the two hexagonal head screws.
The V.24 and TTY ports of the COM1 can be used alternatively.
80
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.1 Interfaces
DVI-I port
DVI-I port
Pinno.
Short designation
Meaning
Input/output
S
GND
Ground
–
S1
GND
Ground
–
C1
R
Red
Output
C2
G
Green
Output
C3
B
Blue
Output
C4
HSYNC
Horizontal synchronizing pulse
Output
C5
GND
Ground
-
CSA
GND
Ground
-
1
TX2N
TDMS data 2-
Output
2
TX2P
TDMS data 2+
Output
3
GND
Ground
–
4
NC
Not used
–
5
NC
Not used
–
6
DDC CLK
DDC clock
Input/output
7
DDC CLK
DDC data
Input/output
8
VSYNC
Vertical synchronizing pulse
Output
9
TX1N
TDMS data 1-
Output
10
TX1P
TDMS data 1+
Output
11
GND
Ground
–
12
NC
Not used
–
13
NC
Not used
–
14
+5 V
+5 V
Output
15
GND
Ground
–
16
MONDET
Hotplug detect
Input
17
TX0N
TDMS data 0-
Output
18
TX0P
TDMS data 0+
Output
19
GND
Ground
–
20
NC
Not used
–
21
NC
Not used
–
22
GND
Ground
–
23
TXCP
TDMS clock +
Output
24
TXCN
TDMS clock -
Output
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
81
Detailed descriptions
14.1 Interfaces
PROFIBUS/MPI interface
The PROFIBUS/MPI socket has the following pinout:
PROFIBUS/MPI interface
Pinno.
Short designation
Meaning
Input/output
1
–
Not used
–
2
–
Not used
–
3
LTG_B
Signal line B of MPI module
Input/output
4
RTS_AS
RTSAS, control signal for received data
stream. The signal is "1" active when the
directly connected PLC is sending.
Input
5
M5EXT
M5EXT return line (GND) of the 5 V power
supply. The current load caused by an external
consumer connected between P5EXT and
M5EXT must not exceed the maximum of 90
mA.
Output
6
P5 EXT
P5EXT power supply (+5 V) of the 5 V power
supply. The current load caused by an external
consumer connected between P5EXT and
M5EXT must not exceed the maximum of 90
mA.
Output
7
–
Not used
–
8
LTG_A
Signal line A of MPI module
Input/output
9
RTS_PG
RTS output signal of the MPI module. The
control signal is "1" when the PG is sending.
Output
Shieldin
g
82
on connector casing
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.1 Interfaces
Ethernet RJ45 connection
Ethernet RJ45 port
/('
/('
Pinno.
Short designation
1
BI_DA+
Bi-directional data A+
Input/output
2
BI_DA-
Bi-directional data A-
Input/output
3
BI_DB+
Bi-directional data B+
Input/output
4
BI_DC+
Bi-directional data C+
Input/output
5
BI_DC-
Bi-directional data C-
Input/output
6
BI_DB-
Bi-directional data B-
Input/output
7
BI_DD+
Bi-directional data D+
Input/output
8
BI_DD-
Bi-directional data D-
Input/output
S
Meaning
Input/output
Shielding
–
LED 1
OFF
Lights up green
Lights up orange
10 Mbps
100 Mbps
1 Gbps
–
LED 2
Lights up green
Flashes green
Connection exists
No activity
–
RJ11 (connection for modem)
Micro-In
The socket has the following pinout:
/HIW
5LJKW
*1'
PPPLFURSKRQHMDFNSOXJ
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
83
Detailed descriptions
14.2 Connecting cables
Headphones
The socket has the following pinout:
/HIW
5LJKW
*1'
PP6WHUHRSKRQRSOXJ
Excessive sound pressure of earphones / headphones can result in hearing impairment or
hearing loss.
Setting the volume and the equalizer to a setting other than the medium, will increase the
output voltage of the earphones / headphones and therefore the sound pressure value.
The use of factors that influence the output power of the earphones / headphones (such as
operating system, equalizer software, firmware, driver) and that are not approved by the
manufacturer, may increase the output voltage of the earphones/headphones and therefore
the sound pressure value.
14.2
Connecting cables
SIMATIC S5 cabling
The SIMATIC S5 cable (not always supplied as standard) allows you to connect your PG to
a SIMATIC S5 automation device. Note the information in Connect the PG to the S5
automation device (Page 36).
3DWFKFRUG
(6%'
LQFOXGHGLQWKHFRQVLJQPHQW
3*VLGH
SROHSLQVWULS
DFWLYH
8
2KP
3/&VLGH
SROHSLQVWULS
SDVVLY
8
8
2KP
8
+RXVLQJ 84
6KLHOGLQJ
+RXVLQJ
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.3 System resources
SIMATIC S7 cable for MPI/DP
The 6ES7901-0BF00-0AA0 cable is used to connect your PG to a SIMATIC S7 automation
system. Note the information in Connect the PG to the S7 automation system or the
PROFIBUS network (Page 38).
14.3
System resources
Currently allocated system resources
All system resources (hardware addresses, memory configuration, allocation of interrupts,
DMA channels) are assigned dynamically by the Windows OS, depending on the hardware
configuration, drivers and connected external devices. You can view the current assignment
of the system resources, or any conflicts with the following operating systems:
Windows XP
Start > Run : in the Open dialog, enter "msinfo32" and confirm with OK
Windows 7
Start > Enter "cmd" in the search function, then enter "msinfo32" in the input
box
14.4
BIOS Setup
14.4.1
Overview
BIOS SETUP program
BIOS SETUP allows you to set the hardware configuration, and system properties. SETUP is
also used to set the time and date of the real time clock.
Changing the device configuration
Your device configuration is preset for use with the software supplied. You should only
change the default values if you have modified the technical configuration of your device, or
if a fault occurs when it is powered up.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
85
Detailed descriptions
14.4 BIOS Setup
Starting BIOS SETUP
Run SETUP as follows:
1. Reset the device (warm or cold restart). With the default setting of the PG, the display
shown below appears following power-on, for example:
SIMATIC Field PG M3
Press <F2> to go to SETUP Utility
Press <F12> to go to Boot Manager
2. Press the F2 key as long as the BIOS prompt appears on the screen.
BIOS Setup menus
The various menus and submenus are listed on the next pages.
86
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.4 BIOS Setup
14.4.2
Main menu
Figure 14-1
Main menu (example)
Settings in the main menu
In the main menu, use the [↑] up and [↓] down cursor keys to move between the following
system configuration boxes:
Field
Meaning
System Time
For viewing and setting the current time
System Date
For viewing and setting the current date
System time and date
System Time and System Date indicate the current values. Once you have selected an
option, you can use the [+] and [-] keys to change the
"Hour: Minute: Second" settings, or the date "Month/Day/Year".
You can move between the entries in the date and time fields (for example, from hour to
minute) using the Enter key.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
87
Detailed descriptions
14.4 BIOS Setup
14.4.3
Advanced Menu
Figure 14-2
"Advanced" menu (example)
Settings in the Advanced Menu
Entry
88
Meaning
Peripheral Configuration
Settings for components on the motherboard
SATA Configuration
Configuration of the SATA interface
Video Configuration
Settings for the screen output during the startup sequence
Chipset Configuration
Advanced chipset settings
CPU Configuration
Setting of various CPU parameters
e.g.: Single Core/Multicore
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.4 BIOS Setup
"Peripheral Configuration" submenu
Figure 14-3
"Peripheral Configuration" submenu (Example)
The parameters of the interfaces present on the motherboard are set here.
Entry
Meaning
Internal COM1
Enable or disable the serial port or configure it automatically (Auto)
With Enabled, it is possible to specify the I/O base address and the
interrupt.
Audio
Enable or disable the integrated audio controller
Onboard Ethernet 1
The first Ethernet interface is always active.
Onboard Ethernet 2
Enable or disable the onboard Ethernet-2 interface.
WLAN Transceiver
Disabled
(default)
The WLAN is always OFF when you switch on, or
restart the device. The state set under Windows is
retained after Hibernation or Standby mode.
Enabled
The WLAN is always ON when you switch on, or
restart the device. The state set under Windows is
retained after Hibernation or Standby mode.
Last State
The state set under Windows is retained after
switching on or restarting, and after Hibernation or
Standby mode.
You can always use hotkey Fn + F3 to switch the WLAN on/off under
Windows, regardless of the BIOS settings.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
89
Detailed descriptions
14.4 BIOS Setup
Entry
Meaning
Cardbus + SD Card
Enable or disable the Cardbus, SD Card.
PCI–MPI/DP
Enable or disable the CP 5611-compatible MPI/DP interface, and the
SIMATIC memory card port.
"SATA Configuration" submenu
Figure 14-4
90
"SATA Configuration" submenu (Example)
Entry
Meaning
SATA Controller mode
Enhanced
SATA Legacy mode
AHCI
SATA in AHCI mode
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.4 BIOS Setup
Submenu "Advanced Video Configuration"
"Advanced Video Configuration" menu (example)
Entry
Description
IGD boot type
Internal (default) screen output is carried during the startup on the
internal Display Auto
Screen output during the startup is carried out on the external screen, if
connected. If there is no external screen, the screen output is carried
out internally.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
91
Detailed descriptions
14.4 BIOS Setup
"Chipset Configuration" submenu
Figure 14-5
92
Advanced Chipset menu (Example)
Entry
Meaning
VT-d
Enable or disable advanced support for virtualization technology
Pass-Through DMA
Enable or disable
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.4 BIOS Setup
"Advanced CPU Control" submenu
Figure 14-6
Advanced CPU menu (example)
Entry
Meaning
CMP support
Auto
Multi Core operation, if available
Disabled
Single Core operation
Auto
Use hyperthreading, if available
Disabled
Hyperthreading disabled
HT Support
VT Support
Enable or disable Vanderpool Technology
Use XD Capability
Enable or disable XD Capability
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
93
Detailed descriptions
14.4 BIOS Setup
14.4.4
Security Menu
In this menu you can limit access to the PG by setting up passwords. First you must enter a
password for the supervisor. You can delete the supervisor password by entering the current
password, and repeatedly confirming the blank password box.
Figure 14-7
94
Security menu
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.4 BIOS Setup
14.4.5
Boot menu
"Boot" menu
Figure 14-8
"Boot" menu (example)
Entry
Example
UEFI Boot
Enable or disable
Quick Boot Mode
Enable or disable
If enabled, the PG starts faster because various tests are skipped.
Quiet Boot
If disabled the BIOS initial screen is displayed without a background
Post Errors
Never halt on
errors
Reboot even if an error occurs
Halt on all errors
Interrupt the boot operation when an error occurs.
All without
keyboard
Interrupt the boot operation when an error occurs.
All without
kb/smart
Interrupt the boot operation when an error occurs.
Exception:
Keyboard errors are ignored.
Exceptions:
Keyboard errors are ignored.
Hard disk S.M.A.R.T errors are ignored
Ethernet 1 Remote Boot
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Enable or disable booting of LAN (PXE) via P1.
95
Detailed descriptions
14.4 BIOS Setup
Entry
Example
Ethernet 2 Remote Boot
Enable or disable booting of LAN (PXE) via P2.
USB Boot
Enable or disable booting of the USB ports.
Legacy
Set traditional boot order (normal and advanced)
"Legacy Boot Device Priority" submenu
Figure 14-9
"Legacy Boot Device Priority" submenu
Entry
Example
Normal Boot Menu
Normal = Boot order depending on component type
Advanced = Individual boot order of all components
Boot Type Order
Submenu for setting the boot order of component groups relative to
one another
Hard Disk Drive
Submenu for setting the boot order within the hard disk group
CD/DVD–ROM Drive
Submenu for setting the boot order within the group of optical drives.
Note
Changing the order of boot entries
Press the "F6" key to move the selected boot entry up in the order.
Press the "F5" key to move the selected boot entry down in the order.
96
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Detailed descriptions
14.4 BIOS Setup
14.4.6
Version menu
Figure 14-10 "Version" menu (Example)
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
97
Detailed descriptions
14.4 BIOS Setup
14.4.7
Exit menu
Figure 14-11 "Exit" menu
98
Entry
Description
Exit Saving Changes
All changes are saved; a system restart is carried out with the new
parameters.
Exit Discarding Changes
All changes are discarded and the BIOS Setup is exited.
Load optimal defaults
All parameters are set to the recommended default values.
Discard Changes
Undoes all the changes you have made.
Save Change Without Exit
All changes are saved without exiting the BIOS.
Load User Profile
All the user-defined settings are loaded.
The user settings must have been saved beforehand with the
Save User Profile function.
Save User Profile
The set parameters are saved as a USER profile.
Load Manufacturer Profile
The manufacturer parameters are downloaded to the SETUP device.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
A
Appendix
A.1
Guidelines and declarations
Notes on the CE mark
The following applies to the SIMATIC product described in this
documentation:
RTTE directive
This product is designed for the following applications:
Application
Requirement for
Emissions
Immunity
Residential, business and commercial
operations, and small businesses
EN 61000-6-3: 2007
EN 61000-6-1: 2007
Industrial applications
EN 61000-6-4: 2007
EN 61000-6-2: 2005
The device complies with EN 61000-3-2:2006 (harmonic currents) and
EN 61000-3-3:2008 (voltage fluctuations and flicker.)
This product meets the requirements of EC directive 1999/5/EEC ”Radio Equipment and
Telecommunications Terminal Equipment - Use of the Radio Spectrum”: EN 300 328 V1.7.1
/ EN 301 893 V1.5.1 / EN 301 489-17 V1.3.2 / EN 302 489-1 V1.8.1
Directive 1999/5/EC contains the requirements of Directive 2004/108/EC "Directive of the
Council on the Approximation of the Laws of Member States relating to Electromagnetic
Compatibility (EMC Directive).
● Safety: see Low voltage directive
● Power system compatibility with modem interface:TBR21
Low voltage directive
This product fulfills the Directive 2006/95/EEC of the European Parliament and of the
Council on the harmonization of the laws of Member States relating to electrical equipment
designed for use within certain voltage limits.
Requirements of EC Directive 2006/95/EEC "Low voltage directive". Compliance with this
standard has been verified according to EN 60950-1:2006.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
99
Appendix
A.2 Certificates and approvals
Declaration of conformity
The EC declaration of conformity and the corresponding documentation are made available
to authorities in accordance with the EC directives stated above. Your sales representative
can provide these on request.
Installation guidelines
The installation guidelines and safety notices specified in the supplied documentation must
be adhered to during commissioning and operation.
Connecting peripherals
The requirements for noise immunity are met when you connect a peripheral suitable for an
industrial environment according to EN 61000-6-2:2005. Peripheral devices must only be
connected using shielded cables.
A.2
Certificates and approvals
DIN ISO 9001 certificate
The Siemens quality management system for all production processes (development,
production, and sales) meets DIN ISO 9001:2000 requirements.
This has been certified by DQS (the German society for the certification of quality
management systems).
Q-Net certificate no.: DE-001108 QM
Software License Agreement
The device is shipped with preinstalled software. Please observe the corresponding license
agreements. The license agreements for South Korea and China are being prepared.
Certifications for the United States, Canada, and Australia
100
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Appendix
A.2 Certificates and approvals
Product safety
The following approval is available for the device:
Underwriters Laboratories (UL) according to Standard UL 60950-1 Second Edition and
Canadian Standard CAN/CSA-C22.2 No. 60950-1-07 Second Edition
WLAN
The integrated wireless LAN conforming to IEEE 802.11 a/b/g/n is certified for Europe, the
USA and Canada:
Iterference-Causing Equipment Standard
Country Approvals/ Determinations
USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATMENT
This equipment has been tested and found comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used accordance with the
instruction manual, may cause harmful interference to radio communications.
Operations of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
SHIELDED CABLES
Shielded cables must be used with this equipment to maintain compliance with
FCC regulations.
MODIFICATIONS
Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
CONDITIONS OF OPERATION
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Canada
CANADIAN NOTICE
This Class B digital apparatus complies with Canadian ICES-003.
AVIS CANADIEN
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
101
Appendix
A.3 Service and support
A.3
Service and support
Local information
Contain your Siemens representative (http://www.siemens.com/automation/partner) if you
have questions about the products described here.
Technical documentation for SIMATIC products
You can find additional documentation for SIMATIC products and systems in the Internet:
SIMATIC Guide manuals (http://www.siemens.com/simatic-tech-doku-portal)
Easy shopping at the mall
You can find the online catalog and order system under:
Industrial Automation and Drive Technologies (http://mall.automation.siemens.com)
Training center
All the training options are listed at:
SITRAIN homepage (http://www.sitrain.com)
Technical support
You can contact technical support for all Industry Automation and Drive Technologies
products by:
● E-mail: [email protected]
● Internet: Online support request form: (http://www.siemens.com/automation/supportrequest)
When you contact the customer support, please have the following information for the
technician on hand:
● BIOS version
● Order No. (MLFB) of the device
● Installed additional software
● Installed additional hardware
Online Service & Support
Information about the product, Support and Service, right through to the Technical Forum,
can be found at: Industry Automation and Drive Technologies - Homepage
(http://www.siemens.com/automation/service&support)
After-sales information system for SIMATIC PC / PG
Information about contacts, drivers, and BIOS updates, FAQs and Customer Support can be
found at: After-sales information system for SIMATIC PC/PG (http://www.siemens.com/asis)
102
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Appendix
A.4 Accessories
A.4
Accessories
You can order accessories for the Field PG M3 using the following order numbers:
Order no.
Accessory
6ES7798-0GA02-0XA0
External Field PG M3 power supply
6ES7798-0DA01-0XA0
Field PG M3 carrying case
6ES7900-5AA01-0XA0
Power cable D, F, NL, E, B, A, S, SF, CH, I (Field PG M3 only)
6ES7900-5BA01-0XA0
Power cable UK (Field PG M3 only)
6ES7900-5DA01-0XA0
Power cable USA (Field PG M3 only)
6ES7900-5FA01-0XA0
Power cable CN (Field PG M3 only)
6ES7798-0AA06-0XA0
Li-ion battery 6.6 Ah (Field PG M3 only)
6ES7791-2BA01-0AA0
Replacement hard disk kit (Field PG M3 only)
6ES7790-1AA00-0AA0
S-ATA-USB adapter
6ES7648-2AH40-0KA0
Memory module 1 GB DDR3 1066,SODIMM
6ES7648-2AH50-0KA0
Memory module 2 GB DDR3 1066,SODIMM
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
103
Appendix
A.4 Accessories
104
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
ESD guidelines
B
Definition of ESD
All electronic modules are equipped with large-scale integrated ICs or components. Due to
their design, these electronic elements are highly sensitive to overvoltage, and thus to any
electrostatic discharge.
The electrostatic sensitive components/modules are commonly referred to as ESD devices.
This is also the international abbreviation for such devices.
ESD modules are identified by the following symbol:
CAUTION
ESD devices can be destroyed by voltages well below the threshold of human perception.
These static voltages develop when you touch a component or electrical connection of a
device without having drained the static charges present on your body. The electrostatic
discharge current may lead to latent failure of a module, that is, this damage may not be
significant immediately, but in operation may cause malfunction.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
105
ESD guidelines
Electrostatic charging
Anyone who is not connected to the electrical potential of their surroundings can be
electrostatically charged.
The figure below shows the maximum electrostatic voltage which may build up on a person
coming into contact with the materials indicated. These values correspond to IEC 801-2
specifications.
3RZHULQN9
N9
6\QWKHWLFPDWHULDO
:RRO
$QWLVWDWLFPDWHULDOIRUH[DPSOHZRRG
RUFRQFUHWH
Figure B-1
5HODWLYHKXPLGLW\LQ
Electrostatic voltages on an operator
Basic protective measures against electrostatic discharge
● Ensure good equipotential bonding:
When handling electrostatic sensitive devices, ensure that your body, the workplace and
packaging are grounded. This prevents electrostatic charge.
● Avoid direct contact:
As a general rule, only touch electrostatic sensitive devices when this is unavoidable (e.g.
during maintenance work). Handle the modules without touching any chip pins or PCB
traces. In this way, the discharged energy can not affect the sensitive devices.
Discharge your body before you start taking any measurements on a module. Do so by
touching grounded metallic parts. Always use grounded measuring instruments.
106
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
C
List of abbreviations
C.1
Abbreviations
Abbreviation
Term
Meaning
AC
Alternating current
Alternating current
ACPI
Advanced Configuration and Power
Interface
PLC
Programmable controller
AGP
Accelerated Graphics Port
High speed bus system
AHCI
Advanced Host Controller Interface
Standardized controller interface for SATA
devices. This is supported in Microsoft
Windows XP as of SP1 and IAA driver.
APIC
Advanced Programmable Interrupt
Controller
Extended programmable interrupt controller
APM
Advanced Power Management
Tool for monitoring and reducing power
consumption of the PC
AS
Automation system
ASIS
After Sales Information System
AT
Advanced Technology
ATA
Advanced Technology Attachment
ATX
AT-Bus-Extended
AWG
American Wire Gauge
US standard for the cable diameter
BIOS
Basic Input Output System
Basic Input Output System
CAN
Controller Area Network
CD-ROM
Compact Disc – Read Only Memory
Removable storage medium for large data
volumes
CD-RW
Compact Disc – Rewritable
Rewritable CD
CE
Communauté Européenne (CE symbol)
The product is in conformance with all applicable
EC directives
CF
Compact Flash
CGA
Color Graphics Adapter
Standard monitor interface
CLK
Clock pulse
Clock signal for controllers
CMOS
Complementary Metal Oxide
Semiconductors
Complementary metal oxide semiconductors
COA
Certificate of authentication
Microsoft Windows Product Key
CoL
Certificate of License
License authorization
COM
Communications Port
Term for the serial interface
CP
Communication Processor
Communication computer
CPU
Central Processing Unit
CPU
CRT
Cathode Ray Tube
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
107
List of abbreviations
C.1 Abbreviations
Abbreviation
Term
Meaning
CSA
Canadian Standards Association
Canadian organization for tests and certifications
according to own or binational standards (with UL
/ USA) standards
CTS
Clear To Send
Clear to send
DRAM
Dynamic Random Access Memory
DC
Direct Current
DC current
DCD
Data Carrier Detect
Data carrier signal detection
DMA
Direct Memory Access
Direct memory access
DOS
Disk Operating System
Operating system without GUI
DP
Display Port
New powerful digital monitor port
DQS
Deutsche Gesellschaft zur Zertifizierung
von Qualitätsmanagement mBH
DDRAM
Double Data Random Access Memory
Memory chip with high-speed interface
DSR
Data Set Ready
Ready for operation
DTR
Data Terminal Ready
Data terminal is ready
DVD
Digital Versatile Disk
Digital versatile disk
DVI
Digital Visual Interface
Digital display interface
DVI-I
Digital Visual Interface
Digital display interface with digital and VGA
signals
ECC
Error checking and correction
Error correction code
ECP
Extended capability port
Extended parallel port
EFI
Extensible Firmware Interface
EGA
Enhanced Graphics Adapter
ESD
Components sensitive to electrostatic
charge
PC to monitor interface
DM
Electronic Manual
EIDE
Enhanced Integrated Drive Electronics
EISA
Extended Industry Standard Architecture
Extended ISA standard
EMM
Expanded Memory Manager
Manages memory expansions
EM64T
Extended Memory 64 technology
An enhancement of the IDE standard
EN
European standard
EPROM / EEPROM
Erasable Programmable Read-Only
Memory / Electrically Erasable
Programmable Read-Only Memory
Plug-in submodules with EPROM/EEPROM chips
EPP
Enhanced Parallel Port
Bi-directional Centronics interface
ESC
Escape character
Control character
EWF
Enhanced Write Filter
FAQ
Frequently Asked Questions
FAQs
FAT 32
File Allocation Table 32-bit
32-bit file allocation table
FBWF
File-Based Write Filter
FD
Floppy disk
Disk drive, 3.5"
FSB
Front Side Bus
GND
Ground
Chassis ground
HD
Hard disk
Hard disk
108
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
List of abbreviations
C.1 Abbreviations
Abbreviation
Term
HDA
High Definition Audio
HDD
Hard Disk Drive
Meaning
HDD
HU
Height unit
HMI
Human Machine Interface
HORM
Hibernate Once - Resume Many
HT
Hyper-Threading
HTML
Hyper Text Markup Language
Script language for creating Internet pages.
HTTP
Hypertext Transfer Protocol
Protocol for data transfer on the Internet
Hardware
Hardware
IAMT
Intel Active Management Technology
Technology that permits the diagnostics,
management and remote control of PCs
I/O
Input/Output
Data input/output on computers
IAA
Intel Application Accelerator
User interface
IDE
Integrated Device Electronics
IEC
International Electronical Commission
IGD
Integrated Graphics Device
IP
Ingress Protection
Degree of protection
IR
Infrared
Infrared
IRDA
Infrared Data Association
Standard for data transfer via IR module
IRQ
Interrupt Request
Interrupt request
ISA
Industry Standard Architecture
Bus for expansion modules
ITE
Information Technology Equipment
L2C
Level 2 cache
LAN
Local Area Network
Computer network that is limited to a local area.
LCD
Liquid Crystal Display
Liquid crystal display
LEDs
Light Emitting Diode
Light emitting diode
LPT
Line Printer
Printer port
LVDS
Low Voltage Differential Signaling
LW
Drive
MAC
Media access control
Media access control
MC
Memory Card
Memory card in credit card format
MLFB
Machine-readable product designation
MMC
Micro Memory Card
MPI
Multipoint-capable interface for
programming devices
MS-DOS
Microsoft Disc Operating System
MTBF
Mean Time Between Failures
MUI
Multilanguage User Interface
NA
Not Applicable
NAMUR
Normenarbeitsgemeinschaft for Mess- und
Regelungstechnik in der chemischen
Industrie (standardization body for
instrumentation and control technology in
the chemicals industry)
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Memory card of the format 32 mm x 24.5 mm
Language localization in Windows
109
List of abbreviations
C.1 Abbreviations
Abbreviation
Term
Meaning
NC
Not Connected
Not connected
NCQ
Native Command Queuing
Automatic re-sorting of the file and disk access,
for increased performance
NEMA
National Electrical Manufacturers
Association
Syndicate of manufacturers of electrical
components in the USA
NMI
Non Maskable Interrupt
Interrupt the processor can not reject
NTFS
New Techniques File System
Secure file system for Windows versions (2000,
XP, 7)
ODD
Optical Disk Drive
OPC
OLE for Process Control
PATA
Parallel ATA
Standardized interface for industrial processes
PC
Personal computer
PCI
Peripheral Component Interconnect
High-speed expansion bus
PCIe
Peripheral Component Interconnect
express
High-speed serial, differential full-duplex PtP
interface with high data rate.
PCMCIA
Personal Computer Memory Card
International Association
PI
Protective Earth
PEG
PCI Express Graphics
PG
Programming device
PIC
Programmable Interrupt Controller
POST
Power On Self Test
PXE
Preboot Execution Environment
Software for running new PCs without hard disk
data via the network
RAID
Redundant Array of Independent Disks
Redundant hard disk array
RAL
Restricted Access Location
Installation of device in operating facilities with
restricted access - for example, a locked
switchgear cabinet
Protective conductor
Programmable interrupt controller
RAM
Random Access Memory
RI
Ring Input
ROM
Read-Only Memory
RS 485
Reconciliation Sublayer 485
Bi-directional bus system designed for up to 32
nodes
RTC
Real Time Clock
Real-time clock
RTS
Reliable Transfer Service
Request to send
RxD
Receive Data
Data transfer signal
SATA
Serial Advanced Technology Attachment
SCSI
Small Computer System Interface
SDRAM
Synchronous DRAM
Incoming call
SELV
Safety Extra Low Voltage
SLC
Second Level Cache
SMART
Self Monitoring Analysis and Reporting
Technology
Hard disk error diagnostics program
SMS
Short Message Service
Short message via telecommunication network
SNMP
Simple Network Management Protocol
Network protocol
110
Safety extra low voltage
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
List of abbreviations
C.1 Abbreviations
Abbreviation
Term
Meaning
SO-DIMM
Small Outline Dual Inline Memory Module
SOM
SafeCard on Motherboard (SOM)
SPP
Standard Parallel Port
Synonym for parallel port
SRAM
Static Random Access Memory
Static RAM
SSD
Solid State Drive
SVGA
Super Video Graphics Array
SVP
Serial number of the device
SW
Software
TCO
Total Cost of Ownership
TFT
Thin-Film-Transistor
TTY
Tele Type
Asynchronous data transfer
TxD
Transmit Data
Data transfer signal
TXT
Trusted Execution Technology
Hardware implementation
TWD
Watchdog Time
Watchdog monitoring time
UEFI
Unified Extensible Firmware Interface
UL
Underwriters Laboratories Inc.
US organization for tests and certifications
according to own or binational standards (with
CSA / Canada) standards
UMA
Unified Memory Architecture
Video memory
URL
Uniform Resource Locator
Designation of the full address of an Internet
page
USB
Universal Serial Bus
UXGA
Ultra Extended Graphics Array
Enhanced VGA standard with at least 256 colors
Type of LCD flat-screen
Graphic standard, maximum resolution
1600x1200 pixels.
V.24
ITU-T standardized recommendation for data
transfer via serial ports
VCC
Positive supply voltage of integrated circuits
VDE
Verein deutscher Elektrotechniker (Union
of German Electrical Engineers)
VGA
Video Graphics Array
VRM
Voltage Regulator Module
VT
Virtualization Technology
Intel technology with which a virtually closed
environment can be made available.
VT-D
Virtualization Technology for Directed I/O
Enables the direct assignment of a device (e.g.
network adapter) to a virtual device.
W2k
Windows 2000
Video adapter which meets industrial standard
WAN
Wide Area Network
WAV
Wave Length Encoding
Loss-free file format for audio data
WD
Watchdog
Program monitoring with error detection and
alarming.
WLAN
Wireless LAN
LWireless local area network
WoL
Wake on Local Area Network
WWW
World Wide Web
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
111
List of abbreviations
C.1 Abbreviations
Abbreviation
Term
Meaning
XD
Execute Disable Capability
Hardware implementation
XGA
Extended Graphics Array
Graphic standard, maximum resolution 1024x768
pixels.
112
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Glossary
AHCI mode
AHCI is a standardized method to address the SATA controller. AHCI describes a structure
in the RAM, which contains a general area for control and status, as well as a command list.
APIC mode
Advanced peripheral interrupt controller. 24 interrupt lines are available.
ATAPI CD-ROM Drive
AT Bus Attachment Packet Interface (connected to AT bus) CD-ROM drive
Automation system (AS)
A programmable controller (PLC) of the SIMATIC S7 system consist of a central controller,
one or several CPUs, and various I/O modules.
Backup
Duplicate of a program, data medium or database, used either for archiving purposes or for
the protection of vital and non-replaceable data against loss when the working copy is
corrupted. Certain applications automatically generate backup copies of data files, and
manage both the current and the previous versions on the hard disk.
Baud
Physical unit for the step speed in signal transmission. Defines the number of transferred
signal states per second. With only two states, one baud is equivalent to a transmission rate
of 1 bps.
Boot disk
A boot disk is a disk with a "Boot" sector. This can be used to load the operating system from
the disk.
Cache
High-speed access buffer for interim storage (buffering) of requested data.
CE marking
Communauté Européene The CE mark confirms compliance of the product with
corresponding EC Directives, for example, with the EMC Directive.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
113
Glossary
Chipset
Located on the motherboard, connects the processor with the RAM, the graphics controller,
the PCI bus, and the external interfaces.
Cold restart
A start sequence, starting when the computer is switched on. The system usually performs
some basic hardware checks within the cold start sequence, and then loads the operating
system from the hard disk to work memory -> boot
COM interface
The COM interface is a serial V.24 interface. The interface is suitable for asynchronous data
transfer.
Compact Flash cards (CF)
Compact Flash is a digital storage medium in card format and without moving parts. The CF
card contains the non-volatile memory and the controller. The interface of the CF card
corresponds with the IDE interface. CF cards can be operated without additional electronics
on PCMCIA or IDE hard disk controllers using a plug and socket adapter. There are two
design forms: CF-I (42.6 x 36.4 x 3.3 mm) and CF-II (42.8 x 36.4 x 5 mm).
Configuration files
These are files containing data which define the configuration after restart. Examples of such
files are CONFIG.SYS, AUTOEXEC.BAT and the registry files .
Configuration software
The configuration software updates the device configuration when new modules are installed
. This is done either by copying the configuration files supplied with the module or by manual
configuration using the configuration utility.
Controller
Integrated hardware and software controllers that control the functions of certain internal or
peripheral devices (for example, the keyboard controller).
Device configuration
The configuration of a PC or programming device contains information on hardware and
device options, such as memory configuration, drive types, monitor, network address, etc.
The data are stored in a configuration file and enable the operating system to load the
correct device drivers and configure the correct device parameters. . If changes are made to
the hardware configuration, the user can change entries in the configuration file using the
SETUP program. .
114
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Glossary
Disc-at-once
With this burning technique, data are written to a CD in a single session, and the CD is then
closed. Further write access is then no longer possible.
DP
Display Port: New digital monitor interface.
Drivers
Program parts of the operating system. They adapt user program data to the specific formats
required by I/O devices such as hard disk, printers, and monitors.
Dual Core CPU
Dual-core processors significantly increase the speed of computing and program execution
compared to the previous generation of single-core processors with hyperthreading
technology.
ECC
Error checking and correction is a method for detecting and correcting errors when saving
and transferring data, frequently used in conjunction with RAM modules with and without
ECC.
EMC directive
Directive concerning Electromagnetic Compatibility. Compliance is confirmed by the CE
symbol and the EC certificate of conformity.
Energy management
The energy management functions of a modern PC allow individual control over the current
consumption of vital computer components (e.g. of the monitor, hard disk and CPU), by
restricting their activity based on the current system or component load. Energy
management is of particular importance for mobile PCs.
Energy options
The energy options can be used to reduce energy consumption of the computer, while
keeping it ready for immediate use. This can be configured in Windows by selecting Settings
> Control Panel > Energy options.
Enhanced Write Filter (EWF)
Configurable write filter that allows you, for example, to boot Windows Embedded Standard
from write-protected media (such as CD-ROM), to write protect individual partitions and
adapt the performance of the file system to your needs (when using Compact Flash cards).
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
115
Glossary
ESD directive
Directive for using electrostatic sensitive components.
Ethernet
Local network (bus structure) for text and data communication with a transfer rate of
10/100/1000 Mbps.
Execute Disable Capability
Hardware implementation that prevents mutual memory accesses by programs and
applications. It is only effective when all relevant system components, such as processors,
operating systems and applications are supported.
Extensible Firmware Interface (EFI)
Refers to the central interface between the firmware, the individual components of a
computer and the operating system. EFI is located logically beneath the operating system
and represents the successor to PC BIOS, focusing on 64-bit systems.
File Based Write Filter (FBWF)
Configurable write filter to protect individual files from write access.
Formatting
Basic partitioning of memory space on a magnetic data medium into tracks and segments.
Formatting deletes all data on a data medium. All data media must be formatted prior to their
first use.
Gender changer
Using the gender changer (25-pin / 25-pin), the COM1/V24/AG interface of the SIMATIC PC
family can be converted to the usual 25-pin male connector.
HORM
Hibernate once, resume many is a method for fast booting from a single Hibernate file that
only needs to be created once. HORM ensures restoration of a uniform, saved system state
when booting. This reduces the writing to a CompactFlash medium to a minimum, for
example, when starting up and shutting down Windows Embedded Standard 2009.
Hot plug
The SATA interface gives the device's hard drive system hot plugging capability. Prerequisite
for this configuration is a RAID1 system with SATA RAID controller (onboard, or slot
module), and at least two SATA removable cartridges. The advantage of hot plugging is that
defective hard disks can be replaced without having to reboot the computer.
116
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Glossary
Hub
A term in network technology. In a network, a device joining communication lines at a central
location, providing a common connection to all devices on the network.
Hyper Threading
HT technology (multi-threading) enables the parallel computing of processes. HT is only
effective when all relevant system components, such as processors, operating systems and
applications are supported.
IGD
Integrated Graphics Device. Graphics interface integrated in the chipset.
This refers to the image, for example, of hard disk partitions saved to a file in order to restore
them when necessary.
Intel Active Management Technology
This technology permits the diagnostics, management and remote control of PCs. It is only
effective when all relevant system components, such as processors, operating systems and
applications are supported.
Intel VT
The Intel Virtualization Technology (IVT) is the implementation of a secure closed
environment for applications. Special (visualization) software an a VT-capable processor is
required for its use.
Interface
See Interface
● Physical interconnection (cable) of hardware elements such as PLCs, PCs, programming
devices, printers or monitors.
● Interface for interactive software applications.
Interface
See Interface
● Physical interconnection (cable) of hardware elements such as PLCs, PCs, programming
devices, printers or monitors.
● Interface for interactive software applications.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
117
Glossary
Interface, multi-point
MPI is the programming interface of SIMATIC S7/M7. Allows remote access to
programmable modules, text-based displays and OPs from central locations. The MPI nodes
can intercommunicate.
LAN
Local Area Network: LAN is a local network that consists of a group of computers and other
devices that are distributed across a relatively restricted range and are linked with
communication cables. The devices connected to a LAN are called nodes. The purpose of
networks is the mutual use of files, printers or other resources.
Legacy Boot Device
Conventional drives can be used as USB devices.
Legacy USB support
Support of USB devices (e.g. mouse, keyboard) on the USB ports without driver.
License key
The license key represents the electronic license stamp of a license. Siemens provides the
license keys for protected software.
License key disk
The license key disk contains the authorizations or license keys required to enable protected
SIMATIC software.
Low-voltage directive
EC Product Safety Directive relating to the safety of products which are operated on low
voltage (50 VAC to 1000 VAC, 70 VDC to 1500 VDC) and not specified in other directives.
Compliance is confirmed by the CE symbol and the EC certificate of conformity.
LPT interface
The LPT interface (Centronics interface) is a parallel interface that can be used to connect a
printer.
Memory card
Memory cards in credit card format. Memory for user programs and parameters, for
example, for programmable modules and CPs.
118
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Glossary
Module
Modules are plug-in units for PLCs, programming devices or PCs. They are available as
local modules, expansion modules, interfaces or mass storage (Mass storage module).
Module retainer
The module retainer is used to fasten modules and ensure safe contact and transport.
Shocks and vibrations especially affect large, heavy modules. It is therefore recommended
to use the module retainer for this type of module. There are also short, compact and light
modules on the market. The module retainer was not designed for these modules because
the standard fastening is sufficient for them.
Motherboard
The motherboard is the core of the computer. Here, data are processed and stored, and
interfaces and device I/Os are controlled and managed.
NEC Class 2
The "NEC", National Electrical Code, is the USA collection of regulations that generally
correspond to German VDE 0100 standards. All USA standards governing the safety of
electrical equipment and corresponding "deviations" in IEC standards are based on NEC in
terms of their country-specific requirements.
NEC Class 2 specifies higher safety requirements for protection against electric shock and
National Fire Protection Association (NFPA) requirements for fire protection. Power supplies
operating within the range from 20 VDC to 30 VDC must be equipped with an internal current
limiting circuit which safely prevents output power higher than 100 VA.
Operating system
Generic term which describes all functions for controlling and monitoring user program
execution, distribution of system resources to the user programs and the operating mode in
cooperation with the hardware (for example Windows XP Professional).
Packet writing
The CD-RW is used as a disk medium. The CD can then be read only by packet–writing
compatible software or has to be finalized. Finalization of a CD closes the CD within an
ISO9660 shell. You can still write to the CD-RW several times in spite of finalization. Not all
CD drives can read packet-written CDs . There are restrictions to using this method in
general data transfer.
PATA
Interface for hard disk drives and optical drives, with parallel data transmission rate up to 100
Mbps.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
119
Glossary
PC card
Trademark of the Personal Computer Memory Card International Association (PCMCIA).
Designation for auxiliary cards that conform with PCMCIA specifications. A PC card that has
roughly the size of a credit card can be plugged into a PCMCIA slot. Version 1 specifies
cards of Type I with a thickness of 3.3 millimeters, which are designed mainly for use as
external memory. Version 2 of the PCMCIA specification also defines cards of Type II with a
thickness of 5 mm and cards of Type III with a thickness of 10.5 mm. Type II cards can
realize devices such as modems, fax cards and network interface cards. Type III cards are
equipped with devices that require more space, for example wireless communications
modules, or rotary storage media such as hard disk drives, for example.
PC/104 / PC/104-Plus
Two bus architectures are especially fashionable today in the industrial world. PC/104 and
PC/104-Plus. Both are standard in single-board computers of the PC class. The electrical
and logical layout of the two bus systems is identical with ISA (PC/104) and PCI (PC/104Plus). Software cannot usually detect a difference between them and normal desktop bus
systems. Their advantage is the compact design and the resulting space they save.
PCMCIA
Association consisting of approx. 450 member companies of the computer industry whose
focus is set on providing worldwide standards for miniaturization and flexible use of PC
expansion cards in order to provide basic technologies to the market.
PEG interface
PCI Express for Graphics. Graphics interface with 16 PCIe lanes for expansions with
graphics modules.
PIC mode
Peripheral interrupt controller. 15 interrupt lines are available.
Pixel
PixElement (picture point). The pixel represents the smallest element that can be reproduced
on-screen or on a printer.
Plug&Play
Generally, a reference to the ability of a computer to automatically configure the system for
communication with peripheral devices (for example monitors, modems or printers). The
user can plug in a peripheral and "play" it at once without manually configuring the system. A
Plug&Play PC requires both a BIOS that supports Plug&Play and a Plug&Play expansion
card.
120
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Glossary
POST
Self-test performed by the BIOS after the computer is switched on. Performs a RAM test and
a graphics controller test, for example. The system outputs audible signals (beep codes) if
the BIOS detects any errors; the relevant message indicating cause of error is output on the
screen.
PROFIBUS/MPI
Process Field Bus (standard bus system for process applications)
PROFINET
PROFINET is the name of the standard for Industrial Ethernet developed and maintained by
the PROFIBUS user organization. PROFINET unites protocols and specifications with which
Industrial Ethernet meets the requirements of industrial automation technology.
Programmable controller (PLC)
The programmable controllers (PLC) of the SIMATIC S5 system consist of a central
controller, one or more CPUs, and various other modules (e.g. I/O modules).
PXE server
A Preboot Execution Environment server is part of a network environment and can provide
software to connected computers even before they boot. This can involve operating system
installations or servicing tools, for example.
RAID
Redundant Array of Independent Disks: Data storage system which is used to save data and
the corresponding error correction codes (parity bits, for example) to at least two hard disk
volumes in order to enhance reliability and performance. The hard disk array is controlled by
management programs and a hard disk controller for error correction. The RAID system is
usually implemented in network servers.
RAL
Restricted Access Location: Installation of the device in a production facility with restricted
access, for example, a locked control cabinet.
Recovery CD
Contains the tools for configuring hard disks and the Windows operating system.
Reset
Hardware reset: Reset/restart of the PC using a button/switch.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
121
Glossary
Restart
Warm restart of a computer without switching the power off (Ctrl + Alt + Del)
Restore DVD
The Restore DVD is used to restore the system partition or the entire hard disk to factory
state if the system has crashed. The bootable DVD contains all the necessary image files.
You can also create a boot disk allowing restoration via the network.
ROM
Read-Only Memory ROM is a read-only memory in which every memory location can be
addressed individually. The programs or data are permanently stored and are not lost in the
event of a power failure.
S.M.A.R.T
The Self-Monitoring, Analysis and Reporting Technology (SMART or S.M.A.R.T.) is an
industry standard integrated in storage media. It makes for permanent monitoring of
important parameters and early detection of imminent problems.
SATA
Serial ATA Interface for hard disk drives and optical drives with serial data transmission rates
of up to 300 Mbps.
SCSI interface
Small Computer System Interface Interface for connecting SCSI devices such as hard disk
drives or optical drives.
Session at once
In session at once, the CD can be written to both with an audio session and a data session.
The two sessions are written to at once (as in disc at once).
SETUP (BIOS Setup)
A program in which information about the device configuration (that is the configuration of
the hardware on the PC/PG) is defined. The device configuration of the PC/PG is preset with
defaults. Changes must therefore be entered in the SETUP if a memory expansion, new
modules or a new drive are added to the hardware configuration.
SSD (Solid State Drive)
A Solid State Drive is a drive that can be installed like any other drive; it does not contain a
rotating disk or other moving parts because only semiconductor memory chips of similar
capacity will be used. This design makes SSDs more rugged, provides shorter access times
and low energy consumption.
122
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Glossary
STEP 7
Programming software for the creation of user programs for SIMATIC S7 controllers.
Track-at-once
In track-at-once recording, a CD can be written to in bits in several sessions if the CD was
not closed.
Troubleshooting
Error cause, cause analysis, remedy
Trusted Execution Technology
Hardware implementation that allows secured execution of programs and applications. It is
only effective when all relevant system components, such as processors, operating systems
and applications are supported.
Turbo Mode
In this mode individual processor cores can be clocked higher in accordance with the load
from the user programs and as required. It is only supported by Core i5 and Core i7
processors.
V.24 interface
V.24 is a standardized interface for data transfer. Printers, modems, and other hardware
modules can be connected to a V.24 interface.
Wake on LAN (WoL)
Wake on Local area network. This function allows the PC to be started via the LAN interface.
Warm restart
The restart of a computer after a program was aborted. The operating system is loaded and
restarted again. The CTRL+ ALT+ DEL hotkey can be used to initiate a warm restart.
WLAN
Wireless LAN is a local network that transmits data via radio waves, infrared light or another
wireless technology. Wireless LAN is mainly used for mobile computer applications in office
or factory environments.
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
123
Glossary
124
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Index
A
Abbreviations, 107, 112
Accessories, 103
Adhoc mode, 48
Advanced Menu, 88
Alphanumeric keyboard field, 22
Approvals, 100
Assignment
External interfaces, 79
Authorization, 40
Automation License Manager, 63
B
Backup battery, 62
Battery, 10
Battery operation, 41
BIOS
Advanced Menu, 88
Boot Menu, 95
Main menu, 87
Security menu, 94
Setup, 85
Burning
CD-R / CD-RW, 43
C
Certificates, 100
Charge status display, 42
COA label, 29
COM1/TTY, 51
Connecting, 34
Peripheral equipment, 33
S5 automation device, 36
D
Data exchange, 51
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Date, 87
BIOS Setup, 87
Declarations of Conformity, 100
Degree of protection, 75
Device
unpacking, 28
Diagnostics
Troubleshooting, 71
Dimensions, 75
DVD ROM
Installing the burner or DVD software, 69
E
Electrostatic sensitive devices, 10
Energy options, 20
Error messages
Troubleshooting, 71
ESD guidelines, 10, 105
Ethernet
1 BIOS Setup, 89
2 BIOS Setup, 89
Ethernet address, 29
Expansion
Memory, 55
External interfaces, 79
External screen, 33
F
Field devices, 51
Fields of application, 13
Function keys, 23
G
General technical data, 75
Guidelines
ESD guidelines, 105
H
Hard disk, 43
Hard disk kit, 61
Headphones connection, 84
Hibernation, 20
125
Index
Hotkeys, 23
I
Identification data, 29
Industrial WLAN, 51
Infrastructure mode, 48
Initial commissioning, 39
Installation
Drivers, 69
Memory modules, 56
Software, 69
Installation
Burner / DVD software, 6969
Integration
Profibus, 51
RJ45 Ethernet, 51
Interconnection to SIMATIC S5, 51
Interconnection to SIMATIC S7, 51
Interface assignment
DVI, 81
Interfaces
Ethernet RJ 45, 51
PROFIBUS, 51
Serial, 79, 80
USB, 15, 78
Interfaces
Keyboard, 1515
IT communication, 51
K
Keyboard, 15
Keyboard arrangement, 21
Keyboard labeling, 22
Keyboard LEDs, 25
L
Language selection
Windows Vista, 68
Windows XP, 65
LEDs, 25
License key, 40
Lithium battery, 62
Localized information, 35
Low voltage directive, 99
126
M
Memory
Expansion, 55
Memory card interface, 45
Memory configuration, 57
Memory modules, 56
installation, 56
Micro Memory Card, 46
Micro-In, 83
Microsoft Windows Product Key, 29
Modem connection, 36, 83
Modules
installation, 55
Motherboard
External interfaces, 7979
Mouse buttons, 21
N
Network card, 48
Numeric pad, 23
O
On/off button, 19
Online ordering system, 51
Operating system, 39
Starting for the first time, 39
Windows Vista, 66
Optical drive, 43
Order No., 29
P
Partitioning, 64
Password
Supervisor, 94
Peripheral equipment, 33
Pin assignment of the interfaces on the motherboard
COM1, X30, 80
PROFIBUS / MPI, 82
Positioning the device, 31
Power Button, 20
Power consumption, 75
Power supply
Connecting, 3434
Processor, 76
PROFIBUS, 51
Integration, 51
PROFIBUS/MPI interface, 82
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
Index
PS/2 port, 15
R
Rating plate, 29
Recovery
Windows Vista, 66
Repairs, 9
Replace the battery, 62
Replacing
Rechargeable battery, 61
Replacing the hard disk assembly, 60, 61
Restart, 39
Restoring the factory condition, 63
RJ45 Ethernet, 51
RTTE directive, 99
S
S5 cabling, 84
S5 memory module, 44
S7 cable, 85
Safety instructions, 9
Safety-related notices
Wireless LAN, 11, 49
Security menu
BIOS Setup, 94
Serial number, 29
Serial port, 79
SIMATIC S7
Integration, 51
SOFTNET for PROFIBUS, 51
SOFTNET S7
Integration, 51
Software
STEP 5, 53
STEP 7, 54
Software installation, 63
Standard versions, 16
Standby mode, 20
Starting for the first time, 39
Status displays, 24, 78
STEP 5 software, 53
STEP 7 software, 54
Submenu "Advanced Video Configuration",
Supply voltage, 35, 75
System Date
BIOS Setup, 87
System Date, 87
System LEDs, 25
System resources, 85
SIMATIC Field PG M3
Operating Instructions, 09/2010, A5E02617852-02
System Time
BIOS Setup, 87
System Time, 87
T
Telephone adapter, 36
Temperature, 76
Time, 87
BIOS Setup, 87
Touchpad, 21
Transport precautions, 28
Troubleshooting/FAQs, 71
Troubleshooting/WLAN, 72
TTY interface, 51
U
Unpacking
Unpacking the device, 28
USB, 15, 78
Technical data, 15, 78
W
Warranty, 9
Weight, 75
Windows Vista
Recovery, 66
Wireless LAN, 11, 49
Regulations, 101
Safety-related notices, 11, 49
WLAN
Troubleshooting, 72
