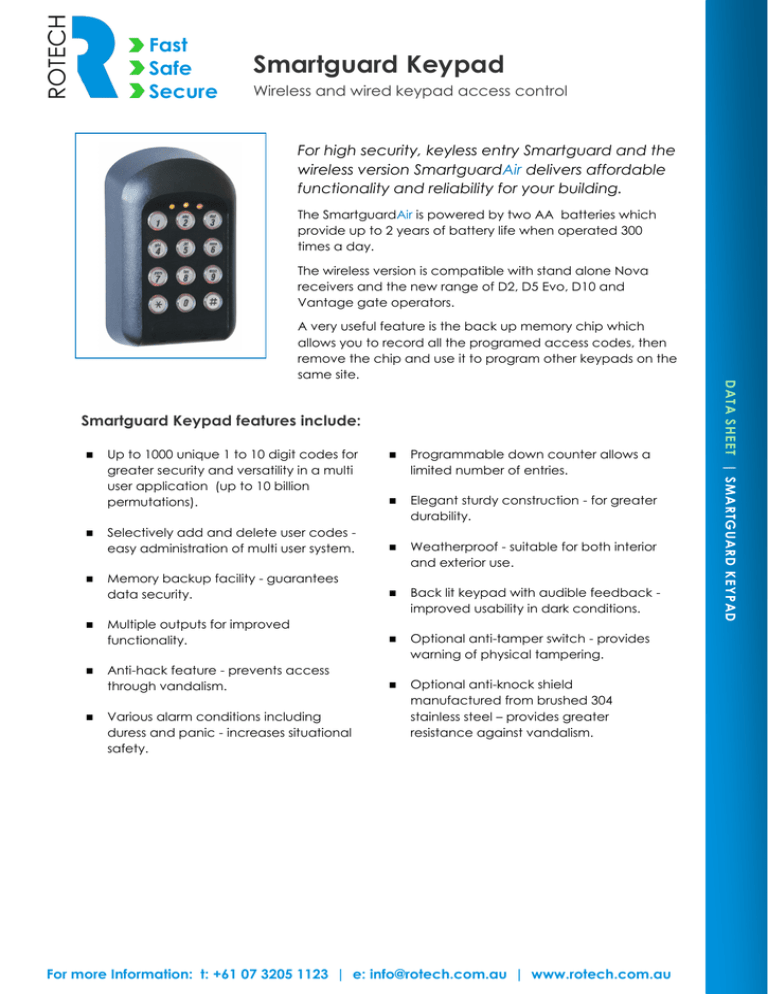

Smartguard Keypad
Wireless and wired keypad access control
For high security, keyless entry Smartguard and the
wireless version SmartguardAir delivers affordable
functionality and reliability for your building.
The SmartguardAir is powered by two AA batteries which
provide up to 2 years of battery life when operated 300
times a day.
The wireless version is compatible with stand alone Nova
receivers and the new range of D2, D5 Evo, D10 and
Vantage gate operators.
Smartguard Keypad features include:






Up to 1000 unique 1 to 10 digit codes for
greater security and versatility in a multi
user application (up to 10 billion
permutations).

Programmable down counter allows a
limited number of entries.

Elegant sturdy construction - for greater
durability.
Selectively add and delete user codes easy administration of multi user system.

Weatherproof - suitable for both interior
and exterior use.
Memory backup facility - guarantees
data security.

Back lit keypad with audible feedback improved usability in dark conditions.
Multiple outputs for improved
functionality.

Optional anti-tamper switch - provides
warning of physical tampering.
Anti-hack feature - prevents access
through vandalism.

Optional anti-knock shield
manufactured from brushed 304
stainless steel – provides greater
resistance against vandalism.
Various alarm conditions including
duress and panic - increases situational
safety.
For more Information: t: +61 07 3205 1123 | e: [email protected] | www.rotech.com.au
DATA SHEET | SMARTGUARD KEYPAD
A very useful feature is the back up memory chip which
allows you to record all the programed access codes, then
remove the chip and use it to program other keypads on the
same site.
Technical Specifications
Smartguard Keypad
Smartguard
Smartguard Air
12 - 24 AC/DC
2 x AA Alkaline
Batteries
Current
32mA (standby) 180mA (maximum)
N/A
Outputs
3 (I Relay output, 2
open collector
outputs)
Up to 15 individual
channels (requires
external Receiver)
N/A
Up to 30m
1 - 255s adjustable
or latched.
N/A
Polycarbonate
Polycarbonate
IP55
IP55
Voltage
Operating Range
Output pulse range
Material
Degree of protection
Dimensions
132mm
38mm
80mm
Rotech supply all forms of door and gate automation
Vehicle Access Control
Pedestrian Access Control
 Booms Gates
 Full Height Turnstiles
 Sliding Gates
 Waist Height Turnstiles
 Swing Gates
 Supermarket Gates/Turnstiles
 Industrial Door Openers
 Wheelchair Access Gates
 Solar Powered Gate Openers
 Rapid Access Gates
