IND560 Technical Manual

IND560 Technical Manual

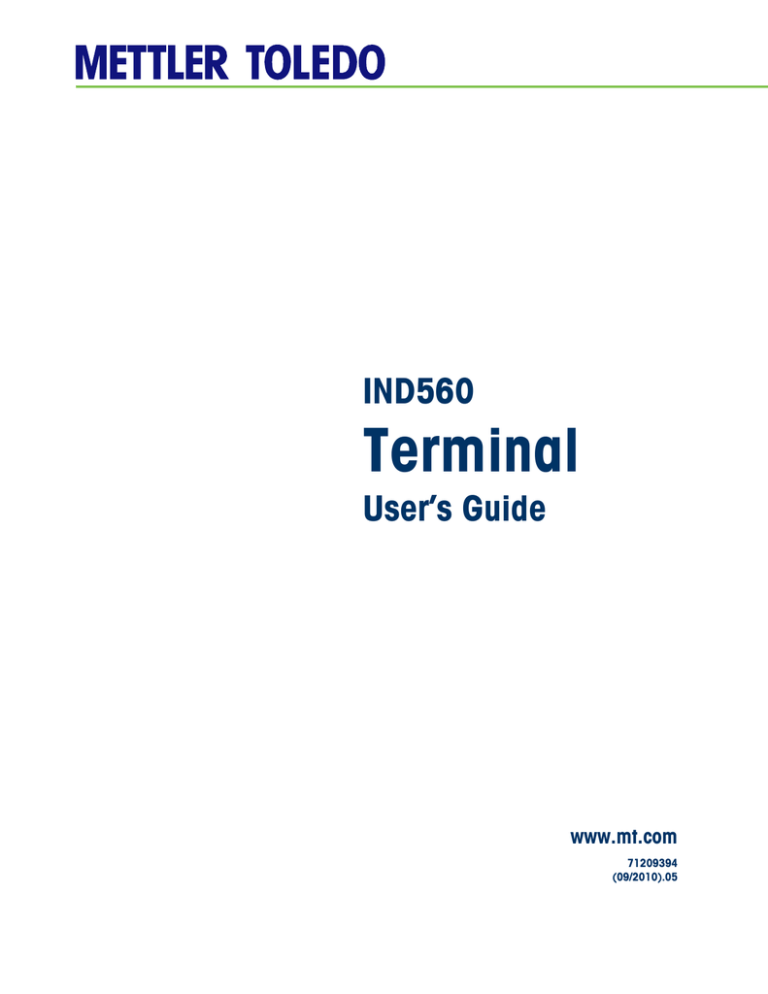

IND560
Terminal
User’s Guide
www.mt.com
71209394
(09/2010).05
© METTLER TOLEDO 2010
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying and recording, for any
purpose without the express written permission of METTLER TOLEDO.
U.S. Government Restricted Rights: This documentation is furnished with
Restricted Rights.
Copyright 2010 METTLER TOLEDO. This documentation contains proprietary
information of METTLER TOLEDO. It may not be copied in whole or in part
without the express written consent of METTLER TOLEDO.
METTLER TOLEDO reserves the right to make refinements or changes to the
product or manual without notice.
COPYRIGHT
METTLER TOLEDO® is a registered trademark of Mettler-Toledo, Inc. All other
brand or product names are trademarks or registered trademarks of their
respective companies.
METTLER TOLEDO RESERVES THE RIGHT TO MAKE REFINEMENTS OR CHANGES
WITHOUT NOTICE.
FCC Notice
This device complies with Part 15 of the FCC Rules and the Radio Interference
Requirements of the Canadian Department of Communications. Operation is
subject to the following conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his or her expense.
Declaration of Conformity is located on the documentation CD.
NOTE ON FIRMWARE VERSIONS
This manual describes features and functions of the IND560 terminal with
version 4.xx firmware. Terminals with version 3.xx firmware or lower will differ
in some areas. The following list indicates the key differences between versions:
New in version 4.xx – optional USB host port; install, backup and restore
software via USB; calibration test reports.
New in version 3.xx –operation as a Remote Display, Drive-560 Application
Software, DYN-560 Application Software, EtherNet / IP PLC interface, repeat
print function, PLC messaging, analog section saturation test and warning,
supports selection of Tare or Target Table record via PC or PLC, Scale
branch accessibility (view only) when Approved, added a Reset Transaction
Counter softkey to home screen, updated MinWeigh™ formula, and added
various new Shared Data variables.
Version 3.01 firmware is specifically required for operation of the ModbusTCP interface
Statement regarding harmful substances
We do not make direct use of harmful materials such as asbestos, radioactive
substances or arsenic compounds. However, we purchase components from
third party suppliers, which may contain some of these substances in very small
quantities.
CUSTOMER FEEDBACK
Your feedback is important to us! If you have a problem with this product or its documentation, or a suggestion on how we
can serve you better, please fill out and send this form to us. Or, send your feedback via email to:
[email protected] If you are in the United States, you can mail this postpaid form to the address on the
reverse side or fax it to (614) 438-4355. If you are outside the United States, please apply the appropriate amount of
postage before mailing.
Your Name:
Organization Name:
Address:
Phone Number: ( )
E-mail Address:
Fax Number: ( )
Date:
METTLER TOLEDO Order Number:
Part / Product Name:
Part / Model Number:
Serial Number:
Company Name for Installation:
Contact Name:
Phone Number:
Please check the appropriate box to indicate how well this product met your expectations in its intended use?
Met and exceeded my needs
Met all needs
Met most needs
Met some needs
Did not meet my needs
Comments/Questions:
DO NOT WRITE IN SPACE BELOW; FOR METTLER TOLEDO USE ONLY
Retail
Light Industrial
Response: Include Root Cause Analysis and Corrective Action Taken.
Heavy Industrial
Custom
FOLD THIS FLAP FIRST
NO POSTAGE
NECESSARY
IF MAILED IN THE
UNITED STATES
BUSINESS REPLY MAIL
FIRST CLASS
PERMIT NO. 414
COLUMBUS, OH
POSTAGE WILL BE PAID BY ADDRESSEE
Mettler-Toledo, Inc.
Quality Manager - MTWT
P.O. Box 1705
Columbus, OH 43216
USA
Please seal with tape
PRECAUTIONS
•
READ this manual BEFORE operating or servicing this equipment and FOLLOW
these instructions carefully.
•
SAVE this manual for future reference.
WARNING!
FOR CONTINUED PROTECTION AGAINST SHOCK HAZARD CONNECT TO
PROPERLY GROUNDED OUTLET ONLY. DO NOT REMOVE THE GROUND
PRONG.
WARNING!
IN ORDER TO INSTALL THE DIVISION 2 APPROVED IND560 PANELMOUNT OR HARSH TERMINAL UTILIZING THE U.S. APPROVAL, METTLER
TOLEDO CONTROL DRAWING 72186884R MUST BE FOLLOWED WITHOUT
EXCEPTION. IN ORDER TO INSTALL THE CATEGORY 3 IND560 PANELMOUNT OR HARSH TERMINAL UTILIZING THE EUROPEAN APPROVAL, THE
DEMKO APPROVAL CERTIFICATE 06ATEX0514991X AND ALL LOCAL
REGULATIONS MUST BE FOLLOWED WITHOUT EXCEPTION. FAILURE TO
DO SO COULD RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE.
REFER TO THE IND560 DIVISION 2 AND ZONE 2/22 INSTALLATION GUIDE
64060405 FOR ADITIONAL INFORMATION.
WARNING!
EARLIER MODELS OF THE IND560 TERMINAL THAT ARE NOT MARKED
(FACTORY LABELED) AS DIVISION 2 OR EUROPEAN CATEGORY 3
APPROVED MUST NOT BE INSTALLED IN A DIVISION 2 OR ZONE2/22
ENVIRONMENT.
WARNING!
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2,
GROUPS A, B, C AND D; CLASS II, GROUPS F AND G; CLASS III
HAZARDOUS LOCATIONS OR NON-HAZARDOUS LOCATIONS ONLY.
WARNING!
SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I,
DIVISION 2.
WARNING!
DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN
SWITCHED OFF, OR THE AREA IS KNOWN TO BE NON-HAZARDOUS
WARNING!
IF THE KEYBOARD, DISPLAY LENS OR ENCLOSURE IS DAMAGED ON A
DIVISION 2 APPROVED OR CATEGORY 3 MARKED IND560 PANELMOUNT OR HARSH TERMINAL THAT IS USED IN A DIVISION 2 OR ZONE
2/22 AREA, THE DEFECTIVE COMPONENT MUST BE REPAIRED
IMMEDIATELY. REMOVE AC POWER IMMEDIATELY AND DO NOT REAPPLY
AC POWER UNTIL THE DISPLAY LENS, KEYBOARD OR ENCLOSURE HAS
BEEN REPAIRED OR REPLACED BY QUALIFIED SERVICE PERSONNEL.
FAILURE TO DO SO COULD RESULT IN BODILY HARM AND/OR PROPERTY
DAMAGE.
WARNING!
NOT ALL VERSIONS OF THE IND560 ARE DESIGNED FOR USE IN HAZARDOUS
(EXPLOSIVE) AREAS. REFER TO THE DATA PLATE OF THE IND560 TO
DETERMINE IF A SPECIFIC TERMINAL IS APPROVED FOR USE IN AN AREA
CLASSIFIED AS HAZARDOUS BECAUSE OF COMBUSTIBLE OR EXPLOSIVE
ATMOSPHERES.
WARNING!
WHEN THIS EQUIPMENT IS INCLUDED AS A COMPONENT PART OF A
SYSTEM, THE RESULTING DESIGN MUST BE REVIEWED BY QUALIFIED
PERSONNEL WHO ARE FAMILIAR WITH THE CONSTRUCTION AND OPERATION
OF ALL COMPONENTS IN THE SYSTEM AND THE POTENTIAL HAZARDS
INVOLVED. FAILURE TO OBSERVE THIS PRECAUTION COULD RESULT IN
BODILY HARM AND/OR PROPERTY DAMAGE.
WARNING!
To avoid damage to the PCB or load cell, remove power from the IND560 TERMINAL and wait
at least 30 seconds before connecting or disconnecting any harness.
WARNING!
THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A,
B, C, AND D; CLASS II GROUPS F AND G; CLASS III; HAZARDOUS
LOCATIONS OR NON-HAZARDOUS LOCATIONS ONLY.
WARNING!
DO NOT INSTALL, DISCONNECT OR PERFORM ANY SERVICE ON THIS
EQUIPMENT BEFORE POWER HAS BEEN SWITCHED OFF OR THE AREA HAS
BEEN SECURED AS NON-HAZARDOU BY PERSONNEL AUTHORIZED TO DO SO
BY THE RESPONSIBLE PERSON ON-SITE.
WARNING!
ONLY THE COMPONENTS SPECIFIED IN THIS MANUAL CAN BE USED IN THIS
TERMINAL. ALL EQUIPMENT MUST BE INSTALLED IN ACCORDANCE WITH
THE INSTALLATION INSTRUCTIONS DETAILED IN THIS MANUAL. INCORRECT
OR SUBSTITUTE COMPONENTS AND/OR DEVIATION FROM THESE
INSTRUCTIONS CAN IMPAIR THE SAFETY OF THE TERMINAL AND COULD
RESULT IN BODILY INJURY AND/OR PROPERTY DAMAGE.
CAUTION
BEFORE CONNECTING/DISCONNECTING ANY INTERNAL ELECTRONIC COMPONENTS OR
INTERCONNECTING WIRING BETWEEN ELECTRONIC EQUIPMENT ALWAYS REMOVE POWER
AND WAIT AT LEAST THIRTY (30) SECONDS BEFORE ANY CONNECTIONS OR DISCONNECTIONS
ARE MADE. FAILURE TO OBSERVE THESE PRECAUTIONS COULD RESULT IN DAMAGE TO OR
DESTRUCTION OF THE EQUIPMENT AND/OR BODILY HARM.
CAUTION
OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES.
IND560
Terminal
Essential Services for Dependable Performance of Your IND560 Terminal
Congratulations on choosing the quality and precision of METTLER TOLEDO.
Proper use of your new equipment according to this Manual and regular calibration
and maintenance by our factory-trained service team ensures dependable and
accurate operation, protecting your investment. Contact us about a ServiceXXL
agreement tailored to your needs and budget. Further information is available at
www.mt.com/serviceXXL.
There are several important ways to ensure you maximize the performance of your
investment:
1. Register your product: We invite you to register your product at
www.mt.com/productregistration so we can contact you about enhancements,
updates and important notifications concerning your product.
2. Contact METTLER TOLEDO for service: The value of a measurement is
proportional to its accuracy – an out of specification scale can diminish
quality, reduce profits and increase liability. Timely service from METTLER
TOLEDO will ensure accuracy and optimize uptime and equipment life.
a. Installation, Configuration, Integration and Training: Our service
representatives are factory-trained, weighing equipment experts. We
make certain that your weighing equipment is ready for production in a
cost effective and timely fashion and that personnel are trained for
success.
b. Initial Calibration Documentation: The installation environment and
application requirements are unique for every industrial scale so
performance must be tested and certified. Our calibration services and
certificates document accuracy to ensure production quality and
provide a quality system record of performance.
c. Periodic Calibration Maintenance: A Calibration Service Agreement
provides on-going confidence in your weighing process and
documentation of compliance with requirements. We offer a variety of
service plans that are scheduled to meet your needs and designed to fit
your budget.
Contents
Chapter 1.0 Introduction ......................................1-1
IND560 Overview....................................................................... 1-2
Standard IND560 Features.................................................................1-2
IND560 Terminal Versions .......................................................... 1-3
Specifications ............................................................................ 1-4
Environmental Protection............................................................. 1-
Safe Disposal Requirement .......................................................... 1-7
Inspection and Contents Checklist ................................................ 1-7
Model Identification .................................................................... 1-8
Physical Dimensions .................................................................. 1-9
Main PCB................................................................................ 1-11
Scale Bases............................................................................. 1-11
Options ................................................................................... 1-11
Discrete I/O ....................................................................................1-12
Ethernet/COM2/COM3 Option ...........................................................1-12
Ethernet/USB/COM3 Option ..............................................................1-13
PLC Interfaces ................................................................................1-13
Application Software........................................................................1-14
TaskExpert™..................................................................................1-16
InSite™ Configuration Tool ................................................................1-16
Display and Keyboard .............................................................. 1-17
Display Layout ...............................................................................1-17
Front Panel Keys.............................................................................1-18
Chapter 2.0 Operation .........................................2-1
Overview ................................................................................... 2-1
Security ...........................................................................................2-1
Display Operation....................................................................... 2-3
Softkeys and Icons............................................................................2-3
Understanding the Navigational Interface....................................... 2-6
Home Screen ........................................................................... 2-12
Basic Functionality ................................................................... 2-12
Tare ...........................................................................................2-13
Unit Switching ................................................................................2-18
Expand By 10 ................................................................................2-18
Print ...........................................................................................2-19
MinWeigh ......................................................................................2-19
Information Recall...........................................................................2-20
Target Comparison..........................................................................2-20
Comparators ..................................................................................2-26
IND560 User’s Guide
ID
...........................................................................................2-27
SmartTrac™ ....................................................................................2-28
Time and Date................................................................................2-31
Reports..........................................................................................2-31
Calibration Test...............................................................................2-33
CalFREE™ .....................................................................................2-34
Alibi Memory Direct Access........................................................ 2-34
Table Searches ........................................................................ 2-35
Remote Display ..............................................................................2-35
Chapter 3.0 Configuration ....................................3-1
Entering Setup Mode................................................................... 3-1
Exiting Setup Mode..................................................................... 3-2
Setup Menu Tree ........................................................................ 3-2
Setup Screens...................................................................................3-3
Overview of Configuration............................................................ 3-5
Configuration Options ................................................................. 3-7
Scale .............................................................................................3-7
Remote Display ................................................................................3-8
Application.....................................................................................3-26
Terminal ........................................................................................3-38
Communication ..............................................................................3-46
Maintenance ..................................................................................3-69
Restoring Factory Default Settings............................................... 3-79
Chapter 4.0 Service and Maintenance ...................4-1
Cleaning and Maintenance .......................................................... 4-1
Service...................................................................................... 4-1
Upgrading Firmware ................................................................... 4-2
Upgrading from Version 1.xx Firmware to Version 2.xx, 3.xx or 4.xx ......4-2
Performing an Upgrade with InSite ......................................................4-2
Performing the Upgrade via USB .........................................................4-4
File Locations on USB Drive ...............................................................4-4
Backup and Restore with USB ...................................................... 4-4
Backup............................................................................................4-5
Restore ............................................................................................4-6
Changing Screen Saver Graphic ................................................... 4-7
Display Messages ...................................................................... 4-7
Setting a Custom Language ......................................................... 4-8
Troubleshooting ......................................................................... 4-8
AC Power Test ..................................................................................4-9
Power Supply Voltage Test .................................................................4-9
IND560 User’s Guide
Battery Test ....................................................................................4-10
Internal Diagnostic Testing ...............................................................4-10
RS-232 Serial Output Voltage Test ....................................................4-13
Master Reset ..................................................................................4-13
External Diagnostics ................................................................. 4-15
View Pages ....................................................................................4-16
Diagnostics & Maintenance Pages....................................................4-20
Appendix A
Default Settings .................................... 1
Setup Defaults............................................................................... 1
Default Templates........................................................................ 10
Appendix B
Communications...............................B-1
Serial Interface Parameters .......................................................... B-1
Demand Output Mode................................................................. B-2
Custom Triggers ...............................................................................B-2
Output Templates..............................................................................B-3
Continuous Output Mode ............................................................. B-5
Standard Continuous Output...............................................................B-5
Continuous Template Output ..............................................................B-7
CTPZ ........................................................................................ B-8
Standard Interface Command Set (SICS) Protocol ........................... B-8
Data Interface Configuration ...............................................................B-9
Version Number of the MT-SICS ..........................................................B-9
Command Formats ...........................................................................B-9
Response Formats ............................................................................B-9
Tips for the Programmer ..................................................................B-11
Commands and Responses MT-SICS Level 0 .....................................B-11
Commands and Responses MT-SICS Level 1 .....................................B-17
Remote Discrete I/O (ARM100) .................................................. B-20
ASCII Input............................................................................... B-21
Reports ................................................................................... B-22
Alibi Table......................................................................................B-22
Tare Table Report............................................................................B-22
Target Table Report .........................................................................B-23
Message Table Report .....................................................................B-24
Totals Report ..................................................................................B-24
Shared Data Access.................................................................. B-25
Shared Data Server Login.................................................................B-25
Shared Data Server Commands ........................................................B-27
Using Shared Data to Select Target Table and Tare Table Records.........B-33
Ethernet .................................................................................. B-34
IND560 User’s Guide
Ethernet Connection to a PC .............................................................B-34
Ethernet Demand Output ..................................................................B-37
Ethernet Continuous Output ..............................................................B-39
FTP ........................................................................................ B-40
FTP over Ethernet Example...............................................................B-42
Terminal Updates ..................................................................... B-43
Uploading New Firmware.................................................................B-43
Uploading Customized Softkey Graphics............................................B-43
Chapter 1.0
Introduction
DIV 2 AND ZONE 2/22 INSTALLATION
IF YOU WISH TO INSTALL THE IND560 IN A DIVISION 2 OR ZONE 2/22 AREA, REFER TO THE
DIVISION 2 AND ZONE 2/22 INSTALLATION INSTRUCTIONS INCLUDED ON THE
DOCUMENTATION CD PROVIDED WITH THE TERMINAL. FAILURE TO COMPLY WITH THE
INSTRUCTIONS PROVIDED THERE COULD RESULT IN BODILY HARM AND/OR PROPERTY
DAMAGE.
This chapter covers
•
IND560 Overview
•
IND560 Terminal Versions
•
Specifications
•
Safe Disposal Requirement
•
Model Identification
•
Physical Dimensions
•
Options and Interfaces
•
Display and Keyboard
The IND560 represents the latest in METTLER TOLEDO technology
and is the most versatile weighing terminal available today. Choose
from conventional strain gauge or high-precision electromagnetic
force restoration weighing technologies. Specify direct PLC or PC
communication interfaces or digital I/O control. Combine these
selections with the option of panel or desk/wall/column-mounting,
and the IND560 is the perfect match for nearly any weighing
application in many industries, including:
• Basic Weighing
• In-Motion Weighing
• General Process Weighing
• Formulation
• Filling and Blending
• Over/Under Checkweighing
Enhance measurement or control applications with an ultra-fast A/D conversion
rate of 366 Hz, patented TraxDSP™ digital filtering technology, and an I/O bus
update rate of 50 Hz. The IND560 delivers precision measurement data from
milligrams to tons in a single cost effective package that easily integrates into
existing systems.
The versatile IND560 excels in controlling filling and dosing applications delivering
best-in-class performance for fast, precise, accurate results in manual,
semi-automatic, or fully automatic operations.
The IND560 promotes more cost-effective solutions too. Control up to 18 digital
outputs through the IND560 without the use of a PLC. Target outputs are also
latched, eliminating the need for external logic devices.
For more advanced filling, the Fill-560 Application Software adds additional
sequences and component inputs. Without complex and costly programming,
quickly configure standard filling sequences or create custom filling and blending
applications for up to four components that cue operators for action and reduce
errors.
1-1
IND560 User’s Guide
Whether communicating weight data to a process PLC or providing an easier way
to do terminal configuration via the InSite™ PC Tool, the IND560 offers multiple
connectivity options to improve applications.
Direct PLC connectivity is available using 4-20mA Analog Output, Allen-Bradley
RIO, PROFIBUS DP, DeviceNet, EtherNet/IP or Modbus TCP protocols. Interfaces are
also available for serial data via RS-232/422/485 and Ethernet TCP/IP networking.
With the release of v4.00 firmware, a new optional USB interface provides the
ability to connect a QWERTY keyboard for operator input. The new USB option can
also be used for upgrading terminal firmware and performing a save/restore.
For information about IND560 terminal operation, refer to the IND560 User Guide.
IND560 Overview
The IND560 terminal is available in the following versions:
•
Harsh enclosure with analog load cell connection
•
Harsh enclosure with high-precision (IDNet) base connection
•
Panel-mount enclosure with analog load cell connection
•
Panel-mount enclosure with high-precision (IDNet) base connection
Standard IND560 Features
•
Basic weighing terminal used in safe areas
•
Panel-mount or harsh desk/wall-mount enclosures
•
Connect one analog load cell scale base (or up to eight 350 ohm load
cells) or an IDNet base depending upon the version of the IND560
•
Operation as a Remote Display for another terminal
•
128 × 64 dot-matrix graphic vacuum fluorescent display (VFD) with
21mm-high weight display
•
Real-time clock (battery backup)
•
One serial port for asynchronous, bidirectional communication and print
output
•
85–264 VAC power input range
•
Support for the following option boards:
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
1-2
Analog Output interface
Ethernet TCP/IP with dual serial ports
USB host with Ethernet TCP/IP and single serial port
Allen Bradley RIO® interface
DeviceNet™ interface
PROFIBUS® DP interface
EtherNet/IP interface
IND560 User’s Guide
•
ƒ Modbus TCP interface
ƒ Relay Based Discrete I/O interface
Basic weighing functions including zero, tare, and printing
•
Selectable over/under classifying mode of operation with graphics
•
Selectable material transfer mode for simple filling or dosing
•
ID mode for prompted transaction sequencing
•
Comparators, simple coincidence setpoints for comparison of weight or Rate
with absolute target values or ranges
•
SmartTrac™ graphical display
•
Two memory tables—25 Tare records and 25 Target records
•
Unit switching between three different units including custom units
•
Alibi memory storage for up to 60,000 records
•
Grand total and subtotal registers for accumulating weight
•
Five customizable print templates and report printing
•
TraxDSP™ digital filtering for analog load cells
•
TraxEMT™ performance monitoring and recording
•
CalFREE™ calibration without test weights
•
Support of the following Application Software Modules:
•
Fill-560
Drive-560
COM-560
Dyn-560
Support for TaskExpert™ custom application development software
IND560 Terminal Versions
The IND560 terminal is available in the following versions:
•
Harsh enclosure with analog load cell connection
•
Harsh enclosure with high-precision (IDNet) base connection
•
Panel-mount enclosure with analog load cell connection
•
Panel-mount enclosure with high-precision (IDNet) base connection
1-3
IND560 User’s Guide
Specifications
The IND560 terminal conforms to the specifications listed in Table 1-1.
Table 1-1: IND560 Specifications
IND560 Specifications
Enclosure Type
Panel-mount stainless steel front panel with an
aluminum frame
Harsh environment desk/wall/column-mount type 304L
stainless steel enclosure
Dimensions (l × w × d)
Panel Mount: 265 mm × 160 mm × 92 mm
(10.4 in. × 6.3 in. × 3.6 in.)
Harsh Environment: 265 mm × 160 mm × 170 mm
(10.4 in. × 6.3 in. × 6.7 in.)
Shipping Weight
3.5 kg (8 lb)
Environmental Protection
Panel-mount front panel sealing is UL-approved, and
provides type 4x and type 12 protection – comparable
to IP65 rating
Harsh Environment is UL-approved, and meets IP69K
requirements
Operating Environment
The terminal (both enclosure types) can be operated at
temperatures ranging from −10° to 40° C (14° to
104° F) at 10% to 95% relative humidity noncondensing.
Hazardous Areas
Not all versions of the IND560 can be operated in areas
classified as Hazardous by the National Electrical Code
(NEC) because of the combustible or explosive
atmospheres in those areas. Contact an authorized
METTLER TOLEDO representative for information about
hazardous applications.
Power
Operates at 85–264 VAC, 49–61 Hz, 750 mA (both
enclosure types).
Panel-mount version provides a terminal strip for AC
power connections.
Harsh environment version includes a power cord
configured for the country of use.
Note: When an IND560 is installed in an area classified
as Division 2 or Zone 2/22, special AC wiring
requirements must be met. See document 64060405,
IND560 Division 2, Zone 2/22 Installation Guide.
Power Consumption
1-4
Refer to Table 1-2
IND560 User’s Guide
IND560 Specifications
Display
128 × 64 dot-matrix graphic VFD display, 21 mm
Display Update Rate: 10/second
Weight Display
Displayed resolution of 100,000 counts for analog load
cell scales
Display resolution for high-precision IDNet bases is
determined by the specific base used
Scale Types
Analog load cells or
IDNet, High-Precision K Line (T-Brick type standard)
Number of Cells
Eight 350-ohm load cells (2 or 3 mv/V)
Number of Scales
Interface for one analog or one IDNet scale
Analog/Digital Update Rates
Internal: Analog: >366 Hz; IDNet: determined by base;
Target Comparison: 50 Hz;
PLC Interface: 20 Hz
Load Cell Excitation Voltage
10 VDC
Minimum Sensitivity
0.1 microvolts
Keypad
25 keys; 1.22-mm thick polyester overlay (PET) with
polycarbonate display lens
Communications
Serial Interfaces
Standard Serial port:
• COM1 (RS-232/RS-422/RS-485), 300 to
115,200 baud
Optional Ethernet/Serial Port/USB(s):
• Ethernet 10 Base-T with two additional serial
ports, COM2 (RS-232) and COM3 (RS-232/
RS-422 / RS-485)
or
•
Ethernet 10 Base-T with one additional serial
port, COM3 (RS-232/RS-485), and one USB
host port
Protocol
Serial Inputs: ASCII characters, ASCII commands for
CTPZ (Clear, Tare, Print, Zero), SICS (most level 0 and
level 1 commands)
Serial Outputs: Continuous or Demand with up to five
configurable print templates or SICS host protocol, report
printing, interfaces with external ARM100 Remote
Input/Output modules. Optional COM-560 Application
Software available for legacy serial protocols.
1-5
IND560 User’s Guide
IND560 Specifications
Weights and Measures
USA: NTEP Class II 100,000d; Class III/IIIL 10,000d;
CoC #05-057A2
Approvals
Canada: Class II 100,000d; Class III 10,000d; Class
IIIHD, 20,000d; AM-5593
Europe: OIML Class II approved divisions determined
by platform; Class III 10,000e; Class IIII 1,000e;
Includes Alibi Memory; TC6812
Australia: Class III 7,500e or 3 x 3,000e multiple
range; NMI S483
Hazardous Area
ATEX
Harsh/Analog: II 3 G EEx nL [nL] IIB T4
Panel/Analog & IDNet : II 3 G EEx nL [nL] IIB T4
II 3 D T85°C IP6X
cULus
Harsh/Analog: CL I, GP A-D Div 2; CL II, GP F,G Div 2;
CL III; Zone 2 GP IIC; -10°C<=Ta<=+40°C
Panel/Analog & IDNet : CL I, GP A-D Div 2; CL II, GP
F,G Div 2; CL III; Zone 2 GP IIC; -10°C<=Ta<=+40°C
Product Safety
UL, cUL, CE
Table 1-2: IND560 Power Consumption
U (V)
P (W)
I (mA)
85V/50 Hz
70
822
264 V/50 Hz
156
603
85 V/60 Hz
69
810
264 V/50 Hz
147
558
110 V/50 Hz
84
766
110 V/60 Hz
86
784
240 V/50 Hz
147
614
240 V/60 Hz
145
603
Test condition: IND560 with internal Ethernet/Serial, Analog Output and Discrete
I/O options installed, input loaded to simulate 8 x 350 load
cells.
1-6
IND560 User’s Guide
Environmental Protection
WARNING!
THE STANDARD IND560 IS NOT INTRINSICALLY SAFE! DO NOT USE IN
AREAS CLASSIFIED AS HAZARDOUS BY THE NATIONAL ELECTRICAL
CODE (NEC) BECAUSE OF COMBUSTIBLE OR EXPLOSIVE ATMOSPHERES.
When an approved IND560 is installed in an area classified as Division 2 or Zone
2/22, special AC wiring requirements must be met. See document 64060405,
IND560 Division 2, Zone 2/22 Installation Guide.
Safe Disposal Requirement
In conformance with the European Directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE) this device may not be disposed of in
domestic waste. This also applies to countries outside the EU, per their
specific requirements.
Please dispose of this product in accordance with local regulations at the
collecting point specified for electrical and electronic equipment.
If you have any questions, please contact the responsible authority or the
distributor from which you purchased this device.
Should this device be passed on to other parties (for private or professional
use), the content of this regulation must also be related.
Thank you for your contribution to environmental protection.
Inspection and Contents Checklist
Verify the contents and inspect the package immediately upon delivery. If the
shipping container is damaged, check for internal damage and file a freight claim
with the carrier if necessary. If the container is not damaged, remove the IND560
terminal from its protective package, noting how it was packed, and inspect each
component for damage.
If shipping the terminal is required, it is best to use the original shipping container.
The IND560 terminal must be packed correctly to ensure its safe transportation.
The package should include:

IND560 Terminal

Documentation CD (includes all manuals)

Installation manual

Bag of parts including ferrites, grommets, etc.,
depending on terminal configuration
1-7
IND560 User’s Guide
Model Identification
The IND560 model number is located on the data plate on the back of the terminal
along with the serial number. Refer to Figure 1-1 to verify the IND560 that was
ordered.
Figure 1-1: IND560 Model Identification Numbers
1-8
IND560 User’s Guide
Physical Dimensions
The physical dimensions of the Panel Mount IND560 enclosure are shown in
Figure 1-2 in inches and [mm]. Figure 1-3 shows the dimensions of the cutout
required for the Panel Mount enclosure.
Figure 1-2: IND560 Panel Mount Enclosure Dimensions
Figure 1-3: IND560 Panel Mount Cutout Dimensions
1-9
IND560 User’s Guide
The dimensions of the harsh enclosure desk/wall-mount IND560 terminal are
shown in Figure 1-4 and Figure 1-5 in inches and [mm].
Figure 1-4: Harsh Environment Enclosure Dimensions
Figure 1-5: Harsh Environment Enclosure Dimensions with Optional Brackets
1-10
IND560 User’s Guide
Main PCB
The IND560 terminal’s main printed circuit board (PCB) provides the scale
interface for analog load cell or IDNet.
The main board also contains the COM1 serial port that provides RS-232, RS-422,
or RS-485 communication. The port is bidirectional and can be configured for
various functions such as demand output, SICS host communications, continuous
output, ASCII command input (C, T, P, Z), ASCII character input, report printing,
totals printing, or connection to an ARM100 remote I/O module.
The main board also contains the AC power input connections, front panel
keyboard interface and bus connectors for the option boards.
Scale Bases
The IND560 supports two types of scale bases: Analog or IDNet.
Analog Load Cell Scale Base
The IND560 supports this scale type by an analog load cell interface. The terminal
can drive up to eight 350-ohm analog load cells.
IDNet™ Scale Base
The IND560 supports the newer T-brick style of high-precision base through the
main board IDNet port. This port provides the +12 volts and communication
required to operate this newer style base. The older K module and Pik-brick cells
require the addition of an adapter board and new power supply (to support the
+32 volt requirement) to the IND560. The adapter board and power supply are
available as an option.
Initial performance and compatibility testing was carried out on the IND560
and the following modules: K15, F15, K32 and T-Brick. Compatibility with
other modules and bases is unknown.
Options
The following options are available for the IND560:
• Discrete I/O
Internal, high-level discrete I/O and remote discrete I/O via ARM100 module
• Ethernet/COM2/COM3 Serial Ports option
• Ethernet/USB/COM3 serial port option
• Programmable Logic Control (PLC) interfaces, including:
Analog Output
Allen-Bradley® RIO
DeviceNet™
1-11
IND560 User’s Guide
PROFIBUS® DP
EtherNet/IP™
Modbus TCP
• Fill-560 (application software)
• Drive-560 (application software)
• COM-560 (application software)
• Dyn-560 Basic and Advanced (application software)
• TaskExpert™ application development software
• Installation kit for older pre-2003 high-precision bases using a PIK-Brick weigh
cell
• InSite™ Configuration Tool
• Various brackets for wall and column mounting of the harsh enclosure
Discrete I/O
The discrete I/O interface options include both internal and remote I/O.
• The internal version is available with dry-contact relay outputs. The relay
contacts will switch up to 30 volts DC or 250 volts AC. The inputs are switch
selectable as either active (for simple pushbutton control) or passive (for
connection to PLCs or other devices that supply their own power for the I/O).
• The remote I/O is supported with the ARM100 remote module that provides dry-
contact outputs. The inputs are passive on the ARM100. An external 10 to 32
VDC power supply is required to operate the ARM100.
• A total of 12 inputs and 18 outputs are supported through a maximum of three
options.
WARNING
THE INTERNAL #71209093 DISCRETE I/O RELAY OPTION MUST NOT BE
USED IN AN IND560 TERMINAL INSTALLED IN AN AREA CLASSIFIED AS
DIVISION 2 OR ZONE 2/22. FAILURE TO COMPLY WITH THIS WARNING
COULD RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE.
Ethernet/COM2/COM3 Option
The Ethernet port can be used for FTP transfer of tare and target tables and
complete setup files. It also provides a TCP/IP port to transmit a demand template,
continuous data, for remote configuration using the METTLER TOLEDO InSite™
program, for direct access to data via a shared data server, and to send email
alerts when calibration expires or fails.
COM2 provides RS-232 communication at rates from 300 to 115.2k baud. COM 3
supports the same baud rates and provides an RS-232, RS-422, or RS-485
connection.
1-12
IND560 User’s Guide
Ethernet/USB/COM3 Option
The Ethernet port can be used for FTP transfer of tare and target tables and
complete setup files. It also provides a TCP/IP port to transmit a demand template,
continuous data, for remote configuration using the METTLER TOLEDO InSite™
program, for direct access to data via a shared data server, and to send email
alerts when calibration expires or fails.
COM3 supports an RS-232, RS-422, or RS-485 connection at communication
rates from 300 to 115.2k baud.
The USB port provides a USB host that supports an external QWERTY keyboard.
Keyboard languages supported are English, French, German, Italian and Spanish.
The new USB option can also be used for upgrading terminal firmware and
performing a save/restore.
Use of the Ethernet/USB/Serial option board requires version 4.xx firmware or
higher.
PLC Interfaces
The IND560 PLC interface options include Analog Output, A-B RIO, DeviceNet,
PROFIBUS DP, EtherNet/IP and Modbus TCP. Additional details about each of these
interfaces can be found in the IND560 PLC Interface Manual, provided on the
documentation CD.
Analog Output
Analog Output refers to the representation of an internal system variable using a
proportional electrical signal. Analog Output can be used to transmit a measured
value, such as the gross or net weight. Another use for Analog Output is as a
control signal for some external device, such as a control valve, where the amount
of valve opening is proportional to the analog signal commanding its operation.
Such outputs are used to control the flow rate of material into or out of a vessel.
Both 0-10 volt DC and 4-20 mA signals are provided.
A-B RIO
The A-B RIO option enables data exchange by bi-directional communications using
the Discrete Data Transfer or Block Transfer mode. The IND560 Terminal initiates a
communication exchange with the PLC approximately 20 times per second
utilizing the Allen-Bradley Discrete Data Transfer protocol. This communication is a
high-speed, real-time message interface between the IND560 Terminal and the
PLC for process control. Division, integer, and floating point values are supported.
The IND560 A-B RIO interface also supports Block Transfer mode for transmission
of larger amounts of data.
1-13
IND560 User’s Guide
DeviceNet
DeviceNet is an RS-485 based network utilizing CAN chip technology. This network
was created for bit and byte-level devices. The network can be configured to run up
to 500Kbits per second depending on cabling and distances. Messages are limited
to 8 unfragmented bytes. The network can include up to 64 nodes including the
master, commonly called the scanner.
PROFIBUS DP
The IND560 Terminal communicates to a PROFIBUS-DP master according to
DIN 19 245. The PROFIBUS option consists of a module and software that resides
in the IND560 Terminal, which implements the data exchange.
EtherNet/IP
The IND560 supports communications of the EtherNet/IP interface option and the
appropriate driver software.
Modbus TCP
Modbus/TCP is used to establish master-slave/client-server communication
between intelligent devices. It is an open standard network protocol, widely used in
the industrial manufacturing environment. The ModbusTCP protocol takes the
Modbus instruction set and wraps TCP/IP around it. The Modbus TCP protocol is
supported by the EtherNet/IP interface board, version 1.32 or higher.
Application Software
Installing Application Software
When a hardware key (also referred to as an iButton) enabling IND560 application
software is installed or removed, a pop-up message will appear instructing the
user to perform a master reset. The master reset can be performed with or without
resetting metrologically significant EEPROM (Scale) data, depending on the
positions of switches SW2-1 and SW2-2. Both of these switches must be set to
ON in order to reset EEPROM data to its factory default values. If either of them is
set to OFF, EEPROM data is preserved. Refer to Chapter 4 of this manual, Service
and Maintenance, for details on performing a master reset.
Fill-560
The Fill-560 is a special application that can be added to the IND560 terminal to
provide additional filling and dosing control. It provides control for the following
combinations of weigh-in and weigh-out sequences.
1-14
•
Fill only
•
Fill and dose out
•
Fill and dump
•
Blend only
•
Dose out only
•
Blend and dump
•
Blend and dose out
IND560 User’s Guide
Additional information can be found in the Fill-560 Manual on the documentation CD
that accompanies the Fill-560 software kit or an IND560fill terminal.
COM-560
The COM-560 option is a specialized software module solution focused on the
needs of users utilizing legacy communication protocols or that have special
command requirements. The IND560com maintains all of the standard features
and functions of the IND560 in addition to the specific features and functions of the
COM-560. It provides the following features and functions:
•
•
•
Custom ASCII command template
Mettler Toledo Continuous Short output
8142 Host Protocol
•
•
8530 Host Protocol
PT6S3 Protocol
Additional information can be found in the COM-560 Manual on the module’s
documentation CD.
Drive-560
The Drive-560 option is a specialized application solution focused on simple
inbound-outbound vehicle weighing requirements. The IND560drive has two
modes of operation: Temporary Tare ID Weighing and Permanent Tare ID
Weighing. Some features of this software include:
•
Ability to store up to 100 Permanent Tare IDs
•
Totalization of Permanent Tare IDs
•
One-Step processing of Temporary IDs
•
Reprint of previous transaction ticket
•
Storage of up to 2000 transactions
Additional information can be found in the Drive-560 Manual on the documentation
CD that accompanies an IND560drive terminal.
Dyn-560
The Dyn-560 optional modules are specialized application solutions used for inmotion weighing of conveyor-born packages. They can be used with up to four
350 Ω load cells, and are compatible with the METTLER TOLEDO 9477 weighing
conveyor. The IND560dyn is a stand-alone terminal. When that terminal is
packaged with a variety of I/O options, it is known as the IND9D56. Both types are
equipped with a version of the Dyn-560 software, which can be specified in either
ExpressWeigh® or ExpressCheck® form.
ExpressWeigh functionality provides accurate in-motion package weighing with ID
and additional data input. ExpressCheck includes an enhanced version of
ExpressWeigh, and adds the ability to perform three-zone over/under
checkweighing, using comparisons with a Target Table.
1-15
IND560 User’s Guide
Additional information can be found in the Dyn-560 manuals found on the
documentation CD that accompanies an IND560dyn or application software kit.
Special Requirements for Using Drive-560 and
Dyn-560
Required Firmware Version
The Drive-560 and Dyn-560 applications are both written using Task Expert™. To
run a TaskExpert application, the IND560 must have version 3.xx firmware or
higher installed.
Required Mainboard Version
In addition to the software, the IND560 must have a main board version (V0.8)
installed. V0.8 main boards include 8MB of Flash Memory. The version can be
then the System Information softkey
checked by pressing the Recall Info softkey
, and looking at the details for the analog or IDNet board under Hardware – Scale
Type. If there is a (V0.8) after the Analog L/C or IDNet text, the main board
contains the 8MB Flash Memory and will support running a TaskExpert
application. If the version is (V0.2) or there is no version shown, there is only 4
MB of Flash Memory on the main board and the board must be replaced with a
V0.8 version before the terminal can run a TaskExpert application.
Main boards with the smaller, 4MB, Flash Memory will support v3.00 firmware.
However, they will not support Task Expert based applications such as the Drive560 and Dyn-560.
TaskExpert™
TaskExpert functionality provides a way to modify the standard capabilities of an
IND560 so that it more closely aligns with the application requirements.
TaskExpert is a combination of a programming visualization tool, an execution
engine and the basic functionality of the terminal. Modifications may be made to
the sequence of operation and additional functionality added to the basic operation
of the terminal.
InSite™ Configuration Tool
The IND560 terminal can connect to a PC running InSite via Ethernet or Serial to
provide the following:
• Viewing and/or changing configuration.
• Enabling device-free configuration work before hardware installation.
• Saving configuration information locally on the PC, loading a saved
configuration file into other devices, or restoring to a known state for service
purposes.
1-16
IND560 User’s Guide
• WYSIWYG print template editing tool with expanded viewing area, cut/paste
functions, stored clipboard library (MyData items), and template space usage
display.
• Printing documentation of configuration for users’ records.
• Performing firmware upgrade services for the IND560.
Display and Keyboard
The IND560 terminal has a Vacuum Fluorescent Display (VFD), 128 × 64 dot
matrix graphic type display. An example of the IND560 front panel is shown in
Figure 1-6.
Numeric keys
System line
Zero, Tare, and
Print keys
Weight and
Application area
Softkey labels
Softkeys
Navigation keys
Figure 1-6: The IND560 Front Panel Layout
Display Layout
•
A system line is reserved at the top to show system messages, messages sent
remotely from a PLC, and any asynchronous errors.
•
The middle portion of the display is reserved for the weight display and/or
SmartTrac display. Random data entry is shown in the bottom of this area.
•
The bottom of the display is reserved for showing the graphic labels (icons) for the
softkeys. Display positions for up to five softkey icons are provided.
•
To the right of the softkey icon area space is reserved for a MORE UP ( ) or a
MORE DOWN ( ) indicator. If present, these indicate additional softkey selections
are available by pressing either the UP or DOWN navigation keys. A total of 15
softkeys, presented in three sets of five, are programmable for the home position
depending upon the weighing options and terminal functions enabled. The softkey
setup and key mapping capabilities of the terminal determine the positioning of the
softkeys and locations where they display.
1-17
IND560 User’s Guide
Front Panel Keys
Three dedicated scale function keys are located to the right of the display. These
provide the interface to zero or tare the scale and to initiate a print.
The terminal’s 12-key numeric keypad is used to enter data and commands. The
numeric keys are located on the upper-right side of the terminal front panel.
Five navigation keys are located below the three scale function keys. These keys
enable the operator to navigate through setup options in the menu tree and within
setup and application screens.
1-18
Chapter 2.0
Operation
Overview
This chapter covers
•
Overview
•
Understanding the Navigational
Interface
•
Home Screen
•
Basic Functionality
•
Alibi Memory Direct Access
•
Table Searches
This chapter provides information about navigation, basic
functionality, and report generation using the IND560 terminal.
Operation of the terminal depends on enabled functions and
parameters that are configured in setup as described in Chapter 3.0,
Configuration. Navigation and basic functionality, as well as basic
report generation are covered in the following sections.
Security
The IND560 supports the use of username/password for setup security at four levels.
Refer to Appendix B to determine security levels assigned to specific parameters in
setup.
Administrator
An Administrator has unlimited access to all areas of the operating
and setup system. There can be multiple Administrator accounts.
There is a Primary Administrator account, which can be changed
but never deleted. The terminal is pre-configured at the factory with
the Primary Administrator account with a username of “admin”. The
factory default password is null (no password). The pre-configured
username (admin) cannot be changed; the password can only be
added or modified. The unit as configured at the factory requires no
login or password entry to enter the setup mode. All functions of the
terminal are available to all users until a password for the Primary
Administrator account is set up.
When the Metrology switch (SW1-1) is turned “on” (refer to the next section of
this chapter) and a region approval is selected in setup, all users with
Administrator rights are reduced to the Maintenance level. This is done to
protect metrologically significant parameters that cannot be changed when the
terminal is approved.
Similarly, the metrology switch can also be used to prevent Administrator level
users from accessing metrology features even if the region approval is “None”.
Refer to Appendix B, Default Settings, for the security level of all setup
parameters.
Once a password is set up, be sure to remember the password. If the
password is changed or forgotten, access to the setup menu will not be
2-1
IND560 User’s Guide
available. Be sure to protect the password from access by unauthorized
personnel. The password provides access to the entire setup menu, unless
the metrology switch is placed in the approved position.
Maintenance
Access can be limited by configuring this security level as desired.
Supervisor
Access can be limited by configuring this security level as desired.
Operator
One default operator account with a username of anonymous and
password null (no password) is provided. Sites with validation
requirements might create many operator accounts, each with a
username and password entry requirement.
If a password has been programmed for the Primary Administrator username in
Setup, a security challenge is presented when entering Setup and a username and
password must be entered. The user can enter a password at any security level
supported by the User configuration in the User setup.
The terminal is pre-configured at the factory to include an “anonymous” user
account with a null (blank) password. The default anonymous user record can be
edited or deleted. The user can increase to a higher level of security clearance by
requesting a setup function and then meeting the associated security challenge.
If a login fails, the display exits the login page and returns to the home position.
Metrology Switch
If the metrology switch (SW1-1) is placed in the approved position (On) access to
the Scale branch of setup and other metrologically significant areas is not
permitted. The metrology switch can be used to prevent Administrator level users
from accessing metrology features even if the region approval is “None”.
Selecting a specific region approval and turning “on” the Metrology switch
specifically alters some scale functions:
If the approval is Canada, then the keyboard tare command carries out a
rounded tare.
If the approval is Canada, then the center of zero division is 0.2d. The
default value for non-approved mode is 0.25d.
If the approval is OIML, then the power up zero range is +/- 10% and
pushbutton zero range is +/-2%. For non-approved mode, this range can
be selected by the user.
Access to the metrology switch may be sealed in conformity with local regulations
in “legal-for-trade” applications. Figure 2-1 shows the location of the metrology
switch.
2-2
IND560 User’s Guide
SW1
Figure 2-1: Metrology Switch Location
Refer to Appendix A, Installation, PCB Switch Settings for further
information about SW1-1 and SW1-2 switch settings.
Display Operation
Key names and commands are identified in this manual by upper- and lower-case
letters. Key names, such as ENTER, are in all upper-case letters, and commands,
such as “select,” are in lower-case (unless they begin a sentence, in which case
the first initial is upper-case). For example:
.
“Press START...” means to press the START softkey
“Select an option...” means to use the UP or DOWN navigation keys to select a
setting, then press ENTER.
Softkeys and Icons
Softkeys and application displays use graphic icons for identification. Table 2-1
shows graphic icons and their functions, categorized by where they are used.
Items with an asterisk (*) require a supervisor level log-in or above to be in effect.
Table 2-1: Icons and Functions
Information Recall Options
Icon
Function
Icon
Function
Clear All*
Recall information
Clear Subtotal*
System Information Recall
Metrology Recall
Total Recall
Print*
Weight Recall
2-3
IND560 User’s Guide
Softkey Menu and Setup
Icon
Function
Icon
Function
More Softkey Selections
(scroll rows up and down)
Enter Setup Menu
Calibration Icons
Icon
Function
Icon
Function
CalFREE™ Calibration
Capture Zero
Capture Span
Step Calibration
Service Mode (access
the IDNet service
mode)
Start
Run Calibration Test
Test Weight Information
Skip (skips failed
Calibration Test step
and continues with the
test)
Table, Memory and Function Access
Icon
2-4
Function
Icon
Function
Tare Memory (access
the tare table)
Target Memory (access the
target table)
Alibi Memory
Target (view or edit active
record values for the target
comparison)
View Table (access a
table to view or
retrieve a record)
Search (begin the search
of a table for a record or
group of records)
Tare (captures live
scale weight into the
tare record – Tare
Table edit only)
Comparators (view and
edit Comparator Limit
values)
Reports (recall and
print reports for Alibi
Memory, Tare Table,
or Target Table)*
ID (initiates a programmed
transactional sequence)
Transaction Counter
Reset Counter
Time & Date
Print
IND560 User’s Guide
Table, Memory and Function Access
Icon
Function
Icon
Function
Customized Print Triggers
1, 2 and 3
Repeat Print
Editing
Icon
Function
Icon
Function
Clear All*
Exit (return to previous
screen)
Delete
Insert
Edit
Validate Entry/Transaction
(OK)
Escape (exit without
storing)
Copy
Display Icons
Icon
Function
Icon
Function
Times 10 Display
(expands the displayed
weight by 10)
SmartTrac (turns SmartTrac
display off and on)
MinWeigh (enter
MinWeigh mode)
Unit Switching
Special Control
Icon
Function
Icon
Function
Target Control
Start
Pause
Stop
No
Clear Total*
Reset
Task Selection Icons (only when TaskExpert™ is installed)
Icon
Function
Task List
Displays list of assigned TaskExpert applications
2-5
IND560 User’s Guide
Task Selection Icons (only when TaskExpert™ is installed)
Icon
Function
Task 1
Starts TaskExpert application designated as Task 1
Task 2
Starts TaskExpert application designated as Task 2
Task 3
Starts TaskExpert application designated as Task 3
Understanding the Navigational Interface
Navigate in the applications and configure the IND560 using
•
Navigation keys
•
Alpha keys
•
Softkeys
•
Numeric keys
•
Scale function keys
The locations of these keys and the display screen area are shown in Figure 2-2.
Numeric keys
System line
Zero, Tare, and
Print keys
Weight and
Application area
Softkey labels
Softkeys
Navigation keys
Figure 2-2: Key Locations and Display Screen
Navigation Keys
Navigation keys (see Figure 2-2) enable navigation within the setup menu tree, setup
screens, and application screens. Navigation keys include:
•
2-6
UP and DOWN navigation keys – move the focus up or down to different setup
options within the menu tree (focus is indicated by highlighted text), to
different fields within a setup page, and to switch to another page of available
softkeys. The UP and DOWN navigation keys are also used to move to a next
or previous page when a scroll bar indicates that two or three pages are used
for configuration fields associated with a specific parameter. The example in
Figure 2-3 shows a configuration parameter that requires three pages to
IND560 User’s Guide
display all of the associated configuration fields. The scroll bars indicate which
page of the three is displayed.
Scroll bar
indicating
page 1 of 3
Scroll bar
indicating
page 2 of 3
Scroll bar
indicating
page 3 of 3
Figure 2-3: Example of Scroll Bars, Indicating Three Pages of Configuration Fields
Press the DOWN navigation key to move from page 1 to 2 or from page 2 to
3. Press the UP navigation key to move from page 3 to 2 or page 2 to 1.
•
LEFT and RIGHT navigation keys
Expand (RIGHT navigation key) the setup options in the menu tree
Collapse (LEFT navigation key) the setup options in the menu tree
Move the cursor position to a specific character in text areas
Enable left and right scrolling to view all information available on a screen
•
ENTER key
Opens the setup page for viewing and editing setup parameters
Moves the focus from a field label to a setup value for that field
Accepts new values entered in a field and moves the focus to the next field
label
Softkeys
There is a softkey setup page that is used to
•
Change softkey positions
•
Enable softkey functions
•
Disable softkey functions
For example, a UNIT SWITCHING softkey
units of measure.
can be enabled for selecting alternate
Five softkeys are located along the bottom of the display screen (see Figure 2-2).
Some applications might have up to three pages of softkeys for a total of 15
possible functions. A MORE DOWN symbol displayed on the lower-right corner
of the screen (to the far right of the softkey icons) indicates that more softkey
2-7
IND560 User’s Guide
selections are available. Press the DOWN navigation key to display additional
softkey screens, and UP to display the previous softkey screen.
Appendix E, Softkey Mapping, explains how softkeys can be configured in setup.
Customizing Softkeys
All the softkeys available for assignment to the home screen can be replaced with
customized bitmap images.
The bitmaps must measure no more than 23 pixels wide by 15 pixels high. Each
graphic must have a white border at least one pixel wide at left, right and top – see
Figure 2-4.
Figure 2-4: Softkey Graphic Dimensions
Graphics may be uploaded to the IND560 terminal using an ftp connection via
Ethernet, or through a serial port. Refer to Appendix D, Communications, for details
on these procedures.
New bitmap graphics must have the same filename as the graphic they replace.
Table 2-2 lists the softkey graphics that can be replaced with customized images.
Table 2-2: Bitmap Graphic Filenames
Softkey
Alibi
Graphic File Name
Calibration Test
Comparators
ID
MinWeigh
Recall Info
Reports
Setup
SmartTrac
2-8
Default Image
IND560 User’s Guide
Softkey
Default Image
Tare Table
Graphic File Name
Target
Target Control
Target Start
Target Table
Trigger 1
Trigger 2
Trigger 3
Time & Date
Unit Switching
X10 Display
Scale Function Keys
Scale function keys (see Figure 2-2) are:
ZERO When the scale platform or weighbridge is empty, the terminal
should indicate zero. The gross zero reference is recorded during
calibration. Press the ZERO scale function key to capture a new
gross zero reference point if pushbutton zero is enabled in
configuration and the weight is within the zero range.
TARE
Tare is the weight of an empty container. Tare is normally used to
determine the net weight of the contents of a container. Press the
TARE scale function key when an empty container is on the scale.
The terminal then displays a zero net weight. As the container is
loaded, the terminal then displays the net weight of the contents.
Pushbutton tare must be enabled to use this key in this manner.
When the empty weight of the container is a known value, enter
the tare weight using the numeric keys and then press the TARE
scale function key. The terminal will display the net weight of the
contents of the container. Keyboard tare must be enabled in order
to use this key in this manner.
PRINT Press the PRINT scale function key to initiate a demand print of an
assigned print template. A serial or Ethernet print connection must
be configured to link a template or report to the selected serial or
Ethernet port. When a print command is issued, Printing appears
in the system line for 5 seconds – see Figure 2-9.
2-9
IND560 User’s Guide
Alpha Keys
On some setup pages, softkeys function as alpha keys (see Figure 2-5) that are
used to enter alphabetic characters for setup parameters such as passwords.
Character sets
above associated
softkeys
Figure 2-5: Alpha Keys
The alpha keys are automatically displayed when the cursor is moved into a data
entry box that supports alpha entry. The first set of softkeys shown is upper-case
letters (Figure 2-5). Three additional sets of softkeys include lower-case letters and
symbols. In each of these sets, a group of four to six characters is shown per
softkey.
Figure 2-6: Additional Character Sets
To enter a character, use the UP and DOWN arrow keys to move to the row of keys
that shows the group including the desired character. If the set of keys shown does
not include the required character, press the DOWN navigation key to view the next
set. Press the DOWN navigation key and UP navigation key as required until the
set of keys shows the required character. The presence of the MORE UP / MORE
DOWN symbols to the right of the softkeys indicates that additional sets of
characters are available. Once the correct row is showing, press the softkey under
the group of characters that includes the required character.
2-10
IND560 User’s Guide
At this point, the characters above the softkey will change to show one character
per softkey (Figure 2-7).
Figure 2-7: One Letter Per Softkey
Now, press the softkey that corresponds to the desired character. Also note that the
MORE DOWN symbol is shown at the right of the softkeys. Press the DOWN
navigation key to view the second row of characters. This group will include an
(Figure 2-8). If the wrong group of characters was selected,
ESCAPE softkey
use this softkey to return to the character set selection screen.
Figure 2-8: ESC Character
Repeat this process until all alpha characters have been entered. The CLEAR key
can be used to delete unwanted characters in the entry box. The ESCAPE softkey
on the symbol group of softkeys (see Figure 2-6) exits the data entry process
without accepting any of the new data typed. The data in the entry field will revert
to the original data (that was in the entry box before the new entry was initiated).
Once desired alpha characters have been entered in appropriate fields on the
screen, press the ENTER key to accept the entries.
Numeric Keys
Use the terminal’s 12-key numeric keypad (see Figure 2-2) to enter data and
commands.
To use numeric keys, position the cursor in the field (see Navigation Keys) and
press the numeric keys to enter the appropriate data. Press the DECIMAL key to
enter decimal points where necessary.
The CLEAR key functions like a backspace key. Position the cursor at the end of
data to be deleted and press the CLEAR key. Press the CLEAR key once for each
character to be deleted. When first entering a data entry box, the previous entry will
be in focus. Pressing CLEAR at this point will clear the entire previous entry.
2-11
IND560 User’s Guide
Home Screen
The Home screen displays when the terminal is idle. The Home screen is the only
screen that provides operator access to the programmable softkeys. Figure 2-9
shows a sample screen with a message showing in the system line.
System
line
Application
area
MORE DOWN
symbol
indicating
more Softkey
selections
Softkey
icons
Figure 2-9: Default Home Screen, System Line with Message Showing
The Home Screen includes:
•
System Line
Displays system messages and application data
•
Application Area
Displays weight, units, and other application-specific
weighing data
•
Softkey Icons
Displays the icons for the active softkey functions. The
appearance of a MORE DOWN symbol or a MORE UP
symbol indicates that more softkey selections are
available
Basic Functionality
This section provides information about the IND560’s basic functionality.
Additional areas of functionality specific to application software available for the
IND560 are addressed in the specific application manuals. Basic functions
addressed in this section include:
2-12
•
Zero
•
Information Recall
•
Reports
•
Tare
•
Target Comparison
•
Calibration Test
•
Unit Switching
•
Comparators
•
CalFREE™
•
Expand By 10
•
ID Mode
•
Alibi Memory
•
Print
•
SmartTrac
•
Table Searches
•
MinWeigh
•
Time and Date
•
Remote Display
IND560 User’s Guide
Zero
The Zero function is used to set or reset the initial zero reference point of the
IND560. There are three types of zero setting modes:
•
Automatic Zero Maintenance
•
Power-Up
•
Pushbutton
Automatic Zero Maintenance
Automatic Zero Maintenance (AZM) enables the IND560 to compensate for the
build up of small amounts of weight and track itself back to the center of zero.
Within the AZM operating range (programmable from 0.00 to 10.00 divisions),
when the terminal is in a no motion condition, it makes small adjustments to the
current zero reading to drive the weight reading toward the true center-of-zero.
When the weight is outside of the programmed AZM range, this feature is not
functional.
Power-Up Zero
Power-Up Zero enables the IND560 terminal to capture a new zero reference point
after power is applied. If there is motion during a power-up zero capture function,
the terminal will continue to check for a no-motion condition until zero is captured.
Power-up zero can be disabled or enabled, and a range above and below
calibrated zero can be configured. The range is programmable from 0% to 100%
of capacity and can include a positive range and also a range below calibrated
zero.
Pushbutton Zero
The pushbutton (semi-automatic) zero function can be accomplished by pressing
the ZERO
scale function key, programming a discrete input, a PLC command
or serial command, or by an application.
The range for all types of semi-automatic zero is selectable (0% to 100%) plus or
minus from either the calibrated zero point (if power-up zero is disabled) or from
the initial zero setting point (if power-up zero is enabled).
Remote initiation of the semi-automatic Zero command is possible via a discrete
input, an ASCII ‘Z’ command sent serially (CPTZ and SICS), a command initiated
by the PLC interface, or from an application.
Tare
Tare is the weight of an empty container. A tare value subtracts from the gross
weight measurement, providing the computation of the net weight (material without
the container). The tare function can also be used to track the net amount of
material being added to or removed from a vessel or container. In this second
case, the weight of the material in the container is included with the tare weight of
2-13
IND560 User’s Guide
the container as tare. The display then reflects the net amount being added to or
removed from the vessel.
Tare types and associated operations available on the IND560 include:
•
Pushbutton Tare
•
Keyboard Tare (Preset Tare)
— Manual Clear
•
Net Sign Correction
— Auto Clear
•
Auto Tare
•
Tare Clear
Pushbutton Tare
Pushbutton tare can be configured in setup as enabled or disabled. When
disabled, the TARE scale function key
cannot be used to obtain a tare.
initiates a semiIf enabled, pressing the pushbutton TARE scale function key
automatic tare. The IND560 will attempt to perform a tare process. If successful,
the display changes to a zero net weight indication and the previous weight on the
scale is stored as the tare value. The net mode will be indicated on the display.
Several conditions could inhibit the pushbutton tare function:
•
Motion – Pushbutton tare cannot be taken when the scale is in motion. If
motion is detected when a pushbutton tare command is received, the IND560
will wait up to three seconds for a no-motion condition. If a stable (no motion)
weight condition occurs before the three seconds expire, the pushbutton tare
command is executed.
•
If there is still motion at the end of three seconds, the command is aborted and
a “Tare Failure–In Motion” error displays.
•
Pushbutton Tare Disabled – If pushbutton tare is configured as disabled, the
TARE scale function key will not initiate a semi-automatic tare.
•
Negative Gross Weight – Any pushbutton tare attempted when the gross weight
is at or below zero is ignored and a “Tare Failed–Too Small” error displays.
Ensure that the gross weight is above zero.
Keyboard Tare
A keyboard (preset) tare is a numeric tare that is entered manually through the
numeric keypad, received serially from a peripheral, or retrieved from the Tare
Table memory. The preset tare value cannot exceed the capacity of the scale. Data
entered is interpreted to have the same units as the current displayed value. Motion
does not impact the entry of preset tare values.
Keyboard tare can be configured in setup as enabled or disabled. When disabled,
the numeric keypad and the TARE scale function key
cannot be used to
obtain a tare.
2-14
IND560 User’s Guide
To enter a preset tare value manually, use the numeric keypad to enter the tare
value (the data entered will display above the softkey with a Data: label) and press
the TARE scale function key
.
If configured in setup, remote equipment can enter a preset tare value using a
serial command or PLC command (see Chapter 3.0, Configuration, the
Communication section, Serial and PLC setup, for further information).
If the preset tare is successful, the display changes to a net weight indication, and
the entered preset tare value is stored as the tare value in the Tare Table.
Several conditions could inhibit the preset tare function:
•
Keyboard Tare Disabled – If keyboard tare is configured in setup as disabled,
the numeric keypad and the TARE scale function key
cannot be used to
obtain a tare.
•
Over-Capacity or Under-Zero Conditions – Preset tare is not allowed when the
weight display indicates over capacity or under zero conditions. Any preset
tare attempted when the scale is over capacity is ignored and a “Tare Failed–
Over Cap” error displays. Any preset tare attempted when the weight display
indicates an under zero condition is ignored and a “Tare Failed–Too Small”
error displays.
Preset tare can be entered in free format. If the entered value does not match the
displayed weight decimal point location or display interval, the entered tare value
is rounded to the nearest display interval and the decimal point adjusted to match
the gross weight. The rounding method is that 0.5 or more of a display interval (d)
is increased to the next display interval and 0.49 or less of a display interval is
decreased to the next lower display interval.
When entering a preset tare value less than 1.0, the operator can enter the data
without the leading zero (left of the decimal point), but all subsequent display,
storage, or printing of this value will include the leading zero. For example, a
preset tare entry of .05 will display as 0.05.
If a preset tare has already been established and another preset tare is entered, the
second preset tare replaces the previous value (it does not add to the previous
value). The replacement tare can be larger or smaller than the original tare value.
Tare Table
The IND560 terminal contains a tare table with 25 records for storing tare weights
that can be recalled by the operator, instead of manually entering them for each
transaction. This is especially useful when certain tare values are used repeatedly.
A 20 character description can be included for each record. This can be used to
help distinguish one tare record from another. Each tare record in the tare table
also contains a totalization field. When totalization is enabled for the tare table,
each time a transaction is completed using a specific tare ID, the selected weight
value (gross or net weight) will be added to the total and the corresponding
counter will be incremented by one.
2-15
IND560 User’s Guide
A tare memory can be recalled by either picking from a list of all available records
or if the ID for the tare value is know, it can be “quick” accessed (refer to the Quick
Access section, below). A printed report of the records in the Tare Table is also
available. Additional details about the tare table are explained in Appendix C, Table
and Log File Structure.
Net Sign Correction
Net sign correction enables the terminal to be used for both shipping (inbound
empty) and receiving (inbound loaded) operations. Net sign correction can be
either disabled or enabled on the IND560. See Chapter 3.0, Configuration, the
Scale section, for further information about disabling and enabling net sign
correction.
If net sign correction is disabled in setup, any stored weight value in the tare
register is assumed to be a tare regardless of the gross weight present on the scale
at the time of the final transaction and net values can be negative.
If net sign correction is enabled, the terminal will switch the gross weight and tare
weight fields when necessary, so that the larger weight is the gross weight, the
smaller weight is the tare weight, and the difference is always a positive net
weight. Net sign correction affects the display, stored data, weight recall, and
printed data.
Net sign correction will operate with pushbutton tare, preset tare, or tare memories.
An example of weight values with and without net sign correction is shown in
Table 2-3. In this example, the tare register value is 53 kg and the live weight on
the scale is 16 kg.
Table 2-3: Weight Values With and Without Net Sign Correction
Net Sign Correction
•
Printed and Displayed
Disabled
Enabled
Gross
16 kg
53 kg
Tare
53 kg
16 kg
Net
−37 kg
37 kg
When net sign correction is enabled, the tare weight field in the recall
display will be labeled with the letter “M” to indicate “Memory” instead of
“T” or “PT”.
Auto Tare
The IND560 can be configured so that tare is automatically taken (auto tare) after
the weight on the scale exceeds a programmed tare threshold weight. Auto tare
can be configured in setup as enabled or disabled. When auto tare is enabled, the
display changes to a zero net weight indication after the weight exceeds the
threshold value. The previous weight on the scale is stored in the Alibi Table as the
tare value. Auto tare operations involve:
2-16
IND560 User’s Guide
•
Tare Threshold Weight – When weight on the scale platform exceeds the tare
threshold value, the terminal automatically tares.
•
Reset Threshold Weight – The reset threshold weight must be less than the tare
threshold weight. When the weight on the scale platform falls below the reset
threshold value, such as when a load has been removed, the terminal
automatically resets the auto tare trigger.
•
Motion Check – A motion check is provided to control the re-arming of the auto
tare function. If disabled, the auto tare trigger will be reset as soon as the
weight falls below the reset value. If enabled, the weight must settle to nomotion below the reset threshold before the next auto tare can be initiated.
Several conditions could inhibit the auto tare function:
•
Motion – Auto tare cannot be taken when the scale is in motion. If motion is
detected after the weight on the scale exceeds a preset tare threshold weight,
the IND560 will wait for a no-motion condition. If a stable (no motion) weight
condition occurs within three seconds, the auto tare command is executed.
•
Auto Tare Disabled – Auto tare can be configured in setup as enabled or
disabled.
Clearing Tare
Tare values can be cleared manually or automatically.
Manual Clear
on the numeric keypad
Manually clear tare values by pressing the CLEAR key
when the IND560 is in the net mode and has completed the weighing operation.
Motion on the scale will not impact a manual clear.
If configured in setup, pressing the ZERO scale function key
will first clear the
tare, then issue a zero command (see Chapter 3.0, Configuration, the Scale
section, Auto Clear).
Auto Clear
The IND560 can be configured to clear tare automatically when the weight returns
to a value below a programmable threshold, or when a print command is issued.
Once the tare is cleared, the display returns to the gross weighing mode.
Auto clear is disabled or enabled in setup. If auto clear is enabled the following
parameters, configured in setup, affect the auto clear operation:
•
Clear Threshold Weight – The clear threshold weight is the gross weight value
below which the IND560 will automatically clear a tare after settling to a value
above this threshold value.
•
Motion Check – A motion check is provided to control the automatic clearing
of tare. If the motion check is disabled, the tare value is cleared as soon as the
weight drops below the threshold weight (auto clear threshold), regardless of
the motion status.
2-17
IND560 User’s Guide
•
If the motion check is enabled, after meeting the requirements for weight value
above and then below the threshold weight (auto clear threshold), the IND560
waits for a no-motion condition before automatically clearing the tare.
•
Clear After Print – If enabled, tare is automatically cleared and the scale
returned to the gross mode after data has been transmitted by pressing the
or from a remote source.
PRINT scale function key
See Chapter 3.0, Configuration, the Scale section, Auto Clear for further information
about configuring auto clear.
Unit Switching
In order to support locations and applications that utilize multiple measurement
units, the IND560 supports unit switching. The UNIT SWITCHING softkey
enables switching between primary units (the main unit of measure) and alternate
units (second or third units).
When the UNIT SWITCHING softkey
is pressed, the display changes from the
primary unit to the second unit. When this softkey is pressed again, the display
switches to the third unit (if one has been programmed) or returns to the primary
unit. Each subsequent time the UNIT SWITCHING softkey
is pressed the
IND560 continues to switch the unit through the same sequence.
When units are switched, the units value changes to the correspondingly selected
units, and the conversion of the display value occurs. The display division
changes to an equivalent weight value in the switched unit (for example, from
0.02 lb to 0.01 kg) and the decimal location switches to accommodate the
conversion.
When switching units, the capacity of the converted units is dictated by the original
number of divisions established in the capacity and increments area of setup. In
some situations, this may reduce the capacity of the terminal when converting to
second or third units.
Expand By 10
The EXPAND BY 10 softkey
is used to increase the selected weight display
resolution by one additional digit. For example, a weight display of 40.96 could
increase by one additional digit to display as 40.958. The Expand By Ten mode is
indicated on the display by x10, which displays below the weight display. When
the EXPAND BY TEN softkey
is pressed again, the display reverts to the
normal display of weight.
If programmed as approved with the metrology switch (SW1-1) ON, the Expand
By Ten mode is displayed for five seconds then automatically returns to normal
resolution. Printing is disabled when the weight is expanded and the terminal is
programmed as approved.
2-18
IND560 User’s Guide
Print
The print function (demand print) can be initiated by pressing the PRINT
function key on the main keyboard, by using custom print trigger softkeys or by
automatic print settings. Demand printing of data may also be initiated as part of a
particular sequence of operation or special application software. A ‘Printing’ system
message (visible in Figure 2-9) appears for 5 seconds when the terminal is
carrying out a print command.
Print Interlock
Print Interlock is designed to enforce a single print output per transaction. Print
Interlock can be disabled or enabled. If enabled, the print command is ignored
until the measured gross weight exceeds the print interlock threshold. After the first
print command is executed, subsequent print commands are ignored until the
gross weight indication falls below the print interlock reset threshold. If a print
command is blocked by print Interlock, a synchronous “2nd Print Prohibited” error
is generated and a “Print Not Ready” message appears in the system line.
Automatic Print
Automatic initiation of a demand print occurs after the gross weight exceeds the
minimum threshold and there is no motion on the scale. After initiation, the gross
weight must return below the reset threshold before a subsequent automatic print
can occur.
Automatic print may be disabled or enabled. Automatic print can be triggered and
reset by weight exceeding thresholds or by weight deviation from a previously
stable reading.
Repeat Print
The Repeat Print softkey
permits the output of the most recent Demand Print
or a Custom Print from an application, to be printed again with a DUPLICATE
header or footer to distinguish it from the original print.
to
To enable the Repeat Print function, simply add the Repeat Print softkey
the Home Page. Pressing this softkey will initiate a repeat print of the last Demand
Print connection listed in the assignments found in Setup at Communication >
Connections.
An output template can be flagged with a “DUPLICATE” header or footer to indicate
that the data in the output template was generated as a repeat of a previous
communication.
MinWeigh
Certain industries such as pharmaceutical and food require a guarantee that the
weighing equipment selected for a particular measurement is adequate for the task.
One way to ensure that appropriate weighing equipment is selected is by the
2-19
IND560 User’s Guide
creation and use of a minimum weighment value (MinWeigh), below which a
particular piece of weighing equipment cannot be used.
When the MinWeigh function is enabled, the MINWEIGH softkey
can be
pressed to initiate the MinWeigh function, which compares the current net weight
with the programmed MinWeigh value. If the net weight is greater than or equal to
MinWeigh, all equipment functions behave normally. If the absolute value of the
net weight is less than MinWeigh, the weight display includes a flashing MinWeigh
symbol to the left of the weight. If the user attempts to record the weight while in
this condition, the printout will include an asterisk (∗).
For specific step-by-step instructions on how to set up MinWeigh, see Chapter 3.0,
Configuration, Scale, MinWeigh.
Information Recall
Press the INFORMATION RECALL
softkeys shown below appear:
softkey to access the recall screen where the
Weight Recall
Displays the Gross, Tare, and Net active weight readings
for the scale.
System Information
Displays system information, including the model and
serial number, Terminal ID #1, Terminal ID #2, Terminal
ID #3, and software and hardware information. This ID
information is entered in the Setup mode (Refer to the
Chapter 3.0, Configuration, Terminal, Device, for more
information about entering Terminal ID information).
Metrology Recall
Displays the terminal metrology control number (MCN),
whether the terminal is programmed as approved or not,
and the last calibration time and date. On the highprecision IDNet version, the Ident Code (calibration
tracking) is also displayed.
Totals Recall
Displays the sub-total and grand-total transaction count
and total weight for the terminal. Press the CLEAR
to clear the sub-total amounts.
SUBTOTAL softkey
Press the CLEAR softkey
to clear both the grand-total
and sub-total amounts. Press the PRINT softkey
to
print a report of the totals.
Notes: If either Clear Total or Clear Subtotal After Print is
enabled in setup, these values will clear after
printing.
Table clear and print functions are accessible only
to users with Supervisor level log-in and above.
Target Comparison
Target comparison is used to compare either the gross or net weight on the scale
to a predetermined target value. This feature can be useful in both automatic and
manual processes. As an example, an automatic filling system using target
2-20
IND560 User’s Guide
comparison could provide a Start signal to the IND560 and the IND560 could
control the feeder system to fill a container to a desired target.
An example of a manual process could be a checkweighing station where an
operator is checking net weight of packages. The IND560 can use its target
comparison feature to provide a bright Over - OK - Under indication to help the
operator determine if the weight of each package is acceptable or not compared to
an ideal weight.
Target (setpoint) comparison is most often used in two types of applications:
Material transfer applications – Requires that a control device deactivate
when a target value is achieved
Over/Under applications – Classify a load placed on the scale platform as
above or below the target value or within the target tolerance range
The IND560 target comparison rate (for analog load cell scales) is 50
comparisons per second. The comparison rate for high precision IDNet bases is
dependent upon the module in the base.
See Chapter 3.0, Configuration, the Application section, Memory, Target Table and
Operation, Target for further information about configuring parameters for target
comparison operations.
Material Transfer Applications
If the target comparison of the IND560 will be used to control the flow of material,
the application can be classified as a Material Transfer application. These types of
applications are usually automated but can also be manual. A single or two-speed
feeding system is used to either add weight to or remove weight from the scale.
The terminal monitors the change in weight and compares it to a previously
entered target and other control parameters.
The following definitions explain some terms used in Material Transfer
applications:
Abort
After a target comparison process has been paused, it can be
totally stopped by pressing the Abort softkey
under the
Target Control softkey
or by triggering a Target
Pause/Abort discrete input. If abort is selected, the target
comparison process is aborted.
Coincidence Outputs
A coincidence output is always active and does not require a
start or stop signal. If the weight on the scale is below the target
minus the spill value, the outputs are “on”. If the weight is
above the target minus the spill value, the outputs are “off”.
This type of output typically requires external logic to provide
the required control for feeding systems.
2-21
IND560 User’s Guide
2-22
Concurrent Outputs
This describes the operation of the feed output in a 2-speed
feeding system. If the feeder type is programmed as concurrent,
the feed output will turn on when the fast feed output turns on
and continue to operate until the weight reaches the target
minus the spill value. Both the fast feed output and the feed
output are active at the beginning of a target comparison. It is
the opposite of independent outputs.
Fast Feed Output
This refers to the physical output connection that is used for the
faster feed in a 2-speed feeding system. This output is not used
in a single speed feeding system.
Feed Output
This refers to the physical output connection that is used for the
slower feed in a 2-speed feeding system or the only feed output
in a single speed feeding system.
Fine Feed
The value entered for the amount of material that will be fed in
the slower rate of feed in a 2-speed feeding system. This value
and the spill value are subtracted from the target to determine
the point that the fast feed output turns off.
Independent Outputs
This describes the operation of the feed output in a 2-speed
feeding system. If the feeder type is programmed as
independent, the feed output does not turn on until the fast feed
output turns off. Only one feeder speed is active at a time. It is
the opposite of concurrent outputs.
Latched Outputs
Latched outputs turn off at the target weight minus the spill
value and remain off (regardless of additional weight changes)
until a “start” signal is received. These types of outputs do not
usually require external logic to perform standard weigh-in or
weigh-out sequences.
Material Transfer
Mode
The target comparison mode that provides control for delivering
a measured amount of material from one container or vessel to
another. The transfer can apply to material entering or leaving a
container or vessel. It includes the traditional terms such as
weigh-in, weigh-out, filling, and dosing.
Pause
A pause function is provided in target comparison control in
case a target comparison must be temporarily paused. This
can be done by pressing the Pause softkey
under the
Target Control softkey
or by triggering a discrete input
programmed as Target Pause/Abort. When paused, power is
removed from the Feed and Fast Feed (if used) discrete
outputs. After a target comparison has been paused, the
process can either be resumed or aborted.
Resume
After a target comparison process has been paused, it may be
resumed by pressing the Resume softkey
or by triggering a
discrete input programmed as Target Start/Resume. When a
target comparison is resumed, it continues to use the original
target values.
IND560 User’s Guide
Spill
The amount of material that will be added (on a weigh-in) or
removed (on a weigh-out) from the scale after the final feed is
turned off. In a weigh-in process, this is the material in
suspension that will still fall onto the scale when the feed is
turned off. This value is subtracted from the target value to
determine when the feed output turns off.
Start
When using latched targets, the default condition is with the
latch set or in the “off” condition. To turn any outputs “on”, a
,a
start signal is required. This could be the Start softkey
discrete input programmed as Target Start/Resume, or via the
.
Target Control softkey
Target
The target is the weight value that is the end goal of the
material transfer process. If a container should be filled with 10
kg of material, the target value is 10 kg.
Tolerance
The weight range above and below the target value that will be
acceptable as an “in tolerance” target comparison. The
tolerance can either be entered as a weight deviation from the
target or a percentage deviation from the target depending upon
setup.
Target Control
Two different levels of target control are provided by the terminal for the Material
Transfer mode. Latching outputs must be enabled to utilize either type of
automated control. For simple applications, only the START softkey
is needed
to begin the target comparison process. No other control is provided. The
comparison runs to completion then the latch sets the outputs FALSE until the
START softkey
is pressed the next time.
For those applications where more control is needed for an occasional pause or to
abort a comparison process, the TARGET CONTROL softkey
is used. Pressing
the TARGET CONTROL softkey provides a dedicated display for the target
comparison with the comparison status and appropriate softkeys shown. Possible
status modes are “Ready”, “Running” or “Paused”. The appropriate control softkeys
include START
, PAUSE
and STOP
.An example of each target control
display is shown in Figure 2-10, Figure 2-11 and Figure 2-12.
START
softkey
Figure 2-10: Example of Ready State in Target Control
2-23
IND560 User’s Guide
PAUSE
softkey
Figure 2-11: Example of Running State in Target Control
RESUME
(START)
softkey
ABORT
(STOP)
softkey
Figure 2-12: Example of Paused State in Target Control
Over/Under Applications
If the target comparison of the IND560 will be used to checkweigh the weight of a
product, the application can be classified as an Over/Under application. These
types of applications are usually manual processes but can also be automated.
The SmartTrac display indicates the classification of the weight placed on the scale
and discrete I/O can be used to trigger external lights or other controls. The
terminal compares the current weight to a previously entered target with tolerance
values or to zone limits and indicates the results. The following definitions will
explain some terms used in Over/Under applications. The following definitions
apply to over/under applications:
2-24
Over Limit
If a tolerance mode of “Weight value” is selected in setup, the
IND560 does not require the entry of a target value. In this mode,
only the upper and lower limits for the OK zone are entered. When
programmed for this mode, the over limit value is the maximum
weight that will be classified as OK. Any weight above than this
value will be classified as Over.
Over/Under Mode
The target comparison mode that provides three zone
classifications for weight placed on the scale. The classification
can be Under if the weight is below the target minus the -tolerance,
OK if within the tolerance range or Over if the weight is above the
target plus the +tolerance.
Target
The target is the ideal weight value for the product being tested. If a
container should weigh exactly 10 kg, the target value is 10 kg.
Tolerance
The weight range above and below the target value that will be
acceptable as “OK” in the target comparison. The tolerance can
either be entered as a weight deviation from the target, a
percentage deviation from the target or as absolute weight (zone
IND560 User’s Guide
edges) depending upon setup.
Under Limit
If a tolerance mode of “Weight value” is selected in setup, the
IND560 does not require the entry of a target value. In this mode,
only the upper and lower limits for the OK zone are entered. When
programmed for this mode, the under limit value is the minimum
weight that will be classified as OK. Any weight below than this
value will be classified as Under.
Zones
The IND560 provides 3 different classifications or “zones” in the
Over/Under mode. The zones are Under, OK and Over.
Target Comparison Parameter Entry
To enter target comparison parameters, either directly edit the active records or
load them with data from a record in the Target Table.
Direct Editing of Active Records
To directly edit the active record:
. (See Chapter 3.0, Configuration, the Terminal
1. Press the TARGET softkey
section, Softkeys, for information about how to setup softkey display.) The
Active Values screen displays.
2. Use the UP and DOWN navigation keys to scroll through the fields available for
editing.
3. Press the ENTER key to select a field to edit.
4. Depending whether the mode is material transfer or over/under, and the type of
tolerance selected, the active target record will show different fields to edit. Use
the navigation and numeric keys to enter values for all of the fields as needed.
Material Transfer,
Either Mode
Over/Under
Weight Deviation or % of Target
Weight Value
Target
Target
Over Limit
Spill
+ Tolerance
Under Limit
Fine Feed
- Tolerance
+ Tolerance
- Tolerance
5. Use the alpha keys to enter a description.
6. Press the OK softkey
to accept the edits to the active record.
7. Press the ESCAPE softkey
to return to the weighing operation screen
without saving the active record edits.
Loading Records from the Target Table
can be used in two ways to load records from
The TARGET MEMORY softkey
the Target Table: Quick Access and List Selection.
2-25
IND560 User’s Guide
Quick Access to Records
Use the Quick Recall mode when the ID of the Target Table record to be loaded is
known. Use the numeric keypad to enter the ID and then press the TARGET
MEMORY softkey
to load the record. If the record is available, the data is
loaded. If the record is not found, an “ID not found” error displays.
List Selection
Use the List Selection mode when the ID of the Target Table record is unknown. To
use the List Selection mode:
1. Press the TARGET MEMORY softkey
Target Search screen displays.
without any preceding data entry. The
2. Enter any search restrictions required or leave selections as they are to retrieve
all records.
3. Press the SEARCH softkey
to view the selected records in the table.
4. Use the UP and DOWN navigation keys to scroll through the list until the
desired record is highlighted.
5. Press the OK softkey
to load the selected record from the list.
6. Press the ESCAPE softkey
without loading the record.
to return to the weighing operation screen
Record Selection Using Shared Data
Alternatively, the Shared Data server can be used to activate target records stored
in the Target Table. Refer to the Shared Data Access section of Appendix D,
Communications, and the Shared Data Reference found on the documentation CD
for specific instructions.
Target Units
If second and/or third units are established in the IND560, target records that
utilize either second or third units can be retrieved from the Target Table into Active
Target status. The IND560 will convert the retrieved record into active units when
the record is recalled. Pressing the TARGET softkey
will show the original units
as recalled from the Target Table.
If an attempt is made to retrieve a record from the Target Table that does not use
primary, second or third units, a “Units Mis-match” error will display indicating that
record recall was unsuccessful.
Comparators
Comparators are simple targets, five of which can be configured in setup. They are
controlled either by coincidence or by comparison with a range. The source for
comparison can be the Gross Weight, Displayed Weight, Rate or assigned by a
custom TaskExpert application. When assigned to the home screen, the
permits direct access to the Comparators. This screen
Comparator softkey
displays each Comparator’s ID, Description, Limit, Unit, High Limit (if applicable)
and Active operator. Only the limit value/s can be edited. To edit parameters other
than limits, the Comparator configuration screen must be accessed in setup.
2-26
IND560 User’s Guide
To access a comparator’s limit editing page directly from the home screen, press
the ID number of the Comparator, then the Comparator softkey. If the ID number is
not known, press the Comparator softkey
, use the UP/DOWN keys to select
the desired Comparator from the list, and press the Edit softkey
.
When the Active value is <, <=, =, >= or >, the selected source is compared to a
target weight. When the Active value is within (>_ _<) or outside (_< >_) a range,
the selected source is compared to a range defined by the Limit and High Limit
values.
Using Comparators
To use a Comparator, it must be assigned to a discrete output.
Target Value Comparators
In this case, the output will be triggered depending on the Active setting. For
example, if the Active operator is <= (less than or equal to) and the Limit is 1000
kg, the output will turn OFF when the measured value reaches 1000 kg.
Range Comparators
In the case of a Range mode Comparator, the Limit value sets the lower of the two
rates that define the range, within or outside (depending on the operator) which the
output is active. For example, if the Active operator is Within (>_ _<), the Limit is
3.0 kg/sec and the High Limit is 8 kg/sec, the output will be active provided the
rate remains between 3 and 8 kg/sec. If the rate falls below 3 or exceeds 8 kg/sec,
the output will turn OFF.
Note that the Rate value configured in setup at Scale > Rate permits weight
and time units to be defined, together with the period between measurements
and the number of measurements to average to generate the output value.
If the weight information in the terminal becomes invalid, the Rate display will
show 0.000.
A Range Comparator can also use displayed or gross weight as its source. For
example, if displayed weight (possibly a net value, allowing for the weight of a
hopper) is the source, the Active operator is Outside, and the Limit and High Limit
are 1000 kg and 1500 kg respectively, the output will remain active as long as
the source value is below 1000 kg. In this case a large enough value for the High
Limit should be set to ensure that, once the Limit is reached and the output turned
off, there is not sufficient spill to reach the High Limit and reactivate the output.
ID
The ID function provides a convenient and simple way to ensure that a specific
sequence of operation is carried out the same way each time. Each step can
include an on-screen message that instructs the operator to perform an action, or a
prompt asking the operator to enter some information. These steps may include
data entry (using the numeric keypad, alphanumeric keys, or some other input
such as a barcode scanner) and actions (such as placing a package on the scale,
2-27
IND560 User’s Guide
taking a tare, or printing a ticket for the transaction). When a step is completed,
pressing the ENTER key moves to the next one.
As many as 20 steps may be programmed, and the sequence can be triggered in
one of two ways:
•
Manually, using the ID softkey
•
Automatically, by threshold and reset weight readings from the scale
If the sequence is triggered manually, it may be programmed to loop, repeating all
steps until either the EXIT softkey
is pressed, or an ESC softkey
is
pressed while an alphanumeric entry field is selected.
When ID mode is set to function automatically, placing on the scale a weight that
exceeds a pre-configured threshold value initiates the sequence. When all the steps
have been performed and the weight is removed, the reading from the scale falls
below a reset value. At this point the terminal is ready to begin the next ID
sequence.
For details on ID mode configuration, refer to Chapter 3.0, Configuration.
SmartTrac™
SmartTrac is a graphical display visualization of either the gross or net weight as
selected in setup. SmartTrac on the IND560 uses a bar graph visualization type for
Material Transfer mode and a three-zone graphic for Over/Under mode.
Material Transfer Mode
The operator adds material until the measured value is within an acceptable
tolerance limit. Normally an operator will add material quickly when the container
is not nearly full and more slowly as the target value approaches.
The SmartTrac display may be configured in setup as Small, Medium or Large.
Each size provides different target and weight information on the display. Figure
2-13 shows the small size, Figure 2-14 shows the medium size, and Figure 2-15
shows the large size.
Weight display
SmartTrac
indicating weight
on target
Figure 2-13: Material Transfer SmartTrac, Small
2-28
IND560 User’s Guide
Weight display
SmartTrac
Target description
Target weight
Figure 2-14: Material Transfer SmartTrac, Medium
No weight display
Target description
SmartTrac
Upper tolerance
value
Lower
tolerance value
Target weight
Figure 2-15: Material Transfer SmartTrac, Large
While the bar graph display appears to be one continuous bar graph, it can
actually be broken into four separate sections or ranges. Depending upon the
target and tolerance values used, there could be one, two, or three speeds at which
these graphical sections are filled in. Figure 2-16 illustrates the ranges.
Figure 2-16: SmartTrac Bar Graph Display Ranges
Under Tolerance
The Under Tolerance range is labeled “A” in Figure 2-16. This range represents the
amount of material from 10% of the target value to the target minus the negative
tolerance value. The bar graph begins to populate the “A” range when more than
10% of the target has been added. Until reaching the 10% point, no fill is shown.
Acceptable Under Tolerance
Region B in Figure 2-16 represents the zone of acceptable tolerance below the
target value.
On Target
When the measured value exactly equals the target value an unfilled triangle
indication displays (see Figure 2-17).
Figure 2-17: On-Target Triangle
2-29
IND560 User’s Guide
Acceptable Over Tolerance
Region C in Figure 2-16 represents the zone of acceptable tolerance above the
target value.
Over Tolerance
Region D in Figure 2-16 represents the zone of unacceptable tolerance above the
target value. In Region D, the fill rate reverts to the same rate as used in Region A.
If the measured value is large enough that the number of dot columns required for
display exceeds the number available, the display saturates and further increases
in the measured value do not affect it.
Over/Under Mode
There are three sizes of Over/Under SmartTrac selectable in setup. Each size
provides different target and weight information on the display. Figure 2-18 shows
the small size, Figure 2-19 shows the medium size, and Figure 2-20 shows the
large size. Note that Figure 2-18 shows a composite display with under, OK and
over graphics displayed simultaneously.
Weight display
SmartTrac
Figure 2-18: Over/Under Display, Small
Weight display
Target description
Target weight
SmartTrac
Figure 2-19: Over/Under Display, Medium
SmartTrac
Target description
Upper tolerance value
Target weight
Lower tolerance value
Figure 2-20: Over/Under Display, Large
2-30
IND560 User’s Guide
Less than 10% of Target
Until the weight on the scale reaches 10% of the target value, the Under symbol is
shown as a dashed line symbol
or
, and the discrete outputs are
disabled. The Under zone symbol becomes solid and the discrete outputs become
active when more than 10% of the target has been added.
Under Zone
The Under zone is shown in Figure 2-18 as the symbol to the left and also in
Figure 2-19. This zone classification is shown when the weight on the scale is
greater than 10% of the target but less than the target value minus the -tolerance
value. If a discrete output has been assigned to the Under Zone, that output will be
“on” when the weight is in this zone.
OK Zone
When the weight on the scale is between the target minus the -tolerance and the
target plus the +tolerance, the OK symbol is shown. This symbol is the same
symbol for all sizes of SmartTrac and shown in Figure 2-18 as the center symbol.
If a discrete output has been assigned as Tolerance - OK, that output will be “on”
when the weight is in this zone.
Over Zone
The Over zone is shown in Figure 2-18 as the symbol to the right and also in
Figure 2-20. This zone classification is shown when the weight on the scale is
greater than the target value plus the +tolerance value. If a discrete output has
been assigned to the Over Zone, that output will be “on” when the weight is in this
zone.
Time and Date
Time and date are used for reporting, error and transaction log timestamps, and
triggering service events. The TIME & DATE softkey
enables access to the Set
Time & Date screen where the user can set the time and date, including the hours,
minutes, day, month, and year. When the time is set, seconds are set to 0.
Although the format for the time and date can be selected according to local
preferences, the use of a timestamp in log files is not selectable. Timestamp
formats are always fixed as:
Date:
YYYY/MM/DD (for example, July 23, 2005 becomes the fixed format date
2005/07/23)
Time:
HH:MM:SS stored in 24 hour format (for example, 10:01:22 PM becomes
the fixed format time 22:01:22)
Reports
Reports may be generated, viewed, and printed from database tables including:
•
Alibi Memory
2-31
IND560 User’s Guide
•
Tare Table
•
Target Table
must display on the operational screens to generate
The REPORTS softkey
table reports. Otherwise, table reports can only be generated from within setup.
To generate a report:
1. Press the REPORTS softkey
. The Reports screen (Figure 2-21) displays.
TYPE selection box
CLEAR TOTALS
softkey
PRINT softkey
VIEW TABLE
softkey
EXIT softkey
Figure 2-21: Reports Screen
2. Use the UP and DOWN navigation keys to select the desired type of database
table report in the selection box.
3. The CLEAR TOTALS softkey
displays when the Tare Table is selected that
has totals enabled in setup. If Clear after Print is enabled in setup for the
selected table, the CLEAR TOTALS softkey
does not display. Press the
to clear the totals in the selected table. A warning
CLEAR TOTALS softkey
displays that requires verification that the user wants to clear the table totals.
4. Press the PRINT softkey
on this screen to print the entire selected report.
The CLEAR TOTALS and PRINT functions are only accessible to users with
a log-in level of Supervisor and above.
5. Press the EXIT softkey
to return to the home screen.
to select a sub-set of records from the table.
6. Press the VIEW TABLE softkey
The Search Screen for the selected report type displays (see Figure 2-22).
Search Field
selection box
Comparison
selection box
SEARCH
softkey
Figure 2-22: Search Screen (Tare Table)
7. Press the SEARCH softkey
in setup display in tables.
8. To limit the data:
2-32
to view all data in the table. Only fields enabled
IND560 User’s Guide
A. Use the Search Field selection box to select a desired search field (for
example, search fields for the Tare table include Description, ID, n, Tare,
and Total).
B. Use the Comparison selection box to select how the data will be limited
(less than (<), less than or equal to (<=), equal to (=), greater than or
equal to (>=), greater than (>), or not equal to (<>) are available in the
selection box).
C. Use the numeric keypad to enter the limiting factor in the text box (the *
character is the “wild-card” character and returns all results).
D. Press the SEARCH softkey
to view the limited data in the table. Search
result records are always listed in order by ID (lowest to highest ID
numbers). Use the arrow keys to scroll left and right to view additional
columns. Figure 2-23 is an example of search results for a Tare Table, with
a series of views showing all available columns of data.
Figure 2-23: Tare Table Search Results
Calibration Test
The IND560 terminal provides a programmable Calibration Test sequence that can
contain up to 25 individual steps. The Calibration Test is designed to lead the
tester through a set of predetermined steps and compare the terminal calibration
with known test weights.
2-33
IND560 User’s Guide
The test is accessed by pressing the CALIBRATION TEST softkey
on the home
page. A screen displays where the name of the tester can be recorded and the
serial number and capacity of each of the test weights used can be entered. This
provides a traceable record for the calibration test.
The calibration test is started by pressing the START softkey
. A display is
shown that provides the active scale weight, the target and tolerance weight
values, and two lines of instructions (as to where to place the weights). When the
tester completes these instructions, he or she presses the OK softkey
and the
terminal compares the actual weight on the scale to the programmed target weight
for this step. If the comparison passes, the test continues to the next step. If it fails,
a message displays that indicates a failure. After acknowledging the error, the
tester can abort the test, retest this step, or skip this step knowing that it failed.
At the end of the complete test, a print can be initiated that prints all the data of the
calibration test. A full description of the calibration test can be found in Chapter
3.0, Configuration, Maintenance, Configure/View, Calibration Test.
CalFREE™
The IND560 terminal provides a method to calibrate a scale without using test
weights. This is based on manual entry of capacity and performance data from the
load cell or load cell platform. This method of calibration can be used for initial
check-out and testing of systems or when a large structure is used as the weighing
vessel and it is not possible to apply test weights to the structure. METTLER
TOLEDO highly recommends that test weights be used whenever possible as this
provides the most accurate method of calibration.
Alibi Memory Direct Access
The Alibi Memory stores transaction data that can be retrieved in order to verify
transaction information.
•
The information stored in the Alibi Memory includes:
•
Transaction counter value
•
Date and time of transaction
Gross, net, and tare weights including units of measure
To view and print the Alibi Memory:
if programmed as one of the home position
1. Press the Alibi softkey
softkeys or press the REPORTS softkey
if programmed as one of the home
position softkeys then select Alibi Memory from the selection box.
2. Press the VIEW TABLE softkey
. The Alibi Search View screen displays.
3. Use the selection boxes and data entry fields to enter specific search
information to limit the search, or do not enter any search limits to view all
Alibi Memory Table information.
2-34
IND560 User’s Guide
4. Press the START SEARCH softkey
. The Alibi Search View screen displays
the search results. Records are ordered by date and time with the most recent
record shown last.
5. Press the PRINT softkey
Memory Table.
on this screen to print the entire selected Alibi
Table Searches
A table search can be accessed using various methods, including the TARE
, REPORTS
MEMORY softkey , TARGET MEMORY softkey , ALIBI softkey
softkey
, and from the menu tree.
To search a table:
1. Access the table to be viewed using the appropriate method. Refer to Appendix
C, Table and Log File Structure, for more information about how to access
specific tables.
2. Press the VIEW TABLE softkey
. The Search View screen displays.
3. Use the selection and data entry boxes to enter specific search information to
limit the search, or enter * (the “wild-card” character) to view all table
information.
4. Press the START SEARCH softkey
the search results.
. The Search View screen displays with
Remote Display
When properly configured, the IND560 can function as a remote display for
another IND560 terminal or for another Mettler Toledo terminal capable of handling
Mettler Toledo Continuous Output.
If the Remote IND560 will be used to issue simple commands to another terminal
(referred to as the Master terminal), the Master must be able to accept Command
Inputs (CPTZ).
Figure 2-24: Example of Terminal Configuration for Remote Display Function
2-35
Chapter 3.0
Configuration
This chapter covers
•
Entering Setup Mode
•
Exiting Setup Mode
•
Setup Menu Tree
•
Overview of Configuration
•
Configuration Options
•
Restoring Factory Default
Settings
This chapter provides information about how to configure the IND560
terminal’s operating system. It describes access to the setup mode, where
functions can be enabled, disabled, or defined by entering parameter
values in specific setup screens.
Entering Setup Mode
The configuration of the IND560 terminal is accessed through the SETUP softkey
. If password security has been enabled, a login screen (Figure 3-1) displays
and the user must enter the correct password in order to advance into setup. (See
the Security section in Chapter 2.0, Operation, and the Configuration Options,
Terminal, Users section of this chapter for further information about password setup
and security.) To exit back to the home screen without entering any login
information, press the ESCAPE softkey
.
Username entry box
Password entry box
Figure 3-1: Login Screen
3-1
IND560 User’s Guide
To enter a username:
1. Press the ENTER key to access the Username entry box. The softkeys change
to alpha keys (see Figure 3-2).
Sets of
alpha keys
Figure 3-2: Login Screen (Alpha Keys)
2. Use the alpha keys to enter the username in the username entry box.
3. Press the ENTER key. The alpha keys no longer display.
To enter a password:
1. With focus on the Password field label, press the ENTER key. The softkeys change
to alpha keys (see Figure 3-2) and focus moves to the Password entry box.
2. Use the alpha keys to enter the password in the password entry box.
3. Press the OK softkey
. If the username and password are correct, the
terminal goes into setup mode. Once the terminal is in setup mode, the setup
menu tree displays.
Exiting Setup Mode
To exit the setup mode, select Home from the setup menu tree and press ENTER.
The default weighing operation screen displays.
As an alternative, press the first softkey whenever the menu tree is displayed to
exit the menu tree.
Setup Menu Tree
Each line of the setup menu tree is referred to as a branch (see Figure 3-3). Some
branches have additional branches that become visible when the view of the main
branch is expanded. If a branch has additional branches under it, the collapsed
symbol (⊞) initially displays in front of the branch name. After the branch view has
been expanded, the expanded symbol (⊟) displays in front of the branch name
and the additional branches become visible. Any branch that is not expandable is
called a leaf node.
3-2
IND560 User’s Guide
The first branch of the menu tree shown with focus is the Scale branch (Figure 3-3).
Figure 3-3: Setup Menu Tree Example
Use the UP and DOWN navigation keys to move focus through the branches of the
setup menu tree.
Press the RIGHT navigation key to expand a branch and the LEFT navigation key to
collapse a branch. When the focus is on a sub-branch, focus can quickly be
moved back to the main branch by pressing the LEFT navigation key.
When a leaf node (singular, non-expandable) branch such as Device or Display is
in focus, press the ENTER key to display the setup screen for that function.
Setup Screens
Setup screens enable access to data fields where parameters can be viewed,
entered, or modified to configure the terminal to meet specific application function
needs.
Navigation
Press the UP and DOWN navigation keys to move through the field labels
displayed on each setup screen, and to move to a second or third setup screen
when more than one screen is used for configuration fields associated with a
specific parameter (indicated by the presence of a scroll bar). The shaded portion
of the scroll bar (see Figure 3-4) indicates which screen is displayed.
3-3
IND560 User’s Guide
Field label
with focus
Scroll bar indicating
first setup screen
Scroll bar indicating
second setup screen
Figure 3-4: Examples of Setup Screens (Format Time & Date)
Data Entry
Press the ENTER key to move the focus from the field label to either the selection
box or data entry box where data is to be entered or edited (see Figure 3-5).
Selection box
with focus
Figure 3-5: Setup Screen
If the field values are presented in a selection box, the current selection will have
focus when the ENTER key is pressed.
To change the field value in a selection box:
1. Press the UP and DOWN navigation keys to scroll through the list and place
the focus on the value to be selected.
2. Press the ENTER key to accept the selection as the value for the field. The
selection displays as the value for the field and the focus moves to the next
field label.
3-4
IND560 User’s Guide
If the field value is for a data entry box and alpha/numeric character entry is
possible, the alpha keys will display.
To change the field value using alpha/numeric characters:
1. When a data entry box is first entered, the previous data (if present) is in
focus. To replace previous data, use the alpha keys and the numeric keypad to
enter the desired value.
OR
Press the LEFT and RIGHT navigation keys to move the cursor into position if
the value needs to be edited from a specific point rather than replaced.
Position the cursor at the end of the data to be deleted and press the C key
once for each character to be deleted.
2. Press the ENTER key to accept the entered alpha/numeric characters for the
field. The entry displays as the value for the field and the focus moves to the
next field label.
To exit a setup screen, press the EXIT softkey
, which is in the first softkey
position. The setup menu tree displays with the focus on the branch for the setup
screen that was exited.
Overview of Configuration
The setup menu tree can be expanded to show every branch and leaf node in the
terminal’s configuration. Use the navigation keys to select the desired setup screen.
There are five major branches in the setup menu:
• Scale
• Application
• Terminal
• Communication
• Maintenance
3-5
IND560 User’s Guide
Details for each branch are provided in the following Configuration Options section.
Figure 3-6 shows the setup menu tree with all branches expanded.
Figure 3-6: The IND560 Menu Tree with All Branches Expanded
The TaskExpert leaf node is only available if the TaskExpert Application
Software module has been installed into the IND560.
3-6
IND560 User’s Guide
Configuration Options
Configure terminal options on the setup screens that are available under the five
major branches of the setup menu.
If the metrology switch is in the approved position (SW1-1 = ON), access to
the Scale branch is not permitted. The Scale branch will not be expandable on
the setup menu tree.
Scale
The Scale branch provides the following access to the configuration of the
connected scales:
•
Type*
•
Capacity and increment values*
•
Calibration*
•
Zero parameters*
•
Tare parameters*
•
Units
•
Rate parameters
•
Filter parameters*
•
Stability parameters*
•
Log or print threshold parameters
•
Minimum weight parameters
Leaf nodes that are marked with an asterisk (*) above will have different
parameters depending on the connected scale type (analog or IDNet).
A Reset is present at the end of the branch to enable a limited reset to the factory
default settings for the Scale branch parameters.
Type
The Scale Type screen permits a name to be assigned to the scale, displays the
scale PCB Type in the terminal, provides a selection list for the Approval mode,
and allows the IND560 to be configured as a Remote Display for another (Master)
will return the display to the menu tree.
terminal. The EXIT softkey
Name
The Name field enables entry of the scale identification. Enter the scale name (an
alpha-numeric string of up to 20 characters) in the Name entry box.
3-7
IND560 User’s Guide
Scale Type
The Scale Type field automatically shows the hardware configuration. This field will
display either Analog or IDNet, along with Remote. If Remote is selected, the
approval option will not be available.
Approval
Approval (analog load cells only) refers to the metrological (weights and
measures) approval configuration for the specific scale. The Approval selection is
not present for IDNet scale bases, but rather is part of the Service Mode of the
base. The selection list can be set to:
• None – no approval is required
• USA
• OIML
• Canada
• Australia
If an approval (USA, OIML, Canada, or Australia) is configured and the metrology
security switch, SW1-1, is set to ON, access to the Scale setup parameters in the
menu tree will be limited to view only.
If an approval is selected but SW1-1 is not ON, it will not be possible to leave
setup, and a message will appear: Switch UNSECURED.
Remote Display
When properly configured, the IND560 can function as a remote display for
another IND560 terminal or for another Mettler Toledo terminal capable of handling
Mettler Toledo Continuous Output. If the Remote IND560 will be used to issue
simple commands to another terminal (referred to as the Master terminal), the
Master must be able to accept Command Inputs (CPTZ).
Physical Connection of Master and Remote
Terminals
Communication for the remote display function occurs over a single serial
connection. Each serial port in the IND560 can support one output and one input
simultaneously, so only a single port is necessary for remote operation.
The standard COM1 port, and optional COM2 and COM3 ports, each support all
three of the assignments used in the remote display function: Remote Display,
Continuous Output and CTPZ Input. Communication can occur via RS-232, RS422 or RS-485, but port parameters must be the same for the Master and Remote
terminals. Serial port setup information can be found in Appendix D,
Communications.
3-8
IND560 User’s Guide
Remote Terminal Settings
In the terminal that will function as the Remote terminal, the Scale > Type setting
must be Remote, as shown in Figure 3-7. Note that the Approval option is not
available in this configuration.
Figure 3-7: Scale Type Setting for Remote Operation
In addition, at Communication > Connections, a port must be assigned to Remote
Display, as shown in Figure 3-8.
Figure 3-8: Connection Configured for Remote Operation
It is recommended that prior to setting the Scale type as Remote, the Capacity
and Increment size of the Remote terminal should be set to match the Master
terminal. This will prevent any differences in display fonts that might negatively
affect viewing.
Master Terminal Configuration
The Master terminal must have a port configured to send display information to the
Remote terminal. At Communication > Connections the serial port assignment
must be Continuous Output. If the Remote terminal will be used to send commands
to the Master terminal, then the same port must have a second connection
assignment for CTPZ Input.
Figure 3-9 shows a typical Remote Display setup, with the Master terminal able to
receive commands sent from the Remote IND560.
3-9
IND560 User’s Guide
Figure 3-9: Example of Terminal Configuration for Remote Display Function
Capacity and Increment
When IDNet scale bases are installed, the Capacity & Increment setup screen does
not display, but is part of the Service Mode of the base.
Use the Capacity and Increment setup screen to select primary units, set the
number of ranges or intervals, and the blanking over capacity.
Primary Units
Set the primary units from the selection box choices, which include:
Grams (g)
Pounds (lb)
Kilograms (kg)
Tonnes (t)
Tons (ton)
#Ranges
The number of ranges settings are available for analog load cells only. Set the
number of ranges from one to three in the selection box. Specify the capacity and
increment size for each range.
Blanking Over Capacity
The blanking over capacity settings are available for analog load cells only.
Blanking of the display is used to indicate an over-capacity condition. Set the
blank over capacity for the divisions (d) (display increments) that the terminal is
permitted to go over capacity. For example, if capacity is set at 500 kg by 0.1 kg
increments and the blank over capacity setting is 5 d, the terminal can display
weights up to 500.5 kg. At weights over 500.5, dashed lines will display instead
of a weight.
X10 Always
The X10 Always selection is available for IDNet load cells only. X10 Always locks
the IDNet base into a higher resolution weight display. If the X10 Always mode is
enabled, the high resolution weight data from the IDNet base displays at all times
(if configured to display) is inactivated.
and the EXPAND BY 10 softkey
The Primary Unit field displays only and is not selectable. The unit displayed is the
unit that the IDNet scale base was calibrated in.
3-10
IND560 User’s Guide
Calibration
The Calibration screen enables entry of a geo code adjustment value, the base
serial number, calibration units, linearity adjustment, and analog gain jumper
setting.
Geo Code
Enter the geo code for the appropriate geo adjustment value for the current
geographical location. Geo codes are numbered 0–31. (See Appendix F.)
The Geo Code field does not display when the IDNet scale base is used.
Base Serial Number
Enter the scale base serial number in this field. An entry of up to 14 characters is
possible.
Calibration Units
The Calibration Units setting is available for analog load cells only. Calibration
units are listed in the selection box and are the same as the primary units
selections, which include:
Grams (g)
Tonnes (t)
Kilograms (kg)
Tons (ton)
Pounds (lb)
Linearity Adjustment
The Linearity Adjustment setting is available for analog load cells only. Select the
linearity adjustment from the selection box. Selections are as follows:
Disabled – Use only zero and one span point7
3 point – Use zero, midpoint, and highpoint
4 point – Use zero, lowpoint, midpoint, and highpoint
5 point – Use zero, lowpoint, midpoint, mid-highpoint, and highpoint
Analog Gain Jumper
The Analog Gain Jumper Setting is available for analog load cells only. The analog
gain jumper setting on the Main PCB can be either 2 mv/V or 3 mv/V. The terminal
is shipped from the factory in the 3 mv/V setting. In order for the CalFREE™ feature
to operate properly, this parameter must indicate the position of the jumper on the
Main board. The jumper settings are:
2 mv/V – Jumper installed on both pins
3 mv/V – Jumper removed
Calibration Softkeys
The Calibration setup screen displays softkeys that can be used for calibration
procedures, including:
3-11
IND560 User’s Guide
Capture Zero
Capture Span
Step Calibration
CalFREE
Service Mode (IDNet scales)
Capture Zero
The Capture Zero function in the Calibration setup is available for analog load cells
triggers an independent operation to reset
only. The CAPTURE ZERO softkey
the zero condition of the scale. A status message displays when this softkey is
pressed that directs the user to empty the scale and press the START softkey
.
The status of the capture zero operation displays. When the operation is complete,
a final status message displays that verifies the completion of the capture zero
operation.
If motion is present during the zero capture process, the terminal will average
the weight readings then display an error message indicating unstable weight
values were used. This message must be acknowledged to save the these
values.
Capture Span
The Capture Span function in the Calibration setup is available for analog load
cells only. The CAPTURE SPAN softkey
initiates a sequence to capture span
that can be performed independently of capturing zero.
To capture span:
1. Press the CAPTURE SPAN softkey
displays.
. The Capture Span setup screen
2. Enter the weight for test load 1 and all other test loads if linearity has been
enabled. Press the ENTER key.
3. Place test load weight 1 on the scale.
4. Press the START softkey
. The status of the weight capture operation
displays. When the operation is complete, a status message displays that
verifies the completion of the weight capture.
Press the ESCAPE softkey
to abort the calibration process and return the
display to the previous screen.
5. After the first calibration step has completed, the menu will either display a
prompt for the next calibration weight to be added (if 2, 3, or 4 test load steps
are enabled by the linearity adjustment parameter) or will show a successful
or failed calibration sequence.
If motion is present during the span capture process, the terminal will average
the weight readings then display an error message indicating unstable weight
3-12
IND560 User’s Guide
values were used. This message must be acknowledged to save the these
values.
6. Repeat steps 3–4 for test loads 2, 3, and 4 if enabled by linearity adjustment.
7. If the capture span operation was successful, a verification message that reads
“Capture Span OK” displays If the capture span operation was not successful,
an error message that reads “Calibration Failure” displays. If the calibration
fails, repeat the capture span procedures. If the calibration continues to fail,
contact a local METTLER TOLEDO representative for assistance.
8. Press the EXIT softkey
to return to the Calibration screen.
Step Calibration
The Step Calibration function in the Calibration setup is available for analog load
cells only. The STEP CALIBRATION softkey
initiates a procedure that enables a
“build-up” calibration for tanks and hoppers. For step calibration, the same amount
of test weight is added for each step of the calibration procedure.
To perform a step calibration:
1. Press the STEP CALIBRATION softkey
displays.
. The Step Calibration setup screen
2. Enter the target weight for the test load (the same amount of test load weight is
used in each step).
3. Press the START softkey
. The Step Calibration screen displays. This screen
shows an active (live) weight display (using the current span factor), the
intended target weight as entered on the previous screen, and the next step for
the operator “Add test weight.”
4. Add test weight to the tank/hopper as prompted by the display. Each time test
weight is added to the scale, the active display shows the weight.
5. When the full amount of test weight has been added, press the OK softkey
The test load is captured and span factors are saved. During the time the
weight is captured and the new span factor is being calculated, the display
“Add test weight” changes to “Capturing span.” The display then changes to
the next prompt “Remove test weight then fill to target.”
.
6. Remove the test weight. The active display returns to zero.
7. Fill the tank/hopper with a substitute material up to the target weight.
8. Press the OK softkey
. The target weight value recalculates to show the
substitute material weight plus the initial intended target weight. The display
changes to the next prompt “Add test weight.”
9. Add test weight to the tank/hopper. The active display shows the weight.
10. Press the OK softkey
. If the actual weight does not equal the target, a new
span factor calculates and the display changes to “Capturing span.” The active
weight display changes to match the target weight value. The display changes
to the next prompt “Remove test weight then fill to target.”
11. Remove the test weight. The active display returns to the previous weight that
displayed for the last test load.
3-13
IND560 User’s Guide
12. Repeat steps 7 through 11 until an appropriate number of calibration steps
have been completed for the specific application.
13. Press the EXIT softkey
at any step in the procedure to stop the step
calibration process and return to the Calibration screen.
CalFREE
The CalFREE procedure is applicable for analog load cells only. The CALFREE
softkey
provides access to the span calculation screen for precalibration of a
scale without test weights. High-precision scale bases are precalibrated when
received from the factory so this feature is not used.
To perform precalibration of span using CalFREE:
1. Press the CALFREE softkey
. The CalFREE screen displays.
2. Enter the load cell capacity and rated load cell output values in the associated
fields:
The total load cell capacity should be entered here. For example, for a tank
with three 5000 kg cells, cell capacity would be 3 x 5000 kg or 15000 kg.
If multiple load cells are used, the average output of all cells should be entered
here.
3. Enter an estimated preload value in the associated field. Estimated preload is
an optional entry. During calculation, the terminal also tests for analog/digital
(A/D) converter input saturation at full scale capacity. Estimated preload is
included in this calculation if entered in this field. If the preload is unknown,
leave this field blank.
This preload value is used only to determine overload conditions and is not
used as a zero reference point. The zero reference point must be captured
using the normal zero calibration procedure.
4. Press the OK softkey
entered.
. The span is calculated using the parameters
5. If the calibration operation was successful, a verification message that reads
“Calibration OK” displays If the calibration operation was not successful, an
error message that reads “Calibration Failure” displays. If the precalibration
fails, repeat the CalFREE procedures. If the precalibration continues to fail,
contact a local METTLER TOLEDO representative for assistance.
6. Press the ESCAPE softkey
to return to the Calibration screen.
Service Mode
Service Mode is available for IDNet load cells only. This screen displays a single
box that shows messages from the IDNet base up to 16 characters. When either
the
(Yes) or
(No) softkey is pressed, the terminal sends the respective
response to the scale base and the next message to be displayed is transmitted
back to the terminal from the base. This sequence remains constant during the
complete service mode communication sequence. Refer to the service mode flow
chart for the IDNet base used to view the exact sequence.
3-14
IND560 User’s Guide
After the last communication from the scale base has been completed, the display
returns to the Scale Type screen.
Analog Saturation Test
During the calibration process, the IND560 will determine if there is a potential for
analog section saturation. The IND560 will compare the available number of
counts with the captured span to confirm that the desired capacity is achievable. If
the potential exists to saturate the analog section before system capacity is
reached, the IND560 will display a warning message and recommendation that
the system be recalibrated with a new, lower, capacity.
Figure 3-10: Analog Saturation Warning
This message functions only as a recommendation to recalibrate. After the warning
message is acknowledged by pressing the ENTER key, the user is presented with
the “Capture Span OK” screen and the BACK softkey. Service personnel should then
carry out the following:
•
Confirm that the analog gain jumper on the main board is set correctly for the
actual load cell output, either 2mV/V or 3mV/V (refer to Appendix A,
Installation, for jumper positions).
•
If the analog gain jumper is correctly set, the scale should be recalibrated with
a lower capacity. Potential analog section saturation does not force a failure in
calibration.
IMPORTANT: It is critical that service personnel follow the recommendation to
recalibrate or confirm that the analog output jumper is properly
positioned on the main board. Analog section saturation will result
in a ‘freeze’ of the display, where the display is no longer showing
increases in weight, creating the possibility of overfills and spills
during the weighing process.
Zero
This section provides access to Auto Zero Maintenance (AZM) settings, under zero
blanking, power-up zero, and pushbutton zero parameters.
AZM & Display
AZM is a means of tracking zero when the scale is empty. AZM compensates for
conditions such as terminal or load cell drift or debris on a scale platform.
3-15
IND560 User’s Guide
Auto Zero
Use the AZM & Display setup screen to enable auto zero for gross weighing or
gross and net weighing, or to turn auto zero off.
Auto Zero Range
Analog load cells: Set the auto zero range for the number of divisions (d) around
the current zero setting in which auto zero will operate.
IDNet load cells: Either enable or disable the auto zero function.
Under Zero Blanking
The Under Zero Blanking function in the Zero setup is available for analog load
cells only. Blanking of the display is used to indicate an under-zero condition
when the weight on the scale falls below the current zero reference. Set the under
zero blanking for the number of divisions (d) that the terminal is permitted to go
under zero before blanking.
A value of 99 disables blanking under zero and the terminal will display a
weight as far under zero as possible.
Power Up
A Power Up setting of Restart enables the terminal to save and reuse the last zero
reference weight after a power cycle so it returns to the same gross weight value. If
reset is selected, the last zero calibration value will be used as the zero reference
point. Select either Reset or Restart from the Power Up selection box.
Ranges
Use the settings on the Ranges screen to enable or disable Power Up Zero and
Pushbutton Zero and to set the ranges around the original zero condition for the
scale for applying these functions.
Power Up Zero
The Power Up Zero function in the Zero setup is available for analog load cells
only. If Power Up Zero is enabled, the terminal tries to capture zero upon power up.
Range
The Range setting for Power Up Zero is available for analog load cells only. If
Power Up Zero is enabled, –Range and +Range fields will display for setting the
range around the original zero condition for the scale within which Power Up Zero
can be applied. The range units are percent.
For example, if the +Range setting for Power Up Zero is set at 2%, Power Up Zero
will only occur when the weight reading on the scale is at or below 2% of the
original zero condition. If the –Range setting for pushbutton zero is set at 2%,
Power Up Zero will only occur when the weight reading on the scale is at or above
–2% of the original zero condition.
If Power Up Zero capture is enabled and the weight on the scale is outside of
the zero capture range, the display will indicate EEE until the weight is
removed and zero is captured.
3-16
IND560 User’s Guide
Pushbutton Zero
If Pushbutton Zero is enabled, the front panel ZERO pushbutton will operate to
capture zero reference points.
If Pushbutton Zero is Disabled, execution of a remote Zero is still possible via
SICS, CPTZ, or SMA commands from a PC, Discrete Inputs or from the PLC
commands.
Range
The Range setting for Pushbutton Zero is available for analog load cells only. If
Power If Pushbutton Zero is enabled, –Range and +Range fields will display for
setting the range around the original zero condition for the scale within which
Pushbutton Zero can be applied. The range units are percent.
For example, if the +Range setting for Pushbutton Zero is set at 2%, the
Pushbutton Zero can only be used when the weight reading on the scale is at or
below 2% of the original zero condition. If the –Range setting for Pushbutton Zero
is set at 2%, the Pushbutton Zero can only be used when the weight reading on
the scale is at or above –2% of the original zero condition.
Tare
Tare is used to subtract the weight of an empty container from the gross weight on
the scale to determine the net weight of the contents. Tare is inhibited if the scale is
in motion.
Three setup screens are available to configure tare:
Tare Types
Auto Tare
Auto Clear
Tare Types
Use the Tare Types setup screen to enable or disable pushbutton tare, keyboard
tare, net sign correction, terminal tare (IDNet load cells only).
Pushbutton Tare
When pushbutton tare is enabled, the TARE scale function key
can be
pressed when an empty container is on the scale to determine tare. The terminal
displays a zero weight and net mode. When the container is loaded and placed
back on the scale, the terminal displays the net weight of the contents.
If Pushbutton Tare is Disabled, execution of a remote Tare is still possible via
SICS, CPTZ, or SMA commands from a PC, Discrete Inputs or from the PLC
commands.
Keyboard Tare
When keyboard tare is enabled, the known value for the empty weight of a
container (tare) can be entered manually. The terminal will then display the net
weight of the contents of the container. Keyboard tares are automatically rounded
to the closest display division.
3-17
IND560 User’s Guide
Net Sign Correction
Net sign correction enables the IND560 terminal to be used for both shipping
(inbound empty) and receiving (inbound loaded) operations. If net sign correction
is enabled, the terminal will switch the gross and tare weight fields on the printed
ticket, if necessary, so that the larger weight is the gross weight, the smaller weight
is the tare weight, and the difference is always a positive net weight. Net sign
correction affects the printed data output, the recalled weigh display and the
displayed weight. Continuous data output will continue to show a negative net
weight value.
Net sign correction will operate with pushbutton tare, preset tare, or tare memories.
An example of weight values with and without net sign correction is shown in
Table 3-1. In this example, the tare register value is 53 kg and the live weight on
the scale is 16 kg.
Table 3-1: Weight Values With and Without Net Sign Correction
Net Sign Correction
Printed and Displayed
Disabled
Enabled
Gross
16 kg
53 kg
Tare
53 kg
16 kg
Net
−37 kg
37 kg
When net sign correction is enabled, the tare weight field in the recall display
will be labeled with the letter “M” to indicate “Memory” instead of “T” or “PT”.
Terminal Tare
The Terminal Tare field only displays when an IDNet scale base is present. When
terminal tare is enabled, tare and net weight values are calculated in the terminal
and not in the high precision IDNet base. Terminal Tare should be disabled for
approved (legal-for-trade) systems.
Auto Tare
Use the Auto Tare screen to enable or disable automatic tare and to set the tare and
reset threshold weights, and enable or disable motion check.
Auto Tare
When auto tare is enabled, the tare weight is taken automatically when a container
above the threshold weight is on the scale and settles to no-motion.
Tare Threshold Wt.
When weight on the scale platform exceeds the tare threshold value and settles to
no-motion, the terminal automatically tares.
Reset Threshold Weight
The reset threshold weight must be less than the tare threshold weight. When the
weight on the scale platform falls below the reset threshold value, such as when a
3-18
IND560 User’s Guide
load has been removed, the terminal automatically resets the auto tare trigger,
depending upon the programming of motion checking.
Motion Check
Enable the motion check setting to prevent auto tare reset rigger from occurring
when the scale is in motion. When enabled, the scale must detect a non-motion
condition below the reset value to reset the trigger.
Auto Clear
Use the Auto Clear screen to enable or disable auto clear tare, clear after print, to
set the clear threshold weight, and enable or disable motion checking for auto
clearing of tare.
Auto Clear Tare
To clear tare automatically when the scale returns to below the threshold weight,
enable the auto clear tare setting.
Clear Threshold Wt.
When the gross scale weight exceeds then falls below the clear threshold weight
value, the terminal automatically clears tare and returns to gross mode.
Motion Check
The Motion Check field displays only when Auto Clear Tare is enabled. Enable the
motion check setting to prevent auto clear from occurring when the scale is in
motion.
Clear After Print
The Clear After Print field displays only when Auto Clear Tare is enabled. To clear
tare automatically after printing, enable the clear after print setting.
Clear With Zero
To clear tare automatically when capturing zero, enable the clear with zero setting.
Power Up
A Power Up setting of Restart enables the terminal to save and reuse the last tare
weight after a power cycle. If Reset is selected, the terminal returns to gross mode
upon power up and the last tare weight after the power cycle is cleared. Select
either Restart or Reset from the Power Up selection box.
Units
This setup screen enables the selection of a second and a third unit and power up
units.
Second Unit and Third Unit
Use the Second Unit and Third Unit selection boxes to select second and third
weighing units, configure custom second and third units, or to select none. Only
one custom unit is possible.
3-19
IND560 User’s Guide
If printing of two units is required, establish Third Units. Both Primary and Third
units can be printed simultaneously in an output template.
Available weighing units include:
Custom
Pounds-Ounces (lb-oz)
Pennyweight (dwt)
Ounces (oz)
Grams (g)
Troy Ounces (ozt)
Kilograms (kg)
Tonnes (t)
Pounds (lb)
Tons (ton)
Power Up
Power up units defines the units the terminal defaults to after power up. Use the
selection box to select either Primary Units or Restart, which makes the power up
units those that were active when power was removed.
Custom Units
If Custom is selected for second or third units, three additional fields display for
configuring custom units. The terminal displays the first three letters of the custom
name in the units area of the display when custom units are in use.
Custom Factor
Enter a multiplication factor for the custom unit in this field, such as 0.592 or
1.019. The primary unit is multiplied by the custom factor to obtain the custom
value.
Custom Name
The softkeys turn into alpha keys when this field is selected. Use the alpha keys to
enter the name for the custom unit. Up to 12 characters may be entered.
Custom Increment
Enter a custom increment in this field, such as 0.1 or 0.5. This step controls both
the decimal position and the increment size of the custom unit value.
Rate
A Rate, expressed as change in primary or secondary weight units per time unit,
may be programmed for display on the IND560 (Figure 3-11) and/or used in
controlling discrete outputs – for example as the source for a Comparator
(described later in this chapter).
The Rate display is over-ridden by SmartTrac. If SmartTrac is enabled, the Rate
display option is not available in the Terminal > Display screen.
If the weight information in the terminal becomes invalid, the Rate display will
show 0.000.
3-20
IND560 User’s Guide
Figure 3-11: Rate Display on Home Screen
The following Rate parameters can be configured:
Weight Units
Weight Units may be set to None, Primary or Secondary. Primary and Secondary
correspond to the Units setting in the Scale > Capacity & Increment screen.
Secondary Units must be enabled at Scale > Units in order for secondary to be a
unit selection for the Rate function. When the default value, None, is selected, the
rate function is disabled.
Time Units
Time Units may be set to Seconds, Minutes or Hours. The default value is Seconds.
Measurement Period
The Measurement Period value sets the frequency of weight measurements. 1
second is the default value. Other options are 0.5 and 5 seconds.
Output Average
Output from the rate function is set by a computed rolling average of
measurements. This possible range of values is 1 to 99 seconds, with a default
value of 1. The Output Average value should be sufficiently larger than the
Measurement Period to allow the terminal to take multiple measurements for each
average.
Filter
The IND560 terminal has a low-pass, multi-pole vibration filter that can be set for
several conditions when using analog load cells. The heavier the filtering, the slower
the display settling time will be.
Low Pass Frequency
Low Pass Frequency configuration is available for analog load cells only. Low pass
frequency is the frequency above which all disturbances are filtered out. The lower
the frequency, the better the disturbance rejection, but the longer the settling time
required for the scale.
Low Pass # of Poles
Low Pass # of Poles configuration is available for analog load cells only. The
number of poles determines the slope of the filtering cutoff. For most applications, a
slope value of 8 is acceptable; however, decreasing this number will improve settling
time slightly.
3-21
IND560 User’s Guide
Notch Filter Frequency
Notch Filter Frequency configuration is available for analog load cells only. The notch
filter allows selection of one specific frequency below the low pass filter value that
can also be filtered out. This enables setting the low pass filter higher to filter out all
but one frequency (that the notch filter will handle) and obtain a faster settling time.
Values from 0 (disable) to 99 are possible.
Stability Filter
Stability Filter configuration is available for analog load cells only. The stability filter
works in conjunction with the standard low pass filter to provide a more stable final
weight reading. The stability filter should only be used in transaction weighing
applications, since the nonlinear action of the filter switching may cause inaccurate
cutoffs in batching or filling applications. The stability filter can be enabled or
disabled on this setup screen.
IDNet Filtering
Configuration for IDNet filtering parameters is performed on the Filter screen. Use the
Vibration selection box to select a condition setting that reflects the specific location’s
conditions. Selections include:
Ideal Conditions
The weighing platform operates very quickly. However, it is very
sensitive. This setting is suitable for a very calm and stable
weighing location.
Average Conditions
This is the factory default setting and is suitable for most normal
environments.
Extreme Conditions
The base reacts to changes in weight more slowly but is much
more stable in unstable environments.
Use the Weighing Process selection box to select the specific weighing process in
use. Selections include:
Fine Filling
Used when liquid or fine powders are being weighed
Universal Weighing
For solid materials coarse filling or checkweighing
Static Weighing
For solid materials and weighing under extreme conditions such
as strong vibrations
Dynamic Weighing
For weighing products that will not be fully stable or still during
the weighing process
Stability
The IND560 terminal includes a stability detector (weight in motion). For analog
load cells, the Stability setup screen enables setting a motion range, no-motion
interval and timeout period. For IDNet bases, a stability measure and timeout period
may be set.
3-22
IND560 User’s Guide
Analog Load Cell Stability
Motion Range
Sets the motion range to the weight value (in divisions) that the weight is permitted
to fluctuate and still have a no-motion condition. Values from 0.1 to 99.9 are
possible with the default value being 1.0.
No-motion Interval
The no motion interval defines the amount of time (seconds) that the scale weight
must be within the motion range to have a no-motion condition. Values from 0.0
(motion detection disabled) to 2.0 are possible, the default value being 0.3
seconds. A shorter interval means that a no-motion condition is more likely, but may
make weight measurement less precise.
Timeout
Defines the period (in seconds) after which the terminal stops attempting to perform
a function that requires a no-motion condition (such as a zero, tare or print
command) and aborts the function. This timeout is used regardless of the source of
the command such as the keypad, discrete input, PLC or SICS. Values from 0 to 99
are possible, the default value being 3. A smaller value means that less time will be
used to check for no-motion before aborting a command. When a value of 0 is
entered, there must be no motion when a command is given or it will fail
immediately. A value of 99 is a special condition which permits the terminal to wait
indefinitely for a no-motion condition - a command would never be aborted.
IDNet Stability
Stability
Stability settings for IDNet load cells are configured by selecting a number setting of
0 (disabled), 1 (fast display, good repeatability), 2 (slower display, better
repeatability), 3 (slower display, better repeatability), or 4 (very slow display, very
good repeatability) in the Stability selection box.
Timeout
Defines the period (in seconds) after which the terminal stops attempting to perform
a function that requires a no-motion condition (such as zero or tare) and aborts the
function. This timeout is used regardless of the source of the command such as the
keypad, discrete input, PLC or SICS. Values from 0 to 99 are possible with the
default value being 3. A smaller value means that less time will be used to check for
no-motion before aborting a command. When a value of 0 is entered, there must be
no-motion when a command is given or it will fail immediately. A value of 99 is a
special condition which permits the terminal to wait indefinitely for a no-motion
condition - a command would never be aborted.
Log or Print
The Log or Print setup branch is where the thresholds to control how and when data
is saved or output to a printer are defined. Normal demand mode printing occurs
whenever a print request is made, providing there is no motion on the scale and zero
has been captured (a negative gross weight will not be printed).
3-23
IND560 User’s Guide
The weight values entered are the gross weight values in primary units. Gross
weight in primary units is used regardless of whether the IND560 is in Gross or Net
mode and regardless of the units that are displayed.
Minimum Weight
The minimum weight setting is the threshold below which log or print functions will
not initiate. Primary units are displayed for this field.
Interlock
Interlock prevents repeat logging and printing. If enabled, interlock requires that the
weight reading be reset per the Reset on parameter setting (see below) and then
settle to a weight greater than the minimum print value before responding to the
next log or print request.
Automatic
Enable the automatic setting to log data and send a print request every time the
weight on the scale settles to a positive value that is larger than the entered
threshold weight value.
If Automatic is set to Disable, the Threshold Weight field does not appear.
Reset on
The resetting of auto printing or logging can be based on weight threshold or
weight deviation values. Select Return (the weight must return to below this value
to reset) or Deviation (the weight must change more than this value to reset) from
the selection box and enter the weight value in the “Reset on” field.
If both Interlock and Automatic settings are disabled, the Reset on field does not
display.
If Reset On is set to Deviation, The Threshold Weight and Motion Check fields do
not display.
Threshold Weight
The Threshold Weight is the value above which an Automatic logging or printing of
data can/will occur. Threshold Weight does not appear if Automatic is set to
Disabled or if Reset On is set to Deviation.
Motion Check
Enable the motion check setting to prevent interlock and automatic log and print
functions from resetting when the scale is in motion below the “Reset On” return
point. Motion Check does not appear if Reset ON is set to Deviation.
MinWeigh
Enable the MinWeigh function to compare the current net weight with a MinWeigh
value. If the net weight is greater than or equal to the MinWeigh value, all terminal
functions behave normally. If the absolute value of the net weight is less than
MinWeigh, the weight display includes a flashing MinWeigh symbol to the left of
the weight. If the user attempts to record the weight while in this condition, the
printout will include an asterisk (∗).
3-24
IND560 User’s Guide
Entry Method
The MinWeigh value entry method can be either calculated by the IND560 or
directly entered.
Calculated
MinWeigh is composed of 4 factors, each determined independently:
MinWeigh
=
U0 × SF × 100%
T – (c × SF × 100%)
Where:
U0
=
Uncertainty in measurement as the applied load approaches 0. U0 is
computed differently in each country and is entered in Primary units
of measure.
T
=
Tolerance in percent, which reflects the tolerances required for the
specific process and facility. The range is 0.1%–99.9%.
SF
=
Safety factor, which is another adjustment means. Usually SF = 1.
The integer value range is 1–10.
c
=
Uncertainty factor related to the portion of uncertainty in measurement
that is proportional to the applied load. For reference only, c = (UMAX
– U0) / Max, where Max = maximum weighment and UMAX =
measurement uncertainty at maximum weight.
When Calculated is selected, the user is prompted to enter the uncertainty U0, c
factor, tolerance percent, and safety factor in data entry boxes. The new MinWeigh
value is then computed by the weighing equipment.
Direct
For direct entry of a MinWeigh value, user enters the desired value for MinWeigh
directly in the MinWeigh data entry box. The MinWeigh value is entered in Primary
units of measure.
Reset
The Reset screen enables the Scale branch setup values to be reset to factory
default settings.
Scale Reset
To initiate a reset, press the OK softkey
. If the reset was successful, a
verification message that reads “Reset Successful” displays If the reset was not
successful, an error message that reads “Reset Failure” displays. If the reset fails,
try to initiate the reset again. If the reset continues to fail, contact a local METTLER
TOLEDO representative for assistance.
Press the ESCAPE softkey
to exit without resetting.
Scale reset does NOT include the reset of metrologically significant parameters
– scale type, approval, weight units, capacity, increment, or calibration data.
3-25
IND560 User’s Guide
This data is reset only by performing a Master Reset with both switches 2-1
and 2-2 in their ON positions.
Application
Use application setup screens to configure:
•
•
•
Memory and tables
Operation of targets, totalization and the ID function
Discrete I/O
Memory
Memory setup screens include:
•
•
•
•
Alibi
Tare Table
Message Table
Target Table
Alibi
The Alibi Memory can be enabled or disabled in the selection box. Alibi memory is
configured as a “ring” buffer that overwrites the oldest record when it reaches its
memory limit. Alibi memory can hold approximately 60,000 transactions before it
reaches its limit and begins overwriting old transactions. More detailed information
about Alibi memory can be found in Chapter 2.0, Operation, and in Appendix C,
Table and Log File Structure.
The Alibi Memory table stores basic transaction information that is not
user-definable. This information always includes:
• Date and time stamp
• Transaction counter value
• Gross, tare, and net weights and weight unit
If the IND560 terminal has been programmed as “approved”, Alibi Memory
enabling or disabling is only accessible if the security switch (SW1-1) is in the
OFF position.
Tare Table
The Tare Table displays stored tare records, including:
3-26
•
Tare record ID
•
Tare weight value and unit
•
Description
•
Total number of transactions using each stored tare record
•
Total (accumulation of tare weights for each stored tare record)
IND560 User’s Guide
More detailed information about the tare table memory can be found in Chapter
2.0, Operation, and in Appendix C, Table and Log File Structure.
Use the Tare Table setup screen to enable or disable description and to configure
totalization.
Description
Description is an alphanumeric string that describes the Tare Table entry. Use the
Description selection box to enable or disable Description in the Tare Table
structure.
Totalization
Totalization is a field that tracks the total weight for all transactions involving each tare
in the table. Use the Totalization selection box to select None, Displayed Weight, or
Gross Weight for totals in the Tare Table structure.
Press the CLEAR softkey
above to reset the table.
to reset the table. Log-in must be at supervisor level or
To view Tare Table records:
Press the VIEW TABLE softkey
The Tare Search screen displays.
1. Use the selection boxes and associated fields to enter specific search
information to limit the search, or enter * (the “find all” character) to view all
Tare Table information.
2. Press the START SEARCH softkey
. The Tare Search View screen displays
with the search results. Only records with non-null tare values display.
Records are ordered by ID, with the lowest ID number shown first.
3. Press the UP, DOWN, LEFT, and RIGHT navigation keys to scroll up and down
and across the screen in order to view all data and all records listed.
To modify or add Tare Table records:
1. Press the UP and DOWN navigation keys to select (highlight) a record in the
table.
2. Press the EDIT softkey
to open the setup screen for editing a record or
press the INSERT softkey to open the setup screen to create a new table
record.
3. Press the UP and DOWN navigation keys to move the focus to the field name
to be edited or inserted.
4. Press the ENTER key to select a field value to edit or insert. The alpha keys
display.
5. Use the alpha keys and the numeric keypad to edit or enter the desired value.
6. Press the TARE softkey
to capture the current live scale weight and unit,
which will display in the Tare field.
7. Press the OK softkey
Table.
to accept the modifications or additions to the Tare
3-27
IND560 User’s Guide
to return to the Tare Search View screen without
8. Press the ESCAPE softkey
saving modifications or additions.
9. Press the DELETE softkey
to delete a tare record in the list.
10. Press the PRINT softkey
or above to print the table.
to print the list. Login must be at supervisor level
11. Press the EXIT softkey
to return to the Tare Search Screen.
Message Table
The Message Table displays stored text messages and corresponding ID numbers that
can be used to print templates. Only message records with non-null values display.
to clear the entire table. Login must be at supervisor level
Press the CLEAR softkey
or above to clear the table.
To view Message Table records:
1. Use the selection boxes and associated fields to enter specific search
information to limit the search, or do not enter any search limits to view all
Message Table information.
2. Press the START SEARCH softkey
. The Message Search View screen
displays with the search results. Records are ordered by ID, with the lowest ID
number shown first.
3. Press the UP and DOWN navigation keys to scroll up and down the screen in
order to view all data and all records listed.
4. Modify or add Message Table information by editing, inserting, or deleting
information as described previously under Tare Table.
5. Press the PRINT softkey
6. Press the EXIT softkey
to print the list.
to return to the Search Screen.
Target Table
Target comparison can be used in two types of applications: material transfer and
over/under. Material transfer applications require that a control device deactivate when
a target value is achieved. Over/Under applications classify a load placed on the scale
platform as above or below the target value.
Values in the active record registers such as the target weight and tolerance, which
can be manually modified or loaded from the Target Table, are compared with either
the displayed or gross scale weight.
Use the Target Table setup screen to select the mode, tolerance type, and output type
for use in target comparison.
More detailed information about the target table can be found in Chapter 2.0,
Operation, and in Appendix C, Table and Log File Structure.
3-28
IND560 User’s Guide
Mode
Use the Mode selection box to select the type of application for target comparison.
Selections include:
•
None
•
Material Transfer
•
Over/Under
Tolerance Type
Use the Tolerance Type selection box to select the type of tolerance to be used for
target comparison. Positive tolerance and negative tolerance values can be entered
as a deviation weight value in the same units as the target (Target Deviation) or as
a percent of the target value (% of Target).
When over/under mode is selected, a weight value choice is available as a
tolerance type. In this mode, there is no target value used – only under limit and
over limit values are used as zone edges for OK.
Output Type
The Output Type field is available only when the Material Transfer mode is selected.
Use the Output Type selection box to select the type of two-speed output to be used
in the target application. Selections include:
Concurrent
Both outputs operate at the same time
Independent
One output operates at a time (Fast Feed then Feed)
Press the CLEAR softkey
to reset the entire target table. Log-in must be at
supervisor level or above to clear the table.
To view Target Table records:
1. Press the VIEW TABLE softkey
The Target Search screen displays.
2. Use the selection boxes and associated fields to enter specific search
information to limit the search, or do not enter any search limits to view all
Target Table records.
Search fields that display in the Search Field selection box vary depending on
the selections made on the Target Table setup screen.
3. Press the START SEARCH softkey
. The Target Search View screen displays
with the search results. Only records with non-null values display. Records are
ordered by ID, with the lowest ID number shown first.
4. Press the UP, DOWN, LEFT, and RIGHT navigation keys to scroll up and down
and across the screen in order to view all data and all records listed.
5. Target Table records include different information, depending on the selections
made on the Target Table setup screen. For example, Over Limit and Under
Limit data displays only when the Over/Under mode is selected with Weight
Value tolerance type.
3-29
IND560 User’s Guide
Target Table records can include the following fields:
ID
Identification number for the active record
Description
Descriptive identification for the active record
Target
The desired measured value for a weighment
Target Units
The units of measure for the target weight (the target record units
and the comparison units can be a combination of primary,
second or third units)
Spill
The amount of material delivered after the control device is
signaled to stop
Positive Tolerance
The highest acceptable tolerance above a target value
Negative Tolerance
The lowest acceptable tolerance below a target value
Fine Feed Value
For two-speed applications, the fine feed value determines when
the Fast Feed output turns off.
Modify or add Target Table information by editing, inserting, or deleting information
as described previously under Tare Table.
Press the PRINT softkey
above to print the table.
Press the EXIT softkey
to print the list. Login must be at supervisor level or
to return to the Search Screen.
Operation
Operation setup screens include:
•
Target
•
Comparators
•
Totalization
•
ID
Target
Use this setup screen to select which live measurement data stream (source) to use
as input for target comparison and to enable or disable latching.
Source
Select which source to use as input for target comparison, either Displayed Weight
or Gross Weight.
Motion Check
This parameter is shown only if target mode is set to Over/Under (at Application >
Memory > Target Table). The default value is disabled. If Motion Check is enabled,
the discrete outputs for Over, Under and OK are only activated when a no-motion
condition is detected.
3-30
IND560 User’s Guide
Latching
If the Target Table mode selection is Material Transfer, output latching can be
selected. When output latching is enabled, the target comparison outputs remain
latched (OFF) after the output switching threshold is exceeded until the latch is
reset by a start input (softkey or discrete input).
If latching is disabled, the outputs will operate as coincidence-type outputs with no
interlocks.
Comparators
The Comparators screen permits the configuration of simple targets controlled
either by coincidence or by comparison with a range, and used as an assignment
for Discrete I/O outputs. Comparators are controlled either by coincidence or by
comparison with a target or range. The source for comparison can be the Gross
Weight, Displayed Weight, Rate or assigned by a custom TaskExpert application.
Home Screen Comparators Softkey
The Comparator softkey
can be assigned to the weight display home screen. It
opens the Comparators view screen, which displays the ID, Description, Limit,
Unit, High Limit and Active values for each Comparator. An EDIT softkey
opens
a screen that display’s the selected Comparator’s Description, and permits its Limit
and High Limit values to be modified. Changes can be saved ( ) or discarded
(
) when returning to the Comparators view screen.
Comparators Configuration Screen
Source, Active, Description and Limit values can only be set from the Application >
Operation > Comparators screen. This screen displays all five Comparators, and
contains columns for ID, Description, Source, Limit, Unit, High Limit, and Active
condition. From here, it is possible to EDIT
a Comparator, delete one
, or
clear
all Comparators.
Once parameters have been set in the Comparator Edit screen, they can be saved
by pressing OK
, or discarded by pressing ESCAPE
. In either case, the
view returns to the Comparators screen.
Source
The default value for Source is None, meaning that the comparator is disabled, and
no other parameter fields are displayed. Other choices for the Source are Displayed
Weight, Gross Weight, Rate and Application. If a weight field is selected as the
Source, the weight unit will be primary units. If Rate is selected as the Source, then
the unit will be the same as selected for Rate in the Scale > Rate branch. If
Application is selected, no other parameter fields are displayed. This selection
allows a TaskExpert custom application to control the source assignment for the
Comparators.
Active
The Active setting determines the range of other options available in the
Comparator Edit screen. These options are summarized in Table 3-2.
3-31
IND560 User’s Guide
When Active is set to less than (<, the default value), less than or equal to (<=),
equal to (=),greater than or equal to (>=), greater than (>), or not equal to (< >),
the output is active depending on the relationship between the current Source value
and the Limit. When Active is set to within (>_ _<) or outside (_< >_) a range, the
source value is compared to the target value range set in the Limit and High Limit
fields.
Table 3-2: Comparator Configuration
Source
None*, Displayed Weight, Gross Weight, Rate
Active <*, <=, =, >=, >, < >
Description
Limit
High Limit
>_ _< (within), _< >_ (outside)
20 character alphanumeric string
Target value
Lower target value for the comparison range
n/a
Upper target value for the comparison range
Description
The description is an alphanumeric string that is used to identify the type and
purpose of the comparator. This string appears, together with the automatically
assigned ID number (1-5), in the list that displays when the Comparator softkey is
pressed.
Limit
The Limit either sets the target weight value to which the actual source value is
compared, or the lower target value for the range to which the currently measured
source value is compared.
High Limit
The High Limit is available only for Range mode, and sets the upper target value
for the range to which the currently measured source value is compared. Its value
must be higher than the Limit – if a lower value is entered, the terminal will show
an Invalid Value message when the OK softkey
is pressed. The value is
expressed in the programmed Rate unit.
Totalization
Knowing how many weighing transactions were performed and how much
material was processed during a particular period of time is useful information for
many weighing applications.
The IND560 terminal provides both grand total (GT) and subtotal (ST) registers
and counters. Counters have a limit of 1,500,000 and registers will accumulate
up to 11 digits of weight including any decimal places to the right of the decimal
point. For example, a scale programmed for 500 x 0.1 kg will accumulate weight
values up to 9999999999.9 (11 total digits). If either of these limits is exceeded,
an error message will display and the totals must be reset before additional
weights or counts will be added.
Use the Totalization setup screen to select parameters for totalization operations,
including which source to use as input for totalization, settings for grand totals and
3-32
IND560 User’s Guide
subtotals, and to enable or disable the conversion of second or third unit weights
for totalization.
Mode
Select which source to use as input for totalization comparison – either Displayed
Weight or Gross Weight. A selection of None disables totalization.
Clear GT on Print
GT can be configured to clear automatically after printing the Totals report. If Clear
GT on Print is enabled, the subtotal also clears automatically after printing the
Totals report.
Subtotal
ST can be separately disabled while GT continues to accumulate weights. Choose
to either enable or disable the subtotal register.
Clear ST on Print
Clearing the subtotal on print and not clearing the grand total on print allows the
subtotal register to totalize sub-sets of weighments and to be reset while the grand
total continues to track the grand total of weight. Choose to Clear ST on Print or not
by selecting enabled or disabled in the selection box.
Convert Weight
The total registers always store weights in primary units. If Convert Weight is
disabled, scale weights other than primary units are not accumulated. If Convert
Weight is enabled, then the weight is converted to primary units, then
accumulated.
ID
The ID function is a simple but powerful means of facilitating specific data input
from the operator or causing a specific action to take place. The prompt list may
include up to 20 steps, each step containing a command that determines the
action the IND560 terminal will take when the step is executed.
The sequence can be programmed to run once (for example, when initiated by the
) or to loop continuously until terminated. It can also be
pressing the ID softkey
initiated and restarted automatically, triggered by weight input from the scale. In
either case, the operator works though a prompted series of actions or data entries.
For example, the operator could place a package on the scale, be prompted to enter
his or her name, enter a pre-set tare value, scan a bar code on the package, and
generate an automatic print before finally removing the package from the scale. The
printed data could include the net weight value, together with the scanned package
information and the operator’s name. The content and format of the printed
information is determined by the template assigned to the demand output.
ID Mode – None
If None is selected as the ID Mode, then the ID function is disabled.
3-33
IND560 User’s Guide
ID Mode – Automatic
Automatic Mode triggers the ID sequence when a weight above the Threshold
weight value is placed on the scale and a no-motion state is detected. The
sequence trigger rearms again after the weight falls below the Reset weight value.
Press the EXIT softkey
to exit the sequence.
ID Mode – Softkey
In this mode, the ID softkey
triggers the sequence, which either runs once (if
Looping is Disabled) or continuously (if Looping is Enabled). In either case,
pressing the EXIt softkey
exits the sequence.
Configuring ID Sequence Steps
Once the Mode Parameters have been set, ID sequence steps can be viewed,
.
created, edited or deleted by pressing the VIEW TABLE softkey
1. The ID Search screen displays, permitting the search results to be filtered by #,
Type, Length or Prompt.
2. Either select a field to search and enter a comparative operator (<, <=, =, >=,
>, <>) and alphanumeric information in the Data fields; or leave the wildcard
asterisk (*) in the Data field to view all existing steps.
3. Press the START SEARCH softkey
to display the ID View screen. From
here, ID steps can be edited
, created , erased
and printed
.
4. The # value is automatically assigned. It determines the order in which the
steps will execute. Steps may be inserted into an existing sequence by
selecting an entry and pressing the NEW softkey to define a new step. The
newly created step will appear in the sequence before the selected entry, and
all subsequent # values will increase by one. To move a step in the sequence,
it must be deleted and re-entered in the appropriate position.
5. The ID Edit screen is accessed by pressing the NEW softkey or the EDIT
softkey
. The parameters that can be set for each step depend on the Type
of step selected are shown below:
Type
Alphanumeric
Numeric
3-34
Parameters
Options
Prompt
Enter up to 20 characters as the text or prompt for the step to
display on-screen during the ID sequence.
Length
Enter numeric value (0 - 40) to constrain the length of the
response input after the prompt.
If length of 0 is entered, the prompt is shown without an entry
field. The step is then displayed as an instruction in the
sequence. In this case, ENTER must be pressed to move to
the next step. During entry, once the length value is met, the
terminal will not accept further input; incorrect entries can be
deleted using the CLEAR key.
IND560 User’s Guide
Type
Parameters
Clear Data
Clear Tare
Print
Tare – Auto
Tare – Preset
Options
Disabled, Enabled. Permits the entered response (e.g.,
Operator’s name) to be retained from one cycle to the next. If
disabled, the next time the field displays it contains the data
entered during the previous cycle, and pressing ENTER
accepts the value and moves to the next step.
If enabled, the entry field will be blank when viewed the next
time.
None
Prompt
See Prompt, above
Length
See Length, above
Clear Data
See Clear Data, above
6. As many as 20 steps can be created. They can be printed at any point using
the PRINT softkey
. Return to the setup menu tree by pressing the EXIT
softkey
three times.
Discrete I/O
Discrete I/O setup screens include:
•
•
Inputs
Outputs
Inputs
The Discrete Inputs screen displays discrete input assignments, including the input
assignment address, polarity, and function. Only records with non-null values
display.
To clear the entire table, press the CLEAR softkey , then press OK
to confirm
the action. Login must be at supervisor level or above to clear the table.
Press the UP and DOWN navigation keys to scroll up and down the screen in order
to view all of the possible discrete input assignments.
To modify or add discrete inputs:
1. Press the UP and DOWN navigation keys to select (highlight) a discrete input.
to open the setup screen for editing an input
2. Press the EDIT softkey
assignment or press the INSERT softkey
to open the setup screen to create a
new input assignment.
3. Enter the input assignment address. The input address is shown as [x.y.z]
where x indicates the input location, y indicates the slot address of the I/O
option, and z indicates the input position. The input address digits are:
•
Location – The first digit represents whether the I/O is local (0) or remote
(1–3).
3-35
IND560 User’s Guide
Slot Address – The second digit will always be a 1 for the IND560 internal
I/O and a 0 for the remote I/O (ARM 100).
•
Position – The third digit refers to the position (1–4) of the discrete input
option (internal or remote) that is being assigned to a function.
•
Valid address numbers are:
Local – 0.1.1, 0.1.2, 0.1.3, 0.1.4
Remote #1 – 1.0.1, 1.0.2, 1.0.3, 1.0.4,
Remote #2 – 2.0.1, 2.0.2, 2.0.3, 2.0.4,
Remote #3 – 3.0.1, 3.0.2, 3.0.3, 3.0.4
Examples:
Address 0.1.1 = Local discrete board , position 1.
Address 1.0.3 = Remote address #1, position 3.
4. The inputs can be programmed to accept either a + True or – True polarity
level as “ON”. Use the Polarity selection box to select + True or – True.
5. Use the Assignment selection box to select an input assignment. Selections
are:
•
Disable
Setup
•
Target Pause/Abort
Blank Display*
•
Enter
•
Target Start/Resume
•
Calibration Test
•
Print
•
•
Clear Tare
•
SmartTrac
•
Disable Keypad* •
Tare
•
None
•
•
Unit
Switching
•
Unit primary
Trigger 1
•
Unit - second
•
Trigger 2
•
Unit - third
•
Trigger 3
•
Zero
* Blank Display and Disable Keypad are designed to be continuously and semicontinuously activated by a simple press-and-hold or key and lock mechanism
6. Press the OK softkey
7. Press the ESCAPE softkey
8. Press the DELETE softkey
to accept the entry.
to return to the Discrete Inputs screen.
to delete an input assignment.
Outputs
The Discrete Outputs screen displays discrete output assignments, including the
output assignment address and function. Only records with non-null values
display.
To clear the entire table, press the CLEAR softkey , then press OK
to confirm
the action. Login must be at supervisor level or above to clear the table.
Press the UP and DOWN navigation keys to scroll up and down the screen in order
to view all of the possible discrete output assignments.
To modify, add, or delete discrete outputs, follow the same procedures described
for inputs. Valid address numbers are:
3-36
IND560 User’s Guide
Local – 0.1.1, 0.1.2, 0.1.3, 0.1.4, 0.1.5, 0.1.6
Remote #1 – 1.0.1, 1.0.2, 1.0.3, 1.0.4, 1.0.5, 1.0.6
Remote #2 – 2.0.1, 2.0.2, 2.0.3, 2.0.4, 2.0.2, 2.0.6
Remote #3 – 3.0.1, 3.0.2, 3.0.3, 3.0.4, 3.0.5, 3.0.6
Examples:
Address 0.1.1 = Local discrete board , position 1.
Address 1.0.3 = Remote address #1, position 3.
The selections for output assignments are:
•
None
•
Comparator 3
•
Feed
•
Over Zone
•
Center of Zero
•
Comparator 4
•
Motion
•
Tolerance - OK
•
Comparator 1
•
Comparator 5
•
Net
•
Under Zero
•
Comparator 2
•
Fast Feed
•
Over Capacity
•
Under Zone
TaskExpert
The TaskExpert screens allow you to set up a TaskExpert program, and to access
custom setup screens defined by your TaskExpert application.
Note that TaskExpert setup screens are not accessible unless the TaskExpert
option is enabled in the terminal. TaskExpert is enabled in the terminal by
installing the TaskExpert Application Software key (iButton).
Start
The TaskExpert Start screen allows you to list your TaskExpert programs and
associate each of them to a Task number. Each task can be set to run
automatically on startup or after leaving Setup, or started manually using the Task
List , or the Task 1, Task 2 or Task 3 softkeys.
Press the CLEAR softkey
to reset the table.
To modify the TaskExpert Start list:
1. Use the arrow keys to select the task to be edited or deleted. With the record
selected:
Press the EDIT softkey
cannot be modified.
Press the DELETE softkey
to modify a record. Note that the Task number
to delete a record.
2. To create a new task press the NEW softkey
will display.
. A TASK EXPERT EDIT screen
3. The Task number will be assigned automatically. Enter the name of the
TaskExpert file in the File Name field.
4. Set Auto Start to Enabled or Disabled. If Enabled is selected, the task will run
each time the indicator is powered up or when Setup is exited.
3-37
IND560 User’s Guide
5. Set Manual Start to Enabled or Disabled. This will cause the program to run
when selected and started.
6. Press
to save changes or
to exit without saving.
Custom Setup
The Custom Setup menu is defined by the TaskExpert application. For details, refer
to the TaskExpert Reference Manual, provided with TaskExpert.
Reset
The Reset setup screen resets setup values to factory default settings for the
Application branch setup. Login must be at supervisor level or above to perform a
reset.
Application Reset
To initiate a reset, press the OK softkey
. If the reset was successful, a
verification message that reads “Reset Successful” displays If the reset was not
successful, an error message that reads “Reset Failure” displays. If the reset fails,
try to initiate the reset again. If the reset continues to fail, contact a local METTLER
TOLEDO representative for assistance.
Press the ESCAPE softkey
to exit without resetting.
Application reset does NOT include the reset of information in Alibi Memory or
tables. This data can only be reset by selecting Maintenance, Reset All.
Terminal
Setup screens for Terminal setup include:
•
Device
•
Transaction counter
•
Display
•
Users
•
Softkeys
• Region
Use these setup screens to configure:
•
Trax EMT™ ID fields
•
Transaction counter
settings
•
SmartTrac display settings
•
Users
•
Time and date format and
settings
•
Softkeys
•
Language
Device
The Device setup screen enables the entry of three terminal IDs and the terminal
serial number.
3-38
IND560 User’s Guide
Terminal ID
Up to three terminal IDs can be entered on the Device setup screen. When the
Terminal ID text box is selected, the softkeys become alpha keys. Use the alpha
keys to enter up to three terminal IDs. Press the ENTER key to accept the ID
entered. These ID fields display in the information recall when the SYSTEM
INFORMATION softkey is pressed after the RECALL softkey
.
Serial Number
When the Serial Number text box is selected, the softkeys become alpha keys. Use
the alpha keys to enter the terminal’s serial number. The serial number is located
on the back of the terminal. Press the ENTER key to accept the serial number
entered.
Display
Use the Display setup screen to set the screensaver timeout and the SmartTrac™
size settings.
Screensaver
Enter the number of minutes (up to two digits) that must elapse with no scale
motion and no keypad activity before the screensaver is shown (replaces the view
on the display screen). If motion is detected or any key is pressed, the screen
saver automatically exits and its time is reset. A keystroke used to exit the screen
saver mode is ignored for all other purposes.
A setting of 0 in the Screensaver field will disable the screensaver.
Rate Display
This field determines whether the rate displays on the home screen. The option is
not available when SmartTrac is enabled.
SmartTrac Size
SmartTrac refers to a graphical display visualization used to represent measured
values. The display is either a bar graph (if material transfer is selected as the
target mode) or an over/under display (if over/under is selected as the target
mode).
The graphical display varies in terms of the amount of data displayed. While the
SmartTrac graphic remains constant in size, the “small” setting includes minimal
information, while the “large” setting displays the description as well as the target
and limit values.
Examples of different sizes of SmartTrac displays are as follows:
3-39
IND560 User’s Guide
Material Transfer Mode
Over/Under Mode
Small
Medium
Large
Figure 3-12: SmartTrac Display Sizes, Material Transfer and Over/Under Modes
Use the SmartTrac Size selection box to select a setting for the SmartTrac graphical
display. Selections include None, Large, Medium, and Small.
If this parameter is set to None, SmartTrac will not display when the SmartTrac
softkey is pressed at the home screen. Instead, a message will display: “This
Function is disabled.”
Rate Display
If a Rate is configured at Scale > Rate, it may be displayed on the home screen or
not, depending on whether this value is set to Enabled or Disabled. The option to
display Rate does not appear when SmartTrac is set to any value other than None.
Region
The region setup screens enable configuration of:
Time and date format
Time and date settings
Language
Format Time & Date
Selection boxes on this setup screen enable formatting of:
Time Format
12:MM (12-hour clock with hour and minutes displayed)
12:MM:SS (12-hour clock with hour, minutes, and seconds displayed)
24:MM (24-hour clock with hour and minutes displayed)
3-40
IND560 User’s Guide
24:MM:SS (24-hour clock with hour, minutes, and seconds displayed)
Date Format
DD MM YY (Two-digit day, month, year)
DD MMM YYYY (Two-digit day, three-character month, four-digit year)
MM DD YY (Two-digit month, day, year)
MMM DD YYYY (Three-character month, two-digit day, four-digit year)
YY MM DD (Two-digit year, month, day)
YYYY MMM DD (Four-digit year, three-character month, two-digit day)
Date Field Separator
/ (slash)
- (dash)
. (period)
(space)
None
Set Time & Date
Enter the hour, minutes, day, month, and year on this setup screen’s text fields and
selection boxes. The terminal automatically adjusts the date for a leap year, and a
battery backup maintains the time and date settings in the event of a power
outage.
Manual setting of the time is necessary for daylight savings time
adjustments.
Hour
Use the numeric keypad to enter the hour in the Hour field text box. Use the AM/PM
selection box to select AM or PM. The AM/PM selection box only displays if the
time format is set to 12:MM or 12:MM:SS on the Format Time & Date setup.
Minutes
Use the numeric keypad to enter the minutes in the Minutes field text box.
Day
Use the numeric keypad to enter the day in the Day field text box.
Month
Use the Month selection box to select the month.
Year
Use the numeric keypad to enter the year in the Year field text box.
3-41
IND560 User’s Guide
Language
Use the Language setup screen to specify the language for terminal operations.
Display Messages
Use the Display Messages selection box to select the language for messages that
display on the terminal. Choices are:
•
•
•
•
•
English
French
German
Italian
Spanish
Keypad Selection
Use the Keypad Selection selection box to select the language for the keypad
characters that display on the terminal. This selection determines which international
characters are available in the alphabetic data entry softkeys. Choices are:
•
•
•
•
•
Dutch
English
French/German
Nordic/German
Spanish/Italian/Portuguese
External Keyboard
Use this parameter to select the language for the external USB keyboard. The
optional Ethernet/USB/COM3 board must be installed to use an external keyboard.
The language choices are:
•
•
•
•
•
English
French
German
Italian
Spanish
Transaction Counter
The transaction counter is a seven-digit register that tracks the total transactions that
are completed on the terminal. When the value reaches 1,500,000, the next
transaction causes a roll-over to 0000001. Use the Transaction Counter setup screen
to configure transaction counter operations.
Transaction Counter
Use the Transaction Counter selection box to enable or disable the transaction
counter.
3-42
IND560 User’s Guide
Counter Reset
Use the Counter Reset selection box to enable or disable manual resetting of the
counter.
Next Transaction
The value for the counter for the next transaction displays in the Next Transaction field.
softkey can be assigned to the home screen (refer to
The RESET COUNTER
Appendix E, Softkey Mapping), giving direct access to the Transaction Counter screen.
If Counter Reset is enabled, the counter can be set to 0000000001 by pressing the
RESET softkey. A value greater than one can also be entered manually in the Next
Transaction field.
Users
The IND560 terminal is pre-configured with two usernames: “admin” and
“anonymous”. Neither of these usernames has a password. Without passwords, there
will be no security challenge for entering setup and making changes. If a password is
entered for “admin”, a login will be required before changes can be made in setup.
These two default usernames cannot be deleted but passwords may be entered for
them. All functions of the terminal will be available to all users until a password is
entered for the default admin user.
To modify and/or enter a password for a username:
1. Move focus to the username to be edited.
2. Press the EDIT softkey
to access the User Edit screen.
3. Press the DOWN navigation key to view the second screen, which displays the
Password and Confirm Password fields.
4. Enter the desired password in the Password and Confirm Password fields.
5. Press the OK softkey
to accept the password as entered.
to exit without saving the password.
6. Press the ESCAPE softkey
Passwords are case-sensitive.
All numbers and all characters available in the alpha keys are valid for use in
passwords.
Be sure to store a record of the password in a safe place. Without the correct
password access to the setup menu will not be possible.
To enter a new username and password:
1. Press the INSERT softkey
to access the User Edit screen.
2. Enter the desired username in the Username field.
3. Use the Access selection box to assign the appropriate access level to the
user. The following access levels are available:
•
Administrator – An administrator has unlimited access to all set-up
parameters in the terminal. There can be multiple administrator users.
3-43
IND560 User’s Guide
• Maintenance – Next lower level of access.
• Supervisor – Next lower level of access.
• Operator – Lowest level of access.
4. Press the DOWN navigation key to view the second screen, which displays the
Password and Confirm Password fields.
5. Enter the desired password in the Password and Confirm Password fields.
to accept the username and password as entered.
6. Press the OK softkey
7. Press the ESCAPE softkey
password.
to exit without saving the username and
8. Press the DELETE softkey
to delete a username from the table on the
Users screen. Usernames "admin" and "anonymous" cannot be deleted.
9. To restore the factory default setting (by deleting all users except the “Admin”
and “Anonymous” users and restoring the passwords to null), press the CLEAR
softkey
and then OK to
confirm the action.
Softkeys
Add or rearrange the softkeys on the terminal's main menu on the softkeys setup
screen. Appendix E, Softkey Mapping, provides a more detailed explanation of the
softkeys.
When the softkeys setup screen opens, focus is on the softkey position numbers
located above the icons.
, are automatically placed
Two softkeys, INFORMATION RECALL
and SETUP
in the softkey setup. The default setting for the placement of these softkeys is in
positions 9 and 10.
The INFORMATION RECALL and SETUP softkeys must always be assigned a
position. They can be moved or multiple copies of them can exist but there must
always be at least one appearance of them. They cannot be deleted. All other
softkeys may be added or deleted as desired.
Adding a softkey to the home pages of the terminal does not automatically enable
the softkey’s function. Most softkeys must also be enabled in setup too. For
instance, adding the UNITS SWITCHING softkey
does not automatically enable
units switching – the units must also be enabled in the Scale branch of setup. If a
softkey has been added in setup but does not appear on the home page, check
that the setup parameters for that function have been enabled.
The following softkeys are available for assignment to the home page:
3-44
• None
• Recall Info*
• Target Start
• Alibi Memory
• Repeat Print
• Target Table
• Calibration Test
• Reports
• Task 1**
• Comparators
• Reset Transaction Counter
• Task 2**
• Custom Trigger 1
• Setup*
• Task 3**
IND560 User’s Guide
• Custom Trigger 2
• SmartTrac
• Task List**
• Custom Trigger 3
• Tare Table
• Time & Date
• ID
• Target
• Unit Switching
• MinWeigh
• Target Control
• x10 Display
* Cannot be removed from home screen or edited.
** Only available when TaskExpert™ or an application is installed.
Press the UP, DOWN, LEFT and RIGHT navigation keys to navigate among the
softkey position numbers. Softkeys can be added, removed, and positioned using
the softkeys:
Edit
Changes the softkey in the selected position to another softkey or to
none, which leaves the softkey position blank. Editing a blank position
does not move the position of following softkeys.
Insert
Inserts a softkey into a selected position. All other softkeys located at
or after that position increase position number by one.
Delete
Deletes a softkey in a selected position. All other softkeys located at or
after that position decrease position number by one.
Clear
Clears all softkey assignments except INFORMATION RECALL
softkeys. These will be shown in positions 1 and 2
SETUP
respectively.
and
Reset
The Reset setup screen resets setup values to factory default settings for the
Terminal branch of setup.
Terminal Reset
To initiate a reset, press the OK softkey
. If the reset was successful, a
verification message that reads “Reset Successful” displays If the reset was not
successful, an error message that reads “Reset Failure” displays. If the reset fails,
try to initiate the reset again. If the reset continues to fail, contact a local METTLER
TOLEDO representative for assistance.
Press the ESCAPE softkey
to exit without resetting.
3-45
IND560 User’s Guide
Communication
Setup screens for Communication setup include:
•
Templates
•
Connections •
•
Reports
•
Serial
•
Network
PLC
Use these setup screens to configure:
•
Input and Output Template Setup
•
Report Structure
•
Connection Assignments
•
Serial Port Parameters
•
Network Parameters, including Email Alert settings
•
PLC Interfaces
Templates
The IND560 terminal utilizes five output templates (1,000 bytes in size) to define
the format of data output following a weighing operation.
An input template is also available to receive a string input (such as from a bar
code gun) and use it as data entry for ID 1, Tare, Tare ID or Target ID. When the
Fill-560 Application Software is installed, the input template can also be assigned
for Target Weigh-In or Target Weigh-out.
A template strings setup screen is also available to configure strings of characters
that are frequently used in templates.
Input
Use the Input Template to remove extra characters from an input string of data.
Setup parameters include:
Preamble Length – Defines how many characters are skipped at the beginning of
an input string before the desired data.
Data Length – Defines the maximum length of a string. All characters beginning
after the preamble through the data length selection are used as the input.
Postamble Length – Defines the number of characters (before but not including the
termination character) that will be stripped off the data string. All other data from
the preamble length to the termination character minus the postamble length are
used as the input string. When using an input that is always the same fixed length,
this field remains blank.
3-46
IND560 User’s Guide
Termination Character –+ Used to signal the end of the string input. The
termination character can be any ASCII control character. If None is selected, the
three-second timeout feature terminates the entry. In addition to None, selections
available from the selection box include:
SOH
STX
ETX
EOT
ENQ
ACK
BEL
BS
HT
LF
VT
FF
CR
SO
SI
DLE
DC1
DC2
DC3
DC4
NAK
SYN
ETB
CAN
EM
SUB
ESC
FS
GS
RS
US
Refer to Appendix G for ASCII control character definitions and functions.
Assignment – Determines how the input data should be used. Choices are:
ID1
Input populates the ID1 Shared Data variable.
Keypad
Used in conjunction with ID Mode – data that would normally be
entered using the numeric keypad or on-screen alpha keys may be
scanned in during an ID Mode sequence.
Tare
Enters data as a preset tare value
Tare ID
Uses value as an ID lookup in the tare table
Target ID
Uses value as an ID lookup in the target table
Target
Weigh-in
Uses value as an ID lookup in the target table and assigns it as the
Active Weigh-in target (Fill-560 feature only)
Target
Weigh-out
Uses value as an ID lookup in the target table and assigns it as the
Active Weigh-out target (Fill-560 feature only)
There is also a three-second timeout feature that tracks the amount of time between
characters. If this three-second time is exceeded, the string is considered
terminated.
Output
The Output Template setup screen enables configuration of the output data formats
and a header or footer for the Repeat Print function.
To add the “DUPLICATE” designation to a repeat print of an output template, select
either Header or Footer from the Repeat Print Field dropdown menu highlighted in
Figure 3-13.
Figure 3-13: Repeat Print Field Setup
3-47
IND560 User’s Guide
To view elements in a template or create a new template, select the desired
template from the Template selection box. Five templates are available (Template
1–Template 5).
Press the VIEW TABLE softkey
to access the selected template’s view screen,
which lists each element configured for the template.
Press the COPY softkey
to open the copy screen, which enables the elements
from one template to be copied to another template.
Press the CLEAR softkey
to clear all elements from the selected template. A
warning screen displays as a precaution.
Press the EXIT softkey
to return to the menu tree.
Each element is defined by the data type, actual data, justification and length.
Elements may be edited, added (inserted), or deleted individually. A leading zero
fill function is available for certain fields.
Editing
1. Press the UP and DOWN navigation keys to select a record to edit.
2. Press the EDIT softkey
to open the setup screen for the record where edits
can be made. The element number cannot be edited.
3. Select the element type from the Type selection box. Four element types are
available:
CR/LF – A combination carriage return and line feed.
SDName – The name of a Shared Data variable from the terminal.
Special Character – Control characters from a standard ASCII chart. Refer to
Appendix G, ASCII Standard and Control Characters.
String – A string of characters to print.
Press ENTER to confirm the element type selection. Depending on which type
is selected, additional configuration options will appear.
to return to the template setup screen when editing of
4. Press the OK softkey
the element is complete.
5. Press the ESCAPE softkey
saving the element edits.
3-48
to return to the template setup screen without
IND560 User’s Guide
Template Editing Options
Table 3-3 lists the editable fields that appear for each Element Type and Format
selection. Fields that are not available are indicated with a dash (–).
Table 3-3: Template Element Editing Options
Element
Type
Data
Repeat
Count
Format
Length
Leading Zero
Fill
CR/LF
−
Blank**
−
−
−
Default
−
−
SDNAME
Blank*
(Refer to Table 3-4)
Centered, Left
Blank**
−
Right
Blank**
Enabled/Disabled
−
−
−
Default
−
−
Center, Left, Right
Blank**
−
−
Special
Character
ASCII character list
−
String
Blank*
Blank**
* Alphanumeric entry field
** Numeric entry field
Repeat Count
A numeric value that sets the number of times the Data will repeat. For example, if
the string data entered is an asterisk (*), a repeat count value of 20 would
produce a row of 20 asterisks: ********************.
Format & Length
The Format & Length options are Default, Centered, Left, and Right. These describe
the justification of the data within the length of the field.
The Default value is fixed, and Length cannot be defined here.
For SD name and String data, the Centered, Left and Right formats are
accompanied by a Length field. After choosing the format, focus moves to the
Length entry box. This value determines how long the element will be – the data
will be positioned within a string of the length entered. Refer to the Notes on Format
& Length, below.
Leading Zero Fill
In the case of Right-formatted SDName data, Leading Zero fill may be enabled or
disabled. Normally, Leading Zero Fill will be disabled, which means spaces will be
used to fill in leading non-significant data. If enabled, Leading Zero Fill will fill in
any leading spaces of the data with zeroes. The following examples of 4
characters in output data defined as 8 characters long show the use of Leading
Zero Fill:
Leading Zero Fill disabled:
Leading Zero Fill enabled:
3-49
IND560 User’s Guide
Notes on Format & Length
If data for an element includes more characters than the value entered for Length,
the output data will be cut off. For example, if the number of characters entered
under format on the Output Template Edit Screen is six, and data for a string that
contains eight characters is entered, only six of the characters from the data string
will print. If data for a string that contains four characters is entered, all of the
characters from the data string will print.
The characters and alignment of the printed data are defined by the selected
format:
Example 8-character string of ABCDEFGH in a 6-character element:
Center:
Left:
Right:
B
C
D
E
F
G
Prints the middle six characters
from an eight-character string –
drops first and last characters.
A
B
C
D
E
F
Prints the first six characters from
an eight-character string – drops
the last two characters.
C
D
E
F
G
H
Prints the last six characters from
an eight-character string – drops
the first two characters.
Example 4-character string of ABCD in a 6-character element:
A
B
C
D
Space
A
B
C
D
Space
Prints all four characters from a
four-character string in a centered
position, leaving a space at the
beginning and a space at the end.
A
Spaces
Prints all four characters from a
four-character string in a leftjustified position, leaving two
spaces at the end.
B
C
D
Spaces
Prints all four characters from a
four-character string in a rightjustified position, leaving two
spaces at the beginning.
In Table 3-4, where dashes appear in the SDName (e.g. sd--08), this means that
there are more than one instance of the share data variable. The instance number
appears in place of the dashes (e.g. sd0308, for the third comparator’s target
comparison operator). For a full list of Shared Data fields, please refer to the
IND560 Terminal Shared Data Reference (document # 64058660) found on the
documentation CD.
Table 3-4: Example Shared Data Names for Use in Templates
IND560 Data Field
SDName
Length
(A/N = alphanumeric)
Terminal
3-50
Scale ID
cs0103
20 A/N
Base Serial Number
ce0138
13 A/N
Terminal Serial Number
xs0105
13 A/N
Terminal ID#1
xs0106
20 A/N
Terminal ID#2
xs0107
20 A/N
Terminal ID#3
xs0108
160 A/N
Current Date
xd0103
11 A/N
Current Time
xd0104
11 A/N
Transaction Counter Value
xp0101
9 A/N
Grand Total Value
tz0101
12 A/N
Grand Total Count
tz0102
9 A/N
IND560 User’s Guide
IND560 Data Field
SDName
Length
(A/N = alphanumeric)
Subtotal Value
tz0103
12 A/N
Subtotal Count
tz0104
9 A/N
ID Mode Prompts 1-20
pr0131-pr0150
20 A/N
ID Mode Prompt Responses 1-20
pa0101-pa0120
51 A/N
aw0101, 0102,…
100 A/N
Templates 1 - 5
pt0101− pt0105
As programmed
Template Strings 1–20
pt0111 − pt0130
51 A/N
Message 01, 02, etc.
*
Targets
Target Description
sp0101
20 A/N
Target Value
sp0105
12 A/N
Target Units
sp0120
3 A/N
Fine Feed
sp0110
12 A/N
Spill Value
sp0109
12 A/N
+ Tolerance Value (weight)
sp0111
12 A/N
− Tolerance Value (weight)
sp0112
12 A/N
+ Tolerance Value (%)
sp0114
12 A/N
− Tolerance Value (%)
sp0115
12 A/N
Comparator names 1-5
sd--01
21 A/N
Comparator target coincidence
values 1 - 5
sd--05
12 A/N
Comparator target comparison
operators 1-5
sd--08
5 A/N
Comparator second weight range
values 1-5
sd--09
12 A/N
Comparator second weight range
comparison operators 1-5
sd--10
5 A/N
Weights
Scale Mode (Gross/Net)
ws0101
1 A/N (G or N)
Tare Source Description
ws0109
2 A/N “T<space>”, or “PT”
Displayed Tare Wt.
ws0110
12 A/N
Displayed Gross Wt.
wt0101
12 A/N
Displayed Net Wt.
wt0102
12 A/N
Displayed Wt. Units
wt0103
3 A/N
rd
wt0104
13 A/N
rd
wt0105
13 A/N
rd
3 Units
wt0106
3 A/N
Displayed Rate
wt0108
13 A/N
Rate Time Units
cs0107
1 A/N
Rate Weight Units
cs0108
1 A/N
3 Weight Unit Gross Weight
3 Weight Unit Net Weight
3-51
IND560 User’s Guide
IND560 Data Field
SDName
Length
(A/N = alphanumeric)
Custom Unit Name
cs0112
12 A/N
Custom Unit Conversion Factor
cs0113
12 A/N
* Using a template field code within another template will insert the entire template
into the new template.
Printing Multiple Weight Units
Note that if a third weight unit is defined, it can be named in a template so that it
appears in the output data together with the displayed unit. However, if the third
unit is currently displayed on the terminal, it will appear twice in the data output.
Therefore, if the output is to include both primary and 3rd weight units, ensure that
the primary unit data is displayed when the data output is initiated.
Secondary Units are not available for multiple unit printing.
Inserting
Press the UP and DOWN navigation keys to select a location in the list of elements
to insert a new element. Press the INSERT softkey to open the setup screen to
create a new record. Configure the parameters as described under Editing. All
following elements are moved down one position.
Deleting
Press the UP and DOWN navigation keys to select an element to delete. Press the
DELETE softkey
to delete the element.
Test Printing
Press the TEST PRINT softkey
configured.
to perform a test print of the template being
Strings
The Template Strings setup screen defines strings of characters that are frequently
used in template messages. Template strings can be viewed, edited, inserted,
deleted, or printed.
To view template strings:
1. Use the Search Field selection box to select ID or String and enter information
in the Data field to limit the search, or do not enter any search limits to view all
template strings.
2. Press the START SEARCH softkey
. The String Search View screen displays
the search results. Only records with non-null values display. Records are
ordered by ID, with the lowest ID number shown first.
3. Press the UP and DOWN navigation keys to scroll up and down the screen in
order to view all strings listed.
3-52
IND560 User’s Guide
Editing
Note that not all keyboard characters are available when entering information
using the IND560 keypad. However, characters such as ~ and | can be
included in a template created using the InSite software. They will be
recognized by the IND560 when the template is downloaded, will display
correctly, and will be included in the template when it is printed.
The [, ] and {, } characters have been added to the list of characters available
from the terminal softkeys. These characters can be found in firmware versions
3.02 and higher.
1. Press the UP and DOWN navigation keys to select (highlight) the string record
to be edited.
2. Press the EDIT softkey
to open the record for editing. The edit screen will be
shown with focus on the “Text” label. This is the only editable field on the
screen. The ID number cannot be changed.
3. Press ENTER to access the text field. The alpha keys will display.
4. Use the alpha keys and the numeric keypad to edit the string. A string can be a
maximum of 50 characters.
5. Press ENTER when complete.
6. Press the OK softkey
Search View screen.
to accept the edited record and return to the String
7. Press the ESC softkey
to return to the String Search View screen without
accepting the changes to the string.
Inserting
1. Press the INSERT softkey to create a new record. An edit screen will be
shown with “ID” and “Text” labels.
2. Press the UP and DOWN navigation keys to select the field to enter.
3. Press ENTER to access the field. When entering the ID field, the value shown is
the first unused ID.
4. Use the numeric keypad to enter an ID number from 1 to 20.
5. Press ENTER when complete. If the ID entered already exists, an error display
will be shown. The error must be acknowledged and a new ID entered.
6. If the TEXT field is entered, the alpha keys will display. Use the alpha keys and
the numeric keypad to edit the text string.
7. Press ENTER when complete.
8. Press the OK softkey
Search View screen.
to accept the new record and return to the String
9. Press the ESC softkey
to return to the String Search View screen without
accepting the new record.
Deleting
Press the DELETE softkey
to delete a template string from the list.
3-53
IND560 User’s Guide
Printing
1. Press the PRINT softkey
to print the list.
2. Press the EXIT softkey
to return to the String Search Screen.
3. Press the EXIT softkey
again to return to the menu tree.
Reports
The reports setup screens enable configuration of the structure of tare and target
table reports that are generated by the IND560 terminal. The reports setup screens
include:
•
•
•
Format
Tare Table
Target Table
Format
Use the selection box for the Format field to select the width of the reports
•
•
Narrow (40) – 40 character-wide reports
Wide (80) – 80 character-wide reports
Header
The Header field specifies the number of blank lines (CR/LF) to be placed at the
start of each report.
Title
The Title selection box enables a default title line to be printed at the top of the
report. Time and date will print in the format selected at Terminal > Region >
Format Time & Date.
Record Separator
A repeated character may be selected as a separator between printed records in the
report. This step selects the character to be used. The character choices in the
selection box are:
None (no separator between records)
= (equal symbols)
* (asterisks)
CR/LF (blank line)
- (dashes)
For example, if * (asterisks) is selected, the resulting line separator will appear as
follows:
*************************************************************************
Footer
The Footer field specifies the number of blank lines (CR/LF) to be placed at the end
of each report.
3-54
IND560 User’s Guide
Tare Table
Use this setup screen to select which fields in the Tare Table will print when a Tare
Table Report is printed. More details are provided in the Reports section of
Appendix D, Communications. The ID field is always printed; it cannot be disabled.
Fields that can be enabled or disabled include:
•
Tare
•
•
Description •
n (number of transactions)
Total (accumulated total tare weights)
Target Table
Use this setup screen to select which fields in the Target Table will print when a
Target Table Report is printed. More details are provided in the Reports section of
Appendix D, Communications. The ID field is always printed; it cannot be disabled.
Fields that display and that can be enabled or disabled vary depending on how the
Target Table is configured (as described in the Application branch under Memory
setup).
Fields available include:
•
Description
•
+/- Tolerances
•
Fine Feed
•
Target
•
Spill
•
+/- Limits
If the Target mode is disabled, this branch cannot be expanded.
Connections
The connections setup screen shows the physical port connections that have been
programmed for the terminal. This includes the standard serial port COM1, optional
COM2 and COM3 serial ports, and the optional Ethernet port. The optional ports are
only available if the option board has been installed. When the optional
Ethernet/USB/COM3 board is installed, the COM2 serial port is not supported, and
will not be available in the selection of ports.
This screen defines what type of communication will occur over each port. If no
connections are programmed, nothing will be available on the COM ports or
Ethernet.
The following functions are available via softkeys on the connections screen:
•
Editing
•
Inserting
•
Deleting
•
Clearing
To edit or insert connection assignments:
1. Press the UP and DOWN navigation keys to select (highlight) a connection
assignment in the list.
to open the setup screen for editing a specific
2. Press the EDIT softkey
connection assignment or press the INSERT softkey to create a new
connection assignment.
3-55
IND560 User’s Guide
Parameters configured in the connections screen include the port and the type
of input or output assignment. Depending upon these selections the remaining
fields will vary but could include the trigger, the template to be sent, and if
checksum will be sent or not.
3. Press the UP and DOWN navigation keys to move the focus to the field to be
edited or added.
4. Press the ENTER key to select a field to edit or add.
5. Use the selection boxes for each field to select the port, associated
assignment, and desired settings for the connection. Available selections are
indicated in Table 3-5, organized by Port and Assignment. Specific details of
the different assignments can be found in Appendix D, Communications.
Table 3-5: Available Parameters, by Port and Assignment
Port
Assignment
Trigger
Template
Checksum
# of Nodes
ASCII Input, CTPZ Input,
Reports, SICS, Shared Data
Server, Remote Display
COM1
COM2
COM3
Continuous Output
Continuous Template
Demand Output,
Totals Report
Disabled, Enabled
Template 1…5
Scale, Trigger 1…3 Template 1…5
Remote Discrete I/O
0, 1, 2, 3
Continuous Output
Continuous Template
Ethernet 1 Demand Output,
Totals Report
Disabled, Enabled
Template 1…5
Scale, Trigger 1…3 Template 1…5
Reports
Ethernet 2
Demand Output
Ethernet 3
Scale, Trigger 1…3 Template 1…5
Continuous Output
EPrint
Continuous Template
Disabled, Enabled
Template 1…5
CTPZ Input
Demand Output
Scale, Trigger 1…3 Template 1…5
Connection options notes:
Not all choices are available for all connection assignments. Only valid
choices are shown in the selection boxes.
The Shared Data Server assignment is only available on COM1. Serial
connection to the Shared Data Server is only possible on COM1. This
assignment allows a user to connect to the Shared Data Server over COM1
without turning SW2-1 to the “on” position.
The Trigger field displays only when the assignment selection is Demand
Output. The Trigger 1, 2, and 3 selections for Trigger enable connection of a
discrete input or a PLC command to trigger the output of the selected template.
The discrete selection must be programmed separately (as described in the
Application branch under Discrete I/O).
3-56
IND560 User’s Guide
The Template field displays only when the assignment selection is Demand
Output, Continuous Template, or Totals Report. Only one template can be
assigned to a connection.
The default template for the Totals Report is Template 5.
The Checksum field is available for continuous outputs only.
The SICS selection provides some Level 0 and Level 1 interface commands.
Refer to Appendix D, Communications for details on the SICS protocol.
If usage conflicts occur, an alarm message displays.
EPrint offers a method to access the demand or continuous output data directly
through the Ethernet port. Shared Data Server login and commands are not
required to register for the data. The data output string does not include any
Shared Data Server response messages, and reflects only the configured
template data or the continuous output string. The EPrint port is accessible
only through the Ethernet interface’s secondary port, which can be configured
in setup at Communication > Network > Port.
The # of Nodes refers to the number of ARM100 Remote I/O modules that will
be connected in series to the IND560.
Note that CTPZ over Ethernet is now available. This feature requires v4.xx
firmware or higher.
to accept the connection parameters and return to the
6. Press the OK softkey
Connections setup screen when editing or adding the connection assignment
is complete.
7. Press the ESCAPE softkey
to discard the connection parameters and
return to the Connections setup screen without saving the connection
assignment edits or additions.
Press the DELETE softkey
Connections list.
to delete a connection assignment from the
To clear all connection assignments in the Connections list, press the CLEAR
then press OK
to confirm the action.
softkey
Press the EXIT softkey
to return to the menu tree.
Serial
Serial communication setup screens provide access to the communication
parameters for the serial ports COM1, COM2, and COM3.
The COM2 and COM3 ports are only shown if the Ethernet/COM2/COM3 option
board has been installed.
Only COM3 is available on the new Ethernet/USB/COM3 option board. RS-422 is
not available on COM3 of this option board, so that selection is not listed if this
option board is installed.
3-57
IND560 User’s Guide
If “Remote Discrete I/O” is selected as the port assignment at Communication >
Connections, the port parameters are automatically preset and cannot be
changed.
COM1, COM2, and COM3
Use the COM1, COM2, and COM3 setup screens to configure the parameters for
serial ports.
Baud
Use the Baud selection box to set the baud rate for the serial port. Options are:
300
1200
4800
19200
57600
600
2400
9600
38400
115200
Data Bits
Use the Data Bits selection box to set the data bits to either 7 or 8 for the serial
port.
Parity
Use the Parity selection box to set the parity to None, Odd, or Even for the serial
port.
Flow Control
Use the Flow Control selection box to set the flow control to either None or XONXOFF (software handshaking).
After an XOFF command is received on a serial port configured for XON/XOFF
handshaking, data remaining in the port’s buffer will still be sent. Port buffers
contain the following amounts of data:
COM1: 16 bytes
COM2: 64 bytes
COM3: 64 bytes
Interface
Use the Interface selection box to select the serial port interface. Selections for
COM1 include:
RS-232
• RS-422
• RS-485
Selections for COM2 include:
•
•
RS-232
Selections for COM3 on the Ethernet/COM2/COM3 board include:
•
•
•
3-58
RS-232
RS-422
RS-485
IND560 User’s Guide
Selections for COM3 on the Ethernet/USB/COM3 board include:
•
•
RS-232
RS-485
Network
Network setup screens include Ethernet, Port, FTP and Email Alert.
Ethernet
Ethernet is available for TCP/IP transfer of data, connecting to InSite™, shared data
server access, connection via the EPrint port, email alerts, and FTP. The Medium
Access Control (MAC) Address cannot be edited; it is shown for information only.
Setup for Ethernet allows static Internet Protocol (IP) addressing only. If the
(Dynamic Host Configuration Protocol) DHCP Client setting is enabled, the IP
Address, Subnet Mask, and Gateway Address fields are assigned automatically by
the network and become read-only in the setup screens.
Use the UP and DOWN navigation keys to select the field to be edited. Press the
ENTER key to edit the field or selection choice. The Ethernet branch includes the
following fields:
DHCP Client
The DHCP client can be enabled or disabled. If disabled, the IP address must
manually be assigned in the following fields. If enabled, the terminal will be
assigned an IP address by the network server. The IP address can then be viewed
in the following fields.
IP Address
Enter the IP address (or view if DHCP Client is enabled) for the IND560 terminal.
After each group of digits has been entered, press ENTER to proceed to the next
group. The default value for the IP is 192.68.0.1.
Subnet Mask
Enter the subnet mask (or view if DHCP Client is enabled) for the IND560 terminal.
After each group of digits has been entered, press ENTER to proceed to the next
group. The default value for the subnet mask is 255.255.255.0.
Gateway Address
Enter the gateway address (or view if DHCP Client is enabled) for the IND560
terminal. After each group of digits has been entered, press ENTER to proceed to
the next group. The default value for the gateway is blank.
After entry is complete, press the EXIT softkey
to return to the menu tree
Port
The Port setup screen displays the primary Ethernet port number and also allows a
secondary port number to be configured for the same Ethernet interface. The
primary port is reserved for the Shared Data Server access, which is described in
Appendix D. The secondary port allows for either Shared Data Server access or
3-59
IND560 User’s Guide
EPrint connections, if configured. The primary and secondary ports can be used
concurrently.
Primary Port #
The Primary Port number for the Ethernet TCP/IP interface is fixed at 1701, and is
displayed as a read-only field in the Port setup screen (Figure 3-14). The Primary
Port number can be modified through a Shared Data write.
Figure 3-14: Secondary Port Setup
Secondary Port #
If a valid, user-defined Secondary Port number is entered, the Shared Data Server
will also be accessible on a second TCP/IP port. However, if an EPrint connection
is configured in setup at Communication > Connections, Shared Data Server
access is no longer be available on this port, which will be used entirely for the
EPrint demand or continuous types of output. A change to the Secondary Port
number may require a manual power cycle of the terminal before the change
becomes active.
FTP
The setup screen for FTP displays usernames and access levels for file download.
Access levels for all parameters are shown in Appendix B, Default Settings.
Usernames can be edited, inserted, or deleted.
To edit or insert a username:
1. Press the UP and DOWN navigation keys to select (highlight) a username in
the table.
2. Press the EDIT softkey
to open the setup screen for editing a username or
press the INSERT softkey to open the setup screen to create a new
username.
3. Press the ENTER key to select the Username field. The alpha keys display.
The Username field is accessible only when entering a new FTP user.
4. Use the alpha keys to edit or enter the desired username.
5. Use the Access selection box to assign the appropriate access level to the
user. The following access levels are available:
•
•
3-60
Operator
Supervisor
IND560 User’s Guide
• Maintenance
• Administrator
6. Press the DOWN navigation key to view the second screen, which displays the
Password and Confirm Password fields.
7. Enter the desired password in the Password and Confirm Password fields.
8. Press the OK softkey
to accept the username and password as entered.
9. Press the ESCAPE softkey
password.
Press the DELETE softkey
screen.
to exit without saving the username and
to delete a username from the table on the Users
To clear all usernames from the list and leave only the default username “admin”,
press the CLEAR softkey
then OK
to confirm the action.
Email Alert
The IND560 can be configured to send email alerts when it encounters a
calibration change or calibration failure that might indicate a hardware problem, or
when calibration expires. Note that the Ethernet connection used to send email
alerts is separate from those configured at Communication > Connections.
Parameters
This screen permits four parameters to be set:
SMTP Server IP
This value is set using four groups of numbers, representing the IP address of the
mail server the IND560 will use to send alerts. Default is 0.0.0.0.
Sender Email Address
This is an alphanumeric entry field permitting the IND560’s email address to be
set. Default is blank.
Sender Name
This is an alphanumeric entry field, used to give the IND560 a unique name that
will appear in the “From” field of alert emails. Default is “IND560.”
Subject Line
This alphanumeric entry field defines the Subject field of the email to be set. Default
is “Scale Cal Alert.”
Recipients
This screen is used to define recipients of email alerts, together with the condition
under which they will receive an email. The following actions are available on the
Email Recipients screen:
Softkey
Function
EXIT
Returns to the setup menu tree.
3-61
IND560 User’s Guide
Softkey
Function
EDIT
Opens the Email Recipients Edit screen, permitting parameters
for the selected recipient to be edited.
NEW
Opens the New Email Recipient screen, allowing a new
recipient to be defined.
DELETE
Deletes the selected recipient.
Sends an email alert message, titled “Email Alert Test
Message,” to the recipient currently selected.
TEST
The NEW and EDIT screens offer the same options:
Email Address
This alphanumeric entry field is used to enter the recipient’s email address. Default
is blank. Up to 6 recipients can be configured.
Note: Use the decimal key
in each email address.
on the IND560 front panel to enter the period
Alert On
Available options are None, All, Failures. The default is None. Table 3-6 lists
all the events that trigger an email alert. Messages sent when Alert On is set to
Failures are indicated by an asterisk.
Table 3-6: Calibration Alerts
Event
Email Message Subject
Completion of CalFREE calibration
CalFREE complete
After each step in step calibration
Calibration complete
Calibration expired
Calibration expired*
Failing a calibration test
Cal. test failed*
Passing a calibration test
Cal. test passed
Completion of a zero capture from the Calibration page
Zero captured
Completion of a span capture from the Calibration page
Calibration completed
PLC
The PLC parameters are only available when a PLC option is installed. PLC setup
screens include:
3-62
•
Analog Output
•
A-B RIO
•
DeviceNet
•
PROFIBUS
•
EtherNet/IP
•
Modbus TCP
IND560 User’s Guide
•
Data Format
Analog Output
The analog output of the IND560 terminal provides either 4 - 20 mA or 0 - 10 volt
DC outputs depending on how the connection is wired. The output can be
configured to represent either the displayed weight or the gross weight.
To configure analog output:
1. Choose the appropriate source from the Source field selection box. Selections
are:
•
None
•
Application (Source as defined by a Task Expert application)
•
ABS – Displayed Wt.
•
ABS – Rate*
•
Displayed Weight
•
Gross Weight
•
Rate*
*Available only when Rate is enabled
2. Select either None or Scale from the Channel selection box. A selection of None
disables the output.
3. On the second screen of this setup branch, the zero and span values for the
analog output can be adjusted. These values can be for weight or rate,
depending on the selected source. In the Zero Value field, enter the value at
which the “zero” output of the analog signal should occur.
4. If these preprogrammed values do not provide the exact outputs required, they
may be trimmed by using the ZERO
and SPAN
softkeys located at
the bottom of the screen as follows:
to initiate the zero fine-tuning process or the
5. Press the ZERO softkey
SPAN softkey
to initiate the span fine-tuning process. In either case, a
to continue with the operation, or
warning screen offers two options – OK
to return to the Analog Output screen without making any adjustment.
EXIT
6. The analog output signal value will change during this procedure – ensure that
the PLC or other control equipment is disconnected. A warning message
displays asking for verification to continue.
7. Once the OK softkey
has been pressed, the zero fine-tuning or span finetuning operation begins. A message screen appears, showing the current
value of the analog output signal. Use the softkeys that display to adjust the
signal if necessary as follows:
Bump Down
(faster adjustment down)
Bump Up
(faster adjustment up)
8. Press the EXIT softkey
Nudge Down
(slower adjustment down)
Nudge Up
(slower adjustment up)
to return to the previous screen.
3-63
IND560 User’s Guide
A-B RIO
The Allen-Bradley Remote I/O (A-B RIO) network is an Allen-Bradley proprietary
network protocol that permits certain PLCs to communicate to additional racks of
input and output devices or to other peripheral devices that implement the RIO
interface.
Additional interface information and programming examples can be found in the
IND560 Terminal PLC Interface Manual, which is included on the documentation
CD.
The A-B RIO setup screen is used to configure A-B RIO as a PLC interface option.
Node Address
Each IND560 Terminal connected to the network represents one physical node;
however, the addressing of the node is defined as a logical rack address. This
address is determined by the system designer, then configured in the IND560
Terminal by selecting the Node Address text box and using the numeric keypad to
enter the appropriate node address (0–62).
Prior to the Node Address text box is a selection field allowing the user to enter the
node address in either:
• Decimal
• Octal
Figure 3-13 shows the new A-B RIO setup screen for Node Address.
Figure 3-15: A-B RIO Node Address Setup Screen
Start Quarter (Group)
Each scale occupies a quarter rack (single group) in the RIO address space and
the quarter (group) may be defined as the first (0), second (2), third (4), or fourth
(6) quarter (group) of a rack. Designate the location of the PLC that is the highest
quarter used in a logical rack by using the selection box to select the appropriate
start quarter address 1–4 (group 0–6).
Last Rack
The IND560 configuration selections enable designation of the last rack. Use the
selection box to select Disabled or Enabled for last rack designation.
3-64
IND560 User’s Guide
Data Rate
Use the selection box to select the desired data rate. Selections available are:
57.6 Kb
115.2 Kb
230.4 Kb
Block Transfer
Use the Block Transfer selection box to either Disable or Enable the block transfer
mode of operation.
DeviceNet
The DeviceNet Interface can be configured to run up to 500Kbits per second
depending on cabling and distances. Messages are limited to 8 un-fragmented
bytes. The network can include up to 64 nodes including the master, commonly
called the scanner. The DeviceNet setup screen is used to configure DeviceNet as a
PLC interface option.
Node Address
Each IND560 Terminal connected to the network represents one physical node.
This address is determined by the system designer, then configured in the IND560
Terminal by selecting the Node Address text box and using the numeric keypad to
enter the appropriate node address (0–63). The default address is 63.
Data Rate
Use the selection box to select the desired data rate. Selections available are:
125 Kb
250 Kb
500 Kb
125 kB is the default value.
PROFIBUS DP
The PROFIBUS DP Interface supports discrete data transfer that enables
bi-directional communication of discrete bit-encoded information or 16-bit binary
word (signed integer) numerical values.
Additional interface information and programming examples can be found in the
IND560 Terminal PLC Interface Manual, which is included on the documentation
CD.
The PROFIBUS setup screen is used to configure PROFIBUS as a PLC interface
option.
Node Address
Each IND560 Terminal connected to the network represents one physical node.
This address is determined by the system designer, then configured in the IND560
Terminal by selecting the Node Address text box and using the numeric keypad to
enter the appropriate node address (0–125).
3-65
IND560 User’s Guide
Shared Data
The Shared Data parameter enables or disables an extended message length that
includes shared data access. This data is added to the end of the standard scale
slot information and extends the message length.
Use the Shared Data selection box to select Disabled or Enabled for shared data
message communication.
EtherNet/IP
EtherNet/IP, short for “EtherNet Industrial Protocol,” is an open industrial
networking standard that takes advantage of commercial, off-the-shelf EtherNet
communication chips and physical media. This networking standard supports both
implicit messaging (real-time I/O messaging) and explicit messaging (message
exchange). The interface enables the IND560 terminal to communicate with
EtherNet/IP Programmable Logic Controllers (PLCs) through direct connection to
the EtherNet/IP network at either 10 or 100 MBPS speed.
EtherNet / IP interface has the following features:
• User-programmable IP addressing.
• Capability for bi-directional discrete mode communications (Class 1
Messaging) of weight or display increments, status, and control data between
the PLC and the IND560.
Additional interface information and programming examples can be found in the
IND560 PLC Interface Manual, which is included on the documentation CD.
MAC Address
The Terminal’s MAC address in the Ethernet / IP network is assigned automatically.
IP, Subnet Mask and Gateway Address
The Terminal’s IP Address, Subnet Mask and Gateway Address are chosen by the
system designer. Default values are as follows:
IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0
Gateway Address: 0.0.0.0
Modbus TCP
Additional interface information and programming examples can be found in the
IND560 PLC Interface Manual, which is included on the documentation CD. The
Modbus TCP setup screen is used to configure this PLC interface option.
MAC Address
The Terminal’s MAC address in the Modbus TCP network is assigned
automatically.
3-66
IND560 User’s Guide
DHCP Client
The DHCP Client is enabled by default. If disabled, the IP address must be
assigned manually. If enabled, the terminal will be assigned an IP address by the
network server.
IP, Subnet Mask and Gateway Address
The Terminal’s IP Address, Subnet Mask and Gateway Address are configured as
described in Ethernet setup, above.
Data Format
Use the Data Format setup screen to configure the PLC data format.
Format
Select the desired PLC format from the Format field selection box. Selections
include:
•
•
•
Divisions - PLC format that provides scale increment data transfer.
Floating Point - PLC format that provides 32-bit floating point data
transfer in 16-bit integer format.
Integer - PLC format that provides 16-bit integer data transfer.
Byte Order
Select the desired byte order field selection box. Selections are:
•
Word Swap - Default value. This format is compatible with RSLogix
5000 processors.
• Byte Swap - Makes the data format compatible with S7 Profibus.
• Historic - Makes the data format compatible with PLC 5 (selection is
only available with A-B RIO interface)
• Standard – Makes the data format compatible with PLC 5
• Double Word Swap - Makes the data format compatible with the
Modicon Quantum PLC for Modbus TCP networks.
Available selections, by PLC Interface are shown in Table 3-7. Table 3-8 provides
an overview of the various data format modifications.
Table 3-7: Available Byte Orders
A-B RIO
Standard
PROFIBUS
DeviceNet
Ethernet / IP
Modbus TCP
x
x
x
Word swap
X
x
x
x
Byte swap
X
x
x
x
Historic
X
x
x
x
Double Word Swap
3-67
IND560 User’s Guide
Table 3-8: Data Format Modifications
Word Swap
Byte Swap
Double Word Swap Standard / Historic
Terminal Weight Value
1355
PLC 15
Integer /
Division
Bit #
0
15
Bit #
0
15
Bit #
0
15
Bit #
0
Weight value
word
0x054B Hex
0x4B05 Hex
0x4B05 Hex
0x054B Hex
1st Weight value
word
0x6000 Hex
0xA944 Hex
0x0060 Hex
0x44A9 Hex
0x44A9 Hex
0x0060 Hex
0xA944 Hex
0x6000 Hex
Floating
Point
2nd Weight value
word
Message Slots
This parameter refers to the number of slots of data that will be transferred.
Typically only one slot is used in a single scale application, but sometimes an
application requires multiple fields of data in a cyclic data transfer. In order to
accomplish this, two, three, or even four message slots can be assigned for the
output. As the number of message slots is increased, so is the length of the
message, because each slot requires enough memory to transmit a complete set
of data. More detailed information can be found in the IND560 Terminal PLC
Interface Manual, which is included on the documentation CD.
Choose the number of message slots from the selection box. Press ENTER when
done.
Reset
The Reset setup screen restores Communication branch setup values to their
factory default settings.
Communication Reset
To initiate a reset, press the OK softkey
. If the reset was successful, a
verification message that reads “Reset Successful” displays If the reset was not
successful, an error message that reads “Reset Failure” displays. If the reset fails,
try to initiate the reset again. If the reset continues to fail, contact a local METTLER
TOLEDO representative for assistance.
Press the ESCAPE softkey
3-68
to exit without resetting.
IND560 User’s Guide
Maintenance
The maintenance setup
up branch includes:
Configure/View of the log files and calibration test
Running diagnostics or the calibration test
Configure/View
The Configure/View setup branch includes the following screens:
•
Change Log
•
Calibration Test
•
Maintenance Log
•
Reset
•
Calibration Management
Change Log
The change log file tracks all changes to setup and shared data. The Change Log
is approximately 150k bytes in size. Each record could vary in length, but an
average of about 2,500 records can be saved. More details regarding the Change
Log can be found in Appendix C, Table and Log File Structure.
Use the selection box on this setup screen to select Disabled or Enabled for the
change log.
To reset all records in the change log file:
. A warning message displays asking for
1. Press the RESET softkey
verification that all configuration change records are to be reset.
2. Press the OK softkey
. The configuration change records history is reset.
3. If the reset was successful, a verification message that reads “Reset
Successful” displays. If the reset was not successful, an error message that
reads “Reset Failure” displays. If the reset fails, try to initiate the reset again. If
the reset continues to fail, contact a local METTLER TOLEDO representative for
assistance.
4. Press the ESCAPE softkey
to return to the Change Log screen.
To view change log records:
1. Press the VIEW TABLE softkey
. The Change Log Search screen displays.
2. Use the Search Field 1 and Search Field 2 selection boxes and associated data
fields to enter specific search information to limit the search by date, shared
data (SDName), Time, or Username, or enter * (the “find all” character) to
view all Change Log information.
3. Press the START SEARCH softkey
. The Log Search View screen displays
with the search results sorted in chronological order (The most recent change
record displays at the end of the file with focus. Older records may be viewed
by pressing the UP navigation key.).
Information displayed in the Change Log View includes:
3-69
IND560 User’s Guide
•
•
•
•
Time Stamp
Username
Shared Data Field Name
New Value
4. Press the PRINT softkey
5. Press the EXIT softkey
to print the list to all Report connections.
to return to the Change Log Search Screen.
Maintenance Log
The maintenance log is a record of routine maintenance or activities such as
capture span and capture zero. Use the selection box on this setup screen to select
Disabled or Enabled for the maintenance log.
The Maintenance Log is approximately 150k bytes in size. Each record can vary in
size, but an average of about 2,500 records can be saved. More details regarding
the Maintenance Log can be found in Appendix C, Table and Log File Structure.
Reset all records or view records in the Maintenance Log by following the same
steps described for Change Log.
Information that displays on the Maintenance Log Search View screen includes:
•
•
•
•
Time Stamp
Username
Event
Status
New Maintenance Log Entry
The NEW softkey
on the Maintenance Log screen opens an ADD MAINTENANCE
RECORD screen, intended to record the upgrade or repair of equipment. From this
screen, an Event may be added, removed or replaced, and its status recorded in
an 8-character alphanumeric entry field. Press OK
to confirm the change, or
ESC
to exit the screen without changing the Maintenance Log.
Calibration Management
Calibration management includes a test interval to program how much time
elapses or how many weighments should be completed between calibration
checks. When this time or number of weighments is exceeded, an expiration action
is initiated. The type of expiration action is also programmable. This feature is
disabled by entering zeroes into both the number of days and number of
weighments entry boxes.
Use the Calibration Management setup screen to configure parameters used for
managing calibration activities.
Test Interval
Specify test intervals in days or weighments in the corresponding field text boxes.
3-70
IND560 User’s Guide
The expiration action will be triggered when the first of either of these values is
reached. For example, if 30 days and 3,000 weighments were programmed, as
soon as 30 days or 3,000 weighments were exceeded (whichever were first), the
expiration action would occur.
On Expiration
Use the On Expiration selection box to configure the activity to occur upon
expiration of the calibration after the next test date or number of weighments
occurs. Settings include:
a. No Action
b. Alarm Only (displays an expiration message)
c. Alarm & Disable (displays expiration message and disables the scale)
Note that, regardless of how the On Expiration option is configured, a pop-up
message will appear over the home screen when calibration expires.
Last Date Tested, Next Test Date, and # of Weighments Left
The Last Date Tested and Next Test Date (if days is specified for intervals), or the
number of weighments left until the next service (if weighments is specified for
intervals), automatically calculate and display.
To reset the Last Date Tested to the current date:
1. Press the RESET softkey
.
2. A warning message displays asking for verification that calibration
management values are to be reset.
3. Press the OK softkey
. A status screen displays that shows the reset
process status. The Last Date Tested is reset to the current date. This reset also
generates a recalculation of the Next Test Date and/or # of Weighments Left
parameters if test intervals have been entered for these fields.
4. If the reset was successful, a verification message that reads “Values Reset
OK” displays. If the reset was not successful, an error message that reads
“Reset Failed” displays.
5. Press the ESCAPE softkey
screen.
to return to the Calibration Management
Calibration Test
The calibration test provides a prompting, scale test sequence to help lead the
person performing the test through a test sequence. A test load with +/− tolerance
is programmable for each step along with two lines of prompting directions to
guide the test person through each step. Up to 25 steps can be programmed for
the sequence.
Use the Test Load Units selection box to select calibration test load units. Only
weight units available for primary units are available for selection.
The entire calibration test sequence can be cleared by pressing the CLEAR softkey
, then pressing OK
to confirm the action. When the calibration test sequence
3-71
IND560 User’s Guide
is cleared (empty), it still shows the –End– step. The –End– record will always
display as the last step of the calibration test sequence. This field cannot be
deleted and cannot be edited.
Press the VIEW TABLE softkey
to access the current calibration test sequence
setup. The Calibration Test View screen displays.
When the Calibration Test View screen opens, the step numbers and their
associated test loads, tolerances, and prompts display. Calibration test steps can
be configured by:
Editing
To edit a calibration step:
Inserting
Deleting
1. When the Calibration Test setup screen opens, the first step in the list will have
focus. Use the UP and DOWN navigation keys to select a step to edit.
2. Press the EDIT softkey
can be made.
to open the setup screen for the step where edits
3. The step's test load and tolerance data displays first. Information for Prompt
Field 1 and Prompt Field 2 (up to 20 characters per field that display as
separate lines during the calibration test) display on the next screen. Edit the
test step’s test load, tolerance, and prompts as desired.
4. Press the OK softkey
to accept the calibration step parameters as entered.
to return to the Calibration Test View screen
5. Press the ESCAPE softkey
without saving the changes to the calibration step parameters.
To insert a calibration step:
1. Use the UP and DOWN navigation keys to select the step in the calibration test
procedure where the new step is to be inserted.
2. Press the NEW softkey
test step.
to open the setup screen to create a new calibration
3. Enter the step's test load and tolerance data and information for Prompt Field 1
and Prompt Field 2.
4. Press the OK softkey
. The current screen data is stored at the indicated
step number, and any existing steps move down one record to make room for
the new step.
5. Press the ESCAPE softkey
to return to the Calibration Test View screen
without saving the calibration step.
Use the UP and DOWN navigation keys to select a step to delete. Press the
to delete the step.
DELETE softkey
Press the PRINT softkey
Press the EXIT softkey
3-72
to print the calibration test steps.
to return to the Calibration Test screen.
IND560 User’s Guide
Reset
The Reset setup screen resets setup values to factory default settings for the
Maintenance Configure/View setup.
Maintenance Reset
To initiate a reset, press the OK softkey
. If the reset was successful, a
verification message that reads “Reset Successful” displays. If the reset was not
successful, an error message that reads “Reset Failure” displays. If the reset fails,
try to initiate the reset again. If the reset continues to fail, contact a local METTLER
TOLEDO representative for assistance.
Press the ESCAPE softkey
to exit without resetting.
Run
The Run screens enable the operator to:
•
•
Run the calibration test
View and run diagnostic tests
Calibration Test
The name of the person who previously ran the calibration test displays on the Run
Calibration Test screen. Press the ENTER key to change the name. Use the alpha
keys to enter a new name. Press ENTER.
To view and modify test weight information:
1. Press the TEST WEIGHT INFORMATION softkey to access the Test Weight
View screen where test weight information such as weight values and serial
numbers can be edited, inserted, or deleted.
2. Press the EDIT softkey
press the NEW softkey
to change a weight value or ID for a test weight, or
to insert a weight value and ID for a new test weight.
3. Press the OK softkey
to save the changes or the new test weight record.
4. Press the ESCAPE softkey
to exit without saving.
5. Press the DELETE softkey
to delete a test weight from the list.
6. To clear all test weight records from the list, press the CLEAR softkey
to confirm the action.
OK
7. Press the EXIT softkey
, then
to return to the Run Calibration Test screen.
To run the calibration test:
to initiate the calibration test. The currently
1. Press the START softkey
displayed weight unit is compared to the programmed calibration test
procedure weight unit.
If the units do not match, the IND560 terminal will automatically check other
programmed units and switch to the corresponding weight unit. If the unit
selected for calibration does not match the primary, second, or third units, an
3-73
IND560 User’s Guide
error message will display and the test cannot be run. If this occurs, reprogram
the unit selection or the calibration test unit to ensure that they match.
2. Live scale weight (active weight) displays on the first line (under the system line).
3. The calibration test step (for example, 1/5, which indicates step 1 of 5)
displays under the active weight display.
4. The next line displays the test load value and +/– tolerance values for the step.
5. Prompt 1 displays on the line under the test load.
6. Prompt 2 displays on the next line.
7. Follow the prompts on the display and add the required test weights.
8. Press the OK softkey
to proceed to the next calibration test step.
9. If a tolerance fails at any step, a Calibration Test Tolerance Failure message
displays. Press ENTER to acknowledge the error. There are now three possible
steps:
A. If the wrong test weights were added to the scale, adjust the weights and
to repeat the steps.
press the OK softkey
B. If the test weights were correct and the scale needs to be recalibrated,
press the ESCAPE softkey
to abort the calibration test.
(a new softkey that displays when a Calibration
10. Press the SKIP softkey
Test Tolerance Failure occurs), to accept the calibration test error and continue
to the next step. This step of the test will still report as a failure, but the test can
be run to completion if desired.
11. After progressing through all of the steps in the calibration test procedure, a
Test Complete message displays along with a Status message of either Pass
or Fail. Press the PRINT softkey
to print the calibration test report to
connections with a Report assignment.
12. Press the ESCAPE softkey
during any step to abort the calibration test and
return to the Run Calibration Test screen.
Diagnostics
Diagnostic test setup screens include:
•
Display Test
•
Keyboard Test
- Local
•
Scale
- Remote I/O 1
3-74
Discrete I/O Test
- Load Cell Output
- Remote I/O 2
- Calibration Values
- Remote I/O 3
- Statistics
•
•
Serial Test
•
Network Test
•
Reset Flash 2
IND560 User’s Guide
Display Test
The Display Test screen displays an alternate off/on dot block pattern when first
accessed. After the alternate off/on cycle, any additional test data about the display
such as memory or program information displays.
Press the EXIT softkey
to return to the menu tree.
Keyboard Test
The Keyboard Test screen enables testing of the terminal keys, including:
•
•
•
•
Softkeys
Scale function keys
Navigation keys
Numeric keys
Press any key. The screen will display the key last pressed.
Press the EXIT softkey
to return to the menu tree.
Scale
Scale diagnostics setup screens include:
•
•
•
Load Cell Output
Statistics
Calibration Values
Load Cell Output
The Cell Output screen displays the current number of counts (active value) for the
scale. This display is only available for analog load cells.
Press the EXIT softkey
to return to the menu tree.
Calibration Values
The Calibration Values screen displays the current calibration values configured for
the scale. The number of test loads that display calibration values is determined by
the Linearity Adjustment setting configured for the scale (see the Scale branch,
Calibration setup).
These calibration values can be recorded and then manually entered into a new
replacement board should a failure ever occur, which eliminates having to
recalibrate the scale with test weights. While this method is quick, it is not as
accurate as placing test weights on the scale.
Use the UP and DOWN navigation keys to select a calibration value to be modified.
Use the numeric keypad to enter new values.
Press the EXIT softkey
to return to the menu tree.
Statistics
The Scale Statistics screen displays statistical information for the scale such as
weighments (increments each time a transaction is triggered), overloads
3-75
IND560 User’s Guide
(increments when the applied load for a single load cell exceeds its overload
capacity), peak weight (the maximum weight recorded by the scale), and zero
commands (increments each time a zero command is received from an operator
or remotely).
Use the UP, DOWN, LEFT, and RIGHT navigation keys to view all information and
records.
Press the EXIT softkey
to return to the menu tree.
Serial Test
The Serial Test screen enables testing of the sending and receiving hardware on the
serial ports COM1, COM2, and COM3.
Com Port
Use the Com Port selection box to select the serial port for testing (1, 2, or 3).
to initiate transmission of the test string. After pushing
Press the START softkey
the START softkey
, it changes to a STOP softkey
. Press this key to end
transmission of the test string.
In the serial test mode, the terminal will transmit a string “Testing COMX nn” out the
selected serial port where the "X" is the selected com port number (1, 2, or 3) and
“nn” is a sequential two-digit number (00–99). If a jumper is placed between the
transmit and receive terminals on that port, the same data displays in the receiving
field.
If another device is connected to the receiving port, any ASCII data received
displays in the receiving field.
The serial test continues until the STOP softkey
user to the main Serial Test screen.
Press the EXIT softkey
is pressed, which returns the
to return to the menu tree.
Discrete I/O Test
Discrete I/O Test setup screens include:
• Local
• Remote I/O 1
• Remote I/O 2
• Remote I/O 3
Select the internal (local) or external (Remote I/O) to be tested from the menu tree.
Press ENTER.
VERY IMPORTANT!: When any of the Discrete I/O Test screens are first
accessed, a warning message displays with instructions to remove output
control power before proceeding with the test. The Discrete I/O Test screens
enable manual setting of any of the outputs to on or off for testing, so it is
necessary to remove output control power before proceeding.
3-76
IND560 User’s Guide
Press the ESCAPE softkey
to abort and not perform the test.
To continue the test:
. A real-time display shows the status of each of the
1. Press the OK softkey
inputs and enables each of the outputs to be turned on and off. An input or
output that displays
is turned off. An input or an output that displays
is
turned on.
2. Use the LEFT and RIGHT navigation keys to select an output to turn on or off.
3. Press the DISCRETE OFF softkey
to turn the output off, and press the
DISCRETE ON softkey
to turn the output on.
4. Press the EXIT softkey
to return to the menu tree. The outputs return to their
previous on/off configuration before the tests were initiated.
If three remote I/O modules are set up in the terminal, the IND560 disables the
ability to run diagnostics on a local I/O board that may be installed.
Network Test
The Network Test screen enables Ethernet network testing and assists in
determining the availability of network options. The status of each line associated
with the network setup displays during and after testing, showing a status of either
Testing, Pass, Fail, or Timeout.
Press the EXIT softkey
to return to the menu tree.
Reset Flash 2
The reset Flash 2 function clears the Flash 2 memory of all TaskExpert program
files, custom tables and bitmap files specific to TaskExpert custom programs that
have been downloaded to the terminal. The A1.csv (Tare Table csv file), A2.csv
(Target Table csv file) and A3.csv (Container Tare Table csv file present in the Fill560 only) will remain in place and intact during a reset of the Flash 2 drive.
Press the START softkey
to initiate a reset of the Flash 2 memory. The terminal
will NOT prompt the user for confirmation and the reset will begin immediately. A
“Reset successful” pop-up will appear when the reset is complete. Press ENTER to
acknowledge. At this time, the terminal will complete a power cycle.
Press the EXIT softkey
to abort and not perform the reset.
Software Upgrade
To perform an upgrade from a USB drive, the terminal must be powered up
with the USB drive attached.
The USB upgrade option can only be used in terminals that are utilizing v4.xx
firmware or higher. In general, USB drives that are USB 2.0 certified and 1.1
compatible will be supported by the IND560.
Refer to Chapter 4, Service and Maintenance, for the procedure to follow when
upgrading software from a USB stick.
3-77
IND560 User’s Guide
Backup to USB
To perform a backup to a USB drive, the terminal must be powered up with the
USB drive attached.
The system backup screen allows a backup of the terminal setup to be copied to a
USB connected flash memory module. The optional Ethernet/USB/COM3 board
must be installed to access this.
Select the data to be backed up in the Backup selection box. The choices are
Configuration and Calibration or TaskExpert files only.
Refer to Chapter 4, Service and Maintenance, for the procedure to follow when
backing up the system configuration. Backup can be performed by users with any
access level, and can be carried out even when the indicator is metrologically
sealed.
Restore from USB
To perform a restore from a USB drive, the terminal must be powered up with
the USB drive attached.
The system restore screen allows a dataset saved on a USB device to be restored,
or copied to a new terminal. The optional Ethernet/USB/COM3 board must be
installed to access this.
Select the data to be restored from a previous save function in the Restore selection
box. The choices are Configuration and Calibration, Calibration only and
TaskExpert files only.
Log files are not restored in this process, and the procedure can only be performed
by operators with Administrator-level access. Configurations cannot be restored or
copied to indicators that are metrologically sealed.
Refer to Chapter 4, Service and Maintenance, for the procedure to follow when
restoring the system configuration.
Reset All Factory Default Settings
The Reset All setup screen resets all setup settings to factory default settings.
The Reset All step resets all parameters in the terminal, except metrologically
significant settings such as Scale type, capacity, etc.
When the Reset All screen is first accessed, a message displays that asks for
verification to reset all setup parameters to factory default settings. To continue with
the Reset All, press the OK softkey
. If the reset was successful, a verification
message that reads “Reset Successful” displays If the reset was not successful, an
error message that reads “Reset Failure” displays. If the reset fails, try to initiate the
reset again. If the reset continues to fail, contact a local METTLER TOLEDO
representative for assistance.
Press the ESCAPE softkey
3-78
to exit without resetting.
IND560 User’s Guide
Restoring Factory Default Settings
Factory default settings can be restored individually for branches such as scale,
application, and terminal, or globally with the Reset All screen under the
Maintenance branch. The Reset screen is the last branch in each major branch of
the menu tree (except for Maintenance). To restore factory default settings for
Terminal, for example:
1. Press the SETUP softkey
(see Figure 3-16).
. The setup menu tree displays
Figure 3-16: Setup Menu Tree – Reset
2. Use the DOWN navigation key to move the focus to Terminal.
3. Press the RIGHT navigation key to expand the Terminal branch.
4. Use the DOWN navigation key to move the focus to Reset.
5. Press the ENTER key to open the Terminal Reset screen.
6. Press the OK softkey
settings.
to reset the Terminal setup values to factory default
7. A status message appears that verifies a successful reset.
8. Press the EXIT softkey
to return to the setup menu tree display.
9. Repeat steps 2–8 to reset factory default settings for any major branch in
setup.
Select Reset All under Maintenance to restore all setup settings to factory
defaults. Note that neither this, nor Scale Reset, includes the reset of type,
capacity, increment, or calibration data. Reset this data by setting SW2-1 to its
ON position, and then performing a master reset by turning SW1-1 and
SW102 ON and then cycling power to the terminal.
3-79
Chapter 4.0
Service and Maintenance
This chapter covers
•
Cleaning and Maintenance
•
Service
•
Upgrading Firmware
•
USB Backup and Restore
•
Changing Screensaver
graphic
•
Troubleshooting
•
External Diagnostics (Web
Server)
The IND560 terminal is designed to provide years of dependable
operation. However, METTLER TOLEDO recommends that – as with any
industrial measurement equipment – the IND560 terminal and the
connected scale system be serviced periodically. Timely, factoryspecified maintenance and calibration by a METTLER TOLEDO service
technician will ensure and document accurate and dependable
performance to specifications.
Cleaning and Maintenance
Clean the IND560 terminal’s keypad and cover with a clean, soft cloth
that has been dampened with a mild glass cleaner. Do not use any
type of industrial solvent such as toluene or isopropanol (IPA) that could damage
the terminal’s finish. Do not spray cleaner directly on the terminal.
Regular maintenance inspections and calibration by a qualified service technician
are recommended. The IND560 is a rugged stainless steel enclosed instrument;
however, the font panel is a vinyl covering over sensitive electronic switches and a
lighted display. Care should be taken to avoid any punctures to this surface or any
vibrations or shocks to the instrument. Should the front panel become punctured,
ensure that steps are taken to prevent dust and moisture from entering the unit until
the terminal can be repaired.
Service
Only qualified personnel should perform installation, programming, and service.
Please contact a local METTLER TOLEDO representative for assistance.
In general, once the IND560 is installed, programmed, and calibrated for a given
application, only routine calibration service is required.
WARNING
ONLY PERMIT QUALIFIED PERSONNEL TO SERVICE THE
TERMINAL. EXERCISE CARE WHEN MAKING CHECKS, TESTS AND
ADJUSTMENTS THAT MUST BE MADE WITH POWER ON. FAILING
TO OBSERVE THESE PRECAUTIONS CAN RESULT IN BODILY HARM
AND/OR PROPERTY DAMAGE.
4-1
IND560 User’s Guide
WARNING!
IF THE KEYBOARD, DISPLAY LENS OR ENCLOSURE IS DAMAGED ON A
DIVISION 2 APPROVED OR CATEGORY 3 MARKED IND560 PANELMOUNT OR HARSH TERMINAL THAT IS USED IN A DIVISION 2 OR ZONE
2/22 AREA, THE DEFECTIVE COMPONENT MUST BE REPAIRED
IMMEDIATELY. REMOVE AC POWER IMMEDIATELY AND DO NOT REAPPLY
AC POWER UNTIL THE DISPLAY LENS, KEYBOARD OR ENCLOSURE HAS
BEEN REPAIRED OR REPLACED BY QUALIFIED SERVICE PERSONNEL.
FAILURE TO DO SO COULD RESULT IN BODILY HARM AND/OR PROPERTY
DAMAGE.
Upgrading Firmware
Upgrading from Version 1.xx Firmware to
Version 2.xx, 3.xx or 4.xx
The upgrade from version 1.xx to v2.xx, v3.xx or v4.xx of the IND560 firmware
requires the installation of new bootcode in addition to the firmware. The new
bootcode should be flashed before the new firmware.
Upgrading from v2.xx firmware to v3.xx or v4.xx firmware or upgrading from v3.xx
to v4.xx does not require a new bootcode. v2.xx, v3.xx and v4.xx share the same
bootcode (IND560BootV2.00.dat).
There are two ways to install an upgraded version of the IND560 firmware. The
preferred method uses the PC-based InSite™ configuration tool , but it is also
possible ot do so without a computer, using a USB flash memory drive connected
to the options USB port
Performing an Upgrade with InSite
The InSite program is used to flash new terminal firmware through the COM1 serial
port or the optional Ethernet port. The firmware update and the InSite configuration
tool program must be saved on a PC that will be connected to the terminal for
firmware flashing.
Implement the following steps to prepare the terminal for firmware flashing using
the InSite configuration tool:
Access the InSite tool by double-clicking on its icon –
.
The new firmware might generate a checksum error on restart, which can be
cleared by pressing ENTER on the terminal’s keypad. This performs a Master
Reset. Therefore, it is important to use InSite™ to back up the current
configuration and table data before performing the upgrade.
1. Remove power from the terminal.
4-2
IND560 User’s Guide
2. Open the terminal enclosure as specified in Appendix A, Installation, Opening
the Enclosure.
3. Set the SW1-1 switch to OFF (if not already in the OFF position) and the
SW1-2 switch to ON. (See Appendix A, Installation for switch locations.)
Setting SW2-1 to ON will correctly prepare COM1 for connection to InSite by
temporarily bypassing all existing COM1 setup parameters and connections.
4. Apply power to the terminal. The first firmware download screen displays, with
the message Update Code, Mode Select.
5. If Ethernet will be used for connection, press and hold the ENTER key for five
seconds as soon as the first download screen displays. The Ethernet
download screen displays.
6. Using the navigation keys and the numeric keypad, change the IP address
and/or the subnet mask settings if required. (These settings will be saved in
the Ethernet setup on the terminal when the download is complete.)
7. After stepping through the last subnet mask values, the bottom of the IND560
screen will display “Please download file”. The terminal is now ready to have
the InSite program flash the new firmware.
8. If the COM1 serial port will be used for connection, do not press ENTER when
the initial download screen is shown. After a few seconds, the Serial port
download screen displays, which will list parameters for the serial port
download (these parameters cannot be changed). The serial port on the PC
must be programmed to match these parameters. This is done automatically
in the InSite program. Parameters listed include:
Baud Rate:
115200
Data Bits:
8
Parity Bit:
None
Stop Bits:
1
Flow Control: None
9. Connect the Ethernet or serial port cable from the PC that contains the firmware
update and the InSite configuration tool program to the IND560 terminal. (See
Appendix A, Installation for connection locations.) The terminal is now ready
for firmware flashing.
10. Refer to the instructions/help provided with the InSite configuration tool
program for procedures required to complete firmware flashing.
11. When the firmware download process is complete, disconnect the serial or
Ethernet cable, return switch SW1-1 to its original position (if it was changed)
and turn the SW1-2 switch to OFF.
12. Close the terminal enclosure.
To eliminate potential memory errors, it is recommended that a Master Reset be
performed after flashing new firmware. This procedure is described later in this
chapter.
4-3
IND560 User’s Guide
Performing the Upgrade via USB
The USB upgrade option can only be used in terminals with v4.0x firmware or
higher. In general, USB drives that are USB 2.0 certified and 1.1 compatible will be
supported by the IND560.
To perform an upgrade from a USB drive, the terminal must be powered up
with the USB drive attached.
To perform an upgrade with via the USB port:
1. The firmware to be downloaded to the IND560 must be saved in a specifically
named file folder on the root directory of a USB drive. The firmware file must be
named upgrade.dat
• See Table 4-1 for required USB file folder names
2. If required, open the terminal enclosure as specified in Appendix A, Installation,
Opening the Enclosure.
3. Connect the USB drive to the USB port installed in the IND560.
4. Go to Maintenance/Run/Diagnostics/Install S/W Upgrade
5. At the Install S/W Upgrade screen, when status is “Ready”, press the START
softkey
to initiate the upgrade. The IND560 will indicate that it is working.
6. Upon completion of the upgrade, the IND560 will display an “Update
Successful” pop up message. You will now need to press the ENTER key to
clear the message. This will initiate a power cycle.
File Locations on USB Drive
The software upgrade, backup and restore functions use the following folders on
the USB drive:
Table 4-1: USB File Folder Names
File Type
Location on USB Drive
TaskExpert files
TEBK1/*.*
Configuration and calibration files
CFGBK1/*.dmt
Software upgrade files
Upgrade/upgrade.dat
Each file type must be placed in the appropriate USB file folder for the software
upgrade and restore from USB functions to carry out successfully.
Backup and Restore with USB
To perform these procedures, the terminal must be powered up with the USB
drive attached.
The IND560 also allows certain data to be backed up to a USB memory stick and
restored from a USB memory stick. This data includes:
4-4
IND560 User’s Guide
• Configuration Data (setup) and Calibration Data
• Task Expert Files
This data can later be restored to the terminal via the USB drive and USB port, or
copied to additional terminals in a replication process. This permits the restoration
of setup should a main PCB require replacement, for example, and it allows for the
easy creation of functionally identical terminals. Refer to Table 4-1 for a list of
required USB file folder names.
Backup
Backup to USB can be performed by users with any access level, and may be
carried out even when the indicator is metrologically sealed.
The following four files are the backup files for all of the setup and configuration
parameters in the IND560:
• bkram.dmt
• flash.dmt
• e2prom1.dmt
• e2prom2.dmt
1. Connect a USB (flash) memory device to the IND560 USB port. The optional
Ethernet/USB/COM3 board must be installed.
2. Access Setup/Maintenance/Run/Diagnostics/Backup to USB. The screen shown
in Figure 4-1 will appear.
Figure 4-1: Backup to USB
3. Select the information to be backed up to the USB drive. Selections are:
•
•
Config. & Cal. (Configuration & Calibration)
TE Files only (Task Expert files only)
4. Press the START
softkey. The terminal will show “Working, Please wait” as
the backup attempt is made.
If no external USB drive is connected, the START
softkey will not function.
5. A successful backup will show “Success”, and the operator will be prompted to
press the ENTER key. A failed backup will show “Failure”. Press ENTER to
acknowledge.
4-5
IND560 User’s Guide
Once the terminal indicates that the backup is complete, the USB device can be
unplugged and the EXIT
softkey pressed to return to the main menu.
Restore
System Restore cannot be performed if the terminal is metrologically sealed.
An Administrator level login must be in effect to carry out this procedure.
A system restore operation does not copy log files from the dataset, and the
terminal’s existing log files are not over-written on restore.
The system restore screen allows a dataset saved on a USB device to be restored
or copied to a new terminal. Scale calibration parameters can be restored or not
restored, depending on the selection from the drop-down list.
1. Connect a USB (flash) memory device to the IND560 USB port. The optional
Ethernet/USB/COM3 board must be installed.
2. Access Setup/Maintenance/Run/Diagnostics/Restore from USB. The screen
shown in Figure 4-2 will appear.
Figure 4-2: Restore from USB
3. Select the information to be restored from the USB drive. Selections are:
•
•
•
Config. & Cal. (Both configuration and calibration files)
Config. Only (Configuration files only)
TE Files only (Task Expert files only)
4. Press the START
softkey to initiate the transfer of files. The terminal will
show “Working, Please wait” as the backup attempt is made.
If no external USB drive is connected, the START
softkey will not function.
A successful backup will show “Success”, and the operator will be prompted to
press the ENTER key. A failed backup will show “Failure”. Press ENTER to
acknowledge.
• See Table 4-1 for required USB file folder names
5. Once the terminal indicates that the backup is complete, the USB device can
be unplugged and the EXIT
softkey pressed to return to the main menu.
6. Upon exiting the main menu after a restore from USB, the IND560 will
automatically restart to complete the restore process.
4-6
IND560 User’s Guide
Changing Screen Saver Graphic
The graphic used by the IND560 as a screen saver can be changed by
downloading a replacement file to the terminal.
Screen Saver Graphic Specification
The screen saver graphic is a bitmap file that should measure no more than 35
pixels wide and 35 pixels high. The file must be named saver.bmp.
Installing New Graphic
The screen saver graphic can be installed on the IND560 by making an ftp
connection to the terminal via EtherNet, logging on as an administrator (with write
privileges), and copying the file to ram:\saver.bmp. Refer to the ftp section of
Appendix D, Communications, for further details.
Display Messages
If, on power-up, the terminal finds that the hardware application key status has
changed, a fault message (Figure 4-3) will display. For instance, if the Fill-560
hardware key was added to a standard unit, the fault would be displayed at power
up.
Figure 4-3: Application Key Fault Message
Even though the ENTER graphic is shown, the ENTER key does not function. Two
responses to this error are possible:
•
If the hardware key status was not changed on purpose, turn power off and
determine what caused the status to change. Fix the problem and apply power
again. The terminal will retest the hardware key status.
•
If the hardware key status was changed on purpose by adding or removing a
key, perform a manual Master Reset – refer to Master Reset under Troubleshooting, below.
Note:
Back up the terminal’s current setup parameters before the hardware key
status is changed. The original setup can then be downloaded to the
terminal after the Master Reset has been performed.
4-7
IND560 User’s Guide
Setting a Custom Language
The IND560 terminal allows custom languages to be selected for display
messages.
The procedure below assumes that a properly-configured text file, named either
cust.txt or cust2.txt contains a complete set of display messages in the custom
language. Table 4-1 shows the languages currently available. Contact your
METTLER TOLEDO technical support provider to obtain custom files for download to
the terminal.
Table 4-1: Custom Languages
Text File
Available Language/s
cust.txt
Polish, Portuguese
cust2.txt
Russian
To set the custom language:
1. Make an ftp connection to the terminal.
2. Copy the cust.txt or cust2.txt file to the root directory of the IND560 (Flash2).
3. On the terminal, access Setup > Terminal > Region > Languages.
4. In the Display Messages field dropdown list, select Custom or Custom2 as
appropriate.
5. Exit setup. Messages on the terminal’s display will now appear in the custom
language.
Troubleshooting
Troubleshooting activities for the IND560 include:
4-8
•
AC power test
•
Power supply voltage test and Load Cell and IDNet power
•
Battery test
•
Internal Diagnostic Testing
•
RS-232 Serial Output Voltage Test
•
Master Reset
IND560 User’s Guide
AC Power Test
If the display is blank or if intermittent problems are occurring, the condition of the
AC power source should be checked. Use a multi-meter to check the AC input
power. Input power must be within −15% to +10% of the standard 100–240
voltage range.
Begin by checking the AC power at the source. If no AC power is present, have a
qualified electrician at the site restore power at the source. After power is restored,
test the IND560 for correct operation.
If there is AC voltage present at the source, check for the same voltage between pin
1 (brown wire) and pin 2 (blue wire) on the Power Supply harness to the Main
PCB as shown in Figure 4-4.
Pin 1 (brown)
Pin 2 (blue)
Pin 4 (black)
Pin 5 (red)
Pin 6 (white)
Figure 4-4: Pin Locations on the Power Supply Harness
If no AC voltage is present, the fuse on the Main PCB has probably been blown.
This fuse is designed to protect the source wiring in case of an internal power
supply short. If the fuse is blown, the IND560 power supply is probably defective.
To check this, replace the fuse and see if it blows again. If it does, replace the
IND560 power supply.
If AC power is present on the blue and brown wires, the power supply should be
checked next.
Power Supply Voltage Test
The power supply provides 5 VDC to both the Main PCB and the Display PCB, and
12 VDC to the Main PCB. Verify the 12 VDC voltage is between 11 and 19 volts
when measured from Pin 6 (+V) to Pin 4 (Ground). Verify the 5 VDC voltage is
between 4.9 and 5.1 volts when measured from Pin 5 (+V) to Pin 4 (Ground). If
either of the voltages is absent or outside the specified range, replace the Power
Supply PCB. See Figure 4-4, above, for the locations of Pins 4, 5, and 6 on the
Power Supply harness.
4-9
IND560 User’s Guide
Load Cell and IDNet Power
The power to operate an IDNet base and the excitation voltage for analog load cells
are both developed from the 12 VDC supply. This supply has short-circuit
protection built into the power supply board. If the IDNet base or analog load cell
circuit draws too much current (for example, when shorted to ground), the 12 VDC
supply will shut itself off. After the protection circuit is triggered, the terminal must
be powered down for at least 30 seconds before reapplying power. After this time,
the short-circuit protection circuit will reset and the 12 VDC supply will be available
again.
If the 12 VDC supply measures 0 VDC during the voltage check, power the terminal
down, disconnect the IDNet base or analog load cell(s), wait 30 seconds, then
reapply power. If the 12 VDC supply is now OK, check the IDNet base or analog
load cell(s) for defects.
Battery Test
If setup parameters change uncontrollably or programming is lost, check the BRAM
battery voltage. Battery voltage is tested at the battery assembly on the Main PCB.
The battery and power connector are shown in Figure 4-5.
Battery
(+)
Pin 4
(grd.)
Figure 4-5: Battery Test
Use a Volt-Ohm meter to measure voltage between the top of the battery (+) and
pin 4 (ground) of the power supply connector with the AC power disconnected.
This measurement should be approximately 3.0 VDC. Replace the Main PCB if the
measured voltage is below 2.5 VDC.
Internal Diagnostic Testing
The IND560 provides several internal diagnostic tests that are accessible in setup
mode. Press the SETUP softkey
to view the setup menu tree. Use the DOWN
navigation key to scroll down the menu tree to Maintenance. Press the RIGHT
navigation key to expand the menu tree selections for Maintenance. Scroll down
and expand Run. Scroll down and expand Diagnostics. Available diagnostic setup
screens include:
•
4-10
Display Test—Displays an alternate off/on dot block pattern when accessed.
After the alternate off/on cycle, the display will return to the menu tree.
IND560 User’s Guide
•
Keyboard Test—Enables testing of the keyboard. Each key that is pressed will
be shown on the display. When testing is complete, press the EXIT softkey
to return to the menu tree.
•
Scale
• Load Cell Output—Displays the current load cell output (active weight) for
the scale. This is useful to determine exactly how many counts the analog
section is outputting and is not available with IDNet bases.
• Calibration Values—Displays the current calibration values for the scale. If
these values are recorded after a scale calibration, and the Main PCB is
replaced in the future, the calibration values can be manually entered here
to “transfer” the previous calibration to the new Main PCB. This is not
available with IDNet bases.
• Statistics—Displays statistical information for the scale such as the total
number of weighments, the number of scale overloads, the peak weight
weighed on the scale, total number of zero commands and failed zero
commands. These are very helpful when diagnosing scale problems.
•
Serial Test—Enables testing of the transmit and receive functions on the serial
(COM) ports. Select the COM port to be tested using the selection box for Com
Port. Only those ports installed are available for testing.
• Press the START softkey
and a data string is output repeatedly
approximately once every three seconds. The data is: [Testing COMx: nn]
where “x” is the COM port and “nn” is an incrementing value beginning at
00 and continuing to 99. Each transmission increments this number by
one.
• If a jumper wire is placed between the transmit and the receive terminals
(Figure 4-6) on the port being tested, the same data string that is
transmitted displays as the receiving field.
Figure 4-6: Jumper Wire Between Transmit and Receive Terminals
• If another device is connected to the receiving port, any ASCII data received
displays in the receiving field.
• To stop the serial port test, press the STOP softkey
•
.
Discrete I/O Test—Provides a view of the status of the discrete inputs and
allows enabling or disabling of the discrete outputs for diagnostic purposes.
Expand the Discrete I/O branch by pressing the RIGHT navigation key. Choose
4-11
IND560 User’s Guide
if the test will be performed on the local (internal) discrete I/O option or one of
the remote ARM100 modules. Press ENTER when that branch is highlighted.
There will be a warning shown next to remind the tester that the outputs can be
turned on manually during this test so any control power to the discrete
outputs should be removed.
WARNING
THE DISCRETE OUTPUTS OF THE IND560 TERMINAL WILL BE
MANUALLY ENABLED DURING THIS TEST. REMOVE OUTPUT
CONTROL POWER SO EXTERNAL EQUIPMENT WILL NOT BE
ENERGIZED BY MISTAKE. EXERCISE CARE WHEN MAKING
CHECKS, TESTS AND ADJUSTMENTS THAT MUST BE MADE WITH
POWER ON. FAILING TO OBSERVE THESE PRECAUTIONS CAN
RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE.
When viewing the test screen, the input status will be shown at the top of the
display and the output status will be shown at the bottom of the display Figure
4-7). Focus is shown on Output #1 first.
Figure 4-7: Discrete I/O Test Screen
Focus can be moved to any of the other outputs by using the RIGHT and LEFT
navigation keys. The two softkeys at the bottom of the page will either enable
or disable
the highlighted output.
Note that when the Discrete I/O Test screen is exited, all outputs will be turned
off again.
•
Network Test—Enables testing of the Ethernet programming/hardware/firmware
in the terminal. The following tests are run during this diagnostic process:
• TCP/IP Stack
• This IP Address
• Gateway address
Each step will indicate “Testing” during the test then indicate a Pass or Timeout
status. If the status is shown as Timeout, it indicates that the IP address or
gateway address has not been programmed in the terminal (see Chapter 3.0,
Configuration, Communication, Network for information on entering the IP and
gateway addresses.
4-12
IND560 User’s Guide
RS-232 Serial Output Voltage Test
If tests of the sending and receiving functions on the serial (COM) ports test fails,
use the following procedure to determine whether the RS-232 serial port is
operational:
1. Remove power from the IND560 terminal and the printer.
2. Disconnect the data cable from the printer.
3. Set the voltmeter to read 20 VDC.
4. Connect the red lead to the transmit terminal of the COM port and connect the
black lead to the ground terminal of the COM port.
5. Apply power to the IND560. The meter should read as follows:
• Demand mode—The meter should read a stable value (without fluctuation)
between −5 and −15 VDC.
• Continuous mode—The meter should fluctuate continuously within the
range −10 to +10 VDC. The actual values and degree of fluctuation
observed will depend on the type and sensitivity of the meter used. The
constant fluctuation on the meter display indicates that the scale/terminal
is transmitting information.
. The display should fluctuate
To test Demand baud rates, press the PRINT key
as for continuous mode for the duration of the transmission, then become stable
again. This fluctuation indicates the terminal has transmitted data.
When measuring higher baud rates in Demand mode, the meter display will
fluctuate less, and for a shorter period of time.
Master Reset
A hardware master reset is provided that sets all IND560 terminal settings to the
factory default settings (refer to Appendix B, Default Settings).
The master reset typically is performed under these circumstances:
• When a software configuration problem arises that cannot be resolved without
starting from the factory default settings.
• When security is enabled to protect setup, and the password is lost.
• After a firmware upgrade is performed.
• After a hardware key is installed or removed.
To initiate a master reset, perform the following steps:
1. Remove AC power.
2. Note the position of switches SW1-1 and SW1-2.
4-13
IND560 User’s Guide
3. Place both switches SW1-1 and SW1-2 in the ON position, as shown in
Figure 4-8.
SW1
Figure 4-8: Switches SW1-1 and SW1-2
The position of SW2-1 (indicated in Figure 4-9) determines whether
metrologically significant EEPROM (scale, calibration) data is reset when a
master reset is performed. SW2-1 must be set to ON to reset EEPROM data. If
SW2-1 is set to OFF, EEPROM data will not be affected by the master reset.
Figure 4-9: Location of Switch SW2-1
4. Apply AC power. A warning message displays asking if all values should be
reset to factory defaults.
5. Press ENTER to perform a master reset. When the reset is complete, a
confirmation message displays.
6. Remove AC power.
7. Return SW1-1 and SW1-2 (and, if they were changed, SW2-1 and SW2-2) to
their original positions, noted in step 2.
8. Reapply AC power.
OR
If a master reset is not desired:
1. Do not press ENTER.
2. Remove AC power.
3. Reset switches SW1-1 and SW1-2 (and, if they were changed, SW2-1 and
SW2-2) to their original positions.
4. Reapply AC power.
4-14
IND560 User’s Guide
External Diagnostics
The IND560 includes a built-in web server utility that provides valuable tools for
examining the operation of the terminal, its installed options and software.
Information available in the Web Server includes:
• System hardware and software configuration
• Resource utilization
• Scale statistics and data
Web Help can also be used for the following functions:
• Reading shared data variables, viewed either statically or dynamically
• Writing shared data values
• Remote terminal reset
The Web Server is accessed with a web browser via an Ethernet connection.
Access to the Terminal is provided by using its IP address. An IP address can be
manually assigned, or assigned automatically by the network, depending on how
DHCP is configured in setup at Communication > Network > Ethernet. If DHCP
client is enabled, once the terminal is connected to the Ethernet its IP address will
appear in the Ethernet configuration screen.
After an IP address for the IND 560 has been entered or automatically assigned
using DHCP, record the address and enter it as the URL in the browser.
If the connection was successful, the Web Server home page (Figure 4-10) is
displayed.
Home Page
When the Web Server is first accessed, the Home page shown in Figure 4-10
appears in the browser window.
Figure 4-10: Web Server Home Screen
Click the links on this page to visit the respective views, each of which is detailed
in the following sections.
4-15
IND560 User’s Guide
At the bottom of each page accessed, a HOME button is shown which returns the
view to the Home page seen in Figure 4-10 when pressed.
View Pages
Help File
A help file, accessible from each page via the help button
explains the full
range of the utility’s features. Refer to this file for a full explanation of each of the
items visible in each page.
Figure 4-11 shows a portion of the help file.
Figure 4-11: Help File
At the bottom of the Help page, a CLOSE WINDOW button allows the user to close
this browser window without exiting the Web Server utility.
4-16
IND560 User’s Guide
System Information
The system information page (Figure 4-12) provides information about asset
information, installed component part numbers, software versions and serial
numbers, and installed application software. The Channel Software column is not
filled unless the terminal is using an IDNet scale base.
Figure 4-12: System Information Page
Resource Utilization
The resource utilization page (Figure 4-13) gives a snapshot of the current status
of the terminal, including power on time and information about the various types of
memory used by the IND560.
Figure 4-13: Resource Utilization Page
4-17
IND560 User’s Guide
Scale Statistics
The scale statistics page (Figure 4-14) shows a variety of data for the scale.
Figure 4-14: Scale Statistics Page
4-18
IND560 User’s Guide
Scale Data
The scale data page (Figure 4-15) shows information, including current
configuration and calibration values, for the scale. The signal quality display
permits troubleshooting of the connection between the IND560 and load cells.
When quality is poor, a red bar is displayed. A yellow bar indicates adequate
quality, and green bar means the quality is good, as in the example below.
Figure 4-15: Scale Data Page
4-19
IND560 User’s Guide
Diagnostics & Maintenance Pages
Shared Data
The shared data page (Figure 4-16) allows the user to request a display of current
values for up to ten shared data variables at a time. Values are accessed by
entering the shared data name in one of the fields at left. When the Save Changes
button at bottom is clicked, the Name fields are saved and the Values refreshed.
The button is in focus when a new entry has been made in a Name field.
Figure 4-16: Shared Data Page
To refresh the displayed values without changing any variable names, click on the
Manual Refresh button.
Values may also be refreshed automatically, at one second intervals, by clicking
on the Start button. Once Start is selected, the Stop button is in focus and can be
clicked. The current status of this dynamic display (Stopped or Running) is shown
in a field between the two buttons. Note that, as indicated on the page, Auto
Refresh must be stopped before new shared data names can be entered.
For a complete list of available shared data names, refer to the IND560 Shared
Data Manual. In the example shown in Figure 4-16, the shared data information
displayed is as follows:
Table 4-4: Shared Data Information
Name
4-20
Data Displayed
Interpretation
wt0101
29.2
Current gross weight value
xp0117
5585
Cumulative power on time, in minutes
ce0104
1
Number of ranges defined for the scale
ce0123
400000
Encoder counts at the middle calibration value for the scale
ce0125
16
GEO code set in the Scale 2 calibration page
nt0102
172.18.49.120
Ethernet IP Address
wt0103
kg
Primary units set in the scale calibration page
IND560 User’s Guide
When a string is longer than the data display width of 40 characters, the left/right
scroll buttons
may be used to move through the string to view all of it.
Write Shared Data
To access the Write Shared Data page, login at the administrator level is required.
When prompted, enter the administrator’s user name and password. The screen
shown in Figure 4-17 will appear.
Figure 4-17: Write Shared Data Page
Enter the Shared Data name in the Name column at left, and the value to be written
to it in the Value column, then click on the Write button. Four Shared Data
variables can be modified at a time.
Reset Terminal
To access the Reset Terminal page, login at the administrator level is required.
When prompted, enter the administrator’s user name and password. The screen
shown in Figure 4-18 will appear.
Figure 4-18: Reset Terminal Page
4-21
IND560 User’s Guide
From this screen, the terminal can be restarted (equivalent to cycling power) or
reset to factory defaults (except for calibration settings, tables and log files), with
results as detailed on-screen.
When a Master Reset is performed, the Terminal’s IP address will default to
factory settings.
4-22
Appendix A
Default Settings
Setup Defaults
The following tables list the factory default settings and associated security levels
for the IND560 terminal setup parameters.
Items noted with an asterisk (*) are not shown for IDNet scales. Items noted
with two asterisks (**) are shown only for IDNet scales.
Setup Feature
Default Value
Security Access
Scale 1
Maintenance
Scale – Type
Name
Scale Type
- Automatically determined
to be Analog or IDNet Remote is secondary
Administrator
option after load cell
interface is determined
* Approval
None
Administrator
Primary Units
Kg
Administrator
* # of Ranges
1
Administrator
Scale – Capacity & Increment
* >|1|<
* Blank Over Capacity
50
x
0.01
Administrator
5d
Administrator
Disabled
Administrator
16
Administrator
[blank]
Administrator
* Calibration Units
Kg
Administrator
* Linearity Adjust
Disabled
Administrator
* Analog Gain Jumper
3 mV/V
Administrator
* Cell Capacity
50
Administrator
* Cell capacity Unit
Kg
Administrator
* Rate Cell Output
3 mV/v
Administrator
* Estimated Preload
0
Administrator
* Estimated Preload Unit
Kg
Administrator
** x10 Always
Scale – Calibration
* Geo Code
Base Serial Number
1
IND560 User’s Guide
Setup Feature
Default Value
Security Access
* Auto Zero
Gross
Administrator
** Auto Zero
Enabled
Administrator
0.5 d
Administrator
5d
Administrator
Restart
Administrator
Disabled
Administrator
Scale – Zero – AZM & Display
* Auto Zero Range
* Under Zero Blanking
Power up
Scale – Zero – Ranges
* Power Up Zero
* Power Up Range
Pushbutton Zero
* Pushbutton Range
−0%
+0%
Enabled
−2%
+2%
Administrator
Administrator
Administrator
Scale – Tare – Types
Pushbutton Tare
Enabled
Maintenance
Keyboard Tare
Enabled
Maintenance
Net Sign Correction
Disabled
Maintenance
** Terminal Tare
Disabled
Maintenance
Disabled
Maintenance
Tare Threshold Weight
0 kg
Maintenance
Reset Threshold Weight
0 kg
Maintenance
Enabled
Maintenance
Disabled
Maintenance
0 kg
Maintenance
Motion Check
Enabled
Maintenance
Clear After Print
Disabled
Maintenance
Clear With Zero
Disabled
Maintenance
Restart
Maintenance
Second Unit
None
Administrator
Third Unit
None
Administrator
Power Up
Restart
Administrator
Custom Factor
1
Administrator
Custom Name
Cust
Administrator
Custom Increment
0.1
Administrator
Scale – Tare – Auto Tare
Auto Tare
Motion Check
Scale – Tare – Auto Clear
Auto Clear Tare
Clear Threshold Weight
Power Up
Scale – Units
2
IND560 User’s Guide
Setup Feature
Default Value
Security Access
None
Maintenance
Seconds
Maintenance
Measurement Period
1
Supervisor
Output Average
1
Supervisor
* Low Pass Frequency
2.0 Hz
Maintenance
* Low Pass # of Poles
8
Maintenance
* Notch Filter Frequency
30 Hz
Maintenance
Disabled
Maintenance
** Vibration
Average Conditions
Maintenance
** Weighing Process
Universal Weighing
Maintenance
1d
Administrator
0.3 seconds
Administrator
** Stability
2
Administrator
Timeout
3
Maintenance
0 kg
Maintenance
Interlock
Disabled
Maintenance
Automatic
Disabled
Maintenance
Reset on
Return, 0 kg
Maintenance
Threshold Wt.
0 kg
Maintenance
Motion Check
Disabled
Maintenance
Disabled
Supervisor
Uncertainty Uo
0 kg
Supervisor
Uncertainty c
0
Supervisor
0.1
Supervisor
1
Supervisor
0 kg
Supervisor
Disabled
Administrator
Scale – Rate
Weight Units
Time Units
Scale – Filter
* Stability Filter
Scale – Stability
* Motion Range
* No-motion Interval
Scale – Log or Print
Minimum Wt.
Scale – MinWeigh
MinWeigh
Tolerance
Safety Factor
MinWeigh Value
Application – Memory – Alibi
Alibi Memory
3
IND560 User’s Guide
Setup Feature
Default Value
Security Access
Description
Disabled
Maintenance
Totalization
None
Maintenance
Records 01–25
Empty
Supervisor
Blank table with no values
listed
Supervisor
None
Maintenance
Weight Deviation
Maintenance
Concurrent
Maintenance
Blank table with no values
listed
Supervisor
Displayed Weight
Maintenance
Latching
Enabled
Maintenance
Motion Check
Disabled
Supervisor
Source
None
Supervisor
Active
<
Supervisor
[blank]
Supervisor
Limit
0
Supervisor
High Limit
0
Supervisor
None
Maintenance
Clear GT on Print
Disabled
Maintenance
Subtotal
Disabled
Maintenance
Clear ST on Print
Disabled
Maintenance
Convert Weight
Enabled
Maintenance
None
Maintenance
Threshold
0
Maintenance
Reset
0
Maintenance
Disabled
Maintenance
Application – Memory – Tare Table
Application – Memory – Message Table
Records 01–99
Application – Memory – Target Table
Mode
Tolerance Type
Output Type
Records 01–25
Application – Operation – Target
Source
Application – Operation – Comparators
Description
Application – Operation – Totalization
Mode
Application – Operation – ID
Mode
Looping
Application – Discrete I/O – Inputs
Discrete Inputs
4
Blank table with no values
Maintenance
listed.
IND560 User’s Guide
Setup Feature
Default Value
Security Access
Application – Discrete I/O – Outputs
Discrete Outputs
Blank table with no values
Maintenance
listed.
Application – Task Expert - Start (Shown only if module is installed)
Task File Name
Blank table
Administrator
ID 1
IND560
Maintenance
ID 2
METTLER TOLEDO
Maintenance
ID 3
Blank
Maintenance
Serial Number
Blank
Maintenance
0 Minutes
Maintenance
None
Maintenance
Disabled
Maintenance
Time Format
24:MM:SS
Maintenance
Date Format
DD MMM YYYY
Maintenance
/ (slash)
Maintenance
No default values
Supervisor
Display Messages
English
Maintenance
Keypad Selection
English
Maintenance
Transaction Counter
Enabled
Maintenance
Counter Reset
Disabled
Maintenance
0000000001
Maintenance
admin
Maintenance
Administrator
Maintenance
Password #1
[blank]
Maintenance
Username #2
anonymous
Maintenance
Terminal – Device
Terminal – Display
Screensaver
SmartTrac Size
Rate Display
Terminal – Region – Format Time & Date
Date Field Separator
Terminal – Region – Set Time & Date
Hour
Minute
Day
Month
Year
Terminal – Region – Language
Terminal – Transaction Counter
Next Transaction
Terminal – Users
Username #1
Access #1
5
IND560 User’s Guide
Setup Feature
Default Value
Security Access
Access #2
Operator
Maintenance
Password #2
[blank]
Maintenance
Softkey 3
Set Time and Date
Maintenance
Softkey 9
Recall Information
Maintenance
Softkey 10
Setup
Maintenance
All Others
[blank]
Maintenance
Preamble Length
0
Maintenance
Data Length
1
Maintenance
Postamble Length
0
Maintenance
Termination Character
CR
Maintenance
Assignment
Tare
Maintenance
Template 1
See Default Templates for
format
Maintenance
Template 2
See Default Templates for
format
Maintenance
Template 3
[blank]
Maintenance
Template 4
[blank]
Maintenance
Template 5
Refer to Default Templates
for format
Maintenance
Disabled
Supervisor
Blank table with no values
listed.
Maintenance
Format
Narrow (40)
Maintenance
Header
2
Maintenance
Enabled
Maintenance
None
Maintenance
5
Maintenance
Tare
Enabled
Maintenance
Description
Disabled
Maintenance
N
Disabled
Maintenance
Total
Disabled
Maintenance
Terminal – Softkeys
Communication – Templates – Input
Communication – Templates – Output
Repeat Print Field
Communication – Templates – Strings
Strings 01–20
Communication – Reports Format
Title
Record Separator
Footer
Communication – Reports – Tare Table
6
IND560 User’s Guide
Setup Feature
Default Value
Security Access
Description
Disabled
Maintenance
Target
Enabled
Maintenance
+/- Tolerances
Disabled
Maintenance
Spill
Disabled
Maintenance
Fine Feed
Disabled
Maintenance
Communication – Reports – Target Table
Communication – Connections (one default connection preconfigured)
Port
COM1
Maintenance
Assignment
Demand
Maintenance
Scale
Maintenance
Template 1
Maintenance
9600
Maintenance
8
Maintenance
Parity
None
Maintenance
Flow Control
None
Maintenance
RS-232
Maintenance
Trigger
Template
Communication – Serial – COM1
Baud
Data Bits
Interface
Communication – Serial – COM2 (Shown only if Ethernet option detected)
Baud
9600
Maintenance
8
Maintenance
Parity
None
Maintenance
Flow Control
None
Maintenance
RS-232
Maintenance
Data Bits
Interface
Communication – Serial – COM3 (Shown only if Ethernet option detected)
Baud
9600
Maintenance
8
Maintenance
Parity
None
Maintenance
Flow Control
None
Maintenance
RS-232
Maintenance
Data Bits
Interface
Communication – Network – Ethernet (Shown only if Ethernet option detected)
MAC Address
Unique value
Maintenance
DHCP Client
Disabled
Maintenance
192.168.0.1
Maintenance
255.255.255.0
Maintenance
0.0.0.0
Maintenance
IP Address
Subnet Mask
Gateway Address
7
IND560 User’s Guide
Setup Feature
Default Value
Security Access
Communication – Network - Port (Shown only if Ethernet option detected)
Secondary Port #
0
Maintenance
Communication – Network – FTP (Shown only if Ethernet option detected.)
Username #1
admin
Maintenance
Administrator
Maintenance
admin
Maintenance
anonymous
Maintenance
Access #2 (not displayed)
Operator
Maintenance
Password #2 (not displayed)
[blank]
Maintenance
Access #1
Password #1
Username #2 (not displayed)
Communication – Network – Email Alert–Parameters
SMTP Server IP
0.0.0.0
Maintenance
Sender Email Address
[blank]
Maintenance
Sender Name
IND560
Maintenance
Subject Line
Scale Cal. Alert
Maintenance
Communication – Network – Email Alert–Recipients
Email Address
Alert On
[blank]
Maintenance
None
Maintenance
Communication – PLC – Analog Output (Shown only if Analog Output option detected)
Source
Displayed Weight
Administrator
Channel
Scale
Administrator
Zero Value
0
Administrator
Full Scale Value
50
Administrator
Communication – PLC – A-B RIO (Shown only if A-B RIO option detected)
Node Address
Decimal, 1
Administrator
1
Administrator
Last Rack
Disabled
Administrator
Data Rate
57600
Administrator
Disabled
Administrator
Start Quarter
Block Transfer
Communication – PLC – DeviceNet (Shown only if DeviceNet option detected)
Node Address
Data Rate
63
Administrator
125k
Administrator
Communication – PLC – PROFIBUS (Shown only if PROFIBUS option detected)
Node Address
Shared Data
1
Administrator
Disabled
Administrator
Communication – PLC – EtherNet/IP, Modbus TCP (Shown only if EtherNet / IP or Modbus
TCP option detected)
Mac Address
8
Assigned automatically
Administrator
IND560 User’s Guide
Setup Feature
IP Address
Subnet Mask
Default Value
Security Access
192.168.0.1
Administrator
255.255.255.0
Administrator
0.0.0.0
Administrator
Gateway Address
Communication – PLC – Data Format (Shown only if PLC option detected)
Format
Byte Order
Integer
Administrator
Word Swap
Administrator
1
Administrator
Disabled
Administrator
Message Slots
Maintenance – Configure / View – Change Log
Change Log
Maintenance – Configure / View – Maintenance Log
Maintenance Log
Disabled
Maintenance
Maintenance – Configure / View – Calibration Management
Test Interval (Days)
0
Maintenance
Test Interval (Weighments)
0
Maintenance
No Action
Maintenance
Last Date Tested
Current Date
Maintenance
Next Test Date
Current Date
Maintenance
0
Maintenance
Test Load Units
Kg
Maintenance
Test Sequence
Empty
Maintenance
On Expiration
# of Weighments Left
Maintenance – Configure / View – Calibration Test
Maintenance – Run – Diagnostics – Scale – Calibration Values
Zero (Counts)
0
Administrator
Test Load #1 (Weight)
50
Administrator
Test Load #1 (Counts)
800,000
Administrator
Maintenance – Run – Diagnostics – Scale – Statistics
Weighments
0
N/A
Overloads
0
N/A
0 kg
N/A
Zero Commands
0
N/A
Zero Fail
0
N/A
Config. & Calibration
Operator
Config. & Calibration
Operator
Peak Weight
Maintenance – Run – Backup to USB
Backup
Maintenance – Run – Restore from USB
Restore
9
IND560 User’s Guide
Default Templates
Template 1
Element
Data
Format
1
wt0101
[
010]
2
<sp>
[
001]
3
wt0103
4
CR/LF
5
ws0110
[
010]
6
<sp>
[
001]
7
wt0103
[003
]
8
ws0109
[002
]
9
CR/LF
10
wt0102
[
010]
11
<sp>
[
001]
12
wt0103
[003
]
13
N
[001
]
14
CR/LF
15
-End-
[003
]
1
1
2
Template 2
10
Element
Data
Format
1
cs0103
2
CR/LF
3
xd0104
4
CR/LF
5
xd0103
6
CR/LF
7
wt0101
[
010]
8
<sp>
[
001]
9
wt0103
10
CR/LF
11
ws0110
[
010]
12
<sp>
[
001]
13
wt0103
[003
]
14
ws0109
[002
]
15
CR/LF
[021
]
1
[015
]
1
[015
]
1
[003
]
1
1
IND560 User’s Guide
Template 2
Element
Data
Format
16
wt0102
[
010]
17
<sp>
[
001]
18
wt0103
[003
]
19
N
[001
]
20
CR/LF
21
- End -
2
Templates 3 and 4
Element
Data
Format
1
- End Template 5
Element
Data
Format
1
Totals Report
2
CR/LF
3
xd0104
[020
4
xd0103
[
5
CR/LF
1
6
Subtotal:
--
7
CR/LF
1
8
n=
--
9
tz0104
--
10
tz0103
[
030]
11
ce0103
[
004 ]
12
CR/LF
1
13
Grand Total:
--
14
CR/LF
1
15
n=
--
16
tz0102
--
17
tz0101
[
18
ce0103
[ 004 ]
19
CR/LF
1
20
- End -
[
040
]
1
]
020]
030]
11
Appendix B
Communications
Serial Interface Parameters
This Appendix covers
•
Serial Interface Parameters
•
Demand Output Mode
•
Continuous Output Mode
•
CTPZ
•
SICS Protocol
•
Remote Discrete I/O
•
ASCII Input
•
Reports
•
Shared Data Access
•
Ethernet
•
FTP
•
Terminal Updates
One standard and two optional serial ports are supported with the
IND560 terminal. They are designated COM1 (standard port on the
Main PCB), COM2 (optional), and COM3 (optional).
COM1 provides RS-232, RS-422, and RS-485 interfaces. The RS232 interface is a three-wire (TDX, RXD, and GND) with XON/XOFF
flow-control capabilities (handshaking). This port can also be used
for loading new IND560 firmware and to access the shared data
server. The RS-422 interface is a four-wire interface designed for
single point-to-point communication. The RS-485 connection is a
two-wire interface but does not provide multi-drop communication
with addressing. All interfaces can be output simultaneously;
however, only one input can be used.
Optional COM2 provides only RS-232. This interface is a three-wire
connection with XON/XOFF handshaking capabilities.
Optional COM3 on the Ethernet/COM2/COM3 board provides RS232, RS-422, and RS-485 interfaces. The RS-232 interface is a three-wire (TDX,
RXD, and GND) with XON/XOFF flow-control capabilities (handshaking). The RS422 interface is a four-wire interface designed for single point-to-point
communication. The RS-485 connection is a two-wire interface but does not
provide multi-drop communication with addressing. All interfaces can be output
simultaneously; however, only one input can be used.
Optional COM3 on the Ethernet/USB/COM3 board provides RS-232 and RS-485.
RS-422 is not available on COM3 of the Ethernet/USB/COM3 board.
Character framing is programmable in the setup mode. Framing can be:
•
•
•
•
1 start bit
7 or 8 ASCII data bits (selectable)
0 or 1 parity bit (none, even, or odd)
1 stop bit
The baud rate can be configured from 300 to 115.2K baud and a checksum
character can also be configured for the standard continuous output string.
The IND560 terminal uses software handshaking to control data flow commonly
referred to as XON/XOFF handshaking. When a receiving device (typically a printer)
B-1
IND560 User’s Guide
is getting information from an IND560 terminal and cannot receive any more in its
buffer, it sends an ASCII XOFF (13h) telling the IND560 terminal to temporarily
stop sending data until its buffer clears.
When the device can receive more data, it sends an ASCII XON (11h) telling the
IND560 terminal to begin sending data again. This process can occur as often as
required by a receiving device.
The XON/XOFF method is the only type of handshaking that is supported by the
IND560 terminal.
The IND560 terminal supports two different modes of data output – demand and
continuous.
Demand Output Mode
The demand output mode transmits data only when the IND560 terminal receives
a print request. Print requests are sent to the IND560 terminal when:
•
The operator presses PRINT
•
A discrete input selected as print is triggered
•
An ASCII “P” is sent through a command input port
•
Auto print is enabled and all conditions for auto print are met
•
A PLC command to print is received
•
The “Print” command shared data is triggered
When triggered, data is transmitted in a string programmed in the template editing
portion of setup. Demand mode is used typically when sending data to a printer or
PC on a transactional basis.
Custom Triggers
There are three programmable custom triggers in the Connections section of setup
that can be used to “trigger” a specific demand output. This could be used to
provide a separate “Print” key (using a discrete input) that sends a specific
template to a particular serial port, Ethernet port or the Eprint port. Using the
custom triggers enables printing of different information to the same port or a
different port based on which custom trigger is initiated. These custom triggers can
provide great flexibility in configuring demand outputs.
A connection using a custom trigger is configured like a standard demand output
except that Trigger 1, Trigger 2, or Trigger 3 is selected as the trigger instead of
Scale. After making the connection, a custom trigger can be assigned to one of the
discrete inputs to initiate the demand output. A custom trigger can also be initiated
directly by a PLC command (refer to the IND560 Terminal PLC Interface Manual);
by toggling one of the cp0101, cp0102, or cp0103 shared data variables (refer to
the IND560 Shared Data Reference); or by assigning the trigger to one of the
trigger softkeys (refer to the Connections section of Chapter 3, Configuration).
B-2
IND560 User’s Guide
Output Templates
The IND560 provides five templates to define a custom string of data to be
transmitted. A template can be used with a demand mode connection, a custom
trigger connection or with a continuous template connection. In the setup of the
terminal, a template is tied to an output connection so that when that connection is
triggered, the selected template will be transmitted. The three default templates in
the terminal from the factory are as follows:
Template 1
XX.XX kg
XX.XX kg T
XX.XX kg N
Template 5
Totals Report
Current Time
Subtotal:
n = XXX
Grand Total:
n = XXX
Template 2
Scale ID
Current Time
Current Date
XX.XX kg
XX.XX kg T
XX.XX kg N
Current Date
XXX.XX kg
XXXX.XX kg
Each template can store up to 1,000 bytes of data. Table B-1 defines how the
1,000 bytes are calculated. There is no warning if a template overflows this limit
until the template is saved. At this time, any information over the 1,000-byte limit
will be lost. The InSite program’s Template Editor feature does track the size of the
template as it is being built and provides an appropriate warning if the limit is
exceeded.
Table B-1: Calculation of Template Data Bytes
Print Field
Space Used
IND560 Data Field
8 characters
Special Character
4 characters + code (2 or 3 characters depending
on the character)
String Field
String length + quantity (1 or 2)
Justify a Field
2 characters + justify letter (L, R, C) + space limit
(1, 2, or 3 characters)
Zero Fill a Field
2 characters + Z + space limit (1, 2 or 3
characters)
Repeat Character
5 characters + number (1, 2 or 3 digits for number
of times repeated)
Line end <CR><LF> 7 characters
B-3
IND560 User’s Guide
Template Example
The following example shows a customer ticket that has three template strings
centered in a 40-character wide field, with an asterisk underline.
GROSSBERG TRUCKING CO.
CHAMPAIGN, ILLINOIS
DAILY WEIGHT TOTALS
****************************************
Use the information in Table B-2 to calculate how much of the template remains for
field data.
Table B-2: Space Required for the Example Ticket Heading Information
Character Description
Character Total
IND560 Field (String 1)
8 (IND560 shared data field)
Centered (Justify in 40-character field)
2 + 1 (letter C) + 2 (two digits for quantity
40)
CR (ASCII Carriage Return character)
2 + 1 (one digit for quantity 1)
LF (ASCII Line Feed character)
2 + 1 (one digit for quantity 1)
Total formatting characters required
19
Total space required (characters on each line) 25 + 19 + 19 = 63
ASCII (*) character
1 (ASCII character)
Repeat (*) 40 times
5 (repeat) + 2 (number of repeats)
CR
2 + 1 (one digit for quantity 1)
LF (ASCII Line Feed character)
2 + 1 (one digit for quantity 1)
Total space for line of asterisks
14
Grand total of characters (19 + 63 + 14)
96
Total characters remaining in this template
(1,000 − 96)
904
For template space calculation:
Regardless of the number of characters in an IND560 terminal data field, a
template uses only eight characters (the field code).
Justification uses four to six characters that are not used if the field
remains unjustified.
B-4
IND560 User’s Guide
Repeat Print Notification
Output templates used for Demand printing transactions have the option of being
designated with a “DUPLICATE” header or footer if they are generated through the
Repeat Print softkey.
DUPLICATE
GROSSBERG TRUCKING CO.
CHAMPAIGN, ILLINOIS
DAILY WEIGHT TOTALS
****************************************
or
GROSSBERG TRUCKING CO.
CHAMPAIGN, ILLINOIS
DAILY WEIGHT TOTALS
****************************************
DUPLICATE
Continuous Output Mode
The continuous output mode of the IND560 can be used to continuously send
weight data and scale status information to a remote device such as a PC or a
remote display.
Standard Continuous Output
Continuous Output can be assigned to COM1, COM2, COM3, Ethernet 1 or Eprint.
Standard Continuous Output over Ethernet is addressed later in this Appendix.
Checksum can be enabled or disabled on any of these ports with continuous
output. A data string will be output approximately 20 times per second for baud
rates above 4800 baud. If a baud rate below 4800 is selected, the output rate will
be slower. At 300 baud, the output rate is only approximately 2 per second. The
format is fixed, except for baud rate, parity, data flow (XON/XOFF), and interface
type. The data consists of 17 or 18 bytes as shown in Table B-3.
Non-significant weight data and tare data digits are transmitted as spaces. The
continuous output mode provides compatibility with METTLER TOLEDO products
that require real-time weight data. Table B-3 shows continuous format output.
Table B-3: Continuous Output Format
Status2
Character
1
2
3
Indicated Weight3
4
5
6 7 8 9
10
Tare Weight4
11
Data STX1 SWA SWB SWC MSD - - - - LSD MSD
12 13 14 15 16
-
-
-
-
17
18
LSD CR5 CHK6
Continuous Output Format Notes:
1. ASCII Start of Text character (02 hex), always transmitted.
2. Status words. Refer to Table B-4, Table B-5, and Table B-6 for details.
B-5
IND560 User’s Guide
3. Displayed weight. Either gross or net weight. Six digits, no decimal point or
sign. Insignificant leading zeroes are replaced with spaces.
4. Tare weight. Six digits of tare weight data. No decimal point in field.
5. ASCII Carriage Return <CR> character (0D hex).
6. Checksum, transmitted only if enabled in setup. Checksum is used to detect
errors in the transmission of data. Checksum is defined as the 2’s complement
of the seven low order bits of the binary sum of all characters preceding the
checksum character, including the <STX> and <CR> characters.
Table B-4, Table B-5, and Table B-6 detail the standard status bytes for standard
continuous output.
Table B-4: Status Word A Bit Definitions
Bits 2, 1, and 0
2
1
0
Decimal Point Location
0
0
0
XXXXX00
0
0
1
XXXXX0
0
1
0
XXXXXX
0
1
1
XXXXX.X
1
0
0
XXXX.XX
1
0
1
XXX.XXX
1
1
0
XX.XXXX
1
1
1
X.XXXXX
Bits 4 and 3
4
3
Build Code
0
1
X1
1
0
X2
1
1
X5
Bit 5
Always = 1
Bit 6
Always = 0
Table B-5: Status Word B Bit Definitions
Status Bits
B-6
Function
Bit 0
Gross = 0, Net = 1
Bit 1
Sign, Positive = 0, Negative = 1
Bit 2
Out of Range = 1 (Over capacity or Under Zero)
Bit 3
Motion = 1, Stable = 0
IND560 User’s Guide
Status Bits
Function
Bit 4
lb = 0, kg = 1 (see also Status Byte 3, bits 0-2)
Bit 5
Always = 1
Bit 6
Zero Not Captured = 1
Table B-6: Status Word C Bit Definitions
Bits 2, 1, and 0
Weight Description
2
1
0
0
0
0
lb or kg, selected by Status Byte B, bit 4
0
0
1
grams (g)
0
1
0
metric tons (t)
0
1
1
ounces (oz)
1
0
0
troy ounces (ozt)
1
0
1
penny weight (dwt)
1
1
0
tons (ton)
1
1
1
custom units
Bit 3
Print Request = 1
Bit 4
Expand Data x 10 = 1, Normal = 0
Bit 5
Always = 1
Bit 6
Always = 0
Continuous Template Output
If continuous template is selected as the assignment for a connection, a custom
string of data can be configured using one of the five available templates. When a
continuous template output is selected, the output rate will depend on the size of
the template and the baud rate selected. The rate will vary from approximately once
per second up to approximately 20 times per second. Refer to Table B-7 for
estimated output rates of a 160 byte template.
Table B-7: Continuous Template Output Rate
Baud Rate
Outputs/Second
Baud Rate
Outputs/Second
300
1
9600
10
600
2
19200
12
1200
4
38400
14
2400
6
57600
16
4800
8
115200
18
B-7
IND560 User’s Guide
The template can include any combination of elements (IND560 Field Codes, ASCII
characters, or print strings). Note that the output rate may be adversely affected by
transmitting a large template or selecting a slow baud rate.
The template is configured as explained in Chapter 3.0, Configuration, and this
template has the same size restrictions as described above in the Demand Output
Mode, Output Templates section.
CTPZ
The CTPZ input mode provides a method for a remote serial device to trigger
several basic functions when a control character is sent to the IND560. Remote
ASCII control characters and the IND560 terminal responses include:
•
C – Clears the scale to gross
•
T – Tares the scale (causes a pushbutton tare)
•
P – Initiates a print command
•
Z – Zeros the scale
All other characters are ignored.
ASCII control characters can be sent in upper- or lower-case.
Example
To initiate a pushbutton tare, program the terminal for CTPZ input for a specific
port, program the serial port parameters to match the other device and then send
the ASCII character “T”.
Standard Interface Command Set (SICS)
Protocol
The IND560 terminal supports the METTLER TOLEDO Standard Interface Command
Set (MT-SICS), which is divided into four levels (0, 1, 2, 3), depending on the
functionality of the device. The IND560 terminal supports parts of levels 0 and 1:
•
MT-SICS level 0 – Command set for the simplest device.
•
MT-SICS level 1 – Extension of the command set for standard devices.
A feature of this concept is that the commands combined in MT-SICS level 0 and 1
are identical for all devices. Both the simplest weighing device and a fully
expanded weighing workstation recognize the commands of MT-SICS levels 0
and 1.
B-8
IND560 User’s Guide
Data Interface Configuration
Setting of the interface such as baud rate, number of data bits, parity, handshake
protocols and connector pin assignments are described in Chapter 3.0,
Configuration.
Version Number of the MT-SICS
Each level of the MT-SICS has its own version number, which can be requested
with the command I1 from level 0. The IND560 supports:
•
MT-SICS level 0, version 2.2x (except the ZI command)
•
MT-SICS level 1, version 2.2x (except the D, DW and K commands)
Command Formats
Each command received by the scale via the data interface is acknowledged by a
response of the device to the transmitter. Commands and responses are data
strings with a fixed format. Commands sent to the IND560 terminal comprise one
or more characters of the ASCII character set. Enter commands only in uppercase.
The parameters of the command must be separated from one another and from the
command name by a space (ASCII 32 dec., in the examples shown in this
section, a space is represented as _ ).
Each command must be terminated by CR LF (ASCII 13 dec., 10 dec.)
The characters CR and LF, which can be inputted using the ENTER or RETURN key
of most entry keypads, are not listed in this description. However, it is essential
they be included for communication with the IND560 terminal.
Example
Command to tare the IND560 terminal:
“TA_20.00_lb” (The command terminator CR LF is not shown.)
Response Formats
All responses sent by the IND560 terminal to the transmitter to acknowledge the
received commands have one of the following formats:
Response with weight value
Response without weight value
Error message
Format of the Response with Weight Value
A general description of the response with weight value as follows:
B-9
IND560 User’s Guide
ID – Response identification.
__ – Space (ASCII 32 dec.)
Status – Status of the IND560 terminal. See description of the commands and
responses.
Weight Value – Weighing result, which is shown as a number with 10 digits,
including sign directly in front of the first digit. The weight value appears right
justified. Preceding zeroes are suppressed with the exception of the zero to the left
of the decimal point.
Unit – Weight unit displayed.
CR – Carriage Return (ASCII 13 dec.)
LF – Line Feed (ASCII 10 dec.)
Comment – CR LF will not be shown in this description.
Example
Response with a stable weight value of 0.256 kg:
S _ S_ _ _ _ _ _ 0.256 _ kg
Format of the Response Without Weight Value
A general description of the response without weight value is as follows:
ID – Response identification.
_ – Space (ASCII 32 dec.)
Status – Status of the IND560 terminal. See description of the commands and
responses.
Parameters – Command-dependent response code.
CR – Carriage Return (ASCII 13 dec.)
LF – Line Feed (ASCII 10 dec.)
Comment – CR LF will not be shown in this description.
ID
B-10
CR
LF
IND560 User’s Guide
ID – Error Identification
There are three different error messages. The identification always comprises two
characters:
ES – Syntax error
The IND560 terminal has not recognized the received command.
ET – Transmission error
The scale has received a “faulty” command, such as a parity error.
EL – Logical error
The IND560 terminal cannot execute the received command.
CR – Carriage return (ASCII 13 dec.)
LF – Line Feed (ASCII 10 dec.)
Comment – CR LF will not be shown in this description.
Tips for the Programmer
Tips for programming the IND560 terminal SICS protocol include:
Command and Response
Improve the dependability of application software by having the program evaluate
the response of the IND560 terminal to a command. The response is the
acknowledgment that the IND560 terminal has received the command.
Reset
When establishing communication between the IND560 terminal and system, send
a reset command to the IND560 terminal to enable a start from a determined state.
When the IND560 terminal or system is switched on or off, faulty characters can
be received or sent.
Quotation Marks (“ ”)
Quotation marks included in the command responses are used to designate fields
and will always be sent.
Commands and Responses MT-SICS Level
0
The IND560 terminal receives a command from the system computer and
acknowledges the command with an appropriate response. The following sections
contain a detailed description of the command set in alphabetical order with the
associated responses. Commands and responses are closed with CR and LF.
These termination characters are not shown in the following description, but they
must always be entered with commands or sent with responses.
B-11
IND560 User’s Guide
The commands of MT-SICS level 0 are available with even the simplest devices,
which support the METTLER TOLEDO Standard Interface Command Set. These
include:
I0
Inquiry of all implemented MT-SICS commands
I1
Inquiry of MT-SICS level and MT-SICS versions
I2
Inquiry of balance data
I3
Inquiry of balance SW version and type definition number
I4
Inquiry of serial number
S
Send stable weight value
SI
Send weight value immediately
SIR
Send weight value immediately and repeat
Z
Zero
@
Reset (clear out serial buffer)
The following are detailed descriptions of these Level 0 commands:
I0 – INQUIRY OF ALL IMPLEMENTED MT-SICS COMMANDS
Command: I0 – Inquiry of all implemented MT-SICS commands
Response:
I0 B 0 “I0”
Level 0 “IO” command implemented
I0 B 0 “I1”
Level 0 “I1” command implemented
I0 B 0 “I2”
Level 0 “I2” command implemented
I0 B 0 “I3”
Level 0 “I3” command implemented
I0 B 0 “I4”
Level 0 “I4” command implemented
I0 B 0 “S”
Level 0 “S” command implemented
I0 B 0 “SI”
Level 0 “SI” command implemented
I0 B 0 “SIR”
Level 0 “
I0 B 0 “Z”
Level 0 “Z” command implemented
I0 B 0 “@”
Level 0 “@” command implemented
I0 B 1 “SR”
Level 1 “SR” command implemented
I0 B 1 “T”
Level 1 “T” command implemented
I0 B 1 “TA”
Level 1 “TA” command implemented
I0 B 1 “TAC”
Level 1 “TAC” command implemented
I0 B 1 “TI”
Level 1 “TI” command implemented
SIR” command implemented
Error Response I0 I - Cannot execute command at this time.
B-12
IND560 User’s Guide
I1 – INQUIRY OF MT-SICS LEVEL AND MT-SICS VERSIONS
Command: I1 – Inquiry of MT-SICS level and MT-SICS versions
Response: I 1 _ A _ “” _ “2.2x” _ “2.2x” _ “ ” _ “ ”
“”
No Levels fully implemented
2.2x
Level 0, version V2.2x
2.2x
Level 1, version V2.2x
“”
No MT-SICS 2 commands
“”
No MT-SICS 3 commands
•
Error Response I1 _ I – Command understood, not executable at present.
Comments
•
In the case of the MT-SICS level, only fully implemented levels are listed. In this
case, neither level 0 nor level 1 were fully implemented so the level is not
specified.
•
In the case of the MT-SICS version, all levels are specified even those only
partially implemented.
I2 – INQUIRY OF DATA
Command: I2 – Inquiry of data.
Response: I 2 _ A _ “IND560 _ Standard _50.00 kg”
Response: I 2 _ A _ “IND560 _ 560Fill _50.00 kg”
•
IND560 - Model number of terminal
•
Standard - Basic model with no special application software
•
560Fill - Sent when an IND560-Fill is queried
•
50.00 kg - Capacity and primary unit of the base connected to the IND560
•
Error Response I2 _ I – Command understood, not executable at present.
Comments
The number of characters of “text” depends on the application software and scale
capacity.
I3 – INQUIRY OF SW VERSION AND TYPE DEFINITION NUMBER
Command I3: Inquiry of SW version number(s) and type definition number.
Response: I3 _ A _ “1.00”
1.00 – Firmware version of the IND560
Error Response I3 _ I – Command understood, not executable at present.
B-13
IND560 User’s Guide
Comment
The number of characters of “text” depends on the revision and device type.
I4 – INQUIRY OF SERIAL NUMBER
Command: I4 – Inquiry of serial number.
Response: I4 _ A _ “text”
Serial number as “text” (content of shared data xs0105 in IND560 terminal)
Error Response I4 _ I – Command understood, not executable at present.
Example
Command: I 4 – Inquiry of serial number
Response: I 4 _ A _ “123456-6GG”
Comments
The serial number response is the content of the terminal serial number as entered
in the setup.
S – SEND STABLE WEIGHT VALUE
Command: S – Send the current stable net weight.
Response:
S _ S _ WeightValue _ Unit – Current stable weight value.
S _ I – Weight value is in the current displayed units.
S _ + – IND560 in overload range.
S _ - – IND560 in underload range.
Example
Command: S – Send a stable weight value.
Response: S _ S _ _ _ _ _ 100.00 _ kg. – The current, stable weight value is
100.00 kg.
Comments
The terminal will wait for up to 3 seconds after receiving an “S” command for nomotion. If motion does not settle within this time, the command is aborted.
SI – SEND WEIGHT VALUE IMMEDIATELY
Command: SI – Send the current net weight value regardless of scale stability.
Response:
B-14
IND560 User’s Guide
S _ S _ WeightValue _ Unit – Stable weight value.
S _ D _ WeightValue _ Unit – Non-stable (dynamic) weight value.
S _ I – Command not executable (scale currently executing another command).
S _ + – IND560 in overload range.
S _ - – IND560 in underload range.
Example
Command: SI – Send current weight value.
Response: S _ D _ _ _ _ _ 129.07 _ kg – The current weight value is unstable
(dynamic) and is 129.07kg.
Comments
The response to the command SI is the last internal weight value (stable or
dynamic) before receipt of the command SI.
Weight value is in the current displayed units.
SIR – SEND WEIGHT VALUE IMMEDIATELY AND REPEAT
Command: SIR – Send the net weight values repeatedly, regardless of scale
stability.
Response:
S _ S _ WeightValue _ Unit – Stable weight value.
S _ D _ WeightValue _ Unit – Non-stable (dynamic) weight value.
S _ I – Command not executable (IND560 terminal is executing another
command, such as taring).
S _ + – IND560 in overload range.
S _ - – IND560 in underload range.
Example
Command: SIR – Send current weight values at intervals.
Response:
S _ D _ _ _ _ _ 129.07 _ kg
S _ D _ _ _ _ _ 129.08 _ kg
S _ D _ _ _ _ _ 129.09 _ kg
S _ D _ _ _ _ _ 129.09 _ kg
S _ D _ _ _ _ _ 114.87 _ kg
. . . – The scale sends stable or non-stable weight values at intervals.
B-15
IND560 User’s Guide
Comments
SIR is overwritten and cancelled by the commands S, SI, SR, and @.
The number of weight values per second depends on the scale type and will vary
from approximately 6 (older IDNet bases) to approximately 18 (analog bases).
Weight value is in the current displayed units.
Z – ZERO
Command: Z – Zero the scale.
Response:
Z _ A – The following then holds:
Scale is in gross mode
Zero setting performed, (stability criterion and zero setting range complied
with).
Z _ I – Zero setting not performed (IND560 terminal is currently executing another
command, such as taring, or timeout as stability was not reached.)
Z _ + – Upper limit of zero setting range exceeded.
Z _ - – Lower limit of zero setting range exceeded.
Example
Command: Z – Zero.
Response: Z _ A – Zero setting performed.
Comments
If enabled in setup a tare value will be cleared during zero setting.
The zero point determined during switching on is not influenced by this command
(the measurement ranges remain unchanged).
The duration of the timeout is approximately one second.
@ – RESET
Command: @ – Reset the scale to the condition found after switching on, but
without a zero setting being performed.
Response:
I 4 _ A _ “text” – Serial number of the scale, the scale is ready for operation.
Example
Command: @
Response: I4 _ A _ “123456-6GG” – The IND560 terminal is reset and sends the
serial number.
B-16
IND560 User’s Guide
Comments
All commands awaiting responses are canceled.
The “reset” command is always executed.
A reset command received by the IND560 terminal during the calibration and test
procedure cannot be processed.
Commands and Responses MT-SICS
Level 1
The following commands of MT-SICS level 1 are available:
SR – Send weight value on weight change (Send and Repeat)
T – Taring
TA – Set tare value
TAC – Clear tare value
TI – Tare Immediately
SR – SEND WEIGHT VALUE ON WEIGHT CHANGE (SEND AND REPEAT)
Command: SR
S R _ PresetValue _ Unit – Send the current stable weight value and then
continuously after every weight change greater or equal to the preset value a nonstable (dynamic) value followed by the next stable value, range = 1d to maximum
load.
SR – If no preset value is entered, the weight change must be at least 12.5% of the
last stable weight value, minimum = 30d.
Response:
S _ S _ WeightValue _ Unit – Current, stable weight value. Weight change.
S _ D _ WeightValue _ Unit – Dynamic weight value.
S _ S _ WeightValue _ Unit – Next stable weight value.
S _ I – Command not executable (the IND560 terminal is currently executing
another command, such as taring, or timeout as stability was not reached.)
S _ L – Command understood, parameter wrong.
S _ + – IND560 in overload range.
S _ - – IND560 in underload range.
Example
Command: S R _ 0.50 _ kg – Send the current stable weight value followed by
every load change > 0.50 kg.
Response:
S _ S _ _ _ _ _100.00 _ kg – Scale stable.
B-17
IND560 User’s Guide
S _ D _ _ _ _ _115.23 _ kg – More than 0.50 kg loaded.
S _ S _ _ _ _ _200.00 _ kg – Scale again stable.
Comments
SR is overwritten and cancelled by the commands S, SI, SIR, @ and hardware
break.
If, following a non-stable (dynamic) weight value, stability has not been reached
within the timeout interval, the response “S _ I “ is sent and then a non-stable
weight value. Timeout then starts again form the beginning.
The preset value must be entered in the first unit that is the weight unit displayed
after the IND560 terminal has been switched on.
T – Taring
Command: T – Tare a stable weight value
Response:
T_S_WeightValue_Unit – Taring performed. Stability criterion and taring range
comply with settings. Current Tare weight value in current units is returned.
T_ I
– Taring not performed (scale is executing another command, zero setting,
or stability timeout reached.)
T_+
– Upper limit of taring range exceeded.
T_-
– Lower limit of taring range exceeded.
Example
Command: T
Response: T _S _ _ _ _ _100.00_kg – The IND560 has accepted a tare value of
100.00 kg.
Comments
The new tare weight value overwrites tare memory.
The duration of the timeout depends on the scale type and its settings. If motion
does not settle within this time, the command is aborted.
Clearing tare value: See command TAC
TA – INQUIRE/ENTER TARE VALUE
Command: TA – Inquiry of tare weight value
TA _ Tare Preset Value _ Unit – Entry of a tare value.
Response:
T A _ A _ TareWeightValue _ Unit – Current Tare weight value.
T A _ I – Current Tare weight value cannot be transferred (the IND560 terminal is
currently executing another command, such as zero setting).
B-18
IND560 User’s Guide
T A _ L – Command understood, parameter wrong.
Example
Command: T A _ 10.00 _ kg – Load a preset tare of 10 kg.
Response: T A _ A _ _ _ _ _10.00_k g – The IND560 has accepted the 10.00 kg
tare value.
Comments
The existing tare will be overwritten by the preset tare weight value.
The IND560 terminal will automatically round the inputted tare value to the current
readability.
The preset value must be entered in the current units.
TAC – CLEAR TARE VALUE
Command: TAC – Clear tare value.
Response:
TAC _ A – Tare value cleared.
TAC _ I – Command not executable (the IND560 terminal is currently executing
another command, such as zero setting, or timeout as stability was not reached).
TI – TARE IMMEDIATELY
Command: TI – Tare immediately, (store the current weight value, which can be
stable or non-stable (dynamic), as tare weight value).
Response:
T I _ S _ WeightValue _ Unit – Taring performed, stable tare value.
T I _ D _ WeightValue _ Unit – Taring performed, non-stable (dynamic) tare value.
T I _ I – Taring not performed (the IND560 terminal is currently executing another
command, such as zero setting.)
T I _ L – The command is not executable.
T I _ + – Upper limit of taring range exceeded.
T I _ - – Lower limit of taring range exceeded.
Example
Command: TI – Tare.
Response: T I _ D _ _ _ _ _117.57 _ kg – The tare memory holds a non-stable
(dynamic) weight value.
Comments
Any previous tare value will be overwritten by the new tare weight value.
B-19
IND560 User’s Guide
Even during a non-stable (dynamic) condition, a tare weight value can be
determined. However, the tare value determined in this manner may not be
accurate.
The stored tare weight value is sent in the current units.
Remote Discrete I/O (ARM100)
The IND560 provides the ability to expand the discrete input and output control to
remote ARM100 devices. This ability is required when more than four inputs or six
outputs are used (these are limits of the internal discrete I/O option) or it may be
beneficial to have all of the I/O external to the IND560 based on the application. A
total of three sets of I/O are supported in the IND560. This could be configured as
the internal discrete I/O option and two remotes or all three sets of I/O could be
ARM100 remote I/O modules.
The communication link from the IND560 terminal to the ARM100 remote discrete
I/O module is an RTU-based RS-485 communication protocol. During power-up, if
remote discrete I/O has been enabled, communication will be established between
the IND560 terminal and the remote modules. Any communication errors will be
shown on the system line of the IND560.
If the RS-485 link between the ARM100(s) and the IND560 is interrupted or
disabled, the IND560 disables all active I/O as a precaution.
Since the communication link is RS-485, only COM1 and the optional COM3 may
be programmed for use with the ARM100 (COM2 is RS-232 only). This
communication uses both the input and output portions of the port so it cannot be
shared with any other connections. When “Remote Discrete I/O” is selected as the
assignment for COM1 or COM3, the communication parameters are automatically
preset by the terminal and cannot be changed from the front panel - they can only
be viewed. The parameters are:
•
Baud Rate: 57600
•
Data bits: 8
•
Parity: None
•
Flow Control: None
•
Interface: RS-485
After wiring the ARM100 modules per the details in the IND560 Installation
Manual, and programming the assignment in the connections portion of setup, the
remote modules should be operational. When assigning functions to remote
discrete I/O locations, the remote modules are addressed by 1.0.x for module #1,
2.0.x for module #2, and 3.0.x for module #3. Each module provides four inputs
and six dry-contact relay outputs.
Example
Tare assigned to discrete I/O input address 1.0.1.
B-20
IND560 User’s Guide
This indicates that when input #1 is turned on in remote module #1, a tare will be
taken.
ASCII Input
With the IND560 terminal, a bar code scanner or other ASCII device can be
connected to a port and used as an input device to enter ASCII data. This is done
with the ASCII Input connection type. When this input type is selected, the
assignment for the data received must also be specified at Communication >
Templates > Input. Available assignments include:
•
ID1
•
Keypad
•
Tare
•
Tare ID
•
Target ID
•
Target Weigh-in (Fill-560 feature only)
•
Target Weigh-out (Fill-560 feature only)
As part of the programming for using the ASCII input, an input template must be
configured. The template feature permits removal of a preamble (preceeding
characters) and a postamble (trailing characters) that are not part of the desired
data. Using these parameters in the setup of the input template, the number of
characters to be ignored before and after the data are programmed. These must be
the same for each data input string that the IND560 receives.
An input will be terminated after the receipt of the programmable “Termination
Character” or a 1 second timeout of no new characters received. At this time, any
input data that has been collected will be applied to the assignment that has been
selected. This could be an actual value such as a preset tare value or a response
for IDs, or it could initiate a look-up into the tare or target table by selecting Tare ID
or Target ID.
The following notes apply to how the ASCII input is handled through the input
template:
The Preamble Length selects how many characters should be skipped at the
beginning of an input string before the desired data.
Data Length defines the maximum length of a string. All characters beginning
after the Preamble through the Length selection will be used as the input.
The Postamble length is the number of characters (before the Termination
Character) that will be stripped off the data string. All other data from the
Preamble Length to the Termination Character minus the Postamble Length will
be used as the input string. When using an input that is always the same fixed
length, this field would remain blank.
B-21
IND560 User’s Guide
The Termination Character is used to signal the end of the string input. It can
be any ASCII control character. If “None” is selected, the timeout feature will
terminate the entry.
There is also a 1 second timeout feature that tracks the amount of time
between characters. If this 1 second time is exceeded, the string will also be
considered terminated.
Example
Preamble of 2, Data length of 5, Postamble of 0, Termination Character of <CR>,
Input assignment of Tare.
Data received is: <STX>P001.5 kg<CR>
The preamble of 2 removes the <STX> and P characters. The next 5 characters of
001.5 are the actual data. The postamble is set to 0 because the data field has
already been filled so no characters have to be removed. The <CR> terminates the
input.
This string would input 1.5 as a preset tare to the IND560.
This same data could be obtained by programming a Preamble of 2, Data length
of 8, Postamble of 3, Termination Character of <CR>. The Postamble length of 3
would remove the <space>kg from the data field since they are the last 3
characters received in front of the <CR>.
Reports
In order to print reports of the tare table, target table, or message strings, a
connection must be made for the “Reports” function. When a reports connection is
made to a serial port, whenever a report is run and then printed, it will be routed to
the assigned port.
The structure of the printed report is selectable in setup so that all reports have the
same general format. Printable fields for the tare table and target table individual
reports are also selected in the Reports sub-block of Communications.
A sample of each report in a 40 column wide and an 80 column wide print are
shown in the following sections.
Alibi Table
The alibi table can be viewed or printed. Alibi memory is viewed in the same way
as a search and view of any other table in the terminal. It is accessible from the
dedicated ALIBI softkey
, the REPORTS softkey
, or through the menu tree
at Application > Memory > Alibi.
Tare Table Report
In the following report examples, all fields were programmed to print. A (*) record
separator was selected for these reports.
B-22
IND560 User’s Guide
40 Column Example
If the first field on a line were disabled, it would not be printed and the field to the
right would be shifted left. If a field on the right of a line were disabled, it would not
print and that space would be blank. If all fields on a specific line were disabled,
the complete line would be removed from the report.
Tare Memory Report
ID: 1
T: 26.4 kg
Desc: Blue Box #4
n:
54
Total:
52954.3 kg
****************************************
ID: 5
T:
3.7 kg
Desc: Green Bag #29
n:
7
Total:
25593.4 kg
****************************************
ID: 6
T: 23.3 kg
Desc: B16 Pallet
n:
0
Total:
0 kg
****************************************
80 Column Example
If any field were disabled, that data would not be printed and that complete column
would be removed from the report.
Tare Memory Report
ID
T
Description
n
Total
1
26.4 kg Blue Box #4
54
52954.3 kg
**************************************************************************
5
3.7 kg Green Bag #29
7
25593.4 kg
**************************************************************************
6
23.3 kg B16 Pallet
0
0 kg
**************************************************************************
Target Table Report
In the following examples, all fields were programmed to print. A (-) record
separator was selected for these reports.
40 Column Report Example
If the first field on a line were disabled, it would not be printed and the field to the
right would be shifted left. If a field on the right of a line were disabled, it would not
print and that space would be blank. If all fields on a specific line were disabled,
the complete line would be removed from the report.
Target Memory Report
ID: 1
Target:
11.00 kg
Spill:
0.55
Fine:
0.4
+Tol:
0.1
-Tol:
0.1
Desc: White RT4 Gran
---------------------------------------ID: 2
Target:
12.35 kg
B-23
IND560 User’s Guide
Spill:
0.48
Fine:
0.6
+Tol:
0.2
-Tol:
0.2
Desc: Mixture #7728
---------------------------------------ID: 3
Target:
23.85 kg
Spill:
0.3
Fine:
0.8
+Tol:
0.3
-Tol:
0.1
Desc: Yellow #40 Pel
----------------------------------------
80 Column Report Example
If any field were disabled, that data would not be printed and that complete column
would be removed from the report.
Target Memory Report
ID
Target
Spill
Fine
+Tol
-Tol
Desc
1
11.00 kg
0.55
0.4
0.1
0.1
White RT4 Gran
-------------------------------------------------------------------------2
12.35 kg
0.48
0.6
0.2
0.2
Mixture #7728A
-------------------------------------------------------------------------3
23.85 kg
0.3
0.8
0.3
0.1
Yellow #40 Pel
--------------------------------------------------------------------------
Message Table Report
The message table contains text that can be used in print templates. There are 99
records and each record can be up to100 characters long. In the view of the
message table, only the first 20 characters of the message string are shown. The
message table report can only be printed from the Message Table sub-block of
Application using the PRINT softkey
. An example of the 40 column wide
printed report is shown next. The 80 column report will also wrap if the line
exceeds the 80 character limit.
Message Report
1 James Carey
---------------------------------------2 Communications
---------------------------------------3 101 East Main Street
---------------------------------------4 This is an example of what the view
of a string of more than forty characte
rs would look like in a report
----------------------------------------
Totals Report
The totals report will print only the fields that have been enabled for the totalizing
function. If the subtotal feature has been disabled, then that field will not display or
print. The example below includes both the subtotal and grand total fields. The
report format is always in a 40 column width for the totals report.
Totals report
14:25:39
20/Jul/2007
B-24
IND560 User’s Guide
Subtotal:
n = 6
Grand Total:
n = 27
86.19 kg
372.76 kg
Shared Data Access
All setup parameters, triggers and statuses in the IND560 are stored and routed
through “Shared Data”. This is a system of memory mapping that permits remote
clients to send commands and receive data from the terminal. In order to access
the shared data variables in the IND560, a remote client must login to the Shared
Data Server. Access is provided through either the COM1 serial port or through the
optional Ethernet port. Regardless of the method used, the same access is
provided and the login procedure is very similar.
Shared Data Server Login
Shared data access is available from the COM1 serial port and the optional
Ethernet port.
To login to the Shared Data Server via COM1:
1. To enable communication with the Shared Data Server:
Delete all connections to the COM1 port of the IND560. In setup at
Communication > Serial, ensure that port settings for COM1 are:
•
•
•
•
115.2 K baud
8 data bits
No parity
1 stop bit
or
Move switch SW2-1 to its ON position. This permits communication with
the Shared Data Server without deleting any connections that have been
configured in setup. Setting SW2-1 to ON will cause the message “Test
Mode” to appear in the system line until SW2-1 is turned OFF.
To restore access to configured COM1 connections, remember to return
SW2-1 to its original, OFF, position once Shared Data Server
communication is ended.
or
At Communication > Connections, set the assignment of COM1 as “Shared
Data Server”. This setting allows communication with the Shared Data
Server over COM1 without setting SW 2-1 to the ON position. At
Communication > Serial, ensure that port settings for COM1 are:
•
•
•
115.2 K baud
8 data bits
No parity
B-25
IND560 User’s Guide
• 1 stop bit
2. Program the serial port of the remote device for:
• 115.2 K baud
• 8 data bits
• No parity
• 1 stop bit
3. Connect an RS-232 cable (or RS-422 or RS-485) between the remote client
PC and the IND560 COM1 port.
4. Open a program to communicate with the IND560 (such as HyperTerminal).
5. Type: user xxxxx where xxxxx is a valid username programmed in the
Terminal > User branch of the setup menu tree. The access level assigned to
this username will determine which shared data variables will be available.
6. If a password is required for the username entered in step 5, the terminal will
display: 51 Enter password. If no password is required, skip to step 8.
7. Type: pass xxxxx where xxxxx is the valid password for the username entered
in step 5.
8. Response from IND560: 12 Access OK
9. The remote client is now logged onto the Shared Data Server.
To login to the Shared Data Server via Ethernet:
The shared data server is available via port 1701. For applications that have no
access to port 1701, a second port can be enabled. To enable the second port,
enter the desired port number in shared data variable xs0138. This variable cannot
be accessed from the front panel of the IND560 – modify it via the shared data
server (port 1701) to change the second port value.
1. Program appropriate IP and Gateway addresses into the IND560 in the
Communication, Network branch of the menu tree.
2. Connect a crossover cable between the remote client PC and the IND560.
3. Open a program in the client PC to communicate with the IND560 (such as
HyperTerminal).
4. Create a TCP/IP connection to the IP address programmed in the IND560 at
port 1701, or the port assigned using shared data variable xs0138.
5. If the IP and Gateway addresses and the cable connection are correct, the
IND560 will display: Ready for user
6. Type: user xxxxx where xxxxx is a valid username programmed in the
Terminal > Users branch of the setup menu tree. The access level of the
username used will determine which shared data variables can be accessed.
7. If a password is required for the username in the previous step, the terminal
will display: 51 Enter password. If no password is required, skip to step 9.
8. Type: pass xxxxx where xxxxx is the valid password for the username entered
in step 6.
9. Response from IND560: 12 Access OK
B-26
IND560 User’s Guide
10. The remote client PC is now logged onto the Shared Data Server.
Shared Data Server Commands
After connecting to the Shared Data Server in the IND560, several commands are
available for use by the client. All commands can be given in either upper- or
lower-case letters. The quotation marks shown are for clarity only and should not
be transmitted. The valid commands are described in the following sections.
Response Format: “read”, “write”, and “callback” message responses have a
formatted header. The first two characters indicate the status. “00” is the
success status. “99” is a failure status. The next character is the type of
message, “R”, “W”, or “C”. The next three characters are a sequence number,
which cycles from 001 to 999, and then starts over again.
“user” Command
A client must login to the SDSV using the “user” command before accessing
Shared Data. The server validates the username and sends a response message
back to the user. The SDSV responds with [Access OK] if no password is required
or [Enter password] if a password is required.
A client can use only the “user”, “pass”, “help” and “quit” commands before
successfully logging on.
Format: user username
Response 1: 12 Access OK
Response 2: 51 Enter Password
“pass” Command
The user enters a password using the “pass” command. If the password is valid,
the server displays the [Access OK] message. If not valid, the server displays the
[No access] message.
Format: pass password
Response: 12 Access OK
“help” Command
The “help” command returns the list of the valid commands for the IND560.
Format: help
Response: 02 USER PASS QUIT READ R WRITE W SYSTEM CALLBACK XCALLBACK
GROUP RGROUP XGROUP CTIMER LOAD SAVE HELP NOOP
CONTOUT XCOUNTOUT PRINTOUT XPRINTOUT
B-27
IND560 User’s Guide
“quit” Command
The “quit” command terminates the TCP/IP connection.
Format: quit
Response: 52 Closing connection
“read” Command
The “read” command allows the client to read a list of one or more Shared Data
fields. An individual field or an entire block can be read. If more than one field is
requested, the fields should be separated by a space. If successful, the server
responds with a separated list of values in ASCII format. The server separates
individually requested fields with a “~”; and Shared Data separates items within a
block with a ”^”. If an error is detected, the server responds with an error message.
The maximum length of the reply message is 1,024 characters.
Format: read SDV#1 SDV#2
Example 1: read wt0101 wt0103
Response 1: 00R003~
17.08~lb~
Example 2: read sp0100 (reads entire block)
Response 2:
00R012~XP/0163M^1^^78^20.500000^0^0^0^1.200000^3.500000^0.1500
00^0.050000^0^0.000000^0.000000^0^0^0^0^0^0^1^0.000000^0.00000
0^0.000000^0.000000^0.000000^~
The ‘read’ command can be abbreviated to the letter “r” if desired.
“write” Command
The “write” command allows the client to write a list of one or more Shared Data
fields. A single field or an entire block can be written. The maximum length of the
write message is 1,024 characters. Items within a list of writes must be separated
with a “~”. You must separate items within a block with a “^”.
Format: write SDVblock#1=value1^value2^ value3
write SDV#1=value1~SDV#2=value2~SDV#3=value3
Example1: write ak0100=abc^def^hij^lmn (writes fields into a block)
Response 2: 00W006~OK
Example 2: write aj0101=12.56~aj0150=987.653
list)
(writes fields within a
Response 2: 00W007~OK
The “write” command can be abbreviated to the letter “w” if desired.
B-28
IND560 User’s Guide
“system” Command
The “system” command returns a description of the IND560 terminal. This is the
same information that is shown on the Recall System Information screen of the
IND560.
Format: system
Response: 0S005~ SYSTEM INFO RECALL
Model: IND560
S/N:
ID1: IND560
ID2: METTLER_TOLEDO
ID3:
Software
Boot: L1.00 181348
Standard: L1.00 181349
Fill-560: L1.00
Hardware
Analog L/C
Opt: E-Net
“noop” Command
The “noop” command performs no task; it checks communication and returns an
[OK] response message.
Format: noop
Response: 00OK
“callback” Command
The “callback” command allows the client to define one or more fields for which
the Shared Data Server sends a message to the client when the value of the
callback field changes. Only certain SDV may be included in a callback command.
These SDV are noted by an “rc” or “rt” status in the column after the structure
column in the Shared Data document. Mainly, these are triggers that are used in
the terminal. SDV with a status of “na” are not real-time SDV and cannot be used in
callbacks.
The callback message contains one or more changed field names and the new
value for each field. A maximum of twelve callback fields can be specified. The
“ctimer” command specifies the minimum time between repeated callback
messages.
Format: callback SDV#1 SDV#2
Example: callback st0102 st0103 st0104
Response 1: 00B001~OK
B-29
IND560 User’s Guide
Response 2: 00C005~st0102=0^st0103=1^st0104=1 (sent when all of the
SDV change)
Response 3: 00C006~st0104=0 (sent when only st0104 changes)
“xcallback” Command
The “xcallback” command allows the client to remove one or more callback fields
from the list of current SDV.
Format: xcallback SDV#1 SDV#2 or xcallback all (removes all callbacks)
Example: xcallback st0102 (removes st0102 SDV from callback)
Response: 00X008~OK
“group” Command
The “group” command allows the client to define a group of callback fields. The
Shared Data Server sends a message to the client when the value of any field in
the group changes. The group callback message contains the group number and
the values of all fields in the group in the defined order. The “ctimer” command
specifies the minimum time between repeated callback messages. The maximum
number of groups is six, and the maximum number of fields in a group is twelve.
Format: group n SDV#1 SDV#2 SDV#3 (where n = the number of the group 1–6)
Example: group 5 st0103 st0104 st0107 (groups target feeding and tolerance
SDV into one group)
Response 1: 00B019~OK
Response 2: 00C026~group5=0^1^0 (indicates status of all 3 SDV in group 5
whenever any one of them changes)
“rgroup” Command
The “rgroup” command allows the client to define a group of fields. The client can
use the group number to read the entire group at once using the READ command.
The maximum number of groups is six, and the maximum number of fields in a
group is twelve.
Format: rgroup n SDV#1 SDV#2 (where n = the number of the group 1–6)
Example: rgroup 3 di0101 di0102 di0103 di0104 (groups all discrete inputs into
one group that can be read with a single read command)
Response: 0G008~group=3, number fields=4
Read Example: r 3
Response: 00R009~1~0~1~0~
B-30
IND560 User’s Guide
“xgroup” Command
The “xgroup” command allows the client to remove one or all groups.
Format: xgroup n (where n = the group number 1 - 6) or XGROUP all
(removes all groups, including “contout” and “printout”)
Example: xgroup 5 (cancels group 5)
Response: 00X011~group=5
“contout” Command
The “contout” command allows the client to define the continuous output string as
a callback field. The Console Print Server sends a message to the client at each
continuous output. The continuous output message is either in the Standard
METTLER TOLEDO Continuous Output format or in a continuous template format.
The “ctimer” command specifies the minimum time between repeated callback
messages. The “xcontout” command removes the registration from the terminal
and the communication will stop.
Refer to the Ethernet Continuous Output section later in this chapter for
examples of using the “contout” command.
Format: contout
Response: 00G008~number CONTOUT streams=1
When a continuous output occurs to the Ethernet port, the data will be sent to the
client formatted as selected in setup.
Data: 00C004 14! 354 236
00C005 14! 354 236
“xcontout” Command
The “xcontout” command allows the client to remove the continuous output
callback, thus ending the registration so no further continuous outputs will be
available.
Format: xcontout
Response: 00X070~CONTOUT
Also refer to the Ethernet Continuous Output section later in this chapter for
details on the “xcontout” command.
“printout 1” Command
The “printout” command allows the client to define a Demand Print Stream as a
callback field. The Demand Print Streams include demand print (triggered by the
scale) and custom triggers (triggers 1, 2, and 3). The console print server sends a
message to the client at each print output. Since print messages can span multiple
message blocks (depending upon size), the start of the print message has a
B-31
IND560 User’s Guide
<dprint> tag and the end of the message has a </dprint > tag. After registering for
the demand output, the client will receive the appropriate data stream. The “ctimer”
command specifies the minimum time between repeated callback messages. The
“xprintout” command removes the registration from the terminal and the
communication will stop.
Refer to the Ethernet Demand Output section later in this chapter for details on
using the “printout” command.
Format: printout 1
Response: 00G008~number PRINTOUT streams=1
When a demand output occurs to the Ethernet port, the data will be sent to the
client formatted by the selected template. There will be <dprint> and </dprint>
delimiters for the string.
Data: 00P004 <dprint>
17.06 lb T
5.02 lb N
</dprint>
22.08 lb
“xprintout” Command
The “xprintout” command allows the client to remove the print output callback, thus
ending the registration so no further demand outputs will be available.
Format: xprintout
Response: 00X070~PRINTOUT
Refer to the Ethernet Demand Output section later in this chapter for details on
the “xprintout” command.
“ctimer” Command
The “ctimer” command allows the client to set the minimum time between repeated
callback messages in milliseconds. The minimum allowable setting is 50
milliseconds and the maximum is 60 seconds. The default value is 500
milliseconds.
Format: ctimer n
(where n is the number of milliseconds)
Example: ctimer 1000 (set the callback timing to 1 second)
Response: 00T862~new timeout=1000
“csave” Command
The “csave” command saves the current callback and group settings into Shared
Data for use later with the “cload” command.
Format: csave
B-32
IND560 User’s Guide
Response: 00L004~OK
“cload” Command
The “cload” command loads the callback and group settings from Shared Data into
the shared data server. The terminal will begin to service the loaded callback and
group commands.
Format: cload
Response: 00L001~OK
Using Shared Data to Select Target Table
and Tare Table Records
When the IND560 was released, there were only two ways that a user could select
a Target record or a Tare record from a memory table – through a table search or
by performing a quick recall using the numeric keypad and the softkeys. Beginning
with version 3.0 firmware, Target and Tare records can be recalled from their
respective memory tables using both Shared Data and PLC commands.
The following section outlines the sequence of steps that must followed to recall
memory table records using Shared Data. Please reference the IND560 PLC
Interface Guide (# 72184339, on the documentation CD) for information regarding
the use of a PLC to recall memory table records.
To recall a Target Table record or Tare Table record from a memory table, the first
step is to specify the Tare or Target record ID. Then a command is issued to recall
this specified record ID from either the Tare Table or the Target Table.
Recalling a Target Table Record or Tare Table
Record to Active Status:
1. Log into Shared Data server as directed in previous sections of this Appendix.
2. Using Shared Data field qc0189, write the numeric ID of the record that you
wish to recall from either the Target Table or the Tare Table. Numeric ID is a
maximum two digit value (1-25).
3. Next, write either a 1 or a 6 to Shared Data field qc0189. Writing a “1” will
recall the ID set in qc0190 from the Tare Table; writing a “6” will recall the ID
set in qc0190 from the Target Table.
NOTE: These shared data fields are only applicable for standard
functionality Over/Under or Material Transfer modes of operation. They do
not work for the Fill-560 Application Software. In the Fill-560, Targets must
be specified as Weigh-in Targets or Weigh-out Targets. While Active
Weigh-in and Weigh-out values can be accessed via Shared Data (see the
AF block in the IND560 Shared Data Reference, found on the
documentation CD), there is no mechanism to recall a full Target Table
record and designate it as a Weigh-in or Weigh-out Target.
B-33
IND560 User’s Guide
Table Records in Output Templates
Information regarding activated Target Table and Tare Table records, including
Totalization information, is available for transmission in output (print) templates.
This information can be found in the “TD” block of Shared Data. The TD shared
data fields will report values only if the active Tare or Target record was retrieved
directly from the Tare or Target Table. If manual changes are made to the active
Tare or Target record, these shared data values will report empty fields. Records
can be recalled by any available means: table search, quick recall or remotely via
PLC or Shared Data.
Ethernet
The optional Ethernet port for the IND560 provides a 10 Base-T connection for
connection to an Ethernet network. Up to 10 clients can connect to the IND560 at
one time. The Ethernet port can be used for the following functions:
• Shared data access (described previously)
• Demand output
• Continuous output
• FTP
• Sending calibration alert emails
• Flashing new IND560 firmware
The demand output, continuous output, FTP and flashing new firmware functions
are described in the following sections.
Ethernet Connection to a PC
The optional Ethernet port for the IND560 provides a way to interface a PC to the
IND560 to download and upload files and configuration information. In order to
carry out these functions, the IND560 (with optional Ethernet) must be connected
to the PC with an Ethernet cable.
There are two types of Ethernet cables: Patch and Crossover. Patch cables are
used to connect a PC to a network or a hub. The easiest way to connect a PC to
the IND560 via Ethernet is to use a crossover Ethernet cable (Figure B-1). A
crossover cable connects directly from the PC Ethernet port to the IND560 Ethernet
port (no hubs or network needed). If a crossover cable is unavailable, it is
possible to still connect with two patch cables and a hub (Figure B-2). Both types
of Ethernet cables are readily available at stores that sell computer equipment.
B-34
IND560 User’s Guide
Figure B-1: Connecting the IND560 to a PC with a Crossover Cable
Figure B-2: Connecting the IND560 to a PC with Patch Cables
IP Address Setup
The IP addresses must be setup on both the IND560 and the PC as follows:
1. Check the IND560 IP address and subnet mask and note the numbers to
configure the PC. (See Chapter 3.0, Configuration, Communication, Network
for information about network configuration.)
2. The PC and the IND560 should have the same subnet mask.
3. The PC and the IND560 must have unique IP addresses. The IP address
numbers must be the same where the subnet mask is 255, but different where
the subnet mask is 0. See the example in Table B-8 and Figure B-3, which
follow.
Table B-8: IP Address Configuration Example (for Crossover or Hub Configuration)
IND560 IP Address
192
168
0
1
Subnet Mask
255
255
255
0
PC IP Address
192
168
0
2
IND560 Setup
PC Setup
IP Address: 192.168.0.1
IP Address: 192.168.0.2
Figure B-3: IP Address Configuration Example (for Crossover or Hub Configuration)
B-35
IND560 User’s Guide
The PC IP address and subnet mask may be configured by accessing the screens
shown in Figure B-4 through Figure B-7 on the PC as follows:
1. Click on Start>Settings>Network Connections (Figure B-4). A window like the
one shown in Figure B-5 will open.
Figure B-4: Accessing the Network Connections Screen
Figure B-5: Network Connections Screen
2. Select the local area internet connection.
3. Double click on the Local Area Connection. The Local Area Connection
Properties setup screen displays (Figure B-6).
Figure B-6: Local Area Connection Properties Screen
B-36
IND560 User’s Guide
4. Scroll down to Internet Protocol (TCP/IP) and select it.
5. Click on the Properties button. The Internet Protocol (TCP/IP) Properties Screen
displays (Figure B-7).
Figure B-7: Internet Protocol (TCP/IP) Properties Screen
6. Typically, “Obtain an IP address automatically” is checked. However, to
connect to the IND560, set the PC IP address and subnet mask by selecting
“Use the following IP address”.
7. Enter the IP address and subnet mask settings for the specific PC.
8. Click on the OK button.
After disconnecting from the IND560 and before connecting back to the PC’s
normal network connection, remember to change the Internet Protocol (TCP/IP)
Properties Screen setting back to “Obtain an IP address automatically” or to
whatever setting was active when the screen was accessed.
Ethernet Demand Output
If a demand output connection to Ethernet is made in the connections section of
setup, a remote device may “register” to receive the data through the Ethernet port.
In order to do this, the remote device must login to the shared data server and
send the command to register for the data. The login can be any valid username
and password for the terminal.
When a user logs into the shared data server, he or she acquires the level of
access for the username and password used. All levels of users can receive a
demand string.
If a demand output connection to EPrint is made in the Connections section of
setup, a remote device is not required to “register” with the Shared Data Server to
receive the data through the Ethernet port. The data string simply contains the
assigned template’s information. The EPrint connection is made via the secondary
TCP/IP port at the user-defined port number (set up at Communication > Network
> Port).
B-37
IND560 User’s Guide
Registering for the Demand Output
The “printout” command allows the client to define a Demand Print Stream as a
callback field. The Demand Print Streams include demand print (triggered by the
scale) and custom triggers (triggers 1, 2, and 3). The console print server sends a
message to the client at each print output. Since print messages can span multiple
message blocks (depending upon size), the start of the print message has a
<dprint> tag and the end of the message has a </dprint > tag. After registering for
the demand output, the client will receive the appropriate data stream. The “ctimer”
command specifies the minimum time between repeated callback messages. The
“xprintout” command removes the registration from the terminal and the
communication will stop.
The “xgroup all” command will also terminate any demand output
registrations.
Sequence Example 1
1. Enter the menu tree of setup.
2. In the Connections sub-block of the Communications block of setup, create a
connection for Demand Output assignment to the Ethernet port triggered by
Scale using Template 2.
3. Ensure that the IP and Gateway addresses are programmed properly.
4. Login to the shared data server from the client, (see “user” command in the
Shared Data Server section).
5. Register to receive the demand data by entering the “printout 1” command.
6. The IND560 will acknowledge the registration with a message
[00Gxxx~number PRINTOUT streams=1]. Now, whenever a demand print is
generated, the Template 2 data will be sent to the client.
00P004 <dprint>Scale 1
01:33:10
06/Sep/2005
17.08 lb
17.08 lb T
0.00 lb N
</dprint>
The “xprintout” command allows the client to remove the print output callback
registration thus stopping the demand output.
Sequence Example 2
1. Enter the menu tree of setup.
2. In the Connections sub-block of the Communications block of setup, create a
connection for Demand Output assignment to the Ethernet port triggered by
Trigger 1 using Template 1.
3. Ensure that the IP and Gateway addresses are programmed properly.
B-38
IND560 User’s Guide
4. Login to the shared data server from the client, (see “user” command in the
Shared Data Server section).
5. Register to receive the demand data by entering the “printout 1” command.
6. The IND560 will acknowledge the registration with a message
[00Gxxx~number PRINTOUT streams=1]. Now, whenever the custom trigger
is initiated (by a programmed discrete input or PLC command), the Template
1 data will be sent to the client.
00P004 <dprint>
17.08 lb T
0.00 lb N
</dprint>
17.08 lb
The “xprintout” command allows the client to remove the print output callback
registration thus stopping the demand output.
Ethernet Continuous Output
If a continuous output type of connection to Eprint is made in the connections
section of setup, a remote device is not required “register” with the Shared Data
server, to receive data through the Ethernet port. The data string simply contains
the assigned continuous output or template information. The Eprint connection is
made via the secondary TCP/IP port a the user-defined secondary port number
(configured in setup at Communication>Network>Port).
If a continuous output or continuous template output connection to Ethernet 1 is
made in the connections section of setup, a remote device must “register” to
receive the data through the Ethernet port. In order to do this, the remote device
must login to the shared data server and send the command to “register” for the
data. The login can be any valid username and password for the terminal.
When a user logs onto the shared data server, they acquire the level of access
for the username and password used. All levels of users can receive a
continuous string.
Registering for the Continuous Output
The “contout” command allows the client to define the continuous output string as
a callback field. The Console Print Server sends a message to the client at each
continuous output. The continuous output message is either in the Standard
METTLER TOLEDO Continuous Output format or in a continuous template format.
The “ctimer” command specifies the minimum time between repeated callback
messages. The “xcontout” command removes the registration from the terminal
and the communication will stop.
The “xgroup all” command will also terminate any continuous output
registrations.
Sequence Example
1. Enter the menu tree of setup.
B-39
IND560 User’s Guide
2. In the Connections sub-block of the Communications block of setup, create a
connection for Continuous Output assignment to the Ethernet port triggered by
Scale.
3. Ensure that the IP and Gateway addresses are programmed properly.
4. Login to the shared data server from the client, (see “user” command in the
Shared Data Server section).
5. Register to receive the continuous data by entering the “contout” command.
6. The IND560 will acknowledge the registration with a message
[00Gxxx~number CONTOUT streams=1]. Now, whenever a continuous output
string is generated by the IND560, the data will be sent to the client.
00C148 14!
>
00C149 14!
>
00C150 14!
>
00C151 14!
354 236
354 236
354 236
354 236
The “xcontout” command allows the client to remove the continuous output
callback registration thus stopping the continuous output.
The output rate of a Continuous type output over Ethernet is 20Hz by default. This
rate cannot be modified through the terminal setup menu. However, the output rate
can me modified by a Shared Data write to a field in the “cs” block of Shared Data.
Please refer to the IND560 Shared Data Reference on the documentation CD for
specifics.
FTP
The IND560 provides the ability to transfer files using FTP (file transfer protocol).
METTLER TOLEDO recommends the use of the InSIte PC program to assist in this
transfer, but files can also be transferred through the Command prompt using an
FTP client with the following commands.
fget (serial) or get (Ethernet) – all files can be read using this command
fput (serial) or put (Ethernet) – only certain files can be downloaded back to the
IND560 terminal
In order to access any files from the IND560, the client must login to the FTP
server. Valid usernames and passwords are entered in the setup under
Communications, Network, FTP and each username is assigned an access level.
All access levels can read files but only maintenance and administrator levels can
write new files to the terminal (see Chapter 3.0, Configuration for further
information about configuring FTP usernames, passwords, and access levels).
The following list indicates the path for the available files that can be accessed
using the “fget” and “fput” commands.
B-40
IND560 User’s Guide
flash:\tare.bin
Binary file that contains all the tare table records. This file is in
a binary format and is not directly editable. The InSite program
provides the ability to edit the records and download back to
the terminal.
The Tare Table is also available as a .csv file. This file is
stored in the flash2 directory as flash2:\A1.csv
The format of this comma-separated value file is: ID, Tare,
Description, Unit, n, Total. Units are listed as defined in
Shared Data variable td0125.
The A1.csv file can be created or modified externally and
downloaded to the terminal.
flash:\target.bin
Binary file that contains all the target table records. This file is
in a binary format and is not directly editable. The InSite
program provides the ability to edit the records and download
back to the terminal.
The Target Table is also available as a .csv file. This file is
stored in the flash2 directory as flash2:\A2.csv.
The format of this comma separated value file is: ID,
Description, Target, Unit, Spill, + Tolerance, -Tolerance,
Fine Feed. Units are listed as defined in Shared Data
variable td0125.
The A2.csv file can be created or modified externally and
downloaded to the terminal.
flash:\cont.bin
Binary file that contains all the container tare table records
from the IND560-Fill application software. This file is in a
binary format and is not directly editable. The InSite program
provides the ability to edit the records and download back to
the terminal.
The Container Tare Table is also available as a .csv file.
This file is stored in the flash2 directory as flash2:\cont.csv.
The format of this comma separated value file is: ID, Unit,
Tare, Minimum, Maximum, Description, n, Total. Units are
listed as defined in Shared Data variable td0125.
The cont.csv file can be created or modified externally and
downloaded to the terminal.
ram:\caltest1.cfg
A text file that defines the calibration test procedure.
ram:\caltw1.txt
A text file that lists the test weight values and identification
string for the test weights used in the calibration test.
A 35 x 35 pixel bitmap file used as a screen saver.
gen:\change.csv
A comma-delimited file of the change log in the IND560
terminal. This file can only be read from the terminal – it
cannot be written back to the terminal.
gen:\maint.csv
A comma-delimited file of the maintenance log in the IND560
terminal. This file can only be read from the terminal – it
cannot be written back to the terminal.
B-41
IND560 User’s Guide
gen:\bkram.dmt
gen:\flash.dmt
gen:\E2prom1.dmt
These three files are the backup files for all of the setup
parameters in the terminal. Retrieving and storing these files
enables reloading of the terminal with the current parameters in
case of a catastrophic failure.
New Shared Data has been added to v3.02 firmware to add ftp access control.
The assignment of share data field nf0101 now affects ftp access rights. Please
refer to the Shared Data Reference manual on the documentation CD for full
details.
FTP over Ethernet Example
The following procedure describes how one might upload the calibration test to a
PC running Microsoft Windows, modify the file, and then download it again to the
terminal. The complete sequence is shown in Figure B-8.
1. A valid username and password from the FTP server of the IND560 terminal is
required. Refer to Chapter 3.0, Configuration, Communication, Network, FTP.
2. The client must also know the IP address of the IND560 and a valid network
connection established between the client and the terminal is required before
beginning. Refer to the Ethernet section, Ethernet Connection to a PC earlier in
this Appendix.
3. Open the command prompt window in the client PC and type: ftp
4. Press ENTER. The command line should now display: ftp>.
5. To open the FTP connection, type open xxx.xxx.xxx.xxx where the
xxx.xxx.xxx.xxx represents the IP address of the IND560 terminal.
6. Press ENTER. The display should indicate that service is ready and prompt for
the username.
7. Enter the username from the IND560 FTP user list.
8. Press ENTER. If the username is valid, the display will prompt for a password.
9. Enter the password for the username used.
10. Press ENTER. If the login procedure was successful, the prompt line will now
display: ftp>
11. Enter the command: get ram:\caltest1.cfg
12. Press ENTER. This command will upload the calibration test procedure to the
directory that was showing in the command prompt line before the FTP
program was started. The client screen should indicate that the transfer was
successful.
13. Modify the file as required.
14. Download the modified file to the IND560 by typing:
put caltest1.cfg ram:\caltest.cfg
The client screen should indicate that the transfer was successful.
15. After the transfer is complete, type: quit
B-42
IND560 User’s Guide
16. Press ENTER to exit the FTP process. An acknowledgment message: Bye
displays.
17. Type: exit
18. Press ENTER to close the command line screen and return to Windows.
Figure B-8: Example FTP Sequence
Terminal Updates
Uploading New Firmware
A new version of firmware can be loaded into the IND560 using either the Ethernet
or COM1 serial port and the METTLER TOLEDO software program InSite. Firmware
can also be upgraded using the USB port and an external USB flash memory
device. These procedures are defined in Chapter 4.0, Service and Maintenance,
Upgrading Firmware.
Uploading Customized Softkey Graphics
Customized graphics for home screen softkeys may be uploaded to the IND560
terminal either using ftp through an Ethernet connection, or through a serial
connection. The file names of each graphic must match the filename of the graphic
it is to be replaced. Lists of these filenames are provided in Chapter 2, Operation.
FTP Upload
Open a DOS window and navigate to the folder where the new Softkey bitmaps are
available.
Once the command line is showing the path of the new bitmaps, open an ftp
connection with the IND560, as shown in Figure B-8
B-43
IND560 User’s Guide
At the ftp prompt, type “put filename.bmp flash:\filename.bmp”. The filename of the
new graphic must be the same as that of the bitmap it replaces. This process can
be repeated to upload multiple bitmap files.
Once all the new softkey graphics are uploaded, quit the ftp session and close the
DOS window. The new softkey graphic can now be used in the terminal, when
selected in setup at Terminal > Softkeys.
Serial Upload
To upload graphics through a serial connection:
1. Use HyperTerminal (or equivalent) to make a serial connection (with Baud =
115200, Data Bits = 8, Parity Bit = None, Stop Bits = 1, Flow Control = 0) to
the IND560 from the PC where the customized graphics reside.
2. Log in to the Shared Data server as admin. Enter a password if the terminal is
configured to require one. To upload files, the login must be at the
administrator level.
3. After receiving the “Access OK” prompt, type “fput flash:\filename.bmp”, where
filename.bmp is the name of the graphic to be uploaded.
4. The IND560 will begin to send C characters (visible in Figure B-9) to indicate
that it is in serial communication with the PC.
5. Access the Transfer | Send File menu. In the dialog box that appears (Figure
B-9), browse to the graphic file to be uploaded, and select it. In the Protocol
selection box, choose 1K Xmodem.
Figure B-9: Send File Dialog Box
6. Click OK. A progress bar will indicate that the file is being uploaded. Once
upload is complete, the Cancel button changes to OK (Figure B-10). Close the
dialog box.
B-44
IND560 User’s Guide
Figure B-10: File Transfer Dialog Box
7. When the “OK” prompt displays in HyperTerminal, if required repeat steps 3 to
6 to upload another customized graphic file.
8. Once all files have been uploaded, at the command prompt type “write
qc0149 1”. This command causes the IND560 to save the changes made
during the upload session.
9. Finally, close the connection and quit HyperTerminal.
B-45
METTLER TOLEDO
1900 Polaris Parkway
Columbus, Ohio 43240
METTLER TOLEDO® is a registered
trademark of Mettler-Toledo, Inc.
©2010 Mettler-Toledo, Inc.
71209396
