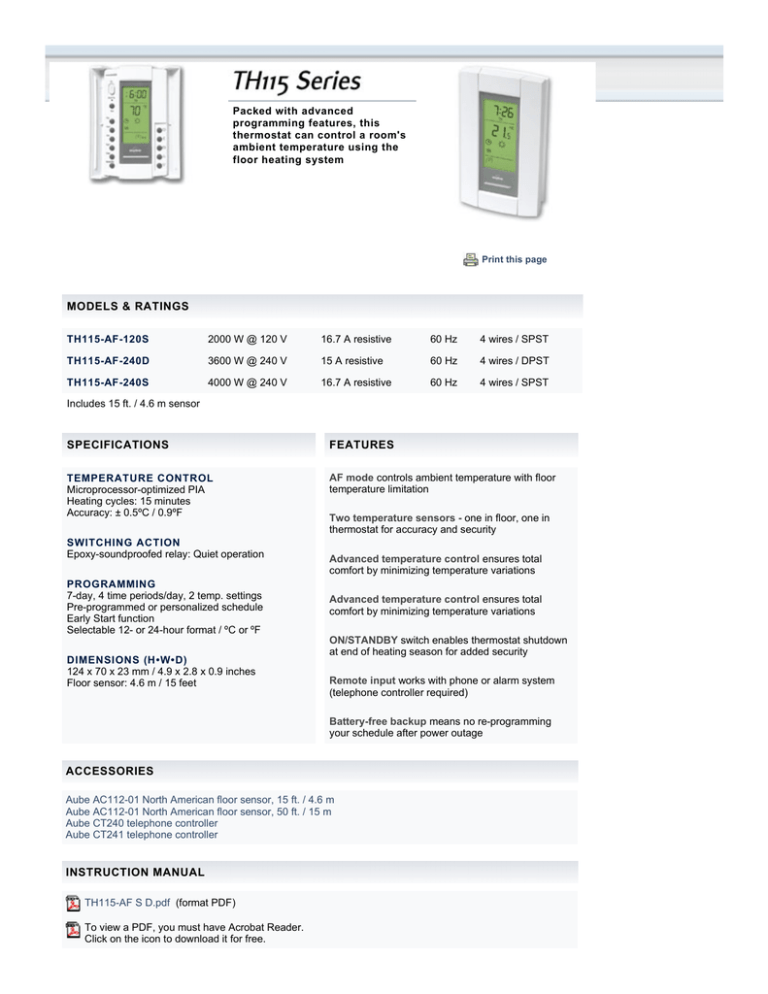

Product Specifications

Product Specifications
Packed with advanced
programming features, this
thermostat can control a room's
ambient temperature using the
floor heating system
Print this page
MODELS & RATINGS
TH115-AF-120S
2000 W @ 120 V
16.7 A resistive
60 Hz
4 wires / SPST
TH115-AF-240D
3600 W @ 240 V
15 A resistive
60 Hz
4 wires / DPST
TH115-AF-240S
4000 W @ 240 V
16.7 A resistive
60 Hz
4 wires / SPST
Includes 15 ft. / 4.6 m sensor
SPECIFICATIONS
FEATURES
TEMPERATURE CONTROL
Microprocessor-optimized PIA
Heating cycles: 15 minutes
Accuracy: ± 0.5ºC / 0.9ºF
AF mode controls ambient temperature with floor
temperature limitation
SWITCHING ACTION
Epoxy-soundproofed relay: Quiet operation
PROGRAMMING
7-day, 4 time periods/day, 2 temp. settings
Pre-programmed or personalized schedule
Early Start function
Selectable 12- or 24-hour format / ºC or ºF
DIMENSIONS (H•W•D)
124 x 70 x 23 mm / 4.9 x 2.8 x 0.9 inches
Floor sensor: 4.6 m / 15 feet
Two temperature sensors - one in floor, one in
thermostat for accuracy and security
Advanced temperature control ensures total
comfort by minimizing temperature variations
Advanced temperature control ensures total
comfort by minimizing temperature variations
ON/STANDBY switch enables thermostat shutdown
at end of heating season for added security
Remote input works with phone or alarm system
(telephone controller required)
Battery-free backup means no re-programming
your schedule after power outage
ACCESSORIES
Aube AC112-01 North American floor sensor, 15 ft. / 4.6 m
Aube AC112-01 North American floor sensor, 50 ft. / 15 m
Aube CT240 telephone controller
Aube CT241 telephone controller
INSTRUCTION MANUAL
TH115-AF S D.pdf (format PDF)
To view a PDF, you must have Acrobat Reader.
Click on the icon to download it for free.
CERTIFICATION
WARRANTY
