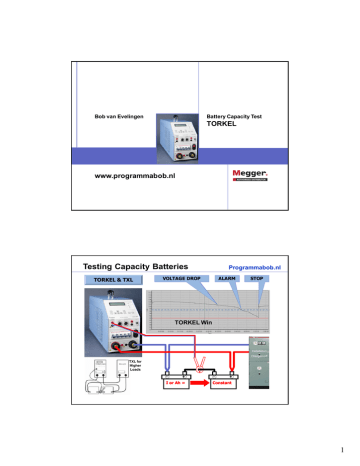

Testing Capacity Batteries

Testing Capacity Batteries

Bob van Evelingen

www.programmabob.nl

Battery Capacity Test

TORKEL

Testing Capacity Batteries

TORKEL & TXL

VOLTAGE DROP

Programmabob.nl

ALARM STOP

TORKEL Win

TXL for

Higher

Loads

-

+

-

+

Installation

Charger=off

1

Programmabob.nl

TORKEL 820 Telecom

12 - 48 V batteries, up to 270 A, 15 kW.

TORKEL 840 Utility

12 - 250 V batteries, up to 110 A, 15 kW.

TORKEL 860 Multi

12 - 480 V batteries, up to 110 A, 15 kW.

For higher currents, extra load units can be added

Programmabob.nl

TORKEL 800-Serie

Battery Load

APPLICATIONS

Capacity tests with constant current or constant power

Test of chargers

Testing according to a load profile

Weight:

TORKEL approx. 20 kg

TXL approx. 13 kg

2

I

Programmabob.nl

CURRENT or POWER PROFILE

According to profile stored previously in TORKEL:

Specify time and current or power for each step

Up to 19 steps in a profile

9 current and 9 power profiles can be stored

t

Programmabob.nl

CURRENT MEASUREMENT

TORKEL measures the current and bases the regulation on: current through TORKEL current in an external circuit measured with a DC clampon ammeter

3

Programmabob.nl

TORKEL & Extra Load TXL

MAIN SUPPLY

Programmabob.nl

No mains supply required at battery voltage 95 V - 300 V

VOLTAGE MEASUREMENT

At the input terminals on

TORKEL

At the battery terminals

4

CABLE SET FOR

TORKEL 820

2 x 3 m 70 mm

2

270 A

2 x 3 m 25 mm

2

110A

Programmabob.nl

CABLE SET FOR

TORKEL 840 & 860

Programmabob.nl

LIMIT VALUES

Six independent limit values:

Warning at voltage level, time or capacity

Automatic stop at voltage level, time or discharged capacity

5

Programmabob.nl

EXTERNAL CONTROL

Start, stop, and setting the load possible from PC software, e.g. TORKEL Win

Start and stop from external equipment by a contact closure

ALARM output

Programmabob.nl

DISPLAY

Current

Voltage

Time

Discharged capacity

TEST METHODS

Constant Current

Constant Power

Constant Resistance

Current Profile

Power Profile

6

Programmabob.nl

Preparations for Testing

Programmabob.nl

7

Connect Current Cables

Programmabob.nl

Setting the Current

Programmabob.nl

8

Programmabob.nl

Alarm Setting & Start

Programmabob.nl

9

TORKEL Win

Programmabob.nl

Voltage curve built up during the test voltage, current and capacity

Last

Recorded

Time

10

Testing Capacity Batteries

TORKEL & TXL

VOLTAGE DROP

Programmabob.nl

ALARM STOP

TORKEL Win

TXL for

Higher

Loads

-

+

-

+

Installation

Charger=off

Programmabob.nl

TORKEL

TIME-SAVING AND

CONVENIENT

Automatic regulation - you do not need to spend time and attention on adjusting the current

Alarm when voltage approaches end-of-test voltage

Higher current - shortened testing time

(also reduces recharging time)

11

Programmabob.nl

www.programmabob.nl

12
