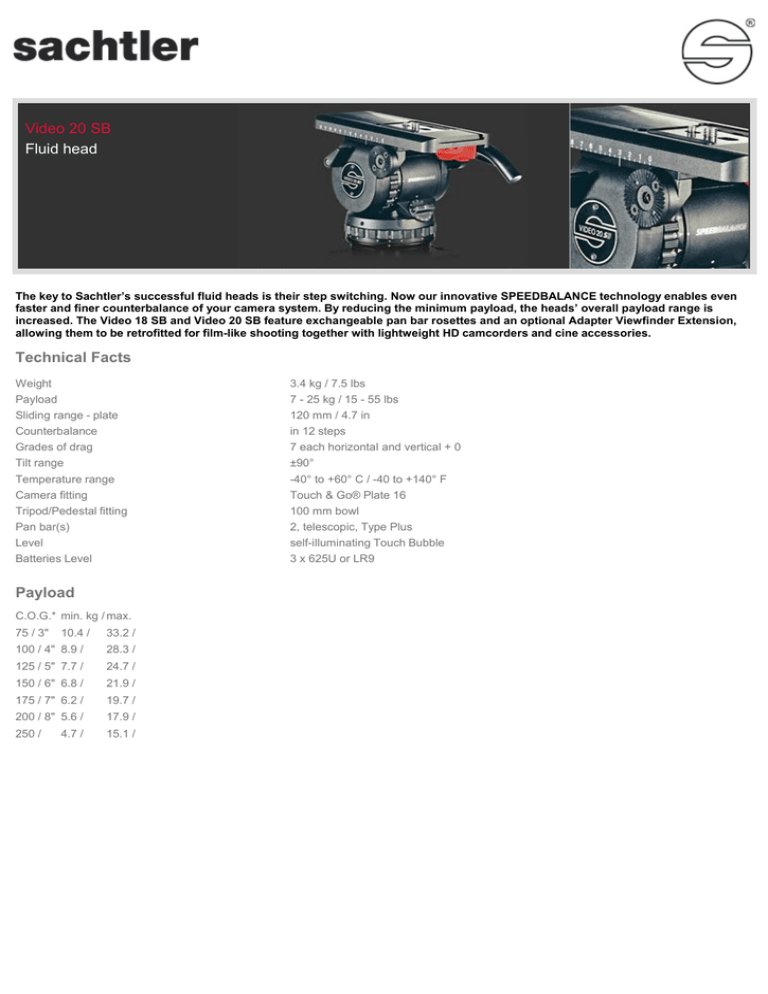

Video 20 SB
Fluid head
The key to Sachtler’s successful fluid heads is their step switching. Now our innovative SPEEDBALANCE technology enables even
faster and finer counterbalance of your camera system. By reducing the minimum payload, the heads’ overall payload range is
increased. The Video 18 SB and Video 20 SB feature exchangeable pan bar rosettes and an optional Adapter Viewfinder Extension,
allowing them to be retrofitted for film-like shooting together with lightweight HD camcorders and cine accessories.
Technical Facts
Weight
Payload
3.4 kg / 7.5 lbs
7 - 25 kg / 15 - 55 lbs
Sliding range - plate
Counterbalance
120 mm / 4.7 in
in 12 steps
Grades of drag
Tilt range
7 each horizontal and vertical + 0
±90°
Temperature range
Camera fitting
-40° to +60° C / -40 to +140° F
Touch & Go® Plate 16
Tripod/Pedestal fitting
Pan bar(s)
100 mm bowl
2, telescopic, Type Plus
Level
Batteries Level
self-illuminating Touch Bubble
3 x 625U or LR9
Payload
C.O.G.* min. kg / max.
75 / 3"
10.4 /
33.2 /
100 / 4" 8.9 /
28.3 /
125 / 5" 7.7 /
24.7 /
150 / 6" 6.8 /
21.9 /
175 / 7" 6.2 /
19.7 /
200 / 8" 5.6 /
17.9 /
250 /
15.1 /
4.7 /
Counterbalance
Damping
Dimensions
Further photos
Order data
Article
Order code
Video 20 SB Fluid head
2005
This product is also available in the following systems:
Article
Order code
System 20 SB ENG 2 CF
System 20 SB HD CF
2062
2072
System 20 SB SL HD CF
System 20 SB HD MCF
2074
2073
System 20 SB SL HD MCF
2075
Accessories
C.O.G. plate 16
Adapter FB/100
Accessory
adapter
Accessory
adapter with
clamping
FB Converter
Adapter 100/150
Adapter
viewfinder
extension 18/20
