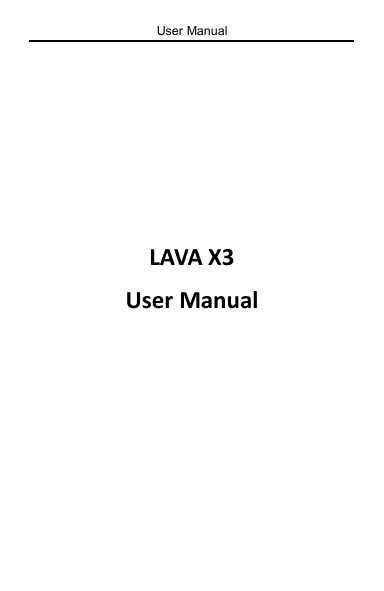

User Manual
LAVA X3
User Manual
User Manual
All rights are reserved. No part of this document
may be reproduced without permission.
While all efforts have been made to ensure the accuracy
of all the contents in this manual, we assume no liability
for errors or omissions or statements of any kind in this
manual, whether such errors or omissions or statements
resulting from negligence, accidents, or any other cause.
The contents of this manual are subject to change
without notice.
Protect our environment! We strive to produce products in
compliance with global environmental standards. Please consult
your local authorities for proper disposal.
Note: User Manual is just to guide the user about the
functionality of the phone. It is not a certificate of technology.
Some functions may vary due to modifications and upgrade of
software, or due to printing mistake.
User Manual
1- Welcome......................................................................................3
1.1. Exciting Features................................................................... 3
2- Phone Layout............................................................................. 5
2.1. Keys and Parts....................................................................... 5
2.2. Icons and Indicators..............................................................5
3- Getting Started...........................................................................6
3.1. Insert SIM card....................................................................... 6
3.2. Insert Memory card............................................................... 6
3.3. Unlock the Phone.................................................................. 7
3.4. Using the Touch screen....................................................... 8
3.5. Using the Phone’s Buttons..................................................9
3.6. Context Menus....................................................................... 9
3.7. Options menus..................................................................... 10
3.8. Menu Icons............................................................................10
4-Placing and Receiving Calls................................................. 10
4.1. Make a Call........................................................................... 10
4.2. Disable Phone Calls (Airplane mode)............................11
4.3. Disable SIM card..................................................................11
5-The Home Screen....................................................................11
5.1. Open and Close the Launcher.........................................11
5.2. Switch to Recently Used Application............................. 12
5.3. Customize Home Screen.................................................. 13
6-Connect to the Internet...........................................................15
6.1. To configure you’re Internet:.............................................15
6.2. Access Internet via Wi-Fi...................................................15
7-Managing Notifications...........................................................16
7.1. Open the Notifications Panel............................................16
7.2. Respond to Notifications................................................... 16
7.3. Close Notifications Panel.................................................. 16
8-Messaging..................................................................................16
LAVA X3
1
User Manual
8.1. Message environment & Settings...................................16
8.2. Using the Onscreen Keyboard........................................ 18
8.3. Create and Send Multimedia Message.........................19
8.4. Operation on a message:..................................................19
8.5. Lock a Message...................................................................20
9-Multimedia..................................................................................21
9.1. Camera...................................................................................21
9.2. Gallery.................................................................................... 21
9.3. Share an image....................................................................22
9.4. Music.......................................................................................22
9.5. FM Radio............................................................................... 22
9.6. Record Sounds.................................................................... 22
9.7. Make Screenshot................................................................ 22
10-Connect to Networks and Devices................................... 23
10.1. Connect to PC....................................................................23
10.2. Connect to Internet...........................................................24
10.3. Connect to Wi-Fi Networks............................................ 24
10.4. Pair With Bluetooth Devices.......................................... 24
10.5. Connect to Internet via your Phone............................. 25
10.6. Install Secure Certificate from SD Card......................25
11-Download Applications......................................................... 26
12-Phone Settings.......................................................................27
13- Health and Safety Information.......................................... 28
Lava warranty certificate............................................................33
LAVA X3
2
User Manual
1- WELCOME
Congratulations on your purchase of the LAVA mobile phone.
Your phone provides many functions which are practical for
daily use, such as a hands-free loudspeaker, camera, MP3 player,
internet and much more.
You can read the manual to understand how to use X3 Mobile
phone and experience the well-established functions and simple
operation method. Please use the original accessory in order to
achieve the best use of effects. Use of non-original components
may lead to damage caused to the machinery, in which case
Lava shall not be responsible. Lava Warranty Certificate
enclosed at the end.
1.1. Exciting Features
 Android 5.1
 5.0 inch Screen
 Cameras (Front 5MP and Back 8MP)
 1.3GHz Quad Core Processor
 External Memory (Expandable to 32 GB)
 Dual SIM
 Multimedia player
 Gravity sensor
 Wi-Fi
 GPS
 Battery 2500mAh
 For your safety
Read this simple guideline. Avoiding them may be dangerous or
LAVA X3
3
User Manual
illegal. Read the complete user manual for further information.
Do not switch your phone on when the use of wireless devices is
prohibited or when the wireless device may cause interference
or danger.
Do not use your phone while driving.
Follow relevant rules or regulations in hospitals and health care
facilities. Switch your phone off near medical devices.
Switch your phone off in an aircraft. The radio signal from it may
cause interference in signals of the aircraft.
Switch your phone off near high-precision electronic devices. It
may affect the performance of these devices.
Do not attempt to disassemble your phone or its accessories.
Only qualified personnel may service or repair the phone.
Do not place your phone and its accessories in containers with
strong electromagnetic field.
Do not place magnetic storage media near your phone.
Radiation from the phone may erase the information stored on
them.
Do not put your phone in a high-temperature place or use it in a place
with flammable gas such as a petrol pumps.
Keep your phone and its accessories away from children.
Do not allow children to use your phone without guidance.
Respect others' privacy and legal rights when using your phone.
LAVA X3
4
User Manual
2- PHONE LAYOUT
2.1. Keys and Parts
1.Front Camera
4.Menu Key
7.Power Key
10.Volume Key
2.Receiver
5.Home Key
8.Rear Camera
11.Speaker
3.Screen
6.Back Key
9.Flashlight
12.P&L sensor
2.2. Icons and Indicators
Icons
Indicators
Icons
Signal strength
indicator
New missed calls
LAVA X3
Indicators
Alarm has been
set
Wi-Fi is
activated
USB is connected
Bluetooth is on
The headphone is
being used
New message
from SIM 1
Battery charging
symbol
Airplane mode is
activated
5
User Manual
3- GETTING STARTED
3.1. Insert SIM card
X3 is a Dual SIM mobile phone allowing you to use the facility of
two networks. To insert SIM card(s):
 Switch off the mobile phone and remove the rear cover and
battery.
 Insert the SIM card correctly in the card slot(s). (see below
fig)
Insert SIM card carefully!
 Finally insert the battery and replace the rear cover of the
mobile phone.
3.2. Insert Memory card
X3 allows you to expand external memory with a micro SD card,
up to 32GB.
 Power off the mobile phone, and then remove the rear
cover and battery.
 Insert the memory card into the slot.
LAVA X3
6
User Manual
 Finally insert the battery and the rear cover of the mobile
phone.
Use only compatible memory cards approved by with this
device. Incompatible memory cards may damage the card or
the device will corrupt the data stored in the card.
3.3. Unlock the Phone
You may need to provide PIN, Password, or draw a pattern to
unlock your phone.
To unlock the screen:
 Press the power key to wake up the phone.
 Hold and drag the unlock icon to upside to unlock.
You may be required to unlock your phone based on the unlock
method in settings.
Smart awake:
X3 offers you smart awake function, when the screen is locked,
you can scroll gestures on the screen to unlock it to enter into
the designated application, or double click to wake up the
screen, go to Settings->Smart features  Smart awake to turn
ON&OFF this function, you can also customize the function of
the letter gestures. Below please find the list of the default
function. The function is set off as default.
LAVA X3
7
User Manual
Gesture
Application
Gesture
Application
Double Tap
Wake up screen
w
Chome
Slide left
Camera
m
Play Music
Slide right
Calculator
c
Camera
Slide up
Browser
s
Settings
Slide down
Voice search
v
Video player
O
Gallery
e
Gmail
Z
FM Radio
To set the unlock method:
 On the main menu, touch Settings > Security.
 Touch set up screen lock.
 Choose the type of locking as desired. You can set your
screen lock on the basis of pattern, PIN, Password or none.
3.4. Using the Touch screen
You can use the touch screen in the following ways:
 Touch: Acts on items on the screen, such as application and
settings icons, to type letters and symbols using the onscreen
keyboard, or to press onscreen buttons.
 Touch and hold: Touch and hold an item on the screen until
an action occurs.
 Drag: Touch and hold an item and move your finger on the
screen until you reach the target position.
 Swipe or slide: Quickly slide your finger across the surface
of the screen, (without dragging an item). For example, slide
the screen up or down to scroll a list,
 Pinch: In some applications (Such as Browser, and Gallery)
you can zoom in and out by placing two fingers on the screen at
once and pinching them together (to zoom out) or spreading
them apart (to zoom in).
 Rotate the screen: On most screens, the orientation of the
screen changes as you rotate it. You can turn this feature ON
and OFF.
LAVA X3
8
User Manual
3.5. Using the Phone’s Buttons
The phone’s buttons offer a lot of functions and shortcuts.
Button
Press
Menu: This is used for recent application
Home: returns to Home screen. Hold it to
access the list of last used applications.
Back: returns to the previous screen you were
working in, even if it was in a different
application. Can be used to hide the keyboard.
The phone provides you with Context menus and Options
menus for accessing the features in an intuitive way.
3.6. Context Menus
You can open context menu by touching
key. Not all
screens have context menus. Examples of context menu from
Contacts environment:
LAVA X3
9
User Manual
3.7. Options menus
Options menus contain tools that apply to specific items on the
screen. You can open an option by touching and holding an item
on the screen. Not all items have options menus.
When you touch and hold some items on a screen, an Options
menu opens.
3.8. Menu Icons
You have the following menu icons to easily let you access its
important features:
Opens the dialer
Opens messaging
Opens the main menu
Opens the browser
4-PLACING AND RECEIVING CALLS
You can dial a phone number or touch a number in your
contacts. You can also place from the call log or contacts.
4.1. Make a Call
icon on main menu or the home screen to dial
 Tap the
the desired number.
 Touch the
icon on main menu or the home screen to
make a call from contact, groups or favorites.
 To dial an international number, touch and hold the 0 key to
enter the Plus (+) symbol, and then enter the international
country prefix, followed by the phone number
 Touch the
icon to call with SIM 1 or SIM 2.
 Press the Volume Up/ Down keys to adjust the call volume.
 You can access Call Logs, Contacts from the dialer screen.
LAVA X3
10
User Manual
 While during a call, touch the
icon to end a call.
4.2. Disable Phone Calls (Airplane mode)
Some locations like airplanes may require you to turn off your
mobile, Wi-Fi, and Bluetooth wireless connections.
 Press and hold the Power button.
 Touch the Airplane mode.
4.3. Disable SIM card
If you want to close the SIM card, to do it go to:
Settings
> SIM management.
> turn off SIM1/SIM2
5-THE HOME SCREEN
When you sign in, the home screen opens.
The Home screen is your starting point to access all the features
on your phone. Touch the main menu icon at the bottom of the
screen to view all installed applications.
The status bar shows the time, signal
strength, battery status, and notification.
Long Press and hold an empty spot to
change wallpaper.
Touch an icon to launch the Corresponding
application; bottom icons are accessible
from all desktop screens.
Touch and hold to move or remove
an icon or a widget.
5.1. Open and Close the Launcher
Touch the Launcher Icon
LAVA X3
to open the main menu.
11
User Manual
You have access to all applications installed on your device and
their widgets when available.
Touch an application to open and launch it.
To add an application shortcut to the desktop screen, press and
hold it until it vibrates and enters Home screen. Place it and
release your finger.
Slide the Launcher left or right to bring more icons into view.
As soon as you install a new application, it comes in this list.
Widgets come when you press menu key on the home screen.
You can directly touch WIDGETS at below of the screen
You cannot launch widget like an application; you can only place
it on desktop screen.
Press and hold it until it vibrates and enters Home screen. Place
it and release your finger. A context menu opens to configure
the widget or resize it, naturally, it depends on the widget.
Press Home icon or Back icon to close the Launcher.
5.2. Switch to Recently Used Application
icon for open recently used
 Press and hold the
application.
LAVA X3
12
User Manual
 Touch an icon to open its application. Or press
to
return to the current application.
5.3. Customize Home Screen
You can add applications, shortcuts, widgets, and other items to
any part of the Home screen or change the wallpaper.
Applications:
 Touch the Launcher Icon
to open the main menu.
 To add an application shortcut to the desktop screen, press
and hold it until it vibrates and enters Home screen. Place it and
release your finger.
Widgets:
to open the Home screen.
 Press
 Touch the Launcher Icon
on your home screen.
 Touch widgets on the top of screen.
You are in the main widgets screen, you can move between
screens: Swipe left or right
 Drag a widget to a home screen: Touch and hold the
widget’s icon, slide your finger where you want to place it, and
lift your finger.
 You may be asked to make further choices before the widget
activates. If there isn’t room where you dropped it, the widget
won’t get added to the Home Screen.
Wallpapers: Wallpapers are images from Gallery, still images
included with the system, and live images. They take the place
of the default background for your Home Screen.
Touch and hold anywhere on a desktop Home screen that’s not
occupied. A list of options appears.
 Touch one of the following wallpaper source:
o Gallery: Choose from pictures that you’ve taken with camera
or downloaded to your device.
LAVA X3
13
User Manual
o Live Wallpaper: Choose from a scrolling list of animated
wallpapers. Even you can choose a video file from your Video
Wallpaper folder.
o Wallpaper: Choose from thumbnails of default images.
 For set wallpaper, touch right option then select SET
PICTURE AS) and set wallpaper.
Folders: You can very easily regroup desktop icons in a folder on
screen to save space and access more applications.
 Touch and hold any icon on desktop screen to move it.
 Go on another icon and release to create a folder containing
both icons.
 Then add as many icons as folder can hold, give it a name,
move it where you want.
You have all the tools to customize your Phone.
LAVA X3
14
User Manual
6-CONNECT TO THE INTERNET
6.1. To configure you’re Internet:
 Go to Settings> Wireless & Networks >More > Mobile
Networks >Tap Data Enabled.
 By default, your network provider sends the Access Point
Name settings via SMS, or it comes automatically with your SIM
card. You may need to install these settings. After this, you can
choose from the listed access point names. If the access point
names are not listed by default, please contact your network
provider for the same.
 To add any operator Access point Name, go to settings >
More > Mobile networks > Access Point Name.
 After you have selected or configured the access point name,
go to Settings> Wireless & Networks >Data usage >Tap Mobile
Data to enable Internet connection.
6.2. Access Internet via Wi-Fi
To browse the Internet via Wi-Fi:
 Go to Menu> System settings> wireless & networks and
then tap Wi-Fi.
 Next, go to Menu> settings> wireless & networks > Wi-Fi
Settings and then enable Wi-Fi. Next, select the WIFI
connection listed under Wi-Fi networks.
LAVA X3
15
User Manual
7-MANAGING NOTIFICATIONS
Notification icons inform you of new messages and events.
When you receive a notification, its icon appears in the status
bar, along with a summary that appears only briefly.
7.1. Open the Notifications Panel
Drag the status bar down from the top of the screen as shown
below:
The Notifications panel displays your network provider name
and a list of your current notifications.
7.2. Respond to Notifications
Open the notification panel and touch a notification to respond
to it. What happens next depends on the notification.
7.3. Close Notifications Panel
Drag the tab at the bottom of the Notifications panel to the top
of the screen. Or just press the back button. The panel also
closes when you touch a notification to respond to it.
8-MESSAGING
8.1. Message environment & Settings
You can use Messaging to exchange text messages and
LAVA X3
16
User Manual
multimedia messages with your friends.
Touch to compose a new text or
multimedia message.
The messages settings allow you to set SMS/MMS limits,
notifications, vibrate or ringtones, delivery reports and many
LAVA X3
17
User Manual
others.
Take a tour and explore messages settings, you’ll find
interesting things.
8.2. Using the Onscreen Keyboard
Some applications display the keyboard by default. In others,
you touch a text field where you want to enter text, to open the
keyboard.
Write your message here. After
typing, press
icon to
close the keyboard.
Touch and hold the text field to
open a menu and to copy/cut
texts.
Touch once to capitalize the
next letter you type. Touch and
hold or double tap for
CapsLock.
Secondary characters panel (special,
symbols, numbers)
LAVA X3
18
User Manual
Recipient zone: write the
name, the number or tap the
icon on right to access contacts
list
Chose the SIM card you want
to send your message with.
This is to erase characters
This is enter key, press it then
cursor move to next line
8.3. Create and Send Multimedia Message
A Message becomes an MMS if you send it to an email address,
or add multimedia media file(s).
 Touch compose new message.
 Enter or select a mobile phone number.
 Touch the composition text box and write your message.
 Touch Attach to attach various types of files.
 Send the MMS.
8.4. Operation on a message:
 Open the message thread containing the message you want
to operate.
LAVA X3
19
User Manual
 Touch and hold this message until a context menu opens.
 Make your choice.
To forward a message:
 Touch forward in this menu.
 Add a contact.
 Touch Send to send the message.
You can also Copy message text, save message to SIM card,
View message details and delete message.
8.5. Lock a Message
You can lock a message so it won’t be deleted if you reach your
storage limits.
 Touch and hold message in a message window.
 Touch Lock message in the menu that opens.
Unlock a message by touching and holding it and then touch
Unlock message.
LAVA X3
20
User Manual
9-MULTIMEDIA
9.1. Camera
Your camera’s pictures and videos are stored in both the SD
card and device. You can copy pictures and videos from both
the SD card and device to a PC and vice versa.
Touch to change to
face beauty mode
Touch to change
to nomal mode
Touch to change
Touch to change
To motion track mode
to live photo mode
Open or close
gesture capture
Touch to change
Touch to take
HDR capturing
Picture or video
mode
Change flash mode
Change between
Touch to change settings
front and back camera
9.2. Gallery
You can use the Gallery to view pictures and play videos and
share files.
 Touch the Gallery icon in the main menu.
LAVA X3
21
User Manual
 Touch an album to open and view its contents.
 Touch a picture or a video in an album to view it.
9.3. Share an image
 Open the main Gallery window.
 Check or uncheck the image you want to share.
 Touch the
icon at the top of screen to share via
Bluetooth, Email.
 You can share via email, Bluetooth, and so on.
9.4. Music
You can easily transfer your favorite music from your PC to the
SD card and experience a whole world of interesting and
melodious music.
Press the phone’s volume up/down keys on the left side of the
mobile phone to adjust the volume.
9.5. FM Radio
You can listen to your favorite FM channels using the inbuilt FM
receiver of your phone and a corded earphone (the wire is used
as antenna).
 Record sound
 Search FM stations
 Enable speaker
Press the phone’s volume up/down keys on the left side of the
mobile phone to adjust the volume.
9.6. Record Sounds
 Touch the Sound Recorder in the main menu.
to start recording a voice clip. “Recording”
 Tap
appears when it is recording a voice clip.
to stop and save the recording.
 Tap
9.7. Make Screenshot
Press and hold for 1 second both Volume Down and Power
buttons together.
LAVA X3
22
User Manual
10-CONNECT TO NETWORKS AND DEVICES
Your phone can connect to a variety of networks and devices,
including Wi-Fi, GPRS, Bluetooth, devices, such as headsets. You
can also transfer files to/from your PC through the data cable.
10.1. Connect to PC
You can connect your phone to PC via following options:
Case 1: When NO memory card in the device:
Connect the phone to your PC with the help of USB cable.
“Connected as a media device" notification will be shown.
Touch the notification, to change and connect to other modes.
Case 2: When memory card in the device:
In this case your phone will connect to PC with the help of MTP
mode but you can access the content of memory card by
selecting the option of USB storage.
After select USB storage option, the follow UI will be shown,
LAVA X3
23
User Manual
touch "Turn on USB storage".
You can now exchange/manage data between your phone and
PC.
Once finished, for USB storage mode, click again (“Turn off USB
storage”) to unmount storage from computer and use it with
phone again. For other mode, just eject the USB cable.
Note: During USB connection, phone storage could not be
accessed on phone.
10.2. Connect to Internet
Refer to section 6 for details.
10.3. Connect to Wi-Fi Networks
Refer to Section 6 for details.
10.4. Pair With Bluetooth Devices
 Go to Settings > Wireless & networks> Bluetooth settings.
 If Bluetooth is off, check Bluetooth to turn it on. Your phone
scans and displays the Bluetooth devices in range.
 If the device you want to pair with is not in the list, make it
discoverable.
LAVA X3
24
User Manual
 If your phone stops scanning before you make the other
device discoverable, touch Scan for devices.
 Touch the ID of the other device in the list Settings to pair
them. If you are prompted to for a password, enter any
password on one device and enter the same password you
entered in the other device to be paired, If the pairing is
successful, your phone connects to the device.
10.5. Connect to Internet via your Phone
You can browse the Internet on your PC using your mobile
phone. To do this:
 Connect your mobile phone to your PC via the USB cable.
 Go to Settings> Wireless & Networks>More >Tethering &
portable hotspot and then touch USB Tethering.
A prompt for installation will appear on your PC. Proceed as
suggested.
In case of Linux, Windows 7 and Vista OS, the drivers get
automatically installed. However, in case of Windows XP, maybe
you need to manually install the drivers.
10.6. Install Secure Certificate from SD Card
If your VPN or Wi-Fi Network relies on secure certificates, you
must obtain the certificates and store them in your phone’s
storage, before you can configure access to those VPN or Wi-Fi
networks on your phone.
You may need to download the certificates from a website.
 Copy the certificate from your computer to the root of the
SD card.
 Touch Settings> Security.
 Touch Install from SD card under Credential Storage.
 Touch the file name of the certificate to install. Only the
names of certificates that you have not already installed on
your phone are displayed.
 If prompted, enter the certificate’s password and touch OK.
 Enter a name for the certificate and touch OK.
LAVA X3
25
User Manual
11-DOWNLOAD APPLICATIONS
The phone has a default configuration which includes some
applications. Discover all others apps by using play store. You
will be able to connect with 3G or Wi-Fi for example, and by
signing in the application with just an email.
This is what it looks like:
LAVA X3
26
User Manual
12-PHONE SETTINGS
You can go to Settings to customize your phone’s preferences
and behavior in a variety of ways:
Let’s you configure and manage connections to networks
and devices by Using Wi-Fi.
Let’s you manage Bluetooth to communicate with other
Bluetooth
Bluetooth devices, such as headsets and other portable
devices.
Let’s you turn on or turn off your SIM card and configure
SIM
your SIM card to be used to voice call, video call, SMS
management
send and data connection.
Data usage refers to the amount of data uploaded or
Data usage
downloaded by your device during a given period.
Let’s you configure how and at what volume the phone
Audio profiles
rings, vibrates etc.
Display
Let’s you configure brightness and other screen settings.
Let’s you see and manage available space on your phone
Storage
and on your SD card.
Battery
Let’s you check the battery level and status.
Let’s you view all applications downloaded or on SD card
Apps
and manage all running applications in devices.
Let’s you add, remove and manage your Google and
Accounts& sync
other supported accounts.
Let’s you set the location related settings like Wi-Fi and
Location
mobile network for your phone
Let’s you protect personal information, like adjust your
Security
phone's lock, set SIM card lock etc.
Language&
Let’s you select the language for the text on your phone
input
and for configuring the onscreen keyboard.
Let’s you backup your personal data and settings and
Backup& reset
reset your phone.
Let’s you choose preferences such as format and time
Date & time
zones.
Enable your installed accessibility applications and adjust
Accessibility
related settings.
About phone
View information about your phone, such as signal
strength, status, phone information and battery use.
Wi-Fi
LAVA X3
27
User Manual
13- HEALTH AND SAFETY INFORMATION
Certification Information (RoHS)
We at LAVA take our social responsibility seriously and are
committed to the cause of saving our environment, it is in
keeping with these commitments that we are proud to state
that LAVA phones are RoHS complaint.
Certification Information (SAR)
Your phone is designed not to exceed the limits of emission of
radio waves recommended by international guidelines. These
guidelines include safety margins designed to assure the
protection of all persons, regardless of age and health.
SAR (specific absorption rate) is the unit of body-absorbed RF
quantity when the phone is in use. SAR value is ascertained
according to the highest RF level generated during laboratory
tests.
The true SAR level during phone usage will be far lower than
this level.
The SAR value of the phone may change depending on factors
such as how close you are to a network tower, use of
accessories and other enhancements.
The highest SAR value of the device is less than 1.6W/Kg
averaged over 1 gm of human tissue.
The SAR value may differ depending on national reporting,
testing requirements and the network band.
SAR Recommendations
Use a wireless hands-free system (headphone, headset) with a
low power Bluetooth emitter.
Please keep your calls short and use SMS whenever more
convenient. This advice applies especially to children,
adolescents and pregnant women.
Prefer to use your cell phone when the signal quality is good.
People having active medical implants should preferably keep
LAVA X3
28
User Manual
the cell phone at least 15 cm away from the implant.
Maintain a preferable distance of 15 mm from the device.
Safe Driving
Do not use the phone while driving. When you have to use the
phone, please use the personal hands-free kit.
Please do not put the phone onto any passenger seat or any
place from which it may fall down in case of vehicular collision
or emergency braking.
During Flight
Flight is influenced by interference caused by the phone. It is
illegal to use a phone on the airplane. Please turn off your
phone or switch to flight mode during a flight.
In Hospitals
Your Phone’s radio waves may interfere with the functioning
medical devices. Consult a physician or the manufacturer of the
medical device to determine whether they are adequately
shielded from external Radio Frequency. Switch off your device
when regulations instruct you to do so.
Do not carry the wireless device in the breast pocket.
Turn off the phone if there is any reason to suspect that
interference is taking place.
Unsafe Areas
Please turn off your phone when you are close to a gas station
or in the vicinity of any place where fuel and chemical
preparations, or any other dangerous goods are stored.
Taking Care of Your Device
Your device is a product of superior design and craftsmanship
and should be handled with care: The following suggestions will
help you protect your phone:
Keep the device dry. If your device gets wet, remove the battery
without turning on the device, wipe it with a dry cloth and take
LAVA X3
29
User Manual
it the service center.
Do not store the device in high or cold temperature. High
temperatures can shorten the life of electronic devices and
damage batteries.
Do not use or store the device in dusty, dirty areas. Its moving
parts and electronic components can be damaged.
Do not attempt to open the device other than as instructed in
this guide. Repairing the phone by yourself other than our
authorized service agents/centers goes against the warranty
rules.
Do not drop, knock, or shake the device. Rough handling can
break internal circuit boards and fine mechanics.
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device. Only use a soft, clean, dry cloth
to clean the surface of the device.
Do not store your device near magnetic fields or allow your
device to come in contact with magnetic fields for extended
period of time.
Battery Recommendations
Please put the battery in a well-ventilated place out of direct
sunlight. Charge the battery at room temperature range.
If the time span of the battery after charging becomes much
shorter than usual, the battery life is at an end. Replace the
battery with a new battery of the same make and specification.
Do not discard the battery with household trash. Please dispose
of used battery according to your local environmental laws and
guidelines.
Use manufacturer approved batteries, chargers, accessories and
supplies. We will not be responsible for user’s safety when
using unapproved batteries or accessories.
Recycle Your Phone
The WEEE logo (shown at the left) appears on the product
LAVA X3
30
User Manual
(battery, handset, and charger) to indicate that
this product must not be disposed off or
dumped with your other household wastes. You
are liable to dispose of all your electronic or
electrical waste equipment by relocating over
to the specified collection point for recycling. of
such hazardous waste.
Collection and proper recovery of your electronic waste
equipments at the time of disposal will allow us to help
preserve the environment. Recycling of the electronic waste
equipment will ensure safety of human health and
environment.
Disclaimers
The colors and specifications shown/mentioned in the user
manual may differ from the actual product. Images shown are
for representation purpose only. Other product logos and
company names mentioned herein may be trademarks or trade
names of their respective owners.
The content of this manual may vary from the actual content
displayed in the mobile phone. In such a case, the later shall
govern.
We keep the right to make modifications to any of the content
in this user guide without public announcement or prior
notification.
For devices with external power supplies, plug socket should be
placed in short distance and easily accessible.
Using the wrong type battery replacement there is a danger of
explosion, be sure to follow the instructions disposal of used
batteries.
Copyrights
All rights reserved. Reproduction, transfer, distribution or
storage of part or all of the contents in this document in any
LAVA X3
31
User Manual
form without the prior written
permission of is strictly prohibited.
To prevent possible hearing damage,
do not listen at high volume levels of
long periods.
To use the device only with the
earphones included, never change the
earphones included for another one.
LAVA support and contact Information
Visit www.Lavamobiles.com for additional information,
downloads and services related to your LAVA product.
To check for the nearest LAVA service center location for
maintenance services, please visit www.lavamobiles.com/
support-services
Service Center number
No. : 1860-200-7500
(Available from Monday to Sunday, between 10:00AM to
7:00PM)
LAVA X3
32
User Manual
Lava warranty certificate
Limited warranty:
LAVA international Ltd. (LAVA) provides limited warranty for
your mobile phone and original accessories delivered with your
mobile phone (hereinafter referred to as “product”)
The warranty period for the transceiver is one (1) year and for
battery, charger and headset is six (6) months from the date of
purchase.
LAVA Warranty
Subject to the conditions of this Limited Warranty, LAVA
warrants a product to be free from defects in design, material
and workmanship at the time of its original purchase by you,
and for a subsequent period of one (1) year for transceiver and
six (6) months for battery & charger.
You shall have no coverage or benefits under this warranty in
the event that any of the following conditions are applicable:
- The product has been subjected to abnormal use or
conditions, improper storage, exposure to 1.excessive moisture
or dampness, exposure to excessive temperature, unauthorized
modification, unauthorized repair (including but not limited to
use of unauthorized spare parts in repairs),abuse, accidents,
Acts of God, spills of food or liquids, improper installation
- You have not notified Lava of the defect in the product during
the applicable warranty period.
- The product serial no. code or the accessories date code has
been removed, defaced or altered.
- The product has been used with or connected to an accessory
(i) Not supplied by Lava or its affiliates, (ii) Not fit for use with
the product or (iii) Used otherwise than in manner intended.
- The seals of the product’s battery enclosure have been
broken or shown evidence of tempering or the product’s
battery has been used in equipment other than that for which it
has been specified usable by LAVA.
LAVA X3
33
User Manual
- All plastic surfaces and all other externally exposed part that
is scratched or damaged due to normal use.
To get maximum of your new product, we recommend you to:
- Read the guidelines for safe and efficient use as mentioned in
the manual.
- Read the terms and conditions of your Lava warranty in the
manual.
- Keep your original receipt; you will need it for warranty
services if asked to produce.
- Present this Lava Warranty Certificate along with original
proof of purchase whenever you require any warranty services.
In case Lava product needs service, please visit the nearest Lava
service centers given in the service guide. Please visit our
Website www.lavamobiles.com for updated list of Authorized
Service Centers near to your location.
Important note: for your warranty to be valid, all information on
the warranty certificate has to be completed including the
stamp from the authorized distributor/retailer.
All warranty information, product features and specifications
are subject to change without notice.
IMEI No.
………………………………………………………
Dealers Stamp
……………………………………………………….
Date of purchase
……………………………………………………….
Model No.
………………………………………………………
LAVA X3
34
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
