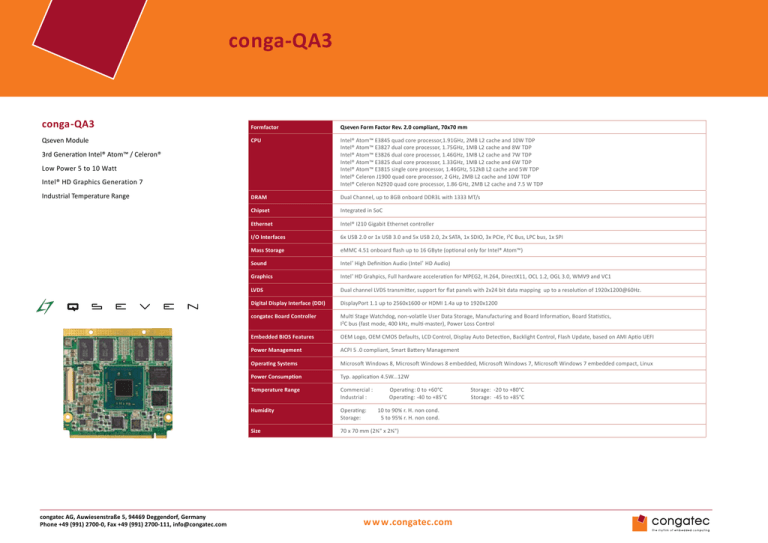

conga-QA3

conga-QA3
conga-QA3
conga-QA3
Formfactor
Qseven Form Factor Rev. 2.0 compliant, 70x70 mm
Qseven Module
CPU
Intel® Atom™ E3845 quad core processor,1.91GHz, 2MB L2 cache and 10W TDP
Intel® Atom™ E3827 dual core processor, 1.75GHz, 1MB L2 cache and 8W TDP
Intel® Atom™ E3826 dual core processor, 1.46GHz, 1MB L2 cache and 7W TDP
Intel® Atom™ E3825 dual core processor, 1.33GHz, 1MB L2 cache and 6W TDP
Intel® Atom™ E3815 single core processor, 1.46GHz, 512kB L2 cache and 5W TDP
Intel® Celeron J1900 quad core processor, 2 GHz, 2MB L2 cache and 10W TDP
Intel® Celeron N2920 quad core processor, 1.86 GHz, 2MB L2 cache and 7.5 W TDP
DRAM
Dual Channel, up to 8GB onboard DDR3L with 1333 MT/s
Chipset
Integrated in SoC
Ethernet
Intel® I210 Gigabit Ethernet controller
I/O Interfaces
6x USB 2.0 or 1x USB 3.0 and 5x USB 2.0, 2x SATA, 1x SDIO, 3x PCIe, I²C Bus, LPC bus, 1x SPI
Mass Storage
eMMC 4.51 onboard flash up to 16 GByte (optional only for Intel® Atom™)
Sound
Intel® High Definition Audio (Intel® HD Audio)
Graphics
Intel® HD Grahpics, Full hardware acceleration for MPEG2, H.264, DirectX11, OCL 1.2, OGL 3.0, WMV9 and VC1
LVDS
Dual channel LVDS transmitter, support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200@60Hz.
Digital Display Interface (DDI)
DisplayPort 1.1 up to 2560x1600 or HDMI 1.4a up to 1920x1200
congatec Board Controller
Multi Stage Watchdog, non-volatile User Data Storage, Manufacturing and Board Information, Board Statistics,
I²C bus (fast mode, 400 kHz, multi-master), Power Loss Control
Embedded BIOS Features
OEM Logo, OEM CMOS Defaults, LCD Control, Display Auto Detection, Backlight Control, Flash Update, based on AMI Aptio UEFI
Power Management
ACPI 5 .0 compliant, Smart Battery Management
Operating Systems
Microsoft Windows 8, Microsoft Windows 8 embedded, Microsoft Windows 7, Microsoft Windows 7 embedded compact, Linux
Power Consumption
Typ. application 4.5W...12W
Temperature Range
Commercial :
Industrial :
Humidity
Operating:
Storage:
Size
70 x 70 mm (2¾" x 2¾")
3rd Generation Intel® Atom™ / Celeron®
Low Power 5 to 10 Watt
Intel® HD Graphics Generation 7
Industrial Temperature Range
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
Operating: 0 to +60°C
Operating: -40 to +85°C
10 to 90% r. H. non cond.
5 to 95% r. H. non cond.
w w w.congatec.com
Storage: -20 to +80°C
Storage: -45 to +85°C
eDP to LVDS
NXP PTN3460
RES
DDI0
DP/TMDS
SSE4.2
PCIe Port 2
X
PCIe to GBE
Intel l210
Ethernet
USB 3.0 Port 0
USB 2.0 Port 3..5 3x USB 2.0
DISPLAY & GRAPHICS
Interfaces
VGA
HDMI/DVI
USB Hub
Multimedia Features
WMV9
SVC
WMV
DivX
DirectX 11
IMAGE PROCESSING
MIPI-CSI 2.0 Up to 24MP ISP
2x SATA 3G
LVDS
SAMU
MVC
OpenGL 3.0 OpenGLES 2.0
OpenCL 1.2
Full HD
MIPI CSI
Feature
Connector
INTEGRATED I/O
HDA I/F
Integrated I/O Interfaces
4 bit SD card
SPI Bus
CAN Bus
Core #4
AVX
SoC TRANSACTION ROUTER
MPEG-2
H.264
SM Bus
SD/MMC
Core #2
AES
DisplayPort
1x SuperSpeed
USB 2.0 Port 0..2 3x USB 2.0
SATA Port 0
SATA Port 1
1MB L2 cache shared by 2 cores
Core #3
PCIe Port 1
Channel 2
DDR3L-1333 MT/s
PROCESSOR CORE
Tri-gate 3-D 22nm Quad core SoC
Core #1
PCIe Port 0
PCIe Port 3
COMPUTE UNIT
eDP
low power
LVDS/eDP
high performance
LVDS/eDP
Channel 1
DDR3L-1333 MT/s
Onboard
DDR3L Memory
Intel Bay Trail SoC
LVDS/eDP Assembly Option
230 Edge Finger
MEMORY CONTROLLER (1066 or 1333 MT/s)
Qseven 2.0
Connector
Onboard
DDR3L Memory
conga-QA3 - Block diagram
X
SATA
USB 2.0
USB 3.0
PCIe
LPC Bus
GPIOs
HD Audio
SPI
PCU
eMMC 4.5
SPI Flash
LPC Bus
Fan Control
I2C Bus
SLP_BTN
LID_BTN
LPC
congatec
Board Controller
TX/RX BC
congatec AG, Auwiesenstraße 5, 94469 Deggendorf, Germany
Phone +49 (991) 2700-0, Fax +49 (991) 2700-111, info@congatec.com
w w w.congatec.com
SSD
conga-QA3 - Order information
Article
PN
Description
conga-QA3/E3845-2G eMMC4
015100
Qseven module with Intel® Atom™ E3845 quad core processor with 1.91GHz, 2MB L2 cache, 2GB 1333MT/s DDR3L onboard memory and 4GB eMMC onboard flash.
conga-QA3/E3827-2G eMMC4
015101
Qseven module with Intel® Atom™ E3827 dual core processor with 1.75GHz, 1MB L2 cache, 2GB 1333MT/s DDR3L onboard memory and 4GB eMMC onboard flash.
conga-QA3/E3826-2G eMMC4
015102
Qseven module with Intel® Atom™ E3826 dual core processor with 1.46GHz, 1MB L2 cache, 2GB 1066MT/s DDR3L onboard memory and 4GB eMMC onboard flash.
conga-QA3/E3825-2G eMMC4
015103
Qseven module with Intel® Atom™ E3825 dual core processor with 1.33GHz, 1MB L2 cache, 2GB 1066MT/s DDR3L onboard memory and 4GB eMMC onboard flash.
conga-QA3/E3815-2G eMMC4
015104
Qseven module with Intel® Atom™ E3815 single core processor with 1.46GHz, 512kB L2 cache, 2GB 1066MT/s DDR3L onboard memory and 4GB eMMC onboard flash.
conga-QA3/N2920 -2G
015110
Qseven module with Intel® Celeron N2920 quad core processor with 1.86 GHz, 2MB L2 cache, 2GB 1066MT/s DDR3L onboard memory.
conga-QA3/J1900-2G
015111
Qseven module with Intel® Celeron J1900 quad core processor with 2.0 GHz, 2MB L2 cache, 2GB 1333MT/s DDR3L onboard memory.
conga-QA3/HSP-B
015190
Standard heatspreader for Qseven module conga-QA3. All standoffs are with 2.7mm bore hole.
Engineering Tools / Accessories for Qseven
conga-QEVAL
007001
Evaluation platform for Qseven
conga-QKIT
077455
Starterkit for Qseven including conga-QEVAL, conga-LDVI/EPI, conga-FPA1, Dual DVI-D ADD2 Card, ATX power supply...
conga-HDMI/DisplayPort adapter
500014
The conga-HDMI/DisplayPort adapter is used to convert the graphic ports Port-B, Port-C and Port-D of to the HDMI or DisplayPort interface.
conga-MCB/Qseven Cable Kit
14000041
Complete cable kit for Qseven mini carrier board
Qseven MXM connector Foxconn
400017
Socket for Qseven Carrier Boards. 10pcs package. Foxconn standard type, SMT, lead free, 230 positions, 0.50mm pitch, 7.8mm height.
Qseven MXM Connector Aces
400018
Socket for Qseven Carrier Boards. 10pcs package. ACES standard type, SMT, lead free, 230 positions, 0.50mm pitch, 7.8mm height.
conga-LDVI/EPI
011115
LVDS to DVI converter board for digital flat panels with onboard EEPROM
© 2013 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee of correctness is implied or expressed. The products may include
software. Use of the software is subject to the terms and conditions set out in the respective owner‘s license agreements, which are avaialable at www.congatec.com and/or upon request. Product names, logos, brands, and other trademarks featured or
referred to within this datasheet, or the congatec website, are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG, our products, or our website.
Rev. December 18, 2013 KS
