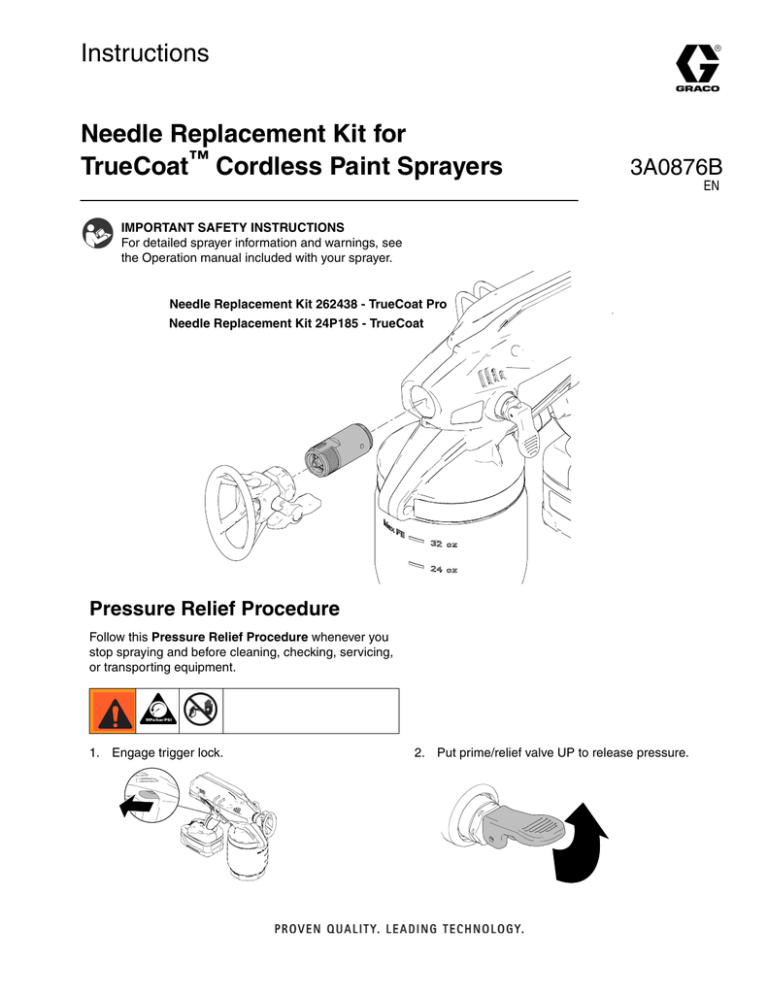

Instructions
Needle Replacement Kit for
TrueCoat™ Cordless Paint Sprayers
3A0876B
EN
IMPORTANT SAFETY INSTRUCTIONS
For detailed sprayer information and warnings, see
the Operation manual included with your sprayer.
Needle Replacement Kit 262438 - TrueCoat Pro
Needle Replacement Kit 24P185 - TrueCoat
Pressure Relief Procedure
Follow this Pressure Relief Procedure whenever you
stop spraying and before cleaning, checking, servicing,
or transporting equipment.
1. Engage trigger lock.
2. Put prime/relief valve UP to release pressure.
ti14999a
ti14994a
Needle Removal
Needle Replacement
1. Remove battery or unplug power cord and perform
Pressure Relief Procedure (see cover).
1. Make sure the o-ring is in place and positioned on
the needle assembly as shown below.
o-ring
ti2810b
2. Remove spray tip/guard assembly.
2. Insert new needle housing and use wrench to
torque to 150 in-lb.
3. Use wrench to loosen and remove needle assembly.
NOTE: Make sure needle assembly is positioned as
shown above with the needle pointing out.
3. Replace spray tip/guard assembly.
4. Make sure the old o-ring comes out with the needle
assembly.
5. Clean the inside of the sprayer and threads.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 3A0876
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2010, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
08/2012
