User Manual

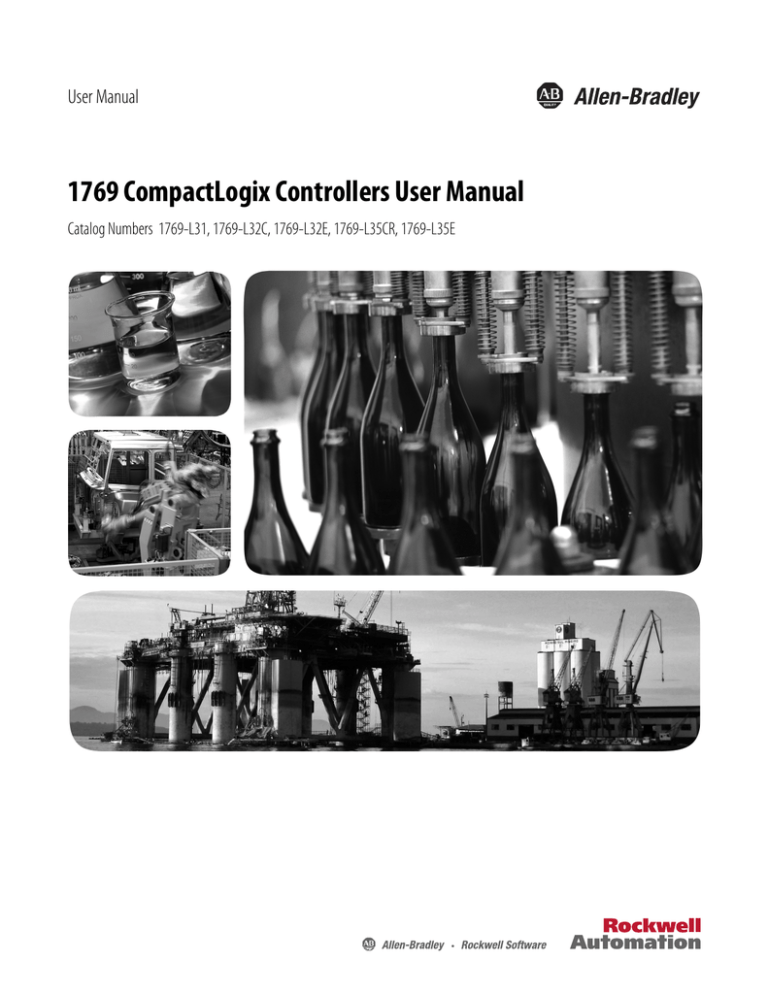

1769 CompactLogix Controllers User Manual

Catalog Numbers 1769-L31, 1769-L32C, 1769-L32E, 1769-L35CR, 1769-L35E

Important User Information

Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety

Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1

available from your local Rockwell Automation® sales office or online at http://www.rockwellautomation.com/literature/ ) describes some important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,

Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.

IMPORTANT

Identifies information that is critical for successful application and understanding of the product.

Allen-Bradley, Rockwell Automation, Rockwell Software, CompactLogix, ControlFLASH, Logix5000, RSLinx, RSLogix 5000, PanelView, PhaseManager, and TechConnect are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

New and Updated

Information

Summary of Changes

This manual contains new and updated information. Changes throughout this revision are marked by change bars, as shown to the right of this paragraph.

This table contains the changes made to this revision.

Topic

Updated Additional Resources listing

Added installation instructions

Page

9

15…39

For specifications, see the 1769 CompactLogix Controllers Specifications

Technical Data, publication 1769-TD005 .

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

3

Summary of Changes

Notes:

4

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Table of Contents

Preface

1769 CompactLogix Controllers

Overview

Install the 1769-L3x Controllers

Connect to the Controller via the

Serial Port

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 1

About the 1769 CompactLogix Controller . . . . . . . . . . . . . . . . . . . . . . . . . 11

Design a CompactLogix System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 2

Verify Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Set the Node Address (ControlNet only) . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connect the 1769-BA Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Install a CompactFlash Card (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Assemble the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Mount the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Minimum Spacing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Ground the Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Mount the Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Mount the Controller on the DIN Rail . . . . . . . . . . . . . . . . . . . . . . . . 25

Make RS-232 Connections to the Controller. . . . . . . . . . . . . . . . . . . . . . . 26

RS-232 Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Optical Isolator (1769-L31 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Default Serial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Use the Channel 0 Default Communication Push Button . . . . . . . 28

Make Ethernet Connections to the Controller . . . . . . . . . . . . . . . . . . . . . 28

Assign an IP Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Make ControlNet Connections to the Controller . . . . . . . . . . . . . . . . . . 32

Connect the Controller to the Network via a ControlNet Tap . . . 33

Connect a Programming Terminal to the Network via a 1786-CP

Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Install the Appropriate EDS Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Load the Controller Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Use the ControlFLASH Utility to Load Firmware . . . . . . . . . . . . . . 37

Use AutoFlash to Load Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Use a CompactFlash Card to Load Firmware . . . . . . . . . . . . . . . . . . . 38

Select the Controller’s Operating Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Chapter 3

Connect to the Controller via the Serial Port . . . . . . . . . . . . . . . . . . . . . . . 41

Configure the Serial Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Select the Controller Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Controller Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

5

6

Table of Contents

Communicate over Networks

Chapter 4

EtherNet/IP Network Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Connections over an EtherNet/IP Network . . . . . . . . . . . . . . . . . . . . 49

ControlNet Network Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Connections over ControlNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

DeviceNet Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Serial Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Configure an Isolator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Communicate with DF1 Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

DF1 Radio Modem Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Communicate with ASCII Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Modbus Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Broadcast Messages over a Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

DH-485 Network Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Chapter 5

Manage Controller Communication

Produce and Consume Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Send and Receive Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Determine Whether to Cache Message Connections . . . . . . . . . . . . 77

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Calculate Total Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Connections Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Chapter 6

Place, Configure, and Monitor I/O

Select I/O Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Validate I/O Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Estimate Requested Packet Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Calculate System Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . 83

Validate Placement of I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Place Local I/O Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Configure I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Configure Distributed I/O on an EtherNet/IP Network . . . . . . . . . . . . 88

Configure Distributed I/O on a ControlNet Network . . . . . . . . . . . . . . 89

Configure Distributed I/O on a DeviceNet Network. . . . . . . . . . . . . . . . 90

Address I/O Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Determine When Data Is Updated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Monitor I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Display Fault Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

End-cap Detection and Module Faults. . . . . . . . . . . . . . . . . . . . . . . . . . 94

Reconfigure an I/O Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Reconfigure a Module via RSLogix 5000 Programming Software . 94

Reconfigure a Module via a MSG Instruction . . . . . . . . . . . . . . . . . . . 95

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Develop Applications

Configure PhaseManager

Use a CompactFlash Card

Maintain the Battery

Table of Contents

Chapter 7

Manage Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Develop Programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Define Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Define Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Define Routines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Sample Controller Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Organize Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Select a Programming Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Add-on Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Monitor Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Determine if Device Communication Has Timed Out . . . . . . . . . 107

Determine if I/O Module Communication Has Timed Out . . . . 107

Interrupt the Execution of Logic and Execute the Fault Handler 109

Select a System Overhead Time Slice Percentage . . . . . . . . . . . . . . . . . . . 109

Chapter 8

PhaseManager Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

State Model Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

How Equipment Changes States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Manually Change States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Compare PhaseManager to Other State Models . . . . . . . . . . . . . . . . . . . 117

Minimum System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Equipment Phase Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Chapter 9

Locate the Controller Serial Number in RSLinx Software . . . . . . . 119

Locate the Controller Serial Number. . . . . . . . . . . . . . . . . . . . . . . . . . 121

Use a CompactFlash Card to Load/Store a User Application . . . . . . . 122

Manually Change Which Project Loads . . . . . . . . . . . . . . . . . . . . . . . 122

Manually Change the Load Parameters. . . . . . . . . . . . . . . . . . . . . . . . 124

Use a CompactFlash Card for Data Storage . . . . . . . . . . . . . . . . . . . . . . . 125

Read and Write User Data to the CompactFlash Card . . . . . . . . . . . . . 125

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Chapter 10

Battery Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Check If the Battery Is Low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Estimate 1769-BA Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Store Lithium Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Battery Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

7

Table of Contents

Status Indicators

Dynamic Memory Allocation in

CompactLogix Controllers

Appendix A

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

1769-L3xx Controllers Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 131

CompactFlash Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

RS-232 Serial Port Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

ControlNet Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Module Status (MS) Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Network Channel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

EtherNet/IP Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Module Status (MS) Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Network Status (NS) Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Link Status (LNK) Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Appendix B

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

RSLinx Tag Optimization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Trends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

DDE/OPC Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Specify Connections per Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Number of Connections Needed to Optimize Throughput . . . . . 141

View the Number of Open Connections. . . . . . . . . . . . . . . . . . . . . . . 141

Index

8

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Preface

Use this manual to become familiar with the CompactLogix™ controller and its features.

This manual describes the necessary tasks to install, configure, program, and operate a CompactLogix system. In some cases, this manual includes references to additional documentation that provides the more comprehensive details.

Additional Information

These documents address Logix5000™ products.

Resource

1769 CompactLogix Controllers Specifications Technical Data, publication 1769-TD005

Description

Contains technical specifications and certifications for all CompactLogix controllers.

1769-L3x CompactLogix System Quick Start, publication IASIMP-QS001 Provides examples of using a 1769-L3x CompactLogix controller to connect to multiple devices over various networks.

Logix5000 Controller Design Considerations Reference Manual, publication 1756-RM094 Provides guidelines you can follow to optimize your system. This manual also provides system information you need to make system design choices.

Logix5000 Controllers Common Procedures Programming Manual, publication

1756-PM001

Logix5000 Controllers General Instruction Set Reference Manual, publication

1756-RM003

Logix5000 Controllers Process Control/Drives Instruction Set Reference Manual, publication 1756-RM006

EtherNet/IP Communication Modules in Logix5000 Control Systems User Manual, publication ENET-UM001

ControlNet Communication Modules in Logix5000 Control Systems User Manual, publication CNET-UM001

Guides the development of projects for Logix5000 controllers. It provides links to individual guides.

Provides a programmer with details about each available instruction for a Logix5000 controller. You should already be familiar with how the Logix5000 controller stores and processes data.

Provides a programmer with details about each function block instruction available for a

Logix5000 controller. You should already be familiar with how the Logix5000 controller stores and processes data.

Deescribes how to install and configure EtherNet/IP modules in Logix5000 control systems.

Describes how to install and configure ControlNet modules in a Logix5000 control system.

To view or download these publications, go to: http://www.rockwellautomation.com/literature

To obtain a hard copy, contact your local Allen-Bradley distributor or Rockwell

Automation sales representative.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

9

Preface

Notes:

10

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

1769 CompactLogix Controllers Overview

Chapter

1

This chapter introduces the 1769 CompactLogix controllers. These controllers offer state-of-the-art control, communication, and I/O elements in a distributed control package.

About the 1769

CompactLogix Controller

The 1769 CompactLogix controller offers state-of-the-art control, communication, and I/O elements in a distributed control package.

Figure 1 - CompactLogix Controller and 1769 I/O Modules

CompactLogix Controller

1769 I/O Modules Connected to the CompactLogix

Controller

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

11

12

Chapter 1

1769 CompactLogix Controllers Overview

EtherNet/IP Link

ControlNet Link

DH-485 Link

RS-232

Modbus

Figure 2 - CompactLogix System Overview

1769 I/O Modules Connected to the CompactLogix

Controller

For a more flexible system, use:

multiple controllers in a single chassis.

multiple controllers joined across networks.

I/O in multiple platforms that is distributed in many locations and connected over multiple I/O links.

Built-in ControlNet or

EtherNet/IP

Communication Ports or

1769-SDN Module

Connected to the Controller

EtherNet/IP Link

ControlNet Link

DeviceNet Link

}

Remote I/O Modules

Drives

Sensors

Computers

Other Controllers

HMI Devices

The CompactLogix controller, part of the Logix family of controllers, provides a small, powerful, cost-effective system consisting of the following:

RSLogix™ 5000 programming software

Built-in communication ports for EtherNet/IP (1769-L32E and 1769-

L35E only) and ControlNet (1769-L32C and 1769-L35CR only) networks

A 1769-SDN communication interface module providing I/O control and remote device configuration over DeviceNet networks

Built-in serial port on every CompactLogix controller

Compact I/O modules providing a compact, DIN-rail or panel-mounted

I/O system

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

1769 CompactLogix Controllers Overview

Chapter 1

Table 1 - CompactLogix Controller Combinations

Controller Available Memory Communication Options

1769-L35CR

1769-L35E

1769-L32C

1769-L32E

1769-L31

1.5 MB

750 KB

512 KB

1 port ControlNet - supports redundant media

1 port RS-232 serial (system or user protocols)

1 port EtherNet/IP

1 port RS-232 serial (system or user protocols)

1 port ControlNet

1 port RS-232 serial (system or user protocols)

1 port EtherNet/IP

1 port RS-232 serial (system or user protocols)

1 port RS-232 serial (system or user protocols)

1 port RS-232 serial (system protocol only)

Design a CompactLogix

System

Number of

Tasks Supported

8

Number of Local I/O

Modules Supported

30

6

4

16

When designing a CompactLogix system, determine the network configuration and the placement of components in each location. To design your

CompactLogix system, select the following:

I/O devices

Communication networks

Controllers

Power supplies

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

13

Chapter 1

1769 CompactLogix Controllers Overview

Notes:

14

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Chapter

2

Install the 1769-L3x Controllers

Topic

Verify Compatibility

Before You Begin

Set the Node Address (ControlNet only)

Connect the 1769-BA Battery

Install a CompactFlash Card (optional)

Assemble the System

Mount the System

Make RS-232 Connections to the Controller

Make Ethernet Connections to the Controller

Make ControlNet Connections to the Controller

Install the Appropriate EDS Files

Load the Controller Firmware

Select the Controller’s Operating Mode

32

36

26

28

36

39

22

23

20

21

18

19

Page

18

Use this chapter to install the CompactLogix™ controller, which must be the leftmost module in the first bank of the system.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

15

Chapter 2

Install the 1769-L3x Controllers

WARNING: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 meters (6562 ft) without derating.

This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR Publication 11. Without appropriate precautions, there may be potential difficulties ensuring electromagnetic compatibility in other environments due to conducted as well as radiated disturbance.

This equipment is supplied as open-type equipment. It must be mounted within an enclosure that is suitably designed for those specific environmental conditions that will be present and appropriately designed to prevent personal injury resulting from accessibility to live parts. The enclosure must have suitable flame-retardant properties to prevent or minimize the spread of flame, complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if non-metallic. The interior of the enclosure must be accessible only by the use of a tool. Subsequent sections of this publication may contain additional information regarding specific enclosure type ratings that are required to comply with certain product safety certifications.

In addition to this publication, see the following:

Industrial Automation Wiring and Grounding Guidelines, Allen-Bradley

® publication

1770-4.1

, for additional installation requirements

NEMA 250 and IEC 60529, as applicable, for explanations of the degrees of protection provided by different types of enclosure

WARNING: This equipment is sensitive to electrostatic discharge, which can cause internal damage and affect normal operation. Follow these guidelines when you handle this equipment:

Touch a grounded object to discharge potential static.

Wear an approved grounding wriststrap.

Do not touch connectors or pins on component boards.

Do not touch circuit components inside the equipment.

Use a static-safe workstation, if available.

Store the equipment in appropriate static-safe packaging when not in use.

16

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

Table 2 - North American Hazardous Location Approval

The following information applies when operating this equipment in hazardous locations.

Products marked "CL I, DIV 2, GP A, B, C, D" are suitable for use in Class I

Division 2 Groups A, B, C, D, Hazardous Locations and nonhazardous locations only. Each product is supplied with markings on the rating nameplate indicating the hazardous location temperature code. When combining products within a system, the most adverse temperature code (lowest "T" number) may be used to help determine the overall temperature code of the system. Combinations of equipment in your system are subject to investigation by the local Authority Having

Jurisdiction at the time of installation.

WARNING: Explosion Hazard –

Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous.

Do not disconnect connections to this equipment unless power has been removed or the area is known to be nonhazardous. Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this product.

Substitution of components may impair suitability for Class I, Division 2.

If this product contains batteries, they must only be changed in an area known to be nonhazardous.

Informations sur l’utilisation de cet équipement en environnements dangereux.

Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne conviennent qu'à une utilisation en environnements de Classe I Division 2 Groupes A, B,

C, D dangereux et non dangereux. Chaque produit est livré avec des marquages sur sa plaque d'identification qui indiquent le code de température pour les environnements dangereux. Lorsque plusieurs produits sont combinés dans un système, le code de température le plus défavorable (code de température le plus faible) peut être utilisé pour déterminer le code de température global du système. Les combinaisons d'équipements dans le système sont sujettes à inspection par les autorités locales qualifiées au moment de l'installation.

AVERTISSEMENT: Risque d’Explosion –

Couper le courant ou s'assurer que l'environnement est classé non dangereux avant de débrancher l'équipement.

Couper le courant ou s'assurer que l'environnement est classé non dangereux avant de débrancher les connecteurs. Fixer tous les connecteurs externes reliés à cet équipement à l'aide de vis, loquets coulissants, connecteurs filetés ou autres moyens fournis avec ce produit.

La substitution de composants peut rendre cet

équipement inadapté à une utilisation en environnement de Classe I, Division 2.

S'assurer que l'environnement est classé non dangereux avant de changer les piles.

Table 3 - European Hazardous Location Approval

European Zone 2 Certification (The following applies when the product bears the Ex or EEx Marking)

This equipment is intended for use in potentially explosive atmospheres as defined by

European Union Directive 94/9/EC and has been found to comply with the Essential Health and Safety Requirements relating to the design and construction of Category 3 equipment intended for use in potentially explosive atmospheres, given in Annex II to this Directive.

Compliance with the Essential Health and Safety Requirements has been assured by compliance with EN 60079-15 and EN 60079-0.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

17

Chapter 2

Install the 1769-L3x Controllers

WARNING:

This equipment must be installed in an enclosure providing at least IP54 protection when applied in Zone 2 environments.

This equipment shall be used within its specified ratings defined by

Allen-Bradley.

Provisions shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 40% when applied in Zone 2 environments.

Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this product.

Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous.

ATTENTION: This equipment is not resistant to sunlight or other sources of

UV radiation.

Verify Compatibility

Before You Begin

18

IMPORTANT

The series B controllers are compatible only with the following:

Controller firmware revision 20 and later

RSLogix 5000 software version 20 and later.

Attempting to use controllers with incompatible software and firmware revisions may result in the following:

An inability to connect to the series B controller in RSLogix 5000 software

Unsuccessful firmware upgrades in ControlFLASH ™ or AutoFlash utilities

Consider the following when planning your CompactLogix system:

The CompactLogix controller is always the leftmost module in the system.

The controller must be within four modules of the system power supply.

Some I/O modules may be up to eight modules away from the power supply. See the documentation for your 1769 I/O modules for details.

The 1769-L32E controller supports as many as 16 I/O modules and the

1769-L35E controller supports as many as 30 I/O modules. Both controllers can use a maximum of 3 I/O banks with 2 expansion cables.

The 1769-L32C controller supports as many as 16 I/O modules in a maximum of 3 I/O banks with 2 expansion cables. The 1769-L35CR controller supports as many as 30 I/O modules in a maximum of 3 I/O banks with 2 expansion cables.

The 1769-L31 controller supports as many as 16 I/O modules in a maximum of 3 I/O banks with 2 expansion cables.

Each I/O bank requires its own power supply.

Only one controller can be used in a CompactLogix system.

A 1769-ECR right end cap or 1769-ECL left end cap is required to terminate the end of the communication bus.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

If you want to

Connect a device to the RS-232 port

Add nonvolatile memory

Connect to the EtherNet/IP port

Connect to the ControlNet port

Set the Node Address

(ControlNet only)

Install the 1769-L3x Controllers

Chapter 2

Parts List

These components are shipped with the controller.

Component Description

1769-BA battery

1747-KY controller key

You may also use these components with the controller.

Then use this component

1756-CP3 or 1747-CP3 serial cable

1784-CF128 Industrial CompactFlash card

Standard Ethernet cable with RJ-45 connector

ControlNet taps for connections from controller channels A or B to the ControlNet network

1786-CP cable for connections from a programming terminal to the ControlNet network via the controller’s network access port (NAP)

Every ControlNet network requires at least one module that can store parameters and configure the network with those parameters upon startup. The

CompactLogix controller is called a keeper because it keeps the network configuration.

The CompactLogix controller can keep the network parameters at any legal node address (01…99). Multiple devices on any one network can act as the network keepers. Each device capable of being the network keeper acts to back up the current keeper. This back-up function is automatic and requires no action on your part.

Node address switches are set to the 99 position at shipment, as shown in the figure.

Use these steps to set the node address.

43868

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

19

Chapter 2

Install the 1769-L3x Controllers

1. Slide the side cover forward.

43860

2. Use a small screwdriver to set the node address via the controller switches.

1

2

3 4

8

1

2

3 4

8

31504-M

3. Write the node address on the front panel overlay after setting the node address switches.

Connect the 1769-BA Battery

The controller is shipped with the 1769-BA battery that is packed separately. To connect the battery, follow this procedure.

ATTENTION: The 1769-BA battery is the only battery you can use with the

1769-L32E and 1769-L35E controllers. The 1747-BA battery is not compatible with the 1769-L32E and 1769-L35E controllers and may cause problems.

WARNING: When you connect or disconnect the battery, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

For safety information on the handling of lithium batteries, including handling and disposal of leaking batteries, see Guidelines for Handling Lithium Batteries

Technical Data, publication AG-5.4NOV04

.

20

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

1. Remove the battery door by sliding it forward.

IMPORTANT

Do not remove the plastic insulation covering the battery. The insulation is necessary to protect the battery contacts.

2. Insert the battery connector into the connector port.

The connector is keyed to be installed with the correct polarity.

3. Insert the battery into the battery port in the battery door.

Battery

4. Slide the battery door back until it clicks into position.

TIP

At the end of its life, the used battery should be collected separately from any unsorted municipal waste and recycled.

Install a CompactFlash Card

(optional)

ATTENTION: Do not remove the CompactFlash card while the controller is reading from or writing to the card, as indicated by a flashing green CF status indicator. This could corrupt the data on the card or in the controller, as well as corrupt the latest firmware in the controller.

The optional industrial CompactFlash card provides nonvolatile memory for a

CompactLogix controller. The card is not required for controller operation.

WARNING: When you insert or remove the CompactFlash card while power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

21

Chapter 2

Install the 1769-L3x Controllers

Assemble the System

To install a CompactFlash card, push the locking tab to the right and insert the industrial CompactFlash card into the socket on the front of the controller.

The label of the CompactFlash card faces toward the left. Match the orientation arrow on the card with the arrow on the front of the controller.

To remove the CompactFlash card, push the locking tab away from the CompactFlash card and pull the

CompactFlash card from the socket.

44732

The controller can be attached to an adjacent I/O module or power supply before or after mounting.

WARNING: The CompactLogix controller is not designed for removal and insertion under power.

If you insert or remove the module while backplane power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

Refer to the illustration when installing a controller.

A

C

D

B

E

44733

F

B

1. Disconnect line power.

2. Check that the lever of the adjacent module (A) is in the unlocked (fully right) position.

3. Use the upper and lower tongue-and-groove slots (B) to secure the modules together.

4. Move the module back along the tongue-and-groove slots until the bus connectors line up with each other.

5. Use your fingers or a small screwdriver to push the module’s bus lever back slightly to clear the positioning tab (C).

22

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Mount the System

Install the 1769-L3x Controllers

Chapter 2

6. Move the module’s bus lever fully to the left (D) until it clicks, being sure it is locked firmly in place.

ATTENTION: When attaching the controller, power supply, and I/O modules, make sure the bus connectors are securely locked together to be sure of proper electrical connection.

This equipment is not resistant to sunlight or other sources of UV radiation.

7. Attach an end-cap terminator (E) to the last module in the system by using the tongue-and-groove slots as before.

8. Lock the end-cap bus terminator (F).

ATTENTION: During panel or DIN-rail mounting of all devices, be sure that all debris (such as metal chips or wire strands) is kept from falling into the controller. Debris that falls into the controller could cause damage while the controller is energized.

Minimum Spacing

Maintain spacing from enclosure walls, wireways, and adjacent equipment. Allow

50 mm (2 in.) of space on all sides, as shown. This provides ventilation and electrical isolation.

Top

50 mm

(2 in.)

50 mm

(2 in.)

Side

50 mm

(2 in.)

Side

Bottom

50 mm

(2 in

.)

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

23

Chapter 2

Install the 1769-L3x Controllers

Dimensions

The figure shows dimensions in mm (in.). Hole spacing tolerance is

+ 4 mm (0.016 in.).

15

(0.59)

67.5

(2.68)

52.5

(2.06)

70

(2.76)

35

(1.38)

118

(4.65)

132

(5.20)

52.5

(2.06)

35

(1.38)

35

(1.38)

35

(1.38)

35

(1.38)

31502-M

IMPORTANT

Compact I/O expansion cables have the same dimensions as the end caps.

Expansion cables can be used on either the right or left end.

A 1769-ECR right end cap or 1769-ECL left end cap terminates the end of the communication bus.

Ground the Wiring

ATTENTION: This product is grounded through the DIN rail to chassis ground.

Use zinc-plated yellow-chromate steel DIN rail to assure proper grounding.

The use of other DIN rail materials (such as aluminum or plastic) that can corrode, oxidize, or are poor conductors, can result in improper or intermittent grounding. Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately.

This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. Additional grounding connections from the controller’s mounting tabs or DIN rail (if used) are not required unless the mounting surface cannot be grounded.

Refer to Allen-Bradley Industrial Automation Wiring and Grounding

Guidelines, publication 1770-4.1

, for additional information.

24

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

Mount the Panel

Mount the controller to a panel by using two screws per module. Use M4 or #8 panhead screws. Mounting screws are required on every module. This procedure lets you use the assembled modules as a template for drilling holes in the panel.

IMPORTANT

Due to module-mounting hole tolerance, it is important to follow these procedures.

1. On a clean work surface, assemble no more than three modules.

2. Using the assembled modules as a template, carefully mark the center of all module-mounting holes on the panel.

3. Return the assembled modules to the clean work surface, including any previously mounted modules.

4. Drill and tap the mounting holes for the recommended M4 or #8 screw.

5. Place the modules back on the panel and check for proper hole alignment.

TIP

The grounding plate, that is, where you install the mounting screws, enables the module to be grounded when it is panel-mounted.

6. Attach the modules to the panel by using the mounting screws.

TIP

If you are mounting more modules, mount only the last one of this group and put the others aside. This reduces remounting time when you are drilling and tapping the next group of modules.

7. Repeat steps 1…6 for any remaining modules.

Mount the Controller on the DIN Rail

The controller can be mounted on the following DIN rails:

EN 50 022 - 35 x 7.5 mm (1.38 x 0.30 in.)

EN 50 022 - 35 x 15 mm (1.38 x 0.59 in.)

ATTENTION: This product is grounded through the DIN rail to chassis ground.

Use zinc-plated yellow-chromate steel DIN rail to assure proper grounding.

The use of other DIN rail materials (for example, aluminum or plastic) that can corrode, oxidize, or are poor conductors, can result in improper or intermittent grounding. Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately.

1. Before mounting the controller on a DIN rail, close the DIN rail latches.

2. Press the DIN-rail mounting area of the controller against the DIN rail.

The latches will momentarily open and lock into place.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

25

Chapter 2

Install the 1769-L3x Controllers

Make RS-232 Connections to the Controller

Connect the 9-pin female end of the serial cable to the serial port of the controller.

44735

WARNING: If you connect or disconnect the serial cable with power applied to this module or the serial device on the other end of the cable, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

RS-232 Cable

9-pin, Male D-shell

Straight Cable End

1747-CP3 or 1756-CP3

9-pin, Female D-shell

Right-angle Cable End

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9

Straight Cable End

TIP

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9

Right-angle Cable End

This cable must be shielded and tied to the connector housing.

26

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Isolator Use

No

Yes

Install the 1769-L3x Controllers

Chapter 2

Optical Isolator (1769-L31 only)

Channel 0 is fully isolated and does not need a separate isolation device.

Channel 1 is nonisolated. If you connect channel 1 to a device outside of the system’s enclosure, consider installing an isolator (such as the 1761-NET-AIC interface converter) between the controller and device..

Port 2: Mini-DIN 8

RS-232

Communication

Rate Selector

Switch

Port 1: DB-9

RS-232, DTE

DC Power Source

Selector Switch

Terminals for External 24V DC

Power Supply

Select the appropriate cable.

Cable

The 1756-CP3 cable attaches the controller directly to the controller.

If you make your own cable, it must be shielded and the shields must be tied to the metal shell surrounding the pins on the ends of the cable.

You can also use a 1747-CP3 cable. This cable has a taller right-angle connector housing than the 1756-CP3 cable.

The 1761-CBL-AP00 cable (right-angle connector to controller) or the 1761-CBL-PM02 cable (straight connector to the controller) attaches the controller to port 2 on the 1761-NET-AIC isolator. The mini-DIN connector is not commercially available, so you cannot make this cable.

6

7

4

5

8

9

2

3

Pin

1

DB-9 End

DCD

RxD

TxD

DTR

Ground

DSR

RTS

CTS

N/A

Mini-DIN End

DCD

RxD

TxD

DTR

Ground

DSR

RTS

CTS

N/A

6

7

8

9

1

2

3

5

4

DB-9 Right-angle or

Straight Cable End

3

4

6 78

5

1 2

8-pin, Mini-DIN

Cable End

Default Serial Configuration

Channel 0 (serial port) has the following default communication configuration.

Parameter

Protocol

Communication Rate

Parity

Station Address

Control Lines

Default

DF1 full-duplex

19.2 Kbps

None

0

No Handshaking

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

27

Chapter 2

Install the 1769-L3x Controllers

Parameter

Error Detection

Embedded Responses

Duplicate Packet (Message) Detect

ACK Timeout

NAK Receive Limit

ENQ Transmit Limit

Data Bits

Stop Bits

TIP

8

1

Default

BCC

Auto Detect

Enabled

50 (x 20 ms)

3 Retries

3 Retries

Only Channel 0 has a default communication push button.

Use the Channel 0 Default Communication Push Button

The Channel 0 default communication push button is on the front of the controller in the lower right corner as shown in the illustration.

44736

Use the Channel 0 default communication push button to change from the user-defined communication configuration to the default communication mode. The Channel 0 default communication (DCH0) status indicator turns on

(green, steady) to indicate that the default communication configuration is active.

TIP

The default communication push button is recessed.

Before pressing the default communication push button, be sure to note the present communication configuration for Channel 0. Pushing the default communication push button resets all configured parameters to their default settings.

To return the channel to its user-configured parameters, you must enter them manually while online with the controller or download them as part of an

RSLogix 5000 software project file. To do this online with RSLogix 5000 software, access the Controller Properties dialog box and enter parameters on the Serial Port, System Protocol, and User Protocol tabs.

Make Ethernet Connections to the Controller

The 1769-L32E and 1769-L35E controller are shipped with the BOOTP utility enabled. You must assign an IP address to the Ethernet port for the controller to communicate over an EtherNet/IP network.

WARNING: If you connect or disconnect the communication cable with power applied to this module or any device on the network, an electrical arc can occur.

This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding

28

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

Connect the RJ-45 connector of the Ethernet cable to the Ethernet port (top port) on the controller.

ATTENTION: Do not plug a DH-485 network cable or a NAP cable into the

Ethernet port. Undesirable behavior or damage to the port may result.

8 ------ NC

7 ------ NC

6 ------ RD-

5 ------ NC

4 ------ NC

3 ------ RD+

2 ------ TD-

1 ------ TD+

8

1

RJ-45

Assign an IP Address

You can set the IP address by using any of these utilities:

Rockwell BOOTP Utility (available with RSLinx® and RSLogix 5000 software)

RSLinx software

RSLogix 5000 software

Use BOOTP to Set the IP Address

The BOOTP utility is a standalone program in one of the following directories:

RSLinx Tools directory in the Rockwell Software program folder on the

Start menu

The utility is automatically installed when you install RSLinx software.

Utils directory on the RSLogix 5000 software installation CD

Follow this procedure to use the BOOTP utility.

1. Start the BOOTP software.

2. Select Tools>Network Settings.

3. Enter the Ethernet mask and gateway.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

29

Chapter 2

Install the 1769-L3x Controllers

4. Click OK.

In the BOOTP Request History dialog box, you see the hardware addresses of devices issuing BOOTP requests.

5. Double-click the hardware address of the device you want to configure.

30

TIP

The hardware address is on the sticker on the left-side circuit board of the controller next to the battery.

The hardware address will be in this format: 00-0b-db-14-55-35.

The New Entry dialog box displays the device’s Ethernet Address (MAC).

6. Enter the IP address.

7. Click OK.

8. To permanently assign this configuration to the device, highlight the device and click Disable BOOTP/DHCP.

When you cycle power, the device uses the configuration you assigned and does not issue a BOOTP request.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

Use RSLinx Software to Set the IP Address

You can use RSLinx software, version 2.41 or later, to set the IP address.

1. Make sure the controller that uses the IP address is installed and running.

2. Connect to the controller via the serial connection (see page 26 ).

3. Start RSLinx software.

The RSWho dialog box opens.

4. Navigate to the Ethernet network via the serial network.

5. Right-click the Ethernet port (not the controller) and select Module

Configuration.

6. Select the Port Configuration tab.

7. Click the appropriate radio button to choose the Network Configuration type.

8. Enter the IP address, network (subnet) mask, and gateway address (if needed).

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

31

Chapter 2

Install the 1769-L3x Controllers

Use RSLogix 5000 Software to Set the IP Address

You can use RSLogix software to set the IP address.

1. Make sure the controller that uses the IP address is installed and running.

2. Connect to the controller via the serial connection (see page 26 ).

3. Start RSLogix 5000 software.

4. In the Controller Organizer, select properties for the Ethernet port.

5. Choose the Port Configuration tab.

6. Specify the IP address.

7. Click Apply.

8. Click OK.

This sets the IP address in the hardware. This IP address should be the same IP address you assigned under the General tab.

Make ControlNet

Connections to the Controller

The CompactLogix 1769-L32C and 1769-L35CR controllers connect to the

ControlNet network. The CompactLogix 1769-L32C controller supports channel A connections only. The CompactLogix 1769-L35CR controller supports channels A and B (redundant media) connections.

For permanent connections to the network, you connect the module to the

ControlNet network by using a ControlNet tap (for example, 1786-TPR,

1786-TPS, 1786-TPYR, 1786-TPYS).

32

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

The figure shows an example ControlNet network using redundant media.

1

3

2

1

2

3

Item Description

1 ControlNet node

Redundant media available on 1769-L35CR only

ControlNet link

When connecting the CompactLogix controller to a ControlNet network, also refer to the following documentation:

ControlNet Coax Tap Installation Instructions, publication

1786-IN007

ControlNet Coax Media Planning and Installation Guide, publication

CNET-IN002

ControlNet Fiber Media Planning and Installation Guide, publication

CNET-IN001

IMPORTANT

For network connections we recommend taps with a straight connector

(catalog number 1786-TPS or 1786-TPYS) because of the location of the BNC connectors on the bottom of the module.

Connect the Controller to the Network via a ControlNet Tap

Typically, ControlNet taps are used to make permanent connections from the

CompactLogix controller to the network. Perform the following steps to connect the module to the network by using a ControlNet tap.

ATTENTION: Do not allow any metal portions of the tap to contact any conductive material.

If you disconnect the tap from the module, place the dust cap back on the straight or right angle connector to prevent the connector from accidentally contacting a metallic grounded surface.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

33

Chapter 2

Install the 1769-L3x Controllers

1. Remove and save the dust caps from the ControlNet taps.

1

2

3

2

3

Item Description

1 Segment 1

Segment 2

Dust caps

2. Connect the tap’s straight or right-angle connector to the module’s BNC connector as shown in the figure.

3

4

1

2

A

5

B

A

43861

2

3

Item Description

1 Segment 1

4

Segment 2

Tap connected to a CompactLogix controller not using redundant media

5

Tap connected to a CompactLogix controller using redundant media (1769-L35CR unit only)

Tap

IMPORTANT

To prevent inadvertent reversal of the tap connections (resulting in incorrect status displays requiring troubleshooting), check the tap drop cable for the label indicating the attached segment before making your connection.

WARNING: If you connect or disconnect the communication cable with power applied to this module or any device on the network, an electrical arc can occur.

This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding

34

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

Connect a Programming Terminal to the Network via a 1786-CP Cable

You can use the CompactLogix controller’s network access port (NAP) to connect a programming terminal to the ControlNet network. The figure shows the 1786-CP cable connections.

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9

WARNING: The NAP port is intended for temporary local-programming purposes only and not intended for permanent connection. If you connect or disconnect the NAP cable with power applied to this module or any device on the network, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding

ATTENTION: Use the 1786-CP cable when you connect a programming terminal to the network through the NAP.

Using another cable could result in possible network failures or product damage.

Connect one end of the 1786-CP cable to the CompactLogix controller and the other end to the NAP of the programming terminal.

ATTENTION: Do not plug a DH-485 network cable or an RJ45 connector for the

EtherNet/IP network to the NAP. Undesirable behavior and/or damage to the port may result.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

35

Chapter 2

Install the 1769-L3x Controllers

Install the Appropriate EDS

Files

If you have RSLinx software, version 2.42 or later, the most current EDS files were installed with the software. If you are using an earlier version of RSLinx software, you might need to install EDS files.

You need EDS files for these devices:

1769 CompactLogix controllers

1769 CompactBus

1769 local adapter

All of these EDS files, except for the 1769 CompactBus file, are updated for each firmware revision. There is also a version 1 of the controller EDS file that you need for new controllers. Each controller is shipped with revision 1 firmware. To update the firmware, you must have the revision 1 EDS file

(0001000E00410100.eds) installed for the controller.

The EDS files are available on the RSLogix 5000 Enterprise Series software CD.

The files are also available at http://www.ab.com/networks/eds .

Load the Controller Firmware

You must download the current firmware before you can use the controller.

To load firmware, you can use any of the following:

ControlFLASH utility that is shipped with RSLogix 5000 programming software

AutoFlash that launches through RSLogix 5000 software when you download a project and the controller does not have the matching firmware revision

CompactFlash card (catalog number 1784-CF128) with valid memory already loaded

If you use the ControlFLASH or AutoFlash utilities, you need a network connection to the controller.

The firmware is available with RSLogix 5000 software or you can download it from the support website. Go to http://www.rockwellautomation.com/support/.

Follow these steps to download firmware from the support website.

1. On the Rockwell Automation Support Page, click Software Updates,

Firmware and Other Downloads under the Other Tools heading.

2. Click Firmware Updates.

3. Select the appropriate firmware update.

4. Select the firmware revision.

5. Click a revision file to unzip the data.

36

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Install the 1769-L3x Controllers

Chapter 2

Use the ControlFLASH Utility to Load Firmware

You can use the ControlFLASH utility to load firmware through a serial connection.

1. Make sure the appropriate network connection is made before starting.

2. Start the ControlFLASH utility.

3. When the Welcome dialog box appears, click Next.

4. Choose the catalog number of the controller and click Next.

5. Expand the network until you see the controller.

6. If the required network is not shown, first configure a driver for the network in RSLinx software.

7. Choose the controller and click OK.

8. Choose the revision level to which you want to update the controller and click Next.

9. To start the update of the controller, click Finish and then click Yes.

10. After the controller is updated, the status dialog box displays Update complete.

11. Click OK.

12. To close the ControlFLASH utility, click Cancel and then click Yes.

Use AutoFlash to Load Firmware

You can use AutoFlash to load firmware through a network connection.

IMPORTANT

When upgrading your controller firmware, it is extremely important to allow the upgrade to complete without interruption.

If you interrupt the firmware upgrade either in the software or by disturbing the physical media, you may render the controller inoperable.

For more information about upgrading your CompactLogix controller firmware, see information posted at http://www.rockwellautomation.com/knowledgebase/ .

1. Make sure the appropriate network connection is made and your network driver is configured in RSLinx software.

2. Use RSLogix 5000 programming software to create a controller project.

3. Click RSWho to specify the controller path.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

37

Chapter 2

Install the 1769-L3x Controllers

4. Select your controller and click Download.

You may also choose to click Update Firmware to complete this process. If you do so, skip to step 8 .

A dialog box displays indicating that the project revision and controller firmware revision are different.

5. Click Update Firmware.

6. Use the checkbox and pull-down menu to select your controller and firmware revision.

7. Click Update.

8. Click Yes.

The firmware upgrade begins.

IMPORTANT

DO NOT INTERRUPT THE FIRMWARE UPGRADE ONCE IT HAS BEGUN.

Interrupting the firmware upgrade may result in an inoperable controller.

When the firmware upgrade is complete, the Download dialog box appears and you may continue by downloading your project to the controller.

Use a CompactFlash Card to Load Firmware

If you have an existing controller that is already configured and has firmware loaded, you can store the current controller user program and firmware on the

CompactFlash card and use that card to update other controllers.

1. Use RSLogix 5000 software to store the controller user program and firmware of a currently configured controller to the CompactFlash card.

2. Access the Nonvolatile Memory tab of the Controller Properties dialog box.

Be sure to select Load Image On Powerup when you save to the card.

3. Remove the card and insert it into a controller that will use the same firmware and controller user program.

When you apply power to the second controller, the image stored on the

CompactFlash card is loaded into the controller.

38

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Select the Controller’s

Operating Mode

Install the 1769-L3x Controllers

Chapter 2

Use the keyswitch on the front panel of the controller to determine the controller’s operating mode.

Keyswitch Position Description

Run Upload projects.

Run the program and enable outputs.

You cannot create or delete tasks, programs, or routines. You cannot create or delete tags or edit online while the keyswitch is in the Run position.

You cannot change the mode by using the programming software while the keyswitch is in the Run position.

Prog Disable outputs.

Upload/download projects.

Create, modify, and delete tasks, programs, or routines.

The controller does not execute (scan) tasks while the keyswitch is in the Prog position.

You cannot change the mode through the programming software while the keyswitch is in the Prog position.

Rem Upload/download projects.

Change between Remote Program, Remote Test, and Remote Run modes through the programming software.

Remote Run The controller executes (scans) tasks.

Enable outputs.

Edit online.

Remote Program

Remote Test

Disable outputs.

Create, modify, and delete tasks, programs, or routines.

Download projects.

Edit online.

The controller does not execute (scan) tasks.

Execute tasks with outputs disabled.

Edit online.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

39

Chapter 2

Install the 1769-L3x Controllers

Notes:

40

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Chapter

3

Connect to the Controller via the Serial Port

This chapter describes how to connect to the controller via the serial port so that you can configure the controller and upload or download a project to the controller.

Topic

Connect to the Controller via the Serial Port

Configure the Serial Driver

Select the Controller Path

43

45

Page

41

For the CompactLogix controller to operate on a serial network, you need:

a workstation with a serial port.

RSLinx software to configure the serial communication driver.

RSLogix5000 programming software to configure the serial port of the controller.

Connect to the Controller via the Serial Port

Channel 0 on the CompactLogix controllers is fully isolated and does not need a separate isolation device. Channel 1 on the 1769-L31 is not an isolated serial port.

Figure 3 - Serial Connection to Controller

1769-L31 Controller Personal Computer

1747-CP3 or 1756-

CP3 Serial Cable

If you connect channel 1 of the 1769-L31 controller to a modem or an ASCII device, consider installing an isolator between the controller and modem or

ASCII device. An isolator is also recommended when connecting the controller directly to a programming workstation. One possible isolator is the 1761-NET-

AIC interface converter.

For more information on installing an isolator, see Configure an Isolator on page

57 .

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

41

Chapter 3

Connect to the Controller via the Serial Port

To connect a serial cable, perform this procedure.

1. Obtain a 1747-CP3 or 1756-CP3 serial cable.

TIP

If you make your own serial cable, complete this procedure.

Limit the length to 15.2 m (50 ft).

Wire the connectors.

Workstation Controller

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9

2. Connect the cable to your controller and workstation.

CP3 Cable

42

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Connect to the Controller via the Serial Port

Chapter 3

Configure the Serial Driver

Use RSLinx software to configure the RS-232 DF1 Device driver for serial communication. To configure the driver, perform this procedure.

1. From the communication pull-down menu, choose Configure Drivers.

The Configure Drivers dialog box box appears.

2. From the Available Driver Types pull-down menu, choose the RS-232

DF1 Device driver.

3. Click Add New to add the driver.

The Add New RSLinx Driver dialog box box appears.

4. Specify the driver name and click OK.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

43

Chapter 3

Connect to the Controller via the Serial Port

The Configure RS-232 DF1 Devices dialog box appears.

5. Specify the serial port settings.

a. From the Comm Port pull-down menu, choose the serial port on the workstation to which the cable is connected.

b. From the Device pull-down menu, choose Logix 5550-Serial Port.

c. Click Auto-Configure.

6. Verify that the Auto-Configuration was successful.

If

Yes

No

7. Click Close.

Then

Click OK.

Go to step 5 and verify that you selected the correct communication port.

44

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Connect to the Controller via the Serial Port

Chapter 3

Select the Controller Path

To select the controller path, perform this procedure.

1. In RSLogix 5000 programming software, open a project for the controller.

2. From the Communications pull-down menu, choose Who Active.

The Who Active dialog box appears.

3. Expand the communication driver to the level of the controller.

4. Select the controller.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

45

Chapter 3

Connect to the Controller via the Serial Port

Controller Options

Once you have selected a controller, you have several options.

To

Monitor the project in the controller

Transfer a copy of the project from the controller to RSLogix 5000 software

Transfer the open project to the controller

Choose

Go Online

Upload

Download

46

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Chapter

4

Communicate over Networks

This chapter explains how CompactLogix controllers support additional networks to enable various functions.

Table 4 - CompactLogix Controller Network Support

Example Function

Control distributed (remote) I/O.

EtherNet/IP

ControlNet

DeviceNet

CompactLogix Controller

DeviceNet Network

Distributed (remote)

I/O Platform

Produce/consume (interlock) data between controllers.

EtherNet/IP

ControlNet

CompactLogix Controller

ControlNet Network

Other Logix5000

Controller

Send and receive messages to and from other devices.

This includes access to the controller via RSLogix 5000 programming software.

EtherNet/IP

ControlNet

DeviceNet (to devices only)

serial

DH-485

CompactLogix Controller

EtherNet/IP Network

Other Remote Devices

Topic

EtherNet/IP Network Communication

ControlNet Network Communication

DeviceNet Communication

Serial Communication

DH-485 Network Communication

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

55

72

50

53

Page

48

47

Chapter 4

Communicate over Networks

EtherNet/IP Network

Communication

The EtherNet/IP network offers a full suite of control, configuration and data collection services by layering the Common Industrial Protocol (CIP) over the standard Internet protocols, such as TCP/IP and UDP. This combination of well-accepted standards provides the capability required to both support information data exchange and control applications.

The EtherNet/IP network also uses commercial, off-the-shelf Ethernet components and physical media, providing you with a cost-effective plant-floor solution.

For EtherNet/IP communication, you can use these CompactLogix controllers with a built-in EtherNet/IP communication port:

1769-L32E CompactLogix controller

1769-L35E CompactLogix controller

You can use several software products with a 1769 CompactLogix controller on an EtherNet/IP network.

Table 5 - EtherNet/IP Network Software Combinations

Software Functions

RSLogix 5000 programming software Configure the CompactLogix project

Define EtherNet/IP communication

BOOTP/DHCP utility with RSLogix

5000 programming software

RSNetWorx software for an

EtherNet/IP network

Assign IP addresses to devices on an

EtherNet/IP network

Configure EtherNet/IP devices by IP addresses and/or host names

Requirement

Yes

No

No

The EtherNet/IP communication modules:

support messaging, produced/consumed tags, HMI, and distributed I/O.

encapsulate messages within standard TCP/UDP/IP protocol.

share a common application layer with ControlNet and DeviceNet.

interface via RJ45, category 5, unshielded, twisted-pair cable.

support half/full-duplex 10 Mbps or 100 Mbps operation.

support standard switches.

require no network scheduling.

require no routing tables.

In this example:

the controllers produce and consume tags amongst themselves.

the controllers initiate MSG instructions that send and receive data or configure devices.

the personal computer uploads or downloads projects to the controllers.

the personal computer configures devices on an EtherNet/IP network.

48

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

CompactLogix Controller with

Integrated EtherNet/IP Port

PowerFlex 700S AC Drive with DriveLogix

Communicate over Networks

Chapter 4

Figure 4 - CompactLogix EtherNet/IP Overview

FlexLogix Controller with

1788-ENBT Module

CompactLogix

Controller with

1756-ENBT Module

Distributed I/O

1756-ENBT Module

(as an adapter) with 1756 I/O

Modules

Switch

1794-AENT Adapter with 1794

I/O Modules

1734-AENT Adapter with 1734 I/O Modules

Workstation

Connections over an EtherNet/IP Network

You indirectly determine the number of connections the controller uses by configuring the controller to communicate with other devices in the system.

Connections are allocations of resources that provide more reliable communication between devices than unconnected messages.

All EtherNet/IP connections are unscheduled. An unscheduled connection is a message transfer between controllers that is triggered by the requested packet interval (RPI) or the program, such as a MSG instruction. Unscheduled messaging lets you send and receive data when needed.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

49

Chapter 4

Communicate over Networks

ControlNet Network

Communication

The 1769-L32E and 1769-L35E controllers support 100 connections. However, the built-in EtherNet/IP port supports only 32 CIP connections over an

EtherNet/IP network. With these controllers, the number of end-node connections they effectively support depends on a connection’s RPI.

Requested Packet Interval

2 ms

4 ms

8 ms

16 ms

32 ms+

5

10

Max EtherNet/IP Port Communication Connections

2

18

25+

You can use all 32 communication connections on the built-in EtherNet/IP port.

However, we recommend that you leave some connections available for tasks such as going online and non-I/O purposes.

ControlNet is a real-time control network that provides high-speed transport of both time-critical I/O and interlocking data and messaging data, including uploading and downloading of programming and configuration data on a single physical-media link. The ControlNet network’s highly-efficient data transfer capability significantly enhances I/O performance and peer-to-peer communication in any system or application.

The ControlNet network is highly deterministic and repeatable and remains unaffected as devices are connected or disconnected from the network. This robust quality results in dependable, synchronized, and coordinated real-time performance.

The ControlNet network often functions as:

the default network for the CompactLogix platform.

a substitute/replacement for the remote I/O (RIO) network because the

ControlNet network adeptly handles large numbers of I/O points.

a backbone to multiple distributed DeviceNet networks.

a peer interlocking network.

For ControlNet communication, you can use these CompactLogix controllers with a built-in ControlNet communication port:

1769-L32C CompactLogix controller

1769-L35CR CompactLogix controller

50

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

You can use these software products with a 1769 CompactLogix controller on a

ControlNet network.

Table 6 - ControlNet Network Software Combinations

Software Functions

RSLogix 5000 programming software Configure the CompactLogix project

Define EtherNet/IP communication

RSNetWorx for ControlNet software Configure the ControlNet network

Define the NUT (network update time)

Schedule the ControlNet network

Requirement

Yes

The ControlNet communication modules:

support messaging, produced/consumed tags and distributed I/O.

share a common application layer with DeviceNet and EtherNet/IP networks.

require no routing tables.

support the use of coax and fiber repeaters for isolation and increased distance.

In this example:

the controllers produce and consume tags amongst themselves.

the controllers initiate MSG instructions that send and receive data or configure devices.

the personal computer uploads or downloads projects to the controllers.

the personal computer configures devices on ControlNet, and configures the network itself.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

51

Chapter 4

Communicate over Networks

Figure 5 - CompactLogix ControlNet Overview

Personal Computer/Workstation

CompactLogix Controller

PowerFlex 700S Drive

Distributed I/O

1756-CNB Module (as an adapter) with 1756 I/O

Modules

ControlNet Network

FlexLogix Controller with

1788-CNC Card

PLC-5/40C15 Controller

PanelView Terminal

1794-ACN15 Adapter with

1794 I/O Modules

1734-ACNR Adapter with

1734 I/O Modules

Connections over ControlNet

You indirectly determine the number of connections the controller uses by configuring the controller to communicate with other devices in the system.

Connections are allocations of resources that provide more reliable communication between devices compared to unconnected messages.

Table 7 - ControlNet Connection Methods

Connection Method

Scheduled

Unscheduled

Description

A scheduled connection is unique to ControlNet communication. A scheduled connection lets you send and receive data repeatedly at a set interval, which is the requested packet interval (RPI). For example, a connection to an I/O module is a scheduled connection because you repeatedly receive data from the module at a specified interval. Other scheduled connections include connections to:

communication devices.

produced/consumed tags.

On a ControlNet network, you must use RSNetWorx for ControlNet to enable all scheduled connections and establish a network update time (NUT).

Scheduling a connection reserves network bandwidth to specifically handle the connection.

An unscheduled connection is a message transfer between nodes that is triggered by ladder logic or the program (such as a MSG instruction).

Unscheduled messaging lets you send and receive data when needed. Unscheduled messages use the remainder of network bandwidth after scheduled connections are allocated.

52

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

The 1769-L32C and 1769-L35CR controllers support 100 connections.

However, the built-in ControlNet port only supports 32 communication connections. With these controllers, the number of end-node connections they effectively support depends on the connection’s NUT and RPI.

10 ms

14 ms

5 ms

4 ms

NUT

2 ms

3 ms

5 ms

RPI

2 ms

3 ms

5 ms

10 ms

14 ms

20 ms

64 ms

Supported ControlNet Communication Connections

(1)

0...1

1...2

3...4

6...9

10...12

12...16

31

(1) For each NUT/RPI combination, the number of connections supported is listed in a range. The lower number is the number of connections we recommend you make to maintain reasonable ControlNet port CPU utilization rates. The higher number is the maximum number of connections possible for that NUT/RPI combination.

You can use all 32 communication connections on the built-in ControlNet port.

However, we recommend that you leave some connections available for tasks such as going online and unscheduled network traffic.

DeviceNet Communication

The DeviceNet network uses the Common Industrial Protocol (CIP) to provide the control, configuration, and data collection capabilities for industrial devices.

The DeviceNet network uses the proven Controller Area Network (CAN) technology, which lowers installation costs and decreases installation time and costly downtime.

A DeviceNet network provides access to the intelligence present in your devices by letting you connect devices directly to plant-floor controllers without having to hard wire each device into an I/O module.

Table 8 - CompactLogix DeviceNet Communication Interfaces

If your application

· Communicates with other DeviceNet devices

· Uses the controller as a master or slave on DeviceNet

· Uses a controller ControlNet, Ethernet or serial port for other communication

· Accesses remote Compact I/O over a DeviceNet network

· Sends remote I/O data for as many as 30 modules back to scanner or controller

Select

1769-SDN DeviceNet scanner module

1769-ADN DeviceNet adapter module

(1)

(1) This table specifically describes using the 1769-ADN module to access remote Compact I/O over DeviceNet. However, CompactLogix controllers can access other Allen-Bradley remote I/O over DeviceNet. In those cases, you must select the appropriate interface. For example, if accessing remote POINT I/O modules, you must select the 1734-ADN.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

53

Chapter 4

Communicate over Networks

CompactLogix

Controller with 1769-SDN

Figure 6 - CompactLogix DeviceNet Overview

PLC-5 Controller with 1771-SDN

Scanner Module

DeviceNet Network

ControlLogix Controller with

1756-DNB Module

CompactLogix System with

1769-ADN

PanelView

Terminal

Laptop

Motor

Starter

Ultra 5000

Servo Drive

Input/Output

Devices

PowerFlex AC

Drive

Sensor

Indicator

Lights

Pushbutton

Cluster

Bar Code

Scanner

You can use these software products with a 1769 CompactLogix controller on a

DeviceNet network.

Table 9 - CompactLogix DeviceNet Software Combinations

Software

RSNetWorx software for DeviceNet

Functions

RSLogix 5000 programming software Configure the CompactLogix project

Define EtherNet/IP communication

Configure DeviceNet devices

Define the scan list for DeviceNet devices

Requirement

Yes

The DeviceNet communication module:

supports messaging to devices, not controller to controller.

shares a common application layer with ControlNet and EtherNet/IP.

offers diagnostics for improved data collection and fault detection.

requires less wiring than traditional, hardwired systems.

54

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Personal Computer

CompactLogix System with

1769-ADN DeviceNet

Adapter

Communicate over Networks

Chapter 4

You can use a linking device as a:

gateway to connect information.

control-level network to device-level network for programming, configuration, control or data collection.

router/bridge to connect the EtherNet/IP or ControlNet network to the

DeviceNet network.

Figure 7 - CompactLogix Linking Device Overview

ControlLogix Controller with

1756-ENBT Module

EtherNet/IP Network

FLEX Adapter and I/O

CompactLogix Controller with

Built-in EtherNet/IP

Communication Port

1788-EN2DN

Linking Device

DeviceNet Network

Sensor

Motor

Starter

Input/Output

Devices

PowerFlex AC

Drive

Indicator

Lights

Pushbutton

Cluster

Bar Code

Scanner

Serial Communication

CompactLogix controllers have a built-in RS-232 port.

1769-L32C, -L32E, -L35CR, and -L35E CompactLogix controllers have one built-in RS-232 port. By default, that port is channel 0 on these controllers.

The 1769-L31 CompactLogix controller has two RS-232 ports. One port only allows DF1 protocol only. The second port accepts DF1 and ASCII protocol.

IMPORTANT

Limit the length of serial (RS-232) cables to 15.2 m (50 ft).

You can configure the serial port of the controller for several modes.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

55

Chapter 4

Communicate over Networks

Table 10 - CompactLogix Serial Port Configurations

Mode

DF1 Point-to-Point

DF1 Master

DF1 Slave

DF1 Radio Modem

User (channel 0 only)

DH-485

Modes

Communicate between the controller and one other DF1-protocol-compatible device.

This is the default system mode. Default parameters are:

Baud Rate: 19,200

Data Bits: 8

Parity: None

Stop Bits: 1

Control Line: No Handshake

RTS send Delay: 0

RTS Off Delay: 0

This mode is typically used to program the controller through its serial port.

Control polling and message transmission between the master and slave nodes.

The master/slave network includes one controller configured as the master node and as many as 254 slave nodes. Link slave nodes using modems or line drivers.

A master/slave network can have node numbers from 0...254. Each node must have a unique node address. Also, at least 2 nodes must exist to define your link as a network (1 master and 1 slave station are the two nodes).

Use a controller as a slave station in a master/slave serial communication network.

When there are multiple slave stations on the network, link slave stations using modems or line drivers to the master. When you have a single slave station on the network, you do not need a modem to connect the slave station to the master. You can configure the control parameters for no handshaking. You can connect 2...255 nodes to a single link. In DF1 slave mode, a controller uses DF1 half-duplex protocol.

One node is designated as the master and it controls who has access to the link. All the other nodes are slave stations and must wait for permission from the master before transmitting.

Compatible with SLC500 and MicroLogix1500 controllers.

This mode supports master and slave, and store and forward modes.

Communicate with ASCII devices.

This requires your program to use ASCII instructions to transmit data to and from ASCII device.

Communicate with other DH-485 devices.

This multi-master, token-passing network allows programming and peer-to-peer messaging.

56

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Baud Rate Selector Switch

Port 1: DB-9 RS-232, DTE

Communicate over Networks

Chapter 4

Configure an Isolator

Channel 0 on the CompactLogix controllers is fully isolated and does not need a separate isolation device. Channel 1 on the 1769-L31 controller is not an isolated serial port. To configure an isolator, perform this procedure.

1. Determine whether you need an isolator.

If you connect channel 1 of the 1769-L31 controller to a modem or an

ASCII device, consider installing an isolator between the controller and modem or ASCII device. An isolator is also recommended when connecting the controller directly to a programming workstation.

One possible isolator is the 1761-NET-AIC interface converter.

Port 2: Mini-DIN 8 RS-232

DC Power Source Selector Switch

Terminals for External 24V DC

Power Supply

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

57

Chapter 4

Communicate over Networks

Are you using an isolator?

No

Yes

2. Select the appropriate cable.

Then use this cable

The 1756-CP3 cable attaches the controller directly to the controller.

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

1 CD

2 RDX

3 TXD

4 DTR

COMMON

6 DSR

7 RTS

8 CTS

9 9

If you make your own cable, it must be shielded, and the shields must be tied to the metal shell (that surrounds the pins) on both ends of the cable.

You can also use a 1747-CP3 cable from the SLC product family. This cable has a taller right-angle connector housing than that of the 1756-CP3 cable.

The 1761-CBL-AP00 cable (right-angle connector to controller) or the 1761-CBL-PM02 cable (straight connector to the controller) attaches the controller to port 2 on the 1761-NET-AIC isolator. The mini-DIN connector is not commercially available, so you cannot make this cable.

1

7

6

2

3

6 7 8

8

9

5

4

3

4

1 2

5

DB-9 Right-angle or Straight Cable End 8-pin, Mini-DIN Cable End

5

6

3

4

Pin

1

2

7

8

9

RTS

CTS

NA

DB-9 End

DCD

RxD

TxD

DTR

Ground

DSR

RTS

CTS

NA

Mini-DIN End

DCD

RxD

TxD

DTR

Ground

DSR

3. Connect the appropriate cable to the serial port.

58

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

Communicate with DF1 Devices

You can configure the controller as a master or slave on a serial communication network. Use serial communication when:

the system contains three or more stations.

communication occur regularly and require leased-line, radio, or power-line modem.

ATTENTION: Only the 1769-L31 controller has more than one RS-232 port. All other 1769 controllers are limited to one RS-232 port.

EtherNet/IP

RS-232

RS-232

RS-232

RS-232

Modem

Modem

Modem

To configure the controller for DF1 communication, perform this procedure.

1. In RSLogix 5000 programming software, right-click your controller and select Properties.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

59

Chapter 4

Communicate over Networks

The Controller Properties dialog box appears.

2. Click the Serial Port tab.

3. From the Mode pull-down menu, choose System.

4. Specify communication settings.

5. Click the System Protocol tab.

6. From the Protocol pull-down menu, choose a DF1 protocol.

7. Specify DF1 settings.

60

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

IMPORTANT

DF1 Radio Modem Support

Your ControlLogix controller includes a driver that lets it to communicate over the DF1 Radio Modem protocol. This driver implements a protocol, optimized for use with radio modem networks, that is a hybrid between DF1 full-duplex protocol and DF1 half-duplex protocol, and therefore is not compatible with either of these protocols.

The DF1 radio modem driver should be used only among devices that support and are configured for the DF1 radio modem protocol.

Additionally, there are some radio modem network configurations that will not work with the

DF1 radio modem driver. In these configurations, continue to use DF1 half-duplex protocol.

Like DF1 full-duplex protocol, DF1 radio modem lets any node to connect to any other node at any time (if the radio modem network supports full-duplex data port buffering and radio transmission collision avoidance). Like DF1 half-duplex protocol, a node ignores any packets received that have a destination address other than its own, with the exception of broadcast packets and pass-through packets.

Unlike either DF1 full-duplex or DF1 half-duplex protocols, DF1 radio modem protocol does not include ACKs, NAKs, ENQs, or poll packets. Data integrity is assured by the CRC checksum.

Using the DF1 Radio Modem Driver

The DF1 radio modem driver can be configured as the system mode driver by using RSLogix 5000 programming software, version 17 or later.

To configure the controller for DF1 Radio Modem communication, perform this procedure.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

61

Chapter 4

Communicate over Networks

1. In the Controller Organizer of RSLogix 5000 programming software, right-click your controller and select Properties.

The Controller Properties dialog box appears.

2. Click the System Protocol tab.

62

3. From the Protocol pull-down menu, choose DF1 Radio Modem.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Setting

Station Address

Error Detection

Enable Store and Forward

Communicate over Networks

Chapter 4

4. Specify DF1 Radio Modem system protocol settings.

Description

Specifies the node address of the controller on the serial network. Select a number 1… 254 decimal, inclusive.

To optimize network performance, assign node addresses in sequential order. Initiators, such as personal computers, should be assigned the lowest address numbers to minimize the time required to initialize the network.

Click one of the radio buttons to specify the error detection scheme used for all messages.

BCC - the processor sends and accepts messages that end with a BCC byte.

CRC - the processor sends and accepts messages with a 2-byte CRC.

Check the Enable Store and Forward checkbox if you want to enable the store and forward functionality. When enabled, the destination address of any received message is compared to the Store and Forward tag table. If there is a match, the message is then forwarded

(re-broadcasted) from the port.

From the Store and Forward Tag pull-down menu, choose an integer (INT[16]) tag.

Each bit represents a station address. If this controller reads a message destined for a station that has its bit set in this table, it forwards the message.

Also note, the Enable Store and Forward function is usable only if the controller is connected to the master radio modem.

5. Click OK.

Advantage of Using DF1 Radio Modem Protocol

The primary advantage of using DF1 radio modem protocol for radio modem networks is in transmission efficiency. Each read/write transaction (command and reply) requires only one transmission by the initiator (to send the command) and one transmission by the responder (to return the reply). This minimizes the number of times the radios need to key-up to transmit, which maximizes radio life and minimizes radio power consumption. In contrast, DF1 half-duplex protocol requires five transmissions for the DF1 master to complete a read/write transaction with a DF1 slave - three by the master and two by the slave.

The DF1 radio modem driver can be used in a pseudo master/slave mode with any radio modems, as long as the designated master node is the only node initiating MSG instructions, and as long as only one MSG instruction is triggered at a time.

For modern serial radio modems that support full-duplex data port buffering and radio transmission collision avoidance, the DF1 radio modem driver can be used to set up a masterless peer-to-peer radio network. In a peer-to-peer radio network, any node can initiate communication to any other node at any time, as long as all of the nodes are within radio range so that they receive each other’s transmissions.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

63

Chapter 4

Communicate over Networks

DF1 Radio Modem System Limitations

The following questions need to be answered to determine if you can implement the new DF1 radio modem driver in your radio modem network.

If all of the devices on the network are ControlLogix controllers, you must configure them with the DF1 radio modem driver by using RSLogix 5000 programming software, version 17 or later. If not, then make sure that all of the nodes can support the DF1 radio modem protocol.

If each node receives the radio transmissions of every other node, being both within radio transmission/reception range and on a common receiving frequency (either via a Simplex radio mode or via a single, common, full-duplex repeater) the radio modems must handle full-duplex data port buffering and radio transmission collision avoidance.

If this is the case, you can take full advantage of the peer-to-peer message initiation capability in every node (for example, the ladder logic in any node can trigger a MSG instruction to any other node at any time).

If not all modems can handle full-duplex data port buffering and radio transmission collision avoidance, you may still be able to use the DF1 radio modem driver, but only if you limit MSG instruction initiation to a single master node whose transmission can be received by every other node.

If not all nodes receive the radio transmission of every other node, you may still be able to use the DF1 radio modem driver, but only if you limit MSG instruction initiation to the node connected to the master radio modem whose transmissions can be received by every other radio modem in the network.

You can take advantage of the ControlLogix controller channel-to-channel pass-through to remotely program the other nodes using RSLinx and

RSLogix 5000 programming software running on a personal computer connected to a local ControlLogix controller via DH-485, DH+, or

Ethernet.

Communicate with ASCII Devices

You can use the serial port to interface with ASCII devices when the controller is configured for user mode. For example, you can use the serial port to:

read ASCII characters from a weigh scale module or bar code reader.

send and receive messages from an ASCII triggered device, such as a

MessageView terminal.

64

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

Figure 8 - ASCII Device Serial Communication

Connection from the Controller’s Serial Port to the ASCII Device

To configure the controller for ASCII communication, perform this procedure.

1. In RSLogix 5000 programming software, right-click your controller and select Properties.

The Controller Properties dialog box appears.

2. Click the Serial Port tab.

3. From the Mode pull-down menu, choose User.

4. Specify communication settings.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

65

Chapter 4

Communicate over Networks

5. Click the User Protocol tab.

66

ARD

ARL

AWA

AWT

AHL

6. From the Protocol pull-down menu, choose ASCII.

7. Specify ASCII settings.

The controller supports several instructions to manipulate ASCII characters.

The instructions are available in ladder diagram (LD) and structured text (ST).

Read and Write ASCII Characters

Instruction Code

ABL

ACB

ACL

Description

Determine when the buffer contains termination characters

Count the characters in the buffer

Clear the buffer

Clear out ASCII Serial Port instructions that are currently executing or are in the queue

Obtain the status of the serial port control lines

Turn on or off the DTR signal

Turn on or off the RTS signal

Read a fixed number of characters

Read a varying number of characters, up to and including the first set of termination characters

Send characters and automatically append one or two additional characters to mark the end of the data

Send characters

Create and Modify Strings of ASCII Characters

Instruction Code

CONCAT

DELETE

FIND

INSERT

MID

Description

Add characters to the end of a string

Delete characters from a string

Determine the starting character of a substring

Insert characters into a string

Extract characters from a string

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

Convert Data to or from ASCII Characters

Instruction Code

STOD

STOR

DTOS

RTOS

UPPER

LOWER

Description

Convert the ASCII representation of an integer value to a SINT, INT, DINT, or REAL value

Convert the ASCII representation of a floating-point value to a REAL value

Convert a SINT, INT, DINT, or REAL value to a string of ASCII characters

Convert a REAL value to a string of ASCII characters

Convert the letters in a string of ASCII characters to upper case

Convert the letters in a string of ASCII characters to lower case

Modbus Support

To use Logix5000 controllers on Modbus, connect the controllers through the serial port and execute specific ladder logic routines.

A sample controller project is available with RSLogix 5000 Enterprise programming software.

Broadcast Messages over a Serial Port

You can broadcast messages over a serial port connection from a master controller to all of its slave controllers by using several communication protocols. Those protocols are the following:

DF1 Master

DF1 Radio Modem

DF1 Slave

Broadcasting over a serial port is achieved using the ‘message’ tag. Because messages are sent to receiving controllers, only the ‘write’ type messages can be used for broadcasting.

The broadcast feature can be set up by using ladder logic programming software or Structured Text programming software.

The broadcast feature can also be set by modifying the path value of a message tag in the tag editor.

For this example, Ladder Logic programming software will be used.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

67

Chapter 4

Communicate over Networks

Step 1: Set Broadcast-Controller Properties

First, set the System Protocol by following these steps.

1. In the Controller Organizer, right-click on the controller and choose

Properties.

2. In the Controller Properties dialog box, from the System Protocol tab, choose the settings for the controller, then choose OK.

Field

Station Address

Transmit Retries

ACK Timeout

Slave Poll Timeout

Reply Message Wait

Polling Mode

EOT Suppression

3

50

DF-1 Master Protocol

Controller station address number

DF-1 Slave Protocol

Controller station address number

3

N/A

N/A

5

3000

N/A

Message: polls the slave by using the Message instruction

Slave: initiates messages for slave-to-slave broadcast.

Standard: schedules polling for the slave.

N/A

N/A

Disable

N/A

N/A

N/A

DF-1 Radio Modem Protocol

Controller station address number

N/A

N/A

N/A

68

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Field

Error Detection

Duplicate Detection

Enable Store and Forward

Communicate over Networks

Chapter 4

DF-1 Master Protocol

BCC

Enabled

N/A

DF-1 Slave Protocol

BCC

Enabled

N/A

DF-1 Radio Modem Protocol

BCC

N/A

Choose enable if you want to use the store and forward tag.

The last bit of the INT[16] Enable Store and

Forward array must be ’enabled.’ For example, say you create an INT[16] tag named EnableSandF. Then

EnableSandF[15].15 must be set to 1 for broadcast to work on radio modem.

Step 2: Set Broadcast - Create Controller Scope Message Tag

Next, create a Message tag by following these steps.

1. In the Controller Organizer, right-click on the Controller Tags folder and choose New Tag.

The new tag must be a ‘message’ tag.

2. Name the tag and select the Data Type ‘Message’, then choose OK.

The Message tag in the Controller Scope’s Controller Tags folder will look similar to the following.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

69

Chapter 4

Communicate over Networks

Step 3: Ladder Logic Programming Software

Then, to set broadcasting over a serial port, follow these steps.

1. In the Controller Organizer, from the Tasks folder, choose Main Routine to display the ladder logic programming software interface.

2. Open a MSG instruction from the Input/Output tab.

3. Double-click in the Message Control field to enable the pull-down menu and select the tag you created.

4. Launch the View Configuration dialog box.

5. In the Message Configuration dialog box, from the Configuration tab, select the message type from the Message Type field.

70

Valid ‘Write’ Message Types include the following:

CIP Generic

CIP Data Table Write

PLC2 Unprotected Write

PLC3 Typed Write

PLC3 Word Range Write

PLC5 Typed Write

PLC5 Word Range Write

SLC Typed Write

6. Fill in any other fields needed.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

7. From the Communication tab, select the Broadcast Radio button and the

Channel from the pull-down, then choose OK.

ATTENTION: When using structured text programming software, broadcast over serial is set by typing MSG(aMsg) and right-clicking on a

MSG to display the Message Configuration dialog box.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

71

Chapter 4

Communicate over Networks

DH-485 Network

Communication

For DH-485 communication, use the controller’s serial port.

However, with a CompactLogix controller, we recommend that you use NetLinx networks, such as EtherNet/IP, ControlNet, or DeviceNet, because excessive traffic on a DH-485 network may make it impractical to connect to a controller with RSLogix 5000 programming software.

IMPORTANT

If your application uses connections to DH-485 networks, select built-in serial ports.

The DH-485 protocol uses RS-485 half-duplex as its physical interface. RS-485 is a definition of electrical characteristics, not a protocol. You can configure the

CompactLogix controller’s RS-232 port to act as a DH-485 interface. By using a

1761-NET-AIC converter and the appropriate RS-232 cable (1756-CP3 or

1747-CP3), a CompactLogix controller can send and receive data on a DH-485 network.

Figure 9 - CompactLogix DH-485 Communication Overview

CompactLogix Controller

1747-CP3 Cable or

1761-CBL-AC00 Cable

(port 1)

Connection from CompactLogix

Controller to Port 1 or Port 2

1761-CBL-AP00 Cable or

1761-CBL-PM02 Cable

1761-NET-AIC+

Converter

1747-CP3 Cable or

1761-CBL-AC00 Cable

DH-485 Network

1747-AIC Converter

72

SLC 5/03 Controller

On the DH-485 network, the CompactLogix controller can send and receive messages to and from other controllers.

IMPORTANT

A DH-485 network consists of multiple cable segments. Limit the total length of all the segments to 1219 m (4000 ft).

For the controller to operate on a DH-485 network, you need a 1761-NET-AIC interface converter for each controller you want to put on the DH-485 network.

You can have two controllers for each 1761-NET-AIC converter, but you need a different cable for each controller.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Communicate over Networks

Chapter 4

To establish DH-485 communication, perform this procedure.

1. Connect the serial port of the controller to either port 1 or port 2 of the

1761-NET-AIC converter.

2. Use the RS-485 port to connect the converter to the DH-485 network.

The cable you use to connect the controller depends on the port you use on the 1761-NET-AIC converter.

Connection

Port 1

DB-9 RS-232, DTE connection

Port 2 mini-DIN 8 RS-232 connection

Required Cable

1747-CP3 or

1761-CBL-AC00

1761-CBL-AP00 or

1761-CBL-PM02

3. In RSLogix 5000 programming software, right-click on your controller and choose Properties.

The Controller Properties dialog appears.

4. Click the Serial Port tab.

5. From the Mode pull-down menu, choose System.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

73

Chapter 4

Communicate over Networks

6. Specify communication settings.

IMPORTANT

The baud rate specifies the communication rate for the

DH-485 port. All devices on the same DH-485 network must be configured for the same baud rate. Select 9600 or

19200 KB.

7. Click the System Protocol tab.

8. From the Protocol pull-down menu, choose DH485.

9. Specify DH-485 settings.

10. From the Protocol pull-down menu, choose DF1 Radio.

Table 11 - System Protocol Specifications

Characteristic

Station Address

Token Hold Factor

Maximum Station

Address

Description

Specifies the node address of the controller on the DH-485 network. Select a number 1...31 decimal, inclusive.

To optimize network performance, assign node addresses in sequential order. Initiators, such as personal computers, should be assigned the lowest address numbers to minimize the time required to initialize the network.

Number of transmissions plus retries that a node holding a token can send onto the data link each time it receives the token. Enter a value between 1...4. The default is 1.

Specifies the maximum node address of all the devices on the DH-485 network. Select a number 1...31 decimal, inclusive.

To optimize network performance, make sure:

the maximum node address is the highest node number being used on the network.

that all the devices on the same DH-485 network have the same maximum node address.

74

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Chapter

5

Manage Controller Communication

This chapter explains how to manage controller communication.

Topic

Produce and Consume Data

Send and Receive Messages

Connections

Calculate Total Connections

Connections Example

78

79

76

77

Page

75

Produce and Consume Data

The controller supports the ability to produce (broadcast) and consume (receive) system-shared tags over ControlNet or EtherNet/IP networks. Produced and consumed tags each require connections. Over ControlNet, produced and consumed tags are scheduled connections.

Figure 10 - Controller Communication Overview

Controller_1

Produced Tag

Controller_2

Consumed Tag

Controller_3

Consumed tag

Tag Type

Produced

Consumed

Controller_4

Consumed Tag

Description

A produced tag allows other controllers to consume the tag, which means that a controller can receive the tag data from another controller. The producing controller uses one connection for the produced tag and another for each consumer. The controller’s communication device uses one connection for each consumer.

As you increase the number of controllers that can consume a produced tag, you also reduce the number of connections the controller and communication device have available for other operations, like communication and I/O.

Each consumed tag requires one connection for the controller that is consuming the tag. The controller’s communication device uses one connection for each consumer.

For two controllers to share produced or consumed tags, both controllers must be attached to the same control network, such as a ControlNet or Ethernet/IP network. You cannot bridge produced and consumed tags over two networks.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

75

Chapter 5

Manage Controller Communication

The number of available connections limits the total number of tags that can be produced or consumed. If the controller uses all of its connections for I/O and communication devices, no connections are left for produced and consumed tags.

Send and Receive Messages

Messages transfer data to other devices, such as controllers or operator interfaces.

Messages use unscheduled connections to send or receive data. Connected messages can leave the connection open (cache) or close the connection when the message is done transmitting.

Table 12 - Message Transmission

Message Type

CIP data table read or write

PLC-2, PLC-3, PLC-5, or SLC

(all types)

CIP generic

Block-transfer read or write

Communication

Method

NA

CIP

CIP with Source ID

DH+

NA

NA

Connected Message Can the message be cached?

Yes

No

Yes

No

No

Yes

Optional

(1)

NA

No

Yes

Yes

(2)

Yes

(1) You can connect CIP generic messages. However, for most applications we recommend you leave CIP generic messages unconnected.

(2) Consider caching only if the target module requires a connection.

Connected messages are unscheduled connections on both ControlNet and

EtherNet/IP networks.

Each message uses one connection, regardless of how many devices are in the message path. You can program the target of a MSG instruction to optimize message transfer time.

76

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Manage Controller Communication

Chapter 5

Determine Whether to Cache Message Connections

When you configure a MSG instruction, you can cache or not cache the connection.

Table 13 - Caching Messages

Message Execution

Repeatedly

Infrequently

Function

Cache the connection.

This keeps the connection open and optimizes execution time. Opening a connection each time the message executes increases execution time.

Do not cache the connection.

This closes the connection upon completion of the message, freeing up that connection for other uses.

Connections

A Logix5000 system uses a connection to establish a communication link between two devices. Connections can be:

a controller to local I/O modules or local communication modules.

a controller to remote I/O or remote communication modules.

a controller to remote I/O (rack-optimized) modules.

produced and consumed tags.

messages.

controller access by RSLogix 5000 programming software.

controller access by RSLinx software for HMI or other applications.

The limit of connections may ultimately reside in the communication module you use for the connection. If a message path routes through a communication module, the connection related to the message also counts towards the connection limit of that communication module.

Table 14 - Connections Overview

Device

CompactLogix controller (1769-L31)

Built-in ControlNet communication port (1769-L32C and 1769-

L35CR controllers only)

Built-in EtherNet/IP communication port (1769-L32E and

1769-L35E controllers only)

Supported Connections

100

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

77

Chapter 5

Manage Controller Communication

Calculate Total Connections

You can calculate the total number of local and remote connections the controller uses.

Table 15 - Local Connections Calculation

Local Connection Type

Local I/O module (always a direct connection)

Built-in ControlNet communication port (1769-L32C and 1769-L35CR controllers only)

Built-in EtherNet/IP communication port (1769-L32E and 1769-L35E controllers only)

1769-SDN DeviceNet scanner module

Device Quantity Connections per

Device

1

0

0

2

Total

Total

Connections

The number of remote connections a communication module supports determines how many connections the controller can access through that module.

Table 16 - Remote Connections Calculation

Remote Connection Type

Remote ControlNet communication module

I/O configured as direct connection (none)

I/O configured as rack-optimized connection

Remote I/O module over ControlNet (direct connection)

Remote EtherNet/IP communication module

I/O configured as direct connection (none)

I/O configured as rack-optimized connection

Remote I/O module over a EtherNet/IP network (direct connection)

Remote device over a DeviceNet network (accounted for in rack-optimized connection for local 1769-

SDN module)

Other remote communication adapter (POINT and FLEX adapters, for example)

Produced tag

Each consumer

Consumed tag

Message (depending on type)

Block-transfer message

Device Quantity

1

1

1

0

1

1

1

Connections per

Device

0 or

1

1

0 or

1

1

Total Connections

Total

78

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Connections Example

Manage Controller Communication

Chapter 5

In this example system the 1769-L35E CompactLogix controller:

controls local digital I/O modules in the same chassis.

controls remote I/O devices on a DeviceNet network.

sends and receives messages to/from a ControlLogix controller on an

EtherNet/IP network.

produces one tag that the 1794 FlexLogix controller consumes.

is programmed via RSLogix 5000 programming software.

Table 17 - Example - CompactLogix System Connections

1769-ADN Adapter with

CompactLogix I/O Modules

Redistation

Series 9000

Photoeye

DeviceNet Network

1769-L35E CompactLogix with 1769-SDN

EtherNet/IP Network

ControlLogix Controller with

1756-ENBT Module

Personal Computer

Table 18 - Example - CompactLogix Connection Types

Connection Type

Controller to local I/O modules (rack-optimized)

Controller to 1769-SDN scanner module

Controller to built-in EtherNet/IP communication port (rack-optimized)

Controller to RSLogix 5000 programming software

Message to ControlLogix controller

Produced tag consumed by FlexLogix controller

FlexLogix with 1788-DNBO DeviceNet Daughtercard

Device Quantity

2

1

1

1

2

2

2

0

1

1

1

Connections per

Device

1

Total Connections

2

2

0

1

2

2

Total 9

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

79

Chapter 5

Manage Controller Communication

Notes:

80

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Select I/O Modules

Chapter

6

Place, Configure, and Monitor I/O

This chapter explains how to place, configure, and monitor CompactLogix I/O modules.

Topic

Select I/O Modules

Place Local I/O Modules

Configure I/O

Configure Distributed I/O on an EtherNet/IP Network

Configure Distributed I/O on a ControlNet Network

Configure Distributed I/O on a DeviceNet Network

Address I/O Data

Determine When Data Is Updated

Reconfigure an I/O Module

90

91

88

89

92

94

86

87

Page

81

When choosing 1769 I/O modules, select:

specialty I/O modules when appropriate.

Some modules have field-side diagnostics, electronic fusing, or individually-isolated inputs and outputs.

a 1492 wiring system for each I/O module as an alternative to the terminal block that comes with the module.

1492 PanelConnect modules and cables if you are connecting input modules to sensors.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

81

Chapter 6

Place, Configure, and Monitor I/O

Validate I/O Layout

After you have selected your I/O modules, you need to validate the system you want to design. Before you begin to place your I/O modules, consider that the minimum backplane RPI increases as you add modules. Also, the I/O modules must be distributed so that the current consumed from the left or right side of the power supply never exceeds 2.0 A at 5V DC or 1.0 A at 24V DC.

Estimate Requested Packet Interval

The requested packet interval (RPI) defines the frequency at which the controller sends and receives all I/O data on the backplane. Each module on the backplane can have its own individual RPI setting.

The effective scan frequency for any individual module is still impacted by the other modules in the system and those modules’ RPI settings. The following table provides relative scanning durations for various types of modules. This information should be taken into account when setting an individual module’s

RPI in order to achieve the desired effective scan frequency for any module in the system

.

Type of Module

Digital and analog (any mix)

Specialty

Request Packet Interval

1...4 modules can be scanned in 1 ms.

5...30 modules can be scanned in 2 ms.

Some input modules have a fixed 8 ms filter, so selecting a greater RPI has no effect.

Full-sized 1769-SDN modules add 2 ms per module.

1769-HSC modules add 1 ms per module.

Full-sized 1769-ASCII modules add 1 ms per module.

You can always select an RPI that is slower than these. The RPI shows how quickly modules can be scanned, not how quickly an application can use the data.

The RPI is asynchronous to the program scan. Other factors, such as program execution duration, affect I/O throughput.

82

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Place, Configure, and Monitor I/O

Chapter 6

Calculate System Power Consumption

To validate your proposed system, calculate the total 5V DC current and 24V

DC to be consumed.

Table 19 - I/O Module Power Consumption Calculation Table

Catalog Number

1769-L31

1769-L32C

1769-L32E

1769-L35CR

1769-L35E

Number of

Modules

Module Current Requirements at 5V DC (in mA)

330

650

660

680

660

40

90

at 24V DC (in mA)

40

40

90

Total Current Required

(1)

:

Calculated Current =

(Number of Modules) x (Module Current Requirements) at 5V DC (in mA) at 24V DC (in mA)

(1) This number must not exceed the power supply current capacity.

Table 20 - Power Supply Current Capacity

Specification

Output Bus Current Capacity 0...55 °C (32...131 °F)

24V DC User Power Capacity 0...55 °C (32...131 °F)

Power Supply and Capacity

1769-PA2

2 A at 5V DC and 0.8 A at 24V DC

250 mA (maximum)

1769-PB2

NA

1769-PA4 1769-PB4

4 A at 5V DC and 2 A at 24V DC

Validate Placement of I/O Modules

The controller you use determines how many local I/O modules you can configure.

Table 21 - Controller I/O Support

Controller

1769-L35CR

1769-L35E 30

1769-L32C, 1769-L32E and

1769-L31

16

Supported Local I/O Modules

30

3

3

I/O Banks

3

To validate the proposed placement of I/O modules in your CompactLogix system, perform this procedure.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

83

Chapter 6

Place, Configure, and Monitor I/O

1. Verify that your 1769-L3x controller resides on the leftmost side of the bank.

Single-Bank System

1769-L3x

Controller

Bank 0

Power Supply

Bank 1

End Cap

2. Verify that you have placed no more than three I/O modules between your controller and power supply (bank 0).

Placing more than three I/O modules in bank 0 would exceed the distance rating of four and invalidate your system.

3. Validate the number of I/O modules your power supply can support.

In a single-bank system, make sure you have not placed more than eight I/

O modules between the power supply and end cap (bank 1).

IMPORTANT

In a single-bank system, the power supply can support up to eight

I/O modules as long as the modules’ power consumption does not exceed the power supply’s capacity.

So, in a single-bank system, you may not have more than eleven total I/O modules, three to the left of your power supply and eight to the right.

If your system requires additional I/O modules, you must add an additional bank.

In a multi-bank system, make sure that your additional bank(s) do not have more than eight I/O modules on either side of the additional power supply.

IMPORTANT

In a multi-bank system, you may place up to eight I/O modules on either side of the additional power supply so long as the power consumed by these modules does not exceed the power supply’s capacity.

In this example, the I/O modules 12...30 could be arranged in any way as long as the power supplies’ capacity was not exceeded. In other words, the

84

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Place, Configure, and Monitor I/O

Chapter 6

first additional bank could contain fewer than 16 I/O modules This is just one possible arrangement.

Example of Multi-Bank System

Original Banks 0 and 1

1769-L35x

Processor

1 2 3 4 5 6 7 8 9 10 11

Supply

End

Caps

Additional

Banks

Additional

Banks

12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

Supply

End

Cap

I/O modules are numbered 1....30

4. Verify that all banks have end caps.

IMPORTANT

If you place and configure more I/O modules and I/O banks than your controller can support, your system may run well for a period of time. Nothing alerts you to the fact that you have exceeded your controller’s capacity.

However, by exceeding your controller’s I/O capacity, you put your system at risk of intermittent faults, the most common being Major

Fault Type 03 (I/O Fault) Code 23.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

85

Chapter 6

Place, Configure, and Monitor I/O

Place Local I/O Modules

Use the 1769-CRR1/-CRR3 or 1769-CRL1/-CRL3 expansion cable to connect banks of I/O modules.

Each I/O module also has a power supply distance rating, the number of modules from the power supply. The distance rating is printed on each module’s label.

Each module must be located within its distance rating.

Table 22 - Controller I/O Placement

Horizontal

Orientation

Bank 1

1769-CRLx Cable

Bank 2 1769-CRLx Cable Bank 3

Vertical Orientation

Bank 1

Bank 2

1769-CRRx Cable

ATTENTION: The CompactLogix system does not support Removal and

Insertion Under Power (RIUP). While the CompactLogix system is under power:

any break in the connection between the power supply and the controller (for example, removing the power supply, controller, or an I/O module) may subject the logic circuitry to transient conditions above the normal design thresholds and may result in damage to system components or unexpected behavior.

removing an end cap or an I/O module faults the controller and may also result in damage to system components.

The CompactLogix controller also supports distributed (remote) I/O via these networks:

EtherNet/IP

ControlNet

DeviceNet

86

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Configure I/O

Place, Configure, and Monitor I/O

Chapter 6

To communicate with an I/O module in your system, add the module to the I/O

Configuration folder of the controller.

Figure 11 - I/O Module Configuration

Add I/O modules to the

CompactBus.

When you add a module, you also define a specific configuration for the module.

While the configuration options vary from module to module, there are some common options that you typically configure.

Table 23 - I/O Configuration Options

Configuration Option

Requested packet interval (RPI)

Description

The RPI specifies the interval at which data updates over a connection. For example, an input module sends data to a controller at the RPI that you assign to the module.

Typically, you configure an RPI in milliseconds (ms). The range is 0.1...750 ms.

If a ControlNet network connects the devices, the RPI reserves a slot in the stream of data flowing across the ControlNet network. The timing of this slot may not coincide with the exact value of the RPI, but the control system guarantees that the data transfers at least as often as the RPI.

Change of state (COS)

Communication format

Electronic keying

Digital I/O modules use COS to determine when to send data to the controller. If a COS does not occur within the RPI timeframe, the module multicasts data at the RPI.

Because the RPI and COS functions are asynchronous to the logic scan, it is possible for an input to change state during program scan execution. If this is a concern, buffer input data so your logic has a stable copy of data during its scan. Use the Synchronous Copy (CPS) instruction to copy the input data from your input tags to another structure and use the data from that structure.

Many I/O modules support different formats. The communication format that you choose also determines:

data structure of tags.

connections.

network usage.

ownership.

returning of diagnostic information.

When you configure a module, you specify the slot number for the module. However, it is possible to purposely or accidentally place a different module in that slot. Electronic keying lets you protect your system against the accidental placement of the wrong module in a slot. The chosen keying option determines how closely any module in a slot must match the configuration for that slot before the controller opens a connection to the module. There are different keying options depending on your application needs.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

87

Chapter 6

Place, Configure, and Monitor I/O

I/O Connections

A Logix5000 system uses connections to transmit I/O data.

Table 24 - Logix5000 I/O Connections

Connection

Direct

Rack-optimized

Description

A direct connection is a real-time, data-transfer link between the controller and an I/O module. The controller maintains and monitors the connection between the controller and the I/O module. Any break in the connection, such as a module fault or the removal of a module while under power, causes the controller to set fault status bits in the data area associated with the module.

Typically, analog I/O modules, diagnostic I/O modules, and specialty modules require direct connections.

For digital I/O modules, you can select rack-optimized communication. A rack-optimized connection consolidates connection usage between the controller and all the digital I/O modules on a rack (or DIN rail). Rather than having individual, direct connections for each I/

O module, there is one connection for the entire rack (or DIN rail).

Configure Distributed I/O on an EtherNet/IP Network

To communicate with distributed I/O modules over an EtherNet/IP network:

choose a 1769-L32E or 1769-L35E CompactLogix controller with a builtin EtherNet/IP communication port.

add an EtherNet/IP adapter, and I/O modules to the I/O Configuration folder of the controller.

Within the I/O Configuration folder, organize the modules into a hierarchy of tree/branch and parent/child.

Figure 12 - EtherNet/IP Distributed I/O Configuration

For a typical distributed I/O network…

Controller

Built-in EtherNet/IP

Port

Remote

Adapter

I/O

Module

Device

…you build the I/O configuration in this order.

88

1. Add the remote adapter for the distributed I/O chassis or DIN rail.

2. Add the distributed I/O modules.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Place, Configure, and Monitor I/O

Chapter 6

Configure Distributed I/O on a ControlNet Network

To communicate with distributed I/O modules over a ControlNet network:

choose a 1769-L32C or 1769-L35CR CompactLogix controller with a built-in ControlNet communication port.

add a ControlNet adapter, and I/O modules to the I/O Configuration folder of the controller.

Within the I/O Configuration folder, organize the modules into a hierarchy of tree/branch and parent/child.

Figure 13 - ControlNet Distributed I/O Configuration

For a typical distributed I/O network…

Controller

Built-in ControlNet

Port

Remote

Adapter

I/O

Module

Device

…you build the I/O configuration in this order.

1. Add the remote adapter for the distributed I/O chassis or DIN rail.

2. Add the distributed I/O modules.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

89

Chapter 6

Place, Configure, and Monitor I/O

Configure Distributed I/O on a DeviceNet Network

For a typical distributed I/O network…

Single Network

Controller Scanner

Device

To communicate with the I/O modules over a DeviceNet network, add the

DeviceNet bridge to the I/O Configuration folder of the controller. RSNetWorx for DeviceNet software is used to define the scanlist within the DeviceNet scanner to communicate data between the devices and the controller through the scanner.

Figure 14 - DeviceNet Distributed I/O Configuration

Device Device

Device

Several Smaller Distributed Networks (subnets)

Controller Scanner

Linking

Device

Device Device

…you build the I/O configuration in this order

Device

Device

Linking

Device

Device Device

Add the local scanner module.

90

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Place, Configure, and Monitor I/O

Chapter 6

Address I/O Data

Where

Location

Slot

Type

Member

SubMember

Bit

I/O information is presented as a set of tags.

Each tag uses a structure of data, depending on the specific features of the

I/O module.

The name of the tags is based on the location of the I/O module in the system.

Figure 15 - I/O Address Format

Location :Slot :Type .Member

.SubMember

.Bit

= Optional

Is

Network location.

Local = same chassis or DIN rail as the controller.

Adapter_Name = identifies remote communication adapter or bridge module.

Slot number of I/O module in its chassis or DIN rail.

Type of data.

I = input.

O = output.

C = configuration.

S = status.

Specific data from the I/O module, depending on what type of data the module can store.

For a digital module, a data member usually stores the input or output bit values.

For an analog module, a channel member (CH#) usually stores the data for a channel.

Specific data related to a member.

Specific point on a digital I/O module, depending on the size of the I/O module (0...31 for a 32-point module).

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

91

Chapter 6

Place, Configure, and Monitor I/O

Determine When Data

Is Updated

Input or Output Data?

Input

Analog or Digital?

RTS

≤ RPI?

Analog

No

CompactLogix controllers update data asynchronously with the execution of logic. This flowchart illustrates when producers send data. Controllers, input modules and bridge modules are producers.

Figure 16 - Updating of Data

Output

Analog or Digital?

Digital

Analog

Digital

COS for any point on the module?

No

Remote or Local?

Remote

Yes

Local

Yes

Data is sent to the backplane at the

RTS.

Data is sent to the backplane at the RTS and RPI.

Data is sent to the backplane at the RPI and at the change of a specified point.

Data is sent to the backplane at the RPI.

·Over a ControlNet network, remote data is sent at the actual packet interval.

·Over an EtherNet/IP network, remote data is sent close to the RPI, on average.

·Over a DeviceNet network, data is sent to and from the scanner and processor at the RPI. However, the update rate for remote

·

data between the scanner and end devices depends on the mapping type selected with the specific device.

TIP

Data is sent to the backplane at the RPI and at the end of every task.

If you need to ensure that the I/O values being used during logic execution are from one moment in time, such as at the beginning of a ladder program, use the Synchronous Copy instruction (CPS) to buffer I/O data.

92

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Monitor I/O Modules

Place, Configure, and Monitor I/O

Chapter 6

With the CompactLogix controller, you can monitor I/O modules at different levels by:

using the programming software to display fault data.

Refer to Display Fault Data on page 93 .

programming logic to monitor fault data so you can take appropriate action

Display Fault Data

Fault data for certain types of module faults can be viewed through the programming software.

To display fault data, perform this procedure.

1. In RSLogix 5000 programming software, select Controller Tags in the

Controller Organizer and right-click to select Monitor Tags.

The display style for the fault data defaults to decimal.

2. Change the display style to Hex to read the fault code.

If the module faults, but the connection to the controller remains open, the controller tags database displays the fault value 16#0E01_0001. The fault word uses this format.

Figure 17 - Fault Word Format

31 27 23 19 15 11

7 3 0

Fault_Code_Value

Reserved

FaultCode

Fault Information

Reserved

0 = Connection Open

1 = connection closed

}

Connection_Closed

Fault_Bit

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

93

Chapter 6

Place, Configure, and Monitor I/O

Bit

Fault_Bit

Connection_Closed

Description

This bit indicates that at least one bit in the fault word is set (1). If all the bits in the fault word are cleared (0), this bit is cleared (0).

This bit indicates whether the connection to the module is open (0) or closed (1). If the connection is closed (1), the Fault_Bit is set (1).

End-cap Detection and Module Faults

If a module not adjacent to an end cap experiences a fault and the connection to the controller is not broken, only the module enters the fault state. If a module adjacent to an end cap experiences a fault, both the module and the controller transition to the fault state.

Reconfigure an I/O Module

If an I/O module supports reconfiguration, you can reconfigure the module via:

the Module Properties dialog box in RSLogix 5000 programming software.

a MSG instruction in program logic.

Reconfigure a Module via RSLogix 5000 Programming Software

To reconfigure an I/O module via RSLogix 5000 programming software, perform this procedure.

1. Highlight the module in the I/O Configuration tree and right-click to choose Properties.

94

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Place, Configure, and Monitor I/O

Chapter 6

The Controller Properties dialog box appears.

EXAMPLE

2. Reconfigure the module.

Reconfigure a Module via a MSG Instruction

To reconfigure an I/O module, use a Module Reconfigure MSG instruction.

During the reconfiguration:

input modules continue to send input data to the controller.

output modules continue to control their output devices.

A Module Reconfigure message requires the property Message Type and a selection of Module Reconfigure.

To reconfigure an I/O module, perform this procedure.

1. Set the required member of the configuration tag of the module to the new value.

2. Send a Module Reconfigure message to the module.

When reconfigure[5] is on, the MOV instruction sets the high alarm to 60 for the local module in slot 4. The Module Reconfigure message then sends the new alarm value to the module. The ONS instruction prevents the rung from sending multiple messages to the module while the reconfigure[5] is on.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

95

Chapter 6

Place, Configure, and Monitor I/O

Notes:

96

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Manage Tasks

Chapter

7

Develop Applications

This chapter explains how to develop applications.

Topic

Manage Tasks

Develop Programs

Organize Tags

Select a Programming Language

Monitor Controller Status

Monitor Connections

Select a System Overhead Time Slice Percentage

104

106

107

109

Page

97

98

102

With a Logix5000 controller, you can use multiple tasks to schedule and prioritize the execution of your programs based on specific criteria. This divides your controller’s processing time among the different operations in your application. Remember that:

the controller executes only one task at one time.

one exception task can interrupt another and take control.

in any given task, only one program executes at one time.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

97

Chapter 7

Develop Applications

Develop Programs

Control Application

Task 1

The controller’s operating system is a preemptive multitasking system that is IEC

1131-3 compliant. This environment provides:

tasks to configure controller execution.

programs to group data and logic.

routines to encapsulate executable code written in a single programming language.

Figure 18 - Program Development

Controller Fault Handler

Task 8

Configuration

Status

Watchdog

Program 32

Program 1

Main Routine

Fault Routine

Program (local)

Tags

Other Routines

Controller (global) Tags I/O Data System-shared Data

98

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Develop Applications

Chapter 7

Define Tasks

Tasks provide scheduling and priority information for programs. You can configure tasks as continuous, periodic, or event tasks. Only one task can be continuous.

Table 25 - Task Support

Controller

1769-L35x

1769-L32x

1769-L31

6

4

Tasks Supported

8

A task can have as many as 32 separate programs, each with its own executable routines and program-scoped tags. Once a task is triggered (activated), all the programs assigned to the task execute in the order in which they are grouped.

Programs can only appear once in the Controller Organizer and cannot be shared by multiple tasks.

Specify Task Priorities

Each task in the controller has a priority level. The operating system uses the priority level to determine which task to execute when multiple tasks are triggered. You can configure periodic tasks to execute from the lowest priority of

15 up to the highest priority of 1. A higher-priority task will interrupt any lowerpriority task. The continuous task has the lowest priority and is always interrupted by a periodic task.

The CompactLogix controller uses a dedicated periodic task at priority 6 to process I/O data. This periodic task executes at the RPI you configure for the

CompactBus, which can be as fast as once each millisecond. Its total execution time is as long as it takes to scan the configured I/O modules.

How you configure your tasks affects how the controller receives I/O data. Tasks at priorities 1...5 take precedence over the dedicated I/O task. Tasks in this priority range can impact I/O processing time. For example, if you use the following configuration:

I/O RPI = 1 ms

a task of priority = 1...5 that requires 500 µs to execute and is scheduled to run every millisecond this configuration leaves the dedicated I/O task 500

µs to complete its job of scanning the configured I/O.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

99

Chapter 7

Develop Applications

However, if you schedule two high priority tasks 1...5 to run every millisecond, and they both require 500

µs or more to execute, no CPU time would be left for the dedicated I/O task. Furthermore, if you have so much configured I/O that the execution time of the dedicated I/O task approaches 2 ms (or the combination of the high priority tasks and the dedicated I/O task approaches 2 ms) no CPU time is left for low priority tasks 7...15.

TIP

For example, if your program needs to react to inputs and control outputs at a set rate, configure a periodic task with a priority higher than 6 (1...5). This keeps the dedicated I/O task from affecting the periodic rate of your program. However, if your program contains a lot of math and data manipulation, place this logic in a task with priority lower than 6 (7...15), such as the continuous task, so that the dedicated I/O task is not adversely affected by your program.

Table 26 - Multiple Tasks Example

Task

1

2

Priority Level

5

7

3

4

10

None (lowest)

Task Type

20 ms periodic task

Dedicated I/O task

5 ms selected RPI

10 ms periodic task

Continuous task

Example Execution Time

2 ms

1 ms

4 ms

25 ms

Worst-Case Completion Time

2 ms

3 ms

8 ms

60 ms

Task 1

Task 2

Task 3

Task 4

0 5 10 15 20 25 30

Time (ms)

35 40 45 50 55 60 65

100

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Develop Applications

Chapter 7

Remember that:

the highest priority task interrupts all lower priority tasks.

the dedicated I/O task can be interrupted by tasks with priority levels 1...5.

The dedicated I/O task interrupts tasks with priority levels 7...15. This task runs at the selected RPI rate scheduled for the CompactLogix system

(2 ms in this example).

the continuous task runs at the lowest priority and is interrupted by all other tasks.

a lower priority task can be interrupted multiple times by a higher priority task.

when the continuous task completes a full scan it restarts immediately, unless a higher priority task is running.

Define Programs

Each program contains:

program tags.

a main executable routine.

other routines.

an optional fault routine.

Each task can schedule as many as 32 programs.

The scheduled programs within a task execute to completion from first to last.

Programs unattached to any task show up as unscheduled programs. You must specify (schedule) a program within a task before the controller can scan the program.

Define Routines

A routine is a set of logic instructions in a single programming language, such as ladder logic. Routines provide the executable code for the project in a controller.

A routine is similar to a program file or subroutine in a PLC or SLC controller.

Each program has a main routine. This is the first routine to execute when the controller triggers the associated task and calls the associated program. Use logic, such as the Jump to Subroutine ( JSR) instruction, to call other routines.

You can also specify an optional program fault routine. The controller executes this routine if it encounters an instruction-execution fault within any of the routines in the associated program.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

101

Chapter 7

Develop Applications

Sample Controller Projects

RSLogix 5000 Enterprise programming software includes sample projects that you can copy and then modify to fit your application.

To view a set of sample controller projects, perform this procedure.

1. From the Help pull-down menu, choose Vendor Sample Projects.

2. Scroll down to select a set of sample projects.

Organize Tags

102

With a Logix5000 controller, you use a tag (alphanumeric name) to address data

(variables). In Logix5000 controllers, there is no fixed, numeric format. The tag name itself identifies the data. This lets you:

organize your data to mirror your machinery.

document (through tag names) your application as you develop it.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Figure 19 - Tag Organization

Analog I/O Device

Integer Value

Storage Bit

Counter

Timer

Digital I/O Device

When you create a tag, assign these properties to the tag:

Tag type

Data type

Scope

Develop Applications

Chapter 7

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

103

Chapter 7

Develop Applications

Select a Programming

Language

Table 27 - Programming Language Selection

Required Language

Ladder diagram (LD)

Function block diagram (FBD)

Sequential function chart (SFC)

Structured text (ST)

The CompactLogix controller supports these programming languages, both online and offline.

Program

Continuous or parallel execution of multiple operations (not sequenced)

Boolean or bit-based operations

Complex logical operations

Message and communication processing

Machine interlocking

Operations that service or maintenance personnel may have to interpret in order to troubleshoot the machine or process

Continuous process and drive control

Loop control

Calculations in circuit flow

High-level management of multiple operations

Repetitive sequence of operations

Batch process

Motion control using structured text

State machine operations

Complex mathematical operations

Specialized array or table loop processing

ASCII string handling or protocol processing

104

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Feature

Save Time

Use Standard Editors

Export Add-on Instructions

Add-on InstructionsUse Context Views

Create Custom Help

Apply Source Protection

Develop Applications

Chapter 7

Add-on Instructions

With version 18 of RSLogix 5000 programming software, you can design and configure sets of commonly used instructions to increase project consistency.

Similar to the built-in instructions contained in Logix5000 controllers, these instructions you create are called Add-on Instructions. Add-on Instructions reuse common control algorithms. With them, you can:

ease maintenance by animating logic for a single instance.

protect intellectual property with locking instructions.

reduce documentation development time.

You can use Add-on Instructions across multiple projects. You can define your instructions, obtain them from somebody else, or copy them from another project.

Once defined in a project, Add-on Instructions behave similarly to the built-in instructions in Logix5000 controllers. They appear on the instruction tool bar for easy access, as do internal RSLogix 5000 software instructions.

Description

With Add-on Instructions, you can combine your most commonly used logic into sets of reusable instructions. You save time when you create instructions for your projects and then share them with others. Add-on Instructions increase project consistency since commonly used algorithms all work in the same manner, regardless of who implements the project.

You create Add-on Instructions by using one of three RSLogix 5000 software programming editors.

Standard Ladder

Function Block Diagram

Structured Text

Once you have created instructions, you can use them in any RSLogix 5000 editor.

You can export Add-on Instructions to other projects as well as copy and paste them from one project to another.

Give each instruction a unique name so that you don’t accidentally overwrite another instruction of the same name.

Context views let you visualize an instruction’s logic for a specific instant, simplifying online troubleshooting of your Add-on Instructions. Each instruction contains a revision, a change history, and an auto-generated help page.

When you create an instruction, you enter information for the description fields in software dialog boxes, information that becomes what is known as Custom Help. Custom Help makes it easier for users to get the help they need when implementing the instructions.

As the creator of Add-on Instructions, you can limit users of your instruction(s) to read-only access, or you can bar access to the internal logic or local parameters used by the instruction(s). This source protection lets you prevent unwanted changes to your instruction(s) and protects your intellectual property.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

105

Chapter 7

Develop Applications

Monitor Controller Status

106

The CompactLogix controller uses Get System Value (GSV) and Set System

Value (SSV) instructions to get and set (change) controller data. The controller stores system data in objects. There is no status file, as in the PLC-5 processor.

The GSV instruction retrieves the specified information and places it in the destination. The SSV instruction sets the specified attribute with data from the source.

When you enter a GSV/SSV instruction, the programming software displays the:

valid object classes.

object names.

attribute names.

For the GSV instruction, you can get values for all the available attributes. For the

SSV instruction, the software displays only those attributes you are allowed to set.

In some cases, there will be more than one of the same type of object, so you might also have to specify the object name. For example, there can be several tasks in your application. Each task has its own TASK object that you access by the task name.

You can access these object classes:

AXIS

CONTROLLER

CONTROLLERDEVICE

CST

DF1

FAULTLOG

MESSAGE

MODULE

MOTIONGROUP

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Monitor Connections

Develop Applications

Chapter 7

PROGRAM

ROUTINE

SERIALPORT

TASK

WALLCLOCKTIME

If communication with a device in the I/O configuration of the controller does not occur for 100 ms or 4 times the RPI, whichever is less, the communication times out, and the controller produces these warnings:

The I/O status indicator on the front of the controller flashes green.

A

!

displays over the I/O configuration folder and the device (s) that has timed out.

A module fault code is produced, which you can access via:

the Module Properties dialog box for the module.

a GSV instruction.

Determine if Device Communication Has Timed Out

If communication times out with at least one device (module) in the I/O configuration of the controller, the I/O status indicator on the front of the controller flashes green.

The GSV instruction gets the status of the I/O status indicator and stores it in the I_O_LED tag.

If I_O_LED equals 2, the controller has lost communication with at least one device.

GSV

Get System Value

CIP Object Class MODULE

CIP Object Name

Attribute Name LedStatus

Dest I_O_LED

EQU

Equal

Source A I_O_LED

Source B 2 where:

I_O_LED is a DINT tag that stores the status of the I/O status indicator on the front of the controller.

Determine if I/O Module Communication Has Timed Out

If communication times out with a device (module) in the I/O configuration of the controller, the controller produces a fault code for the module.

The GSV instruction gets the fault code for IO_Module and stores it in the Module_Status tag.

If Module_Status is any value other than 4, the controller is not communicating with the module.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

107

Chapter 7

Develop Applications

Figure 20 - I/O Module Communication

108

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Develop Applications

Chapter 7

Interrupt the Execution of Logic and Execute the Fault Handler

To interrupt the execution of logic and execute the fault handler, perform this procedure.

1. In the Controller Organizer of RSLogix 5000 programming software, right-click the module and choose Properties.

The Module Properties dialog box appears.

Select a System

Overhead Time Slice

Percentage

2. Click the Connection and check Major Fault On Controller If

Connection Fails While in Run Mode checkbox.

3. Click OK.

4. Develop a routine for the Controller Fault Handler.

With RSLogix 5000 programming software, you can specify a percentage for the system overhead time slice. A Logix5000 controller communicates with other devices (I/O modules, controllers, HMI terminals) at either a specified rate

(scheduled) or when there is processing time available to service the communication (unscheduled).

Service communication is any communication that you do not configure through the I/O configuration folder of the project.

The system overhead time slice specifies the percentage of time (excluding the time for periodic or event tasks) that the controller devotes to service communication.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

109

Chapter 7

Develop Applications

The controller performs service communication for up to 1 ms at a time and then resumes the continuous task.

To select a system overhead percentage, perform this procedure.

1. In the Controller Organizer of RSLogix 5000 programming software, right-click on your controller and choose Properties.

The Controller Properties dialog box appears.

110

2. Click the Advanced tab.

3. From the System Overhead Time Slice menu, choose a percentage.

System overhead time slice functions include:

communicating with programming and HMI devices, such as RSLogix

5000 software.

responding to messages.

sending messages.

The controller performs system overhead functions for up to 1 millisecond at a time. If the controller completes the overhead functions in less than one millisecond, it resumes the continuous task.

As the system overhead time slice percentage increases, time allocated to executing the continuous task decreases. If there are no communication for the controller to manage, the controller uses the communication time to execute the continuous task. While increasing the system overhead percentage does increase communication performance, it also increases the amount of time it takes to execute a continuous task, increasing overall scan time.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Develop Applications

Chapter 7

50%

66%

80%

90%

Time Slice (SOTS)

10%

20%

33%

Periodic

System Overhead

Comms

1 msec

1 msec

1 msec

1 msec

1 msec

1 msec

1 msec

V15 and Lower

Continuous Task

9 msec

4 msec

2 msec

1 msec

0.5 msec

0.2 msec

0.1 msec

V16 and Higher

Comms

1 msec

1 msec

1 msec

1 msec

2 msec

4 msec

9 msec

Continuous Task

9 msec

4 msec

2 msec

1 msec

1 msec

1 msec

1 msec

At a time slice of 10%, system overhead interrupts the continuous task every 9 ms of continuous task time.

Legend:

Task executes.

Task is interrupted (suspended).

1 ms 1 ms

9 ms 9 ms

Continuous Task

0

Elapsed Time (ms)

5 10 15 20 25

The interruption of a periodic task increases the elapsed time (clock time) between the execution of system overhead functions.

1 ms 1 ms 1 ms 1 ms 1 ms

Periodic Task

1 ms 1 ms

System Overhead

9 ms of Continuous Task Time 9 ms of Continuous Task Time

Continuous Task

0

Elapsed Time (ms)

5 10 15 20 25

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

111

Chapter 7

Develop Applications

System Overhead

Continuous Task

System Overhead

Continuous Task

4 ms

If you use the default time slice of 20%, the system overhead interrupts the continuous task every 4 ms.

1 ms 1 ms 1 ms 1 ms 1 ms

4 ms 4 ms 4 ms 4 ms

5 10 15 20

Elapsed Time (ms)

If you increase the time slice to 50%, the system overhead interrupts the continuous task every 1 ms.

1 ms

25

1 ms

5 10 15 20 25

Elapsed Time (ms)

If the controller contains only a periodic task(s), the system overhead time slice value has no effect. System overhead runs whenever a periodic task is not running.

Periodic Task

System Overhead

Continuous Task

Elapsed Time (ms)

5 10 15 20 25

112

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Chapter

8

Configure PhaseManager

This chapter explains how to configure PhaseManager™.

The PhaseManager option of RSLogix 5000 programming software gives you a state model for your equipment.

Topic

PhaseManager Overview

State Model Overview

Compare PhaseManager to Other State Models

Minimum System Requirements

Equipment Phase Instructions

Page

113

115

117

118

118

For additional information, consult PhaseManager User Manual, publication

LOGIX-UM001 .

PhaseManager Overview

PhaseManager lets you add equipment phases to your controller. An equipment phase helps you lay out your code in sections that are easier to write, find, follow, and change.

Term

Equipment phase

Description

As with a program, an equipment phase is run in a task and is given a set of routines and tags.

Unlike a program, an equipment phase runs by a state model and lets you do one activity.

State model A state model divides the operating cycle of your equipment into a series of states. Each state is an instant in the operation of the equipment. It's the actions or conditions of the equipment at a given time.

The state model of an equipment phase is similar to the S88 and PackML state models.

State machine An equipment phase includes an embedded state machine that:

calls the main routine (state routine) for an acting state.

manages the transitions between states with minimal coding.

makes sure that the equipment goes from state to state along an allowable path.

PHASE tag When you add an equipment phase, RSLogix 5000 programming software makes a tag, using the PHASE data type.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

113

Chapter 8

Configure PhaseManager

Figure 21 - PhaseManager Overview

A PHASE tag gives you the status of an equipment phase.

Controller

Controller Tags

Tasks

MainTask

Add Water Phase

Mix Phase

Drain Phase

Space Parts Phase

MainProgram

An equipment phase directs 1 activity of your equipment.

A state model divides the activity into a series of states.

Running State Routine

How to Add Water

My Equipment Program

Equipment phase instructions control the transitions between states and handle faults.

PSC POVR PCLF PRNP PATT

PCMD PFL PXRQ PPD PDET

Other code controls the specific actions of your equipment.

Water Feed Conveyor Enable Axes

114

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Configure PhaseManager

Chapter 8

State Model Overview

Idle

Resetting

Reset

Start

Running

A state model divides the operating cycle of your equipment into a series of states.

Each state is an instant in the operation of the equipment, an action or condition at a given time.

In a state model, you define what your equipment does under different conditions, such as run, hold, and stop. You don’t need to use all the states for your equipment. Use only needed states.

Table 28 - Types of States

State

Acting

Waiting

Description

Does something or several things for a certain time or until certain conditions are met. An acting state runs one time or repeatedly.

Shows that certain conditions are met and the equipment is waiting for the signal to go to the next state.

Hold

Figure 22 - PhaseManager States

Holding

Hold

Restarting

Restart

Held

Your equipment can go from any state in the box to the stopping or aborting state.

Acting

Acting states represent the things your equipment does at a given time.

Complete

Reset

Stop

Stopping

Abort

Abort

Aborting

Waiting

Waiting states represent the condition of your equipment when it is in between acting states.

Stopped Aborted

With a state model, you define the behavior of your equipment and put it into a brief functional specification. In this way you show what happens and when it happens.

State

Stopped

Resetting

Idle

Running

Holding

Held

Restarting

Complete

Stopping

Aborting

Aborted

Question To Be Asked

What happens when you turn on power?

How does the equipment get ready to run?

How do you tell that the equipment is ready to run?

What does the equipment do to make product?

How does the equipment temporarily stop making product without making scrap?

How do you tell if the equipment is safely holding?

How does the equipment resume production after holding?

How do you tell when the equipment has finished what it had to do?

What happens during a normal shutdown?

How does the equipment shut down if a fault or failure happens?

How do you tell if the equipment is safely shut down?

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

115

Chapter 8

Configure PhaseManager

How Equipment Changes States

The arrows in the state model show how your equipment can transition from one state to another.

Each arrow is called a transition.

A state model lets the equipment make only certain transitions. This transition restriction standardizes equipment behavior so that another piece of equipment using the same model will behave the same way.

Figure 23 - PhaseManager Transitions Overview

Idle

= Transition

Command

Resetting

Reset

Start

Running

Hold

Holding

Hold

Restarting

Done — No command. Use PSC instruction instead.

Your equipment can go from any state in the box to the stopping or aborting state.

Held

Restart

Fault (specific use of the abort command)

Complete

Stop

Stopping

Abort

Abort

Aborting

Reset Stopped Aborted

Table 29 - PhaseManager Transition Types

Description Transition

Type

Command

Done

Fault

A command tells the equipment to start doing something or do something different. For example the operator pushes the start button to start production and the stop button to halt production.

PhaseManager uses these commands:

Reset

Start

Stop

Hold

Restart

Abort

Equipment goes to a waiting state when it has completed a task. You don’t have to command equipment to stop. Instead, set up your code to signal when a task is complete.

A fault tells you that something unusual has occurred. Set up your code to find and take action for faults. Suppose you want your equipment to shut down as fast as possible in case of a certain fault. In that case, set up your code to look for that fault and give the abort command if it finds it.

116

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Current State of Equipment Phase

Configure PhaseManager

Chapter 8

Manually Change States

With RSLogix 5000 programming software, you can monitor and command an equipment phase. To manually change states, perform this procedure.

Take ownership of the equipment phase.

Give a command.

Compare PhaseManager to

Other State Models

Table 30 - State Model Comparisons

S88

Idle

Running

? Complete

Pausing

? Paused

Holding

? Held

Restarting

Stopping

? Stopped

Aborting

? Aborted

You can compare PhaseManager’s state models to other common state models.

PackML

Starting

? Ready

Producing

Standby

Holding

? Held

None

Stopping

? Stopped

Aborting

? Aborted

PhaseManager

Resetting

? Idle

Running

? Complete

Subroutines and/or breakpoints

Holding

? Held

Restarting

Stopping

? Stopped

Aborting

? Aborted

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

117

Chapter 8

Configure PhaseManager

Minimum System

Requirements

Equipment Phase

Instructions

To develop PhaseManager programs, you need:

a CompactLogix controller with firmware revision 16.0 or later.

a communication path to the controller.

RSLogix 5000 programming software, version 15.0 or later.

To enable PhaseManager support, you need the full or professional editions of

RSLogix 5000 programming software or the optional PhaseManager add-on

(9324-RLDPMENE) to your RSLogix 5000 programming software package.

With CompactLogix controllers, you can issue many ladder diagram (LD) and structured text (ST) instructions to begin various equipment phases.

PCLF

PXRQ

PRNP

PPD

PATT

Instruction Code

PSC

PCMD

PFL

PDET

POVR

Instruction

Signal a phase that the state routine is complete so go to the next state

Change the state or substate of a phase

Signal a failure for a phase

Clear the failure code of a phase

Initiate communication with RSBizWare Batch software

Clear the NewInputParameters bit of a phase

Set up breakpoints within the logic of a phase

Take ownership of a phase to either:

prevent another program or RSBizWare Batch software from commanding a phase or

make sure another program or RSBizWare Batch software does not already own a phase

Relinquish ownership of a phase

Override a command

118

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Chapter

9

Use a CompactFlash Card

This chapter explains how to use a CompactFlash card for nonvolatile memory or data storage.

Topic

Use a CompactFlash Card to Load/Store a User Application

Use a CompactFlash Card for Data Storage

Read and Write User Data to the CompactFlash Card

Page

122

125

125

CompactLogix controllers only support nonvolatile storage through

CompactFlash removable media. CompactLogix controllers support the 1784-

CF64 or 1784-CF128 Industrial CompactFlash memory cards for nonvolatile memory.

CompactLogix controllers 1769- L31, 1769-L32E, 1769-L32C, 1769-L35E, and

1769-L35CR can save and restore user applications to CompactFlash memory.

Of the 1769 CompactLogix controllers, only the 1769-L32E and 1769-L35E can store user data (for example, a recipe) to the CompactFlash card during runtime.

This feature is supported on 1769-L35E controllers with serial numbers starting with SS0OR9GE, or greater, and 1769-L32E controllers with serial numbers starting with SS0QZ000, or greater. To find the controller’s serial number, look on the label on the outside of the controller, or access it electronically in RSLinx software or RSLogix 5000 programming software. You must use firmware version V16, or greater.

Locate the Controller Serial Number in RSLinx Software

To find the controller’s serial number in RSLinx software, follow these steps.

1. Open RSLinx software and from the Communication pull-down menu, choose RSWho.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

119

Chapter 9

Use a CompactFlash Card

2. Right-click on the controller in the RSWho browse window and select

Device Properties.

The Device Properties dialog box displays, showing the serial number.

The serial number shown in this example is in hexadecimal format.

120

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Use a CompactFlash Card

Chapter 9

Locate the Controller Serial Number

Via the RSLogix 5000 Project

To find the controller’s serial number in your RSLogix 5000 project when using ladder logic or structured text, use the Get System Value (GSV) instruction to obtain the value of the Serial Number attribute of the ControllerDevice object.

Ladder Logic

Structured Text

The value can be shown in RSLogix 5000 programming software’s data monitor.

When the style is set to Hex, the displayed value is the same as shown in RSLinx software.

TIP

If the user wants to access the serial number programmatically, additional logic is needed to obtain the serial number’s value.

Via RSLogix 5000 Programming Software

To find the controller’s serial number in RSLogix programming software, follow these steps.

1. In the controller organizer, right-click on the controller and select

Properties from the pull-down menu.

The Controller Properties dialog box displays.

2. Click the Advanced tab to see the serial number.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

121

Chapter 9

Use a CompactFlash Card

Use a CompactFlash Card to

Load/Store a User

Application

You can load the user application/project from nonvolatile memory/

CompactFlash to the user memory of the controller:

on every power-up.

on corrupt memory.

anytime through RSLogix 5000 programming software..

ATTENTION: Fault conditions can occur if the controller types do not match. For example, if the CompactFlash user program and controller firmware were created for a 1769-L35E controller, and then an attempt was made to load that program and/or firmware into a 1769-L32E controller.

IMPORTANT

The user application and firmware version on the CompactFlash card is loaded into the controller. If the contents of the CompactFlash card are a different revision than the revision that is on the controller, then the controller will be updated to the revision on the CompactFlash card.

ATTENTION: Do not remove the CompactFlash card while the controller is reading from or writing to the card, as indicated by a flashing green CF status indicator. Doing so could corrupt the data on the card or in the controller, as well as corrupt the latest firmware in the controller.

IMPORTANT

CompactFlash card memory stores the contents of the user memory when you store the project.

C hanges made after you store the project are not reflected in

CompactFlash card memory.

If you change the project but do not store those changes, you overwrite them when you load the project from the CompactFlash card. If this occurs, you have to upload or download the project to go online.

If you want to store changes such as online edits, tag values, or a

ControlNet network schedule, store the project again after you make the changes.

When you store a project to a CompactFlash memory card, the controller formats the card, if required.

Manually Change Which Project Loads

A CompactFlash card stores multiple projects. By default, the controller loads the project that you most recently stored, according to the load options of that project.

IMPORTANT

Be aware that when loading a different project, the firmware revisions must be the same.

122

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

CompactFlash reader

Logix folder

Use a CompactFlash Card

Chapter 9

To assign a different project to load from the CompactFlash card, edit the

Load.xml file on the card.

1 .

2 .

1. To change which project loads from the card, open Load.xml. Use a text editor to open the file.

2. Edit the name of the project that you want to load.

Use the name of an XML file that is in the CurrentApp folder.

In the CurrentApp folder, a project is comprised of an XML file and a

P5K file.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

123

Chapter 9

Use a CompactFlash Card

Manually Change the Load Parameters

When you store a project to a CompactFlash card, you define:

when the project is to load (On Power Up, On Corrupt Memory, User

Initiated).

mode to which to set the controller (if the keyswitch is in REM and the load mode is not User Initiated).

IMPORTANT

Be aware that when loading a different project, the firmware revisions must be the same.

To assign a different project to load from the CompactFlash card, edit the

Load.xml file on the card.

CompactFlash reader projects and firmware

1 .

1. To change the load parameters for a project, open the XML file with the same name as the project. Use a text editor to open the file.

2 .

3 .

124

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Use a CompactFlash Card

Chapter 9

2. Edit the Load Image option of the project.

If you want to set the Load Image option to

On Power Up

On Corrupt Memory

User Initiated

Then enter

ALWAYS

CORRUPT_RAM

USER_INITIATED

3. Edit the Load Mode option of the project (doesn’t apply if the Load Image option is User Initiated).

If you want to set the Load Mode option to

Program (Remote Only)

Run (Remote Only)

Then enter

PROGRAM

RUN

Use a CompactFlash Card for

Data Storage

You can also store data to the CompactFlash memory card.

For example:

A PanelView terminal changes tag values in a controller project. If power to the controller is lost (and the controller is not battery backed up), the program running in the controller, along with any values that were changed by the PanelView terminal, will be lost. Use the CompactFlash file system and logic in the project to store tag values as they change. When the project reloads from the CompactFlash card, it can check the

CompactFlash card for any saved tag values and reload those into the project.

Store a collection of recipes on the CompactFlash card. When you need to change a recipe, program the controller to read data for the new recipe from a CompactFlash card.

Program the controller to write data logs at specific time intervals.

Read and Write User Data to the CompactFlash Card

A sample controller project that reads and writes from a CompactFlash card is available with RSLogix 5000 Enterprise programming software. To display a list

of sample projects from a CompactFlash card, see Sample Controller Projects on page 102 .

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

125

Chapter 9

Use a CompactFlash Card

Additional Resources

For additional information, consult these publications.

Resource

Logix 5000 Controllers Memory Card Programming Manual, publication 1756-PM017

Logix5000 Controllers Common Procedures Manual, publication 1756-PM001

Description

Explains the use of nonvolatile memory, or CompactFlash card memory, with Logix controller, and how to read/write data to a CompactFlash card.

Information about using Logix5000 controllers

126

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Battery Handling

Chapter

10

Maintain the Battery

This chapter explains how to maintain your battery.

Topic Page

Battery Handling 127

Check If the Battery Is Low

Estimate 1769-BA Battery Life

128

128

Store Lithium Batteries

Battery Removal

129

129

CompactLogix controllers support the 1769-BA battery.

ATTENTION: The 1769-BA battery is the only battery you can use with the CompactLogix controllers. The 1747-BA battery is not compatible with the CompactLogix controllers and may cause problems.

Lithium batteries are primary (not rechargeable) cells that give extended memory support for Rockwell Automation products.

ATTENTION: This product contains a sealed lithium battery that may need to be replaced during the life of the product.

At the end of its life, the battery contained in this product should be collected separately from any unsorted municipal waste.

The collection and recycling of batteries helps protect the environment and contributes to the conservation of natural resources as valuable materials are recovered.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

127

Chapter 10

Maintain the Battery

Check If the Battery Is Low

The battery indicator (BAT) warns when the battery is low. Once the controller is powered down, the battery retains controller memory as long as the BAT indicator remains on. Temperature dictates how long the BAT indicator remains on.

Figure 24 - Battery Status Indicator

Battery status indicator

Table 31 - BAT Indicator Duration

Temperature

60 °C (140 °F)

25 °C (77 °F)

Duration

8 days

25 days

Estimate 1769-BA

Battery Life

Certain conditions affect typical battery life.

Table 32 - Battery Life Estimations

Time On/Off

Always on

On 8 hours per day

5 days per week

On 16 hours per day

5 days per week

Always On

At 25 °C (77 °F)

14 months

18 months

26 months

At 40 °C (104 °F)

12 months

15 months

22 months

There is almost no drain on the battery when the controller is always on.

At 60 °C (140 °F)

9 months

12 months

16 months

128

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Store Lithium Batteries

Maintain the Battery

Chapter 10

ATTENTION: Follow these general rules to store your batteries.

Store batteries in a cool, dry environment. We recommend 25 °C (77 °F) with 40…60% relative humidity.

Regularly monitor the temperature and humidity of the storage area.

Use a first-in/first-out system for handling stored batteries.

Store in the original containers away from flammable materials.

Keep track of storage time. Reference storage time to the date of manufacture.

Do not store batteries longer than 10 years.

Do not store used batteries longer than 3 months before disposal.

Clearly mark the contents of the storage area.

Place a Lith-X or Class D Powder fire extinguisher in a readily accessible area in or around the storage area.

Ventilate and protect the storage area against fire. You must have a system that automatically detects and extinguishes fires and automatically activates an alarm signal.

Do not smoke in the storage area.

Table 33 - Storage Temperatures for 1769-BA Lithium Batteries

Storage Temperature

40 °C (104 °F) for 5 years

60 °C (140 °F)

Capacity Loss

Loses up to 4% of original capacity

Loses 2.5 % of capacity each year

You may store batteries for up to 30 days between -45…85 °C

(-49…185 °F) such as during transportation. Do not store in temperatures above 85° C (185 °F).

To avoid leakage or other hazards, do not store batteries above 60° C for more than 30 days.

The rate of capacity loss increases as storage temperature increases.

Battery Removal

WARNING: When you connect or disconnect the battery, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

129

Chapter 10

Maintain the Battery

Additional Resources

Resource

Guidelines for Handling Batteries, publication AG 5-4

For additional information, consult this publication.

Description

Detailed information on battery-handling procedures for the 1769-BA lithium battery.

130

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Appendix

A

Status Indicators

Introduction

This appendix explains how to interpret the status indicators on your

CompactLogix controllers.

Topic

1769-L3xx Controllers Status Indicators

RS-232 Serial Port Status Indicators

ControlNet Indicators

EtherNet/IP Indicators

Page

131

133

134

136

1769-L3xx Controllers Status

Indicators

These are the 1769-L3

xx CompactLogix controller status indicators.

Indicator

RUN

FORCE

BAT

I/O

Condition

Off

Steady green

Off

Steady amber

Flashing amber

Off

Steady red

Off

Steady green

Flashing green

Flashing red

Interpretation

The controller is in program or test mode.

The controller is in run mode.

No tags contain I/O force values.

I/O forces are inactive (disabled).

I/O forces are active (enabled).

I/O force values may or may not exist.

One or more input or output addresses have been forced to an On or Off condition, but the forces have not been enabled.

The battery supports memory.

The battery is:

not installed.

95% discharged and should be replaced.

There are no devices in the I/O configuration of the controller.

The controller does not contain a project.

The controller is communicating with all the devices in its I/O configuration.

One or more devices in the I/O configuration of the controller are not responding.

The controller is not communicating with any devices.

The controller is faulted.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

131

Appendix A

Status Indicators

Indicator

OK

Condition

Off

Flashing red

Steady red

Steady green

Flashing green

Interpretation

No power is applied.

The controller requires a firmware update.

A major recoverable fault occurred on the controller. To clear the fault, perform this procedure.

1. Turn the controller keyswitch from PROG to RUN to PROG.

2. Go online with RSLogix 5000 programming software.

A nonrecoverable major fault occurred on the controller. In this case, the controller:

1. initially displays a steady red status indicator.

2. resets itself.

3. clears the project from its memory.

4. sets the status indicator to flashing red.

5. produces a major recoverable fault.

6. generates a fault code in the RSLogix 5000 project.

The fault code displayed in RSLogix 5000 programming software, and the subsequent fault recovery method, depends on whether you have installed a CompactFlash card in the controller.

Code

60

Condition

CompactFlash card is not installed.

61 CompactFlash is installed.

Fault recovery method

A. Clear the fault.

B. Download the project.

C. Change to Remote Run/Run mode.

If the problem persists:

A. Before you cycle power to the controller, record the state of the OK and RS232 status indicators.

B. Contact Rockwell Automation support. See the back cover.

A. Clear the fault.

B. Download the project.

C. Change to Remote Run/Run mode.

If the problem persists, contact Rockwell Automation support. See the back cover.

The controller detected a nonrecoverable major fault, so it cleared the project from memory. To recover from a major fault, perform this procedure.

1. Cycle power to the chassis.

2. Download the project.

3. Change to Run mode.

If the OK status indicator remains steady red, contact your Rockwell Automation representative or local distributor.

Controller is OK.

The controller is storing or loading a project to or from nonvolatile memory.

132

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

CompactFlash Indicator

Status Indicators

Appendix A

This is the CompactFlash card status indicator present on all CompactLogix controllers.

ATTENTION: Do not remove the CompactFlash card while the controller is reading from or writing to the card, as indicated by a flashing green CF status indicator. This could corrupt the data on the card or in the controller, as well as corrupt the latest firmware in the controller.

Indicator

CF

Condition

Off

Flashing green

Flashing red

Interpretation

There is no activity.

The controller is reading from or writing to the CompactFlash card.

CompactFlash card does not have a valid file system.

RS-232 Serial Port Status

Indicators

These are the RS-232 serial port status indicators present on all CompactLogix controllers.

Indicator

DCH0

CH0

CH1

(1769-L31 only)

Condition

Off

Steady green

Off

Flashing green

Off

Flashing green

Interpretation

Channel 0 configuration differs from the default serial configuration.

Channel 0 has the default serial configuration.

No RS-232 activity.

RS-232 activity.

No RS-232 activity.

RS-232 activity.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

133

Appendix A

Status Indicators

ControlNet Indicators

The ControlNet indicators are only on the 1769-L32C and 1769-

L35CR controllers.

Use these indicators to determine how your CompactLogix 1769-L32C or 1769-

L35CR controller is operating on the ControlNet network:

Module Status

Network Status

These indicators provide information about the controller and network when the controller is connected to ControlNet via the BNC connectors.

Table 34 - ControlNet Network Status Indicator States

Status Indicator State

Steady

Alternating

Flashing

Interpretation

The indicator is on continuously in the defined state.

When viewed together, two indicators alternate between two defined states; the two indicators are always in opposite states, out of phase.

When viewed independent of another, an indicator alternates between the two defined states; if both indicators are flashing, they flash together, in phase.

IMPORTANT

Keep in mind that the Module Status indicator reflects the module state (for example, self-test, firmware update, normal operation but no connection established). The network status indicators, A and B, reflect network status.

Remember that the host is able to engage in local messaging with the card although it is detached from the network. Therefore, the Module Status indicator is flashing green if the host has successfully started the card. Note, however, that until the host removes reset, all communication port status indicators.

When you view the indicators, always view the Module Status indicator first to determine the state of the communication port. This information may help you to interpret the network indicators. As a general practice, view all indicators (Module Status and Network Status) together to gain a full understanding of the daughtercard’s status.

134

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Status Indicators

Appendix A

Module Status (MS) Indicator

Indicator

Off

Steady red

Flashing red

Steady green

Flashing green

Flashing red/green

Condition

The controller has no power.

The controller is faulted.

A major fault has occurred on the controller.

A minor fault has occurred because a firmware update is in progress.

A node address switch change has occurred. The controller’s node address switches may have been changed since power-up.

The controller uses invalid firmware.

The controller’s node address duplicates that of another device.

Connections are established.

No connections are established.

The controller is diagnosing a problem.

Recommended Action

Apply power.

Make sure that the controller is firmly seated in the slot.

1. Cycle power.

2. If the problem persists, replace the controller.

Normal operation - No action is required.

Change the node address switches back to the original setting. The module will continue to operate properly.

Update the controller firmware with the ControlFlash Update utility.

1. Remove power.

2. Change the node address to a unique setting.

3. Reapply power.

Normal operation - No action is required.

Establish connections, if necessary.

Wait briefly to see if problem corrects itself.

If problem persists, check the host. If the daughtercard cannot communicate with the host, the card may remain in self-test mode.

Indicator

Off

Steady green

Flashing green/off

Flashing red/off

Network Channel Indicators

Channel B is only labelled on the 1769-L35CR controller. The 1769-L32C controller only has channel A but uses the second indicator in some status indicator patterns as described below.

A channel is disabled.

Normal operation is occurring.

Temporary network errors have occurred.

The node is not configured to go online.

Media fault has occurred.

Flashing red/green

Off

Steady red

No other nodes are present on the network.

The network is configured incorrectly.

You should check the MS indicators.

The controller is faulted.

Alternating red/green

Alternating red/off

The controller is performing a self test.

The node is configured incorrectly.

(1) UMAX is the highest node address on a ControlNet network that can transmit data.

Program network for redundant media, if necessary.

Normal operation - No action is required.

1. Check media for broken cables, loose connectors, and missing terminators.

2. If condition persists, refer to the ControlNet Planning and Installation

Manual, publication 1786-6.2.1.

Make sure the network keeper is present and working and the selected address is less or equal to the UMAX

(1)

.

1. Check media for broken cables, loose connectors, and missing terminators.

2. If condition persists, refer to the ControlNet Planning and Installation

Manual, publication 1786-6.2.1.

Add other nodes to the network.

Reconfigure the ControlNet network so that UMAX is greater than or equal to the card’s node address.

Check the MS indicators.

1. Cycle power.

2. If the fault persists, contact your Rockwell Automation representative or distributor.

Normal operation - No action is required.

Check the card’s network address and other ControlNet configuration parameters.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

135

Appendix A

Status Indicators

EtherNet/IP Indicators

Indicator

Off

Flashing green

Steady green

Steady red

Flashing red

The EtherNet/IP indicators are only on 1769-L32E and 1769-L35E controllers.

Module Status (MS) Indicator

Condition

The controller does not have power.

The port is in standby mode; it does not have an IP address and is operating in BOOTP mode.

The port is operating correctly.

The controller is holding the port in reset or the controller has faulted.

The port is performing its power-up self test.

A nonrecoverable fault has occurred.

The port firmware is being updated.

Recommended Action

Check the controller power supply.

Verify that the BOOTP server is running.

Normal operation - No action is required.

1. Clear the controller fault.

2. If the fault will not clear, replace the controller.

Normal operation - No action is required.

1. Cycle power to the controller.

2. If the fault will not clear, replace the controller.

Normal operation - No action is required.

Indicator

Off

Flashing green

Steady green

Steady red

Flashing red/green

Network Status (NS) Indicator

Condition

The port is not initialized; it does not have an IP address and is operating in

BOOTP mode.

The port has an IP address, but no CIP connections are established.

Recommended Action

Verify that the BOOTP server is running.

If no connections are configured, no action is required.

If connections are configured, check connection originator for connection error code.

Normal operation - No action is required.

The port has an IP address and CIP connections (Class 1 or Class 3) are established.

The port has detected that the assigned IP address is already in use.

The port is performing its power-up self test.

Verify that all IP addresses are unique.

Normal operation - No action is required.

Indicator

Off

Flashing green

Steady green

Link Status (LNK) Indicator

Condition

The port is not connected to a powered Ethernet device. Therefore, the port cannot communicate on Ethernet.

The port is performing its power-up self-test.

The port is communicating on Ethernet.

The port is connected to a powered Ethernet device. Therefore, the port can communicate on Ethernet.

Recommended Action

1. Verify that all Ethernet cables are connected.

2. Verify that Ethernet switch is powered.

Normal operation - No action is required.

136

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Introduction

Appendix

B

Dynamic Memory Allocation in

CompactLogix Controllers

This appendix explains the dynamic allocation of memory in CompactLogix controllers.

Topic

Messages

RSLinx Tag Optimization

Trends

DDE/OPC Topics

Page

138

138

138

139

Certain operations cause the controller to dynamically allocate and remove useravailable memory, affecting the space available for program logic. As these functions become active, memory is allocated. Memory is then removed when these functions become inactive.

Operations that dynamically allocate memory are:

messages.

connections to processors with RSLogix 5000 programming software.

RSLinx tag optimization.

trends.

DDE/OPC topics.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

137

Appendix B

Dynamic Memory Allocation in CompactLogix Controllers

Messages

Messages come in and go out of the controller via the Ethernet, ControlNet, and serial ports, causing memory allocation. The memory allocations for messages destined to I/O are accounted for in these allocations. To prevent message instructions from using too much memory, do not send messages simultaneously.

Table 35 - Message Types

Message Path

ControlNet Port Incoming

Ethernet Port

Serial Port

Outgoing

Incoming

Outgoing

Incoming

Outgoing

Connection Established?

Yes - The message is connected.

No - The message is unconnected.

All outgoing messages whether connected or unconnected

Yes - The message is connected.

No - The message is unconnected.

All outgoing messages whether connected or unconnected

All incoming messages whether connected or unconnected

All outgoing messages whether connected or unconnected

Memory Allocated

1200 bytes

1200 bytes

1200 bytes

1200 bytes

1200 bytes

1200 bytes

1200 bytes

1200 bytes

RSLinx Tag Optimization

With tag optimization, trend objects, trend drivers, and connections allocate memory.

Table 36 - Tag Functions

Item

Trend Object

Trend Driver

Connection

Description

Object is created in the controller to group the requested tags. One trend object can handle approximately 100 tags.

Memory Allocated

80 bytes

Drive is created to communicate with the trend object.

36 bytes

Connection is created between the controller and RSLinx.

1200 bytes

EXAMPLE

To monitor 100 points:

100 points x 36 bytes = 3600 bytes (Trend Driver)

3600 (Trend Driver) + 80 (Trend Object) + 1200 (Connection)

= approximately 4000 bytes

We estimate that one tag consumes about 40 bytes of memory.

Trends

138

Each trend created in a controller creates a trend object and allocates a buffer for logging.

Table 10.A Controller Trends

Item

Trend Object

Log Buffer

Memory Allocated

80 bytes

4000 bytes

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

DDE/OPC Topics

Dynamic Memory Allocation in CompactLogix Controllers

Appendix B

A DDE/OPC topic uses connections based on these variables:

Maximum number of messaging connections per controller configured in

RSLinx

Number of connections needed to optimize throughput

Configuration of RSLinx to use connections for writing to a ControlLogix controller

IMPORTANT

These variables are per path. For example, if you set up two different DDE/

OPC topics, with different paths to the same controller, the variables limit the connections for each path. Therefore, if you have a limit of 5 connections, it is possible to have 10 connections, with 5 over each path.

Specify Connections per Controller

To specify the maximum messaging connections per controller, perform this procedure.

1. In RSLinx programming software, from the Communication pull-down menu, choose Configure CIP Options.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

139

Appendix B

Dynamic Memory Allocation in CompactLogix Controllers

The Configure CIP Options dialog box appears.

140

2. In the Max. Messaging Connections per PLC field, enter the maximum number of read connections you want a particular workstation to make to a ControlLogix controller.

3. Click OK.

Specify Number of Connections Needed to Optimize Throughput

To specify the number of connections needed to optimize throughput, perform this procedure.

1. Repeat step 1 from the previous procedure.

2. In the Configure CIP Options dialog box, click the Use Connections for

Writes to ControlLogix processor checkbox.

IMPORTANT

Once you have selected this feature, you cannot limit the number of connections established.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Dynamic Memory Allocation in CompactLogix Controllers

Appendix B

Number of Connections Needed to Optimize Throughput

RSLinx software only opens the number of connections required to optimize throughput. For example, if you have one tag on scan, but have configured

RSLinx software to allow five connections as the maximum number of connections, RSLinx software only opens one connection for the tag. Conversely, if you have thousands of tags on scan and limit the maximum number of CIP connections to five, RSLinx software cannot establish more than five connections to the CompactLogix controller. RSLinx software then funnels all of the tags through those five available connections.

View the Number of Open Connections

To view the number of open connections made from your workstation to the

CompactLogix controller, perform this procedure.

1. In RSLinx programming software, from the Communication pull-down menu, choose CIP Diagnostics.

The CIP Diagnostics dialog box appears.

2. Click the Connections tab.

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

141

Appendix B

Dynamic Memory Allocation in CompactLogix Controllers

Here you see an itemized list of open connections.

3. Click the Dispatching tab.

In the Connections Established box you see the total number of connections open to the CompactLogix controller.

142

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Index

Numerics

1769-L3xx controllers

status indicator

131

A

additional information

9

add-on instructions

105

address data

91

AOI

105

applications

develop

97

architecture

12

ASCII devices

serial communication

64

B

battery

life

128

Lithium

129

maintenance

127

storage

129

broadcast

messages over serial

67

C

cables

1769 expansion

86

serial

42

cache messages

77

calculate

system power consumption

83

total connections

78

change

equipment states

116

change of state

87

check

low battery

128

communicate

over networks

47

communication

ControlNet network

50

determine timeout with any device

107

determine timeout with I/O module

107

DeviceNet network

53

DH-485 network

72

format

87

CompactFlash

data storage

125

read and write user data

125

reader

125

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

CompactLogix

address I/O data

91

applications development

97

battery maintenance

127

configure I/O

87

connections example

79

ControlNet network communication

50

ControlNet software combinations

51

COS

87

define programs

101

define routines

101

define tasks

99

design a system

13

DeviceNet network communication

53

DeviceNet software combinations

54

DH-485 network communication

72

display I/O fault data

93

estimate battery life

128

EtherNet/IP network communication

48

EtherNet/IP software combinations

48

I/O communication format

87

I/O connections

88

I/O electronic keying

87

Logix5000 connections

77

manage controller communication

75

manage tasks

97

monitor connections

107

monitor controller status

106

monitor I/O modules

93

network communication

47

organize tags

102

overview

11

place local I/O modules

86

RPI

87

select I/O modules

81

select programming language

104

serial communication

55

serial modbus support

67

serial port configuration

56

use CompactFlash reader

125

validate I/O layout

82

CompactLogix controllers

dynamic memory allocation

137

start

11

configuration

DF1

55

configure

43

distributed I/O on ControlNet

89

distributed I/O on DeviceNet

90

distributed I/O on EtherNet

88

I/O

81

,

87

PhaseManager

113

connections

77

calculate

78

consume data

75

ControlNet network

52

determine timeout with any device

107

determine timeout with I/O module

107

EtherNet/IP network

49

example

79

monitor

107

number needed to optimize throughput

141

produce data

75

view number of open

141

143

Index

144 connections per PLC

specify

139

consume data

connection use

75

controller

communication management

75

design

13

fault handler

109

path selection

45

status monitoring

106

controller properties

67

ControlNet network

communication

50

configure distributed I/O

89

connections

52

example configuration

51

module status LED indicator

135

software combinations

51

COS

87

D

data

update

92

data storage

CompactFlash

125

DDE/OPC topics

139

define

programs

101

routines

101

tasks

99

design

13

CompactLogix system

13

develop

applications

97

develop application

fault handler

109

DeviceNet network

communication

53

configure distributed I/O

90

example configuration

55

software combinations

54

DF1

configuration

55

master

67

radio modem support

61

DH-485 network

communication

72

display

fault data

93

dynamic memory allocation

137

CompactLogix controllers

137

messages

138

RSLinx tag optimization

138

E

electronic keying

87

end cap

94

equipment states

change

116

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

estimate

battery life

128

requested packet interval

82

EtherNet/IP network

communication

48

configure distributed I/O

88

connections

49

example configuration

48

network LED indicators

136

software combinations

48

example system

12

expansion cables

configuration

86

F

fault data

display

93

fault handler

109

FBD

104

function block diagram

104

I

I/O

address data

91

communication format

87

configure

81

,

87

connections

88

COS

87

electronic keying

87

layout validation

82

monitor

81

monitor connection

107

place

81

I/O modules

display fault data

93

end cap detection

94

monitor

93

reconfigure

94

select

81

L

ladder diagram

104

link status indicator

status indicator

136

Lithium

battery

129

LNK

status indicator

136

local I/O modules

place

86

low battery

128

M

maintain

battery

127

O

organize

tags

102

P

path selection

controller

45

PhaseManager place

configure

113

terms

113

I/O

81

local I/O modules

86

point-to-point

55

port configuration

serial

55

,

56

produce data

connection use

75

program definition

101

programming language

select

104

programs

define

101

R

radio modem

67

manage

controller communications

75

tasks

97

manual state changes

117

master mode

55

messages

138

broadcast over serial

67

cache

77

receive

76

reconfigure I/O module

95

send

76

modbus support

67

modem

radio

67

module

status indicator

136

module status LED indicator

ControlNet network

135

monitor

connections

107

controller status

106

I/O

81

I/O modules

93

N

network communication

47

network LED indicators

EtherNet/IP network

136

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

read and write user data

CompactFlash

125

receive

messages

76

reconfigure

I/O module

94

requested packet interval

description

87

estimate

82

routines

define

101

RS-232 serial port

status indicator

133

RSLinx tag optimization

138

S

select

controller path

45

I/O modules

81

programming language

104

send

messages

76

sequential function chart

104

serial

cables

42

communication

55

,

67

communication with ASCII devices

64

driver

43

port configuration

55

,

56

port direct connection to controller

41

SFC

104

slave

67

slave mode

55

software combinations

ControlNet network

51

DeviceNet network

54

specify

ST

104

connections per PLC

139

state model

115

comparisons

117

states

manually change

117

status indicator

1769-L3xx

131

link status indicator

136

LNK

136

module

136

RS-232 serial port

133

store batteries

129

structured text

104

system layout

12

system overhead time slice

109

system power consumption

estimate

83

Index

145

Index

T

tags tasks

organize

102

define

99

manage

97

management

97

total connections

calculate

78

trends

138

U

update

data

92

use

CompactFlash reader

125

V

validate

I/O layout

82

view

number of open connections

141

146

Rockwell Automation Publication 1769-UM011H-EN-P - April 2012

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using its products.

At http://www.rockwellautomation.com/support , you can find technical manuals, technical and application notes, sample code and links to software service packs, and a MySupport feature that you can customize to make the best use of these tools. You can also visit our Knowledgebase at http://www.rockwellautomation.com/knowledgebase for FAQs, technical information, support chat and forums, software updates, and to sign up for product notification updates.

For an additional level of technical phone support for installation, configuration, and troubleshooting, we offer

TechConnect SM support programs. For more information, contact your local distributor or Rockwell Automation representative, or visit http://www.rockwellautomation.com/support/ .

Installation Assistance

If you experience a problem within the first 24 hours of installation, review the information that is contained in this manual. You can contact Customer Support for initial help in getting your product up and running.

United States or Canada 1.440.646.3434

Outside United States or Canada Use the Worldwide Locator at http://www.rockwellautomation.com/support/americas/phone_en.html

, or contact your local Rockwell

Automation representative.

New Product Satisfaction Return

Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.

United States

Outside United States

Contact your distributor. You must provide a Customer Support case number (call the phone number above to obtain one) to your distributor to complete the return process.

Please contact your local Rockwell Automation representative for the return procedure.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete this form, publication RA-DU002 , available at http://www.rockwellautomation.com/literature/ .

Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400

Publication 1769-UM011H-EN-P - April 2012

Supersedes Publication 1756-UM011G-EN-P - November 2009 Copyright © 2012 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
