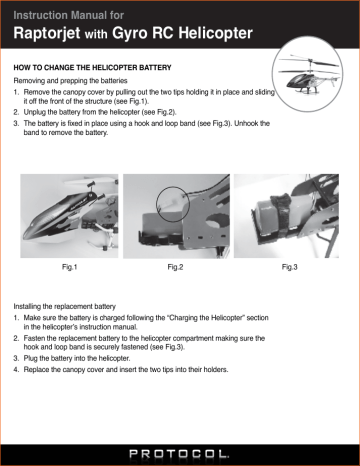

Instruction Manual for
Raptorjet with Gyro RC Helicopter
HOW TO CHANGE THE HELICOPTER BATTERY
Removing and prepping the batteries
1. Remove the canopy cover by pulling out the two tips holding it in place and sliding
it off the front of the structure (see Fig.1).
2. Unplug the battery from the helicopter (see Fig.2).
3. The battery is fixed in place using a hook and loop band (see Fig.3). Unhook the
band to remove the battery.
Fig.1
Fig.2
Installing the replacement battery
1. Make sure the battery is charged following the “Charging the Helicopter” section
in the helicopter’s instruction manual.
2. Fasten the replacement battery to the helicopter compartment making sure the
hook and loop band is securely fastened (see Fig.3).
3. Plug the battery into the helicopter.
4. Replace the canopy cover and insert the two tips into their holders.
Fig.3
