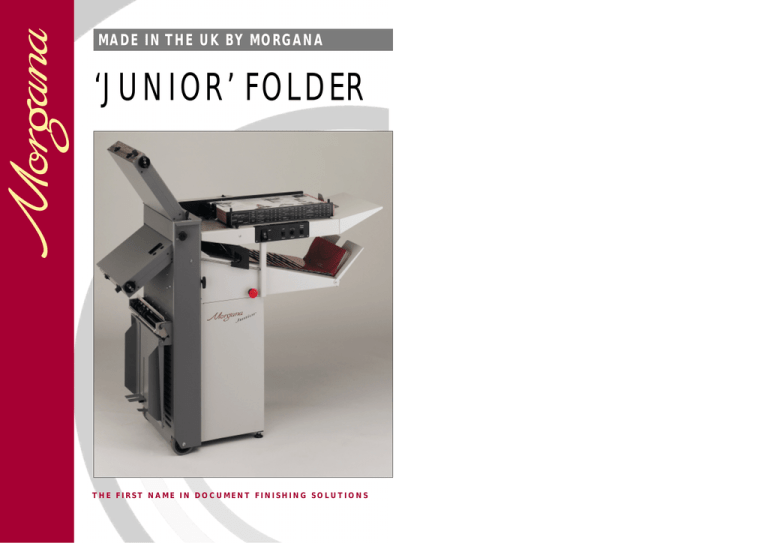

‘JUNIOR’ FOLDER
THE FIRST NAME IN DOCUMENT FINISHING SOLUTIONS
A RADICAL NEW SUCTION FEED FOLDING MACHINE DESIGNED FOR TODAY’S FAST CHANGING MARKET
MORGANA JUNIOR - SETS THE STANDARDS
Morgana Junior is a new suction feed folding machine,
designed and manufactured by Morgana to simplify
document finishing
10
7
2
A COMPLETE PACKAGE:
As a leading manufacturer of folding machines, Morgana
have developed this product to complement their existing
range of UFO folders.
Standard features on the Morgana Junior are:
COUNTING/BATCHING 8
DOUBLE SHEET/ANTI-JAM DETECTOR 8
PERFORATING/SCORING UNIT 9
LONG DELIVERY BELT STACKER 3
A number of unique features have been developed to ensure
that the Morgana Junior can handle output from newly
introduced Digital processes, as well as established Litho
printing.
PERFORATING/SCORING:
3
Plug-in technology enables the operator to set the
PERFORATING/SCORING UNIT 9 on the bench prior to
use enabling easy set-up.
In many cases, these differing printing or imaging processes
can affect the characteristics of the paper and create curled
or easily marked material. Morgana Junior has been
designed to compensate for these situations. At the same
time, run lengths can be either very short or very long.
Morgana Junior has been designed for both.
The PERFORATING/ SCORING UNIT 10 is shown in
position together with the CATCH TRAY. An OPTIONAL
BELT STACKER 11 is available for longer run lengths.
This unit is also beneficial when folding heavy stock in half.
Our criteria when designing the Morgana Junior was to offer
the following:
LOW MAINTENANCE COSTS:
5
SIMPLICITY:
Paper is positioned against a SIDE LAY 1 and there is
just one setting on the loading table when changing sheet
sizes.
The Morgana Junior has been designed to offer reliability
and extremely low service costs. For example, the FOLD
ROLLERS 7 located in a cassette, can be removed and
replaced by non-skilled personnel in less than 5 minutes.
6
MORGANA VALUE:
COMPACTNESS: 2
Work is delivered back to the loading position via a long
delivery belt stacker, 3 ensuring that the Morgana Junior
utilises the minimum ‘footprint’. An operator can load/offload the machine from one position.
Like all Morgana products the Junior offers unmatched
performance and value.
4
1
11
INNOVATION:
The Morgana Junior incorporates many unique features.
These include:
The FEED TABLE 4 incorporates a low pressure suction
chamber which controls either curled or static charged
paper positively before feeding into the fold rollers.
‘DIAL-A-FOLD’ plate settings 5 which can be adjusted
without the need to remove covers. A digital display
indicates position of the plate stop to minimise setting times.
9
8
REGISTER TABLE 6 to align sheets before folding and
to ensure accuracy.
The FOLD ROLLERS 7 are extremely durable and have
the ability to handle a wide variety of stock without
2
adjustment. Their unique composite material will positively
grip high gloss papers or work from digital printers and they
are not affected by paper dust.
3
TECHNICAL INFORMATION
SPECIFICATION
OVERALL DIMENSIONS Length in operation 1168mm
Length - stored
813mm
Width
457mm
Height
990mm
Weight
106kgs
POWER REQUIREMENT
1ph 240v
SPEED RANGE
12,000 to 17,000
MAXIMUM SHEET SIZE Length
630mm
Width
330mm
MINIMUM SHEET SIZE Length
104mm
Width
139mm
MAXIMUM PAPER WEIGHT
Varies according to material
MINIMUM PAPER WEIGHT
45gsm
LOAD CAPACITY A4 SHEETS 80GSM
500
DISTRIBUTOR:
MANUFACTURED BY: MORGANA SYSTEMS LIMITED
Head Office: Grampian Gate, Snowdon Drive, Winterhill, Milton Keynes, Buckinghamshire MK6 1AP
Telephone: (01908) 608888 Facsimile: (01908) 692399 http://www.morgana.co.uk
Showrooms in Milton Keynes and Scotland
