QuickSpecs
QuickSpecs

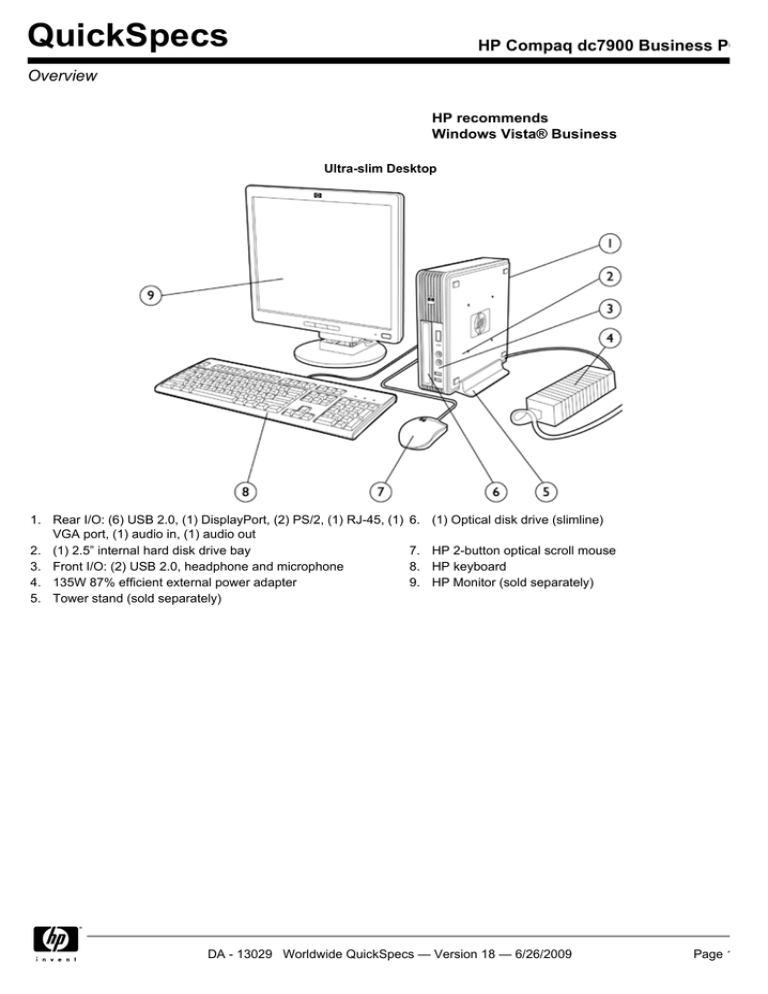

Overview
HP Compaq dc7900 Business PC
Ultra-slim Desktop
HP recommends
Windows Vista® Business
1. Rear I/O: (6) USB 2.0, (1) DisplayPort, (2) PS/2, (1) RJ-45, (1)
VGA port, (1) audio in, (1) audio out
2. (1) 2.5” internal hard disk drive bay
6. (1) Optical disk drive (slimline)
7. HP 2-button optical scroll mouse
3. Front I/O: (2) USB 2.0, headphone and microphone
4. 135W 87% efficient external power adapter
5. Tower stand (sold separately)
8. HP keyboard
9. HP Monitor (sold separately)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 1
QuickSpecs
Overview
Small Form Factor
HP Compaq dc7900 Business PC
1.
HP Monitor (sold separately) 6.
HP keyboard
2.
Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45,
(1) VGA port, (1) DisplayPort, (1) audio in, (1) audio out
7.
(1) 3.5-inch external drive bay supporting media card reader, diskette drive, or secondary hard disk drive
Optional: 2 nd
serial port, (1) parallel port, (1) eSATA port
3.
(1) low profile PCI slot, (1) low profile PCI Express x1 slot, (2) low profile PCI Express x16 slots
( NOTE: 2 nd
x16 slot has x4 connectivity.
)
4.
Front I/O: (2) USB 2.0, headphone and microphone
5.
HP 2-button optical scroll mouse
8.
(1) Optical disk drive
9.
(1) 3.5-inch internal drive bay supporting primary hard disk drive
10. 240-watt standard efficiency power supply
Optional: 85% efficient energy saving power supply
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 2
QuickSpecs
Overview
Convertible Minitower
HP Compaq dc7900 Business PC
1. (2) Optical disk drives
(2) 3.5” internal hard disk drive bays
2. 365-watt standard efficiency power supply, Active Power
Factor Correction (PFC)
6.
Front I/O: (2) USB 2.0, headphone and microphone
7.
(3) full-height PCI slots, (1) full-height PCI Express x1 slot, (2) full-height PCI Express x16 slots
( NOTE: 2 nd
x16 slot has x4 connectivity.
)
Optional: 85% efficient energy saving power supply
3. (1) 5.25” removable media drive bay 8.
HP 2-button optical scroll mouse
4. Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45,
(1) VGA, (1) DisplayPort, (1) audio in, (1) audio out
9.
HP keyboard
Optional: 2 nd
serial port, (1) parallel port, (1) eSATA port
5. Media card reader or Floppy disk drive 10. HP Monitor (sold separately)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 3
QuickSpecs
HP Compaq dc7900 Business PC
Overview
At A Glance
Designed for long-term deployment within commercial and institutional organizations
Guaranteed lengthy purchase lifecycles and image stability
Integrated dual monitor support via both a VGA and DisplayPort monitor interface
Optional 85% efficient power supplies
ENERGY STAR qualification for dc7900e models
Intel® Q45 Express chipset featuring Intel's Graphics Media Accelerator 4500
Software image fully compatible across all models and form factors
BIOS developed and engineered by HP for better security, manageability and software image stability
Created using industry leading Design for Environment standards
Supports industry standard management protocols including DASH, Intel Standard Manageability, and Intel Core 2
Processor with vPro Technology (on select models)
CMT and SFF models can be configured with multiple hard disk drives in a RAID array
Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals ( http://h10019.www1.hp.com/business-site/index.html
)
Tailored HP Factory Express deployment and lifecycle services available
( http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx
)
Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply)
Tool-less serviceability features for easier upgrades and repairs
Choice of professional chassis form factors to accommodate the desired mix between expandability and size
* TPM module and cryptographic software disabled where use is restricted by law; for example, Russia and China.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 4
QuickSpecs
HP Compaq dc7900 Business PC
Configurable Components - Select Models (localized by Regions)
Model Key and Example
NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available configuration choice specified in the body of this document and may include references to modules that are out of date and no longer available.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 5
QuickSpecs
Standard Features and Configurable Components
HP Compaq dc7900 Business PC
Operating System -
One of the following
Preinstalled
Genuine Windows Vista Business 32 *
Genuine Windows Vista Business 64 *
Genuine Windows Vista Home Basic 32 *
Genuine Windows Vista Ultimate 32 *
Genuine Windows Vista Business with downgrade to Windows XP
Professional custom installed *+
Supported
FreeDOS †
Genuine Windows XP Home Edition
Genuine Windows XP Professional
SUSE Linux Enterprise Desktop
†
Certified
* Certain Windows Vista product features require advanced or additional hardware. See: www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
and www.microsoft.com/windowsvista/getready/capable.mspx
for details. WindowsVista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit: www.windowsvista.com/upgradeadvisor .
+ Windows Vista Business disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order at least 25 customer systems with the same custom image.
† The following features are not supported on Linux certified systems:
HP 22-in-1 Media Card Reader
HP 1.44-MB External USB Diskette Drive
TPM 1.2 Security Chip
Intel Pro 1000 PT PCIe x1 Gigabit NIC
Broadcom NetXtreme Gigabit Ethernet Plus PCIe NIC
HP 802.11b/g/n Wireless PCIe x1 Card (SFF and MT)
Intel WiFi Link 5100 a/b/g/n (USDT) Wireless NIC
Agere PCI 56K International SoftModem
LSI PCIe x1 56K International SoftModem
ATI Radeon 3470 256MB SH PCIe x16 graphics card
ATI Radeon HD 2400XT 256MB DH PCIe x16 graphics card
ATI Radeon HD 3650 512MB DH PCIe x16 graphics card
NVIDIA Quadro NVS 290 256MB dual head graphics adapter
HP USB Smartcard Keyboard
HP 2nd Serial Port
Parallel port adapter eSATA port adapter
HP FireWire / IEEE 1394 PCI Card
Value-added Software
(included with all models; not included with
FreeDOS)
HP ProtectTools Security Suite †
HP Backup and Recovery Manager
HP Insight Diagnostics
HP Software Management Agent
PDF Complete
Computrace for Desktops (in the HP BIOS)
† Not included on models configured with less than 1 GB system memory.
*
* Computrace agent is in HP BIOS. For tracking and tracing services, available in select countries, separate software and purchase of a subscription is required.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 6
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Value-added Software
(included with select models; not included with
FreeDOS)
Computer Setup Utility
McAfee Total Protection Anti-Virus †*
Sonic/Roxio Easy Media Creator 9
or
Roxio Business Creator 10
HP Power Manager v2.0
HP Total Care Advisor †
Microsoft Office 2007 Personal
Microsoft Office 2007 Professional
Microsoft Office 2007 Small Business
Microsoft Works 8.5
Firefox-HP Virtual Browser
Microsoft Office 2007 Basic Corel WinDVD 8
† Not included on models configured with less than 1 GB system memory.
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates. First update included. Subscription required for updates thereafter.
HP Client Management
Solutions
(available for free download from the Web http://www.hp.com/go/ easydeploy )
HP Client Configuration Manager Basic Edition HP Out-of-Band Management Console
(for Intel management technology enabled models)
HP Client Manager for Altiris
HP SoftPaq Download Manager
Altiris Out-of-Band Management Solution (for
Intel AMT enabled models)
HP Systems Software Manager
HP Client Catalog for Microsoft SMS
Value-added Services and Features
HP Stable Platform Program
Business-to-Business Portals
HP Global Series Services
Factory Express Deployment and Lifecycle
Services
Intel Standard Manageability
Intel Core 2 processor with vPro Technology
TPM 1.2 security module *
* TPM module disabled where use is restricted by law; for example, Russia.
Service and Support
On-site Warranty and Service
1
: This three-year (3-3-3), limited warranty and service offering delivers three years of parts, labor and on-site repair. Response time is next business-day
2
and includes free telephone support
3
24 x 7. Global coverage
2
ensures that any product purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and service offering. Some countries/regions do not offer one year onsite and labor.
1
Terms and conditions may vary by country. Certain restrictions and exclusions apply.
2
On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
3
Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 7
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Dimensions
Chassis Dimensions
(H x W x D)
Optional Tower Stand
Dimensions (H x W x D)
System weight *
System volume
Parallel eSATA
PS/2
Video
DVI output
Ultra-slim Desktop
2.60 x 9.90 x 10 in
(66.0 x 251.5 x 254 mm)
1.26 x 4.82 x 6.69 in
(32.0 x122.3 x 170.0 mm)
7.0 lb (3.18 kg)
4.21 liters
Small Form Factor
3.95 x 13.3 x 14.9 in
(100.3 x 337.8 x 378.5)
1.05 x 6.95 x 7.83 in
(26.75 x 176.46 x 198.87 mm)
18.75 lb (8.50 kg)
13 liters
Shipping weight *
Maximum supported weight (desktop orientation)
14.34 lb (6.52 kg)
77.1 lb (35 kg)
26.10 lb (11.86 kg)
77.1 lb (35 kg)
Shipping box dimensions
(H x W x D)
8.60 x 15.68 x 19.68 in
(218.4 x 398.3 x 499.9 mm)
9.00 x 19.68 x 23.38 in
(228.6 x 499.9 x 593.85 mm)
* Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.
Standard Efficiency
Power Supply
Energy Efficient Power
Supply
Ultra-slim Desktop
N/A
135W active PFC
87% efficient
External power supply dimensions:
6.7 x 2.6 x 1.5 in
Total length of external power supply and power cord:
12 feet 8 inches
Small Form Factor
240W active PFC
240W active PFC
85% efficient
Ports
USB 2.0
Serial
Convertible Minitower
17.63 x 7.0 x 17.8 in
(447.8 x 177.8 x 452.12 mm)
N/A
26.2 lb (11.89 kg)
36 liters
34.60 lb (15.72 kg)
77.1 lb (35 kg)
24.25 x 12.33 x 22.13 in
(616.0 x 313.2 x 562.1 mm)
Convertible Minitower
365W active PFC
365W active PFC
85% efficient
N/A
(8) Total
(2) front, (6) rear
(1) Standard
Optional 2 nd
port available
Optional (1) N/A
N/A Optional (1)
(1) keyboard; (1) mouse
(1) VGA; (1) DisplayPort available via ADD2 card or optional DisplayPort to DVI adapterr
Support for Multi-Monitor Dual monitor support standard Dual monitor support standard;
> 2 via ADD2 card or optional graphics cards
Audio
Dual monitor support standard;
> 2 via ADD2 card or optional graphics cards
Front – mic and headphone
Rear – input (supports microphone or line input), line out
NIC (RJ-45)
Slots
Integrated Intel 82567LM GbE Network Connection
Type and quantity
Slot specifications
(1) mini PCI Express (1) PCI
(1) PCI Express x1
(2) PCI Express x16
Accommodates low profile cards only
Graphics slots support
35W cards
2 nd
PCIe x16 slot functions electrically as a x4
(3) PCI
(1) PCI Express x1
(2) PCI Express x16
Accommodates full height cards
1 st
graphics slot supports
75W card; 2 nd
graphics slot support 35W card
2 nd
PCIe x16 slot functions electrically as a x4
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 8
QuickSpecs
Standard Features and Configurable Components
HP Compaq dc7900 Business PC
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X X X
Page 9
QuickSpecs
Standard Features and Configurable Components
Intel Core 2 Duo E8600 processor
3.33 GHz, 6 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Quad Processors:
Intel Core 2 Quad Q8200 processor
2.33 GHz, 4 MB L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q8300 processor
2.50 GHz, 4 MB L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q8400 Processor
2.66-GHz, 4 MB L2 cache, 1333-MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Quad Q9400 processor
2.66 GHz, 6 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Quad Q9550 processor
2.83 GHz, 12 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Quad Q9650 processor
3.0 GHz, 12 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
HP Compaq dc7900 Business PC
X X
X
X
X
X
X
X
X
X
X
X
X
X
X
Intel Core 2 Processor with vPro Technology
All dc7900 Series models featuring this technology include processors which are part of the Intel 2008 Stable Image Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP
Compaq dc7900 Series business desktop, thus making these model the most stable, secure, and manageable platforms available to enterprises today.
X
The 2008 SIPP processors are:
Core 2 Duo E8400, E8500, E8600
Core 2 Quad Q9400, Q9550, Q9650
Intel's Core 2 Processor with vPro Technology suite of features includes:
Intel Active Management Technology
an advanced set of remote management features and functionality which provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems regardless of the system's health or power state. Intel Active
Management Technology includes all features described as part of
Intel Standard Manageability plus the following advanced management functions:
Fast Call for Help – a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or alert triggered connection
Remote Scheduled Maintenance – pre-schedule when the PC connects to the IT or service provider console for maintenance.
Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's convenient
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight into Intel® AMT actions to support security requirements
Microsoft NAP Support
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009
X X
Page 10
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Allows Intel Active Management Technology to gain access to a
Microsoft NAP enabled 802.1x network OOB to enable OOB SW updates, inventories, remote diagnostics, etc. NAP is a new platform and solution that controls access to network resources based on a client computer's identity and compliance with corporate governance policy. NAP allows network administrators to define granular levels of network access based on who a client is, the groups to which the client belongs, and the degree to which that client is compliant with corporate governance policy. If a client is not compliant, NAP provides a mechanism to automatically bring the client back into compliance and then dynamically increase its level of network access.
When a client attempts to access the network or communicate on the network, it must present its system health state or proof of health compliance. If a client cannot prove it is compliant with system health requirements (for example, that it has the latest operating system and antivirus updates installed), its access to the network or communication on the network can be limited to a restricted network containing server resources so that health compliance issues can be remedied. After the updates are installed, the client requests access to the network or attempts the communication again. If compliant, the client is granted unlimited access to the network or the communication is allowed.
Memory
RAID
DDR2 SYNCH DRAM NON-ECC MEMORY
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations. The HP Compaq dc7900 business desktop supports non-ECC DDR2 PC2-5300 (667-MHz) and PC2-6400 (800-MHz) memory.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default to the slowest DIMM.
Redundant Array of Independent Drives
Flexible implementation:
DriveLock is supported while in RAID mode. Users can manage DriveLock password from within F10 Setup. Locked drives will be displayed as such in the RAID option ROM interface.
Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard drives will not appear in Drive Configuration when switching to RAID mode.
DPS Self Test can be executed on physical hard drives while in RAID mode.
The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.
NOTE: RAID 1 is the only RAID configuration that HP Compaq dc7900 Business PC products offer as factory configurations. The pre-configured systems:
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 11
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Are only available on the CMT and SFF form factors. The USDT does not support RAID as it does not allow for more than one hard disk drive.
Are complete RAID systems and have both drives installed.
Have the necessary Option ROM configuration.
Are pre-loaded and pre-installed with all required Intel software.
Include a preinstalled operating system that is mirrored mode out of the box.
Please refer to the HP White Paper titled "Advanced Host Controller Interface (AHCI) and
Redundant Array of Independent Disks (RAID) on HP Compaq dc7900 Business PCs" at http://www.hp.com
for more information and instructions.
Ultra-slim Desktop
Maximum Memory
* Supports up to 8 GB of DDR2 SYNCH DRAM using SO-DIMM modules. Slot 1 is black and must always be populated. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements.
SO-DIMM Size
512-MB
1-GB
2-GB (dual-channel symmetric)
4-GB (dual channel symmetric)
8-GB maximum (dual channel symmetric)
Channel A
1 (black)
512-MB
1-GB
1-GB
2-GB
4-GB
Slot
Channel B
2 (white)
1-GB
2-GB
4-GB
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions. Management Engine memory is shared with system memory. If the PC contains a single SO-DIMM, 16 MB of memory is pre-allocated for it at system startup. If the PC contains two SO-DIMMs, 32 MB of memory is pre-allocated. This memory is not made available to the operating system, just as pre-allocated video memory is not available.
Small Form Factor and Convertible Minitower
Maximum Memory
* Supports up to 16 GB of DDR2 SYNCH DRAM using DIMM modules. Slot 1 is black and must always be populated. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 12
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
DIMM Size
512-MB
1-GB
2-GB (dual-channel symmetric)
4-GB (dual-channel symmetric)
8-GB (dual-channel symmetric)
16-GB maximum
(dual-channel symmetric)
1 (black)
512-MB
1-GB
1-GB
1-GB
2-GB
4-GB
Channel A
2 (white)
1-GB
2-GB
4-GB
Slot
3 (white)
1-GB
1-GB
2-GB
4-GB
Channel B
4 (white)
1-GB
2-GB
4-GB
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions. Management Engine memory is shared with system memory. If the PC contains a single DIMM, 16 MB of memory is pre-allocated for it at system startup. If the PC contains two DIMMs, 32 MB of memory is pre-allocated. This memory is not made available to the operating system, just as pre-allocated video memory is not available.
Memory
Configurations – One of the following
512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 512)
1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 1GB)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 2GB)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 1GB)
3-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (3 x 1GB)
4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 1GB)
4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 2GB)
8-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 2GB)
16-GB DDR2 Synch Dram PC2-6400 (800-Mhz) Non ECC (4 x 4GB)
USDT SFF CMT
X X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Expandability
PCI slots
USDT
N/A
N/A
N/A
SFF
(1) LP (2.5”), length (6.6”) standard;
(2) FH (4.2”), length (6.875”) via optional riser card.
NOTE: With optional riser card,
PCIe x1 and PCIe x16 slots are not accessible.
25W
(2) LP (2.5”), length (6.6”)
CMT
(3) FH (4.2"), length (10.5”)
25W
(2) FH (4.2”), full-length
Max power per slot
PCI Express x16 slot
(Also functions as
SDVO/ADD2 Slot)
Max power per slot
PCI Express x1 slot
Max power per slot
External Bays
3.5”
5.25”
N/A
N/A
N/A
(1) Total
N/A
N/A
35W
(1) LP (2.5”), length (6.6”)
10W
(2) Total
(1) unless used for a secondary hard drive
(1) 8.189” length
75W max if 1 16x slot,
35W each if both PCIe 16 slots
(1) FH (4.2”), full-length
10W
(4) Total
(1)
(2) 8.189” length
(1) 5.71” length
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 13
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Slimline
Internal 2.5” HDD Bays
128w x 127d x 12.7h mm
(1)
N/A
N/A
N/A
N/A
Internal 3.5” HDD Bays N/A (1) for primary hard drive
NOTE: Secondary hard drive can be installed in 3.5” external bay if not used for external device.
(2) dedicated for HDDs
NOTE: A third hard drive can be installed in 3.5” external bay if not used for external device.
Hard Drive Controller
(PCI) Supported
Hard Drive and Optical
SATA Interfaces
Supported
(1) Serial ATA interface
Serial ATA support for SATA 1.5-Gb/s and 3.0-Gb/s hard drives
(3) Serial ATA interfaces
(1) Serial ATA for eSATA
(4) Serial ATA interfaces
(1) Serial ATA for eSATA
Host Controller for SATA Advanced Host Controller Interface (AHCI) Revision 1.2. The specification includes a description of the hardware/software interface between system software and the host controller hardware.
Ultra-slim Desktop Small Form Factor Convertible Minitower
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 14
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Storage - Drive Support
Slimline
Optical
Drives
1
USDT
2.5” Hard
Disk Drive or Solid
State Drive
(right angle, no cable)
Diskette
Drive or
Media Card
Reader
1 1 Quantity
Supported
Position
Supported
SFF
5.25”
Optical
Drives
1
Hard Disk
Drives
Diskette
Drive or
Media Card
Reader
*
CMT
5.25”
Optical
Drives
2
,
1 2
,
Hard Disk
Drives
3
†
, ,
Controller SATA SATA Diskette
Controller or
USB header on
PCA
SATA SATA Diskette
Controller or
USB header on
PCA
SATA SATA
* To have both a diskette drive and a media card reader in the Convertible Minitower, it is necessary to order it with a diskette drive in position 4 and then purchase a media card reader as an after-market option kit (which contains a 5.25" bracket) and install it in position 3.
†
Installing a 3.5-inch hard drive in position #2 (a 5.25-inch optical drive bay) requires the optional HP Optical Bay HDD
Mounting Bracket.
USDT SFF CMT
X
X
X
Hard Drives (SATA)
80 GB Hard Drive (2.5”)
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
160 GB Hard Drive (2.5”)
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
250 GB Hard Drive (2.5”)
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
80 GB Hard Drive
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
80 GB Hard Drive
16MB cache, 10,000 RPM, 3.0 GB/s, NCQ, Smart III
80 GB Hard Drive (removable)
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
160 GB Hard Drive
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
160 GB Hard Drive
16MB cache, 10,000 RPM, 3.0 GB/s, NCQ, Smart III
160 GB Hard Drive (removable)
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
250 GB Hard Drive
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
X
X
X
X
X
X
X
X
X
X
X
X
X X
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 15
QuickSpecs
Standard Features and Configurable Components
250 GB Hard Drive (removable)
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
500 GB Hard Drive
16MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
HP Compaq dc7900 Business PC
X
X
X
X
Removable Storage –
One or more of the following depending on form factor (see Storage
– Drive Support section above)
Diskette Drives
1.44-MB Diskette Drive
5.25” Optical Drives (SATA)
DVD-ROM Drive
SuperMulti LightScribe DVD Writer Drive
1,2,3
Slimline Optical Drives (SATA)
DVD-ROM Drive
1
SuperMulti LightScribe DVD Writer Drive
1,2,3
1
For playing DVDs, Corel WinDVD 8
2
For writing CDs, choice of Sonic/Roxio Easy Media Creator 9 or
Roxio Business Creator 10
3
For writing CDs and DVDs, video editing and authoring DVDs, choice of
Sonic/Roxio Easy Media Creator 9 or
Roxio Business Creator 10
Media Card Reader –
One of the following
HP 22-in-1 Media Card Reader
HP 22-in-1 Media Card Reader with 1394 port
Security
X
X
X
X
X
X
X
TPM 1.2 TPM Security Chip *
TPM Pre-Boot Authentication (via BIOS)
Smartcard Pre-boot Authentication (via BIOS)
Stringent Security ** (via BIOS)
SATA port disablement (via BIOS)
Drive Lock
RAID configurations
HP ProtectTools Embedded Security Software
Serial, Parallel, USB Enable/Disable (via BIOS)
Optional USB Port Disable at factory (user configurable via BIOS)
Removable Media Write/Boot Control
Power-On Password (via BIOS)
Setup Password (via BIOS)
Solenoid Hood Lock / Sensor
HP Security Lock Kit
Support for chassis padlocks and cable lock devices
* TPM module disabled where use is restricted by law; for example, Russia.
** This setting is defaulted to disable, but when enabled, the PW jumper will not clear the BIOS pre-boot authentication passwords.
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 16
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
NIC
Intel 82567LM GbE Network Connection (integrated on system board)
Intel Gigabit CT Desktop NIC *
Intel Pro 1000 PT PCIe Gigabit NIC *
NOTE: The integrated network connection is required to support the vPro technology features.
* Available after initial product release; use of this network card disables the vPro technology features.
X X
X
X
X
X
X
Wireless
Modem
Graphics
Audio
HP 802.11 b/g/n PCIe x1 Wireless card
Intel WiFi Link 5100 a/b/g/n (USDT) Wireless NIC
NOTE: These wireless network solutions disable the vPro technology features.
Agere 2006 PCI 56K International SoftModem
LSI PCIe x1 Hi-Speed 56K International SoftModem
X
X
X
X
X
X
Intel Graphics Media Accelerator 4500 (integrated on chipset)
ATI Radeon 3470 256MB SH PCIe x16 graphics card
ATI Radeon HD 2400XT 256MB DH PCIe x16 graphics card
ATI Radeon HD 3650 512MB DH PCIe x16 graphics card
ATI Radeon HD 4550 Dual Head PCIe x16 Graphics Card
NVIDIA Quadro NVS 290 256MB DH PCIe x16 graphics card
NVIDIA Quadro NVS 295 256MB Graphics Card
HP ADD2 SDVO PCIe DVI-D adapter
HP DisplayPort to VGA Adapter
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Integrated HD audio with AD1884A codec (all ports are stereo)
Microphone and Headphone front ports
Line-out and Line-In rear ports *
Multistreaming capable *
Internal Speaker (standard)
HP Thin USB Powered Speakers
* Rear audio input ports are re-taskable as Line-in or Microphone-in. External speakers must be powered externally. Multistreaming can be enabled in the
ADI control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different audio applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a communications application while the rear jacks are being used with external speakers and a multimedia application.
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 17
QuickSpecs
Standard Features and Configurable Components
Input Devices Keyboard
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Smartcard Keyboard
Mouse - One of the following
HP PS/2 2-button Optical Scroll Mouse
HP USB 2-button Optical Scroll Mouse
HP USB 2-Button Laser Scroll Mouse
Miscellaneous
HP Compaq dc7900 Business PC
HP FireWire (IEEE 1394) PCI Card
PCI riser card for SFF - adds 2 full-height PCI slots
NOTE: Low profile slots are unusable with riser card installed.
Serial port adapter
Parallel port adapter eSATA port adapter
Tower stand
Configure dc7900 CMT in desktop orientation
Rear Port Control Cover
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 18
QuickSpecs
After-Market Options (availability may vary by region)
Communications
HP Compaq dc7900 Business PC
Wireless
HP Wireless 802.11 b/g/n PCIe x1
NICs
Broadcom NetXtreme Gigabit Ethernet Plus PCIe NIC
USDT SFF CMT
X X
Intel Gigabit CT Desktop NIC
Intel Pro 1000 PT PCIe Gigabit NIC *
Modem
LSI PCIe x1 Hi-Speed 56K International SoftModem
X
X
X
X X
HP RJ11 Modem Adapter Kit X
* available after initial product release
NOTE: The use of a PCI Express network card (wired or wireless) will disable the vPro technology features.
X
X
X
X
After-Market
Options Part
Number
FH971AA
FS215AA
FH969AA
EH352AA
FH970AA
DC131C#xxx
Graphics Single head solutions
ATI Radeon 3470 256MB SH PCIe x16
Multi head solutions
ATI Radeon HD 2400XT 256MB DH PCIe x16
ATI Radeon HD 3650 512MB DH PCIe x16
ATI Radeon HD 4550 Dual Head PCIe x16 Graphics Card
NVIDIA Quadro NVS 290 256MB DH PCIe x16
NVIDIA Quadro NVS 295 256MB Graphics Card
Hard Disk Drives Serial ATA Hard Drives
HP 80-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD
HP 160-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD
HP 250-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD
HP 320-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD
HP 500-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD
HP eSATA Adapter
HP Removable SATA Hard Drive Enclosure (Frame &
Carrier)
HP Removable SATA Hard Drive Enclosure (Carrier Only)
HP Optical Bay HDD Mounting Bracket
Input/Output Devices
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Gray Keyboard
HP 2.4 GHz Wireless Keyboard and Mouse
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2-Button Optical Scroll Mouse
HP USB 2-Button Laser Mouse
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
FH972AA
KD060AA
KS505AA
AT042AA
KG748AA
FY943AA
PY276AA
PY277AA
PY278AA
FH963AA
KW347AA
FH966AA
RY102AA
RY103AA
NQ099AA
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
DT527A
DT528A
DT529A
NB896AA#xxx
EY703AA
DC172B
GW405AA
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 19
QuickSpecs
After-Market Options (availability may vary by region)
Memory (non-ECC) PC2-6400 (DDR2, 800 MHz) DIMM
HP 1 GB PC2-6400 (DDR2 800 MHz) DIMM
HP 2 GB PC2-6400 (DDR2 800 MHz) DIMM
HP 4 GB PC2-6400 (DDR2 800) DIMM
PC2-6400 (DDR2, 800 MHz) SODIMM
HP 1 GB PC2-6400 (DDR2 800 MHz) SODIMM
HP 2 GB PC2-6400 (DDR2 800 MHz) SODIMM
HP 4 GB PC2-6400 (DDR2 800 MHz) SODIMM
HP Compaq dc7900 Business PC
X
X
X
X
X
X
X
X
X
Monitors
All HP monitors are supported that accept a graphics output provided by this PC. The LP3065 monitor can be supported by installing a graphics card that supports a dual-link DVI-D output.
HP Thin USB Powered Speakers
Multimedia
Slimline Optical Drives DVD-ROM Drive
HP Slim 8X SATA DVD-ROM Drive
Combo Drive
HP Slim 24X SATA CD-RW/DVD-ROM Combo Drive
DVD Writer
HP Slim 8X SATA SuperMulti LightScribe Drive
Standard Optical
Drives
DVD-ROM Drive
HP SATA DVD-ROM Drive
DVD Writer
HP SATA SuperMulti LightScribe DVD Writer Drive
X
X
X
X
Removable Storage Diskette and Digital Drives
HP 1.44-MB External USB Diskette Drive
HP 1.44-MB Standard Internal Diskette Drive
Multimedia
HP 22-in-1 Media Card Reader
HP 22-in-1 Media Card Reader with FireWire (IEEE 1394)
X
X
X
X
X
X
X
X
X
Security
Kensington Lock
HP Business PC Security Lock
HP Rear Port Controller Cover (USDT)
HP 2008 Wall Mount/Security Sleeve (SFF)
HP ProtectTools Version 4.0 (1 User)
HP USB Smartcard Keyboard
X
X
X
X
X
X
X
X
X
X
X
X
X
X
AH058AA
AH060AA
FH977AA
GM254AA
GV576AA
FH978AA
KK912AA
FH967AA
KV842AA
KV843AA
AH047AA
GF343AA
DC141B
AH053AA
FX273AA
KN518AA
PC766A
PV606AA
GJ121AA
GF344AA
FH974AA
ED707AA
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 20
QuickSpecs
After-Market Options (availability may vary by region)
Software
HP Client Configuration Manager, Premium Edition
HP Compaq dc7900 Business PC
Altiris Client Management Suite Level 1
Includes:
Altiris Deployment Solution
Altiris Inventory Solution
Altiris Application Metering Solution
Altiris Carbon Copy Solution
Altiris Software Delivery Solution
Altiris Application Management Solution
Altiris Patch Management Solution
X
X
X
X
X
X
T3488AA
(use T3489AA for 1000 licenses)
DR605A
(use DR606A for 1000+ licenses)
Brackets/Stands
Miscellaneous
Accessories
HP Compaq Integrated Work Center Stand
HP Tower Stand for USDT
HP Tower Stand for SFF
HP Serial Port adapter kit
HP Parallel Port Adapter
HP 5.25” Blank Bezel Kit (50 pack)
HP FireWire (IEEE 1394) PCI Card
Graphics – Cables
HP DMS59 DVI Dual-head Connector Cable
HP DVI to DVI Cable
HP ADD2 SDVO DVI-D Adapter
HP DisplayPort to VGA Adapter
HP DisplayPort To DVI-D Adapter
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
GN783AA
GJ117AA
GJ118AA
PA716A
KD061AA
DC177B
PA997A
DL139A
DC198A
DY674A
AS615AA
FH973AA
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 21
QuickSpecs
Technical Specifications
HP Compaq dc7900 Business PC
Unit Environment and
Operating Conditions
General Unit Operating Guidelines
Ultra-slim Desktop Small Form Factor Convertible Minitower
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Relative Humidity
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: –22° to 140° F(–30° to 60° C)
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum Altitude
(unpressurized)
Operating: 10,000 ft (3048 m)
Non-operating: 30,000 ft (9144 m)
* Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
Standard Efficiency
Energy Efficient
Ultra-slim Desktop
N/A
Small Form Factor
240W standard efficiency active PFC
240W 85% efficient active PFC
Convertible Minitower
365W standard efficiency active PFC
365W 85% efficient active PFC
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency
Range
Rated Input Current
Rated Input Current with
Energy Efficient * Power
Supply
Current Leakage
(NFPA 99)
System Heat Dissipation
135W 87% efficient active PFC
(external)
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
N/A
1.5A
< 275 µA
N/A
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
4A
3.5A
< 275 µA
90 – 264 VAC
100 – 240 VAC
50/60 Hz
47 – 63 Hz
6A
5A
< 450 µA
System Heat Dissipation with Energy Efficient
Supply
Power Supply Fan
* Power
FEMP Standby Power
Compliant
(<2W in S5 – Power Off) *
Typical 133 btu/hr
(33.5 kg-cal/hr)
Maximum 549 btu/hr
(132 kg-cal/hr)
Ultra-slim Desktop
N/A
X
Typical 198 btu/hr
(50 kg-cal/hr)
Maximum 1260 btu/hr
(318 kg-cal/hr
Typical 150 btu/hr
(38 kg-cal/hr)
Maximum 1024 btu/hr
(258 kg-cal/hr)
Small Form Factor
80mm variable speed
X
Typical 222 btu/hr
(56 kg-cal/hr)
Maximum 1916 btu/hr
(483 kg-cal/hr)
Typical 171 btu/hr
(43 kg-cal/hr)
Maximum 1557 btu/hr
(392 kg-cal/hr)
Convertible Minitower
92mm variable speed
X
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 22
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
Power Consumption in ES
Mode – Suspend to RAM (S3)
(Instantly Available PC)
< 2.7W
< 2.7W
< 2.7W
* Energy efficient power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and modules; ENERGY STAR models branded HP Compaq dc7900e
ROM BIOS Information
Key features of the HP BIOS in the dc7900 include:
Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Business desktop computer into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification.
Security – HP BIOS Configuration for ProtectTools offers a robust and flexible set of security features to help the system administrator secure their systems from removal of sensitive data, and help prevent access by unauthorized users.
Computrace agent – For tracking and tracing services, available in select countries, separate software and purchase of a subscription is required.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies so component temperatures are managed for high reliability and to assist in operating the HP Business
Desktop computer in any enterprise environment.
Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including
BIOS updates from within DOS (Flashbin), BIOS updates from within Windows (HPQFlash, SSM), HP Client
Manager, and fail-safe recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is available from within the BIOS software and from the support website.
Additional HP BIOS Features
Power-On password – Helps prevent an unauthorized user from powering on the system. After a TPM Basic User password is established in windows, the user or admin can require TPM hardware based authentication during the power-on process.
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. HP
Compaq dc7900 models use ACPI to provide power conservation features.
Other Features
ACPI-Ready Hardware
Description
Advanced Configuration and Power Management Interface (ACPI).
SMBIOS Ver. 2.5
Wired for Management
Support
Dual-State Power Button
Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state without affecting other elements of the system.
System Management BIOS, for system management information
Intel-driven, industry-wide initiative to make Intel architecture-based PCs, servers and mobile computers more inherently manageable right out of the box and over the network
Power button acts as both an on/off button and suspend-to-sleep button
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 23
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
Serviceability Features of System
Dual Color Power LED on Front of Computer (Indicates Normal Operations and Fault Conditions)
Diagnostic LED Explanation Table
System/Emergency ROM
Flash Recovery with Video
Configuration Record SW
Over-Temp Warning on Screen
(Requires IM Agents)
Number of 1-second red LED blinks followed by 2-second pause, then repeats:
2-processor thermal protection activated
3-processor not installed
4-power supply failure
5-memory error
6-video error
7-PCA failure (ROM detected failure prior to video)
8-invalid ROM, bootblock recover mode
Flash ROM
5 Aux Power LED on System PCA
CMOS Battery Holder for easy
Replacement
Processor ZIF Socket for easy
Upgrade
Clear Password Jumper DIMM Connectors for easy
Upgrade
HP Backup and Recovery
Manager
Clear CMOS Button NIC LEDs (integrated) (Green &
Amber)
Serviceability Features of Chassis
Dual Color Power and HD LED -
To Indicate Normal Operations and Fault Conditions
Front power switch
Color coordinated cables and connectors
Tool-less Hood Removal
System memory can be upgraded without removing the system board or any internal components
Tool-less Hard Drive, CD &
Diskette Removal
Green Pull Tabs, and Quick
Release Latches for easy
Identification
NOTE: Thumb screw release mechanism is used with the Ultra-slim Desktop chassis cover.
Additional Features Description
Intel Standard Manageability Select models feature Intel's Standard Manageability technology including the following:
NOTE: Requires the utilization of the integrated network connection.
DASH 1.0
DASH compliance for support of industry standards. Support for profile updates.
Intel Core 2 Processor with vPro
Technology
Host VPN
*
Support for local management VPN tunneling
Select models feature Intel's Core 2 Processor with vPro Technology including the following:
NOTE: Requires the utilization of the integrated network connection.
Intel Advanced Management Technology (AMT) 5.0
DASH 1.0 support (Desktop and Mobile
Architecture for System Hardware)
All Intel Standard Manageability technologies
Fast call for help – client outside the firewall may initiate a call for help via
BIOS screen, periodic connections, or alert triggered connection
Audit Logs – policy based log of AMT actions to deter rogue administrator actions
Microsoft NAP Support – allows AMT to gain access to a Microsoft NAP enabled 802.1x network OOB to enable OOB SW updates, inventories, remote diagnostics, etc.
A standards initiative for representing out-of-band management capability for computer systems. It is a secure, web-services based successor to ASF.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 24
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
ASF 2.0 support (Alert Standard Format) Industry-standard specification for network alerting in operating system-absent environments
TXT (Trusted Execution Technology) and VT-d (Virtualized devices)
TXT allows for secure management (via TPM) and measured launch of
VMM, as well as teardown of secrets in unexpected reset case. TXT support provided in select Intel processors.
VT-d is a chipset technology that virtualizes directed I/O
Computrace
Together, TXT and VT-d may be used to support verified launch of a known trusted VMM that also may protect VMs from accessing each other's memory.
Computrace agent support standard
Tower
Drive Lock
Drive Self Tests (DPS)
DPS Access through F10 Setup during
Boot
*
Product can be oriented as a tower (in addition to desktop orientation)
Implementation of the industry standard ATA Security feature set. When enabled, it prevents software access to user data on the drive until one or two user-defined passwords are provided.
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every sector of the hard drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through a Windows-based diagnostics utility or through the computer's setup procedure. It produces an evaluation on whether the hard drive is the source of the problem and needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting
Technology (SMART), a continuously running systems diagnostic that alerts the user to certain types of failures.
SMART Technology *
(Self-Monitoring, Analysis and Reporting
Technology)
Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning with Defect Reallocation
SMART IV – End-to-End CRC for hard drives
Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user downtime and potential data loss from hard drive failure
IOEDC: I/O Error Detection Circuitry
Detects errors in Read/Write buffers on HDD cache RAM
Interface in F10 setup for all dc7900 platforms provides confirmation of
SMART IV support.
* This feature is inoperable when a RAID (Redundant Array of Independent Disks) configuration is enabled.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 25
QuickSpecs
Technical Specifications - Audio
HP Compaq dc7900 Business PC
High Definition Audio Type
High Definition Stereo
Codec
Audio Jacks
Integrated
Yes – ADI 4-channel ADI 1884 codec
Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio driver)
Rear Line-Out * (190 ohms Output Impedance, expects at least a 10-K ohm load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a
32 ohm load)
* Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered externally. Rear Line in audio port is re-taskable as Line-in or Microphone-in.
Multistreaming
Capable
Sampling
Wavetable Syntheses
(software)
Analog Audio
Multistreaming can be enabled in the ADI control panel to allow independent audio streams to be sent to/from the front and rear jacks.
8 kHz – 192 kHz
Yes – Uses OS soft wavetable
Yes
Number of Channels on Line-Out
(mono/stereo)
Stereo (Left & Right channels)
Internal Audio Speaker
1.5 W
Power Rating
Internal Speaker
Yes
External Speaker Jack
(Line-Out)
Yes
HP Thin USB Powered
Speakers
On/Off/Volume
Controls
Right side of right speaker
Power LED
Front of right speaker (green)
Frequency response
FO to 20kHz
Watts
2/3 watt (normal/maximum)
Dimensions (H x W x D) Speakers: 5.72 x 3.74 x 0.96 in (14.52 x 9.50 x 2.45 cm) per speaker
Net weight
Environmental
(all conditions non-condensing)
0.68 lbs (0.31kg)
Temperature
(operating)
14° to 104° F (-10° to 40° C)
Relative Humidity
(operating)
40% to 90%
Speaker cable length
Input cord: 5.91 ft (1800mm±35mm)
Color
L-channel cord: 3.28 ft (1000mm±35mm)
USB cord: 5.91 ft (1800mm±35mm)
HP Carbonite
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 26
QuickSpecs
Technical Specifications - Communications
HP Compaq dc7900 Business PC
Integrated Intel
82567LM Gigabit
Network Connection
Connector
Controller
Memory
RJ-45
Intel 82567LM Gigabit platform LAN Connect Networking Controller
Integrated 96KbB on chip buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant
Bus architecture
Data transfer mode
GLCI, LCI interface. Intel specific MAC to PHY interface
At gigabit GLCI (802.3 serdes) is for Data, LCI (parallel bus) for MDIO, at 10/100 LCI for both data and MDIO, GLCI is idle.
Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement
Require 3.3Vaux,1.8V and 1.0V or just 3.3V with integrated regulators
Power consumption 1.16 Watts for 82566, whole LOM 2.53 Watts
ACBS
Boot ROM support
Intel Auto Connect Battery Saving feature
Yes
Network transfer mode Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
Environmental
Management capabilities
Alerting
1000BASE-T (full-duplex) 2000 Mbps
Operating temperature 32° to 131°F (0° to 55° C)
To 70° C for external regulator
Operating humidity
85% at 131° F (55° C)
WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostic.
ASF 2.0 support, AMT 3.0 support
Intel Gigabit CT
Desktop NIC
Connector
Controller
Memory
Integrated Dual 48K configurable transmit receive FIFO Buffers
Data rates supported
10/100/1000 Mbps
Compliance
RJ-45
Intel WG82574L Gigabit Ethernet Controller
Bus architecture
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
PCI-E 1.0a
Data path width
Data transfer mode
X1, 250 MB/s, Bi-directional interface
Bus-master DMA
Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 27
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Environmental
Dimensions
Operating system driver support
Operating temperature
32° to 131°F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)
Windows Vista Business 64*, Windows Vista Business 32*, Windows
Vista Home Basic 32*, Windows XP Professional or Windows XP Home
32*. No driver is required for this device. Native support is provided by the operating system.
Red Hat Linux 7.2, Linux 7.3 and Red Hat Enterprise Linux 3
Management capabilities
* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer.
To download the tool, visit: http://www.windowsvista.com/upgradeadvisor . For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements .
WOL , PXE, DMI, WFM 2.0
Intel Pro 1000 PT PCIe
Gigabit NIC
Connector
Controller
Memory
RJ-45
Intel 82572EI Gigabit Ethernet Controller
Integrated Dual 48K configurable transmit receive FIFO Buffers
Data rates supported
10/100/1000 Mbps
Compliance
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
Data path width
PCI-E 1.0a
X1, 250 MB/s, Bi-directional interface
Data transfer mode
Bus-master DMA
Hardware certifications FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS
Mark for European Union
Power requirement
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
Environmental
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Operating temperature 32° to 131°F (0° to 55° C)
Dimensions
Management capabilities
Operating humidity
85% at 131° F (55° C)
6.4 x 2.6 x 0.8 in (16.3 x 6.6 x 1.9 cm)
WOL, PXE, DMI, WFM 2.0
HP 802.11b/g/n
Wireless PCIe x1 Card
Dimensions (L x H)
Weight
Controller
System interface
Network standard
Frequency band
3.3 x 4.7 inches (8.5 x 12 cm)
0.08 pounds (40 g)
Ralink RT2790
PCIExpress x1
802.11 b/g/n
2.400 - 2.497 GHz
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 28
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Operating temperature 14° to 149°F, operating (–10° to 65°C, operating)
Storage temperature
–40° to 176°F, non-operating (-40° to 80°C, non-operating)
Humidity
10–90% operating
5–95% non-operating
Operating voltage
3.3V +/- 9%
12V +/- 8%
Power consumption
Platform/WLAN Mode Power Consumption
10 Watts Maximum Power
Consumption
Transmit Only 4 Watts maximum averaged power over 1 second
Transmit Packet or
Active Scanning
Receive Only Mode or
Idle without IEEE PSP mode enabled
Idle, with IEEE PSP mode enabled
Transmit Disabled
(turned off in software)
1000 mA peak current for 100 microseconds or longer
3 Watts maximum averaged over 1 second
1.0 Watts maximum averaged over 1 second
50 mW maximum, averaged over 1 second
Output power
(approximately)
Platform in S3 or S4
(power removed from
Low Profile PCI Express
Card)
802.11b modes
+19 dBm +/- 1.0 dB maximum
5 mW maximum, averaged over 1 second
Receive sensitivity
Data transfer rate
Mode
802.11b
802.11b
802.11g
802.11g
802.11g
802.11g
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
EWC (2.4 GHz)
Data Rate (MCS)
1 Mbps (802.11 b)
2 Mbps (802.11 b)
5.5 Mbps (802.11 b)
11 Mbps (802.11 b)
12 Mbps (802.11 g)
18 Mbps (802.11 g)
24 Mbps (802.11 g)
802.11g modes
+17 dBm +/- 1.0 dB maximum
EWC modes
+17 dBm +/- 1.0 dB maximum (total power in all transmit chains)
Sensitivity Data rate
1 Mbps
11 Mbps
6 Mbps
18 Mbps
48 Mbps
54 Mbps
6.5 Mbps
54 Mbps
81 Mbps
162 Mbps
270 Mbps
300 Mbps
Minimum Throughput
700 kbps
-94 dBm
-85 dBm
-91 dBm
-85 dBm
-75 dBm
-72 dBm
-87 dBm
-82 dBm
-78 dBm
-74 dBm
-68 dBm
-64 dBm
1.4 Mbps
3.5 Mbps
5.9 Mbps
6 Mbps
9 Mbps
12 Mbps
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 29
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Security
Antenna
Certifications
Certifications for use by country
36 Mbps (802.11 g)
48 Mbps (802.11 g)
54 Mbps (802.11 g)
18 Mbps
21 Mbps
22.5 Mbps
6.5 Mbps (20 MHz EWC) 4.5 Mbps
13 Mbps (20 MHz EWC) 9 Mbps
19.5 Mbps (20 MHz
EWC)
13.5 Mbps
26 Mbps (20 MHz EWC) 18 Mbps
39 Mbps (20 MHz EWC) 27 Mbps
52 Mbps (20 MHz EWC) 36 Mbps
58.5 Mbps (20 MHz
EWC)
40 Mbps
65 Mbps (20 MHz EWC) 45 Mbps
78 Mbps (20 MHz EWC) 54 Mbps
104 Mbps (20 MHz
EWC)
72 Mbps
81 Mbps 117 Mbps (20 MHz
EWC)
130 Mbps (20 MHz
EWC)
91 Mbps
13.5 Mbps (40 MHz
EWC)
8 Mbps
27 Mbps (40 MHz EWC) 16 Mbps
40.5 Mbps (40 MHz
EWC)
24 Mbps
54 Mbps (40 MHz EWC) 32 Mbps
81 Mbps (40 MHz EWC) 48 Mbps
108 Mbps (40 MHz
EWC)
64 Mbps
72 Mbps 121.5 Mbps (40 MHz
EWC)
135 Mbps (40 MHz
EWC)
81 Mbps
IEEE and WiFi compliant 64 / 128 bit WEP encryption
AES: CCM
802.1x authentication
WPA: 802.1x. WPA-PSK and TKIP
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
HP part number 497792-001
Wi-Fi certified
United States, Canada, Peru, Taiwan
Intel WiFi Link 5100 a/b/g/n (USDT)
Wireless NIC
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft 2.0) *
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 30
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Interoperability
Frequency Band
Antenna Structure
Data Rates
Modulation
Security
1
* The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other
802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this capability is not enabled.
Wi-Fi certified (802.11abg only)
Cisco Compatible Extensions Program compliant (802.11abg only) with
Microsoft Windows Vista and XP
Tested with wireless access points from several major manufacturers
2.4 GHz and 5 GHz
1 transmit; 2 receive (1x2)
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300
Mbps, depending on the combination of Bandwidth, Modulation Coding
Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft) specification
Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated
AES (support for key sizes of 128, 192, and 256 bits), 802.1x
authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-
MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco
Aironet infrastructure products through the Cisco Compatible
Extensions Program Version 4) with Microsoft Windows Vista and XP only.
Sub-channels
Multinational support with frequency bands and channels compliant to local regulations.
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Roaming
Output Power (for
CCK)
2
Output Power (for
OFDM; power varies by data rate)
2
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Power Consumption
Transmit: 2.3 Watts (average, with one spatial streams)
Receive: 1.9 Watts (average with two receive chains)
Idle mode
3
: 30 mW (average)
Radio off: 20 mW (max)
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
4
300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm
Antenna Connections
3 U.FL type connectors, 50 ohm nominal impedance
Range
802.11 a – Typical
(@6 Mbps)
802.11 b – Typical
(@1 Mbps)
802.11 g – Typical
(@1 Mbps)
600 feet – Outdoor Open Area
150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area
300 feet – Indoor, Office environment
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 31
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility
5
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating
Non-operating
32° to 176° F (0° to 80° C)
–40° to 176° F (–40° to 80° C)
Operating
Non-operating
Operating
Non-operating
10% to 90% (non-condensing)
5% to 90% (non-condensing)
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
Microsoft Windows XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager
Intel PROSet for Microsoft Windows XP (required for Cisco
Compatible Extensions support)
Microsoft Windows Vista
1.
2.
3.
4.
5.
Microsoft Windows Vista Wireless Network Connection Manager.
Intel IHV extensions for Windows Vista available to support Cisco
Compatible Extensions.
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
In Power Save Polling mode and on battery power.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.
Agere 2006 PCI 56K
International
SoftModem
Data Transmission
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53
Kbps during download transmissions.
Data Speeds
Data Standards
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell
212A, and Bell 103
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
Error Correction and
Data Compression
V.44, 42bis, V.42 and MNP2-5
Power Management
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Upgradeability
Video
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 32
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Other
Operating Temperature32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one electrical load
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers and CardBus support
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device, support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3 rd
edition (U.S. and Canada); IEC 950
(TUV, NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO,
DEMKO, SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3 rd
edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
Telecom
Health
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel
16550a UART-compatible interface
Optional ring wakeup signal
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
LSI PCIe x1 56K
International
SoftModem
Data Transmission
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during download transmissions.
Data Speeds
Data Standards
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell
212A, and Bell 103
Fax Speeds
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
Fax Mode Capabilities ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
Error Correction and
Data Compression
V.44, 42bis, V.42 and MNP2-5
Power Management
PCI Bus Power Management Interface Specification (PCI-PM) Revision
1.2, Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in
D3cold. If the power management event (PME) feature is enabled in
D3cold, a modem can wake the system via WAKE# (WAKEN) or beacon. Meets PCI Express 1.1 standard.
Upgradeability
Video
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 33
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Other
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel
16550a UART-compatible interface
Optional ring wakeup signal
Operating Temperature32° to 158° F (0° to 70° C)
Operating Humidity
20% to 90%, non-condensing
Power
Requires a 3.3-V auxiliary power rail on PCI express bus
Uses only one PCI express load (i.e., one grant/request pair), one shared IRQ, one electrical load
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
Other
LSI SV92EX – Integrated PCI interface with 3.3-V tolerant buffers and
CardBus support
Complies with PCI express low profile specifications-—6.7 x 2.3 in (17.0
x 5.8 cm) and supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device, support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3 rd
edition (U.S. and Canada); IEC 950
(TUV, NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO,
DEMKO, SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3 rd
edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
The SV92EX device is packaged in a 32-pin micro leadless chip carrier
(MLCC). The SV92EX is fully compliant with the PCI Express revision
1.1 specification. WHQL approved; ASPM compliant.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 34
QuickSpecs
Technical Specifications - Hard Drives
2.5” 7200 RPM Serial
ATA Hard Drives
250 GB
160 GB
80 GB
HP Compaq dc7900 Business PC
Capacity
Height (Nominal)
Width (Nominal)
250,059,350,016 bytes
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Physical size: 2.75 in (70 mm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
Rotational Speed
7,200 rpm
2.0 ms
12 ms
22 ms
Logical Blocks
488,397,168
Operating Temperature 41° to 131° F (5° to 55° C)
Capacity
160,041,885,696 bytes
Height (Nominal)
Width (Nominal)
Interface
Synchronous Transfer
Rate (Maximum)
Cache
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
Rotational Speed
7,200 rpm
2.0 ms
12 ms
22 ms
Logical Blocks
312,581,808
Operating Temperature 41° to 131° F (5° to 55° C)
Capacity
80,026,361,856 bytes
Height (Nominal)
Width (Nominal)
Interface
Synchronous Transfer
Rate (Maximum)
Cache
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
Rotational Speed
7,200 rpm
Logical Blocks
156,301,488
Operating Temperature 41° to 131° F (5° to 55° C)
2.0 ms
12 ms
22 ms
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 35
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Hard Drives
3.5” 7200 RPM Serial
ATA Hard Drives
500 GB
250 GB
160 GB
80 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
500,107,862,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
16 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
Rotational Speed
7,200 RPM
2.0 ms
11 ms
21 ms
Logical Blocks
976,773,168
Operating Temperature 41° to 131° F (5° to 55° C)
Capacity
250,059,350,016 bytes
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
Buffer
8 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
1.0 ms
8.5 ms
18 ms
Rotational Speed
Logical Blocks
7,200 RPM
488,397,168
Operating Temperature 41° to 131° F (5° to 55° C)
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
Rotational Speed
7,200 RPM
0.9 ms
9.3 ms
18 ms
Logical Blocks
312,581,808
Operating Temperature 41° to 131° F (5° to 55° C)
Capacity
Height
80,026,361,856 bytes
1 in (2.54 cm)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 36
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Hard Drives
Width
Interface
Synchronous Transfer
Rate (Maximum)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
Buffer
8 MB
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
2.0 ms
9.3 ms
21 ms
Rotational Speed
Logical Blocks
7,200 RPM
156,301,488
Operating Temperature 41° to 131° F (5° to 55° C)
10,000 RPM Serial ATA
Hard Drives
160 GB
80 GB
Capacity
Height
Width
Interface
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.0 in (7.62 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (1.5 Gb/s), Native Command Queuing enabled
Up to 3.0 Gb/s
Synchronous Transfer
Rate (Maximum)
Cache
16 Mbytes
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
Rotational Speed
10,000 RPM
0.3 ms
4.6 ms
10.2 ms
Logical Blocks
312,581,808
Operating Temperature41° to 131° F (5° to 55° C)
Capacity
80,026,361,856 bytes
Height
Width
Interface
1 in (2.54 cm)
Media diameter: 3.0 in (7.62 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (1.5 Gb/s), Native Command Queuing enabled
Up to 3.0 Gb/s
Synchronous Transfer
Rate (Maximum)
Cache
16 Mbytes
Seek Time (typical reads, includes controller overhead, including settling)
Single Track
Average
Full-Stroke
0.3 ms
4.6 ms
10.2 ms
Rotational Speed
Logical Blocks
10,000 RPM
156,301,488
Operating Temperature41° to 131° F (5° to 55° C)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 37
QuickSpecs
Technical Specifications - Graphics
HP Compaq dc7900 Business PC
Integrated Intel
Graphics Media
Accelerator 4500
3D/2D Controller
VGA Controller
DisplayPort
Bus Type
RAMDAC
Memory
Microsoft DirectX® 10 based with support for Pixel Shader 3.0
Integrated
Integrated, Multimode capable; supports HDCP
PCI Express™ x16
Integrated, 350 MHz
Graphics memory is shared with system memory. Graphics memory usage varies depending on the amount of system memory installed, BIOS settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system boot time. Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio Video Playback) support for playback of protected video content. For Vista, use of PAVP heavy mode preallocates an additional
96MB.
Additional memory is allocated for graphics as needed using Intel's Dynamic
Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.
Windows XP Memory Usage:
Total System Memory
.5GB
1.0GB
1.5GB
2 GB & more
Pre-Allocated (MB)
32
32
32
32
DVMT (MB)
128
512
768
1024
Windows Vista Memory Usage:
(Assumes Management Engine , VT-d enabled and other memory allocated for other BIOS usage )
System
Memory
1 GB
2 GB
4 GB
6 GB
8 GB
PVAP
Lite
Heavy
Lite
Heavy
Lite
Heavy
Lite
Heavy
Lite
Heavy
Avail
System
Memory
(MB)
952
856
1976
1880
4024
3928
6072
5976
8120
8024
Total Avail
GFX
Memory
(MB)
252
294
764
806
1759
1759
1759
1759
1759
1759
Dedicated
Video
Memory
(MB)
32
122
32
122
32
122
32
122
32
122
System
Video
Memory
(MB)
96
6
96
6
96
6
96
6
96
6
Shared
System
Memory
(MB)
124
166
636
678
1631
1631
1631
1631
1631
1631
Total Available GFX Memory: Total graphics memory available to the system as reported by the OS.
Dedicated Video Memory: Memory owned and locked for graphics use as reported by the OS. (Preallocated)
System Video Memory: System memory locked and dedicated for graphics use.
Shared System Memory: Memory dynamically allocated for Graphics use
HW Video Decode
Hardware Accelerated decode for MPEG2 encrypted video; support for PAVP
Lite (default) and Heavy ( or Paranoid) modes
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 38
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Maximum Color
Depth
32 bits/pixel
Maximum Vertical
Refresh Rate
85 Hz at up to 1920x1440, 75 Hz at 2048x1536. Varies with mode and configuration. See table below.
Multi-display Support Dual monitor support facilitated via one VGA port and one DisplayPort integrated on the back plane of the system board and presented as part of the rear I/O set of interfaces. DVI supported via optional HP DisplayPort to DVI-D adapter.
Graphics/Video API
Support
Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update)
Resolutions Supported
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
Resolution
640x480
800x600
1024x768
1280x720
Maximum Refresh Rate (Hz)
Analog Connection Digital Connection
85
85
85
85
60
60
60
60
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
85
75
85
75
85
85
85
75
60
60
60
60
60-R
60-R
N/A
N/A
2560x1600 N/A 60
*
* Only supported when using a DisplayPort connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections
HP ADD2 SDVO PCIe x16 DVI-D Adapter
Models
Form Factor
DVI-D Connector
Dual Head Support
Display Devices
Supported
HP ADD2 SDVO DVI-D Out Adapter
Low-profile card
Digital connection only
Yes, when used with the integrated VGA connector
HP L1740
HP L1940T
HP L2045W
HP LP1965
NOTE: These graphics adapters offer optimal performance with any display that meets applicable
VESA standards.
Color Depth
All modes support 8-bpp, 16-bpp, and 24-bpp color depths
Host Interface
Connector
Dot Clock
Display Modes
Mechanically compliant with PCI-E standard
Complies with the Intel ADD2 and Intel Serial Digital Video Output
(SDVO) specifications
165 MHz maximum
Supports display modes that require up to 165-MHz bandwidth on the link, as shown in the following table.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 39
QuickSpecs
Technical Specifications - Graphics
Resolution
Blanking
640 x 480
800 x 600
1024 x 768
VGA
SVGA
XGA
1280 x 1024 SXGA
1600 x 1200 UXGA
60-Hz LCD 60-Hz
5% reduced GTF
Yes Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
HP Compaq dc7900 Business PC
75-Hz
GTF
Yes
Yes
Yes
No
No
85-Hz
GTF
Yes
Yes
Yes
No
No
HP DisplayPort to VGA
Adapter
Connectors
Adapter length
Adapter weight
Option kit contents
Maximum vertical refresh rate
DisplayPort and VGA connector
8 in (20 cm)
.1 lbs (.06 kg)
HP DisplayPort to VGA Adapter, documentation
85 Hz
Display support
162 MHz RAMDAC
Display max resolution 1600x1200
HP DisplayPort to VGA adapter display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Using the HP DisplayPort to VGA Adapter may require an update to the graphics driver installed on your system. To install the most up-to-date graphics driver go to: www.hp.com
.
Resolution Max refresh rate
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
85
85
85
85
85
75
60
60
1920x1080
1920x1200
60-R
60-R
NOTE: 60-R denotes reduced blanking timings are used. Not all monitors support reduced blanking timing.
ATI Radeon HD
2400XT (256MB DH)
PCIe Graphics Card
Bus type
Maximum vertical refresh rate
PCI Express (x16 lanes)
85 Hz
Display support
Display max resolution
Integrated 400 MHz RAMDAC
1900 x 1200 digital, 2048 x 1536 analog
ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 40
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Resolution
640x480
800x600
1024x768
1280x720
Maximum Refresh Rate (Hz)
Analog Connection Digital Connection
85
85
85
85
60
60
60
60
1280x1024
1440x900
1600x1200
1680x1050
1920x1080
1920x1200
1920x1440
2048x1536
85
75
85
75
85
85
85
75
60
60
60
60
60-R
60-R
N/A
N/A
2560x1600 N/A 60
*
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections
Board display options
Board configuration
Languages supported
Core power
Compliance standards
Supports two displays via included DMS-59 to dual VGA cable or 2
DVI monitors via optional DMS-59 to dual DVI cable kit part number:
DL139A. 4-pin mini-DIN S-video connector for TV output
Specification Description
Graphics Chip
Core clock
Memory clock
Frame buffer
RV610
650 MHz
500 MHz
256 MB DDR2, 128 bit wide
24 languages: English, Arabic, Chinese Simplified, Chinese
Traditional, Czechoslovakian, Danish, Dutch, Finnish, French,
German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai,
Turkish
21 W
EMC Emissions: a.
b.
c.
d.
e.
f.
g.
FCC Part 15, Subpart B – Unintentional Radiators, Class B
Computing Devices for Home & Office Use
CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment
Canadian Standard ICES-003 is equivalent to CISPR22
Taiwanese Standard BSMI
Japanese VCCI
Australian C-Tick
Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 – Information Technology
Equipment – Immunity Characteristics – Limits and Methods of
Measurement.
ATI Radeon HD
3470 (256MB SH)
PCIe x16
Bus type
PCI Express (x16 lanes)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 41
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
3470 (256MB SH)
PCIe x16
Graphics Card
Maximum vertical refresh rate
Display support
Display max resolution
85 Hz
Integrated 400 MHz RAMDAC
2560x1600 digital, 2048 x 1536 analog
ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
Resolution
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
Maximum Refresh Rate (Hz)
Analog Connection Digital Connection
85
85
60
60
85
85
85
75
60
60
60
60
1600x1200
1680x1050
1920x1080
1920x1200
85
75
85
85
60
60
60-R
60-R
1920x1440
2048x1536
85
75
N/A
N/A
2560x1600 N/A 60
*
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections
Board display options Supports two displays via the DisplayPort and DVI connectors
Board configuration Specification
Graphics Chip
Description
RV620
Core clock
Memory clock
750 MHz
500 MHz
Frame buffer 256 MB DDR2, 64 bit wide
Languages supported 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Thai, Turkish
Operating systems support
Windows Vista Business 64 * , Windows Vista Business 32 * , Windows Vista
Home Basic 32 * , Windows XP Professional or Windows XP Home 32 * .
* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit: http://www.windowsvista.com/upgradeadvisor . For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements .
Linux x86 and x86_64 distributions using XFree86 or X.Org**.
** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
22 W (max)
Core power
Dimensions (H x D) 2.71 in x 6.60 in (68.90 mm x 167.65 mm)
Weight
0.30 lb (134.3 g)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 42
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Option kit contents
Compliance standards
ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card with full height bracket attached
DVI to VGA adapter
Software CD with graphics drivers
Low profile bracket to convert the card for using in a low profile chassis
Warranty documentation
EMC Emissions: a.
b.
c.
d.
e.
f.
g.
FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing
Devices for Home & Office Use
CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information
Technology Equipment
Canadian Standard ICES-003 is equivalent to CISPR22
Taiwanese Standard BSMI
Japanese VCCI
Australian C-Tick
Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment -
Immunity Characteristics - Limits and Methods of Measurement.
ATI Radeon HD 3650
(512MB DH) PCIe x16
Graphics Card
Bus type
Maximum vertical refresh rate
Display support
Display max resolution
Board configuration
Languages supported
Core power
Compliance standards
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
2560 x 1600 digital, 1920 x 1440 analog
Supports two displays via included two DisplayPort and one Dual
Link DVII connectors.
Specification
Graphics Chip
Core clock
Memory clock
Description
RV635
600 MHz
500 MHz
Frame buffer 512 MB DDR2, 128 bit wide
24 languages: English, Arabic, Chinese Simplified, Chinese
Traditional, Czechoslovakian, Danish, Dutch, Finnish, French,
German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai,
Turkish
56 W
EMC Emissions: a.
b.
c.
d.
e.
f.
g.
FCC Part 15, Subpart B – Unintentional Radiators, Class B
Computing Devices for Home & Office Use
CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment
Canadian Standard ICES-003 is equivalent to CISPR22
Taiwanese Standard BSMI
Japanese VCCI
Australian C-Tick
Korean (MIC)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 43
QuickSpecs
e.
f.
g.
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
EMC Immunity:
CISPR 24:1997/EN 55024:1998 – Information Technology
Equipment – Immunity Characteristics – Limits and Methods of
Measurement.
ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
Resolution
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
Maximum Refresh Rate (Hz)
Analog Connection Digital Connection
85
85
60
60
85
85
85
75
60
60
60
60
1600x1200
1680x1050
1920x1080
1920x1200
85
75
85
85
60
60
60-R
60-R
1920x1440
2048x1536
85
75
N/A
N/A
2560x1600 N/A 60
*
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections
ATI Radeon HD
4550 DH PCIe x16
Graphics Card
Input/Output connectors
DMS-59
S-video connector
Board display options Supports two displays via included DMS-59 to dual VGA cable or 2 DVI monitors via optional DMS-59 to dual DVI cable kit part number: DL139A. 4-pin mini-DIN S-video connector for TV output
Board configuration Specification
Graphics Chip
Core clock
Memory clock
Description
RV710
600 MHz
800 MHz
256 MB DDR2, 64 bit wide
Bus type
Maximum vertical refresh rate
Display support
Frame buffer
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
Display max resolution
1900 x 1200 digital, 2048 x 1536 analog
ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 44
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Resolution
640x480
800x600
1024x768
1280x720
1280x1024
1440x900
1600x1200
1680x1050
Maximum Refresh Rate (Hz)
Analog Connection Digital Connection
85
85
85
85
85
75
85
75
60
60
60
60
60
60
60
60
1920x1080
1920x1200
1920x1440
2048x1536
85
85
85
75
60-R
60-R
N/A
N/A
2560x1600 N/A N/A
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections.
Languages supported 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Thai, Turkish
Operating systems support
Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista
Home Basic 32*, Windows XP Professional or Windows XP Home 32*.
Core power
Option kit contents
Compliance standards
* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit: http://www.windowsvista.com/upgradeadvisor . For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements .
Linux x86 and x86_64 distributions using XFree86 or X.Org**.
** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
21 W
ATI Radeon HD 4550 DH PCIe x16 Graphics Card with full height bracket attached
DMS 59 to dual VGA Y cable
Software CD with graphics drivers
Low profile bracket to convert the card for using in a low profile chassis
Warranty documentation
EMC Emissions: a) FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing
Devices for Home & Office Use b) CISPR22: 1997/EN 55022:1998 – Class B – Limits and methods of measurement of radio disturbance characteristics of Information Technology
Equipment c) Canadian Standard ICES-003 is equivalent to CISPR22 d) Taiwanese Standard BSMI e) Japanese VCCI f) Australian C-Tick g) Korean (KCC)
EMC Immunity:
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 45
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
CISPR 24:1997/EN 55024:1998 – Information Technology Equipment –
Immunity Characteristics – Limits and Methods of Measurement.
NVIDIA Quadro NVS
290 256MB PCIe Dual
Head
Form Factor
Bus Type
Memory
Connector
Supported graphics
APIs
Low Profile
PCIe x16
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and
Texture storage
DMS-59; includes one DMS-59 to Dual VGA cable. A DMS-59 to Dual
DVI-I cable is available as an option.
Display resolution support
Dual integrated analog display controllers supporting up to two analog displays at 2048x1536 @ 85Hz on both displays or dual digital displays at 1920x1200 (single-link).
NVIEW advanced multi-display desktop and application management seamlessly integrated into Microsoft Windows
Integrated dual 400MHz
RAMDAC
Color planes
Overlay planes
32-bit color buffer
Hardware supported
nView architecture
Advanced multi-display desktop & application management seamlessly integrated into Microsoft Windows.
Multi-Monitor support
Dual monitor support
DVI support
High-definition Video
Processor (HDVP)
DMS-59 (to dual DVI-SL)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
OGL 2.1 & DX10 Support; Shader Model 4.0
NVIDIA Quadro NVS
295 256MB PCIe
Graphics Card
Form Factor
2.731 inches (H) × 6.600 inches (L), Half-Height
Graphics Controller
NVIDIA Quadro NVS 295 Graphics Board
Bus Type
Memory
PCI Express x16, Generation 2.0
256 MB GDDR3 SDRAM unified graphics memory
Connector
2 DisplayPort
Comes with 2 DisplayPort to DVI-D Adapters
('DisplayPort to VGA' adapter available as an accessory)
Maximum Resolution
Two DisplayPort outputs drive two digital displays up to 2560 x 1600
Display Output
Supported Graphics
APIs
Drives DisplayPort enabled digital displays at resolutions up to
2560 × 1600 at 60 Hz with reduced blanking
Drives DVI enabled digital displays at resolutions up to 1920 ×
1200 at 60 Hz with reduced blanking (through DisplayPort to DVI-
D (single link) cable)
OpenGL 3.0
DirectX 10.0
Available Graphics
Drivers
Genuine Windows Vista Business (64-bit and 32-bit)
Microsoft Windows XP Professional (64-bit and 32-bit)
Power consumption
23 Watts
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 46
QuickSpecs
Technical Specifications - Input/Output Devices
USB Standard
Keyboard
HP Compaq dc7900 Business PC
Physical characteristics
Electrical
Mechanical
Environmental
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
ESD
EMI – RFI
USB Type A plug connector
CE level 4, 15-kV air discharge
Microsoft® PC 99 –
2001
Conforms to FCC rules for a Class B computing device
Functionally compliant
Languages
Keycaps
Switch actuation
Switch life
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified tester)
Contamination-resistant switch membrane
For all double-wide and greater-length keys
Switch type
Key-leveling mechanisms
Cable length
6 ft (1.8 m)
Microsoft PC 99 – 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating temperature
Operating humidity
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
Non-operating humidity
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
4-g peak acceleration
Non-operating vibration
Drop (out of box) 26 in (66 cm) on carpet, six-drop sequence
Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Approvals
Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard, installation guide, warranty card, safety and comfort guide
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 47
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
PS/2 Standard
Keyboard
Physical characteristics
Electrical
Mechanical
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
ESD
PS/2 6-pin mini din connector
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001 Functionally compliant
Languages
Keycaps
Switch actuation
Switch life
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified tester)
Environmental
Switch type
Key-leveling mechanisms
Contamination-resistant switch membrane
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating temperature
Operating humidity
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
Non-operating humidity
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
4-g peak acceleration
Non-operating vibration
Drop (out of box) 26 in (66 cm) on carpet, six-drop sequence
Approvals
Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance ANSI HFS 100, ISO 9241-4, and TUVGS
HP USB Smartcard
Keyboard
Physical characteristics
Electrical
Keys
104, 105, 106, 107, 109 layout (depending upon country)
USB basic Smart Card keyboard
Form factor
Colors
Carbonite/Silver
Dimensions (H x W x D) 18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
Weight
Operating voltage
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
Power consumption
100-mA maximum (with four LEDs ON)
System interface
USB Type A plug connector
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 48
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
Mechanical
Environmental
ESD
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001 Functionally compliant
Languages
Keycaps
Switch actuation
Switch life
CE level 4, 15-kV air discharge
30+ available
Low-profile design
55 g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified tester)
Switch type
Key-leveling mechanisms
Contamination-resistant membrane
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating temperature
Operating humidity
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
Non-operating humidity
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
4-g peak acceleration
Non-operating vibration
Drop (out of box) 26 in (66 cm) on carpet, six-drop sequence
Approvals
Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-
Tick, MIC, JITC, EMV2000, USB-IF, FIPS 201
SMARTCARD function Support
Interface
All ISO 7816 smart cards
Reads from and writes to all ISO7816-1, 2, 3,
4 memory and microprocessor smart cards
(T=0, T=1)
Chipset
Standard APIs supported
SCM STCII
PC/SC, EMV2000, SET
Power
USB Port
Short circuit detection (protects smart card and reader)
Power supply compliant with ISO7816 and
EMV (5V, 60 mA)
Supports 3-V and 5-V cards
Power consumption
250-mA maximum draw (50 mA for the keyboard with three LEDs ON and 200-mA maximum startup current using a highcurrent, 60-mA smart card)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 49
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
Communication
From computer
Landing mechanism Contact device
Interface modes
USB connection
Programmable from
9,600 baud to 115,200 baud
Reader performance interface
Electro-magnetic standards
From card
Card insertions rating
Up to 100,000 insertion cycles
USB communications through USB port
SCM protocol
Automatic card insertion/removal detection
Europe
USA
Up to 38,400 baud
Friction contact
89/336/CEE guideline
USAFCC part 15
HP PS/2 Optical Scroll
Mouse
Dimensions (H x L x W) 3.95 x 6.21 x 11.7 cm (1.56 x 2.44 x 4.61 in)
Weight
4.44 oz (126 g)
Environmental
Operating temperature -32° to 104°F (0° to 40° C)
Non-operating temperature
-4° to 140°F ( -20° to 60° C)
Operating humidity
Non-operating humidity
10% to 90% (non condensing at ambient)
10% to 90% non condensing
Electrical
Operating shock
40 g, 6 surfaces
Non-operating shock
80 g, 6 surfaces
Operating vibration
Non-operating vibration
2 g peak acceleration
4 g peak acceleration
Drop (out of box)
80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5 direction except the cable face
5 VDC ± 10%
Operating voltage
Power consumption
100mA
System consumption
PS/2 mini-din connector
ESD
EMI-RFI
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing device
Mechanical
Microsoft PC99 - 2001
Functionally compliant
Resolution
400 ± 20% DPI
Tracking speed
Acceleration
10 in/s (25.4 cm/s) maximum
100 in/s/s (2.54 m/s/s)
Switch actuation
Switch life
Switch type
Tracking mechanism life
61 g nominal peak force
3,000,000 operations (using Hasco modified tester)
Low force micro-switches
155 mi (250 km) at average speed of 10 in/s
Cable length
6 ft (1.8 m)
Microsoft PC99 - 2001
Mechanically compliant
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 50
QuickSpecs
Technical Specifications - Input/Output Devices
Scroll wheel Width
Diameter
Maximum rotation speed
Switch type
Switch life
Mechanical life
Regulatory approvals Compliant
HP Compaq dc7900 Business PC
8 mm
1.01 in (25.6 mm)
48 rats/sec
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
UL, CSA, FCC, CE Mark, TUV, TUV GS,
VCCI, BSMI, C-Tick, MIC
HP USB Optical Scroll
Mouse
Dimensions (H x L x W) 1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
Weight
0.27 lb (0.12 kg)
Cable length
72.8 in (185 cm)
System requirements
Microsoft Windows 95, 98, 2000, Me, XP and Vista
Available USB port
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 51
QuickSpecs
Technical Specifications - Optical Storage
HP Compaq dc7900 Business PC
HP SATA SuperMulti
LightScribe DVD Writer
Drive
Height
Orientation
Interface type
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Disc capacity
8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
Write speeds
2.6 lb (1.2 kg)
DVD-RAM
DVD+R
DVD+RW
Up to 12X
Up to 16X
Up to 8X
Read speeds
DVD+R DL
DVD-R DL
DVD-R
DVD-RW
CD-R
CD-RW
DVD-RAM
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
Up to 8X
Up to 8X
Up to 16X
Up to 6X
Up to 48X
Up to 32X
Up to 12X
Up to 8X
Access time
(typical reads, including settling)
Power
Environmental
conditions (operating non-condensing)
DVD-ROM DL
DVD-ROM, DVD+R,
DVD-R
Up to 8X
Up to 16X
CD-ROM, CD-R
CD-RW
Random
Up to 48X
Up to 32X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
Source
SATA DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
DC Current
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA maximum)
12 VDC (< 600 mA typical, 1400 mA maximum)
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 52
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
SATA DVD-ROM Drive Height
Orientation
Interface type
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Disc capacity
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max)
Read speeds
2.6 lb (1.2 kg)
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 8X
Removable Storage -
Media Compatibility -
DVD-ROM
Access times
(typical reads, including setting)
Power
Environmental
(all conditions non-condensing)
DVD-ROM
DVD-RAM
CD-ROM, CD-R
CD-RW
Media
CD-ROM
CD-R
CD-RW
DVD-ROM
DVD-ROM DL
DVD-RAM
DVD+R
DVD+R DL
DVD+RW
DVD-R
DVD-RW
Up to 16X
Up to 4X
Up to 48X
Up to 32X
Read
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Write
No
No
No
No
No
No
No
No
No
No
No
DVD-R DL
Random
Full Stroke
Cache Buffer
Yes No
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
2 MB (minimum)
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA
Mode 3 (44.4 MB/s -default)
Source
SATA DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC - <1000 mA typical, < 1600 mA maximum
12 VDC -< 600 mA typical, < 1400 mA maximum
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
SATA Slim SuperMulti
LightScribe DVD Writer
Drive
Height
Orientation
Interface type
12.7mm height
Either horizontal or vertical
SATA/ATAPI
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 53
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
Disc recording capacity
Dimensions (W x H x D) 5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
Weight (max) 0.42 lb (190 g)
Write speeds
Up to 8.5 GB DL or 4.7 GB standard
DVD-RAM
DVD-R DL
Up to 5X
Up to 4X
DVD+R
DVD+RW
DVD+R DL
DVD-R
Up to 8X
Up to 4X
Up to 4X
Up to 8X
Read speeds
DVD-RW
CD-R
CD-RW
DVD-RAM
Up to 6X
Up to 24X
Up to 16X
Up to 5X
DVD-RW, DVD+RW
Up to 8X
DVD-R DL, DVD+R DL
Up to 6X
DVD+R, DVD-R
DVD-ROM DL, DVD-
ROM
Up to 8X
Up to 8X
Access time
(typical reads, including settling)
Power
Audio output
Environmental
conditions (operating non-condensing)
CD-ROM, CD-R
CD-RW
Random
Full Stroke
Stop Time
Cache Buffer
Up to 24X
Up to 24X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
< 4 seconds
2 MB (minimum)
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA
Mode 3 (44.4 MB/s - default)
Source
Four-pin, DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, 1600 mA maximum)
12 VDC (< 600 mA typical, 1400 mA maximum)
Total Drive Power
(standby mode)
Line-Out
< 2.5 Watt
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 54
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
SATA CD-RW/DVDHeight
ROM Combo Slim Drive
Orientation
Interface type
Read speeds
12.7mm height slim CD-RW
Either horizontal or vertical
SATA/ATAPI
Disc capacity
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Dimensions (W x H x D) 5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
Weight (max)
Write speeds
0.42 lb (190 g)
CD-R
Up to 24X
CD-RW
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 24X
Up to 4X
Access time
(typical reads, including settling)
Power
Audio output level
Environmental (all conditions noncondensing)
DVD-ROM
CD-ROM, CD-R
CD-RW
Random DVD
Up to 8X
Up to 24X
Up to 24X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
Random CD
Cache Buffer
DVD: < 250 ms (typical), CD: < 210 ms
(typical)
2 MB (minimum)
Data Transfer Modes
ATA PIO mode 4); ATA Multi-word DMA mode 2; ATA UltraDMA mode 0; ATA
UltraDMA mode 1, mode 2; ATA UltraDMA
Mode 3 (default)
Source
Four-pin, DC power receptacle
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, < 1600 mA maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 Vrms (typical)
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
(operating)
41° to 122° F (5° to 50° C)
5% to 85%
86° F (30° C)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 55
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
SATA DVD-ROM Slim
Drive
Height
Orientation
Interface type
12.7mm
Either horizontal or vertical
SATA/ATAPI
Dimensions (W x H x D) 5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
Weight (max) 0.42 lb (190 g)
Read speeds
Up to 4X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
DVD-ROM
Up to 8X
Access time
(typical reads, including settling)
Power
CD-ROM, CD-R
CD-RW
Random DVD
Up to 24X
Up to 24X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Random CD
Data Transfer Modes
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s)
Source
Four-pin, DC power receptacle
Audio output
Environmental (all conditions noncondensing)
DC Power Requirement5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC - <1000 mA typical, < 1600 mA maximum
< 2.5 Watt
Total Drive Power
(standby mode)
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature
(operating)
41° to 122° F (5° to 50° C)
5% to 85%
86° F (30° C)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 56
QuickSpecs
Technical Specifications - Removable Storage
HP Compaq dc7900 Business PC
HP 22-in-1 (with 1394)
Media Card Reader
USB Interface
USB 2.0 High-speed interface
1394 Interface
Advance protocol support
NOTE: Requires the USB cable to be connected to the internal USB
2.0 port or a USB 2.0 PCI card.
Two IEEE-1394a external ports; 1 IEEE-1394a internal port (connects to the pass through cable on the media card reader)
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports MS PRO-HG Duo 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50Mhz SD 4-bit card (version 2.0)
Supports high-speed 52Mhz MMC 8-bit card (version 4.2)
Supports CF v4.0 with PIO mode 6 and Ultra DMA mode
Supported media type
Supported media type with card adapter
Environmental
CompactFlash Type I
CompactFlash Type II
Microdrive
MultiMediaCard (MMC)
Reduced Size MultiMediaCard (RS MMC)
MultiMediaCard 4.2 (MMC Plus, including MMC Plus HC)
Reduced Size MultiMediaCard 4.2 (MMC Mobile, including MMC
Mobile HC)
Secure Digital Card (SD)
Secure Digital High Capacity (SDHC) miniSD miniSD High Capacity
Micro SD (T-Flash)
Micro SD HC
Memory Stick
Memory Stick Select
Memory Stick Duo (MS Duo)
Memory Stick PRO (MS PRO)
Memory Stick PRO Duo (MS PRO Duo)
Memory Stick PRO-HG Duo
MagicGate Memory Stick (MG)
MagicGate Memory Stick Duo xD-Picture Card
Memory Stick Micro (M2)
MMC Micro
Operational
Environmental
Extremes
Test Parameters/Conditions - Power applied, unit operating on system ±5% nominal supply voltage.
10°C 10% R.H. ? 24 hours
10°C 90% R.H. ? 24 hours
20°C 90% R.H. ? 24 hours
30°C 90% R.H. ? 24 hours
40°C 90% R.H. ? 24 hours
50°C 90% R.H. ? 24 hours
50°C 10% R.H. ? 24 hours
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 57
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Removable Storage
Approvals
Storage Environmental
Extremes
Test Parameters/Conditions
140°F (60°C) @ 80% R.H. for 96 hours
-22°F (-30°C) @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only
Transport Specification Rev. 1.0, Compliant Intel Front Panel I/O
Connectivity Design Guide V. 1.3
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 58
QuickSpecs
Technical Specifications - Environmental Data
HP Compaq dc7900 Business PC
Eco-Label
Certifications & declarations
This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:
US ENERGY STAR ®
IT ECO declaration
EPEAT – Gold
1
NOTE: This product conforms to the examination standards (2003 version) under JEITA's ‘PC
Green Label System.'
¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which qualify for ENERGY STAR will be certified EPEAT – Gold
Ultra-Slim Desktop
System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Ultra-slim Desktop model is based on a typically configured product
Energy Consumption
Normal Operation
115 VAC
40.68 W
230 VAC
40.07 W
100 VAC
39.94 W
Sleep (Energy Star low
power mode)
Off
2.95 W 2.96 W 2.96 W
Heat Dissipation
Off
*
Normal Operation
Sleep
1.67 W
115 VAC
139 BTU/hr
10 BTU/hr
1.68 W
230 VAC
137 BTU/hr
10 BTU/hr
1.68 W
100 VAC
137 BTU/hr
10 BTU/hr
6 BTU/hr 6 BTU/hr 6 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
System Fan Off
Idle
Fixed Disk
(random writes)
Optical Drive
(sequential reads)
Sound Power
(LWAd, bels)
3.1
3.1
4.8
Sound Pressure
(LpAm, decibels)
23
24
42
Batteries
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Battery size: CR2032 (coin cell)
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 59
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Environmental Data
Additional Information
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level
1
, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is 90.6% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated carton – 1476 g
Polyethylene low density – 105 g
Wood(pallet) – 13,000 g
Internal:
The EPE foam packaging material is made from 100% recycled content.
The corrugated paper packaging materials contains at least 100% recycled content.
¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which qualify for ENERGY STAR will be certified EPEAT – Gold.
Small Form Factor
System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Small Form Factor Desktop model is based on a typically configured product
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
Sleep (Energy Star low
power mode)
55.58 W
2.47 W
56.06 W
2.76 W
58.60 W
2.51 W
Off
Heat Dissipation
*
Normal Operation
Sleep
Off
1.23 W
115 VAC
190 BTU/hr
8 BTU/hr
4 BTU/hr
1.51 W
230 VAC
192 BTU/hr
9 BTU/hr
5 BTU/hr
1.26 W
100 VAC
200 BTU/hr
8 BTU/hr
4 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 60
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Environmental Data
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off
Idle
Fixed Disk
(random writes)
Sound Power
(LWAd, bels)
3.7
3.8
“Typical Configuration“ with 7200 rpm HDD
Sound Pressure
(LpAm, decibels)
27
28
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
Sound Power
(LWAd, bels)
3.8
4.2
Configuration with optional 10,000 rpm HDD
Sound Pressure
(LpAm, decibels)
27
32
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC.
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level
1
, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is 93.4% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated – 1736 g
Polyethylene low density foam – 35 g
Internal:
EPE-Expanded Polyethylene – 293 g
The EPE foam packaging material is made from 0% recycled content.
The corrugated paper packaging materials contains at least 25% recycled content.
¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which qualify for ENERGY STAR will be certified EPEAT – Gold.
Convertible Minitower
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 61
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Environmental Data
System Configuration The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Convertible Mini tower Desktop model is based on a typically configured product
Energy Consumption
Normal Operation
115 VAC
56.815 W
230 VAC
56.054 W
100 VAC
57.984 W
Sleep (Energy Star low
power mode)
Off
2.319 W 2.626 W 2.296 W
Heat Dissipation
Off
*
Normal Operation
Sleep
1.097 W
115 VAC
194 BTU/hr
8 BTU/hr
1.31 W
230 VAC
192 BTU/hr
9 BTU/hr
1.075 W
100 VAC
198 BTU/hr
7 BTU/hr
4 BTU/hr 5 BTU/hr 4 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.
System Fan Off
Idle
Fixed Disk
(random writes)
Sound Power
(LWAd, bels)
3.7
3.8
Sound Pressure
(LpAm, decibels)
22
22
System Fan Off
Idle
Fixed Disk
(random writes)
Batteries
Sound Power
(LWAd, bels)
3.9
4.4
Configuration with optional 10,000 rpm HDD
Sound Pressure
(LpAm, decibels)
21
25
This product complies with ISO standards:
EU Directive 91/ 157/ EEC
EU Directive 93/ 86/ EEC
EU Directive 98/ 101/ EEC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Lead greater than 4000ppm by weight.
Additional Information
Battery size: CR2032 (coin cell)
Battery type: Lithium
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC.
This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level
1
, see www.epeat.net
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 62
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Environmental Data
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% recycled materials (by wt.)
This product is 96.6% recyclable when properly disposed of at end of life.
Packaging Materials
External:
Corrugated carbon – 1687.37 g
Polyethylene low density solid – 63.5 g
Internal:
EPE-Expanded Polyethylene – 308 g
The EPE foam packaging material is made from 0% recycled content.
The corrugated paper packaging materials contains at least 25% recycled content.
¹ EPEAT certification is conditional upon ENERGY STAR qualification. Only dc7900e models which qualify for ENERGY STAR will be certified EPEAT – Gold.
Ultra-Slim Desktop, Small Form Factor, Convertible Minitower
RoHS Compliance
Material Usage
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive.
HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the
Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html
):
Packaging
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 63
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Environmental Data
End-of-life
Management and
Recycling
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
Hewlett-Packard
Corporate
Environmental
Information
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
For more information about HP's commitment to the environment:
Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 13029 Worldwide QuickSpecs — Version 18 — 6/26/2009 Page 64
* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
