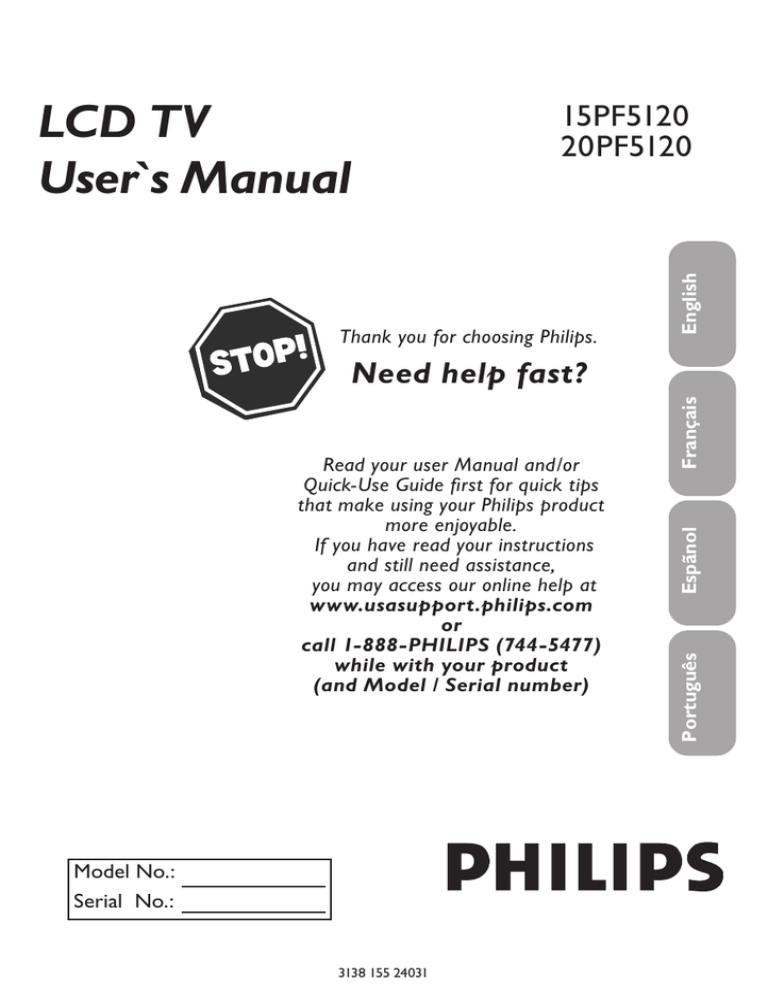

15PF5120
20PF5120
Thank you for choosing Philips.
English
LCD TV
User`s Manual
Model No.:
Serial No.:
3138 155 24031
Espãnol
Português
Read your user Manual and/or
Quick-Use Guide first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
www.usasupport.philips.com
or
call 1-888-PHILIPS (744-5477)
while with your product
(and Model / Serial number)
Français
Need help fast?
RETURN YOUR PRODUCT REGISTRATION CARD TODAY
TO GET THE VERY MOST FROM YOUR PURCHASE.
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed
below, so don’t miss out. Complete and return your Product Registration Card at once to ensure:
*Proof of
Purchase
Returning the enclosed card
guarantees that your date of
purchase will be on file, so no
additional paperwork will be
required from you to obtain
warranty service.
*Product Safety
Notification
*Additional Benefits of
Product Ownership
Registering your product
guarantees that you’ll receive all
of the privileges to which you’re
entitled, including special
money-saving offers.
Know these safety symbols
By registering your product, you’ll
receive notification - directly from the
manufacturer - in the rare case of a
product recall or safety defect.
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.You’ve selected
one of the best-built, best-backed products available today.
We’ll do everything in our power to keep you happy with
your purchase for many years to come.
As a member of the PHILIPS “family,” you’re entitled to
protection by one of the most comprehensive warranties
and outstanding service networks in the industry. What’s
more, your purchase guarantees you’ll receive all the
information and special offers for which you qualify, plus
easy access to accessories from our convenient home
shopping network.
Most importantly, you can count on our
uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome - and thanks for
investing in a PHILIPS product.
P.S.To get the most from your PHILIPS purchase, be
sure to complete and return your
Warranty Registration at once.
This “bolt of lightning” indicates
uninsulated material within your unit
may cause an electrical shock. For the
safety of everyone in your household, please do
not remove product covering.
The “exclamation point” calls attention
to features for which you should read
the enclosed literature closely to
prevent operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be placed
on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les choc
électriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la prise
et pousser jusqu’au fond.
For Customer Use
Enter below the Serial No. which is located
on the rear of the cabinet. Retain this
information for future reference.
Model No._______________________
Serial No. _______________________
Visit our World Wide Web Site at http://www.usasupport.philips.com
2
IMPORTANT SAFETY INSTRUCTIONS
READ BEFORE OPERATING EQUIPMENT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12
13.
14.
15.
16.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturers instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and third grounding prong. The wide blade or third
prong are provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with a cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance: www.eiae.org
Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
A. The power supply cord or the plug has been damaged;
B. Objects have fallen, or liquid has been spilled into the
appliance;
C. The appliance has been exposed to rain
D. The appliance does not appear to operate normally or
17.
18.
19.
20.
21.
22.
exhibits a marked change in performance;
E. The appliance has been dropped, or the enclosure
damaged.
Tilt/Stability - All televisions must comply with
recommended international global safety standards for tilt
and stability properties of its cabinet design.
• Do not compromise these design standards by applying
excessive pull force to the front, or top, of the cabinet
which could ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing
electronic equipment/toys on the top of the cabinet. Such
items could unsuspectingly fall from the top of the set and
cause product damage and/or personal injury.
Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
Power Lines - An outdoor antenna should be located
away from power lines.
Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA
No. 70-1984, provides information with respect to proper
grounding of the mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit, size of
grounding connectors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for
the grounding electrode. See Figure below.
Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled into the
enclosure through openings.
Battery Usage CAUTION - To prevent battery leakage
that may result in bodily injury, property damage, or
damage to the unit:
• Install all batteries correctly, with + and - aligned as
marked on the unit.
• Do not mix batteries (old and new or carbon and
alkaline, etc.).
• Remove batteries when the unit is not used for a long
time.
Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article
820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of cable entry as practical.
Example of Antenna Grounding as
per NEC - National Electric Code
GROUND CLAMP
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
ELECTRIC SERVICE EQUIPMENT
3
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
PRECAUTION
ADDITIONAL SAFETY PRECAUTIONS
• ENSURE that LCD TV stand is tightened properly to the set (See Quick Guide on the right way of tightening of the
screw of the stand to the set. Improper tightening of screw may render the set unsafe.
• If LCD TV is installed on the wall, installation should be carried out by qualified servicemen. Improperor incorrect
installation may render the set unsafe.
• Disconnect mains plug when :
— cleaning the TV screen, never use abrasive cleaning agents.
— there is a lightning storm.
— the set is left unattended for a prolonged period of time.
• Do not shift or move the LCD TV around when it is powered on.
• Do not touch, push or rub the surface of the LCD screen with any sharp or hard objects.
• When the surface of the LCD screen becomes dusty, wipe it gently with an absorbent cotton cloth or other soft
material like chamois. DO NOTUSE acetone, toluene or alcohol to clean the surface of the screen. These chemicals
will cause damage to the surface.
• Wipe off water, or saliva as soon as possible. These liquids can cause deformation and color fading of the LCD
screen when left exposed for some time.
• Be careful of condensation when temperature changes occur. Condensation can cause damage to the LCD screen
and electrically parts. After condensation fades, spots or blemishes will be present on the LCD screen.
• CAUTION information is located on the inside of the VESA cover (see diagram below). To read information, open
the VESA cover.
POSITIONING THE LCD TELEVISON
• Place the LCD TV on a solid, sturdy base or stand. Be sure the stand is strong enough to handle the weight of the
LCD TV.
• Try to leave at least 6 of space around each side of the LCD TV cabinet to allow for proper ventilation.
• Do not place the LCD TV near a radiator or other sources of heat.
• Do not place the LCD TV where it can be exposed to rain or excessive moisture.
RECYCLING PROCEDURE/END OF LIFE DISPOSAL
• To minimize harm to the environment, the batteries supplied with the LCD TV do not contain mercury or nickel
cadmium. If possible, when disposing of batteries, use recycling means available in your area.
• The LCD TV uses materials that can be recycled. To minimize the amount of waste in the environment, check your
area for companies that will recover used televisions for dismantling and collection of reusable materials, or contact
your dealer for TV recycling tips.
• Please dispose of the carton and packing material through the proper waste disposal management in your area.
4
CONTENTS
Here are a few of the special features of your new LCD
TV.
Audio/Video In Jacks: Use to quickly connect other
equipment to your LCD TV.
Automatic Channel Programming (Auto Program):
Quick and easy setup of available channels.
Closed Captioning: Allows the viewer to read TV
program dialog or voice conversations as on-screen text.
On-screen Menus: Helpful messages (in English, Spanish,
French or Portuguese) for setting TV controls.
Remote Control: Works your LCD TV features.
Sleep Timer: Turns off the LCD TV within an amount
of time you specify (15-240 minutes from the current
time).
AutoLock: Lets you block viewing of certain TV
channels if you do not want your children viewing
inappropriate material.
Standard broadcast (VHF/UHF) or Cable TV
channel capability.
Stereo capability: Includes a built-in amplifier and
twin-speaker system, allowing reception of TV programs
broadcast in stereo.
Treble, Bass, and Balance: Enhance the LCD TV’s
sound.
Introduction
Welcome/Registration of Your TV . . . . . . . . . . . . . . . . . . .2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . 3
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation
Language Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tuner Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Auto Program (Setting Up Channels) . . . . . . . . . . . . . . . . .8
Channel Edit Control (To Add or Delete channels) . . . . 9
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Unfold the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installing LCD TV on the wall . . . . . . . . . . . . . . . . . . . . . . .12
Basic TV and Remote Control Operations . . . . . . . . . . . .13
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Timer Menu Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Picture Menu
TV Picture Menu Controls . . . . . . . . . . . . . . . . . .17
Sound Menu
TV Sound Menu Controls . . . . . . . . . . . . . . . . . . .18
Features Menu
Auto Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Auto Picture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Auto Sound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Auto Lock Access Code . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Auto Lock Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Auto Lock - Movie Ratings . . . . . . . . . . . . . . . . . . . . . . . . . 22
Auto Lock - TV Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using The Picture Format . . . . . . . . . . . . . . . . . . . . . . . . . .24
SURF Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
NOTE:This manual covers different versions
and models. Not all features described in this
manual will match those of your LCD TV. This
is normal and does not require you contacting
your dealer or requesting service.
PC Mode
PC Picture Controls . . . . . . . . . . . . . . . . . . . . . . . .27
PC Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using PC PIP (Picture In Picture) Feature . . . . . . . . . . . . .29
Setting Up The PC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 30
General Information
Trouble Shooting Tips . . . . . . . . . . . . . . . . . . . . . . 31
Care And Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Regulatory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
END-OF-LIFE DISPOSAL
Your new LCD TV and its packaging contain materials
that can be recycled and reused. Specialized companies
can recycle your product to increase the amount of
reusable materials and minimize the amounts that need
to be properly disposed.
Your product also uses batteries that should not be
thrown away when depleted, but should be handed in
and disposed off as small chemical waste.
When you replace your existing equipment, please find
out about the local regulations regarding disposal of your
old television, batteries, and packing materials.
5
W
INSTALLATION
hen operate INSTALL function, the access code window will appear on the screen. Press default code (0711)
or your personal code setting to enter this menu.
LANGUAGE SETTINGS
F
or English, French, Spanish or Portuguese speaking TV owners, an onscreen LANGUAGE
option is present. The LANGUAGE control enables
you to set the TV’s onscreen menu to be shown in
either English, French, Spanish or Portuguese.
1
Press the MENU button on the
remote control to open the onscreen menu.
2
Press the CURSOR DOWN button to highlight
the INSTALL menu.
3
Press the CURSOR RIGHT button to Highlight
LANGUAGE.
4
Press the CURSOR RIGHT button to enter
LANGUAGE. Press CURSOR DOWN button
to select English, French, Spanish or Portuguese,
then press the CURSOR RIGHT to confirm.
5
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
1
5
�
�
Press the MENU button repeatedly to clear the
menu from the screen.
HELPFUL HINT
Remember, the LANGUAGE control makes
only the TV’s onscreen MENU items
appear in English, French, Spanish or Portuguese
text. It does not change the other onscreen text
features, such as Closed Captioning (CC), with
TV shows.
6
3
4�
ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
TUNER MODE CONTROL
T
he Tuner Mode allows you to change the LCD
TV’s signal input to Cable or Air (antenna).
It’s important for the LCD TV to know if you want
to receive channels from a cable TV signal or an
antenna signal.
1
2
3
4
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
Press the Menu button to see the onscreen menu.
Press the CURSOR DOWN button to highlight
the INSTALL menu.
1
6
Press the CURSOR RIGHT button to enter the
INSTALL menu.
Press the CURSOR DOWN button to highlight
the TUNER MODE menu, then press CURSOR
RIGHT to confirm.
5
Press the CURSOR DOWN buttons to select
CABLE, ANTENNA, or AUTO, then press
CURSOR RIGHT to confirm.
6
Press the MENU button repeatedly to clear the
menu from the screen.
HELPFUL HINT
• When CABLE is selected, channels 2-125 are available.
• When ANTENNA is selected, channels 2-69 are available.
• When AUTO is selected, your LCD TV will search automatically for antenna
or cable channels.
• Immediately after unpacking and plugging in your new television, run the AUTO
PROGRAM function to set up the TV for the broadcast or cable channels
available in your area. If you do not run the auto program function to set up the
channels, your television may not operate properly.
7
�
�
�
2�
4
5
ANTENNA
CABLE
AUTO
AUTO PROGRAM (SETTING UP CHANNELS)
Y
our LCD TV can automatically set itself for local
area (or cable TV) channels. This makes it easy
for you to select only the TV stations in your area by
pressing the CH (+) or CH (-) button.
1
2
3
4
5
6
Press the MENU button on the remote
control to show the onscreen menu.
Press the CURSOR DOWN button to
highlight the INSTALL menu.
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
1
�
INSTALL
Press the CURSOR RIGHT button
to enter the INSTALL menu.
�
�
Press the CURSOR DOWN button to
highlight the AUTO PROGRAM control.
Press the CURSOR RIGHT button to
start the AUTO PROGRAM scanning
of channels.
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
�
�
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
ANTENNA
CABLE
AUTO
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
Press the MENU button repeatedly to
clear the menu from the screen, after
AUTO STORE has finished.
START?
AUTO STORE
PLEASE WAIT
PROG.FOUND
CHANNEL
HELPFUL HINT
• Immediately after unpacking and plugging in your new television, run the auto
program function to set up the TV for the broadcast or cable channels available in
your area. If you do not run the auto program function to set up the channels ,
your television may not operate properly.
• After you’ve run Auto Program, check out the results. Press the CURSOR DOWN
or the CURSOR UP button and see which channels you can select.
• Remember, an antenna or cable TV signal must first be connected to your LCD TV.
8
0
3
CHANNEL EDIT CONTROL
C
hannel Edit control lets you edit the channel
listing. You can add or remove a channel in the
LCD TV’s memory.
1
2
3
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
CHANNEL
SKIPPED
CHANNEL EDIT
Press the CURSOR DOWN button to
highlight the INSTALL menu, then press
CURSOR RIGHT to enter.
�
�
CHANNEL EDIT
5
In CHANNEL column, press CURSOR
RIGHT or CURSOR LEFT to select the
channel you wish to add or remove.
In SKIPPED column, press CURSOR
RIGHT or CURSOR LEFT to select
ACTIVE (to add) or SKIPPED (to delete)
the channel you selected.
CHANNEL
SKIPPED
�
�
�
�
�
Press the MENU button repeatedly to
clear the menu from the screen.
HELPFUL HINT
Repeat steps 5–6 to add or delete
additional channels to or from the
LCD TV’s memory.
9
2
CHANNEL
SKIPPED
Press the CURSOR DOWN button to
enter the CHANNEL EDIT menu, then
press CURSOR RIGHT to enter.
Press the CURSOR DOWN button to
enter the CHANNEL EDIT menu.
7
AUDIO
FEATURES
INSTALL
Press the Menu button to open the
onscreen menu.
4
6
MAIN CONTROLS
�
�
�
�
ACTIVE
SKIPPED
FACTORY RESET
Y
our TV can be reset to the original
factory settings by performing the
following steps.
MAIN CONTROLS
1
AUDIO
FEATURES
INSTALL
Press the MENU button on the
remote control to see the onscreen
menu.
2
Press the CURSOR DOWN button to
highlight the INSTALL menu, then press
CURSOR RIGHT to enter.
3
Press the CURSOR DOWN button
repeatedly to highlight the FACTORY
RESET control, then press CURSOR
RIGHT to enter.
4
Press CURSOR DOWN to select “YES” to
reset the original factory settings.
5
Press the MENU button repeatedly to clear
the menu from the screen.
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
INSTALL
LANGUAGE
TUNER MODE
AUTO PROGRAM
CHANNEL EDIT
MANUAL FINE TUNE
FACTORY RESET
�
�
�
�
�
�
�
�
HELPFUL HINT
If you reset the TV to the factory settings,
all your present setting on picture, audio,
Close Caption and other feature settings
will be erased and replaced by the
manufacture’s default settings. However,
your AutoLock access code will not be
erased. Please refer to page 19 for details.
10
NO
YES
UNFOLD THE BASE
B
efore proceed to install your new LCD TV, please follow
the steps and diagrams as shown to familiarize yourself
with the correct and safe way of unfolding the base.
1
Place the set facing down on a flat surface and a
protective sheet.
2
Unfold the base following the direction as shown on
the diagram.
3
Place the set upright, you LCD TV is now ready for
install.
HELPFUL HINT
Expanding the base requires a degree of
force; please use sufficient force to unfold
the base.
When unfolding the base, place the TV on
a flat, sturdy surface before expanding the
base.
11
INSTALLING LCD TV ON THE WALL
Vesa Complied Mounting
The stand of your LCD TV complies with VESA standard, if you intend to install the LCD TV on the wall, please
consult a professional technician for proper installing.
The manufacture accepts no liability for installations not performed by professional technician.
15” : 75X75 mm
20” : 100x100 mm
Easy wall mounting
Smart tips
1. Use the full scale template to mark on the wall the horizontal distance between the two mounting screws.
Note:
-The surface for mounting area must be flat and larger then the pedestal.
-The wall must support a pull force of 10 kg for each screw.
15” :125 mm
20” :190 mm
WARNING !
* Read all instructions carefully before mounting!
* Correct assembly is essential.The maximum allowed wight of the LCD Display
is 4.2 kg / 9.3 lbs (15”), 8.5 kg / 18.7 lbs (20”),
* The assembly materials (not supplied) are only suitable for attachment to solid wood,
brick or concrete walls.
* For wood walls: Drill each hole 3.6 mm in diameter and 20 mm in depth.
* To avoid possible injury, do not mount it above a sofa or bed.
The manufacturer accepts no liability for improper installations or installations not performed in accordance
with these instructions.
12
BASIC TV AND REMOTE CONTROL OPERATIONS
-
TELEVISION AND REMOTE CONTROL
1
Plug the DC adapter into the DC IN 16V jack
on the LCD TV. Plug the power cable into an
outlet.
2
3
4
5
Press POWER to turn on the LCD TV.
8
+
����
-
���������������� +
�
�
2
Press VOLUME + to increase the sound level, or
press VOLUME – to decrease the sound level.
�
Press CH+ or CH- to select channels.
Point the remote control toward on the front of
the LCD TV to operate.
�
BATTERY INSTALLATION
6
7
�� � � � �
Remove the battery compartment lid on the
button of the remote control.
Place lithium cell in the remote control. Be sure
the (+) and (-) ends of the batteries line up as
marked inside the battery (CR2025)
compartment.
�
�
Reattach the battery compartment lid.
�
13
REMOTE CONTROL
Power button
Press to turn the LCD TV on or off.
Status/Exit ButtonPress to see the current channel
number on the TV screen. Also
press to clear the TV menu after
control adjustments.
CC button
Press the CC button to select CC on
or CC off.
SAP button
Press to select a sound mode if
available with the TV programming:
Mono, Stereo, or SAP.
Sleep button
Press to set the LCD TV to turn itself
off within a certain time.
PIP button
Press repeatedly to change the size of
PIP window in PC mode.
Incredible Surround buttonAdds greater depth and dimension
to TV sound.
Select from Incredible Surround
or OFF.
A/CH Button
Press to go to previously selected
channel.
Picture Format button
Press the FORMAT button
repeatedly to toggle among the
three screen format sizes; 4:3,
EXPAND 4:3, COMPRESS 16:9,
Menu button
Press to activate onscreen menu, back
to previous level inside the onscreen
menu, or press to exit the onscreen
menu.
Cursor Buttons
(Left, Right, Up, Down)Press these buttons to highlight,
select, and adjust items on the TV’s
on screen menu.
Channel button
Press to adjust the channel up or down.
Mute button
Press to eliminate or restore the LCD
TV sound. Mute will appear on the
screen when the sound is muted.
Volume button
Press to increase or decrease the
sound level.
Auto Sound button
Press repeatedly to select among the
4 settings; Personal, Voice, Music, or
Theatre.
Number buttons
Press the number buttons for
direct access to the TV channels.
For a 3-digit channel, enter the first
digit followed the next 2 digits.
Auto Picture button
Press repeatedly to select either
Personal, Rich, Natural, Soft, or
Multimedia picture setting.
AV+ button
Press to select the video input
source: PC, DVI, TV, AV, S-Video,
HD.
Surf Button
Press to select previously viewed
channels. You can place up to 8
channels in memory. Then by pressing
the SURF button you can quickly view
the select channels.
14
TIMER MENU CONTROLS
1
Press the SLEEP button on the remote control
to show the onscreen menu..
2
Press the SLEEP button repeatedly to select your
requiring sleep timing.
SLEEP OFF
SLEEP 15 MIN.
SLEEP 240 MIN.
�
�
HELPFUL HINT
IMPORTANT
For the Timer to function, the set must not be
turned off. Once the set is turned off, the Timer
is disabled.
15
TV PICTURE MENU CONTROLS
T
1
2
3
o adjust your LCD TV picture, select
a channel and follow these steps.
When PICTURE menu is highlighted,
press the CURSOR RIGHT button to
enter the PICTURE menu.
Press the CURSOR DOWN to choose
the item you want to adjust: Auto
Picture, Brightness, Color, Contrast,
Sharpness or Tint.
Auto Picture: Please refer to page
18, for details on Auto Picture
Settings.
Brightness: Adjust to brighten the
dark parts of the picture. This
appears to add white to the color.
Color: Adjust to add or reduce
color.
Contrast: Adjust to “sharpen” the
Picture quality. The black portions of
the picture become richer in darkness
and the white become brighter.
Sharpness: Adjust to improve detail.
Tint: Adjust to obtain natural skin
tones.
4
5
6
MAIN CONTROLS
Press the MENU button to see the
onscreen menu.
AUDIO
FEATURES
INSTALL
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
1
�
PERSONAL
RICH
NATURAL
SOFT
MULTIMEDIA
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
60
�
�
�
�
�
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
60
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
60
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
60
AUTO PICTURE
BRIGHTNESS
COLOR
CONTRAST
SHARPNESS
TINT
Press the CURSOR RIGHT or CURSOR
LEFT button to adjust the item.
Press the CURSOR DOWN button to
select and adjust other picture controls.
Press MENU repeatedly to remove
the menu from the screen.
HELPFUL HINT
Any adjustment of Brightness, Color,
Contrast or Sharpness will be stored into
PERSONAL at Auto Picture section.
16
60
T
1
2
3
4
5
6
7
TV SOUND MENU CONTROLS
o adjust your LCD TV Sound, select a channel and
follow these steps.
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
Press the MENU button to see the menu.
Press the CURSOR DOWN button to
highlight the AUDIO menu.
Press the CURSOR RIGHT button to enter
the AUDIO menu.
Press the CURSOR DOWN button to choose
the item you want to adjust: Auto Sound, Settings, Stereo, Incredible Surround, AVL.
Auto Sound: Please refer to page 18 for
details on Auto Sound Settings.
Settings: Allows you to adjust Treble, Bass,
and Balance of the sound.
Stereo: Adjust to select between Stereo,
Mono, or SAP.
Incredible Surround: Adds greater depth
and dimension to TV sound. Select from
Incredible Surround or OFF.
AVL (Auto Volume Leveler): When On, AVL
will level out the sound being heard when
sudden changes in volume occur during
commercial breaks or channel changes.
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
1
�
AUDIO
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
PERSONAL
VOICE
MUSIC
THEATRE
AUDIO
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
TREBLE
BASS
BALANCE
AUDIO
�
�
�
�
�
�
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
MONO
STEREO
SAP
AUDIO
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
OFF
INCREDIBLE SURROUND
AUDIO
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
Press the CURSOR RIGHT or CURSOR LEFT
button to adjust the item.
Press the CURSOR DOWN button to select
and adjust other sound controls.
Press MENU repeatedly to remove the menu
from the screen.
HELPFUL HINT
•Any adjustment of Treble and Bass
will be stored into PERSONAL at
Auto sound
•If Stereo is not presented on a
selected show and the TV is placed in
Stereo mode, the sound coming from
TV will remain in Mono mode.
17
OFF
ON
W
AUTO PICTURE CONTROL
hether you’re watching a movie or a video game,
your LCD TV has video control preset that will
match with your current program source or content.
Auto Picture quickly resets your TV’s video controls for a
number of different types of programs and viewing
conditions that you may have in your home. The
Personal, Rich, Natural, Soft, and Multimedia, Auto
Picture controls have been preset at the factory to easily
adjust the TV’s brightness, color, picture, sharpness,
tint, and color temperature levels. In the Personal auto
picture mode you can create your own preferred video
settings.
1
2
Personal
Rich
Natural
Press the AUTO PICTURE button on the remote
control. The current Auto Picture setting will appear
on the screen.
Press the AUTO PICTURE button repeatedly to
select either Personal, Rich, Natural, Soft,
or Multimedia.
�
�
Soft
Multimedia
Note:The settings of the Personal auto picture mode
can be adjusted in picture options within the onscreen
menu. The Personal mode is the only mode which
can be adjusted by the user via the onscreen picture
control menu.
AUTO SOUND CONTROL
A
uto Sound allows you to select from three user
presets and a personal mode that you set
according to you own preferences through the onscreen
Sound menu. The four user presets(Personal, Voice,
Music, and Theatre) enable you to tailor the TV sound
so as to enhance the particular program you are
watching. Following these steps to select any of the
options.
1
2
Personal
Voice
Music
Press the AUTO SOUND button on the remote
control. The current Auto Sound setting will appears
on the screen.
Press the AUTO SOUND button repeatedly to
toggle among the four setting: Personal, Voice, Music,
or Theatre.
Note: The settings of the Personal auto sound mode can
be adjusted in sound control within the onscreen
menu. The Personal mode is the only mode which
can be adjusted by the user via the onscreen sound
control menu.
18
�
�
Theatre
AUTO LOCK
T
he AUTO Lock feature is an
integratedcircuit that receives and
processes data sent by
broadcasters, or other program
providers, that contain program
content advisories.When programmed
by the viewer, a TV with AUTO Lock can
respond to the content
advisories and block program content
that may be found objectionable (such
as offensive language, violence, sexual
situations, etc.). This is a great feature
to censor the type of viewing children
may watch.
AUTO Lock offers various BLOCKING
controls from which to choose:
Access Code - An Access Code must be
set to prevent children from unblocking
questionable or censored programming set
by their parents.
Block Enable - After an access code has
been programmed, you can block
programming depending on the received
rating and user setting.
Movie Ratings - Certain blocking options
exist which will block programming based
on ratings patterned by the Motion Pictures
Association of America.
TV Ratings - Just like the Movie Ratings,
programs can be blocked from viewing using
standard TV ratings set by TV broadcasters.
HELPFUL HINT
Remember that 0711 is the
default AutoLock code. If your
access code has been changed by
someone other than you (a child,
for example) or you have forgotten
the code, you can always get in by
inputting the default code.
MOVIE RATING
TV RATING
G
PG
PG13
R
NC17
X
OFF
ON
Y
Y7
G
PG
14
MA
OFF
ON
MOVIE RATINGS
TV RATINGS
G: General Audience - All ages
admitted.
Most parents would find this program
suitable for all ages. This type of
programming contains little or no
violence, no strong language, and little
or no sexual dialog or situations.
PG: Parental Guidance Suggested This programming contains material
that parents may find unsuitable for
younger children. It may contain one
or more of the following:
moderate violence, some sexual
situations, infrequent coarse
language, or some suggestive dialog.
PG-13: Parents Strongly
Cautioned This programming contains
material that parents may find
unsuitable for children under the age
of 13. It contains one or more of the
following: violence, sexual situations,
coarse language, or suggestive dialog.
R: Restricted -This programming
is specifically designed for adults.
Anyone under the age of 17 should
only view this programming with an
accompanying
parent or adult guardian. It contains
one or more of the following: intense
violence, intense sexual situations,
strong coarse language, or intensely
suggestive dialog.
NC-17: No children under the age
of 17 will be admitted. - This type
of programming should be viewed by
adults only. It contains graphic
violence, explicit sex, or crude,
indecent language.
X: Adults Only - This type of
programming contains one or more of
the following: very graphic violence,
very graphic and explicit or indecent
sexual acts, and very coarse and
intensely suggestive language
TV-Y All children - Appropriate for
all children. Designed for a very young
audience, including children ages 2-6.
This type of programming is not
expected to frighten younger children.
TV-Y7 Directed to Older Children Designed for children age 7 and above.
It may be more appropriate for
children who can distinguish between
make-believe and reality. This
programming may include mild fantasy
and comic violence (FV or fantasy
violence).
TV-G General Audience - Most
parents would find this programming
suitable for all ages. This type of
programming contains little or no
violence, no strong language, and little
or no sexual dialog or situations.
TV-PG Parental Guidance
Suggested Contains material that parents may
find unsuitable for younger children.
This type of programming contains one
or more of the following: Moderate
violence (V), some sexual situations
(S), infrequent coarse language (L), or
some suggestive dialog (D).
TV-14 Parents Strongly Cautioned Contains some material that many
parents would find unsuitable for
children under age 14. This type of
programming contains one or more of
the following: intense violence (V),
intense sexual situations (S), strong
coarse language (L), or intensely
suggestive dialog (D).
TV-MA Mature Audience Only Specifically designed to be viewed
by adults and may be unsuitable
for children under 17. This type of
programming contains one or more
of the following: graphic violence (V),
explicit sexual situations (S), or crude,
indecent language (L)
19
AUTO LOCK ACCESS CODE
O
ver the next few pages you’ll learn how
to block programs and understand the rating
terms for certain broadcasts. First, set an access code.
MAIN CONTROL
1
2
Press the MENU button to see the
onscreen menu.
Press the CURSOR DOWN button to highlight
the FEATURES menu, then press CURSOR
RIGHT to enter.
3
Press the CURSOR DOWN button to select
AUTO LOCK.
4
Press the CURSOR RIGHT button
CHANGE CODE will appear on the screen.
5
Enter a four-digit code using the Number
buttons. The screen will prompt you to confirm
the code you just entered. Enter your same new
code again.
6
AUDIO
FEATURES
INSTALL
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
FEATURES
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
1
�
�
�
Press MENU repeatedly to remove
the menu from the screen.
HELPFUL HINT
Remember that 0711 is the default AutoLock
code. If your access code has been changed by
someone other than you (a child, for example)
or you have forgotten the code, you can always
get in by inputting the default code.
NOTE TO PARENTS:
It is not possible for your child to unblock a channel
without knowing your access code or changing it to a
new one. If your code has been changed without your
knowledge, then you will become aware that blocked
channels may have been viewed.
20
LOCK PROGRAM
CHANG CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
CHANGE CODE
ENTER NEW CODE
CONFIRM CODE
�
�
-------
AUTO LOCK PROGRAM
A
fter your personal access code has been
set (see the previous page), you are ready to
select the channels or inputs you want to block out
or censor.
1
Press the MENU button to see the
onscreen menu.
2
Press the CURSOR DOWN button to highlight
the FEATURES menu, then press CURSOR
RIGHT to enter.
3
Press the CURSOR DOWN button to select
AUTO LOCK, then press the CURSOR
RIGHT to enter.
4
5
6
Use the Number buttons to enter
your access code.
Press the CURSOR RIGHT/LEFT button to
block current selected channel or CURSOR
RIGHT/LEFT button to unblock a channel.
MAIN CONTROL
AUDIO
FEATURES
INSTALL
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
1
�
FEATURES
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
LOCK PROGRAM
CHANG CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
AUTOLOCK
ACCESS CODE
----
AUTOLOCK
�
�
�
�
�
�
Press MENU repeatedly to remove the menu
from the screen.
Note:You can block additional channels by using
Number buttons to jump to another channel.
21
LOCK PROGRAM
CHANGE CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
18
AUTO LOCK - MOVIE RATINGS
T
he AUTO Lock feature can block programming
based on the Movie Industry ratings.
Once you’ve entered your access code and the AUTO
Lock features are displayed on the
screen:
1
2
3
Press the CURSOR DOWN button to select
AUTO LOCK, then press CRUSOR RIGHT
to enter. ACCESS CODE will appear on the
screen.
4
Please use the Number buttons to enter your 4
digits access code.
6
7
AUDIO
FEATURES
INSTALL
Press the MENU button to see the
onscreen menu.
Press the CURSOR DOWN button to highlight
the FEATURES menu, then press the CURSOR
RIGHT to enter.
5
MAIN CONTROL
Press the CURSOR DOWN button to select
MOVIE RATING, then press CURSOR RIGHT
to enter.
Press the CURSOR DOWN button to highlight
any of the Movie Rating options. When highlighted,
all these options can be (ON) blocked or (OFF)
unblocked.
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
1
�
FEATURES
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
LOCK PROGRAM
CHANG CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
AUTOLOCK
ACCESS CODE
----
AUTOLOCK
�
�
�
�
�
Press MENU repeatedly to remove the menu from
the screen.
HELPFUL HINT
When a rating is chosen to be blocked, any
higher level rating will also be blocked from
viewing. (i.e.: If “R” is selected to be blocked,
NC-17 and X will automatically be blocked.)
When a rating is set to unblock, only the selected
rating will be unblocked (Ratings lower will not
automatically be unblocked.)
22
�
�
�
�
LOCK PROGRAM
CHANGE CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
G
PG
PG13
R
NC17
X
MOVIE RATING
G
PG
PG13
R
NC17
X
OFF
ON
AUTO LOCK - TV RATINGS
T
he AUTO Lock feature can block
programming based on the TV Industry
ratings.Once you’ve entered your access code and
the AUTO Lock features are displayed on the
screen:
1
2
Press the MENU button to see the
onscreen menu.
Press the CURSOR DOWN button to
highlight the FEATURES menu, then
press CURSOR RIGHT to enter.
3
Press the CURSOR DOWN button to
highlight AUTO LOCK, then press
CURSOR RIGHT to enter.
ACCESS CODE will appear on the screen.
4
Press the CURSOR RIGHT button,
INPUT USER CODE will appear on the
screen.
5
6
Use the Number buttons to enter your
4 digits access code.
7
Press the CURSOR RIGHT or CURSOR
DOWN button to highlight any of the TV
Rating options. When highlighted, all these
options can be (ON) blocked or (OFF)
unblocked.
8
Press MENU repeatedly to
remove the menu from the screen.
Press the CURSOR DOWN button to
select TV RATING.
MAIN CONTROL
AUDIO
FEATURES
INSTALL
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
FEATURES
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
1
�
LOCK PROGRAM
CHANG CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
AUTOLOCK
ACCESS CODE
----
AUTOLOCK
�
�
�
�
�
�
�
�
�
�
HELPFUL HINT
When a rating is chosen to be blocked, any
higher level rating will also be blocked from
viewing. (i.e.: If “R” is selected to be blocked,
NC-17 and X will automatically be blocked.)
When a rating is set to unblock, only the selected
rating will be unblocked (Ratings lower will not
automatically be unblocked.)
23
LOCK PROGRAM
CHANGE CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
Y
Y7
G
PG
14
MA
TV RATING
Y
Y7
G
PG
14
MA
OFF
ON
USING THE PICTURE FORMAT
Y
ou can change the picture format size to match
the type of program you are watching. Select the
normal 4:3, EXPAND 4:3, or COMPRESS 16:9, or
aspect ratios.
MAIN CONTROL
AUDIO
FEATURES
INSTALL
1
Press the MENU button to see the
onscreen menu.
2
Press the CURSOR DOWN button to
highlight the FEATURES menu, then
press CURSOR RIGHT to enter.
3
Press the CURSOR DOWN button to
highlight the PICTURE FORMAT menu,
then press CURSOR RIGHT to enter
4
Press the CURSOR DOWN button to
select the PICTURE FORMAT, then
press CURSOR RIGHT to confirm
your choice.
Note: Press the FORMAT button repeatedly
to toggle among the three screen format
sizes; 4:3, EXPAND 4:3, or COMPRESS
16:9.
5
Press MENU repeatedly to
remove the menu from the screen.
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
FEATURES
4:3
EXPAND 4:3
COMPRESS 16:9
PICTURE FORMAT
AUTOLOCK
PICTURE ALIGNMENT
CLOSED CAPTION
COLOR TEMP
1
�
4:3
�
�
�
�
�
�
EXPAND 4:3
COMPRESS16:9
24
SURF CONTROL
A
list or series of previously viewed channels can be
selected with the SURF button on your remote
control. With this feature, you can easily switch
between different TV channels that currently interest
you. The SURF control allows you to set up to 8
1
SURF EDIT
22
ADD?
1
SURF LIST EMPTY
SURF EDIT
22
Delete?
channels in its quick viewing list.
1
2
3
4
SURF EDIT
Press the CH+ or CH- button ( or the numbered
buttons) to select a channel to add to the SURF
list.
1
2
Press the SURF button on the remote control.
The onscreen display may read, SURF LIST
EMPTY. The number of the current channel will
be shown with ADD ? to the right.
1
2
�
�
�
While the SURF list message or the SURF channel
list appears on the screen, press the CURSOR
RIGHT button to add the present channel to the
SURF list.
�
If you want to delete the present channel from
the SURF list, press the CURSOR RIGHT button
again.
Repeat steps 1 throught 3 to add more channels
(up to 8) to the SURF list.
HELPFUL HINT
Along with regularly programmed channels, the
external video source connections can be added
to the SURF list. This means that the external
A/V Jacks and their channels can be added to
your SURF list. Use the AV+ button to tune their
channel and use the same steps described on this
page to add those channels to the Surf list.
25
22
36
SURF EDIT
22
36
Add?
Delete?
CLOSED CAPTIONS
C
losed Captioning (CC) allows you to
read the voice content of television programs on
the TV screen. Designed to help the hearing impaired,
this feature uses onscreen “text boxes” to show
dialogue and conversations while the TV program is in
progress.
1
2
Press the MENU button to see the onscreen
menu.
MAIN CONTROL
AUDIO
FEATURES
INSTALL
Press the CURSOR DOWN button to select
CLOSE CAPTION, then press CURSOR RIGHT
to enter.
4
Press the CURSOR RIGHT button to select the
closed caption you want: CC MUTE, CC1, CC2,
CC3, CC4, Txt1, Txt2, Txt3 or Txt4.
5
Press MENU repeatedly to remove the menu from
the screen.
FEATURES
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
1
�
Press the CURSOR DOWN button to highlight
the FEATURES menu, then press CURSOR
RIGHT to enter.
3
PICTURE FORMAT
PICTURE ALIGNMENT
AUTOLOCK
CLOSED CAPTION
COLOR TEMP
�
�
Note:Closed Caption can also be activated by pressing
CC button on your remote control.
HELPFUL HINT
Not all TV programs and product
commercials are broadcast with Closed
Captioning (CC). Nor are all Closed
Captioning MODES (CAPTION 1–4 or TEXT 1–4)
necessarily being used by broadcast
stations during the transmission of a program
offering Closed Captioning. Refer to your area’s TV
program listings for the stations and times of shows
being broadcast with Closed Captioning.
26
LOCK PROGRAM
CHANG CODE
CLEAR ALL
BLOCK OPTION
MOVIE RATING
TV RATING
CLOSED CAPTION
CAPTION MODE
CC DISPLAY
�
�
�
CC1
PC PICTURE CONTROLS
T
his TV can also be used as a PC Monitor. A PC
video signal must be present or the TV will go into
standby mode. The PC Picture controls allow you to
adjust the picture.
Note: Make sure you are in PC mode.
1
2
3
4
5
Press the MENU button on the remote
control to see the onscreen menu.
When the PICTURE menu is highlighted, Press
the CURSOR RIGHT button to enter the
PICTURE menu.
Press the CURSOR DOWN button to highlight
the item that you would like to adjust.
Color Temp: Adjust the color
temperature of the picture. Select from
Normal, Cool, or Warm.
Brightness: Adjust to brighten the darkest
parts of the picture.
Contrast: Adjust to “sharpen” the Picture
quality. The black portions of the picture
become richer in darkness and the white
become brighter.
Auto Adjust: The LCD Monitor will
automatically adjust to the best image
position, phase, and clock setting.
Manual Adjust: The Manual Adjust control
allow you to manually fine tune the image as it
appears on the screen.
Phase-eliminates the horizontal
interfering lines.
Clock-eliminates the vertical interfering lines.
Horizontal-adjust the horizontal
placement of the picture.
Vertical-adjust the vertical placement of the
picture.
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
COLOR TEMP
BRIGHTNESS
CONTRAST
AUTO ADJUST
MANUAL ADJUST
COLOR TEMP
BRIGHTNESS
CONTRAST
AUTO ADJUST
MANUAL ADJUST
1
�
NORMAL
COOL
WARM
COLOR TEMP
BRIGHTNESS
CONTRAST
AUTO ADJUST
MANUAL ADJUST
60
�
�
�
�
COLOR TEMP
BRIGHTNESS
CONTRAST
AUTO ADJUST
MANUAL ADJUST
60
COLOR TEMP
BRIGHTNESS
CONTRAST
AUTO ADJUST
MANUAL ADJUST
YES
COLOR TEMP
BRIGHTNESS
CONTRAST
AUTO ADJUST
MANUAL ADJUST
PHASE
CLOCK
HORIZONTAL
VERTICAL
Press the CURSOR RIGHT/LEFT button to adjust
the item.
Press MENU repeatedly to remove
the menu from the screen.
HELPFUL HINT
1. To adjust other items repeat steps 3 and 4.
2. Color Temp can also be activated by pressing
Auto Picture button on your Remote Control.
If you are wanting to reset adjustment back to
original value, please enter to Factory Reset in
Install menu.
27
PC AUDIO CONTROLS
T
his TV can also be used as a PC Monitor. A PC
video signal must be present or the TV will go
into standby mode. The AUDIO controls allow you
to adjust the sound.
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
Note: Make sure you are in PC mode.
1
2
3
4
Press the MENU button on the
remote control to show the
onscreen menu.
Press the CURSOR DOWN button to
highlight the AUDIO menu, then press
CURSOR RIGHT to enter.
Press the CURSOR DOWN button to
highlight the item that you would like to
adjust:
Auto Sound: Allows you to select from 3
factory-set controls and a personal control.
The 4 factory-set controls (Personal, Voice,
Music, Theatre) enhance the particular
program you are watching.
Settings: Allows you to adjust Treble, Bass,
and Balance of the Sound.
Stereo: To select from Stereo, Mono, and
SAP. (Only function in TV mode)
Incredible Sound: Adds greater depth and
dimension to PC sound.
AVL (Auto Volume Leveler)- When ON,
AVL will level out the sound being heard
when sudden changes in volume occur
during commercial breaks or channel
changes.
5
6
AUTO SOUND
SETTINGS
STEREO
AUDIO
INCREDIBLE SURROUND
AVL
1
�
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
PERSONAL
VOICE
MUSIC
THEATRE
AUDIO
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
TREBLE
BASS
BALANCE
AUDIO
�
�
�
�
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
AUDIO
AUTO SOUND
SETTINGS
STEREO
INCREDIBLE SURROUND
AVL
�
Press CURSOR RIGHT to enter the item
you would like to adjust.
Press the CURSOR RIGHT or CURSOR
LEFT button to adjust.
Press MENU repeatedly to remove the
menu from the screen.
HELPFUL HINT
To adjust other items repeat steps 4 and 5.
28
OFF
INCREDIBLE SURROUND
OFF
ON
USING PC PIP (PICTURE IN PICTURE) FEATURE
P
IP (Picture-in-Picture) feature allows you to call
up a subscreen when you are using your TV as a
monitor.
Note: Make sure you are in PC mode.
1
Press the MENU button to see the
onscreen menu.
2
Press CURSOR DOWN button to highlight the
FEATURES menu.
3
Press the CURSOR RIGHT button to enter
the FEATURES menu.
4
5
MAIN CONTROLS
AUDIO
FEATURES
INSTALL
FEATURES
PIP
1
Press the CURSOR RIGHT button to enter the
PIP menu.
Press the CURSOR DOWN buttons to highlight
the item that you would like to adjust.
SIZE: Turn off and set the size of PIP. You
can choose your preferred size of small,
large, or PBP (Picture Beside Picture).
Video: Select video source of PIP from TV,
AV, S-Video or Component.
Audio: Select audio source of PIP or PC.
Display: Select which corner of the
position of PIP.
PIP
�
�
HELPFUL HINT
PIP windows with component video source can only
support up to 480i /576i (SD) video signal.
29
�
�
SIZE
VIDEO
AUDIO
DISPLAY
SETTING UP THE PC MODE (PERSONAL COMPUTER MONITOR)
15PF5120 (15” LCD TV)
No
Resolution
1
640 x 480
2
3
4
800 x 600
1024 x 768
Mode
V. Frequency (Hz)
H. Frequency (kHz)
VGA VESA 60
59.940
31.469
SVGA VESA 56
56.250
35.156
SVGA VESA 60
60.317
37.897
XGA VESA 60
60.004
48.363
20PF5120 (20” LCD TV)
No
Resolution
1
640 x 480
2
3
800 x 600
V. Frequency (Hz)
H. Frequency (kHz)
VGA VESA 60
Mode
59.940
31.469
SVGA VESA 56
56.250
35.156
SVGA VESA 60
60.317
37.897
30
TROUBLE SHOOTING TIPS
S-VHS Color Becomes Faint
No Power
• Unplug socket for S-Video connection. Reconnect
the S-Video socket of the TV carefully to the VCR
socket.
• Check the TV power cord. Unplug the TV, wait 10
seconds, then reinsert the plug into the outlet and
push the POWER button again.
• Check that the outlet is not on a wall switch.
• Be sure the fuse is not blown on the AC power
strip, if one is being used.
TV Only Produces MONO Sound
No Picture
• Check antenna/cable connections. Are they properly
secured to the TV’s ANT75Ω plug?
• Check the TUNER MODE control for the correct
tuner setting.
• Try running the Auto Program feature to find all
available channels.
• Press the AV button on the remote to make
sure the correct signal source is selected.
• If using an accessory device, be sure that it is
functioning properly.
• If in PC Mode, a video signal MUST BE present or
the TV will turn off.
No Sound
• Check the VOLUME buttons.
• Check the MUTE button on the remote control.
• If you’re attempting to hook up auxiliary
equipment, check the audio jack connections.
No AV Signal
• Check whether AV and S-Video sockets connected
simultaneously. If they are, disconnect the S-Video
socket. AV signal automatically overrides the S-Video
signal if both sockets are connected simultaneously.
31
• If using a cable box with RF only type connections,
the signal coming from the cable box will be
produced in MONO only.
• Check Sound control setting. Change setting to
Stereo.
Remote Does Not Work
• Check the batteries. Place lithium cell in the
remote. Be sure the (+) and (-) ends of the batteries
line up as marked inside the battery compartment.
• Clean the remote control and the remote control
sensor window on the TV.
• Check the TV power cord. Unplug the TV, wait 10
seconds, then reinsert the plug into the outlet and
push the POWER button again.
• Be sure the fuse is not blown on the AC power
strip, if one is being used.
• Check to be sure the TV outlet is not on a wall
switch.
• Be sure that the remote is in the correct operating
mode.
• Be sure the remote is pointed at the Remote
Sensor Window on the TV. See page 3 of the Quick
Use Guide for details.
TV Displays Wrong Channel or No Channels
Above 13
• Repeat channel selection.
• Add the desired channel numbers (using the
CHANNEL EDIT control) into the TV’s memory.
• Check to be sure the TUNER MODES are set to
the CABLE option and run the Auto Program
feature to find all available channels.
CARE AND CLEANING
WARNING concerning stationary images on the TV
Screen: Do not leave fixed images on the screen for extended periods of time. This can cause uneven aging of the LCD
panel. Normal use of the TV should involve viewing of programs that have constantly moving or changing images. Do
not leave still images on screen for extended periods of time. Do not display the same images too frequently; if you do,
subtle “ghost” images can be left on the LCD screen. Sources of stationary images may be Laser discs, video games,
Compact Discs Interactive (CD-i), or paused Digital Video Discs (DVDs) or video tapes.
Here are some common examples of stationary images:
• DVD menus list DVD content.
• Letterbox black bars appear at the top and bottom of the TV screen when a wide screen (16:9) movie is viewed on a
TV with standard (4:3) aspect ratio. This is available with some DVDs.
• Video game images and scoreboards
• Television station logos cause a problem if they are bright and stationary. Moving or low-contrast graphics are
less likely to damage the picture tube.
• Stock market tickers may appear at the bottom of the TV screen if the TV programming covers this news.
• Shopping channel logos, pricing displays may be bright and may appear constantly during the show.
These are usually in the same location on the TV screen.
TV Location
• To avoid cabinet warping, cabinet color changes, and an increased chance of TV failure, do not place the TV
where temperatures can become excessively hot (for example, in direct sunlight or near a heating appliance).
• Allow a free flow of air around the TV.
Cleaning
• To avoid possible shock hazard, remove the TV’s power cord from the electrical outlet before cleaning.
• Regularly dust the TV with a dry, non-scratching duster.
• When cleaning the TV, take care not to scratch or damage the screen surface. Avoid wearing jewelry or using
anything abrasive. Do not use household cleaners. Wipe the screen with a clean cloth dampened with water.
Use even, easy, vertical strokes when cleaning.
• Occasionally vacuum the vents on the rear of the TV.
• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet. They may blemish the cabinet
permanently.
32
INDEX
A
Auto Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8, 31
B
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 28
Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 28
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 13, 31
Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 27, 18
C
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Color . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 16, 18, 27, 31, 32
F
Factory Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
I
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
L
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 18, 19
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
M
Mono . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 28, 31
R
Regulatory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
S
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 17, 18, 28, 30
Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 18
Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 17, 28, 31
T
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Tint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 18
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
TV Operation (Basic) . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
W
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
33
REGULATORY
FEDERAL COMMUNICATIONS COMMISSION (FCC) NOTICE (U.S. ONLY)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Use only RF shielded cable with ferrite core when connecting this monitor to a computer device.
34
PHILIPS LIMITED WARRANTY
One (1) Year Labor & One(1) Year Parts & One (1) Year Display Repair
PHILIPS warrants this product against defect in
material or workmanship, subject to any conditions set forth
as follows:
PROOF OF PURCHASE: You must have proof of the date
of purchase to receive repair on the product. A sales receipt
or other document showing the product and the date that
you purchased the product as well as the authorized retailer
included, is considered such proof.
COVERAGE:
(If this product is determined to be defective)
LABOR: For a period of one (1) year from the date of
purchase, Philips will repair or replace the product, at its
option, at no charge, or pay the labor charges to any Philips
authorized service center. After the period of one (1) year,
Philips will no longer be responsible for charges incurred.
PARTS: For a period of one (1) year from the date of purchase,
Philips will supply, at no charge, new or rebuilt replacement
parts in exchange for defective parts. Philips authorized
service centers will provide removal and installation of the
parts for one (1) year.
DISPLAY: For a period of one (1) year from the date of
purchase, Philips will supply, at no charge, a new or rebuilt
active display device in exchange for the defective display.
Philips authorized service centers will provide removal and
installation of the parts under the specified labor warranty.
EXCLUDED FROM WARRANTY COVERAGE
Your warranty does not cover:
•Labor charges for installation or setup of the product,
adjustment of customer controls on the product, and
installation or repair of antenna systems outside of the
product.
•Product repair and/or part replacement because of
improper installation, connections to improper voltage
supply, abuse, neglect, misuse, accident, unauthorized repair
or other cause not within the control of Philips.
•A product that requires modification or adaptation to
enable it to operate in any country other than the
country for which it was designed, manufactured, approved
and/or authorized, or repair of products damaged by these
modifications.
•Damage occurring to product during shipping when
improperly packaged or costs associated with packaging.
•Product lost in shipment and no signature verification of
receipt can be provided.
•A product used for commercial or institutional purposes(including
but not limited to rental purposes).
•Products sold AS IS or RENEWED.
TO OBTAIN WARRANTY SERVICE IN THE U.S.A.,
PUERTO RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN WARRANTY SERVICE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE
CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental
or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you. In addition, if you enter into a service contract
agreement with the PHILIPS partnership within ninety (90) days
of the date of sale, the limitation on how long an implied warranty
lasts does not apply.
This warranty gives you specif ic legal rights. You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 671539, Marietta, Ga. 30006-0026
35
(Warranty: 4835 710 28375)
Was this manual useful for you? yes no
Thank you for your participation!
