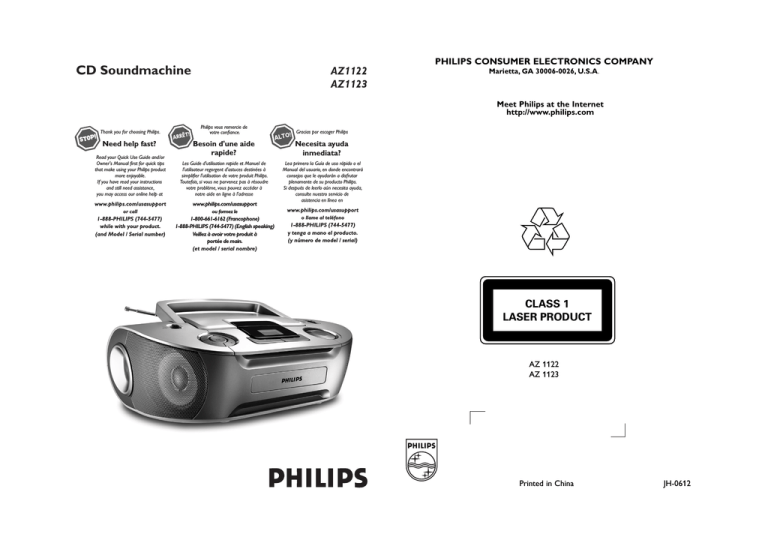

PHILIPS CONSUMER ELECTRONICS COMPANY
CD Soundmachine
AZ1122
AZ1123
Marietta, GA 30006-0026, U.S.A.
Meet Philips at the Internet
http://www.philips.com
Thank you for choosing Philips.
Philips vous remercie de
votre confiance.
Gracias por escoger Philips
Read your Quick Use Guide and/or
Owner's Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
Besoin d'une aide
rapide?
Necesita ayuda
inmediata?
Les Guide d'utilisation rapide et Manuel de
l'utilisateur regorgent d'astuces destinées à
simplifier l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/usasupport
www.philips.com/usasupport
Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
Need help fast?
or call
ou formez le
www.philips.com/usasupport
1-888-PHILIPS (744-5477)
while with your product.
(and Model / Serial number)
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477) (English speaking)
Veillez à avoir votre produit à
portée de main.
(et model / serial nombre)
1-888-PHILIPS (744-5477)
y tenga a mano el producto.
(y número de model / serial)
o llame al teléfono
W
CLASS 1
LASER PRODUCT
AZ 1122
AZ 1123
Printed in China
JH-0612
Return your Product Registration Card today
to get the very most from your purchase.
IMPORTANT SAFETY INSTRUCTIONS
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so
don't miss out. Complete and return your Product Registration Card at once to ensure:
*Proof of
Purchase
*Product Safety *Additional
Benefits of
Notification
Product
Ownership
Returning the enclosed card
By registering your product, you'll
Registering your product
guarantees that your date of
receive notification - directly from
guarantees that you'll receive
purchase will be on file, so no
the manufacturer - in the rare
all of the privileges to which
additional paperwork will be
case of a product recall or safety
you're entitled, including special
required from you to obtain
defect.
money-saving offers.
Clean only with a piece of dry cloth.
warranty service.
Know these
safetysymbols
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates
uninsulated material within your
unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove
product covering.
The “exclamation point” calls
attention to features for which
you should read the enclosed
literature closely to prevent operating
and maintenance problems.
For Customer Use
Enter below the Serial No. which is
located on the bottom of the cabinet.
Retain this information for future
reference.
Model No. ______________________
Serial No. ______________________
WARNING: To reduce the risk of fire
or electric shock, this apparatus should
not be exposed to rain or moisture, and
objects filled with liquids, such as vases,
should not be placed on this apparatus.
materials
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot,
fully insert.
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
1
7
2
1
6
2
7
3
8
4
3
5
4
X
PRO
9
5
PHONES
AC MAINS~
!
@
REP ALL
0
6
6 x R14 • UM-2 • C-CELLS
SHUF
English
Controls/Power Supply
CAUTION
Supplied Accessories
Use of controls or adjustments or
performance of procedures other
than herein may result in unsafe
operation.
– AC power cord
Top/front panels (See 1)
1 Source selector: CD, FM, AM or OFF
– selects CD or radio (FM/MW) source of
sound
– power off switch
Whenever convenient, use the power supply
cord if you want to conserve battery life.
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
PROG – programs tracks and reviews the
program
9 – stops CD playback;
– erases a CD program
3 Display – shows the CD functions
2
4 REPEAT – repeats a track/
CD program/entire CD.
5 SHUFFLE – plays all tracks in random order
•
6 OPEN•CLOSE – opens/ closes the CD
door
•
7 TUNING – tunes to radio stations
8 VOLUME – adjusts volume level
Back/bottom panels (See 1)
9 Telescopic antenna – improves FM
reception
0 Battery door – open to insert 6 x 1.5V
R-14/ UM-2/ C-cells
! p – 3.5 mm stereo headphone socket
Helpful hints: The speakers will be muted
when headphones are connected to the set.
@ AC MAINS~ – inlet for power cord
1
2
•
•
Open the battery door and insert 6 batteries,
type R-14, UM-2 or C-cells, (preferably
alkaline) with the correct polarity as indicated
by the "+" and "–" symbols inside the compartment (See 1).
Batteries contain chemical substances, so
they should be disposed of properly.
1
2
Switching on and off and selecting the
function
To select your sound source, adjust the
Source selector to: CD, FM or AM.
To switch off the set, adjust the
Source selector to OFF position.
Adjusting volume
Connect the power cord to the
AC MAINS~ inlet and the wall socket.The
set is now connected and ready for use.
Adjust the sound with the VOLUME control.
To switch the set off completely, withdraw the
power cord from the wall socket.
4
Install the unit near the AC outlet and where
the AC power plug can be easily reached.
1
Adjust the Source selector to FM or AM
to select your desiredwaveband.
•
Disconnect the power cord from the wall
socket to protect your set during heavy
thunderstorms.
2
Turn TUNING to tune to a station.
Replace the battery door, making sure the batteries are firmly and correctly in place.The set
is now ready to operate.
Incorrect use of batteries can cause
electrolyte leakage and will corrode the
compartment or cause the batteries to burst:
Do not mix battery types: e.g. alkaline with carbon zinc. Only use batteries of the same type
for the set.
When inserting new batteries, do not try to mix
old batteries with the new ones.
Remove the batteries if the set is not to be used
for a long time.
Check if the power voltage, as shown on
the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult your
dealer or service center.
General operation
3
Batteries (not included)
1
General Operation/Tuner
Using AC power
WARNING: Always check you have
completely switched off the set, before
you change or disconnect power supply.
Power Supply
2 2; – starts or pauses CD playback
§∞
– selects the next/previous track
– fast searches forwards/backwards
(press and hold the button)
Power Supply
–
Radio reception
Helpful hints:
The type plate is located on the
bottom of the set.
•
Helpful hints:
To avoid unnecessary energy consumption,
always adjust the Source selector to OFF
after using the set.
•
To improve radio reception
For FM, extend, incline and turn the
telescopic antenna for best reception. Reduce
its length if the signal is too strong.
For AM, the set uses a built-in antenna.
Direct this antenna for best reception by
turning the whole set.
CD Player
CD Player
Playing a CD
•
•
This CD player plays Audio Discs including
CD-Recordables (CD-R) and CD-Rewritables
(CD-RW).
MP3, CD-ROM, CD-I, CDV,VCD, DVD or
computer CDs are not possible for playback.
IMPORTANT!
CDs encoded with copyright protection
technologies by some record companies may
be unplayable by this product.
1
Adjust the Source selector to CD.
2
Open the CD door.
3
Insert a CD with the printed side facing up,
then press the CD door gently to close.
➜ Display shows --, and later the total
number of tracks. (See 2)
4
Press 2; to start playback.
5
To pause playback, press 2;.
➜ Display: 2 flashes. (See 3)
6
To resume, press 2; again.
7
To stop CD playback, press 9.
Helpful hints:
CD play will also stop when:
– you open the CD door;
– you select FM,AM or OFF;
– the CD has reached the end.
Selecting a different track
Programming track
numbers
• Press ∞/ § once or repeatedly until the
desired track number appears in the display.
• In the pause/stop position, press 2; to start
playback.
You may store up to 20 tracks in the desired
sequence. If you like, store any track more
than once.
1
In the stop position, press PROG to
activate programming.
➜ Display: PROG and 00 flash. (See 4)
2
Press ∞ or § to select your desired track
number.
Finding a passage within a
track
1
2
–
During playback, press and hold ∞ or § .
➜ The CD is played at high speed and with
reduced volume.
When you recognize the passage you want,
release ∞ or § to resume normal playback.
Helpful hints:
When your searching reaches the end of the
last track, the CD goes to stop mode.
Different play modes:
REPEAT and SHUFFLE
(See 5, 6)
3
4
5
Press PROG to store the desired track
number.
➜ Display: PROG and 00 flash for you to
program the next track.
Repeat steps 2 to 3 to select and store all
desired tracks in this way.
➜ If you attempt to store more than 20
tracks, no track can be selected and the
display shows flashing --.
REPEAT
You can play the current track or the whole
disc repeatedly, and combine REPEAT modes
with PROGRAM.
REP – plays the current track continuously.
REP ALL – repeats the entire CD/program.
1
To select play mode, press REPEAT once or
more.
➜ The display shows REP or REP ALL.
2
Press 2; to start playback if in the
stop/pause position.
3
To return to normal playback, press
REPEAT repeatedly until the modes are no
longer displayed.
– You can also press 9 to cancel your play
mode.
To play your program, press 2;.
Helpful hints :
SHUFFLE
You can play all the tracks in random order.
– When playback of your program comes to
the stop position, your set will return to normal playback. To re-enter program mode,
press PROG in the stop position.
Reviewing the program
In the stop position, press PROG repeatedly
to see your stored tracks.
1
In the stop position, press SHUFFLE to
switch on shuffle play.
➜ Display shows SHUF.
2
To switch off shuffle play, press 9.
–
Erasing a program
You can erase the contents of the memory
by:
– in the stop position, press PROG to enter
program mode, and then press 9;
– selecting FM, AM or OFF;
– opening the CD door.
–
Helpful hints:
During the shuffle play, when REP function is
selected, it will play the current shuffled track
repeatedly, or when the REP ALL function is
selected, it will repeat the shuffle play of the
entire CD.
Shuffle play is not available in the program
mode.
Troubleshooting
Maintenance & Safety (See 7)
Safety information
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
•
Place the set on a flat, hard and stable surface
so that the system does not tilt.
WARNING: Do not open the set as there is a risk of electric shock. Under no
•
Do not expose the set, batteries, CDs to
humidity, rain, sand or excessive heat caused
by heating equipment or direct sunlight.
The apparatus shall not be exposed to dripping or splashing.
CD player and CD handling
•
If the CD player cannot read CDs correctly,
use a cleaning CD to clean the lens before
taking the set to repair.
•
The lens of the CD player should never be
touched!
•
Sudden changes in the surrounding
temperature can cause condensation on the
lens of your CD player. Playing a CD is then
not possible. Do not attempt to clean the
lens but leave the set in a warm environment
until the moisture evaporates.
•
•
Always close the CD-tape door to avoid dust
on the lens.
•
•
To clean the CD, wipe in a straight line from
the center towards the edge using a soft,
lint-free cloth. Do not use cleaning agents as
they may damage the disc.
Do not cover the ventilation openings with
items such as newspapers, table-cloths, curtains, etc.
•
No objects filled with liquids, such as vases,
shall be placed on the apparatus.
•
No naked flame sources, such as lighted candles, should be placed on the apparatus.
•
The mechanical parts of the set contain
self-lubricating bearings and must not be oiled
or lubricated.
•
To clean the set, use a dry cloth. Do not use
any cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may
harm the housing.
•
Never write on a CD or attach any stickers
to it.
•
Adequate ventilation with a minimum gap of
15cm (6 inches) between the ventilation
holes and surrounding surfaces is necessary
to prevent heat build-up.
circumstances should you try to repair the set yourself, as this will
invalidate the guarantee.
Problem
– Possible cause
• Remedy
No hay sonido/energía
– Volume not adjusted
• Adjust the VOLUME
– Power cord not securely connected
• Connect the AC power cord properly
– Batteries dead/ incorrectly inserted
• Insert (fresh) batteries correctly
– Headphones connected to the set
• Disconnect headphones.
– CD contains non-audio files
• Press ∞ , § once or more to skip to a CD audio
track, instead of the data file.
Display does not function properly / No
reaction to operation of any of the
controls
– Electrostatic discharge
• Switch off and unplug the set. Reconnect after a
few seconds
Severe radio hum or noise
Environmental information
All unnecessary packaging material has been omitted.The packaging can be easily separated
into three materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe the local regulations regarding the
disposal of packaging, dead batteries and old equipment.
– Electrical interference: set too close to TV, VCR or
computer
• Increase the distance
Poor radio reception
– Weak radio signal
• FM: Adjust the FM telescopic aerial
-- indication
–
•
–
•
–
•
–
•
No CD inserted
Insert a CD
CD badly scratched or dirty
Replace/ clean CD, see Maintenance
Laser lens steamed up
Wait until lens has cleared
CD-R/CD-RW is blank or not finalized
Use a finalized CD-R/CD-RW or suitable CD
Audio disc only
Note:
Make sure the CD is not encoded with
Copyright protection technologies, as some
do not conform to the Compact Disc standard.
The CD skips tracks
–
•
–
•
CD damaged or dirty
Replace or clean CD
Program/Shuffle is active
Quit program/shuffle mode
Note: A CD badly scratch or dirty may result in
improper operation.
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:
This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. NonPhilips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained within the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permission of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
3121 233 48801
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
