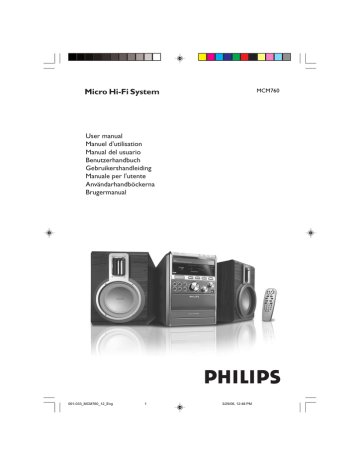

MCM760
Micro Hi-Fi System
User manual
Manuel d'utilisation
Manual del usuario
Benutzerhandbuch
Gebruikershandleiding
Manuale per l'utente
Användarhandböckerna
Brugermanual
001-033_MCM760_12_Eng
1
3/29/06, 12:48 PM
Important notes for users in the
U.K.
Italia
DICHIARAZIONE DI CONFORMITA’
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
Si dichiara che l’apparecchio MCM760 Philips
risponde alle prescrizioni dell’art. 2 comma 1
del D.M. 28 Agosto 1995 n. 548.
1
2
Remove fuse cover and fuse.
Fatto a Eindhoven
3
Refit the fuse cover.
Fix new fuse which should be a BS1362 3 Amp,
A.S.T.A. or BSI approved type.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should have
a value of 3 Amp. If a plug without a fuse is used,
the fuse at the distribution board should not be
greater than 3 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be inserted
into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
¶ As these colours may not correspond with the
colour markings identifying the terminals in your
plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or coloured
green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath of
the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performer’s Protection Acts 1958 to 1972.
2
001-033_MCM760_12_Eng
2
3/29/06, 12:48 PM
1
2
STANDBY- ON
ECO POWER
USB RECORD
TAPE RECORD
RDS/NEWS
OPEN / CLOSE
3
4
WMA-MP3-CD/CD-R/CD-RW COMPATIBLE
%
$
5
iR
6
USB DIRECT
VOLUME
PRESET
TREBLE
PLAY/PAUSE
7
BASS
#
ALBUM
8
9
STOP/DEMO
OPEN CLOSE
0
@
!
3
001-033_MCM760_12_Eng
3
3/29/06, 12:48 PM
/
/
(for tuner installation)
DK
SF
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen
muulla kuin tässä käyttöohjeessa
mainitulla tavalla saattaa altistaa
käyttäjän turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite
ei saa olla alttiina tippu-ja roiskevedelle.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specificerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Huom.Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkkoosa on kytkettynä sähköverkkoon aina
silloin, kun pistoke on pistorasiassa.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
4
001-033_MCM760_12_Eng
4
3/29/06, 12:48 PM
English
Index
Français
English ------------------------------------------------ 6
Español
Français -------------------------------------------- 34
Nederlands Deutsch
Español --------------------------------------------- 62
Deutsch --------------------------------------------- 90
Italiano
Nederlands -------------------------------------- 118
Svenska
Italiano -------------------------------------------- 146
Dansk
Svenska ------------------------------------------- 174
Dansk --------------------------------------------- 202
5
001-033_MCM760_12_Eng
5
3/29/06, 12:48 PM 3140
115 xxxxx
Contents
English
General Information
Tuner
Supplied accessories ............................................ 7
Environmental information ................................ 7
Safety information ................................................ 7
Tuning to radio stations .................................... 21
Programming radio stations ....................... 21-22
Controls
Controls on the set ............................................. 8
Remote control .............................................. 9-10
Plug & Play
Autostore: Automatic programming
Manual programming
To listen to a preset station
Deleting a preset radio station
RDS (Radio Data System) .......................... 22-23
Switching through RDS information
Clock setting via RDS
Installation
NEWS ................................................................... 23
Rear connections ......................................... 11-12
Speaker connections
Antenna connections
Connecting an additional appliance ............... 12-13
Connecting a USB device or memory card
Connecting a non-USB device
Using AC power .................................................. 13
Activating the NEWS function
Deactivating NEWS function
USB
Using a USB mass storage device ................... 24
Playing a USB mass storage device ................. 25
Recording to a USB mass storage device
.......................................................................... 25-26
Preparations
Using the remote control .......................................... 14
Setting the clock ................................................. 14
TAPE
Playing a tape ....................................................... 27
Recording to a tape ..................................... 27-28
Basic Functions
Switching on/off the set .................................... 15
Displaying the clock ....................................................... 15
Display adjustment ............................................. 15
Volume control ................................................... 16
Volume adjustment
MUTE
Sound control ..................................................... 16
Incredible surround
Bass/Treble
AUX
AUX (Listening to an external source) ......... 29
Timer
Setting the timer ........................................... 29-30
Activating and deactivating TIMER ................. 30
Temporarily deactivating TIMER ..................... 30
SLEEP
CD
................................................................................ 30
Discs for playback .............................................. 17
Playing discs ................................................... 17-18
Selecting and searching ..................................... 18
Demonstration mode
Selecting a different track
Finding a passage within a track during playback
Programming tracks ........................................... 19
Erasing the program
Different play modes: REPEAT, SHUFFLE ...... 20
Display track information
(MP3/WMA only) ............................................... 20
................................................................................ 30
Specifications ........................................... 31
Maintenance .............................................. 31
Troubleshooting .............................. 32-33
6
001-033_MCM760_12_Eng
6
3/29/06, 12:48 PM
Supplied accessories
–
–
–
–
–
Safety Information
2 speaker boxes including 2 speaker cables
remote control and two AA batteries
MW loop antenna
FM wire antenna
AC power cord
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Disposal of your old product
Your product is designed and
manufactured with high quality materials
and components, which can be recycled
and reused.
When this crossed-out
wheeled bin symbol is
attached to a product it
means the product is
covered by the
European Directive
2002/96/EC
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical parts of the set contain selflubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
Apparatus shall not be exposed to dripping
or splashing
Please inform yourself about the local
separate collection system for electrical
and electronic products.
Please act according to your local rules
and do not dispose of your old products
with your normal household waste.The
correct disposal of your old product will
help prevent potential negative
consequences for the environment and
human health.
7
001-033_MCM760_12_Eng
7
3/29/06, 12:48 PM
English
General Information
Controls
English
Controls on the set (illustrations
on page 3)
9n
–
1 STANDBY-ON/ECO POWER
–
–
–
2
–
3
press briefly to switch the set on or to ECO
POWER (power-saving mode);
press and hold to switch the set to standby
mode
Red indicator: lights up red when the set is
switched to ECO POWER mode
OPEN/CLOSEç
opens/closes the CD door
RDS/NEWS
–
Tuner: selects RDS (Radio Data System)
information
–
CD/USB/TAPE/AUX: activates/deactivates
news
TAPE RECORD
starts recording to a tape
USB RECORD
starts recording to a USB mass storage device
4
–
5
–
0
–
!
@ VOLUME
–
–
–
–
–
CD
selects CD source
In standby or Eco Power mode: switches the
set on and selects CD source
TUNER
selects TUNER source and toggles between the
wavebands: FM and MW
In standby or Eco Power mode: switches the
set on and selects TUNER source
USB
selects USB source
In standby or Eco Power mode: switches the
set on and selects USB source
–
–
–
CD/USB: skips CD tracks backwards/forwards
TUNER: selects a preset radio station.
TAPE: selects other side of the tape
–
–
–
–
–
ALBUM à á
CD/USB: selects albums (for MP3/WMA only)
CD: searches backward /forward
TUNER: tunes to radio stations
TAPE: rewind or fast forward
CLOCK: sets the hours or minutes
–
–
–
–
–
–
–
–
TAPE/AUX
–
–
selects TAPE source or the audio input from an
additional connected appliance
In standby or Eco Power mode: switches the
set on and selects TAPE source or the audio
input from an additional connected appliance
7 TREBLE
–
adjusts the volume level
# PRESET í/ ë
6 Source buttons
–
–
3.5 mm headphone socket
Helpful hints:
– Adjust the volume to a moderate level
before you plug in the headphones.
– Connecting headphones will switch off the
speakers.
OPEN/CLOSEç
opens / closes the tape deck door
Tape deck
PLAY/ PAUSEÉÅ
CD/USB: starts or pauses playback
TAPE: starts playback
CLOCK: toggles between hour and minutes
setting
TUNER: enters Plug & Play mode and/ or starts
preset radio station installation
STOP/DEMO Ç
CD/USB: stops playback or recording; erase a
program
TUNER: press and hold to erase a preset radio
station
TAPE: stops playback or recording
In standby or Eco Power mode: press and
hold to turn on/off the demonstration mode
$
–
jack for the external USB mass storage device
% IR
–
sensor for the infrared remote control
Helpful hints: Always point the remote control
towards this sensor.
selects a desired TREBLE (high tone) level
8 BASS
–
selects a desired BASS (low tone)
8
001-033_MCM760_12_Eng
8
3/29/06, 12:48 PM
AUX
Remote control
–
selects the audio input from an additional
connected appliance
2
–
(
3
4
5
In standby or Eco Power mode: switches the
set on and selects the audio input from an
additional connected appliance
3 PROGRAM
STANDBY
1
CD
TUNER
REPEAT
TAPE
PROGRAM
AUX
SHUFFLE
(
TAPE A /B
DISPLAY/CLOCK
*
VOL
–
–
PRESET
6
&
^
%
$
ALBUM
TAPE REC
USB REC
INC. SURR
DIM
USB DEL
SNOOZE
7
BASS
–
Clock: - displays the set time
- enters the clock
setting mode (press and hold for more
than 2 seconds)
–
TUNER/Audio CD: switches between clock
display and playback
display
–
MP3/WMA files: displays disc information
during playback
VOLUME
adjusts the volume level
PRESETí/ë
CD/USB: skips CD tracks backwards/forwards
TUNER: selects a preset radio station.
TAPE: selects other side of the tape
Ç
CD/USB: stops playback or recording; erase a
program
TUNER: press and hold to erase a preset radio
station
TAPE: stops playback or recording
ÉÅ
CD/USB: starts or pauses playback
TAPE: starts playback
CLOCK: toggles between hour and minutes
setting
ALBUM à / á
CD/USB: selects albums (for MP3/WMA only)
CD: searches backward /forward
TUNER: tunes to radio stations
TAPE: rewind or fast forward
CLOCK: sets the hours or minutes
8
9
0
TREBLE
MUTE
@
!
5
Notes for remote control:
– First select the source you wish to
control by pressing one of the source select
keys on the remote control (for example
CD,TUNER).
– Then select the desired function (for
example ÉÅ, í, ë).
–
6
–
–
–
–
1B
–
–
2
–
–
–
–
–
–
press briefly to switch the set to ECO POWER
(power-saving mode);
press and hold to switch the set to standby
mode
Source buttons
CD
selects CD source
In standby or Eco Power mode: switches the
set on and selects CD source
TUNER
selects TUNER source and toggles between the
wavebands: FM and MW
In standby or Eco Power mode: switches the
set on and selects TUNER source
TAPE
CD/USB: programs tracks
Tuner: programs preset radio stations
4 DISPLAY/CLOCK
SLEEP/TIMER TIMER ON/OFF
#
USB
English
Controls
–
–
–
–
–
–
–
–
–
–
selects TAPE source
In standby or Eco Power mode: switches the
set on and selects TAPE source
9
001-033_MCM760_12_Eng
9
3/29/06, 12:48 PM
Controls
English
7 SNOOZE
–
Temporarily deactivate the timer
8 TIMER ON/OFF
–
turns the timer on/off
9 SLEEP/TIMER
–
–
–
0
–
set the sleep timer
displays the timer setting
enters the timer setting mode (press and hold
for more than 2 seconds)
TREBLE (+-)
Selects a desired TREBLE (high tone) level
! MUTE
–
switches the sound off temporarily
@ USB
–
–
#
–
selects USB source
In standby or Eco Power mode: switches the
set on and selects USB source
BASS (+-)
Selects a desired BASS (low tone) level
$ INC. SURR.
–
%
–
^
–
&
–
–
*
–
Turns on/ off the incredible surround sound
effect
DIM
Selects different levels of brightness for display
panel
TAPE REC
starts recording to a tape
USB REC
starts recording to a USB mass storage device
USB DEL
delete files from a USB mass storage device
TAPE A/B
selects the desired tape playback modes : one
side, both sides or auto replay
( REPEAT
–
selects continuous playback
SHUFFLE
–
selects random playback
The making of unauthorized copies of
copy-protected material, including
computer programs, files, broadcasts and
sound recordings, may be an infringement
of copyrights and constitute a criminal
offence. This equipment should not be used
for such purposes.
10
001-033_MCM760_12_Eng
10
3/29/06, 12:48 PM
English
Installation
FM wire
antenna
MW loop
antenna
Speaker
(right)
Speaker
(left)
AC power cord
Rear connections
Warning:
– Never make or change connections with
the mains supply switched on.
– Install your set near the AC outlet and
where the AC power plug can be reached
easily.
A Speaker connections
Use the supplied speakers only. Using other
speakers can damage the set or the sound
quality will be negatively affected.
B Antenna connections
MW antenna
1
Assemble the loop antenna as shown:
● Connect the cable of the left speaker to L +/(red and black) and the cable of the right
speaker to R +/- (red and black) as follows:
a. Press the clip of the red terminal and fully
insert the stripped portion of the colored (or
marked) speaker cable into the socket, then
release the clip
b. Press the clip of the black terminal and fully
insert the stripped portion of the black (or
unmarked) speaker cable into the socket, then
release the clip
11
001-033_MCM760_12_Eng
11
3/29/06, 12:48 PM
Installation
English
2
3
Fit the plug of the loop antenna to
AM ANTENNA as shown below
Connecting an additional
appliance
Adjust the position of the antenna for optimal
reception (as far away as possible from the TV,
VCR or other radiation sources)
Connecting a USB device or memory
card
On MCM760, you can playback music from a
USB mass storage device and also record music
to such a device.
1
AM
ANTENNA
MW loop
antenna
iR
FM antenna
The wire antenna supplied can only be used to
receive nearby stations. For better reception we
recommend using a cable antenna system or an
outdoor antenna.
1
Insert the USB device’s USB plug into the socket
on MCM760
CD
TUNER
TAPE/AUX
USB
VOLUME
PRESET
TREBLE
PLAY/PAUSE
BASS
or
for the devices with USB cable:
a. Insert one plug of the USB cable (not
supplied) to the socket
on MCM760
b. Insert the other plug of the USB cable to the
USB output terminal of the USB device
or
Extend the wire antenna and fit it to FM
ANTENNA as shown below
for the memory card:
a. Insert the memory card into a card reader
(not supplied)
b. Use a USB cable (not supplied) to connect
the card reader to the socket
on
MCM760
Note: If you are using a cable antenna system or
an outdoor antenna, fit the antenna plug, instead of
the wire antenna, to FM ANTENNA .
2
3
Connecting a non-USB device
Move the antenna in different positions for
optimal reception (as far away as possible from
the TV, VCR or other radiation sources)
It is possible to use an additional appliance, e.g.
TV, VCR or CD recorder with the set. On
MCM760, you can playback music from an
external source.
Fix the antenna’s end to the wall
1
2
Insert the red plug of the red/white audio cables
(not supplied) to the red socket AUX/CDR IN
R and the white plug to the white socket AUX/
CDR IN L
Connect the other end of the audio cables to
the AUDIO OUT terminals of the additional
appliance
12
001-033_MCM760_12_Eng
12
3/29/06, 12:48 PM
When MCM760 is switched to standby, it is still
consuming some power. To disconnect the
system from the power supply completely,
remove the power plug from the wall
socket.
The type plate is located on the rear of the
set.
CAUTION
3
Visible and invisible laser radiation. If the
cover is open, do not look at the beam.
Select AUX mode on MCM760
Helpful hints:
– Always refer to the owner’s manual of other
equipment for complete connection.
2
The machine does not contain any userserviceable parts.
Modification of the product could result in
hazardous radiation of EMC or other
unsafe operation.
Using AC power
1
High voltage! Do not open. You run the risk
of getting an electric shock.
Make sure all the connections have been made
before switching on the power supply
Connect the AC power cord to the wall socket.
This switches on the power supply
➜ AUTO INSTALL – PRESS PLAY appears
the first time you power up MCM760
– Press ÉÅ on the set to store all available
radio stations
– Press Ç to exit (See Tuner)
If you disconnect the product from the
mains, make sure to take the plug out of
the wall socket completely.
Children could seriously injure themselves
as the free end of the cable may still be live
if only the connector is removed from the
MAINS socket at the back of the unit.
Helpful hints:
– If the first preset is a RDS station, it will proceed
to clock setting (See Tuner: Clock setting via
RDS)
➜ "INSTALL" appears, then "TIME" and
" SEARCH RDS TIME".
➜ When RDS time is read, " RDS TIME" will
appear and the current time will be stored.
➜ If RDS station does not transmit RDS time
within 90 seconds, “NO RDS TIME” will appear
and the program will exit automatically.
13
001-033_MCM760_12_Eng
13
3/29/06, 12:48 PM
English
Installation
Preparation
English
Using the remote control
Setting the clock
IMPORTANT!
After connecting MCM760 to the power supply,
set the clock first.
– Always point the remote control directly
towards IR area.
Notes for remote control:
– First select the source you wish to
control by pressing one of the source select
keys on the remote control (for example
CD,TUNER).
– Then select the desired function (for
example ÉÅ, í, ë).
Inserting batteries into the remote
control
1
2
3
Open the battery compartment
Insert 2 batteries type R06 or AA into the
remote control with the correct polarity as
indicated by the "+" and "-" symbols inside
the battery compartment
Put back the compartment door
3
1
2
1
On the remote control, press and hold
DISPLAY/CLOCK until the clock time starts
flashing
➜ The display shows the set time
➜ 12:00 AM appears by default if you have not
set the clock
2
Press PROGRAM repeatedly to change
between 12-hour and 24-hour clock mode
3
4
Press à or á repeatedly to set the hour
5
Press DISPLAY/CLOCK again to store the
setting.
➜ The clock will start working.
Press ÉÅ to change to minutes setting, then
press à or á repeatedly to set the minutes
Helpful hints:
– The clock setting will be erased when the system
is disconnected from the power supply.
– The set will exit from the clock setting mode if
no button is pressed within 90 seconds.
– To set the clock automatically through the time
information in the RDS signal, refer to Tuner:
Clock setting via RDS.
STANDBY
CAUTION!
– Remove batteries if they are
exhausted or will not be used for a long
time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
AUX
SHUFFLE
DISPLAY/CLOCK
VOL
PRESET
ALBUM
TAPE REC
USB REC
USB DEL
14
001-033_MCM760_12_Eng
14
3/29/06, 12:48 PM
SNOOZE
Switching on/ off the set
1
To switch on, press the source button CD,
TUNER, USB or TAPE/AUX on the set (or
on the remote control, CD, TUNER, TAPE,
AUX, USB)
➜ The selected source lights up blue
2
Press STANDBY-ON/ ECO POWER briefly
to switch the set to ECO POWER (power-saving
mode) (or y on the remote control)
➜ ECO PWR scrolls on the display
➜ The display is switched off
➜ The Red indicator lights up
English
Basic Functions
Displaying the clock
● During playback, press DISPLAY/CLOCK on
the remote control repeatedly to switch
between the clock display and the playback
display
STANDBY
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
OR
AUX
SHUFFLE
DISPLAY/CLOCK
VOL
Press and hold STANDBY-ON/ ECO
POWER to switch the set to standby mode (or
y on the remote control)
➜ The clock is displayed
Helpful hints:
– When playing MP3 files, you will get track
information by pressing DISPLAY/CLOCK.
Display adjustment
STANDBY
You can select the desired brightness for the
display panel.
CD
TUNER
USB
TAPE
AUX
● On the remote control, press DIM repeatedly
to select DIM 1, DIM 2, DIM 3 or DIM OFF
➜ DIM appears if DIM is activated
MUTE
INC. SURR
DIM
BASS
USB
SLEEP/TIMER
TIMER ON/OFF
TREBLE
MUTE
STANDBY- ON
ECO POWER
WMA-MP3-CD/CD-R/CD-RW COMPA
Helpful hints:
– In standby mode, pressing DISPLAY/CLOCK
button will switch the system to ECO POWER
mode.
15
001-033_MCM760_12_Eng
15
3/29/06, 12:48 PM
Basic Functions
English
Volume control
Sound control
Volume adjustment
● Adjust the volume by using the VOLUME
rotary on the set or by pressing VOL +/- on the
remote control
➜ VOL MUTE is the minimum volume level
➜ 0 dB is the maximumvolume level
Incredible surround
● Press INC. SURR. once or more to turn the
surround sound effect on or off
➜ INCREDIBLE SURROUND appears if activated
➜ IS OFFappears if deactivated
STANDBY
INC. SURR
CD
TUNER
TAPE
DIM
AUX
BASS
REPEAT
PROGRAM
TAPE A /B
SLEEP/TIMER TIMER ON/OFF
TREBLE
SHUFFLE
DISPLAY/CLOCK
USB
MUTE
VOL
PRESET
1
2
MUTE
Bass/Treble
You can temporarily switch off the sound
without switching off the set.
Press MUTE on the remote control to switch
off the sound
➜ MUTE appears. Playback continues without
sound
To switch on the sound, you can:
– press MUTE again;
– adjust the volume controls
The BASS (low tone) and TREBLE (high tone)
feature enables you to define the soundprocessor settings.
USB
● Adjust BASS or TREBLE (or press BASS
+-/TREBLE +- on the remote control)
repeatedly to select the desired Bass or Treble
level
➜ "BASS XX" or "TREBLE XX" appears, where
"XX" denotes the level as follows:
Min ™ -2 …™ 0 ™ 1… ™ +2 ™ Max …
MUTE
INC. SURR
DIM
BASS
USB
SLEEP/TIMER TIMER ON/OFF
TREBLE
MUTE
16
001-033_MCM760_12_Eng
16
3/29/06, 12:48 PM
IMPORTANT!
– Make sure that the file names of MP3 files end
with .mp3.
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for CD burning/
conversion. Visit www. microsoft.com for details
about Windows Media Player and WM DRM
(Windows Media Digital Rights Management).
Discs for playback
With this system, you can play
– all pre-recorded audio CDs (CDDA)
– all finalized audio CD-Rs and CD-RWs
– MP3/WMA-CDs (CD-Rs/CD-RWs with
MP3/WMA files)
Playing discs
IMPORTANT!
– This system is designed for regular
discs. Therefore, do not use any
accessories such as disc stabilizer rings or
disc treatment sheets, etc.
1
Press CD to select CD source
➜ The CD icon
appears
➜ The selected CD source lights up blue
2
Press OPEN/CLOSEç to open the CD
compartment
➜ OPEN is displayed
About MP3/ WMA
DISC
The music compression technology MP3
(MPEG1 Audio Layer 3) and WMA (Windows
Media Audio) significantly reduces the digital data
of an audio CD while maintaining CD quality
sound.
Windows Media Audio® is a registered
trademark of Microsoft Corporation.
OPEN/
CLOSE
STANDBY- ON
ECO POWER
USB RECORD
Supported formats:
– Disc format ISO9660, Joliet, UDF 1.5 and
multi-session CDs
– MP3 bit rate (data rate): 32-256 Kbps and
variable bit rate
– Directory nesting up to a maximum of 8
levels
– Supported sampling frequencies: 32 kHz,
44.1 kHz, 48 kHz
– Maximum title number : 400 (depending on
filename length)
– Maximum album number : 40
– WMA v9 or earlier
The system will not play or support the
following:
• Empty albums: an empty album is an album
that does not contain MP3/WMA files, and will
not be shown in the display.
• Non-supported file formats are skipped. This
means that e.g.: Word documents .doc or MP3
files with extension .dlf are ignored and will not
be played.
• DRM protected WMA files
• WMA files in Lossless or VBR format
TAPE RECORD
PROGRAM
OPEN / CLOSE
MP3-CD / CD-R / CD-RW COMPATIBLE
M I C R O
S Y S T E M
MCM760 MICRO SYSTEM
WMA-MP3-CD/CD-R/CD-RW COMPATIBLE
iR
CD
3
TUNER
USB
TAPE / AUX
Insert a disc with the printed side facing up.
Press OPEN/CLOSEç again to close the
compartment
➜ READING is displayed as the CD player scans
the contents of a disc
➜ Audio CD: the total number of tracks and
playing time are shown
MP3/WMA: Display shows current album
number “A x x “and current track number
“T x xx”
DISC
CD
DISC
MP3
CD
17
001-033_MCM760_12_Eng
17
3/29/06, 12:48 PM
English
CD
CD
English
Helpful hints:
– If you have not organized MP3/WMA files into
any albums on your disc, an album “01” will be
automatically assigned for all those files.
4
Press ÉÅ to start playback
➜ Display shows current track
number and elapsed playing time
Selecting and searching
Selecting a different track
● Pressí or ëonce or repeatedly until the
desired track number appears in the display
MP3/WMA: ➜ Track information scrolls briefly
MP3/WMA:
DISC
MP3
CD
5
6
To pause playback, pressÉÅ. To resume
playback, press the button again
● Press ALBUM à / á once or more to select
the next or previous album
➜ Track information scrolls briefly
or
● In the stop position, press à / á and í or
ë to select the desired album and track
➜ MP3/WMA: Display shows current album/
track number
To stop playback, press STOPÇ
Helpful hints:
CD playwill also stop when
– the CD door is opened
– the disc has reached the end
– you select another source: TUNER, USB or
TAPE/AUX
Finding a passage within a track
during playback
1
2
During playback, press and hold à or á
➜ The CD plays at a high speed
When you recognize the passage you want,
release à or á
➜ Normal playback resumes
STANDBY
STANDBY
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
AUX
SHUFFLE
DISPLAY/CLOCK
CD
TUNER
REPEAT
VOL
TAPE
PROGRAM
TAPE A /B
AUX
SHUFFLE
DISPLAY/CLOCK
VOL
PRESET
PRESET
ALBUM
TAPE REC
USB REC
USB DEL
18
001-033_MCM760_12_Eng
18
3/29/06, 12:48 PM
SNOOZE
4
Programming tracks
1
You may store up to 99 tracks in the desired
sequence. If you like, store any track more than
once.
In the stop position, press PROGRAM to start
programming
➜ PROG flashes
➜ Audio CD: Display shows current
track number
MP3/WMA: Display shows current album/
track number
DISC
6
Press Ç to stop programming
➜ PROG stops flashing
➜ Audio CD: Display shows the number and
playing time of tracks programmed
➜ MP3/WMA: Display shows the album/ track
number you just stored
Press ÉÅ play the program
Helpful hints:
– The set will return to the stop position if no
button is pressed within 20 seconds.
PROG stops flashing. To resume programming, press
PROGRAM.
PROG
CD
DISC
5
Repeat steps 2-3 to select and store all desired
tracks.
➜ PROGRAM FULL is displayed if you attempt
to program more than 99 tracks
Erasing the program
PROG
MP3
CD
You can erase the contents of the memory by:
2
Press í or ë once or repeatedly until the
desired track number appears in the display
● MP3/WMA: Press à / á and í / ë to
select the desired album and track
3 Press PROGRAM to confirm
➜ Audio CD: Display shows briefly the
number and playing time of tracks programmed;
Then, the display shows PROG and the track
number you just stored
➜ MP3/WMA: Display shows briefly the
number of tracks programmed;
Then, the display shows the album/ track number
you just stored
● Press 9
– once if in the stop position (after you stop
programming);
– twice during playback;
● Press STANDBY-ON/ECO POWER y
● Select another sound source
● Open the CD door
➜ PROG disappears. PROGRAM CLEARED
scrolls
STANDBY
CD
TUNER
REPEAT
DISC
TAPE
PROGRAM
AUX
SHUFFLE
PROG
CD
TAPE A /B
DISC
DISPLAY/CLOCK
PROG
CD
19
001-033_MCM760_12_Eng
19
3/29/06, 12:48 PM
English
CD
CD
English
Different play modes: REPEAT,
SHUFFLE
REP( REPEAT TRACK/
REPEAT PROGRAM) – plays the current
track/program continuously
REP ALL(REPEAT DISC)– plays the entire
disc continuously
SHUFFLE – plays all the tracks of the disc/
program in random order
SHUFFLE REP - plays all the tracks of the
program continuously in random order
SHUFFLE REP ALL– plays all the tracks of
the disc continuously in random order
Display track information
(MP3/WMA only)
● During playback, press DISPLAY/CLOCK
repeatedly on the remote control
➜ Display show title name and album name
STANDBY
CD
TUNER
REPEAT
PROGRAM
TAPE A /B
1
Press once or more REPEAT or SHUFFLE
to select play modes
2
To return to normal playback, press REPEAT or
SHUFFLE repeatedly until the various modes
are no longer displayed
– You will also cancel the play modes by pressing
USB RECORD
TAPE
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
VOL
AUX
SHUFFLE
DISPLAY/CLOCK
Helpful hints:
– In the shuffle mode, press ë to select tracks.
20
001-033_MCM760_12_Eng
20
SHUFFLE
DISPLAY/CLOCK
STANDBY
CD
AUX
3/29/06, 12:48 PM
1
2
Tuning to radio stations
Programming radio stations
Press TUNER to select TUNER source
Press TUNER repeatedly to select your desired
waveband, FM or MW
➜ Display shows:
, radio station
frequency, waveband and if programmed, a
preset number
You can store up to a total of 40 radio stations
(FM and MW) in the memory, manually or
automatically (Autostore).
TUNER
FM
3
4
Press and hold à or á until SEARCH
appears
➜ The radio automatically tunes to a station
with sufficient reception. Display shows SEARCH
during automatic tuning
➜ FM: If a station is received in stereo,
is
shown
➜ FM: When you are receiving an RDS station,
is shown
Repeat step 3 if necessary until you find the
desired station.
● To tune to a weak station, press à or á
briefly and repeatedly until you have found
optimal reception
STANDBY
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
AUX
SHUFFLE
Plug & Play
Plug & Play allows you to store all available radio
stations automatically.
1
Connect the system to the power supply
➜ "AUTO INSTALL – PRESS PLAY" appears.
Or
In Eco Power standby/ standby mode,
press and hold ÉÅ on the set until "AUTO
INSTALL – PRESS PLAY" appears
2
Press ÉÅ on the set to start installation
➜ "INSTALL TUNER AUTO" appears
➜ All previously stored radio stations will be
replaced
➜ After all stations are stored, the last preset
station will then be played
Helpful hints:
– If the first preset is a RDS station, it will proceed
to clock setting (See Tuner: Clock setting via
RDS).
➜ "INSTALL" appears, then "TIME" and
"SEARCH RDS TIME".
➜ When RDS time is read, "RDS TIME" will
appear and the current time will be stored.
➜ If RDS station does not transmit RDS time
within 90 seconds, “NO RDS TIME” will appear
and the programme will exit automatically.
DISPLAY/CLOCK
VOLUME
PRESET
TREBLE
PLAY/PAUSE
VOL
BASS
ALBUM
STOP/DEMO
PRESET
OPEN CLOSE
ALBUM
TAPE REC
USB REC
USB DEL
SNOOZE
21
001-033_MCM760_12_Eng
21
3/29/06, 12:48 PM
English
Tuner
Tuner
English
Autostore: Automatic programming
Automatic programming will start from preset 1
or a chosen preset number. From this preset
number upwards, former programmed tuner
stations will be erased. The set will only program
stations which are not in the memory already.
1
Press the í or ë buttons once or more to
select the preset number where programming
should start.
Note:
– If no tuner preset number is selected, default is
preset 1 and all your presets will be erased.
2
Press and hold PROGRAM until AUTO
appears
➜ PROG flashes
➜ Available stations are programmed:
FM stations followed by MW stations
➜ After all stations are stored, the last preset
station will then be played
To listen to a preset station
● Press the í or ë buttons once or more until
the desired preset station is displayed
Deleting a preset radio station
● Press and hold Çuntil “ PRESET DELETED”
appears.
➜ The current preset radio station will be
deleted
➜ The preset radio stations behind it move
forward by one number
RDS
The feature RDS (Radio Data System) is a
service that allows FM stations to send additional
information along with the regular FM radio
signal. When you are receiving an RDS station,
and the station name are displayed.
Switching through RDS information
1
STANDBY
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
AUX
SHUFFLE
DISPLAY/CLOCK
2
Tune to the desired RDS radio station on the
FM waveband (see Tuning to radio stations)
Press RDS/NEWS on the set repeatedly to
switch through the following information (if
available):
– Station name
– Program type (for example: News, Sport, etc.)
– Radio text messages
– Frequency
Manual programming
1
2
Tune to your desired station (see Tuning to
radio stations)
Press PROGRAM to activate programming
➜ The preset number starts flashing
3
Press í or ë to allocate a number from 1 to
40 to this station
4
Press PROGRAM to confirm
➜ Display shows the preset number, waveband
and the frequency of the preset station
5
STANDBY-ON
ECO POWER
USB RECORD
TAPE RECORD
WMA-MP3-CD/CD-R/CD-RW COMPATIBLE
Repeat steps 1-4 to store other stations
● You can erase a preset station by
storing another frequency in its place
22
001-033_MCM760_12_Eng
22
3/29/06, 12:48 PM
RDS/NEWS
OPEN/CLOSE
1
2
Clock setting via RDS
NEWS
Some RDS radio station may be transmitting a
real clock time at an interval of every minute. It
is possible to set the clock by using a time signal
which is broadcast together with the RDS signal.
While listening to CD, USB, TAPE or AUX
source, you can activate NEWS. The set will
tune to the news/traffic announcement if the
related signals are received from a RDS station.
Tune to the desired RDS radio station on the
FM waveband (see Tuning to radio stations)
Activating the NEWS function
Press CLOCK twice
STANDBY
CD
TUNER
REPEAT
TAPE
PROGRAM
TAPE A /B
AUX
SHUFFLE
DISPLAY/CLOCK
VOL
3
Press RDS/NEWS
➜ "SEARCH RDS TIME" appears
➜ When RDS time is read, the current time will
be stored
➜ If the RDS station does not transmit RDS
time within 90 seconds, " NO RDS TIME"
appears
Helpful hints:
– The time signal broadcast from certain RDS
stations may not always be accurate..
● During playback in CD, USB,TAPE or AUX
source, press RDS/NEWS until "NEWS"
appears
➜ Playback continues when the set scans for
RDS news
➜ When news transmission is detected, the set
will switch to the news station. "NEWS" starts
flashing
Helpful hints:
– Make sure you have stored RDS stations in the
first 5 preset locations (See Programming radio
stations).
– If no news transmission is detected during the
set’s scanning, "NO RDS NEWS" appears.
Deactivating NEWS function
● Press RDS/NEWS again
or
● Switch the set to TUNER source
STANDBY-ON
ECO POWER
USB RECORD
TAPE RECORD
RDS/NEWS
OPEN/CLOSE
WMA-MP3-CD/CD-R/CD-RW COMPATIBLE
23
001-033_MCM760_12_Eng
23
3/29/06, 12:48 PM
English
Tuner
USB
English
Using a USB mass storage device
On MCM760, you can playback music from a
USB mass storage device and also, record music
to such a device.
By connecting a USB mass storage device to the
Hi-Fi system, you can enjoy the device’s stored
music through the powerful speakers of Hi-Fi
system.
Compatible USB mass storage devices
With the Hi-Fi system, you can use
– USB flash memory (USB 2.0 or USB1.1)
– USB flash players (USB 2.0 or USB1.1)
– memory cards (requires an additional card
reader to work with this Hi-Fi system)
Note:
– In some USB flash players (or memory
devices), the stored contents are recorded using
copyright protection technology. Such
protected contents will be unplayable on any
other devices (such as this Hi-Fi system).
– MTP (Media Transfer Protocol) USB devices are
not supported.
Supported formats:
– USB or memory file format FAT12, FAT16,
FAT32 (sector size: 512 - 65,536 bytes)
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
– WMA v9 or earlier
– Directory nesting up to a maximum of 8
levels
– Number of albums/ folders: maximum 99
– Number of tracks/titles: maximum 999
– File name in Uicode UTF8 (maximum length:
128 bytes)
The system will not play or support the
following:
• Empty albums: an empty album is an album
that does not contain MP3/WMA files, and will
not be shown in the display.
• Non-supported file formats are skipped. This
means that e.g.: Word documents .doc or MP3
files with extension .dlf are ignored and will not
be played.
• AAC, WAV, PCM audio files
• DRM protected WMA files
• WMA files in Lossless format
How to transfer music files from PC to a
USB mass storage device
By dragging and dropping music files, you can
easily transfer your favorite music from PC to a
USB mass storage device.
For the flash player, you can also use its music
management software for the music transfer.
However, those WMA files may be
unplayable for compatibility reasons.
How to organize your MP3/WMA files
on the USB mass storage device
This Hi-Fi system will browse the MP3/WMA
files in the folders/sub-folders/titles order.
Example:
Root
Title 001
Title 002
Title 003
Album 02
Title 001
Title 002
Title 003
Album 03
Title 001
Title 002
Title 003
Album 04
Title 001
Title 002
Title 003
Organize your MP3/WMA files in different
folders or subfolders as required.
Helpful hints:
– If you have not organized MP3/WMA files into
any albums on your disc, an album “01” will be
automatically assigned for all those files.
– Make sure that the file names of MP3 files end
with .mp3. and the file names of WMA files end
with .wma.
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for conversion. Visit www.
microsoft.com for details about Windows Media
Player and WM DRM (Windows Media Digital
Rights Management).
24
001-033_MCM760_12_Eng
24
3/29/06, 12:48 PM
1
2
Playing a USB mass storage
device
Recording to a USB mass
storage device
Check the USB device has been properly
connected. (See Installation: Connecting an
additional appliance)
Press USB to select USB source
➜ The icon
appears
– DEVICE NOT SUPPORTED appears if the
USB device is not supported by MCM760
– FILE SYSTEM ERROR appears if
unsupported file formats are used on the USB
device
With MCM760, you can record your favorite CD
music to a USB mass storage device. Carry your
favorite songs wherever you go.
IMPORTANT!
– Recording is permissible if copyright
or other rights of third parties are not
infringed upon.
– For CDs encoded with copyright
protection technologies by some record
companies, recording is restricted.
1
DISC
MP3
USB DIRECT
3
English
USB
– NO AUDIO appears if no audio file is found in
the USB device
Play the USB’s audio files as you do with the
albums/tracks on a CD (See CD)
2
3
Check the USB device has been properly
connected (See Installation: Connecting an
additional appliance)
Press CD to select CD source
Insert a disc with the printed side facing up.
Press OPEN/CLOSEç again to close the
compartment
Helpful hints:
– For compatibility reasons, the album/track
information may differ from what it is displayed
through flash players’ music management software.
OPEN/
CLOSE
STANDBY- ON
ECO POWER
USB RECORD
TAPE RECORD
PROGRAM
OPEN / CLOSE
MP3-CD / CD-R / CD-RW COMPATIBLE
M I C R O
S Y S T E M
MCM760 MICRO SYSTEM
WMA-MP3-CD/CD-R/CD-RW COMPATIBLE
iR
USB
MUTE
CD
TUNER
USB
TAPE / AUX
4
Press í or ë once or repeatedly until the
desired track number appears in the display
● MP3/WMA: Press à / á and í or ë to
select the desired album and track
Or
● Program your desired tracks (see CD:
Programming tracks)
- Make sure you press Ç after finishing
programming
25
001-033_MCM760_12_Eng
25
3/29/06, 12:48 PM
USB
English
5
Press USB RECORD once or more to select
your recording options:
RECORD TRACK– record the selected track
to the USB mass storage device
RECORD ALL – record the whole disc/
program to the USB mass storage device
1
2
➜ Playback and recording start from the
beginning
➜ A default folder name, e.g. F001, is assigned
➜ USB FULLappears if the storage space on
the USB device is full
➜ NUMBER FULLappears if the number of
folders exceeds 99 or the number of titles
exceeds 999
6
To find your ripped tracks
You can find and playback the ripped tracks in
the album _PHILIPS
Press USB on the set to select USB
Press à / á and í or ë to select the
desired album and track
– The audio CD files have been converted to
MP3 format and named as FXXX
TXXX.MP3 (where "FXXXX" denotes folder
name, and "TXXX" track name)
– For MP3/WMA files, the track information are
retained (the set only supports the file names in
English)
– Only the completely ripped MP3/WMA file
can be found and played by MCM760
Press Çto stop recording
To delete tracks from the USB device
ALBUM
TAPE REC
USB REC
INC. SURR
DIM
BASS
USB
USB DEL
SNOOZE
SLEEP/TIMER TIMER ON/OFF
TREBLE
1
2
3
MUTE
4
To record a disc during playback
● During playback, press USB RECORD
➜ Audio CD: Recording starts from current
playback point. Playback continues
➜ MP3/WMA: Recording and playback start
from the beginning of current track
Helpful hints:
– SLOW USB appears and CD playback pauses
if the USB device is slow and the recording cannot
be as fast as playback. However, the playback
pause will not affect recording.
– FILE EXIST appears and recording stops if
the track being recorded already exists in the USB
device.
Press USB to select USB source
Press í or ë once or repeatedly until the
desired track number appears in the display
Press USB DEL on the remote control
➜ Display shows “PRESS USB DELTO
DELETE”
Press USB DEL again to confirm
To delete an album from the USB device
(MP3/WMA only)
1
In the stop position, press à / á to select the
desired album
2
Press and hold USB DEL until the display
shows “PRESS USB DELTO DELETE”
Press USB DEL again to confirm
3
ALBUM
TAPE REC
USB REC
INC. SURR
DIM
BASS
USB
USB DEL
SNOOZE
SLEEP/TIMER TIMER ON/OFF
TREBLE
MUTE
Note:
– On MCM760, the tracks of some USB devices
may be indelible.
26
001-033_MCM760_12_Eng
26
3/29/06, 12:48 PM
IMPORTANT!
– Before playing a tape, check and tighten
slack tape with a pencil. Slack tape may get
jammed or may burst in the mechanism.
– C-120 tape is extremely thin and is easily
deformed or damaged. It is not
recommended for use in this system.
– Store the tapes at room temperature and
do not put them too close to a magnetic
field (for example, a transformer,TV or
speaker).
Playing a tape
1
Press TAPE/AUX once or more to select
TAPE(or TAPE on the remote control)
2
Press OPEN/CLOSE 0 to open the tape deck
door
ALBUM
STOP/DEMO
OPEN CLOSE
To change the playback side
● Press í or ë
➜ A (BACK) or B (FRONT) appears on the
display, depending on the tape side selected
To change the playback mode
● Press TAPE A/B on the remote control
repeatedly to select the different playback
modes
å
: plays one side of the tape
∂
: plays both sides once
∫ : plays both sides repeatedly (up
to 10 times)
To rewind or fast forward
1
2
Press à or á
Press Ç when you reached the desired passage
➜ The tape will stop automatically at the end of
rewinding or fast forwarding.
To stop playback
● Press Ç
Helpful hints:
– During rewinding or fast forwarding of a tape, it
is also possible to select another source (CD or
TUNER, for example).
3
4
Recording to a tape
Insert a recorded tape and close the tape deck
door.
➜ Load the tape with the open side downward
and full spool to the left
Press ÉÅ to star t playback
➜ At the end of one side, the tape playback will
be automatically reversed and start from the
beginning of the other side
➜ A (BACK) or B (FRONT) appears
General information on recording
● For recording, use only tape of IEC type I
(normal tape).
● The recording level is set automatically,
regardless of the position of the Volume,
Incredible Surround, BASS/TREBLE and so forth.
● The tape is secured at both ends with leader
tape. At the beginning and end of the tape,
nothing will be recorded for six to seven
seconds.
● To prevent accidental recording, break out the
tab on the left shoulder of the tape side you
want to protect.
● If “CHECK TAPE” is displayed, the protection tab
has been broken. Put a piece of clear adhesive
tape over the opening.
27
001-033_MCM760_12_Eng
27
3/29/06, 12:48 PM
English
TAPE
TAPE
English
IMPORTANT!
Recording is permissible if copyright or
other rights of third parties are not
infringed upon.
2
3
4
5
One touch recording
1
Preparation
1
Tape recording
Press TAPE/AUX once or more to select
TAPE(or TAPE on the remote control)
Load a recordable tape into the tape deck.
Press í or ë on the remote control to select
the recording tape side.
➜ A appears on the display for the reverse side
➜ B appears on the display for the forward
side
Press TAPE A/B repeatedly on the remote
control to select a recording mode.
➜ å for recording on one side only.
➜ ∂ for recording on both sides.
Prepare the source to be recorded.
CD – load the disc
TUNER – tune to the desired radio station
USB – connect a USB device
AUX – connect external equipment
Helpful hints:
When recording is in progress, it is not possible:
– to change tape side;
2
3
4
Select the recording source: CD, TUNER,
USB or AUX
Start playback of the selected source
Press TAPE RECORD
➜ REC starts flashing
To stop recording, pressÇon the set
CD/USB Synchro start recording
1
Select the recording source: CD or USB
2
If necessary, press í or ë once or repeatedly
until the desired track number appears in the
display
● MP3/WMA: Press à / á and í or ë to
select the desired album and track
Or
● Program your desired tracks (see CD:
Programming tracks)
- Make sure you press Ç after finishing
programming
2
Press TAPE RECORD
➜ The playback and recording start
automatically
– to activate the timer function.
3
– One Touch Recording is not possible in TAPE
mode, "SELECT SOURCE" will appear.
For brief interruption, pressÉÅ. To resume
recording, press ÉÅagain
4
– to listen to another source;
To stop recording, pressÇ
➜ Recording and playback will stop
simultaneously
28
001-033_MCM760_12_Eng
28
3/29/06, 12:48 PM
Timer
AUX (Listening to an external
source)
Setting the timer
The set can be used as an alarm clock, whereby
the selected source (CD, TUNER, USB or TAPE)
starts playback at a preset time. Make sure the
clock is set before using the timer.
You can listen to the sound of the connected
external device through your MCM760
1
2
3
4
5
Check the external device has been properly
connected (See Installation, Connecting an
additional appliance)
Press TAPE/AUX once or more to select
AUX (or AUX on the remote control)
To avoid noise distor tion, turn down the volume
on your external device
Press the PLAY key on the connected device to
start playback
To adjust the sound and volume, use the sound
controls on your external device and the
MCM760
1
IMPORTANT!
– if recording is in progress, the timer
function will not be activated.
– The volume of the timer will increase
gradually to the last tuned volume level.
If the last tuned volume level is too low,
the set will then increase to a
predetermined minimum audible level
(-29dB).
On the remote control, press and hold
SLEEP/TIMER
➜
icon starts flashing
2
Select the timer source: CD, TUNER, USB or
TAPE
➜ The selected source lights up
3
4
Press à or á repeatedly to set the hour
5
Press SLEEP/TIMER to store the setting
➜
icon stops flashing. The timer is now set
and activated
➜ At the set alarm time, the CD, TUNER,
USB or TAPE will switch on and after 30
minutes switch to ECO POWER
automatically
Press ÉÅ to change to minutes setting, then
press à or á repeatedly to set the minutes
Note:
– The set will exit from the timer setting mode if
no button is pressed within 90 seconds.
29
001-033_MCM760_12_Eng
29
3/29/06, 12:48 PM
English
AUX
Timer
SLEEP/ Demonstration mode
English
Helpful hints:
The timer will not work at the set time if
- the set is switched on
- the timer is deactivated
The set will switch to Tuner source
automatically if :
- no CD is inserted when the selected source is CD;
- no USB device is connected when the selected
source is USB
Activating and deactivating
TIMER
● Press TIMER ON/OFF on the remote control
to turn off the timer or turn on to the last
setting again.
➜ If activated, the timer information are
displayed
➜ If deactivated, “OFF” appears
Temporarily deactivating TIMER
1
2
Within 30 seconds after the timer is activated,
press SNOOZE on the remote control
➜ The set will switch to standby mode for 5
minutes. And then, the timer will be
re-activated
To cancel the snooze function, press SNOOZE
again
SLEEP
You can set a certain period of time after which
the set will switch to ECO POWER.
1
2
On the remote control, press SLEEP/TIMER
repeatedly to select the desired time period
options (in minutes):
➜ Display shows in sequence: SLEEP 15, 30,
45, 60, 90, 120, SLEEP OFF
➜ Display shows the selected option briefly and
returns to its previous status. The icon
appears
To view the time countdown to ECO POWER.,
press SLEEP/TIMER again
To deactivate the sleep timer, press
SLEEP/TIMER until SLEEP OFF is displayed
or
Press STANDBY-ON/ ECO POWER to
switch off the set (or y on the remote control)
Demonstration mode
The demonstration mode displays various
features of MCM760.
To activate the demonstration
● When the set is switched off,
press and hold Ç on the set until "DEMO ON"
appears
➜ The demonstration mode will be activated
when the set is switched off
To deactivate the demonstration
● Press and hold Ç on the set until
"DEMO OFF" appears
30
001-033_MCM760_12_Eng
30
3/29/06, 12:48 PM
AMPLIFIER
Output power
................................................................... 2 x 150 W MPO
2 x 75 W RMS(1)
Signal-to-noise ratio .......................... ≥ 75 dBA (IEC)
Frequency response ............ 50 – 20000 Hz, –3 dB
Input sensitivity
AUX ......................................................................... 500 mV
Output
Speakers ...................................................................... ≥ 6 Ω
Headphones ........................................ 32 Ω – 1000 Ω
(1) (6 Ω, 1 kHz, 10% THD)
DISC PLAYER
Programmable tracks .................................................... 99
Frequency response ............ 20 – 20000 Hz, –3 dB
Signal-to-noise ratio ....................................... ≥ 76 dBA
Channel separation .......................... ≥ 55 dB (1 kHz)
MPEG 1 Layer 3 (MP3-CD) ............ MPEG AUDIO
MP3/WMA-CD bit rate ........................ 32-256 kbps
............................................................... (128 kbps advised)
Sampling frequencies ....................... 32, 44.1, 48 kHz
TUNER
FM wave range ................................ 87.5 – 108 MHz
MW wave range ................................ 531 – 1602 kHz
Number of presets ........................................................ 40
Antenna
FM ......................................................................... 75 Ω wire
MW .............................................................. Loop antenna
TAPE PLAYER
Frequency response ............................................................
CrO2 tape (type II) ........... 80 – 12500 Hz, –8 dB
Normal tape (type I) ....... 80 – 12500 Hz, –8 dB
Signal-to-noise ratio
CrO2 tape (type II) ..................................... ≥ 50 dBA
Normal tape (type I) ................................. ≥ 47 dBA
Wow and flutter ..................................... ≤ -0.48% DIN
SPEAKERS
System ................................................... 2 way, Bass reflex
Impedance ........................................................................ 6 Ω
Woofer .......................................... 1 x 5.25" Aluminium
............................................................................... con woofer
Tweeter .................................................... Ribbon tweeter
Dimensions (w x h x d)
.......................................................... 175 x 252 x 196 (mm)
Weight
................................................................................. 3.1 kg each
6.82 pounds each
GENERAL
Material /finish ................................. Polystyrene /Metal
AC Power ..................................... 220 – 230 V / 50 Hz
............................... 230 – 240 V / 50 Hz (for the UK)
Power Consumption
Active .......................................................................... 130 W
Standby .................................................................. < 15 W
Eco Power Standby ............................................. < 1 W
Dimensions (w x h x d) ...... 179 x 252 x 340 (mm)
Weight (without speakers) ............................... 5.53 kg
Specifications and external appearance are subject
to change without notice.
Maintenance
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
● Do not use solvents such as benzene, thinner,
commercially available cleaners, or antistatic
spray intended for analogue records.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
Cleaning Discs
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
31
001-033_MCM760_12_Eng
31
3/29/06, 12:48 PM
English
Specifications
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Problem
Solution
“NO DISC” is displayed.
✔ Insert a disc.
✔ Wait until the moisture condensation at the lens
has cleared.
✔ Replace or clean the disc, see “Maintenance”.
✔ Use a finalised CD-RW or a correct MP3/WMA
-CD format disc.
Some files on the USB device are not
displayed.
✔ Check if the number of folders exceeds 99 or
the number of titles exceeds 999.
✔ Only the completely ripped MP3/WMA file can
be found and played by MCM760. Check if the
file has been completely ripped.
“POWER NOT ENOUGH” is displayed.
✔ Check if the USB device needs extra power
supply.
✔ If the signal is too weak, adjust the antenna or
Radio reception is poor.
connect an external antenna for better
reception.
✔ Increase the distance between the Micro HiFi
System and your TV or VCR.
Tape recording or playback cannot be
made.
✔ Use only NORMAL (IEC I) tape.
✔ Apply a piece of adhesive tape over the missing
tab space.
The tape deck door cannot open.
✔ Remove and reconnect the AC power plug and
switch on the system again.
The system does not react when buttons
are pressed.
✔ Remove and reconnect the AC power plug and
Sound cannot be heard or is of poor
quality.
✔
✔
✔
✔
switch on the system again.
Adjust the volume.
Disconnect the headphones.
Check that the speakers are connected correctly.
Check if the stripped speaker wire is clamped.
32
001-033_MCM760_12_Eng
32
3/29/06, 12:48 PM
English
Troubleshooting
The left and right sound outputs are
reversed.
✔ Check the speaker connections and location.
The remote control does not function
properly.
✔ Select the source (CD or TUNER, for example)
✔
✔
✔
✔
before pressing the function button (ÉÅ,í,
ë).
Reduce the distance between the remote
control and the system.
Insert the battery with its polarities
(+/– signs) aligned as indicated.
Replace the battery.
Point the remote control directly toward
IR sensor on the front of the system.
✔ Check the set is switched off
✔ Set the clock correctly.
✔ Press TIMER to switch on the timer.
The timer is not working.
The Clock/Timer setting is erased.
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
33
001-033_MCM760_12_Eng
33
3/29/06, 12:48 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
