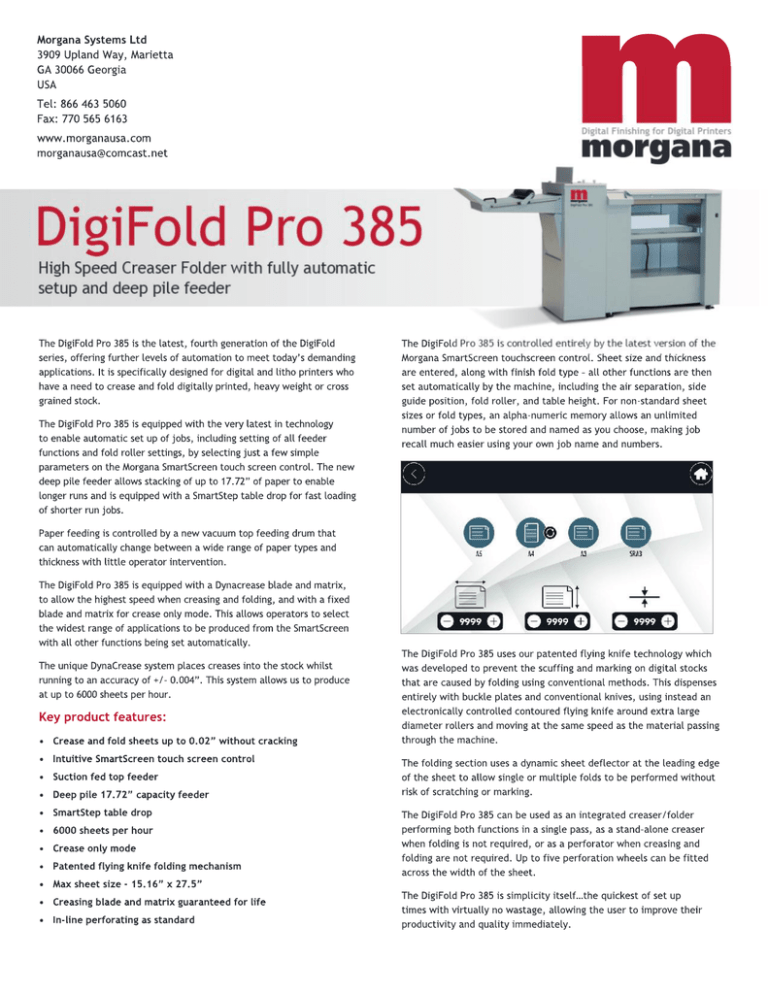

Page 1 Morgana Systems Ltd 3909 Upland Way, Marietta GA 30066

Page 1 Morgana Systems Ltd 3909 Upland Way, Marietta GA 30066
Morgana Systems Ltd
3909 Upland Way, Marietta
GA 30066 Georgia
USA
Tel: 866 463 5060
Fax: 770 565 6163
WWW. morganausa.com
[email protected]
DigiFold Pro 385
High Speed Creaser Folder with fully automatic
setup and deep pile feeder
The DigiFold Pro 385 is the latest, fourth generation of the DigiFold
series, offering further levels of automation to meet today’s demanding
applications. It is specifically designed for digital and litho printers who
have a need to crease and fold digitally printed, heavy weight or cross
grained stock.
The DigiFold Pro 385 is equipped with the very latest in technology
to enable automatic set up of jobs, including setting of all feeder
functions and fold roller settings, by selecting just a few simple
parameters on the Morgana SmartScreen touch screen control. The new
deep pile feeder allows stacking of up to 17.72” of paper to enable
longer runs and is equipped with a SmartStep table drop for fast loading
of shorter run jobs.
Paper feeding is controlled by a new vacuum top feeding drum that
can automatically change between a wide range of paper types and
thickness with little operator intervention.
The DigiFold Pro 385 is equipped with a Dynacrease blade and matrix,
to allow the highest speed when creasing and folding, and with a fixed
blade and matrix for crease only mode. This allows operators to select
the widest range of applications to be produced from the SmartScreen
with all other functions being set automatically.
The unique DynaCrease system places creases into the stock whilst
running to an accuracy of +/- 0.004”. This system allows us to produce
at up to 6000 sheets per hour.
Key product features:
e Crease and fold sheets up to 0.02” without cracking
e Intuitive SmartScreen touch screen control
* Suction fed top feeder
Deep pile 17.72” capacity feeder
e SmartStep table drop
e 6000 sheets per hour
e Crease only mode
e Patented flying knife folding mechanism
e Max sheet size - 15.16” x 27.5”
e Creasing blade and matrix guaranteed for life
o In-line perforating as standard
Jigital Finishing for Digital Pri
The DigiFold Pro 385 is controlled entirely by the latest version of the
Morgana SmartScreen touchscreen control. Sheet size and thickness
are entered, along with finish fold type - all other functions are then
set automatically by the machine, including the air separation, side
guide position, fold roller, and table height. For non-standard sheet
sizes or fold types, an alpha-numeric memory allows an unlimited
number of jobs to be stored and named as you choose, making job
recall much easier using your own job name and numbers.
© & © ©
Aa
= EN +
The DigiFold Pro 385 uses our patented flying knife technology which
was developed to prevent the scuffing and marking on digital stocks
that are caused by folding using conventional methods. This dispenses
entirely with buckle plates and conventional knives, using instead an
electronically controlled contoured flying knife around extra large
diameter rollers and moving at the same speed as the material passing
through the machine.
The folding section uses a dynamic sheet deflector at the leading edge
of the sheet to allow single or multiple folds to be performed without
risk of scratching or marking.
The DigiFold Pro 385 can be used as an integrated creaser/folder
performing both functions in a single pass, as a stand-alone creaser
when folding is not required, or as a perforator when creasing and
folding are not required. Up to five perforation wheels can be fitted
across the width of the sheet.
The DigiFold Pro 385 is simplicity itself...the quickest of set up
times with virtually no wastage, allowing the user to improve their
productivity and quality immediately.
DigiFold Pro 385
High Speed Creaser Folder with fully automatic
setup and deep pile feeder
Maximum sheet size 15.16” x 27.5”
Minimum sheet size 8.25” x 5.85”
Maximum paper thickness 0.015” (approx 150lb)*
Minimum paper thickness 0.004” (approx 20lb uncoated)*
Feeder Pile height 17.72”
Maximum number of folds per sheet 2
Maximum number programmed applications 50
Minimum repeat crease distance 0.04”
Creasing blades 2
Minimum repeat fold distance 2.75” (depending on paper weight)
Minimum crease distance from lead edge 0.1”
Minimum fold distance from lead edge 1.97” (depending on paper weight)
Minimum crease distance from tail edge 0.1”
Minimum fold distance from tail edge 1.97” (depending on paper weight)
Minimum fold length 2.75”
Speed per hour (A4 in half) 6000 sph
Dimensions L 89.57” x W 26.78” x H 50” (approx)
Weight 573lbs (approx)
Power requirement 100-240v 50/60hz
Options
Narrow Creasing blade
The DigiFold Pro 385 uses our patented flying knife technology
“Disclaimer
As part of our continued product improvement plan, specifications and information published here are subject to change without notice.
All specifications are dependent on application, type of stock, temperature, RH and print engine used.
Specifications quoted were measured on uncoated and unprinted stock.
E & OE.
Digital Finishing for Digital Printers
DigiFold Pro 385 Data Sheet V1 - USA morgana
