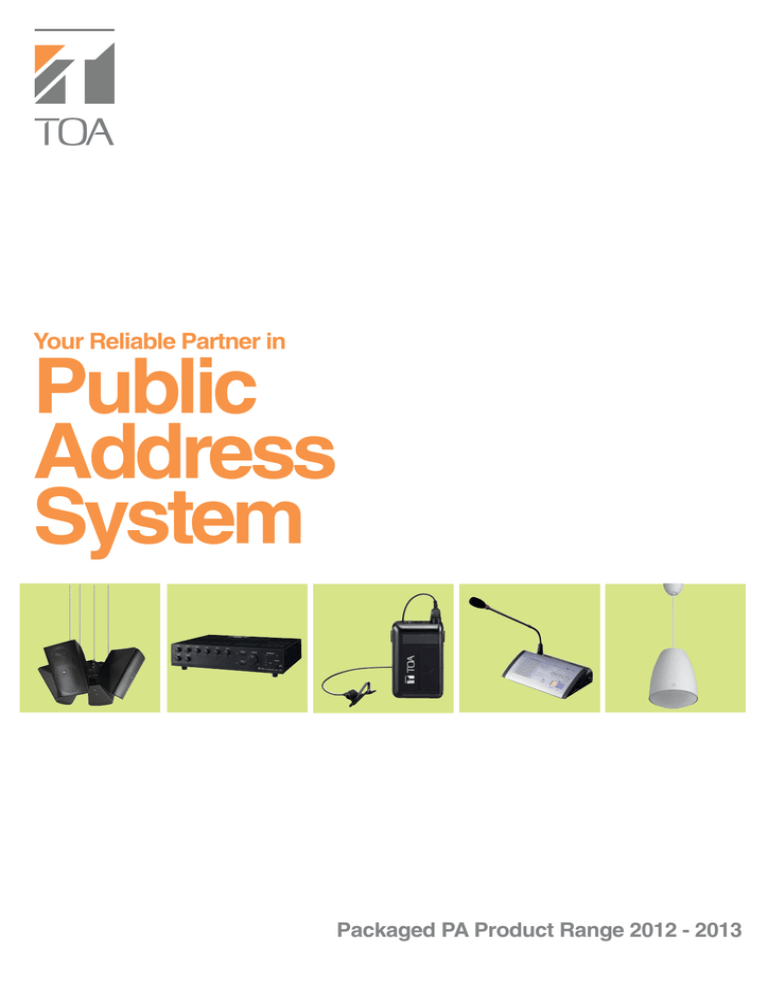

TOA

Your Reliable Partner in

Public

Address

System

Packaged PA Product Range 2012 - 2013

We Supply Sound, Not Equipment.

That’s Our Corporate Philosophy.

11

Since being founded in 1934, as a manufacturer of commercial and professional audio equipment and security equipment, we have exported our products from Kobe to more than

100 other countries throughout the world.

Basic Management Policy

(Three Confidence)

• Total confidence of our customers

in the use of all products.

• Total confidence of our associates

in all business transactions.

• Total confidence of our employees

in all their effort.

In every company within the TOA group, which consists of the main company and 19 subsidiaries, we utilize the technical expertise and know-how that we have accumulated throughout the years in every aspect of production, from product planning and development right through to sales and management.

TOA’s Environmental

Principles

TOA recognizes preservation of the Earth’s environment as an important aspect of doing business in the world today. Our staff as a whole remains actively committed to pursuing all corporate activities in ways that give strong consideration to environmental protection.

We are constantly improving our technological capabilities in areas such as acoustics, graphics and networks, and developing innovative products in order to provide customers with the ultimate in good sound and peace of mind to help make their lives more comfortable.

Declaration of Social

Contribution

TOA voluntarily conducts activities to resolve diverse social issues and contribute to society in general as a “good corporate citizen” trusted by society. We aim to grow together company,” by effectively using company resources and conducting original activities with a strong awareness of our relationship with “sound and video,” a business field we specialize in.

with society and become viewed by society as an “indispensable

Planning and Design Carried Out in Japan

Thorough Proving of Product

Design and Production

Processes

The basis of our quality assurance activities is the product planning and design that is carried out primarily in Japan in response to market needs and in compliance with ISO9001:14001 standards. Our dedicated professional staff inspect products at every stage of the production process using their years of experience and their high levels of technological expertise.

Quality Control on the Factory Floor

TOA production plants both within Japan and overseas are TOA’s own factories.

Numerous technicians from Japan are sent to our overseas production plants where they use state-of-the-art equipment to produce products under the same stringent quality control system as is used in our production facilities in Japan.

Furthermore, twice a year, staff from our Quality Control Division visit overseas production facilities to carry out inspections and ensure that quality standards are being maintained.

a.

b.

c.

d.

e.

f.

g.

Main Products

PA system amplifiers, Digital mixers,

IP intercom system, Audio signal processors

CCTV system

PA speakers and Pro-audio speakers

Package amplifiers

CCTV System and Infrared conference system

PA system amplifiers, Wireless microphone system

Package amplifiers, PA system amplifiers,

Conference system

2

Amplifiers

Packaged Amplifiers

A-2000 SerieS Mixer PoWer AMPlifierS

Front panel

A-2030 (30W) / A-2060 (60W) / A-2120 (120W) / A-2240 (240W)

• 3 electronically balanced microphone input, 2 AUX inputs and recording output

• Better acoustics can be achieved with bass and treble tone control

• Both AC and DC operation possible

• Phantom power provided to MIC1

P-2000 SerieS BooSTer AMPlifier

P-2240 (240W)

Front panel

• 2 balanced parallel inputs, 1 speaker line input

• Speaker output of constant voltage distribution system (70V or 100V) and low impedance (4Ω)

• Operates on both AC and DC power

• Power remote switch by make contact input

• 100V line speakers can be connected directly

H version

Specifications

Power source

Rated Output

Frequency Response

Distortion

Input

Output

Hi

Low

Rec out

Phantom Power

Power Consumption

S/N Ratio

Tone Control

Finish

Dimensions

Weight

A-2030

30W

A-2060

60W

A-2120 A-2240

AC mains or 24V DC

120W

50 – 20,000Hz

Under 1%

240W

P-2240

MIC 1 – 3: -60dB, 600Ω, balanced, AUX 1, 2: -20dB, 10kΩ, unbalanced, RCA Pin Jack

330Ω

4Ω (11V)

170Ω

4Ω (15.5V)

420(W) × 100.9(H) × 280.3(D)mm

5kg 7kg

83Ω

4Ω (22V)

0 dB (1.0mA), 600Ω, unbalanced, RCA Pin Jack

MIC 1

42Ω

4Ω (31V)

Over 60dB

Bass/Treble

Panel: ABS resin, black/Case: Steel plate, black

420(W) × 100.9(H) × 360.3(D)mm

10.8kg

13.2kg

Line in: 0dB, 10kΩ, balanced,

100V line in: 40dB, 330kΩ, unbalanced,

Power remote control: Make contact

Loop out: 0dB 10k

Ω, balanced

Speaker out balanced: High impedance:

42 Ω (100V), 21Ω (70V)

Low impedance: 4

Ω (31V)

238W (EN60065),

520W (AC operation at rated output),

15A (DC operation at rated output)

420(W) × 100.9(H) × 351.3(D)mm

13.2kg

3

Amplifiers

Package Amplifiers

Packaged Amplifiers

A-230 HV

A-230 HV

• Simple package amplifier with compact and lightweight body

• Suitable for paging and background music application

• Mic 1 auto-muting facilitates announcements at any time

• High performance with wide frequency response, and low noise and distortion

Specifications

Power Source

Rated Output

Frequency Response

Distortion

Input

Output

Phantom Power

S/N Ratio

Tone Control

Finish

Dimensions

Weight

A-1700 SerieS Mixer PoWer AMPlifier

Front panel

A-230 HV

220 - 230V AC, 50/60Hz or 12V DC

30W

50Hz - 20,000Hz, ± 3dB

Under 1% at 1kHz, 1/3 rated power

MIC 1 - 3: -60dB* (1.0 mV), 600Ω, unbalanced, phone jack

AUX: -20dB* (100 mV), 10kΩ, unbalanced, RCA Pin Jack

Speaker out: Floating balanced

High impedance: 330Ω (100V)

Low impedance: 4Ω (11V)

Over 60dB (MIC 1 - 3), Over 70dB (AUX)

Bass: -10dB at 100Hz, Treble: -10dB at 10kHz

Panel: ABS resin, black

Case: Steel plate, black

350(W) × 100(H) × 240(D)mm

3.5kg

A-1706 (60W) / A-1712 (120W) / A-1724 (240W)

• Phantom power to all connected microphones

• Easy tonal adjustment of all output signals with bass and treble controls

• Record output for connecting an external recorder to archive or back up broadcasts

• Line output to connect a signal processor such as equalizer

Specifications

Power Source

Rated Output

Frequency Response

Distortion

Input

Output

Speaker Selector

Phantom Power

S/N Ratio

Tone Control

Control Input

Finish

Dimensions

Weight

A-1706 A-1712

AC mains

A-1724

60W 120W

50 – 20,000Hz

240W

Under 2%

MIC 1-4: -60dB, 600Ω, electronically-balanced,

MIC 5-6/AUX 1-2: -60dB/-20dB, 600Ω electronically-balanced,

AUX 3-4: -20dB, 10kΩ, unbalanced,

AUX 5: -20dB, 10kΩ, unbalanced,

PWR AMP IN: 0dB, 600Ω, unbalanced

REC: 0dB, 600Ω, unbalanced,

LINE: 0dB, 600Ω, unbalanced

SPEAKER OUT: 100V line/167Ω, 4-16Ω

REC: 0dB, 600Ω, unbalanced,

LINE: 0dB, 600Ω, unbalanced

SPEAKER OUT: 100V line/83Ω, 4-16Ω

REC: 0dB, 600Ω, unbalanced,

LINE: 0dB, 600Ω, unbalanced

SPEAKER OUT: 100V line/42Ω, 4-16Ω

2 zone

MIC 1-6

9.3kg

Over 100dB

Bass/Treble

Remote volume, power remote

Panel: ABS resin, black

Case: Steel plate, black

420(W) × 107.7(H) × 367(D)mm

12.6kg

13.5kg

Amplifiers

Package Amplifiers

4

Packaged Amplifiers

A-1800 SerieS Mixer PoWer AMPlifier

Front panel

A-1803 (30W) / A-1806 (60W) /

A-1812 (120W)

P-1800 BooSTer AMPlifier

• 3 mic inputs, 3 auxiliary inputs, an emergency input as well as a telephone

paging input

• 2 speaker output zones which can be independently selected or direct out

• Provide phantom power to all connected microphones

• A line output is useful for adding more power in a particular zone by providing the input signal for a booster amplifier such as the P-1812

• Operated on AC or on DC24V to suit installation requirements

• Music On Hold (MOH) output-equipped

P-1812 (120W)

PBX

H

C

TRUNK

BOX

Specifications

Power Source

Rated Output

Frequency Response

Distortion

Input

Output

Speaker Selector

Phantom Power

S/N Ratio

Tone Control

Control Input

Control Output

Finish

Dimensions

Weight

A-1803 A-1806 A-1812 P-1812

AC Mains, 24V DC

30W 60W 120W

50 - 20,000Hz

Under 2%

MIC 1: -60dB, 600Ω, electronically-balanced, MIC 2-3: -60dB, 600Ω electronically-balanced,

AUX 1-3: -20dB, 10kΩ, unbalanced, TEL: -20dB, 10kΩ, electronically-balanced,

EMERGENCY: 0dB, 600Ω, unbalanced

REC: 0dB, 600Ω, unbalanced,

LINE 1, 2: 0dB, 600Ω, unbalanced,

MOH: 0dB, 600Ω, transformer balanced,

SPEAKER OUT:

100V line/330Ω, 4 – 16Ω

REC: 0dB, 600Ω, unbalanced,

LINE 1, 2: 0dB, 600Ω, unbalanced,

MOH: 0dB, 600Ω, transformer balanced,

SPEAKER OUT:

100V line/167Ω, 4 – 16Ω

2 zone

REC: 0dB, 600Ω, unbalanced,

LINE 1, 2: 0dB, 600Ω, unbalanced,

MOH: 0dB, 600Ω, transformer balanced,

SPEAKER OUT:

100V line/83Ω, 4 – 16Ω

MIC 1-3

Over 100dB

Bass/Treble

Tel, Emergency

AUX, 0dB, 10kΩ

LINE: 0dB, 600Ω, unbalanced,

SPEAKER OUT:

100Vline/83Ω, 4 – 16Ω

Power remote, Emergency

Power remote

8.1kg

Panel: ABS resin, black

Case: Steel plate, black

420(W) × 107.7(H) × 367(D)mm

9.4kg

12.6kg

12.2kg

5

Amplifiers

Packaged Amplifiers

Voice evacuation System

VM-3000 SerieS PA MAnAgeMenT SySTeM

VM-3240VA / 33660VA VM-3240e / 33660e

• Max. 4 MIC/LINE inputs

• 2 BGM inputs

• Up to 4 Fireman’s / Remote Microphones connectable (max. 2 Fireman’s Microphones)

• Max. 60 assignable speaker zone outputs (6 zones per amplifier)

• Volume setting possible for each zone

• Digital audio processed & controlled

- Full digital audio mixing (DSP)

- Built-in high quality electronic voice message

• Intuitive configuration

- Zone setting, priority setting, failure detection setting by dedicated PC software

- LCD display of current status and configuration setting of system units

Specifications

Power Requirement

Power Consumption

(AC mains)

Rated Output

Frequency Response

Distortion

S/N Ratio

Input

Output

Control

Emergency Control

DC-24 V-Output

Dimensions

Weight

VM-3240VA

600W

(with rated output signal),

260W (according to EN60065)

240W

VM-3360VA VM-3240E

360W

230V AC, 50/60Hz

850W

(with rated output signal),

380W (according to EN60065)

600W

(with rated output signal),

260W (according to EN60065)

240W

Under 0.8% (at rated output, 1kHz)

50 - 20kHz, ±3dB

(at 1/3 rated output)

Under 0.7%

(at rated output, 1kHz)

Over 85dB

Input 1 – 3: -50dB* (MIC) / -10dB (LINE) (changeable) 600 Ohm, electronically balanced combined,

XLR connector (female) / phone jack

Input 4: – 50dB* (MIC) / -10dB (LINE) (changeable) 600 Ohm, electronically balanced, removable terminal block (14 pins)

BGM 1 – 2 : -10dB, 10k Ohm unbalanced, RCA pin jack

External amplifier Input:

100V Line removable terminal block (14 pins)

VM-3360E

850W

(with rated output signal),

380W(according to EN60065)

360W

Under 0.8% (at rated output,

1kHz)

External amplifier Input:

100V Line removable terminal block (14 pins)

Speaker output 1 – 6: Total within rated output, removable terminal block (14 pins), Direct output from internal or external amplifier, removable terminal block (16 pins)

Recording output BGM / Paging 0dB*,

10k Ohm, unbalanced, RCA pin jack

Speaker output 1 – 6: Total within rated output, removable terminal block (14 pins)

Direct output from internal or external amplifier, removable terminal block (16 pins)

Input 1 – 8: No-Voltage make contact input, open voltage: 24V DC,

Short-circuit current: under 2mA, removable terminal block (14 pins)

Output 1 – 8: Isolated open collector output, with stand voltage: 30V DC,

Operating current: under 10mA, removable terminal block (14 pins)

Input 1– 5: No-Voltage make contact input, open voltage : 24V DC,

Short-circuit current: under 2mA, RJ45 female connector

Input 6: Isolated voltage input: Inactive; -24V ±20% / Active; +24V ±20%, RJ45 female connector

Status out: Relay contact output, withstand voltage: 40V DC, operating current: 2 – 300mA, RJ45 female connector

24V DC, maximum feeding current 0.3A

24V DC ±10% maximum feeding current 0.4A

482(W) x 132.6(H) x 460(D)mm

16.5 kg 19kg

24V DC, maximum feeding current 0.3 A

482(W) x 132.6 H) x

407(D)mm

16.5 kg

24V DC ±10% maximum feeding current 0.4A

482(W) x 132.6(H) x

460(D)mm

19kg

Amplifiers

Voice evacuation System

6

Voice evacuation System

VM-2000 SerieS PA MAnAgeMenT SySTeM

VM-2120 / 2240 rM-200M rM-210

7

• The VM-2120 is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size)

• The unit comes with 4 audio inputs including the background music input, and the speaker output section which has an internal attenuator and 5-zone selector

• It permits not only general-purpose broadcast, but also Emergency Broadcast based on the EN60849 Standard which gives pre-recorded voice instructions

*1

in the emergency situation. Broadcast can be made from an optional RM-200M Remote Microphone as well as from the amplifier, and can be remotely controlled from external equipment

• In addition, for 100 V/83 application the unit features the surveillance function *2 which automatically checks the system for failures

*1 An optional EV-200M Voice Announcement Board is required *2 An optional SV-200MA Surveillance Board is required

Specifications

Power Source

Rated Output

Frequency Response

Distortion

S/N Ratio

Tone Control

Input

Output

Control Input and Output

External Attenuator

Control Output

Surveillance Input and Output

Chime Tone

Function

Dimensions

Weight

Specifications

Power Requirement

Current Consumption

Distortion

Frequency Response

S/N Ratio

Audio Output

Microphone

Speaker Control

Voice Message Control

Key Extension

Connector Cable and

Connector

VM-2120 VM-2240

AC: 230V AC, 50/60 Hz

DC: 24V DC / 7.5 A

120W 240W

50Hz - 16kHz

Under 1%

Over 60dB

Bass: 100Hz ±10dB, Treble: 10kHz ±10dB

MIC / LINE Input x 3, Telephone paging input, BGM input x 2, Power amplifier input, External speaker line input

Speaker output, Direct speaker line output, Line output, Recording output, Preamplifier output

(1) External control input - Activation of messages

- Activation of power

- Activation and stop of Emergency Broadcast

- Unit’s broadcast cut off (when activated by an external emergency equipment)

(2) Status output - Irregularity of communications with the Remote Microphone and an expansion amplifier

- AC power condition

- DC power condition

- Irregularity of the sound source of the Voice Announcement Board

- Failure (FAULT) indication on

- Power switch on

Plug-in screw connector, relay, no-voltage make contact output, transfer type, withstand voltage: 30V DC, 125V AC, contact current: under 7A (DC), under 7A (AC)

Input: No-voltage make contact input, open voltage: 3.3V DC,

Output: Open collector output, withstand voltage: 30V DC

Built-in chime: 2-tone chime / 2-tone chime (fast repeat) / 4-tone chime (Up) / Single-tone chime / 4-tone chime (Up & Down ) /

Gong /off Voice Announcement Board sound source: Pre-recorded chime (*8)

Two units stacking (VM-2120 or VM-2240), Emergency broadcast (sequential control),

Broadcast priority control Surveillance (failure detection) function, Power supply to only one Remote Microphone (RM-200M)

Line resistance: Under 40Ω (one way)

419(W) x 143.3(H) x 355.7(D) mm

12.5kg

14.5kg

RM-200M

24V DC (Operating range: 14 . 28V DC)

100mA max.

Under 1%

100 - 20kHz

Over 60dB

0dBV, 600 Ohm, balanced

Unidirectional electret condenser microphone

Controllable by PC software

Activation of 5 messages

10 keys extension per RM-210, extension connector

Category 5 STP cable, RJ45 connector

RM-210

From RM-200X / M / XF

20mA max.

(in terms of DC power inputs of RM-200X and RM-200XF)

10

Connection to RM-200M, RM-200X or

RM-200XF by way of dedicated cable

Amplifiers

Voice evacuation System

Portable Wireless Amplifiers

WA-1822 (Without cassette)

WA-1822C (With cassette)

SYSTEM APPLICATION

• Compact and lightweight yet tough and portable

• Max. power 25W through built-in 2-way speaker

• Input volume and tone control for microphone input/AUX input

• Continuous operation for approx. 24 hours (using alkaline batteries, non-cassette mode)

• Cassette deck (WA-1822C) features 2-track/1 channel monaural operation with adjustable recording/playback volume adjustment, tape speed control and auto-reverse

• Built-in storage for wireless/wired microphones on the back

Meeting amplifier with

Dynamic microphone

Meeting Amplifier with

VHF wireless microphone (2CH)

Meeting Amplifier with UHF wireless microphone (1CH)

Hand-held wireless microphone

Tuner unit

WTU-4800

Meeting Amplifier with

UHF wireless microphone (2CH)

Hand-held wireless microphone

Tuner unit

WTU-3800

Hand-held wireless microphone

Tuner unit

WTU-4800

Lavaliere wireless microphone

Tuner unit

WTU-3800

WA-1822 / WA-1822C

Meeting Amplifier with VHF wireless microphone (1CH)

Hand-held wireless microphone

Tuner unit

WTU-3800

Specifications

Power Requirements

Rate Output

Frequency Response

Inputs

Outputs

Applicable Tuner (optional)

Cassette Track Format

Applicable wireless microphone (optional)

Finish

Dimensions

Weight

Lavaliere wireless microphone

Tuner unit

WTU-4800

WA-1822

AC mains, 50/60Hz,

Dry cells: 8 pcs (R20P or “D” size)

AC: 20W (max. 40W with EXT. SP) / DC: 8W

WA-1822C

70~10,000Hz, 3dB deviation

Wired Mic: -48dB, 600Ω, unbalanced

AUX: -20dB, 10Ω, unbalanced

External speaker: 8 to 16Ω, more than 20W

External output: -10dB, 1kΩ, unbalanced

WTU-3800 or WTU-4800

– 2-track / 1-channel (monaural)

WM-4000 series, WM-5000 series, WM-3000 series

ABS resin, Light gray

298(W) x 460(H) x 200(D)mm

6kg 6.7kg

Amplifiers

Portable Wireless Amplifiers

8

Speakers

Ceiling Speakers

SPring ClAMP TyPe

PC-648r (6W) PC-658r (6W)

Installation Method

For PC-1869, PC-2369, PC-2852 and

PC-2869

1

2

• Spring clamp mechanism for easy speaker mounting to the ceiling

• 12cm (5’’) cone type (PC-648R)

• 16cm (6’’) cone type (PC-658R)

• PP Resin, SECC Punching Net

3 4

PC-1869 (6W) PC-2369 (6W)

5

• Quick and easy installation (SUS spring clamp installation method)

• Wide frequency response

• 12cm (5”) cone type (PC-1869)

• 16cm (6”) cone type (PC-2369)

Specifications

Rated Input

Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Finish

Dimensions

Weight

PC-648R PC-658R PC-1869

6W (100V line), 3W (70V line)

100V Line: 1.7kΩ (6W), 3.3kΩ (3W),

6.7kΩ (1.5W), 13kΩ (0.8W)

70V Line: 1.7kΩ (3W), 3.3kΩ (1.5W),

6.7kΩ (0.8W), 13kΩ (0.4W)

100 - 18,000Hz

90dB

65 - 18,000Hz

Baffle: Polypropylene resin, off-white

Grille: Surface-treated steel plate net, off-white, paint

ø168 x 77(D)mm

470g

ø192 x 73(D)mm

500g

PC-2369

100V line: 1.7kΩ (6W), 3.3kΩ (3W), 6.7kΩ (1.5W), 13kΩ (0.8W)

70V line: 1.7kΩ (3W), 3.3kΩ (1.5W),

6.7 kΩ (0.8W), 13kΩ (0.4W)

55 - 18,000Hz

93dB

45 - 20,000Hz

Baffle: Steel plate, off-white

Grille: Surface-treated steel plate net, off-white

ø180 × 72(D)mm

620g

ø230 × 79(D)mm

760g

9

Speakers

Ceiling Speakers

Ceiling Speakers

SPring ClAMP TyPe SPlASH Proof TyPe

• Sealed rear chamber and highmolecular substance speaker vibration section prevents floating dust particles from contaminating

• Ideal for medical, chemical and photo film production

PC-5Cl (5W)

PC-2852 (15W)

• Quick and easy installation

(SUS spring clamp installation method)

• Wide frequency response

• 20cm (8”) coaxial cone type (PC-2852)

• Thin panel does not clash with interior design

PC-3Wr (3W)

Specifications

Rated Input

Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Finish

Dimensions

Weight

PC-2852

15W

(100V line, 70V line)

100V line: 670Ω (15W), 1kΩ (10W),

2kΩ (5W), 3.3kΩ (3W)

70V line: 330Ω (15W), 670Ω (7.5W),

1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W)

96dB

45 - 20,000Hz

Baffle: Steel plate, off-white

Grille: Surface-treated steel plate net, off-white

ø280 × 92(D)mm

1.6kg

PC-5CL

5W

2kΩ (5W)

87dB

150 - 20,000Hz

Panel: Alloy-coated ABS resin

Enclosure: ABS resin, Off white

Punching net: Stainless steel

Exposed fixing screw: Stainless steel

ø116 x 110(D)mm

620g

• Completely sealed flush mounted high humidity area speaker

• Ideal for shower rooms and indoor pool

PC-3WR

3W, 1W

3.3kΩ (3W), 10kΩ (1W)

88dB

180 - 20,000Hz

Frame and case: ABS resin, Off white

Punching net: Stainless steel

ø180 x 10

(exposed section) + 110mm

700g

PA Box Speakers

WAll-MoUnTing Box SPeAkerS

• Ideally suited for BGM and announcements

• Installed horizontally/ vertically

• Easy and quick installation

• 12 cm (5”) cone type speaker

BS-634 / BS-634T (6W)

• Ideally suited for BGM and announcements

• Installed horizontally/ vertically

• Easy and quick installation

BS-1034 / BS-1034S (10W)

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Attenuation

Finish

Dimensions

Weight

BS-634

100V Line: 1.7kΩ

(6W), 3.3kΩ (3W)

70V Line:

1.7kΩ (3W),

3.3kΩ (1.5W)

6W

BS-634T

100V Line:

1.7 kΩ (6W)

70V Line:

1.7kΩ (3W)

BS-1034/S

10W

100V Line:

1kΩ (10W),

2kΩ (5W),

3.3kΩ (3W),

10kΩ (1W)

70V Line:

1.7kΩ (3W),

3.3kΩ (1.5W)

120 - 18,000Hz

90dB

OFF, 1 (-12dB),

2 (-6dB), 3 (0dB)

120 - 20,000Hz

Enclosure: HIPS resin, off white

Net: Surface-treated steel plate, off white

210(W) × 330(H) × 80(D)mm

1.3kg

Enclosure:

HIPS resin off-white/silver

Net: Steel plate, off-white/silver

1.4kg

Speakers

Ceiling Speakers / PA Box Speakers

10

PA Box Speakers

WAll-MoUnTing Box SPeAkerS

• Quick and easy installation

• Push-in terminal block

• Attenuator equipped (BS-633AT)

BS-633A / BS-633AT (6W)

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Attenuation

Finish

Dimensions

Weight

BS-678 / BS-678B (6W)

BS-633A BS-633AT

6W

100V line: 1.7kΩ (6W),

3.3kΩ (3W), 10kΩ (1W)

70V line: 1.7kΩ (3W),

3.3kΩ (1.5W), 10kΩ (0.5W)

100V line: 1.7kΩ (6W),

3.3kΩ (3W)

70V line: 1.7kΩ (3W),

3.3kΩ (1.5W)

91dB

120 - 15,000Hz

3W: OFF, 1 (-12dB), 2 (-6dB), 3 (0dB)

6W: OFF, 1 (-13dB), 2 (-7dB), 3 (0dB)

Case: ABS Resin, Off-white

173(W) × 195(H) × 101(D)mm

780g 810g

• Quick and easy installation

• Push-in terminal block

• Horizontal/Vertical installation

BS-678/B

100V line: 1.7kΩ (6W), 3.3kΩ (3W),

6.7kΩ (1.5W), 13kΩ (0.8W)

94dB

150 - 20,000Hz

HIPS resin, off white/black

Particle board, off white/black

250(W) x 190(H) x 110(D)mm

1.7kg

HigH PoWer PA Box SPeAkerS

• Speaker’s smoothly curved exterior design blends in well with modern buildings

• Either mounted directly to walls or to both walls and ceilings using the supplied bracket or

a wide range of optional brackets

• Simple Impedance Switching high impedance (70V/100V line) and low impedance (8Ω)

• 12cm Dynamic Cone Speaker and 2.5cm Balanced

• Weather-Resistant Construction (IP-X4)

• Two different color variations, black or white

BS-1030B / 1030W (30W)

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Finish

Dimensions

Weight

BS-1030B/W

30W

100V line; 330Ω (30W), 500Ω (20W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line; 170Ω (30W), 250Ω (20W), 330Ω (15W), 500Ω (10W),1kΩ (5W), 8Ω

90dB

80 - 20,000Hz

Enclosure: ABS resin

Grille: surface treated steel plate, Black/White

196(W) x 290(H) x 150(D)mm

2.5kg

Attenuator

• Five attenuation settings

(OFF, 0/-6/ 12/-16dB)

• Applicable to 3 or 2 wire connection

• Input range

AT-063P: 0.5-6W

AT-303P: 0.5-30W

AT-603P: 0.5-60W

AT-063P / AT-303P

11

Speakers

PA Box Speakers / Attenuator

AT-603P

Speaker Selection Chart

CEILING MOUNT

LOW CEILING

PC-648R/

PC-658R

CEILING MOUNT

HIGH CEILING

PC-2852/

PC-2869

CEILING MOUNT

SPLASHPROOF

PC-5CL/

PC-3WR

WALL MOUNT

BS-633A

ü

ü

UNDER EAVES

BS-1030

WALL MOUNT

RUST PROOF

SC-600/TC-600

UNDER EAVES

DIRECTIVITY

TZ

ü

ü

ü

ü

ü ü

ü

ü

ü

ü

ü

ü

ü

ü

ü ü

ü

ü

ü ü ü

ü ü ü

ü

ü ü ü

ü

ü ü

ü

ü

ü

ü

ü

ü

ü

Horn Speakers

DriVer UniTS

• Both low-impedance models (TU-631 / TU-651) and high impedance models (TU-631M / TU-651M) available

• Two rated input 30W and 50W

• Compliance with IP-65

TU-631 / TU-651

Specifications

Applicable Horns

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

IP Code

Horn Coupling

Finish

Dimensions

Weight

TU-631M / TU-651M

TU-631

16Ω

ø139 x 106(D)mm

1.4kg

TU-631M TU-651

TH-650, TH-660

30W

100V line: 330Ω (30W),

670Ω (15W), 1kΩ (10W),

2kΩ (5W)

70V line: 170Ω (30W),

330Ω (15W), 670Ω(7.5W),

1kΩ (5W), 2kΩ(2.5W)

110dB

150 - 6,000Hz

IP-65

1-3/8, 18 threads

Flange: Aluminum, gray

Rear cover: ABS resin, gray

16Ω

ø139 x 149(D)mm

2kg

ø139 x 106(D)mm

1.9kg

TU-651M

50W

100V line; 200Ω (50W),

330Ω (30W), 670Ω (15W)

70V line; 100Ω (50W),

200Ω (25W), 330Ω (15W),

670Ω (7.5W)

ø139 x 149(D)mm

2.7kg

Speakers

Speaker Selection Chart / Horn Speakers

12

Horn Speakers

SePArATe TyPe reflex Horn SPeAkerS

400 (TH-652 AS)

ø500

• Powder-coated finish and stainless steel screws ensure the unit’s weatherproof capability

• Ideal for broadcasting, mosque, temple and carparks

TH-650

SELECTION ChArT

Rated Impedance

16Ω (30W)

Driver unit

TU-631

Reflex horn

100V lines (30W)

16Ω (50W)

100V lines (50W)

TU-631M

TU-651

TU-651M

TH-650 / TH-660

DiSTriBUTion PATTern froM Horn SPeAkerS

13

Speakers

Horn Speakers

Horn Speakers

CoMBinATion TyPe reflex Horn SPeAkerS

• Stainless steel brackets and hardware, and powder-coated horn

• Shock-resistant aluminum oval horn

• Panel-mounted input impedance selector on high-impedance models facilitates input impedance matching

• Unobtrusive off-white color helps speakers blend in with surroundings

• Compliance with IP-65

SC-615M (15W) SC-630M (30W)

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

IP Code

Finish

Dimensions

Weight

SC-615M

15W

SC-630M

30W

100V line: 670Ω (15W), 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W)

70V line: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2 kΩ (2.5W),

3.3kΩ (1.5W)

112dB

280 - 12,500Hz

100V line: 330Ω (30W), 670Ω (15W), 1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 1kΩ (5W),

IP-65

Horn flare: Aluminum, off-white,

Reflector horn: ABS resin, off-white

2kΩ (2.5W)

113dB

250 - 10,000Hz

222(W) x 179(H) x 234(D) mm

1.3kg

285(W) x 227(H) x 277(D) mm

2kg

WiDe rAnge WeATHerProof Horn SPeAkerS

CS-154 (15W) / CS-304 (30W)

• Constant directivity horn (CS-154 / CS-304) improve directivity characteristics

• Lightweight ABS resin enclosure that is mechanically strong and resistant to impact

• Stainless steel hardware protects the speaker from corrosion

• Rotary impedance selector switch facilitates external changes in impedance during and after speaker installation

• Compliance with IP-65 (CS-154 / CS-304)

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

IP Code

Finish

Dimensions

Weight

CS-154

15W

CS-304

30W

100V line: 670Ω (15W), 1 kΩ (10W), 2kΩ (5W)

70V line: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)

100V line: 330Ω (30W), 500Ω (20W), 1kΩ (10W)

70V line: 170Ω (30W), 330Ω (15W), 500Ω (10W), 1kΩ (5W)

97dB 98dB

150 - 15,000Hz 120 - 15,000Hz

IP-65

Horn, cover: ABS resin,

Bracket: Stainless steel, off-white, Punched net

366(W) x 230(H) x 272(D)mm

2.8kg

366(W) x 230(H) x 272(D)mm

3.1kg

Speakers

Horn Speakers

14

interior Design Speakers

ProJeCTion SPeAkerS

PJ-304 (30W)

• Flexible speaker direction adjustment with accessory brackets

• Re-paintable

• Input impedance easily changeable

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Finish

Dimensions

Weight

PJ-304

30W

100V line: 330Ω (30W), 500Ω (20W),

670Ω (15W),1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 250Ω (20W),

330Ω (15W), 500Ω (10W),

1kΩ (5W), 8Ω (30W)

91dB

70 - 20,000Hz

Enclosure: HIPS resin, off white

Grille: Surface-treated steel plate net

ø186 × 369(H)mm

2.1kg

PenDAnT SPeAker

• Sturdy cable, extendable up to 5 meters, enables speaker mounting even from a high ceiling

• Re-paintable

• Input impedance easily changeable

Specifications

Rated Input

Rated Impedance

Sound Pressure Level (1W, 1m)

Frequency Response

Finish

Dimensions

Weight

Pe-64 / Pe-304

PE-64

6W

100V line: 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W)

70V line: 1.7kΩ (3W), 3.3kΩ (1.5W), 10kΩ (0.5W)

PE-304

30W

100V line: 330Ω (30W), 500Ω (20W), 670Ω (15W),

1kΩ (10W), 2kΩ (5W)

70V line: 170Ω (30W), 250Ω (20W), 330Ω (15W),

500Ω (10W), 1kΩ (5W), 8Ω (30W)

90dB

100 – 18,000Hz

Enclosure: HIPS resin, off-white

Grille: Surface-treated steel plate net, off-white

ø186 × 251(H)mm

70 – 20,000Hz

1.5kg

2.1kg

15

Speakers

interior Design Speakers

Sound Source

UHf Band Wireless Systems

UHf WireleSS TUner

WT-5810

• Phase Locked Loop (PLL) synthesis operation

• 16 selectable channel frequencies

• TOA space diversity technology

• Squelch function (carrier, noise, tone)

• Usable frequencies scanning and channel search function

• Compander circuitry for minimizing ambient noise

Specifications

Power Requirement

Frequency Response

Receiving Frequencies

Mixing Input

Mixing Output

Weight

Finish

Dimensions

Channel Selectable

WT-5810

AC mains (using AC-DC adapter)

100 - 15,000Hz

692 - 865MHz, UHF

-20dB, 10kΩ, (unbalanced)

MIC: -60dB (balanced)

LINE: -20 dB, 600Ω (unbalanced/balanced)

590g

Resin, Black

206(W) × 40.6(H) × 152.7(D)mm

16 Channels

UHf WireleSS MiCroPHone SeT

WS-5225 Set

WT-5810

WS-5325U Set

WM-5225

WT-5810 yP-M5300

WM-5325

WS-5265 Set

WT-5810

WS-5325H Set

WM-5265

WT-5810 WM-5325

WH-4000H

Sound Source

UHf Band Wireless Systems

16

UHf Band Wireless Systems

UHf WireleSS MiCroPHone

Handheld Speech Wireless

Microphone

Handheld Vocal Wireless

Microphone

Wireless Transmitter

WM-5225 WM-5265 WM-5325

• Electret condenser microphone unit:

Unidirectional

• 64 selectable channels

• Maximum input level: 126dB SPL

• ON/OFF switch prevents the microphone from rolling

• WB-2000 rechargeable battery or single

AA battery operation for compact and lightweight body

• Built-in antenna

• Dynamic microphone unit: Unidirectional

• 64 selectable channels

• Maximum input level: 132dB SPL

• ON/OFF switch prevents the microphone from rolling

• WB-2000 rechargeable battery or single

AA battery operation for compact and lightweight body

• Built-in antenna

• 64 selectable channels

• Maximum input level: -14dB to - 29dB

• Built-in circuitry minimizes ambient noise effects

• WB-2000 rechargeable battery or single

AA battery operation for compact and lightweight body

• Connector for 3.5 mini-plugs

• Built-in antenna

Specifications

Microphone Element

Frequency Range

Channel Selectable

Maximum Input Level

Battery

Finish

Dimensions

Weight

WM-5225

Electret condenser microphone:

Unidirectional

126dB SPL

Resin rubber coating

ø43 × 231.5 mm

180g (with battery)

WM-5265

Dynamic microphone: Unidirectional

794 - 830 MHz, UHF

64 channels

132dB SPL

LR6 (AA)

ø50 x 229 mm

205g (with battery)

WM-5325

14dB to -29dB

(Audio level control: Min. to Max.)

Resin coating

62(W) x 102.5(H) x 23(D) mm

90g

Unidirectional Lavalier Microphone Headset Microphone

Specifications

Microphone Element

Sensitivity

Frequency Response

Maximum Input Level

Cord Length

Connector

Finish

Weight yP-M5300

• Unidirectional electret condenser microphone element

• Maximum input level: 120dB SPL

• Connector for 3.5 mini-plug

WH-4000H

• Unidirectional electret condenser microphone element

• Maximum input level: 120dB SPL

• Connector for 3.5 mini-plug

• Secure and comfortably fitting headset

YP-M5300 WH-4000H

Electret condenser microphone: Unidirectional

-63dB ±3dB (0dB = 1V / 0.1pa. 1kHz) -66dB ±3dB (0dB = 1V / 0.1pa. 1k Hz)

100 - 12kHz –

120dB SPL

1.3m

ø3.5 mm mini plug

Dark black

20g (cable included)

Frame: Stainless, black (silicon rubber)

Gooseneck: black (shrink tube)

50g (cable included)

17

Sound Source

UHf Band Wireless Systems

Microphones

HAnD-HelD MiCroPHoneS

DM-1100

Specifications

Type

Directivity

Rated impedance

Rated sensitivity

Frequency response

Cable length

Terminal of cable

Weight

Talk switch

Standard accessory

• Hand-held and stand mounting uses

• Short-off type slide on/off

• Rigidly constructed of diecast aluminum

• Hand-held and stand mounting uses

• Short-off type slide on/off switch

• Rigidly constructed of diecast aluminum

• XLR type 3-pin male connector

DM-1200

DM-1100 DM-1200

100Hz - 12,000Hz

7.5m

Moving coil microphone (Dynamic microphone)

Unidirectional

600Ω, unbalanced

-55dB

50Hz - 12,000Hz

10m

1/4” unbalanced phone plug

155g

(without connection cable)

298g

(without connection cable)

Short-off type, slide on/off switch

Microphone holder

PAging MiCroPHoneS

Specifications

Type

Directivity

Rated Impedance

Rated Sensitivity

Frequency Response

Cable Length

Terminal

Talk Switch

Finish

Dimensions

Weight

Desktop Type Microphone

• Dynamic paging microphone

• Lock switch

PM-660 / PM-660D

PM-660

Phone plug

PM-660D

Dynamic type

Unidirectional

600Ω, unbalanced

-58dB

100Hz - 10,000Hz

2.5m

Push-to-talk switch with lock, locking lever

ABS resin, gray

100(W) x 215(H) x 150(D)mm

440g

5-pin DIN plug

Sound Source

Mircophones

18

others

Conference Systems oPen ConferenCe SySTeM

Central Amplifier Unit

TS-770

Specifications

Power Source

Input

Output

Number of Connectable Conference Units

Finish

Dimensions

Weight

• Maximum 70 Chairman and Delegate Units are connectable to one amplifier central unit

• Expandable to maximum 210 units by connecting 2 additional central units

• Number of simultaneously usable delegate units (0,1,3,6) can be selected

• The Test function feature enable easy checking of the connection status of all connected units

• Wider frequency response - clearer sound

• Optional interface unit for PC or Telephone

TS-770

AC mains

Microphone: -60dB, 600Ω, Unbalances, AUX: -20dB, 600Ω, unbalanced

Recording: -20dB, 10Ω, unbalanced

70 units , max 210 units when 3 Central units connected

Pre-coated steel plate, black

210(W) x 107.1(H) x 316(D)mm

4kg

Chairman unit Delegate unit Standard Microphone Long Microphone

TS-771 TS-772

• Removable gooseneck microphone and built-in speaker

• Press-to-talk priority speech button activities chime and overrides delegate’s unit (TS-771 only)

• Integrated Control Output

• Selectable microphone unit Standard (TS-773)/Long (TS-774)

• Equipped standard 2 metres connection cable

TS-773 TS-774

• Ring type in-use lamp on the microphone head allow operation status of the conference units to be displayed

• Electret condenser microphone

• Wide frequency response 100-13,000Hz

• Length: 268mm (TS-773), 518mm (TS-774)

Specifications

Power Source

Output

Control

Finish

Dimensions

Weight

Standard accessory

TS-771 TS-772

35V DC, under 30mA (supplied from Central Unit TS-770)

Headphone/Recording: 32Ω (headphone) 10kΩ, -20dB* (recording), unbalanced, mini jack (with VR)

Internal speaker: 130Ω, 200mW

Contact output: 24V DC, max. 50mA (open collector output)

Speech button: Microphone, speaker on-off control by speech switch

Priority button: Microphone, speaker on-off, other microphone cut off, and single-tone chime activation

Microphone, speaker on-off control by speech switch

Case: ABS resin, black

Panel: ABS resin, gray metallic, semi-gloss, paint

114.5(W) × 78.4(H) × 152.9(D)mm

780g

Built-in 2 metres connection cable

19

Others

Conference Systems

Conference Systems oPen ConferenCe SySTeM

Extension cable Remote delegate interface unit

yr-770-2M

CAbLE LEngTH: 2M

yr-770-10M

CAbLE LEngTH: 10M

• Applicable Unit: TS-771 Chairman unit, TS-772 Delegate unit

TS-775

• Remote conferencing is possible, enabling people at a remote location to participate in the conference

LArGE CONFErENCE APPLICATION

Chairman Unit

Recording Device

Wireless Receiver

Wireless Microphone

Delegate unit

CENTER AMPLIFIER (TS-770)

CHAIRMAN UNIT (TS-771)

LONG MICROPHONE (TS-774)

DELEGATE UNIT (TS-772)

LONG MICROPHONE (TS-774)

( Max. 210 Assembly)

QTY

3

1

1

209

209

Others

Conference Systems

20

Conference Systems infrAreD ConferenCe TS-800 SerieS

Central Unit

• Up to 64 Delegate units can be used per system

• Its built-in monitor speaker is turned off, preventing acoustic feedback

• The Central unit can be used in conjunction with wired microphones and output source equipment

• 2 channel monitor function enable to conduct a simple bilingual conference

TS-800

Specifications

Power Source

Input

Output

Number of Connectable infrared Transmitter/Receiver Units

External Control Terminal

Number of Connectable Conference Units

Finish

Dimensions

Weight

TS-800

AC Mains

MIC: -60dB, 600Ω, unbalanced

AUX: -20dB, 10kΩ, unbalanced

REC: -20dB, 10kΩ, unbalanced, HEADPHONE

4 units (up to 16 units by using four distributors)

D-sub connector (9 P, male)

64 units

Panel: Surface-treated steel plate, gray metallic

359(W) x 118.8 (H) x 179.8(D)mm

2.7kg

Chairman unit Delegate unit Standard Microphone Long Microphone

TS-801 TS-802 TS-903 TS-904

• The Mic-Off function automatically turns off the unit’s microphone after 30 seconds

• Built-in monitor speaker is turned off, preventing acoustic feedback

• The Chairman unit features a priority speech key which allows it to take precedence over Delegate units when speaking

• Can be operated on both their built-in rechargeable lithium-ion batteries or AC power supply

• Two types of dedicated microphones are made available for the Chairman and Delegate units: “Standard” and “Long”

• Electret condenser microphone

• Wide frequency response 100-13,000Hz

• Length: 268mm (TS-903), 518mm (TS-904)

Specifications

Power Source

Current Consumption

Input

Output

Finish

Dimensions

Weight

TS-801 TS-802

7.4V DC (battery), 9V DC (AC adapter)

[supplied from BP-900 battery (option) or AD-0910 AC adapter (option)]

Max. 270mA

Microphone terminal: Combined type of XLR-4-31

(dedicated for connecting the optional TS-903 or TS-904)

Monitor speaker: 8Ω, 0.2W

Headphone: Mini jack × 2

Top panel: ABS resin, gray metallic, paint, semi-gloss

210(W) × 65.9(H) × 152(D)mm

630g

21

Others

Conference Systems

Conference Systems infrAreD ConferenCe TS-900 SerieS

Central Unit

• Up to 96 Delegate units can be used per system

• A voting function offers 3 selections (Yes, No, and Abstention)

• Its built-in monitor speaker is turned off, preventing acoustic feedback

• The Central unit can be used in conjunction with wired microphones and output source equipment

• 2 channel monitor function enable to conduct a simple bilingual conference

TS-900

Specifications

Power Source

Input

Output

Number of Connectable infrared

Transmitter/Receiver Units

External Control Terminal

Number of Connectable Conference Units

Finish

Dimensions

Weight

TS-900

AC Mains

MIC 1 (Base Language): -60dB, 600Ω, unbalanced,

MIC 2 (Translation Language): -60dB, 600Ω, unbalanced,

AUX 1 (Base Language): -20dB, 10kΩ, unbalanced,

AUX 2 (Translation Language): -20dB, 10kΩ, unbalanced,

AUX 3 (Base and Translation Language): -20dB, 10kΩ, unbalanced

LINE: -20dB, 10kΩ, unbalanced, REC: -20dB, 10kΩ, unbalanced,

HEADPHONE: Mini jack

4 units (up to 16 units by using four distributors)

D-sub connector (9 P, male)

96 units

Panel: Surface-treated steel plate, gray metallic

359(W) x 118.8 (H) x 179.8(D)mm

2.8kg

Chairman unit Delegate unit Standard Microphone Long Microphone

TS-901 TS-902 TS-903 TS-904

• The Mic-Off function automatically turns off the unit’s microphone after 30 seconds

• Its built-in monitor speaker is turned off, preventing acoustic feedback

• The Chairman unit features a priority speech key which allows it to take precedence over Delegate units when speaking

• Equipped with a monitor selector switch which permits monitoring of either the base or translated language

• Can be operated on both their built-in rechargeable lithium-ion batteries or AC power supply

• Two types of dedicated microphones are made available for the Chairman and Delegate units: “Standard” and “Long”

• Electret condenser microphone

• Wide frequency response 100-13,000Hz

• Length: 268mm (TS-903), 518mm (TS-904)

Specifications

Power Source

Current Consumption

Input

Output

Finish

Dimensions

Weight

TS-901 TS-902

7.4V DC (battery), 9V DC (AC adapter)

[supplied from BP-900 battery (option) or AD-0910 AC adapter (option)]

Max. 270mA

Microphone terminal: Combined type of XLR-4-31

(dedicated for connecting the optional TS-903 or TS-904)

Monitor speaker: 8Ω, 0.2W

Headphone: Mini jack × 2

Top panel: ABS resin, gray metallic, paint, semi-gloss

210(W) × 65.9(H) × 152(D)mm

640g

Others

Conference Systems

22

Conference Systems infrAreD ConferenCe SySTeMS

Infrared Transmitter/Receiver battery charger Lithium-ion battery

TS-905 / TS-907

• Permits transmission and receiving of signals with the Central unit

• Can be mounted on ceiling, wall and microphone stand

Distributor

Distributor

BC-900

• Allow up to 8 batteries (BP-900) to be simultaneously charged

TS-905 / TS-907 coverage area

BP-900

• Rechargeable

• Designed for use with

TS-901/TS-902/TS-801/TS-802

yW-1022

• 1 Input, 2 outputs

yW-1024

• 1 Input, 4 outputs

INFrArEd CONFErENCE SYSTEM APPLICATION

Microphone

CD player

23

Others

Conference Systems

Megaphones

HAnD griP TyPe MegAPHone

Specifications

Power Source

Rated Output

Maximum Output

Battery Life

Audible Range

Signal Sound

Finish

Dimensions

Weight er-1215 er-1215S

• Long-lasting battery life

• Neodymium magnets for high audio performance

• A siren can be used for evacuation (ER-1215S only)

• With shoulder strap

• Detachable handgrip type microphone

ER-1215 ER-1215S

R14P (C) × 6 (9V DC)

Approx. 315m

Approx. 14 hours

15W

23W

Approx. 315m (Whistle 500m)

Siren

ABS resin, Light gray

210(W) × 291(H) × 346(D)mm

ABS resin, Red

1.1kg

1.2kg

er-3215

ER-3215

Approx. 9 hours

Approx. 400m

ABS resin, Light gray

210(W) x 291(H) x 381(D)mm

1.15kg

SHoUlDer TyPe MegAPHoneS

er-2215 er-2215W er-2230W

• An easy-to-operate, shoulder megaphone rated at 15W of output and having a separate microphone

• The newly developed polyamide diaphragm is employed to ensure high sound quality

• Shoulder megaphone having an EXT. mic input, AUX input, DC power input, battery meter and whistle function

• A whistle tone can be used for attracting attention (except ER-2215)

Specifications

Power Source

Rated Output

Maximum Output

Battery Life

Audible Range

Signal Sound

Finish

Dimensions

Weight

ER-2215

1.1kg

R14P (C) × 6 (9V DC)

15W

23W

Approx. 9 hours

Approx. 400m

ABS resin, Light gray

ø210 × 336mm

ER-2215W

1.2kg

ER-2230W

R20P (D) x 10 (15V DC)

30W

45W

Approx. 17 hours

Approx. 800m

Whistle

ABS resin, Vinyl chloride, Light gray

ø351 x 512mm

3.6kg

Others

Megaphones

24

System Applications

SySTeM APPliCATion 1

SUPERMARKET

SySTeM APPliCATion 2

25

Others

System Applications

System Applications

SySTeM APPliCATion 3

SySTeM APPliCATion 4

HOUSE OF WORSHIP

DM-1100

DM-1100

1

6

Wireless

Micophone

WM-5320

Cassette

Player

WT-5810

A-1724

Zone 1

Zone 2

30W 30W

BS-1030W x 6 pcs

Ceiling Speakers x 3 pcs

Others

System Applications

26

knowledge Series

MiCroPHone

SPeAkerS

Distance (m)

Amount of increase (dB)

2 5 10 15 20 30 40 60 80 100

6.0 14.0 20.0 23.5 26.0 29.5 32.0 35.6 38.1 40.0

Electric Input (W) 1 1.5 3 5 6 10 15 20 30 50

Amount of increase (dB)

0 2.6 4.8 7.0 7.8 10 11.8 13 14.8 17

27

Others

knowledge Series

knowledge Series

SPeAkerS

SPeAkerS

Others

knowledge Series

28

iP grade Panel

What is iP standard?

This standard provides a system for classifying the degrees of protection provided by the enclosures of electrical equipment under the International Electrotechnical Commission (IEC) publication 529.

The type of protection covered by this system of classification is as follows.

a) Protection of persons against contact with or approach to live parts and against contact with moving parts inside the enclosure

and protection of the equipment against ingress of solid foreign bodies.

b) Protection of the equipment inside the enclosure against harmful ingress of water.

1st Numeral: Protection against solid foreign objects 2nd Numeral: Protection against ingress of water

0

1

Non-protected 0

1

Non-protected

Protected against solid foreign objects of 50mm ø and greater.

Protected against vertically falling water drops.

2

Protected against solid foreign objects of 12.5mm ø and greater.

2

Protected against vertically falling water drops when enclosure titled up to 15°.

3

4

3

Protected against solid foreign objects of 2.5mm ø and greater.

Protected against solid foreign objects of 1.0mm ø and greater.

4

Protected against spraying water.

Protected against splashing water.

5 5

Dust-protected Protected against water jets.

6 6

Dust-tight Protected against powerful water jets.

X 7

Not tested

8

Protected against the effects of temporary immersion in water.

Protected against the effects of continuous immersion in water.

X Not tested

29

iP grade Panel

TOA Electronics India Pvt Ltd

www.toa.co.in

Distributed by:

TOA Electronics India Pvt Ltd

Specifications are subject to change without notice.

Printed in India

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
