Philips MCM108DB Owner's manual

Philips MCM108DB Owner's manual

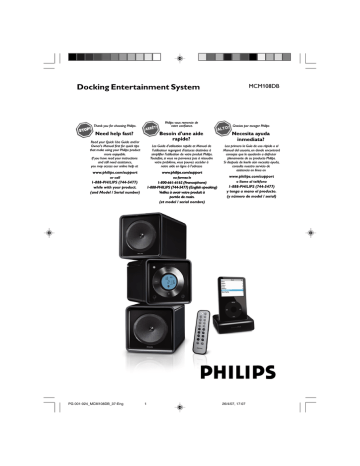

MCM108DB
Docking Entertainment System
Thank you for choosing Philips.
Philips vous remercie de
votre confiance.
Gracias por escoger Philips
Read your Quick Use Guide and/or
Owner's Manual first for quick tips
that make using your Philips product
more enjoyable.
If you have read your instructions
and still need assistance,
you may access our online help at
Besoin d'une aide
rapide?
Necesita ayuda
inmediata?
Les Guide d'utilisation rapide et Manuel de
l'utilisateur regorgent d'astuces destinées à
simplifier l'utilisation de votre produit Philips.
Toutefois, si vous ne parvenez pas à résoudre
votre probléme, vous pouvez accéder à
notre aide en ligne à l'adresse
www.philips.com/support
www.philips.com/support
Lea primero la Guía de uso rápido o el
Manual del usuario, en donde encontrará
consejos que le ayudarán a disfrutar
plenamente de su producto Philips.
Si después de leerlo aún necesita ayuda,
consulte nuestro servicio de
asistencia en línea en
Need help fast?
or call
ou formez le
www.philips.com/support
1-888-PHILIPS (744-5477)
while with your product.
(and Model / Serial number)
1-800-661-6162 (Francophone)
1-888-PHILIPS (744-5477) (English speaking)
Veillez à avoir votre produit à
portée de main.
(et model / serial nombre)
1-888-PHILIPS (744-5477)
y tenga a mano el producto.
(y número de model / serial)
PG 001-024_MCM108DB_37-Eng
1
o llame al teléfono
26/4/07, 17:07
Note : This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures :
– Relocate the receiving antenna.
– Increase the separation between the equipment and receiver
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT !
modifications not authorized by the manufacturer may void users authority to operate this device.
Remarque : Cet équipement a été testé et a été certifié conforme aux limites imposées pour un
appareil numérique de Classe B, conformément à la partie 15 des réglements FCC. Ces limites sont
définies aux fins d'assurer une protection raisonnable contre les interférences nuisibles dans une
installation résidentielle. Cet équipement génère, utilise et émet des fréquences radio qui, en cas d'une
mauvaise installation ou d'une utilisation non-conforme aux instructions de ce manuel d'utilisation
peuvent causer des interférences nuisibles aux communications radio. Il n'y a toutefois aucune garantie
que des interférences nuisibles ne se produiront pas dans une installation donnée. Si cet équipement
cause des interférences nuisibles avec votre poste radio ou de télévision, ce que vous pouvez déterminer
en éteignant et en rallumant votre équipement, il est conseillé à l'utilisateur d'essayer de pallier à ces
interférences nuisibles en prenant l'une ou l'autre des mesures suivantes:
– Changez la position de l'antenne de réception.
– Augmentez la séparation entre l'équipement et le récepteur.
– Branchez l'équipement sur une source d'alimentation différente de celle sur laquelle le récepteur est
branché.
– Consultez votre distributeur ou un technicien qualifié en la matière pour assistance.
IMPORTANTE !
las modificaciones no autorizadas por el fabricante pueden anular la autoridad de los usuarios para
utilizar este aparato.
Nota : Este aparato ha sido probado y cumple con los límites correspondientes a un aparato digital de Clase
B, según la parte 15 de las Normas. FCC. Estos límites han sido diseñados para facilitar suficiente protección
frente a interferencias perjudiciales en una instalación residencial. Este aparato genera, utiliza y puede emitir
energía de frecuencias de radio y, si no se instala y utiliza según el manual de instrucciones, puede provocar
interferencias perjudiciales en las comunicaciones de radio. Sin embargo, no existe garantía de que las
interferencias no ocurrirán en una instalación particular. Si este aparato provoca interferencias perjudiciales en
la recepción de radio o television, que se puede identificar encendiendo y apagando el aparato,
recomendamos al usuario que intente solucionar las interferencias siguiendo una o más de las siguientes
medidas:
– Cambie la posición de la antena receptora.
– Aumente la separación entre el aparato y el receptor.
– Conecte el aparato a una toma de un circuito diferente al que está conectado el receptor.
– Consulte con el distribuidor o un técnico de radio/TV con experiencia para que le ayuden.
¡IMPORTANTE!
modificações não autorizadas pelo fabricante, podem causar danos na operação deste aparelho.
2
PG 001-024_MCM108DB_37-Eng
2
26/4/07, 17:07
4
1
5
2
OP
E N / C LO S E
6
7
3
STANDBY-ON
SOURCE
BAND
PROG/CLOCK
-
VOLUME
+
TUNING
M I C R O S Y S T E M MCM108DB
8
iR
0
!
@
9
#
3
PG 001-024_MCM108DB_37-Eng
3
26/4/07, 17:07
Return your Product Registration Card or register online at
www.philips.com/usasupport today to get the very most from your purchase.
Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so
don't miss out. Complete and return your Product Registration Card at once, or register online at
www.philips.com/usasupport to ensure:
*Proof of Purchase
*Product Safety
Notification
Returning the enclosed card
guarantees that your date of
purchase will be on file, so no
additional paperwork will be
required from you to obtain warranty service.
*Additional Benefits
Registering your product guarantees that you'll receive all of
the privileges to which you're
entitled, including special
money-saving offers.
By registering your product,
you'll receive notification directly from the manufacturer
- in the rare case of a product
recall or safety defect.
Know these
safetysymbols
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS.
You’ve selected one of the best-built, bestbacked products available today.We’ll do
everything in our power to keep you happy
with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re
entitled to protection by one of the most
comprehensive warranties and outstanding
service networks in the industry.What’s
more, your purchase guarantees you’ll
receive all the information and special offers
for which you qualify, plus easy access to
accessories from our convenient home
shopping network.
Most importantly, you can count on our
uncompromising commitment to your total
satisfaction.
All of this is our way of saying welcome and thanks for investing in a PHILIPS product.
P.S. To get the most from your PHILIPS
purchase, be sure to complete and
return your Product Registration Card
at once, or register online at:
www.philips.com/usasupport
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates uninsulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention
to features for which you should read
the enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la
fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
For Customer Use
Enter below the Serial No. which is located
on the rear of the cabinet. Retain this
information for future reference.
Model No. __________________________
Serial No. __________________________
Visit our World Wide Web Site at http://www.philips.com/usasupport
4
PG 001-024_MCM108DB_37-Eng
4
26/4/07, 17:07
IMPORTANT SAFETY INSTRUCTIONS
Clean only with dry cloth.
Where the MAINS plug or an appliance
coupler is used as the disconnet device,
the disconnet device shall remain
readily operable.
9
materials
Class II equipment symbol
This symbol indicates that the unit has
a double insulation system
5
PG 001-024_MCM108DB_37-Eng
5
26/4/07, 17:07
Canada
English:
This digital apparatus does not exceed
the Class B limits for radio noise
emissions from digital apparatus as set
out in the Radio Interference
Regulations of the Canadian
Department of Communications.
Français:
Cet appareil numérique n'emet pas de
bruits radioélectriques dépassant les
limites applicables aux appareils
numériques de Class B prescrites dans
le Règlement sur le Brouillage
Radioélectrique édicté par le Ministère
des Communications du Canada.
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
ATTENTION
L’utilisation des commandes ou
réglages ou le non respect des
procédures ci-incluses peuvent se
traduire par une exposition
dangereuse à l’irradiation.
ATENCIÓN
El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.
6
PG 001-024_MCM108DB_37-Eng
6
26/4/07, 17:07
English
Index
Français
English ------------------------------------------------ 8
Español
Français -------------------------------------------- 25
Deutsch
Español --------------------------------------------- 44
7
PG 001-024_MCM108DB_37-Eng
7
26/4/07, 17:07
Contents
English
General Information
Other Connection
Environmental information ................................ 9
Supplied accessories ............................................ 9
Safety information .......................................... 9-10
Listening to an external source ...................... 17
Preparation
Rear connections ......................................... 11-12
Before using the remote control .................... 12
Replacing battery (lithium CR2032)
into the remote control ................................... 12
Controls
Controls on the system and remote
control .................................................................. 13
Basic Functions
Switching the system on ................................... 14
Power-saving automatic standby ..................... 14
Adjusting volume and sound ............................ 14
CD Operation
Playing a disc ........................................................ 15
Basic playback controls ..................................... 15
Playing an MP3/WMA disc ............................... 15
Different play modes: Shuffle and Repeat ..... 16
Programming track numbers ........................... 16
Reviewing the programme ............................... 16
Erasing the programme ..................................... 16
Maintenance .............................................. 17
Clock/Timer
Setting the clock ................................................. 18
Setting the timer ................................................. 18
Activating and deactivating TIMER ................. 18
Activating and deactivating SLEEP .................. 18
DOCK
Playing iPod using the dock......................... ..... 19
Compatible portable player
Dock
Dock adaptor
Selecting the correct dock adaptor
Installing the dock adaptor
Removing the dock adaptor......................... 20
Playing iPod...................................................... 20
Charging iPod battery using the dock ........... 20
Troubleshooting
.... ....................... 21-22
Specifications ........................................... 23
Radio Reception
Tuning to radio stations .................................... 17
8
PG 001-024_MCM108DB_37-Eng
8
26/4/07, 17:07
This set complies with the FCC rules,
Part 15 and with 21 CFR 1040.10.
Operation is subject to the following two
conditions:
– This device may not cause harmful
interference, and
– This device must accept any interference
received, including interference that may
cause undesired operation.
Supplied accessories
–
–
–
–
2 speaker boxes
MCM108DB remote control with battery
AM loop antenna
Docking kit
- 1 dock used for Apple iPod
- Dock adaptors (8 adaptors for different
iPod types)
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
English
General Information
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, cur tains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical parts of the set contain selflubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Install the unit near the AC outlet and where the
AC power plug can be easily reached.
● The apparatus shall not be exposed to
dripping or splashing.
9
PG 001-024_MCM108DB_37-Eng
9
26/4/07, 17:07
General Information
English
Hearing Safety
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following
guidelines when using your headphones.
● Listen at reasonable volumes for reasonable
periods of time.
● Be careful not to adjust the volume as your
hearing adapts.
● Do not turn up the volume so high that you
can't hear what's around you.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
10
PG 001-024_MCM108DB_37-Eng
10
26/4/07, 17:07
English
Preparations
AM antenna
FM antenna
Speaker
(left)
Speaker
(right)
AC powr cord
A
Rear connections
B Antennas Connection
The type plate is located at the rear of the
system.
1
Power
– Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
WARNING!
– For optimal performance, use only the
original power cable.
– Never make or change any connections
with the power switched on.
AM (MW) antenna
Unfold the loop antenna and if necessary, use
screws (not supplied)to fix it to a flat, hard and
stable place:
1
2
2
3
Fit the plug of the loop antenna to AM
ANTENNA as shown above.
Adjust the antenna for optimal reception
FM Antenna
It is unnecessary to connect the FM pigtail
antenna since it is fixed to the main unit.
● Position the antenna as far as possible from a TV,
VCR or other radiation source.
11
PG 001-024_MCM108DB_37-Eng
11
26/4/07, 17:07
Preparations
English
C Speakers Connection
Before using the remote control
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "RIGHT" and left
speaker to "LEFT", the wire (marked red) to
"+" and the wire (marked black) to "-".
1
2
3
Pull out the plastic protective sheet.
Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
Then select the desired function (for example
É, í, ë).
● Fully insert the stripped portion of the speaker
wire into the terminal as shown.
Notes:
– For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
Replacing battery (lithium
CR2032) into the remote control
1 Pull out the knob A slightly to the left.
2 Pull out the battery compartment B .
3 Replace a new battery and fully inser t the
battery compartment back to the original
position.
A
B
CAUTION!
– Remove battery if it is exhausted or will
not be used for a long time.
– Battery contains chemical substances, so
they should be disposed of properly.
– Perchlorate Material-special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
12
PG 001-024_MCM108DB_37-Eng
12
26/4/07, 17:07
Controls on the system and
remote control
for Tuner.......... (on the set only) selects waveband.
2 SOURCE (CD/ TUNER/DOCK)
–
–
switches on the system.
selects the respective sound source for CD/ FM/
MW/ DOCK.
3 STANDBY-ON / y
–
–
activates/deactivates or sets the timer function.
( ALBUM 4
3
for MP3/WMA disc...........selects an album.
1 BAND
–
* TIMER
) DBB
–
(Dynamic Bass Boost) enhances the bass.
¡ DSC
–
(Digital Sound Control) selects sound
characteristics: JAZZ/POP/CLASSIC/ROCK.
switches the system to standby/Eco power
standby/on.
4 PROG/CLOCK
for CD ................. programs tracks and reviews the
program.
for clock .............. sets the clock function.
3
MUTE
$
CD
TUNER
DOCK
PROG
4
%
REPEAT
SHUFF
^
7 TUNING 0
&
SLEEP
TIMER
*
–
@
5 OPEN•CLOSE
–
opens/closes the CD door.
6 VOLUME – / +
–
adjusts volume level.
tunes to radio stations.
8 iR SENSOR
–
0
ALBUM
infrared sensor for remote control.
9n
–
2
(
!
connect headphones.
0 ÉÅ
VOLUME
6
for CD ................. starts or pauses CD playback.
! ¡1 / 2™
–
–
skips to the beginning of a current track/
previous/ next track.
fast searches back and forward within a track/
CD.
)
DBB
DSC
¡
@ STOP 9
–
stops CD playback or erase a CD program.
# DOCK
–
selects sound source of DOCK
$ MUTE
–
switches playback sound off and on.
% REPEAT
–
repeats a track/ disc/ all programmed tracks.
^ SHUFF (SHUFFLE)
–
plays CD/MP3 tracks in random order.
& SLEEP
–
Notes for remote control:
– First select the source you wish to control
by pressing one of the source select keys on
the remote control (for example CD ,
TUNER).
– Then select the desired function
(for exampleÉ, í, ë).
activates/deactivates or selects the sleeper time.
13
PG 001-024_MCM108DB_37-Eng
13
26/4/07, 17:07
English
Controls (illustrations on page 3)
Basic Functions
English
Adjusting volume and sound
OP
STANDBY-ON
SOURCE
BAND
PROG/CLOCK
-
VOLUME
1
Press VOLUME – / + to increase or decrease
volume.
➜ Display shows the volume level
and a
number from 0-32.
2
Press DSC repeatedly to
select the desired sound effect:
JAZZ / POP / CLASSIC /
ROCK.
E N / C LO S E
+
TUNING
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Switching the system on
● In Active standby, or Eco standby, press
STANDBY-ON (y on the remote control).
➜ The system will switch to the last selected
source.
● Press SOURCE (CD, TUNER or DOCK on
the remote control).
➜ The system will switch to the selected source.
DSC
Press DBB (on the remote control) to switch
bass enhancement on or off.
➜ Display shows: DBB if the DBB is activated.
4
Press MUTE on the remote control to stop
sound play-back instantly.
➜ Playback will continue without sound and the
display shows MUTE .
● To start sound playback you can:
– press MUTE again;
– adjust the volume controls;
– change source.
To switch the system to Eco-power
standby mode
● Press and hold STANDBY-ON (y on the
remote control) for more than 2 seconds.
➜ The clock is displayed.
Power-saving automatic standby
The power-saving feature automatically switches
to Eco power standby 15 minutes after a CD
playback has ended and no control is operated.
Note:
– In the Eco power standby, no button, except
SOURCE, and STANDBY-ON buttons, can
be activated.
14
14
DBB
3
To switch the system to standby mode
● Press STANDBY-ON (y on the remote
control).
➜ The clock is displayed.
PG 001-024_MCM108DB_37-Eng
VOLUME
26/4/07, 17:07
➜ READ is displayed as the CD player scans the
contents of a disc, and then the total number of
tracks and playing time (or the total number of
M I C R O S Y S T E M MCM108DB
albums and tracks for MP3/WMA disc) are shown.
iR
Basic playback controls
POP
TRK
To play a disc
PROG
DBB
MP3
● Press 2; to start playback.
➜ The current track number and elapsed
playing time of the track are displayed during disc
playback.
REP ALL
CD
To select a different track
● Press ¡1 2™ once or repeatedly until the
desired track number appears in the display.
IMPORTANT:
The lens of the CD player should never be
touched.
To find a passage within a track
1
2
Press and hold down on ¡1 2™.
➜ The disc is played at high speed and low
volume.
When you recognise the passage you want,
release ¡1 2™.
➜ Normal playback continues.
To interrupt playback
Loading a disc
This CD player plays Audio Discs including CDRecordables, CD-Rewritables, MP3 CD and
WMA CD.
● Press 2; during playback.
➜ The display freezes and the elapsed playing
time flashes when playback is interrupted.
➜ To resume, press 2; again.
To stop playback
● Press 9.
Notes: CD play will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source: TUNER.
– you select standby
● CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible.
1
2
3
Playing an MP3,WMA disc
Select CD source.
Press OPEN/CLOSE3 on the top of the
system to open the CD compartment.
➜ OPEN is displayed when you open the CD
compartment.
Insert a disc with the printe=d side facing up and
press down on OPEN/CLOSE3 to close the
CD door.
1
2
Load an MP3/WMA disc.
➜ The disc reading time may exceed 10
seconds due to the large number of songs
compiled into one disc.
➜ "XXX YY" is displayed. XXX is the current
track number and YY is the current album
number.
Press ALBUM 4 3 to select a desired album..
15
PG 001-024_MCM108DB_37-Eng
15
26/4/07, 17:07
English
CD/MP3/WMA Operation
CD/MP3/WMA Operation
English
3
Press ¡1 2™ to select a desired track.
➜ The album number will change accordingly as
you reach the first track of an album by pressing
¡1 or the last track of an album by
pressing 2™ .
4
Press 2; to start playback.
Notes:
– The SHUFFLE and REPEAT functions cannot be
used simultaneously.
– SHUFFLE play is not available in the programe
mode.
Programming track numbers
● During playback, press once ALBUM 4 3 to
show the current album number.
Supported MP3 disc formats:
– ISO9660, Joliet, UDF 1.5
– Maximum title number: 512 (depending on
filename length)
– Maximum album number: 99
– Supported sampling frequencies: 32 kHz, 44.1
kHz, 48 kHz
– Supported Bit-rates: 32~256 (kbps), variable
bitrates
Programme in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
40 tracks can be stored in the memory.
1
In the stop position, use the ¡1 2™ to select
your desired track number.
● For MP3/WMA, you may press ALBUM 4 3
to select a desired album, then press ¡1 2™
to select your desired track.
2
Press PROGRAM (or PROG/CLOCK on
the set) to store.
is displayed
➜ Display: PROG flashes, and
briefly, then the selected track number (and the
selected album number for MP3/WMA).
You can select and change the various play
modes before or during playback. The REPEAT
modes can also be combined with
PROGRAMME.
3
Repeat steps 1-2 to select and store all desired
tracks.
➜ FULL is displayed if you attempt to
programme more than 40 tracks.
SHUFFLE ......... tracks of the entire disc are
played in random order
REPEAT ALL ... repeats the entire disc/
programme
REPEAT ............ plays the current track
continuously
REPEAT ALB ... repeats all tracks in the current
(for MP3/WMA only) album
4
Different play modes: SHUFFLE
and REPEAT
1
2
3
To select your play mode, press the SHUFF or
REPEAT on the remote control before or
during playback until the display shows the
desired function.
Press 2; (on the remote control 2;) to start
playback if in the STOP position.
➜ If you have selected SHUFFLE, playback starts
automatically.
To return to normal playback, press SHUFF or
REPEAT on the remote control until the
various SHUFFLE/ REPEAT modes are no longer
displayed.
To start playback of your disc programme,
press 2;.
Reviewing the programme
● Stop playback and press PROGRAM (or
PROG/CLOCK on the set) repeatedly.
➜ Display first shows a programme sequence,
then the stored track number (and the album
number for MP3/WMA).
● To exit review mode, pressÇ.
Erasing the programme
You can erase the programme by:
●
●
●
●
pressing 9 once in the STOP mode;
pressing 9 twice during playback;
opening the CD compartment;
Select another sound source.
➜ PROG disappears from the display.
● You can also press 9 to cancel your play mode.
16
PG 001-024_MCM108DB_37-Eng
16
26/4/07, 17:07
3
English
Radio Reception
Turn TUNING 0 to tune to a station.
➜ Display shows: the frequency of the tuned
station.
Helpful hints:
To improve radio reception:
– For FM, extend coil antenna at the back of the
unit fully for optimum reception.
OP
STANDBY-ON
SOURCE
BAND
PROG/CLOCK
-
VOLUME
E N / C LO S E
+
TUNING
Tuning to radio stations
1
Select TUNER source.
➜ TUNER is displayed.
2
Press BAND (TUNER on the remote control)
once or more to select your waveband.
Maintenance
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic
spray intended for analogue records.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
17
PG 001-024_MCM108DB_37-Eng
17
26/4/07, 17:07
Clock/Timer
English
4
5
M I C R O S Y S T E M MCM108DB
iR
6
7
Press ¡1 / 2™ to set the hours.
Press TIMER again.
➜ The clock digits for the minutes flash.
Press ¡1 / 2™ to set the minutes.
Press TIMER to confirm the time.
➜ The timer is now set and actiated.
Notes:
- If source CD is selected and no disc is in the CD
tray or the disc has an error, TUNER will be
selected automatically.
- If source DOCK is selected and no iPod is docked
or no dock connection is made, TUNER will be
selected automatically.
To activate and deactivate timer
Setting the clock
1
In Standby mode, press PROG/CLOCK
button.
➜ The clock digits for the hours flash.
2
3
Press ¡1 / 2™ to set the hours.
4
5
Press PROG/CLOCK again.
➜ The clock digits for the minutes flash.
Press ¡1 / 2™ to set the minutes.
Press PROG/CLOCK to confirm the time.
Note:
– If the clock has not been set, -- --:-- -- will be
displayed.
● In standby or during playback, press
TIMER once.
➜ Display shows
if activated, and disappears
if deactivated.
Activating and deactivating
SLEEP
The sleep timer enables the system to switch off
by itself after a set period of time. The clock time
needs to be set first before the sleep timer can
be used.
● Press SLEEP on the remote control repeatly to
select desired time before
system shuts off.
➜ Display shows SLEEP and
series of time options for
selection:
,
,
, ,
,
...
SLEEP
Setting the timer
● The system can be used as an alarm clock. CD
or TUNER or DOCK can be set to switch on at
a preset time. The clock time needs to be set
first before the timer can be used.
● If no button is pressed within 90 seconds during
timer setup, the system will exit timer setting
mode automatically.
1
In standby or during playback, press TIMER on
the remote control for more than 2 seconds.
2
Press ¡1 / 2™ (or CD/TUNER/DOCK on
the remote control) to select sound source.
3
Press TIMER to confirm your desired source.
➜ The clock digits for the hours flash.
● To deactivate, press SLEEP on the remote
control once or more until “ “ is shown, or
press STANDBY ON on the system or
remote control.
18
PG 001-024_MCM108DB_37-Eng
18
TIMER
26/4/07, 17:07
English
Dock
Portable player
Speaker
(right)
Speaker
(left)
Dock
Playing iPod using the dock
By connecting the supplied dock to your Hi-Fi
system, you can listen to the sound of the
docked player through the powerful speakers of
the Hi-Fi system.
Installing the dock adaptor
● Align two latches and two holes on the dock and
the adaptor, then gently push in the adaptor until
it clicks.
2
Compatible portable player
● Most Apple iPod models with 30-pin dock
connector as follows:
20GB, 40GB, 20/30GB photo, 40/60GB photo,
30GB video, 60GB video, mini and nano.
1
Dock
● This system comes with a dock used for iPod.
Connect the cable of the dock to the system to
let the system and your iPod work together.
Removing the dock adaptor
● Slightly push down the dock adaptor, as indicated
in the figure below, to un-latch the adaptor, then
take it out.
Dock adaptor
Before plugging your player in the dock, snap the
suitable dock adaptor into the dock to provide a
snug fit for the player to be docked.
Selecting the correct dock adaptor
● For the iPod dock, 8 dock adaptors of different
type, as indicated at the back of the adaptor, are
included to fit the following iPod:
20GB, 40GB, 20/30GB photo, 40/60GB photo,
30GB video, 60GB video, mini and nano.
19
PG 001-024_MCM108DB_37-Eng
19
26/4/07, 17:07
Dock
English
Playing iPod
1
2
3
4
Select the dock adaptor of the correct type and
size, and snap it into the dock (See “ Dock
adaptor ” ).
Correctly place your iPod in the dock.
Connect the cables of the dock to DOCK IN
jacks on the main set correspondingly.
Press SOURCE repeatedly or DOCK to select
DOCK source.
● The connected player will play automatically.
Notes:
– By using the buttons ( 2;, ¡1, 2™ and
VOLUME ) on the MCM108DB and its remote
control, the following iPod playback features are
available: Play/Pause, selecting next/previous track,
fast forwarding/rewinding and changing volume.
– The buttons ( 2;, ¡1, 2™ and VOLUME ) on
the MCM108DB and its remote control can work
only with playback of the audio contents stored on
the docked player.
– Stop (Ç) function of disc playback is not
available to the docked player.
Charging iPod battery using the
dock
Docking your iPod and connecting the dock to
MCM108DB you can charge the iPod in the
standby mode and power-on mode of
MCM108DB.
Notes:
– In Eco power standby mode, iPod cannot be
charged.
– When the set is switched to the dock mode, if no
player is plugged in for 15 minutes, the set will
switch to the Eco power mode.
20
PG 001-024_MCM108DB_37-Eng
20
26/4/07, 17:07
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or service centre.
Problem
Solution
✔ Insert a disc.
✔ Check if the disc is inserted upside down.
✔ Wait until the moisture condensation at the lens
“NO cd” is displayed.
has cleared.
✔ Replace or clean the disc, see “Maintenance”.
✔ Use a finalised CD-RW or CD-R, or a correct
MP3-CD format disc.
✔ If the signal is too weak, adjust the antenna or
Radio reception is poor.
connect an external antenna for better
reception.
✔ Increase the distance between the Micro HiFi
System and your TV or VCR.
The system does not react when buttons
are pressed.
✔ Remove and reconnect the AC power plug and
Sound cannot be heard or is of poor
quality
✔ Adjust the volume.
✔ Disconnect the headphones.
✔ Check that the speakers are connected
switch on the system again.
correctly.
✔ Check if the stripped speaker wire is clamped.
✔ Make sure the MP3-CD was recorded within
32-256 kbps bit rate with sampling frequencies
at 48 kHz, 44.1 kHz or 32 kHz.
The left and right sound outputs are
reversed.
✔ Check the speaker connections and location.
The remote control does not function
properly.
✔ Select the source (CD or TUNER, for example)
before pressing the function button (É,í,ë).
✔ Reduce the distance between the remote
control and the system.
✔ Insert the batteries with their polarities
(+/– signs) aligned as indicated.
✔ Replace the batteries.
✔ Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working.
✔ Set the clock correctly.
✔ Press TIMER to switch on the timer.
The Clock/Timer setting is erased.
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
21
PG 001-024_MCM108DB_37-Eng
21
26/4/07, 17:07
English
Troubleshooting
Troubleshooting
English
The menu navigation or photo playback
of the docked player cannot be carried
out through the buttons on MCM108DB
or its remote control.
✔ The buttons on MCM108DB and its remote
The STOP 9 and some buttons on
MCM108DB and its remote control have
no function.
✔ The playback of the docked player cannot be
control can only control playback of audio
contents. To navigate the menu, use the controls
on the docked player.
stopped using the STOP 9 button on
MCM108DB and its remote control.
✔ The buttons ( 2;, ¡1, 2™ and VOLUME) can
function only.
22
PG 001-024_MCM108DB_37-Eng
22
26/4/07, 17:07
AMPLIFIER
Output power ....................................................... 2 x 2W
..................................................................... 4W total power
Signal-to-noise ratio .......................... ≥ 62 dBA (IEC)
Frequency response ...... 125 – 16000 Hz, ± 3 dB
Impedance loudspeakers ......................................... 8 Ω
Impedance headphones ........................................ 32 Ω
CD PLAYER
Frequency range .................................. 20 – 20000 Hz
Signal-to-noise ratio ............................................ 62 dBA
TUNER
FM wave range ............................... 87.5 – 108.5 MHz
AM wave range .................................. 531 – 1602 kHz
Sensitivity at 75 Ω
– mono, 26 dB signal-to-noise ratio ............ 3.8 µV
– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV
Selectivity ................................................................. ≥ 28 dB
Total harmonic distortion ..................................... ≤ 5%
Frequency response ..... 63 – 12500 Hz (± 3 dB)
Signal-to-noise-ratio .......................................... ≥ 50 dB
SPEAKERS
Bass reflex system
Dimensions (w x h x d) . 150 x 153 x 204 (mm)
GENERAL INFORMATION
AC Power..........................................110 – 120 V /60 Hz
Dimensions (w x h x d) .. 150 x 153 x 244 (mm)
Weight (with/without speakers) ..................................
............................................................... approx. 4.9 / 2.3 kg
Eco power standby ..................... ..........................< 4 W
Subject to modification
23
PG 001-024_MCM108DB_37-Eng
23
26/4/07, 17:07
English
Specifications
English
PHILIPS LIMITED WARRANTY
ONE (1) YEAR
WARRANTY COVERAGE:
PHILIPS warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
Philips warrants the product to the original purchaser or the
person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
The Philips warranty covers new products if a defect arises and
a valid claim is received by Philips within the Warranty Period.
At its option, Philips will either (1) repair the product at no
charge, using new or refurbished replacement parts, or (2)
exchange the product with a product that is new or which has
been manufactured from new, or serviceable used parts and is
at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product.
Philips warrants replacement products or parts provided under
this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product
or part is exchanged, any replacement item becomes your
property and the replaced item becomes Philips’ property.
When a refund is given, your product becomes Philips’ property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:
This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty
does not apply to any non-Philips hardware product or any
software, even if packaged or sold with the product. NonPhilips manufacturers, suppliers, or publishers may provide a
separate warranty for their own products packaged with the
bundled product.
Philips is not liable for any damage to or loss of any programs,
data, or other information stored on any media contained within the product, or any non-Philips product or part not covered
by this warranty. Recovery or reinstallation of programs, data
or other information is not covered under this Limited
Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, misapplication, or non-Philips product, (b) to
damage caused by service performed by anyone other than
Philips or Philips Authorized Service Location, (c) to a product
or a part that has been modified without the written permission of Philips, or (d) if any Philips serial number has been
removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including
refurbished Philips product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
• Shipping charges to return defective product to Philips.
• Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation
or repair of antenna systems outside of the product.
• Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.
• Damage or claims for products not being available for use, or
for lost data or lost software.
• Damage occurring to product during shipping.
• A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or
authorized, or repair of products damaged by these modifications.
• A product used for commercial or institutional purposes
(including but not limited to rental purposes).
• Product lost in shipment and no signature verification receipt
can be provided.
• Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO
RICO, OR U.S. VIRGIN ISLANDS…
Contact Philips Customer Care Center at:
1-888-PHILIPS (1-888-744-5477)
TO OBTAIN ASSISTANCE IN CANADA…
1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY.
Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 671539, Marietta, GA. 30006-0026
3121 233 48801
24
PG 001-024_MCM108DB_37-Eng
24
26/4/07, 17:07
Was this manual useful for you? yes no
