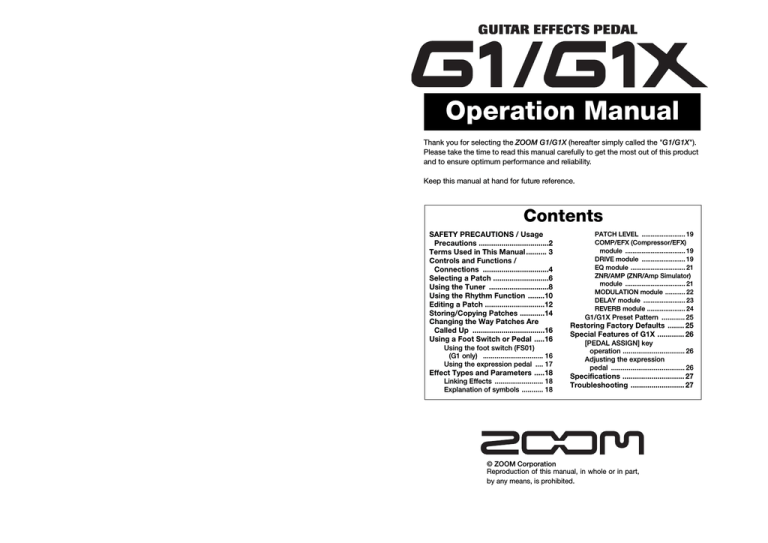

Operation Manual
Thank you for selecting the ZOOM G1/G1X (hereafter simply called the "G1/G1X").
Please take the time to read this manual carefully to get the most out of this product
and to ensure optimum performance and reliability.
Keep this manual at hand for future reference.
Contents
SAFETY PRECAUTIONS / Usage
Precautions ..................................2
Terms Used in This Manual .......... 3
Controls and Functions /
Connections ................................4
Selecting a Patch ...........................6
Using the Tuner .............................8
Using the Rhythm Function ........10
Editing a Patch .............................12
Storing/Copying Patches ............14
Changing the Way Patches Are
Called Up ...................................16
Using a Foot Switch or Pedal .....16
Using the foot switch (FS01)
(G1 only) ............................... 16
Using the expression pedal .... 17
Effect Types and Parameters .....18
Linking Effects ......................... 18
Explanation of symbols ........... 18
PATCH LEVEL ........................ 19
COMP/EFX (Compressor/EFX)
module ................................. 19
DRIVE module ........................ 19
EQ module .............................. 21
ZNR/AMP (ZNR/Amp Simulator)
module ................................. 21
MODULATION module ........... 22
DELAY module ....................... 23
REVERB module ..................... 24
G1/G1X Preset Pattern ............ 25
Restoring Factory Defaults ........ 25
Special Features of G1X ............. 26
[PEDAL ASSIGN] key
operation ................................ 26
Adjusting the expression
pedal ...................................... 26
Specifications .............................. 27
Troubleshooting .......................... 27
© ZOOM Corporation
Reproduction of this manual, in whole or in part,
by any means, is prohibited.
Terms Used in This Manual
SAFETY PRECAUTIONS / Usage Precautions
SAFETY PRECAUTIONS
In this manual, symbols are used to highlight warnings and
cautions for you to read so that accidents can be prevented. The
meanings of these symbols are as follows:
Warning
Caution
This symbol indicates explanations about extremely
dangerous matters. If users ignore this symbol and
handle the device the wrong way, serious injury or
death could result.
This symbol indicates explanations about dangerous
matters. If users ignore this symbol and handle the
device the wrong way, bodily injury and damage to
the equipment could result.
Please observe the following safety tips and precautions to
ensure hazard-free use of the G1/G1X.
Caution
[Battery operation]
• Use four conventional IEC R6 (size AA) batteries
(alkaline).
• The G1/G1X cannot be used for recharging.
• Pay close attention to the labelling of the battery to make
sure you choose the correct type.
• When not using the unit for an extended period, remove
the batteries from the unit.
• If battery leakage has occurred, wipe the battery
compartment and the battery terminals carefully to
remove all remnants of battery fluid.
• While using the unit, the battery compartment cover
should be closed.
2
IN COMP/EFX DRIVE
■ Effect module
Connecting cables and input and output
jacks
You should always turn off the power to the G1/G1X
and all other equipment before connecting or
disconnecting any cables. Also make sure to disconnect
all connection cables and the power cord before moving
the G1/G1X.
Never open the case of the G1/G1X or attempt to
modify the product in any way since this can result in
damage to the unit.
Volume
Caution
Do not use the G1/G1X at a loud volume for a long
time since this can cause hearing impairment.
Usage Precautions
EQ
ZNR
AMP
As shown in the illustration above, the G1/G1X can
be thought of as a combination of several single
effects. Each such effect is referred to as an effect
module. In addition to modules such as DRIVE and
MODULATION, the G1/G1X also provides a
module for noise reduction and amp simulation
(ZNR/AMP). Parameters such as effect intensity
can be adjusted for each module individually, and
modules can be switched on and off.
■ Effect type
Some effect modules have several different effects
which are referred to as effect types. For example,
the MODULATION module comprises chorus,
flanger, pitch shifter, and other effect types. Only
one of these can be selected at a time.
■ Effect parameter
All effect modules have various parameters that can
be adjusted. These are called effect parameters.
When thinking of an effect module as a compact
effect, the parameters change the tone and effect
intensity similar to the knobs on the device.
■ Patch
Electrical interference
For safety considerations, the G1/G1X has been designed to
provide maximum protection against the emission of
electromagnetic radiation from inside the device, and protection
from external interference. However, equipment that is very
susceptible to interference or that emits powerful
electromagnetic waves should not be placed near the G1/G1X,
as the possibility of interference cannot be ruled out entirely.
With any type of digital control device, the G1/G1X included,
electromagnetic interference can cause malfunctioning and can
corrupt or destroy data. Care should be taken to minimize the
risk of damage.
In the G1/G1X, effect module combinations are
stored and called up in units referred to as patches.
A patch comprises information about the on/off
To prevent the risk of fire, electric shock or
malfunction, avoid using your G1/G1X in environments
where it will be exposed to:
• Extreme temperatures
• Heat sources such as radiators or stoves
Please keep this manual in a convenient place for
future reference.
DELAY
REVERB
OUT
status of each effect module, about the effect type
used in each module, and about effect parameter
settings. The internal memory of the G1/G1X can
store up to 80 patches.
■ Bank and area
A group of ten patches is called a bank. The
memory of the G1/G1X comprises a total of eight
banks, labelled with letters A to d and numbers 0 to
3. Banks A – d are the user area which allows read/
write. 0 – 3 form the preset area of read-only
patches.
The patches within each
BANK 3
PATCH 0
bank are numbered 0
BANK dPATCH 1
BANK
C0
PATCH
BANK
b 0
through 9. To specify a
PATCH
BANK
A 0PATCH 1
PATCH
PATCH
1
PATCH 9
PATCH
0 1
patch of the G1/G1X, you
PATCH
PATCH 1
PATCH 9
use the format "A1" (patch
PATCH 9
PATCH9
PATCH 9
number 1 from bank A),
"06" (patch number 6 from
bank 0), etc.
■ Mode
The internal status of the G1/G1X is referred to as
the operation mode. In "play mode" you can select
patches and use them for playing your instrument.
In "edit mode" you can modify the effects, and there
is also a "rhythm mode" in which you can make
settings for the rhythm function. The module
selector serves for switching between these three
modes.
Operating the G1/G1X on batteries
of the battery compartment on the bottom.
G1/G1X bottom view
Four IEC R6
(size AA)
batteries
Latch
ZOOM G1/G1X
MODULATION
1. Turn the G1/G1X over and open the cover 2. Insert four fresh IEC R6 3. Close the cover of the
Cover
Cleaning
Use a soft, dry cloth to clean the G1/G1X. If necessary, slightly
moisten the cloth. Do not use abrasive cleanser, wax, or solvents
(such as paint thinner or cleaning alcohol), since these may dull
the finish or damage the surface.
Environment
Warning
Handling
Alterations
Warning
[AC adapter operation]
• Be sure to use only an AC adapter which supplies 9 V DC,
300 mA and is equipped with a "center minus" plug
(Zoom AD-0006). The use of an adapter other than the
specified type may damage the unit and pose a safety
hazard.
• Connect the AC adapter only to an AC outlet that supplies
the rated voltage required by the adapter.
• When disconnecting the AC adapter from the AC outlet,
always grasp the adapter itself and do not pull at the cable.
• During lightning or when not using the unit for an
extended period, disconnect the AC adapter from the AC
outlet.
This section explains some important terms that are used throughout the G1/G1X documentation.
• Never place objects filled with liquids, such as vases, on
Warning
the G1/G1X since this can cause electric shock.
• Do not place naked flame sources, such as lighted candles,
on the G1/G1X since this can cause fire.
• The G1/G1X is a precision instrument. Do not exert
undue pressure on the keys and other controls. Also take
Caution
care not to drop the unit, and do not subject it to shock or
excessive pressure.
• Take care that no foreign objects (coins or pins etc.) or
liquids can enter the unit.
Power requirements
Since power consumption of this unit is fairly high, we
Warning
recommend the use of an AC adapter whenever
possible. When powering the unit from batteries, use
only alkaline types.
• High humidity or moisture
• Excessive dust or sand
• Excessive vibration or shock
Press latch to release
and then lift the cover.
ZOOM G1/G1X
(size AA) batteries.
Polarity is opposite for two
banks of two batteries each.
battery compartment.
Push the cover in until the
latch audibly snaps into place.
Use four IEC R6 (size AA) batteries
When the batteries are getting low, the indication
"bt" appears on the display.
When operating the G1/G1X on batteries, it is advisable
to disconnect the guitar cable plug from the [INPUT]
jack when not using the unit, to conserve battery power.
3
Controls and Functions / Connections
Controls and Functions / Connections
[VALUE] knob
This knob allows changing the level of effect parameters
or of the overall patch.
This section describes the names and functions of all parts of the G1 and G1X. Functions that
are special to the G1X are explained on page 26. Please also refer to that section.
Expression pedal (G1X only)
Top Panel (G1X)
Module selector
Can be used as a volume pedal or as a real-time controller
for effect parameters. (For details, see page 26.)
Switches between play mode, edit mode, and
rhythm mode. In edit mode, the knob selects
the module for operation.
[STORE] key
Serves for storing edited patches in memory.
RHYTHM [R/P] key
In play mode and rhythm mode, this key
serves to start and stop the rhythm pattern.
In edit mode, the key serves to select the
module to control with the pedal.
[PEDAL ASSIGN] key (G1X only)
Serves to select the module to assign to the built-in
expression pedal.
[BANK UP•TAP] key
Display
In play mode, the key switches to the next higher bank. In
other modes, the key lets you manually specify the rhythm
pattern tempo and other parameters related to timing and
cycle.
Shows patch numbers, setting values, and
other information for operating the G1/G1X.
When operating the
G1/G1X on batteries, it is
advisable to disconnect
the guitar cable plug from
the [INPUT] jack when not
using the unit, to
conserve battery power.
Guitar
[W]/[Q] foot switches
These switches are used for selecting patches, controlling
the tuner, and other functions.
Rear Panel (G1)
AC adapter
[INPUT] jack
Differences between G1X and G1
G1X special features that differ from G1:
• Equipped with expression pedal as standard feature (→ p. 26)
• [PEDAL ASSIGN] key on top panel allows selection of module to
be controlled with expression pedal (→ p. 26)
• No [CONTROL IN] jack on rear panel; optional foot switch (FS01)
or expression pedal (FP01/FP02) cannot be used.
Serves for connecting the guitar. When operating
the G1/G1X on batteries, inserting the guitar
cable plug into this jack will turn the unit on.
[OUTPUT/PHONES] jack
This stereo phone jack serves for connection to the guitar
amplifier. It is also possible to use a Y cable for sending the
output to two amplifiers, or to plug a pair of stereo
headphones into this jack.
[DC IN] jack
An AC adapter (ZOOM AD-0006) with a rated output of 9 volts
DC, 300 mA (center minus plug) can be plugged into this jack.
Headphones
[CONTROL IN] jack (G1 only)
FS01
Guitar amplifiers
4
ZOOM G1/G1X
FP01/FP02
ZOOM G1/G1X
Serves for connection of the optional foot switch
(FS01) or expression pedal (FP01/FP02).
5
Selecting a Patch
Selecting a Patch
To try out the various effects of the G1/G1X, we recommend that you simply play your instrument while
switching patches.
Turn power on
When using the G1/G1X on batteries, plug a
shielded cable with mono phone plug into the
[INPUT] jack on the rear panel of the G1/G1X.
Adjust the master level
To adjust the master level in play mode,
you can use the [VALUE] knob.
When using the G1/G1X with the AC
adapter, plug the adapter into the outlet
and plug the cable from the adapter into
the [DC IN] jack on the G1/G1X.
When you turn the [VALUE] knob, the master
level setting is shown for a time on the display.
Turn the guitar amplifier on and adjust
the volume to a suitable position.
80
The master level setting range is 0 – 98, 1.0.
It will be reset to 80 when the unit is turned off
and then on again.
Set the G1/G1X to play
mode
NOTE
If the Module selector is set to a position
other than "PLAY", set it to "PLAY".
The currently selected
bank and patch
number are shown on
the display.
HINT
A0
Bank name
Patch number
Immediately after turning the G1/G1X
on, the unit will be in play mode, even if
the Module selector is set to a position
other than "PLAY".
Select a patch
Directly selecting a bank
To switch the patch, press one of the [W]/[Q] foot switches.
Pressing the [W] foot switch calls up the next lower patch, and pressing the [Q] foot
switch calls up the next higher patch.
Repeatedly pressing one foot switch cycles through patches in the order A0 – A9 ... d0 – d9
→ 00 – 09 ... 30 – 39 → A0, or the reverse order.
6
When using headphones, this knob
adjusts the listening volume.
ZOOM G1/G1X
To select the banks A - d, 0 - 3 directly, use the [BANK UP•TAP]
key.
Each push of the key switches to the next higher bank.
NOTE
ZOOM G1/G1X
With the G1, using the foot switch (FS01) to switch banks is also
possible (→ p. 16).
7
Using the Tuner
Using the Tuner
The G1/G1X incorporates an auto-chromatic tuner. To use the tuner function, the built-in effects must be
bypassed (temporarily turned off) or muted (original sound and effect sound turned off).
Adjusting the reference pitch of the tuner
If required, you can fine-adjust the reference pitch of the G1/G1X tuner.
Turn the [VALUE] knob.
When you turn the [VALUE] knob in the
bypass/mute condition, the current reference pitch
is shown for a time on the display. The default
setting is 40 (center A = 440 Hz).
Switch to bypass or mute
Setting the G1/G1X to the bypass state
In play mode or rhythm mode (→ p. 10),
press both [W]/[Q] foot switches
together briefly and release.
40
BP
While the reference pitch is shown, turn
the [VALUE] knob to adjust the value in
the range from 35 - 45 (center A = 435 to
445 Hz).
Setting the G1/G1X to the mute state
In play mode or rhythm mode (→ p. 10),
press both [W]/[Q] foot switches
together and hold for at least 1 second.
NOTE
MT
42
The bypass or mute condition cannot be
activated when the unit is in edit mode.
Shortly after you release the [VALUE] knob, the
display indication will revert to the previous
condition.
Patch change at bypass/mute
When you press both [Q]/[W] foot switches together while
playing your instrument, the sound may change momentarily
just before the bypass/mute condition is activated. This is
because the G1/G1X switches to the next higher or lower
patch when one of the foot switches is pressed slightly
earlier. (When you cancel the bypass/mute condition, the
original patch number will be active again.)
This behavior is not a defect. It is due to the very high speed
at which the G1/G1X responds to patch switching. To
prevent the sound change caused by the above condition,
do not produce sound with your instrument until the
bypass/mute condition is fully established.
NOTE
Return to play mode
Press one of the [W]/[Q] foot switches.
The right side of the display shows
a symbol that indicates by how
much the tuning is off.
Tune your instrument
Play the open string to tune,
and adjust the pitch.
A8
Pitch is high
Pitch is correct Pitch is low
A8
Tune the other strings in the
same way.
The left side of the display shows the
note which is closest to the current pitch.
8
When you turn the G1/G1X off and on
again, the reference pitch setting will be
reset to 40 (center A = 440 Hz).
ZOOM G1/G1X
ZOOM G1/G1X
Indication turns faster the more the pitch is off
9
Using the Rhythm Function
Using the Rhythm Function
Adjust the rhythm volume
The G1/G1X has a built-in rhythm function that plays realistic drum sounds in various patterns. The
rhythm function is available in play mode and in rhythm mode. This section describes how to use the
function in rhythm mode.
25
To adjust the rhythm volume, turn the [VALUE] knob.
When you turn the [VALUE] knob, the current setting (0 – 30) is shown
for a time on the display.
Select rhythm mode
Adjust the tempo
Set the Module selector to the "RHYTHM"
position.
The number of the currently selected
rhythm pattern (01 – 40) appears on the
display.
You cannot switch patches or adjust the
master level.
HINT
The rhythm pattern tempo can be adjusted in the
range of 40 – 250 BPM (beats per minute).
01
To continuously change the rhythm tempo,
hit the [BANK UP•TAP] key once and then
turn the [VALUE] knob while the tempo
value is being shown on the display.
To manually specify the tempo, hit the
[BANK UP•TAP] key at least twice in the
desired interval.
• The rhythm function can also be used in play
mode.
• In play mode, you cannot switch the rhythm
pattern or adjust the rhythm volume and
tempo.
The G1/G1X automatically detects the interval in
which the key is pressed the second and subsequent
times, and sets the tempo accordingly (tap tempo
function).
Start the rhythm function
While the above steps are carried out, the current
tempo value (40 – 250) is shown for a time on the
display. For values in the range from 100 to 199, a
dot is shown in the bottom right corner (after the
second digit). For values of 200 and above, dots
are shown after the first and second digits.
To start the rhythm function, press the
RHYTHM [R/P] key.
NOTE
While the rhythm is playing, the reverb effect
is disabled.
20 40
Select a rhythm pattern
Dot is shown
Tempo = 120 BPM
The G1/G1X has 40 built-in rhythm patterns. For more
information on pattern contents, see page 25.
HINT
To switch rhythm patterns, press one of the
[W]/[Q] foot switches in rhythm mode.
HINT
10
When you press both [W]/[Q] foot switches in
rhythm mode, the G1/G1X switches to the
bypass/mute condition (→ p. 8). The rhythm
function can also be used in this condition.
Dots are shown
Tempo =240 BPM
With the G1, using the foot switch (FS01)
to manually adjust the tempo is also
possible (→ p. 16). The G1X does not
support use of a foot switch.
Stop the rhythm
To stop the rhythm, press the RHYTHM [R/P] key.
The G1/G1X returns to the previous condition.
ZOOM G1/G1X
ZOOM G1/G1X
11
Editing a Patch
Editing a Patch
Change the setting
The patches of the G1/G1X can be freely edited by changing the effect parameter settings. Try editing the
currently selected patch to create your own sound.
Use the [VALUE] knob to change the effect
type and parameter as shown on the
display.
Select the effect module/
parameter
When the effect type and/or parameter setting has
been changed, a dot (.) appears in the bottom right of
the display. This indicates that a setting has been
changed.
Turn the Module selector to select the
effect module and parameter to edit. The
available settings are listed below.
C2
The EQ module has three parameters, and the
MODULATION, DELAY, and REVERB modules
have two parameters each. The Module selector lets
you directly access each of these.
(5)
(4)
(3)
(2)
(1)
NOTE
(6) (7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
Type = Effect type
Prm = Parameter
12
To switch the currently selected effect
module between on and off, press one of
the [W]/[Q] foot switches.
The indication "oF" appears on the
display. When you press one of the
switches once more, the indication returns
to the previous condition.
Type&Prm or Type&Prm1
Type
Prm or Prm2
Item where the effect type (left
side of display) and parameter
setting value (right side of display)
are adjusted simultaneously.
Item where the effect
type only is selected.
Item where the
parameter setting
value only is adjusted.
C1
Parameter
setting value
Effect type
To terminate the edit mode and return to the play
mode, set the Module selector to the "PLAY" position.
25
Parameter setting value
ZOOM G1/G1X
OF
Terminate the edit mode
NOTE
FD
When you have selected a parameter that
can be set with the tap function (→ p. 18),
you can use the [BANK UP•TAP] key to
specify a time interval or rate by repeatedly
hitting the key.
To switch an effect module
on and off
(1) Patch level (Prm)
(2) COMP/EFX module (Type&Prm)
(3) DRIVE module (Type)
(4) DRIVE module (Prm)
(5) – (7) EQ module (Prm)
(8) ZNR/AMP module (Type&Prm)
(9) MODULATION module (Type&Prm1)
(10) MODULATION module (Prm2)
(11) DELAY module (Type&Prm1)
(12) DELAY module (Prm2)
(13) REVERB module (Type&Prm1)
(14) REVERB module (Prm2)
Effect type
Dot indicates that setting
has been changed
ZOOM G1/G1X
When you return to play mode and have made any
change to the patch, the dot (.) will be shown in the
bottom right of the display. If you select another patch in
this condition, the changes you have made in edit mode
will be lost unless you store the patch first. To retain the
changes, store the patch as described on page 14.
13
Storing/Copying Patches
Storing/Copying Patches
An edited patch can be stored in a bank of the user area (A – d). It is also possible to store an existing patch
in another location to create a copy.
To cancel the store process
To cancel the store process, operate the [VALUE] knob before
pressing the [STORE] key again in step
.
In play mode or edit mode,
press the [STORE] key.
The bank and patch number are shown on
the display as a flashing indication.
A0
NOTE
Press the [STORE] key
once more
When the store/copy process is
completed, the G1/G1X returns to the
previous mode, with the target patch
being selected.
Patches of banks in the preset area (0 – 3)
are read-only. No patches can be stored or
copied into these locations. If you press the
[STORE] key while a patch from the preset
area is selected, the patch "A0" (bank A,
patch number 0) will be selected
automatically as default store/copy target.
B4
Select the store/copy
target bank
Specify the store/copy
target patch number
To select the store/copy target bank, use
the [BANK UP•TAP] key.
To specify the store/copy target patch
number, use the [W]/[Q] foot switches.
B0
NOTE
14
B4
• Only a bank of the user area (A - d) can be
selected as store/copy target bank.
• During the store/copy process, the foot
switch (FS01) cannot be used to change
banks.
ZOOM G1/G1X
ZOOM G1/G1X
15
Using a Foot Switch or Pedal
Changing the Way Patches Are Called Up
In normal operation, changing a patch in play mode of the G1/G1X will be active immediately. This
means that the sound changes straight away when you make the selection.
In some cases, such as when the new patch is at a memory location not adjacent to the current one, this
method may not be ideal, because the sound will change in various ways as you switch through the
patches. In such a case, you may want to change the patch selection method to "pre-select". In this mode,
you first select the patch to use next, and then perform an additional step to activate the patch.
To change G1/G1X operation to pre-select, perform the following steps.
1.
Turn power to the G1/G1X on while
holding down the [Q] foot switch.
The indication "PrE-SElEct" scrolls on the
display during startup.
2.
In play mode, use the [W]/[Q] foot
switches to specify the patch to use
next.
You can use the [BANK UP•TAP] key or a foot
switch (FS01) connected to the [CONTROL IN]
jack to switch only the bank (The G1X does not
support use of a foot switch.)
The new bank or patch number specified by the
above step flashes on the display. The sound
does not change yet.
3.
When you have specified the patch to
use, press both [W]/[Q] foot
switches together.
The patch change is accepted, the display
changes from flashing to permanently lit, and the
sound changes.
B0
B0
4.
To return the G1/G1X to the normal
patch selection method, simply turn
power off and then on again.
The patch selection method is automatically reset
to conventional operation.
Using a Foot Switch or Pedal
The G1 is equipped with a [CONTROL IN] jack that allows connection of an optional foot switch or
expression pedal.
This section explains how to use this capability.
Using the foot switch (FS01)
(G1 only)
Simply connect the optional foot switch (FS01)
to the [CONTROL IN] jack of the G1 and turn
the unit on. This allows you to switch banks and
specify the tempo for rhythm patterns with the
foot switch.
16
Depending on the currently selected mode, the
foot switch operates as follows.
● Play mode
Pressing the foot switch selects the next higher
bank.
● Rhythm mode
When you press the foot switch two times or
ZOOM G1/G1X
more, the G1 detects the interval and
automatically adjusts the tempo accordingly
(tap tempo function).
Display
● Edit mode
Control target
DP
DELAY module
RP
REVERB module
The foot switch has no effect.
HINT
Using the expression pedal
With the G1, an expression pedal (FP01/FP02)
can be connected to the [CONTROL IN] jack
and used as a volume pedal or for adjusting a
certain parameter of an effect type in real time.
With the G1X, the built-in expression pedal can
be used in the same way. The function of the
expression pedal can be selected and stored
individually for each patch.
1.
To use an expression pedal with the
G1, plug the FP01 or FP02 into the
[CONTROL IN] jack and turn on the
power.
2.
Select the patch in which to use the
expression pedal.
3.
Set the Module selector to a position
other than "PLAY" or "RHYTHM".
The G1/G1X goes into edit mode.
4.
While holding down the [RHYTHM]
key, use the [VALUE] knob to select
the module to control with the
expression pedal. Available settings
are shown below.
Display
• In the section "Effect Types and Parameters" (page
19 – 24), a pedal symbol indicates which effect
type/parameter is controlled by the pedal.
• When a module has been selected as control
target, but the effect type currently selected for
that module does not have a pedal symbol, the
expression pedal has no effect.
5.
Store the patch as required.
The expression pedal setting is stored for that
patch.
6.
Select this patch in play mode, and
operate the expression pedal.
The respective parameter changes when you
operate the pedal (pushing the pedal down has
the same effect as increasing the value of the
parameter).
In the bypass condition, the expression pedal
always functions as volume pedal, regardless of
the setting made in step 4.
HINT
• The expression pedal operates also in edit mode.
• With the G1X, you can also use the [PEDAL
ASSIGN] key on the top panel instead of the
[RHYTHM] key and [VALUE] knob to select the
module to be controlled by the pedal. For details,
see page 26.
Control target
OF
Disabled
VP
Volume
WP
COMP/EFX module
GP
DRIVE module
MP
MODULATION
module
ZOOM G1/G1X
17
Effect Types and Parameters
Effect Types and Parameters
■ PATCH LEVEL
PATCH LEVEL (Prm)
illustration below. You can use all effect
modules together or selectively set certain
modules to on or off.
Linking Effects
The patches of the G1/G1X consist of eight
serially linked effect modules, as shown in the
DRIVE
Compressor
FD Clean
EQ
the patch level in the range from 2 – 98, 1.0. A setting of 80 corresponds to unity gain (input level
1 0 Sets
and output level are equal).
This module comprises the effects that control the level dynamics such as compressor, and
modulation effects such as tremolo and phaser.
ZNR
AMP
MODULATION
DELAY
REVERB
ZNR
AMP Sim.
Chorus
Delay
Hall
Auto Wah
VX Clean
Ensemble
Tape Echo
Room
Booster
HW Clean
Flanger
Analog
Delay
Spring
Tremolo
US Blues
Step
Phaser
2
■ COMP/EFX (Compressor/EFX) module
Effect modules
COMP/EFX
Determines the overall volume level of the patch.
BG Crunch
Pitch Shift
Arena
Ping Pong
Delay
Tiled Room
COMP/EFX (Type&Prm)
Adjusts the COMP/EFX module effect type and intensity.
Compressor
C1
C 9 This is an MXR Dynacomp type compressor. It attenuates high-level signal components and boosts
A1
A 9 This effect varies wah in accordance with picking intensity. Higher setting values result in higher
low-level signal components, to keep the overall signal level within a certain range. Higher setting
values result in higher sensitivity.
Effect types
* Manufacturer names and product names mentioned in this listing are trademarks or
registered trademarks of their respective owners. The names are used only to illustrate sonic
characteristics and do not indicate any affiliation with ZOOM CORPORATION.
For some effect modules, you can select an effect type from several possible choices. For example, the
MODULATION module comprises Chorus, Flanger, and other effect types. The REVERB module
comprises Hall, Room, and other effect types from which you can choose one.
Auto Wah
sensitivity.
B1
B 9 Booster
T1
T 9 Tremolo
P1
P 9 This effect produces sound with a pulsating character. Higher setting values result in faster modulation
Raises signal level and creates a dynamic sound. Higher setting values result in higher gain.
This effect periodically varies the volume. Higher setting values result in faster modulation rate.
Phaser
rate.
R1
Explanation of symbols
● Module selector
The Module selector symbol
shows the position of the knob at
which this module/parameter is
called up.
● Expression pedal
A pedal icon in the listing
indicates a parameter that can be
controlled with the built-in or an
external expression pedal.
● Tap
TAP
frequency.
A [TAP] icon in the listing
indicates a parameter that can be
set with the [BANK UP•TAP]
key.
When the respective module/effect type is
selected in edit mode and the [BANK UP•TAP]
key is pressed repeatedly, the parameter (such as
modulation rate or delay time) will be set
according to the interval in which the key is
pressed.
S1
Slow Attack
S 9 This effect reduces the attack rate of each individual note, producing a violin playing style sound.
Higher setting values result in slower attack times.
V1
Vox Wah
V 9 This effect simulates a half-open vintage VOX wah pedal. Higher setting values result in higher
emphasized frequency.
1
Cry Wah
9 This effect simulates a half-open vintage Crybaby wah pedal. Higher setting values result in higher
emphasized frequency.
■ DRIVE module
This module includes 20 types of distortion and an acoustic simulator. For this module, the two
items DRIVE and GAIN can be adjusted separately.
DRIVE (Type)
Selects the effect type for the DRIVE module.
When this item is selected, the parameter in the
module can then be controlled in real time with a
connected expression pedal.
18
Ring Mod (Ring Modulator)
R 9 This effect produces a metallic ringing sound. Higher setting values result in higher modulation
FD Clean
FD
ZOOM G1/G1X
Clean sound of a Fender Twin Reverb ('65
model) favored by guitarists of many
music styles.
ZOOM G1/G1X
VX Clean
V
Clean sound of the combo amp VOX AC30 operating in class A.
19
Effect Types and Parameters
HW Clean
HW
Clean sound of the legendary all-tube
Hiwatt Custom 100 from Britain.
BG Crunch
BG
Crunch sound of the Mesa Boogie MkIII
combo amp.
Effect Types and Parameters
BL
MS
MS Drive
MD
High gain sound of the Marshall stack
amp JCM2000.
High gain sound of the hand-made
German guitar amp Diezel Herbert with
three separately controllable channels.
Overdrive
OD
Simulation of the Boss OD-1 that first
created the "overdrive" concept.
dist+
DS
Simulation of MXR distortion+ that made
distortion popular worldwide.
Simulation of the Fuzz Face that made
rock history with its zany look and
smashing sound.
ExtremeDS
ED
High gain sound with the most powerful
gain of any distortion effect in the world.
Flat Clean
FT
Zoom original flat clean sound.
This is a 3-band equalizer. For this module, the three items EQ LO, EQ MID, and EQ HI can be
adjusted separately.
MS #1959
EQ LO (Prm)
EQ MID (Prm)
EQ HI (Prm)
Crunch sound of the Marshall 1959 that
has become legendary.
Adjusts the LO
band of the EQ
module.
Lo
Adjusts the MID
band of the EQ
module.
Mid
Adjusts the HI
band of the EQ
module.
Hi
High gain sound of a Peavey 5150
developed in cooperation with a worldfamous hard rock guitarist.
BD
GV
RT
High gain sound of the Mesa Boogie Dual
Rectifier red channel (vintage mode).
Guv'nor
Simulation of the Guv'nor distortion effect
from Marshall.
1 8 Adjusts the low range
8
1 8 Adjusts the midrange
(160 Hz) boost/cut.
8
1 8 Adjusts the high range
(800 Hz) boost/cut.
(3.2 kHz) boost/cut.
HB
LD
This module combines two elements. ZNR is a noise reduction circuit developed by ZOOM. It
removes noise during play pauses without affecting sound quality. The amp simulator recreates the
sound of various speaker cabinets.
ZNR/AMP (Type&Prm)
Selects ZNR sensitivity and amp simulator type at the same time.
Simulation of the PROCO RAT famous
for its edgy distortion sound.
Metal Zone
MT
■ ZNR/AMP (ZNR/Amp Simulator) module
RAT
0
C0
Hot Box
Simulation of the compact Matchless Hot
Box preamp with built-in tubes.
Lead
Combo & ZNR
C 9 Combination of ZNR with amp simulator that recreates the sound of a combo amp with closed-back
cabinet. The right-digit value controls ZNR sensitivity.
B0
Bright Combo & ZNR
B 9 Combination of ZNR with amp simulator that recreates the sound of a bright combo amp with openback cabinet. The right-digit value controls ZNR sensitivity.
Smooth, bright distortion sound.
S0
This effect makes an electric guitar sound
like an acoustic guitar.
ZNR (ZOOM Noise Reduction)
9 This is the noise reduction function only. Higher setting values result in stronger effect. Set the value
as high as possible without causing the sound to be cut off unnaturally.
Simulation of the Boss Metal Zone with
long sustain and dynamic lower midrange.
Aco.Sim
A
8
BG Drive
Fuzz Face
FF
■ EQ module
Crunch sound of a Fender Tweed Deluxe
'53.
PV Drive
PV
DZ Drive
DD
US Blues
Stack & ZNR
S 9 Combination of ZNR with amp simulator that recreates the sound of a stack amp cabinet. The rightdigit value controls ZNR sensitivity.
GAIN (Prm)
Sets the DRIVE module parameters.
When TYPE is set to a distortion effect type
Gain
0
30
Adjusts the gain (distortion intensity) for distortion effect types.
When TYPE is set to Aco.Sim
TOP
0
10
Adjusts the characteristic string tone of acoustic guitar.
* Manufacturer names and product names mentioned in this listing are trademarks or registered
trademarks of their respective owners. The names are used only to illustrate sonic characteristics and
do not indicate any affiliation with ZOOM CORPORATION.
20
ZOOM G1/G1X
ZOOM G1/G1X
21
Effect Types and Parameters
Effect Types and Parameters
■ MODULATION module
Pitch Bend
This module comprises effects such as chorus, pitch shifter, delay, etc. For this module, the two
items MODULATION and RATE can be adjusted separately.
MODULATION (Type&Prm1)
RATE (Prm2)
Selects the MODULATION module
effect type and controls parameter
1 at the same time.
Chorus
Controls parameter 2 of the
MODULATION module.
C 9 component to the original signal, resulting
in full-bodied resonating sound. Higher
right-digit setting values result in higher
effect sound mixing ratio.
1
50
(minimum)
Adjusts the modulation rate.
Ensemble
E1
This is a chorus ensemble with three-
This effect produces a resonating and
F 9 strongly undulating sound. Higher right-
D1
Rate TAP
1
50
digit setting values emphasize the
characteristics of the effect.
H1
12
22
Sets the pitch shift amount in semitones.
"dt" results in a detune effect.
Higher right-digit setting values
emphasize the vibrato intensity.
D1
Time TAP
1
Sets the delay time. In the 10 – 1000
2 0 millisecond range, the adjustment is
performed in 10-ms steps (1 – 99, 1.0).
Above 1 second, the adjustment is
performed in 100-ms steps (1.1 – 2.0).
Delay
D 9 This is a delay with a maximum setting of 5000 ms. The right-digit setting values control the mixing
ratio of effect sound versus original sound and the feedback amount.
T1
This is a monophonic pitch shifter (for
M 9 single-note playing) with reduced flutter.
Higher right-digit setting values increase
the mixing ratio of effect sound versus
original sound.
C 9 This is an effect with automatic vibrato.
V
This is a delay with a maximum setting of
D 9 2000 ms. Higher right-digit setting values
increase the mixing ratio of effect sound
versus original sound and the feedback
amount.
Selects the DELAY module effect type and controls parameter 1 at the same time.
1 Shift
2
This effect shifts the pitch of the original
P 9 sound up or down. Higher right-digit
DT
setting values increase the mixing ratio of
1
effect sound versus original sound.
24
Mono Pitch
Tape Echo
T 9 This effect simulates a tape echo with a long delay time of up to 5000 ms. The right-digit setting values
control the mixing ratio of effect sound versus original sound and the feedback amount.
A1
Analog Delay
A 9 This effect simulates an analog delay with a long delay time of up to 5000 ms. The right-digit setting
values control the mixing ratio of effect sound versus original sound and the feedback amount.
C
D
E
F
G
A
B
,
,
,
,
,
C O Key
DO
P1
Ping Pong Delay
P 9 This is a ping-pong type delay where the delay sound alternates between left and right. The right-digit
setting values control the mixing ratio of effect sound versus original sound and the feedback amount.
F O Specifies the tonic for the scale used for
G O pitch shifting. The "o" symbol stands for
#.
AO
TIME (Prm2)
Controls parameter 2 of the DELAY module. This parameter is common to all effect
types.
1
Time TAP
5 0 Sets the delay time. In the 10 – 1000 millisecond range, the adjustment is performed in 10-ms steps (1
– 99, 1.0). Above 1 second, the adjustment is performed in 100-ms steps (1.1 – 5.0).
Vibrato
C1
V
-1 octave + original sound +1 octave + original sound
-700 cent + original sound +500 cent + original sound
Detune + original sound
Doubling
-∞(0Hz) + original sound +1 octave + original sound
DELAY (Type&Prm1)
Pitch Shift
This is an intelligent pitch shifter that
H 9 automatically generates major scale
harmonies according to a preset key.
Higher right-digit setting values increase
the mixing ratio of effect sound versus
original sound.
(minimum)
b6
b7
b8
b9
This module comprises various delay effects. For this module, the two items DELAY and TIME can
be adjusted separately.
Special effect that changes the sound in a
S 9 staircase pattern. Higher right-digit setting
HPS (Harmonized Pitch
Shifter)
+1 octave
+2 octaves
-100 cent
-2 octaves
-∞
Prm2=1.0
Pedal fully depressed
(maximum)
■ DELAY module
values emphasize the characteristics of the
effect.
M1
0 cent
0 cent
0 cent
0 cent
0 cent
Prm2=0
Type&Prm1 Pedal fully raised
Adjusts the modulation rate.
Step
P1
Prm2=1.0
Pedal fully depressed
(maximum)
Delay
Flanger
S1
b1
b2
b3
b4
b5
E 9 dimensional movement. Higher right-digit
setting values result in higher effect sound
mixing ratio.
F1
0
Sets the initial value for the pitch shift
1 0 amount (the value that is active when the
pedal is at rest). The original sound/effect
sound level balance also changes
according to the parameter 1 setting.
[Table1]
Prm2=0
Type&Prm1 Pedal fully raised
Rate
This effect mixes a variable pitch-shifted
C1
B1
Pedal Position
This effect allows using the expression
B 9 pedal to change the pitch in real time.
Right-digit setting values select the pitch
change type caused by the expression
pedal (see Table 1).
Rate TAP
1
50
Adjusts the vibrato rate.
ZOOM G1/G1X
ZOOM G1/G1X
23
Effect Types and Parameters
Restoring Factory Defaults
■ REVERB module
This module contains effects that simulate various reverb sounds. For this module, the two items
REVERB and DECAY can be adjusted separately.
G1/G1X Preset Pattern
REVERB (Type&Prm1)
#
Pattern Name
TimSig
#
TimSig
#
1
8beat 1
4/4
15
FUNK 1
4/4
29
5per4 2
5/4
2
8beat 2
4/4
16
FUNK 2
4/4
30
LATIN
4/4
the mixing ratio of effect sound versus original sound.
3
8beat 3
4/4
17
HIPHOP
4/4
31
BALLAD 1
4/4
Room
4
8shuffle
4/4
18
R'nR
4/4
32
BALLAD 2
3/4
5
16beat 1
4/4
19
POP 1
4/4
33
BLUES 1
4/4
6
16beat 2
4/4
20
POP 2
4/4
34
BLUES 2
3/4
7
16shuffle
4/4
21
POP 3
4/4
35
JAZZ 1
4/4
8
ROCK
4/4
22
DANCE 1
4/4
36
JAZZ 2
3/4
9
HARD
4/4
23
DANCE 2
4/4
37
METRO 3
3/4
setting values increase the mixing ratio of effect sound versus original sound.
10
METAL 1
4/4
24
DANCE 3
4/4
38
METRO 4
4/4
Tiled Room
11
METAL 2
4/4
25
DANCE 4
4/4
39
METRO 5
5/4
mixing ratio of effect sound versus original sound.
12
THRASH
4/4
26
3per4
3/4
40
METRO
DECAY (Prm2)
13
PUNK
4/4
27
6per8
3/4
Controls parameter 2 of the REVERB module. This parameter is common to all effect
types.
14
DnB
4/4
28
5per4 1
5/4
Selects the REVERB module effect type and controls parameter 1 at the same time.
H1
R1
Hall
H 9 This reverb effect simulates the acoustics of a concert hall. Higher right-digit setting values increase
R 9 This reverb effect simulates the acoustics of a room. Higher right-digit setting values increase the
mixing ratio of effect sound versus original sound.
S1
Spring
S 9 This effect simulates a spring-type reverb. Higher right-digit setting values increase the mixing ratio of
effect sound versus original sound.
A1
T1
1
Arena
A 9 This reverb effect simulates the acoustics of a large venue such as a sports arena. Higher right-digit
T 9 This reverb effect simulates the acoustics of a tiled room. Higher right-digit setting values increase the
30
Pattern Name
Pattern Name
TimSig
Decay
Adjusts the decay duration.
Restoring Factory Defaults
In the factory default condition, the patches of the user area (A0 – d9) of the G1/G1X contain the same
settings as the patches of the preset area (00 – 39). Even after overwriting the user patches, their original
content can be restored in a single operation ("All Initialize" function).
1.
Turn the G1/G1X on while holding
down the [STORE] key.
The indication "AL" appears on the display.
AL
2.
24
ZOOM G1/G1X
To carry out the All Initialize function,
press the [STORE] key once more.
ZOOM G1/G1X
All patch settings are returned to the factory
default condition, and the unit switches to play
mode. To cancel All Initialize, press the
RHYTHM [R/P] key instead of the [STORE]
key.
NOTE
When you carry out All Initialize, any newly created
patches that were stored in the user area will be
deleted (overwritten). Perform this operation with care
to prevent losing any patches that you want to keep.
25
Special Features of G1X
Specifications
This section explains features and operating steps that are unique to the G1X.
Effect types
Effect modules
Patch memory
[PEDAL ASSIGN] key operation
Adjusting the expression pedal
The top panel of the G1X has a [PEDAL
ASSIGN] key. Besides the method described on
page 17, the module to be controlled by the pedal
can be selected with this key.
The expression pedal of the G1X can be
readjusted as necessary. If the effect change
seems insufficient when pushing the pedal down,
or if the volume or tone changes excessively
even when the pedal is only lightly pushed,
adjust the pedal as follows.
1. In play mode or edit mode, press the
[PEDAL ASSIGN] key to select the
control target module.
The module currently selected as control target is
indicated by the row of LEDs above the [PEDAL
ASSIGN] key.
1.
Hold down the [PEDAL ASSIGN] key
while turning power to the G1X on.
The indication "dn" appears on the display.
Sampling frequency
A/D converter
D/A converter
Signal processing
Frequency response
Display
Input
Rated input level
Input impedance
Output
Maximum output level
2.
All out
Pedal is inactive
Volume
COMP/EFX module
DRIVE module
MODULATION module
DELAY module
REVERB module
Fully raise the expression pedal and
press the [STORE] key.
The indication "UP" appears on the display.
3.
Push the expression pedal fully down
and release it.
Control input
Power requirements
AC adapter
Batteries
Dimensions
Weight
Options
2.
Store the patch as required.
3.
In play mode, select the patch and
operate the expression pedal.
The respective parameter changes in real time.
4.
To toggle the module assigned to the
pedal between on and off, briefly
push the pedal fully down.
When the module is off, the respective LED
above the [PEDAL ASSIGN] key flashes. This
function can also be used in edit mode.
26
Push strongly, so
that pedal touches
here
54
max. 8 simultaneous modules
User area: 10 patches x 4 banks = 40
Preset area: 10 patches x 4 banks = 40
Total 80 patches
96 kHz
24 bit, 128 times oversampling
24 bit, 128 times oversampling
32 bit
20 Hz – 40 kHz +1.0 dB -4.0 dB (10-kilohm load)
2-digit 7-segment LED
Standard mono phone jack
-20 dBm
470 kilohms
Standard stereo phone jack (doubles as line/headphone jack)
Line +3 dBm
(output load impedance of 10 kilohms or more)
Phones 20 mW + 20 mW (into 32-ohm load)
For FP02/FP01 or FS01 (G1 only)
9 V DC, 300 mA (center minus plug) (ZOOM AD-0006)
G1/G1X Four IEC R6 (size AA) batteries, approx.
12 hours continuous operation (alkaline batteries)
G1
155 mm (D) x 136 mm (W) x 52 mm (H)
G1X
155 mm (D) x 234 mm (W) x 52 mm (H)
G1
350 g (without batteries)
G1X
600 g (without batteries)
Expression pedal FP01/FP02 or Foot switch FS01 (G1 only)
When foot is lifted,
pedal returns slightly
Troubleshooting
4.
Press the [STORE] key once more.
The adjustment is complete, and the unit returns
to the play mode. If the indication "Er" is shown,
repeat the procedure from step 2.
ZOOM G1/G1X
● No power
Refer to "Turn power on" on page 6.
● Reverb effect does not operate
While a rhythm pattern is playing, the reverb
effect is not available. Stop the rhythm pattern
first (→ p. 11).
● Patches cannot be switched
Has the method for calling up patches been
changed to "pre-select" (→ p. 16)? Turn
power off and then on again to reset the unit to
ZOOM G1/G1X
normal operation.
● High level of noise
Is ZOOM AC adapter being used? Be sure to
use only an adapter for 9 V DC, 300 mA with
center minus plug (ZOOM AD-0006).
● Battery life is short
Are manganese batteries being used?
Continuous operation time is 12 hours with
alkaline batteries.
27
The FCC regulation warning (for U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ZOOM CORPORATION
ITOHPIA Iwamotocho 2chome Bldg. 2F, 2-11-2, Iwamoto-cho,
Chiyoda-ku, Tokyo 101-0032, Japan
Web Site: http://www.zoom.co.jp
G1/G1X - 5000-3
G1EPL.fm 1 ページ 2006年5月12日 金曜日 午後4時34分
G1/G1X Patch List
Name
Bank Patch
Pitch Bend
1
Mercury
A combination of Hiwatt Custom 100 simulation and Ensemble gives a spacious, beautiful sound with a clear presence. Great HW Clean
for cutting and arpeggio.
VOLUME
2
Hot Blues
Bluesy drive sound that faithfully brings out picking nuances. Pushing the pedal down gives that hot drive feeling ideal for US Blues
guitar solos.
DRIVE GAIN
3
Multi Phaser
Clean sound with a dash of Phaser. Try it and lead your band with some groovy cutting.
Phaser Rate
Automat
Combination of Marshall 1959 and Auto Wah results in bold auto wah sound with a distinctive touch, great for a wide range of Auto Wah
extravagant effects.
VOLUME
Good Vibe
Clean sound with a shimmering blend of Tremolo and Vibrato. Deep reverb creates a fantastic universe of sound.
DELAY Mix
Wah Lead
Michael Schenker style half-closed wah pedal sound. By pushing the pedal down, you can get dynamic wah in the fashion of Guv'nor
Zakk Wylde.
Vox Wah
7
Duet in G
Flamboyant lead tone based on a combination of HPS (Harmonized Pitch Shifter) and Lead. Moving the pedal controls the HPS Lead
mixing ratio.
HPS Mix
8
Jetter
Typical Flanger jet sound. Play the low-end strings, and make a jet plane take off from your amp. Experience the king of hard Flanger
rock sounds.
VOLUME
9
Aco.Sim
Turn your guitar into an acoustic instrument at the touch of a key. Even if heavy rock is your thing, why not try that gorgeous Aco.Sim
acoustic tone once in a while.
VOLUME
0
Hot Box
This sound is modeled on the Matchless foot type preamp. The supple tone with rich harmonics will make you want to go on Hot Box
playing for ever.
VOLUME
1
AC30TBX
This sound is modeled on the VOX AC30TBX. Class A drive ensures excellent response and yields a clean tone. That realistic VX Clean
feeling of chords pouring out of the speakers is hard to get with any other amp.
VOLUME
2
5150
Many guitarists love the Peavey 5150 for its distinct and detailed distortion even at high gain. Power chords, speedy riffs, PV Drive
technical solos all will benefit from this high-gain sound.
VOLUME
3
TwinReverb
Typical surf rock sound of the Fender TwinReverb ('65 model), with Tremolo and Reverb creating that pulsating tone. Ride the FD Clean
surf on a cascade of phrases.
VOLUME
ExtremeDS
This original ZOOM creation features ultra-powerful distortion, for aggressive metal sound that will set your spirit on fire.
VOLUME
RAT
Simulation of the PROCO RAT famous for its edgy distortion sound. First made popular by Jeff Beck in the late seventies, this RAT
effect is behind a lot of rock sounds out there. Powerful distortion that stays well defined.
VOLUME
Fuzz Face
This patch is modeled on the Fuzz Face that made rock history with its wild yet smooth sound. A favorite of many great Fuzz Face
guitarists.
VOLUME
7
OD-1
Simulation of the Boss OD-1 that produces natural, rich overdrive. Enjoy its great sound without having to pay a premium price Overdrive
for a vintage unit on the second-hand market.
VOLUME
8
DIEZEL
Simulation of the Diezel Herbert amp that is creating a new standard for loud music. Make your sound hit as hard as never DZ Drive
before.
VOLUME
9
MARKIII
This patch is modeled on the Mesa Boogie Mark III, an amp noted for its powerful midrange suitable for many genres. BG Crunch
Particularly good for playing fusion phrases on a hollow-body guitar.
VOLUME
0
Page Crunch
The simple Marshall drive sound used by Jimmy Page of early Led Zeppelin. Use a Telecaster or Les Paul and recreate "Good MS #1959
Times Bad Times".
VOLUME
1
Beck Oct
Jeff Beck's favorite drive tone with a one-octave lower component. Try it out and hear yourself irresistibly drawn towards Mono Pitch
playing "Led Boots".
VOLUME
2
Cream Drive
This patch is modeled on "Crossroads" by the Cream which features one of the greatest rock solos ever. Ideal crunch tone for Hot Box
playing blues rock with a single-coil pickup or a humbucker.
VOLUME
3
Breathe
From Pink Floyd's 1973 smash album Dark Side of The Moon, we have selected the song "Breathe". The fat Clean + Ensemble Ensemble
sound faithfully reproduces what David Gilmour did at the time.
VOLUME
4
Van Ampen
Signature tone of Eddie Van Halen, the revolutionary of the guitar world. Use it to play phrases full of technical ideas.
5
Adrian
Unique lead sound as created by Adrian Belew in his song "Big Electric Cat". The addition of high octaves to the original sound Slow Attack
is the expression of a distinctive sonic outlook. This mysterious sound matches any guitar.
VOLUME
6
Kirk Lead
High gain sound as employed by Metallica's Kirk Hammett in the ending solo of their hit song "One". Shake your hair, get wild ExtremeDS
and emotional, and let fly with your own performance.
VOLUME
7
Santana
Passionate crunch sound played by Carlos Santana. Choking up with soul is what it's all about.
VOLUME
Kurt Clean
Nirvana's much missed genius, Kurt Cobain loved this clean sound with its interweaving modulation, as can be heard for Chorus
example on "Come As You Are".
VOLUME
ZZ Drive
The hot crunch sound of Billy F. Gibbons from the hard Boogie band ZZ Top. Sling your guitar low and try the patch for BG Crunch
intense backing or slide play.
VOLUME
Rage Riff
This patch simulates the heavy drive sound of Rage Against The Machine guitarist Tom Morello. Operate the pedal to get that BG Drive
tricky "octave-up sound".
Pitch Bend
1
Angus Lead
Straight rock sound as played by Angus Young of AC/DC. Combination of Marshall 1959 simulation and Delay produces a MS #1959
rugged tone that still blends well with an ensemble.
VOLUME
2
El Rayo Clean
David Lindley, guitarist of the band El Rayo-X uses this clean chorus sound. Great for reggae rhythms or arpeggios. Lindley FD Clean
prefers lipstick type pickups, but this patch will also work fine with single-coils or humbuckers.
VOLUME
3
Anthem
Vintage rock ballad sound a la Pearl Jam. Whether chord stroke with a stack amp or playing lead with front-mounted pickups, MS #1959
this tone will give a great match.
VOLUME
4
Who Bleed
Clean sound with superb rock feel in the vein of Pete Townshend of the Who. It's bound to get you excited, but better not smash HW Clean
up your guitar and amps.
VOLUME
5
Steve
Lukather
TOTO's super guitarist Steve Lukather is famous for this lead drive sound which is effective yet smooth.
VOLUME
6
Joe Walsh
The Eagles guitarist Joe Walsh introduced this crunch sound characterized by prominent phaser in "Hotel California". Go for it Phaser
and recreate a seminal moment in rock.
VOLUME
7
MilkyWay
Ping Pong Delay and Phaser produce a sparkling clean sound. Freely control the delay mix with the pedal. Try it with tension Phaser
chords and arpeggios.
DELAY Mix
Shimmer
This patch simulates the sound of a dulcimer which is regarded as one of the ancestors of the piano. The pedal lets you adjust Pitch Shift
the pitch shift mixing ratio.
Pitch Shift
TremoStep
Combination of Tremolo and Step creates a dramatic pulsating sound that makes even simple guitar phrases stand out from the Step
crowd. Freely tailor the Step Rate with the pedal, for enhanced effectiveness.
Step Rate
5
DEMO
4
4
5
MODEL
6
b
8
9
ARTIST
6
C
Main effect Pedal Assign
Scream Lead
0
A
Comment
Aggressive screaming sound modeled on the Peavey 5150. Pushing the pedal down shifts the pitch upwards by up to one PV Drive
octave, heightening the aggressive character even more.
0
8
9
SFX
d
• The preset area of banks 0 - 3 contains the same patches as A - d.
• The ZNR value may need to be adjusted depending on the guitar and amplifier.
Phaser
Vibrato
ExtremeDS
PV Drive
BG Crunch
Pitch Shift
VOLUME
Manufacturer names and product names mentioned in this patch list are trademarks or registered trademarks of their respective
owners. These names as well as artist's names are used only to illustrate sonic characteristics and do not indicate any affiliation
with ZOOM CORPORATION.
G1/G1X-PatchList-E-1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
