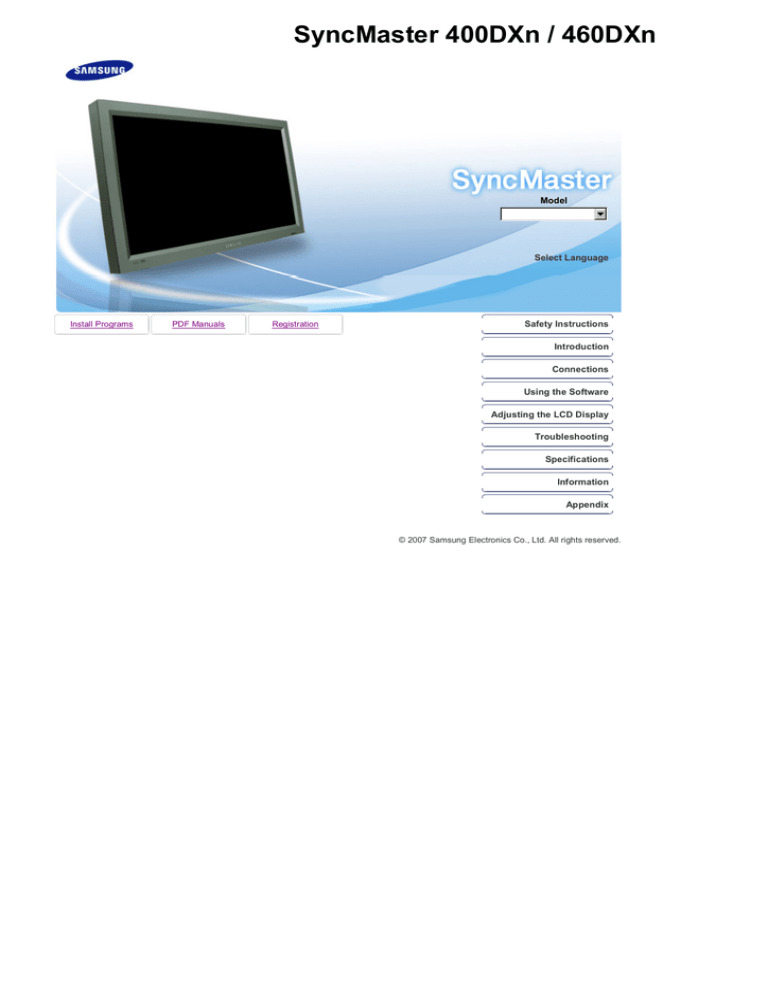

SyncMaster 400DXn / 460DXn
Model
Select Language
Install Programs
PDF Manuals
Registration
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the LCD Display
Troubleshooting
Specifications
Information
Appendix
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
Select Language
Main Page
Model
Safety Instructions
Notational
Power
Installation
Clean
Others
Introduction
The color and appearance of the product may vary depending on the model, and the product specifications are
Connections
subject to change without prior notice for reasons of performance enhancement.
Using the Software
Adjusting the LCD Display
Safety Instructions
Troubleshooting
Notational
Specifications
Information
Appendix
Please read the following safety instructions as they are designed to prevent damage to property and
harm to the user.
Warning / Caution
Failure to follow directions noted by this symbol could result in bodily harm or damage to the
equipment.
Notational Conventions
Prohibited
Important to read and understand at all times
Do not disassemble
Disconnect the plug from the outlet
Do not touch
Ground to prevent an electric shock
Power
When not used for an extended period of time, set your computer to DPM.
If using a screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases (or countries).
Do not use a damaged or loose plug.
z
This may cause electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet
hands.
z
This may cause electric shock or fire.
Use only a properly grounded plug and receptacle.
z
An improper ground may cause electric shock or equipment damage.(Class
l Equipment only.)
Insert the power plug firmly so that it does not come loose.
z
A bad connection may cause fire.
Do not excessively bend the plug and wire nor place heavy objects
upon them, which could cause damage.
z
This may cause electric shock or fire.
Do not connect too many extension cords or plugs to one outlet.
z
This may cause fire.
Do not disconnect the power cord while using the LCD Display.
z
A surge may be caused by the separation and may damage the LCD
Display.
Do not use the power cord when the connector or plug is dusty.
z
If the connector or plug of the power cord is dusty, clean it with a dry cloth.
z
Using the power cord with a dusty plug or connector may cause electric
shock or fire.
To disconnect the apparatus from the mains, the plug must be
pulled out from the mains socket, therefore the mains plug shall be
readily operable.
z
This may cause electric shock or fire.
Installation
Be sure to contact an authorized the Service Center, when installing your LCD Display in a location
with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and
where it operates for 24 hours such as at airports, train stations etc.
Failure to do so may cause serious damage to your LCD Display.
Place your LCD Display in a location with low humidity and a
minimum of dust.
Failure to do so may cause electric shock or fire inside the LCD Display.
z
Do not drop the LCD Display when moving it.
This may cause damage to the product or the person carrying it.
z
Install the LCD Display base in a showcase or shelf so that the end
of the base does not protrude from the showcase or shelf.
Dropping the product may cause damage to the product or the person
z
carrying it.
Do not place the product on an unstable or small surface area.
z
Place the product on an even and stable surface ,as the product may fall
and cause harm to someone walking by, specifically children.
Do not place the product on the floor.
Take care, as someone, specifically children may trip over it.
z
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER
OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
z
Otherwise, this may cause fire.
Keep any heating devices away from the power cable.
z
A melted coating may cause electric shock or fire.
Do not install the product in places with poor ventilation, for
instance, a bookshelf, closet, etc.
z
Any increase in the internal temperature may cause fire.
Put down the LCD Display carefully.
z
Failing to do so may damage the LCD Display.
Do not place the LCD Display face down.
z
This may damage the TFT-LCD surface.
The installation of the bracket must be done by a qualified
professional.
z
Installing the bracket by unqualified personnel may result in injury.
z
Always use the mounting device specified in the owner's manual.
When installing the product, make sure to keep it away from the wall
(more than 10 cm / 4 inches) for ventilation purposes.
z
Poor ventilation may cause an increase in the internal temperature of the
product, resulting in a shortened component life and degraded
performance.
Keep the plastic packaging (bag) out of children's reach.
z
The plastic packaging (bag) may cause suffocation if children play with it.
Clean
When cleaning the LCD Display case or the surface of the TFT-LCD screen, wipe with a slightly
moistened, soft fabric.
Do not spray water or detergent directly onto the LCD Display.
z
This may cause damage, electric shock or fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean
it properly using a dry cloth.
z
A dirty connector may cause electric shock or fire.
Make sure to unplug the power cord before cleaning the product.
z
Otherwise, this may cause electric shock or fire.
Unplug the power cord from the power outlet and wipe the product
using a soft, dry cloth.
z
Do not use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, air freshener, lubricant or detergent.
Others
Do not remove the cover (or back).
z
This may cause electric shock or fire.
z
Refer to a qualified servicing company.
If your LCD Display does not operate normally - in particular, if there
is any unusual sound or smell coming from the LCD Display unplug it immediately and contact an authorized dealer or the
Service Center.
z
This may cause electric shock or fire.
Keep the product away from places exposed to oil, smoke or
moisture; do not install inside a vehicle.
z
This may cause a malfunction, electric shock or fire.
z
In particular, avoid operating the LCD Display near water or outdoors where
the LCD Display could be exposed to snow or rain.
If the LCD Display is dropped or the casing is damaged, turn the
LCD Display off and unplug the power cord. Then contact the
Service Center.
z
The LCD Display may malfunction, causing electric shock or fire.
Disconnect the plug from the outlet during storms or lightning or if
it is not used for a long period of time.
z
Failure to do so may cause electric shock or fire.
Do not try to move the LCD Display by pulling only the wire or the
signal cable.
z
This may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not move the LCD Display right or left by pulling only the wire or
the signal cable.
z
This may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not cover the vents on the LCD Display cabinet.
z
Bad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal
objects on the LCD Display.
z
This may cause a malfunction, electric shock or fire.
z
If a foreign substance enters the LCD Display , unplug the power cord and
contact the Service Center.
Keep the product away from combustible chemical sprays or
inflammable substances.
z
This may cause an explosion or fire.
Never insert anything metallic into the LCD Display openings.
z
This may cause electric shock, fire or injury.
Do not insert metal objects such as chopsticks, wire and tools or
inflammable objects such as paper or matches into the vent,
headphone port or AV ports or etc.
z
This may cause electric shock or fire. If an alien substances or water enters
the product, turn the product off, unplug the power connector from the wall
outlet and contact the Service Center.
When viewing a fixed screen for an extended period of time, residual
image or blurriness may appear.
z
Change the mode to energy saving mode or set a screensaver to a
changing picture when away from the LCD Display for an extended period
of time.
Adjusts the resolution and frequency to the level appropriate for the
model.
z
An inappropriate resolution may cause undesirable picture quality.
40 inch (101 cm) - 1360 X 768
46 inch (116 cm) - 1360 X 768
Viewing the LCD Display continuously at a too close angle may
result in damage to your eyesight.
To ease eye strain, take at least a five-minute break after every hour
of using the LCD Display.
Do not install the product on an unstable, uneven surface or a
location prone to vibrations.
z
Dropping the product may cause damage to the product or the person
carrying it. Using the product in a location prone to vibrations may shorten
the lifetime of the product or may cause the product to catch fire.
When moving the LCD Display , turn off and unplug the power cord.
Make sure that all cables, including the antenna cable and cables
connected to other devices, are disconnected before moving the
LCD Display.
z
Failure to disconnect cables may damage it and cause fire or electric
shock.
Make sure there are more than two people when moving the
product.
z
Dropping the product may cause a malfunction or injury to the person
carrying it.
Place the product out of children’s reach, as they could damage by
hanging onto it.
z
A falling product may cause injury to the person or even fatality.
When not using the product for an extended period of time, keep the
product unplugged.
z
Otherwise, this may cause heat emission from the accumulated dirt or
degraded insulation, causing electric shock or fire.
Do not place your children's favorite toys or any other objects of
interest on the product.
z
Children may try to climb on the product to retrieve an object. The product
could fall, causing injury or even fatality.
When removing batteries from the remote control, be careful that
they are not swallowed by children. keep the batteries out of
children's reach.
z
If the batteries are swallowed, see a doctor immediately.
When replacing batteries, place the batteries in the correct +/polarity position as indicated on the battery holder.
z
The incorrect polarity may cause a battery to break or leak and may cause
fire, injury, or contamination (damage).
Use only specified standard batteries. Do not use new and used
batteries together.
z
This may cause a battery to break or leak and may cause fire, injury, or
contamination (damage).
The batteries (and rechargeable batteries) is not ordinary refuse and
must be returned for recycling purposes. The customer is
responsible for returning the used or rechargeable batteries for
recycling purposes as the consumer.
z
The customer can return used or rechargeable batteries to a nearby public
recycling center or to a store selling the same type of the battery or
rechargeable battery.
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
Safety Instructions
Introduction
Package Contents
Your LCD Display
Machanical Layout
Connections
Using the Software
Adjusting the LCD Display
Troubleshooting
Specifications
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Introduction
Information
Package Contents
Appendix
Note
• Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Note
• This stand is not for the Floor Standing Type.
LCD Display
Manuals
Quick Setup Guide
Warranty Card
User's Guide, MDC Software,
(Not available in all locations)
MagicNet Software
Cables
D-Sub Cable
Other
Power Cord
Batteries (AAA X 2)
Remote Control
(Not available in all
Cover-Hole
locations)
BNC to RCA
Adaptor Jack
Semi Stand
Screw: 4 EA
USB Holder & Screw (1EA)
Sold separately
Wall Mount KIT
Speaker Set
BNC Cable
LAN Cable
DVI Cable
Your LCD Display
Front
1)
MENU
Opens the on-screen menu and exits from the menu or closes the adjustment menu.
2)
Navigate buttons (Up-Down buttons)
Moves from one menu item to another vertically or adjusts selected menu values.
3)
Adjust buttons (Left-Right buttons)/ Volume buttons
Moves from one menu item to another horizontally or adjusts selected menu values.
Adjusts the audio volume.
4)
ENTER
Activates a highlighted menu item.
5)
SOURCE
Switches from PC mode to Video mode.
Changing the source is only allowed for external devices that are connected to the LCD Display at the time.
[PC] → [BNC] → [DVI] → [AV] → [S-Video] → [Component] → [HDMI] → [MagicNet]
>> Click here to see an animation clip.
6)
PIP
Push the PIP button to turn the PIP screen On / Off.
More than one PIP cannot overlap on screen as BNC and the component use the same terminal.
>> Click here to see an animation clip.
• PC
AV / S-Video / Component / HDMI Mode
• BNC
AV / S-Video / HDMI Mode
• DVI
AV / S-Video / Component Mode
• AV / S-Video
PC / BNC / DVI Mode
• Component
PC / DVI Mode
• HDMI
PC / BNC Mode
7)
Power button
Turns the LCD Display On/Off.
8)
Brightness Sensor
The product's Brightness Sensor function automatically detects the surrounding brightness using a
brightness sensor and adjusts its brightness accordingly.
9)
Power indicator
Shows PowerSaver mode by blinking green.
10) Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Note
• See PowerSaver described in the manual for further information regarding power saving functions. For
energy conservation, turn your LCD Display OFF when it is not needed or when leaving it unattended for
long periods.
Rear
Note
• For detailed information concerning cable connections, refer to Connecting Cables under Setup. The LCD
Display 's configuration at the back may vary slightly depending on the LCD Display model.
1)
POWER S/W ON [ | ] / OFF [O]
Switches the LCD Display On/Off.
2)
POWER IN
The power cord plugs into the LCD Display and
the wall plug.
3)
REMOTE OUT/IN
You can use a wired remote control by
connecting it to your monitor.
4)
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
5)
DVI / PC / HDMI IN [PC/DVI/BNC AUDIO
IN] (PC/DVI/BNC/HDMI Audio Connection
Terminal (Input))
6)
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of your
monitor to the HDMI terminal of your digital
output device using a HDMI cable.
7)
DVI / PC / HDMI IN [RGB] (PC Video
Connection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC
mode (Analog PC)
8)
DVI / PC / HDMI IN [DVI(HDCP)] (PC
Video Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
9)
COMPONENT AUDIO IN [L-AUDIO-R]
(Component Audio Connection Terminal
(Input))
10) BNC/COMPONENT OUT [R/PR, G/Y, B/PB,
H, V] (BNC/Component Connection
Terminal (Output))
BNC (Analog PC) Connection: connecting the R,
G, B, H, V ports
Component Connection: connecting the PR, Y,
PB ports
11) BNC/COMPONENT IN [R/PR, G/Y, B/PB, H,
V] (BNC/Component Connection Terminal
(Input))
12) AV AUDIO IN [L-AUDIO-R] (LCD Display
Audio Connection Terminal (Input))
13) AV OUT [VIDEO] (VIDEO Connection
Terminal): AV mode (Output)
14) AV IN [VIDEO] (VIDEO Connection
Terminal) (Input)
15) AV OUT [S-VIDEO] (S-VIDEO Connection
Terminal): S-VIDEO mode (Output)
16) AV IN [S-VIDEO] (S-VIDEO Connection
Terminal) (Input)
17) EXT SPEAKER(8 Ω)[- - L - +, - - R - +] (EXT
Speaker Connection Terminal)
18) AUDIO OUT [L-AUDIO-R] (LCD Display
Audio Connection Terminal (Output))
AUDIO OUT is the terminal for sound output of
PC, DVI or BNC.
19) LAN (LAN Connection Terminal)
20) USB (USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device
Compatible.
Note
• The number of LCD Displays that can be connected to loopout may differ depending on the cables, signal
source etc. With cables where there is no degradation or signal source, up to ten LCD Displays can be
connected.
21) Kensington Lock
The Kensington lock is a device used to
physically fix the system to something when
using it in a public place. (The locking device has
to be purchased separately.)
For using a locking device, contact the place
of purchase.
Note
• See Connecting the LCD Display for further information regarding cable connections.
Remote Control
Note
• The performance of the remote control may be affected by a TV or other electronic device operating near
the LCD Display , causing a malfunction due to interference with the frequency.
1. ON / OFF
2. MAGICNET
3. MDC
4. LOCK
5. MagicNet buttons
6.+100 -/--
7. VOL
8.
MUTE
9.
TTX/MIX
10.
MENU
11.
ENTER
12.
P.MODE
13. AUTO
14.
ENTER/PRE-CH
15 . CH/P
16.
SOURCE
17.
INFO
18.
EXIT
19. Up-Down Left-Right buttons
20.
S.MODE
21. STILL
22. FM RADIO
23. P.SIZE
24.
25.
SRS
DUAL/MTS
26.
PIP
27.
SOURCE
28. SWAP
29.
30.
31.
32.
33.
1)
SIZE
REW
STOP
PLAY/PAUSE
FF
ON / OFF
Turns the LCD Display On/Off.
2)
MAGICNET
MagicNet Quick Launch Button.
3)
MDC
MDC Quick Launch Button.
4)
LOCK
Activates or deactivates all function keys on both the remote control and the LCD Display except for the
Power and LOCK buttons.
5)
MagicNet buttons
Used for MagicNet.
• Alphanumeric: Used to enter the Internet address.
• DEL: Functions as the backspace.
• SYMBOL: Used to enter the symbols. (.O_-)
• ENTER: Used to enter values.
6)
+100 -/-Press to select channels over 100.
For example, to select channel 121, press "+100", then press "2" and "1".
- This fuction does not work for this monitor.
7)
VOL
Adjusts the audio volume.
8)
MUTE
Pauses (mutes) the audio output temporarily.
This is displayed on the lower left corner of the screen.
The audio resumes if MUTE or - VOL + is pressed in the Mute mode.
9)
TTX/MIX
TV channels provide text information services via teletext.
- This fuction does not work for this monitor.
10)
MENU
Opens the on-screen menu and exits from the menu screen or closes the screen adjustment menu.
11)
ENTER
Activates a highlighted menu item.
12)
P.MODE
When you press this button, current picture mode is displayed on the lower center of the screen.
AV / S-Video / Component : P.MODE
The Monitor has four automatic picture settings that are preset at the factory.
Then push button again to circle through available preconfigured modes.
( Dynamic → Standard → Movie → Custom )
PC/DVI/BNC : M/B (MagicBright™)
MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of
the image you are watching.
Then push button again to circle through available preconfigured modes.
(Entertain → Internet → Text → Custom )
13) AUTO
Adjusts the screen display automatically in PC mode.
By changing the resolution in the control panel, auto function is performed.
14)
ENTER/PRE-CH
Returns to the immediately previous channel.
- This fuction does not work for this monitor.
15)
CH/P
In TV mode, selects TV channels.
- This fuction does not work for this monitor.
16)
SOURCE
Changes the video source.
17)
INFO
The current picture information is displayed in the top left corner of the screen.
EXIT
18)
Exits from the menu screen.
19) Up-Down Left-Right buttons
Moves from one menu item to another horizontally, vertically or adjusts selected menu values.
20)
S.MODE
When pressing this button, the current mode is displayed at the bottom centre of the screen.
The LCD Display has a built-in high fidelity stereo amplifier.
Then press the button again to circle through available preconfigured modes.
( Standard → Music → Movie → Speech → Custom )
21) STILL
Press the button once to freeze the screen. Press it again to unfreeze.
22) FM RADIO
Turns the FM Radio on/off.
In PC/DVI mode, sets the SOUND to FM Radio.
In general Video mode, selects FM Radio, and turns off the screen.
In areas where the signal is weak, noise may occur during FM radio broadcasts.
- This fuction does not work for this monitor.
23) P.SIZE
Press to change the screen size.
SRS
24)
SRS
25)
DUAL/MTS
DUALSTEREO/MONO, DUAL l / DUAL ll and MONO/NICAM MONO/NICAM STEREO can be operated
depending on the broadcasting type by using the DUAL button on the remote control while watching TV.
MTSYou can select MTS (Multichannel Television Stereo) mode.
Audio Type MTS/S_Mode
FM Stereo
Mono
Mono
Stereo
Mono ↔ Stereo
SAP
Mono ↔ SAP
Default
Manual Change
- This fuction does not work for this monitor.
26)
PIP
Mono
Every time you press the button, a PIP screen appears.
27)
SOURCE
Changes the source of the PIP window signal.
28) SWAP
Swaps the contents of the PIP and main image.
The image in the PIP window will appear on the main screen, and the main screen image will appear in the
PIP window.
29)
SIZE
Switches the PIP Picture Size.
30)
REW
Rewind
31)
STOP
Stop
32)
PLAY / PAUSE
Play/Pause
33)
FF
Fast forward
© 1995~2007 SAMSUNG. ALL Rights Reserved
SyncMaster 400DXn
Mechanical Layout | Monitor Head | Stand | Speaker | Installation VESA Bracket | Wall Bracket Installation
1. Mechanical Layout
NETWORK MODEL SIZE
PROTECTION GLASS + NETWORK MODEL SIZE
Weight
z
Set
{
{
z
25.0 kg (with Basic Stand)
30.5 kg (with Basic Stand / option protection glass)
Package
{
{
28.5 kg (with Basic Stand)
34.0 kg (with Basic Stand / option protection glass)
2. Monitor Head
NETWORK MODEL SIZE
PROTECTION GLASS + NETWORK MODEL SIZE
3. Stand
4. Speaker
5. Installation VESA Bracket
z
z
z
z
When installing VESA, make sure to comply with the international VESA standards.
Purchasing VESA Bracket and Installation Information : Please contact your nearest Samsung Distributor to place
an order. After your order is placed, installation professionals will visit you and install the bracket.
At least 2 persons are needed in order to move the LCD Monitor.
Samsung is not responsible for any product damage or any injury caused by installation at customer's discretion.
Dimensions
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
6. Wall Bracket Installation
z
z
z
Contact a technician for installing the wall bracket.
Samsung Electronics is not responsible for any damages to the product or harm to customers when the
installation is done by the customer.
This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
`
Wall Bracket
(1)
Hinge
(Left 1, Right 1)
Plastic Hanger Screw(A)
(4)
(11)
Screw(B)
(4)
Anchor
(11)
Wall Bracket Assembly
Insert and tighten the Captive Screw in the
direction of the arrow.
When done, mount the wall bracket on the wall.
A. Captive Screw
B. Wall Bracket
C. Hinge (Left)
D. Hinge (Right)
There are two hinges(left and right). Use the correct one.
Before drilling into the wall, check if the length
between the two locking holes at the back of the
product is correct.
If the length is too short or long, loosen all or
some of the 4screws on the wall bracket to adjust
the length.
A. Length between the two locking holes
Check the installation diagram and mark the drill
points on the wall. Use the 5.0 mm bit to drill
holes deeper than 35 mm. Fix each anchor in the
corresponding hole.
Match each of the brackets and hinge holes to
the corresponding anchor holes and insert and
tighten the 11 screws A.
To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the
screw are the same)
Remove the 4 screws on the back of the
product.
Insert the screw B into the plastic hanger.
1. Mount the product on the wall bracket and
make sure it is properly fixed to the left and
right plastic hangers.
2. Be careful when installing the product on the
bracket as fingers can be caught in the holes.
3. Make sure the wall bracket is securely fixed to
the wall, or the product may not stay in place
after installation.
Tighten the 4 screws in step 2 (plastic hanger +
screw B)to the rear holes of the product.
Remove safety pin (3) and insert the 4 product
holders into the corresponding bracket holes (1).
Then place the product(2) so that it is firmly fixed
to the bracket. Make sure to re-insert and tighten
the safety pin (3) to securely hold the product to
the bracket.
A. Monitor
B. Wall Bracket
C. Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2°before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward
(direction of the arrow) to adjust the angle.
3. You can adjust the bracket angle between -2°and 15 °.
Make sure to use the top center, and not the
leftor the right side of the product to adjust the
angle.
SyncMaster 460DXn
Mechanical Layout | Monitor Head | Stand | Speaker | Installation VESA Bracket | Wall Bracket Installation
1. Mechanical Layout
NETWORK MODEL SIZE
PROTECTION GLASS + NETWORK MODEL SIZE
Weight
z
Set
{
{
z
31.30 kg (with Basic Stand)
36.1 kg (with Basic Stand / option protection glass)
Package
{
{
37.6 kg (with Basic Stand)
42.4 kg (with Basic Stand / option protection glass)
2. Monitor Head
NETWORK MODEL SIZE
PROTECTION GLASS + NETWORK MODEL SIZE
3. Stand
4. Speaker
5. Installation VESA Bracket
z
z
z
z
When installing VESA, make sure to comply with the international VESA standards.
Purchasing VESA Bracket and Installation Information : Please contact your nearest Samsung Distributor to place
an order. After your order is placed, installation professionals will visit you and install the bracket.
At least 2 persons are needed in order to move the LCD Monitor.
Samsung is not responsible for any product damage or any injury caused by installation at customer's discretion.
Dimensions
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
6. Wall Bracket Installation
z
z
z
Contact a technician for installing the wall bracket.
Samsung Electronics is not responsible for any damages to the product or harm to customers when the
installation is done by the customer.
This product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
`
Wall Bracket
(1)
Hinge
(Left 1, Right 1)
Plastic Hanger Screw(A)
(4)
(11)
Screw(B)
(4)
Anchor
(11)
Wall Bracket Assembly
Insert and tighten the Captive Screw in the
direction of the arrow.
When done, mount the wall bracket on the wall.
A. Captive Screw
B. Wall Bracket
C. Hinge (Left)
D. Hinge (Right)
There are two hinges(left and right). Use the correct one.
Before drilling into the wall, check if the length
between the two locking holes at the back of the
product is correct.
If the length is too short or long, loosen all or
some of the 4screws on the wall bracket to adjust
the length.
A. Length between the two locking holes
Check the installation diagram and mark the drill
points on the wall. Use the 5.0 mm bit to drill
holes deeper than 35 mm. Fix each anchor in the
corresponding hole.
Match each of the brackets and hinge holes to
the corresponding anchor holes and insert and
tighten the 11 screws A.
To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and the
screw are the same)
Remove the 4 screws on the back of the
product.
Insert the screw B into the plastic hanger.
1. Mount the product on the wall bracket and
make sure it is properly fixed to the left and
right plastic hangers.
2. Be careful when installing the product on the
bracket as fingers can be caught in the holes.
3. Make sure the wall bracket is securely fixed to
the wall, or the product may not stay in place
after installation.
Tighten the 4 screws in step 2 (plastic hanger +
screw B)to the rear holes of the product.
Remove safety pin (3) and insert the 4 product
holders into the corresponding bracket holes (1).
Then place the product(2) so that it is firmly fixed
to the bracket. Make sure to re-insert and tighten
the safety pin (3) to securely hold the product to
the bracket.
A. Monitor
B. Wall Bracket
C. Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2°before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward
(direction of the arrow) to adjust the angle.
3. You can adjust the bracket angle between -2°and 15 °.
Make sure to use the top center, and not the
leftor the right side of the product to adjust the
angle.
Select Language
Main Page
Model
Safety Instructions
Introduction
Connections
Installing the Stand KIT
Connecting the LCD
Display
Using the Software
Adjusting the LCD Display
Troubleshooting
Specifications
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Connections
Information
Installing the Stand KIT
Appendix
Note
• Only the supplied bolts should be used.
Caution
Samsung Electronics will not be responsible for damages caused by using a base other than those
specified.
Installing the Semi Stand
Left stand
Right stand
Caution
Make sure to install the stand with the Caution label
folded backwards.
1)
To protect your product, a Cover Hole is included as an accessory. This protects the hole at the bottom of
the monitor where the stand is inserted. If you install a wall mount kit for your monitor, please place the
Cover Hole over it.
2)
Insert it into the hole at the bottom of the monitor. Insert the screw provided with the Cover Hole into the
marked place and fasten it firmly.
Caution
The resolution may differ for each product model. For information on the optimal resolution, refer to the user
manual.
Connecting the LCD Display
Using a Power cord with Earth
In the event of failure, the earth lead may cause electric shock. Make sure to wire the earth lead in
correctly, before connecting the AC power. When un-wiring the earth lead, make sure to disconnect
the AC power in advance.
Note
• AV input devices such as DVD players, VCR's or camcorders as well as your computer can be connected
to the LCD Display. For detailed information on connecting AV input devices, refer to the User Controls
under Adjusting Your LCD Display.
Connecting a Computer
1)
Connect the power cord for your LCD Display to the power port on the back of the LCD Display.
Trun on the power switch.
2)
There are 3 ways to connect the D-sub to your LCD Display.
Choose one of the following:
2-1)
Using the D-sub (Analog) connector on the video card.
Connect the D-sub to the 15-pin, RGB port on the back of your LCD Display and the 15 pin Dsub Port on the computer.
2-2)
Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI(HDCP) port on the back of your LCD Display and the DVI port
on the computer.
2-3)
Using the BNC (Analog) connector on the video card.
Connect the BNC Cable to the BNC/COMPONENT IN - R, G, B, H, V ports on the back of your
LCD Display and the 15 pin D-sub Port on the computer.
3)
Connect the audio cable for your LCD Display to the audio port on the back of your computer.
Note
• Turn on both your computer and the LCD Display.
Note
• The DVI cable or BNC cable is optional.
Contact a local Samsung Electronics Service Center to buy optional items.
Connecting a VCR
1)
AV input devices such as VCRs or Camcorders are connected via the AV IN [VIDEO] or AV IN [S-VIDEO]
of the LCD Display using an S-VHS or BNC cable.
2)
Connect the Audio (L) and Audio (R) terminals of a VCR or Camcorders to the LCD Display 's AV AUDIO
IN [L-AUDIO-R] using audio cables.
Note
• Select AV or S-Video for a connected VCR or Camcorder using the SOURCE button on the front of the
LCD Display or on the remote control.
• Then, start the VCR or Camcorders with a tape inserted.
Note
• The S-VHS or BNC cable is optional.
Connecting a DVD Player
1)
Connect a set of audio cables between the COMPONENT AUDIO IN [L-AUDIO-R] on the LCD Display and
the AUDIO OUT jacks on the DVD player.
2)
Connect a Component cable between the BNC/COMPONENT IN - PR, Y, PB port on the LCD Display and
the PR, Y, PB jacks on the DVD player.
Note
• Select Component for the connection to a DVD player using the SOURCE button on the front of the LCD
Display or on the remote control.
• Then, start the DVD Player with a DVD disc inserted.
Note
• A component cable is optional.
For an explanation of Component video, consult your DVD manual.
Connecting a Camcorder
1)
Locate the A/V output jacks on the camcorder. They are usually found on the side or back of the
camcorder.
Connect a set of audio cables between the AUDIO OUTPUT jacks on the camcorder and the AV AUDIO IN
[L-AUDIO-R] on the LCD Display.
2)
Connect a video cable between the VIDEO OUTPUT jack on the camcorder and the AV IN [VIDEO] on the
LCD Display.
Note
• Select AV for the Camcorder connection using the SOURCE button on the front of the LCD Display or on
the remote control.
• Then, start the Camcorders with a tape inserted.
Note
• The audio-video cables shown here are usually included with a Camcorder.
(If not, check your local electronics store.)
If your camcorder is stereo, you need to connect a set of two cables.
Connecting a DTV Set Top Box
Note
• The connections for a typical Set Top Box are shown below.
1)
Connect a Component cable between the BNC / COMPONENT IN - PR, Y, PB port on the LCD Display and
the PR, Y, PB jacks on the Set Top Box.
2)
Connect a set of audio cables between the COMPONENT AUDIO IN [L-AUDIO-R] on the LCD Display and
the AUDIO OUT jacks on the Set Top Box.
Note
• Select Component for the connection to a DTV Set Top Box using the SOURCE button on the front of the
LCD Display or on the remote control.
Note
• For an explanation of Component video, see your Set Top Box owner's manual.
Connecting Speakers
Note
• Fasten the SET and the speaker using the screws.
* Mount the speaker set without the speaker stand.
Note
• Connect the speaker connection cable between the speaker connection jack on the back of the SET and
the speaker connection jack on the back of the speaker.
Note
• Do not move the SET while the SET is connected to the speakers.
The speaker-bracket for connecting the SET speaker my become damaged.
Connecting to an Audio System
Note
• Connect a set of audio cables between the AUX L, R jacks on the AUDIO SYSTEM and the AUDIO OUT
[L-AUDIO-R] on LCD Display.
Connecting to a Wired Remote Control
Note
• You can control your monitor by allowing it to receive the remote control signals of other devices through
the REMOTE OUT terminal.
• You can control a device by allowing it to receive remote control signals from other devices through the
REMOTE IN terminal.
Note
• Restrictions: Available only if other devices support the wired remote control I/O terminals.
Connecting HDMI
Note
• Input devices such as digital DVD are connected to the HDMI IN terminal of the monitor using the HDMI
cable.
Note
• You cannot connect a PC to the HDMI IN terminal.
Connecting Using a DVI to HDMI Cable
1)
Connect the DVI output terminal of a digital output device to the HDMI IN terminal of the monitor using a
DVI to HDMI cable.
2)
Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio output
terminals of the digital output device, and connect the opposite jack to the HDMI / PC / DVI-D AUDIO IN
terminal of the monitor.
Connecting a LAN Cable
1)
Connect the LAN cable.
Connecting a USB device
1)
You can connect USB devices such as a mouse or keyboard.
Using a USB Holder
When using a small external device such as a portable memory stick and it is connected to the USB terminal
at the back of your monitor, it is exposed to the possiblity of theft or loss. By installing a USB holder after the
installation of an external device, you can prevent theft or loss.
1)
Insert part
2)
Align part
of your USB holder with the groove at the bottom of part
Align part
of your USB holder with the bottom of part
3)
of your USB holder into the groove in part
at the back of your monitor.
at the back of your monitor.
at the back of your monitor.
Insert a screw into the groove aligned in step [2], and fasten it.
Align
with
and use a screw to fix them.
© 1995~2007 SAMSUNG. ALL Rights Reserved
1)
Insert part
of your USB holder into the groove in part
2)
Align part
of your USB holder with the groove at the bottom of part
Align part
of your USB holder with the bottom of part
3)
at the back of your monitor.
at the back of your monitor.
at the back of your monitor.
Insert a screw into the groove aligned in step [2], and fasten it.
Align
with
and use a screw to fix them.
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
Safety Instructions
Introduction
Connections
Using the Software
Installation MagicNet
MDC
MagicNet
Adjusting the LCD Display
Troubleshooting
Specifications
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Using the Software
Information
Appendix
Installation MagicNet
Installation
1.
Insert the installation CD into the CD-ROM drive.
2.
Click the MagicNet installation file.
3.
When the InstallShield Wizard window appears, click "Next."
4.
Select "I agree to the terms of the license agreement" to accept the terms of use.
5.
You are required to log in to the MagicNet Server program. Please enter the password to login. The
password cannot be changed when you are logged in.
6.
Choose a folder to install the MagicNet program.
7.
Click "Install."
8.
The "Installation Status" window appears.
9.
It is recommended restarting the system for the normal operation of the MagicNet Server program.
Click "Finish."
10.
When the installation is complete, the MagicNet executable icon appears on your desktop.
11.
Double-click the icon to start the program.
System Requirements
CPU
RAM
Minimum
P1.8
256M
Recommended
P3.0Ghz
512M
Ethernet
OS
Application
Windows XP
100M/1G
Windows 2000
WMP 9 or later
(Service Pack 4)
© 1995~2007 SAMSUNG. ALL Right Reserved
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
What is MagicNet?
MagicNet uses an Ethernet network for servers and monitors, and transfers media files (image files,
music files, and movies) and office files (HTML, PDF) from the server to the monitors over the
network. Multiple monitors are connected to a server via a network and the server can transfer files to
all the monitors at the same time or a single file to a single monitor. There are two ways to transfer
files. The first is that the server registers a schedule to the monitors and then transfers files following
that schedule. The second is that a monitor searches for the files registered in the library list of the
server and receives and plays them. If more than one server is connected, the monitor can select a
server and can receive a schedule from it. The monitor has a built-in Internet connection function. The
servers and monitors are connected to the network. Each server or monitor has a unique name to
identify itself on the network. A server and a monitor can only be connected if they have the same
server name. For example, if the name of a server is 'MagicNet', only the monitors whose server
name is 'MagicNet' can receive schedules from it. If a monitor cannot find a server whose name is the
same as the server name configured in it, it waits until a server with that name appears. However, if
Auto Connection is enabled, the monitor attempts to connect to other servers and connects to the first
server that responds.
Major Functions of MagicNet
1. Free Screen Design
→ You can configure the screens to be displayed on the monitor by placing and playing multiple areas
on them feely and changing the area properties.
2. Content Downloading or Streaming
→ You can select Stream or Download for the transfer mode to play content on the screens and thus
play the screens according to your circumstances. The downloaded screens are played on the monitors
at the scheduled time even though the monitors are not connected to the server.
3. Library Media File Management and Content Server
→ You can manage the registered content in the library efficiently by creating folders. You can play the
content on the screens according to your circumstances by operating the content server in accordance
with the network status.
4. Network/Local Schedules and Publishing
→ You can transfer the edited screens to selected monitors by using the publishing feature. You can
also transfer screens to the monitors which are not connected to the network by using the local
schedules.
5. Instants message
→ You can display a message on selected monitors regardless of schedules.
6. MDC and System
→ The MDC and System functions allow you to control, view the status of, and diagnose monitors.
7. VNC
→ The VNC function allows you to connect to a monitor remotely and view the status of and control
and diagnose it.
8. Update and PXE
→ The Update function allows you to easily update the programs on the monitor. The PXE allows you
to recover the operating system image for a monitor.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Using MagicNet
Running MagicNet
1. Click Programs -> MagicNetPro -> MagicNetPro.
2. When MagicNetPro runs, select Log In from the File menu.
3. Enter the user name and password and click OK.
If you log in for the first time, select 'Administrator' as enter the user name and the password you
set when installing the program. (For information on how to install MagicNet, refer to Installing
MagicNet, Using the Software.)
Connecting a Monitor to a Server
Setting Up a Server
1. Click Option from the Tools menu to open the Server Setup window.
2. Configure the Network Connection settings In the General tab. Enter the server name on the monitor
identical to the name of the server. To change the server name, double-click the Value field of the
Server Name item.
3. If there is more than one network card in the server, select a network card in the Network Device
item.
4. If both the server and monitor are on the same network, make sure to select ‘Automatic connection
using a server name’ in the Value field of the Network Connection item as the connection method.
When setting up the monitor, make sure to use the same settings.
5. If the server and monitor are on different networks, make sure to select ‘Direct connection using an
IP address’ in the Value field of the Network Connection item as the connection method. When setting
up the monitor, make sure to use the same settings.
At this time, the IP address of the server which the monitor will connect to must be a
public IP address. Make sure to enter this IP address in the Server IP Address item when
setting up the monitor.
If the server is using a firewall, make sure to include the IP address of the monitor in the
exceptions list for the firewall.
Setting up the Monitor
1. Set the source of the monitor to MagicNet and then enter the IP address and server name using the
Setup menu or the Network Connection item. They must be the same as the IP address and the name
of the server to connect to. (For more information, refer to the description of setting up MagicNet in
the OSD pages.)
2. A message is displayed to notify that the monitor is successfully connected to the server.
File Sub-Menus
Registering a Library
1. Select Library from the File menu to open the Library View.
2. Select a photo file, music file, movie file, document, or Flash file etc. on the server.
3. Right-click on the selected file and select Send To Library from the displayed menu to register it to
the library.
4. The registered library files are used by the monitor when the Operating Mode of the monitor is set to
Player or is used when registering a screen.
Registering a Screen
1. Select Screen from the File menu to open a Screen View.
2. Right-click on the background view. Click on the Area and click either Photo, Movie, Flash, Web, Text,
or Source from the displayed menu.
3. When the mouse pointer changes to the crosshair (+) icon, drag it to the Edit View to set the area for
the file to be displayed.
4. When an area is set, tree items are added to the Tree View in the same order as shown under the
Background item. The added tree items differ depending on the file type selected in step 2. You can
select a file by selecting a screen item and then selecting an item below the Background item.
5. Repeat steps 2 to 4 to register other areas on a screen.
6. After finishing registering areas, select Save from the File menu to save the screen.
7. Register a schedule to display the saved screen on a monitor(s).
Registering a Schedule
1. Select Schedule from the File menu to open the Schedule View.
2. Select the monitors to which the schedule is to be registered in the Tree View at the left. The
Operating Mode of the selected monitors must be set to Schedule if they can display the schedule
registered on the server.
3. Click a date and time in the Edit View at the right to select the date and time when the schedule is to
be performed. Right-click the Edit View and select Add from the displayed menu. At this time, you can
only select the schedules for the screens you saved using the Screen menu.
4. If you want to change the date or time of the schedule, drag it to a different date or time.
5. Select Publish from the Tools menu. Select the checkbox next to the monitors for which you want to
register the selected schedule.
Sending a Message
1. Select Message from the File menu to open the Message View.
2. Select the checkbox next to the monitors for which you want to register a message.
3. Configure the settings for the message in the List View at the bottom right. The text you enter here
will be displayed on the selected monitors.
4. To display the message on the selected monitors, click the Send Message icon in the toolbar under
the menu bar.
To hide the message which will be displayed on the selected monitors, click the Stop Message icon in
the toolbar.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Library
File Menu
Library / Screen / Schedule / Remote Management / Message
z
Creates a view or selects a created view for each menu item so that you can perform a
screen schedule and have basic control over the monitors from the server.
Close
z
Closes the screen view you are working in. If there are unsaved changes, a new window is
displayed so that you can save them.
Log In
z
You must log onto the server before you can use any one of its functions. You can log onto
the server to run a server program. The password you enter when installing MagicNet Pro
becomes the password of the Administrator account by default.
Log Out
z
Once you are logged onto the server, you can log out. If you log out from the server, all
created views are closed and if there are any unsaved changes, a new window is displayed
so that you can save them.
Change Password
z
Changes the password of the currently logged-in account.
User Account
z
Creates, deletes and changes the user accounts that can log onto the server. There are two
types of accounts that can be created: Administrator and User Accounts.
{ Administrator : Has privileges for all server functions.
{ User : Has privileges for all functions except for changing the server options and user
account features.
Exit
z
Exits the program. If there are any unsaved changes, a new window is displayed in which
you can save the changes.
Tools Menu
Synchronize
z
Synchronizes the library files of the main server with the files of the content server.
Option
z
Changes the server settings. For more information, refer to the Options section.
Library
Tree View
List View
Output View
Tree View
All the folders under My Computer on the Windows Desktop, library, screen, and content server are
displayed in a tree view. If you select a folder, its subfolders and a list of files in it are displayed in the list
view in the right pane.
Exploring Normal Files
Exploring Libraries
Exploring Screen Files
Exploring Content
Servers
Exploring Normal Files
Displays all the folders in the computer on which a server is installed in a tree view.
Function: If you select a folder below the Desktop, its subfolders and the files that you can register
to a library are displayed in the list view in the right pane.
Exploring Libraries
Displays all the folders which are created in the libraries in a tree view.
Function:
If you select a folder, its subfolders and a list of library files are displayed in the list view in the
right pane.
Hot Key
z
z
F2 key: Renames the selected folder.
Delete key: Deletes the selected folder, its subfolder(s), and all the files in the selected
folder.
Drag & Drop
z
z
Desktop File: If you drag and drop a file from the list view to a library, a check is
performed whether it can be registered to that library and if possible it is registered.
Library File: If you drag and drop a file from the list view into a library, it is moved to the
library if the content types of both the file and library are the same.
Exploring Screen Files
Displays the screen management folders created with the Screen menu in a tree view.
Function:
Displays the subfolders and screen files below the selected folder in the list window on the right
by selecting a folder.
Hot Key
z
z
F2 key: Renames the selected folder.
Delete key: Deletes the selected folder, its sub folder(s) and all the files in the selected
folder and subfolders.
Drag & Drop
z
Screen File: If you drag and drop screen files in the list view, they are moved to that
folder.
Exploring Content Servers
Displays the management folders for the content servers in a tree view.
Function:
If you select a folder, its subfolders and a list of content servers are displayed in the list view in
the right pane.
Hot Key
z
z
F2 key: Renames the selected folder.
Delete key: Deletes selected folder, its sub folder(s) and all the files under the selected
folder and its subfolder.
Drag & Drop
z
Contents Server: If you drag and drop the content servers onto a content server folder in
the tree view, they are moved to that folder.
List View
Displays all the folders and files or content servers under a folder selected in the tree window as a list. You
can drag and drop items, use shortcut keys, and move, delete, and rename an item using the provided
context menu.
Exploring Normal Files
Displays the subfolders and files under the selected folder.
Function:
Double-Click
z
z
z
Double-click
to move to the upper folder.
Double-click
to move to the lower folder.
Double-click a file to run the file.
Drag & Drop
z
If you drag and drop a file from the list view into a library, it is registered to that library.
However, the drag & drop function is not supported for folders.
Context Menu
z
z
Open: If you click Open for a folder, you are moved to that folder. If you click Open for a
file, the file is run.
Send To Library: If you click Send To Library for the selected files, they are registered to
the library.
Exploring Libraries
Displays the subfolders and files under the selected folder.
Function:
Double-Click
z
z
z
Double-click
to move to the upper folder.
Double-click
to move to the lower folder.
Double-click a file to run the file.
Drag & Drop
z
If you drag and drop library files into a library folder in the tree view or list view, they
are moved to that folder if the content types of both the library files and the library
folder are the same. However, the drag & drop function is not supported for folders.
Context Menu
z
z
z
z
z
z
z
Open: If you click Open for a folder, you are moved to that folder. If you click Open for a
file, the file is run.
Send To Library: Moves the selected library files to the topmost folder for each content
item.
However, this menu item is deactivated when a folder is selected.
Cut: Cuts the selected screen files to the clipboard so that you can paste them to another
location. However, this menu item is deactivated when a folder is selected.
Paste: Pastes the files cut to the clipboard to the selected location.
However, this menu item is deactivated when the folder selected in the tree view is a
Library or Office folder.
Rename: Renames the selected folder.
However, this menu item is deactivated when a library or office folder is selected in the
tree view. This menu item is not supported for library files.
Delete: Deletes the selected folders and library files.
However, this menu item is deactivated when a library or office folder is selected in the
tree view and the selection includes ".." which refers to a higher level folder.
Property: Displays detailed information for the selected library file. You can add a
comment to it.
- Name: Name of the selected file
- Location: Location where the selected file is registered
- Size : Size of the selected file
- Resolution : The resolution of the selected file
- Duration : The playing time of the selected file
- Date Modified : The date when the selected file was last modified
- Target : The real location of the selected file.
- Comments : Comments entered by the user for the selected library file. You can edit
them.
z
New Folder: This menu item is only activated when neither a folder nor a file is selected.
If you select this menu item, a new folder is created. However, it is deactivated when a
library or office folder is selected in the tree view.
Hot Key
z
z
z
z
F2 key: Renames the selected folder. However, you cannot rename a file.
Delete key: Deletes the selected folders, subfolders, and library files.
Ctrl + X keys: Cuts the selected library files to the clipboard so that you can paste them
to other location. However, this hot key is not supported for folders.
Ctrl + V keys: Pastes the library files cut to the clipboard to the selected location.
However, you cannot paste them when a library or office folder is selected in the tree
view.
Exploring Screen
Displays the subfolders and files under the selected folder.
Function:
Double-Click
z
z
Double-click
Double-click
to move to the upper folder.
to move to that lower folder.
Drag & Drop
z
If you drag and drop screen files to a screen folder in the tree view or the list view, they
are moved to that folder. However, the drag & drop function is not supported for folders.
Context Menu
z
z
z
Open: If you click Open for a folder, you are moved to that folder. However, this menu
item is deactivated when a screen file is selected.
Rename: Renames the selected folder. However, this menu item is not supported for a
screen file.
Delete: Deletes the selected screen files and folders. However, if the selection includes
".." which refers to a higher level folder, this menu item is deactivated.
z
z
z
Cut: Cuts the selected screen files to the clipboard so that you can paste them to another
location. However, this menu item is deactivated when a folder is selected.
Delete: Deletes the selected screen files and folders. However, if the selection includes
".." which refers to a higher level folder, this menu item is deactivated.
Property: Displays detailed information for the selected screen file. You can enter a
comment on it.
-
z
Name: The name of the selected screen
Location : The location where the selected screen is registered
Size : The size of the selected screen
Resolution : The resolution of the selected screen
Duration : The playing time of the selected screen
Date Modified : The date when the selected screen was last modified
Target : The real location of the selected screen.
Comments : Comments entered by the user for the selected screen. You can edit them.
New Folder: This is only activated when neither a folder nor a file is selected. If you
select this menu item, a new folder is created in the selected location.
Hot Key
z
z
z
z
F2 key: Renames the selected folder. However, you cannot rename a file.
Delete key: Deletes the selected folders, subfolders, and screen files.
Ctrl + X keys: Cuts the selected screen files to the clipboard so that you can paste them
to another location. However, this hot key is not supported for a folder.
Ctrl + V keys: Pastes the screen files cut to the clipboard to the selected location.
Exploring the Content Server
Displays the subfolders and content servers below the selected folder.
Function:
Double-Click
z
z
Double-click
Double-click
to move to the upper folder.
to move to the lower folder.
Drag & Drop
z
If you drag and drop content servers to a content server folder in the tree view or the list
view, they are moved to that folder. However, the drag & drop function is not supported
for folders.
Context Menu
z
z
z
z
z
z
z
z
Open: If you click Open for a folder, you are moved to that folder. However, this menu
item is deactivated when a content server is selected.
New Server: Only activated when no folder or file is selected. You can enter the MAC
address, server name, and comments for a new server using this menu item.
- Mac Address: The MAC address of the newly created content server
- Server Name: The name of the newly created content server
- Comments: Comments about the newly created content server
New Folder: This is only activated when neither a folder nor a file is selected. If you
select this menu item, a new folder is created in the selected location.
Cut: Cuts the selected content servers to the clipboard so that you can paste them to
another location. However, this menu item is deactivated when a folder is selected.
Paste: Pastes the content servers cut to the clipboard to the selected location.
Rename: Renames the selected folder. However, for a content server, you can only
rename it using the Properties window.
Delete: Deletes the selected content servers and folders. However, if the selection
includes ".." which refers to a higher level folder, this menu item is deactivated.
Property: Allows you to edit the MAC address, server name, and comments for the
selected content server.
1) Mac Address: The MAC address of the selected content server. You can edit this.
2) Server Name: The server name of the selected content server. You can edit this.
3) IP Address: The IP address of the selected content server. You cannot edit this.
* The IP address is displayed if the content server is connected at least once.
4) Comments: Comments about the selected content server.
5) History : Displays the synchronization history records for the content server.
Hot Key
z
z
z
z
F2 key: Renames the selected folder. However, you cannot rename a file.
Delete key: Deletes the selected folders, subfolders, and content servers.
Ctrl + X keys: Cuts the selected content servers to the clipboard so that you can paste
them to another location. However, this hot key is not supported for folders.
Ctrl + V keys: Pastes the content servers cut to the clipboard to the selected location.
Content Server Status
z
z
z
z
This
This
This
This
icon
icon
icon
icon
is
is
is
is
displayed
displayed
displayed
displayed
when
when
when
when
the
the
the
the
content
content
content
content
server
server
server
server
is connected.
is sychronizing.
fails to synchronize.
is not connected.
Output View
Displays the progress and results of adding and deleting libraries. You can cancel an addition or
deletion command using this view.
Context Menu
z
z
Clear: Clears all library progress and result messages.
Cancel: You can select and cancel a library addition or deletion command which has not
yet been completed.
Hot Key
z
Ctrl + C: Copies the selected message to the clipboard so that you can paste it to
another location.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Screen
File Menu
Library / Screen / Schedule / Remote Management / Message
z Creates a view or selects a created view for each menu item so that you can perform a
screen schedule and performs basic control for the monitors from the server.
Create Workspace
z Creates a new screen view to design more than one screen view. You can only create one
view for other types of views except for the screen view.
New
z Initializes the screen view you are currently working with. If there are any unsaved changes,
a new window is displayed so that you can save them.
Open
z Opens a screen file. If there are any unsaved changes, a new window is displayed so that
you can save them.
Save / Save As
z Saves the changes in the current screen file or as a new screen file.
Close
z Closes the screen view you are working with. If there are any unsaved changes, a new
window is displayed so that you can save them.
Log In
z You must log in to the server before you can use any one of its functions. You can log in to
the server to perform a server program. The password you enter when installing MagicNet
Pro becomes the password of the Administrator account by default.
Log Out
z Once you are logged into the server, you can log out. If you log out from the server, all
created views are closed and if there are any unsaved changes, a new window is displayed
so that you can save them.
Change Password
z Changes the password for the currently logged-in account.
User Account
z Creates, deletes and changes the user accounts able to log into the server. There are two
types of accounts that can be created: Administrator and User Accounts
{ Administrator: Has privileges for all server functions.
{ User: Has privileges for all server functions except for changing server options and
user account features.
Exit
z Exits the program. If there are any unsaved changes, a new window is displayed so that you
can save them.
Tool Menu
Undo / Redo
z Cancels the previously performed command or performs the canceled command again. You
can change the maximum number of commands that you can undo using the Options menu.
Copy / Paste / Delete
z Copies, pastes, and deletes the currently selected area.
Area
z Select the type of area you want to create. You can create an area by dragging and dropping
it into the Screen Edit window.
More than one Source Area cannot be played at the same time. Therefore, if the playing
time of a source area overlaps, the source area whose playing time ends later is played.
(You can add areas for photo, movie, Flash, web, text, and source.)
Order
z Changes the order of the currently selected area.
The source area is always at the topmost position.
(Bring to Front, Send to Back, Bring Forward, Send Backward)
Lock All Position
z Locks the position for all created areas. Once an area is locked, you cannot change its
position and size using your mouse.
Preview Screen
z Previews the current state. A separate preview window is displayed. To close the preview
window, double-click on it or press the ESC key.
You cannot preview the office files for the source and background.
Option
z Changes the server settings. For more information, refer to the Options section.
Screen
Tree View
Edit View
List View
Tree View
A tree is created in accordance with the order of the areas created in the Edit View. You can check the area
currently selected in the Edit View using the Tree View. If you select a property of an area, the detailed
property information is displayed in the List View.
Context Menu
z New: Initializes the screen view you are currently working with. If there are any unsaved
changes, a new window is displayed so that you can save them.
z Open: Opens a screen file. If there are any unsaved changes, a new window is displayed
so that you can save them.
z Save / Save As: Saves the changes in the current screen file or as a new screen file.
z Order: Changes the order of the currently selected area.
The source area is always at the topmost position.
(Bring to Front, Send to Back, Bring Forward, Send Backward)
z Copy / Paste / Delete: Copies, pastes, and deletes the currently selected area.
z Preview Area: Previews the current state of the currently selected area.
You cannot preview the office files for the source and background.
Background
This is for configuring the background for all screens. The background consists of the Area,
Screen, Music, and Effect functions. If a color or photo is used as the background, you can
freely place other areas such as a movie and text on the background to compose a varied
screen. If an office file or an external input is used as the background, you cannot place other
areas on the background and will need to compose screens with the background only. The Area
function allows you to set the size of the background and the total period of time that all
screens are played. The Screen function allows you to set the background content you want to
use. The Music function allows you to set the background music. The Effect function allows you
to set the effect used when the background changes.
Area
Name: Changes the background name.
You cannot use a name already used for another area name.
Resolution: Changes the resolution for the background. You can add a new resolution and set
the default resolution using the Options menu.
Start Time, Stop Time, Duration: Sets the playing time of the background in minutes.
The playing time of the background changes to that of the screen. It cannot be less than
the playing time of the area contained in the background.
Screen
Type: Sets the type of background (Color, Photo File, Office File, Source List).
If Office File or Source List is selected, you cannot create another area.
Color: Selects the color to use when the background type is set to Color.
Photo File: Selects the photo file when the background type is set to Photo File.
Aspect Ratio: Selects the aspect ratio for the photo file when the background type is set to
Photo File.
z Full: The photo file is enlarged or reduced to fit the entire background.
z Original: The photo file is displayed at the original size.
z Auto: The photo file is enlarged or reduced to fit the entire background and keeps the
original aspect ratio.
z Tile: The photo file is tiled continuously across the entire background.
Time Interval: Sets the slide show time between photo files when the background type is set to
Photo File.
Office File: Selects the office files when the background type is set to Office File.
You can create the background using a Power Point, Excel, Word, or PDF file. The office file
used is not configured as an area and is just displayed in Full mode in the background. To
use an office file, you must install the corresponding viewing program on your product.
You can select only one office file..
Source List: Selects the source when the background type is set to Source List.
You can select only one source.
Photo File / Office File / Music File
Changes the detailed properties and transfer mode for the selected file of each type.
z Transfer Mode: Changes the mode in which the selected file is transferred to the monitor.
z Download: Downloads the file to the monitor and plays it.
z Stream: Streams the file to the monitor.
z Context Menu: Add, Delete, Up, Down: Adds and deletes a file and changes the playing
order.
Music
Sound: Turns the background sound on or off.
Music File: Selects a music file for the background.
Volume: Controls the volume of the background music.
Repeat: A music file can be played repeatedly. When set to Repeat, the music file is played
repeatedly while the background is created.
Effect
Effect: Selects the type of effect to be applied when the background is created.
z
z
z
z
None: No effect is used.
Slide: The background is created while it is moving.
Block: The background is created with blocks.
Fade In: The background fades in when it is created.
Effect Speed: Adjusts the speed of an effect being created.
Effect Direction: Sets the direction when the Slide effect is selected.
Effect Size: Sets the size of the blocks when the Block effect is selected.
This function is for configuring screens using photo files and consists of the Area, Screen,
Background, Effect functions. The Area function allows you to set the position where the photo
is displayed and when and for how long it is displayed. The Screen function allows you to select
photo files and how to display them. The Background function allows you to set the background
image and music when the photo is displayed. The Effect function allows you to set an effect
for when the background changes. The following section describes the detailed options used
with the Photo function.
Area
Name: Changes the area name.
You cannot use a name already used for another area name.
Lock Position: Locks the position of the area.
Left, Top, Width, Height: Changes the position and size of the area.
The area positions must be within the background and the area size cannot be larger than
the background size.
Start Time, Stop Time, Duration: Sets the playing time in seconds.
It cannot be longer than the background playing time.
Screen
Photo File: Selects a photo file to play in the Photo area.
Aspect Ratio: Selects the aspect ratio for the photo files to be played in the Photo area.
z Full: The photo file is enlarged or reduced to fit the entire background.
z Original: The photo file is displayed at the original size.
z Auto: The photo file is enlarged or reduced to fit the entire background and keeps the
original aspect ratio.
z Tile: The photo file is tiled continuously across the entire background.
Time Interval: Sets the slide show time between selected photo files.
Background
Type: Sets the background type (Color, Picture File) for the Photo area.
Color: Selects the color when the background type for the Photo area is set to Color.
Transparency: Selects the degree of transparency when the background type for the Photo area
is set to Color.
If the Transparency is set to a value under 100, the area which is placed beneath the
present area is shown transparently. However, if a Movie is playing in one of the areas,
the transparency doesn't affect the movie area.
Picture File: Selects the photo file when the background type for the Photo area is set to Picture
File.
Picture Aspect Ratio: Selects the aspect ratio for the photo file when the background type of the
Photo area is set to Picture File.
z Full: The photo file is enlarged or reduced to fit the entire background.
z Original: The photo file is displayed at the original size.
z Auto: The photo file is enlarged or reduced to fit the entire background and keeps the
original aspect ratio.
z Tile: The photo file is tiled continuously across the entire background.
Picture Time Interval: Sets the slide show time between selected photo files when the
background type for the Photo area is set to Picture File.
Sound: Turns the background sound for the Photo area on or off.
Music File: Selects a music file for the background in the Photo area.
Volume: Controls the volume for the background music in the Photo area.
Repeat: A music file can be played repeatedly. When set to Repeat, the music file is played
repeatedly while the background for the Photo area is created.
Photo File / Office File / Music File
Changes the detailed properties and the transfer mode for the selected file of each type.
z Transfer Mode: Changes the mode in which the selected file is transferred to the monitor.
z Download: Downloads the file to the monitor and plays it.
z Stream: Streams the file to the monitor.
z Context Menu: Add, Delete, Up, Down: Adds and deletes a file and changes the playing
order.
Effect
z Effect: Selects the type of effect to be applied when the Photo area is created.
{ None: No effect is used.
{ Slide: The Photo area is created while it is moving.
{ Block: The Photo area is created with blocks.
{ Fade In: The Photo Area fades in when it is created.
z Effect Speed: Adjusts the speed of an effect being created.
z Effect Direction: Sets the direction when the Slide effect is selected.
z Effect Size: Sets the size of the blocks when the Block effect is selected.
Movie
This function is for configuring screens using movie files and consists of Area, Screen,
Background, Effect functions. The Area function allows you to set the position where the movie
is played and when and for how long it is played. The Screen function allows you to select the
movie file and how to play it. The Background function allows you to set the background image
and music when the movie is displayed. The Effect function allows you to set an effect for when
the background changes.
Area
Name: Changes the area name.
You cannot use a name already used for another area name.
Lock Position: Locks the position of the area.
Left, Top, Width, Height: Changes the position and size of the area.
The area positions must be within the background and the area size cannot be larger than
the background size.
Start Time, Stop Time, Duration: Sets the playing time in seconds.
It cannot be longer than the background playing time.
Screen
Movie File: Selects the movie file to be played in the Movie area.
Aspect Ratio: Selects the aspect ratio for the movie file to be played in the Movie area.
z Full: The movie file is enlarged or reduced to fit the entire background.
z Original: The movie file is displayed at the original size.
z Auto: The movie file is enlarged or reduced to fit the entire background and keeps the
original aspect ratio.
Mute: Mutes the sound of the movie file to be played in the Movie area.
Movie Volume: Controls the volume of the movie file to be played in the Movie area.
Movie Repeat: A movie file can be played repeatedly. When set to Repeat, the movie file is
played repeatedly while the background is created.
Background
Type: Sets the background type (Color, Picture File) for the Movie area.
Color: Selects the color when the background type for the Movie area is set to Color.
Transparency: Selects the degree of transparency when the background type for the Movie area
is set to Color.
If the Transparency is set to a value under 100, the area which is placed beneath the
present area is shown transparently. However, if a Movie is playing in one of the areas,
the transparency doesn't affect the movie area.
Picture File: Selects the photo file when the background type for the Movie area is set to Picture
File.
Only one picture file can be selected in the Movie area.
Picture Aspect Ratio: Selects the aspect ratio for the photo file to be played in the Movie area
when the background type of the Movie area is set to Picture File.
z Full: The photo file is enlarged or reduced to fit the entire background.
z Original: The photo file is displayed at the original size.
z Auto: The photo file is enlarged or reduced to fit the entire background, and keeps the
original aspect ratio.
z Tile: The photo file is tiled continuously across the entire background.
Sound: Turns the background sound for the Movie area on or off.
Music File: Selects a music file for the background in the Movie area.
Volume: Controls the volume of background music in the Movie area.
Repeat: A music file can be played repeatedly. When set to Repeat, the music file is played
repeatedly while the background for the Movie area is created.
Movie File / Picture File / Music File
Changes the detailed properties and the transfer mode for the selected file of each type.
z Transfer Mode: Changes the mode in which the selected file is transferred to the monitor.
z Download: Downloads the file to the monitor and plays it.
z Stream: Streams the file to the monitor.
z Context Menu: Add, Delete, Up, Down: Adds and deletes a file and changes the playing
order.
Effect
z Effect: Selects the type of effect to be applied when the Movie area is created.
{ None: No effect is used.
{ Slide: The Movie area is created while it is moving.
{ Block: The Movie area is created with blocks.
{ Fade In: The Movie area fades in when it is created.
z Effect Speed: Adjusts the speed of an effect being created.
z Effect Direction: Sets the direction when the Slide effect is selected.
z Effect Size: Sets the size of the blocks when the Block effect is selected.
Flash
This function is for configuring screens using Macromedia flash files and consists of Area,
Screen, Background, Effect functions. The Area function allows you to set the position where
the movie is played and when and for how long it is played. The Screen function allows you to
set the flash file and how to play it. The Background function allows you to set the background
image and music when the flash file is played. The Effect function allows you to set the effect
for when the background changes.
If no flash player is installed on the PC where the server is installed, the operation may
not be normal. Make sure to install a flash player.
Area
Name: Changes the area name.
You cannot use a name already used for another area name.
Lock Position: Locks the position of the area.
Left, Top, Width, Height: Changes the position and size of the area.
The area positions must be within the background and the area size cannot be larger than
the background size.
Start Time, Stop Time, Duration: Sets the playing time in seconds.
It cannot be longer than the background playing time.
Screen
Flash File: Selects the flash file to be played in the Flash area.
Aspect Ratio: Selects the aspect ratio for the flash file to be played in the Flash area.
z Full: The flash file is enlarged or reduced to fit the entire background.
z Original: The flash file is displayed at the original size.
z Auto: The flash file is enlarged or reduced to fit the entire background, and keeps the
original aspect ratio.
Input Enable: You can input using the mouse in the Flash area.
Background
Type: Sets the background type (Color, Picture File) for the Flash area.
Color: Selects the color when the background type for the Flash area is set to Color.
Transparency: Selects the degree of transparency when the background type for the Flash area
is set to Color.
If the Transparency is set to a value under 100, the area which is placed beneath the
present area is shown transparently. However, if a Movie is playing in one of the areas,
the transparency doesn't affect the movie area.
Picture File: Selects the photo file when the background type for the Flash area is set to Picture
File.
Picture Aspect Ratio: Selects the aspect ratio for the photo file to be played in the Flash area
when the background type of the Flash area is set to Picture File.
z Full: The photo file is enlarged or reduced to fit the entire background.
z Original: The photo file is displayed at the original size.
z Auto: The photo file is enlarged or reduced to fit the entire background and keeps the
original aspect ratio.
z Tile: The photo file is tiled continuously across the entire background.
Picture Time Interval: Sets the slide show time between photo files when the background type
for the Flash area is set to Picture File.
Sound: Turns the background sound for the Flash area on or off.
Music File: Selects a music file for the background in the Flash area.
Volume: Controls the volume of the background music in the Flash area.
Repeat: A music file can be played repeatedly. When set to Repeat, the music file is played
repeatedly while the background for the Flash area is created.
Flash File / Picture File / Music File
Changes the detailed properties and the transfer mode for the selected file of each type.
z Transfer Mode: Changes the mode in which the selected file is transferred to the monitor.
z Download: Downloads the file to the monitor and plays it.
z Stream: Streams to the monitor.
z Context Menu: Add, Delete, Up, Down: Adds and deletes a file and changes the playing
order.
Effect
z Effect: Selects the type of effect to be applied when the Flash area is created.
{ None: No effect is used.
{ Slide: The Flash area is created while it is moving.
{ Block: The Flash area is created with blocks.
{ Fade In: The Flash area fades in when it is created.
z Effect Speed: Adjusts the speed of an effect being created.
z Effect Direction: Sets the direction when the Slide effect is selected.
z Effect Size: Sets the size of the blocks when the Block effect is selected.
Web
This function is for configuring screens by connecting website files and consists of the Area,
Screen, Background and Effect functions. The Area function allows you to set the position of
the webpage and when and for how long it is displayed. The Screen function allows you to set
the website file to connect to and the location of the web page. The Background function allows
you to set the background image and music when the web page is displayed. The Effect
function allows you to set the effect for when the background changes.
Area
Name: Changes the area name.
You cannot use a name already used for another area name.
Lock Position: Locks the position of the area.
Left, Top, Width, Height: Changes the position and size of the area.
The area positions must be within the background and the area size cannot be larger than
the background size.
Start Time, Stop Time, Duration: Sets the playing time in seconds.
It cannot be longer than the background playing time.
Screen
Website: Sets a web page to display in the Web area.
Only one URL can be selected in the Web Area.
Refresh: Sets the refresh time for the URL displayed in the Web area.
Input Enable: You can input using the mouse in the Web area.
Offset Left /Top / Right / Bottom: Moves the position of the web page in the Web area.
Scroll: Turns the scrollbar for web pages on or off.
Border: Shows or hides the border for web pages in the Web area.
Background
Type: Sets the background type (Color, Picture File) for the Web area.
Color: Selects the color when the background type for the Web area is set to Color.
Transparency: Selects the degree of transparency when the background type for the Web area
is set to Color.
If the Transparency is set to a value under 100, the area which is placed beneath the
present area is shown transparently. However, if a Movie is playing in one of the areas,
the transparency doesn't affect the movie area.
Picture File: Selects the photo file when the background type for the web area is set to Picture
File.
Picture Aspect Ratio: Selects the aspect ratio for the photo file to be played in the web area
when the background type of the Web area is set to Picture File.
z Full: The photo file is enlarged or reduced to fit the entire background.
z Original: The photo file is displayed at the original size.
z Auto: The photo file is enlarged or reduced to fit the entire background and keeps the
original aspect ratio.
z Tile: The photo file is tiled continuously across the entire background.
Picture Time Interval: Sets the slide show time between photo files when the background type
for the Web area is set to Picture File.
Sound: Turns the background sound for the Web area on or off.
Music File: Selects a music file for the background in the Web area.
Volume: Controls the volume of the background music in the Web area.
Repeat: A music file can be played repeatedly. When set to Repeat, the music file is played
repeatedly while the background for the Web area is created.
Photo File / Music File
Changes the detailed properties and the transfer mode for the selected file of each type.
z Transfer Mode: Changes the mode in which the selected file is transferred to the monitor.
z Download: Downloads the file to the monitor and plays it.
z Stream: Streams the file to the monitor.
z Context Menu: Add, Delete, Up, Down: Adds and deletes a file and changes the playing
order.
Effect
z Effect: Selects the type of effect to be applied when the Web area is created.
{ None: No effect is used.
{ Slide: The Web area is created while it is moving.
{ Block: The Web area is created with blocks.
{ Fade In: The Web area fades in when it is created.
z Effect Speed: Adjusts the speed of an effect being created.
z Effect Direction: Sets the direction when the Slide effect is selected.
z Effect Size: Sets the size of the blocks when the Block effect is selected.
Text
This function is for configuring screens by connecting text and consists of the Area, Screen,
Background, Effect functions. The Area function allows you to set the position of the text and
when and for how long it is displayed. The Screen function allows you to select the text and
how to display it. The Background function allows you to set the background image and music
when the text is displayed. The Effect function allows you to set the effect used when the
background changes. The following section describes the detailed options used with the Text
function.
Area
Name: Changes the area name.
You cannot use a name already used for another area name.
Lock Position: Locks the position of the area.
Left, Top, Width, Height: Changes the position and size of the area.
The area positions must be within the background and the area size cannot be larger than
the background size.
Start Time, Stop Time, Duration: Sets the playing time in seconds.
It cannot be longer than the background playing time.
Screen
Text: Sets the text to be displayed in the Text area.
Direction: Sets the direction of the text flow in the Text area.
z
z
z
z
z
None
Right to Left
Left to Right
Top to Bottom
Bottom to Top Text
Speed: Sets the speed of the text flow in the Text area.
Step: Sets the interval of the text flow in the Text area.
Font, Font Size, Italic, Bold, Underline, Strikeout, Font Color: Sets the formatting for the text in
the Text area.
The font type shows the font of the computer where the server is operating. The same font
should be installed in the monitor so that the monitor can display the same font.
Align Horizontal, Vertical: Aligns the text in the Text area.
Background
Type: Sets the background type (Color) for the Text area.
You can only select Color for the background type (Color) for the Text area.
Color: Selects the color to use when the background type for the Text area is set to Color.
Transparency: Selects the degree of transparency to be used when the background type for the
text area is set to Color.
If the Transparency is set to a value under 100, the area which is placed beneath the
present area is shown transparently. However, if a Movie is playing in one of the areas,
the transparency doesn't affect the movie area.
Sound: Turns the background sound for the Text area on or off.
Music File: Selects a music file for the background in the Text area.
Volume: Controls the volume of the background music in the text area.
Repeat: A music file can be played repeatedly. When set to Repeat, the music file is played
repeatedly while the background for the Text area is created.
Music File
Changes the detailed properties and the transfer mode for the selected file of each type.
z Transfer Mode: Changes the mode in which the selected file is transferred to the monitor.
z Download: Downloads the file to the monitor and plays it.
z Stream: Streams the file to the monitor.
z Context Menu: Add, Delete, Up, Down: Adds and deletes a file and changes the playing
order.
Effect
z Effect: Selects the type of effect to be applied when the Text area is created.
{ None: No effect is used.
{ Slide: The Text area is created while it is moving.
{ Block: The Text area is created with blocks.
{ Fade In: The Text area fades in when it is created.
z Effect Speed: Adjusts the speed of an effect being created.
z Effect Direction: Sets the direction when the Slide effect is selected.
z Effect Size: Sets the size of the blocks when the Block effect is selected.
Source
More than one Source Area cannot be played at the same time. Therefore, if the playing
time of a source area overlaps, the source area whose playing time ends later is played..
Area
Name: Changes the area name.
You cannot use a name already used for another area name.
Lock Position: Locks the position of the area.
Left, Top, Width, Height: Changes the position and size of the area.
The area positions must be within the background and the area size cannot be larger than
the background size.
Start Time, Stop Time, Duration: Sets the playing time in seconds.
It cannot be longer than the background playing time.
Screen
Source List: Selects the source to be played in the Source area.
Sound: Turns the sound for the source you want to play in the Source area on or off.
TV/DTV : When selecting TV from the TV/External Input list, you can select either Analog TV or
Digital TV. When selecting Digital TV, you can enter both the main and sub channels using the
channel option. (460TXn Only)
General Broadcasting/Cable Broadcasting: You can select general or cable broadcasting.
(460TXn Only)
Channel: You can select the channel for the selected TV (460TXn Only)
(TV: General broadcasting channel range - 2~69, Cable broadcasting channel range 1, 14~135)
(DTV : Main channel range - 0 to 999, Sub channel range - 0 to 999)
Edit View
This view is used for screen design and allows you to create, move and change the size of an area using
your mouse. You can preview the current state by selecting Preview Area from the context menu or doubleclicking on an area.
Context Menu
z Area: Selects the type of area you wish to create. You can create an area by dragging
and dropping it into the Screen Edit window.
More than one Source Area cannot be played at the same time. Therefore, if the
playing time of a source area overlaps, the source area whose playing time ends
later is played.
(You can add areas for photo, movie, Flash, web, text, and source.)
z Order: Changes the order of the currently selected area.
The source area is always at the topmost position.
((Bring to Front, Send to Back, Bring Forward, Send Backward)
z Copy / Paste / Delete: Copies, pastes, and deletes the currently selected area.
z Lock Position: Locks the position for the currently selected area. Once an area is locked,
you cannot change its position and size using your mouse.
z Preview Area: Previews the current state of the selected area.
You cannot preview the office files for the source and background.
List View
Displays the detailed functions of each property for the areas you selected in Edit View and Tree View. You
can change the settings for the detailed functions by double-clicking on the cell that is displayed in the List
View or clicking the created button. The changes are immediately applied to and displayed in the area being
previewed.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Schedule
File Menu
Library / Screen / Schedule / Remote Management / Message
z
Creates a view or selects a created view for each menu item so that you can perform a
screen schedule and performs basic control for the monitors from the server.
Save
z
Saves all the schedule information currently configured in the EPG view in the database. The
saved information is applied when the server restarts.
Close
z
Closes the schedule view you are working with. If there are any unsaved changes, a new
window is displayed so that you can save them.
Log In
z
You must log in to the server before you can use any one of its functions. You can log in to
the server to perform a server program. The password you enter when installing MagicNet
Pro becomes the password of the Administrator account by default.
Log Out
z
Once you are logged into the server, you can log out. If you log out from the server, all
created views are closed and if there are any unsaved changes, a new window is displayed
so that you can save them.
Change Password
z
Changes the password of the currently logged-in account.
User Account
z
Creates, deletes and changes the user accounts able to log into the server. There are two
types of accounts that can be created: Administrator and User Accounts
{ Administrator: Has privileges for all server functions.
{ User: Has privileges for all server functions except for changing server options and
user account features.
z
Exits the program. If there are any unsaved changes, a new window is displayed so that you
can save them.
Exit
Tool Menu
Undo / Redo
z
Cancels the previously performed command or performs the canceled command again. You
can change the maximum number of commands that you can undo using the Option menu.
z
Adds the screen you wish to schedule after selecting a monitor and time by clicking in the
EPG window.
Add
Delete
z
Deletes the screen currently selected in the EPG window.
Copy / Paste
z
Copies the currently selected screen and pastes it after selecting a monitor and time by
clicking in the EPG window.
Publish (Network)
z
Publishes the currently configured schedules to the network monitors checked in the Publish
View via the network.
Publish (Local)
z
Publishes the currently configured schedules to the local monitors checked in the Publish
View. They are created in the folder named after the monitor name, which is used as the
local publishing directory. If you copy all the files and subfolders under the folder created in
the name of the monitor to the root of a USB memory device and connect it to the USB port
of your computer, the schedules are performed automatically without connecting to the
network.
You can set and change how to run schedules by changing the Local Schedule Option
for the monitor. For more information, refer to the help on the monitor setup.
You can view and change the local publishing directory in the Schedule tab of the
Option. The default is the folder where the server executable exists.
Clear
z
Stops the publishing which is in progress for a monitor checked in the Publish View and stops
the schedule the networked monitor is running.
Option
z
Changes the server settings. For more information, refer to the Option tab.
Schedule
Tree View
EPG View
List View
Publish View
Tree View
Displays the connection state of the monitors currently connected to the server depending on the monitor
icon. You can also efficiently manage the monitors by creating network groups. You can move a networked
monitor by dragging and dropping it into a group.
z
z
z
z
Network
:
:
:
:
The
The
The
The
server
server
server
server
is
is
is
is
connected to the
connected to the
connected to the
not connected to
monitor in Player mode.
monitor in Scheduler mode.
monitor in an unknown mode.
the monitor or the monitor is a local monitor.
Network: A monitor which is connected to the server over a network.
New Group: Creates a new group that can include some networked monitors. You can drag and
drop a networked monitor to a group.
Copy/Paste: Copies all the schedules configured on the selected monitor to the clipboard and
pastes them to another monitor.
Rename: Changes the name of a monitor connected to the server.
You cannot use a name already used for another monitor.
Delete: Deletes a monitor which is not connected to the server.
Power On: Turns the selected monitor on or off.
If the server and the monitor are on a private network, the Power On function cannot be
operated on that monitor. However, if there is content server operating on the same
subnet, the Power On function can be used.
Remote Access: Allows you to remotely control a monitor connected to the server via VNC.
The Remote Access function can degrade the performance of the server and the monitor.
The Remote Access function does not support monitors on a private network. In addition,
you cannot watch movies on the monitor which are played in overlay mode.
Operating Mode: Changes the mode of a monitor connected to the server (Player / Scheduler).
Local
This is a virtual monitor used to create schedules for a monitor used without being connected to the
network. Local publishing can be performed for a local monitor to create schedules for it.
New Monitor: Creates a new virtual local monitor.
Copy / Paste: Copies the schedules set on the selected monitor and pastes them to another
monitor.
Rename: Renames the selected monitor.
You cannot use a name already used for another monitor.
Delete: Deletes the selected monitor.
EPG View
You can edit the schedule by selecting the monitor and time to schedule and register screens. You can move
a registered screen by dragging & dropping it and changing the registered time by double-clicking it.
You can change the screen times using your mouse and by the minimum unit on the time axis. You can
change the detailed times in the list view. If you select a monitor group in the tree view, the screen
configured for all the monitors is displayed. The screen can be displayed by the day. If you select a
monitor in the tree view, the screen for it is displayed. The date can be changed by the months.
EPG
Add: Adds the screen you wish to schedule after selecting a monitor and time by clicking in the
EPG window.
Delete: Deletes the screen currently selected in the EPG window.
Copy / Paste: Copies the currently selected screen and pastes it after selecting a monitor and
time by clicking in the EPG window.
Auto Size: Changes the currently selected screen in accordance with the time of the background
set when editing automatically.
Time Combo Box: Changes the unit of the time axis to be currently displayed.
(1/5/10/30/60/120 Min)
List View
Sets the detailed items for the selected screen by double-clicking on the screen or by clicking the
created buttons.
Name: Changes the name of the selected screen. Only the screen name changes and the time
information is retained.
Start Time / Stop Time / Duration: Sets the time information for the selected screen in minutes.
Periodic: Sets how frequently the selected screen recurs. (None / Daily / Weekly / Monthly)
End on: Sets an end date for the selected schedule to recur.
Publish View
Publishes the schedules which are configured by the EPG view and the List view to the checked
monitors.
Beginning Day/ Start Time / End Day / Stop Time: Sets the time information for the schedules
to be published to the monitors. Only the screens within the specified period can be published.
Total Publishing Size: Indicates the total size of all the screens within the specified publishing
period. This is the total size of the files whose play mode is set to Download in all screens.
However, for a local monitor, the size of the files whose play mode is set to Stream is included
too.
Free Space: Indicates the size of the files the monitor can download while publishing. If the
total publishing size is larger than the free size, publishing cannot be performed. However, if
you change the Maximum Publishing Size option in the Schedule tab in the Server Option,
schedules can be published regardless of the available free size.
Status: Displays the publishing progress as a percentage on the slide bar. This is the
percentage of the size of the files downloaded to the monitor compared to the total screen (file)
size.
Result: Displays the publishing results. Double-click the schedule or click this button to view the
detailed publishing information.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Remote Management
File Menu
Library / Screen / Schedule / Remote Management / Message
z Creates a view or selects a created view for each menu item so that you can perform a
screen schedule and have basic control over the monitors from the server.
Close
z Closes the screen view you are working in. If there are unsaved changes, a new window is
displayed so that you can save them.
Log In
z You must log onto the server before you can use any one of its functions. You can log onto
the server to run a server program. The password you enter when installing MagicNet Pro
becomes the password of the Administrator account by default.
Log Out
z Once you are logged onto the server, you can log out. If you log out from the server, all
created views are closed and if there are any unsaved changes, a new window is displayed
so that you can save them.
Change Password
z Changes the password of the currently logged-in account.
User Account
z Creates, deletes and changes the user accounts that can log onto the server. There are two
types of accounts that can be created: Administrator and User Accounts.
{ Administrator : Has privileges for all server functions.
{ User : Has privileges for all functions except for changing the server options and user
account features.
Exit
z Exits the program. If there are any unsaved changes, a new window is displayed in which
you can save the changes.
Tools Menu
Refresh
z Refreshes the value of each client for the currently selected remote control item.
Option
z Changes the server settings. For more information, refer to the Options section.
Remote Management
Tree View
List View
Combo View
Tree View
Displays various control items for the client in a tree view. If you select an item, the current state of the
selected item is displayed and you can control it in the list view.
MDC
Displays the items for which remote management is required from among the OSD menus of each
client monitor in a tree view. If you select an item, the current state of the selected item is
displayed and you can control it in the list view.
Detailed Items
MDC: Displays the current state of the external source,channel,volume,mute and panel which
are the basic items for controlling the client. You can control them in the list view.
z Changing the Channel (460TXn Only)
z TV Type Selection: The TV Type is determined by selecting either Digital TV or Analog TV
at the MDC source. If you select Digital TV in the MDC Source screen and change the
channel, a red part is displayed in the Channel Selection screen so that you can change
the sub channel too. (460TXn Only)
z Channel Type Selection: You can select general or cable broadcasting. (460TXn Only)
z Channel Selection: You can select the channel for the selected TV.(460TXn Only)
(TV: General broadcasting channel range - 2~69, Cable broadcasting channel range 1,
14~135)
(DTV : Main channel - 0 to 999, Sub channel - 0 to 999)
Picture Video: Displays the current state of the Video mode (AV, S-Video, Component, DVI
(HDCP), HDMI). You can control it in the list view.
Picture PC: Displays the current state of PC mode (PC, BNC, DVI, MagicNet). You can control it
in the list view.
Time : Sets the current time and displays the state of the on and off timers. You can control
each item by clicking on it and changing the setting in the list view.
-Current Time
1) Hour: Enter the hour.
2) Minute: Enter the minutes.
3) AM/PM: Enter AM or PM.
-On Timer
1)
2)
3)
4)
5)
6)
Hour: Enter the hour.
Minute: Enter the minutes.
AM/PM: Enter AM or PM.
Status: Select whether to use the turn-on time.
Source: Select the external input
Volume: Select the volume
-Off Timer
1)
2)
3)
4)
Hour: Enter the hour.
Minute: Enter the minutes.
AM/PM: Enter AM or PM.
Status: Select whether to use the turn-on time.
PIP: Displays the PIP information. You can control it in the list view.
Sound: Displays the current sound state. You can control it in the list view.
Signal Balance: Displays the current signal balance state. You can control it in the list view.
Maintenance: Displays the Lamp Control, Safety Screen, Video Wall, VideoWall Format, and
Safety Lock state. You can control them in the list view.
Diagnosis: Displays whether each client is normal or not. You can control the max. internal
temperature of each client using the list view.
System
Displays the items required to manage the client in the tree view separately from MDC. If you
select an item, the current state of the selected item is displayed and you can control it in the list
view.
Detailed Items
System: Displays the product information for the client in a list view.
General: Displays general information for the client, such as the computer name and username,
etc. in the list view.
Performance: Displays the current performance information for the client, such as the CPU and
network usage in the list view.
Network: Displays the network information in the list view. You can set the IP address.
Windows: Displays the information related to the operating system, such as EWF and Rotation,
etc. You can control them in the list view
MagicNet: Displays the status for the MagicNet client. You can control it in a list view.
List View
Displays the detailed functions for each item selected in the Tree View. You can control them by using the
context menu and clicking each detailed function. In addition, you can update the current state using
Refresh from the Tool menu and in the toolbar.
MDC
Displays the items for which remote management is required from among the OSD menus of each
client monitor in a tree view. If you select an item, the current state of the selected item is
displayed and you can control it in the list view.
Detailed Items
MDC: Displays the current state of the External source,channel,volume,mute and panel. You
can control each item by clicking on it and changing the setting in the list view.
z For channels, only when the input source is TV, can you display or control the setting.
(Only applicable for monitors that support TV.)
Picture Video: Displays the current state of the Mode, Contrast, Brightness, Sharpness, Color,
Tint, Color Tone, Color Temperature, Size, Digital NR, and Film Mode. You can control each item
by clicking it and changing the setting in the list view.
z This item is only available in video mode (AV, S-Video, Component, DVI(HDCP), HDMI).
z The Contrast, Brightness, Sharpness, Color, and Tint items are only available in custom
mode.
z The Color Temperature item is only applicable if the Color Tone item is turned off.
z The Auto Wide option for the Size item is only available in TV mode. (Only applicable for
monitors that support TV.)
Picture PC: Displays the current state of MagicBright, contrast, brightness, color tone, red,
green, blue, color temp, and size. You can control each item including Auto Adjustment by
clicking it and changing the setting in the list view.
z This item is only available in PC mode (PC, BNC, DVI, MagicNet).
z The Contrast and Brightness items are only applicable if MagicBright is in Custom mode.
z The Red, Green, and Blue items are only applicable if the Color Tone item is set to
Custom.
z Color Temperature is only applicable if the Color Tone item is turned off.
z To perform Auto Adjustment, click the displayed button.
Time: Configures the current time and displays the state of the on and off timers. You can
control each item by clicking it and changing the setting in the list view.
PIP: Displays the external input and the size for the PIP. You can control each item including
the position of the PIP, and Swap by clicking on it and changing the setting in the list view.
z The Position and Swap items are write-only. Their existing settings cannot be read. You
have to set them directly when needed.
z Each item is only enabled if the Size item is set to a setting other than Off.
z You can turn the PIP on by setting the Size item to a setting other than Off.
Sound: Displays the current state of the Sound Mode, Bass, Treble, Balance, SRS TSXT, and
Sound Select. You can control each item by clicking on it and changing the setting in the list
view.
z The Bass, Treble, and Balance items are only applicable if the Sound Mode item is set to
Custom.
Signal Balance: Displays the information for the Signal Balance On/Off, R Phase, G Phase, B
Phase, Gain, and Sharpness. You can control each item by clicking on it and changing the
setting in the list view.
z The R Phase, G Phase, B Phase, Gain, and Sharpness items are only applicable if the
Signal Balance item is set to On.
Maintenance: Displays the state of the Lamp Control, Screensaver, Screen Matrix Display,
Screen Settings, and Safety Lock. You can control each item by clicking it and changing the
setting in the list view.
z Lamp Control
1) Automatic
- Hour: Enter the hour to apply the lamp adjustment. (Maximum and minimum values)
- Minute: Enter the minute to apply the lamp adjustment. (Maximum and minimum
values)
- AM/PM : Select AM or PM to apply the lamp adjustment. (Maximum and minimum
values)
- Value : Select the value to apply the lamp adjustment. (Maximum and minimum
values)
2) Manual - Select a value to apply to the lamp by moving the slider.
z Safety Screen
1) Interval: Enter the time interval when the screensaver is activated.
2) Second: Enter the duration the screensaver will run.
3) Type: Enter the type of screensaver.
z Video Wall
1) Video Wall: Select whether to activate the video wall.
2) Horizontal: Set how many parts the screen is divided into horizontally.
3) Vertical: Set how many parts the screen is divided into vertically.
4)
: Select the area that the monitor will display.
z The Screen Settings only operate when the Screen Matrix Display function is activated.
Diagnosis: Displays whether the lamp, internal temperature of the client, brightness sensor and
fan are normal, and displays the current and maximum temperatures. You can control the
maximum temperature by clicking on it and changing the setting.
z An error is displayed if the maximum temperature is lower than the current temperature.
Context Menu
Power On/Off: This item is only enabled when a monitor name is selected and used to turn the
client (monitor) on or off.
Copy: Copies the settings of the selected item.
z
z
z
z
If you select a monitor name and click Copy, all the items displayed in the list are copied.
If you select an item and click Copy, only the item is copied.
If the setting is not yet displayed or the item has no setting, the item cannot be copied.
You cannot copy write-only items.
Paste: Pastes the copied setting to the monitor.
z Only available if the copied item is the same as the currently selected item.
z Only available if the client is turned on.
Paste All: Pastes the copied settings to all the monitors displayed in the current list.
z Can only operate when the copied item is the same as the currently selected item.
z Can only operate when the client turns the power on.
Refresh: Refreshes the items for the selected monitor.
System
Displays the items required to manage the system properties of the client in a tree view. You have
to set the settings for each item by double-clicking the client or using the Edit item from the
context menu, instead of selecting each item and setting a value as in MDC.
Detailed Items
System: Displays the information for the model name, serial number, screen size, firmware
version, MagicNet version, and OS image version.
General: Displays the specifications and name of the computer and the information for the work
group, user, and product key.
Performance: Displays the CPU, network, memory, and disk usage.
Network: Displays the information for the Network Adapter, MAC Address , IP Address Type, IP
Address, Subnet Mask, Default Gateway, Preferred DNS Server, Altermate DNS Server. You can
change the settings by double-clicking the monitor name or using the Edit item from the
context menu.
- Network Adapter: Displays the network adapter for the selected client.
- Mac Address: Displays the MAC address of the selected client.
: Select an IP address type.
-
IP Address: Enter the IP address.
Subnet mask: Enter the subnet mask.
Default gateway: Enter the address of the default gateway.
Preferred DNS server: Enter the address of the preferred DNS server.
Altermate DNS server: Enter the address of the alternate DNS server.
The Network Adapter and Mac Address items cannot be changed.
Window: Displays the information for the EWF, screen rotation, screen resolution, and system
messages. You can change the settings by double-clicking the monitor name or using the Edit
item from the context menu.
1) Current Status: Displays the current EWF status of the selected client.
2) EWF command: Changes the EWF status of the selected client.
3) Screen Rotation: Selects the screen direction of the selected client.
4) Screen Resolution: Displays the resolution of the selected client.
5) System message: Selects whether to display a system message for the selected
client.
6) The Current Status and Screen Resolution items cannot be changed.
MagicNet: Displays information for the Startup, Automatic update, Use password lock, and
Content server. You can change the settings by double-clicking the monitor name or using the
Edit item from the context menu.
1) Startup: Select the program to be performed when the client starts.
2) Automatic update: Select how to perform automatic updates.
3) Use password lock: Select whether to use the password lock.
4) Content Server: Select whether to use the content server.
5) Preferred content server: Enter the IP address of the preferred content server to use a
content server.
6) Alternate content server: Enter the IP address of the alternate content server which
will be used when the preferred content server does not operate.
Context Menu
Update: This item is only enabled if a monitor name is selected. This item compares the client
version to the update version on the server and updates the client if required.
Edit: Displays a window so that you can change the monitor settings.
z For the System, General, and Performance items, the settings are read-only so they are
disabled.
Copy: Copies the settings of the selected item.
z
z
z
z
z
If you select a monitor name and click Copy, all the items displayed in the list are copied.
If you select an item and click Copy, only the item is copied..
If the setting is not yet displayed or the item has no setting, the item cannot be copied.
The System, General, Performance, and Network items cannot be copied.
The screen resolution item of Windows cannot be copied.
Paste: Pastes the copied setting to the monitor.
z Only available if the copied item is the same as the currently selected item.
z Only available if the client is turned on.
Paste All: Pastes the copied settings to all monitors displayed in the list.
z Only available if the copied item is the same as the currently selected item.
z Only applied to clients which are turned on.
Refresh: Refreshes items for the selected monitor.
Monitor Status
z
z
z
z
:
:
:
:
The
The
The
The
server
server
server
server
is
is
is
is
connected to the
connected to the
connected to the
not connected to
monitor in Player mode.
monitor in Scheduler mode.
monitor in an unknown mode.
the monitor or the monitor is a local monitor.
Combo View
Displays all monitor groups except for local monitor groups so you can select a group.
If you select a group, a list of clients in the group is displayed in the list view.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Message
File Menu
Library / Screen / Schedule / Remote Management / Message
z
Creates a view or selects a created view for each menu item so that you can run a screen
schedule and perform basic control for the monitors from the server.
New
z
Initializes the message view you are currently working with. If there are any unsaved
changes, a new window is displayed so that you can save them.
Open
z
Opens a message file. If there are any unsaved changes, a new window is displayed so that
you can save them.
Save / Save As
z
Saves the changes in the current message file or as a new message file.
Close
z
Closes the message view you are currently working with. If there are any unsaved changes,
a new window is displayed so that you can save them.
Log In
z
You must log in to the server before you can use any one of its functions. You can log in to
the server to perform a server program. The password you enter when installing MagicNet
Pro becomes the password of the Administrator account by default.
Log Out
z
Once you are logged into the server, you can log out. If you log out from the server, all
created views are closed and if there are any unsaved changes a new window is displayed so
that you can save them.
Change Password
z
Changes the password of the currently logged-in account.
User Account
z
Creates, deletes and changes the user accounts that are able to log into the server. There
are two types of accounts that can be created: Administrator and User accounts.
{ Administrator: Has privileges for all server functions.
{ User: Has privileges for all server functions except for changing server options and
user account features.
Exit
z
Exits the program. If there are any unsaved changes, a new window is displayed so that you
can save them.
Tool Menu
Undo / Redo
z
Cancels the previously performed command or performs the canceled command again. You
can change the maximum number of commands that you can undo using the Option menu.
Send / Stop
z
Checks the edited message data in a tree view and sends (or stops) them to the selected
monitor.
Option
z
SChanges the server settings. Refer to the Option tab for more information.
Message
Tree View
List View
Tree View
You can select the monitors to which the message is sent by checking the checkbox next to each monitor
and group.
List View
Changes the detailed functions for the message to be sent to the monitors by double-clicking it or by clicking
the created button.
Message: Sets a message to be displayed on the monitor.
The set message is not applied to the preview window.
Duration: Selects the time of the message to be displayed on the monitor in minutes.
Position: Selects the location of the message to be displayed on the monitor. (Top / Bottom)
Direction: Sets the direction of the message flow on the monitor. ( None / Right to Left / Left to
Right / Top to Bottom / Bottom to Top Text )
Speed: Sets the speed of the message flow on the monitor.
Step: Sets the interval at which the message flows on the monitor.
Font, Font Size, Italic, Bold, Underline, Strikeout, Font Color: Sets the font formatting for the
message to be displayed on the monitor.
The font type shows the font of the computer where the server is operating. The same font
must be installed on the monitor so that it can display the font.
Align Horizontal: Aligns the text in the message to be displayed on the monitor.
Background Color: Selects the background color for the message to be displayed on the
monitor.
Transparency: Selects the degree of transparency to be used for the message to be displayed
on the monitor. (On / Off)
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Option
Option
General
Network Connection: Selects the connection method between the server and the monitor. The
server and monitor can be connected to each other only if the same connection method is used.
z
z
Automatic connection: The monitor automatically connects a server on the same
network.
Direct connection: The monitor directly connects to the server with the specified IP
address.
If the server and monitor are on a different private network, they cannot connect to each
other. However, if the server has a public IP address, a monitor with a private IP address
can be connected to it using the direct connection method.
Server Name: Changes the server name.
The server and monitor can connect to each other only if their server names are the same.
Network Device: Selects the LAN card used in the server.
If there are more than one available LAN cards on the PC, a window that allows you to
select a LAN card to use when the server starts for the first time.
Maximum number of undos: Selects the maximum number of previous operations you can
cancel.
Refresh Time: Sets the frequency of the server receiving monitor data for updating in Remote
Management. When set to 0, the server does not update the monitor data automatically and
you have to click Refresh in the tool bar or from the menu to update the monitor data.
Show hidden files and folders: Shows files with the hidden attribute on the server computer in
the library.
Maximum number of local monitors: Sets the maximum number of virtual local monitors that
can be created for publishing the schedule locally.
Maximum number of network groups: Sets the maximum number of network groups that can
be created to manage the networked monitors.
Maximum number of Alarm Infos: Specify the number of warning messages that can be stored
which notify the user of client errors. If more than the specifed number of errors occurs, older
messages are deleted.
Content Synchronization Period: Sets the time interval for synchronization of the content
server.
Content Synchronization Time: Sets a time to synchronize the content server. However,
synchronization is performed at the time set on the client.
Content Synchronization Sequence: Sets the order in which the content is synchronized.
Schedule
Folder of local schedule: Sets the directory in which local schedules are created using a virtual
local monitor. The default value is the folder where the server is installed.
Set the manageable period of past schedules: Sets the period for schedules for which you can
register, save and import screens. When set to 0, you cannot register, save or import the
screens before the present time.
Set the default period of the publishing schedule: Sets the default publishing period for a
schedule.
Maximum publishing size: Sets the option regarding the free space on the monitor for
publishing a schedule.
z
Use the available disk space of each monitor: Sets the size to the maximum free disk
space of the monitor.
z
z
Use the equal disk space of each monitor: Sets the size to the value entered in the edit
box.
Do not check disk space when schedule is published: Publishing continues even though
the total size of the schedules to be published is larger than that of the free disk space of
the monitor.
Publishing sequence: Specifies the order when publishing is performed for multiple monitors.
z
z
Publish schedules at the same time: Publishes the schedules to multiple monitors at the
same time.
Publish schedules one after the other: Publishes the schedules to multiple monitors one
by one.
Screen
Default Resolution: Adds, deletes and sets the default resolution for a newly created screen.
z
z
z
New: Adds a new resolution that can be used in a screen. It is added to the list of
background resolutions for the screen.
Delete: Deletes a created resolution. It is removed from the list of background
resolutions for the screen.
Set: Sets the selected resolution as the default resolution.
Display options for error messages: Sets the options for errors that may occur when a screen is
previewed.
z
z
Do not display error messages: When an error occurs, the next preview operation
continues without an error message being displayed.
Display error messages during a fixed time: When an error occurs, an error message is
displayed for a specified period of time and then is automatically hidden after that
period.
What is MagicNet?
|
Using MagicNet
|
Library
|
Screen
|
Schedule
Remote Management
|
Message
|
Option
|
Client / Contents Server
|
Troubleshooting
Contents Server
A program run on the additional PC where the content server is operating.
Version: The version of the content Server.
MAC ID: The MAC address of the network device on the PC where the content server is
installed. Used when the MagicNet Server checks whether it is registered as the content server.
Name: The name of the content server configured by the MagicNet Server.
Connection
Server IP: Enter the IP address of the MagicNet Server you want to connect to. Click the
Connect button. The client tries to connect to the MagicNet Server at the specified Server IP
address. If the MagicNet Server accepts the connection, the client is successfully connected to
the server.
Status: Displays the connection status for the MagicNet Server.
Network: Displays the network usage.
Client Functions
MagicNet Client Configurations
About
Displays the version.
EWF
Displays or changes the drive settings.
Password Manages the password.
Setup
Rotation Rotates the screen with the selected option.
Program Runs or exits the program.
Exit
Exits mnMain. If you exit mnMain, MagicNet X and the Schedule program are also exited
together.
EWF: Displays and changes the Drive settings
EWF State
z
z
Current state: Displays the current EWF state.
Boot command: Displays the EWF state which will be applied at the next boot-up.
EWF command
z
z
z
Disable and restart : Disables and restarts the EWF.
The EWF state is actually disabled at the next boot-up.
Enable and restart : Enables and restarts the EWF.
The EWF state is actually enabled at the next boot-up.
Commit : Saves the changes in the Enable state.
Password : Manages passwords for existing MagicNet X.
Verifies the password before you enter the Setup screen. If the Use Password lock checkbox is
checked, you need to verify your password again when entering the MagicNet X setup menu.
Old password
z
Enter the existing password.
New password
z
Enter the new password.
Change
z
Change the password.
Use password lock
z
Verifies your password before you enter the Setup screen.
Setup
Connection Tab
Schedule server
z
Server Connection Settings
{ The client automatically connects to the server.
{ When a connection is disconnected, the client connects to another server
automatically.
{ The client connects to the server manually. (Enter the IP address of the server).
Content server
z Up to two (2) content servers can be configured.
z Enter the IP address of the server.
Name
z
Setting Name
{
{
1
Schedule server
z
z
z
2
Automatic connection using server name
: If the schedule server and client are on the same sub network, the client connects to the
servers using their name.
Reconnecting another server when disconnected
: If a connection is disconnected, the client connects to another server on the same sub
network automatically.
Direct connection using IP address
: The client connects to the schedule server with the entered IP address.
: The client can connect to the schedule server even though they are not on the same
network. However, if the server has a private IP address on a private network, the client
cannot connect to it. Therefore, the schedule server must be installed with a public IP
address on a network.
Content server
z
z
z
3
The ID of the server to connect to
Client ID
Connect content servers
: Select this option when you want to use separate schedule and content servers.
: If you select this option, all the content files are downloaded or streamed from the specified
content server and the schedule server performs only the schedules and the remote control
function.
Preferred IP
: Enter the IP address of the computer that operates as the primary content server.
Arternate IP
: Enter the IP address of the computer that operates when the primary content server cannot
be connected to.
Name
z
z
Server
: Enter the name of the schedule server that the client connects to.
Client
: Set the name of the monitor to connect to the schedule server.
Program Tab
Startup
z
Select the program performed when the client starts.
Automatic updates
z Select how to perform automatic updates.
1
Startup
z
z
z
z
2
Sets the program to be performed when the client starts.
You can select one of two programs, or select neither of them.
Player: Runs a media player program that can be run using the remote control and can
receive and play the content that exists on the server. (MagicNet X)
Runs the program that displays the information. This program displays a screen that is
created on the server at the specified time and can be controlled remotely.
Automatic update
z
z
z
z
Sets the option for updating the client program automatically.
Do not update automatically: Updating is not performed automatically.
Check and update at fixed time: Checks the update version at the specified time every day
and updates the client if necessary.
Check and update whenever the program starts: Checks the update version whenever the
program starts and updates the client if necessary.
Screen Tab
Logo screen : the main screen of the Signage Scheduler program.
z Background: Sets the background color.
z File: Sets the logo screen. (A flash, photo, and movie file can be set.)
Schedule folder : Sets the location of the schedule file.
z
z
Target: Sets the location of the screen design file and content file.
Space: Sets the size limit for the files to be downloaded.
Local Schedule : Sets the local schedule options.
z
z
1
Copy and play from a removable disk: Copies the schedule file from a USB device to the
FDM and then runs it.
Play directly from a removable disk: Runs the schedule file directly from the USB device.
Logo screen
z
Sets the initial screen of the scheduler or the screen to be displayed between schedules.
{
{
2
Schedule folder
z
3
Background: Sets the background for the entire screen.
File: Sets the logo screen to be displayed on the background. (A flash, photo, or movie
file can be set.)
Sets the directory which the content to be scheduled is downloaded to and managed in and
manages the size of the disk.
{ Target: Sets the target directory.
(You should set a directory on the D: drive or a removable disk, as the C: drive is used
for the system.)
{ Space: Sets the disk size limit used for the schedule.Between 10% to 90% of the
available free space can be set.
Local schedule
z
Sets the options required when you perform a schedule using a USB device instead of the
network.
{ Copy and Play from a removable disk
: Copies the schedule that exists on a USB device to the schedule folder and then
plays the copied schedule. You can remove the USB device after copying it.
{ Play directly from a removable disk
: Plays the schedule that exists on a USB device directly. If you remove the USB
device, the schedule exits.
Options Tab
Other Options
z Show loading screen before program start: Displays a loading screen from the time after
your computer is booted to the time before the main program starts.
z Do not show system message: Do not show the system messages generated by Windows.
What is MagicNet?
|
Using MagicNet
|
Library
|
Remote Management
|
Message
|
Option
|
Screen
Client / Contents
Server
|
Schedule
|
Troubleshooting
Troubleshooting
When a monitor is not connected to the server
z
z
z
z
z
z
z
Check whether the network environment for the server and monitor is normal..
(Check the network cable connections and IP address settings, etc)
Check whether a correct network card has been selected when there is more than
one network card in the PC where the server is operating.
(Use the Network Device item in the Server Option window.)
Check whether the server names used by the server and monitor are the same.
Check whether the connection methods used by the server and monitor are the
same.
(Automatic connection using a server name / Direct connection using an IP
address)
If the connection method is set to Automatic connection using a server name,
check whether the server and monitor are on the same subnet.
If the connection method is set to Direct connection using an IP address, check
whether the IP address of the server set in the monitor is correct. If the server
and monitor are on different networks, the IP address of the server must be a
public IP address.
Check whether the PC prevents the server from accessing the monitor because of
the Windows Firewall.
When the icon next to the monitor name is amber, and not blue which means 'connected
normally'
This occurs when the network connection is normal but the connection between the
server and the monitor is abnormal. This may also occur when the monitor is connected
to a different server or the network state is abnormal. Check the monitor connections
and the network state.
When publishing is not performed successfully
z
z
z
z
z
Check whether the checkbox next to the monitor to which you want to publish to
is selected..
Check whether the monitor to which you want to publish to is connected to the
server.
Check whether the Operating Mode of the monitor to which you want to publish to
is set to Scheduler.
Check whether the monitor has sufficient free disk space.
Check whether the screen exists within the publishing time.
When publishing is completed even though 100% is not displayed in the Publishing
Status.
z
z
The percentage displayed in the Publishing Status is the ratio of the size of the
content the monitor has actually downloaded to the total size of all the content
which is set to be downloaded on the screen. If 100% is not displayed, it means
that the monitor has failed to download the content files. To view the results,
double-click the Result cell of the monitor or use the buttons displayed when
clicking it. Check whether the file the monitor failed to download actually exists on
the server or content server and is correct.
Check whether StreamServer.exe, which is performed at the same time when the
server starts up, is running normally. (Check whether StreamServer.exe is
running by viewing its tray icon or looking for its image name in the Processes tab
of the Task Manager.) If it is not running, run the server again, or run
StreamServer.exe again in the folder with the server's executable files.
When a schedule is not performed normally
z
z
Check whether the schedule has been published successfully.
Check whether the system times of the server and monitor are the same.
Password / Log In
The password you enter when installing MagicNet Pro becomes the password of the
Administrator account by default.
If you forgot your password, remove and reinstall the program.
When the monitor update function does not work
Check the monitor version. If it is the latest version, no updating is performed.
When a movie file is not registered to the library
Check whether the proper codec is installed for the movie file the server wants to
register to the monitor. If more than one codec of the same type has been installed or
an incomplete codec is installed on the PC, it may cause a problem.
When an area edited on a screen cannot be previewed or the preview function does not
work
z
z
Check whether the file you want to preview is corrupt and whether it actually
exists.
You cannot preview an office file or a source.
Removing the Program
You can remove MagicNet Pro using Add/Remove Programs in Windows
or using the menu created when installing the program.
Follow these steps to remove MagicNet Pro.
1. Click[Start], and then point to [Settings]and click [Control Panel].
2. For Windows XP, click [Start] and click [Control Panel].
3. Double-click the [Add/Remove Programs] icon in the Control Panel.
4. Click MagicNet Pro. Scroll down the [Add/Remove Programs] window until you locate it, if
necessary.
5. Click [Change/Remove].
6. Click "Yes"to remove MagicNet Pro.
7. Wait until the message that the program has been removed successfully is displayed.
Introduction
A Multiple Display Control (MDC) is an application allowing various displays to be easily and simultaneously
operated on a PC. RS-232C, a standard of serial communication, is used for the communication between a PC and
a display. Therefore, a serial cable should be connected between the serial port on a PC and the serial port on a
display.
Main Screen
Click Start > Program > Samsung > MDC System to start the program.
Select a set to see the volume of the selected set within the slider.
Main Icons
Select Button
Remocon
Info Grid
Safety Lock
Display Selection
Port Selection
Control Tools
1. Use the main icons to switch into each screen.
2. Allows you to enable or disable the remote control signal receiving function of the display unit.
3. Set the Safety Lock function.
When setting the Lock function, you can only operate power and lock buttons on the remote control and set.
4. The setting for the PC Serial Port can change. The original value is COM1.
5. Click Select all or Clear to select or clear all displays.
6. Use Grid to view brief information on selected display.
7. Select a display from Display Selection.
8. Use Control Tools to control displays.
<Note> The remote control Enable/Disable function operates whether or not the power is On/Off, and this
applies to all displays connected to the MDC. However, regardless of the status at the time the MDC is
shut down, the remote control signal receiving function of all displays is initialized to Enable when the
MDC is closed.
Port Selection
1. The Multiple Display Control is originally set to COM1.
2. If any port other than COM1 is used, COM1 through COM4 can be selected in the Port Selection Menu.
3. If the exact port name that is connected to the LCD Display using a serial cable is not selected, communication will
be unavailable.
4. The selected port is stored in the program and used for the next program as well.
Power Control
1. Click Power Control of the main icons and the Power Control screen appears.
Info Grid shows some basic information necessary to Power Control.
1)
(Power Status)
2) Input
3) Image Size
4) On Timer
5) Off Timer
2. Use the Select All button or Check Box to choose a display to control.
Power Control allows controlling some of the functions of the selected display.
1) Power On/Off
- Turns the power of the selected display On/Off.
2) Volume
- Controls the volume level of the selected display.
It receives the volume value of the selected display from the sets and displays it in the slider.
(When you cancel the selection or choose Select All, the value returns to the default value 10)
3)
(Mute On/Off)
- Turns on/off the Mute function of the selected display.
When selecting one set at a time, turn on the Mute function for the selected set.
The Mute function is disabled automatically when you adjust the volume level.
(The values return to the default settings when you undo the selections or choose "Select All".)
The Power Control feature is available for all displays.
The Volume Control and Mute features are available only for the displays whose power status is ON.
Input Source
1. Click Input Source of the main icons and the Input Source control screen appears.
Click Select All or use Check Box to select a display to control.
• TV Mode
• PC Mode
Info Grid shows some basic information necessary to Input Source Control.
1)
PC
- Changes the Input Source of the selected display to PC.
2)
BNC
- Changes the Input Source of the selected display to BNC.
3)
DVI
- Changes the Input Source of the selected display to DVI.
4)
TV
- Changes the Input Source of the selected display to TV.
5)
DTV
- Changes the Input Source of the selected display to DTV.
6)
AV
- Changes the Input Source of the selected display to AV.
7)
S-Video
- Changes the Input Source of the selected display to S-Video.
8)
Component
- Changes the Input Source of the selected display to Component.
9)
MagicNet
- The Input source of MagicNet works only on MagicNet model.
10)
HDMI
- Changes the Input Source of the selected display to HDMI.
11)
Channel
- Channel arrow appears when the Input Source is TV.
TV Source can be selected only in products with TV and controlling channels is allowed only when
Input Source is TV.
The Input Source Control feature is available only for the displays whose power status is ON.
Image Size
PC, BNC, DVI
1. Click Image Size of the main icons and the Image Size control screen appears.
Info Grid shows some basic information necessary to Image Size Control.
1)
( Power Status)
- Shows the power status of the current display.
2) Image Size
- Shows the current Image Size of the display in use.
3) Input
- Shows the current Input Source of the display in use.
4) Info Grid displays only the displays whose Input Source is PC, BNC, DVI.
5) PC Source - When you click Image Size, the PC Source tab first appear.
- The Image Size Control button controls Image Size available for PC, BNC, DVI.
6) Video Source
- Click the Video Source tab to control Image Size for respective Input Source.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
Image Size Control is available only for the displays for which power status is ON.
Image Size
TV, AV, S-Video, Component, DVI(HDCP), HDMI, DTV
1. Click Image Size of the main icons and the Image Size control screen appears.
Info Grid shows some basic information necessary to Image Size Control.
1) Click the Video Source tab to adjust Image Size for TV, AV, S-Video, Component, DVI(HDCP), HDMI, DTV.
Click Select All or use Check Box to select a display to control.
2) Info Grid displays only the display having TV, AV, S-Video, Component or DVI(HDCP) as input source.
3) Switch Image Size of the selected display randomly.
Note: Auto Wide, Zoom1 and Zoom2 are not available for selection when the input signal type for
Component and DVI (HDCP) is 720p or 1080i.
( The Auto Wide mode is available only for TV, AV, and S-Video. )
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
The Image Size Control feature is available only for the displays whose power status is ON.
Time
1. Click Time of the main icons and the Time Control screen appears.
Info Grid shows some basic information necessary to Time Control.
1) Current Time
- Set the current time for the selected display (PC Time).
- To change the current time, first change the PC Time.
2) On Time Setup
- Set the Hour, Minute, AM/PM of On Time Setup, Status, Source, Volume of the selected display.
3) Off Time Setup
- Set the Hour, Minute, and AM/PM, Status for Off Time Setup of the selected display.
4) Shows the On Time settings.
5) Shows the Off Time settings.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
Time Control is available only for the displays for which the power status is ON.
At On Time Setup, TV Source functions only for TV Model.
At On Time Setup, MagicNet Source functions only for MagicNet Model.
PIP
PIP Size
1. Click PIP of the main icons and the PIP control screen appears.
Click Select All or use Check Box to select a display to control.
Info Grid shows some basic information necessary to PIP Size Control.
1) PIP Size
- Shows the current PIP Size of the display in use.
2) OFF
- Turns off the PIP of the selected display.
3) Large
- Turns on the PIP of the selected display and changes the size to Large.
4) Small
- Turns on the PIP of the selected display and changes the size to Small.
5) Double 1
- Turns on the PIP of the selected display and changes the size to Double 1.
6) Double 2
- Turns on the PIP of the selected display and changes the size to Double 2.
7) Double 3 (Picture By Picture)
- Turns on the PBP of the selected display and changes the size to Double 3.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
PIP Size can be controlled with turning on the LCD Display power.
PIP
PIP Source
1. Click PIP of the main icons and the PIP control screen appears.
Info Grid shows some basic information necessary to PIP Source Control.
1) PIP Source
- PIP Source can be controlled with turning on the LCD Display power.
2) PC
- Changes the source of the PIP of the selected display to PC.
3) BNC
- Changes the source of the PIP of the selected display to BNC.
4) DVI
- Changes the source of the PIP of the selected display to DVI.
5) AV
- Changes the source of the PIP of the selected display to AV.
6) S-Video
- Changes the source of the PIP of the selected display to S-Video.
7) Component
- Changes the source of the PIP of the selected display to Component.
8) HDMI
- Changes the source of the PIP of the selected display to HDMI.
Note: Some of the PIP Sources may not be available for selection, depending on the input source type
of the Main Screen.
The Input source of MagicNet works only on MagicNet model.
The PIP Control feature is available only for the displays whose power status is ON and the PIP
function is set to ON.
Settings
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control.
When each function is selected, the set value of the selected function is displayed in the slide.When selected, each
function fetches the value for the set and displays it on the slide bar. When "Select All" is chosen, the default value
is displayed. Changing a value in this screen will automatically change the mode to "CUSTOM."
1) Picture
- Available only for TV, AV, S-Video, Component, HDMI, DTV.
2) Contrast
- Adjusts Contrast of the selected display.
3) Brightness
- Adjusts Brightness of the selected display.
4) Sharpness
- Adjusts Sharpness of the selected display.
5) Color
- Adjusts Color of the selected display.
6) Tint
- Adjusts Tint of the selected display.
- Available only for NT.
7) Color Tone
- Adjusts the Color Tone for the selected display.
8) Color Temp
- Adjusts the Color Temp for the selected display.
9) Brightness Sensor
- Adjusts the Brightness Sensor for the selected display.
10) Dynamic Contrast
- Adjusts the Dynamic Contrast for the selected display.
The Input source of MagicNet works only on MagicNet model.
Color Temp is only enabled if the Color Tone is set to Off.
The Input source of TV works only on TV model.
This feature is available only for the displays whose power status is ON and if no selection is made, the
factory default is displayed.
Settings
Picture PC
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value
of the selected function is displayed in the slide. When selected, each function fetches the value for the set and
displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this
screen will automatically change the mode to "CUSTOM."
1) Picture PC
- Available only for PC, BNC, DVI.
2) Contrast
- Adjusts Contrast of the selected display.
3) Brightness
- Adjusts Brightness for the selected display.
4) Red
- Adjusts red Color of the selected display.
- Available only for NT.
5) Green
- Adjusts green Color of the selected display.
- Available only for NT.
6) Blue
- Adjusts blue Color of the selected display.
- Available only for NT.
7) Color Tone
- Adjusts the Color Tone for the selected display.
8) Color Temp
- Adjusts the Color Temp for the selected display.
9) Brightness Sensor
- Adjusts the Brightness Sensor for the selected display.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
Color Temp is only enabled if the Color Tone is set to Off.
This feature is available only for the displays whose power status is ON and if no selection is made, the
factory default is displayed.
Settings
Audio
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the set value
of the selected function is displayed in the slide. When selected, each function fetches the value for the set and
displays it on the slide bar. When "Select All" is chosen, the default value is displayed. Changing a value in this
screen will automatically change the mode to "CUSTOM."
1) Audio
- Controls audio settings for all input sources.
2) Bass
- Adjusts Bass of the selected display.
3) Treble
- Adjusts Treble of the selected display.
4) Balance
- Adjusts Balance of the selected display.
5) SRS TS XT
- SRS TS XT Sound ON/OFF of the selected display.
6) Sound Select
- Select either Main or Sub when PIP is On.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
This feature is available only for the displays whose power status is ON and if no selection is made, the
factory default is displayed.
Settings
Image Lock
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control.
1) Image Lock
- Available only for PC, BNC.
2) Coarse
- Adjusts Coarse of the selected display.
3) Fine
- Adjusts Fine of the selected display.
4) Position
- Adjusts Position of the selected display.
5) Auto Adjustment
- Self-Adjust to the incoming PC signal.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
Settings Control is available only for the displays for which the power status is ON.
Maintenance
Lamp Control
1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.
An "Info Grid" showing several basic data items appears.
1) Maintenance
- Allows the Maintenance Control function for all input sources.
2) Auto Lamp Control
- Automatically adjusts the backlight of the selected display at a specified time.
The Manual Lamp Control automatically turns off if you adjust using the Auto Lamp Control.
3) Manual Lamp Control
- Allows you to adjust the backlight of the selected display regardless of the time.
The Auto Lamp Control automatically turns off if you adjust using the Manual Lamp Control.
The Maintenance Control feature is available only for the displays whose power status is ON.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
Maintenance
Scroll
1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.
1) Safety Screen
- Eliminates the afterimages that can result when the selected display stays in Pause mode for an extended period of
time. You can set the repeat cycle timer by selecting the "Interval" by hour and "Second" by second.
It can be set to Scroll, Pixel, Bar and Eraser by Screen Type.
The Input source of MagicNet works only on MagicNet model.
The Input source of TV works only on TV model.
Setting Second, you can set to 1, 2, 3, 4, 5 for Scroll Type and to 10, 20, 30, 40, 50 for Pixel, Bar, and
Eraser Type.
The Maintenance Control feature is available only for the displays whose power status is ON.
Maintenance
Video Wall
1. Click on the "Maintenance" icon in the Main Icon column to display the Maintenance screen.
1) Video Wall
- A Video Wall is a set of video screens that are connected together, so that each screen shows a part of the whole
picture or so that the same picture is repeated on each screen.
2) Video Wall (Screen divider)
- The screen can be divided into.
You can select a number of screens with a different layout when dividing.
z Select a mode from Screen divider.
z Select a display from Display Selection.
z The place will be set up by pressing a number in the selected mode.
z The MDC program supplied by Samsung supports up to 5x5 LCD Displayes.
3) On / Off
- Turns on/off the Video Wall function of the selected display.
4) Format
- The format can be selected to see a divided screen.
z Full
z Natural
You may not operate this function in MagicNet.
The Input source of TV works only on TV model.
The Maintenance Control function is available only for the displays where the power status is ON.
Troubleshooting
1. The display you wish to control does not appear on the Power Control Info Grid
- Check the connection of RS232C. (Check if it is properly connected to the Com1 port)
- Check the displays to see if any of the other displays connected have the same ID. If more than one displays have
the same ID, those displays are not properly detected by the program due to data conflict.
- Check if the Display Set ID is a number between 0 and 25. (Adjust using the Display menu)
Note :
A Display Set ID must be a value between 0 and 25 .
2. The display you wish to control does not appear on the other Control Info Grids
- Check to see if the display power is ON. (You can check this in Power Control Info Grid)
- Check if you can change the input source of the display.
3. The dialogue box appears repeatedly.
- Check to see if the display you wish to control is selected.
4. Both On Timer and Off Timer have been set but different time is showing.
- Apply current time to synchronize the display clocks.
5. The remote may not function properly when you turn off the remote Function, disconnect the RS-232C cable, or exit
the program in an Irregular manner. Rerun the program and turn the remote function again to Restore normal
functions.
<Note> This program may malfunction due to problems in communication circuits or interference from electronic
appliances nearby.
Settings Value Display In Multiple Display Mode
When there are more than one displays connected, the settings values are displayed as follows.
1. No selection: Displays the Factory Default Value.
2. Selected one display: Fetches and displays the settings value for the selected display.
3. Selected one display (ID1) and add another display (ID3): The program, which was displaying the settings value of
ID 1, fetches and displays the value of ID3.
4. Selected all sets using Select All: Returns to the Factory Default Value.
Select Language
Main Page
Model
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the LCD Display
Input
[PC / BNC /DVI Mode]
[AV / S-Video /
Component / HDMI Mode]
Sound
Setup
Multi Control
Direct Functions
MagicNet
Troubleshooting
Specifications
Information
Appendix
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Adjusting the LCD Display
Input
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
Source List
[MENU] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
Use to select PC, BNC, or other external input sources connected to the LCD Display.
Use to select the screen of your choice.
1) PC
2) BNC
3) DVI
4) AV
5) S-Video
6) Component
7) HDMI
8) MagicNet
[The direct button on the remote control is the 'SOURCE' button.]
Note
• PIP turns off when the LCD Display is switched to an external source.
• For PC and DVI, this is deactivated if the cable is disconnected.
PIP
When external AV devices such as VCRs or DVDs are connected to the LCD Display , PIP allows you to watch
video from those devices in a small window super-imposed on the PC Video signal. (Off/On)
Note
• More than one PIP cannot be overlapped on screen as BNC and the component use the same terminal.
1) PIP
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
Turns the PIP Screen Off/On.
- Off
- On
[The direct button on the remote control is the 'PIP' button.]
2) Source
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Selects the input source for the PIP.
- PC : AV / S-Video / Component / HDMI Mode
- BNC : AV / S-Video / HDMI Mode
- DVI : AV / S-Video / Component Mode
- AV / S-Video : PC / BNC / DVI Mode
- Component : PC / DVI Mode
- HDMI : PC / BNC Mode
[The direct button on the remote control is the 'SOURCE' button.]
3) Swap
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Swaps the contents of the PIP and main image.
The image in the PIP window will appear on the main screen, and the main screen image will appear in the
PIP window.
[The direct button on the remote control is the 'SWAP' button.]
4) Size
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Changes the Size of the PIP window.
[The direct button on the remote control is the 'SIZE' button.]
5) Position
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Changes the Position of the PIP window.
6) Transparency
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Adjusts the Transparency of PIP windows.
- High
- Medium
- Low
- Opaque
Note
• If you select
,
,
in Size, Position and Transparency will not be activated.
Available Modes: PIP ON
Edit Name
[MENU] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Name the input device connected to the input jacks to make your input source selection easier.
1) PC
2) BNC
3) DVI
4) AV
5) S-Video
6) Component
7) HDMI
Picture [PC / BNC /DVI Mode]
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
MagicBright™
[MENU] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of the
image you are watching.
Currently four different modes are available: Entertain, Internet, Text and Custom.
Each mode has its own pre-configured brightness value. You can easily select one of the four settings by
simply pressing the MagicBright™ control button.
1) Entertain
High brightness
For watching motion pictures such as a DVD or VCD.
2) Internet
Medium brightness
For working with a mixture of images such as the text with graphics added.
3) Text
Normal brightness
For documentations or work involving a lot of text.
4) Custom
Although the values are carefully chosen by our engineers, the pre-configured values may not be
comfortable for your eyes depending on your taste.
If this is the case, Adjusts the brightness and contrast by using the OSD menu.
[The direct button on the remote control is the 'M/B' button.]
Custom
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] / [< / >] → [ENTER]
By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
1) Contrast
Adjusts the Contrast.
2) Brightness
Adjusts the Brightness.
Note
• By adjusting the picture using the Custom function, MagicBright will change to Custom mode.
Color Tone
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
The color tones can be changed.
1) Off
2) Cool
3) Normal
4) Warm
5) Custom
(Available in PC, BNC mode only)
Note
• If you set the Color Tone to Cool, Normal, Warm, or Custom, the Color Temp function is disabled.
• If you set the Color Tone to Off, the Color Control function is disabled
Color Control
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [< / >] → [ENTER]
Adjusts the individual R, G, B color controls.
(Available in PC, BNC mode only)
1) Red
2) Green
3) Blue
Note
• If you adjust the picture by using the Custom function, Color Tone will turn to the Cusome mode.
Color Temp
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [ENTER]
Color Temp is a measure of the 'warmth' of the image colors.
(This function is only enabled if the Color Tone is set to Off.)
Brightness Sensor
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [ENTER]
Brightness Sensor is to automatically detect distribution of inputted visual signal and adjust to create optimum
brightness.
1) On
2) Off
Image Lock
Image Lock is used to fine-tune and get the best image by removing noise that creates unstable images with
jitters and shakiness. If satisfactory results are not obtained using the Fine adjustment, use the Coarse
adjustment and then use Fine again.
(Available in PC, BNC mode only)
1) Coarse
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [< / >] → [ENTER]
Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may
relocate it to the center using the horizontal control menu.
2) Fine
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] →[ENTER] → [< / >] → [ENTER]
Removes noise such as horizontal stripes. If the noise persists even after fine tuning, repeat it after
adjusting the frequency (clock speed).
3) Position
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] →[ENTER] → [< / >] / [∧ / ∨]→
[ENTER]
Adjusts the screen location horizontally and vertically.
Auto Adjustment
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
The values of Fine, Coarse, Position are adjusted automatically.
By changing the resolution in the control panel, the auto function is performed.
(Available in PC, BNC mode only)
[The direct button on the remote control is the 'AUTO' button.]
Signal Balance
This is used to make up for the weak RGB signal transmitted by a long signal cable.
(Available in PC, BNC mode only)
1) Signal Balance
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
Selects either On or Off with the signal control.
2) Signal Control
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] →
[∧ / ∨] → [< / >] → [ENTER]
Adjusts the Gain and Sharpness manually.
Size
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
The Size can be switched.
1) 16:9
2) 4:3
PIP Picture
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ /
∨] → [ENTER] → [< / >] → [ENTER]
Adjusts the PIP Screen Settings.
1) Contrast
Adjusts the Contrast of the PIP window on the screen.
2) Brightness
Adjusts the Brightness of the PIP window on the screen.
3) Sharpness
Adjusts the difference between the lightest and darkest areas of the PIP window.
4) Color
Adjusts the Color of the PIP window on the screen.
5) Tint
Adds a natural tone to the PIP window.
You can view a picture from AV, S-Video through the PIP screen in PC, BNC and DVI mode.
Operates only if the video signal is NTSC.
Available Modes: PIP ON
Picture [ AV / S-Video / Component / HDMI Mode]
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
Mode
[MENU] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
The LCD Display has four automatic picture settings ("Dynamic", "Standard", "Movie" and "Custom") that are
preset at the factory.
Dynamic, Standard, Movie, or Custom can be activated.
1) Dynamic
2) Standard
3) Movie
4) Custom
[The direct button on the remote control is the 'P.MODE' button.]
Custom
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [ENTER]
By using the on-screen menus, the contrast and brightness can be changed to your personal preference.
1) Contrast
Adds a natural tone to the PIP window.
2) Brightness
Adjusts the Brightness.
3) Sharpness
Adjusts the picture Sharpness.
4) Color
Adjusts the picture Color.
5) Tint
Adds a natural tone to the display.
Operates only for AV and S-Video mode. Operates only if the video signal is NTSC.
Color Tone
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
The color tones can be changed. The individual Color components are also user adjustable.
1) Off
2) Cool2
3) Cool1
4) Normal
5) Warm1
6) Warm2
Note
• If you set the Color Tone to Cool1, Cool2, Normal, Warm1, or Warm2, the Color Temp function is disabled.
Color Temp
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [ENTER]
Color temp is a measure of the 'warmth' of the image colors.
(This function is only enabled if the Color Tone is set to Off.)
Size
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
The Size can be switched.
1) 16:9
2) Zoom 1
3) Zoom 2
4) 4:3
[The ZOOM1, ZOOM2 are not available in 1080i (or over 720p) of Component and HDMI.]
Brightness Sensor
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [ENTER]
Brightness Sensor is to automatically detect distribution of inputted visual signal and adjust to create optimum
brightness.
1) Off
2) On
Dynamic Contrast
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨]→ [ENTER]
Dynamic Contrast is to automatically detect distribution of inputted visual signal and adjust to create optimum
contrast.
1) Off
2) On
Digital NR (Digital Noise Reduction)
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Turns the Digital Noise Reduction feature Off/On.
The Digital Noise Reduction feature allows you to enjoy clearer and crisper images.
1) Off
2) On
Film Mode
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Turns Film Mode Off/On.
The Film Mode feature offers you a theater-quality viewing experience.
i(Not available in HDMI Mode)
1) Off
2) On
PIP Picture
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] →[< / >]
→ [ENTER]
Adjusts the PIP Screen Settings.
1) Contrast
Adjusts the Contrast of the PIP window on the screen.
2) Brightness
Adjusts the Brightness of the PIP window on the screen.
Available Modes: PIP ON
Sound
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
Mode
[MENU] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
The LCD Display has a built-in high fidelity stereo amplifier.
1) Standard
Selects Standard for the standard factory settings.
2) Music
Selects Music when watching music videos or concerts.
3) Movie
Selects Movie when viewing movies.
4) Speech
Selects Speech when watching a show that is mostly dialogue (i.e., news).
5) Custom
Selects Custom if you want to Adjusts the settings according to your personal preferences.
Custom
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [ENTER]
The sound settings can be adjusted to suit your your personal preferences.
1) Bass
Emphasizes low frequency audio.
2) Treble
Emphasizes high frequency audio.
3) Balance
Allows you to Adjusts the sound balance between the left and right speakers.
[You can hear the sound even when sound value is set to 0.]
Note
• If you adjust picture using Sound Custom function, Sound Mode will turn to Custom mode.
Auto Volume
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Reduces the difference in volume control between broadcasters.
1) Off
2) On
SRS TS XT
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
SRS TS XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two
speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker
playback system, including internal television speakers.
It is fully compatible with all multichannel formats.
1) Off
2) On
[The direct button on the remote control is the 'SRS' button.]
Sound Select
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Selects either Main or Sub when PIP is On.
1) Main
2) Sub
[Available Modes: PIP ON]
Setup
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
Language
[MENU] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
You can choose from 11 languages.
Note
• The language chosen affects only the language of the OSD.
It has no effect on any software running on the computer.
Time
Selects from one of 4 time settings, Clock Set, Sleep Timer, On Timer, and Off Timer.
1) Clock Set
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [< / >] → [ENTER]
Current Time Setting.
2) Sleep Timer
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] →[< / >] → [∧ / ∨] →
[ENTER] →[< / >] → [∧ / ∨] → [ENTER]
Turns the LCD Display off automatically at certain times. (Off, 30, 60, 90, 120, 150, 180)
3) On Timer
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >] → [∧ / ∨] →
[ENTER]
Turns the LCD Display on automatically at a preset time.
Controls the mode and the volume level at the time the LCD Display turns on automatically.
4) Off Timer
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] →[< / >] → [∧ / ∨] →
[ENTER]
Turns the LCD Display off automatically at a preset time.
Note
• When selecting Yes for the On Timer or Off Timer when the Clock is not set up, a guiding message pops
up: "Set the clock first.".
Menu Transparency
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
Changes the opaqueness of the OSD background.
1) High
2) Medium
3) Low
4) Opaque
Safety Lock PIN
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [0~9] → [0~9] → [0~9]
The password can be changed.
Energy Saving
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [MENU]
This feature adjusts the power consumption of the unit in order to save energy.
1) Off
2) On
Note
• If you want to reduce the standby power consumption, set Energy Saving to On. However, when Energy
Saving is On, you cannot use the remote Power On function of the MDC and the WOL (Wake On LAN)
function of MagicNet.
HDMI Black Level
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [MENU]
When a DVD or set-top box is connected to your TV via HDMI, it may cause a degradation in the screen
quality, such as an increase in the black level, a low contrast, or discoloration, etc., depending on the external
device connected. In this case, adjust the screen quality of your TV by configuring the HDMI black level.
1) Normal
2) Low
Video Wall
A Video Wall is a set of video screens connected together, so that each screen shows a part of the whole
picture or where the same picture is repeated on each screen.
When the Video Wall is on, you can adjust the Video Wall screen setting.
1) Video Wall
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
Turns Off/On the Video Wall function of the selected display Off/On.
- Off
- On
2) Format
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] →[ENTER] → [∧ / ∨] → [ENTER]
The format can be selected to see a divided screen.
- Full
Provides a full screen without any margins.
- Natural
Displays a natural image with the original aspect ratio intact.
3) Horizontal
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] →[ENTER] → [∧ / ∨] → [ENTER]
Sets how many parts the screen should be divided horizontally.
- Five adjustment levels: 1, 2, 3, 4, and 5.
4) Vertical
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] →[ENTER] → [∧ / ∨] → [ENTER]
Sets how many parts the screen should be divided vertically.
- Five adjustment levels: 1, 2, 3, 4, and 5.
5) Screen Divider
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
The screen can be divided into several images.
A number of screens can be selected with a different layout when dividing.
• Select a mode in Screen Divider.
• Select a display in Display Selection.
• The selection will be set up by pressing a number in the selected mode.
Note
• When Video Wall is running, the PIP, Auto Adjustment, Image Lock, and Size functions are not available.
Launching Video Wall while PIP is running, will switch PIP Off. Video Wall does not operate in MagicNet
mode.
Safety Screen
The Safety Screen function is used to prevent afterimages that may appear when a still picture is displayed on
the screen over a long time.
- The Screen Scroll function scrolls the screen for the specified period of time.
- This function is not available when the power is turned off.
1) Safety Screen
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨] → [ENTER]
Determines whether to turn the Screen Scroll function Off or On.
- Off
- On
2) Interval
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨]→ [ENTER] →[∧ / ∨] → [ENTER]
Determines the time interval to run the Screen Scroll operation. (1~10 Hour)
The time is calculated on the basis of the power on time.
By default, the time is set to 10 hours.
- 1~10 Hour
3) Second
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨]→ [ENTER] → [∧ / ∨] → [ENTER]
Determines the time period to run the Screen Scroll operation. (1~5 Second)
By default, the time is set to 5 seconds.
- Type-Scroll : 1~5 Second
- Type-Pixel, Bar, Eraser : 10~50 Second
4) Type
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER]
You can change the Safety Screen Type.
- Scroll
- Pixel
- Bar
- Eraser
Resolution Select
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨]→ [ENTER]
When the picture is not displayed properly on the screen when setting the graphics card resolution of the
computer to 1024 x 768 @ 60Hz, 1280 x 768 @ 60Hz, 1360 x [email protected] 60Hz or 1366 x768 @ 60Hz, by using this
function(Resolution Select), you can have the picture displayed on the screen in the specified resolution.
Available in PC/BNC mode only
1) Off
2) 1024 X 768
3) 1280 X 768
4) 1360 x 768
5) 1366 X 768
Note
• Selecting the menu is only allowed when the graphics resolution is set to 1024 x 768 @ 60Hz, 1280 x 768
@ 60Hz, 1360 x [email protected] 60Hz or 1366 x768 @ 60Hz.
Lamp Control
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [< / >] → [ENTER]
Adjusts the inverter lamp in order to reduce energy consumption.
Note
• This function does not operate when Dynamic Contrast is set to On in AV, S-Video, Component modes.
Power On Adjustment
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [∧ / ∨]→ [ENTER]
Adjusts the Power On time for the screen.
*Caution: Set the Power On time to be loger to avoid overvoltage.
FAN
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨]→ [ENTER]
Adjusts the FAN.
1) Normal
2) Pivot
Note
• When pivoting your monitor, make sure to select PIVOT for the FAN.
Reset
The picture parameters are replaced with the factory default values.
For the DVI source, the Reset function is only available when PC DVI is being used.
1) Image Reset
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [< / >]→ [ENTER]
Available in PC/BNC mode only
2) Color Reset
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [< / >]→ [ENTER]
Available in PC/BNC mode only
Note
• The Reset function is not available when Video Wall is On.
Multi Control
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
Multi Control
Assigns an individual ID to the SET.
1) ID Setup
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [0~9]
Assigns distinctive IDs to the SET.
2) ID Input
[MENU] → [∧ / ∨] → [ENTER] → [∧ / ∨] → [ENTER] → [ENTER] → [0~9]
Use to select the transmitter functions of the individual SET. Only a SET where the ID corresponds to the
transmitter setting becomes activated.
Direct Functions
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
MAGICNET
Moves to the MagicNet OSD screen.
MDC
Moves to the Multi Control OSD screen.
LOCK
Sets the Safety Lock function.
1) Lock On
It will be locked.
2) Lock Off
It will be unlocked.
Note
• When setting the Lock function, you can only operate the power and lock buttons on the remote control
and set.
The preset password on the LCD Display is "0000".
Note
• Resetting the password for the function key lock.
Press MUTE → 1 → 8 → 6 → On. The password will be reset to '0000'. The remote control is required for
resetting the password.
MagicNet
Available Modes
PC / BNC / DVI
AV
S-Video
Component
HDMI
MagicNet
Note
• The operating system for this set only supports English so the other languages might be corrupted on the
screen.
• For MagicNet, a remote control is available for MagicNet. However, it is recommended using a separate
USB keyboard.
• For MagicNet in Device mode, moving external devices while booting may cause errors. Set up external
devices only if the LCD Display turns on.
• Do not unplug the LAN cable used for the network (ex: video display). Otherwise, the program (MagicNet)
may stop. If you do unplug the cable, restart the system.
• Do not unplug the LAN cable used by an USB device (ex: video display). Otherwise, the program
(MagicNet) may stop.
• To access other sources, press the SOURCE button in MagicNet.
• The preset password for the LCD Display is "000000".
• The server program's Power-On option works only if the LCD Display's power is completely shut off.
Please make sure not to use the Power-On option when the LCD Display is in the process of shutting down
since this may cause system errors on the LCD Display.
• In the OSD image of MagicNet, Network mode is the same as Device.
• When using MagicNet with the MagicNet Server Program: perform Network mode.
• When using MagicNet with the device directly connected to LCD Display : execute Device mode.
Note
• Press ALT + F12 to directly go to the MagicNet Window screen.
• To setup MagicNet on a Windows screen, a keyboard and mouse are required.
• To setup MagicNet on a Windows screen, refer to the MagicNet Server Help.
The JPEG, BMP file format are supported.
1) Auto
Automatically fits the image to the window.
Original
Shows the properties of the original file.
2) Slide Show
Displays the properties of the original file as they are.
3) Interval
Controls the time intervals between image files for a slide show.
(5 Sec, 10 Sec, 20 Sec, 30 Sec, 60 Sec)
4) Rotation
Displays an image file by turning it clockwise by 90 degrees.
5) Zoom
Displays a reduced picture.
6) Close
Closes the image control Menu.
Music
The MP3 file format is supported.
Movie
The MPEG1, WMV file format are supported.
1) Play
Plays a movie file.
2) Full Size
Plays a movie file in full screen.
OFFICE / HTML
PPT(Power Point), DOC(MS Word), XLS(MS Excel), PDF, HTML, HTM files are displayed.
* Install the proper viewer(freeware) program to see the MS Office(Word, Excel, Power Point) or PDF
doucuments.
Internet
Connects to the Internet
Setup
Sets various functions in MagicNet mode.
A password must be entered to access Setup mode.
1) Schedule View
Displays a schedule.
2) TCP/IP
Changes the TCP/IP settings.
3) Connection
Modifies the network settings.
4) Password
The password can be changed.
• The password should be between 6 and 12 characters in numeric format.
(You should enter a password between 6 and 12 characters in numeric format)
• If you enter the wrong password three times, the setup configuration is reset and a warning message
appears from the server.
• If you forget the password, enter Info, 8, 2 and 4 on the remote control to initialize the password. This
will reset the previous settings of Setup mode.
5) File
Local : You can delete or copy files on both local and removable disks.
6) Play Option
You can set the repeat play and screen settings.
Repeat : Determines the repeat option for playing movies and music.
• None - Select No Repeat to play a movie or tune in the list only once.
• File Repeat - Select Repeat File to play a movie or tune in the list repeatedly.
• List Repeat - Select Repeat List to play movies or tunes in the list in sequence repeatedly.
Rotation - Sets the picture orientation..
• Landscape - Sets the screen resolution to 1366x768 pixels.
• Portrait - Sets the screen resolution to 768x1366 pixels.
Notice
• It is highly recommended not to turn off the AC power during an operation.
Note
• For pivoted monitors, ticker transparency is not supported.
• For pivoted monitors, a screen resolution of up to 720*480(SD) is supported for movies.
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the LCD Display
Troubleshooting
Self-Test Feature Check
Check List
Q&A
Specifications
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Troubleshooting
Information
Self-Test Feature Check
Appendix
Note
• Check the following items yourself before calling for assistance. Contact a Service Center for problems that
you cannot solve by yourself.
Self-Test Feature Check
Your LCD Display provides a self test feature that allows you to check whether your LCD Display is functioning
properly.
1)
Turn off both your computer and the LCD Display.
2)
Unplug the video cable from the back of the computer.
3)
Turn on the LCD Display.
The figure shown below ("Check Signal Cable") appears on a black background when the LCD Display is
working normally even though no video signal is detected: While in the Self-Test mode, the LED power
indicator remains green and the figure moves around on the screen.
4)
Turn off your LCD Display and reconnect the video cable; then turn on both your computer and the LCD
Display
If your LCD Display screen remains blank after using the previous procedure, check your video controller and
computer system; your LCD Display is functioning properly.
Not Optimum Mode
You can even view the screen at a resolution of 1360 x 768. However, you will receive the following message for
a minute; You can choose to change the screen resolution or stay in the current mode during that time. And if the
resolution is more than 85Hz, you will see the black screen because the LCD Display does not support over
85Hz.
Note
• Refer to Specifications > Preset Timing Modes for the resolutions or frequencies supported by the LCD
Display.
Maintenance and Cleaning
1)
Maintaining the LCD Display Case.
Clean with a soft cloth after disconnecting the power cord.
•
Do not use benzene, thinner or other flammable substances, or a
wet cloth.
•
We recommend that a Samsung cleansing agent is used to prevent
damage to the screen.
2)
Maintaining the Flat Panel Display Screen.
Clean with a soft cloth (cotton flannel) smoothly.
•
Never use acetone, benzene or thinner.
(They may cause flaws or deformation of the screen surface.)
•
The user will be required to pay costs and related expenses for
repairing damages caused.
Symptoms and Recommended Actions
Note
• A LCD Display recreates visual signals received from the computer. Therefore, if there is a problem with
the computer or the video card, this can cause the LCD Display to become blank, have poor coloring,
become noisy, and video mode not supported, etc. In this case, first check the source of the problem, and
then contact a Service Center or your dealer.
1)
Check if the power cord and the video cables are properly connected to the computer.
2)
Check if the computer beeps more than 3 times when booting.
3)
If you installed a new video card or if you assembled the PC, check if you installed the Adaptor(video).
4)
Check if the scanning ratio of the video screen is set to between 50 Hz ~ 85 Hz.
(If it does, request an a service for the main board of the computer.)
(Do not exceed 60Hz when using the maximum resolution.)
5)
If you have problems in installing the Adaptor (video) driver, boot the computer in Safe Mode, remove the
Display Adaptor in the "Control Panel, System, Device Administrator" and then reboot the computer to
reinstall the Adaptor (video) driver.
Check List
Note
• The following table lists possible problems and their solutions. Before calling for assistance, check the
information in this section to see if you can remedy any problems for yourself. If you do need assistance,
please call the phone number on the Information section or contact your dealer.
• For more network-related information, refer to the MagicNet Troubleshooting section.
Problems related to the Installation (PC Mode)
Note
• Problems related to the LCD Display installation and their solutions are listed.
Problems
Solutions
z
Check if the signal cable between the computer and the LCD
Display is securely connected.
The LCD Display screen flickers.
(Refer to Connecting a Computer)
Problems related to the Screen
Note
• Problems related to the LCD Display screen and their solutions are listed.
Problems
The screen is blank and the power
Solutions
z
Ensure that the power cord is firmly connected and the LCD
LCD Display is on.
indicator is off.
(Refer to the Connecting the LCD Display )
"Check Signal Cable" message.
z
Ensure that the signal cable is firmly connected to the PC or
video sources.
(Refer to the Connecting the LCD Display )
"Not Optimum Mode " message.
z
Ensure that the PC or video sources are turned on.
z
Check the maximum resolution and the frequency of the video
Adaptor.
z
Compare these values with the data in the Preset Timing Modes
Chart.
The picture rolls vertically.
z
Check if the signal cable is securely connected.
Re-connect it, if necessary.
(Refer to Connecting a Computer)
The image is not clear; picture is
z
Run Frequency Coarse and Fine tuning.
blurred.
z
Turn on again after removing all accessories
(video extension cable, etc.)
z
Set the resolution and frequency to the recommended ranges.
z
Check if the resolution and frequency set for the computer video
The picture image is unstable and
shakes.
card falls in the range supported by the LCD Display.
Ghost images are shown in the
If not, reset them referring to the current Information under the
picture.
LCD Display menu and Preset Timing Modes.
The image is too light or too dark.
z
Adjusts the brightness and contrast.
(Refer to the Brightness, Contrast)
The screen color is inconsistent.
The color image is distorted by
dark shadows.
z
Adjust color using Custom under OSD Color Adjustment menu.
z
The LCD Display is currently saving the changes made to the
The color white is poor.
The power Indicator blinks green.
settings to the OSD memory.
The screen is blank and the power
indicator light is steady green or
blinks every 0.5 or 1 seconds.
The screen is blank and it is
blinking.
z
The LCD Display is using its power management system.
z
Press a key on the keyboard.
z
If you see the "TEST GOOD" message on the screen when you
pressing the MENU button, check the cable connection between
the LCD Display and the computer to ensure that the connector
is properly connected.
Problems related to Audio
Note
• Problems related to audio signals and their solutions are listed below.
Problems
No sound.
Solutions
z
Ensure that the audio cable is firmly connected to both the
audio-in port on your LCD Display and the audio-out port on
your sound card.
(Refer to the Connecting the LCD Display )
The sound level is too low.
z
Check the volume level.
z
Check the volume level.
z
If the volume is still too low after turning the control to its
maximum, check the volume control on the computer sound
card or software program.
The sound is too high or too low.
z
Adjusts the Treble and Bass to the appropriate levels.
Problems related to the Remote Control
Note
• Problems related to the remote control and their solutions are listed.
Problems
Solutions
The remote control buttons do not
z
Check the polarities (+/-) of the batteries.
respond.
z
Check if the batteries are empty.
z
Check if the power is on.
z
Check if the power cord is securely connected.
z
Check if a special fluorescent or neon lamp is on in the vicinity.
Problems related to MagicNet
Note
• Making a Bootable USB Flash Disk.
Problems
Making a Bootable USB Flash Disk
Solutions
1.
You can turn a common 512-MB or bigger USB storage media
into a bootable disk using a USB bootable disk creation tool.
(For example, the HP USB Disk Storage Format Tool)
2.
Copies the OS ghost image and executables to your USB disk.
3.
Enter the BIOS menu of your set by pressing the F2 key in the
BIOS logo screen. Then, enable the USB Boot First option by
selecting that option and pressing the Enter key in the Boot
menu.
4.
Switch your set on while your USB disk is connected and boot
up in DOS mode.
5.
Run C:\ghost.exe and choose Local → Partition → From Image
from the menu. Choose the ghost image to update your USB
disk with and choose the target disk.
6.
When the ghost image update finishes, the set will be rebooted
automatically.
Q&A
Question
How can I change the frequency?
Answer
The frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version of
the driver used. (Refer to the computer or the video card manual for
details.)
How can I Adjusts the resolution?
z
Windows XP:
Set the resolution in the Control Panel → Appearance and
Themes → Display → Settings.
z
Windows ME/2000:
Set the resolution in the Control Panel → Display → Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
z
Windows XP:
Set the resolution in the Control Panel → Appearance and
function?
Themes → Display → Screen Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to
the Windows / Computer Manual).
z
Windows ME/2000:
Set the resolution at the Control Panel → Display → Screen
Saver.
Set the function in the BIOS-SETUP of the computer. (Refer to
the Windows / Computer Manual).
How can I clean the outer
Disconnect the power cord and then clean the LCD Display with a soft
case/LCD Panel?
cloth, using either a cleaning solution or plain water.
Do not leave any detergent or scratches on the case. Do not let any
water enter the LCD Display.
How can I play the video?
The video supports the MPEG1 and WMV codecs only. Install the
corresponding codec to play the video. Note that some of the codecs
can be incompatible.
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
SyncMaster 400DXn
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the Monitor
Troubleshooting
Specifications
General
PowerSaver
Preset Timing Modes
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Specifications
Information
Appendix
General
General
General
Model Name
SyncMaster 400DXn
LCD Panel
Size
40 " Diagonal (101 cm)
Display area
885.168 mm(H) x 497.664 mm(V)
Pixel Pitch
0.648 mm (H) x 0.648 mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56 ~ 85 Hz
Display Color
Display Color
16.7 M
Resolution
Optimum resolution
1360 x 768 @ 60 Hz
Maximum resolution
1360 x 768 @ 60 Hz
Input Signal, Terminated
RGB Analog, DVI Compliant Digital RGB
0.7 Vp-p ± 5 %
separate H/V sync, Composite, SOG(Option)
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
140 MHz
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Signal Cable
15pin to 15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable (Sold separately)
Dimensions (WxHxD)/ Weight
1132.0 x 604.0 x 311.0 mm / 44.6 x 23.8 x 12.2 inch (With Speaker & With Stand)
932.0 x 548.0 x 130.0 mm / 36.7 x 21.6 x 5.1 inch (Without Speaker)
932.0 x 604.0 x 311.0 mm / 36.7 x 23.8 x 12.2 inch, 25.0 kg / 55.1 lbs(With Stand)
932.0 x 604.0 x 317.0 mm / 36.7 x 23.8 x 12.5 inch, 28.5 kg / 62.8 lbs(With Glass & With Stand)
VESA Mounting Interface
600 mm x 400 mm
Environmental considerations
Operating
Storage
Temperature: 50°F ~ 104°F (10°C ~ 40°C)
Humidity: 10 % ~ 80 %, non-condensing
Temperature: -4°F ~ 113°F (-20°C ~ 45°C)
Humidity: 5 % ~ 95 %, non-condensing
Audio Characteristics
Audio Input 1
RCA Jack Red(R) White(L), 0.5 Vrms (-9 dB)
Audio Input 2
RCA Jack Red(R) White(L), 0.5 Vrms (-9 dB)
PC Audio Input
3.5 Ø Stereo Jack, 0.5 Vrms (-9 dB)
Frequency
RF: 80 Hz ~ 15 kHz (at -3 dB)
Response
A/V: 80 Hz ~ 20 kHz (at -3 dB)
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor and the
computer systems will provide the best operating conditions and monitor settings. In most cases, the monitor
installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm (one
millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE color appear to
be bright sometimes or some black pixels may be seen. This is not from bad quality and you can use it without
any problelms.
• For example, the number of TFT LCD sub pixels contained in this product are 3,133,440.
Note
• Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
• This product complies with the Electromagnetic Compatibility Directives for residential use and can be
used in all areas including common residential areas. (Class B equipment emits less electromagnetic
waves than Class A equipment.)
MagicNet - Client
Item
LAN
Specification
Remarks
1 Gbps
Keyboard/Mouse, Mass Storage Device USB removable storage can be
USB
Compatible
supported.
2274x1704 or less
Music
Movie
Supported File Format : BMP/JPEG
Supported File Format : MP3
z
MPEG1, WMV
z
Max 1280 x 720 30 fps
Contents
Sound bandwidth : 50 Hz to 15 kHz
z
Some files may not be supported
depending on the format or the
File
MS Office(Word, Excel, Power Point),
HTML, PDF
version.
z
Install the proper viewing
(freeware) program to see MS
Office (Word, Excel, Power Point)
or PDF documents.
Internet Browser
MS Internet Explorer
Language
English
OS
Windows XP Embedded
Not Support Flash, Java Applet, Security
Site
MagicNet - Server Requirement
CPU
RAM
Ethernet
OS
Application
Minimum
P1.8 Ghz
256 M
100 M / 1 G
Windows XP
WMP 9 or later
Recommended
P3.0 Ghz
512 M
100 M / 1 G
Windows XP
WMP 9 or later
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy by
switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor
automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn
your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on
your computer to set up this feature.
PowerSaver
State
Power Indicator
Power Consumption
Normal Operation
Power saving mode
Power off
Green
Green, Blinking
Amber
Less than
Less than 1 W
Less than 1 W
280 W
(Off-mode)
(Power button)
Preset Timing Modes
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be
adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer
to the video card manual and Adjusts the screen as follows.
Horizontal
Vertical
Frequency
Frequency
(kHz)
(Hz)
IBM, 640 x 350
31.469
IBM, 640 x 480
31.469
Display Mode
Pixel Clock
Sync Polarity
(MHz)
(H/V)
70.086
25.175
+/-
59.940
25.175
-/-
IBM, 720 x 400
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 960
60.000
60.000
108.000
+/+
VESA, 1280 x 1024
63.981
60.020
108.000
+/+
VESA, 1280 x 1024
79.976
75.025
135.000
+/+
VESA,1360 x 768
47.712
60.015
85.500
+/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the
screen horizontally is called the Horizontal Cycle and the inverse number
of the Horizontal Cycle is called the Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called the Vertical Frequency or Refresh Rate. Unit: Hz
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
SyncMaster 460DXn
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the Monitor
Troubleshooting
Specifications
General
PowerSaver
Preset Timing Modes
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Specifications
Information
Appendix
General
General
General
Model Name
SyncMaster 460DXn
LCD Panel
Size
46" Diagonal (116 cm)
Display area
1018.353 mm (H) x 572.544 mm (V)
Pixel Pitch
0.7455 mm (H) x 0.7455 mm (W)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56 ~ 85 Hz
Display Color
Display Color
16.7 M
Resolution
Optimum resolution
1360 x 768 @ 60 Hz
Maximum resolution
1360 x 768 @ 60 Hz
Input Signal, Terminated
RGB Analog, DVI Compliant Digital RGB
0.7 Vp-p ± 5 %
separate H/V sync, Composite, SOG(Option)
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
140 MHz (Analog, Digital)
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Signal Cable
15pin to 15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable (Sold separately)
Dimensions (WxHxD)/ Weight
1268.0 x 681.0 x 311.0 mm / 49.9 x 26.8 x 12.2 inch (With Speaker & With Stand)
1068.0 x 624.0 x 130.0 mm / 42.0 x 24.6 x 5.1 inch (Without Speaker)
1068.0 x 681.0 x 311.0 mm / 42.0 x 26.8 x 12.2 inch / 31.30 Kg / 69.0 lbs(With Stand)
1068.0 x 681.0 x 317.0 mm / 42.0 x 26.8 x 12.5 inch, 35.70 Kg / 78.7 lbs(With Glass & With Stand)
VESA Mounting Interface
600 mm x 400 mm
Environmental considerations
Operating
Storage
Audio Characteristics
Temperature: 50°F ~ 104°F (10°C ~ 40°C)
Humidity: 10 % ~ 80 %, non-condensing
Temperature: -4°F ~ 113°F (-20°C ~ 45°C)
Humidity: 5 % ~ 95 %, non-condensing
Audio Input 1
RCA Jack Red(R) White(L), 0.5 Vrms (-9 dB)
Audio Input 2
RCA Jack Red(R) White(L), 0.5 Vrms (-9 dB)
PC Audio Input
3.5 Ø Stereo Jack, 0.5 Vrms (-9 dB)
Frequency
RF: 80 Hz ~ 15 kHz (at -3 dB)
Response
A/V: 80 Hz ~ 20 kHz (at -3 dB)
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor and the
computer systems will provide the best operating conditions and monitor settings. In most cases, the monitor
installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm (one
millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE color appear to
be bright sometimes or some black pixels may be seen. This is not from bad quality and you can use it without
any problelms.
• For example, the number of TFT LCD sub pixels contained in this product are 3,133,440.
Note
• Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
• This product complies with the Electromagnetic Compatibility Directives for residential use and can be
used in all areas including common residential areas. (Class B equipment emits less electromagnetic
waves than Class A equipment.)
MagicNet - Client
Item
LAN
Specification
Remarks
1 Gbps
Keyboard/Mouse, Mass Storage Device USB removable storage can be
USB
Compatible
supported.
2274x1704 or less
Music
Movie
Supported File Format : BMP/JPEG
Supported File Format : MP3
z
MPEG1, WMV
z
Max 1280 x 720 30 fps
Contents
Sound bandwidth : 50 Hz to 15 kHz
z
Some files may not be supported
depending on the format or the
File
MS Office(Word, Excel, Power Point),
HTML, PDF
version.
z
Install the proper viewing
(freeware) program to see MS
Office (Word, Excel, Power Point)
or PDF documents.
Internet Browser
MS Internet Explorer
Language
English
OS
Windows XP Embedded
Not Support Flash, Java Applet, Security
Site
MagicNet - Server Requirement
CPU
RAM
Ethernet
OS
Application
Minimum
P1.8 Ghz
256 M
100 M / 1 G
Windows XP
WMP 9 or later
Recommended
P3.0 Ghz
512 M
100 M / 1 G
Windows XP
WMP 9 or later
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy by
switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor
automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn
your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system
operates with a VESA DPM compliant video card installed in your computer. Use the software utility installed on
your computer to set up this feature.
PowerSaver (When used as a normal monitor)
State
Power Indicator
Power Consumption
Normal Operation
Power saving mode
Power off
Green
Green, Blinking
Amber
Less than
Less than 1 W
Less than 1 W
330 W
(Off-mode)
(Power button)
Preset Timing Modes
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be
adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer
to the video card manual and Adjusts the screen as follows.
Horizontal
Vertical
Frequency
Frequency
(kHz)
(Hz)
IBM, 640 x 350
31.469
IBM, 640 x 480
31.469
IBM, 720 x 400
Pixel Clock
Sync Polarity
(MHz)
(H/V)
70.086
25.175
+/-
59.940
25.175
-/-
31.469
70.087
28.322
-/+
MAC, 640 x 480
35.000
66.667
30.240
-/-
MAC, 832 x 624
49.726
74.551
57.284
-/-
MAC, 1152 x 870
68.681
75.062
100.000
-/-
VESA, 640 x 480
37.861
72.809
31.500
-/-
VESA, 640 x 480
37.500
75.000
31.500
-/-
VESA, 800 x 600
35.156
56.250
36.000
+/+
VESA, 800 x 600
37.879
60.317
40.000
+/+
VESA, 800 x 600
48.077
72.188
50.000
+/+
VESA, 800 x 600
46.875
75.000
49.500
+/+
VESA, 1024 x 768
48.363
60.004
65.000
-/-
VESA, 1024 x 768
56.476
70.069
75.000
-/-
VESA, 1024 x 768
60.023
75.029
78.750
+/+
VESA, 1152 x 864
67.500
75.000
108.000
+/+
VESA, 1280 x 960
60.000
60.000
108.000
+/+
VESA, 1280 x 1024
63.981
60.020
108.000
+/+
Display Mode
VESA, 1280 x 1024
79.976
75.025
135.000
+/+
VESA,1360 x 768
47.712
60.015
85.500
+/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the
screen horizontally is called the Horizontal Cycle and the inverse number
of the Horizontal Cycle is called the Horizontal Frequency. Unit: kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image many
times per second to display an image to the user. The frequency of this
repetition is called the Vertical Frequency or Refresh Rate. Unit: Hz
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the LCD Display
Troubleshooting
Specifications
Information
For Better Display
PRODUCT INFORMATION
(Image Retention Free)
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Information
For Better Display
Appendix
Adjust the computer resolution and screen inection rate (refresh rate) on the computer as described below
to enjoy the best picture quality. You can have an uneven picture quality on screen if the best picture
quality is not provided for TFT-LCD.
• Resolution: 1360 x 768
• Vertical frequency (refresh rate): 60 Hz
TFT LCD panels manufactured by using advanced semiconductor technology with a precision of 1ppm
(one millionth) and above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color
seem to be bright sometimes or some of black pixels could be seen. This is not from bad quality and you
can use it without any problems.
•
For example, the number of TFT LCD sub pixels contained in this product are 3,133,440.
When cleaning the monitor and the panel outside, please apply the recommended small amount of cleaner
by using a soft cloth to polish. Do not force the LCD area but rub softly.
If excessive force is applied, you may stain it.
If you are not satisfied with the picture quality, you can get better quality of picture by performing the "auto
adjustment function" in display screen that is appeared as window termination button is pressed.
If there's still noise after the automatic adjustment, use the FINE/COARSE adjustment function.
When viewing a fixed screen for an extended period of time, a residual image or blurriness may appear.
Change the mode to energy save or set a screensaver to move the picture when you need to be away
from the LCD Display for an extended period of time.
PRODUCT INFORMATION (Image Retention Free)
What is Image Retention ?
Image retention may not occur when a LCD panel is operated under normal conditions.
Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for
a long time with a fixed pattern (over 12 hours), there may be slight difference in voltage between electrodes
that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time,
forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is
changed. To prevent this, the accumulated voltage difference must be decreased.
Power Off, Screen Saver, or Power Save Mode
z
Turn the power off for 4 hours after 20 hours in use
z
Turn the power off for 2 hours after 12 hours in use
z
Set the Monitor to power off with the PC Display Properties Power Scheme.
z
Use a Screen saver if possible - Screen saver in one color or a moving image is recommended.
Change the Color Information periodically
Note
• Use Two different colors
Rotate the Color Information with 2 different colors every 30 minutes.
z
Avoid using a combination of characters and background color with large difference in luminance.
Avoid using Grey colors, which can cause Image retention easily.
Avoid: Colors with big difference in luminance (Black & White, Grey)
Change the characters color periodically
z
Use Bright colors with little difference in luminance
- Cycle : Change the characters color and background color every 30 minutes
z
Every 30 minutes, change the characters with movement.
z
All area display Moving image together with Logo periodically.
- Cycle: Display moving image together with Logo for 60 seconds after 4 hours in use.
z
The best way to protect your monitor from Image retention is to turn Power off, or set your PC, or
System to operate a Screen Saver program when you are not using it. Also Warranty service will be
limited based on instruction guide.
Apply the Screen Scroll function on Product
z
Apply the Screen Scroll function
- Symptom: Horizontal Bar with Black Color move up and down.
- Select method
. Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Screen Scroll
. Time Interval : 1 ~ 10 hours ( Recommend : 1 )
. Time Period : 1 ~ 5 second ( Recommend : 5 )
Note
• ( Please check CD's User Guide at "OSD Function", some model's will not available )
Apply the Screen Pixel function on Product
z
Apply the Screen Pixel function
- Symptom: Dot with Black Color move up and down.
- Select method
. Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Pixel
. Time Interval : 1 ~ 10 hours ( Recommend : 1 )
. Time Period : 10 ~ 50 second ( Recommend : 50 )
z
Apply the Screen Bar function
- Symptom: Horizontal / Vertical Bar with Black Color move up and down.
- Select method
. Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Bar
. Time Interval : 1 ~ 10 hours ( Recommend : 1 )
. Time Period : 10 ~ 50 second ( Recommend : 50 )
Note
• ( Please check CD's User Guide at "OSD Function", some model's will not available. )
Apply the Screen Erasing function on Product
z
Apply the Screen Erasing function
- Symptom: 2 Vertical blocks move with erasing the display
- Select method
. Instruction Guide : OSD Menu -> Set Up -> Safety Screen -> Eraser
. Time Interval : 1 ~ 10 hours ( Recommend : 1 )
. Time Period : 10 ~ 50 second ( Recommend : 50 )
Note
• ( Please check CD's User Guide at "OSD Function", some model's will not available )
© 1995~2007 SAMSUNG. ALL Rights Reserved
Select Language
Main Page
Model
Safety Instructions
Introduction
Connections
Using the Software
Adjusting the LCD Display
Troubleshooting
Specifications
Information
Appendix
Contact SAMSUNG
WORLDWIDE
Terms
Correct Disposal
Authority
The color and appearance of the product may vary depending on the model, and the product specifications are
subject to change without prior notice for reasons of performance enhancement.
Appendix
Contact SAMSUNG WORLDWIDE
Note
• If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
North America
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com/us
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG(726-7864)
http://www.samsung.com/mx
Latin America
ARGENTINE
BRAZIL
0800-333-3733
http://www.samsung.com/ar
0800-124-421
http://www.samsung.com/br
4004-0000
CHILE
800-SAMSUNG(726-7864)
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com.co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
JAMAICA
1-800-234-7267
http://www.samsung.com/latin
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
TRINIDAD & TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com/latin
VENEZUELA
0-800-100-5303
http://www.samsung.com/latin
Europe
AUSTRIA
0800-SAMSUNG(726-7864)
http://www.samsung.com/at
BELGIUM
0032 (0)2 201 24 18
http://www.samsung.com/be
844 000 844
http://www.samsung.com/cz
CZECH REPUBLIC
DENMARK
70 70 19 70
http://www.samsung.com/dk
FINLAND
030-6227 515
http://www.samsung.com/fi
FRANCE
GERMANY
3260 SAMSUNG(726-7864)
08 25 08 65 65 (€ 0,15/min)
01805-SAMSUNG(726-7864)
(€ 0,14/Min)
http://www.samsung.com/fr
http://www.samsung.de
HUNGARY
06-80-SAMSUNG(726-7864)
http://www.samsung.com/hu
ITALIA
800-SAMSUNG(726-7864)
http://www.samsung.com/it
LUXEMBURG
0035 (0)2 261 03 710
http://www.samsung.com/be
NETHERLANDS
NORWAY
POLAND
0900 SAMSUNG(726-7864)
(€ 0,10/Min)
815-56 480
http://www.samsung.com/nl
http://www.samsung.com/no
0 801 801 881
http://www.samsung.com/pl
022-607-93-33
PORTUGAL
80 8 200 128
http://www.samsung.com/pt
REPUBLIC OF IRELAND
0818 717 100
http://www.samsung.com/ie
SLOVAKIA
0800-SAMSUNG(726-7864)
http://www.samsung.com/sk
SPAIN
902 10 11 30
http://www.samsung.com/es
SWEDEN
0771-400 200
http://www.samsung.com/se
SWITZERLAND
0800-SAMSUNG(726-7864)
http://www.samsung.com/ch
U.K
0870-SAMSUNG(726-7864)
http://www.samsung.com/uk
CIS
ESTONIA
800-7267
http://www.samsung.ee
LATVIA
800-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.lt
KAZAKHSTAN
8-10-800-500-55-500
http://www.samsung.kz
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
http://www.samsung.ru
UKRAINE
8-800-502-0000
http://www.samsung.ua
UZBEKISTAN
8-800-120-0-400
http://www.samsung.uz
Asia Pacific
AUSTRALIA
1300 362 603
http://www.samsung.com/au
CHINA
800-810-5858, 010- 6475 1880
http://www.samsung.com.cn
HONG KONG
3698-4698
http://www.samsung.com/hk
INDIA
3030 8282, 1800 110011
http://www.samsung.com/in/
INDONESIA
0800-112-8888
http://www.samsung.com/id
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800SAMSUNG(726-7864)
http://www.samsung.com/nz
PHILIPPINES
1800-10-SAMSUNG(726-7864)
http://www.samsung.com/ph
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com/sg
THAILAND
1800-29-3232, 02-689-3232
http://www.samsung.com/th
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com/vn
Middle East & Africa
SOUTH AFRICA
0860-SAMSUNG(726-7864 )
http://www.samsung.com/za
TURKEY
444 77 11
http://www.samsung.com.tr
800-SAMSUNG (726-7864)
U.A.E
8000-4726
http://www.samsung.com/mea
Terms
Sync Signal
Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on the
LCD Display. They are divided into Vertical and Horizontal Sync Signals. These signals display normal color
images by the set resolution and frequency.
Types of Sync Signals
Separate
This is a scheme of transmitting individual vertical sync signals to the LCD Display.
Composite
This is a scheme of combining vertical sync signals into one composite signal and
transmitting it to the LCD Display. The LCD Display displays the color signals by
separating the composite signal into original color signals.
Dot Pitch
The image on a LCD Display is composed of red, green and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the user.
The frequency of this repetition per second is called the Vertical Frequency or Refresh Rate. Unit: Hz
Example:
If the same light repeats itself 60 times per second, this is regarded as 60 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the
Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom sequentially is called the Non-Interlace
method while showing odd lines and then even lines in turn is called the Interlace method. The Non-Interlace
method is used for the majority of LCD Display s to ensure a clear image. The Interlace method is the same
as that used in TVs.
Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the LCD
Display to exchange information automatically. This LCD Display follows the international standard VESA
DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called the 'resolution'. This
number shows the accuracy of the display. A high resolution is good for performing multiple tasks as more
image information can be shown on the screen.
Example:
If the resolution is 1360 x 768, this means the screen is composed of 1360 horizontal dots
(horizontal resolution) and 768 vertical lines (vertical resolution).
Multiple Display Control (MDC)
A Multiple Display Control (MDC) is an application allowing various displays to be easily and simultaneously
operated on a PC. RS-232C, a standard of serial communication, is used for communicating between a PC
and a display.
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicates that it should not be
disposed with other household waste at the end of its working life. To prevent
possible harm to the environment or damage to health from uncontrolled waste
disposal, please separate this from other types of waste and recycle it responsibly
to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
Authority
Information in this document is subject to change without notice.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is
strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft , Windows and Windows NT
are registered trademarks of Microsoft Corporation; VESA , DPM and DDC are registered trademarks of Video
Electronics Standard Association; the ENERGY STAR ® name and logo are registered trademarks of the U.S.
Environmental Protection Agency (EPA).
All other product
names mentioned herein may be the trademarks or registered trademarks of their respective owners.
© 1995~2007 SAMSUNG. ALL Rights Reserved
