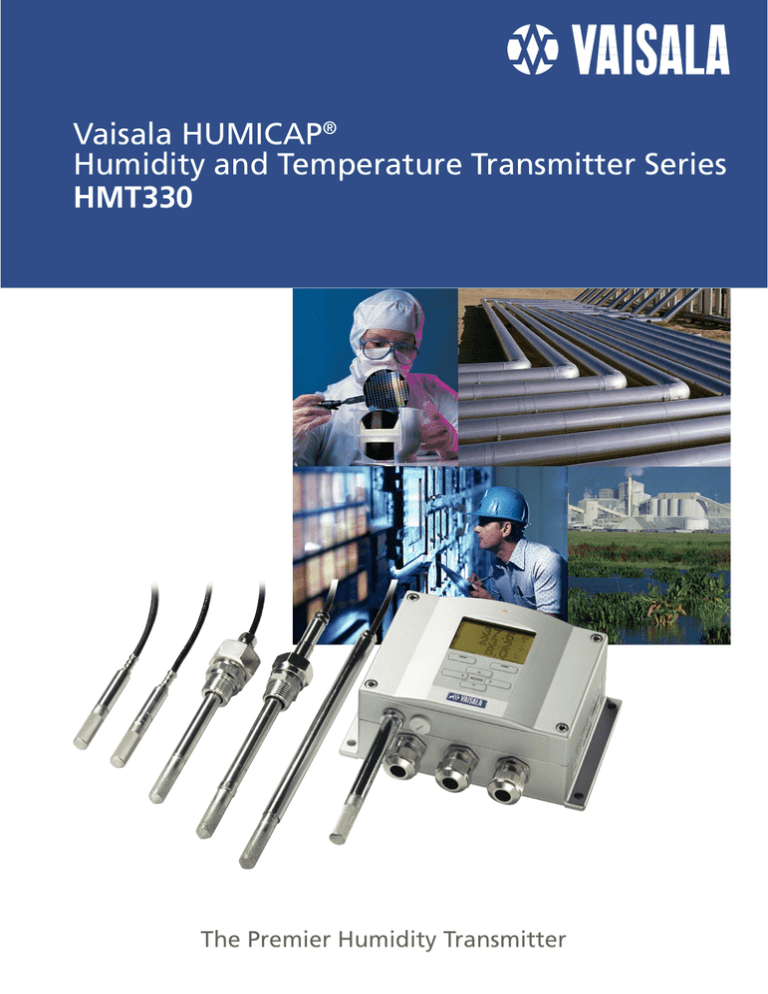

Vaisala HUMICAP®
Humidity and Temperature Transmitter Series
HMT330
Optional subhead
The Premier Humidity Transmitter
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT330 Series Humidity and Temperature
Transmitters for Industrial Applications
Features/Benefits
• Six models for demanding industrial
applications
• Full 0 ... 100 % RH measurement,
temperature range up to +180 °C
(+356 °F), depending on model
• Pressure tolerance up to 100 bar
(depending on model)
• Vaisala HUMICAP® Sensor for excellent
accuracy and stability
• Graphical display of measurement
trends and one-year history
• Multiligual user interface
• Excellent performance in harsh
chemical concentrations
• Corrosion resistant IP65 housing
• NIST traceable (certificate included)
The HMT330 transmitter family has the solution for demanding industrial
humidity measurements.
Versatile outputs
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
Series HMT330 is designed for
demanding industrial applications
where stable measurement and wide
customization is important.
The HMT330 can have up to three
analog outputs. Isolated galvanic
power supply and analog outputs
are also available. RS-232, RS-485, or
relay outputs can be used for digital
communication.
Vaisala HUMICAP® performance
The HMT330 series incorporates
Vaisala’s 30 years of experience in
industrial humidity measurement.
The sensor measures accurately and
reliably and is immune to particulate
contamination and most chemicals.
Chemical purge minimizes
effects of contaminants
In environments with high
concentrations of chemicals and
cleaning agents, chemical purge
helps to maintain measurement
accuracy between calibration
intervals.
Chemical purge involves heating the
sensor to remove harmful chemicals.
The function can be initiated
manually or programmed to occur at
set intervals.
Flexible calibration
The display shows measurement trends and
history up to one year.
Graphical display of history
and measurement trends
The HMT330 can be ordered with a
large numerical and graphical display
allowing the user to easily monitor
measurement trends and one-year
history.
Data collection and transfer
to PC
The recorded measurement data
can be viewed on the display or
transferred to PC with Microsoft
Windows® software.
Many ways to install
Mains and DC power options, and
several mounting accessories make
the instrument easy to install.
The HMT330 instruments are
calibrated at six humidity points at
the factory.
A quick, one-point field calibration
can be performed with the handheld HM70 meter.
A two-point calibration can be
performed with the HMK15 salt
bath calibrator in a controlled
environment.
The transmitter can be sent to
Vaisala for recalibration. Accredited
calibrations and maintenance
contracts are also available.
HMT330 SERIES
HUMIDITY
Performance
Inputs and outputs
Relative humidity
Measurement range
0 ... 100 % RH
Accuracy (including non-linearity, hysteresis, and repeatability)
with Vaisala HUMICAP® 180
for typical applications
with Vaisala HUMICAP® 180C
for applications with
chemical purge/warmed probe
at +15 ... +25 °C
±1 %RH (0 ... 90 %)
±1.7 %RH (90 ... 100 %RH)
at -20 °C ... +40 °C
±(1.0 + 0.008 x reading) %RH
at -40 °C ... +180 °C
±(1.5 + 0.015 x reading) %RH
with Vaisala HUMICAP®
for application with demanding
180L2
chemical environment
at -10 °C ... +40 °C
± (1.0 + 0.01 x reading) %RH
at -40 °C ... +180 °C
± (1.5 + 0.02 x reading) %RH
Factory calibration uncertainty (+20 °C)
± 0.6 % RH (0 ... 40 %RH)
± 1.0 % RH (40 ... 97 %RH)
(Defined as ±2 standard deviation
limits. Small variations possible,
see also calibration certificate.)
Response time (90 %) at +20 °C in still air
8 s with grid filter
20 s with grid + steel netting
filter
40 s with sintered filter
Temperature
Measurement range
HMT331
-40 ... +60 °C
HMT333
-40 ... +80 °C or -40 ... +120 °C
HMT334, HMT335, HMT337,
HMT338
-70 ... +180 °C
Accuracy at +20 °C (+68 °F)
± 0.2 °C
Accuracy over temperature range
10 ... 35 VDC, 24 VAC
Operating voltage
with optional power supply
module
100 ... 240 VAC, 50/60 Hz
Power consumption at +20 °C (Uin 24 VDC)
RS-232
max. 25 mA
Uout 2 x 0 ... 1 V/0 ... 5 V/0 ... 10 V
max. 25 mA
Iout 2 x 0 ... 20 mA
max. 60 mA
display and backlight
+20 mA
during chemical purge
max. +110 mA
during probe heating (HMT337)
+120 mA
Analog outputs (2 standard, 3rd optional)
current output
0 ... 20 mA, 4 ... 20 mA
voltage output
0 ... 1 V, 0 ... 5 V, 0 ... 10 V
Accuracy of analog outputs
at +20 °C
±0.05% full scale
Temperature dependence of the
analog outputs
±0.005%/°C full scale
External loads
current outputs
RL < 500 ohm
0 ... 1 V output
RL > 2 kohm
0 ... 5 V and 0 ... 10 V outputs
RL > 10 kohm
Max. wire size
0.5 mm2 (AWG 20) stranded
wires recommended
Digital outputs
RS-232, RS-485 (optional)
Relay outputs (optional)
0.5 A, 250 VAC
Display
LCD with backlight, raphic
trend display of any parameter
Menu languages
English, French, German,
Japanese, Spanish, Swedish,
Russian, Finnish
Mechanics
Cable bushing
˚C
Conduit fitting
User cable connector (optional)
option 1
0.7
0.6
0.5
0.4
option 2
0.3
0.2
0.1
˚C
0
-0.1
-0.2
-0.3
Probe cable diameter
HMT333 (+80 °C)
other probes
Housing material
Housing classification
M20 x 1.5 for cable diameter
8 ... 11 mm/0.31 ... 0.43”
1/2” NPT
M12 series 8-pin (male)
female plug with 5 m (16.4 ft)
black cable
female plug with screw
terminals
Dimensions
-0.4
-0.5
-0.6
-0.7
-80
-60
-40
-20
0
20
40
60
80
100
120
140
160
180
Temperature sensor
PT 100 RTD 1/3 Class B IEC 751
Other variables available (depends on model)
dewpoint temperature, mixing ratio absolute humidity, wet bulb
temperature, ethalpy, water vapor pressure
Operating Environment
Operating temperature
for probe
for transmitter body
with display
Operating pressure
HMT334
HMT338
HMT335, HMT337
Electromagnetic compatibility
same as measurement range
-40 ... +60 °C
0 ... +60 °C
0 ... 10 MPa (0 ... 100 bar)
0 ... 4 MPa (0 ... 40 bar)
vapor tight
EN61326-1:1997 + Am1:1998
+ Am2:2001; Industrial
Environment
HUMICAP® is a registered trademark of Vaisala.
Specifications are subject to change without prior notice.
©Vaisala Oyj
6.0 m
5.5 m
G-AlSi 10 Mg (DIN 1725)
IP 65 (NEMA 4)
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT331 Humidity and Temperature Transmitter
for Demanding Wall-Mounted Applications
Features/Benefits
• For temperatures -40 ... +60 °C
(-40 ... +140 °F)
• Vaisala HUMICAP® Sensor for excellent
accuracy and stability
• High tolerance of chemicals
• Graphical display of measurement
trends and one-year history
• Corrosion resistant metal IP65 housing
• NIST traceable (certificate included)
• Application examples: cleanrooms,
pharmaceutical processes,
greenhouses, swimming halls,
museums and archives
The HMT331 is the state-of-the-art wall-mount humidity instrument.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
HMT331 is the top-of-the-line wallmounted transmitter for demanding
HVAC and condition monitoring
applications.
Compared to regular wall-mounted
transmitters, the HMT331 offers:
• Higher measurement performance
• Better chemical tolerance
• Advanced graphical display
features
• More powering options
• More output options
• A wider variety of output humidity
parameters
Graphical display of history
and measurement trends
The HMT330 series features a large
numerical and graphical display,
allowing users to easily monitor
measurement trends and one-year
history.
The measurement history is
especially useful in stability rooms
and archives. The minimum and
maximum values for the previous
year can be viewed.
The display shows measurement trends and
one-year history
Outputs and power supply
options for every need
The output options include three
analog outputs, RS-232, RS-485, and
alarm relays.
The voltage supply range is from
10 to 35 VDC. With an additional
module, the transmitter can be
connected to all universal mains AC
supplies.
The input/output cable can be fed
through the back of the transmitter,
which is a useful feature, especially
for installations in cleanrooms.
Technical Data
Temperature measurement range
-40 ... +60 °C (-40 ... +140 °F)
Accessories
PC software + cable
215005
Connection cable for HM70
211339
Wall mounting plate (plastic)
214829
Pole installation kit
215108
Rain shield
215109
DIN rail installation set
215094
Dimensions
Dimensions in mm (inches)
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT333 Humidity and Temperature Transmitter
for Ducts and Tight Spaces
Features/Benefits
• For remote probe installations in
demanding HVAC applications
• Vaisala HUMICAP® Sensor for excellent
accuracy and stability
• High tolerance of chemicals
• For temperatures -40 ... +80 °C
(-40 ... +176 °F) or -40 ... +120 °C
(-40 ... +248 °F)
• Small thermal mass - fast response to
temperature changes
• Graphical display of measurement
trends and one-year history
• Corrosion resistant IP65 housing
• NIST traceable (certificate included)
• Application examples: cleanrooms,
pharmaceutical processes,
greenhouses, environmental chambers
The HMT333 transmitter has a small probe for remote applications.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
HMT333 is a versatile instrument for
applicatons where a small remote
probe is needed.
For outdoor environments, the
DTR502B solar radiation shield
provides protection for the probe.
The shield can be installed on a pole,
a beam or a flat surface.
Flexible installation
For moderate humidities and
temperatures
To install the probe in ducts,
channels and through walls, an
installation kit is available with
an aluminum flange, lead-through
piece, and steel support bar.
HMT333 has two probe cable
options available, a flexible one that
withstands heat up to +80° C, and a
durable cable that withstands heat
up to +120° C. Both the options are
available in lengths of 2, 5, and 10
meters.
Duct installation kit
The HMT333 is typically used in
demanding HVAC applications such
as cleanrooms, pharmaceutical
process, and greenhouses, or in
processes of moderate temperature.
For environments with continuously
high humidity, the HMT337 with a
warmed, vapor-tight and stainless
steel probe is recommended.
Technical Data
Temperature measurement range
-40 ... +80 °C (-40 ... +176 °F) or
-40 ... +120 °C (-40 ... +248 °F)
Accessories
Duct installation kit
210697
Cable gland
HMP247CG
PC software + cable
215005
Connection cable for HM70
211339
Wall mounting plate (plastic)
214829
Pole installation kit
215108
Rain shield
215109
Solar radiation shield
DTR502B
DIN rail installation set
211477
Dimensions
Dimensions in mm (inches) below
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT334 Humidity and Temperature Transmitter
for High Pressure and Vacuum Applications
Features/Benefits
• For pressures up to 100 bar and
vacuum applications
• For temperatures -70 ... +180 °C
(-94 ... +356 °F)
• ISO and NPT threads available
• Vaisala HUMICAP® Sensor for excellent
accuracy and stability
• Graphical display of measurement
trends and one-year history
• Corrosion resistant IP65 housing
• NIST traceable (certificate included)
• Application example: test chambers
The HMT334 is ideal for permanent installations into pressurized or vacuum processes.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
HMT334 is designed to measure
humidity in pressurized spaces or
vacuum chambers. Each probe is
tested to ensure a gas and vacuum
tight installation.
Using a serial line, the measurement
data can be transferred to a PC
where it can be further processed
and copied to other programs.
Vaisala HUMICAP® performance
The HMT334 incorporates Vaisala’s
30 years of experience in industrial
humidity measurement. The sensor
provides accurate and reliable
measurement and is immune to
particulate contamination and most
chemicals.
M22x1.5 or
NPT 1/2"
The HMT330 series features a
numerical and graphical display.
The user can easily monitor the
measurement trends and history
with minimum and maximum values
for up to one year.
The display shows minimum and maximum
values for up to one year.
Ø 12 (0.47)
Graphical display of
measurement trends and
history
Technical Data
Temperature measurement range
-70 ... +180 °C (-94 ... +356 °F)
Operating pressure
0 ... 10 MPa (0 ... 100 bar)
Accessories
17223
Fitting body ISO M22 x 1.5
Fitting body NPT 1/2”
17225
215005
PC software + cable
211339
Connection cable for HM70
214829
Wall mounting plate (plastic)
215108
Pole installation kit
215109
Rain shield
215094
DIN rail installation set
Dimensions
Dimensions in mm (inches)
41 (1.61)
120 (4.72)
170 (6.69)
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT335 Humidity and Temperature Transmitter
for High Temperatures
Features/Benefits
• For temperatures -70 ... +180 °C
(-94 ... +356 °F)
• Long metal probe head
• Stainless steel installation flange
available
• Adjustable installation depth
• Vaisala HUMICAP® Sensor for
excellent accuracy and stability
• Graphical display of measurement
trends and one-year history
• Corrosion resistant IP65 housing
• NIST traceable (certificate included)
• Application example: hot drying
processes
The HMT335 has a robust stainless steel probe ideal for high flow rates in hot processes.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
HMT335 has a long stainless
steel probe designed for high
temperatures.
Robust probe ideal for high
flow rates
The HMT335 is ideal for duct
measurements as the probe
tolerates mechanical stress and
withstands high flow rates. The
HMT335 can be used, for example, in
a hot drying process.
The installation flange allows an adjustable
installation depth for the probe.
Graphical display of history
and measurement trends
The HMT335 features a numerical
and graphical display. The user can
easily monitor measurement trends
and history with minimum and
maximum values for up to one year.
Vaisala HUMICAP® performance
The sensor provides accurate and
reliable measurement and is immune
to particulate contamination and
most chemicals.
Technical Data
Temperature measurement range
-70 ... +180 °C (-94 ... +356 °F)
Accessories
Mounting flange
PC software + cable
Connection cable for HM70
Wall mounting plate (plastic)
Pole installation kit
Rain shield
DIN rail installation set
Dimensions
Dimensions in mm (inches)
210696
215005
211339
214829
215108
215109
215094
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT337 Humidity and Temperature Transmitter
for High Humidity Applications
Features/Benefits
• For high-humidity applications in
industry and meteorology
• Warmed probe for superior
performance in condensing
environments
• Small, stainless steel, vapor-tight
remote probe
• For temperatures -70 ... +180 °C
(-94 ... +356 °F)
• Vaisala HUMICAP® Sensor for excellent
accuracy and stability
• High tolerance of chemicals
• Graphical display of measurement
trends and one-year history
• Corrosion resistant IP65 housing
• NIST traceable (certificate included)
The HMT337 is the ideal transmitter for the most demanding process and
meteorological measurements.
True humidity readings in
conditions of condensation
If the relative humidity value is
needed, an additional temperature
sensor head is used. The measured
ambient temperature provides the
compensation for calculating the
relative humidity and other humidity
parameters.
Many ways to install
A tight installation through a process
wall can be achieved with Swagelok®
fittings. Meteorological installation
kits for outdoor installations and
duct installation kits are also
available.
Duct installation kit
Ø 3.2 (0.13)
37.5 (1.48)
Ø 6 (0.24)
As the probe head is warmed, the
humidity level inside the head
stays below the ambient level. With
accurate temperature measurement,
the ambient dewpoint can be
calculated precisely.
Ø 12 (0.47)
The Vaisala unique warmed probe
head provides fast and reliable
measurement in environments
where humidity is near saturation.
The warming prevents condensation
from forming on the sensor.
Technical Data
Temperature measurement range
-70 ... +180 °C (-94 ... +356 °F)
Accessories
Cable gland and AGRO
HMP247CG
Duct installation kit
(RH probe)
210697
Duct installation kit
(T probe)
215003
Swagelok fittings (NPT and ISO) for both
RH and T probes
Solar radiation shield
DTR502B
Meteorological inst. kit
HMT330MIK
215005
PC software + cable
211339
Connection cable for HM70
214829
Wall mounting plate
(plastic)
215108
Pole installation kit
215109
Rain shield
215094
DIN rail installation set
Dimensions
Dimensions in mm (inches)
M9x1
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
HMT337 is delivered in one of three
configurations:
• Basic: non-warmed probe for
moderate humidities
• With a warmed probe: for nearcondensing conditions and
dew point measurement
• With a warmed probe and an
additional temperature sensor: for
near-condensing conditions and
relative humidity measurement
79.5 (3.13)
99.5 (3.92)
130 (5.12)
P.O. Box 26, FIN-00421 Helsinki, Finland
Tel. +358 9 894 91
Fax: +358 9 8949 2485
Email: [email protected]
www.vaisala.com
HMT338 Humidity and Temperature Transmitter
for Pressurized Pipelines
Features/Benefits
• Installed through ball valve
- can be inserted and removed while
the process is running
• Adjustable sensor head depth
• Pressure tolerance 40 bar
• For temperatures -70 ... +180 °C
(-94 ... +356 °F)
• Vaisala HUMICAP® Sensor for excellent
accuracy and stability
• Graphical display of measurement
trends and one-year history
• Corrosion resistant IP65 housing
• Two probe lengths available
• NIST traceable (certificate included)
The HMT338 is ideal for installations in pressurized processes where the probe needs to be
removed while the process is running.
The Vaisala HUMICAP® Humidity
and Temperature Transmitter
HMT338 is designed for pressurized
processes.
Insert or remove probe while
the process is running
With “hot tapping”, the probe is
inserted directly into the process
while it is running, without the need
for venting or lowering the process
pressure.
The probe head is screwed into a
ball valve assembly that has been
fixed to the process pipe or wall. The
adjustable hex nut is hand-tightened
to temporarily hold the probe to the
process. Then the probe is pushed
down to the appropriate depth. The
hex nut is tightened with a wrench
to lock the probe in its place. Hot
tapping is possible in pressures up to
10 bar.
Graphical display of history
and measurement trends
From the display, the user can easily
monitor measurement stabilization
and process trends. Measurement
history is available with minimum
and maximum values up to one year.
Vaisala HUMICAP®
The HMT338 incorporates Vaisala’ s
30 years of experience in industrial
humidity measurement. The sensor
provides accurate and reliable
measurement and is immune to
particulate contamination and most
chemicals.
Technical Data
Temperature measurement range
-70 ... +180 °C (-94 ... +356 °F)
Operating pressure 0 ... 4 MPa (0 ... 40 bar)
Accessories
Ball valve set
BALLVALVE-1
Pressure fitting ISO 1/2 to
210662
NPT 1/2
215005
PC software + cable
211339
Connection cable for HM70
214829
Wall mounting plate
(plastic)
215108
Pole installation kit
215109
Rain shield
215094
DIN rail installation set
Dimensions
Dimensions in mm (inches)
Accuracy that lasts
A typical calibration interval for the
HMT330 is one year. Depending on
the application, more frequent checks
may be advisable. Calibration and
adjustment can be carried out by the
user or in Vaisala Service Centers.
HM70 hand-held meter
• Compatible with the HMT330
• 3 probes, temperature ranges
between -70 and +180 °C
• Vaisala HUMICAP® technology
• Graphical measurement trends
• Multilingual user interface
• Data can be logged and transferred
to PC
• NIST traceable (certificate
included)
Easy field-checking
A quick, one-point field calibration
can be performed with the hand-held
HM70 meter.
Vaisala Oyj
P. O. Box 26
FIN-00421 Helsinki
Finland
Tel. (+358 9) 894 91
Fax: (+358 9 ) 8949 2227
For other Vaisala locations,
visit us at:
www. vaisala.com
Ref. B210450EN-B
All specifications are subject to change without prior notice.
Vaisala Service
Vaisala Service Centers offer
recalibrations of the instruments,
and also extended services such as
• Accredited calibrations
• Maintenance contracts
• Calibration reminder program
with a warranty extension
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
