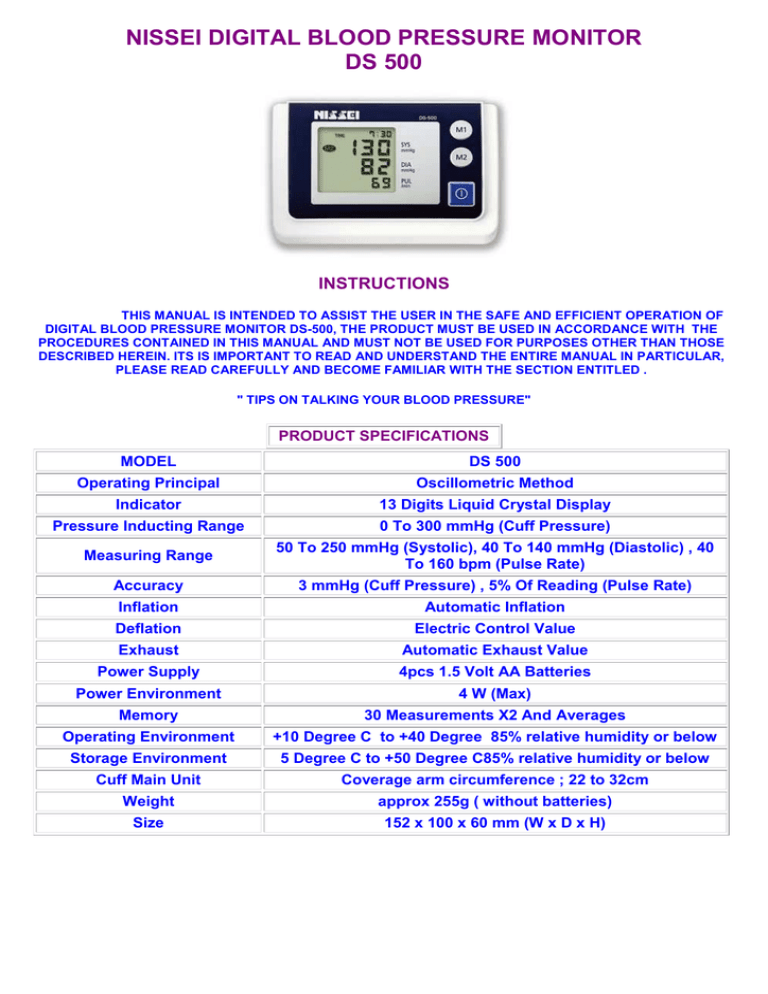

NISSEI DIGITAL BLOOD PRESSURE MONITOR DS 500

NISSEI DIGITAL BLOOD PRESSURE MONITOR DS 500
NISSEI DIGITAL BLOOD PRESSURE MONITOR
DS 500
INSTRUCTIONS
THIS MANUAL IS INTENDED TO ASSIST THE USER IN THE SAFE AND EFFICIENT OPERATION OF
DIGITAL BLOOD PRESSURE MONITOR DS-500, THE PRODUCT MUST BE USED IN ACCORDANCE WITH THE
PROCEDURES CONTAINED IN THIS MANUAL AND MUST NOT BE USED FOR PURPOSES OTHER THAN THOSE
DESCRIBED HEREIN. ITS IS IMPORTANT TO READ AND UNDERSTAND THE ENTIRE MANUAL IN PARTICULAR,
PLEASE READ CAREFULLY AND BECOME FAMILIAR WITH THE SECTION ENTITLED .
" TIPS ON TALKING YOUR BLOOD PRESSURE"
PRODUCT SPECIFICATIONS
MODEL
DS 500
Operating Principal
Oscillometric Method
Indicator
13 Digits Liquid Crystal Display
Pressure Inducting Range
0 To 300 mmHg (Cuff Pressure)
Measuring Range
50 To 250 mmHg (Systolic), 40 To 140 mmHg (Diastolic) , 40
To 160 bpm (Pulse Rate)
Accuracy
3 mmHg (Cuff Pressure) , 5% Of Reading (Pulse Rate)
Inflation
Automatic Inflation
Deflation
Electric Control Value
Exhaust
Automatic Exhaust Value
Power Supply
4pcs 1.5 Volt AA Batteries
Power Environment
4 W (Max)
Memory
30 Measurements X2 And Averages
Operating Environment
+10 Degree C to +40 Degree 85% relative humidity or below
Storage Environment
5 Degree C to +50 Degree C85% relative humidity or below
Cuff Main Unit
Coverage arm circumference ; 22 to 32cm
Weight
approx 255g ( without batteries)
Size
152 x 100 x 60 mm (W x D x H)
