Samsung HT-A100CT, HT-A100 User manual

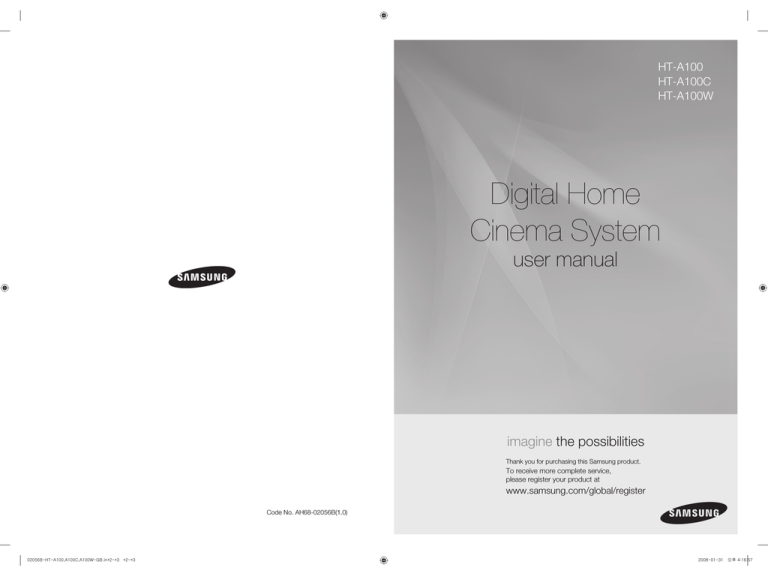

HT-A100 HT-A100C HT-A100W Digital Home Cinema System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Code No. AH68-02056B(1.0) 02056B-HT-A100,A100C,A100W-GB.in*2-*3 *2-*3 2008-01-31 오후 4:16:57 safety information Multi-Disc Playback & FM Tuner The HT-A100/A100C/A100W combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW, with a sophisticated FM tuner, all in a single player. SAFETY WARNINGS DVD-Audio compatible Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail. USB Host support You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function. TV Screen Saver Function If the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen. The HT-A100/A100C/A100W automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode. Power Saving Function The HT-A100/A100C/A100W automatically shuts itself off after 20 minutes in Stop mode. Customized TV Screen Display The HT-A100/A100C/A100W allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper. HDMI HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture. GB features TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. AV SYNC Function Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video. Anynet+(HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.) WHAT’S INCLUDED CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. • This apparatus shall always be connected to a AC outlet with a protective grounding connection. • To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. CAUTION • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. • The Mains plug is used as a disconnect device and shall stay readily operable at any time. Check for the supplied accessories below. Video Cable 2 02056B-HT-A100,A100C,A100W-GB.in2-3 2-3 HDMI Cable FM Antenna User's Manual Remote Control / Batteries (AAA size) 3 2008-01-31 오후 4:17:13 GB safety information PRECAUTIONS Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times. Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure the ventilation slots are not covered. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time. IMPORTANT The wires in the main lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED. WARN ING : DO NOT CONN ECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH , OR COLOURED GREEN OR GREEN THE LETTER E OR BY THE EARTH SYMBOL AND YELLOW. This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. 4 02056B-HT-A100,A100C,A100W-GB.in4-5 4-5 During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit. Protect the player from moisture (i.e. vases) , and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only. Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using. The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash. 5 2008-01-31 오후 4:17:14 SYSTEM SETUP FEATURES 2 What’s included 41 2 SAFETY INFORMATION 3 8 DESCRIPTION 11 47 47 Listening to Radio Presetting Stations 48 48 48 48 49 49 Sleep Timer Function Adjusting Display Brightness Mute Function P.BASS V-SOUND (Virtual Sound) Virtual Headphone Function 52 52 52 Digital Camera USB Flash Disc MP3 Player 53 54 Cautions on Handling and Storing Discs Specifications 45 45 3 5 Safety Warnings Precautions RADIO GETTING STARTED 46 46 Setting the Language Setting TV Screen Type Setting Parental Controls (Rating Level) Setting the Password Setting the Wallpaper To Select One of the 3 Wallpaper Settings you've made DVD Playback Mode Setting the DRC (Dynamic Range Compression) Setting the AV SYNC Setting the HDMI Audio 8 9 9 9 10 Before Reading the User’s Manual Playable Discs Do not use the following types of disc! Copy Protection Disc Type and Characteristics 11 12 Front Panel Rear Panel 13 14 Setting the Remote Control Tour of the Remote Control 17 19 21 22 24 Connecting the Speakers Connecting the Video Out to your TV HDMI Function Connecting Audio from External Components Connecting the FM Antenna 47 CONVENIENT FUNCTION 48 GB contents 41 42 43 43 44 44 TROUBLESHOOTING REMOTE CONTROL 13 CONNECTIONS 17 50 USB HOST FEATURE SUPPORTED PRODUCTS 52 APPENDIX 53 BEFORE USING YOUR HOME THEATER 25 PLAYBACK 26 6 02056B-HT-A100,A100C,A100W-GB.in6-7 6-7 26 27 28 29 31 39 Disc Playback MP3/WMA-CD Playback JPEG File Playback DivX Playback Using the Playback Function Playing Media Files using the USB Host Feature 7 2008-01-31 오후 4:17:17 getting started BEFORE READING THE USER’S MANUAL 1 ~ 6 Make sure to check the following terms before reading the user manual. Icons that will be used in manual B A G D M M Term Definition DVD This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode. CD This involves a function available with a data CD (CD-R or CD-RW). DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.) ● GETTING STARTED Icon GB DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall. PLAYABLE DISCS Disc Type Mark (Logo) Recorded Signals Disc Size Max. Playing Time Approx. 240 min. (single-sided) 12 cm MP3 This involves a function available with CD-R/-RW discs. JPEG This involves a function available with CD-R/-RW discs. DivX This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW) Caution This involves a case where a function does not operate or settings may be cancelled. Note This involves tips or instructions on the page that help each function operate. Approx. 480 min. (double-sided) DVD-AUDIO AUDIO + VIDEO DVD-VIDEO Approx. 80 min. (single-sided) 8 cm Approx. 160 min. (double-sided) COMPACT 12 cm 74 min. 8 cm 20 min. 12 cm 74 min. 8 cm 20 min. AUDIO AUDIO-CD DIGITAL AUDIO DivX AUDIO + VIDEO In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is mentioned, it is indicated separately. If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable. About the use of this user’s manual DO NOT USE THE FOLLOWING TYPES OF DISC! • LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player. If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen. • DVD discs purchased abroad may not play on this player. If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the TV screen. 1) Be sure to be familiar with Safety Instructions before using this product. (See pages 3~4) 2) If a problem occurs, check the Troubleshooting. (See pages 50~51) COPY PROTECTION Copyright ©2008 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. 8 02056B-HT-A100,A100C,A100W-GB.in8-9 8-9 • Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. • This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. 9 2008-01-31 오후 4:17:18 description DISC TYPE AND CHARACTERISTICS FRONT PANEL GB getting started This product does not support Secure (DRM) Media files. ❖ CD-R Discs 7 8 9 ● DESCRIPTION • Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. • Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minute as they may not be played back. • Some CD-RW (Rewritable) media, may not be playable. • Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc. ❖ CD-R MP3 Discs • Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played. • MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). • Use discs recorded with a compression/decompression data rate greater than 128Kbps. • Only files with the "mp3" and extensions can be played. • Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment. • If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played. • For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback. • A maximum of 500 tracks can be played per CD. • A maximum of 300 folders can be played per CD. 10 11 12 ❖ CD-R JPEG Discs • Only files with the "jpg" extensions can be played. • If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. • Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played. • JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +). • Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment. • A maximum of 9,999 images can be stored on a single CD. • When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played. • Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all. POWER( ) BUTTON TUNING DOWN & SKIP ( ) BUTTON DISC TRAY STOP (¦) BUTTON 10 AUX IN 1 Jack EJECT BUTTON PLAY/PAUSE ( 11 Headphone Jack FUNCTION BUTTON TUNING UP & SKIP ( ) BUTTON 12 USB Port ) BUTTON Volume Control ❖ DVD±R/RW, CD-R/RW DivX Discs • Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play. • Software updates for incompatible formats are not supported. (Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.) • Sections with a high frame rate might not be played while playing a DivX file. • For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks. net". 10 02056B-HT-A100,A100C,A100W-GB.in10-11 10-11 11 2008-01-31 오후 4:17:20 remote control REAR PANEL SETTING THE REMOTE CONTROL GB description You can control certain functions of your TV with this remote control. 1 2 3 4 5 When operating a TV with the remote control ● REMOTE CONTROL 1. Press the TV button to set the remote to TV mode. 2. Press the POWER button to turn on the TV. 3. While holding down the POWER button, enter the code corresponding to your brand of TV. • If there is more than one code listed for your TV in the table, enter one at a time to determine which code works. Example : For a Samsung TV While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40. 4. If the TV turns off, the setting is complete. • You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9). 8 7 6 M The remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV. If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. SPEAKER OUTPUT CONNECTORS Connect the front, subwoofer speakers. VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack. COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks. Operation Range of the Remote Control HDMI OUT JACK Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture. The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor. FM 75Ω COAXIAL JACK Connect the FM antenna. External Digital Optical Input Jack Use this to connect external equipment capable of digital output. AUX IN 2 JACKS Connect to the 2CH analog output of an external device (such as a VCR) COOLING FAN The fan always revolves when the power is on. Ensure a minimum of 10 cm of clear space on all sides of the fan when installing the product. 12 02056B-HT-A100,A100C,A100W-GB.in12-13 12-13 13 2008-01-31 오후 4:17:21 DVD RECEIVER button 18 PORT button 2 TV button 19 TV/VIDEO button TOUR OF THE REMOTE CONTROL 3 POWER button 20 EJECT button 4 Number (0~9) buttons 21 CANCEL button 5 REMAIN button 22 PAUSE button 6 STEP button 3 17 18 19 20 4 5 6 7 21 22 23 24 9 25 26 PLAY button STOP button SEARCH buttons 7 Tuning Preset/CD Skip buttons 8 VOLUME button 24 TUNING/CH button 9 MENU button 25 MUTE button 10 AUDIO button 26 RETURN button 11 TUNER MEMORY, SD(Standard Definition)/HD(High Definition) button 27 Cursor/ENTER button 12 LOGO button 28 SUBTITLE button 13 V-SOUND(Virtual Sound), V-H/P(Virtual Headphone) button 29 EXIT button 14 30 INFO button P.BASS button 15 31 REPEAT button SLEEP button 16 32 ZOOM button SLOW, MO/ST button 33 DIMMER button DVD 8 23 17 ● REMOTE CONTROL 1 2 GB remote control 1 DVD button TUNER button AUX button Insert Remote Batteries 27 28 10 29 11 30 12 13 14 15 16 31 32 33 14 02056B-HT-A100,A100C,A100W-GB.in14-15 14-15 1. Remove the battery cover in the direction of the arrow. M 2. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –). 3. Replace the battery cover. Follow these precautions to avoid leaking or cracking cells: Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–). Use the correct type of batteries. Batteries that look similar may differ in voltage. Always replace both batteries at the same time. Do not expose the batteries to heat or a flame. 15 2008-01-31 오후 4:17:23 connections TV Brand Code List This section involves various methods of connecting the Digital Home Theater to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Brand 1 Admiral (M.Wards) 2 3 Code No. Brand Code MTC 18 45 NEC 18, 19, 20, 40, 59, 60 46 Nikei 03 12, 13, 14 47 Onking 03 56, 57, 58 44 A Mark 01, 15 Anam 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, CONNECTING THE SPEAKERS 4 AOC 01, 18, 40, 48 48 Onwa 03 5 Bell & Howell (M.Wards) 57, 58, 81 49 Panasonic 06, 07, 08, 09, 54, 66, 67, 73, 74 6 Brocsonic 59, 60 50 Penney 18 7 Candle 18 51 Philco 03, 15, 17, 18, 48, 54, 59, 62, 69, 90 8 Cetronic 03 52 Philips 15, 17, 18, 40, 48, 54, 62, 72 9 Citizen 03, 18, 25 53 Pioneer 63, 66, 80, 91 10 Cinema 97 54 Portland 15, 18, 59 11 Classic 03 55 Proton 40 12 Concerto 18 56 Quasar 06, 66, 67 13 Contec 46 57 Radio Shack 17, 48, 56, 60, 61, 75 14 Coronado 15 58 RCA/Proscan 18, 59, 67, 76, 77, 78, 92, 93, 94 15 Craig 03, 05, 61, 82, 83, 84 59 Realistic 03, 19 16 Croslex 62 60 Sampo 40 17 Crown 03 61 Samsung 00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 18 Curtis Mates 59, 61, 63 59, 60, 98 Position of Digital Home Cinema 19 CXC 03 62 Sanyo 19, 61, 65 Place it on a stand or cabinet shelf, or under the TV stand. 20 Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 63 Scott 03, 40, 60, 61 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90 64 Sears 15, 18, 19 40 65 Sharp 15, 57, 64 21 Daytron 22 Dynasty 03 66 Signature 2000 (M.Wards) 57, 58 23 Emerson 03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85 67 Sony 50, 51, 52, 53, 55 24 Fisher 19, 65 68 Soundesign 03, 40 25 Funai 03 69 Spectricon 01 26 Futuretech 03 70 SSS 18 27 General Electric (GE) 06, 40, 56, 59, 66, 67, 68 71 Sylvania 18, 40, 48, 54, 59, 60, 62 28 Hall Mark 40 72 Symphonic 61, 95, 96 29 Hitachi 15, 18, 50, 59, 69 73 Tatung 06 30 Inkel 45 74 Techwood 18 31 JC Penny 56, 59, 67, 86 75 Teknika 03, 15, 18, 25 32 JVC 70 76 TMK 18, 40 33 KTV 59, 61, 87, 88 77 Toshiba 19, 57, 63, 71 34 KEC 03, 15, 40 78 Vidtech 18 35 KMC 15 79 Videch 59, 60, 69 36 LG (Goldstar) 01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44 80 Wards 15, 17, 18, 40, 48, 54, 60, 64 37 38 Luxman 18 81 Yamaha 18 LXI (Sears) 19, 54, 56, 59, 60, 62, 63, 65, 71 82 York 40 39 Magnavox 15, 17, 18, 48, 54, 59, 60, 62, 72, 89 83 Yupiteru 03 40 Marantz 40, 54 84 Zenith 58, 79 41 Matsui 54 85 Zonda 01 42 MGA 18, 40 86 Dongyang 03, 54 43 Mitsubishi/MGA 18, 40, 59, 60, 75 16 02056B-HT-A100,A100C,A100W-GB.in16-17 16-17 L SW ● CONNECTIONS No. GB remote control R Selecting the Listening Position The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TVs 2~2.4m (6~8feet) For 55" TVs 3.5~4m (11~13feet) Front Speakers ei Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers. Subwoofer g The position of the subwoofer is not so critical. Place it anywhere you like. 17 2008-01-31 오후 4:17:26 connections GB CONNECTING THE VIDEO OUT TO YOUR TV Choose one of the three methods for connecting to a TV. Connecting The Speakers 1. Press down the terminal tab on the back of the speaker. 2. Insert the black wire into the black terminal (–) and the red wire into the red (+) terminal, and then release the tab. Black ● CONNECTIONS 3. Connect the connecting plugs to the back of the Home Theater. • Make sure the colors of the speaker terminals match the colors of the connecting plugs. Red METHOD3 (supplied) Front Speaker (R) METHOD2 METHOD1 (supplied) Front Speaker (L) METHOD 1 : HDMI Connect the HDMI cable from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV. Subwoofer METHOD 2 : Component Video If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (PR, PB and Y) jacks on the back of the DVD Player to the Component Video Input jacks on your TV. METHOD 3 : Composite Video Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the VIDEO IN jack on your TV. Do not let children play with or near the speakers. They could get hurt if a speaker falls. When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct. Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall through the duct (hole). M M This product operates in Interlace scan mode 576i(480i) for component output. If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC). Please check the logo (If your TV has an logo, then it supports the Anynet+ function.) If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set. 18 02056B-HT-A100,A100C,A100W-GB.in18-19 18-19 19 2008-01-31 오후 4:17:27 HDMI Auto Detection Function The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on. Resolution Selection This function allows the user to select the screen resolution for HDMI output. In Stop mode, press and hold the SD/HD (Standard Definition/High Definition) button on the remote control. • Resolutions available for the HDMI output are 576p(480p), 720p, 1080i/1080p. • SD(Standard Definition) resolution is 576p(480p) and HD (High Definition) resolution is 720p, 1080i/1080p. ● CONNECTIONS • HDMI (High Definition Multimedia Interface) HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD Home Cinema transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack. • HDMI connection description HDMI connector - Supports video and digital audio data. - HDMI outputs only a pure digital signal to the TV. - If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen. • Why does Samsung use HDMI? Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Cinema) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV. • What is the HDCP? HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made. • What is Anynet+? Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature. - If your Samsung TV has an logo, then it supports the Anynet+ function. - If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode. - If you turn on the player and press the Play button with a disc already inserted, the TV will immediately turn on and switch to HDMI mode. GB connections HDMI FUNCTION The default value of HDMI output is 576P(480P). M If the TV does not support the configured resolution, you will not be able to see the picture properly. When an HDMI cable is connected, composite and component video signals are not output. See your TV owner's manual for more information on how to select the TV's Video Input source. Why use HDMI (High Definition Multimedia Interface)? This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection. Using Anynet+(HDMI-CEC) Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+. 1. Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 19) 2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.) • You can operate the Home Theater by using the TV , , remote control. (Available TV buttons : , S,T and W,X buttons, ~ button) , With Anynet+ You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control. If you select the TV Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV. • Receiver : On : You can listen to audio through the Home Theater. • Receiver : Off : You can listen to audio through the TV. If you select the THEATER Select THEATER to connector and set the option of each items below. • View TV : If Anynet+(HDMI-CEC) is set to on and you select View TV, the Home Theater will automatically switch to DIGITAL IN mode. • THEATER Menu : You can access and control the Home Theater menu. • THEATER Operation : The Home Theater disc playback information will be displayed. You can control the Disc operation of the Home Theater such as title, chapter and subtitle change. • Receiver : On : You can listen to audio through the Home Theater. • Receiver : Off : You can listen to audio through the TV. M MOVE MOVE ENTER ENTER EXIT EXIT MOVE ENTER EXIT The Theater function is available only when you listen to the audio through the Home Theater with the digital optical cable connected. 20 02056B-HT-A100,A100C,A100W-GB.in20-21 20-21 21 2008-01-31 오후 4:17:32 AUX2 : Rear Panel OPTICAL : Rear Panel GB connections CONNECTING AUDIO FROM EXTERNAL COMPONENTS AUX1 : Connecting an External Component/MP3 player Components such as an MP3 Player External Analog Component ● CONNECTIONS Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. Optical Cable (not supplied) External Digital Component AUX2 : Connecting an External Analog Component Analog signal components such as a VCR. Audio Cable (not supplied) Audio OUT 1. Connect AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component. • Be sure to match connector colors. 2. Press the AUX button on the remote control to select AUX 2 input. • You can also use the FUNCTION button on the main unit. The mode switches as follows : DVD/CD DIGITAL IN AUX 1 AUX 2 USB FM. M You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product. 1. Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player. 2. Press the AUX button on the remote control to select AUX1 input. • You can also use the FUNCTION button on the main unit. The mode switches as follows : DVD/CD DIGITAL IN AUX 1 AUX 2 USB FM. 22 02056B-HT-A100,A100C,A100W-GB.in22-23 22-23 OPTICAL : Connecting an External Digital Component Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box). 1. Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital component. 2. Press the AUX button on the remote control to select DIGITAL IN. • You can also use the FUNCTION button on the main unit. The mode switches as follows : DVD/CD DIGITAL IN AUX 1 AUX 2 USB FM. 23 2008-01-31 오후 4:17:36 before using your home theater CONNECTING THE FM ANTENNA The DVD Home Theater's remote can be used to control Samsung TVs.. GB connections 1. Plug the main unit's power cord into the AC power supply. 1. Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack. ● BEFORE USING YOUR HOME THEATER 2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. FM Antenna (supplied) 2. Press the DVD RECEIVER button to switch to DVD RECEIVER mode to operate the DVD Home Theater. M 3. Press the FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback. This unit does not receive AM broadcasts. 4. Press the TV button to set the remote to TV mode. Cooling Fan The cooling fan supplies cool air to the unit to prevent overheating. Please observe the following cautions for your safety. • Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise and may damage it. • Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.) 5. Press the POWER button to turn on your Samsung TV with this remote. 6. Press the TV/VIDEO button to select VIDEO mode on your TV. VIDEO Selecting the Video Format Press and hold the Number 7 button on the remote controller for over 5 seconds while the power is turned off. • By default, the video format is set to "PAL". • "NTSC" or "PAL" will appear in the display. At this time, press the Number 7 button shortly to select between "NTSC" and "PAL". • Each country has a different video format standard. • For normal playback, the video format of the disc must be the same as the video format of your TV. 24 02056B-HT-A100,A100C,A100W-GB.in24-25 24-25 25 2008-01-31 오후 4:17:39 playback GB MP3/WMA-CD PLAYBACK Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played. DISC PLAYBACK A B 2. Close the compartment by pressing the PLAY ( ) button. • Playback starts automatically. ● PLAYBACK 1. Load a disc vertically into the Disc Insert Hole. • Place a disc gently into the tray with the disc’s label facing up. 1. Load the MP3/WMA disc. • The MP3/WMA menu screen will appear and playback will start. • The appearance of the menu depends on the MP3/WMA disc. • WMA-DRM files cannot be played. 2. In Stop mode, use the Cursor S,T,W,X button to select the album, and then press the ENTER button. • Use the Cursor S,T button to select the track. 3. To change the album, use the Cursor S,T,W,X button to select another album in Stop mode, and then press the ENTER button. 4. Press the STOP () button to stop playback. To stop playback, press the STOP () button during playback. • If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory. If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.) • If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the beginning. To temporarily pause playback, press the PAUSE ( ) button during playback. • To resume playback, press the PLAY ( M ) button again. Depending on the content of the disc, the initial screen may appear different. Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) recommendations. M Depending on the recording mode, some MP3/WMA-CDs may not play. Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc. To play a file icon in the screen, • Press the Cursor S,T,W,X button when it is in Stop mode and select a desired icon from the top part of the menu. Music File Icon : To play music files only, select the Icon. Image File Icon : To view image files only, select the Icon. Movie File Icon : To view movie files only, select the Icon. All File Icon : To view movie files only, select the 26 02056B-HT-A100,A100C,A100W-GB.in26-27 26-27 Icon. 27 2008-01-31 오후 4:17:42 playback GB DIVX PLAYBACK The functions on this page apply to DivX disc playback. D Skip Forward/Back JPEG FILE PLAYBACK Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater. Fast Playback Press the Cursor S,T,W,X button during playback. ● PLAYBACK G Rotate/Flip Function During playback, press the #,$ button. • Goes to the next file whenever you press the $ button, if there are over 2 files in the disc. • Goes to the previous file whenever you press the # button, if there are over 2 files in the disc. D During playback, press the , button. To play back the disc at a faster speed, press the or button during playback. • Each time you press either button, the playback speed will change as follows: 2x 4x 8x 32x Normal. 5 Minutes Skip function D During playback, press the Cursor W,X button. • Playback skips 5 minutes forward whenever you press the Cursor X button. • Playback skips 5 minutes back whenever you press the Cursor W button. Audio Display button: Flip Vertically D Press the AUDIO button. button: Rotate 90° Counterclockwise button: Rotate 90° Clockwise Original Image button: Flip Horizontally M The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files. If a JPEG file is played when the HDMI output resolution is 720p/1080i/1080p, the mode is automatically converted to 576p(480p) mode. 28 02056B-HT-A100,A100C,A100W-GB.in28-29 28-29 • If there are multiple audio tracks on a disc, you can toggle between them. • Each time you press the button, your selection will toggle between AUDIO (1/N, 2/N ...) and . M is displayed when there is one supported language in the disc. Subtitle Display D Press the SUBTITLE button. • Each time you press the button, your selection will toggle between SUBTITLE (1/N, 2/N ...) and SUBTITLE OFF. • If the disc has only one subtitle file, it will be played automatically. • See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs. 29 2008-01-31 오후 4:17:44 playback D If the Disc has more than One Subtitle File If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have to select your subtitle language as follows: You can view disc playback information on the TV screen. ● PLAYBACK M Depending on the disc, the disc information display may appear different. Depending on the disc, you can also select DOLBY DIGITAL, or PRO LOGIC. 2. When you select the desired DivX file from the TV screen, the movie will be played normally. appears on the TV screen! DivX(Digital internet video eXpress) DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time. MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio. 1. Supported Formats This product only supports the following media formats.If both video and audio formats are not supported, the user may experience problems such as broken images or no sound. If this symbol appears on the TV screen when pressing a button, that operation is not possible with the disc currently being played. Screen Display Supported Video Formats Format AVI WMV Supported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7 DVD AUDIO Supported Audio Formats Format MP3 WMA AC3 Bit Rate 80~384kbps 56~128kbps 128~384kbps 44.1khz BAGD Displaying Disc Information Press the INFO button. 1. In Stop mode, press the Cursor S,T button, select the desired subtitle ( ) from the TV screen, and then press the ENTER button. Sampling Frequency GB USING THE PLAYBACK FUNCTION DVD display TITLE display ELAPSED TIME display STEREO (L/R) display DVD-AUDIO display CHAPTER display REPEAT PLAYBACK display DOLBY DIGITAL display CD display TRACK (FILE) display AUDIO LANGUAGE display ANGLE display GROUP display SUBTITLE display 44.1/48khz • Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported. • When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback. 2. Caption Function • You must have some experience with video extraction and editing in order to use this feature properly. • To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi • Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name. Checking the Remaining Time BA Press the REMAIN button. • For checking the total and remaining time of a title or chapter being played. Each time the Remain button is pressed DVD-VIDEO TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN DVD-AUDIO GROUP ELAPSED ➞ GROUP REMAIN ➞ TRACK ELAPSED ➞ TRACK REMAIN B TRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN A TRACK REMAIN ➞ TRACK ELAPSED 30 02056B-HT-A100,A100C,A100W-GB.in30-31 30-31 31 2008-01-31 오후 4:17:48 BAD Fast Playback Press the , button. • Each time the button is pressed during playback, the playback speed changes as follows: 4X 2X M 4X 8X 32X 8X 32X REPEAT : CHAPTER DVD-AUDIO REPEAT : TRACK REPEAT : GROUP REPEAT : TRACK REPEAT : DISC B AGD Slow Playback Press the SLOW button. • Each time the button is pressed during playback, the playback speed changes as follows: 1/2 1/4 1/8 1/2 1/4 1/8 X PLAY REPEAT : TITLE REPEAT : OFF REPEAT : RANDOM REPEAT : DISC D 1/8 DVD-VIDEO X PLAY at 2x speed, and not at 4x, 8x, and 32x speeds. 1/4 Press the REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: X PLAY During fast playback of a CD or MP3-CD, sound is heard only D 1/2 Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). ● PLAYBACK 2X BAGD Repeat Playback REPEAT : OFF REPEAT : OFF REPEAT : OFF REPEAT : TRACK REPEAT : DIR REPEAT : OFF CHAPTER : Repeatedly plays the selected chapter. TITLE : Repeatedly plays the selected title. GROUP : Repeatedly plays the selected group. RANDOM : Plays tracks in random order. (A track that has already been played may be played again.) TRACK : Repeatedly plays the selected track. DIR : Repeatedly plays all tracks in the selected folder. DISC : Repeatedly plays the entire disc. OFF : Cancels Repeat Playback. To Select a Repeat Playback Mode in the Disc Information Screen X PLAY GB playback B 1. Press the INFO button twice. M 2. Press the Cursor X button to move to REPEAT PLAYBACK ( ) display. No sound is heard during slow playback. Reverse slow playback does not work with DivX. Skipping Scenes/Songs Press the #,$ button. • Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played. • You cannot skip chapters consecutively. A 3. Press the Cursor T button to select the desired Repeat Playback mode. • To select another album and track, repeat Steps 2 and 3 above. 4. Press the ENTER button. OFF A- CHAP B OFF A- TRACK M 32 02056B-HT-A100,A100C,A100W-GB.in32-33 32-33 TITLE OFF DISC OFF For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen. 33 2008-01-31 오후 4:17:55 playback GB Angle Function This function allows you to view the same scene in different angles. A-B Repeat Playback 1. Press the INFO button. You can repeatedly play back a designated section of a DVD. 2. Press the Cursor X button to move to ANGLE ( display. 1. Press the INFO button twice. ) 3. Press the Cursor S,T button to select A- and then press the ENTER button. • When the ENTER button is pressed, the selected position will be stored in memory. 1/3 4. Press the ENTER button at the end of the desired segment. • The specified segment will be played repeatedly. M 2/3 3/3 ● PLAYBACK 3. Press the Cursor S,T button or numeric buttons to select the desired angle. • Each time the button is pressed, the angle changes as follows: 2. Press the Cursor X button to move to REPEAT PLAYBACK ( ) display. 1/3 The Angle function works only with discs on which multiple angles have been recorded. A-B d To return to normal playback, press the Cursor S,T button to select M Zoom (Screen Enlarge) Function OFF. This function allows you to enlarge a particular area of the displayed image. The A-B Repeat function does not operate with DivX, MP3 or JPEG discs. Step Function Press the STEP button. • The picture moves forward one frame each time the button is pressed during playback. 1. Press the ZOOM button. D 2. Press the Cursor ▲, ▼, ◄, ►button to move to ANGLE ( ) display. 3. Press the ENTER button. • Each time the button is pressed, the zoom level changes as follows: SELECT ZOOM POSITION ZOOM X 1.5 ZOOM X 2 ZOOM X 3 ZOOM OFF M No sound is heard during step motion playback. 34 02056B-HT-A100,A100C,A100W-GB.in34-35 34-35 35 2008-01-31 오후 4:17:58 playback 1. Press the INFO button twice. Bonus Group DVD-AUDIO 2. Press the Cursor X button to move to SUBTITLE ( display. ) 3. Press the Cursor T button or numeric buttons to select the desired subtitle. Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number. SP 02/03 FR 03/03 OFF/03 EN 01/03 M To operate this function, you can also press the SUBTITLE buttons on the remote control. Depending on the disc, the Subtitle Language functions may not be available. If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number. BAG Moving Directly to a Scene/Song Navigating Pages B DVD-AUDIO During playback, press the .,, button on the remote control. • You can select the desired image from a DVD-Audio disc containing still images. • With some discs, you may not be able to select images. ● PLAYBACK EN 01/03 When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically. M GB Subtitle Language Selection Function 1. Press the INFO button. 2. Press the Cursor S,T button or numeric buttons to select the desired title/track ( ) and then press the ENTER button. 3. Press the Cursor W,X button to move to the Chapter ( ) display. 4. Press the Cursor S,T button or numeric buttons to select the desired chapter and then press the ENTER button. 5. Press the Cursor W,X button to move to time ( ) display. 6. Press the numeric buttons to select the desired time and then press the ENTER button. Audio Language Selection Function 1. Press the INFO button twice. 2. Press the Cursor S,T button or numeric buttons to select the desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed. EN 1/3 M SP 2/3 FR 3/3 AG Press the numeric buttons. • The selected file will be played. • When playing an MP3 or JPEG disc, you cannot use the Cursor S,T button to move to a folder. To move a folder, press the STOP () and then press the Cursor S,T button. EN 1/3 M To operate this function, you can also press the AUDIO buttons on the remote control. Depending on the disc, the Audio Language functions may not be available. 36 02056B-HT-A100,A100C,A100W-GB.in36-37 36-37 You can press the #,$ button on the remote control to move directly to the desired title, chapter, or track. Depending on the disc, you may not be able to move to the selected title or time. 37 2008-01-31 오후 4:18:03 playback You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video by connecting the storage device to the USB port of the Home Theater. Using the Disc Menu 1. Connect the USB device to the USB port on the side of the unit. You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc. 2. Press the Cursor S,T button or numeric buttons to move to Disc Menu and then press the ENTER button. • When you select Disc Menu and it is not supported by the disc, the "This menu is not supported" message appears on the screen. ● PLAYBACK 2. Press the FUNCTION button on the DVD Player or the PORT button on the remote control to select the USB mode. • USB appears on the display screen and then disappears. • The USB MENU screen appears on the TV screen and the saved file is played. 1. In Stop mode, press the MENU button. 3. To stop playback, press the STOP () button. 3. Press the Cursor S,T,W,X button to select the desired item. Safe USB Removal 4. Press the ENTER button. d Press the EXIT button to exit the setup screen. MOVE M GB PLAYING MEDIA FILES USING THE USB HOST FEATURE ENTER EXIT To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable. • Press the STOP () button twice in a row. The display will show REMOVE USB. • Remove the USB cable. The disc menu display may be different depending on the disc. Using the Title Menu Skip Forward/Back For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary. During playback, press the #,$ button. • When there is more than one file and you press the $ button, the next file is selected. • When there is more than one file and you press the # button, the previous file is selected. 1. In Stop mode, press the MENU button. 2. Press the Cursor S,T button to move to Title Menu. 3. Press the ENTER button. • The title menu appears. d Press the EXIT button to exit the setup screen. MOVE M ENTER EXIT The Title menu display may be different depending on the disc. 38 02056B-HT-A100,A100C,A100W-GB.in38-39 38-39 39 2008-01-31 오후 4:18:06 system setup For your convenience, you can set this Home Theater's features for the best use in your home environment. Fast playback During playback, press the , button. • Each time you press either button, the playback speed will change as follows: 4x 8x 32x SETTING THE LANGUAGE OSD(On-Screen Display) language is set to English by default. ● SYSTEM SETUP 2x GB playback Normal. 1. In Stop mode, press the MENU button. 2. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. 3. Select Language and then press the ENTER or ► button. Compatible Devices 1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) 2. MP3 Player: HDD and flash type MP3 players. 3. Digital camera: Cameras that support USB Mass Storage v1.0. • Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation. 4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1. • You may experience a difference in playback quality when you connect a USB1.1 device. • For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation. 5. USB card Reader: One slot USB card reader and Multi slot USB card reader. • Depending on the manufacturer. the USB card reader may not be supported. • If you install multiple memory devices into a multi card reader, you may experience problems. 6. If you use a USB extension cable, the USB device might not be recognized. Supported Formats Format File name File extension Bit rate Version Pixel Sampling Frequency Still Picture JPG JPG .JPEG – – 640x480 – MP3 .MP3 80~384kbps – – 44.1kHz WMA .WMA 56~128kbps V8 – 44.1kHz WMV .WMV 4Mbps V1,V2,V3,V7 720x480 44.1KHz~48KHz DivX .AVI,.ASF 4Mbps DivX3.11~ DivX5.1, XviD 720x480 44.1KHz~48KHz Music Movie 4. Press the Cursor ▲,▼ button to select OSD Language and then press the ENTER or ► button. MOVE ENTER RETURN EXIT MOVE ENTER RETURN EXIT MOVE ENTER RETURN EXIT MOVE SELECT RETURN EXIT 5. Press the Cursor ▲,▼ button to select the desired language and then press the ENTER button. • Once the setup is complete, the OSD will be English if English has been selected as language. d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen. • OSD LANGUAGE : Selecting the OSD Language • AUDIO : Selecting the Audio Language (recorded on the disc) • SUBTITLE : Selecting the Subtitle Language (recorded on the disc) • DISC MENU : Selecting the Disc Menu Language (recorded on the disc) a If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language. • OTHERS : To select another language, select OTHERS and enter the language code of your country. AUDIO, SUBTITLE and DISC MENU language can be selected. • CBI (Control/Bulk/Interrupt) is not supported. • Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported. • A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file system is supported.) • Some MP3 players, when connected to this product, may not operate depending on the sector size of their file system. • The USB host function is not supported if a product that transfers media files by its manufacturerspecific program is connected. • Does not operate with Janus enabled MTP (Media Transfer Protocol) devices. • The USB host function of this product does not support all USB devices. For information on the supported devices, see page 52. 40 02056B-HT-A100,A100C,A100W-GB.in40-41 40-41 41 2008-01-31 오후 4:18:08 system setup GB SETTING PARENTAL CONTROLS (RATING LEVEL) Use this to restrict playback of adult or violent DVDs you do not want children to view. 1. In Stop mode, press the MENU button. SETTING TV SCREEN TYPE 2. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. 3. Press the Cursor ▼ button to move to PARENTAL and then press the ENTER or ► button. 1. In Stop mode, press the MENU button. 3. Press the Cursor ▼ button to move to TV DISPLAY and then press the ENTER or ► button. 4. Press the Cursor ▲,▼ button to select the desired item and then press the ENTER button. • Once the setup is complete, you will be taken to the previous screen. MOVE ENTER RETURN EXIT 4. Press the Cursor ▲,▼ button to select the desired rating level and then press the ENTER button. • If you have selected Level 6, you cannot view DVDs with Level 7 or higher. • The higher the level, the closer the content is to violent or adult material. 5. Enter the password and then press the ENTER button. • The password is set to "7890" by default. • Once the setup is complete, you will be taken to the previous screen. d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen. MOVE ENTER RETURN EXIT MOVE SELECT RETURN EXIT MOVE ENTER RETURN EXIT ● SYSTEM SETUP 2. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen. MOVE SELECT RETURN EXIT Adjusting the TV Aspect Ratio (Screen Size) The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor. M This function works only if a DVD disc contains the rating level information. SETTING THE PASSWORD You can set the password for the Parental (rating level) setting. For a standard TV, select either 4:3PS or 4:3LB option according to personal preference. Select WIDE/HDTV if you have a widescreen TV. 1. In Stop mode, press the MENU button. 4:3PS (4:3 Pan&Scan) Select this to play a 16:9 picture in the pan & scan mode on a conventional TV. • You can see the central portion of the screen only (with the sides of the 16:9 picture cut off). 3. Press the Cursor ▼ button to move to PASSWORD and then press the ENTER or ► button. 4:3LB (4:3 Letterbox) Select this to play a 16:9 picture in the letter box mode on a conventional TV. • Black bars will appear at the top and bottom of the screen. 2. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. 4. Press the ENTER button. 5. Enter the password and then press the ENTER button. • Enter the old password, a new password, and confirm new password. • The setting is complete. M The password is set to "7890" by default. MOVE WIDE/HDTV Select this to view a 16:9 picture in the full-screen mode on your widescreen TV. • You can enjoy the widescreen aspect. M SELECT RETURN EXIT If you have forgotten the rating level password, do the following • While the player is in No DIsc mode, hold the DVD Players STOP () button for longer than 5 seconds. INITIAL appears on the display and all settings will return to the default values. • Press the POWER button. Using the RESET function will erase all stored settings. Do not use this unless necessary. If a DVD is in the 4:3 ratio, you cannot view it in widescreen. Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting. When using HDMI, the screen is automatically converted to Wide mode. 42 02056B-HT-A100,A100C,A100W-GB.in42-43 42-43 43 2008-01-31 오후 4:18:10 system setup GB DVD PLAYBACK MODE Some DVD-Audio discs contain DVD-Video as well as DVD-Audio. To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode. SETTING THE WALLPAPER G 1. Press the MENU button while the disc tray is open. 2. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. 3. Press the Cursor ▼ button to move to DVD TYPE and then press the ENTER or ► button. 1. During playback, press the PAUSE ( an image you like appears. 4. Press the Cursor ▲,▼ button to move to DVD VIDEO and then press the ENTER button. ) button when ENTER RETURN EXIT MOVE ENTER RETURN EXIT ● SYSTEM SETUP While watching a DVD or JPEG CD, you can set the image you like as background wallpaper. MOVE • Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode. 2. Press the LOGO button. • COPY LOGO DATA will be displayed on the TV screen. • DVD VIDEO : Set to play the DVD video contents contained on a DVD audio disc. • DVD AUDIO : Set to play the default DVD audio. 3. The power will turn off and then back on. • The selected wallpaper will be displayed. • You can select up to 3 wallpaper settings. M COPY LOGO DATA II PAUSE LOGO IS COPIED II PAUSE DVD Play mode is set to DVD Audio as factory default setting. Powering off the main unit will automatically switch to the DVD Audio mode. DviX (R) Registration Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod. M This function will not work when the HDMI output is 720p, 1080i or 1080p. SETTING THE DRC (DYNAMIC RANGE COMPRESSION) This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night. TO SELECT ONE OF THE 3 WALLPAPER SETTINGS YOU'VE MADE 1. In Stop mode, press the MENU button. 1. In Stop mode, press the MENU button. 2. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. 2. Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button. 3. Press the Cursor ▼ button to move to LOGO and then press the ENTER or ► button. 3. Press the Cursor ▼ button to move to DRC and then press the ENTER or ► button. 4. Press the Cursor ▲,▼ button select the desired USER, and then press the ENTER button. MOVE ENTER RETURN EXIT • This selects one of the 3 wallpaper screens. 4. Press the Cursor S,T to adjust the DRC. • When the Cursor S button is pressed, the effect is greater, and when the Cursor T button is pressed, the effect is smaller. MOVE ENTER RETURN EXIT RETURN EXIT 5. Press the EXIT button to exit the setup screen. d Press the RETURN button to return to the previous level. • ORIGINAL : Select this to set the Samsung Logo image as your wallpaper. • USER : Select this to set the desired image as your wallpaper. d Press the EXIT button to exit the setup screen. CHANGE MOVE SELECT RETURN EXIT d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen. 44 02056B-HT-A100,A100C,A100W-GB.in44-45 44-45 45 2008-01-31 오후 4:18:14 radio SETTING THE AV SYNC LISTENING TO RADIO Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match the video. GB system setup Remote Control 1. In Stop mode, press the MENU button. 2. Press the Cursor ▼ button to move to Audio and then press the ENTER or ► button. 3. Press the Cursor ▼ button to move to AV-SYNC and then press the ENTER or ► button. MOVE ENTER RETURN 4. Press the Cursor S,T button to select the AV-SYNC Delay Time and then press the ENTER button. • You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status. EXIT d Press the RETURN button to return to the previous level. ● RADIO 1. Press the TUNER button to select the FM band. 2. Tune in to the desired station. • Automatic Tuning 1 : When the #,$ button is pressed, a preset broadcast station is selected. • Automatic Tuning 2 : Press and hold the ,,. button to automatically search for active broadcasting stations. • Manual Tuning : Briefly press the ,,. button to increase or decrease the frequency incrementally. d Press the EXIT button to exit the setup screen. MOVE SELECT RETURN EXIT Main Unit 1. Press the FUNCTION button to select the FM band. 2. Select a broadcast station. • Automatic Tuning 1 : Press the STOP () button to select PRESET and then press the #,$ button to select the preset station. • Automatic Tuning 2 : Press the STOP () button to select MANUAL and then press and hold the #,$ button to automatically search the band. • Manual Tuning : Press the STOP () button to select MANUAL and then briefly press the button to tune in to a lower or higher frequency. SETTING THE HDMI AUDIO The audio signals transmitted over the HDMI Cable can be toggled ON/OFF. 1. In Stop mode, press the MENU button. 2. Press the Cursor T button to move to Audio and then press the ENTER or ► button. 3. Press the Cursor T button to move to HDMI AUDIO and then press the ENTER or ► button. 4. Press the Cursor S,T button to select ON or OFF and then press the ENTER button. MOVE ENTER RETURN EXIT • ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only. • OFF : Video is transmitted over the HDMI connection cable only, and audio is output through the home theater speakers only. d Press the RETURN button to return to the previous level. d Press the EXIT button to exit the setup screen. M The default setting of this function is HDMI AUDIO OFF. HDMI AUDIO is automatically down-mixed to 2ch for TV speakers. Press the MO/ST button to listen in Mono/Stereo. (This applies only when listening to an FM station.) • Each time the button is pressed, the sound switches between STEREO and MONO. • In a poor reception area, select MONO for a clear, interference-free broadcast. PRESETTING STATIONS Example : Presetting FM 89.10 in the memory MOVE SELECT RETURN EXIT 1. Press the TUNER button to select the FM band. 2. Press the ,,. button to select 89.10. 3. Press the TUNER MEMORY button. • 01 flashes in the display. 4. Press the #,$ button to select preset number. • You can select between 1 and 15 presets. 5. Press the TUNER MEMORY button again. • Press the TUNER MEMORY button before Number disappears from the display. • Number disappears from the display and the station is stored in memory. 6. To preset another station, repeat steps 2 to 5. • To tune in to a preset station, press the #,$ button on the remote control to select a channel. M 46 02056B-HT-A100,A100C,A100W-GB.in46-47 46-47 This unit does not receive AM broadcasts. 47 2008-01-31 오후 4:18:17 SLEEP TIMER FUNCTION You can set the time that the Home Theater will shut itself off. GB convenient function V-SOUND (VIRTUAL SOUND) The 2-channel sounds can be listened with virtual effects for producing much more realistic sounds as in 5.1 channels. Press the V-SOUND button. • Each time the button is pressed, the selection changes as follows : V.SO ON V.SO OFF Press the SLEEP button. ● CONVENIENT FUNCTION • SLEEP will be displayed. Each time the button is pressed, the preset time changes as follows : 10 20 30 60 90 120 150 OFF To confirm the sleep timer setting, press the SLEEP button. • The remaining time before the Home Theater will shut itself off is displayed. • Pressing the button again changes the sleep time from what you have set earlier. To cancel the sleep timer, press the SLEEP button until OFF appears on the display. ADJUSTING DISPLAY BRIGHTNESS You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing. Press the DIMMER button. • Each time the button is pressed, the brightness of front display will be adjusted. MUTE FUNCTION This is useful when answering a doorbell or telephone call. Press the MUTE button. • MUTE appears in the display. • To restore the sound, press the MUTE button again. VIRTUAL HEADPHONE FUNCTION Use headphones (3.5Ø) (not supplied) for private listening pleasure. You can enjoy dynamic sound effects similar to that of 5.1 channel surround sound using conventional stereo headphones. 1. Plug the headphones into the headphone jack. • You can purchase headphones from most Electronics stores. 2. Press the V-H/P button. • Each time the button is pressed, the selection alternates between <V.HP> and <OFF>. • V.HP : Select to enjoy a 5.1-channel surround sound that gives the feeling of being in a baseball park or concert hall. • OFF : Select to listen to a standard 2-channel stereo sound. M P.BASS P.BASS function stresses low tones providing thudding sound effects. Do not listen at extremely high volume levels when using headphones. Extended, high-volume listening can lead to permanent hearing loss. 1. Press the P.BASS button to select P.BASS mode. 2. You can select the level of low tones you desire. M The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd and wma. Press P.BASS button and "POWER BASS ON" will be displayed on the screen. 48 02056B-HT-A100,A100C,A100W-GB.in48-49 48-49 49 2008-01-31 오후 4:18:22 SYMPTOM Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. SYMPTOM Playback does not start. • Is the power cord plugged securely into the outlet? • Turn off the power and then turn it back on. • Check the region number of the DVD. DVD discs purchased from abroad may not be playable. • CD-ROMs and DVD-ROMs cannot be played on this DVD player. • Make sure that the rating level is correct. Playback does not start immediately when the Play/Pause button is pressed. • Are you using a deformed disc or a disc with scratches on the surface? • Wipe the disc clean. Sound is not produced. • No sound is heard during fast playback, slow playback, and step motion playback. • Are the speakers connected properly? Is the speaker setup correctly customized? • Is the disc severely damaged? The remote control does not work. • Disc is rotating but no picture is produced. • Picture quality is poor and picture is shaking. • Is the TV power on? • Are the video cables connected properly? • Is the disc dirty or damaged? • A poorly manufactured disc may not be playable. Audio language and subtitles do not work. • Audio language and subtitles will not work if the disc does not contain them. Menu screen does not appear even when the menu function is selected. • Are you using a disc that does not contain menus? Aspect ratio cannot be changed. • You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function. • The main unit is not working. (Example: The power goes out or strange noise is heard.) • The DVD player is not working normally. • Turn off the power and hold the STOP () button on the remote control for longer than 5 seconds. The password for rating level has been forgotten. • Is the remote control being operated within its operation range of angle and distance? • Are the batteries exhausted? • Have you selected the mode(TV/DVD) functions of the remote control (TV or DVD) correctly? 02056B-HT-A100,A100C,A100W-GB.in50-51 50-51 Using the RESET function will erase all stored settings. Do not use this unless necessary. • While “NO DISC” message appears on the display of main unit, hold the main unit's STOP () button for longer than 5 seconds. “INITIAL” appears on the display and all settings will return to the default values. • Press the POWER button. Using the RESET function will erase all stored settings. Do not use this unless necessary. Can't receive radio broadcast. 50 ● TROUBLESHOOTING I cannot eject the disc. Check/Remedy Check/Remedy GB troubleshooting • Is the antenna connected properly? • If the antenna's input signal is weak, install an external FM antenna in an area with good reception. 51 2008-01-31 오후 4:18:24 appendix DIGITAL CAMERA CAUTIONS ON HANDLING AND STORING DISCS Company Finepix-A340 Finepix-F810 Finepix-F610 Finepix-f450 Finepix S7000 Finepix A310 KD-310Z Finecam SL300R Finecam SL400R Finecam S5R Finecam Xt Dimage-Z1 Dimage Z1 Dimage X21 Coolpix4200 Coolpix4300 Coolpix 2200 Coolpix 3500 Coolpix 3700 Coolpix 4100 Coolpix 5200 Stylus 410 digital 300-digital 300-digital Fuji Fuji Fuji Fuji Fuji Fuji Konica Kyocera Kyocera Kyocera Kyocera Minolta Minolta Minolta Nikon Nikon Nikon Nikon Nikon Nikon Nikon Olympus Olympus Olympus Type Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Product U300 X-350 C-760 C-5060 X1 U-mini Lumix-FZ20 DMC-FX7GD Lumix LC33 LUMIX DMC-F1 Optio-S40 Optio-S50 Optio 33LF Optio MX Digimax-420 Digimax-400 Sora PDR-T30 Coolpix 5900 Coolpix S1 Coolpix 7600 DMC-FX7 Dimage Xt AZ-1 Company Olympus Olympus Olympus Olympus Olympus Olympus Panasonic Panasonic Panasonic Panasonic Pentax Pentax Pentax Pentax Samsung Samsung Toshiba Nikon Nikon Nikon Panasonic Minolta Olympus Type Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera Digital Camera USB FLASH DISC Product Company Cruzer Micro Cruzer Mini Cruzer Mini SONY Micro Vault FLEX DRIVE AnyDrive Sandisk Sandisk Sandisk Sony Serotech A.L tech Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs ● APPENDIX Product GB USB host feature supported products Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc. Disc Storage Do not keep in direct sunlight M Keep in a cool ventilated area Keep in a clean Protection jacket. Store vertically. Do not allow the discs to become contaminated with dirt. Do not load cracked or scratched discs. Handling and Storing Discs Type USB 2.0 USB Flash Drive 128M USB 2.0 128M USB 2.0 256M USB 2.0 64MB USB 2.0 32MB USB 2.0 128MB Product XTICK Micro Mini iFlash LG RiDATA Company LG Iomega Imation XTICK(M) EZDrive Type USB 2.0 128M USB 2.0 128M USB 2.0 64M USB 2.0 64M USB 2.0 64M When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth. • When cleaning, wipe gently from the inside to the outside of the disc M Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on. MP3 PLAYER Product Creative MuVo NX128M Iriver H320 YH-920 YP-T7 YP-MT6 YP-T6 YP-53 YP-ST5 YP-T5 YP-60 Company Type Creative 128 MB MP3 Player Iriver 20G HDD MP3 Player Samsung 20G HDD MP3 Player Samsung MP3 Player Samsung MP3 Player Samsung MP3 Player Samsung MP3 Player Samsung MP3 Player Samsung MP3 Player Samsung MP3 Player 52 02056B-HT-A100,A100C,A100W-GB.in52-53 52-53 Product YP-780 YP-35 YP-55 iAUDIO U2 iAUDIO G3 iAudio M3 SI-M500L H10 YP-T5 VB YP-53 Company Type Samsung Samsung Samsung Cowon Cowon Cowon Sharp Iriver Samsung Samsung MP3 Player MP3 Player MP3 Player MP3 Player MP3 Player HDD MP3 Player 256MB MP3 Player MP3 Player MP3 Player 256MB MP3 Player 53 2008-01-31 오후 4:18:25 Contact SAMSUNG WORLD WIDE appendix If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region SPECIFICATIONS North America General Power Consumption Weight Dimensions Operating Temperature Range Operating Humidity Range DVD (Digital Versatile Disc) Disc CD : 12 cm (COMPACT DISC) CD : 8 cm (COMPACT DISC) Composite Video Video Output Component Video HDMI Amplifier Front speaker output Subwoofer speaker output Frequency range S/N Ratio Channel separation Input sensitivity Speaker system Speaker 55 W 4.0 kg 470(W) x 196(H) x 116(D) mm +5°C ~ +35°C 10 % to 75 % Reading Speed : 3.49 ~ 4.06 m/sec. Approx. Play Time (Single Sided, Single Layer Disc) : 135 min. Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 74 min. Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 20 min. 1.0 Vp-p (75 Ω load) Y : 1.0 Vp-p (75 load) Pr : 0.70 Vp-p (75 Ω load) Pb : 0.70 Vp-p (75 Ω load) Impedance: 85~115 Ω 100W x 2(3Ω) 100W(3Ω) 20Hz~20KHz 70dB 60dB (AUX)400mV 2.1ch speaker system Impedance Frequency range Output sound pressure level Rated input Maximum input Dimensions (W x H x D) Front : 108x246x218 mm Subwoofer : 180x389x396 mm Subwoofer 3Ω 35Hz~160Hz 86dB 100W 200W CIS Front : 1.1 kg Subwoofer : 6.4 kg *: Nominal specification - Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. Asia Pacific Middle East & Africa Customer Care Center Web Site www.samsung.com/ca www.samsung.com www.samsung.com www.samsung.com/ar www.samsung.com www.samsung.com/cl DENMARK FINLAND 1-800-SAMSUNG(726-7864) 01-800-SAMSUNG(726-7864) 1-800-SAMSUNG(726-7864) 0800-333-3733 0800-124-421 , 4004-0000 800-SAMSUNG(726-7864) 00-1800-5077267 800-7919267 0-800-507-7267 1-800-10-7267 800-6225 1-800-299-0013 1-800-234-7267 800-7267 1-800-682-3180 1-800-751-2676 1-800-SAMSUNG(726-7864) 0-800-100-5303 01-8000112112 0032 (0)2 201 24 18 844 000 844 Distributor pro Českou republiku: Samsung Zrt., česka organizační složka Vyskočilova 4, 14000 Praha 4 70 70 19 70 030-6227 515 FRANCE 3260 SAMSUNG (€ 0,15/Min), 08 25 08 65 65 (€ 0,15/Min) www.samsung.com GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL SLOVAKIA SPAIN SWEDEN U.K EIRE AUSTRIA SWITZERLAND RUSSIA KAZAHSTAN UZBEKISTAN KYRGYZSTAN TADJIKISTAN UKRAINE LITHUANIA LATVIA ESTONIA AUSTRALIA NEW ZEALAND CHINA HONG KONG INDIA INDONESIA JAPAN MALAYSIA PHILIPPINES SINGAPORE THAILAND TAIWAN VIETNAM TURKEY SOUTH AFRICA U.A.E 01805 - SAMSUNG(726-7864) (€ 0,14/Min) 06-80-SAMSUNG(726-7864) 800-SAMSUNG(726-7864) 0035 (0)2 261 03 710 0900-SAMSUNG(726-7864) (€ 0,10/Min) 815-56 480 0 801 801 881 , 022-607-93-33 80820-SAMSUNG(726-7864) 0800-SAMSUNG(726-7864) 902 10 11 30 0771-400 200 0845 SAMSUNG (7267864) 0818 717 100 0800-SAMSUNG(726-7864) 0800-SAMSUNG(726-7864) 8-800-555-55-55 8-10-800-500-55-500 8-10-800-500-55-500 00-800-500-55-500 8-10-800-500-55-500 8-800-502-0000 8-800-77777 800-7267 800-7267 1300 362 603 0800SAMSUNG(726-7864) 800-810-5858 , 010-6475 1880 3698-4698 3030 8282 , 1800 110011 0800-112-8888 0120-327-527 1800-88-9999 1800-10-SAMSUNG(726-7864) 1800-SAMSUNG(726-7864) 1800-29-3232 , 02-689-3232 0800-329-999 1 800 588 889 444 77 11 0860-SAMSUNG(726-7864 ) 800-SAMSUNG (726-7864), 8000-4726 www.samsung.com www.samsung.com www.samsung.com www.samsung.com/be www.samsung.com/nl www.samsung.com/no www.samsung.com/pl www.samsung.com/pt www.samsung.com/sk www.samsung.com www.samsung.com/se www.samsung.com www.samsung.com/ie www.samsung.com/at www.samsung.com/ch www.samsung.com www.samsung.kz www.samsung.uz CZECH REPUBLIC Europe Front 3Ω 135 Hz~20 KHz 86dB 100W 200W Weights Latin America Country CANADA MEXICO U.S.A ARGENTINE BRAZIL CHILE NICARAGUA HONDURAS COSTA RICA ECUADOR EL SALVADOR GUATEMALA JAMAICA PANAMA PUERTO RICO REP. DOMINICA TRINIDAD & TOBAGO VENEZUELA COLOMBIA BELGIUM www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com/latin www.samsung.com.co www.samsung.com/be www.samsung.com/cz www.samsung.com/dk www.samsung.com/fi www.samsung.com www.samsung.lt www.samsung.com/lv www.samsung.ee www.samsung.com www.samsung.com/nz www.samsung.com www.samsung.com/hk www.samsung.com www.samsung.com www.samsung.com/jp www.samsung.com/my www.samsung.com/ph www.samsung.com www.samsung.com www.samsung.com/tw www.samsung.com www.samsung.com www.samsung.com www.samsung.com 54 02056B-HT-A100,A100C,A100W-GB.in54-55 54-55 2008-01-31 오후 4:18:27 Before using the speaker cords 1 Pull the fixing tab of the Toroidal ferrite core to open it. 2 Roll the speaker cords. 3 Insert the Toroidal ferrite core as the figure shows and press it until it clicks. When operating the speaker cords, in order to comply with CE EMC Directives and to reduce any possible harmful interference, use the enveloped toroidal ferrite core as like upper diagram.
