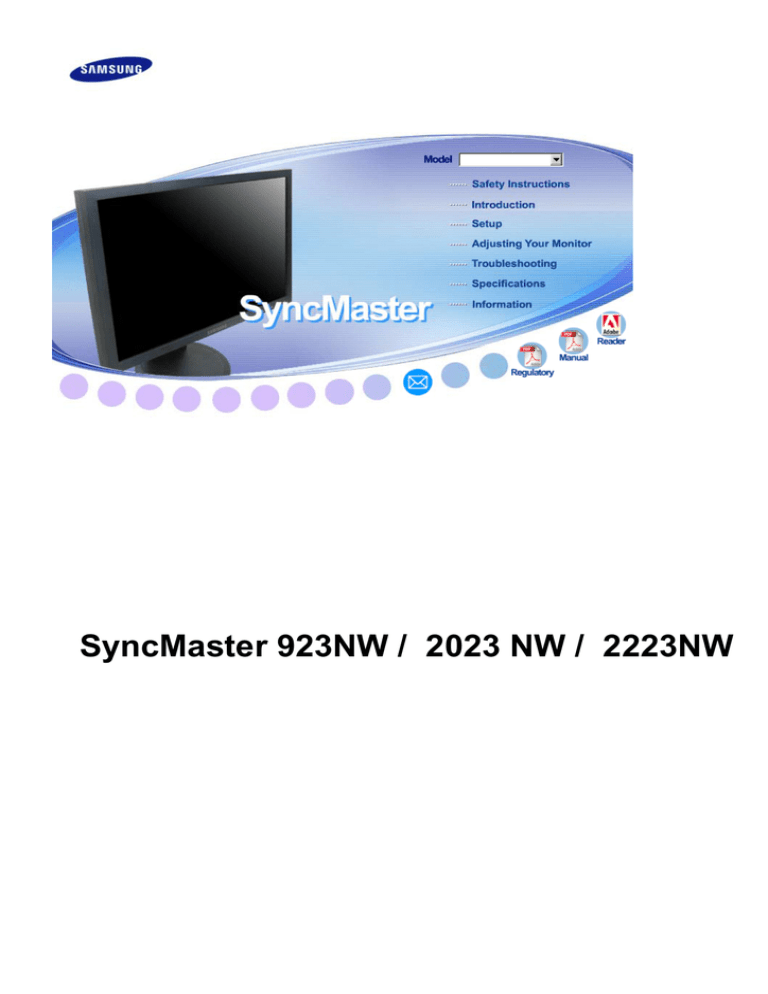

SyncMaster 923NW / 2023 NW / 2223NW
Notational
Otherwise, it may result in death or personal injury.
Otherwise, it may result in personal injury or property damage.
Prohibited
Important to read and understand at all times
Do not disassemble
Disconnect the plug from the outlet
Do not touch
Ground to prevent an electric shock
Power
When not used for extended period of time, set your computer to DPM.
If using screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases (or countries).
Do not use a damaged power cord or plug or a damaged or loose power outlet.
z
Otherwise, this may result in electric shock or fire.
Do not touch the power plug with wet hands when removing or plugging the
plug into the outlet.
z
Otherwise, this may result in electric shock.
Make sure to connect the power cord to a grounded power outlet.
z
Otherwise, it may result in electric shock or personal injury.
Ensure that the power plug is plugged into the power outlet firmly and
correctly.
z
Otherwise, this may result in fire.
Do not forcefully bend or pull the power plug and do not place any heavy
material on it.
z
Otherwise, this may result in fire.
Do not connect multiple appliances to the same power outlet.
z
Otherwise, this may cause fire due to overheating.
Do not disconnect the power cord while using the product.
z
Otherwise, this may result in damage to the product due to electric shock.
To disconnect the apparatus from the mains, the plug must be pulled out from the
mains socket, therefore the mains plug shall be readily operable.
z
This may cause electric shock or fire.
Use only the power cord provided by our company. Do not use the provided
power cord of another product.
z
Otherwise, this may result in fire or electric shock.
Installation
Be sure to contact an authorized Service Center when installing your monitor in a
location with heavy dust, high or low temperatures, high humidity, and exposed to
chemical substances and where it operates for 24 hours such as at airports, train
stations etc.
Failure to do so may cause serious damage to your monitor.
Do not drop the monitor when moving it.
z
This may cause damage to the product or the person carrying it.
Ensure that at least two persons lift and move the product.
z
Otherwise, it may be dropped and cause personal injury, and/or damage the
product.
When installing the product in a cabinet or rack, make sure that the front end
of the bottom of the product does not project out.
z
Otherwise, it may fall or cause personal injury.
z
Use a cabinet or rack of a size appropriate to the product.
DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIGARETTES AND ANY
HEATING APPLIANCES NEAR THE PRODUCT.
z
Otherwise, this may result in fire.
Keep heating appliances as far away from the power cord or the product as
possible.
z
Otherwise, this may result in electric shock or fire.
Do not install it in a badly ventilated location such as a bookcase or closet.
z
Otherwise, this may result in fire due to an increase in the internal temperature.
Put down the monitor carefully.
z
Failing to do so may damage the monitor.
Do not place the front of the product on the floor.
z
Otherwise, this may result in damage to the screen display.
Ensure that an authorized installation company installs the wall mount.
z
Otherwise, it may fall and cause personal injury.
z
Make sure to install the specified wall mount.
Install your product in a well ventilated location. Ensure that there is a
clearance of more than 10 cm from the wall.
z
Otherwise, it may result in fire due to an increase in the internal temperature.
Ensure that the packaging vinyl is kept away from children.
z
Otherwise, it may result in serious harm (suffocation) if children play with it.
If the height of your monitor is adjustable, do not place any object or part of
your body on the stand when lowering it.
z
This may cause damage to the product or the person carrying it.
Clean
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a
slightly moistened and soft fabric.
Do not spray cleaner directly onto the surface of the product.
z
Otherwise, this may result in the discoloration and distortion of the structure
and the screen surface may peel off.
Clean the product using a soft cloth with a monitor cleaner only. If you must
use a cleaner other than the monitor cleaner, dilute it with water at a ratio of
1:10.
When cleaning the power plug pins or dusting the power outlet, clean it with a
dry cloth.
z
Otherwise, it may result in fire.
When cleaning the product, make sure to disconnect the power cord.
z
Otherwise, it may result in electric shock or fire.
When cleaning the product, disconnect the power cord and clean it softly with
a dry cloth.
z
(Do not use chemicals such as wax, benzene, alcohol, thinner, mosquito
repellant, lubricant, or cleaner.) These may change the appearance of the
product surface and peel off the indication labels on the product.
Since the product housing is easily scratched, make sure to use the specified
cloth only.
z
Use the specified cloth adding only a little water. As the product may be
scratched if there is any foreign material on the cloth, make sure to shake it
thoroughly before using it.
When cleaning the product, do not spray water directly onto the main body of
the product.
z
Ensure that water does not enter the product and that it is not wet.
z
Otherwise, this may result in electric shock, fire or a malfunction.
Others
The product is a high voltage product. Ensure that users do not disassemble,
repair or modify the product themselves.
z
Otherwise, this may result in electric shock or fire. If the product needs to be
repaired, contact a Service Center.
If there is a strange smell or a strange sound or smoke is coming from the
product, disconnect the power plug immediately and contact a Service Center.
z
Otherwise, this may result in electric shock or fire.
Do not place this product in a location exposed to moisture, dust, smoke,
water, or in a car.
z
Otherwise, this may result in electric shock or fire.
When you drop the product or the case is broken, turn the power off and
disconnect the power cord. Contact a Service Center.
z
Otherwise, this may result in electric shock or fire.
If thunder or lightening is occurring, do not touch the power cord or antenna
cable.
z
Otherwise, this may result in electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal cable.
z
Otherwise, it may fall and result in electric shock, damage to the product or fire
due to damage to the cable.
Do not lift or move the product back and forwards or right and left while only
holding the power cord or signal cables.
z
Otherwise, it may fall and result in electric shock, damage to the product or fire
due to damage to the cable.
Make sure that the ventilating opening is not blocked by a table or curtain.
z
Otherwise, it may result in fire due to an increase in the internal temperature.
Do not place any containers containing water, vases, flowerpots, medicines as
well as any metal on the product.
z
z
If water or a foreign material enters the product, disconnect the power cord and
contact a Service Center.
This may result in a product malfunction, electric shock, or fire.
Do not use or keep combustible spray or flammable material near the product.
z
Otherwise, this may result in an explosion or fire.
Do not insert any metal, such as chopsticks, coins, pins and steels, or
inflammable objects, such as matches or paper, inside the product (through
the ventilating openings, input and output terminals, etc).
z
z
If water or foreign material enters the product, disconnect the power cord and
contact a Service Center.
Otherwise, this may result in electric shock or fire.
When using a fixed screen for a long time, an afterimage or stain may occur.
z
If you are not using your product for a long period of time, put it into sleep
mode or use a moving screen saver.
Set a resolution and frequency appropriate to the product.
z
Otherwise, your eyesight may be damaged.
If you continually move closer to the product screen, your eyesight may be
failing.
To ease eye strain, take at least a five-minute break after every hour of using
the monitor.
Do not install it in an unstable location such as an unstable rack or uneven
surface or a location exposed to vibrations.
z
z
Otherwise, it may fall and cause personal injury and/or damage the product.
If you use the product in a location exposed to vibrations, it may damage the
product and result in fire.
When moving the product, turn the power off and disconnect the power plug,
antenna cable, and all the cables connected to the product.
z
Otherwise, it may result in electric shock or fire.
Ensure that children do not hang onto the product or climb up onto the
product.
z
The product may fall and cause personal injury or death.
If you do not use the product for a long period of time, disconnect the power
cord from the power outlet.
z
Otherwise, this may result in overheating or fire due to dust, and may result in
fire due to electric shock or leakage.
Do not place any heavy items or toys or confectionery, such as cookies etc.
that may attract the attentions of children onto the product.
z
Your children may hang onto the product causing it to fall and this may result in
personal injury or death.
Do not turn the product upside down or move it while holding only the stand.
z
Otherwise, it may fall and result in personal injury and/or damage to the
product.
Do not place the product in a location exposed to direct sunlight or near any
heat such as a fire or heater.
z
This may reduce the lifetime of the product, and may result in fire.
Do not drop any objects onto the product or cause any impact to the product.
z
Otherwise, this may result in electric shock or fire.
Do not use a humidifier or kitchen table near the product.
z
Otherwise, this may result in electric shock or fire.
When there is a gas leak, do not touch the product or the power plug but
ventilate immediately.
z
If a spark occurs, it may cause an explosion or fire.
If the product has been turned on for a long time, the display panel becomes
hot. Do not touch it.
z
Keep the small accessories in a location out of the reach of children.
Be careful when adjusting the angle of the product or the height of the stand.
z
This may result in personal injury as your hand or fingers may become caught.
z
Also, if you tilt the product too far, it may fall and cause personal injury.
Do not install the product in a location low enough for children to reach.
z
z
Otherwise, it may fall and result in personal injury.
Since the front part of the product is heavy, install the product on a level and
stable surface.
Do not put any heavy objects on the product.
z
This may result in personal injury and/or damage to the product.
Good Postures When Using the Monitor
When using the product, use it in the correct position.
z
z
Keep your back straight while looking at the product.
The distance between your eyes and the screen should be between
45 to 50 cm. Look at the screen from a slightly higher location than
the height of the screen.
z
When using the product, use it in the correct position.
z
Adjust the angle so that light is not reflected on the screen.
z
z
z
Place your arms perpendicular to your sides and allow your arms to
be level with the back of the hand.
Keep your elbow at 90 degrees.
Keep your knees at greater than 90 degrees, and keep your heels
firmly on the floor. Keep your arms lower than your heart.
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Without stand
Monitor
With stand
Monitor & Simple Stand
Bottom
Manual
Quick Setup Guide
Warranty Card/
Registration Card
(Not available in all
User's Guide,
Monitor Driver
locations)
Cable
D-sub Cable
Power Cord
Front
MENU button [ ]
Opens the OSD menu. Also use to exit the OSD menu or return to
the previous menu.
Customized Key
[ ]
You can customize key assignment for the Custom button
according to your preferences.
You can configure the customized key for a required
function via Setup > Customized Key.
Brightness button
[ ]
Adjust buttons [
When OSD is not on the screen, push the button to adjust
brightness.
] Adjust items in the menu.
Enter button [ ]
Activates a highlighted menu item.
AUTO button
Use this button for auto adjustment.
Power button [ ]/
Power indicator
Use this button for turning the monitor on and off./
This light glows blue during normal operation, and blinks blue once
as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear
Simple stand
(The configuration at the back of the monitor may vary from product to product.)
POWER port
RGB IN port
Kensington Lock
Connect the power cord for your monitor to the power port on the back
of the monitor.
Connect the signal cable to the 15-pin, D-sub port on the back of your
monitor.
The Kensington lock is a device used to physically fix the system
when using it in a public place. (The locking device has to be
purchased separately. )
For using a locking device, contact where you purchase it.
See Connecting the Monitor for further information regarding cable connections.
Connecting the Monitor
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use appropriate connection for your computer.
Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[ RGB IN ]
Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-sub connection cable.
If the monitor and the computer are connected, you can turn them on and use them.
Using the Stand
Monitor Assembly
Monitor and Bottom
Attaching a Base
This monitor accepts a 75.0 mm x 75.0 mm VESA-compliant mounting interface pad.
Simple stand
Monitor
Mounting interface pad (Sold separately)
1.
2.
3.
4.
Turn off your monitor and unplug its power cord.
Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
Remove four screws and then remove the stand from the LCD monitor.
Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it with four
screws that came with the arm-type base, wall mount hanger or other base.
z
z
z
z
z
z
Do not use screws longer than the standard dimension, as they may damage the inside of the
Monitor.
For wall mounts that do not comply with VESA standard screw specifications, the length of the
screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
Do not fasten the screws too tightly, as this may damage the product or cause the product to
fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified
wall mount is used or the consumer fails to follow the product installation instructions.
To mount the monitor on a wall, you should purchase the wall mounting kit that allows you to
mount the monitor at least 10cm away from the wall surface.
Contact the nearest Samsung Service Center for more information. Samsung Electronics will
z
not be responsible for damages caused by using a base other than those specified.
Please use Wall Mount according to the International standards.
Installing the Monitor Driver (Automatic)
When prompted by the operating system for the monitor driver, insert the CD-ROM included
with this monitor. Driver installation is slightly different from one operating system to
another. Follow the directions appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown below.
z
Internet web site :
http://www.samsung.com/ (Worldwide)
http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
1. Insert CD into the CD-ROM drive.
2. Click "Windows"
3. Choose your monitor model in the model list, then click the "OK" button.
4. If you can see following message window, then click the "Continue Anyway" button. Then
click "OK" button. (Microsoft® Windows® XP Operating System)
This monitor driver is under certifying MS logo,and this installation don't damage
your system.The certified driver will be posted on Samsung Monitor homepage
http://www.samsung.com/
5. Monitor driver installation is completed.
Installing the Monitor Driver (Manual)
Windows Vista | Windows XP | Windows 2000 | Windows ME | Windows NT | Linux
When prompted by the operating system for the monitor driver, insert the CD-ROM included
with this monitor. Driver installation is slightly different from one operating system to
another. Follow the directions appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown below.
z
Internet web site :
http://www.samsung.com/ (Worldwide)
http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft® Windows Vista™ Operating System
1. Insert your Manual CD into your CD-ROM drive.
2. Click
(Start) and "Control Panel". Then, double-click on "Appearance and Personalization".
3. Click "Personalization" and then "Display Settings".
4. Click "Advanced Settings…".
5. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the
configuration for your monitor is completed. The monitor can be used as is.
If the message “Windows needs…” is displayed, as shown in the figure below,
click "Continue".
This monitor driver is under certifying MS logo, and this installation doesn't damage
your system.
The certified driver will be posted on Samsung Monitor homepage
http://www.samsung.com/
6. Click "Update Driver…" in the "Driver" tab.
7. Check the "Browse my computer for driver software" checkbox and click "Let me pick from a
list of device drivers on my computer".
8. Click "Have Disk…" and select the folder (for example, D:\Drive) where the driver setup file is
located, and click "OK".
9. Select the model that matches your monitor from the list of monitor models on the screen, and
click "Next".
10. Click "Close"→ "Close" → "OK" → "OK" on the following screens displayed in sequence.
Microsoft® Windows® XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list
and click the "Next" button.
8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click
"OK" button.
This monitor driver is under certified MS logo,and this installation doesn't damage your system.The
certified driver will be posted on Samsung Monitor homepage.
http://www.samsung.com/
9. Click the "Close" button then click "OK" button continually.
10. Monitor driver installation is completed.
Microsoft® Windows® 2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Click "Start" , "Setting" , "Control Panel".
Double click the "Display" Icon.
Choose the "Settings" tab and then click "Advanced..".
Choose "Monitor".
Case1: If the "Properties" button is inactive, it means your monitor is properly configured. Please
stop installation
Case2: If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
Click "Driver" and then click on "Update Driver.." then click on the "Next" button.
Choose "Display a list of the known drivers for this device so that I can choose a specific
driver" then click "Next" and then click "Have disk".
Click the "Browse" button then choose A:(D:\Driver).
Click the "Open" button, then click "OK" button.
Choose your monitor model and click the "Next" button then click "Next" button.
Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes"button. And click
the "Finish" button then the "Close" button.
Microsoft® Windows® Millennium Operating System
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Click "Start" , "Setting" , "Control Panel".
Double click "Display" icon.
Select the "Settings" tab and click "Advanced Properties" button.
Select the "Monitor" tab.
Click the "Change" button in the "Monitor Type" area.
Choose "Specify the location of the driver".
Choose "Display a list of all the driver in a specific location.." then click "Next" button.
Click the "Have Disk" button
Specify A:\(D:\driver) then click "OK" button.
Select "Show all devices" and choose the monitor that corresponds to the one you connected to
your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue
box.
Microsoft® Windows® NT Operating System
1. Click Start, Settings, Control Panel, and then double-click Display icon.
2. In Display Registration Information window, click Settings Tab and then click All Display Modes.
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then
click OK.
4. Click Apply button if you see the screen working normally after clicking Test. If the screen is not
normal, change to a different mode (lower mode of resolution, colors or frequency).
If there is no Mode at All Display Modes, select the level of resolution and vertical frequency
by referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Press Enter at the first and the second screen after executing the X86Config file.
The third screen is for setting your mouse.
Set a mouse for your computer.
The next screen is for selecting a keyboard.
Set a Keyboard for your computer.
The next screen is for setting your monitor.
First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.)
Set a vertical frequency for your monitor. (You can enter the frequency directly.)
Enter the model name of your monitor. This information will not affect the actual execution of XWindow.
10. You have finished setting up your monitor.
Execute X-Window after setting other requested hardware.
1. [
]Use this button to open the on-screen menu and exit from the menu screen or close screen
adjustment menu.
2. [
]This button allows you to adjust items in the menu.
3. [ ]Press this button to activate a highlighted menu item.
4. [AUTO]Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are
adjusted automatically.
AUTO
Menu
Description
When the 'AUTO' button is pressed, the Auto Adjustment screen appears
as shown in the animated screen on the center.
Auto adjustment allows the monitor to self-adjust to the incoming video
signal. The values of fine, coarse and position are adjusted automatically.
(Available in analog mode only)
AUTO
- If auto adjustment does not work properly, press AUTO button again to
adjust picture with more accuracy.
- If you change resolution in the control panel, auto function will be
executed automatically.
Locked
Menu
Description
Locked
After pushing the "MENU" button more than 5 seconds, OSD function is
locked (unlocked).
You can adjust only the brightness and contrast of the
monitor with the OSD adjustment locking feature.
Customized key
Menu
Description
You can customize key assignment for the Custom button according to
your preferences.
Customized key
To view the operating screen displayed when pressing the [
] button
after configuring the customized key for a function, click the name of each
function.
( Image Size - MagicBright - MagicColor - Color Effect )
You can configure the customized key for a required
function via Setup >Customized Key
Brightness
Menu
Description
When OSD is not on the screen, push the button to adjust brightness.
Brightness
Brightness
Contrast
MagicBright
Color
MagicColor
Color Tone
Color Control
Color Effect
Gamma
Coarse
Fine
Sharpness
H-Position
V-Position
OSD
Language
H-Position
V-Position
Transparency
Display Time
Setup
Reset
Customized
Key
Off Timer
Image Size
Information
Menu
Description
You can use the on-screen menus to change the
brightness according to personal preference.
Brightness
Direct Access Feature : When OSD is not on the screen,
push the [
] button to adjust brightness.
[MENU →
Contrast
→
→ ,
→ MENU]
You can use the on-screen menus to change the contrast
according to personal preference.
[MENU →
→ ,
→
→ ,
→ MENU]
Push the
button to circle through available
preconfigured modes.
MagicBright is a new feature providing optimum viewing
environment depending on the contents of the image you
are watching. Currently seven different modes are
available: Custom, Text, Internet, Game, Sport, Movie and
Dynamic Contrast. Each mode has its own pre-configured
brightness value. You can easily select one of seven
settings by simply pressing Customized Key control
button.
MagicBright
1) Custom - Although the values are carefully chosen by
our engineers, the pre-configured values may not be
comfortable to your eyes depending on your taste.
If this is the case, adjust the brightness and contrast by
using the OSD menu.
2) Text - For documentations or works involving heavy
text.
3) Internet - For working with a mixture of images such as
texts and graphics.
4) Game - For watching motion pictures such as a game.
5) Sport - For watching motion pictures such as a sport.
6) Movie - For watching motion pictures such as a DVD
or Video CD.
[MENU →
→ ,
→
→ ,
→ MENU]
Play/Stop
Color
Menu
Description
Play/Stop
MagicColor is a new technology that Samsung has
exclusively developed to improve digital image and to
display natural color more clearly without disturbing image
quality.
MagicColor
1) Off - Returns to the original mode.
2) Demo - The screen before applying MagicColor
appears on the right and the screen after applying
MagicColor appears on the left.
3) Full - Displays not only vivid natural color but also
more realistic natural skin color with clearness.
4) Intelligent - Displays vivid natural color with clearness.
[MENU → ,
Color Tone
→
→ ,
→
→ MENU]
The tone of the color can be changed and one of four
modes can be selected - Cool, Normal, Warm and
Custom.
- Makes whites bluish.
Cool
Normal - Keeps whites white.
Warm - Makes whites reddish.
Custom - Select this mode when you want to adjust
the image according to your preferences.
[MENU → ,
Color Control
→
→
→ ,
→
→ ,
→ MENU]
Adjusts individual R,G,B color balance.
[MENU → ,
→
→ ,
→
→ ,
→
→ ,
→ MENU]
You can change the overall mood by changing the screen
colors.
This applies an achromatic color to the
screen to adjust the screen effects.
The default colors of black and white are
Grayscale displayed.
This applies the green color effect to a
Green
black and white screen.
- Select this mode when you want to adjust
Aqua
the image according to your preferences.
Off
Color Effect
-
Sepia
- This applies the Sepia color effect to a
black and white screen.
[MENU → ,
→
→ ,
→
→ ,
→ MENU]
Gamma correction changes the luminance of the colors
with intermediate luminance.
Gamma
z
z
z
Mode 1
Mode 2
Mode 3
[MENU → ,
→
→ ,
→
→ ,
→ MENU]
Menu
Coarse
Description
Removes noise such as vertical stripes. Coarse
adjustment may move the screen image area. You may
relocate it to the center using the horizontal control menu.
(Available in analog mode only)
[MENU → ,
Fine
→ ,
→ MENU]
→
→ ,
→
→ ,
→ MENU]
Changes the clearance of image.
[MENU → ,
H-Position
→
Removes noise such as horizontal stripes. If the noise
persists even after fine tuning, repeat it after adjusting the
frequency (clock speed).
(Available in analog mode only)
[MENU → ,
Sharpness
→
→
→ ,
→
→ ,
→ MENU]
Changes the horizontal position of the monitor's entire
display.
(Available in analog mode only)
[MENU → ,
→
→ ,
→
→ ,
→ MENU]
Changes the vertical position of the monitor's entire
display.
Play/Stop
V-Position
(Available in analog mode only)
[MENU → ,
→
→ ,
→
→ ,
→ MENU]
OSD
Menu
Description
You can choose one of 9 languages.
Language
Note:The language chosen affects only the language of
the OSD. It has no effect on any software running on the
computer.
[MENU → ,
H-Position
→ MENU]
→
→ ,
→
→ ,
→ MENU]
→
→ ,
→
→ ,
→ MENU]
Change the transparency of the background of the OSD.
[MENU → ,
Display Time
→ ,
You can change the vertical position where the OSD menu
appears on your monitor.
[MENU → ,
Transparency
→
You can change the horizontal position where the OSD
menu appears on your monitor.
[MENU → ,
V-Position
→
→
→ ,
→
→ ,
→ MENU]
The menu will be automatically turned off if no adjustments
are made for a certain time period.
You can set the amount of time the menu will wait before it
is turned off.
[MENU → ,
→
→ ,
→
→ ,
→ MENU]
Play/Stop
Setup
Menu
Description
Play/Stop
Reverts the product settings to factory defaults.
Reset
z
No
[MENU → ,
Customized Key
z
→
Yes
→
→ ,
→ MENU]
You can specify a function which will be activated when
the Customized Key( ) is pressed.
[MENU → ,
→
→ ,
→
→ ,
→ MENU]
The monitors will turn off automatically at the specified
time.
Off Timer
z
Off
[MENU → ,
z
→
On
→ ,
→
→ ,
→
→ ,
→ MENU]
You can change the size of the screen displayed on your
monitor.
z
z
Image Size
Auto - The screen is displayed in accordance with
the screen aspect ratio of the input signals.
Wide - A full screen is displayed regardless of the
screen aspect ratio of the input signals.
z
z
[MENU → ,
Information
→
Signals not available in the standard
mode table are not supported.
If the wide screen which is the optimal
resolution for the monitor is set on your
PC, this function is not performed.
→ ,
→
→ ,
→ MENU]
Menu
Information
Description
Shows a video source, display mode on the OSD screen.
[MENU → ,
→ MENU]
Model
SyncMaster 923NW
Check List
Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the
Information section or contact your dealer.
Symptom
No images on the
screen. I cannot turn
on the monitor.
Check List
Solutions
Is the power cord connected
properly?
Check the power cord connection
and supply.
Can you see "Check Signal Cable"
on the screen?
(Connected using the D-sub
cable)
Check the signal cable connection.
If the power is on, reboot the
computer to see the initial screen
(the login screen), which can be
seen.
If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)
Note: If the initial screen (the login
screen) does not appear, contact
the Service Center or your dealer.
Can you see "Not Optimum
Mode","Recommended Mode
1440 X 900 60 Hz" on the screen?
You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
handle properly.
Adjust the maximum resolution and
frequency that the monitor can
handle properly.
There is no image on the screen.
The monitor is in PowerSaver mode.
Is the power indicator on the monitor
blinking at 1 second intervals?
press a key on the keyboard to
activate the monitor and restore the
image on the screen.
I cannot see the On
Screen Display.
Have you locked the On Screen
Display (OSD) Menu to prevent
changes?
Unlock the OSD by pressing the
MENU button for at least 5 seconds.
The screen shows
strange colors or just
black and white.
Is the screen displaying only one
color as if looking at the screen
through a cellophane paper?
Check the signal cable
connection.Make sure the video
card is fully inserted in it's slot.
The screen suddenly
has become
unbalanced.
Have the screen colors become
strange after running a program or
due to a crash between
applications?
Reboot the computer.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
Have you changed the video card or
the driver?
Adjust screen image position and
size using the OSD.
Have you adjusted the resolution or
frequency to the monitor?
Adjust the resolution and frequency
at the video card.
(Refer to the Preset Timing Modes).
The screen can be unbalanced due to the cycle of the video card signals.
Readjust Position by referring to the OSD.
The screen is out of
focus or OSD cannot
be adjusted.
Have you adjusted the resolution or
frequency on the monitor?
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
LED is blinking but no
images on the screen.
Is the frequency properly adjusted
when checking the Display Timing
on the menu?
Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.
(The maximum frequency per
resolution may differ from product to
product.)
There are only 16
colors shown on the
screen.
The screen colors
have changed after
changing the video
card.
Have the Windows colors been set
properly?
Windows ME/2000/XP:
Set the colors properly at the
Control Panel → Display →
Settings.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".
Have you installed the monitor
driver?
Install the monitor driver according
to the Driver Installation Instructions.
See the video card manual to see if
the Plug & Play (VESA DDC)
function can be supported.
Install the monitor driver according
to the Driver Installation Instructions.
Check the following items if there is trouble with the monitor.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 56 Hz ~ 60 Hz.
(Do not exceed 60 Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "Control Panel → System → Device Administrator" and
then reboot the computer to reinstall the adapter (video) driver.
If problems repeatedly occur, contact an authorized service center.
Q&A
Question
How can I change the
frequency?
Answer
Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)
How can I adjust the resolution?
Windows ME/XP/2000 : Set the resolution at the Control
Panel→Display→Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).
How can I clean the outer
case/LCD Panel?
Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.
Self-Test Feature Check
Self-Test Feature Check | Warning Messages | Environment | Useful Tips
Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or
damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, a message appears on the screen or the
screen goes blank although the power indicator LED is still on. The message may indicate
that the monitor is out of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other
features of the monitor.
1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.
Useful Tips
z
z
A monitor recreates visual signals received from the computer. Therefore, if there is trouble with
the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, Video mode not supported, etc. In this case, first check the source of the problem, and
then contact the Service Center or your dealer.
Judging the monitor's working condition
If there is no image on the screen or a "Not Optimum Mode","Recommended Mode 1440 X
900 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still
powered on.
{ If there is a message coming up on the screen or if the screen goes white, this means the
monitor is in working condition.
{ In this case, check the computer for trouble.
Model
SyncMaster 2023NW
Check List
Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the
Information section or contact your dealer.
Symptom
No images on the
screen. I cannot turn
on the monitor.
Check List
Solutions
Is the power cord connected
properly?
Check the power cord connection
and supply.
Can you see "Check Signal Cable"
on the screen?
(Connected using the D-sub
cable)
Check the signal cable connection.
If the power is on, reboot the
computer to see the initial screen
(the login screen), which can be
seen.
If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)
Note: If the initial screen (the login
screen) does not appear, contact
the Service Center or your dealer.
Can you see "Not Optimum
Mode","Recommended Mode
1680 X 1050 60 Hz" on the screen?
You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
handle properly.
Adjust the maximum resolution and
frequency that the monitor can
handle properly.
There is no image on the screen.
The monitor is in PowerSaver mode.
Is the power indicator on the monitor
blinking at 1 second intervals?
press a key on the keyboard to
activate the monitor and restore the
image on the screen.
I cannot see the On
Screen Display.
Have you locked the On Screen
Display (OSD) Menu to prevent
changes?
Unlock the OSD by pressing the
MENU button for at least 5 seconds.
The screen shows
strange colors or just
black and white.
Is the screen displaying only one
color as if looking at the screen
through a cellophane paper?
Check the signal cable
connection.Make sure the video
card is fully inserted in it's slot.
The screen suddenly
has become
unbalanced.
Have the screen colors become
strange after running a program or
due to a crash between
applications?
Reboot the computer.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
Have you changed the video card or
the driver?
Adjust screen image position and
size using the OSD.
Have you adjusted the resolution or
frequency to the monitor?
Adjust the resolution and frequency
at the video card.
(Refer to the Preset Timing Modes).
The screen can be unbalanced due to the cycle of the video card signals.
Readjust Position by referring to the OSD.
The screen is out of
focus or OSD cannot
be adjusted.
Have you adjusted the resolution or
frequency on the monitor?
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
LED is blinking but no
images on the screen.
Is the frequency properly adjusted
when checking the Display Timing
on the menu?
Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.
(The maximum frequency per
resolution may differ from product to
product.)
There are only 16
colors shown on the
screen.
The screen colors
have changed after
changing the video
card.
Have the Windows colors been set
properly?
Windows ME/2000/XP:
Set the colors properly at the
Control Panel → Display →
Settings.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".
Have you installed the monitor
driver?
Install the monitor driver according
to the Driver Installation Instructions.
See the video card manual to see if
the Plug & Play (VESA DDC)
function can be supported.
Install the monitor driver according
to the Driver Installation Instructions.
Check the following items if there is trouble with the monitor.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 56 Hz ~ 60 Hz.
(Do not exceed 60 Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "Control Panel → System → Device Administrator" and
then reboot the computer to reinstall the adapter (video) driver.
If problems repeatedly occur, contact an authorized service center.
Q&A
Question
How can I change the
frequency?
Answer
Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)
How can I adjust the resolution?
Windows ME/XP/2000 : Set the resolution at the Control
Panel→Display→Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).
How can I clean the outer
case/LCD Panel?
Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.
Self-Test Feature Check
Self-Test Feature Check | Warning Messages | Environment | Useful Tips
Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or
damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, a message appears on the screen or the
screen goes blank although the power indicator LED is still on. The message may indicate
that the monitor is out of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other
features of the monitor.
1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.
Useful Tips
z
z
A monitor recreates visual signals received from the computer. Therefore, if there is trouble with
the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, Video mode not supported, etc. In this case, first check the source of the problem, and
then contact the Service Center or your dealer.
Judging the monitor's working condition
If there is no image on the screen or a "Not Optimum Mode","Recommended Mode 1680 X
1050 60 Hz" message comes up, disconnect the cable from the computer while the monitor is
still powered on.
{ If there is a message coming up on the screen or if the screen goes white, this means the
monitor is in working condition.
{ In this case, check the computer for trouble.
Model
SyncMaster 2223NW
Check List
Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the
Information section or contact your dealer.
Symptom
No images on the
screen. I cannot turn
on the monitor.
Check List
Solutions
Is the power cord connected
properly?
Check the power cord connection
and supply.
Can you see "Check Signal Cable"
on the screen?
(Connected using the D-sub
cable)
Check the signal cable connection.
If the power is on, reboot the
computer to see the initial screen
(the login screen), which can be
seen.
If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to the Preset Timing Modes)
Note: If the initial screen (the login
screen) does not appear, contact
the Service Center or your dealer.
Can you see "Not Optimum
Mode","Recommended Mode
1680 X 1050 60 Hz" on the screen?
You can see this message when the
signal from the video card exceeds
the maximum resolution and
frequency that the monitor can
handle properly.
Adjust the maximum resolution and
frequency that the monitor can
handle properly.
There is no image on the screen.
The monitor is in PowerSaver mode.
Is the power indicator on the monitor
blinking at 1 second intervals?
press a key on the keyboard to
activate the monitor and restore the
image on the screen.
I cannot see the On
Screen Display.
Have you locked the On Screen
Display (OSD) Menu to prevent
changes?
Unlock the OSD by pressing the
MENU button for at least 5 seconds.
The screen shows
strange colors or just
black and white.
Is the screen displaying only one
color as if looking at the screen
through a cellophane paper?
Check the signal cable
connection.Make sure the video
card is fully inserted in it's slot.
The screen suddenly
has become
unbalanced.
Have the screen colors become
strange after running a program or
due to a crash between
applications?
Reboot the computer.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
Have you changed the video card or
the driver?
Adjust screen image position and
size using the OSD.
Have you adjusted the resolution or
frequency to the monitor?
Adjust the resolution and frequency
at the video card.
(Refer to the Preset Timing Modes).
The screen can be unbalanced due to the cycle of the video card signals.
Readjust Position by referring to the OSD.
The screen is out of
focus or OSD cannot
be adjusted.
Have you adjusted the resolution or
frequency on the monitor?
Adjust the resolution and frequency
of the video card.
(Refer to the Preset Timing Modes).
LED is blinking but no
images on the screen.
Is the frequency properly adjusted
when checking the Display Timing
on the menu?
Adjust the frequency properly by
referring to the video card manual
and the Preset Timing Modes.
(The maximum frequency per
resolution may differ from product to
product.)
There are only 16
colors shown on the
screen.
The screen colors
have changed after
changing the video
card.
Have the Windows colors been set
properly?
Windows ME/2000/XP:
Set the colors properly at the
Control Panel → Display →
Settings.
Has the video card been set
properly?
Set the video card by referring to the
video card manual.
There is a message
that reads
"Unrecognized
monitor, Plug & Play
(VESA DDC) monitor
found".
Have you installed the monitor
driver?
Install the monitor driver according
to the Driver Installation Instructions.
See the video card manual to see if
the Plug & Play (VESA DDC)
function can be supported.
Install the monitor driver according
to the Driver Installation Instructions.
Check the following items if there is trouble with the monitor.
1. Check if the power cord and the video cables are properly connected to the computer.
2. Check if the computer beeps more than 3 times when booting.
(If it does, request an after-service for the main board of the computer.)
3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver and the monitor driver.
4. Check if the scanning ratio of the video screen is set at 56 Hz ~ 60 Hz.
(Do not exceed 60 Hz when using the maximum resolution.)
5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "Control Panel → System → Device Administrator" and
then reboot the computer to reinstall the adapter (video) driver.
If problems repeatedly occur, contact an authorized service center.
Q&A
Question
How can I change the
frequency?
Answer
Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)
How can I adjust the resolution?
Windows ME/XP/2000 : Set the resolution at the Control
Panel→Display→Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).
How can I clean the outer
case/LCD Panel?
Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the case.
Do not allow any water to go inside the monitor.
Self-Test Feature Check
Self-Test Feature Check | Warning Messages | Environment | Useful Tips
Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or
damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, a message appears on the screen or the
screen goes blank although the power indicator LED is still on. The message may indicate
that the monitor is out of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other
features of the monitor.
1. If there are any sub woofer speakers near the monitor, unplug and relocate the woofer
to another room.
2. Remove all electronic devices such as radios, fans, clocks and telephones that are
within 3 feet (one meter) of the monitor.
Useful Tips
z
z
A monitor recreates visual signals received from the computer. Therefore, if there is trouble with
the computer or the video card, this can cause the monitor to become blank, have poor coloring,
noise, Video mode not supported, etc. In this case, first check the source of the problem, and
then contact the Service Center or your dealer.
Judging the monitor's working condition
If there is no image on the screen or a "Not Optimum Mode","Recommended Mode 1680 X
1050 60 Hz" message comes up, disconnect the cable from the computer while the monitor is
still powered on.
{ If there is a message coming up on the screen or if the screen goes white, this means the
monitor is in working condition.
{ In this case, check the computer for trouble.
Model
General
General
Model Name
SyncMaster 923NW
LCD Panel
Size
19 inch(48 cm)
Display area
408.24 mm (H) x 255.15 mm (V)
Pixel Pitch
0.2835mm (H) x 0.2835 mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56~75Hz
Display Color
16.7M
Resolution
Optimum resolution
1440 x [email protected]
Maximum resolution
1440 x [email protected]
Input Signal, Terminated
RGB Analog
0.7 Vp-p ± 5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
137MHz
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin - to - 15pin D-sub cable, Detachable
Dimensions (WxHxD)/ (Without Stand)
439 x 289 x 65.5 mm(Without Stand)
SyncMaster 923NW
Dimensions (WxHxD)/ Weight (With Stand)
439 x 360.2 x 199.9 mm (With Stand)/ 3.7 kg
VESA Mounting Interface
75 mm x 75 mm
Environmental considerations
Operating
Temperature : 10°C ~ 40°C (50°F ~ 104°F)
Humidity : 10% ~ 80%, non-condensing
Storage
Temperature : -20°C ~ 45°C (-4°F ~ 113°F)
Humidity : 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.
z For example, the number of TFT LCD sub pixels that is contained in this product are 3,888,000.
Note: Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
Power off
(Power button OFF)
EPA/ENERGY 2000
Power Indicator
Blue
Blue Blinking
Off
Power Consumption
36 W
Less than 1 W
Less than 1 W
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31,469
70,086
25,175
+/-
IBM, 640 x 480
31,469
59,940
25,175
-/-
IBM, 720 x 400
31,469
70,087
28,322
-/+
MAC, 640 x 480
35,000
66,667
30,240
-/-
MAC, 832 x 624
49,726
74,551
57,284
-/-
MAC, 1152 x 870
68,681
75,062
100,000
-/-
VESA, 640 x 480
37,500
75,000
31,500
-/-
VESA, 640 x 480
37,861
72,809
31,500
-/-
VESA, 800 x 600
35,156
56,250
36,000
+/+
VESA, 800 x 600
37,879
60,317
40,000
+/+
VESA, 800 x 600
46,875
75,000
49,500
+/+
VESA, 800 x 600
48,077
72,188
50,000
+/+
VESA, 1024 x 768
48,363
60,004
65,000
-/-
VESA, 1024 x 768
56,476
70,069
75,000
-/-
VESA, 1024 x 768
60,023
75,029
78,750
+/+
VESA, 1152 x 864
67,500
75,000
108,000
+/+
VESA, 1280 x 960
60,000
60,000
108,000
+/+
VESA, 1280 x 1024
63,891
60,020
108,000
+/+
VESA, 1280 x 1024
79,976
75,025
135,00
+/+
VESA, 1440 x 900
55,935
59,887
106,500
-/+
VESA, 1440 x 900
70,635
74,984
136,750
-/+
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz
Model
General
General
Model Name
SyncMaster 2023NW
LCD Panel
Size
20inch (51 cm)
Display area
433.44mm (H) x 270.9mm (V)
Pixel Pitch
0.258 mm (H) x 0.258mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56~75Hz
Display Color
16.7M
Resolution
Optimum resolution
1680 x [email protected]
Maximum resolution
1680 x [email protected]
Input Signal, Terminated
RGB Analog
0.7 Vp-p ± 5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
146MHz
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin - to - 15pin D-sub cable, Detachable
Dimensions (WxHxD)/ (Without Stand)
471.4 x 307.9 x 69.5 mm(Without Stand)
SyncMaster 2023NW
Dimensions (WxHxD)/ Weight (With Stand)
471.4 x 391.1 x 217.3 mm (With Stand) / 3.8 kg
VESA Mounting Interface
100 mm x 100 mm
Environmental considerations
Operating
Temperature : 10°C ~ 40°C (50°F ~ 104°F)
Humidity : 10% ~ 80%, non-condensing
Storage
Temperature : -20°C ~ 45°C (-4°F ~ 113°F)
Humidity : 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.
z For example, the number of TFT LCD sub pixels that is contained in this product are 5,292,000.
Note: Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
Power off
(Power button OFF)
EPA/ENERGY 2000
Power Indicator
Blue
Blue Blinking
Off
Power Consumption
41 W
Less than 1 W
Less than 1 W
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31,469
70,086
25,175
+/-
IBM, 640 x 480
31,469
59,940
25,175
-/-
IBM, 720 x 400
31,469
70,087
28,322
-/+
MAC, 640 x 480
35,000
66,667
30,240
-/-
MAC, 832 x 624
49,726
74,551
57,284
-/-
MAC, 1152 x 870
68,681
75,062
100,000
-/-
VESA, 640 x 480
37,861
72,809
31,500
-/-
VESA, 640 x 480
37,500
75,000
31,500
-/-
VESA, 800 x 600
35,156
56,250
36,000
+/+
VESA, 800 x 600
37,879
60,317
40,000
+/+
VESA, 800 x 600
48,077
72,188
50,000
+/+
VESA, 800 x 600
46,875
75,000
49,500
+/+
VESA, 1024 x 768
48,363
60,004
65,000
-/-
VESA, 1024 x 768
56,476
70,069
75,000
-/-
VESA, 1024 x 768
60,023
75,029
78,750
+/+
VESA, 1152 x 864
67,500
75,000
108,000
+/+
VESA, 1280 x 960
60,000
60,000
108,000
+/+
VESA, 1280 x 1024
79,976
75,025
135,000
+/+
VESA, 1680 x 1050
64,674
59,883
119,000
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz
Model
General
General
Model Name
SyncMaster 2223NW
LCD Panel
Size
22inch
Display area
473.76mm (H) x 296.1 mm (V)
Pixel Pitch
0.282 mm (H) x 0.282 mm (V)
Synchronization
Horizontal
30 ~ 81 kHz
Vertical
56~75Hz
Display Color
16.7M
Resolution
Optimum resolution
1680 x [email protected]
Maximum resolution
1680 x [email protected]
Input Signal, Terminated
RGB Analog
0.7 Vp-p ± 5 %
Separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0 V, V low ≤ 0.8 V)
Maximum Pixel Clock
146MHz (Analog)
Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz ± 3 Hz
Signal Cable
15pin - to - 15pin D-sub cable, Detachable
Dimensions (WxHxD)/ (Without Stand)
511 x 335 x 66.8 mm (Without Stand)
SyncMaster 2223NW
Dimensions (WxHxD)/ Weight (With Stand)
511 x 417.8 x 217.3 mm (With Stand) / 4.9 kg
VESA Mounting Interface
100 mm x 100 mm
Environmental considerations
Operating
Temperature : 10°C ~ 40°C (50°F ~ 104°F)
Humidity : 10% ~ 80%, non-condensing
Storage
Temperature : -20°C ~ 45°C (-4°F ~ 113°F)
Humidity : 5% ~ 95%, non-condensing
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and
computer systems will provide the best operating conditions and monitor settings. In most cases,
monitor installation will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color seem to be bright sometimes or some of black pixels could be seen. This is not from bad
quality and you can use it without uneasiness.
z For example, the number of TFT LCD sub pixels that is contained in this product are 5,292,000.
Note: Design and specifications are subject to change without prior notice.
Class B Equipment (Information Communication equipment for residential use)
This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in
your computer. Use a software utility installed on your computer to set up this feature.
State
Normal Operation
Power saving mode
Power off
(Power button OFF)
EPA/ENERGY 2000
Power Indicator
Blue
Blue Blinking
Off
Power Consumption
41 W
Less than 1 W
Less than 1 W
This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPMS
functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
Preset Timing Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Display Mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
IBM, 640 x 350
31,469
70,086
25,175
+/-
IBM, 640 x 480
31,469
59,940
25,175
-/-
IBM, 720 x 400
31,469
70,087
28,322
-/+
MAC, 640 x 480
35,000
66,667
30,240
-/-
MAC, 832 x 624
49,726
74,551
57,284
-/-
MAC, 1152 x 870
68,681
75,062
100,000
-/-
VESA, 640 x 480
37,861
72,809
31,500
-/-
VESA, 640 x 480
37,500
75,000
31,500
-/-
VESA, 800 x 600
35,156
56,250
36,000
+/+
VESA, 800 x 600
37,879
60,317
40,000
+/+
VESA, 800 x 600
48,077
72,188
50,000
+/+
VESA, 800 x 600
46,875
75,000
49,500
+/+
VESA, 1024 x 768
48,363
60,004
65,000
-/-
VESA, 1024 x 768
56,476
70,069
75,000
-/-
VESA, 1024 x 768
60,023
75,029
78,750
+/+
VESA, 1152 x 864
67,500
75,000
108,000
+/+
VESA, 1280 x 960
60,000
60,000
108,000
+/+
VESA, 1280 x 1024
79,976
75,025
135,000
+/+
VESA, 1680 x 1050
64,674
59,883
119,000
+/-
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called Horizontal Cycle and the inverse
number of the Horizontal Cycle is called Horizontal Frequency. Unit:
kHz
Vertical Frequency
Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called Vertical Frequency or Refresh
Rate. Unit: Hz
Model
SyncMaster 923NW
