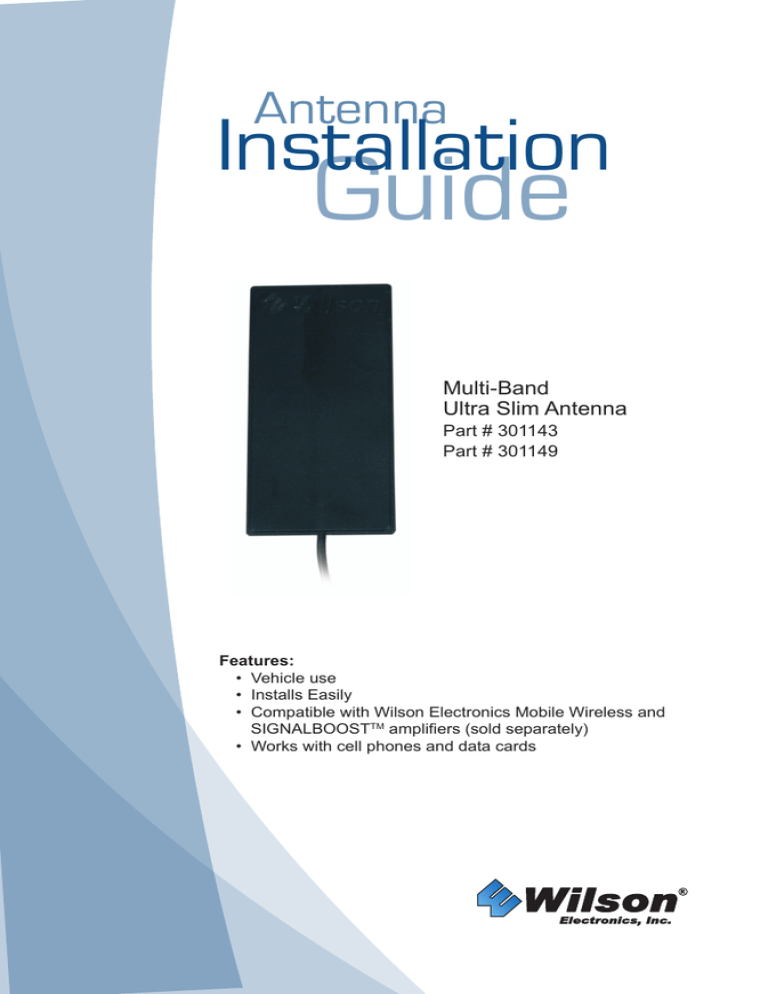

Antenna
Installation
Guide
Multi-Band
Ultra Slim Antenna
Part # 301143
Part # 301149
Features:
• Vehicle use
• Installs Easily
• Compatible with Wilson Electronics Mobile Wireless and
SignalBoostTM amplifiers (sold separately)
• Works with cell phones and data cards
Wilson Electronics Signal Boosters Boost Coverage
When used in conjunction with the Ultra Slim Antenna and an exterior antenna, a Wilson
Electronics Mobile Signal Booster can improve your cell phone and laptop data card
coverage area significantly. Wilson Electronics manufactures a variety of mobile wireless
signal boosters. See your dealer for details or visit www.WilsonElectronics.com.
How it Works
Wilson Electronics’ Ultra Slim Antenna is designed for use as part of a mobile signal
booster system in a car, truck or other vehicle. It transfers the improved signal from the
signal booster (sold separately) to one or more cell phones or cellular data cards within the
vehicle.
The Ultra Slim Antenna works with any of Wilson Electronics Mobile Wireless Signal
Boosters, which support multiple cellular devices simultaneously. Additionally, the Ultra Slim
Antenna works as a signal coupler with certain Wilson Electronics SignalBoost amplifiers
that support the use of a single cell phone or data card.
Consult the user guide for your particular signal booster for more specific instructions on
use of the Ultra Slim Antenna. Or, contact Wilson Electronics Technical Support Department
at 866-294-1660.
Installing the Ultra Slim Antenna
For maximum performance, install the
antenna within 18 inches from where the
cellular deivce will be used.
When using a mobile wireless signal
booster, place the Ultra Slim antenna on the
side of the driver’s seat.
Install the antenna at the same angle as the
cell phone when held in use, or place next
to the laptop’s cellular data card. This will
maximize the signal strength.
1
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: [email protected] Hours: 7 am to 6 pm MST.
On cellular data card
On laptop
For best performance with a cellular data card, attach the Ultra Slim Antenna directly to the
data card with the supplied VELCRO®. (For laptops with an internal data card, attach the
antenna to the laptop, as close as possible to the location of the internal data card.)
Note: When used with a mobile wireless signal booster, the antenna must be installed with
a separation of at least eight inches from all persons and must not be located in conjunction
with any other antenna or signal booster.
With certain models of Wilson Electronics
SignalBoost amplifiers, the Ultra Slim
Antenna must remain in contact with the
phone or data card in order to function
properly. Attach the antenna to the back
of the phone or to the data card using the
supplied VELCRO®.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day moneyback guarantee. If, for any reason, the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
90-Day Warranty
Wilson Electronics antennas are warranted for ninety (90) days against defects in
workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its option,
either repair or replace the product. Wilson Electronics will pay for delivery of the
repaired or replaced product back to the original consumer.
This warranty does not apply to any signal boosters determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: [email protected] Hours: 7 am to 6 pm MST.
2
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2011 Wilson Electronics, Inc. All rights reserved.
Antenna Specifications
Part Number
301143
301149
Connector
FME female
SMA male
Antenna Gain
-3 dBi
2 dBi
Frequency Range
800 - 2300 MHz
Impedance
50 Ohm
Ground Plane
Not Required
Coax Cable
RG-174 7.5 ft. / 2.29 m.
Length
3.25 in. / 8.26 cm.
Width
1.5 in. / 3.81 cm.
Weight
2 oz. / 56.7 g.
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email: [email protected]
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular
www.facebook.com/WilsonCellular
Part# 103039 - Ultra-Slim - Rev8 - 06.13.11
