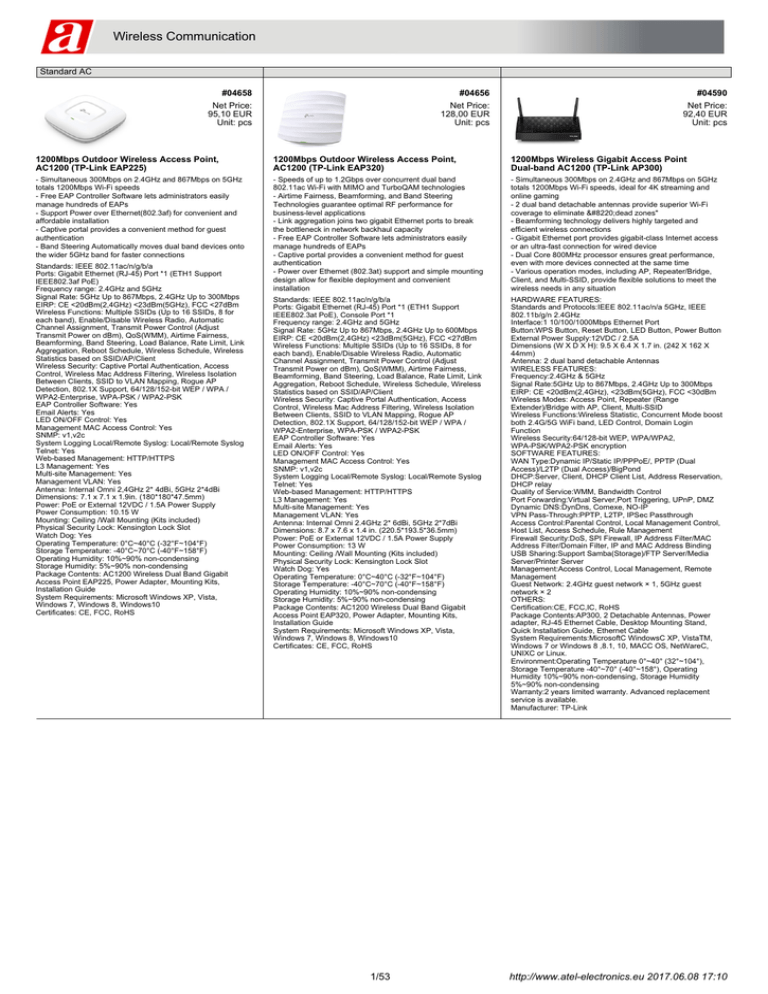

Wireless Communication

Wireless Communication

Wireless Communication

Standard AC

#04658

Net Price:

95,10 EUR

Unit: pcs

#04656

Net Price:

128,00 EUR

Unit: pcs

#04590

Net Price:

92,40 EUR

Unit: pcs

1200Mbps Outdoor Wireless Access Point,

AC1200 (TP-Link EAP225)

- Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds

- Free EAP Controller Software lets administrators easily manage hundreds of EAPs

- Support Power over Ethernet(802.3af) for convenient and affordable installation

- Captive portal provides a convenient method for guest authentication

- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

Standards: IEEE 802.11ac/n/g/b/a

Ports: Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support

IEEE802.3af PoE)

Frequency range: 2.4GHz and 5GHz

Signal Rate: 5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP: CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal Omni 2,4GHz 2* 4dBi, 5GHz 2*4dBi

Dimensions: 7.1 x 7.1 x 1.9in. (180*180*47.5mm)

Power: PoE or External 12VDC / 1.5A Power Supply

Power Consumption: 10.15 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: AC1200 Wireless Dual Band Gigabit

Access Point EAP225, Power Adapter, Mounting Kits,

Installation Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

1200Mbps Outdoor Wireless Access Point,

AC1200 (TP-Link EAP320)

- Speeds of up to 1.2Gbps over concurrent dual band

802.11ac Wi-Fi with MIMO and TurboQAM technologies

- Airtime Fairness, Beamforming, and Band Steering

Technologies guarantee optimal RF performance for business-level applications

- Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity

- Free EAP Controller Software lets administrators easily manage hundreds of EAPs

- Captive portal provides a convenient method for guest authentication

- Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

Standards: IEEE 802.11ac/n/g/b/a

Ports: Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support

IEEE802.3at PoE), Console Port *1

Frequency range: 2.4GHz and 5GHz

Signal Rate: 5GHz Up to 867Mbps, 2.4GHz Up to 600Mbps

EIRP: CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal Omni 2.4GHz 2* 6dBi, 5GHz 2*7dBi

Dimensions: 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)

Power: PoE or External 12VDC / 1.5A Power Supply

Power Consumption: 13 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: AC1200 Wireless Dual Band Gigabit

Access Point EAP320, Power Adapter, Mounting Kits,

Installation Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

1200Mbps Wireless Gigabit Access Point

Dual-band AC1200 (TP-Link AP300)

- Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds, ideal for 4K streaming and online gaming

- 2 dual band detachable antennas provide superior Wi-Fi coverage to eliminate &#8220;dead zones"

- Beamforming technology delivers highly targeted and efficient wireless connections

- Gigabit Ethernet port provides gigabit-class Internet access or an ultra-fast connection for wired device

- Dual Core 800MHz processor ensures great performance, even with more devices connected at the same time

- Various operation modes, including AP, Repeater/Bridge,

Client, and Multi-SSID, provide flexible solutions to meet the wireless needs in any situation

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:1 10/100/1000Mbps Ethernet Port

Button:WPS Button, Reset Button, LED Button, Power Button

External Power Supply:12VDC / 2.5A

Dimensions (W X D X H): 9.5 X 6.4 X 1.7 in. (242 X 162 X

44mm)

Antenna: 2 dual band detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP: CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dBm

Wireless Modes: Access Point, Repeater (Range

Extender)/Bridge with AP, Client, Multi-SSID

Wireless Functions:Wireless Statistic, Concurrent Mode boost both 2.4G/5G WiFi band, LED Control, Domain Login

Function

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:AP300, 2 Detachable Antennas, Power adapter, RJ-45 Ethernet Cable, Desktop Mounting Stand,

Quick Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8 ,8.1, 10, MACC OS, NetWareC,

UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04657

Net Price:

115,00 EUR

Unit: pcs

#04655

Net Price:

179,00 EUR

Unit: pcs

#04589

Net Price:

175,00 EUR

Unit: pcs

1750Mbps Outdoor Wireless Access Point,

AC1750 (TP-Link EAP245)

- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds

- Free EAP Controller Software lets administrators easily manage hundreds of EAPs

- Support Power over Ethernet(802.3at) for convenient and affordable installation

- Captive portal provides a convenient method for guest authentication

- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

- Load balance ensures large numbers of users have smooth network experiences in high density business networks

Standards: IEEE 802.11ac/n/g/b/a

Ports: Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support

IEEE802.3at PoE)

Frequency range: 2.4GHz and 5GHz

Signal Rate: 5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps

EIRP: CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal Omni 2,4GHz 3* 6dBi4, 5GHz 3*4dBi

Dimensions: 7.1 x 7.1 x 1.9in. (180*180*47.5mm)

Power: PoE or External 12VDC / 1.5A Power Supply

Power Consumption: 12.7 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: AC1750 Wireless Dual Band Gigabit

Access Point EAP245, Power Adapter, Mounting Kits,

Installation Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

1900Mbps Outdoor Wireless Access Point,

AC1900 (TP-Link EAP330)

- Speeds of up to 1.9Gbps over concurrent dual band

802.11ac Wi-Fi with MIMO and TurboQAM technologies

- Airtime Fairness, Beamforming, and Band Steering

Technologies guarantee optimal RF performance for business-level applications

- Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity

- Free EAP Controller Software lets administrators easily manage hundreds of EAPs

- Captive portal provides a convenient method for guest authentication

- Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

Standards: IEEE 802.11ac/n/g/b/a

Ports: Gigabit Ethernet (RJ-45) Port *2 (ETH1 Support

IEEE802.3at PoE)

Frequency range: 2.4GHz and 5GHz

Signal Rate: 5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps

EIRP: CE <20dBm(2,4GHz) <23dBm(5GHz), FCC <27dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal Omni 2.4GHz 3* 6dBi, 5GHz 3*7dBi

Dimensions: 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)

Power: PoE or External 12VDC / 2.5A Power Supply

Power Consumption: 14 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: AC1900 Wireless Dual Band Gigabit

Access Point EAP330, Power Adapter, Mounting Kits,

Installation Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

1900Mbps Wireless Gigabit Access Point

Dual-band AC1900 (TP-Link AP500)

- Simultaneous 600Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1900Mbps Wi-Fi speeds, ideal for 4K streaming and online gaming

-3 dual band detachable antennas provide superior Wi-Fi coverage to eliminate &#8220;dead zones"

- Beamforming technology delivers highly targeted and efficient wireless connections

- Gigabit Ethernet port provides gigabit-class Internet access or an ultra-fast connection for wired device

- Dual Core 1GHz processor ensures great performance, even with more devices connected at the same time

- Various operation modes, including AP, Repeater/Bridge,

Client, and Multi-SSID, provide flexible solutions to meet the wireless needs in any situation

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:1 10/100/1000Mbps Ethernet Port

Button:WPS Button, Reset Button, LED Button, Power Button

External Power Supply:12VDC / 2.5A

Dimensions (W X D X H): 9.5 X 6.4 X 1.7 in. (242 X 162 X

44mm)

Antenna: 3 dual band detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps

EIRP: CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dBm

Wireless Modes: Access Point, Repeater (Range

Extender)/Bridge with AP, Client, Multi-SSID

Wireless Functions:Wireless Statistic, Concurrent Mode boost both 2.4G/5G WiFi band, LED Control, Domain Login

Function

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:AP500, 3 Detachable Antennas, Power adapter, RJ-45 Ethernet Cable, Desktop Mounting Stand,

Quick Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

2/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08871

Net Price:

105,00 EUR

Unit: pcs

#04593

Net Price:

34,60 EUR

Unit: pcs

#04592

Net Price:

49,50 EUR

Unit: pcs

Wireless Access Point UniFi UAP-AC-LR

2.4/5Ghz

Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4

GHz band and 2x2 MIMO in the 5 GHz band.

The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the

UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

Networking Interface (Mbps): 1 x 10/100/1000 Ethernet Ports

Buttons: Reset

Antennas: (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz- 3 dBi, 5 GHz- 3 dBi

Wi-Fi Standards: 802.11 a/b/g/n/ac

Power Method: Passive Power over Ethernet (24V), 802.3af

Supported

Power Supply: 24V, 0.5A PoE Adapter (Included)

Maximum Power Consumption: 6.5 W

Maximum TX Power: 2.4 GHz - 30 dBm, 5 GHz - 22 dBm

BSSID: Up to Four Per Radio

Dimensions: 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")

Weight: 240 g (315 g with Mounting Kits)

Power Save: Supported

Wireless Security: WEP, WPA-PSK, WPA-Enterprise

(WPA/WPA2, TKIP/AES)

Certifications: CE, FCC, IC

Mounting: Wall/Ceiling (Kits Included)

Operating Temperature: -10 ÷ 70° C

Operating Humidity: 5 ÷ 95% Condensing

Advanced Traffic Management

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest traffic isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 200+

Supported Data Rates (Mbps)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2,

VHT 20/40/80)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Manufacturer: Ubiquiti

#04591

Net Price:

13,90 EUR

Unit: pcs

1300Mbps Wireless Dual Band PCI-Express

AC1300 (TP-Link Archer T6E)

- Easy Installation - Upgrade your desktop system easily by plugging the Archer T6E Wi-Fi adapter into an available

PCI-E slot

- Hi-Speed Wi-Fi - Up to 1300Mbps Wi-Fi speeds (867Mbps on 5GHz band or 400Mpbs on 2.4GHz band)

- 802.11ac Dual Band - 3 times faster than the 802.11n

standard, perfect for hi-intensity network usage

- Backward Compatibility - With support for 802.11 a/b/g/n standards

- Broad Wireless Range - 2 external antennas ensure a greater range of Wi-Fi connection and stability

HARDWARE FEATURES:

Interface:PCI Express x1

Antenna Type: Omni Directional, Detachable (RP-SMA)

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11ac, IEEE 802.11a, IEEE

802.11b, IEEE 802.11g, IEEE 802.11n

Frequency: 2.4-2.4835GHz, 5.180-5.240GHz,

5.745-5.825GHz

Signal Rate: 867Mbps at 5GHz, 400Mbps at 2.4GHz

EIRP:<20dBm (EIRP)

Reception Sensitivity: 5GHz- 11a -68dBm, 11n HT20

-64dBm, 11n HT40 -61dBm, 11ac HT20 -59dBm, 11ac HT40

-54dBm, 11ac HT80 -51dBm, 2,4GHz- 11b -76dBm, 11g

-68dBm, 11n HT20 -64dBm, 11n HT40 -61dBm

Wireless Modes:Ad-Hoc / Infrastructure mode

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK,802.1x

Modulation Technology:DBPSK, DQPSK, CCK, OFDM,

16-QAM, 64-QAM

OTHERS:

Certification:CE, FCC, RoHS, Wi-Fi

Package Contents:Wireless Adapter Archer T6E, Resource

CD, Quick Installation Guide

System Requirements: Windows 7/8/8.1/10(32/64bits),

Windows XP(32/64bits)

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

#08937

Net Price:

30,00 EUR

Unit: pcs

1900Mbps Wireless Dual Band PCI-Express

AC1900 (TP-Link Archer T9E)

- Easy Installation - Upgrade your desktop system easily by plugging the Archer T9E Wi-Fi adapter into an available

PCI-E slot.

- Hi-Speed Wi-Fi - Up to 1900Mbps Wi-Fi speeds (1300Mbps on 5GHz band or 600Mpbs on 2.4GHz band)

- 802.11ac Dual Band - 3 times faster than the 802.11n

standard, perfect for hi-intensity network usage

- Backward Compatibility - With support for 802.11 a/b/g/n standards

- Beamforming Technology - Receives more directional Wi-Fi signals, improving speed and reliability

- Ultimate Range - 3 external antennas ensure a greater range of Wi-Fi connection and stability

HARDWARE FEATURES:

Interface:PCI Express x1

Antenna Type: Omni Directional, Detachable (RP-SMA)

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11ac, IEEE 802.11a, IEEE

802.11b, IEEE 802.11g, IEEE 802.11n

Frequency: 2.4-2.4835GHz, 5.180-5.240GHz,

5.745-5.825GHz

Signal Rate: 5GHz- 11ac Up to 1300Mbps(dynamic), 11n Up to 150Mbps(dynamic), 11a Up to 54Mbps(dynamic), 2.4GHz-

11n Up to 600Mbps(dynamic), 11g Up to 54Mbps(dynamic),

11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity: 5GHz- 11a 6Mb/s -85dBm, 11a 54Mb/s

-68dBm, 11ac HT20 -59dBm, 11ac HT40 -54dBm, 11ac HT80

-51dBm, 2,4GHz- 11b 11Mb/s -80dBm, 11g 54Mb/s -68dBm,

11n HT20 -64dBm, 11n HT40 -61dBm

Wireless Modes:Ad-Hoc / Infrastructure mode

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK,802.1x

Modulation Technology:DBPSK, DQPSK, CCK, OFDM,

16-QAM, 64-QAM

OTHERS:

Certification:CE, FCC, RoHS, Wi-Fi

Package Contents:Wireless Adapter Archer T9E, Resource

CD, Quick Installation Guide

System Requirements:Windows 7(32/64bits), Windows

8/8.1(32/64bits), Windows XP(32/64bits)

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

#08939

Net Price:

15,00 EUR

Unit: pcs

450Mbps Wireless adapter USB NANO AC450

(TP-Link Archer T1U)

- Small, unobtrusive design allows you to plug it in and forget it is even there

- Blazing fast wireless data transmission rates of up to

433Mbps

- Transmits on the uncluttered 5GHz band to avoid wireless signal interference

- Utilizes 802.11ac standard and is backward compatible with

802.11a/n

- Supports 64/128-bit WEP, WPA/WPA2, and

WPA-PSK/WPA2-PSK encryption standards

Standards: IEEE 802.11ac/b/g/n

Interface: USB 2.0

Frequency range: 5 GHz

Signal Rate: 5GHz 11ac Up to 433Mbps(dynamic), 11n Up to

150Mbps(dynamic), 11a Up to 54Mbps(dynamic)

Max. speed: 450 Mbps

Max. output power: 21 dBm

Operating modes: Ad-hoc, infrastructure

WLAN security: WEP 64/128-bit, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES), IEEE 802.1X support

Drivers: Windows Windows XP/7/8/8.1

Dimmensions: 0.73 x 0.59 x 0.28 in. (18.6 x 15 x 7.1mm)

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, IC, RoHS

Warranty period: 24 months

Manufacturer: TP-Link

AC1200 Wireless Dual Band USB 3.0 Adapter

(TP-Link Archer T4UH)

- Ultra-fast 1200 (867+300)Mbps wireless speed with

802.11ac

- Dual Band connections for lag-free HD video streaming and gaming

- SuperSpeed USB 3.0 port - Up to 10x faster than USB 2.0

- Easy wireless security encryption at a push of the WPS button

- Equipped with a USB Extension Cable for flexible deployment

Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n,

IEEE 802.11g, IEEE 802.11b

Interface: USB 3.0

Frequency range: 5GHz, 2.4GHz

Max. speed: up to 5GHz 867Mbps or 2.4GHz 300Mbps

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: Ad-hoc, infrastructure

WLAN security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, 802.1x

Drivers: Windows 8.1 (32/64bits), Windows 8 (32/64bits),

Windows 7 (32/64bits), Windows XP(32/64bits)

Dimmensions: 3.5×2.7×0.7 in. (90×68×16.8mm)

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Manufacturer: TP-Link

AC600 Wireless Dual Band USB 2.0 Adapter

(TP-Link Archer T2U)

- Ultra-fast 600 (433+150)Mbps wireless speed with 802.11ac

- Dual Band connections for lag-free HD video streaming and gaming

Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n,

IEEE 802.11g, IEEE 802.11b

Interface: USB 2.0

Frequency range: 5GHz, 2.4GHz

Max. speed: up to 5GHz 433Mbps or 2.4GHz 150Mbps

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: Ad-hoc, infrastructure

WLAN security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, 802.1x

Drivers: Windows 8.1 (32/64bits), Windows 8 (32/64bits),

Windows 7 (32/64bits), Windows XP(32/64bits)

Dimmensions: 1.6×0.7×0.3 in. (41×19.5×8.7mm)

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Manufacturer: TP-Link

3/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08938

Net Price:

19,30 EUR

Unit: pcs

#04585

Net Price:

43,20 EUR

Unit: pcs

#04584

Net Price:

54,10 EUR

Unit: pcs

AC600 Wireless Dual Band USB 2.0 Adapter

(TP-Link Archer T2UH)

- Ultra-fast 600 (433+150)Mbps wireless speed with 802.11ac

- Dual Band connections for lag-free HD video streaming and gaming

- Equipped with a USB Extension Cable for flexible deployment

Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n,

IEEE 802.11g, IEEE 802.11b

Interface: USB 2.0

Frequency range: 5GHz, 2.4GHz

Max. speed: up to 5GHz 433Mbps or 2.4GHz 150Mbps

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM, 256-QAM

Operating modes: Ad-hoc, infrastructure

WLAN security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, 802.1x

Drivers: Windows 8.1 (32/64bits), Windows 8 (32/64bits),

Windows 7 (32/64bits), Windows XP(32/64bits)

Dimmensions: 3.7 x 1.0 x 0.4 in. (93.5 x 26 x 11mm)

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Manufacturer: TP-Link

1200Mbps Wireless Range Extender, AC1200

(TP-Link RE305)

- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps

- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience

- Intelligent signal light helps to fi-nd the best location for optimal Wi-Fi coverage by showing the signal strength

- Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Ports:1 * 10/100M Ethernet Port (RJ45)

Plug Type: EU

Button:WPS Button, Reset Button

Power Consumption: About 7.3W

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 3.1x3.0x3.0 in. (80x78x77mm)

Antenna Type: 2 x external

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate: 5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs

EIRP:<17dBm(2,4GHz) <17dBm(5GHz)

Reception Sensitivity:5GHz 11a 6Mbps [email protected]% PER,

11a 54Mbps [email protected]% PER, 11ac HT20 mcs8

[email protected]% PER, 11ac HT40 mcs9 [email protected]% PER,

11ac HT80 mcs9 [email protected]% PER, 2,4GHz 11g 54M

[email protected]% PER, 11n HT20 mcs7 [email protected]% PER,

11n HT40 mcs7 [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless

Statistic, Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE305, Resource CD, Quick Installation

Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8,10, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1200Mbps Wireless Range Extender, AC1200

(TP-Link RE350)

- Kills Wi-Fi dead zone with strong Wi-Fi expansion at combined speed of up to 1.2Gbps

- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience

- Gigabit Ethernet port for connecting a wired device to your network at gigabit speed

- High gain external antennas increase the effective Wi-Fi coverage

- Intelligent signal light helps to find the best spot to set up by showing the signal strength

- Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Ports:1 * 10/100/1000M Ethernet Port (RJ45)

Plug Type: EU

Button:RE (Range Extender) Button, Reset Button, LED

Button, Power Button

Power Consumption: About 11W

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 126x75x43mm

Antenna Type: 2 x external

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate: 5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs

EIRP:<20dBm(2,4GHz) <23dBm(5GHz)

Reception Sensitivity:5GHz 11a 6Mbps [email protected]% PER,

11a 54Mbps [email protected]% PER, 11ac HT20 mcs8

[email protected]% PER, 11ac HT40 mcs9 [email protected]% PER,

11ac HT80 mcs9 [email protected]% PER, 2,4GHz 11g 54M

[email protected]% PER, 11n HT20 mcs7 [email protected]% PER,

11n HT40 mcs7 [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless

Statistic, Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE355, Resource CD, Quick Installation

Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

4/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04583

Net Price:

57,10 EUR

Unit: pcs

1200Mbps Wireless Range Extender, AC1200

(TP-Link RE355)

- Expand Wi-Fi Network for Ultimate Performance

- Expanded 300Mbps on 2.4GHz + 867Mbps on 5GHz totals

1200Mbps Wi-Fi speeds

- Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections

- Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed

- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength

- Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Ports:1 * 10/100/1000M Ethernet Port (RJ45)

Plug Type: EU

Button:RE (Range Extender) Button, Reset Button, LED

Button, Power Button

Power Consumption: About 9W

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 6.4x 3.0 x 2.6 in. (163 x 76.4 x

66.5mm)

Antenna Type: 3 x external

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate: 5GHz Up to 867Mbps, 2.4GHz Up to 300Mpbs

EIRP:<20dBm(2,4GHz) <23dBm(5GHz)

Reception Sensitivity:5GHz 11a 6Mbps [email protected]% PER,

11a 54Mbps [email protected]% PER, 11ac HT20 mcs8

[email protected]% PER, 11ac HT40 mcs9 [email protected]% PER,

11ac HT80 mcs9 [email protected]% PER, 2,4GHz 11g 54M

[email protected]% PER, 11n HT20 mcs7 [email protected]% PER,

11n HT40 mcs7 [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless

Statistic, Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE355, Resource CD, Quick Installation

Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

#04582

Net Price:

69,30 EUR

Unit: pcs

#04580

Net Price:

162,00 EUR

Unit: pcs

1750Mbps Wireless Range Extender, AC1750

(TP-Link RE450)

- Expand Wi-Fi Network for Ultimate Performance

- Expanded 450Mbps on 2.4GHz + 1300Mbps on 5GHz totals

1750Mbps Wi-Fi speeds

- Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections

- Gigabit Ethernet port acts as a wireless adapter to connect a wired device to your network at gigabit speed

- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength

- Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Ports:1 * 10/100/1000M Ethernet Port (RJ45)

Plug Type: EU

Button:RE (Range Extender) Button, Reset Button, LED

Button, Power Button

Power Consumption: About 9W

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 6.4x 3.0 x 2.6 in. (163 x 76.4 x

66.5mm)

Antenna Type: 3 x external

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate: 5GHz Up to 1300Mbps, 2.4GHz Up to 450Mpbs

EIRP:<20dBm(2,4GHz) <23dBm(5GHz)

Reception Sensitivity:5GHz 11a 6Mbps [email protected]% PER,

11a 54Mbps [email protected]% PER, 11ac HT20 mcs8

[email protected]% PER, 11ac HT40 mcs9 [email protected]% PER,

11ac HT80 mcs9 [email protected]% PER, 2,4GHz 11g 54M

[email protected]% PER, 11n HT20 mcs7 [email protected]% PER,

11n HT40 mcs7 [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless

Statistic, Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE450, Resource CD, Quick Installation

Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1900Mbps Wireless Range Extender with Touch

Screen, AC1900 (TP-Link RE590T)

- Reliable Touchscreen Setup - Effortlessly extends the network with a 100% success rate using only your fingertips

- Easy Network Management - Uses the 4.3'' touchscreen to manage your expanded network, without the need for any other devices

- Superior Extended Range - Three external antennas with

700mW high power amplifiers extend Wi-Fi coverage by up to

10,000 sq. ft.

- Lightning-Fast AC1900 Speed - Enjoy 4K streaming video and online gaming without lag on the 2.4GHz and 5GHz bands

- Gigabit Ethernet Ports - Provide gigabit speeds for up to four wired devices

- TP-LINK Tether App - Easily access and manage your network using any iOS or Android mobile device

- Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Ports:4 * 10/100/1000M Ethernet Port (RJ45)

Button:Reset Button, Range Extender Button

External Power Supply: 12V/2.5A

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 11.2 x 6.2 x 2.1 in. (284 x 157 x 52 mm)

Antenna Type: 3 dual band detachable antennas

TOUCH SCREEN

Screen Type: Capacitive

Screen Size: 4.3 inch

Screen Resolution: 128 ppi

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate:Up to 1300Mbps @5GHz, Up to 600Mbps

@2.4GHz

EIRP:CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dBm

Reception Sensitivity:2,4GHz 11g 54M [email protected]% PER,

11n HT20 MCS7 [email protected]% PER, 11n HT40 MCS7

[email protected]% PER 5GHz 11a 6Mb/s [email protected]% PER,

11a 54Mb/s [email protected]% PER, 11ac HT20 MCS8

[email protected]% PER, 11ac HT40 MCS9 [email protected]% PER,

11ac HT80 MCS9 [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: oncurrent Mode boost both 2.4G/5G

Wi-Fi band, WMM (Wi-Fi Multimedia), Wireless Statistic,

Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE590T, Antennas, Resource CD, Quick

Installation Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8,8.1, MAC OS, NetWare, UNIX or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

5/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04581

Net Price:

129,00 EUR

Unit: pcs

1900Mbps Wireless Range Extender, AC1900

(TP-Link RE580D)

- Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz totals 1.9Gbps Wi-Fi speeds

- 3 dual band external antennas and 700mW high-powered amplifiers eliminate &#8220;dead zones" and greatly extend your existing wireless coverage

- Beamforming technology delivers highly targeted and efficient wireless connections

- 5 Gigabit Ethernet ports provide gigabit speed for wired connections

- Dual core 1GHz processor ensures no interruption when simultaneously processing multiple wireless or wired tasks

- High Speed mode creates a lightning fast wireless connection for bandwidth-intensive tasks

- Works with any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Ports:5 * 10/100/1000M Ethernet Port (RJ45)

Button:RE (Range Extender) Button, Reset Button, LED

Button, Power Button

External Power Supply: 12V/2.5A

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 9.5 X 6.4 X 1.7 in. (242 X 162 X

44mm)

Antenna Type: 3 dual band detachable antennas

TOUCH SCREEN

Screen Type: Capacitive

Screen Size: 4.3 inch

Screen Resolution: 128 ppi

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate:Up to 1300Mbps @5GHz, Up to 600Mbps

@2.4GHz

EIRP:CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dBm

Reception Sensitivity:2,4GHz 11g 54M [email protected]% PER,

11n HT20 MCS7 [email protected]% PER, 11n HT40 MCS7

[email protected]% PER 5GHz 11a 6Mb/s [email protected]% PER,

11a 54Mb/s [email protected]% PER, 11ac HT20 MCS8

[email protected]% PER, 11ac HT40 MCS9 [email protected]% PER,

11ac HT80 MCS9 [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: oncurrent Mode boost both 2.4G/5G

Wi-Fi band, WMM (Wi-Fi Multimedia), Wireless Statistic,

Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE580D, Antennas, Resource CD, Quick

Installation Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~30° (32°~86°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

#08935

Net Price:

36,10 EUR

Unit: pcs

750Mbps Wireless Range Extender, AC750

(TP-Link RE200)

- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

- Compatible with 802.11 b/g/n and 802.11ac WiFi devices

- Dual band speeds up to 750Mbps

- Miniature size and wall-mounted design make it easy to deploy and move flexibly

- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

HARDWARE FEATURES:

Ports:1 * 10/100M Ethernet Port (RJ45)

Plug Type: EU

Button:Reset Button, Range Extender Button

Power Consumption: About 6.5W

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x

75.2mm)

Antenna Type: 3 x internal

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER, 5G, 390M

[email protected]% PER, 29.3M [email protected]% PER, 180M

[email protected]% PER, 13.5M [email protected]% PER, 78M

[email protected]% PER, 6.5M [email protected]% PER, 54M

[email protected]% PER, 6M [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless

Statistic, Domain Login Function

Wireless Security: 64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE200, Resource CD, Quick Installation

Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

#04586

Net Price:

39,00 EUR

Unit: pcs

750Mbps Wireless Range Extender, AC750

(TP-Link RE210)

- Boosts your wireless signal, eliminating previously inaccessible areas or &#8220;dead zones"

- Supports all 802.11 a/b/g/n/ac standards of Wi-Fi routers and wireless access points

- Wireless AC technology delivers combined dual band speeds of up to 750Mbps

- Gigabit Ethernet port allows the extender to connect to wired devices as a wireless bridge

- Its compact, wall-mounted design allows for easy, flexible deployment

HARDWARE FEATURES:

Ports:1 * 10/100/1000M Ethernet Port (RJ45)

Plug Type: EU

Button:RE (Range Extender) Button, Reset Button, LED

Button, Power Button

Power Consumption: About 6.5W

Wireless Standards:IEEE802.11ac,IEEE 802.11n, IEEE

802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 3.7x 2.1 x 3.0in. (94 x 54 x

75.2mm)

Antenna Type: 2 x external

WIRELESS FEATURES

Frequency:2.4GHz & 5GHz

Signal Rate: 5GHz Up to 433Mbps, 2.4GHz Up to 300Mpbs

EIRP:<20dBm(EIRP)

Reception Sensitivity:2,4G- 270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER, 5G- 390M

[email protected]% PER, 29.3M [email protected]% PER, 180M

[email protected]% PER, 13.5M [email protected]% PER, 78M

[email protected]% PER, 6.5M [email protected]% PER, 54M

[email protected]% PER, 6M [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless

Statistic, Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:RE210, Resource CD, Quick Installation

Guide, RJ-45 Ethernet Cable

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

6/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04566

Net Price:

57,10 EUR

Unit: pcs

#04570

Net Price:

66,10 EUR

Unit: pcs

#04571

Net Price:

37,30 EUR

Unit: pcs

1200Mbps Wireless Gigabit Router Dual-band

AC1200 (TP-Link Archer C1200)

- Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi

- 3 External Antennas Greatly Expand Wireless Coverage

- Lightning-Fast wired connections using four Gigabit Ethernet

Ports

- 2 USB Ports support storage and file sharing

- Easy setup and management with Tether App

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 1A

Dimensions (W X D X H): 243x160,6x32,5mm (9,6x6,4x1,3 in.)

Antenna: 3 Detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 54Mbps -76dBm, 11ac

HT20 -68dBm, 11ac HT40 -65dBm, 11ac HT80 -62dBm, 11n

HT20 -74dBm, 11n HT40 -71dBm, 2,4GHz - 11g 54M

-75dBm, 11n HT20 -72dBm, 11n HT40 -69dBm

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C1200, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1200Mbps Wireless Gigabit Router Dual-band

AC1200 (TP-Link Archer C5)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth

- Dual USB Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server

- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network

- Easy network management at your fingertips with TP-LINK

Tether

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 2 USB 2.0 Ports

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 2.5A

Dimensions (W X D X H): 243x160,6x32,5mm (9,6x6,4x1,3 in.)

Antenna: 2 Detachable Antennas RP-SMA

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 54Mbps -74dBm, 11ac

HT20 -67dBm, 11ac HT40 -63dBm, 11ac HT80 -59dBm, 11n

HT20 -71dBm, 11n HT40 -69dBm, 2,4GHz - 11g 54M

-76dBm, 11n HT20 -73dBm, 11n HT40 -71dBm

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C5, 2 antennas, Power supply unit,

Quick Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1200Mbps Wireless Router Dual-band AC1200

(TP-Link Archer C50)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth

- 2 dual band external antennas provide stable wireless connections and optimal coverage

- USB Port - easily share a printer locally and files & media with networked devices or remotely via FTP server

- Easy network management at your fingertips with TP-LINK

Tether

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port,

1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 1.5A

Dimensions (W X D X H): 182.95 x 123.5 x 32.1mm (7.2 x 4.9

x 1.3 in.)

Antenna: 2 Detachable Antennas RP-SMA

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 54Mbps -76dBm, 11ac

HT20 -70dBm, 11ac HT40 -65.5dBm, 11ac HT80 -61.5dBm,

2,4GHz - 11g 54M -76dBm, 11n HT20 -74dBm, 11n HT40

-71dBm

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C50, 2 antennas, Power supply unit, Quick Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

7/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04567

Net Price:

37,30 EUR

Unit: pcs

#04568

Net Price:

40,00 EUR

Unit: pcs

#08932

Net Price:

105,00 EUR

Unit: pcs

1350Mbps Wireless Router Dual-band AC1350

(TP-Link Archer C58)

- The Advanced 802.11ac Wi-Fi gets your home network revolutionized

- Concurrent 2.4GHz 450Mbps and 5GHz 867Mbps dual band Wi-Fi connections

- Three high gain external antennas provide strong Wi-Fi signals

- Support advanced functions like Parental Control and Guest

Network

- Tether app ensures an easy router management in your palm

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 1A

Dimensions (W X D X H): 225×148×33 mm (8,9×5,8×1,3 in)

Antenna: 3 Detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 450Mbps

EIRP: 13,5dBm Max (2,4GHz), 17dBm Max (5GHz)

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C58, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, 8.1, 10, MACC OS, NetWareC,

UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1350Mbps Wireless Router Dual-band AC1350

(TP-Link Archer C59)

- The advanced 802.11ac Wi-Fi gets your home network revolutionized

- Concurrent 2.4GHz 450Mbps and 5GHz 867Mbps dual band Wi-Fi connections

- Three high gain external antennas provide strong Wi-Fi signals

- Versatile USB port allows you to easily share USB storage and print service

- Advanced software functions like Parental Control and

Guest Network

- Tether app provides easy router management in your palm

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port,

1 USB 2.0 port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 1A

Dimensions (W X D X H): 225×148×33 mm (8,9×5,8×1,3 in)

Antenna: 3 Detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 450Mbps

EIRP: 13,5dBm Max (2,4GHz), 17dBm Max (5GHz)

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C59, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, 8.1, 10, MACC OS, NetWareC,

UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1750Mbps Wireless Gigabit Router Dualband

AC1750 (TP-Link Archer C8)

- Supports 802.11ac standard-the next generation of Wi-Fi

- Simultaneous 2.4GHz 450Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth

- 3 dual band detachable antennas provide maximum

Omni-directional wireless coverage and reliability

- Beamforming technology delivers highly efficient wireless connection

- USB 3.0 + USB 2.0 Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 1 USB 3.0 Port, 1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 3.3A

Dimensions (W X D X H):8.7 X 3.4 X 6.6 in. (221 X 86 X

168.5mm)

Antenna:3 dual band detachable antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mbps-96dBm, 11a

54Mbps -79dBm, 11ac HT20 -71dBm, 11ac HT40 -66dBm,

11ac HT80 -63dBm, 2.4GHz - 11g 54M -77dBm, 11n HT20

-74dBm, 11n HT40 -72dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA-PSK2 encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C9, 3 detachable dual band antennas, Power supply unit, Resource CD, Quick Installation

Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

8/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04569

Net Price:

153,00 EUR

Unit: pcs

#08931

Net Price:

132,00 EUR

Unit: pcs

#04565

Net Price:

169,00 EUR

Unit: pcs

1900Mbps Wireless Gigabit Router Dual-band

AC1900 Touch Screen (TP-Link Touch P5)

- One-Minute Touchscreen Setup - Effortlessly set up a network and modify settings with the responsive touchscreen

- Ease of Use - Manage settings, including parental controls, access policies, mode selection, and more as easy as using an app on smartphone

- AC1900 Speed - Enjoy streaming 4K video and online gaming without lag on the 2.4GHz and 5GHz bands

- 1GHz Dual-Core Processor - Powers through multiple tasks at the same time without interruptions

- Superior Coverage - Three dual band antennas with high-powered amplifiers provide powerful Wi-Fi across your home

- Beamforming - Focuses Wi-Fi towards devices to form stronger connections

- Multi-Purpose Design - Serves as a router, repeater, or access point, satisfying your unique needs in any situation

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 1 USB 3.0 port, 1 USB 2.0 port

Button:Reset Button, Power On/off Button

External Power Supply:12VDC / 3.3A

Dimensions (W X D X H): 284 x 157 x 52mm (11,2 x 6,2 x 2,1 in.)

Antenna: 3 Detachable Antennas

TOUCH SCREEN

Screen Type: Capacitive

Screen Size: 4.3 inch

Screen Resolution: 128 ppi

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps

EIRP: 20dBm Max (2,4GHz), 23dBm Max (5GHz)

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Touch P5, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, 8.1, 10, MACC OS, NetWareC,

UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1900Mbps Wireless Gigabit Router Dualband

AC1900 (TP-Link Archer C9)

- Supports 802.11ac standard-the next generation of Wi-Fi

- Simultaneous 2.4GHz 600Mbps and 5GHz 1300Mbps connections for 1.9Gbps of total available bandwidth

- 3 dual band detachable antennas provide maximum

Omni-directional wireless coverage and reliability

- Beamforming technology delivers highly efficient wireless connection

- 1GHz dual-core processor ensures no interruption when simultaneously processing multiple wireless or wired tasks

- USB 3.0 + USB 2.0 Ports - easily share a printer locally and files & media with networked devices or remotely via FTP server

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 1 USB 3.0 Port, 1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 3.3A

Dimensions (W X D X H):8.7 X 3.4 X 6.6 in. (221 X 86 X

168.5mm)

Antenna:3 dual band detachable antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mbps-96dBm, 11a

54Mbps -79dBm, 11ac HT20 -71dBm, 11ac HT40 -66dBm,

11ac HT80 -63dBm, 2.4GHz - 11g 54M -77dBm, 11n HT20

-74dBm, 11n HT40 -72dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA-PSK2 encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C9, 3 detachable dual band antennas, Power supply unit, Resource CD, Quick Installation

Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

2600Mbps Wireless Gigabit Router Dual-band

AC2600, MU-MIMO (TP-Link Archer C2600)

- 4-Stream for the Fastest Wi-Fi Speeds - The Archer C2600 reaches the fastest max speeds available over its 2.4GHz

(800Mbps) and 5GHz (1733Mbps) bands

- Run Multiple Devices Simultaneously - The Archer C2600 operates up to 3x faster* by running MU-MIMO to serve multiple devices at once instead of one at a time

- Multi-Task without Slowing Down - A powerful 1.4GHz

dual-core processor lets you smoothly surf, stream, and game at the same time

- Maximum Range - 4 dual band detachable high performance antennas provide maximum Omni-directional wireless coverage with beamforming technology

- TP-LINK Tether App - TP-LINK Tether provides the easiest way to access and manage the router on your iOS and

Android devices

- MU-MIMO for Nonstop Entertainment on All Your Devices

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 2 USB 3.0 Ports

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 4A

Dimensions (W X D X H): 263,8×197,8×37,3mm

(10,4×7,8×1,5 in.)

Antenna: 4 Detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1733Mbps, 2.4GHz Up to 800Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mb/s -91dBm, 11a 54Mb/s

-73dBm, 11ac HT20 -66dBm, 11ac HT40 -67dBm, 11ac HT80

-58dBm, 2,4GHz - 11g 54M -76dBm, 11n HT20 -73dBm, 11n

HT40 -71dBm

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C2600, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

9/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04564

Net Price:

199,00 EUR

Unit: pcs

#04563

Net Price:

256,00 EUR

Unit: pcs

#04577

Net Price:

243,00 EUR

Unit: pcs

3150Mbps Wireless Gigabit Router Dual-band

AC3150, MU-MIMO (TP-Link Archer C3150)

- Boost Your Wi-Fi - The Archer C3150 runs at combined speeds of up to 3150Mbps across its 2.4GHz and 5GHz bands

- Larger Data Streams - BroadcomC

NitroQAMTM(1024-QAM) technology with 4-Stream lets the

Archer C3150 transmit 25% more data

- Multiple Reliable Connections - MU-MIMO Ready technology lets the router run several devices at the same time to achieve speeds up to 4X faster than standard AC routers.*

- Smoother Performance - Smart Connect technology assigns each of your devices to the best available Wi-Fi band

- Powerful Processing - A 1.4GHz dual-core processor ensures simultaneous browsing, streaming, and gaming without delay

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 1 USB 3.0 Port, 1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 5A

Dimensions (W X D X H): 263,8×197,8×37,3mm

(10,4×7,8×1,5 in.)

Antenna: 4 Detachable Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 2167Mbps, 2.4GHz Up to 1000Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mb/s -91dBm, 11a 54Mb/s

-72dBm, 11n HT20 -70dBm, 11n HT40 -69dBm, 11ac HT20

-60dBm, 11ac HT40 -61dBm, 11ac HT80 -56dBm, 2,4GHz-

11g 54Mb/s -73dBm, 11n HT20 -72dBm, 11n HT40 -69dBm

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C3150, 4 antennas, Power supply unit, Quick Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

5400Mbps Wireless Gigabit Router Tri-band

AC5400, MU-MIMO (TP-Link Archer C5400)

- Boost Your Wi-Fi - Advanced NitroQAMTM (1024-QAM) and

4-Stream technology increase maximum Wi-Fi speeds on all bands by 25%, achieving combined Wi-Fi speeds of up to

5334Mbps

- More Bands, More Devices - Tri-Band Wi-Fi offers three distinct wireless bands for more devices

- Multiple Reliable Connections - MU-MIMO* allows the router to achieve 4X efficiency by communicating with up to four devices at once

- Smoother Performance - Smart Connect automatically assigns each device to the best available band to achieve optimal performance

- Powerful Processing - Ultra-Fast 1.4GHz Dual-Core CPU and 3 co-processors provide fast and stable overall performance

- Maximized Range - 8 External Antennas maximize the Wi-Fi coverage and enhance the wireless connections

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 1 USB 3.0 Port, 1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 5A

Dimensions (W X D X H): 230 X 230 X 43mm (9,1 X 9,1 X 1,7 in.)

Antenna: 8

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 2167Mbps, 2.4GHz Up to 1000Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mbps-94dBm, 11a

54Mbps -76dBm, 11ac HT20 -68dBm, 11ac HT40 -64dBm,

11ac HT80 -60dBm, 2.4GHz - 11g 54M -77dBm, 11n HT20

-73dBm, 11n HT40 -67dBm

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C5400, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

7200Mbps Wireless Router Multiband AD7200

(TP-Link Talon AD7200)

- Supports the 802.11ad standard, the latest breakthrough in wireless technology

- 7200Mbps combined wireless speeds, including speeds of up to 800Mbps on the 2.4GHz band, 1733Mbps on the 5GHz band, and 4600Mbps on the new 60GHz band

- Multi-Band Technology establishes three distinct networks that allow you to connect more devices while still enjoying peak performance

- MU-MIMO serves multiple devices simultaneously, providing speeds that are up to 3X higher

- 1.4GHz dual-core processor powers through multiple complex tasks at the same time

- Eight external high-performance antennas maximize coverage and enhance stability

- Beamforming Technology promotes stronger, more reliable wireless connections

HARDWARE FEATURES:

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 2 USB 3.0 ports

Button:Wireless On/Off Button, Power On/off Button, LED

On/off Button, WPS Button, Reset Button

External Power Supply:12VDC / 4.2A

Wireless Standards:IEEE 802.11ad 60GHz, IEEE

802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz

Antenna:8 external antennas, 1 internal antenna

Dimensions ( W x D x H ):9 X 9 X 1.7 in. (230 X 230 X 43mm)

WIRELESS FEATURES:

Frequency: 60GHz, 2,4GHz and 5GHz

Signal Rate:60GHz- Up to 4600Mbps, 5GHz- Up to

1733Mbps, 2.4GHz- Up to 800Mbps

EIRP:<20dBm

Reception Sensitivity:5GHz- 11a 6Mb/s -94dBm, 11a 54Mb/s

-76dBm, 11ac VHT20_MCS0 -93dBm , 11ac VHT20_MCS8

-69dBm, 11ac VHT40_MCS0 -90dBm, 11ac VHT40_MCS9

-64dBm, 11ac VHT80_MCS0 -87dBm, 11ac VHT80_MCS9

-61dBm, 2.4GHz- 11g 6Mb/s -95dBm, 11g 54Mb/s -78dBm,

11n HT20_MCS0 -95dBm, 11n HT20_MCS7 -75dBm, 11n

HT20_MCS8 -70dBm, 11n HT40_MCS0 -92dBm, 11n

HT40_MCS7 -72dBm, 11n HT40_MCS9 -66dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP / WPA / WPA2,WPA-PSK /

WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/,

PPTP/L2TP/BigPond

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec(ESP Head)

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba/FTP/Media Server/Printer

Connection

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:Talon AD7200, Antennas, Power Supply

Unit, Resource CD, RJ-45 Ethernet Cable, Quick Installation

Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, Vista or Windows 7,8,8.1,10, MAC OS, NetWare, UNIX or Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~95% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

10/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08944

Net Price:

67,30 EUR

Unit: pcs

#04572

Net Price:

27,10 EUR

Unit: pcs

#08934

Net Price:

30,00 EUR

Unit: pcs

750Mbps Wireless Gigabit Router Dualband

AC750, ADSL2+ (TP-Link ARCHER D2)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections provide a premium wireless experience

- Share a printer locally and files & media with networked devices or remotely via FTP server.

- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting VDSL, cable or fiber modems

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:1x10/100/1000Mbps RJ45 WAN/LAN Port,

3x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 1xUSB

2.0 Port

Button:1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS

Button, 1 RESET Button

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis)

ADSL2+ Standards: ITU-T G.992.5

External Power Supply:12VDC / 1.5A

Dimensions (W X D X H):9.0 x 6.3 x 1.5 in. (229 x 160 x

37mm)

Antenna Type: Detachable dual band external antennas

Antenna Gain: 2dBi for 2.4GHz and 3dBi for 5GHz

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 433Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz- 11a 6Mbps-96dBm, 11a 54Mbps

-79dBm, 11ac HT20 -71dBm, 11ac HT40 -66dBm, 11ac HT80

-63dBm, 2.4GHz- 11g 54M -77dBm, 11n HT20 -74dBm, 11n

HT40 -72dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

Operating Modes: ADSL Modem Router, Wireless Router

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:ATM QoS, Traffic Control(IP QoS)

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ,

ALG

Dynamic DNS:DynDns, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

ATM Features: ATM Forum UNI3.1/4.0, PPP over ATM (RFC

2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge),

PVC - Up to 8 PVCs

Security: NAT Firewall, Access Control, MAC / IP / URL

Filtering, Denial of Service (DoS), SYN Flooding, Ping of

Death, IP and MAC Address Binding

Advanced Functions: Parental Control, Network Address

Translation (NAT); Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069,

SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic

Tools

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

IPv6: IPv6 and IPv4 dual stack

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer D2, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Resource CD,

Quick Installation Guide, Power Adapter

System Requirements:Windows 8/7/Vista/XP or Mac OS or

Linux-based operating system.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

750Mbps Wireless Router Dual-band AC750

(TP-Link Archer C20)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth

- 2 external antennas provide stable omnidirectional signal and superior wireless coverage

- USB port - share a printer locally and files & media with networked devices or remotely via FTP server

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port,

1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 1A

Dimensions (W X D X H): 230 x 144 x 35mm (9,1 x 5,7 x 1,4 in.)

Antenna: 2 Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 433Mbps, 2.4GHz Up to 300Mbps

EIRP: CE <20dBm(2,4GHz), <23dBm(5GHz), FCC <30dB

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C20, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

750Mbps Wireless Router Dualband AC750

(TP-Link Archer C20i)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth

- Stable omnidirectional signal and superior wireless coverage

- USB port - share a printer locally and files & media with networked devices or remotely via FTP server

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port,

1 USB 2.0 Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:12VDC / 1A

Dimensions (W X D X H):4.44 x 2.36 x 6.73 in. (113 x 60 x

171mm)

Antenna:3 internal antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 433Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mbps-91dBm, 11a

54Mbps -74dBm, 11ac HT20 -66dBm, 11ac HT40 -64dBm,

11ac HT80 -61dBm, 2.4GHz - 11g 54M -74dBm, 11n HT20

-72dBm, 11n HT40 -69dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA-PSK2 encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C20i, Power supply unit, Resource

CD, Quick Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

11/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04573

Net Price:

30,00 EUR

Unit: pcs

900Mbps Wireless Router Dual-band AC900

(TP-Link Archer C25)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 450Mbps and 5GHz 433Mbps connections for 883Mbps of total available bandwidth

- Four external antennas provide wireless coverage in every corner of your home

- Tether app and an intuitive web UI provide quick & hassle-free installation

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port

Button:WPS/Reset Button, Wireless On/Off Button, Power

On/off Button

External Power Supply:9VDC / 0.85A

Dimensions (W X D X H): 230 x 144 x 37mm (9,1 x 5,7 x 1,5 in.)

Antenna: 4 Antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 433Mbps, 2.4GHz Up to 450Mbps

EIRP: CE <20dBm(2,4GHz), <23dBm(5GHz)

Wireless Functions:Enable/Disable Wireless Radio, WMM,

Wireless Statistics

Wireless Security:64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec Passthrough

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 2

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer C25, Power supply unit, Quick

Installation Guide, Ethernet Cable

System Requirements:MicrosoftC WindowsC XP, VistaTM,

Windows 7 or Windows 8, MACC OS, NetWareC, UNIXC or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

12/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

Standard N

#08562

Net Price:

45,10 EUR

Unit: pcs

#08563

Net Price:

56,60 EUR

Unit: pcs

#04603

Net Price:

85,40 EUR

Unit: pcs

3G Mobile Hotspot Wi-Fi (TP-Link M5250)

- Equipped with a built-in 3G modem - No additional bulky devices required

- HSPA+ supported with up to 21.6Mbps download and

5.76Mbps upload speeds

- Powerful 2000mAh battery is ideal for extended hours of outdoor use

- Supports up to 10 users simultaneously

HARDWARE FEATURES

Interface: 1 micro USB port for power supply, SIM Card Slot,

Micro SD card Slot

Button: Power On/Off Button, Reset Button

LED Display: Wi-Fi status, Internet connection status, Battery

Status

Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE

802.11n

Network Type: HSPA+/HSPA/UMTS/EDGE/GRPS/GSM

Data Rates: DL- 21.6Mbps, UL- 5.76Mbps

Antenna: Internal Antenna

Power Supply: Internal 2000mAh Rechargeable Battery

Dimensions ( W x D x H ): 3.7×2.2×0.8in.(94×56.7×19.8mm)

Micro SD Card Reader: up to 32G

Band: WCDMA 2100/900MHz, GSM 850/900/1800/1900MHz

WIRELESS FEATURES

Frequency: 2.4-2.4835GHz

EIRP: <20dBm

Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless

MAC Filtering, Enable/Disable SSID Broadcast

DHCP: DHCP server, DHCP Client List

OTHERS

Certification: CE, FCC, RoHS

Package Contents: 3G Mobile Wi-Fi M5250, Battery, Micro

USB Cable, Micro to Standard SIM Card Adapter, Nano to

Standard SIM Card Adapter, Quick Installation Guide

System Requirements: Windows 8/7/vista/XP,Mac OS,

Android, iOS, Windows phone

Weight: 92.5g (battery included)

#04602

Net Price:

97,10 EUR

Unit: pcs

3G Mobile Hotspot Wi-Fi (TP-Link M5350)

- Equipped with a built-in 3G modem - No additional bulky devices required

- HSPA+ supported with up to 21.6Mbps download and

5.76Mbps upload speeds

- Powerful 2000mAh battery is ideal for extended hours of outdoor use

- Supports up to 10 users simultaneously

HARDWARE FEATURES

Interface: 1 micro USB port for power supply, SIM Card Slot,

Micro SD card Slot

Button: Power On/Off Button, Reset Button

OLED Display: Singal strength, Network type, Wi-Fi status,

Message, Internet connection status, Battery meter, connection mode and Traffic Statistics

Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE

802.11n

Network Type: HSPA+/HSPA/UMTS/EDGE/GRPS/GSM

Data Rates: DL- 21.6Mbps, UL- 5.76Mbps

Antenna: Internal Antenna

Power Supply: Internal 2000mAh Rechargeable Battery,

5VDC/1.0A

Dimensions ( W x D x H ): 3.7×2.2×0.8in.(94×56.7×19.8mm)

Micro SD Card Reader: up to 32G

Band: WCDMA 2100/900MHz, GSM 850/900/1800/1900MHz

WIRELESS FEATURES

Frequency: 2.4-2.4835GHz

EIRP: <20dBm

Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless

MAC Filtering, Enable/Disable SSID Broadcast

DHCP: DHCP server, DHCP Client List

OTHERS

Certification: CE, FCC, RoHS

Package Contents: 3G Mobile Wi-Fi M5350, Battery, Power

Adapter, Micro USB Cable, Micro to Standard SIM Card

Adapter, Nano to Standard SIM Card Adapter, Quick

Installation Guide

System Requirements: Windows 8/7/vista/XP,Mac OS,

Android, iOS, Windows phone

Weight: 92.5g (battery included)

#08942

Net Price:

94,40 EUR

Unit: pcs

LTE Mobile Hotspot Wi-Fi (TP-Link M7300)

- Share 4G connection with up to 150Mbps download/50Mbps upload speeds

- Supports up to 11 devices simultaneously (10 Wireless+1

Wired)

- 2000mAh battery for 10 hours of usage

- High speed Wi-Fi hotspot at speeds of 300Mbps

- Equipped with a Micro SD card slot for up to 32GB of optional storage

- Easy management with the tpMiFi App

HARDWARE FEATURES

Interface: 1 micro USB port for power supply, SIM Card Slot,

Micro SD card Slot

Button: Power On/Off Button,

Wireless Standards: IEEE 802.11a, IEEE 802.11b, IEEE

802.11g, IEEE 802.11n

Network Type: FDD-LTE

B1/B3/B7/B8/B20(2100/1800/2600/900/800MHz), TDD-LTE

B38/B40/B41 (2600/2300/2500MHz),

DC-HSPA+/HSPA/UMTS B1/B8(2100/900MHz),

EDGE/GPRS/GSM 850/900/1800/1900MHz

Data Rates: DL- up to 150Mbps, UL- up to 50Mbps

Antenna: Internal Antenna

Power Supply: Internal 2000mAh Rechargeable Battery

Dimensions ( W x D x H ): 4.0×2.5×0.6 in. (102.6×63×16mm)

Micro SD Card Reader: up to 32G

WIRELESS FEATURES

Frequency: 2.4GHz & 5GHz

EIRP: <20dBm

Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless

MAC Filtering, Enable/Disable SSID Broadcast

DHCP: DHCP server, DHCP Client List

OTHERS

Certification: CE, FCC, RoHS

Package Contents: LTE-Advanced Mobile WiFi M7300, Micro

USB Cable, Nano to Standard SIM Card Adapter, Micro to

Standard SIM Card Adapter, Battery, Power Adapter, Quick

Installation Guide

System Requirements: Windows 10/8/7/vista/XP,Mac OS,

Android, iOS, Windows phone

LTE Mobile Hotspot Wi-Fi (TP-Link M7310)

- 4G LTE supported with up to 150Mbps download and

50Mbps upload speeds

- Supports up to 11 devices simultaneously(10 Wireless + 1

Wired)

- Selectable 2.4GHz or 5GHz dual band Wi-Fi at speeds of

300Mbps

- All useful information at a glance with screen display

- 2000mAh battery for up to 10 hours of working

- Equipped with a micro SD card slot for up to 32GB of optional storage

- Easy management with the tpMiFi App

HARDWARE FEATURES

Interface: 1 micro USB port for power supply, SIM Card Slot,

Micro SD card Slot

Button: Power On/Off Button, Menu

TFT Display: 1,44 in., Traffic statistics, Wi-Fi status, user numbers, network type (2G/3G/4G), signal strength, Internet connection status, messages, battery meter

Wireless Standards: IEEE 802.11a, IEEE 802.11b, IEEE

802.11g, IEEE 802.11n

Network Type: FDD-LTE

B1/B3/B7/B8/B20(2100/1800/2600/900/800MHz), TDD-LTE

B38/B40/B41 (2600/2300/2500MHz),

DC-HSPA+/HSPA/UMTS B1/B8(2100/900MHz),

EDGE/GPRS/GSM 850/900/1800/1900MHz

Data Rates: DL- up to 150Mbps, UL- up to 50Mbps

Antenna: Internal Antenna

Power Supply: Internal 2000mAh Rechargeable Battery

Dimensions ( W x D x H ): 98,5x60,5x16mm

Micro SD Card Reader: up to 32G

WIRELESS FEATURES

Frequency: 2.4GHz & 5GHz

EIRP: <33dBm

Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless

MAC Filtering, Enable/Disable SSID Broadcast

DHCP: DHCP server, DHCP Client List

OTHERS

Certification: CE, FCC, RoHS

Package Contents: LTE-Advanced Mobile WiFi M7310, Micro

USB Cable, Nano to Standard SIM Card Adapter, Battery,

Quick Installation Guide

System Requirements: Windows 10/8/7/vista/XP,Mac OS,

Android, iOS, Windows phone

LTE Mobile Hotspot Wi-Fi (TP-Link M7350)

- 4G LTE supported with up to 150Mbps download and

50Mbps upload speeds

- Supports up to 15 devices simultaneously

- All useful information at a glance with screen display

- 2550mAh battery for up to 10 hours of working

- Selectable 2.4GHz or 5GHz dual band WiFi

- Equipped with a micro SD card slot for up to 32GB of optional storage

HARDWARE FEATURES

Interface: 1 micro USB port for power supply, SIM Card Slot,

Micro SD card Slot

Button: Power On/Off Button, Reset Button

OLED Display: Traffic statistics, Wi-Fi status, user numbers, network type (2G/3G/4G), signal strength, Internet connection status, messages, battery meter

Wireless Standards: IEEE 802.11a, IEEE 802.11b, IEEE

802.11g, IEEE 802.11n

Network Type: FDD-LTE Cat4

(800/900/1800/2100/2600MHz), DC-HSPA+/HSPA/UMTS

(900/2100MHz), EDGE/GPRS/GSM

(850/900/1800/1900MHz)

Data Rates: DL- up to 150Mbps, UL- up to 50Mbps

Antenna: Internal Antenna

Power Supply: Internal 2550mAh Rechargeable Battery

Dimensions ( W x D x H ): 4.2 × 2.6 × 0.6 in. (106 × 66 ×

16mm)

Micro SD Card Reader: up to 32G

WIRELESS FEATURES

Frequency: 2.4GHz & 5GHz

EIRP: <20dBm

Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless

MAC Filtering, Enable/Disable SSID Broadcast

DHCP: DHCP server, DHCP Client List

OTHERS

Certification: CE, FCC, RoHS

Package Contents: LTE-Advanced Mobile WiFi M7350, Micro

USB Cable, Micro to Standard SIM Card Adapter, Nano to

Standard SIM Card Adapter, Power Adapter, Quick

Installation Guide

System Requirements: Windows 8/7/vista/XP,Mac OS,

Android, iOS, Windows phone

Weight: 92.5g (battery included)

13/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04650

Net Price:

44,40 EUR

Unit: pcs

#08949

Net Price:

65,90 EUR

Unit: pcs

#08941

Net Price:

42,70 EUR

Unit: pcs

300Mbps Outdoor Wireless Access Point 2,4GHz

(TP-Link CAP300)

- Hardware wireless controller (#04651, #04649) enable administrators to easily manage hundreds of CAPs

- Support Power over Ethernet (802.af) for convenient and affordable installation

- Simple mounting design for easy attachment to a wall or ceiling

- Captive portal provides on convenient method of authentication for Wi-Fi guests

- Enterprise class Wi-Fi security help to decrease network security threats

- Multi-SSID divides multiple wireless networks for different user types

- FAT/FIT mode switchable provides a range of network possibilities

Standards: IEEE 802.11n,IEEE 802.11g, IEEE 802.11b

Ports: Gigabit Ethernet (RJ-45) Port *1&#65288;Support

IEEE802.3af PoE&#65289;, Console Port *1

Frequency range: 2400 MHz ÷ 2483,5 MHz

Signal Rate: 11n- up to 300Mb/s (dynamic), 11g- up to

54Mb/s (dynamic), 11b- up to 11Mb/s (dynamic)

Reception Sensitivity: 300M -71dBm, 150M -75dBm, 54M

-78dBm, 11M -93dBm, 6M -92dBm, 1M -96dBm

Wireless Functions: Multiple SSIDs (Up to 8 SSIDs),

Enable/Disable Wireless Radio, Automatic Channel

Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Load Balance, Wireless Schedule,

Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Wireless

Mac Address Filtering, Wireless Isolation Between Clients,

SSID to VLAN Mapping, Rogue AP Detection, 802.1X

Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise,WPA-PSK / WPA2-PSK

Antenna: Internal 2* 3dBi Omni

Dimensions: 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)

Power: PoE or external 9VDC/0.6A power supply

Power Consumption: 5W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: 300Mbps Wireless N Ceiling Mount

Access Point CAP300, Power Adapter, Mounting Kits,

Installation Guide

System Requirements: Microsoft Windows 10/8/7/Vista/XP

Certificates: CE, FCC, RoHS

300Mbps Outdoor Wireless Access Point 2,4GHz

(TP-Link EAP120)

- Clustering functionality and free controller software* provide centralized WLAN management

- Support Power over Ethernet (802.3af) for convenient and affordable installation

- Simple mounting design to easily mount to a wall or ceiling

- Captive portal provides one convenient method of authentication for WiFi guests

- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN

- Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring-

Standards: IEEE 802.11n,IEEE 802.11g, IEEE 802.11b

Ports: Gigabit Ethernet (RJ-45) Port *1&#65288;Support

IEEE802.3af PoE&#65289;, Console Port *1

Operating modes: Cluster, Standalone Mode

Frequency range: 2400 MHz ÷ 2483,5 MHz

Signal Rate: 11n- up to 300Mb/s (dynamic), 11g- up to

54Mb/s (dynamic), 11b- up to 11Mb/s (dynamic)

Reception Sensitivity: 300M -71dBm, 150M -75dBm, 54M

-78dBm, 11M -93dBm, 6M -92dBm, 1M -96dBm

Wireless Functions: Multiple SSIDs (Up to 8 SSIDs),

Enable/Disable Wireless Radio, Automatic Channel

Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Load Balance, Wireless Schedule,

Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Wireless

Mac Address Filtering, Wireless Isolation Between Clients,

SSID to VLAN Mapping, Rogue AP Detection, 802.1X

Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise,WPA-PSK / WPA2-PSK

CLI (Command Line Interface): Yes

Cluster: Up to 24 APs in one cluster

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

Antenna: Internal 2* 4dBi Omni

Dimensions: 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)

Power: PoE or External 12VDC / 1A Power Supply

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certificates: CE, FCC, RoHS

300Mbps Wireless access point, 2.4GHz

(TP-LINK CPE210)

Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Ports: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive

PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1,

Passive PoE

Passthrough), 1 Grounding Terminal, 1 Reset Button

Wireless Configurations: Pharos MAXtream TDMA

Technology, 802.11b/g/n Modes, Selectable Channel Width

5/10/20/40MHz, Automatic Channel Selection, Transmission

Power Control, Dynamic Frequency Selection (DFS), WDS

Enable/Disable, SSID Broadcast Enable/Disable, Multi-SSID with VLAN Tagging (AP mode only), Distance/ACK Timeout

Setting, Wireless MAC Address Filter

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP)

Encryption, 64/128/152-bit WEP Encryption

Wireless Advanced: Beacon Interval/RTS

Threshold/Fragmentation, Threshold/DTIM Interval/AP

Isolation/Short GI/Wi-Fi Multimedia

Management: Discovery and Remote Management via

Pharos Control application, HTTP/HTTPS Web-based management, System Log, SNMP Agent(v2c), Ping Watch

Dog, Dynamic DDNS, SSH Server

System Tools: Wireless Signal Quality Indicators - Signal

Strength/Noise/Transmit CCQ/CPU/Memory, Monitors -

Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP,

Spectrum Analyzer, Speed Test, Ping, Traceroute

Signal Rate: Up to 300Mbps (40MHz,Dynamic), Up to

144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps

(10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)

Receiver sensitivity: 802.11b [email protected] -95dBm, 5,[email protected]

-96dBm, [email protected] -96dBm, [email protected] -96dBm 802.11g [email protected]

-79dBm [email protected] -80dBm [email protected] -84dBm [email protected] -88dBm,

802.11n MCS15 -76dBm, MCS14 -78dBm, MCS13 -80dBm,

MCS12 -84dBm, MCS11 -87dBm, MCS10 -91dBm, MCS9

-93dBm, MCS8 -96dBm, MCS7 -76dBm, MCS6 -78dBm,

MCS5 -80dBm, MCS4 -84dBm, MCS3 -87dBm, MCS2

-91dBm, MCS1 -93dBm, MCS0 -96dBm

Antenna: Built-in 9dBi 2x2 Dual-polarized Directional Antenna

Beam width: 65° (H-Plane) / 35° (E-Plane)

Dimensions: 224 x 79 x 60 mm

Power Consumption: 10.5 Watts Max (When deployed using

Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable)

Power Supply: Passive Power over Ethernet via LAN0

(+4,5pins; -7,8pins), Voltage range 16-27VDC

Protection: 15KV ESD Protection, 6000V Lightning Protection

Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification

Package Contents: Outdoor Wireless CPE, 24V 1A Passive

PoE Adapter, Pole Mounting Straps, AC Power Cord,

Installation Guide

Operating temperatures: -30°C ÷ 70°C

System Requirements: Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7, MAC OS, NetWare, UNIX or

Linux.

Certificates: CE, FCC, RoHS, IPX5

Manufacturer: Tp-Link

14/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08940

Net Price:

51,00 EUR

Unit: pcs

#04661

Net Price:

36,60 EUR

Unit: pcs

#04660

Net Price:

39,00 EUR

Unit: pcs

300Mbps Wireless access point, 5GHz (TP-LINK

CPE510)

Processor: Qualcomm Atheros Enterprise AR9350B 560MHz

CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Standards: IEEE 802.11a, IEEE 802.11n

Ports: 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive

PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1,

Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset

Button

Wireless Configurations: Pharos MAXtream TDMA

Technology, 802.11a/n Modes, Selectable Channel Width

5/10/20/40MHz, Automatic Channel Selection, Transmission

Power Control, Dynamic Frequency Selection (DFS), WDS

Enable/Disable, SSID Broadcast Enable/Disable, Multi-SSID with VLAN Tagging (AP mode only), Distance/ACK Timeout

Setting, Wireless MAC Address Filter

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP)

Encryption, 64/128/152-bit WEP Encryption

Wireless Advanced: Beacon Interval/RTS

Threshold/Fragmentation, Threshold/DTIM Interval/AP

Isolation/Short GI/Wi-Fi Multimedia

Management: Discovery and Remote Management via

Pharos Control application, HTTP/HTTPS Web-based management, System Log, SNMP Agent(v2c), Ping Watch

Dog, Dynamic DDNS, SSH Server

System Tools: Wireless Signal Quality Indicators - Signal

Strength/Noise/Transmit CCQ/CPU/Memory, Monitors -

Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP,

Spectrum Analyzer, Speed Test, Ping, Traceroute

Signal Rate: Up to 300Mbps (40MHz,Dynamic), Up to

144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps

(10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)

Receiver sensitivity: 802.11a [email protected] -75dBm [email protected] -76dBm

[email protected] -83dBm [email protected] -95dBm, 802.11n MCS15 -73dBm,

MCS14 -74dBm, MCS13 -76dBm, MCS12 -80dBm, MCS11

-83dBm, MCS10 -88dBm, MCS9 -90dBm, MCS8 -93dBm,

MCS7 -73dBm, MCS6 -74dBm, MCS5 -76dBm, MCS4

-80dBm, MCS3 -83dBm, MCS2 -88dBm, MCS1 -90dBm,

MCS0 -93dBm

Antenna: Built-in 13dBi 2x2 Dual-polarized Directional

Antenna

Beam width: 45° (H-Plane) / 30° (E-Plane)

Dimensions: 224 x 79 x 60 mm

Power Consumption: 13 Watts Max (When deployed using

Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable)

Power Supply: Passive Power over Ethernet via LAN0

(+4,5pins; -7,8pins), Voltage range 16-27VDC

Protection: 15KV ESD Protection, 6000V Lightning Protection

Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification

Package Contents: Outdoor Wireless CPE, 24V 1A Passive

PoE Adapter, Pole Mounting Straps, AC Power Cord,

Installation Guide

Operating temperatures: -30°C ÷ 70°C

System Requirements: Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7, MAC OS, NetWare, UNIX or

Linux.

Certificates: CE, FCC, RoHS, IPX5

Manufacturer: Tp-Link

300Mbps Wireless Access Point, N (TP-Link

EAP110)

- EAP Controller Software enables administrators to easily manage hundreds of EAPs

- Supports passive PoE for convenient installation up to

100meters

- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling

- Captive portal provides one convenient method of authentication for Wi-Fi guests

- Multi-SSID divides multiple wireless networks for different users

- Enterprise class Wi-Fi security help to decrease network security threats

Standards: IEEE 802.11n/g/b

Ports: Fast Ethernet (RJ-45) Port *1 (Support Passive PoE)

Frequency range: 2.4-2.4835GHz

Signal Rate: 11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP: FCC <26dBm(2.4GHz), CE <20dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal 2* 3dBi Omni

Dimensions: 7.1 x 7.1 x 1.9in. (180*180*47.5mm)

Power: 24VDC / 1A Passive PoE Supply

Power Consumption: 7.7 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: Wireless Access Point EAP110, Passive

PoE Adapter, Power Adapter, Mounting Kits, Installation

Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

300Mbps Wireless Access Point, N (TP-Link

EAP115)

- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs

- The user-friendly Cluster Mode allows manage up to 24

(EAP115) without requiring any extra hardware or software

- Supports Power over Ethernet (802.3af) for convenient and affordable installation

- Simple mounting design for easy attachment to a wall or ceiling

- Captive portal provides one convenient method of authentication for Wi-Fi guests

- Enterprise class Wi-Fi security help to decrease network security threats

- Multi-SSID divides multiple wireless networks for different user types

Standards: IEEE 802.11n/g/b

Ports: Fast Ethernet (RJ-45) Port *1 (ETH1 Support

IEEE802.3af PoE)

Frequency range: 2.4-2.4835GHz

Signal Rate: 11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP: FCC <26dBm(2.4GHz), CE <20dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal 2* 3dBi Omni

Dimensions: 7.1 x 7.1 x 1.9in. (180*180*47.5mm)

Power: PoE or External 12VDC / 1A Power Supply

Power Consumption: 5 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: Wireless Access Point EAP115, Power

Adapter, Mounting Kits, Installation Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

15/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08539

Net Price:

39,00 EUR

Unit: pcs

#08392

Net Price:

61,50 EUR

Unit: pcs

#08956

Net Price:

143,00 EUR

Unit: pcs

Outdoor Wireless Access Point 2,4GHz (TP-Link

TL-WA7210N)

Standards: IEEE 802.11n,IEEE 802.11g, IEEE 802.11b

Ports: 1 10/100Mbps Auto-Sensing RJ45 Port(Auto

MDI/MDIX, PoE), 1 External Reverse SMA Connector, 1

Grounding Terminal

Operating modes: AP Router Mode, AP Client Router Mode

(WISP Client), AP / Client / Bridge / Repeater Mode

Frequency range: 2400 MHz ÷ 2483,5 MHz

Signal Rate: 11n- up to 150Mb/s (dynamic), 11g- up to

54Mb/s (dynamic), 11b- up to 11Mb/s (dynamic)

Reception Sensitivity

802.11n: 150M -76dBm, 121.5M -78dBm, 108M -80dBm,

81M -84dBm, 54M -87dBm, 40.5M -91dBm, 27M -92dBm,

13.5M -95dBm

802.11g: 54M -79dBm, 48M -81dBm, 36M -85dBm, 12M

-92dBm, 6M -95dBm

Wireless Functions: WDS Bridge, Wireless Statistics

Wireless Security: SSID Enable/Disable, MAC Address Filter,

64/128/152-bit WEP Encryption, WPA/WPA2,

WPA-PSK/WPA2-PSK (AES/TKIP) Encryption

Advanced Functions: Provides 4-level signal LED indicator

Transmission Power: <20dBm (EIRP, For countries using CE

Standards), <27dBm (Peak Output Power, For countries using FCC Standards)

Antenna: 12dBi Dual-Polarized Directional Antenna

Dimensions: 10.4 × 4.7 × 3.2 in. (265x120x83mm)

Power: 12VDC / 1.0A, Passvie Power over Ethernet

(Supported Ethernet Cable Length > 60 meters)

Operating Temperature: -30°C~70°C (-22°F~158°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing

Certificates: CE, FCC, RoHS

Wireless Access Point UniFi UAP 2.4GHz

The UniFiC Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP

(UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi

Controller software. The software installs on any PC,

Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the

UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Networking Interface (Mbps): 1 x 10/100 Ethernet Ports

Buttons: Reset

Antennas: 2 Integrated (Supports 2x2 MIMO with Spatial

Diversity)

Wi-Fi Standards: 802.11 b/g/n

Power Method: Passive Power over Ethernet (12-24V)

Power Supply: 24V, 0.5A PoE Adapter (Included)

Maximum Power Consumption: 4 W

Maximum TX Power: 20 dBm

BSSID: Up to Four Per Radio

Dimensions: 200 x 200 x 36.5 mm

Weight: 290 g (430 g with Mounting Kits)

Power Save: Supported

Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES,

802.11i

Certifications: CE, FCC, IC

Mounting: Wall/Ceiling (Kits Included)

Operating Temperature: -10 ÷ 70° C

Operating Humidity: 5 ÷ 80% Condensing

Advanced Traffic Management

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest traffic isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 200+

Supported Data Rates (Mbps)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Manufacturer: Ubiquiti

Wireless Access Point UniFi UAP Outdoor+

2.4GHz

The UniFiC Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP

(UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi

Controller software. The software installs on any PC,

Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the

UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Networking Interface (Mbps): 2 x 10/100 Ethernet Ports

Buttons: Reset

Antennas: 2 External 5 dBi Omni Antennas Included, 191 mm

(Length), 13mm (Diameter)

Wi-Fi Standards: 802.11 b/g/n

Power Method: Passive Power over Ethernet (48V), 802.3af

Supported

Power Supply: 24V, 1A PoE Adapter (Included)

Maximum Power Consumption: 8 W

Maximum TX Power: 28 dBm

BSSID: Up to Four Per Radio

Dimensions: 205 x 83 x 37 mm

Weight: 250 g (294 g with Antennas)

Power Save: Supported

Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES,

802.11i

Certifications: CE, FCC, IC

Mounting: Wall/Ceiling (Kits Included)

Operating Temperature: -30 ÷ 65° C

Operating Humidity: 5 ÷ 95% Condensing

Advanced Traffic Management

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest traffic isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 100+

Supported Data Rates (Mbps)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Manufacturer: Ubiquiti

16/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08911

Net Price:

126,00 EUR

Unit: pcs

#08393

Net Price:

82,90 EUR

Unit: pcs

#07017

Net Price:

22,00 EUR

Unit: pcs

Wireless Access Point UniFi UAP Outdoor-5

5GHz

The UniFiC Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP

(UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi

Controller software. The software installs on any PC,

Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the

UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Networking Interface (Mbps): 2 x 10/100 Ethernet Ports

Buttons: Reset

Antennas: 2 External 6 dBi Omni Antennas Included, 191 mm

(Length), 13mm (Diameter)

Wi-Fi Standards: 802.11 a/n

Power Method: Passive Power over Ethernet (12-24V),

802.3af Supported

Power Supply: 24V, 1A PoE Adapter (Included)

Maximum Power Consumption: 6,5 W

Maximum TX Power: 27 dBm

BSSID: Up to Four Per Radio

Dimensions: 170 x 80 x 30 mm

Weight: 230 g (274 g with Antennas)

Power Save: Supported

Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES,

802.11i

Certifications: CE, FCC, IC

Mounting: Wall/Ceiling (Kits Included)

Operating Temperature: -30 ÷ 75° C

Operating Humidity: 5 ÷ 95% Condensing

Advanced Traffic Management

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest traffic isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 100+

Supported Data Rates (Mbps)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Manufacturer: Ubiquiti

#07019

Net Price:

24,00 EUR

Unit: pcs

Wireless Access Point UniFi UAP-LR 2.4GHz

The UniFiC Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP

(UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi

Controller software. The software installs on any PC,

Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the

UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Networking Interface (Mbps): 1 x 10/100 Ethernet Ports

Buttons: Reset

Antennas: 2 Integrated (Supports 2x2 MIMO with Spatial

Diversity)

Wi-Fi Standards: 802.11 b/g/n

Power Method: Passive Power over Ethernet (12-24V)

Power Supply: 24V, 0.5A PoE Adapter (Included)

Maximum Power Consumption: 6 W

Maximum TX Power: 27 dBm

BSSID: Up to Four Per Radio

Dimensions: 200 x 200 x 36.5 mm

Weight: 290 g (430 g with Mounting Kits)

Power Save: Supported

Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES,

802.11i

Certifications: CE, FCC, IC

Mounting: Wall/Ceiling (Kits Included)

Operating Temperature: -10 ÷ 70° C

Operating Humidity: 5 ÷ 80% Condensing

Advanced Traffic Management

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest traffic isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 100+

Supported Data Rates (Mbps)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Manufacturer: Ubiquiti

#07020

Net Price:

36,10 EUR

Unit: pcs

Wireless N Access Point (TP-Link TL-WA701ND)

Standards: IEEE 802.11n, IEEE 802.11b/g

Ports: 1x 10/100 Mbps RJ-45 PoE (LAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Mode, Multi-SSID Mode, AP Client

Mode, Repeater Mode (WDS / Universal), AP+ Bridge mode

Max. speed: 150 Mbps

Max. output power: 20 dBm

Antenna: 1x detachable SMA RP, 4 dBi

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

WLAN features: CCA, QSS button, 4x SSIDs, VLAN support

Auto MDI/MDIX: yes

Dimensions: 150x100x28 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 90%, non-condensing

Power: 9V DC 0.85A, ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

Wireless N Access Point (TP-Link TL-WA801ND)

Standards: IEEE 802.11n, IEEE 802.11b/g

Ports: 1x 10/100 Mbps RJ-45 PoE (LAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Mode, Multi-SSID Mode, AP Client

Mode, Repeater Mode (WDS / Universal), AP+ Bridge mode

Max. speed: 300 Mbps

Max. output power: 20 dBm

Antenna: 2x detachable SMA RP, 4 dBi

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

WLAN features: 2T2R MIMO, CCA, QSS button, 4x SSIDs,

VLAN support

Auto MDI/MDIX: yes

Dimensions: 174x120x28,8 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 90%, non-condensing

Power: 9V AC 0.8A, ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

Wireless N Access Point (TP-Link TL-WA901ND)

Standards: IEEE 802.11n, IEEE 802.11b/g

Ports: 1x 10/100 Mbps RJ-45 PoE (LAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Mode, Multi-SSID Mode, AP Client

Mode, Repeater Mode (WDS / Universal), AP+ Bridge mode

Max. speed: 300 Mbps

Max. output power: 20 dBm

Antenna: 3x detachable SMA RP, 4 dBi

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

WLAN features: 3T3R MIMO, CCA, QSS button, 4x SSIDs,

VLAN support

Auto MDI/MDIX: yes

Dimensions: 174x120x28 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 5% ÷ 90%, non-condensing

Power: 9V AC 1A, ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

17/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08545

Net Price:

33,70 EUR

Unit: pcs

#07167

Net Price:

27,10 EUR

Unit: pcs

#08549

Net Price:

8,63 EUR

Unit: pcs

450Mbps Wireless Dual Band PCI-Express

(TP-Link TL-WDN4800)

- Dual Band support - 2.4GHz or 5GHz channels bring an optimized HD video streaming, file sharing and online experience

- Today's fastest wireless speeds of up to 450Mbps

- Three antennas increase wireless performance and stability

HARDWARE FEATURES:

Interface:PCI Express x1

Antenna Type: Omni Directional, Detachable (RP-SMA)

Antenna Gain: 3 x 2dBi

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11a, IEEE 802.11b, IEEE

802.11g, IEEE 802.11n

Frequency: 2.4-2.4835GHz, 5.180-5.240GHz,

5.745-5.825GHz

Signal Rate: 11n Up to 450Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic), 11a Up to

54Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity: 405M_2,4GHz [email protected]% PER,

270M_2.4GHz [email protected]% PER, 195M_2.4GHz

[email protected]% PER, 130M_2.4GHz [email protected]% PER,

54M_2.4GHz [email protected]% PER, 11M_2.4GHz

[email protected]% PER, 6M_2.4GHz [email protected]% PER,

1M_2.4GHz [email protected]% PER, 405M_5GHz [email protected]%

PER, 270M_5GHz [email protected]% PER, 195M_5GHz

[email protected]0% PER, 130M_5GHz [email protected]% PER,

54M_5GHz [email protected]% PER, 6M_5GHz [email protected]%

PER

Wireless Modes:Ad-Hoc / Infrastructure mode

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK,802.1x

Modulation Technology:DBPSK, DQPSK, CCK, OFDM,

16-QAM, 64-QAM

OTHERS:

Certification:CE, FCC, RoHS, Wi-Fi

Package Contents:Wireless Adapter TL-WDN4800, Resource

CD, Quick Installation Guide

System Requirements:Windows 7(32/64bits), Windows

Vista(32/64bits), Windows XP(32/64bits)

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

#07056

Net Price:

5,93 EUR

Unit: pcs

AC1200 Wireless Dual Band USB 3.0 Adapter

(TP-Link Archer T4U)

- Ultra-fast 1200 (867+300)Mbps wireless speed with

802.11ac

- Dual Band connections for lag-free HD video streaming and gaming

- SuperSpeed USB 3.0 port - Up to 10x faster than USB 2.0

- Easy wireless security encryption at a push of the WPS button

- Equipped with a USB Extension Cable for flexible deployment

Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n,

IEEE 802.11g, IEEE 802.11b

Interface: USB 3.0

Frequency range: 5GHz, 2.4GHz

Max. speed: up to 5GHz 867Mbps or 2.4GHz 300Mbps

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM, 256-QAM

Operating modes: Ad-hoc, infrastructure

WLAN security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, 802.1x

Drivers: Windows 8 (32/64bits), Windows 7 (32/64bits),

Windows XP(32/64bits)

Dimmensions: 92.2×29×14.6 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Manufacturer: TP-Link

#07054

Net Price:

8,90 EUR

Unit: pcs

Mini Wireless adapter N USB 2.0, 300Mbps

(TP-Link TL-WN823N)

- 300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming

- Mini-sized design for convenient portability with a reliable high performance

- SoftAP Mode - Turn a wired internet connection to a PC or

Laptop into a Wi-Fi hotspot

- Easily setup a secure wireless connection with one-touch

WPS button

Standards: IEEE 802.11 b/g, IEEE 802.11n

Interface: USB 2.0 typ A

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 300 Mbps when connected to 11n device

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: Soft AP Mode, Client Mode (support

Ad-hoc/Infrastructure network)

WLAN security: 64/128 bits WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES)

Roaming support: yes

WLAN features: MIMO, CCA

Drivers: Windows Windows XP/Vista/7

Dimmensions: 39 x 18.35 x 7.87mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Manufacturer: TP-Link

#08424

Net Price:

13,00 EUR

Unit: pcs

Wireless adapter Lite N USB 2.0 (TP-Link

TL-WN727N)

Standards: IEEE 802.11 b/g, IEEE 802.11n

Interface: USB 2.0 typ A

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 150 Mbps when connected to 11n device

Max. output power: 18 dBm

Modulation type: OFDM/CCK/16-QAM/64-QAM

Operating modes: Ad-hoc, infrastructure, AP soft

WLAN security: 64/128 bits WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES)

Roaming support: yes

WLAN features: MIMO, CCA

Drivers: Windows Windows 2k/XP/Vista

Dimmensions: 86.5x24x10 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Manufacturer: TP-Link

Wireless adapter Lite N USB 2.0 High Gain

(TP-Link TL-WN722N)

Standards: IEEE 802.11 b/g, IEEE 802.11n

Interface: USB 2.0 typ A

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 150 Mbps when connected to 11n device

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: Ad-hoc, infrastructure

Antena: detachable, RP-SMA

WLAN security: 64/128 bits WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES)

Roaming support: yes

Drivers: Windows Windows 2k/XP/Vista

Dimmensions: 93,5x26x11 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Manufacturer: TP-Link

Wireless adapter Lite N USB 2.0 High Gain

(TP-Link TL-WN822N)

- 11N speed allows for the best HD video streaming and internet calling experience

- Dual external antennas deliver enhanced reception and transmission performance

- Easy one-touch wireless security encryption with the Quick

Security Setup button

- 1.5 meter USB extension cable enables convenient, flexible deployment

- Supports Windows XP / Vista / 7

Standards: IEEE 802.11 b/g, IEEE 802.11n

Interface: mini USB 2.0

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 300 Mbps when connected to 11n device

Max. output power: 20 dBm

Modulation type: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: Ad-hoc, infrastructure

Antena: detachable, RP-SMA

WLAN security: 64/128 bits WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES)

Roaming support: yes

Drivers: Windows Windows 2k/XP/Vista/7

Dimmensions: 90 x 68 x 16,8mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Manufacturer: TP-Link

18/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#06433

Net Price:

8,90 EUR

Unit: pcs

#08463

Net Price:

6,07 EUR

Unit: pcs

#06431

Net Price:

10,70 EUR

Unit: pcs

Wireless adapter N USB 2.0 (TP-Link

TL-WN821N)

Standards: IEEE 802.11n (draft 2.0), IEEE 802.11 b/g

Interface: USB 2.0 typ A

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 300 Mbps

Max. output power: 20 dBm

Operating modes: Ad-hoc, infrastructure

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK, TKIP,

AES

Roaming support: yes

WLAN features: MIMO, CCA

Drivers: Windows Windows 2k/XP/Vista

Dimmensions: 94x26x11 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

#06427

Net Price:

11,00 EUR

Unit: pcs

Wireless adapter N USB NANO 2.0 (TP-Link

TL-WN725N)

Standards: IEEE 802.11b/g/n

Interface: USB 2.0 typ A

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 150 Mbps

Max. output power: 20 dBm

Operating modes: Ad-hoc, infrastructure

WLAN security: WEP 64/128-bit, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES), IEEE 802.1X support

Drivers: Windows Windows XP/Vista/7

Dimmensions: 18.6x15x7.1mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, IC, RoHS

Warranty period: 24 months

Manufacturer: TP-Link

#08464

Net Price:

9,02 EUR

Unit: pcs

Wireless N PCMCIA adaptor (TP-Link

TL-WN811N)

Standards: IEEE 802.11n (draft 2.0), IEEE 802.11b/g

Interface: Cardbus 32-bit Type II

Frequency range: 2400MHz - 2483,5MHz

Max. speed: 300 Mbps

Max. output power: 20 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Drivers: Windows 2000/XP/Vista

Roaming support: yes

Dimensions: 124x54x11.3 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty: 2 years

Manufacturer: TP-Link

#08550

Net Price:

10,20 EUR

Unit: pcs

Wireless N PCMCIA adaptor (TP-Link

TL-WN910N)

Standards: IEEE 802.11n (draft 2.0), IEEE 802.11b/g

Interface: Cardbus 32-bit

Frequency range: 2400MHz - 2483,5MHz

Max. speed: 300 Mbps

Max. output power: 20 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Drivers: Windows 2000/XP/Vista

Dimensions: 124x54x11.3 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty: 2 years

Manufacturer: TP-Link

#08551

Net Price:

14,00 EUR

Unit: pcs

Wireless PCI Express N adaptor (TP-Link

TL-WN781ND)

Standards: IEEE 802.11b/g/n

Interface: PCI Express

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 150 Mbps

Max. output power: 20 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128-bit WEP, WPA, WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES), Wireless MAC Filtering

Antenna: detachable, SMA RP

Roaming support: yes

Drivers: Windows XP/Vista/7/8

Dimensions: 120.8x78.5x21.5 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Warranty period: 24 months

Manufacturer: TP-Link

#08552

Net Price:

14,00 EUR

Unit: pcs

Wireless PCI N adaptor (TP-Link TL-WN751ND)

- Up to 150Mbps wireless transmission rate

- Provides 32-bit PCI interface

- Advanced secure connection with WPA/WPA2 encryption

- Bundled utility enables easy management

Standards: IEEE 802.11n, IEEE 802.11b/g, CSMA/CA with

ACK

Interface: PCI 32-bit

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 150 Mbps

Max. output power: 18 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK (TKIP/AES)

Antenna: detachable, SMA RP, Omni Directional

Antenna Gain: 2dBi

Roaming support: yes

Drivers: Windows XP/Vista/7

Dimensions: 133 × 121 × 22 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Warranty period: 24 months

Manufacturer: TP-Link

#04651

Net Price:

44,40 EUR

Unit: pcs

Wireless PCI N adaptor, 300Mbps (TP-Link

TL-WN851ND)

- Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls

- MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability

- Easily setup a highly secured wireless link with QSSTM

(Quick Security Setup)

Standards: IEEE 802.11n, IEEE 802.11b/g

Interface: PCI 32-bit

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 300 Mbps

Max. output power: <20 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: Support 64/128 bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK

Antenna: Omni Directional, Detachable (RP-SMA)

Antenna Gain: 2x2dBi

Roaming support: yes

Drivers: Windows XP/Vista/7

Dimensions: 133 × 121 × 22 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Warranty period: 24 months

Manufacturer: TP-Link

Wireless PCI-Express N adaptor, 300Mbps

(TP-Link TL-WN881ND)

- Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls

- MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability

- Easily setup a highly secured wireless link with WPSTM

(Wi-Fi Protected Setup)

Standards: IEEE 802.11n, IEEE 802.11b/g

Interface: PCI Express

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 300 Mbps

Max. output power: <20 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK

Antenna: Omni Directional, Detachable (RP-SMA)

Antenna Gain: 2x2dBi

Roaming support: yes

Drivers: Windows XP/Vista/7

Dimensions: 120.8 x 78.5 x 21.5mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, RoHS

Warranty period: 24 months

Manufacturer: TP-Link

CAP Wireless Controller (TP-Link AC50)

HARDWARE FEATURES:

Ports: 5 x Fast Ethernet ports

Chassis: Desktop

Dimensions ( W x D x H ): 8.2*5.0*1.0in. (209*126*26mm)

Power Supply: Maximum 2.5W

Power Consumption: 100-240V AC,50/60Hz

Management Scale: Up to 50 APs

Wireless Fuction: L3 Management, Multi-SSID, Load

Balance, Band Steering, Rate Limit, WMM, Communication protocol

Wireless Security: SSID to VLAN Mapping, AP Isolation,

SSID Isolation, Encryption

AP Management: AP Automatic Discovery, AP Unified

Configuration, AP Reboot Schedule, AP Batch Firmware

Upgrade, Grouped AP management, AP LED ON/OFF,

Web-based Management, DHCP Server

Authentication: Captive Portal Authentication, MAC

Authentication

System status: AP Status, Client Status, Authenticated User

Status

System Management: Configuration Backup/Import,

Ping/Tracert Tool, System Log

OTHERS:

Certification: CE, FCC, RoHS

Package Contents: AC50, Power Cord, Quick Installation

Guide

System Requirements: Microsoft Windows 10, 8, 7,Vista, XP lub MAC OS, NetWare, UNIX lub Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Operating Humidity 5%~90% non-condensing

19/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04649

Net Price:

171,00 EUR

Unit: pcs

#08382

Net Price:

27,10 EUR

Unit: pcs

#04588

Net Price:

18,20 EUR

Unit: pcs

CAP Wireless Controller (TP-Link AC500)

- Auto-detect and centralized management, up to 500 CAPs

- License-free management reduces the OPEX of enterprise network

- Easy deployment without changing the existing network topology

- Unified configuration of wireless networks, support mapping of SSID and VLAN

- Support MAC authentication, portal authentication

- Dual-link back up for management safety.

HARDWARE FEATURES:

Ports: 5 x Gigabit ports, 1 x console port

Chassis: Rack-mount

Processor: Dual Core 1GHz MIPS64

Memory: 256MB DDR3*2, 32MB Flash*1

LED indicators: Port- Link/Act, 1000M/100M, device- PWR,

SYS

Dimensions ( W x D x H ): 17,3*8,7*1,7 in. (440 × 220 × 44 mm)

Management Scale: Up to 500 APs

Wireless Fuction: L3 Management, Multi-SSID, Load

Balance, Band Steering, Rate Limit, WMM, Communication protocol

Wireless Security: SSID to VLAN Mapping, AP Isolation,

SSID Isolation, Encryption

AP Management: AP Automatic Discovery, AP Unified

Configuration, AP Reboot Schedule, AP Batch Firmware

Upgrade, Grouped AP management, AP LED ON/OFF,

Web-based Management, DHCP Server

Authentication: Captive Portal Authentication, MAC

Authentication

System status: AP Status, Client Status, Authenticated User

Status

System Management: Configuration Backup/Import,

Ping/Tracert Tool, System Log

OTHERS:

Environment:Operating Temperature 0°~40° (32°~104°),

Operating Humidity 5%~90% non-condensing

Package Contents: AC500, Power Cord, Quick Installation

Guide

System Requirements: MicrosoftC WindowsC10, 8,

7,VistaTM, XP or MACC OS, NetWareC, UNIXC or Linux

300Mbps Wireless N Range Extender (TP-Link

TL-WA830RE)

300Mbps wireless speed ideal for smooth HD video, music streaming and online gaming

Two MIMO antennas greatly extend your existing wireless coverage to eliminate "dead zones"

Easily extend wireless coverage only in a few seconds at a push of Range Extender button

Working seamlessly with all 802.11b/g/n devices

Bundled Easy Setup Assistant helps set up the connection step by step in minutes

HARDWARE FEATURES:

Interface:One 10/100M Ethernet Port (RJ45)

Button:Range Extender Button, Reset Button

External Power Supply:9V-0.6A

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Antenna:2*5dBi Detachable Omni Directional (RP-SMA)

Dimensions ( W x D x H ):7.2*5.0*1.4 in.(181.5*125.7*36.2

mm)

Power Consumption:3W

WIRELESS FEATURES:

Frequency:2.4~2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:< 20 dBm (EIRP)

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Modes:Range Extender, AP Mode

Wireless Functions:WMM(Wi-Fi Multimedia), Wireless MAC

Address Filtering, Enable/Disable Wireless Radio,

Enable/Disable Wireless SSID Broadcast, AP Isolation,

Wireless Statistic, Domain Login Function

Wireless Security:64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:Wireless N Range Extender

TL-WA830RE, 2 Detachable Omni directional antennas,

RJ-45 Ethernet Cable, Power supply unit, Resource CD,

Quick Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, Vista, Windows 7, Windows 8, Mac OS, NetWare, UNIX or Linux

Environment:Operating Temperature 0°C~40°C

(32°F~104°F), Storage Temperature -40°C~70°C

(-40°F~158°F), Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

300Mbps Wireless Range Extender (TP-Link

TL-WA820RE)

- Superior Extension - Two external antennas expand your home's wireless coverage, creating reliable connections and eliminating dead zones

- Compact Design - Miniature size and USB port design maximize flexible deployment and mobility

- 300Mbps Wi-Fi - Ideal speeds for video and music streaming

- WPS - Easily expand wireless coverage at a push of the

WPS button

- Intelligent Signal Light -Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement

- TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device

- Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

HARDWARE FEATURES:

Plug Type: USB

Button:Reset Button, WPS Button

Power Consumption: About 2.5W

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ): 89.41x36.6x14.3mm

Antenna Type: internal

WIRELESS FEATURES

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<18dBm (EIRP)

Reception Sensitivity:2.4GHz- 11g 54M [email protected]% PER,

11n HT20 mcs7 [email protected]% PER, 11n HT40 mcs7

[email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC

Address Filtering, Wireless Statistic, Domain Login Function

Wireless Security: 64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:TL-WA820RE, Quick Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8,10, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

20/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

300Mbps Wireless Range Extender (TP-Link

TL-WA850RE)

- Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

- Miniature size and wall-mounted design make it easy to deploy and move flexibly

- Easily expand wireless coverage at a push of Range

Extender button

- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

HARDWARE FEATURES:

Interface:1x10/100Mbps Auto-Sensing RJ45 Port

Plug Type: EU

Button:Reset Button, Range Extender Button

Power Consumption: About 3W

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x

75.2mm)

Antenna Type: 2 x internal

WIRELESS FEATURES

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC

Address Filtering, Wireless Statistic, Domain Login Function

Wireless Security: 64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:TL-WA850RE, RJ-45 Patchcord, Power supply unit, Resource CD, Quick Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

#08541

Net Price:

19,30 EUR

Unit: pcs

#08542

Net Price:

18,50 EUR

Unit: pcs

300Mbps Wireless Range Extender (TP-Link

TL-WA854RE)

- Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

- Miniature size and wall-mounted design make it easy to deploy and move flexibly

- Easily expand wireless coverage at a push of Range

Extender button

HARDWARE FEATURES:

Plug Type: EU

Button:Reset Button, Range Extender Button

Power Consumption: About 3W

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x

75.2mm)

Antenna Type: 2 x internal

WIRELESS FEATURES

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC

Address Filtering, Wireless Statistic, Domain Login Function

Wireless Security: 64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:TL-WA854RE, Resource CD, Quick

Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

#04587

Net Price:

20,50 EUR

Unit: pcs

300Mbps Wireless Range Extender (TP-Link

TL-WA855RE)

- Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity

- External antennas for faster and more reliable Wi-Fi

- Supports AP mode which creates a new Wi-Fi Access point

- Easily expand wireless coverage at a push of the Range

Extender button

- Set the Power Schedule for the range extender for power-saving

- Tether App allows easy access and management with your mobile devices remotely

- Works with Any Wi-Fi Router

HARDWARE FEATURES:

Interface:1x10/100Mbps Auto-Sensing RJ45 Port

Plug Type: EU

Button:Reset Button, Range Extender Button

Power Consumption: About 3W

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ): 2.0x 1.3 x 2.6in. (52 x 34 x 65mm)

Antenna Type: 2 x external

WIRELESS FEATURES

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC

Address Filtering, Wireless Statistic, Domain Login Function

Wireless Security: 64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:TL-WA855RE, RJ-45 Patchcord, Quick

Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

21/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08936

Net Price:

27,10 EUR

Unit: pcs

300Mbps Wireless Range Extender (TP-Link

TL-WA860RE)

- Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

- Miniature size and wall-mounted design make it easy to deploy and move flexibly

- Extra power socket making sure that no power outlet is going to waste

- 2 fixed external antennas provide excellent WiFi coverage and reliability

- Easily expand wireless coverage at a push of Range

Extender button

HARDWARE FEATURES:

Interface:1x10/100Mbps Auto-Sensing RJ45 Port

Plug Type: EU

Button:Reset Button, Range Extender Button

Power Consumption: About 3W

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x

75.2mm)

Antenna Type: 2 x external

WIRELESS FEATURES

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Modes:Range Extender

Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC

Address Filtering, Wireless Statistic, Domain Login Function

Wireless Security: 64/128/152-bit WEP, WPA-PSK /

WPA2-PSK

OTHERS

Certification:CE, FCC, RoHS

Package Contents:TL-WA860RE, RJ-45 Patchcord, Power supply unit, Resource CD, Quick Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7,8, MAC OS, NetWare, UNIX or

Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

#04610

Net Price:

59,30 EUR

Unit: pcs

#04606

Net Price:

51,20 EUR

Unit: pcs

1200Mbps Wireless Gigabit Router Dualband

1200AC, ADSL2+ (TP-Link Archer VR400)

- Speedy Wi-Fi - Superb wireless experience with 300Mbps

(2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections

- Superior Range - Three detachable antennas provide stable wireless connections and optimal coverage

- Versatile Connectivity - Fully compatible with the

VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services

- Beamforming Technology - Improves wireless range and performance at 5GHz band

- USB Port - Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle

- Tether App - TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface: 1x10/100/1000Mbps RJ45 WAN/LAN Port,

3x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 1xUSB

2.0 Port

Button:1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS

Button, 1 RESET Button

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T

G.992.4 (G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

External Power Supply:12VDC / 1.5A

Dimensions (W X D X H):243,5×167,5×32,7mm

Antenna Type: 3 External detachable dual band antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP), 5GHz <23dBm(EIRP)

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

Operating Modes: ADSL Modem Router, Wireless Router

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:ATM QoS, Traffic Control(IP QoS)

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ,

ALG

Dynamic DNS:DynDns, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

ATM Features: ATM Forum UNI3.1/4.0, PPP over ATM (RFC

2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge),

PVC - Up to 8 PVCs

Security: NAT Firewall, Access Control, MAC / IP / URL

Filtering, Denial of Service (DoS), SYN Flooding, Ping of

Death, IP and MAC Address Binding

Advanced Functions: Parental Control, Network Address

Translation (NAT); Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069,

SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic

Tools

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

IPv6: IPv6 and IPv4 dual stack

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer VR400, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Power Adapter,

Quick Installation Guide

System Requirements:Windows 8/7/Vista/XP or Mac OS or

Linux-based operating system.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1200Mbps Wireless Router Dualband 1200AC,

ADSL2+ (TP-Link Archer D50)

- Supports the 802.11ac standard, the next generation of

Wi-Fi

- Simultaneous 2.4GHz and 5GHz bands provide a premium wireless experience with speeds of up to 300Mbps and

867Mbps, respectively

- Share a printer locally and files & media with networked devices or remotely via FTP server

- Ethernet WAN (EWAN) port accepts connections from cable and fiber modems

- New web UI and Tether app provide quick, hassle-free installation and easy management

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:1x10/100Mbps RJ45 WAN/LAN Port, 3x10/100Mbps

RJ45 LAN Ports, 1xRJ11 Port, 1xUSB 2.0 Ports

Button:1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS

Button, 1 RESET Button

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T

G.992.4 (G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

External Power Supply:12VDC / 1.5A

Dimensions (W X D X H):8.0 x 5.6 x 1.3 in. (202mm x 141mm x 33.6mm)

Antenna Type: Undetachable dual band external antennas

Antenna Gain: 2dBi for 2.4GHz and 3dBi for 5GHz

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP)

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

Operating Modes: ADSL Modem Router, Wireless Router

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:ATM QoS, Traffic Control(IP QoS)

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ,

ALG

Dynamic DNS:DynDns, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

ATM Features: ATM Forum UNI3.1/4.0, PPP over ATM (RFC

2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge),

PVC - Up to 8 PVCs

Security: NAT Firewall, Access Control, MAC / IP / URL

Filtering, Denial of Service (DoS), SYN Flooding, Ping of

Death, IP and MAC Address Binding

Advanced Functions: Parental Control, Network Address

Translation (NAT); Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069,

SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic

Tools

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

IPv6: IPv6 and IPv4 dual stack

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer D50, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Resource CD,

Quick Installation Guide, Power Adapter

System Requirements:Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

22/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08557

Net Price:

24,60 EUR

Unit: pcs

#08386

Net Price:

18,10 EUR

Unit: pcs

#04608

Net Price:

86,30 EUR

Unit: pcs

150Mbps Wireless N Mini Pocket Router (TP-Link

TL-WR710N)

- Portable design, ideal for travel and home use

- Built-in power adapter, no bulky adapter needed

- Support Wireless Router, Client, Repeater, Access Point,

WISP Client Router modes

- Versatile USB port for file sharing and charging

HARDWARE FEATURES:

Interface:1 10/100Mbps WAN/LAN Port, 1 Micro USB Port, 1

Reset Button

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ):3.3 x 3.0 x 1.1 in. (85 x 75 x28 mm)

Antenna Type:On-Board

WIRELESS FEATURES:

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 150Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:[email protected]%PER,

[email protected]%PER, [email protected]%PER

Wireless Modes:AP Mode, Router Mode ,Client Mode,,

Repeater Mode, Bridge Mode

Wireless Functions:Router, Access Point, Client, WISP,

Repeater

Wireless Security:64/128/152-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP/L2TP

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec (ESP Head)

Access Control:Local Management Control, Host List, Access

Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-WR710N, Power Adapter, Ethernet cable, Quick Installation Guide, Resource CD

System Requirements:MicrosoftC Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7, MAC OS, NetWare, UNIX or

Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

150Mbps Wireless N Nano Router (TP-Link

TL-WR702N)

150Mbps wireless data rates ideal for video streaming, online gaming and internet calling

Tiny - Ideal for home and travel use

Supports AP (default), Client, Router, Repeater and Bridge modes

Powered through a micro USB port by an external power adapter or USB connection to a computer

HARDWARE FEATURES:

Interface:1 10/100Mbps WAN/LAN Port, 1 Micro USB Port, 1

Reset Button

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ):2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)

Antenna Type:On-Board

WIRELESS FEATURES:

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 150Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:[email protected]%PER,

[email protected]%PER, [email protected]%PER

Wireless Modes:AP Mode, Router Mode ,Client Mode,,

Repeater Mode, Bridge Mode

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM,, Wireless Statistics

Wireless Security:64/128/152-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP/L2TP

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec (ESP Head)

Access Control:Local Management Control, Host List, Access

Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-WR702N, Power Adapter, USB Cable,

Ethernet cable, Quick Installation Guide, Resource CD

System Requirements:MicrosoftC Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7, MAC OS, NetWare, UNIX or

Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

1600Mbps Wireless Gigabit Router Dualband

1600AC, ADSL2+ (TP-Link Archer VR600)

- Superfast Wi-Fi - 300Mbps (2.4GHz) and 1300Mbps (5GHz) speeds, are ideal for online gaming, HD streaming, and large file downloads

- Superior Range - Three detachable antennas provide stable wireless connections and optimal coverage

- Versatile Connectivity - With DSL, EWAN, and USB ports, the Archer VR600 is fully compatible with DSL connections, fiber/cable access and 3G/4G USB dongles

- Beamforming Technology - Improves wireless range and performance on 5GHz band

- Tether App - TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface: 4x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port,

2xUSB 2.0 Ports

Button:1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS

Button, 1 RESET Button

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T

G.992.4 (G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

External Power Supply:12VDC / 2A

Dimensions (W X D X H):216 x 164 x 36.8mm

Antenna Type: 3 External detachable dual band antennas

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 300Mbps

EIRP:<20dBm(EIRP), 5GHz <23dBm(EIRP)

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

Operating Modes: ADSL Modem Router, Wireless Router

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:ATM QoS, Traffic Control(IP QoS)

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ,

ALG

Dynamic DNS:DynDns, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

ATM Features: ATM Forum UNI3.1/4.0, PPP over ATM (RFC

2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge),

PVC - Up to 8 PVCs

Security: NAT Firewall, Access Control, MAC / IP / URL

Filtering, Denial of Service (DoS), SYN Flooding, Ping of

Death, IP and MAC Address Binding

Advanced Functions: Parental Control, Network Address

Translation (NAT); Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069,

SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic

Tools

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

IPv6: IPv6 and IPv4 dual stack

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer VR600, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Power Adapter,

Quick Installation Guide

System Requirements:Windows 8/7/Vista/XP or Mac OS or

Linux-based operating system.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

23/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08561

Net Price:

111,00 EUR

Unit: pcs

#07168

Net Price:

96,30 EUR

Unit: pcs

#04609

Net Price:

138,00 EUR

Unit: pcs

1750Mbps Wireless Gigabit Router Dualband

1750AC, ADSL2+ (TP-Link ARCHER D7)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 450Mbps and 5GHz 1300Mbps connections provide a premium wireless experience

- Share a printer locally and files & media with networked devices or remotely via FTP server.

- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting VDSL, cable or fiber modems

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:1x10/100/1000Mbps RJ45 WAN/LAN Port,

3x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 2xUSB

2.0 Ports

Button:1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS

Button, 1 RESET Button

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T

G.992.4 (G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

External Power Supply:12VDC / 2.5A

Dimensions (W X D X H):9.0 x 6.3 x 1.5 in. (229 x 160 x

37mm)

Antenna Type: Detachable dual band external antennas

Antenna Gain: 2dBi for 2.4GHz and 3dBi for 5GHz

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz- 11a 6Mbps-96dBm, 11a 54Mbps

-79dBm, 11ac HT20 -71dBm, 11ac HT40 -66dBm, 11ac HT80

-63dBm, 2.4GHz- 11g 54M -77dBm, 11n HT20 -74dBm, 11n

HT40 -72dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

Operating Modes: ADSL Modem Router, Wireless Router

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:ATM QoS, Traffic Control(IP QoS)

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ,

ALG

Dynamic DNS:DynDns, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

ATM Features: ATM Forum UNI3.1/4.0, PPP over ATM (RFC

2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge),

PVC - Up to 8 PVCs

Security: NAT Firewall, Access Control, MAC / IP / URL

Filtering, Denial of Service (DoS), SYN Flooding, Ping of

Death, IP and MAC Address Binding

Advanced Functions: Parental Control, Network Address

Translation (NAT); Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069,

SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic

Tools

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

IPv6: IPv6 and IPv4 dual stack

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer D7, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Resource CD,

Quick Installation Guide

System Requirements:Windows 8/7/Vista/XP or Mac OS or

Linux-based operating system.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1750Mbps Wireless Gigabit Router Dualband

AC1750 (TP-Link Archer C7)

- Supports 802.11ac standard - the next generation of Wi-Fi

- Simultaneous 2.4GHz 450Mbps and 5GHz 1300Mbps connections for 1.75Gbps of total available bandwidth

- 3*5dBi external antennas and 3 internal antennas provide maximum Omni-directional wireless coverage and reliability

- Dual USB Ports - easily share printers, files or media with your friends or family locally or over the internet

- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface:4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps

WAN Port, 2 USB 2.0 Ports

Button:WPS Button, Wireless On/Off Button, Reset Button

External Power Supply:12VDC / 2.5A

Dimensions (W X D X H):9.6 x 6.4 x 1.3 in.(243 x 160.6 x

32.5mm)

Antenna:3 external detachable dual band antennas

(RP-SMA)

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps

EIRP:<20dBm(EIRP)

Reception Sensitivity:5GHz - 11a 6Mbps-96dBm, 11a

54Mbps -79dBm, 11ac HT20 -71dBm, 11ac HT40 -66dBm,

11ac HT80 -63dBm, 2.4GHz - 11g 54M -77dBm, 11n HT20

-74dBm, 11n HT40 -72dBm

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Access Control, Local Management, Remote

Management

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:TL-WDR4300, 3 detachable dual band antennas, Power supply unit, Resource CD, Quick Installation

Guide

System Requirements:MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM, Windows 7 or Windows 8, MACC OS,

NetWareC, UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

1900Mbps Wireless Gigabit Router Dualband

1900AC, ADSL2+ (TP-Link Archer VR900)

- Versatile Connectivity - Ethernet WAN and USB ports, the

VR900 is fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standard, fiber/cable access and 3G/4G USB dongles

- Superfast Wi-Fi - 600Mbps on 2.4GHz + 1300Mbps on

5GHz

- Maximum Range - 3 dual band detachable antennas provide maximum Omni-directional wireless coverage and reliability

- 1GHz Dual-core Processor - Ensures no interruption while processing multiple wired or wireless tasks simultaneously

- Beamforming Technology - Improves wireless range and performance on both 2.4GHz and 5GHz band

HARDWARE FEATURES:

Standards and Protocols:IEEE 802.11ac/n/a 5GHz, IEEE

802.11b/g/n 2.4GHz

Interface: 1x10/100/1000Mbps RJ45 WAN/LAN Port,

3x10/100/1000Mbps RJ45 LAN Ports, 1xRJ11 Port, 1xUSB

2.0 Port, 1xUSB 3.0 Port

Button:1 Power On/Off Button, 1 Wi-Fi On/Off Button, 1 WPS

Button, 1 RESET Button

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T

G.992.4 (G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

External Power Supply:12VDC / 3.3A

Dimensions (W X D X H):245 x 181 x 90 mm (9,6 x 7,1 x 3,5 in.)

Antenna Type: 3 External detachable dual band antennas

Antenna Gain: 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz

WIRELESS FEATURES:

Frequency:2.4GHz & 5GHz

Signal Rate:5GHz Up to 1300Mbps, 2.4GHz Up to 600Mbps

EIRP:<20dBm(EIRP), 5GHz <23dBm(EIRP)

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128-bit WEP,WPA / WPA2,WPA-PSK/

WPA2-PSK encryption

SOFTWARE FEATURES:

Operating Modes: ADSL Modem Router, Wireless Router

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP (Dual

Access)/L2TP (Dual Access)/BigPond

DHCP:Server, Client, DHCP Client List, Address Reservation,

DHCP relay

Quality of Service:ATM QoS, Traffic Control(IP QoS)

Port Forwarding:Virtual Server,Port Triggering, UPnP, DMZ,

ALG

Dynamic DNS:DynDns, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec

ATM Features: ATM Forum UNI3.1/4.0, PPP over ATM (RFC

2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge),

PVC - Up to 8 PVCs

Security: NAT Firewall, Access Control, MAC / IP / URL

Filtering, Denial of Service (DoS), SYN Flooding, Ping of

Death, IP and MAC Address Binding

Advanced Functions: Parental Control, Network Address

Translation (NAT); Port Mapping (Grouping), Static Routing,

RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3

USB Sharing:Support Samba(Storage)/FTP Server/Media

Server/Printer Server

Management:Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069,

SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic

Tools

Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

IPv6: IPv6 and IPv4 dual stack

OTHERS:

Certification:CE, FCC,IC, RoHS

Package Contents:Archer VR900, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Power Adapter,

Quick Installation Guide

System Requirements:Windows 8/7/Vista/XP or Mac OS or

Linux-based operating system.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Manufacturer: TP-Link

24/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04575

Net Price:

21,00 EUR

Unit: pcs

#08362

Net Price:

24,40 EUR

Unit: pcs

#08510

Net Price:

48,80 EUR

Unit: pcs

300Mbps Multi-Function Wireless N Router

(TP-Link TL-WR842N)

300Mbps wireless transmission rate with MIMO technology provides a smooth wireless N experience

Up to 4 SSIDs support multiple wireless networks with different SSIDs and passwords

Up to 5 VPN tunnels enable remote VPN connections

Multi-functional USB 2.0 port convenient for wireless printing and FTP server

Embedded media server allows users to share music, video and photos with Windows media player, PS3 or X-BOX 360

HARDWARE FEATURES:

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port,

1 USB 2.0 Port

Button:WPS Button, WiFi On/Off Button, Reset Button

External Power Supply:12VDC / 1.0A

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Antenna:2*5dBi Detachable Omni Directional Antennas

(RP-SMA)

Dimensions ( W x D x H ):7.6 x 5.3 x 1.3 in.(192 x 140 x 33 mm)

WIRELESS FEATURES:

Frequency:2.4-2.4835GHz

Signal Rate:Up to 300Mbps

EIRP:<20dBm

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128/152-bit WEP / WPA /

WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/,

PPTP/L2TP/BigPond

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec(ESP Head)

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba/FTP/Media Server/Printer

Connection

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-WR842N, 2 Detachable Omni

Directional Antennas, Power Supply Unit, Resource CD,

RJ-45 Ethernet Cable, Quick Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~95% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

300Mbps Wireless N ADSL2+ Modem Router

(TP-Link TD-W8960N)

ADSL 2/2+ Modem, Wireless N Access Point and 4-Port

Router, in a single device

Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming

Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems

Live Parental Controls allow parents or administrators to establish restricted access policies for children or staff

Supports IPSec VPN tunnels for security connection between the company´s network and your home or branch office

HARDWARE FEATURES:

Interface:4 10/100Mbps RJ45 Ports, 1 RJ11 Port

Button:1 Power On/Off Button, 1 WiFi On/Off Button, 1 WPS

Button

External Power Supply:12VDC/1A

IEEE Standards:IEEE 802.3, 802.3u

ADSL Standards:Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards:ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4

(G.lite.bis)

ADSL2+ Standards:ITU-T G.992.5

Dimensions ( W x D x H ):7.7×5.1×1.4in.(195×130×36mm)

Antenna Type:Omni directional, Detachable, Reverse SMA

Antenna Gain:2x3dBi

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11n, 802.11g, 802.11b

Frequency:2.400-2.4835GHz

EIRP:<20dBm(EIRP)

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, WPA/WPA2, Wireless MAC Filtering

SOFTWARE FEATURES:

Quality of Service:Bandwidth Control

Port Forwarding:Virtual server, DMZ, ACL(Access Control

List)

VPN Pass-Through:PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols:ATM Forum UNI3.1/4.0, PPP over ATM

(RFC 2364), PPP over Ethernet (RFC2516), IPoA

(RFC1577/2225), PVC - Up to 8 PVCs,

Advanced Features:Parental Control, Traffic Shaping (ATM

QoS) UBR, CBR, VBR-rt, VBR-nrt;, Dynamic Host

Configuration Protocol (DHCP), DHCP reservation;, Network

Address Translation (NAT); PVC/Ethernet Port Mapping,

VLAN, 802.1P, Static Routing, RIP v1/v2 (optional);, DNS

Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP

Security:NAT Firewall, SPI Firewall, MAC / IP / Packet /

Application / URL Filtering, Denial of Service(DoS), SYN

Flooding, Ping of Death

Management:Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface,

SSL, for TR-069, SNMP v1/2c, SNMP over EOC, Web Based

Firmware Upgrade, CWMP(TR-069), Diagnostic Tools

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TD-W8960N, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Quick Installation

Guide, Resource CD, Power Adapter

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

300Mbps Wireless N ADSL2+ Modem Router

(TP-Link TD-W8970)

- All-in-One Device: ADSL2+ Modem, NAT Router,

4-Gigabit-Port Switch and Wireless N Access Point

- 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams

- Versatile Connectivity: ADSL or Ethernet WAN for multiple

Internet connection types

- 2 USB ports for storage sharing, printer sharing, FTP Server and Media Server

HARDWARE FEATURES:

Interface:4 10/100/1000Mbps RJ45 Ports, 1 RJ11 Port, 2

USB 2.0 Ports

Button:1 Power On/Off Button, 1 WPS Button, 1 Wi-Fi On/Off

Switch, 1 RESET Button

External Power Supply:12VDC/1.5A

IEEE Standards:IEEE 802.3, 802.3u

ADSL Standards:Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1

ADSL2 Standards:ITU-T G.992.3 (G.dmt.bis)

ADSL2+ Standards:ITU-T G.992.5

Dimensions ( W x D x H ):9.6*6.4*1.3 in.(243 x 160.6 x

32.5mm)

Antenna Type:Omni directional, Detachable, Reverse SMA

Antenna Gain:3 x 5dBi

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11b, 802.11g, 802.11n

Frequency:2.400-2.4835GHz

EIRP:<20dBm(EIRP)

Wireless Security:Support 64/128 bit WEP, WPA /WPA2,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

Quality of Service:WMM, Bandwidth Control (IP QoS)

Port Forwarding:Virtual server, Port Triggering, UPnP, DMZ,

Manage Control

VPN Pass-Through:PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols:ATM Forum UNI3.1/4.0, PPP over ATM

(RFC 2364), PPP over Ethernet (RFC2516), IPoA

(RFC1577/2225), PVC - Up to 8 PVCs

Advanced Features:Parent Control, Traffic Shaping(ATM

QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host

Configuration Protocol (DHCP), DHCP relay; Network

Address Translation (NAT);PVC/Ethernet Port Grouping,

Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS

Security:NAT Firewall, SPI Firewall, MAC / IP / URL Filtering

USB Sharing:Storage Sharing, FTP Server, Media Server,

Print Server

Management:Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface,

SSL for TR-069, SNMP V1/V2C, Web Based Firmware

Upgrade, CWMP(TR-069), Diagnostic Tools

IGMP: IGMP snooping V1/V2/V3, IGMP Multicast

IPSec VPN: 10 IPSec VPN Tunnels, LAN-to-LAN, Main,

Aggressive Negotiation Mode,DES, 3DES, AES128, AES192,

AES256 Encryption Algorithm, MD5, SHA1 Authentication

Algorithm, Manual, IKE Key Management Mode, Dead Peer

Detection (DPD), Perfect Forward Secrecy (PFS)

IPv6: IPv6 and IPv4 dual stack, Supported IPv6 Tunnels-

DS-Lite, 6RD, 6 to 4, Supported IPv6 Connection Type-

PPPoEv6, DHCPv6, Static IPv6

OTHERS:

Certification:CE, FCC, RoHS, IPv6

Package Contents:TD-W8970, External Splitter, RJ-11

Telephone Line, RJ-45 Ethernet Cable, Quick Installation

Guide, Resource CD, Power Adapter

System Requirements:MicrosoftC WindowsC 98SE, NT,

2000, XP, Vista or Windows 7, MACC OS, NetWareC, UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

25/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08289

Net Price:

33,90 EUR

Unit: pcs

#04579

Net Price:

19,00 EUR

Unit: pcs

#04578

Net Price:

28,30 EUR

Unit: pcs

300Mbps Wireless N ADSL2+ Modem Router,

USB port (TP-Link TD-W8968)

ADSL 2/2+ Modem, Wireless N Access Point and 4-Port

Router, in a single device

Wireless N speed up to 150Mbps, great for online gaming,

Internet call and video streaming

LAN Ports/PVCs bundle and QoS engine for pleasant triple-play (data, voice and video) experience

USB Port for Storage Sharing, Printer Sharing, 3G Modem

Sharing, FTP Server and Media Server

Easy one-touch wireless security encryption with the"WPS" button and Easy Wi-Fi On/Off button

HARDWARE FEATURES:

Interface: 4 10/100Mbps RJ45 Ports, 1 RJ11 Port, 1 USB 2.0

Port

Button: 1 Power On/Off Button, 1 WPS Button, 1 Wi-Fi On/Off

Button, 1 RESET Button

External Power Supply: 12VDC/1.5A

IEEE Standards: IEEE 802.3, 802.3u

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4

(G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

Dimensions ( W x D x H ): 7.7*5.1*1.4 in. (195×130×36mm)

Antenna Type: Omni directional, Detachable, Reverse SMA

Antenna Gain: 2 * 3dBi

WIRELESS FEATURES:

Wireless Standards: IEEE 802.11b, 802.11g, 802.11n

Frequency: 2.400-2.4835GHz

EIRP: <20dBm (EIRP)

Wireless Security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

Quality of Service: Bandwidth Control

Port Forwarding: Virtual server, DMZ, ACL(Access Control

List)

VPN Pass-Through: PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM

(RFC 2364), PPP over Ethernet (RFC2516), IPoA

(RFC1577/2225), PVC - Up to 8 PVCs

Advanced Features: Ethernet WAN (EWAN), Parent Control,

Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;

Dynamic Host Configuration Protocol (DHCP), DHCP relay;

Network Address Translation (NAT); PVC/Ethernet Port

Grouping, Static Routing, RIP v1/v2 (optional); DNS Relay,

DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP

Security: NAT Firewall, SPI Firewall, MAC / IP / Packet / URL

Filtering

USB Sharing: Storage Sharing, FTP Server, Media Server,

Print Server

Management: Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface,

SSL for TR-069, SNMP v1/2c, SNMP over EOC,

Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic

Tool

OTHERS:

Certification: CE, FCC, RoHS

Package Contents: TD-W8968, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Quick Installation

Guide, Resource CD, Power Adapter

System Requirements: MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM or Windows 7, MACC OS, NetWareC,

UNIXC or Linux.

Environment: Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

300Mbps Wireless N Nano Router (TP-Link

TL-WR802N)

- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling

- Pocket-size - Ideal for home and travel use

- Supports Router, Repeater, Client, AP and hotspot operation modes

- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation

- Easy installation in minutes

HARDWARE FEATURES:

Interface:1 10/100Mbps WAN/LAN Port, 1 Micro USB Port, 1

Reset Button

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ):2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)

Antenna Type:On-Board

WIRELESS FEATURES:

Frequency:2.4-2.34835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP)

Reception Sensitivity:[email protected]%PER,

[email protected]%PER, [email protected]%PER

Wireless Modes:AP Mode, Router Mode ,Client Mode,,

Repeater Mode, Bridge Mode

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM,, Wireless Statistics

Wireless Security:64/128/152-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP/L2TP

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec (ESP Head)

Access Control:Local Management Control, Host List, Access

Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-WR802N, Power Adapter, USB Cable,

Ethernet cable, Quick Installation Guide, Resource CD

System Requirements:MicrosoftC Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7/8/8.1/10, MAC OS, NetWare,

UNIX or Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

300Mbps Wireless N Nano Router (TP-Link

TL-WR810N)

- Portable design, ideal for travel and home use

- Built-in power adapter, no bulky adapter needed

- Supports Wireless Router, Range Extender, Client and

Access Point modes

- One switch for changing multiple modes

- Versatile USB port for file sharing and charging

HARDWARE FEATURES:

Interface:1 10/100Mbps WAN/LAN Port, 1 10/100Mbps LAN

Port, 1 USB Port, 1 Reset Button, 1 Operation Mode Switch

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Dimensions ( W x D x H ):3.3 x 3.0 x 1.1 in. (85 x 75 x 28 mm)

Antenna Type:On-Board

WIRELESS FEATURES:

Frequency:2.4-2.4835GHz

Signal Rate:11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP:<20dBm (EIRP), FCC <30dBm

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Modes:AP Mode, Router Mode ,Client Mode,

Repeater Mode, Bridge Mode

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM,, Wireless Statistics

Wireless Security:64/128/152-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/, PPTP/L2TP

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec (ESP Head)

Access Control:Local Management Control, Host List, Access

Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-WR810N, Power Adapter, USB Cable,

Ethernet cable, Quick Installation Guide, Resource CD

System Requirements:MicrosoftC Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7/8/8.1/10, MAC OS, NetWare,

UNIX or Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

26/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04607

Net Price:

40,50 EUR

Unit: pcs

#04604

Net Price:

132,00 EUR

Unit: pcs

#08367

Net Price:

21,60 EUR

Unit: pcs

300Mbps Wireless N VDSL/ADSL (Annex B)

Modem Router, USB port (TP-Link TD-W9970B)

HARDWARE FEATURES:

Interface: 4 10/100Mbps RJ45 Ports, 1 RJ11 Port, 1 USB 2.0

Port

Button: 1 Power On/Off Button, 1 WPS/Reset Button, 1 Wi-Fi

On/Off Button

External Power Supply: 12VDC/1A

IEEE Standards: IEEE 802.3, 802.3u

ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1

(G.hs), ITU-T G.995.1

ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4

(G.lite.bis)

ADSL2+ Standards: ITU-T G.992.5

Dimensions ( W x D x H ): 7.7*5.1*1.4 in. (195×130×36mm)

Antenna Type: Omni directional, Detachable, Reverse SMA

Antenna Gain: 2 * 5dBi

WIRELESS FEATURES:

Wireless Standards: IEEE 802.11b, 802.11g, 802.11n

Frequency: 2.400-2.4835GHz

EIRP: <20dBm (EIRP)

Wireless Security: Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

Quality of Service: Bandwidth Control

Port Forwarding: Virtual server, DMZ, ACL(Access Control

List)

VPN Pass-Through: PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM

(RFC 2364), PPP over Ethernet (RFC2516), IPoA

(RFC1577/2225), PVC - Up to 8 PVCs

Advanced Features: Ethernet WAN (EWAN), Parent Control,

Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;

Dynamic Host Configuration Protocol (DHCP), DHCP relay;

Network Address Translation (NAT); PVC/Ethernet Port

Grouping, Static Routing, RIP v1/v2 (optional); DNS Relay,

DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP

Security: NAT Firewall, SPI Firewall, MAC / IP / Packet / URL

Filtering

USB Sharing: Storage Sharing, FTP Server, Media Server,

Print Server

Management: Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface,

SSL for TR-069, SNMP v1/2c, SNMP over EOC,

Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic

Tool

OTHERS:

Certification: CE, FCC, RoHS

Package Contents: TD-W9970B, External Splitter, RJ-11

Telephone Cable, RJ-45 Ethernet Cable, Quick Installation

Guide, Power Adapter

System Requirements: MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM or Windows 7/8/8.1/10, MACC OS,

NetWareC, UNIXC or Linux.

Environment: Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

3G/4G Wireless AC750 Router, 750Mbps (TP-Link

Archer MR200)

- Shares your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps

- Powerful, integrated antennas provide stable wireless connections and better coverage

- Requires no configuration, just insert a SIM card and turn it on to enjoy a fast wireless connection

- Creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300Mbps on the 2.4GHz band and

433Mbps on the 5GHz band

- Offers options and flexibility with the LAN/WAN port, allowing you to choose your connection type

HARDWARE FEATURES:

Interface: 1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN

Ports, 1 SIM Card Slot

Button:WPS/Reset Button, Wireless On/Off Switch, Power

On/Off Button

External Power Supply:12VDC/1A

Dimensions ( W x D x H ):7.95 x 5.55 x 1.32 in. (202 x 141 x

33.6 mm)

Antenna Type: 3 Internal Wi-Fi Antennas, , 2 Detachable

External 4G LTE Antennas

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11ac/n/a, IEEE 802.11g, IEEE

802.11b

Frequency:2.4GHz and 5GHz

EIRP:<20dBm, <23dBm(5GHz)

Signal Rate: 300Mbps at 2.4GHz, 433Mbps at 5GHz

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

Security:NAT Firewall, SPI Firewall, MAC / IP / Packet /

Application / URL Filtering, Denial of Service(DoS), SYN

Flooding, Ping of Death

Operating Modes: 3G/4G Router, Wireless Router

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual

Access)/L2TP(Dual Access)

Management: Access Control, Local Management, Remote

Management

DHCP: Server, Client, DHCP Client List, Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: DynDns, NO-IP

VPN Pass-Through: PPTP, L2TP, IPSec

Access Control: Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain

Filter, IP and MAC Address Binding

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

Network Type: 4G FDD-LTE Cat4

(800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz),

3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G

EDGE/GPRS/GSM (850/900/1800/1900MHz)

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:3G/4G Wireless AC Router, 1 Antenna,

RJ45 Ethernet Cable, Power Adapter, Quick Installation

Guide, Micro to Standard SIM Card Adapter, Nano to

Standard SIM Card Adapter

System Requirements:MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM or Windows 7/8/8.1, MACC OS,

NetWareC, UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

3G/4G Wireless N Router (TP-Link TL-MR3220)

Compatible with LTE/HSUPA/HSDPA/UMTS/EVDO USB modems, tested in the field

3G/4G and WAN connection Backup guarantees an

"Always-online" Internet connection

Easy wireless security encryption at a push of the WPS button

Bandwidth control allows administrators to determine how much bandwidth is allotted to each PC

HARDWARE FEATURES:

Interface:USB 2.0 Port for LTE/HSUPA/HSDPA/UMTS/EVDO

USB Modem, 1 10/100Mbps WAN Port, 4 10/100Mbps LAN

Ports, support the auto-Negotiation and auto-MDI/MDIX

Button:WPS/Reset Button, Wireless On/Off Switch, Power

On/Off Button

External Power Supply:9VDC/0.85A

Dimensions ( W x D x H ):8*5.4*1.7 in. (204*138*44mm)

Antenna Type:Omni directional, Detachable, Reverse SMA

Antenna Gain:5dBi

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11n*, IEEE 802.11g, IEEE

802.11b

Frequency:2.4-2.4835GHz

EIRP:<20dBm

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

Modulation Technology:DBPSK, DQPSK, CCK, OFDM,

16-QAM, 64-QAM

SOFTWARE FEATURES:

Security:NAT Firewall, SPI Firewall, MAC / IP / Packet /

Application / URL Filtering, Denial of Service(DoS), SYN

Flooding, Ping of Death

Management:Web Based Configuration(HTTP), Web Based

Firmware Upgrade

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:3G/4G Wireless N Router, 1 Antenna,

Power supply unit, Ethernet Cable, Resource CD, Quick

Installation Guide

System Requirements:MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM or Windows 7, MACC OS, NetWareC,

UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

27/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04605

Net Price:

107,00 EUR

Unit: pcs

#08945

Net Price:

78,30 EUR

Unit: pcs

#08365

Net Price:

21,00 EUR

Unit: pcs

3G/4G Wireless N Router, 300Mbps (TP-Link

TL-MR6400)

- Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps

- Wireless N speeds of up to 300Mbps

- Integrated antennas provide stable wireless connections

- Requires no configuration - just insert a SIM card and turn it on to enjoy high speed internet access

- LAN/WAN port provides options and flexibility, allowing you to choose your connection type

HARDWARE FEATURES:

Interface: 1 10/100Mbps LAN/WAN Port, 3 10/100Mbps LAN

Ports, 1 SIM Card Slot

Button:WPS/Reset Button, Wireless On/Off Switch, Power

On/Off Button

External Power Supply:12VDC/1A

Dimensions ( W x D x H ):7.95 x 5.55 x 1.32 in. (202 x 141 x

33.6 mm)

Antenna Type: 2 Internal Wi-Fi Antennas, , 2 Detachable

External 4G LTE Antennas

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Frequency:2.4GHz

EIRP:<20dBm

Signal Rate: 300Mbps at 2.4GHz

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

Security:NAT Firewall, SPI Firewall, MAC / IP / Packet /

Application / URL Filtering, Denial of Service(DoS), SYN

Flooding, Ping of Death

Operating Modes: 3G/4G Router, Wireless Router

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual

Access)/L2TP(Dual Access)

Management: Access Control, Local Management, Remote

Management

DHCP: Server, Client, DHCP Client List, Address Reservation

Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS: DynDns, NO-IP

VPN Pass-Through: PPTP, L2TP, IPSec

Access Control: Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain

Filter, IP and MAC Address Binding

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4GHz guest network x 1, 5GHz guest network x 1

IPSec VPN: Supports up to 10 IPSec VPN tunnels

Network Type: 4G FDD-LTE Cat4

(800/900/1800/2100/2600MHz), TDD-LTE (2300/2600MHz),

3G DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz), 2G

EDGE/GPRS/GSM (850/900/1800/1900MHz)

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:3G/4G Wireless AC Router, 1 Antenna,

RJ45 Ethernet Cable, Power Adapter, Quick Installation

Guide, Micro to Standard SIM Card Adapter, Nano to

Standard SIM Card Adapter

System Requirements:MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM or Windows 7/8/8.1, MACC OS,

NetWareC, UNIXC or Linux.

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

600Mbps Wireless Dual Band 600N

VDSL2/ADSL2+ Modem Router (TP-Link

TD-W9980)

- Featuring broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL

- Simultaneous 2.4GHz 300Mbps and 5GHz 300Mbps connections for 600Mbps of total available bandwidth

- Versatile Connectivity: VDSL/ADSL or Ethernet WAN for multiple Internet connection types

- 2 USB ports for storage sharing, printer sharing, FTP Server and Media Server

HARDWARE FEATURES:

Interface:4 10/100/1000Mbps RJ45 Ports, 1 RJ11 Port, 2

USB 2.0 Ports

Button:1 Power On/Off Button, 1 WPS Button, 1 Wi-Fi On/Off

Switch, 1 RESET Button

External Power Supply:12VDC/1.5A

IEEE Standards:IEEE 802.3, 802.3u, 802.3ab

ADSL Standards:Full-rate ANSI T1.413 Issue 2, ITU-T

G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1

ADSL2 Standards:ITU-T G.992.3 (G.dmt.bis)

ADSL2+ Standards:ITU-T G.992.5

Dimensions ( W x D x H ):9.6*6.4*1.3 in.(243 x 160.6 x

32.5mm)

Antenna Type:Three 5GHz 5dBi detachable antennas

(RP-SMA), Two 2.4GHz 3.5dBi internal antennas

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11a, IEEE 802.11b, 802.11g,

802.11n

Frequency:2.4GHz and 5GHz

EIRP:<20dBm(EIRP)

Wireless Security:Support 64/128 bit WEP, WPA /WPA2,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

Quality of Service:WMM, Bandwidth Control (IP QoS)

Port Forwarding:Virtual server, Port Triggering, UPnP, DMZ,

Manage Control

VPN Pass-Through:PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols:ATM Forum UNI3.1/4.0, PPP over ATM

(RFC 2364), PPP over Ethernet (RFC2516), IPoA

(RFC1577/2225), PVC - Up to 8 PVCs

Advanced Features:Parent Control, Traffic Shaping(ATM

QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host

Configuration Protocol (DHCP), DHCP relay; Network

Address Translation (NAT);PVC/Ethernet Port Grouping,

Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS

Security:NAT Firewall, SPI Firewall, MAC / IP / URL Filtering

USB Sharing:Storage Sharing, FTP Server, Media Server,

Print Server

Management:Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface,

SSL for TR-069, SNMP V1/V2C, Web Based Firmware

Upgrade, CWMP(TR-069), Diagnostic Tools

IGMP: IGMP snooping V1/V2/V3, IGMP Multicast

IPSec VPN: 10 IPSec VPN Tunnels, LAN-to-LAN, Main,

Aggressive Negotiation Mode,DES, 3DES, AES128, AES192,

AES256 Encryption Algorithm, MD5, SHA1 Authentication

Algorithm, Manual, IKE Key Management Mode, Dead Peer

Detection (DPD), Perfect Forward Secrecy (PFS)

IPv6: IPv6 and IPv4 dual stack, Supported IPv6 Tunnels-

DS-Lite, 6RD, 6 to 4, Supported IPv6 Connection Type-

PPPoEv6, DHCPv6, Static IPv6

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TD-W9980, External Splitter, RJ-11

Telephone Line, RJ-45 Ethernet Cable, Quick Installation

Guide, Resource CD, Power Adapter

System Requirements:MicrosoftC WindowsC 8/7/Vista/XP,

MACC OS lub Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

Portable 3G/4G Wireless N Router (TP-Link

TL-MR3020)

Share a 3G/4G* mobile connection, compatible with 120+

LTE/HSPA+/UMTS/EVDO 3G/4G USB modems, tested in the field

Travel-size Design, small and light enough to take on the road, enables users to share a 3G/4G* mobile connection wherever 3G/4G* coverage is available

Wireless speed is up to 150Mbps

Three modes available for different situations: 3G/4G* Router,

WISP Client Router and Travel Router Mode (AP Mode)

With 3G/4G* and WAN failover back-up strategy, TL-MR3020 can provide a sustained internet connection.

HARDWARE FEATURES:

Interface:1 10/100Mbps WAN/LAN Port, USB 2.0 Port for

3G/4G modem, a mini USB Port for power supply.

Button:Quick Setup Security Button, Reset Button, Mode

Switch

External Power Supply:5VDC/1.0A

Dimensions ( W x D x H ):2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm)

Antenna Type:Internal Antenna

WIRELESS FEATURES:

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Frequency:2.4-2.4835GHz

EIRP:<20dBm

Wireless Modes:3G Router, Travel Router (AP), WISP Client

Router

Wireless Security:Support 64/128 bit WEP,

WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES:

DHCP:Server, DHCP Client List, Address Reservation

Port Forwarding:Virtual Server, Port Triggering, DMZ, UPnP

Access Control:Parental Control, Host List, Access Schedule,

Rule Management

Security:Firewall, MAC filtering, Denial of Service (DoS)

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-MR3020 router, QIG, Power Adapter,

USB Cable, Resource CD, Ethernet Cable

System Requirements:MicrosoftC WindowsC 98SE, NT,

2000, XP, VistaTM or Windows 7, MACC OS, NetWareC,

UNIXC or Linux.

Environment:Operating temperature-10°~60°, Storage

Temperature -40°~80°, Operating Humidity 10%~90% non-condensing, Storage Humidity 5%~90% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

28/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#07059

Net Price:

41,50 EUR

Unit: pcs

#04574

Net Price:

21,00 EUR

Unit: pcs

#07114

Net Price:

24,60 EUR

Unit: pcs

Ultimate Wireless N Gigabit Router (TP-Link

TL-WR1043ND)

Standards: IEEE 802.11n (draft 2.0), IEEE 802.11b/g, IEEE

802.3/u, 802.1x

Ports: 4x 10/100/1000M LAN Ports,1x 10/100/1000M WAN

Port, 1x USB 2.0 Port

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Router

Max. speed: 300 Mbps

Max. output power: 20 dBm

Antenna: 3x detachable SMA RP, 3dBi

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

LAN security: ACL, firewall, ICMP-FLOOD, UDP-FLOOD,

TCP-SYN-FLOOD filtering, domain filtering, MAC address filtering, 802.1x, parental control

Network features: VPN pass-through, DDNS, UPnP

Router features: virtual servers, NAT, DMZ host, static routes

WLAN features: 3x3 MIMO, CCA

Auto MDI/MDIX: yes

Addressing: DHCP client, DHCP server

Dimensions: 200x140x28 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 95%, non-condensing

Power: 12VDC / 1.5A, ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

#07058

Net Price:

15,40 EUR

Unit: pcs

Wireless Lite N Router (TP-LINK TL-WR843N)

Standards: IEEE 802.11n, IEEE 802.11b/g, IEEE 802.3/u,

802.1x

Ports: 4x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45

(WAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Operating modes: Client Router / Router

Max. speed: 11n- Up to 300Mbps(dynamic), 11g- Up to

54Mbps(dynamic), 11b- Up to 11Mbps(dynamic)

Max. output power: 20 dBm

Antenna: detachable, 2*5 dBi (RP-SMA)

WLAN security: 64/128/152-bit WEP, WPA / WPA2,

WPA-PSK / WPA2-PSK

Access Control: Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security: DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

Network features: VPN pass-through, DDNS, UPnP

Router features: virtual servers, NAT, DMZ host, static routes

Addressing: DHCP client, DHCP server

Dimensions: 192 x 134 x 33 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 90%, non-condensing

Power: 9V DC 0.85 A switching PCU

Certificates: CE, FCC, RoHS

Manufacturer: TP-Link

#08143

Net Price:

21,90 EUR

Unit: pcs

Wireless N router (TP-Link TL-MR3420)

Standards: IEEE 802.11n/g/b, IEEE 802.3/3u, USB 2.0

Ports: 4x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45

(WAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Router

Max. speed: 300 Mbps

Max. output power: 20 dBm

Antenna: 3x detachable SMA RP, 2 dBi

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

LAN security: ACL, firewall, ICMP-FLOOD, UDP-FLOOD,

TCP-SYN-FLOOD filtering, domain filtering, MAC address filtering, 802.1x, parental control

Network features: VPN pass-through, DDNS, UPnP

Router features: virtual servers, NAT, DMZ host, static routes

WLAN features: 2x2 MIMO, CCA

Auto MDI/MDIX: yes

Addressing: DHCP client, DHCP server

Dimensions: 174 x 111 x 30 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 90%, non-condensing

Power: 9V AC 0.8A, ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

Wireless N router (TP-Link TL-WR841N)

Standards: IEEE 802.11n (draft 2.0), IEEE 802.11b/g, IEEE

802.3/u, 802.1x

Ports: 4x 10/100 Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45

(WAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Router

Max. speed: 300 Mbps

Max. output power: 20 dBm

Antenna: 3dBi fixed Omni Directional Antenna X 2

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

LAN security: ACL, firewall, ICMP-FLOOD, UDP-FLOOD,

TCP-SYN-FLOOD filtering, domain filtering, MAC address filtering, 802.1x, parental control

Network features: VPN pass-through, DDNS, UPnP

Router features: virtual servers, NAT, DMZ host, static routes

WLAN features: 2x2 MIMO, CCA

Auto MDI/MDIX: yes

Addressing: DHCP client, DHCP server

Dimensions: 174 x 111 x 30 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 90%, non-condensing

Power: 12VDC / 1A , ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

Wireless N router (TP-Link TL-WR940N)

Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Ports: 4x 10/100Mbps RJ-45 (LAN), 1x 10/100 Mbps RJ-45

(WAN)

Frequency range: 2400 MHz ÷ 2483,5 MHz

Modulation: DBPSK, DQPSK, CCK, OFDM, 16-QAM,

64-QAM

Operating modes: AP Router

Max. speed: 300 Mbps

Max. output power: 20 dBm

Antenna: 3dBi fxed Omni directional antenna x 3

WLAN security: WEP 64/128/152-bit, WPA, WPA-PSK,

WPA2,WPA2-PSK, TKIP, AES

LAN security: ACL, firewall, ICMP-FLOOD, UDP-FLOOD,

TCP-SYN-FLOOD filtering, domain filtering, MAC address filtering, 802.1x, parental control

Network features: VPN pass-through, DDNS, UPnP

Router features: virtual servers, NAT, DMZ host, static routes

WLAN features: 3x3 MIMO, CCA

Auto MDI/MDIX: yes

Addressing: DHCP client, DHCP server

Dimensions: 200x140x28 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity:5% ÷ 90%, non-condensing

Power: 9V AC 0.85A, ~230V 50Hz

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

29/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04576

Net Price:

14,00 EUR

Unit: pcs

Wireless N Router, 300Mbps (TP-Link

TL-WR840N)

300Mbps wireless transmission rate with MIMO technology provides a smooth wireless N experience

Up to 4 SSIDs support multiple wireless networks with different SSIDs and passwords

Up to 5 VPN tunnels enable remote VPN connections

Multi-functional USB 2.0 port convenient for wireless printing and FTP server

Embedded media server allows users to share music, video and photos with Windows media player, PS3 or X-BOX 360

HARDWARE FEATURES:

Interface:4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port

Button:WPS Button, WiFi On/Off Button, Reset Button

External Power Supply:9VDC / 0.6A

Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE

802.11b

Antenna:2* Antenna

Dimensions ( W x D x H ):7.2 x 5.0 x 1.4 in.(182 x 128 x 35 mm)

WIRELESS FEATURES:

Frequency:2.4-2.4835GHz

Signal Rate:Up to 300Mbps

EIRP:<20dBm

Reception Sensitivity:270M [email protected]% PER, 130M

[email protected]% PER, 108M [email protected]% PER, 54M

[email protected]% PER, 11M [email protected]% PER, 6M

[email protected]% PER, 1M [email protected]% PER

Wireless Functions:Enable/Disable Wireless Radio, WDS

Bridge, WMM, Wireless Statistics

Wireless Security:64/128/152-bit WEP / WPA /

WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES:

WAN Type:Dynamic IP/Static IP/PPPoE/,

PPTP/L2TP/BigPond

DHCP:Server, Client, DHCP Client List,, Address Reservation

Quality of Service:WMM, Bandwidth Control

Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS:DynDns, Comexe, NO-IP

VPN Pass-Through:PPTP, L2TP, IPSec(ESP Head)

Access Control:Parental Control, Local Management Control,

Host List, Access Schedule, Rule Management

Firewall Security:DoS, SPI Firewall, IP Address Filter/MAC

Address Filter/Domain Filter, IP and MAC Address Binding

USB Sharing:Support Samba/FTP/Media Server/Printer

Connection

Management:Access Control, Local Management, Remote

Management

OTHERS:

Certification:CE, FCC, RoHS

Package Contents:TL-WR840N, 2 Detachable Omni

Directional Antennas, Power Supply Unit, Resource CD,

RJ-45 Ethernet Cable, Quick Installation Guide

System Requirements:Microsoft Windows 98SE, NT, 2000,

XP, Vista or Windows 7,8,8.1,10, MAC OS, NetWare, UNIX or Linux

Environment:Operating Temperature 0°~40° (32°~104°),

Storage Temperature -40°~70° (-40°~158°), Operating

Humidity 10%~90% non-condensing, Storage Humidity

5%~95% non-condensing

Warranty:2 years limited warranty. Advanced replacement service is available.

30/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

Wireless active devices 2.4GHz

#05354

Net Price:

45,00 EUR

Unit: pcs

#05284

Net Price:

33,80 EUR

Unit: pcs

#06272

Net Price:

18,60 EUR

Unit: pcs

Wireless AP client airBridge (smartBridges sB2100)

Standard: IEEE 802.11b, IEEE 802.3

Ports: 1x 10 Mbps RJ-45

Operational mode: AP Client

Max. supported clients: 64

Frequency band: 2400 to 2483.5 MHz

Media access protocol: CSMA/CA

Modulation: DSSS with CCK / DQPSK / DBPSK

Operating channels: 11 FCC, 13 ETSI

Non-overlapping channels: 3

Receive sensitivity: -94dBm @ 1 Mbps

Max. output power with antenna: 20 dBm

Management: SNMP, simpleNMS

Antenna: detachable RP-SMA 2 dBi

WLAN security: WEP 40/64/128-bit

Housing / case type: indoor

Dimensions: 120x42x130 mm

Weight: 0,20 kg

Operating temperature: 0°C ÷ 50°C

Operating humidity: 10% ÷ 90%, non-condensing

Power: PoE 12V

Power consumption: 350 mA @ 12V

Certificates: CE, FCC, ETSI, RSS 139, MPT

Warranty period: 12 months

Manufacturer: smartBridges

#05441

Net Price:

10,20 EUR

Unit: pcs

Wireless router PRO (Interepoch

IWE1100-R8S17P)

Standard: IEEE 802.3/u, 802.11b

Operational modes: AP/Bridge, Router w/PPPoE, Router w/DHCP, Router w/Static-IP, Router w/Dial-up

WDS links: 6x

Max. TX power [dBm]: 17

Antenna / connector type: detachable, omnidirectional 3 dBi /

SMA-RP(F)

TX power control: yes

Ports: 1x 10/100 Mbps RJ-45 LAN, 1x 10/100 Mbps RJ-45

WAN

Access control: DHCP Server, MAC Address Filtering, Packet

Type Filtering, TCP/UDP Port Filtering, NAT, Virtual Server,

DMZ, UPnP, UPnP for NAT, SPI Firewall

WLAN Security: WPA (802.1x/TKIP), WEP 64/128-bit, ESSID

Disable, RADIUS

Management: Status Monitoring, WWW, telnet,

Windows-based Management, UPnP, SNMP, Antenna

Alignment Assistance

Housing / case type: indoor

Dimensions: 175x140x40 mm

Operating temperature: 0°C ÷ 55°C

Operating humidity: 5% ÷ 95%, non-condensing

Power: external 5V DC 2A, ~230V AC 50Hz

Certificates:CE, FCC Class B

Warranty period: 1 year

Manufacturer: InterEpoch

#07051

Net Price:

4,15 EUR

Unit: pcs

Wireless mini-PCI adapter (Compex

WLM54AGP26 400W)

Standard: IEEE 802.11b/g

Interface: mini-PCI

Chipset: AR5414

Frequency range: 2412 MHz ÷ 2472 MHz

Max. speed: 54 Mbps

Modulation: OFDM (BPSK, QPSK, 16 QAM, 64QAM), DSSS

(DBPSK, DQPSK, CCK)

Receiver sensitivity: -92 dBm @ 1Mbps (IEEE 802.11b), -87 dBm @ 11Mbps (IEEE 802.11b), -90 dBm @ 6Mbps (IEEE

802.11g), -70 dBm @ 54Mbps (IEEE 802.11g)

Max. TX power: 26 dBm (IEEE 802.11b), 26 dBm (IEEE

802.11g)

Operational modes: Ad-hoc, infrastructure

WLAN security: WEP 64/128-bit, WPA, WPA2, IEEE 802.1X

Antenna: antenna's socket 1x U.FL (I-PEX), 1x MCX (Main)

Operational temperature: -20°C ÷ 70°C

Operational humidity: 5% ÷ 95%, non-condensing

Dimensions: 60x45 mm

Weight: 0,02 Kg

Manufacturer: Compex

#06258

Net Price:

3,90 EUR

Unit: pcs

Wireless network adapter, PCI, Super-G (Compex

WLP54G)

Standard: IEEE 802.11b/g, IEEE 802.3u

Interface: PCI v2.3

Frequency range: 2412 MHz ÷ 2462 MHz, 2412 MHz ÷ 2484

MHz

Max. speed: 108 Mbps

Modulation: BPSK, QPSK, 16 QAM, 64QAM, DBPSK,

DQPSK, CCK

Receiver sensitivity: -88 dBm @ 6 Mbps ÷ 24 Mbps, -68 dBm

@ > 24 Mbps

Max. TX power: 20 dBm (IEEE 802.11b), 19 dBm (IEEE

802.11g)

Operational modes: Ad-hoc, infrastructure

WLAN security: WEP 64/128-bit, WPA

Antenna: detachable 2 dBi, SMA

Drivers: Windows 98SE/2000/XP

Operational temperature: 0°C ÷ 70°C

Dimensions: 120x64,5x1,6 mm

Weight: 0,07 kg

Certificates: FCC Part 15 Sub Class B and Class C, CE,

R&TTE

Warranty period: 12 months

Manufacturer: Compex

#06259

Net Price:

4,15 EUR

Unit: pcs

Wireless PCI adaptor (TP-Link TL-WN350G)

Standards: IEEE 802.11b/g

Chipset: Atheros

Interface: PCI 32-bit

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 54 Mbps

Max. output power: 18 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Antenna: fixed

Roaming support: yes

Drivers: Windows 98SE/ME/2000/XP/Vista

Dimensions: 133x121x22 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

#05470

Net Price:

6,83 EUR

Unit: pcs

Wireless PCI adaptor (TP-Link TL-WN353G)

Standards: IEEE 802.11b/g

Chipset: Realtek

Interface: PCI 32-bit

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 54 Mbps

Max. output power: 15 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Antenna: fixed

Roaming support: yes

Drivers: Windows 98SE/ME/2000/XP/Vista

Dimensions: 133x121x22 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

#06847

Net Price:

5,12 EUR

Unit: pcs

Wireless PCI adaptor (TP-Link TL-WN353GD)

Standards: IEEE 802.11b/g

Chipset: Realtek

Interface: PCI 32-bit

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 54 Mbps

Max. output power: 15 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Antenna: detachable, SMA-RP

Roaming support: yes

Drivers: Windows 98SE/ME/2000/XP/Vista

Dimensions: 133x121x22 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

Wireless PCI adaptor (TP-Link TL-WN551G)

Standards: IEEE 802.11b/g

Interface: PCI 32-bit

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. speed: 54 Mbps

Max. output power: 17 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Antenna: detachable, SMA

WLAN features: Extended Range

Roaming support: yes

Drivers: Windows 98SE/ME/2000/XP

Dimensions: 133x121x22 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

Wireless PCMCIA adaptor (TP-Link TL-WN310G)

Standards: IEEE 802.11b/g

Interface: Cardbus 32-bit

Frequency range: 2400MHz - 2483,5MHz

Max. speed: 54 Mbps

Max. output power: 17 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Roaming support: yes

Receiver Sensitivity: 54M [email protected]% PER, 11M

[email protected]% PER, 6M [email protected]% PER, 1M

[email protected]% PER, 256K [email protected]% PER

WLAN Features: eXtended Range

Drivers: Windows 2000/XP/Vista

Dimensions: 115x54x5 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty: 2 years

Manufacturer: TP-Link

31/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04654

Net Price:

50,70 EUR

Unit: pcs

#05324

Net Price:

92,90 EUR

Unit: pcs

#05323

Net Price:

90,50 EUR

Unit: pcs

Outdoor Wireless Base Station, 2.4GHz 300Mbps

(TP-LINK WBS210)

- Broad operating frequency channels ensure less wireless interference

- Wireless N speed up to 300Mbps

- Selectable bandwidth of 5/10/20/40MHz

- Adjustable transmission power from 0 to 27dBm/500mW

- 2 RP-SMA connectors for external MIMO antenna

- Work with TP-LINK dish antenna for long-distance wireless data transfer up to 30+Km

- 1 10/100Mbps Ethernet port for passive PoE and 1

10/100Mbps Ethernet port for extended applications

- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications

- Centralized Management System - Pharos Control

- Supports AP Router, AP Client Router, AP, AP Client,

Multi-Bridge and Repeater Operation modes

- Weatherproof enclosure, 15kV ESD and 6KV lightning protection

Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Ports: 1 10/100Mbps Shielded Ethernet Port, 1 10/100Mbps

Shielded Ethernet Port (LAN1), 2 RP-SMA, 1 Grounding

Terminal, 1 Reset Button

Processor: Qualcomm Atheros Enterprise AR9350B 560MHz

CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Operating modes: AP / Client / Bridge /Repeater / AP Router

Mode / AP Client Router(WISP Client) Mode

Frequency: 2.4~2.483GHz

Transmission Power: 27dBm/500mW (Adjustable power by

1dBm)

Network Configuration: WAN

Static/Dynamic/PPPoE/L2TP/PPTP, LAN

Static/Dynamic/Dynamic/DHCP, Forwarding

DMZ/ALG/UPnP/Virtual Server/Port Trigger, Security SPI

Firewall/Ping Forbidden/VPN/DOS Protection, Access

Control, Static Routing, Bandwidth Control, IP & MAC Binding

Wireless Configurations: Pharos MAXtream TDMA

Technology, 802.11a/n Modes, Selectable Channel Width

5/10/20/40MHz, Automatic Channel Selection, Transmission

Power Control, Dynamic Frequency Selection (DFS), WDS

Enable/Disable, Security WPA/WPA2, WPA-PSK/WPA2-PSK

(AES/TKIP) Encryption, 64/128/152-bit WEP Encryption,

SSID Broadcast Enable/Disable, Multi-SSID with VLAN

Tagging (AP mode only), Distance/ACK Timeout Setting,

Wireless MAC Address Filter, Wireless Advanced > Beacon

Interval/RTS Threshold/Fragmentation Threshold/DTIM

Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Dimensions: 198×75×40 mm

Power: Passive Power over Ethernet via LAN0 (+4,5pins

-7,8pins), Voltage range 16-27VDC

Protection: 15KV ESD Protection, 6KV Lightning Protection

Enclosure: Outdoor ASA stabilized plastic material, IP65 water and dust proof Certification

Package Contents: Outdoor Wireless Base Station, 24V 1A

Passive PoE Adapter, Pole Mounting Kit, AC Power Cord,

Quick Installation Guide

Operating temperatures: Operating Temperature -30°C~70°C

(-22°F~158°F), Storage Temperature -40°C~70°C

(-40°F~158°F), Operating Humidity 10%-90% non-condensing, Storage Humidity 5%-95% non-condensing

System Requirements: Microsoft Windows 98SE, NT, 2000,

XP, Vista lub Windows 10, Windows 8, Windows 7, MAC OS,

NetWare, UNIX or Linux. Note- We recommend you to use one of following Web browsers for an improved user experience Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Certificates: CE, FCC, RoHS, IP65

Manufacturer: Tp-Link

Wireless Access Point ADV MAX OUTDOOR.

(Interepoch IWE1700-AAS11XM)

Standard: IEEE 802.3/u, 802.11b

Operational modes: AP/Bridge, AP Client

WDS links: 6x

Max. TX power [dBm]: 20

Antenna / connector type: external / N(F)

TX power control: yes

Ports: 1x 10/100 Mbps MIL-C-5015 LAN

Access control: DHCP Server, MAC Address Filtering, Packet

Type Filtering, TCP/UDP Port Filtering

WLAN Security: WPA (802.1x/TKIP), WEP 64/128-bit, ESSID

Disable, RADIUS

Management: Status Monitoring, WWW, telnet,

Windows-based Management, UPnP, SNMP, Antenna

Alignment Assistance

Additional functionality: RSSI (for AP Client), Wireless Client

Isolation, AP Load Balancing, Link Integrity, Association

Control

PoE support: yes

Housing / case type: outdoor IP68

Net weight: 1480g

Dimensions: 234x170x63 mm

Operating temperature: -20°C ÷ 70°C

Power: external PoE 48V DC 1A

Certificates:CE, FCC Class B

Warranty period: 1 year

Manufacturer: InterEpoch

Kit contains: outdoor AP, PoE injector, shielded water resistant 20m transmission cable, UTP 1m cable, power cable

Wireless Access Point PRO MAX OUTDOOR.

(Interepoch IWE1700-AAS11PM)

Standard: IEEE 802.3/u, 802.11b

Operational modes: AP/Bridge, AP Client

WDS links: 6x

Max. TX power [dBm]: 20

Antenna / connector type: external / N(F)

TX power control: yes

Ports: 1x 10/100 Mbps MIL-C-5015 LAN

Access control: DHCP Server, MAC Address Filtering, Packet

Type Filtering, TCP/UDP Port Filtering

WLAN Security: WEP 64/128-bit, ESSID Disable

Management: Status Monitoring, WWW, telnet,

Windows-based Management, UPnP, SNMP, Antenna

Alignment Assistance

Additional functionality: RSSI (for AP Client), Link Integrity

PoE support: yes

Housing / case type: outdoor IP68

Net weight: 1480g

Dimensions: 234x170x63 mm

Operating temperature: -20°C ÷ 70°C

Power: external PoE 48V DC 1A

Certificates:CE, FCC Class B

Warranty period: 1 year

Manufacturer: InterEpoch

32/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08056

Net Price:

43,20 EUR

Unit: pcs

#08141

Net Price:

43,20 EUR

Unit: pcs

#08873

Net Price:

70,50 EUR

Unit: pcs

Wireless Access point TP-Link (TL-WA5210G)

Standards: IEEE 802.11b/g

Interface: One 10/100M Auto-Sensing RJ45 Port, (Auto

MDI/MDIX), supporting Passive PoE

Wireless Signal Rates: 11g - 108/54/48/36/24/18/12/9/6

Mbps, (Dynamic) 11b - 11/5.5/3/2/1 Mbps (Dynamic)

Frequency Range: 2.4-2.4835GHz

Wireless Transmit Power EIRP: <20dBm (For countries using

CE), <27dBm (For countries using FCC)

Antenna: 12dBi Dual-Polarized, Aluminum Antenna

Beamwidth (HPBW): Horizontal 60°, Vertical 30°

Enclosure: Outdoor weatherproof ABS

ESD Protection: 15kV ESD Protection

Lightning Protection: Grounding Terminal

Modulation Type

IEEE 802.11b: DQPSK DBPSK DSSS and CCK

IEEE 802.11g: BPSK QPSK 16QAM 64QAM OFDM

Receiver Sensitivity

802.11g: 54M -76dBm, 48M -78dBm, 36M -82dBm, 12M

-91dBm, 9M -92dBm

802.11b: 11M -90dBm, 5.5M -92dBm, 1M -98dBm

Hardware Specification

Operating Temperature: -30°C~70°C (-22°F~158°F)

Relative Humidity: 10% ~ 90%, non condensation

Dimensions: 10.4 × 4.7 × 3.2 in. (265x120x83mm)

#06446

Net Price:

114,00 EUR

Unit: pcs

Wireless access point Ubiquiti NanoStation Loco

M2

Standards: IEEE 802.11b/g/n, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS

Chipset: Atheros MIPS 24KC, 400MHz

Operating memory: 32MB SDRAM

Flash memory: 8MB

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. output power: 20 dBm

Antenna: build-in, 8 dBi, detachable RSMA

Dimensions: 163x80x31 mm

Weight: 0.18 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 5.5 W

Power: PoE 24V

Operating temperatures: -30°C ÷ 80°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, IC RS210

#08144

Net Price:

71,70 EUR

Unit: pcs

Wireless access point Ubiquiti PowerBeam M2

MIMO 2.4GHz (PBE-M2-400)

Standards: IEEE 802.11n

Ports: 1x 10/100 Mbps RJ-45

Chipset: Atheros MIPS 74KC, 560 MHz

Operating memory: 64 MB DDR2

Flash memory: 8 MB

Antenna: build-in, 18 dBi

Range: 20+ km

VSWR: 1.5

Diameter: 400mm

Weight: 1.795 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 6 W

Power: PoE 24V

Operating temperatures: -40°C ÷ 70°C

Operating humidity: 5% ÷ 95%, Non-condensing

Manufacturer: Ubiquiti

#06019

Net Price:

68,60 EUR

Unit: pcs

Wireless access point Ubiquiti PowerStation2

(PS2-17D)

Standard: IEEE 802.11b/g, IEEE 802.3u

Ports: 2x 10/100 Mbps RJ-45

Operating modes: Access Point, Wireless Station, WDS

Station, Bridge

Chipset: Atheros AR2313 SOC, MIPS 4KC, 180 MHz

Operating memory: 16 MB SDRAM

Flash memory: 4 MB

Frequency range: 2400 MHz

Max. output power: 26 dBm @ 6 Mbps, 26 dBm @ 9 Mbps,

26 dBm @ 12 Mbps, 26 dBm @ 18 Mbps, 26 dBm @ 24

Mbps, 24 dBm @ 36 Mbps, 23 dBm @ 48 Mbps, 21 dBm @

54 Mbps

Receiver sensitivity: -94 dBm @ 6 Mbps, -93 dBm @ 9 Mbps,

-91 dBm @ 12 Mbps, -90 dBm @ 18 Mbps, -86 dBm @ 24

Mbps, -83 dBm @ 36 Mbps, -77 dBm @ 48 Mbps, -74 dBm

@ 54 Mbps

Adjustable channel size: 5/10/20 MHz

Wireless security: WEP, WPA

QoS: 802.11e WMM

Antenna: internal, 17 dBi, vertical polarization

Beam width: 6°

Survival wind: up to 185 km/h

VSWR: 1,4

Impedance: 50 Ω

Dimensions: 457,2x330,2x50,8 mm

Weight: 2,23 kg

Mounting: mast or pole

Max. power consumption: 6.5 W

Power: PoE 12V

Operating temperatures: -40°C ÷ 85°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, IC RS210

Wireless access point Ubiquity PicoStation

M2HP (PICO M2HP)

Standards: IEEE 802.11b/g, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS

Chipset: Atheros, MIPS 4KC, 180MHz

Operating memory: 32 MB SDRAM

Flash memory: 8 MB

Frequency range: 2400 MHz ÷ 2483,5 MHz

Max. output power: 29 dBm

Antenna: detachable 6dBi RSMA

Dimensions: 136x20x39 mm

Weight: 0.1 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8 W

Power: PoE 12V

Operating temperatures: -20°C ÷ 70°C

Operating humidity: 5% ÷ 90%, non-condensing

Certificates: CE, FCC, IC RS210

Wireless client device airClient Nexus TOTAL

241 (smartBridges sB3415-03)

Standards: IEEE 802.11b/g, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: AP Client, Router, NAT, Bridge

Frequency range: 2400 MHz - 2485 MHz

Modulation: QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK

Max output power (inbuild antenna): 33dBm

Max output power (external antenna): 18dBm

Receiver sensitivity (inbuild antenna): -109dBm @ 1Mbps,

-87dBm @ 54 Mbps

Receiver sensitivity (external antenna): -94dBm @ 1Mbps,

-71dBm @ 54 Mbps

Typical useful throughput: 3 Mbps

Management: WWW, SNMP

WLAN security: WPA, 64/128 bit WEP, AES

Bandwidth management: MAC-based

VLAN support: yes

QoS: 8 hardware queues

Addressing: DHCP client, DHCP server

Diagnostic tools: link loopback test, Link Budget, Device

Discovery Tool, Radio/Ethernet Traffic Statistics, RSSI Graph

Antenna: integrated 15 dBi, external N(F) connector

Housing: outdoor

Dimensions: 305x305x152 mm

Weight: 3,3 kg

Operating temperatures: -30°C ÷ 60°C

Operating humidity: 20% ÷ 95%, non-condensing

Mounting: mast or pole

Power: PoE 48V

Power consumption: 200 mA @ 48V

Certificates: CE, FCC

Manufacturer: smartBridges

33/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#05325

Net Price:

92,90 EUR

Unit: pcs

Wireless dual-radio repeater ADV MAX

OUTDOOR. (Interepoch IWE1700-TAS12XM)

Standard: IEEE 802.3/u, 802.11b

Operational modes: Bridge Repeater, Static AP Repeater,

Dynamic AP Repeater, Dual AP

WDS links: 6x

Max. TX power [dBm]: 20

Antenna / connector type: 2x external / N(F)

TX power control: yes

Ports: 1x 10/100 Mbps MIL-C-5015 LAN

Access control: DHCP Server, MAC Address Filtering, Packet

Type Filtering, TCP/UDP Port Filtering

WLAN Security: WPA (802.1x/TKIP), WEP 64/128-bit, ESSID

Disable, RADIUS

Management: Status Monitoring, WWW, Windows-based

Management, UPnP, SNMP, Antenna Alignment Assistance

Additional functionality: Wireless Client Isolation, AP Load

Balancing, Link Integrity, Association Control

PoE support: yes

Housing / case type: outdoor IP68

Net weight: 1580g

Dimensions: 234x170x63 mm

Operating temperature: -20°C ÷ 70°C

Operating humidity: 5% ÷ 95%, non-condensing

Power: external PoE 48V DC 1A

Certificates:CE, FCC Class B

Warranty period: 1 year

Manufacturer: InterEpoch

Wireless active devices 5GHz

#04659

Net Price:

90,20 EUR

Unit: pcs

#05375

Net Price:

35,20 EUR

Unit: pcs

#05445

Net Price:

81,00 EUR

Unit: pcs

600Mbps Outdoor Wireless Access Point, N

(TP-Link EAP220)

- EAP Controller Software enables administrators to easily manage hundreds of EAPs

- Support Power over Ethernet&#65288;802.3af&#65289;for convenient and affordable installation

- Simple mounting design to easily mount to a wall or ceiling

- Captive portal provides one convenient method of authentication for Wi-Fi guests

- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN

- Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring

Standards: IEEE 802.11n/g/b/a

Ports: Gigabit Ethernet (RJ-45) Port *1 (ETH1 Support

IEEE802.3af PoE), Console Port *1

Frequency range: 2.4GHz and 5GHz

Signal Rate: 11n Up to 300Mbps(dynamic), 11g Up to

54Mbps(dynamic), 11b Up to 11Mbps(dynamic)

EIRP: FCC <26dBm(2.4GHz), <20dBm(5GHz), CE <20dBm

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic

Channel Assignment, Transmit Power Control (Adjust

Transmit Power on dBm), QoS(WMM), Airtime Fairness,

Beamforming, Band Steering, Load Balance, Rate Limit, Link

Aggregation, Reboot Schedule, Wireless Schedule, Wireless

Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication, Access

Control, Wireless Mac Address Filtering, Wireless Isolation

Between Clients, SSID to VLAN Mapping, Rogue AP

Detection, 802.1X Support, 64/128/152-bit WEP / WPA /

WPA2-Enterprise, WPA-PSK / WPA2-PSK

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Antenna: Internal 4* 4dBi Omni

Dimensions: 7.1 x 7.1 x 1.9in. (180*180*47.5mm)

Power: PoE or External 12VDC / 1.5A Power Supply

Power Consumption: 9.6 W

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes

Operating Temperature: 0°C~40°C (-32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Package Contents: Wireless Dual Band Gigabit Access Point

EAP220, Power Adapter, Mounting Kits, Installation Guide

System Requirements: Microsoft Windows XP, Vista,

Windows 7, Windows 8, Windows10

Certificates: CE, FCC, RoHS

Wireless Access Point (AT8-4)

Standard: IEEE 802.11a/b/g

Chipset: Atheros AR5112 i AR2312

Frequency band: 2400 MHz ÷ 2483,5 MHz, 5150 MHz ÷ 5350

MHz, 5470 MHz ÷ 5725 MHz

Max. speed: 108 Mbps

Radio modes: 11b/g, 11g, 11a, SuperA

Max. TX power: 20 dBm

Operational modes: Bridge, Access Point, Client

Infrastructure, Client Ad-hoc

Modulation: 802.11a - OFDM, 802.11b - DSSS, 802.11g -

OFDM

Antenna: detachable, SMA-RP

WDS: 8x

Access Control: SSID, MAC Address Control, max. clients

WLAN Security: WEP 64/128/152-bit, WPA-PSK,

WPA-TKiP/AES, RADIUS

Addressing: fixed IP, DHCP client

Management: WWW, telnet, UPnP

Log: system log, Syslog

Dimensions: 124,3x154,4x41,0 mm

Operational temperature: 0°C ÷ 40°C

Operational humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC, TELEC

Manufacturer: Wistron

Wireless Access Point (Compex WP18)

Standards: IEEE 802.11a/b/g, IEEE 802.3u

Frequency range: 2412 MHz ÷ 2462 MHz, 2412 MHz ÷ 2484

MHz, 5150 MHz ÷ 5350 MHz, 5470 MHz ÷ 5725 MHz

Max. speed: 108 Mbps

Max. TX power: 18 dBm (IEEE 802.11a), 19 dBm (IEEE

802.11g), 20 dBm (IEEE 802.11b)

Operational modes: Access Point, Client, RootAP /

Transparent Client, Wireless Routing Client

WLAN Security: 64/128-bit WEP, WPA, WPA2, IEEE 802.1x

Network features: Dynamic DNS, Wireless Multimedia QoS,

Bandwidth Control, Spanning Tree Protocol, Wireless Pseudo

VLAN, Firewall SPI

Additional features: PoE support, Long Range Parameter

Settings, UPnP, Multiple SSID, Antenna Alignment

WAN interface: static IP, dynamic IP, PPPoE, PPTP, L2TP

VPN: IPSec

Monitoring features: syslog, detailed statistics per client

Management: WWW, SNMP, uConfig, telnet, SSH, SSL

Dimensions: 170x160x31 mm

Weight: 0,26 kg

Power: 5V DC 4A, ~230 V AC

Operational temperature: 0°C ÷ 55°C

Operational humidity: 10% ÷ 80%, non-condensing

Certificates: CE, FCC

Manufacturer: Compex

34/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#05327

Net Price:

59,00 EUR

Unit: pcs

#08394

Net Price:

198,00 EUR

Unit: pcs

#06624

Net Price:

21,70 EUR

Unit: pcs

Wireless Access Point ADV (Interepoch

IWE2100)

Standards: IEEE 802.11a/b/g, IEEE 802.3u, IEEE 802.1Q/x

Ports: 1x 10/100 Mbps RJ-45

Frequency range: 2400 MHz ÷ 2483,5 MHz, 5150 MHz ÷

5350 MHz, 5470 MHz ÷ 5825 MHz

Operating modes: AP, Bridge, AP Client

Max. speed: 11 Mbps

Max. output power: 17 dBm

Receiver sensitivity: > -85 dBm

Antenna: detachable SMA-RP, 2 dBi

WLAN security: WEP 64/128-bit, WPA, TKiP, 802.1x

Addressing: DHCP client/server

Additional features: Association control, packet filtering, VPN

Pass Through, VLAN support, WLAN Client Isolation

Management: WWW

Housing: indoor

Dimensions: 175x145x50 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 5% ÷ 95%, non-condensing

Power: 5V DC 2A ~230V AC 50Hz

Certificates: CE

Manufacturer: InterEpoch

#06495

Net Price:

28,30 EUR

Unit: pcs

Wireless Access Point UniFi UAP-PRO 2.4/5Ghz

The UniFiC Enterprise Wi-Fi System is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi Access Point (AP) indoor models have a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. UniFi AP

(UAP) outdoor models have a form factor built to last outdoors.

The UniFi Enterprise Wi-Fi System includes the UniFi

Controller software. The software installs on any PC,

Mac, or Linux machine within the network and is easily accessible through any standard web browser. Using the

UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated.

Networking Interface (Mbps): 2 x 10/100/1000 Ethernet Ports

Buttons: Reset

Antennas: 2.4 GHz - 3 Integrated (Supports 3x3 MIMO with

Spatial Diversity), 5 GHz - 2 Integrated (Supports 2x2 MIMO with Spatial Diversity)

Wi-Fi Standards: 802.11 a/b/g/n

Power Method: Passive Power over Ethernet (48V), 802.3af

Supported

Power Supply: 48V, 0.5A PoE Adapter (Included)

Maximum Power Consumption: 12 W

Maximum TX Power: 2.4 GHz - 30 dBm, 5 GHz - 22 dBm

BSSID: Up to Four Per Radio

Dimensions: 200 x 200 x 36.5 mm

Weight: 298 g (358 g with Mounting Kits)

Power Save: Supported

Wireless Security: WEP, WPA-PSK, WPA-TKIP, WPA2 AES,

802.11i

Certifications: CE, FCC, IC

Mounting: Wall/Ceiling (Kits Included)

Operating Temperature: -10 ÷ 70° C

Operating Humidity: 5 ÷ 80% Condensing

Advanced Traffic Management

VLAN: 802.1Q

Advanced QoS: Per-User Rate Limiting

Guest traffic isolation: Supported

WMM: Voice, Video, Best Effort, and Background

Concurrent Clients: 200+

Supported Data Rates (Mbps)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

#05344

Net Price:

18,60 EUR

Unit: pcs

Wireless mini-PCI adapter (NMP-8601)

Standard: IEEE 802.11a/b/g

Interface: mini-PCI typ III B

Chipset: Atheros

Frequency range: 2400 MHz ÷ 2484 MHz, 5150 MHz ÷ 5350

MHz, 5470 MHz ÷ 5825 MHz

Max. speed: 108 Mbps

Modulation: OFDM (BPSK,QPSK,16 QAM,64QAM), DSSS

(DBPSK,DQPSK,CCK)

Receiver sensitivity: -88 dBm @ 6Mbps (802.11a), -71 dBm

@ 54Mbps (802.11a), -95 dBm @ 1Mbps (IEEE 802.11b),

-89 dBm @ 11Mbps (IEEE 802.11b), -90 dBm @ 6 Mbps

(IEEE 802.11g), -73 dBm @ 54 Mbps (IEEE 802.11g)

Max. output power: 20 dBm (IEEE 802.11b), 20 dBm (IEEE

802.11g), 18 dBm (IEEE 802.11a)

Operating modes: Ad-hoc, infrastructure

WLAN security: WEP 64/128-bit, WPA, WPA2, IEEE 802.1i

Antenna: 2x U.FL (I-PEX)

Operating temperatures: -20°C ÷ 85°C

Operating humidity: 5% ÷ 95%, non-condensing

Dimensions: 59.60x44.45 mm

Weight: 0.15 kg

#06719

Net Price:

11,20 EUR

Unit: pcs

Wireless mini-PCI adapter (NMP8602)

Standard: IEEE 802.11a/b/g

Interface: mini-PCI typ III

Chipset: Atheros 5006X

Frequency range: 2400 MHz ÷ 2484 MHz, 5150 MHz ÷ 5850

MHz

Max. speed: 54 Mbps

Modulation: CCK, DQPSK, DBPSK (802.11b), 64 QAM, 16

QAM,QPSK, BPSK (802.11a/g)

Receiver sensitivity: -90 dBm @ 6Mbps (802.11a), -74 dBm

@ 54 Mbps (802.11a), -92 dBm @ 6Mbps (802.11g), -76 dBm @ 54 Mbps (802.11g), -96 dBm @ 1 Mbps (802.11b),

-92 dBm @ 11 Mbps (802.11b)

Max. output power: 20 dBm (802.11b), 20 dBm (802.11g), 19 dBm (802.11a)

Operational modes: infrastructure

Antenna: 2x U.FL (I-PEX)

Supported protocols: TCP/IP, IPX, NDIS4, NDIS5, NDIS 5.1

Drivers: Windows 98SE/ME/2000/XP, Linux

Operating temperatures: 0°C ÷ 55°C

Operating humidity: 10% ÷ 85%, non-condensing

Dimensions: 60x45 mm

Weight: 0.02 kg

Wireless PCI card (VZA-81)

Standard: IEEE 802.11a/b/g

Interface: PCI ver. 2.2

Frequency band: 2400 MHz ÷ 2483,5 MHz, 2412 MHz ÷

2483,5 MHz, 5150 MHz ÷ 5350 MHz, 5470 MHz ÷ 5725 MHz

Max speed: 108 Mbps

Max. TX power: 20 dBm

Operational modes: Ad-hoc, infrastructure

Modulation: 802.11a - OFDM, 802.11b/g - DSSS, OFDM

Channels: 13 (802.11b/g), 19 non-overlaping (802.11a)

WLAN Security: WEP 64/128/152-bit, AES, TKIP, RADIUS

Antenna: SMA-RP connector

Drivers: Windows 98SE/Me/2k/XP

Operational temperature: 0°C ÷ 70°C

Certificates: CE, FCC

Manufacturer: Wistron

Wireless PCMCIA adaptor (TP-Link

TL-WN512AG)

Standards: IEEE 802.11a/b/g

Interface: Cardbus 32-bit

Frequency range: 2400MHz - 2483,5MHz, 5150MHz -

5850MHz

Max. speed: 54 Mbps

Max. output power: 16 dBm

Operating modes: Ad-Hoc, Infrastructure

WLAN security: 64/128/152-bit WEP, WPA, WPA2, TKIP/AES

Roaming support: yes

WLAN Features: eXtended Range

Drivers: Windows 98SE/ME/2000/XP/Vista

Dimensions: 115x54x5 mm

Operating temperatures: 0°C ÷ 40°C

Operating humidity: 10% ÷ 90%, non-condensing

Certificates: CE, FCC

Warranty period: 24 months

Manufacturer: TP-Link

35/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#04653

Net Price:

60,50 EUR

Unit: pcs

Outdoor Wireless Base Station, 5GHz 300Mbps

(TP-LINK WBS510)

- Broad operating frequency channels ensure less wireless interference

- Wireless N speed up to 300Mbps

- Selectable bandwidth of 5/10/20/40MHz

- Adjustable transmission power from 0 to 27dBm/500mW

- 2 RP-SMA connectors for external MIMO antenna

- Work with TP-LINK dish antenna for long-distance wireless data transfer up to 50+Km

- 1 10/100Mbps Ethernet port for passive PoE and 1

10/100Mbps Ethernet port for extended applications

- TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PtMP applications

- Centralized Management System - Pharos Control

- Supports AP Router, AP Client Router, AP, AP Client,

Multi-Bridge and Repeater Operation modes

- Weatherproof enclosure, 15kV ESD and 6KV lightning protection

Standards: IEEE 802.11a, IEEE 802.11n

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Ports: 1 10/100Mbps Shielded Ethernet Port, 1 10/100Mbps

Shielded Ethernet Port (LAN1), 2 RP-SMA, 1 Grounding

Terminal, 1 Reset Button

Processor: Qualcomm Atheros Enterprise AR9350B 560MHz

CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Operating modes: AP / Client / Bridge /Repeater / AP Router

Mode / AP Client Router(WISP Client) Mode

Frequency: 5.15~5.85GHz

Transmission Power: 27dBm/500mW (Adjustable power by

1dBm)

Network Configuration: WAN

Static/Dynamic/PPPoE/L2TP/PPTP, LAN

Static/Dynamic/Dynamic/DHCP, Forwarding

DMZ/ALG/UPnP/Virtual Server/Port Trigger, Security SPI

Firewall/Ping Forbidden/VPN/DOS Protection, Access

Control, Static Routing, Bandwidth Control, IP & MAC Binding

Wireless Configurations: Pharos MAXtream TDMA

Technology, 802.11a/n Modes, Selectable Channel Width

5/10/20/40MHz, Automatic Channel Selection, Transmission

Power Control, Dynamic Frequency Selection (DFS), WDS

Enable/Disable, Security WPA/WPA2, WPA-PSK/WPA2-PSK

(AES/TKIP) Encryption, 64/128/152-bit WEP Encryption,

SSID Broadcast Enable/Disable, Multi-SSID with VLAN

Tagging (AP mode only), Distance/ACK Timeout Setting,

Wireless MAC Address Filter, Wireless Advanced > Beacon

Interval/RTS Threshold/Fragmentation Threshold/DTIM

Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Dimensions: 198×75×40 mm

Power: Passive Power over Ethernet via LAN0 (+4,5pins

-7,8pins), Voltage range 16-27VDC

Protection: 15KV ESD Protection, 6KV Lightning Protection

Enclosure: Outdoor ASA stabilized plastic material, IP65 water and dust proof Certification

Package Contents: Outdoor Wireless Base Station, 24V 1A

Passive PoE Adapter, Pole Mounting Kit, AC Power Cord,

Quick Installation Guide

Operating temperatures: Operating Temperature -30°C~70°C

(-22°F~158°F), Storage Temperature -40°C~70°C

(-40°F~158°F), Operating Humidity 10%-90% non-condensing, Storage Humidity 5%-95% non-condensing

System Requirements: Microsoft Windows 98SE, NT, 2000,

XP, Vista lub Windows 10, Windows 8, Windows 7, MAC OS,

NetWare, UNIX or Linux. Note- We recommend you to use one of following Web browsers for an improved user experience Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Certificates: CE, FCC, RoHS, IP65

Manufacturer: Tp-Link

Protective radome Ubiquiti NanoBeam

(NBE-RAD-300)

A protective radome is available as an optional accessory for the

NBE-M5-300 (#08844)

#08912

Net Price:

12,30 EUR

Unit: pcs

#08847

Net Price:

14,40 EUR

Unit: pcs

Protective radome Ubiquiti NanoBeam

(NBE-RAD-400)

A protective radome is available as an optional accessory for the

NBE-M2-400 (#08843) and NBE-M5-400 (#08842).

36/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#07170

Net Price:

55,10 EUR

Unit: pcs

#07008

Net Price:

61,50 EUR

Unit: pcs

#07006

Net Price:

80,00 EUR

Unit: pcs

Wireless access point (TP-LINK TL-WA7510N)

Standards: IEEE 802.11a, IEEE 802.11n

Ports: 1 10/100Mbps Auto-Sensing RJ45 Port (Auto

MDI/MDIX, PoE), 1 External Reverse SMA Connector, 1

Grounding Terminal

Operating modes: AP Router Mode, AP Client Router Mode

(WISP Client), AP / Client / Bridge / Repeater Mode

Wireless Functions: WDS Bridge, Wireless Statistics

Wireless Security: SSID Enable/Disable, MAC Address Filter,

64/128/152-bit WEP Encryption, WPA/WPA2,

WPA-PSK/WPA2-PSK (AES/TKIP) Encryption

Signal Rate: 11a- Up to 54Mbps (Dynamic), 11n- Up to

150Mbps (Dynamic)

Receiver sensitivity: 802.11a [email protected] -77dBm [email protected] -79dBm

[email protected] -83dBm [email protected] -86dBm [email protected] [email protected]

[email protected] [email protected], 802.11n [email protected] -73dBm

[email protected] -76dBm [email protected] -77dBm [email protected] -81dBm

[email protected] [email protected] [email protected]

[email protected]

Antenna: build-in, 15dBi Dual-Polarized Directional Antenna

Beam width: Horizontal 60°, Vertical 14°

Dimensions: 250 x 85 x 60.5 mm

Power: 12VDC / 1.0A, Up to 60 meters PoE is supported

Protection: 15KV ESD Protection, 4000V Lightning

Protection, Grounding Terminal Integrated

Operating temperatures: -30°C ÷ 70°C

System Requirements: Microsoft Windows 98SE, NT, 2000,

XP, VistaTM or Windows 7, MAC OS, NetWare, UNIX or

Linux.

Certificates: CE, FCC, RoHS

Manufacturer: Tp-Link

#08180

Net Price:

55,90 EUR

Unit: pcs

Wireless access point Airmax TDMA (Ubiquiti

NanoStation Loco M5)

Standards: IEEE 802.11a, IEEE 802.11n, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS

Chipset: Atheros MIPS 24KC 400MHz

Operating memory: 32 MB SDRAM

Flash memory: 8 MB

Frequency range: 5470 MHz ÷ 5825 MHz

Max. output power: 27 dBm @ 6-24 Mbps, 25 dBm @ 36

Mbps, 23 dBm @ 48 Mbps, 22 dBm @ 54 Mbps, 27 dBm @

MSC0, 27 dBm @ MSC1, 27 dBm @ MSC2, 27 dBm @

MSC3, 26 dBm @ MSC4, 24 dBm @ MSC5, 22 dBm @

MSC6, 21 dBm @ MSC7, 27 dBm @ MSC8, 27 dBm @

MSC9, 27 dBm @ MSC10, 27 dBm @ MSC11, 26 dBm @

MSC12, 24 dBm @ MSC13, 22 dBm @ MSC14, 21 dBm @

MSC15

Receiver sensitivity: -94 dBm @ 6-24 Mbps, -80 dBm @ 36

Mbps, -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps, -96 dBm

@ MSC0, -95 dBm @ MSC1, -92 dBm @ MSC2, -90 dBm @

MSC3, -86 dBm @ MSC4, -83 dBm @ MSC5, -77 dBm @

MSC6, -74 dBm @ MSC7, -95 dBm @ MSC8, -93 dBm @

MSC9, -90 dBm @ MSC10, -87 dBm @ MSC11, -84 dBm @

MSC12, -79 dBm @ MSC13, -78 dBm @ MSC14, -75 dBm

@ MSC15

Antenna: build-in, 2x2 MIMO 13 dBi

VSWR: 1.6

Beam width: 15°

Dimensions: 163x80x30 mm

Weight: 0.2 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8 W

Power: PoE 24V

Operating temperatures: -30°C ÷ 80°C

Operating humidity: 5% ÷ 95%, non-condensing

Certificates: CE, FCC, IC RS210

Manufacturer: Ubiquiti

#08181

Net Price:

60,00 EUR

Unit: pcs

Wireless access point Airmax TDMA (Ubiquiti

NanoStation M5)

Standards: IEEE 802.11a, IEEE 802.11n, IEEE 802.3u

Ports: 2x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS

Chipset: Atheros MIPS 24KC 400MHz

Operating memory: 32 MB SDRAM

Flash memory: 8 MB

Frequency range: 5470 MHz ÷ 5825 MHz

Max. output power: 27 dBm @ 6-24 Mbps, 25 dBm @ 36

Mbps, 23 dBm @ 48 Mbps, 22 dBm @ 54 Mbps, 27 dBm @

MSC0, 27 dBm @ MSC1, 27 dBm @ MSC2, 27 dBm @

MSC3, 26 dBm @ MSC4, 24 dBm @ MSC5, 22 dBm @

MSC6, 21 dBm @ MSC7, 27 dBm @ MSC8, 27 dBm @

MSC9, 27 dBm @ MSC10, 27 dBm @ MSC11, 26 dBm @

MSC12, 24 dBm @ MSC13, 22 dBm @ MSC14, 21 dBm @

MSC15

Receiver sensitivity: -94 dBm @ 6-24 Mbps, -80 dBm @ 36

Mbps, -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps, -96 dBm

@ MSC0, -95 dBm @ MSC1, -92 dBm @ MSC2, -90 dBm @

MSC3, -86 dBm @ MSC4, -83 dBm @ MSC5, -77 dBm @

MSC6, -74 dBm @ MSC7, -95 dBm @ MSC8, -93 dBm @

MSC9, -90 dBm @ MSC10, -87 dBm @ MSC11, -84 dBm @

MSC12, -79 dBm @ MSC13, -78 dBm @ MSC14, -75 dBm

@ MSC15

Antenna: build-in, 2x2 MIMO 14 dBi

VSWR: 1.6

Beam width: 15°

Dimensions: 294x80x30 mm

Weight: 0.4 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8 W

Power: PoE 15V

Operating temperatures: -30°C ÷ 80°C

Operating humidity: 5% ÷ 95%, non-condensing

Certificates: CE, FCC, IC RS210

Manufacturer: Ubiquiti

#06769

Net Price:

67,80 EUR

Unit: pcs

Wireless access point Ubiquiti AirGrid M5 23dBi

1x1 MIMO HP (AirGrid M5)

Utilizing InnerFeed technology, the new AirGrid M Series represents the evolution of outdoor broadband wireless devices. Complete antenna and radio system integration provides revolutionary cost/performance solutions to the

Worldwide Broadband Industry.

Standards: IEEE 802.11a, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS, Router

Chipset: Atheros MIPS 24KC, 400MHz

Operating memory: 32 MB SDRAM

Flash memory: 8 MB

Frequency range: 5475MHz - 5825MHz

Antenna: build-in, 23 dBi

Weight: 1.65 kg

Grid dimensions: 279.4 x 355.6 mm

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 3 W

Power: PoE 24V

Operating temperatures: -30°C ÷ 75°C

Operating humidity: 5% ÷ 95%, condensing

Manufacturer: Ubiquiti

Wireless access point Ubiquiti AirGrid M5 27dBi

1x1 MIMO HP (AirGrid M5)

Utilizing InnerFeed technology, the new AirGrid M Series represents the evolution of outdoor broadband wireless devices. Complete antenna and radio system integration provides revolutionary cost/performance solutions to the

Worldwide Broadband Industry.

Standards: IEEE 802.11a, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS, Router

Chipset: Atheros MIPS 24KC, 400MHz

Operating memory: 32 MB SDRAM

Flash memory: 8 MB

Frequency range: 5475MHz - 5825MHz

Antenna: build-in, 27 dBi

Weight: 2,75 kg

Grid dimensions: 431.8 x 609.6 mm

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 3 W

Power: PoE 24V

Operating temperatures: -30°C ÷ 75°C

Operating humidity: 5% ÷ 95%, condensing

Manufacturer: Ubiquiti

Wireless access point Ubiquiti Bullet (BULLET 5)

Standards: IEEE 802.11a, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS, Router

Chipset: Atheros MIPS 4KC, 180MHz

Operating memory: 16 MB SDRAM

Flash memory: 4 MB

Frequency range: 5150 MHz ÷ 5350 MHz, 5470 MHz ÷ 5725

MHz

Max. output powe: 22 dBm @ 6 Mbps, 22 dBm @ 9 Mbps,

22 dBm @ 12 Mbps, 22 dBm @ 18 Mbps, 22 dBm @ 24

Mbps, 20 dBm @ 36 Mbps, 19 dBm @ 48 Mbps, 17 dBm @

54 Mbps

Receiver sensitivity: -94 dBm @ 6 Mbps, -93 dBm @ 9

Mbps, -91 dBm @ 12 Mbps, -90 dBm @ 18 Mbps, -86 dBm

@ 24 Mbps, -83 dBm @ 36 Mbps, -77 dBm @ 48 Mbps, -74 dBm @ 54 Mbps

Adjustable channel size: 5/10/20/40 MHz

Antenna: detachable N(M)

Dimensions: 152x37x31 mm

Weight: 0.18 kg

Max. power consumption: 4 W

Power: PoE up to 24V

Operating temperatures: -20°C ÷ 70°C

Operating humidity: 5% ÷ 95%, condensing

Manufacturer: Ubiquiti

37/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#08843

Net Price:

72,70 EUR

Unit: pcs

#08846

Net Price:

58,30 EUR

Unit: pcs

#08875

Net Price:

83,90 EUR

Unit: pcs

Wireless access point Ubiquiti NanoBeam M2

MIMO (NBE-M2-400)

Standards: IEEE 802.11n

Ports: 1x 10/100 Mbps RJ-45

Chipset: Atheros MIPS 74KC, 560 MHz

Operating memory: 64 MB DDR2

Flash memory: 8 MB

Antenna: build-in, 18 dBi

VSWR: 1.5

Diameter: 400mm

Weight: 1.795 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 6 W

Power: PoE 24V

Operating temperatures: -40°C ÷ 70°C

Operating humidity: 5% ÷ 95%, Non-condensing

Manufacturer: Ubiquiti

#08876

Net Price:

182,00 EUR

Unit: pcs

Wireless access point Ubiquiti NanoBeam M5

MIMO (NBE-M5-16)

Standards: IEEE 802.11a/n

Ports: 1x 10/100 Mbps RJ-45

Chipset: Atheros MIPS 74KC, 560 MHz

Operating memory: 64 MB DDR2

Flash memory: 8 MB

Antenna: build-in, 16 dBi

VSWR: 1.5

Diameter: 190mm

Weight: 0.320 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 6 W

Power: PoE 24V

Operating temperatures: -40°C ÷ 70°C

Operating humidity: 5% ÷ 95%, Non-condensing

Manufacturer: Ubiquiti

#08874

Net Price:

70,50 EUR

Unit: pcs

Wireless access point Ubiquiti PowerBeam M5

MIMO 5GHz (PBE-M5-400)

Standards: IEEE 802.11a/n

Ports: 1x 10/100/1000 Mbps RJ-45

Chipset: Atheros MIPS 74KC, 560 MHz

Operating memory: 64 MB DDR2

Flash memory: 8 MB

Antenna: build-in, 25 dBi

Range: 25+ km

VSWR: 1.5

Diameter: 400mm

Weight: 1.753 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8 W

Power: PoE 24V

Operating temperatures: -40°C ÷ 70°C

Operating humidity: 5% ÷ 95%, Non-condensing

Manufacturer: Ubiquiti

#08930

Net Price:

199,00 EUR

Unit: pcs

Wireless access point Ubiquiti PowerBeam M5

MIMO 5GHz (PBE-M5-620)

Standards: IEEE 802.11a/n

Ports: 1x 10/100/1000 Mbps RJ-45

Chipset: Atheros MIPS 74KC, 560 MHz

Operating memory: 64 MB DDR2

Flash memory: 8 MB

Antenna: build-in, 29 dBi

Range: 30+ km

VSWR: 1.5

Diameter: 600mm

Weight: 6.4 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8.5 W

Power: PoE 24V

Operating temperatures: -40°C ÷ 70°C

Operating humidity: 5% ÷ 95%, Non-condensing

Manufacturer: Ubiquiti

Wireless access point Ubiquiti PowerBeam M5

MIMO 5GHz(PBE-M5-300)

Standards: IEEE 802.11a/n

Ports: 1x 10/100 Mbps RJ-45

Chipset: Atheros MIPS 74KC, 560 MHz

Operating memory: 64 MB DDR2

Flash memory: 8 MB

Antenna: build-in, 22 dBi

Range: 20+ km

VSWR: 1.5

Diameter: 300mm

Weight: 1.203 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 6 W

Power: PoE 24V

Operating temperatures: -40°C ÷ 70°C

Operating humidity: 5% ÷ 95%, Non-condensing

Manufacturer: Ubiquiti

Wireless Base Station Airmax Rocket M5

Titianium (Ubiquiti Rocket M5-Ti)

Standards: IEEE 802.11a/af, IEEE 802.11n, IEEE 802.3u

Ports: 1x 10/100/1000 Mbps RJ-45, 1x 10/100 Mbps RJ-45

Operating modes: Station, Access Point, AP Repeater

Chipset: Atheros MIPS 74KC, 550 MHz

Operating memory: 128 MB SDRAM

Flash memory: 8 MB

Frequency range: 5170 - 5825 MHz

Max. output power: 27 dBm @ 6-24 Mbps, 25 dBm @ 36

Mbps, 23 dBm @ 48 Mbps, 22 dBm @ 54 Mbps, 27 dBm @

MSC0, 27 dBm @ MSC1, 27 dBm @ MSC2, 27 dBm @

MSC3, 26 dBm @ MSC4, 24 dBm @ MSC5, 22 dBm @

MSC6, 21 dBm @ MSC7, 27 dBm @ MSC8, 27 dBm @

MSC9, 27 dBm @ MSC10, 27 dBm @ MSC11, 26 dBm @

MSC12, 24 dBm @ MSC13, 22 dBm @ MSC14, 21 dBm @

MSC15

Receiver sensitivity: -94 dBm @ 6-24 Mbps, -80 dBm @ 36

Mbps, -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps, -96 dBm

@ MSC0, -95 dBm @ MSC1, -92 dBm @ MSC2, -90 dBm @

MSC3, -86 dBm @ MSC4, -83 dBm @ MSC5, -77 dBm @

MSC6, -74 dBm @ MSC7, -95 dBm @ MSC8, -93 dBm @

MSC9, -90 dBm @ MSC10, -87 dBm @ MSC11, -84 dBm @

MSC12, -79 dBm @ MSC13, -78 dBm @ MSC14, -75 dBm

@ MSC15

Range Performance: 50+ km (Outdoor - Antenna Dependent)

Antenna: detachable, 2x SMA-RP(F) Waterproof, 1 SMA

(GPS)

Dimensions: 160x80x44 mm

Weight: 350 g

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8 W

Power: 48V, 0.5A PoE Adapter (Included)

Operating temperatures: -30°C ÷ 75°C

Operating humidity: 5% ÷ 95%, non-condensing

Certificates: FCC Part 15.247, IC RS210, CE, RoHS

Manufacturer: Ubiquiti

38/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#07007

Net Price:

78,30 EUR

Unit: pcs

#05425

Net Price:

116,00 EUR

Unit: pcs

Wireless Base Station Airmax TDMA (Ubiquiti

Rocket M5)

Standards: IEEE 802.11a, IEEE 802.11n, IEEE 802.3u

Ports: 1x 10/100 Mbps RJ-45

Operating modes: Access Point, Bridge, Client, WDS

Chipset: Atheros MIPS 24KC 400MHz

Operating memory: 64 MB SDRAM

Flash memory: 8 MB

Frequency range: 5470 MHz ÷ 5825 MHz

Max. output power: 27 dBm @ 6-24 Mbps, 25 dBm @ 36

Mbps, 23 dBm @ 48 Mbps, 22 dBm @ 54 Mbps, 27 dBm @

MSC0, 27 dBm @ MSC1, 27 dBm @ MSC2, 27 dBm @

MSC3, 26 dBm @ MSC4, 24 dBm @ MSC5, 22 dBm @

MSC6, 21 dBm @ MSC7, 27 dBm @ MSC8, 27 dBm @

MSC9, 27 dBm @ MSC10, 27 dBm @ MSC11, 26 dBm @

MSC12, 24 dBm @ MSC13, 22 dBm @ MSC14, 21 dBm @

MSC15

Receiver sensitivity: -94 dBm @ 6-24 Mbps, -80 dBm @ 36

Mbps, -77 dBm @ 48 Mbps, -75 dBm @ 54 Mbps, -96 dBm

@ MSC0, -95 dBm @ MSC1, -92 dBm @ MSC2, -90 dBm @

MSC3, -86 dBm @ MSC4, -83 dBm @ MSC5, -77 dBm @

MSC6, -74 dBm @ MSC7, -95 dBm @ MSC8, -93 dBm @

MSC9, -90 dBm @ MSC10, -87 dBm @ MSC11, -84 dBm @

MSC12, -79 dBm @ MSC13, -78 dBm @ MSC14, -75 dBm

@ MSC15

Antenna: detachable, 2x SMA-RP(F)

Dimensions: 160x80x30 mm

Weight: 0.5 kg

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 8 W

Power: PoE 24V

Operating temperatures: -30°C ÷ 75°C

Operating humidity: 5% ÷ 95%, non-condensing

Certificates: CE, FCC, IC RS210

Manufacturer: Ubiquiti

Wireless client device airClient Nexus PRO

TOTAL (smartBridges sB3412)

Standard: IEEE 802.11a/b/g, IEEE 802.3u

Ports: 2x 10/100 Mbps RJ-45, 1x N(F) 2,4 GHz, 1x N(F) 5,x

GHz

Operating modes: AP Client, Router, Bridge

Frequency range: 2.400 - 2.485 GHz, 5.150 - 5.350 GHz,

5.470 - 5.875 GHz

Modulation: COFDM with BPSK, QPSK, 16 QAM, 64QAM,

DSSS with CCK, BPSK, QPSK

Max. output power: 26dBm @ 1Mbps (2.4 GHz), 23dBm @

54 Mbps (2.4 GHz), 21dBm @ 6 Mbps (5.x GHz), 18dBm @

54 Mbps (5.x GHz)

Max. output power with build-in antenna: 39dBm @ 1 Mbps

(2.4 GHz), 36dBm @ 54 Mbps (2.4 GHz), 38dBm @ 6 Mbps

(5.x GHz), 35dBm @ 54 Mbps (5.x GHz)

Receiver sensitivity: -97dBm @ 1Mbps (2.4 GHz), -73dBm @

54 Mbps (2.4 GHz), -91dBm @ 6 Mbps (5.x GHz), -69dBm @

54 Mbps (5.x GHz)

Receiver sensitivity with integrated antenna: -112dBm @ 1

Mbps (2.4 GHz), -88dBm @ 54 Mbps (2.4 GHz), -108dBm @

6 Mbps (5.x GHz), -86dBm @ 54 Mbps (5.x GHz)

Non-overlaping channels: 27

Interference mitigation: TPC/DFS (IEEE 802.11d/h), Tight

Spectral Mask, Multi-band, Squelch control

Management: WWW, SNMP

Data throughput: Packet Bursting and Compression

Access protocol: CSMA/CA

WLAN security: 128-bit AES, WPA / WPA2, 64/128 bit WEP

VLAN support: yes

Routing protocols: RIPv2

Spanning Tree support: yes

Bandwidth management: QoS (8 levels)

Additional features: Link Test, Link Budget, Site Survey,

Watch Guard, Radio and Ethernet Traffic Statistics, Audio

Tone Antenna Alignment, RSSI graph

Antenna: 2x N(F), integrated 17 dBi (5GHz), 15 dBi (2,4GHz)

Housing: outdoor

Dimensions: 305x305x152 mm

Weight: 3,5 kg

Operating temperature: -45°C ÷ 60°C

Operating humidity: 5% ÷ 95%, non-condensing

Mounting: pole or wall

Power: PoE 48V

Power consumption: 200 mA @ 48V

Certificates: CE, FCC, ETSI, RSS 139

Warranty period: 12 months

Manufacturer: smartBridges

Routerboard

#06872

Net Price:

27,60 EUR

Unit: pcs

#06362

Net Price:

35,10 EUR

Unit: pcs

Mikrotik Level 4 Upgrade

Mikrotik RouterOS WISP AP (Level 4) license

Routerboard MikroTik RB411

CPU: Atheros AR7100

Memory: 32MB, SDRAM

Copper ports: 1x 10/100 Mbps RJ-45

Auto MDI/MDI-X: yes

Bootloader: RouterBOOT, 1Mbit Flash chip

Data storage: 64MB NAND, build-in

Free slots: 1x Mini-PCI type IIIA/IIIB

Serial port: asynchronous, RS-232C

Speaker: beeper

Dimensions: 105x105 mm

Power: PoE 10 V ÷ 28 V DC, 10 V ÷ 28 V DC

Power consumption: 12W

Operating system: MikroTik Router OS 2.9 Level 3

Manufacturer: MikroTik

Routerboard MikroTik RB411A

CPU: Atheros AR7100

Memory: 64MB, SDRAM

Copper ports: 1x 10/100/1000 Mbps RJ-45

Auto MDI/MDI-X: yes

Bootloader: RouterBOOT, 1Mbit Flash chip

Data storage: 64MB NAND, inbuild

Free slots: 1x Mini-PCI type IIIA/IIIB

Serial port: asynchronous, RS-232C

Speaker: beeper

Dimensions: 105x105 mm

Power: PoE 10 V ÷ 28 V DC, 10 V ÷ 28 V DC

Power consumption: 12W

Operating system: MikroTik Router OS 2.9 Level 4

Manufacturer: MikroTik

#06449

Net Price:

62,90 EUR

Unit: pcs

39/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#06722

Net Price:

81,20 EUR

Unit: pcs

#08057

Net Price:

59,50 EUR

Unit: pcs

#06451

Net Price:

72,90 EUR

Unit: pcs

Routerboard MikroTik RB411AH

CPU: Atheros AR7161

Memory: 64MB, SDRAM

Copper ports: 1x 10/100/1000 Mbps RJ-45

Auto MDI/MDI-X: yes

Bootloader: RouterBOOT, 1Mbit Flash chip

Data storage: 64MB NAND, inbuild

Free slots: 1x Mini-PCI type IIIA/IIIB

Serial port: asynchronous, RS-232C

Speaker: beeper

Dimensions: 105x105 mm

Power: PoE 10 V ÷ 28 V DC, 10 V ÷ 28 V DC

Power consumption: 12W

Operating system: MikroTik Router OS 2.9 Level 4

Manufacturer: MikroTik

#06452

Net Price:

125,00 EUR

Unit: pcs

Routerboard MikroTik RB411AR

CPU: Atheros AR7131 300 MHz

Memory: 64MB, SDRAM

Wireless standards: 802.11 b/g

Copper ports: 1 port 10/100 Mbit/s Fast Ethernet

Auto MDI/MDI-X: yes

Bootloader: RouterBOOT, 1Mbit Flash chip

Data storage: 64MB NAND, inbuild

Free slots: 1x Mini-PCI type IIIA/IIIB

Serial port: asynchronous, RS-232C

Speaker: beeper

Dimensions: 105x105 mm

Power: PoE 10 V ÷ 28 V DC, 10 V ÷ 28 V DC

Power consumption: 12W

Operating system: MikroTik Router OS 2.9 Level 4

Manufacturer: MikroTik

#06827

Net Price:

62,20 EUR

Unit: pcs

Routerboard MikroTik RB433

CPU: Atheros AR7130 300MHz

Memory: 64MB SDRAM

Copper ports: 3x 10/100 Mbps RJ-45

Auto MDI/MDI-X: yes

Data storage: 128MB NAND, inbuild

Free slots: 3x Mini-PCI type IIIA/IIIB

Dimensions: 117x105 mm

Power: PoE 16 V ÷ 28 V DC, power jack 12 V ÷ 28 V DC with overvoltage protection

Operating system: RouterOS Level4

Weight: 115 g

Manufacturer: MikroTik

#06646

Net Price:

95,10 EUR

Unit: pcs

Routerboard MikroTik RB433AH

CPU: Atheros AR7161 800MHz

Memory: 128MB DDR SDRAM

Copper ports: 3x 10/100 Mbps RJ-45

Auto MDI/MDI-X: yes

Data storage: 64MB NAND, inbuild, slot microSD

Free slots: 3x Mini-PCI type IIIA/IIIB

Dimensions: 150x105 mm

Power: PoE 10 V ÷ 28 V DC, power jack 10 V ÷ 28 V DC with overvoltage protection

Operating system: RouterOS Level5

Bootloader: 2.16 RouterBOOT

Weight: 115 g

Manufacturer: MikroTik

#08132

Net Price:

36,10 EUR

Unit: pcs

Routerboard MikroTik RB450

CPU: Atheros AR7130 300MHz

Memory: 32MB DDR SDRAM

Copper ports: 5x 10/100 Mbps RJ-45

Auto MDI/MDI-X: yes

Bootloader: RouterBOOT

Data storage: 256MB NAND, build-in

Serial port: asynchronous, RS-232C

Speaker: beeper

Dimensions: 90x115 mm

Power: PoE 10 V ÷ 28 V DC, 10 V ÷ 28 V DC

Power consumption: max. 12W

Operating system: MikroTik Router OS 3 Level 4

Manufacturer: MikroTik

#07093

Net Price:

37,30 EUR

Unit: pcs

Routerboard MikroTik RB493

CPU: Atheros AR7130

Memory: 64MB SDRAM

Copper ports: 9x 10/100 Mbps RJ-45

Auto MDI/MDI-X: yes

Data storage: 64MB NAND, build-in

Free slots: 3x Mini-PCI type IIIA/IIIB

Power: PoE 16 V ÷ 28 V DC, power jack 9 V ÷ 28 V DC with overvoltage protection

Operating system: RouterOS Level4

Manufacturer: MikroTik

#07095

Net Price:

50,00 EUR

Unit: pcs

Routerboard MikroTik RB711-5Hn-uFL

CPU: Atheros AR7240 400MHz

Memory: 32MB, SDRAM

Wireless standards: Built in 5GHz AR9280 802.11a/n card, 1

MMCX/uFL connector (depends on model)

Copper ports: 1x 10/100 Mbps RJ-45

Auto MDI/MDI-X: yes

Bootloader: RouterBOOT

Data storage: 64MB NAND, build-in

Speaker: beeper

Dimensions: 105x105 mm

Power: PoE 10 V ÷ 28 V DC

Power consumption: 4.5W

Operating system: MikroTik Router OS 2.9 Level 4

Manufacturer: MikroTik

#07070

Net Price:

66,80 EUR

Unit: pcs

Routerboard MikroTik RB750

CPU: Atheros AR7240 300MHz (overlock 400MHz)

Memory: 32MB DDR SDRAM

Data storage: 64 MB onboard NAND memory chip

Copper ports: 5x 10/100 Mbps RJ-45 Ethernet ports

Bootloader: RouterBOOT

Speaker: beeper

Power: PoE 9V ÷ 28V DC

Power jack: 9V ÷ 28V DC

Power consumption: max. 3W

Dimensions: 113x89x28mm

Operating system: MikroTik Router OS v3 Level 4

Manufacturer: MikroTik

#06873

Net Price:

74,10 EUR

Unit: pcs

Routerboard MikroTik RB750Gr3 hEX

CPU: 880MHz, 2 cores

Memory: 256MB DDR SDRAM

Data storage: 16 MB FLASH

Copper ports: 5x 10/100/1000 Mbps RJ-45 Ethernet ports

USB slot type: USB type A

Power: PoE 9V ÷ 28V DC

Power jack: 9V ÷ 28V DC

Voltage Monitor: Yes

PCB temperature monitor: Yes

Power consumption: max. 5W

Dimensions: 113x89x28mm

Operating system: MikroTik Router OS

Manufacturer: MikroTik

#06472

Net Price:

2,41 EUR

Unit: pcs

Routerboard MikroTik RB951G-2HnD

CPU: Atheros AR9344 600MHz CPU

Memory: 128MB DDR2 onboard memory

Copper ports: 5x 10/100/1000 Mbps RJ-45 Ethernet ports

USB ports: 1

LED Indicators: Power, NAND activity, 5 Ethernet LEDs, wireless activity LED

Power: PoE 9V ÷ 28V DC on Ethernet port 1 (Non802.3af)

Power jack: 9V - 28 V DC

Power consumption: max. 7W

Antennas: 2x2 MIMO PIF antennas, max gain 2.5dBi

RX sensitivity 802.11g: -96dBm @ 6Mbit/s to -80dBm @

54Mbit/s

802.11n: -96dBm @ MCS0 to -78dBm @ MCS7

TX power 802.11g: 30dBm @ 6Mbps to 25dBm @ 54 Mbps

802.11n: 30dBm @ MCS0 to 23dBm @ MCS7

Modulations OFDM: BPSK, QPSK, 16 QAM, 64QAM

DSSS: DBPSK, DQPSK, CCK

Dimensions: 113x138x29mm

Operating system: MikroTik Router OS v4 Level 4

Ubiquiti LiteStation5

CPU: Atheros AR5312 SOC, MIPS 4KC, 180MHz

Memory: 16MB SDRAM, 4MB Parallel Flash

Copper ports: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet

Interface

Standards: IEEE 802.11a

Frequency range: 5,2 - 5,825 GHz

Max. output power: 26dBm @ 6-24Mbps, 24dBm @ 36Mbps,

23dBm @ 48Mbps, 21dBm @ 54Mbps

Receiver sensitivity: -94dBm @ 6Mbps, -93dBm @ 9Mbps,

-91dBm @ 12Mbps, -90dBm @ 18Mbps, -86dBm @ 24Mbps,

-83dBm @ 36Mbps, -77dBm @ 48Mbps, -74dBm @ 54Mbps

Transmission speed:54/48/36/24/18/12/9/6 Mbps

Safety: WEP/WPA

Antenna / connector type: 1 x MMCX

Dimensions: 102 x 81 x 15 mm

Weight: 318g

Operating temperatures: -40°C ÷ 85°C

Power: PoE, DC 18V adapter

Certificates: FCC Part 15, CE

Manufacturer: Ubiquiti

Adapter Kit, Power over Ethernet

40/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#06406

Net Price:

3,27 EUR

Unit: pcs

#07031

Net Price:

5,05 EUR

Unit: pcs

#08058

Net Price:

3,44 EUR

Unit: pcs

Adapter Kit, Power over Ethernet (injector + splitter)

#06869

Net Price:

3,46 EUR

Unit: pcs

Mikrotik Power Adapter, 24V, 0,75A, PoE

#06404

Net Price:

5,59 EUR

Unit: pcs

Routerboard Power Adapter, 12V 1.0A

#06611

Net Price:

13,80 EUR

Unit: pcs

Routerboard Power Adapter, 12V 1.2A

#06378

Net Price:

12,60 EUR

Unit: pcs

Routerboard Power Adapter, 24V 1.0A

#06644

Net Price:

32,40 EUR

Unit: pcs

Routerboard Power Adapter, 24V 1.6A

#06375

Net Price:

11,10 EUR

Unit: pcs

Routerboard Power Adapter, 48V

#06497

Net Price:

19,30 EUR

Unit: pcs

Routerboard RB604 extenstion card

Extenstion card for 4 mini-PCI cards. Designed to use with

RB600 and RB532A

#06672

Net Price:

32,40 EUR

Unit: pcs

Routerboard RB411 indoor case

Routerboard RB433 indoor case

Routerboard RB493 indoor case

#06938

Net Price:

11,90 EUR

Unit: pcs

#07091

Net Price:

18,00 EUR

Unit: pcs

Routerboard RB433 outdoor case, IP66, AL

#06372

Net Price:

13,30 EUR

Unit: pcs

Routerboard RB450 indoor case

#06671

Net Price:

17,70 EUR

Unit: pcs

Routerboard RB600 outdoor case, IP66, AL

#08461

Net Price:

64,40 EUR

Unit: pcs

Routerboard RB600 indoor case

NEW

#08503

Net Price:

48,50 EUR

Unit: pcs

Wireless access point 2.4GHz (MikroTik

Routerboard SXT G-2HnD)

Standards: IEEE 802.11b/g/n

Ports: 1x 10/100/1000 Mbps RJ-45, USB 2.0

Operating modes: Access Point, Bridge, Client, Router

Chipset: Atheros AR7241 400MHz CPU

Operating memory: 32MB DDR SDRAM

Frequency range: 2.4 - 2.5GHz

Max. output powe: 802.11b/g - 32dBm @ 6Mbps do 29dBm

@ 54 Mbps, 802.11n - 32dBm @ MCS0/8 do 25dBm @

MCS7/15

Receiver sensitivity: 802.11b/g - -96 dBm @ 6Mbps do -80 dBm @ 54 Mbps, 802.11n - -95 dBm @ MCS0 20MHz do -74 dBm @ MCS7 40MHz

Antenna: build-in, 10 dBi

Beam width: 60°/60°

Dimensions: 140x140x56mm

Weight: 265g

Mounting: mast or wall with the aid of antenna wall support

Max. power consumption: 7 W

Power: PoE 8-30V

Operating temperatures: -30°C ÷ 80°C

Operating humidity: 5% ÷ 95%, non-condensing

Certificates: FCC, CE, ROHS

Manufacturer: MikroTik

Wireless access point 5GHz (MikroTik

Routerboard SXT Lite5)

Standards: IEEE 802.11a/n

Chipset: 600MHz CPU

Operating memory: 62MB DDR SDRAM

Frequency range: 5GHz

Antenna: build-in, 16 dBi

Dimensions: 140x140x56mm

Max. power consumption: 7 W

Power: PoE 8-32V

Operating temperatures: -30°C ÷ 80°C

Operating humidity: 5% ÷ 95%, non-condensing

Certificates: FCC, CE, ROHS

Manufacturer: MikroTik

41/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

Antennas LTE, 3G, GSM

#08957

Net Price:

11,70 EUR

Unit: pcs

#08958

Net Price:

13,30 EUR

Unit: pcs

#08959

Net Price:

27,30 EUR

Unit: pcs

Mini omni-directional antenna AS1-LTE

Frequency range: 790-960 MHz, 1710-2700MHz

Gain: up to 5 dBi

Impedance: 50 Ohm

Connector: interchangable TS9 / CRC9

Standard: LTE

To use with: Huawei B593s; B593u; E5373; E398

Antennas 2.4 GHz

#05469

Net Price:

49,30 EUR

Unit: pcs

Mini omni-directional outdoor antenna AZ4/LTE

Frequency range: 790-960 MHz, 1710-2700MHz

Gain: 3 dBi

Impedance: 50 Ohm

Connector: interchangable TS9 / CRC9

Standard: LTE

To use with: Huawei B593s; B593u; E5373; E398

#07042

Net Price:

14,60 EUR

Unit: pcs

Mini omni-directional outdoor antenna set

AZ4/LTE x2

2x AZ4/LTE antenna with mounting kit.

Frequency range: 790-960 MHz, 1710-2700MHz

Gain: 3 dBi

Impedance: 50 Ohm

Connector: interchangable TS9 / CRC9

Standard: LTE

To use with: Huawei B593s; B593u; E5373; E398

#05428

Net Price:

9,59 EUR

Unit: pcs

Directional panel antenna 14dBi (TP-Link

TL-ANT2414A)

Frequency range: 2400 MHz ~ 2500 MHz

Gain: 14 dBi

Impedance: 50 Ω

VSWR: 1.92

Connector: SMA-RP(M)

Cable length: 1 m

Manufacturer: TP-Link

#05429

Net Price:

10,70 EUR

Unit: pcs

Directional panel antenna 9dBi (TP-Link

TL-ANT2409B)

Frequency range: 2.4GHz~2.4835GHz

Gain: 9 dBi

Impedance: 50 Ω

Polarization: Linear Vertical

Beamwidth (HPBW): Horizontal 60°, Vertical 76°

VSWR: 1.92

Connector: N Female

Cable length: 100cm CFD-200

Dimensions (LxWxH mm): 120x120x40 mm

Safety, Emission and others: CE FCC Compliant with RoHS

Manufacturer: TP-Link

#05430

Net Price:

11,50 EUR

Unit: pcs

Directional panel antenna PANEL 13 dBi, 3 m cable with connector

Gain: 13 dBi (without cable)

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 38 degree

Horizontal beam width: 37 degree

Polarization: H or V

Impedance: 50 Ohm

Connector: RP-SMA

Cable: 3 m H155

VSWR: 1,5

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,3 kg

#05427

Net Price:

8,80 EUR

Unit: pcs

Directional panel antenna PANEL 13 dBi, 5 m cable with connector

Gain: 13 dBi (without cable)

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 38 degree

Horizontal beam width: 37 degree

Polarization: H or V

Impedance: 50 Ohm

Connector: RP-SMA

Cable: 5 m H155

VSWR: 1,5

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,3 kg

#05431

Net Price:

12,50 EUR

Unit: pcs

Directional panel antenna PANEL 13 dBi, 7 m cable with connector

Gain: 13 dBi (without cable)

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 38 degree

Horizontal beam width: 37 degree

Polarization: H or V

Impedance: 50 Ohm

Connector: RP-SMA

Cable: 7 m H155

VSWR: 1,5

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,3 kg

#05417

Net Price:

14,40 EUR

Unit: pcs

Directional panel antenna PANEL 13 dBi, 0.5 m cable with connector

Gain: 13 dBi (without cable)

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 38 degree

Horizontal beam width: 37 degree

Polarization: H or V

Impedance: 50 Ohm

Connector: RP-SMA

Cable: 0.5m H155

VSWR: 1,5

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,3 kg

#05314

Net Price:

24,90 EUR

Unit: pcs

Directional panel antenna PANEL 13 dBi, 10 m cable with connector

Gain: 13 dBi (without cable)

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 38 degree

Horizontal beam width: 37 degree

Polarization: H or V

Impedance: 50 Ohm

Connector: RP-SMA

Cable: 10 m H155

VSWR: 1,5

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,3 kg

Directional panel antenna PANEL 15dBi

Gain: 15 dBi

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 34 degree

Horizontal beam width: 36 degree

Polarization: H or V

Impedance: 50 Ohm

Connector: N(F)

VSWR: 1,4

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,4 kg

Directional panel antenna PANEL MAX 18 dBi

Gain: 18 dBi

Vertical beam width: 11 degree

Horizontal beam width: 12 degree

Polarization: H or V

VSWR: 1.4

Connector: N(F)

Height: 304.8 mm

Width: 304.8 mm

Thickness: 38.1 mm

Weight: 1.89 kg

42/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#05453

Net Price:

48,80 EUR

Unit: pcs

#07061

Net Price:

43,40 EUR

Unit: pcs

#05456

Net Price:

43,40 EUR

Unit: pcs

Directional panel antenna PANEL XP 22 dBi

Gain: 22 dBi

Frequency range: 2400MHz - 2485 MHz

Vertical beam width: 12 degree

Horizontal beam width: 12 degree

Polarization: H, V or inclined

Impedance: 50 Ohm

Connector: N(F)

VSWR: 1,4

Height: 510 mm

Width: 510 mm

Thickness: 38,1 mm

Weight: 3,17 kg

#08055

Net Price:

41,70 EUR

Unit: pcs

Directional sector antenna VECTOR H-PRO-120

17 dBi

Gain: 17 dBi

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 6 degree

Horizontal beam width: 120 degree

Polarization: H

Impedance: 50 Ohm

Connector: N(F)

VSWR: 1,4

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,8 kg

#08053

Net Price:

39,80 EUR

Unit: pcs

Directional sector antenna VECTOR H-PRO-90 18 dBi

Gain: 18 dBi

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 6 degree

Horizontal beam width: 90 degree

Polarization: H

Impedance: 50 Ohm

Connector: N(F)

VSWR: 1,4

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,8 kg

#08054

Net Price:

37,30 EUR

Unit: pcs

Directional sector antenna VECTOR MIMO-120 17 dBi

Gain: 17 dBi

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 8 degree

Horizontal beam width: 120 degree

Polarization: Horizontal / vertical (both)

Impedance: 50 Ohm

Connector: 2 x N(F)

VSWR: 1,4

Height: 740 mm

Width: 180 mm

Thickness: 60 mm

Weight: 2.19 kg

#05474

Net Price:

19,30 EUR

Unit: pcs

Directional sector antenna VECTOR MIMO-60 19 dBi

Gain: 19 dBi

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 8 degree

Horizontal beam width: 60 degree

Polarization: Horizontal / vertical (both)

Impedance: 50 Ohm

Connector: 2 x N(F)

VSWR: 1,4

Height: 740 mm

Width: 180 mm

Thickness: 60 mm

Weight: 2.31 kg

#02618

Net Price:

30,20 EUR

Unit: pcs

Directional sector antenna VECTOR MIMO-90 18 dBi

Gain: 18 dBi

Frequency range: 2400MHz - 2500 MHz

Vertical beam width: 8 degree

Horizontal beam width: 90 degree

Polarization: Horizontal / vertical (both)

Impedance: 50 Ohm

Connector: 2 x N(F)

VSWR: 1,4

Height: 740 mm

Width: 180 mm

Thickness: 60 mm

Weight: 2.22 kg

#03028

Net Price:

40,00 EUR

Unit: pcs

Directional Yagi antenna YAGI 9 dBi (TP-Link

TL-ANT2409A)

Gain: 9 dBi

Frequency range: 2,4 GHz ÷ 2,5 GHz

Impedance: 50 Ω

VSWR: 1,92

Connector: SMA-RP(M)

Cable length: 1 m

Manufacturer: TP-Link

#04597

Net Price:

138,00 EUR

Unit: pcs

Directional Yagi antenna YAGI XP 16 dBi

Gain: 16 dBi

Vertical beam width: 26 degree

Horizontal beam width: 23 degree

Polarization: H and V

Reverse radiation: -20 dBi

VSWR: 1.4

Connector: N(M)

Cable: 30 cm H155

Length: 600 mm

Width: 80 mm

Weight: 0.9 kg

#07043

Net Price:

32,90 EUR

Unit: pcs

Directional Yagi antenna YAGI XP 16 dBi 10 m cable with connector

Gain: 16 dBi

Vertical beam width: 26 degree

Horizontal beam width: 23 degree

Polarization: H and V

Reverse radiation: -20 dBi

VSWR: 1.4

Connector: SMA RP(M)

Cable: 10 m H155

Length: 600 mm

Width: 80 mm

Weight: 0.9 kg

#05472

Net Price:

5,39 EUR

Unit: pcs

Dish Antenna 2x2 MIMO, 24dBi, 2.4GHz (TP-Link

TL-ANT2424MD)

Omnidirectional gain: 24 dBi

Frequency range: 2.3-2.7 GHz

Polarization: Vertical & Horizontal

Impedance: 50Ω

Type: Directional

VSWR: 1.8

F/B Ratio: Min. 28dB

Connector: RP-SMA

Mounting: Pole Mount

Dimension: 650×650×360 mm

Manufacturer: TP-Link

Omni-directional Antenna 12 dBi (TP-Link

TL-ANT2412D)

Frequency range: 2.4GHz~2.4835GHz

Gain: 12dBi

Impedance: 50 Ω

Polarization: Linear Vertical

Vertical beam width: 6°

Horizontal beam width: 360°

VSWR: 1.92

Connector: N Female

Cable length: N/A

Safety, Emission and others: CE FCC Compliant with RoHS

Manufacturer: TP-Link

Omni-directional antenna 5 dBi (TP-Link

TL-ANT2405C)

Omnidirectional gain: 5 dBi

Frequency range: 2,4 GHz ÷ 2,5 GHz

Polarization: V

Impedance: 50 Ω

VSWR: 1.92

Connector: SMA-RP(M)

Cable length: 1 m

Manufacturer: TP-Link

43/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#07040

Net Price:

2,56 EUR

Unit: pcs

#07041

Net Price:

4,98 EUR

Unit: pcs

#07037

Net Price:

11,30 EUR

Unit: pcs

Omni-directional antenna 5 dBi (TP-Link

TL-ANT2405CL)

Omnidirectional gain: 5 dBi

Frequency range: 2.4GHz~2.4835GHz

Polarization: Vertical

Beamwidth (HPBW): Horizontal 360°, Vertical 32°

Impedance: 50 Ω

VSWR: 1.92

Connector: SMA-RP(M)

Manufacturer: TP-Link

#04594

Net Price:

5,54 EUR

Unit: pcs

Omni-directional antenna 8 dBi (TP-Link

TL-ANT2408CL)

Omnidirectional gain: 8 dBi

Frequency range: 2.4GHz~2.4835GHz

Polarization: V

Impedance: 50 Ω

VSWR: 1.92

Connector: SMA-RP(M)

Manufacturer: TP-Link

#08202

Net Price:

153,00 EUR

Unit: pcs

Omni-directional antenna 8 dBi with extension cable (TP-Link TL-ANT2408C)

Omnidirectional gain: 8 dBi

Frequency range: 2.4GHz~2.4835GHz

Polarization: V

Impedance: 50 Ω

VSWR: 1.92

Connector: SMA-RP(M)

Manufacturer: TP-Link

#08203

Net Price:

227,00 EUR

Unit: pcs

Omni-directional antenna 9 dBi (TP-Link

TL-ANT2409CL)

Omnidirectional gain: 9 dBi

Frequency range: 2.4GHz~2.4835GHz

Polarization: V

Impedance: 50 Ω

VSWR: <=2.0

Connector: SMA-RP(M)

Manufacturer: TP-Link

#02572

Net Price:

21,40 EUR

Unit: pcs

Omni-directional antenna AIRMAX MIMO 10dBi

(Ubiquiti AMO-2G10)

Directional gain: 10 dBi

Frequency range: 2.35 - 2.55 GHz

Vertical beam width: 12 degree

Horizontal beam width: 360 degree

VSWR: 1,7

Connector: 2xRSMA

Weight: 2.1 kg

#02690

Net Price:

22,50 EUR

Unit: pcs

Omni-directional antenna AIRMAX MIMO 10dBi

(Ubiquiti AMO-2G13)

Directional gain: 13 dBi

Frequency range: 2.35 - 2.55 GHz

Vertical beam width: 7 degree

Horizontal beam width: 360 degree

VSWR: 1,7

Connector: 2xRSMA

Weight: 2.4 kg

#06790

Net Price:

22,50 EUR

Unit: pcs

Omni-directional antenna PATRIA 10 dBi

Omnidirectional gain: 10 dBi

Vertical beam width: 5 degree

Horizontal beam width: 360 degree

Reverse radiation: -

VSWR: 1.5

Connector: N(F)

Length: 600 mm

Diameter: 50 mm

Weight: 0.9 kg

#08067

Net Price:

32,40 EUR

Unit: pcs

Omni-directional sector antenna RADIUS 17 dBi

Designed to mount to round mast with 1/2" to 7/4" diameter.

Antenna is made of lightweight Al alloy. Antenna is hermetic, weatherproof. Additional powder paint and heat treating ensures correct operation under any weather conditions.

Gain: 17 dBi

Vertical beam width: 6 degree

Horizontal beam width: 90 degree

Polarization: H

VSWR: 1.2

Connector: N(F)

Height: 420 mm

Width: 95 mm

Thickness: 40 mm

Weight: 0.33 kg

#02628

Net Price:

45,60 EUR

Unit: pcs

Omni-directional sector antenna RADIUS V-PRO

17 dBi

Designed to mount to round mast with 3/4" to 7/4" diameter.

Antenna is made of lightweight Al alloy. Antenna is hermetic, weatherproof. Additional powder paint and heat treating ensures correct operation under any weather conditions.

Frequency range: 2.4 - 2.5 GHz

Gain: 17 dBi

Vertical beam width: 6 degree

Horizontal beam width: 90 degree

Polarization: V

VSWR: 1.2

Connector: N(F)

Height: 420 mm

Width: 95 mm

Thickness: 40 mm

Weight: 0.33 kg

#06199

Net Price:

43,20 EUR

Unit: pcs

Omni-directional sector antenna RADIUS XP 17 dBi MIMO

Designed to mount to round mast with 1/2" to 7/4" diameter.

Antenna is made of lightweight Al alloy. Antenna is hermetic, weatherproof. Additional powder paint and heat treating ensures correct operation under any weather conditions.

Gain: 17 dBi

Vertical beam width: 6 degree

Horizontal beam width: 90 degree

Polarization: H

VSWR: 1.2

Connector: 2x N(F)

Height: 420 mm

Width: 95 mm

Thickness: 40 mm

Weight: 0.33 kg

Omni-directional sector antenna VECTOR MINI

19 dBi

Designed to mount to round mast with 1/2" to 7/4" diameter.

Antenna is made of lightweight Al alloy. Antenna is hermetic, weatherproof. Additional powder paint and heat treating ensures correct operation under any weather conditions.

Gain: 19 dBi

Vertical beam width: 9 degree

Horizontal beam width: 150 degree

Polarization: H

Reverse radiation: -

VSWR: 1.2

Connector: N(F)

Height: 920 mm

Width: 100 mm

Thickness: 25 mm

Weight: 1.7 kg

Omni-directional sector antenna VECTOR V-PRO

17 dBi - 120

Gain: 17 dBi

Vertical beam width: 6 degree

Horizontal beam width: 120 degree

Polarization: V

Reverse radiation: -28 dBi

VSWR: 1.4

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1.8 kg

44/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#05264

Net Price:

43,40 EUR

Unit: pcs

Omni-directional sector antenna VECTOR V-PRO

18 dBi

Gain: 18 dBi

Vertical beam width: 6 degree

Horizontal beam width: 90 degree

Polarization: V

Reverse radiation: -28 dBi

VSWR: 1.4

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1.8 kg

#02621

Net Price:

60,20 EUR

Unit: pcs

Omni-directional sector antenna VECTOR XP 22 dBi

Designed to mount to round mast with 3/4" to 7/4" diameter.

Antenna is made of lightweight Al alloy. Antenna is hermetic, weatherproof. Additional powder paint and heat treating ensures correct operation under any weather conditions.

Gain: 22 dBi

Vertical beam width: 3 degree

Horizontal beam width: 120 degree

Polarization: H

Reverse radiation: -30 dBi

VSWR: 1.2

Connector: N(F)

Height: 1450 mm

Width: 100 mm

Thickness: 50 mm

Weight: 3.5 kg

#04596

Net Price:

49,30 EUR

Unit: pcs

#08513

Net Price:

42,40 EUR

Unit: pcs

#02589

Net Price:

31,50 EUR

Unit: pcs

Outdoor Omni-directional antenna 15dBi

(TP-Link TL-ANT2415D)

Dimension: 1500mm

Weight: 0.6kg

Frequency: 2.4GHz~2.5GHz

Impedance: 50 Ohms

Gain: 15 dBi

Radiation: Omni-directional

VSWR(MAX.): < 2.0

HPBW/H( °): 360°

HPBW/V( °): 9°

Polarization: Linear, Vertical

Mounting: Pole Mount / Wall Mount

Application: Outdoor

Lightning Protection: DC Ground

Operating Temp.: -40°C~65°C(-40°F~149°F)

Storage Temp.: -40°C~80°C (-40°F~176°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Safety, Emission and Others: CE, FCC, Compliant with RoHS

Package Contents: 15dBi Outdoor Omni-directional Antenna,

Installation mounting kits, User Guide

Manufacturer: TP-Link

#04595

Net Price:

131,00 EUR

Unit: pcs

Parabolic Antenna 2x2 MIMO, 24dBi, 2.4GHz

(TP-Link TL-ANT2424B)

Omnidirectional gain: 24 dBi

Frequency range: 2.4 GHz

Polarization: Vertical & Horizontal

Type: Directional

VSWR: 1.5;1

Connector: N Female(Jack)

Extended Cable/Length: 30cm

Approximate Range at 1/11/54Mbps: 56km/31.5km/4.44km

Operating Temp.: -40°C~60°C

Storage Temp.: -40°C~60°C

Mounting: Pole Mount

Dimension: 1000mm x 600mm

Weight: 3.5kg

Manufacturer: TP-Link

Antennas 5 GHz

#07016

Net Price:

121,00 EUR

Unit: pcs

Parabolic dish antenna LINKS 38 dBi

Gain: 38 dBi

Vertical beam width: 8 degree

Horizontal beam width: 10 degree

VSWR: 1.4

Connector: N(M)

Cable: 30 cm H155

Dish diameter: 900 mm

#07013

Net Price:

72,90 EUR

Unit: pcs

Sector antenna 2x2 MIMO, 15dBi, 2,4GHz

(TP-Link TL-ANT2415MS)

Omnidirectional gain: 15 dBi

Frequency range: 2.4GHz~2.4835GHz

Polarization: Vertical & Horizontal

Impedance: 50 Ω

VSWR: 1.8

F/B Ratio: 25dB Min

Survival Wind Speed: 241km/h

Connector: SMA-RP(M)

Mounting: Pole Mount

Dimension: 700×133×57mm

Manufacturer: TP-Link

#07012

Net Price:

69,50 EUR

Unit: pcs

Airmax dish antenna 5 GHz, 30 dBi (Ubiquiti

RocketDish 5G-30)

Directional gain: 30 dBi

Frequency range: 5.1 - 5.9 GHz

Vertical beam width: 5 degree

Horizontal beam width: 5 degree

Polarization: dual linear

Cross-pol izolation: 35 db min.

F/B Ratio: -34 dB

VSWR: 1,4

Windloading: 120 mph

Connector: SMA-RP(F)

Diameter: Ø 648 mm

Weight: 9.8 kg

Manufacturer: Ubiquiti

Airmax sector antenna 5 GHz, 16 dBi - 120 deg.

(Ubiquiti 5G-120-16)

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful

AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Directional gain: 16 dBi

Frequency range: 5.1 - 5.9 GHz

Vertical beam width: 8 degree

Horizontal beam width: 118 degree

Polarization: dual linear

Cross-pol izolation: 22 db min.

Electrical downtilt: 4 degree

VSWR: 1,5

Windloading: 120 mph

Connector: SMA-RP(F)

Height: 367 mm

Width: 63 mm

Thickness: 41 mm

Weight: 1.1 kg

Manufacturer: Ubiquiti

Airmax sector antenna 5 GHz, 17 dBi - 90 deg.

(Ubiquiti 5G-90-17)

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful

AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Directional gain: 17 dBi

Frequency range: 4.9 - 5.9 GHz

Vertical beam width: 8 degree

Horizontal beam width: 93 degree

Polarization: dual linear

Cross-pol izolation: 22 db min.

Electrical downtilt: 4 degree

VSWR: 1,5

Windloading: 120 mph

Connector: SMA-RP(F)

Height: 367 mm

Width: 63 mm

Thickness: 41 mm

Weight: 1.1 kg

Manufacturer: Ubiquiti

45/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#07011

Net Price:

126,00 EUR

Unit: pcs

#07010

Net Price:

119,00 EUR

Unit: pcs

#05320

Net Price:

28,80 EUR

Unit: pcs

Airmax sector antenna 5 GHz, 19 dBi - 120 deg.

(Ubiquiti 5G-120-19)

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful

AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Directional gain: 19 dBi

Frequency range: 5.15 - 5.85 GHz

Vertical beam width: 4 degree

Horizontal beam width: 123 degree

Polarization: dual linear

Cross-pol izolation: 28 db min.

Electrical downtilt: 2 degree

VSWR: 1,5

Windloading: 160 mph

Connector: SMA-RP(F)

Height: 700 mm

Width: 145 mm

Thickness: 93 mm

Weight: 5.9 kg

Manufacturer: Ubiquiti

#05418

Net Price:

20,50 EUR

Unit: pcs

Airmax sector antenna 5 GHz, 20 dBi - 90 deg.

(Ubiquiti 5G-90-20)

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful

AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Directional gain: 20 dBi

Frequency range: 5.15 - 5.85 GHz

Vertical beam width: 4 degree

Horizontal beam width: 91 degree

Polarization: dual linear

Cross-pol izolation: 28 db min.

Electrical downtilt: 2 degree

VSWR: 1,5

Windloading: 160 mph

Connector: SMA-RP(F)

Height: 700 mm

Width: 145 mm

Thickness: 93 mm

Weight: 5.9 kg

Manufacturer: Ubiquiti

#05251

Net Price:

29,00 EUR

Unit: pcs

Directional panel antenna PANEL 16 dBi

Gain: 16 dBi

Frequency range: 5.15 - 5.875 GHz (channels 36 - 165)

Vertical beam width: 6 degree

Horizontal beam width: 120 degree

Polarization: H or V

VSWR: 1.5

Connector: N(F)

Height: 95 mm

Width: 420 mm

Depth: 40 mm

Weight: 0.32 kg

#06782

Net Price:

11,70 EUR

Unit: pcs

Directional panel antenna PANEL 19dBi

Gain: 19 dBi

Frequency range: 5250 MHz - 5875 MHz

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H or V

Impedancja: 50 Ohm

Connector: N(F)

VSWR: 1,4

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0,4 kg

#06787

Net Price:

16,00 EUR

Unit: pcs

Directional panel antenna PANEL MAX 22 dBi

Gain: 22 dBi

Frequency range: 5,25 - 5,875 GHz (channels 50 - 165)

Vertical beam width: 11 degree

Horizontal beam width: 12 degree

Polarization: H or V

VSWR: 1.5

Connector: N(F)

Height: 304.8 mm

Width: 304.8 mm

Depth: 38.1 mm

Weight: 2.27 kg

#06788

Net Price:

17,30 EUR

Unit: pcs

Directional panel antenna PANEL MIDI 18 dBi, 1 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 1 m

#06789

Net Price:

18,10 EUR

Unit: pcs

Directional panel antenna PANEL MIDI 18 dBi, 11 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 11 m

Directional panel antenna PANEL MIDI 18 dBi, 13 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 13 m

Directional panel antenna PANEL MIDI 18 dBi, 15 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 15 m

46/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#06783

Net Price:

12,30 EUR

Unit: pcs

#06784

Net Price:

13,90 EUR

Unit: pcs

#06785

Net Price:

14,70 EUR

Unit: pcs

Directional panel antenna PANEL MIDI 18 dBi, 3 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 3 m

#06786

Net Price:

15,70 EUR

Unit: pcs

Directional panel antenna PANEL MIDI 18 dBi, 5 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 5 m

#05452

Net Price:

67,30 EUR

Unit: pcs

Directional panel antenna PANEL MIDI 18 dBi, 7 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 7 m

#04599

Net Price:

138,00 EUR

Unit: pcs

Directional panel antenna PANEL MIDI 18 dBi, 9 m

Frequency range: 5.25 - 5.875 GHz

Gain: 18 dBi

Vertical beam width: 17 degree

Horizontal beam width: 16 degree

Polarization: H, V

Impedance: 50 Ohm

VSWR: 1.5

Connector: RSMA (m)

Height: 190 mm

Width: 190 mm

Thickness: 40 mm

Weight: 0.40 kg

Cable: 9 m

#08200

Net Price:

112,00 EUR

Unit: pcs

Directional panel antenna PANEL XP 28 dBi

Gain: 28 dBi

Frequency range: 5470 MHz - 5825 MHz

Vertical beam width: 7 degree

Horizontal beam width: 7 degree

Polarization: H, V or inclined

Impedance: 50 Ohm

Connector: N(F)

VSWR: 1,4

Height: 510 mm

Width: 510 mm

Thickness: 38,1 mm

Weight: 3,6 kg

#05372

Net Price:

25,60 EUR

Unit: pcs

Dish Antenna 2x2 MIMO, 30dBi, 5GHz (TP-Link

TL-ANT5830MD)

Omnidirectional gain: 30 dBi

Frequency range: 5,0 ~ 6,0GHz

Polarization: Vertical & Horizontal

Impedance: 50Ω

Type: Directional

VSWR: 1.8

F/B Ratio: Min. 34dB

Connector: RP-SMA

Mounting: Pole Mount

Dimension: 650×650×360 mm

Manufacturer: TP-Link

#05406

Net Price:

68,00 EUR

Unit: pcs

Omni-directional antenna AIRMAX MIMO 10dBi

(Ubiquiti AMO-5G10)

Directional gain: 10 dBi

Frequency range: 5.15 - 5.875 GHz

Vertical beam width: 12 degree

Horizontal beam width: 360 degree

VSWR: 1,6

Connector: 2xRSMA

Weight: 0,68 kg

#08050

Net Price:

48,30 EUR

Unit: pcs

Omni-directional antenna PATRIA MAX 12dBi

Directional gain: 12 dBi

Frequency range: 5.15 - 5.875 GHz

Vertical beam width: 5 degree

Horizontal beam width: 360 degree

Polarization: V

VSWR: 1,5

Impedance: 50 Ohm

Connector: N(F)

Diameter: 50 mm

Width: 600 mm

Weight: 0,8 kg

#08048

Net Price:

48,30 EUR

Unit: pcs

Omni-directional antenna PATRIA MAX 12dBi

MIMO

Directional gain: 16 dBi

Frequency range: 5.1 - 5.8 GHz

Vertical beam width: 5 degree

Horizontal beam width: 360 degree

Polarization: V + H

VSWR: 1.5

Impedance: 50 Ohm

Connector: 2xN(F)

Standards: IEEE 802.11x

Diameter: 80 mm

Width: 600 mm

Weight: 2.27 kg

#08049

Net Price:

47,10 EUR

Unit: pcs

Omni-directional sector antenna VECTOR

MIMO-120 17dBi

Directional gain: 17 dBi

Frequency range: 5.10 - 6.0 GHz

Vertical beam width: 8 degree

Horizontal beam width: 120 degree

Polarization: Horizontal / vertical (both)

VSWR: 1,4

Impedance: 50 Ohm

Connector: 2 x N(F)

Height: 740mm

Width: 180 mm

Thickness: 60 mm

Weight: 2.19 kg

Omni-directional sector antenna VECTOR

MIMO-60 19dBi

Directional gain: 19 dBi

Frequency range: 5100 MHz - 5875 MHz

Vertical beam width: 8 degree

Horizontal beam width: 60 degree

Polarization: Horizontal / vertical (both)

VSWR: 1,4

Impedance: 50 Ohm

Connector: 2 x N(F)

Height: 740mm

Width: 180 mm

Thickness: 60 mm

Weight: 2.31 kg

Omni-directional sector antenna VECTOR

MIMO-90 18dBi

Directional gain: 18 dBi

Frequency range: 5.10 - 6.0 GHz

Vertical beam width: 8 degree

Horizontal beam width: 90 degree

Polarization: Horizontal / vertical (both)

VSWR: 1,4

Impedance: 50 Ohm

Connector: 2 x N(F)

Height: 740mm

Width: 180 mm

Thickness: 60 mm

Weight: 2.22 kg

47/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

Omni-directional sector antenna VECTOR

H-PRO 18dBi - 90 degree

Directional gain: 18 dBi

Frequency range: 5100 MHz - 5875 MHz

Vertical beam width: 7 degree

Horizontal beam width: 90 degree

Polarization: H

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,14 kg

#05463

Net Price:

39,50 EUR

Unit: pcs

#08051

Net Price:

40,00 EUR

Unit: pcs

Omni-directional sector antenna VECTOR MINI

MIMO-90 17dBi

Directional gain: 17 dBi

Frequency range: 5.10 - 6.0 GHz

Vertical beam width: 8 degree

Horizontal beam width: 90 degree

Polarization: Horizontal / vertical (both)

VSWR: 1,4

Impedance: 50 Ohm

Connector: 2 x N(F)

Height: 420 mm

Width: 95 mm

Thickness: 40 mm

Weight: 0.36 kg

Omni-directional sector antenna VECTOR

V-PRO 18dBi

Directional gain: 18 dBi

Frequency range: 5.10 - 5.875 GHz

Vertical beam width: 6 degree

Horizontal beam width: 90 degree

Polarization: V

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,9 kg

#05435

Net Price:

45,60 EUR

Unit: pcs

#05228

Net Price:

46,60 EUR

Unit: pcs

Omni-directional sector antenna VECTOR

H-PRO 19dBi - 60 degree

Directional gain: 19 dBi

Frequency range: 5.10 - 5.875 GHz

Vertical beam width: 7 degree

Horizontal beam width: 60 degree

Polarization: H

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,14 kg

#06781

Net Price:

42,00 EUR

Unit: pcs

#05462

Net Price:

34,40 EUR

Unit: pcs

Omni-directional sector antenna VECTOR MINI

V-PRO 17dBi

Directional gain: 17 dBi

Frequency range: 5100 MHz - 5875 MHz

Vertical beam width: 10 degree

Horizontal beam width: 90 degree

Polarization: V

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 420 mm

Width: 95 mm

Thickness: 40 mm

Weight: 0,33 kg

Omni-directional sector antenna VECTOR

V-PRO 19dBi

Directional gain: 19 dBi

Frequency range: 5.10 - 5.875 GHz

Vertical beam width: 6 degree

Horizontal beam width: 60 degree

Polarization: V

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,9 kg

#05434

Net Price:

46,30 EUR

Unit: pcs

#06920

Net Price:

39,50 EUR

Unit: pcs

#05461

Net Price:

34,40 EUR

Unit: pcs

Omni-directional sector antenna VECTOR MINI

H-PRO 17dBi

Directional gain: 17 dBi

Frequency range: 5100 MHz - 5875 MHz

Vertical beam width: 10 degree

Horizontal beam width: 90 degree

Polarization: H

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 420 mm

Width: 95 mm

Thickness: 40 mm

Weight: 0,33 kg

Omni-directional sector antenna VECTOR

V-PRO 17dBi

Directional gain: 17 dBi

Frequency range: 5.10 - 5.875 GHz

Vertical beam width: 6 degree

Horizontal beam width: 120 degree

Polarization: V

VSWR: 1,4

Impedance: 50 Ohm

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1,9 kg

#05436

Net Price:

44,90 EUR

Unit: pcs

#05230

Net Price:

43,90 EUR

Unit: pcs

Omni-directional sector antenna VECTOR 18 dBi

Gain: 18 dBi

Frequency range: 5.15 - 5.875 GHz (channels 112 - 165)

Vertical beam width: 5 degree

Horizontal beam width: 120 degree

Polarization: H

VSWR: 1.5

Connector: N(F)

Height: 686 mm

Width: 50 mm

Thickness: 20 mm

Weight: 1.2 kg

#05490

Net Price:

25,90 EUR

Unit: pcs

Omni-directional sector antenna VECTOR DUAL

16 dBi

Gain: 16 dBi

Frequency range: 5.15 - 5.875 GHz (channels 112 - 165)

Vertical beam width: 4 degree

Horizontal beam width: 2 x 110 degree

Polarization: H

VSWR: 1.5

Connector: N(F)

Height: 686 mm

Width: 50 mm

Thickness: 20 mm

Weight: 1.1 kg

Omni-directional sector antenna VECTOR V-PRO

17 dBi - 120 degree

Gain: 17 dBi

Range: 5.10 - 5.875 GHz

Vertical beam width: 7 degree

Horizontal beam width: 120 degree

Polarization: H

Reverse radiation: -28 dBi

VSWR: 1.4

Connector: N(F)

Height: 740 mm

Width: 120 mm

Thickness: 60 mm

Weight: 1.14 kg

Outdoor Grid Parabolic antenna 24dBi, 5 Ghz

(AP-F5G24)

Dimension: 300×400 mm

Frequency: 5.15~5.85GHz

Impedance: 50 Ohms

Gain: 24 dBi

VSWR: < 1.5 (Typ.), 2.0 (Max.)

HPBW/H(°): 9°

HPBW/V(°): 12°

Polarization: Vertical or Horizontal

Connector Type: N Female

Mounting: Pole Mount

Application: Outdoor

Lightning Protection: DC Ground

Operating Temp.: -40°C~70°C (-40°F~149°F)

Maximum Input Power: 100W

Weight: 1.4 kg

Rated Wind Velocity: 60 m/s

48/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#05491

Net Price:

27,80 EUR

Unit: pcs

#05492

Net Price:

32,70 EUR

Unit: pcs

Panel antenna RooTenna 19 dBi 5GHz

Antenna type: panel

Frequency range: 4940-5850 MHz

Gain: 19 dBi

Beam width: 15°

Polarization: H or V

VSWR: 1.5

Impedance: 50 Ω

Connector: SMA

Diam of holder: 38 - 51 mm

Dimentions: 267 x 267 x 89 mm

Weight: 0.8 kg

#04598

Net Price:

131,00 EUR

Unit: pcs

Parabolic dish antenna 18 dBi (smartBridges sB3801-5518)

Frequency range: 4.9 - 5.85 GHz

Dish diameter: 241 mm

Gain: 18 dBi

Beam width: 16 degree

Polarization: horizontal or vertical

VSWR: 1.4

Impedance: 50 Ohm

Cable: 60 cm LMR40

Connector: N(M)

Weight: 4,9 kg

#08519

Net Price:

57,80 EUR

Unit: pcs

Outdoor Grid Parabolic antenna 27dBi, 5 Ghz

(AP-F5G27)

Dimension: 400×600 mm

Frequency: 5.15~5.85GHz

Impedance: 50 Ohms

Gain: 27 dBi

VSWR: < 1.5 (Typ.), 2.0 (Max.)

HPBW/H(°): 6°

HPBW/V(°): 9°

Polarization: Vertical or Horizontal

Connector Type: N Female

Mounting: Pole Mount

Application: Outdoor

Lightning Protection: DC Ground

Operating Temp.: -40°C~70°C(-40°F~149°F)

Maximum Input Power: 100W

Weight: 2.4 kg

Rated Wind Velocity: 60 m/s

#06921

Net Price:

36,30 EUR

Unit: pcs

Outdoor Grid Parabolic antenna 30dBi, 5 Ghz

(AP-F5G30)

Dimension: 600×900 mm

Frequency: 5.15~5.85GHz

Impedance: 50 Ohms

Gain: 30 dBi

VSWR: < 1.5 (Typ.), 2.0 (Max.)

HPBW/H(°): 4°

HPBW/V(°): 6°

Polarization: Vertical or Horizontal

Connector Type: N Female

Mounting: Pole Mount

Application: Outdoor

Lightning Protection: DC Ground

Operating Temp.: -40°C~70°C (-40°F~149°F)

Maximum Input Power: 100W

Weight: 3.5 kg

Rated Wind Velocity: 60 m/s

#05399

Net Price:

45,20 EUR

Unit: pcs

Outdoor Panel antenna 23dBi (TP-Link

TL-ANT5823B)

Dimension: 320×320×20 mm

Frequency: 5.15~5.85GHz

Impedance: 50 Ohms

Gain: 23 dBi

VSWR(MAX.): < 1.5

HPBW/H( °): 12°

HPBW/V( °): 12°

Polarization: Vertical or Horizontal

Connector Type: N Female

Mounting: Pole Mount / Wall Mount

Application: Outdoor

Lightning Protection: DC Ground

Operating Temp.: -40°C~65°C(-40°F~149°F)

Storage Temp.: -40°C~80°C (-40°F~176°F)

Maximum Input Power: 100W

Safety, Emission and Others: RoHS, WEEE

Manufacturer: TP-Link

#05476

Net Price:

37,30 EUR

Unit: pcs

Parabolic dish antenna PARABOLA XP 29 dBi, 5

GHz

Dish diameter: 500 mm

Frequency range: 5,2 GHz ÷ 5,9 GHz

Gain: 29 dBi

Vertical beam width: 4,5 degree

Horizontal beam width: 4,5 degree

Polarization: h, v

VSWR: 1.4

Connector: SMA-RP(M)

Weight: 1,4 kg

Cable: MRC 240, 1m

Sector antenna 2x2 MIMO, 19dBi, 5GHz (TP-Link

TL-ANT5819MS)

Omnidirectional gain: 19 dBi

Frequency range: 5,0 - 6,0 GHz

Polarization: Vertical & Horizontal

Impedance: 50 Ω

VSWR: 1.8

F/B Ratio: Min. 28dB

Survival Wind Speed: 241km/h

Connector: SMA-RP(M)

Mounting: Pole Mount

Dimension: 700×133×57mm

Manufacturer: TP-Link

Antenna patch cables

#04600

Net Price:

9,44 EUR

Unit: pcs

Cable, SMA RP(F) - SMA RP(M), 3 m (TP-Link

TL-ANT24EC3S)

Dimension: 3 Meters

Frequency: DC ~ 3GHz

Impedance: 50Ω Nominal

Insertion Loss: 2.2 dB

Connector Type: RP-SMA Male to Female

Operating Temp.: -10°C~+60°C

Storage Temp.: -40°C~+80°C

#04601

Net Price:

12,10 EUR

Unit: pcs

Cable, SMA RP(F) - SMA RP(M), 3 m (TP-Link

TL-ANT24EC5S)

Dimension: 5 Meters

Frequency: DC ~ 3GHz

Impedance: 50Ω Nominal

Insertion Loss: 4.5 dB

Connector Type: RP-SMA Male to Female

Operating Temp.: -10°C~+60°C

Storage Temp.: -40°C~+80°C

#02627

Net Price:

5,49 EUR

Unit: pcs

Patch cable, Belden H155 N(F) - SMA RP(M), 1 m

49/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#02633

Net Price:

6,22 EUR

Unit: pcs

#05232

Net Price:

6,95 EUR

Unit: pcs

#02634

Net Price:

8,41 EUR

Unit: pcs

Patch cable, Belden H155 N(F) - SMA RP(M), 2 m

#02614

Net Price:

12,10 EUR

Unit: pcs

Patch cable, Belden H155 N(F) - SMA RP(M), 3 m

#02626

Net Price:

15,70 EUR

Unit: pcs

Patch cable, Belden H155 N(F) - SMA RP(M), 5 m

#02631

Net Price:

5,49 EUR

Unit: pcs

Patch cable, Belden H155 N(F) - SMA RP(M), 10 m

#02629

Net Price:

6,22 EUR

Unit: pcs

Patch cable, Belden H155 N(F) - SMA RP(M), 15 m

#05231

Net Price:

6,95 EUR

Unit: pcs

Patch cable, Belden H155 N(M) - SMA RP(M), 1 m

#02635

Net Price:

8,41 EUR

Unit: pcs

Patch cable, Belden H155 N(M) - SMA RP(M), 2 m

#02696

Net Price:

12,10 EUR

Unit: pcs

Patch cable, Belden H155 N(M) - SMA RP(M), 3 m

#02632

Net Price:

15,70 EUR

Unit: pcs

Patch cable, Belden H155 N(M) - SMA RP(M), 5 m

#05204

Net Price:

12,10 EUR

Unit: pcs

Patch cable, Belden H155 N(M) - SMA RP(M), 10 m

#05201

Net Price:

5,49 EUR

Unit: pcs

Patch cable, Belden H155 N(M) - SMA RP(M), 15 m

#05202

Net Price:

6,22 EUR

Unit: pcs

Patch cable, Belden H155 SMA RP(M) - SMA

RP(F) 10 m

#05203

Net Price:

8,41 EUR

Unit: pcs

Patch cable, Belden H155 SMA RP(M) - SMA

RP(F), 1 m

#05310

Net Price:

6,95 EUR

Unit: pcs

Patch cable, Belden H155 SMA RP(M) - SMA

RP(F), 2 m

#05311

Net Price:

8,05 EUR

Unit: pcs

Patch cable, Belden H155 SMA RP(M) - SMA

RP(F), 5 m

#08518

Net Price:

9,44 EUR

Unit: pcs

Patch cable, Belden H155 TNC RP(M) - N(M), 2 m Patch cable, Belden H155 TNC RP(M) - N(M), 3 m

Pigtail, N(M) - SMA RP(M), 3 m (TP-Link

TL-ANT24PT3)

Dimension: 3 Meters

Frequency: DC ~ 3GHz

Impedance: 50Ω Nominal

Insertion Loss: 2.9 dB

VSWR(MAX.): 1.5 to 1 Max.

Connector Type: N Male to RP-SMA Female

Operating Temp.: -10°C~+60°C

Storage Temp.: -40°C~+80°C

#05357

Net Price:

5,85 EUR

Unit: pcs

#05358

Net Price:

6,95 EUR

Unit: pcs

#05361

Net Price:

8,05 EUR

Unit: pcs

Patch cable Andrew CNT200 N(M) - SMA RP(M),

1 m

#05347

Net Price:

9,51 EUR

Unit: pcs

Patch cable Andrew CNT200 N(M) - SMA RP(M),

2 m

#05272

Net Price:

11,00 EUR

Unit: pcs

Patch cable Andrew CNT200 N(M) - SMA RP(M),

3 m

#05346

Net Price:

13,20 EUR

Unit: pcs

Patch cable Andrew CNT200 N(M) - SMA RP(M),

5 m

Patch cable Andrew CNT200 N(M) - SMA RP(M),

7 m

Patch cable Andrew CNT200 N(M) - SMA RP(M),

10 m

50/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#06874

Net Price:

5,85 EUR

Unit: pcs

#05273

Net Price:

8,05 EUR

Unit: pcs

#05300

Net Price:

9,51 EUR

Unit: pcs

Patch cable Andrew CNT200 SMA(M) - N(M), 1 m

#05362

Net Price:

11,00 EUR

Unit: pcs

Patch cable Andrew CNT400 N(M) - N(F), 1 m

#05301

Net Price:

13,90 EUR

Unit: pcs

Patch cable Andrew CNT400 N(M) - N(F), 2 m

#05359

Net Price:

16,80 EUR

Unit: pcs

Patch cable Andrew CNT400 N(M) - N(F), 3 m

#06044

Net Price:

8,05 EUR

Unit: pcs

Patch cable Andrew CNT400 N(M) - N(F), 5 m

#05478

Net Price:

9,51 EUR

Unit: pcs

Patch cable Andrew CNT400 N(M) - N(F), 7 m

#05477

Net Price:

21,20 EUR

Unit: pcs

Patch cable Andrew CNT400 N(M) - N(M), 1 m

Wireless accessories

#06933

Net Price:

13,50 EUR

Unit: set

Patch cable Andrew CNT400 N(M) - N(M), 2 m

#06932

Net Price:

12,20 EUR

Unit: set

Patch cable Andrew CNT400 N(M) - N(M), 10 m

#05381

Net Price:

5,34 EUR

Unit: pcs

(E8514) Tower clamp, OK-43T13

Distance from the mast of the chimney: 130 mm

Mast diameter max. : 50 mm

(E8516) Tower clamp, OK-50W13

Distance from the mast of the chimney: 130 mm

Mast diameter max. : 50 mm

(E8533) Wall bracket, 0 MM-50L13

Distance from a wall: 130 mm

Mount holes diameter: 12 mm

#06562

Net Price:

12,30 EUR

Unit: pcs

#05382

Net Price:

2,44 EUR

Unit: pcs

#05383

Net Price:

3,34 EUR

Unit: pcs

(E8533) Wall bracket, OMP-50L40

Distance from a wall: 387 mm

Mount hole diameter: 53 mm

#06729

Net Price:

5,00 EUR

Unit: pcs

(E8681) Antenna wall support, UML-38L10

Diameter: 38 mm

Distance from a wall: 130 mm

Height: 100 mm

Mount holes diameter: 9 mm

#05385

Net Price:

2,68 EUR

Unit: pcs

(E8682) Wall bracket, UML-38L30

Diameter: 38 mm

Distance from a wall: 300 mm

Height: 300 mm

Mount holes diameter: 9 mm

Weight: 0.97 kg

#06133

Net Price:

9,05 EUR

Unit: pcs

(E8686) Wall bracket, UML-38L30x60

Diameter: 38 mm

Distance from a wall: 340 mm

Height: 580 mm

Mount holes diameter: 10 mm

Weight: 1.44 kg colour: white or silver

#08806

Net Price:

9,12 EUR

Unit: pcs

(E8728) Antenna mount, TV-SAT, US-32*200, painted

Diameter: 32 mm

Distance from a wall: 200 mm

#05390

Net Price:

8,07 EUR

Unit: pcs

(E8735) Antenna mount, TV-SAT, WG-5, 35 cm x

110 cm, painted

Diameter: 40 mm

Distance from a wall: 400 mm

Height: 1100 mm

Waight: 2.33 kg

#05394

Net Price:

2,83 EUR

Unit: pcs

(E8735C) Antenna support, WG-5

Diameter: 38 mm

Width: 1100 mm

(E903815) Antenna mast, 38 mm/1.5

Diameter: 38 mm

Width: 1500 mm

(E9228) Antenna support, WG-25/800

Diameter: 25 mm

Width: 800 mm

51/53

http://www.atel-electronics.eu 2017.06.08 17:10

Wireless Communication

#06749

Net Price:

3,29 EUR

Unit: pcs

#06997

Net Price:

15,60 EUR

Unit: pcs

#08182

Net Price:

7,51 EUR

Unit: pcs

Nanostation mount (M2/M5, Loco M2/M5,

Nanostation 2, Nanostation 5)

#06379

Net Price:

3,15 EUR

Unit: pcs

Lightning protector 2.0-6.0 GHz, N(F) - N(M)

Frequency range: 2000 ÷ 6000 MHz

Loss: <= 0.9dB

Impedance: 50 Ω

Threshold voltage: < 700 V

Fuse: replaceable, gas tube

Dimensions: 73x40x20 mm

Weight : 90g

#06380

Net Price:

3,90 EUR

Unit: pcs

Mikrotik Power Adapter, 24V, 1A, PoE

#05408

Net Price:

8,10 EUR

Unit: pcs

PoE Injector 48V, 30W. (smartBridges sB2840) Pigtail U.FL - N(F), 20cm, RG316

#05227

Net Price:

23,10 EUR

Unit: pcs

Two-way antenna signal splitter

Splitter makes possible connecting two identical WiFi antennas to single AP. It ensures full electrical compatibility of attached antenna system. After installing the splitter one must turn off connected AP and turn it back again after about 10 seconds. The use of electrolicit copper secures best working conditions.

Impedance: 50 Ω

Connectors: 1x N(F) (input), 2x N(F) (output)

Signal loss: 3 dBm

Pigtail U.FL-SMA RP(F), 20cm, RG316

52/53

http://www.atel-electronics.eu 2017.06.08 17:10

Index

Standard AC ................................................................................................................................................................................................................. 1

Standard N .................................................................................................................................................................................................................. 13

Wireless active devices 2.4GHz ................................................................................................................................................................................. 31

Wireless active devices 5GHz .................................................................................................................................................................................... 34

Routerboard ................................................................................................................................................................................................................ 39

Antennas LTE, 3G, GSM ............................................................................................................................................................................................ 42

Antennas 2.4 GHz ....................................................................................................................................................................................................... 42

Antennas 5 GHz .......................................................................................................................................................................................................... 45

Antenna patch cables ................................................................................................................................................................................................. 49

Wireless accessories .................................................................................................................................................................................................. 51

53/53

http://www.atel-electronics.eu 2017.06.08 17:10

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals
